Jumbuck Chiminea User manual

Dispose of all polythene packaging carefully and keep out of the reach of children.
Please read the section on Important Notes prior to using your Chiminea.
TOOLS REQUIRED
*Philips screwdriver
*Pliers or adjustable spanner
IMPORTANT NOTES
*Do not use this chiminea indoors.
*Do not use this chiminea inside a tent, gazebo or within a confined space.
*This chiminea will become very hot during use and for some time after use. Keep children
away from the chiminea and do not touch metal parts of the chiminea when in use. Use
suitable gloves for protection, especially when loading the chiminea with logs or coal.
We recommend protecting your chiminea when not in use with a cover to protect from
rusting and exposure to rain.
For outdoor use only.
Improper installation, adjustment, alteration,
service or maintenance can cause property damage,
injury or death. Read the installation, operating
and maintenance instructions thoroughly before
installing or servicing this equipment.
Warning: accessible parts may be very hot. Keep
young children away.
Do not move the appliance during use.
Any modification of the appliance may be
dangerous.
Installer to leave instructions with the consumer
and consumer to retain them for future reference.

STEP 1
Place stove bottom (7) on its side and attach three legs (9) using nine bolt M6X25mm and nuts. Tighten
securely.
STEP 2
Insert two Grates (12) in the Stove Bottom (7). Attach three Connector plates-3 (6) to stove bottom (7) using
three Bolt M6X20mm and Nuts. Leave loosely tightened
STEP 3

Attach the Hook (10) on left side of the mesh stove assembly (5) using a nut.
STEP 4
Install Mesh Stove Assembly (5) on Stove Bottom assembly from previous steps. Align connector plates and
fasten using three Bolt M6X20mm and Nuts.

STEP 5
Install stove top (4) on mesh stove assembly (5) . Align the holes on the top with the holes in the connector
plates and connect using three Bolt M6X25mm and Nuts. Leave loosely tightened.
STEP 6
Connect lower flue (3) to stove top (4) using three Bolt M6X25mm and Nuts. Secure all bolts from previous
steps, but do not over tighten.

STEP 7
Attach upper flue (2) to lower flue (3) using three Bolt M6X20mm . Tighten securely.
STEP 8
Place Cap(1) and Spark Arrestor Screen(8) into Upper Flue as shown.

STEP 9

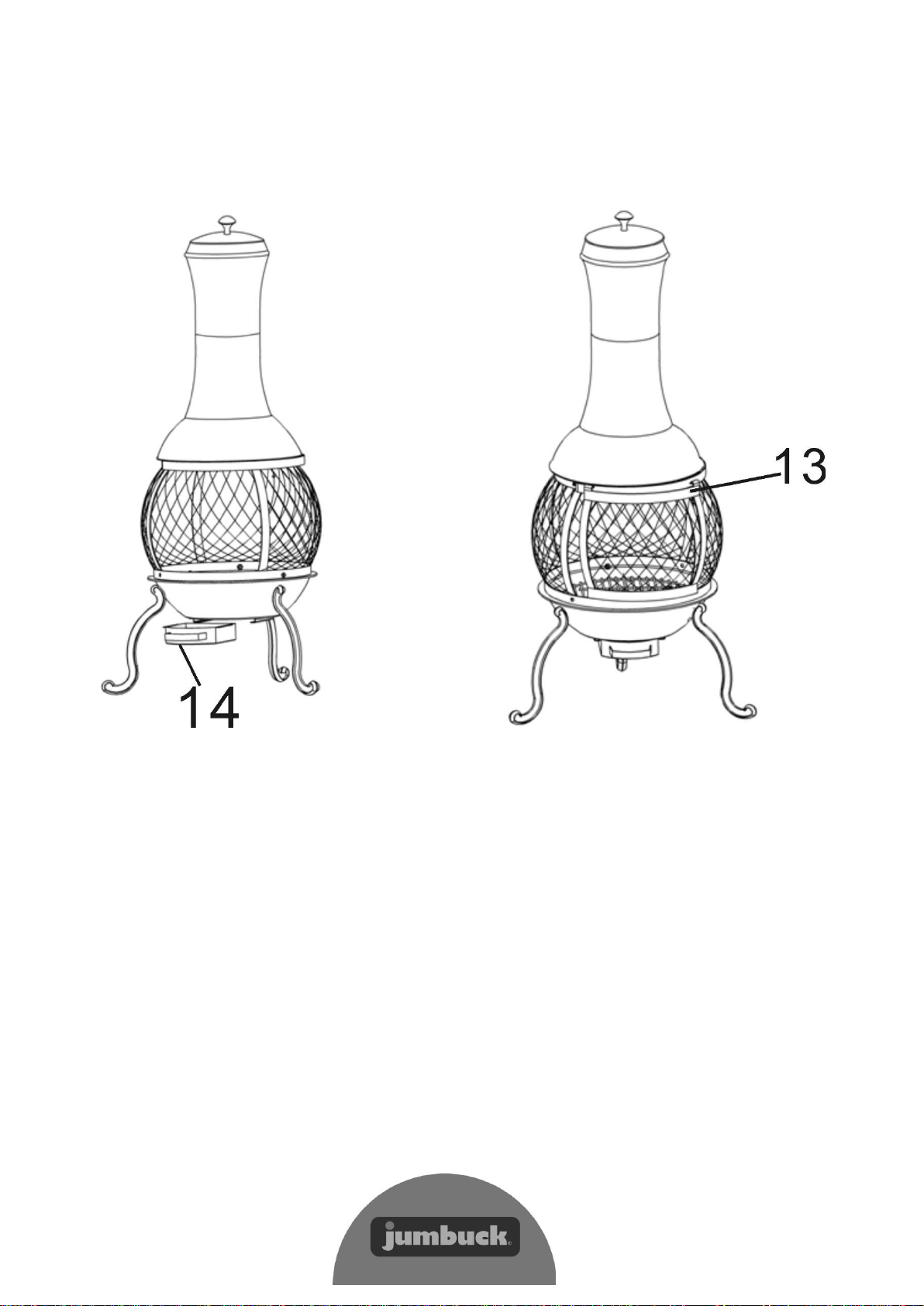

Insert ash tray (14) into stove bottom and put safety tool (11) on the hook, Install the door (13) onto the Mesh
stove assembly (5) . Be sure to tighten all loose of the loose screws in steps 1-8.
Your Chiminea is now ready for use. Please take care when lighting
your Chiminea. Always keep children away from this Chiminea at all
times.

Thank you for purchasing one of our quality
Jumbuck Chiminea.
YOUR JUMBUCK CHIMINEA IS COVERED
AGAINST DEFECTS FOR A PERIOD OF 12
MONTHS FOR PARTS AND LABOUR, REPAIR
OR REPLACEMENT
THIS WARRANTY EXCLUDES SURFACE RUST
AND DAMAGE CAUSED BY ABUSE OR
NEGLECT
CONDITIONS OF THE WARRANTY
•The appliance must be operated and
•maintained in accordance with the
instructions
•supplied in the operating manual.
•Any repair does not extend the warranty
period.
•Any parts other than original Jumbuck parts
will void this warranty.
FOR WARRANTY CLAIMS
This warranty forAustralia is given by :
Genesis Australia Corporation Pty Ltd
1/71 Truganina Road Malaga WA 6090
08 9248 9822
[e-mail]
The warranty for New Zealand is given by
Bunnings NZ Ltd, PO Box 14436, Panmure,
Auckland, 1741
Tel: [phone] Fax: [phone]
Email: Marke[email protected]z
Any claim under this warranty must be made
within 12 months from the date of purchase of
the product. Proof of purchase must be
presented.
WARRANTY
For Australian Customers
To make a claim under the warranty please contact
[e-mail] or return the product
(with proof of purchase) to any Bunning store.
(see.www.bunnings.com.au for store locations)
Genesis Australia Corporation Pty Ltd bears
reasonable, direct expenses of claiming under the
warranty.You may submit details and proof to us for
consideration. The warranty covers manufacturer
defects in materials, workmanship and finish under
normal use.
This warranty is provided in addition to other rights
and remedies you may have under law: our goods
come with guarantees which cannot be excluded
under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and to
compensation for other reasonably foreseeable loss
or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to
a major failure.
For New Zealand Customer
To make a claim under warranty return to any
Bunnings store (see www.bunnings.co.nz for store
locations)
Bunnings NZ Ltd bears reasonable, direct, expenses
of claiming under the warranty. You may submit
details and proof to our store for consideration.
This warranty is provided in addition to other rights
and remedies you may have under law : our goods
come with guarantees which cannot be excluded
under the Consumer GuaranteesAct 1993 (NZ). You
are entitled to replacement or refund for a major
failure and to compensation for other reasonably
foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced (goods
presented for repair may be replaced with
refurbished goods of thesame type rather than being
repaired. Refurbished parts may be used to repair
the goods) if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
The warranty excludes damage resulting from
product misuse or product neglect. The warranty
covers domestic use only and does not apply to
commercial applications.
Please thoroughly read conditions of warranty

FOR TECHNICAL ASSISTANCE
For Australia customers if you experience any
technical issues with your JUMBUCK CHIMINEA,
in the first instance review the instructions manual
or contact the warranty service agent.
For New Zealand customers if you experience
any technical issues with your JUMBUCK
CHIMINEA, in the first instance review the
instructions manual or contact your local Bunnings
warehouse
FOR SPARE PARTS
Call your local Bunnings warehouse and ask them
to order a part for you. You should provide the
following information:
Model of CHIMINEA................................................
Year of purchase.....................................................
Name of warranty service company
above......................................................................
Part that requires replacement (refer to the list of
spare parts in the instructions manual) ...................
.............................................................................................
WHAT IS NOT COVERED IN
THE WARRANTY
Removal or re-installation costs. This warranty
does not cover costs for transit, nor in home
service
Liability will only be accepted for loss or
damage during transit if at the time the product
was being transported by Bunnings or a
Bunnings approved contractor.
Lack of maintenance, abuse, neglect, misuse,
accidental or improper installation of this
appliances
Scratches, dents, corrosion or discoloration
caused by heat or abrasive chemicals
cleaners.
Corrosions or damage caused by exposure to
elements such as insects, weather or hail
Rusting of grill
Cleaning and wear and tear, service calls of
this nature are chargeable
Commercial use of this product
Unauthorized repairs or modification during
warranty period
RECORD THE FOLLOWING
INFORMATION
Attached the copy of the purchase receipt here
Date of Purchase.........................................................
Purchased From..........................................................
Location......................................................................
Model Name and Number...........................................
Serial Number.............................................................
Receipt Number..........................................................
