Jung KNX 2225WSU-01 User manual

Universal weather station
Art. No. : 2225WSU-01
Operating instructions
1 Safety instructions
2 Device components

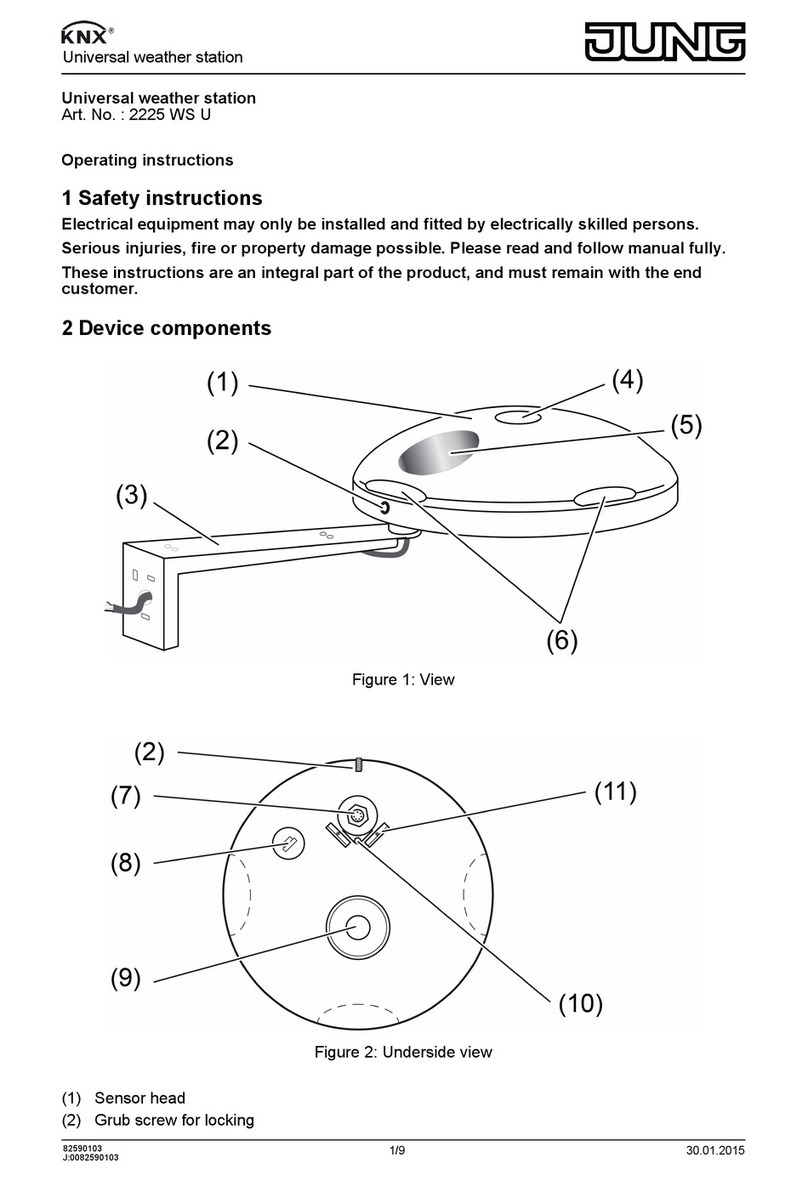

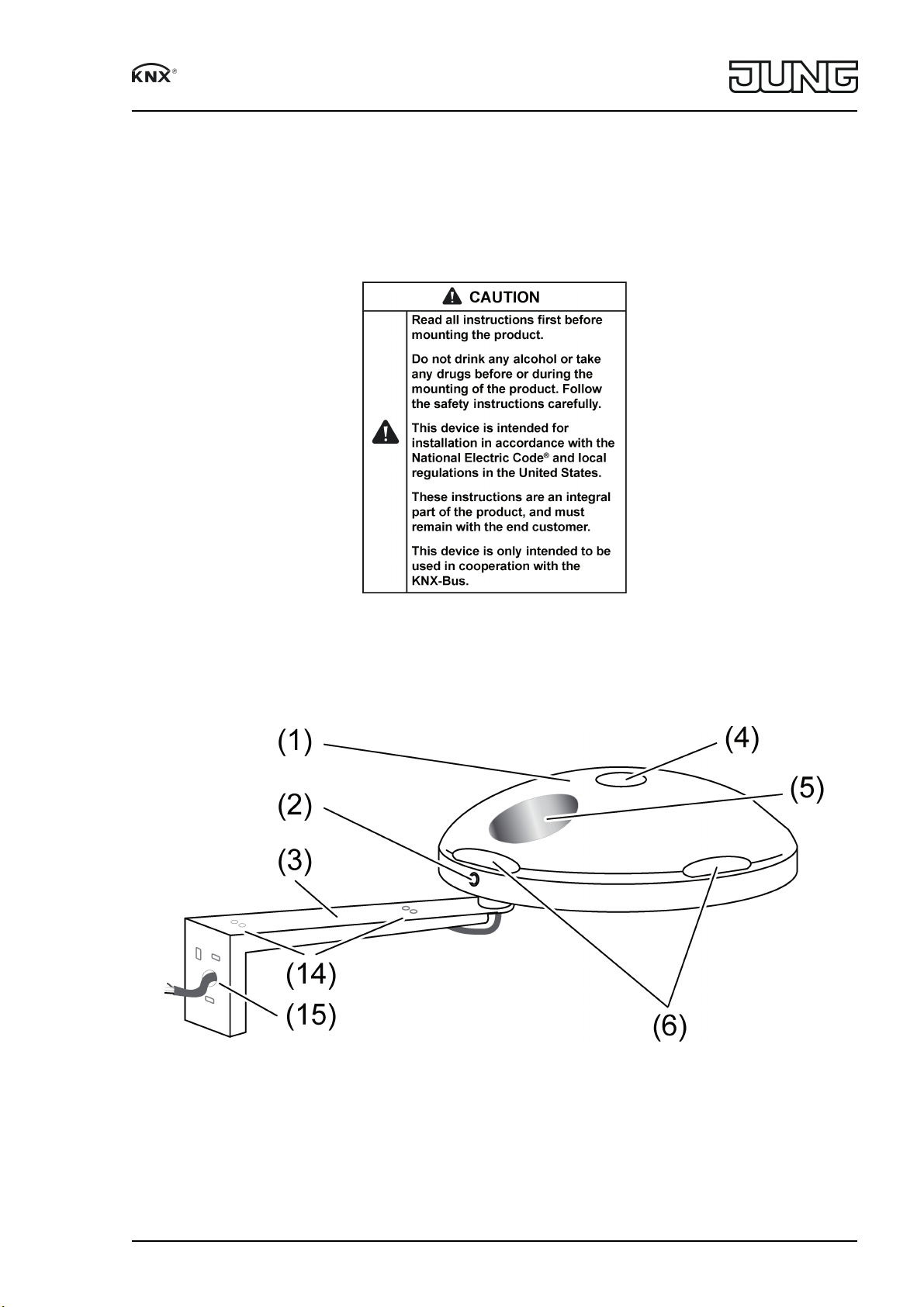

Figure 1: View
Universal weather station
1/10
82590115
J0082590115 07.11.2017

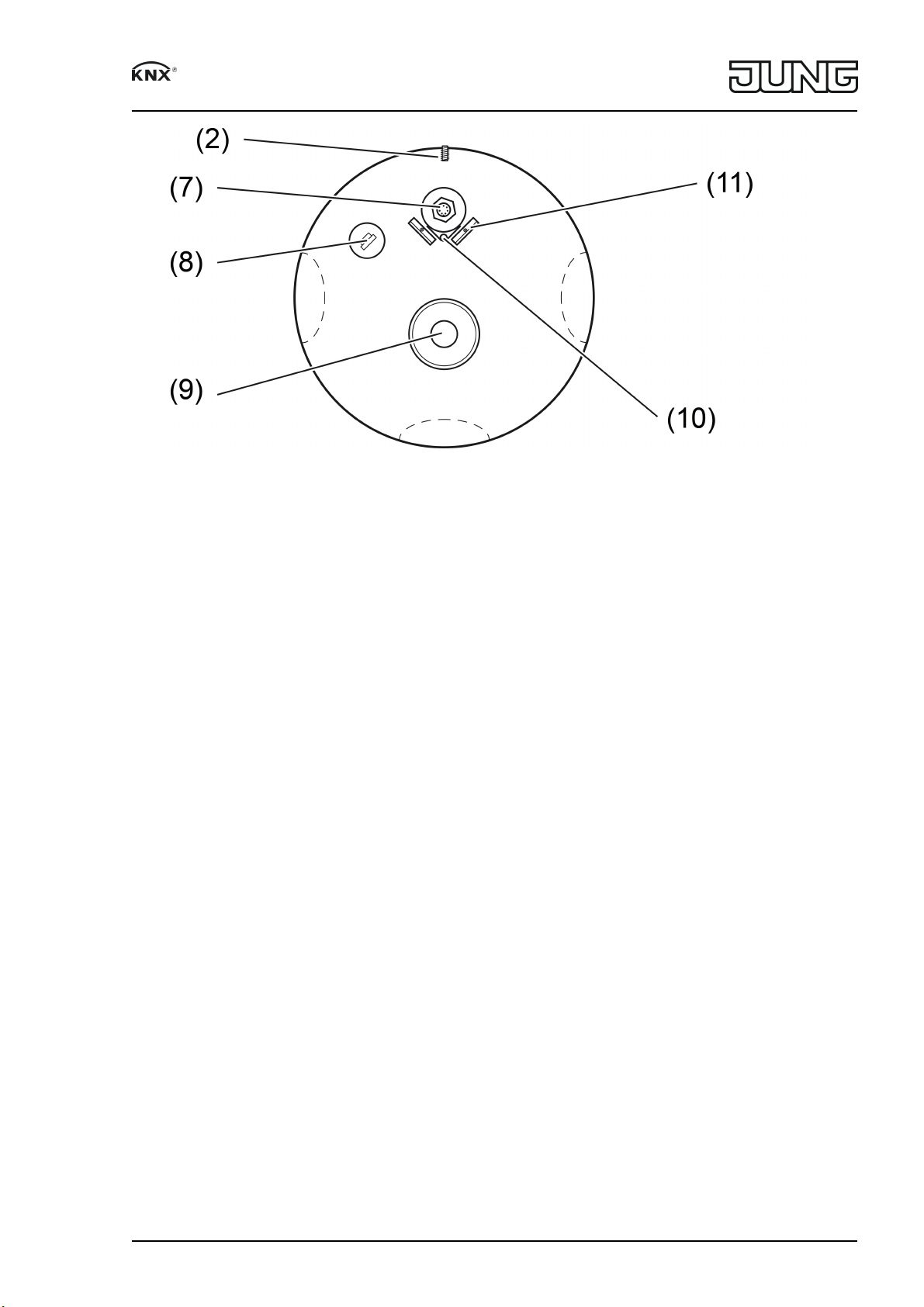

Figure 2: Underside view
(1) Sensor head
(2) Grub screw for locking
(3) Fastening arm
(4) Global radiation sensor
(5) Precipitation sensor
(6) Light and twilight sensors
(7) Mounting for fastening arm with bus connection
(8) Air humidity sensor
(9) Wind speed and wind direction sensor
(10) Temperature sensor
(11) Guide blade
(only if mounted on a mast)
(14) Holes for fastening and strain relief of the connecting cable with cable ties
(15) Cable bushing for connecting cable
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
The function of this device depends upon the software. Detailed information on loadable soft
ware and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNXcertified software. The latest versions of product database and
the technical descriptions are available on our website.
Intended use
 Measurement and evaluation of weather data: wind speed, wind direction, precipitation,
brightness, global radiation, twilight, temperature, relative air humidity, and air pressure
 Operation with NEC Class 2 suitable power supply AC/DC 24 V SELV
 Installation on the outside of buildings, preferable in the roof and facade area
iThe measured values apply to the mounting location. Variations from other weather ser
vices – e.g., due to local turbulence or areas with buildups of air – are possible.
2/10
Universal weather station
82590115
J0082590115 07.11.2017

4 Information for electrically skilled persons
4.1 Mounting and electrical connection
Select mounting location

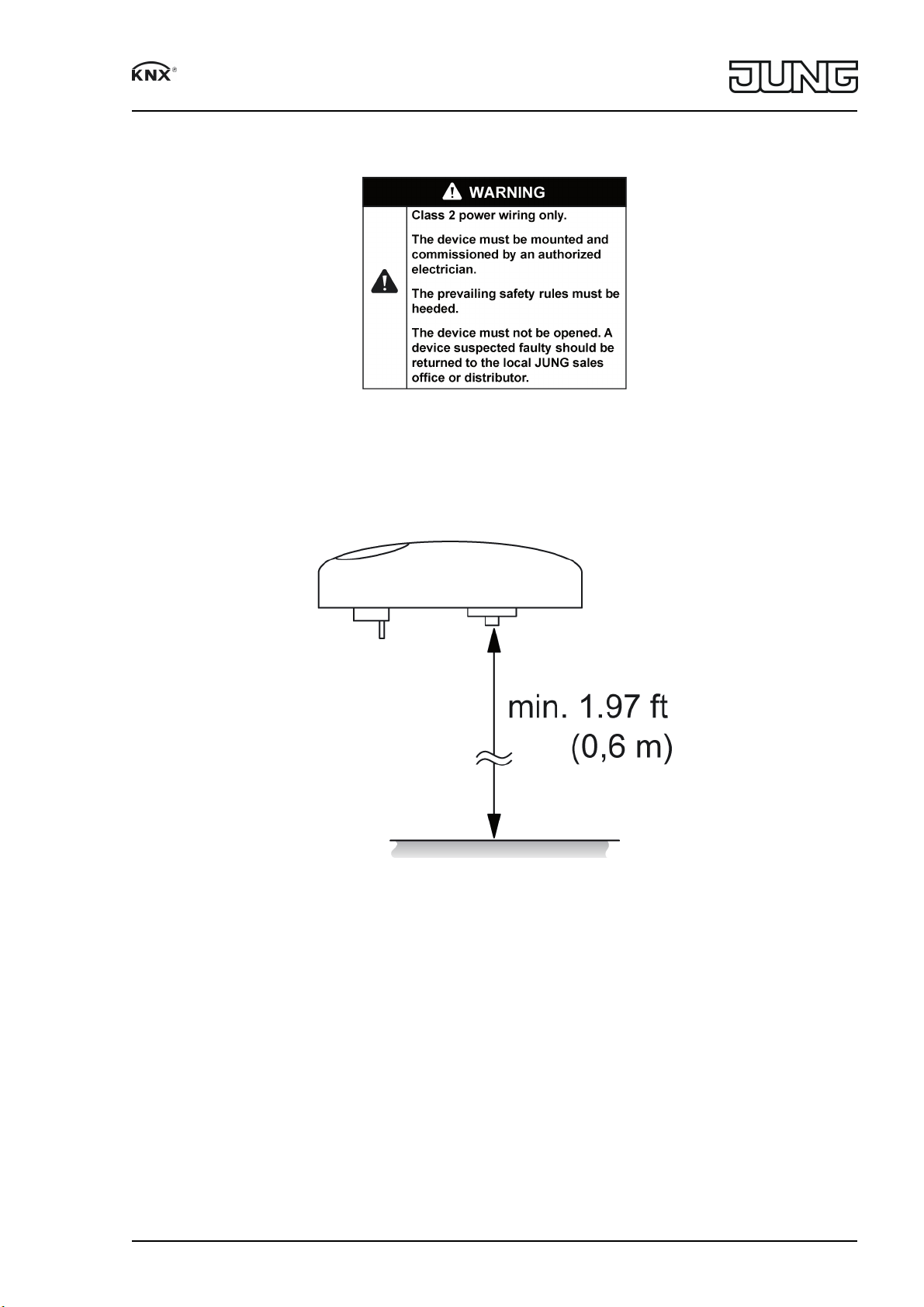

Figure 3: Minimum distance to surfaces
3/10
Universal weather station
82590115
J0082590115 07.11.2017

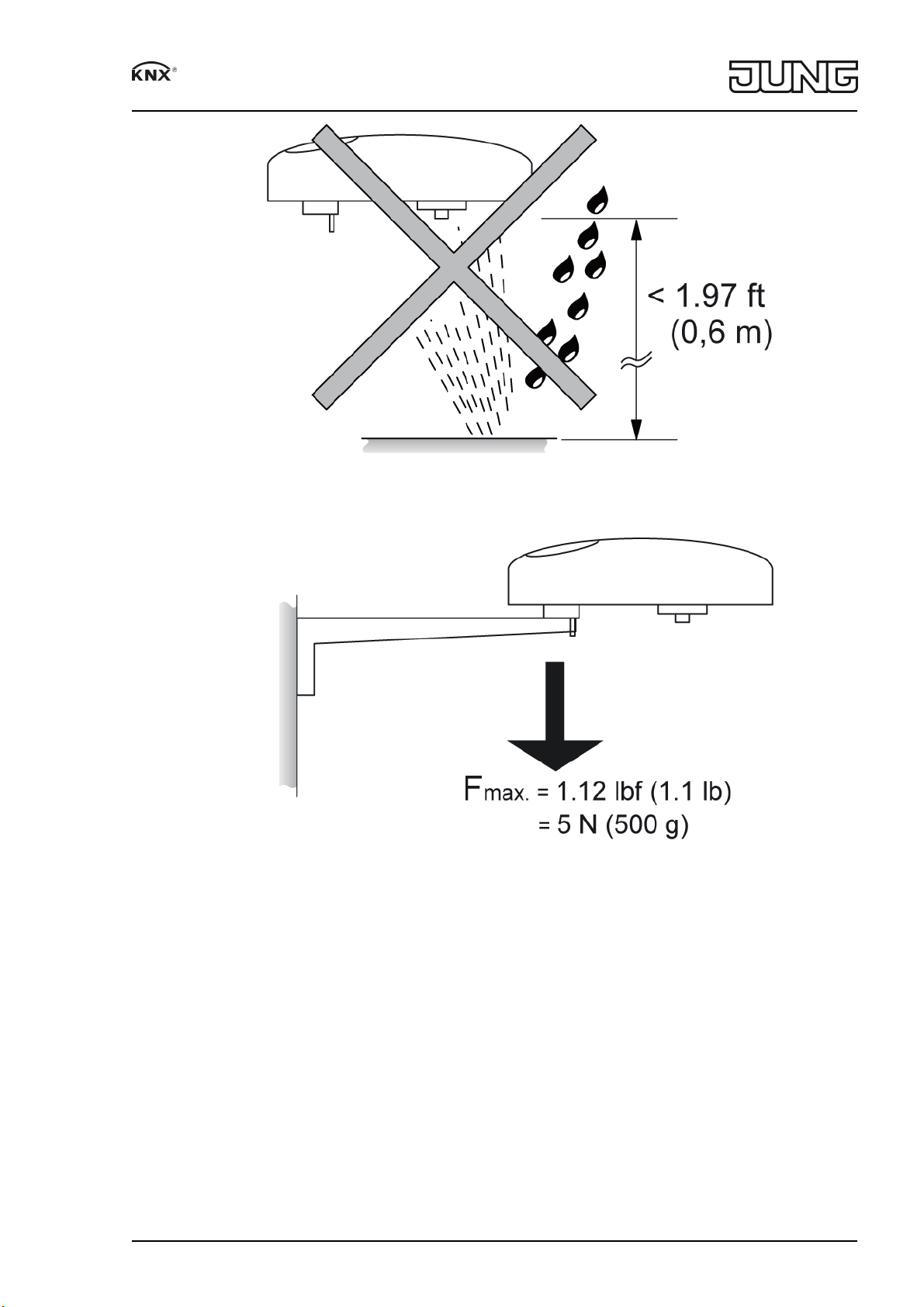

Figure 4: Avoid spray water
Figure 5: Maximum load on the fastening arm
Select a mounting location in which the weather station is not influenced by local obstacles or
shading, such as surrounding trees, chimneys, awnings, etc. The sensor must be able to detect
wind, rain, and ambient brightness without impedance. Avoid slipstream, shadow casting, and
light reflection.
Preferred mounting on a freestanding mast. If the device is mounted on house walls, the mea
surement of wind and brightness in particular can be distorted.
Do not mount it below or next to building sections from which water can drip onto the device.
Select the mounting location so that the weather station will be accessible.
In the case of flat roofs, locate the weather station as close to the center of the roof as possible.
Minimum distance to surfaces below the weather station: 1.97 ft (0.6 m)(figure 3). Otherwise,
the sensors on the underside may be damaged by penetrating spray water (figure 4).
Direct sunlight, chimneys, or other waste gas or ventilation systems affect the temperature mea
surement.
Do not operate in the vicinity of radio transmitter systems. Doing so will compromise the func
tion.
i Do not connect more than 3 weather stations in a KNX line.
4/10
Universal weather station
82590115
J0082590115 07.11.2017

Mounting a weather station without a fastening arm on a freestanding mast

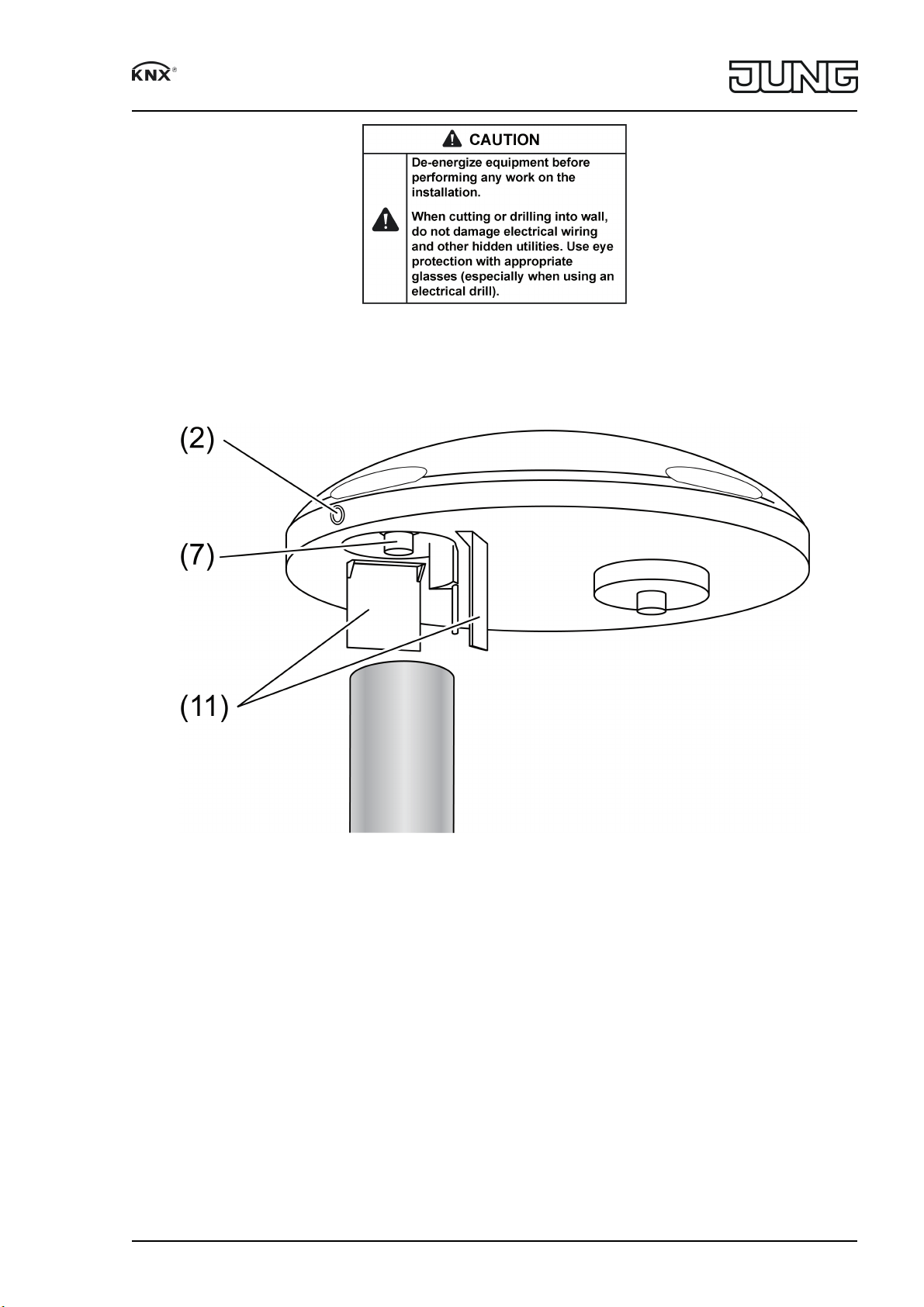

Figure 6: Mounting on a freestanding mast without a fastening arm
Use mast with outer diameter <0.98 in (25 mm) and inner diameter >0.75 in (19 mm).
oMount the enclosed guide blade (11) in the fields provided next to the connection (7).
iIf mounted on a mast without the guide blade, correct wind direction measurement will not
be possible due to the resulting turbulences.
oRun the connection cable through the mast.
oAttach the 7pin plug to the connection (7). Tighten threaded ring with
max. 0.37 lbf.ft (0.5 Nm).
oMount the weather station on the mast and align it. The grub screw (2) must be pointing
north.
oTighten grub screw (2) with max. 0.44 lbf.ft (0.6 Nm).
5/10
Universal weather station
82590115
J0082590115 07.11.2017

Mounting a weather station with a fastening arm on a mast or wall

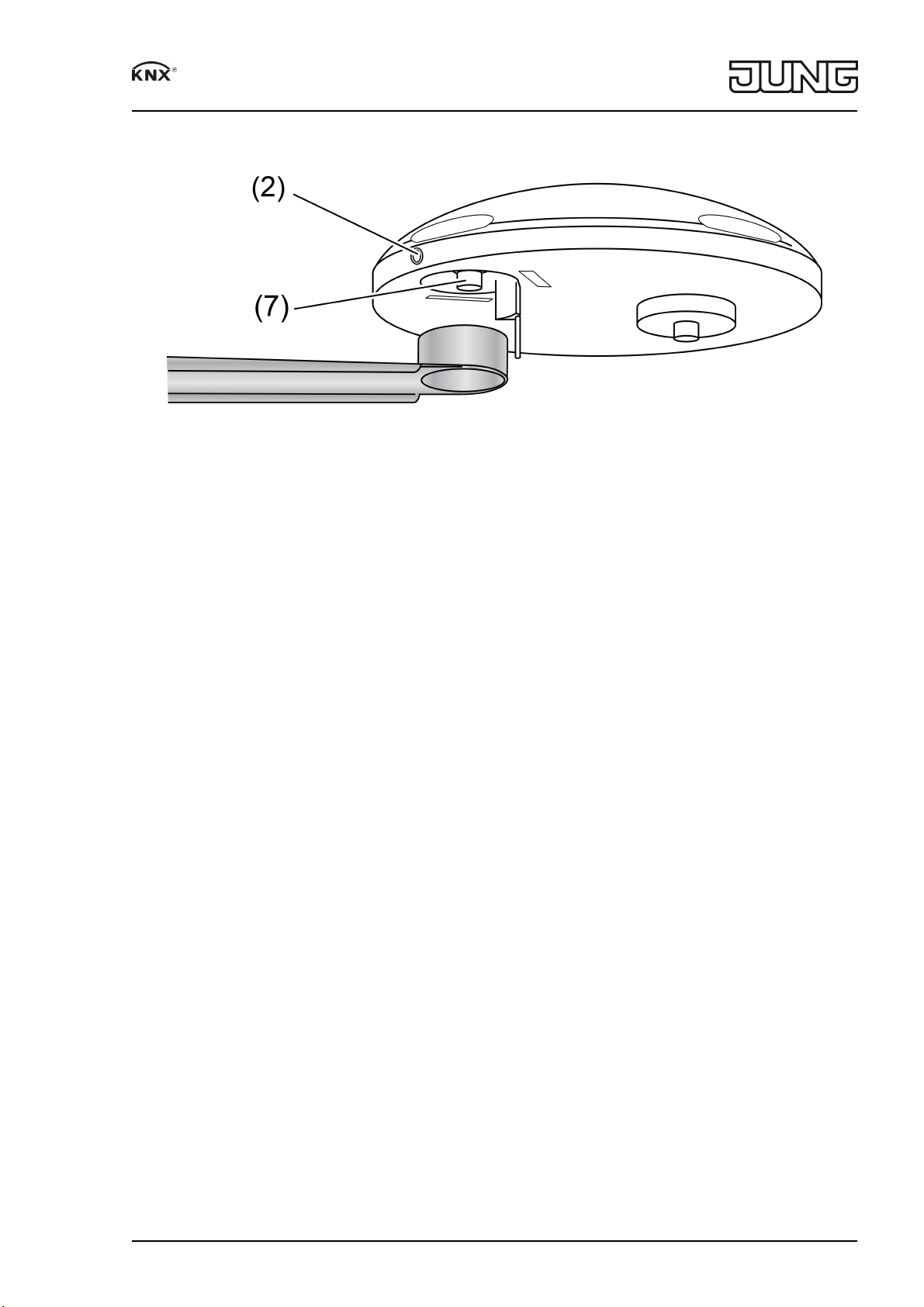

Figure 7: Mounting with fastening arm
Mount enclosed fastening arm onto a suitable mast or wall.
The enclosed hose clamps are suitable for a maximum mast diameter of up to 2.36 in (60 mm).
iWhen mounting on the supplied fastening arm, do not mount the enclosed guide blade.
oMast mounting: Attach the fastening arm to the mounting mast using the enclosed hose
clamps.
oWall mounting: Attach the fastening arm to the wall through the boreholes using three suit
able screws.
oRoute the connecting cable along the underside of the fastening arm and guide the 7pin
plug through the open pipe socket at the end of the fastening arm.
oFit the cable ties for strain relief (14).
oAttach the 7pin plug to the connection (7). Tighten the threaded ring with max.
0.37 lbf.ft (0.5 Nm).
oMount the weather station on the fastening arm and align it. The grub screw must be point
ing north.
oTighten the grub screw with max. 0.44 lbf.ft (0.6 Nm).
oRoute the connecting cable through the cable bushing (15) into an installation pipe.
6/10
Universal weather station
82590115
J0082590115 07.11.2017

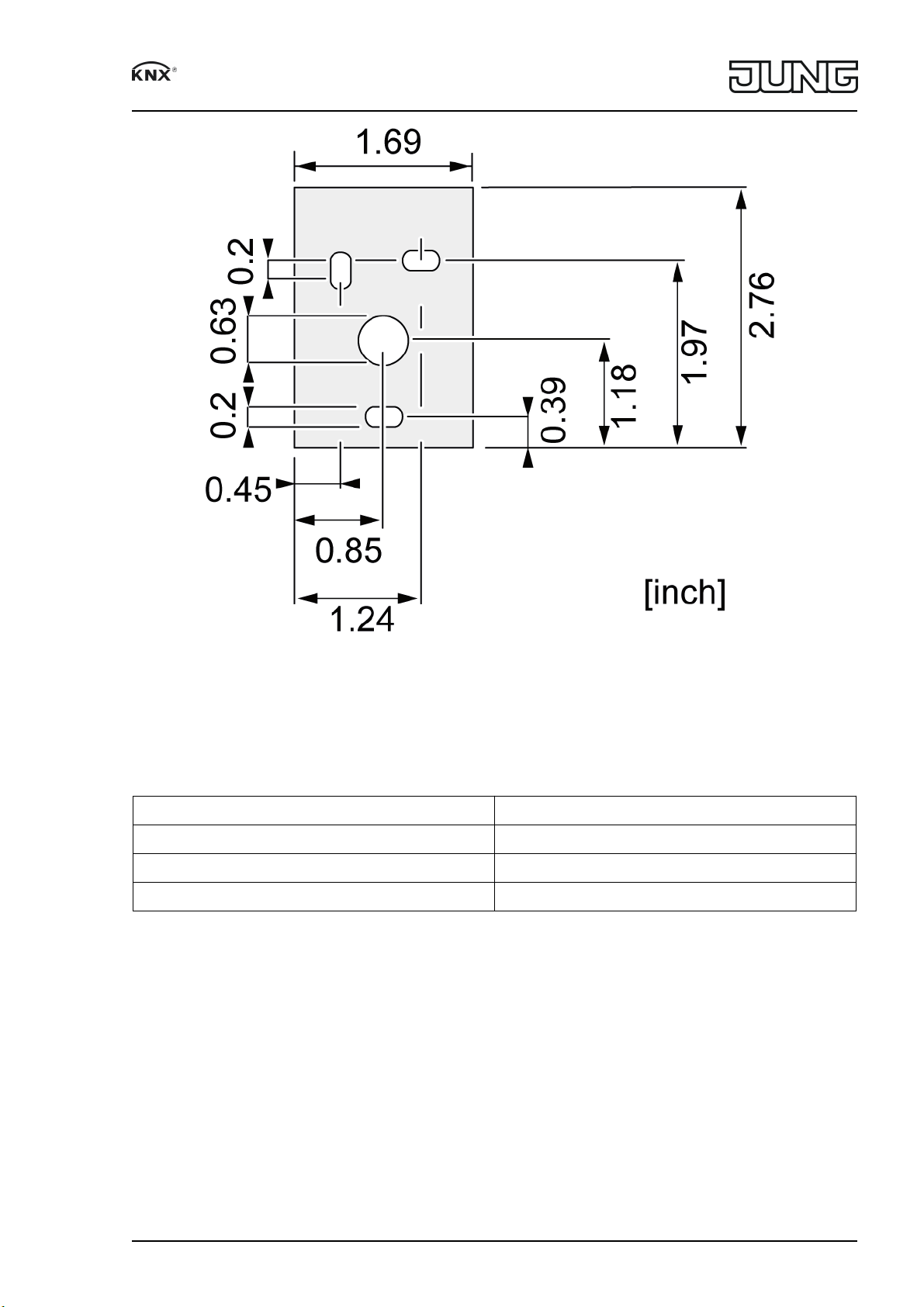

Figure 8: Fastening arm – dimensions for boreholes
Mounting and connecting the device
iUse only cables which are approved for KNX.
oConnect the bus line and external power supply to the connecting cable.
red KNX+
Black KNX–
orange AC/DC 24 V ~/+
brown AC/DC 24 V ~/+
iThe sensor head is translucent. Therefore, do not stick anything or write on the sensor
head.
7/10
Universal weather station
82590115
J0082590115 07.11.2017

Align the device
Figure 9: Orienting the weather station
oAlign the sensor head in the appropriate direction or – depending on the detailed onsite
circumstances – according to the alignment of the facade (figure 9).
4.2 Commissioning
Commissioning the device
Figure 10: Position of the programming LED and reed contact
oSwitch on the bus voltage.
oSwitch on supply voltage.
oHold the supplied programming magnet by the integrated reed contact (12).
The programming LED (13) indicates the programming state blue.
oProgramming the physical address and application program
oNote the physical address on adhesive labels on the underside.
The device is ready for operation.
8/10
Universal weather station
82590115
J0082590115 07.11.2017

5 Appendix
Disposal
Please consider your local regulation for disposal and electronic waste recycling.
5.1 Technical data
Supply
Rated voltage AC/DC24 V SELV
(± 10%)
Current consumption 100 ... 400 mA
(dependent on the weather)
Protection class III
Connecting cable
Cable type LiYCY 4xAWG26
Cable length 16.4 ft (5 m)
Total length per line 49.2 ft (15 m)
Number of weather stations max. 3 (per line)
KNX
KNX medium TP
Commissioning mode S-mode
Rated voltage KNX DC 21 ... 30V SELV
Current consumption KNX max. 5mA
Ambient conditions
Housing
Dimensions Ø×H 5.12x2.68 in
(130x68 mm)
Weight ca. 8.11 oz (230 g)
Wind direction sensor
Measuring range 1 ... 360°
Resolution 1°
Accuracy ± 10°
Wind speed sensor
Resolution 0.3 ft/s (0.1 m/s)
Accuracy (≤ 10 m/s) ± 3.3 ft/s (± 1 m/s)
Accuracy (>10 m/s) ± 5%
iAccuracy as RMS average value over 360°.
Temperature sensor
Measuring range -22 ... +140°F
(-30 ... +60 °C)
Resolution 0.1 K
Accuracy ± 1 K (Wind > 6.56 ft/s
(2 m/s), for 23 ... 77°F
(-5 ... +25 °C))
Precipitation sensor
Measuring range yes/no
Accuracy Fine drizzle
Brightness sensors
Number 4
Measuring range approx. 0 ... 13.9 kfc
(0 ... 150 klx)
Resolution 93 fc (1 klx)
Accuracy ± 3%
Spectral range 475 ... 650nm
Twilight sensor
Measuring range approx. 0 ... 83 fc (0 ... 900 lx)
Resolution 0.1 fc (1 lx)
Accuracy ± 1 fc (± 10 lx)
Air pressure sensor
9/10
Universal weather station
82590115
J0082590115 07.11.2017

Measuring range 4.35 ... 15.95 psi
(300 ... 1100 hPa)
Resolution 0.00015 psi (0,01 hPa)
Accuracy ± 0.007 psi (± 0,5 hPa) at 68 °F (20 °C)
Humidity sensor
Measuring range 0 ... 100% rel. humidity
Resolution 0.1% rel. humidity
Accuracy ± 10 % rel. humidity at 68 °F (20 °C)
abs. humidity 0 ... 0.4 oz/ft³
(0 ... 400 g/m³)
Resolution 0.00001 oz/ft³ (0,01 g/m³)
Global radiation
Measuring range 0 ... 120 W/ft²
(0 ... 1300 W/ft²)
Resolution 0.1 W/ft² (1 W/m²)
Accuracy ± 10%
Spectral range 350 ... 1100 nm
Purpose of control Sensing Control
Construction of control Independently Mounted Control for Surface
Mounting
Pollution Degree PD 2
Impulse Voltage 330V
iAll accuracy specifications relate to the respective measuring range end value.
5.2 Warranty
If you have any questions about this product, contact:
Jung USA, Inc.
350 Fifth Avenue, Suite 5220
New York, NY 10118
Phone: [phone]
Email: [email protected]
www.jungcontrols.com
For the product warranty, please refer to the attached document.
