Jung KNX 2224 WH User manual

KNX Home weather station
Ref.-no.: 2224 WH
Operating Instructions
Home weather station
1. Safety instructions............................................................................ 1
2. Device layout ..................................................................................... 2
3. Function ............................................................................................. 2
3.1. System information....................................................................... 2
3.2. Designated use............................................................................. 2
3.3. Product features............................................................................ 2
4. Fitting and electrical connection..................................................... 3
4.1. Installing the device ...................................................................... 3
4.2. Aligning the device........................................................................ 4
4.3. Opening the device....................................................................... 4
5. Start-up............................................................................................... 4
6. Technical data ................................................................................... 5
7. Accessories ....................................................................................... 5
8. Guarantee........................................................................................... 6
1. Safety instructions
Electrical equipment must be installed and fitted by qualified
electricians only. Failure to observe the instructions may
cause damage to the device and result in fire or other
hazards. Do not operate the device in the vicinity of
chimneys or other exhaust or ventilation structures Do not
operate the device close to radio transmitters. Choose the
place of installation in such a way that the device is
accessible for servicing purposes. Do not open the sensor
head. Do not make inscriptions or stick labels on the sensor
head. Clean the underside of the sensor head with a soft
brush only. These operating instructions are part of the
product and must be left with the final customer.
Stand: Jan-08 825 628 03

KNX Home weather station
Ref.-no.: 2224 WH
2. Device layout
(1) Sensor head f
(2) Mounting bracket
(3) Terminal box
(4) Temperature and wind sensors
(5) Brightness and twilight sensors
(6) Rain sensor
3. Function
3.1. System information
This device is a product of the KNX system and complies with KNX
directives. Detailed technical knowledge obtained in KNX training courses
is a prerequisite to proper understanding.
The functionality of this device depends on the software. Detailed
information on software versions and attainable functionality as well as
the software itself can be obtained from the manufacturer‘s product
database. Planning, installation and commissioning of the unit is effected
by means of KNX-certified software. The product database, technical
descriptions, conversion programs and other utilities are available in their
latest version in the Internet. www.jung.de
3.2. Designated use
•Measurement and evaluation of weather data: wind speed,
precipitation, twilight, temperature and brightness.
•Vertical mounting on the outside of buildings, preferably on
roofs and at facades.
3.3. Product features
•Integrated KNX bus coupler
•Compact housing
•Low-maintenance device
•Measured-value acquisition and limit value monitoring
2

KNX Home weather station
Ref.-no.: 2224 WH
Information for qualified electricians
LD ANGER!
Electric shock in case of accidental contact with live parts. Electric
shocks can b e fatal.
Before working on the device, cut out the mains supply and cover
up live parts in the surroundings.
4. Fitting and electrical connection
4.1. Installing the device
The place of installation must be suitable for the purpose. The device
must not be influenced on any side by obstacles or shadows.
LChoose the place of installation in such a way that the device
remains accessible for future servicing activities.
LDirect exposure to sunlight influences the measurement of
temperature.
•Lead the wires for power supply and bus connection through
one of the two cable penetrations (11) into the terminal box (3).
•Attach the bottom half of the terminal box to a house wall or
mounting pole, etc. (accessory).
•Connect the supply voltage to terminal (9).
•Connect the KNX bus line to terminal (10).
LThe yellow/white wire pair of the KNX bus line can be used for
the supply voltage. Observe the specifications for SELV voltages.
•Connect the plug of sensor head (1) to sensor socket (8) in
terminal box (3).
CAUTION!
R isk of irreparable damage to the device. Do not use the
angle support (2) as a lever and pull downwards.
•Place the device from above onto the base of the terminal box
and snap on at the bottom.
3

KNX Home weather station
Ref.-no.: 2224 WH
4.2. Aligning the device
•Align the sensor head with the help of a compass in such a way
that the bevel points southwards.

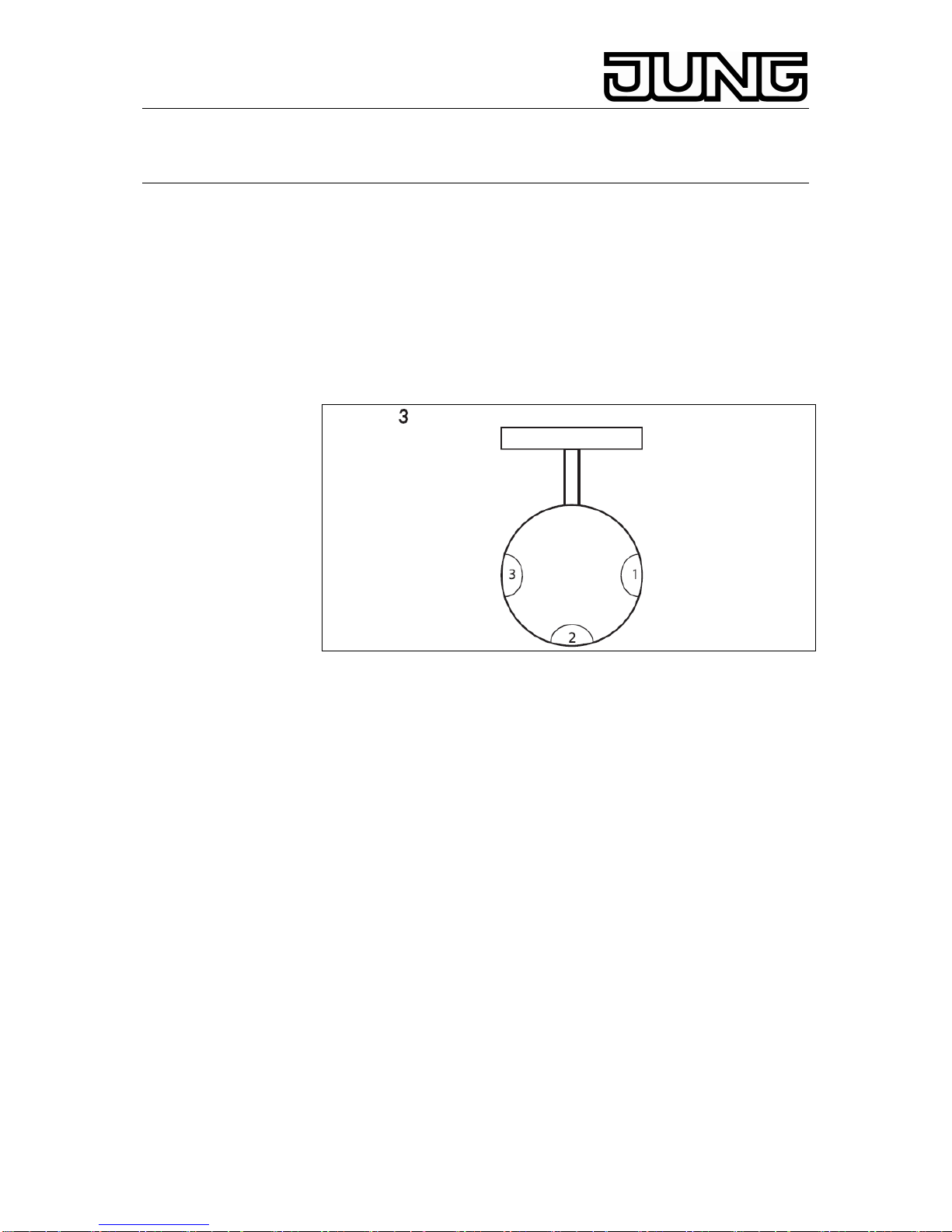

LWithout proper alignment, the brightness sensors do not face the
correct cardinal points. The position of the brightness sensors
viewed from above is shown in Fig. 3.
LIn some cases it may be useful to align the device according to
the prevailing local conditions, e.g. in accordance with the
facades. Geographical peculiarities may equally require another
kind of alignment.
4.3. Opening the device
•Stick a screwdriver into the notch at the bottom of the terminal
box and lever up the upper part of the box carefully.
•Detach the sensor plug from the sensor terminal (5).
5. Start-up
Putting the device into operation
Switch on the bus voltage.
Switch on the supply voltage.
Place the programming magnet supplied over the integrated reed
contact (13)..
The programming LED (14) lights up red to indicate the programming
mode.
Allocate the physical address and load the application software into the
device.
Note down the physical address on stickers inside the terminal box
(12) and in the cover of the terminal box (Fig. 2).
The device is ready for operation.
Appendix
4

KNX Home weather station
Ref.-no.: 2224 WH
6. Technical data
KNX-medium TP1
Start-up mode S-Mode
KNX supply KNX 21...32 V DC
KNX power consumption typ. 450 mW
KNX connection KNX Anschlussklemme
External supply
Rated voltage AC/DC 24 V SELV
Power consumption max. 7,5 W
Connection Connecting terminal yellow/white
Ambient conditions
Ambient temperature -20 °C … +55 °C
(no icing and no soiling)
Storage temperature -40 °C … +70 °C
Box
Type of protection IP 44 (position of normal use)
Safety class III
Dimensions (L x W x H) approx. 88 x 170 x 204 mm
(incl. mounting bracket)
Weight ca. 240 g
Sensor signals
Temperature
Measuring range approx. -20 ... +55 °C
Accuracy ± 1 K (Windgeschw. > 0,5 m/s)
Wind speed
Measuring range ca. 0 ... 40 m/s
Accuracy ± 2 m/s
Precipitation
Measuring range precipitation yes / no
Sensitivity fine drizzle
Shut-off delay adjustable
Brightness
Cardinal points Ost, Süd, West
Measuring range ca. 1 ... 110 klx
Spectral range 700 ... 1050 nm
Accuracy 10 % (upper end of measuring range)
Twilight
Cardinal point south
Measuring range ca. 0 ... 674 lx
Spectral range 700 ... 1050 nm
Accuracy 10 % (upper end of measuring range)
7. Accessories
Power supply g AC 24 V ~ WSSV10
5

KNX Home weather station
Ref.-no.: 2224 WH
Mounting bracket for outside corner MW 270 WW
Mounting bracket for installation on poles MM 100
8. Guarantee
Our products are under guarantee within the scope of the statutory
provisions.
Please return the unit postage paid to our central service
department giving a brief description of the fault:
ALBRECHT JUNG GMBH & CO. KG
Service-Center
Kupferstr. 17-19
D-44532 Lünen
Service-Line: 0 23 55 . 80 65 51
Telefax: 0 23 55 . 80 61 89
E-Mail: [email protected]
General equipment
Service-Line: 0 23 55 . 80 65 55
Telefax: 0 23 55 . 80 62 55
E-Mail: [email protected]
KNX equipment
Service-Line: 0 23 55 . 80 65 56
Telefax: 0 23 55 . 80 62 55
E-Mail: [email protected]
6
