Juniper PTX10008 User manual

Quick Start Guide
PTX10008 Packet Transport Router
IN THIS GUIDE
PTX10008 System Overview | 1
Step 1–Prepare the Site | 2
Step 2–Unpacking the PTX10008 | 4
Step 3–Mount the Chassis in the Rack | 6
Step 4–Install the Line Cards | 11
Step 5–Install the Front Panel | 14
Step 6–Connect Power to the Chassis | 19
Step 7–Connecting to the Network | 41
Step 8–Perform the Initial Configuration | 42
Safety Warnings Summary | 44
PTX10008 System Overview
NOTE: The PTX10008 Quick Start is designed to get your new router up and running in short order. For a full
description of all the components, the specifications, and unabridged installation instructions, see the PTX10008
Packet Transport Router Hardware Guide.
The Juniper Networks PTX10008 Packet Transport Router enables cloud and data center operators to smoothly transition
from 10-Gigabit and 40-Gigabit Ethernet networks to 100-Gigabit and 400-Gigabit Ethernet high-performance networks.
This flexible, 13 rack unit (13-U) modular chassis has eight line card slots that can support a maximum of 1152 10-Gigabit

Ethernet ports, 288 25-Gigabit Ethernet ports, 288 40-Gigabit Ethernet ports, 288 50-Gigabit Ethernet ports, 1152
100-Gigabit Ethernet ports, 576 200-Gigabit Ethernet ports, and 288 400-Gigabit Ethernet ports.
Step 1–Prepare the Site
IN THIS SECTION
Rack-Mount Requirements | 2
Power Requirements | 2
Cooling and Maintenance Requirements | 3
Before you install the PTX10008, make sure the site meets all of the rack, power, cooling, and clearance requirements.
Rack-Mount Requirements
The PTX10008 router chassis is designed to be installed in standard 19-in. wide four-post racks that are spaced at 1 U
(1.75 in. or 4.45 cm) increments.
You can stack a maximum of three PTX10008 chassis in a four-post rack if:
•The rack is 42 U or greater.
•The rack meets the strength requirements to support the weight of the chassis and the cabling. A single PTX10008
chassis without optics and cabling can range from 145.2 lb (65.86 kg) to 421.25 lb (191.07 kg).
•The facility has adequate cooling and power to support additional systems.
Power Requirements
The PTX10008 router is available in AC, DC, high voltage AC (HVAC) and high voltage DC (HVDC) power configurations.
Each configuration has different power supplies, power cables, and cooling requirements. The power configuration and
the number of line cards you are installing determine your power requirements for the system. A procedure to determine
these power requirements is available in the PTX10008 Packet Transport Hardware Guide.
2

Cooling and Maintenance Requirements
For the cooling system to operate properly, you must allow sufficient clearance around the installed chassis for cooling
and maintenance (see Figure 1 and Figure 2 for a top view of clearance for the PTX10008. The cooling system in a
PTX10008 chassis consists of dual fan trays and dual fan tray controllers. Systems with 14.4 Tbps line cards require
addition air volume and use the JNP10008-FAN2 and JNP10008-FTC2 fans and fan tray controllers.
Figure 1: Clearance Requirements for Airflow and Hardware Maintenance for a PTX10008 Chassis with JNP10008-FAN
Figure 2: Clearance Requirements for Airflow and Hardware Maintenance for a PTX10008 with JNP10008-FAN2
g100666
30 in. (76.2 cm)
Ports
Clearance required
for maintenance
19 in.
(48.3 cm)
(Mounting
flange width)
24 in. (61 cm)
FRUs
Clearance required
for maintenance
32 in.
(81.3 cm)
33.7
(85.6 cm)
17.4 in.
(44.2 cm)
34.2 in.
(86.8 cm)
If you are mounting a PTX10008 in a rack with other equipment, ensure that the exhaust from other equipment does not
blow into the intake vents of the chassis.
The air intake to cool the chassis is located in the vents of the line cards and Routing and Control Boards (RCBs). Air flows
passes from the line cards and RCBs, through the switch interface boards (SIBs), and exists from the fans trays and the
power supplies. This airflow is called port-to-FRU cooling or airflow out (AFO). See Figure 3.
3

Figure 3: Top View of Airflow Through a PTX10008
g050607
Side view
FRUsPor t s
Control boards
Linecards
SIBs
Fan
trays
Fan tray controllers
Power
supplies
Step 2–Unpacking the PTX10008
NOTE: The chassis is maximally protected inside the shipping box. Do not unpack it until you are ready to begin
installation.
Ensure that you have the following parts and tools available to unpack the PTX10008:
•A 13/32 in. (10 mm) open-end or socket wrench to remove the bracket bolts from the shipping pallet
•A box cutter or packing knife to slice open the nylon straps and tape that seal the crate and boxes
The chassis ships in a cardboard box that has a two-layer wooden pallet base with foam cushioning between the layers.
The router chassis is bolted to the pallet base.
The shipper has the option to either ship the front panel separately or to ship along with the chassis. If the front panel
arrives with the chassis, set aside the front panel box until you are ready to verify the contents of the order.
4

To unpack the chassis (see Figure 4):
Figure 4: Shipping Crate and Accessory Box
1. Move the shipping box to a staging area as close to the installation site as possible. While the chassis is bolted to the
pallet, you can use a forklift or pallet jack to move it. Make sure there is enough space to remove components from
the chassis.
2. Position the shipping box with the arrows pointing up.
3. Slice the nylon straps with the box cutter that hold the shipping boxes to the pallet.
4. Lift the shipping box off the chassis.
5. Remove the cardboard accessory box.
6. Remove the foam padding from the top of the box.
7. Remove the plastic cover from the router chassis.
8. Use a 13/32 in. (10 mm) open-end or socket wrench to remove the four sets of bracket bolts that secure the chassis
to the shipping pallet (see Figure 5).
5

Figure 5: Bracket Bolt Removal
g050600
9. Unpack any items that shipped separately, such as an RCB, SIB, or line cards.
10. Unpack the accessory box and lay out the contents so that they are ready for use.
11. Verify that your order includes all appropriate parts.
12. Store the brackets and bolts inside the accessory box.
13. Save the shipping box and packing materials in case you need to move or ship the router at a later time.
Step 3–Mount the Chassis in the Rack
1. Install the Mounting Hardware | 7
2. Mount the PTX10008 in a 4-Post Rack Using a Mechanical Lift | 9
6

Install the Mounting Hardware
To install the chassis, first install the mounting hardware in the rack and then mount the PTX10008 in the rack.
The router can be installed in a four-post closed frame rack or a four-post open frame rack. Install the mounting hardware
on the rack before installing the router.
To mount the chassis on a four-post rack, you must first install the mounting hardware in the rack. The PTX10008 router
comes with a four-piece set of brackets that supports the chassis in the rack.
NOTE: Two-post installation racks are not supported.
The main pieces of the rack mount kit are:
•One left base bracket. The bracket is labeled LEFT FRONT on the side of the bracket that faces the interior of the rack,
near the holes for attaching the bracket to the rack.
•One right base bracket. The bracket is labeled RIGHT FRONT on the side of the bracket that faces the interior of the
rack, near the holes for attaching the bracket to the rack.
•Two rear brackets. These brackets are labeled REAR on the side of the bracket that faces the interior of the rack, near
the holes for attaching the bracket to the rack. The rear brackets are interchangeable; you can use either of the rear
brackets with the right or left base bracket.
Ensure that you have the following parts and tools available to install the mounting hardware:
•A Phillips (+) screwdriver, number 1, 2, or 3, depending on the size of your rack screws
•A Phillips (+) screwdriver, number 2, to install the screws that connect the rear and base brackets
•12 Phillips flat-head screws (provided)
•14 rack screws appropriate for your rack to attach the mounting hardware to the rack (not provided)
When you install the base and rear brackets, the adjustable portion of the brackets overlap. Use the overlap area to adjust
the total bracket length to fit any of the four standard rack sizes: 19 in. (483 mm), 23.62 in. (600 mm), 30 in. (762 mm), or
31.5 in. (800 mm).
To install the mounting hardware in a four-post rack:
1. Remove the mounting brackets from the rack mount kit box.
2. Decide where to place the chassis in the rack. If the rack is empty, mount the router in the lowest possible location.
3. Position the left base bracket at the desired position in the left side of the rack and line up its front screw holes with
the holes in the rack. Use four mounting screws appropriate for your rack to attach the left base bracket to the rack.
7

4. Position one of the rear brackets at the left rear of the rack on the same level as the left base bracket, so that the rear
bracket overlaps with the left bracket. The screw holes for connecting the base and rear brackets should overlap. Use
four mounting screws appropriate for your rack to attach the rear bracket to the rack.
5. Connect left base bracket and rear brackets (see Figure 6):
a. Insert six of the flat-head screws provided with the mounting brackets into the overlapping bracket holes.
b. Tighten the screws fully (to 12–16 in.-lb torque) using a number 2 Phillips screwdriver.
Figure 6: Mounting Brackets for Four-Post Rack Installation
g050603
1
2
2
1
2—1—Rear bracketsRight and left base brackets
6. Position the right base bracket at the desired position in the right side of the rack opposite the installed left base
bracket, so that it is on the same rack level as the left base bracket. If the right and left base brackets are not on the
same level, the chassis will rest at an angle in the rack instead of resting flat and level. Line up the right base bracket's
front screw holes with the holes in the rack. Use four mounting screws appropriate for your rack to attach the right
base bracket to front of the rack.
7. Position the other rear bracket at the right rear of the rack on the same level as the right base bracket, so that the rear
bracket overlaps with the right base bracket. The screw holes for connecting the base and rear brackets should overlap.
Use four mounting screws appropriate for your rack to attach the rear bracket to the rack.
8. Connect the right base and rear brackets (see Figure 6):
a. Insert six of the screws provided with the mounting brackets into the overlapping bracket holes.
b. Hand-tighten the screws fully (to 12–16 in.-lb torque) using a number 2 Phillips screwdriver.
8

Mount the PTX10008 in a 4-Post Rack Using a Mechanical Lift
Because of the router's size and weight, we strongly recommend using a mechanical lift to install the PTX10008. If you
do not have a mechanical lift available, see the alternative instructions for manual mounting in the PTX10008 Packet
Routing Hardware Guide.
CAUTION: Do not install line cards in the chassis until after you mount the chassis securely on a rack
or cabinet.
CAUTION: Before front-mounting the router on a rack or cabinet, have a qualified technician verify
that the rack or cabinet is strong enough to support the router's weight and is adequately supported
at the installation site.
Ensure that you have the following parts and tools available to install the router:
•A mechanical lift rated for 500 lb (226.8 kg)
•14 mounting screws appropriate for your rack
•A Phillips (+) screwdriver, number 2 or number 3, depending on the size of your rack-mounting screws
CAUTION: If you are installing more than one router in a rack or cabinet, install the first router at the
bottom of the rack.
To install the router using a mechanical lift (see Figure 7):
1. Ensure that the rack or cabinet is placed in its permanent location and is secured to the building. Ensure that the
installation site allows adequate clearance for both airflow and maintenance. For details, see .
2. Load the router onto the lift, making sure it rests securely on the lift platform.
9

Figure 7: Loading the PTX10008 into a Rack Using a Mechanical Lift
3. Using the lift, align the router in front of the rack, centering it in front of the base brackets.
4. Lift the chassis approximately 0.75 in. (1.9 cm) above the surface of the base brackets. Align the chassis as close as
possible to the base brackets.
5. Carefully slide the chassis onto the adjustable base and rear mounting brackets until the chassis flanges contact the
rack rails. The mounting brackets ensure that the holes in the flanges align with the holes in the rack rails. See Figure 8.
10

Figure 8: Attaching the Chassis Flanges to the Rack
g050606
6. Move the lift away from the rack.
7. Attach the chassis to the rack by installing a mounting screw through the open flange holes and rack, starting from the
bottom.
8. Visually inspect the alignment of the router. If the router is installed properly in the rack, all the mounting screws on
one side of the rack are aligned with the mounting screws on the opposite side and the router is level.
9. After ensuring that the router is aligned properly, tighten the screws.
10. After you install the mounting screws and securely bolt the chassis to the rack, reinstall the components in the chassis.
Step 4–Install the Line Cards
The line cards fall into two categories: line cards that mate with switch fabric JNP10008-SF and those that mate with
switch fabric for 14.4 Tbps line cards, JNP10008-SF3. The two types of line cards are designed to only work with the
matching type of switch fabricthat has the mating connector. You can’t mix the two types of line cards in the same chassis.
See Table 1.
11

Table 1: Line Cards and Matching SIBs
Line Cards Using JNP10008-SF3Line Cards Using JNP10008-SF
PTX10K-LC201PTX10K-LC1101
PTX10K-LC1102
PTX10K-LC1104
PTX10K-LC1105
QFX10000-60S-6Q
You can remove a fan tray on unpowered systems, or use the show chassis hardware models CLI command on running
systems to determine which type of switch fabric is installed.
Before you install a line card in the router chassis:
•Ensure that you have the following parts and tools available to install a line card in the router:
•ESD grounding strap
•Phillips (+) screwdriver, number 2
To install a line card in the router chassis:
1. Attach the ESD grounding strap to your bare wrist and connect the strap to the ESD point on the router chassis. The
ESD point is located above the status LED panel on the front of the router chassis. See Figure 9.
Figure 9: ESD Point on PTX10008 Chassis Front
g009684
1
1—ESD point
2. Remove the line card cover by grasping the handles and pulling straight out to expose the slot for the line card. See
Figure 10.
12

Figure 10: Removing the Cover Panel for a Line Card
g050586
CAUTION: Do not lift the line card by holding the edge connectors or the handles on the
faceplate. Neither the handles or the edge connectors can support the weight of the line card.
Lifting the line card by the handles or edge connectors might bend them, which would prevent
the line cards from being properly seated in the chassis. See Figure 11 and Figure 12.
Figure 11: Line Card Connectors on 14.4 Tbps Line Cards
g051216
Figure 12: Line Card Connectors on Non-400 Gbps Line Cards
1—Connectors
3. Remove the line card from the electrostatic bag and inspect it for any damage before installing it into the chassis.
13

4. Grasp and lift the line card by the sides.
5. Slide the line card all the way into the slot until the handle holes align. See Figure 13.

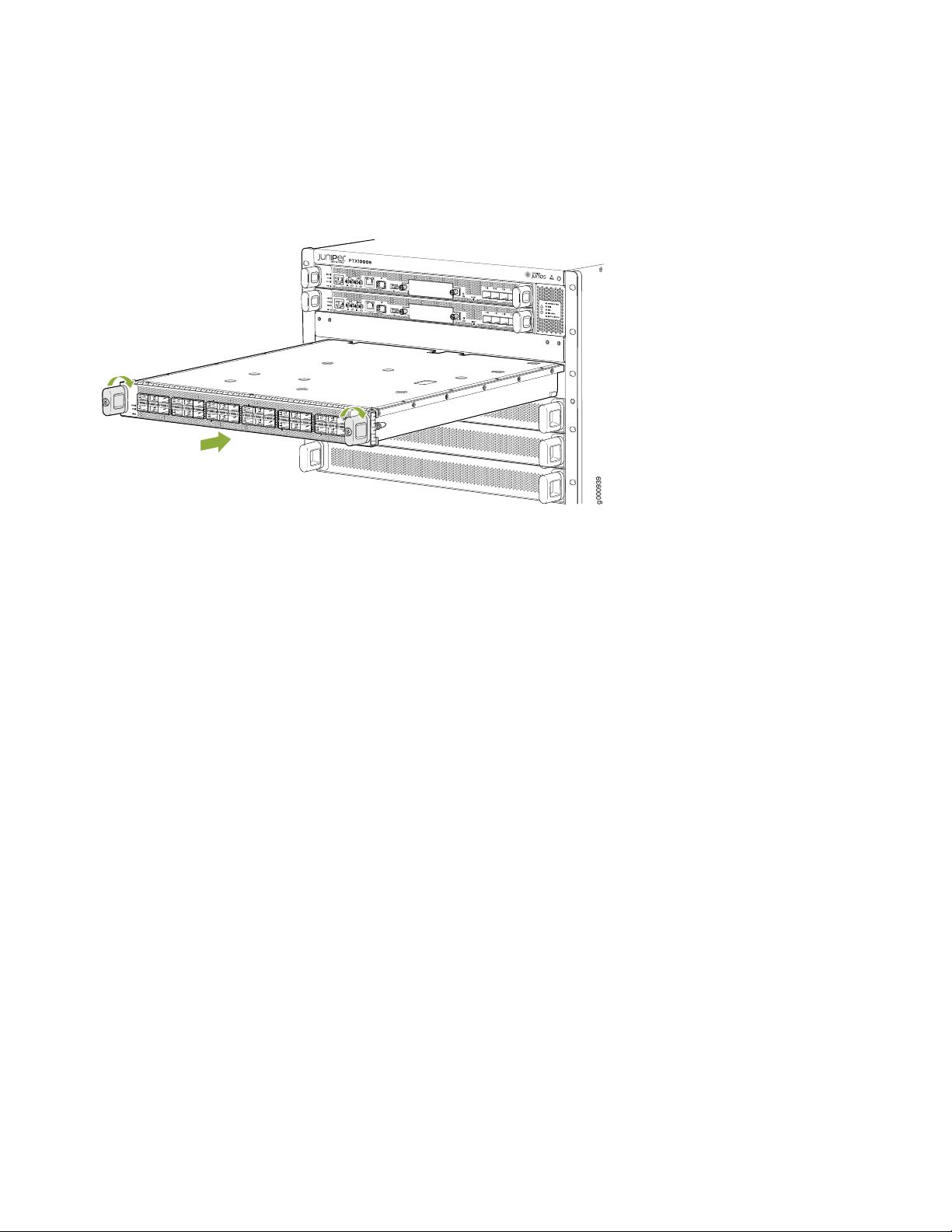

Figure 13: Inserting a Line Card into the Slot and Rotating the Handles
g000939
6. Screw the line card into the chassis by rotating the handles simultaneously until the card is fully seated and the handles
are vertical.
7. The line card automatically comes online when power is applied to the system.
You can install the optional cable management kit after the card is installed.
Step 5–Install the Front Panel
The front panel is required on the PTX10008 router to protect fiber optic cabling and to provide additional protection
from electromagnetic interference (EMI). The front panel can be installed with or without the optional cable management
system.
Ensure you have the following tools and parts before you begin:
•A Phillips (+) screwdriver, number 2
•Front panel (provided with the router chassis)
•Right base bracket (provided)
•Left base bracket (provided)
•2 interchangeable latch brackets (provided)
•8 Phillips flat-head mounting screws (provided)
14

To install the front panel:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis.
2. Remove the plastic bag that is taped to the front panel, which holds the brackets and screws.
3. Use the Phillips screwdriver to attach two mounting screws to the left base bracket at the bottom left side of the
chassis frame. The base brackets are larger than the latch brackets.
NOTE: The right and left base bracket cannot be interchanged (see Figure 14).
Figure 14: Front Panel Mounting Hardware
g050602
2
1
3
3—1—Left base bracketLatch brackets
2—Right base bracket
4. Use the Phillips screwdriver to attach two mounting screws to the right base bracket at the bottom right side of the
chassis frame.
5. Use the Phillips screwdriver to attach two mounting screws to the latch bracket at the top left of the chassis frame
(see Figure 15).
15

Figure 15: Attaching Front Panel Brackets on a PTX10008
6. Use the final two mounting screws to attach a latch bracket to the top right of the chassis frame so there are brackets
on all four corners of the front of the chassis.
7. Lift the front panel and rest it on the two bottom brackets.
8. Slide the panel back on the bracket glides until it engages on the two ramps.
9. Tilt the panel towards the chassis until it is vertical with the chassis. The blue release buttons on the side of the panel
click into place (see Figure 16).
16

Figure 16: Front Panel Installation on a PTX10008
g050627
To install the (optional) air filter in the front panel:
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis.
2. Turn the knob of the air filter frame anti-clockwise and move it over the top of the front panel. See Figure 17.
17

Figure 17: Air Filter Frame in a PTX10008 Front Panel
g100731
1
1—Air filter frame
3. Hold the air filter with both hands and insert it into the front panel until it stops. See Figure 18.
18

Figure 18: Inserting the AIr Filter into a PTX10008 Front Panel
g100732
1
1—Air filter
4. Move the air filter frame over the front panel and turn the knob on the air filter frame clockwise back in place.
NOTE: You must replace the filter every 6 months.
Step 6–Connect Power to the Chassis
IN THIS SECTION
Ground the PTX10008 | 20
Install AC Power Supplies (JNP10K-PWR-AC) | 21
Install AC/HVAC/HVDC Power Supplies (JNP10K-PWR-AC2) | 25
Install DC Power Supplies (JNP10K-PWR-DC) | 29
Install Dual DC Power Supplies (JNP10K-PWR-DC2) | 35
19

Before supplying power to the PTX10008, ground the chassis and install the power supplies appropriate to your system
(AC, DC, and HVAC/HVDC)
Ground the PTX10008
To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must connect
the chassis to earth ground before you connect it to power.
For installations that require a separate grounding conductor to the chassis, you must attach a protective earthing terminal
bracket on the chassis. There are mounting holes for the terminal bracket on the left-rear side of the chassis to connect
to the earth ground (see Figure 20).
NOTE: A ground connection to the protective earthing terminal is not required for an AC-powered switch. The
AC power cords provide adequate grounding when you connect the power supply in the switch to a grounded
AC power outlet by using the AC power cord appropriate for your geographical location.
If an external ground connection is required, ensure that a licensed electrician has attached an appropriate grounding lug
to the grounding cable you supply. Using a grounding cable with an incorrectly attached lug can damage the switch.
Ensure that you have the following parts and tools available:
•An electrostatic discharge (ESD) grounding strap (provided).
•Protective earthing terminal lug (provided).
•Grounding cable for your PTX10008 (not provided)—The grounding cable must be 6 AWG (13.3 mm²), minimum 90° C
wire, or as permitted by the local code.
•Grounding lug for your grounding cable (provided)—This bracket attaches to the lower left corner of the router chassis
next to the bottom power supply, providing a protective earthing terminal for the router. The grounding lug required is
a Panduit LCD6-10A-L or equivalent.
•A Phillips screwdriver to tighten the two screws that are mounted on the chassis.
An AC-powered PTX10008 gains additional grounding when you plug the power supply in the router into a grounded AC
power outlet by using an AC power cord appropriate for your geographical location.
To connect earth ground to a PTX10008 chassis:
1. Verify that a licensed electrician has attached the cable lug (provided in the accessory kit) to the grounding cable.
2. Connect the other end of the grounding cable to a proper earth ground, such as the rack in which the router is mounted.
3. Attach an ESD grounding strap to your bare wrist, and connect the strap to the ESD grounding point next to the
earthing posts (see Figure 19).
20
