CONTENTS
Warnings .................................page 9
Installation ................................page 10
Positioning ................................page 10
Electrical connection .............................page 10
Cleaning the interior .............................page 10
Instructions for totally built-in appliances ......................page 10
Use ...................................page 12
Operation .................................page 12
Temperature regulation ............................page 12
Fresh food refrigeration ............................page 12
Inner arrangement ..............................page 12
Defrosting.................................page 12
Maintenance ...............................page 13
Periodic cleaning ..............................page 13
Periods of non-operation ...........................page 13
Interior light ................................page 13
Customer service and spare parts........................page 13
Printed on recycled paper

9
WARNINGS
It is most important that this instruction book
should be retained with the appliance for future
reference. Should the appliance be sold or trans-
ferred to another owner, or should you move house
and leave the appliance, always ensure that the
book is supplied with the appliance in order that
the new owner can be acquainted with the func-
tioning of the appliance and the relevant warnings.
These warnings are provided in the interest of
safety. You must read them carefully before
installing or using the appliance.
“This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the appliance.
“Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
“This appliance should be serviced by an authorized
Service Centre, and only genuine spare parts
should be used.
“It is dangerous to alter the specifications or modify
this appliance in any way.
“Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
“The domestic refrigerators and freezers are designed
to be used specifically for the storage of edible food-
stuffs only.
“Frozen food must not be re-frozen once it has been
thawed out.
“Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
“During normal operation, the condenser and
compressor at the back of the appliance heat up
considerably. For safety reasons, minimum ventila-
tion must be as shown in the relevant Figure.
Attention: keep ventilation openings clear of
obstruction.
“Before any cleaning or maintenance work is carried
out, be sure to switch off and unplug the appliance.
“If the appliance is transported horizontally, it is
possible that the oil contained in the compressor
flows in the refrigerant circuit. It is advisable to wait
at least two hours before connecting the appliance
to allow the oil to flow back in the compressor.
“The inner lining of the appliance consists of chan-
nels through which the refrigerant passes. If these
should be punctured this would damage the appli-
ance beyond repair and cause food loss. DO NOT
USE SHARP INSTRUMENTS to scrape off frost or
ice. Frost may be removed by using the scraper
provided. Under no circumstances should solid ice
be forced off the liner. Solid ice should be allowed
to thaw when defrosting the appliance. See defrost
instructions.
“Do not use a mechanical device or any artificial
means to speed up the thawing process other than
those recommended by the manufacturer.
“Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in damage
to the appliance.
“This appliance is heavy. Care should be taken when
moving it.
“Ice lollies can cause frost burns if consumed
straight from the appliance.
“This appliance contains hydrocarbons in its cooling
unit; maintenance and recharging must therefore
only be carried out by authorized technicians.
“Never use metal objects for cleaning your appliance
as it may get damaged.
“Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or more
serious malfunctioning. Refer to your local Service
Centre, and always insist on genuine spare parts.
“This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with
the urban refuse and rubbish. Avoid damaging
the cooling unit, especially at the rear near the
heat exchanger. Information on your local
disposal sites may be obtained from your
municipal authorities.
“Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
“The appliance must not be located close to radi-
ators or gas cookers.
“Avoid prolonged exposure of the appliance to
direct sunlight.
“There must be adequate ventilation round the
back of the appliance and any damage to the
refrigerant circuit must be avoided.
“For freezers only (except built-in models): an
ideal location is the cellar or basement.

10
INSTALLATION
If this appliance featuring magnetic door seals is
to replace an older appliance having a spring lock
(latch) on the door or lid, be sure to make that
spring lock unusable before you discard the old
appliance.
This will prevent it from becoming a death-trap for
a child.
Positioning
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct sun-
light etc.; best performance is obtained with ambient
temperature between +18°C and +43°C (class T);
+18°C and +38°C (class ST); +16°C and +32°C (class
N); +10°C and +32°C (class SN).
The class of your appliance is shown on its rating
plate.
For building into kitchen units follow the special
“Building-in” instructions given.
Electrical connection
Before plugging in, ensure that the voltage and fre-
quency shown on the serial number plate correspond
to your domestic power supply.
Voltage can vary by ±6% of the rated voltage.
For operation with different voltages, a suitably sized
auto-transformer must be used.
The appliance must be earthed.
The power supply cable plug is provided with a con-
tact for this purpose.
If the domestic power supply socket is not earthed,
connect the appliance to a separate earth in compli-
ance with current regulations, consulting a specialist
technician.
The Manufacturer declines all responsibility if the
above safety precautions are not observed.
This appliance complies with EEC directive
number 87/308 of 2/6/87 relative to radio inter-
ference suppression.
This appliance complies with the following
E.E.C. Directives:
-73/23 EEC of 19.2.73 (Low Voltage Directive) and
subsequent modifications;
-89/336 EEC of 3.5.89 (Electromagnetic Compatibil-
ity Directive) and subsequent modifications.
Cleaning the interior
Before using the appliance for the first time, wash the
interior and all internal accessories with lukewarm wa-
ter and some neutral soap so as to remove the typical
smell of a brand-new product, then dry thoroughly.
Do not use detergents or abrasive powders, as these
will damage the finish.
Instructions for totally built-in appliances
Dimensions of the recess
The appliance’s door have been locked in position
for transport by means of pins on both sides. Ac-
cording to the door opening direction, remove rel-
evant pins at the top and at the bottom.
Fig. 1
For safety reasons,
minimum ventilation
must be as shown in
Fig. 1.
Attention: keep
ventilation open-
ings clear of ob-
struction.
Fig. 2
Push appliance into
housing until stop
strip (A) touches the
kitchen unit.
Fig. 3
Ifafterhavingcarried
outtheoperationde-
scribed in section 2
there is still some
space left between
the appliance and
the kitchen unit, fit
the trimming provid-
ed together with the
appliance on the
stop strip (A).
Model JKI 3033 JKI 3053 JKI 3063
Height 880 mm 1030 mm 1225 mm
Depth 550 mm 550 mm 550 mm
Width 560 mm 560 mm 560 mm
50 mm
min.
cm
2
200
200 cm
2
min.
D567
A
D022
D265
A

11
Fig. 4
Open the door and
push the appliance
against the side of
kitchen furniture op-
posite to that of ap-
pliance hinges.
Fastentheappliance
with 4 screws pro-
vided in the kit in-
cluded with the ap-
pliance.Snapventgrill
(C) and hinge cover (D) into position.
Fig. 5
Press in the joint
covers between the
appliance and the
kitchen furniture.
Fig. 6
Apply covers (B) on
joint cover lugs and
into hinge holes.
Fig. 7
Position the runners
(H) at the top and
bottom of the inside
of the kitchen unit as
shown in Fig. 7 and
mark the position of
the external holes.
After preparing the
holes,screwtherun-
nersto thekitchen
unit door using
3.5x16 mm screws.
D423
C
D
D424
D110
B
D094
20mm
H
Fig. 8
Openboththeappli-
ancedoorandthatof
the kitchen unit to
approx. 90°.
Place the little plates
over the runners.
Hold thedoorsofthe
appliance and the
unit together and
mark the holes.
Fig. 9
Remove the little
plates and make the
holes with a diam. of
2 mm. Replace the
little plates over the
runnersandscrewin
the screws provided
(3.5x16 mm).
For the alignment of
thekitchenunitdoor,
ifnecessary,usethe
clearance size of the slotted holes.
At the end of the procedure, check that the doors of
the appliance and the kitchen unit open properly.
8mm
PR34
PR35

12
USE
Operation
Insert the plug into the wall socket.
Open the refrigerator door and turn the thermostat
knob, clockwise, beyond the «O» (STOP) position.
The appliance will start to operate.
Temperature regulation
The temperature is automatically regulated and can be
increased to achieve a higher temperature (warmer) by
rotating the thermostat knob toward lower settings or
reduced (colder) rotating the knob towards higher set-
tings.
However, the exact setting should be chosen keeping
in mind that the temperature inside the refrigerator de-
pends on:
room temperature;
how often the door is opened;
the quantity of food stored;
location of appliance.
A medium setting is generally the most suitable.
To stop operation, simply turn the thermostat knob to
position «O».
Important
If the ambient temperature is high or the appliance
is fully loaded, and the appliance is set to the low-
est temperatures, it may run continuously causing
frost to form on the rear wall. In this case the dial
must be set to a higher temperature to allow auto-
matic defrosting and therefore reduced energy
consumption.
Fresh food refrigeration
To obtain the best performance:
do not store warm food or evaporating liquids in the
refrigerator;
do cover or wrap the food, particularly if it has a
strong flavour.
Position food so that air can circulate freely round it.
Useful hints:
Meat (all types): wrap in polythene bags and place on
the glass shelf above the vegetable drawer(s).
For safety, store in this way only one or two days at
the most.
Cooked foods, cold dishes, etc..: these should be
covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly
cleaned and placed in the special drawer(s) provided.
Butter and cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or poly-
thene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed,
must not be kept in the refrigerator.
Inner arrangement
Movable shelves
The walls of the refrigerator are equipped with a series
of runners so that the shelves can be positioned as
desired.
Fig. 10
Defrosting
Frost is automatically eliminated from the evaporator
of the refrigerator compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a trough into a
special container at the back of the appliance, over
the motor compressor, where it evaporates.
It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator
compartment trough to prevent the water over-
flowing and dripping onto the food inside.
Use the special cleaner provided, which you will
find already inserted into the drain hole.
Fig. 11
D351
D037

13
MAINTENANCE
Unplug the appliance before carrying out any
maintenance operation.
Warning
This appliance contains hydrocarbons in its cooling
unit; maintenance and recharging must therefore only
be carried out by authorized technicians.
Periodic cleaning
Never use metal objects for cleaning your appliance
as it may get damaged.
Clean the inside with warm water and bicarbonate of
soda.
Rinse and dry thoroughly.
Periods of non-operation
When the appliance is not in use for long periods, take
the following precautions:
remove the plug from the wall socket;
remove all food;
defrost and clean the interior and all accessories;
leave the door ajar to allow air to circulate to prevent
unpleasant smells.

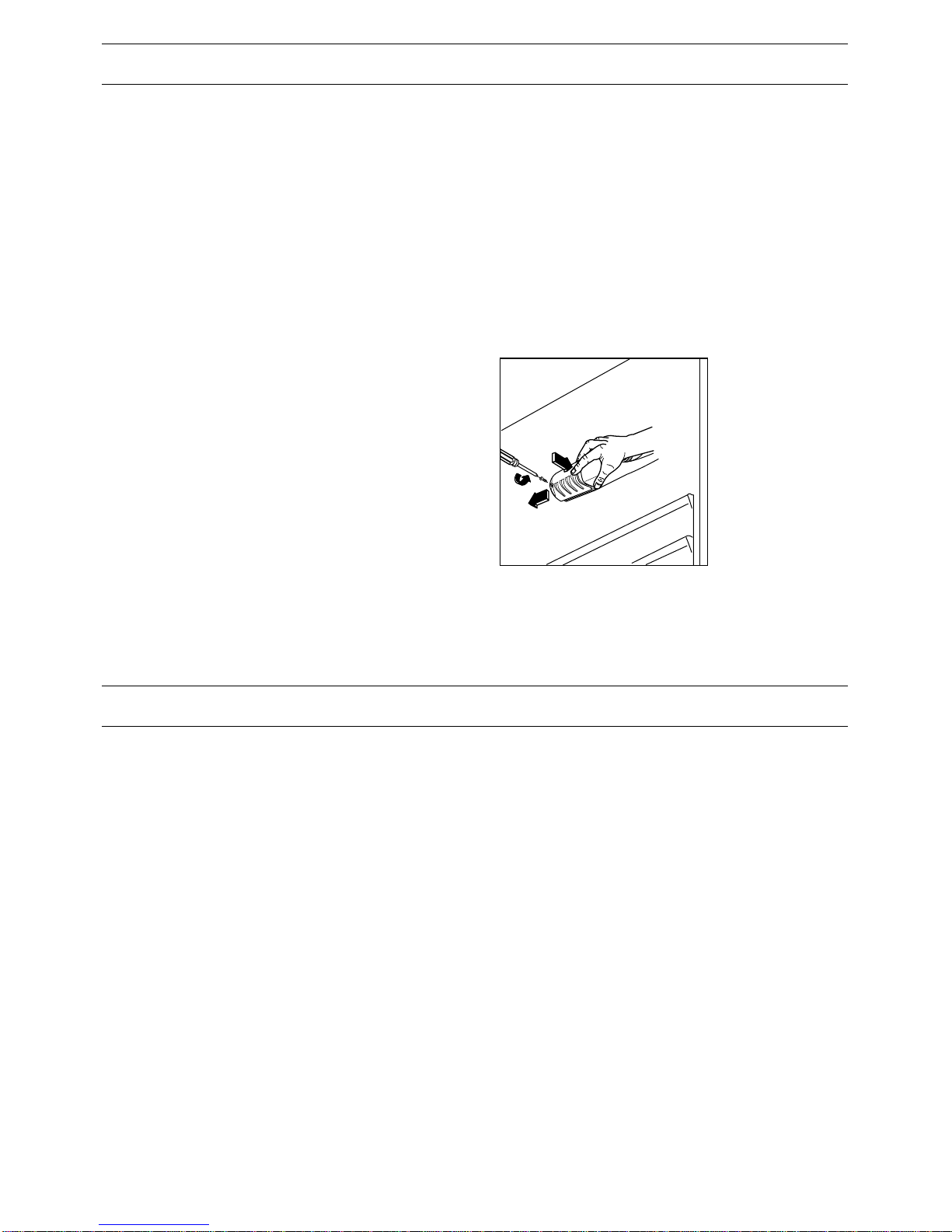

Interior light
The light bulb inside the refrigerator compartment can
be reached as follows:
“unscrew the light cover securing screws;
“unhook the moving part by pressing it as shown in
the figure.
If the door is open and the light does not come on,
check that the bulb is properly screwed in; if it still
does not work, replace the bulb with one of the same
power.
The maximum rating is shown on the light cover.
Fig. 12
D411
CUSTOMER SERVICE AND SPARE PARTS
If the appliance is not functioning properly, check that:
the plug is firmly in the wall socket and the mains
power switch is on;
there is an electricity supply (find out by plugging in
another appliance);
the thermostat knob is in the correct position.
If there are water drops on the bottom of the cabinet,
check that the defrost water drain opening is not ob-
structed (see “Defrosting” section).
If your appliance is still not working properly after
making the above checks, contact the nearest service
centre.
To obtain fast service, it is essential that when you
apply for it you specify the model and serial
number of your appliance which can be found on
the guarantee certificate or on the rating plate lo-
cated inside the appliance, on the bottom left-
hand side.
