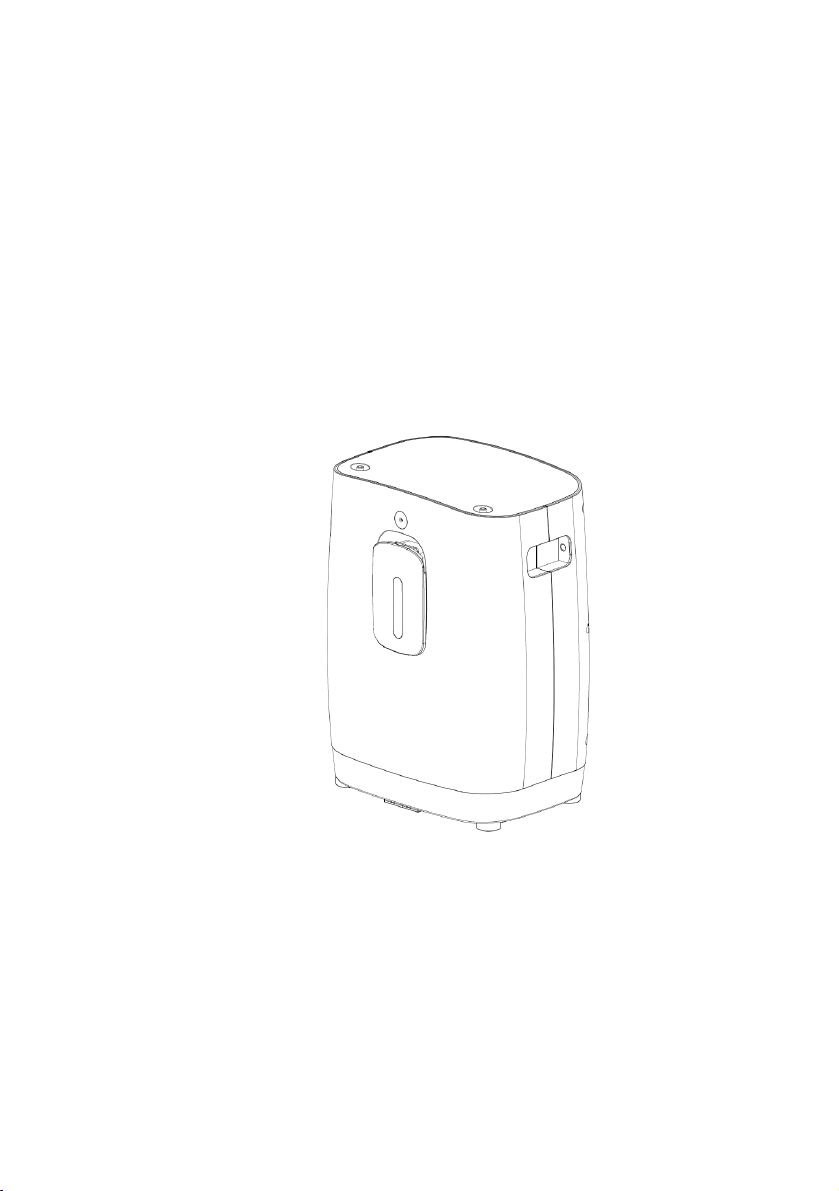

Juren DZ-1W User manual

DZ-1W Oxygen generator
user's manual
Please read the manual before use

table of Contents
1 Overview................................................................................................ 1
2
2
2
. Precautions for safe use..................................................................... 2
3. Structural characteristics and working principle................................ 3
4. Technical characteristics.............................................................................5
5.
5.
5. Unpacking
Unpacking
Unpacking and
and
and installation
installation
installation...................................................................7
6.
6.
6. Use
Use
Use and
and
and operation
operation
operation................................................................................9
7
7
7Fault
Fault
Fault analysis
analysis
analysis and
and
and troubleshooting
troubleshooting
troubleshooting.....................................................11
8.
8.
8. Maintenance
Maintenance
Maintenance and
and
and care
care
care........................................................................ 12
9. Transportation and storage....................................................................... 14
10.
10.
10. Warranty
Warranty
Warranty period
period
period and
and
and after-sales
after-sales
after-sales service
service
service.......................................... 15
11.
11.
11. Packing
Packing
Packing list,
list,
list, supporting
supporting
supporting accessories
accessories
accessories specifications
specifications
specifications........................ 16

-1-
1Overview
Thank you for purchasing our oxygen generator.
In order to ensure that you can use this oxygen generator safely and correctly,
please read this manual carefully before using it to fully understand and master the
performance of the product and the correct operation and maintenance methods.
This manual describes the operation, use, and maintenance of the DZ-1W oxygen
generator.
1.1Product Features
The DZ-1W oxygen generator is one of the series of products produced by our
company. The product uses molecular sieve as the adsorbent, uses the advanced pressure
swing adsorption (PSA) principle, and uses air as the raw material to produce oxygen
through physical means. The following features:
1) The air is taken from nature.
2) Adopt advanced pressure swing adsorption technology (PSA), advanced process
flow and low energy consumption.
3) The product has a novel shape design, simple operation, stable operation and
convenient maintenance.

-2-
2
2
2. Precautions for safe use
When using this product, please observe the following safety precautions:
oxygen is a combustion-supporting gas ,it is not allowed to use the oxygen generator in an environment with
bright or dark fire source or with flammable or explosive danger. Smoking is strictly prohibited near the oxygen
inhaler
It is not allowed to place the oxygen tube under the bedspread or seat cushion . when there is no oxygen
absorption ,turn off the power supply of the oxygen generator .
The power supply must meet the requirements for safe use of electricity. if the power supply does not meet the
requirements, do not use oxygen generator .
Please turn off the power supply and unplug the power plug ,before cleaning ,maintaining or replacing the safety
tube of the oxygen generator .
Improper use of power cord and plug may cause burns or other electric shock hazards. do not use if the power
cord is damaged . To avoid danger, it must be replaced by a professional authorized by the manufacturer .Unplug
the power plug.
Please select safe and qualified socket and wiring board with safety electrician .
It is forbidden to plug in or unplug the power supply with wet hands . It is forbidden to drag the machine through
the traction oxygen absorption pipe or power line.
Personnel not authorized by the company shall not remove the cover for maintenance.

-3-
3. Structural characteristics and working principle
Figure 1 DZ-1W oxygen generator outline drawing
Control panel
Humidifying cup
Oxygen outlet
Atomization outlet
Handle
Intake silencing filter port

-4-
3. Structural characteristics and working principle
3.2Working principle
The oxygen flow of DZ-1Woxygen generation mechanism is shown in Figure 2:

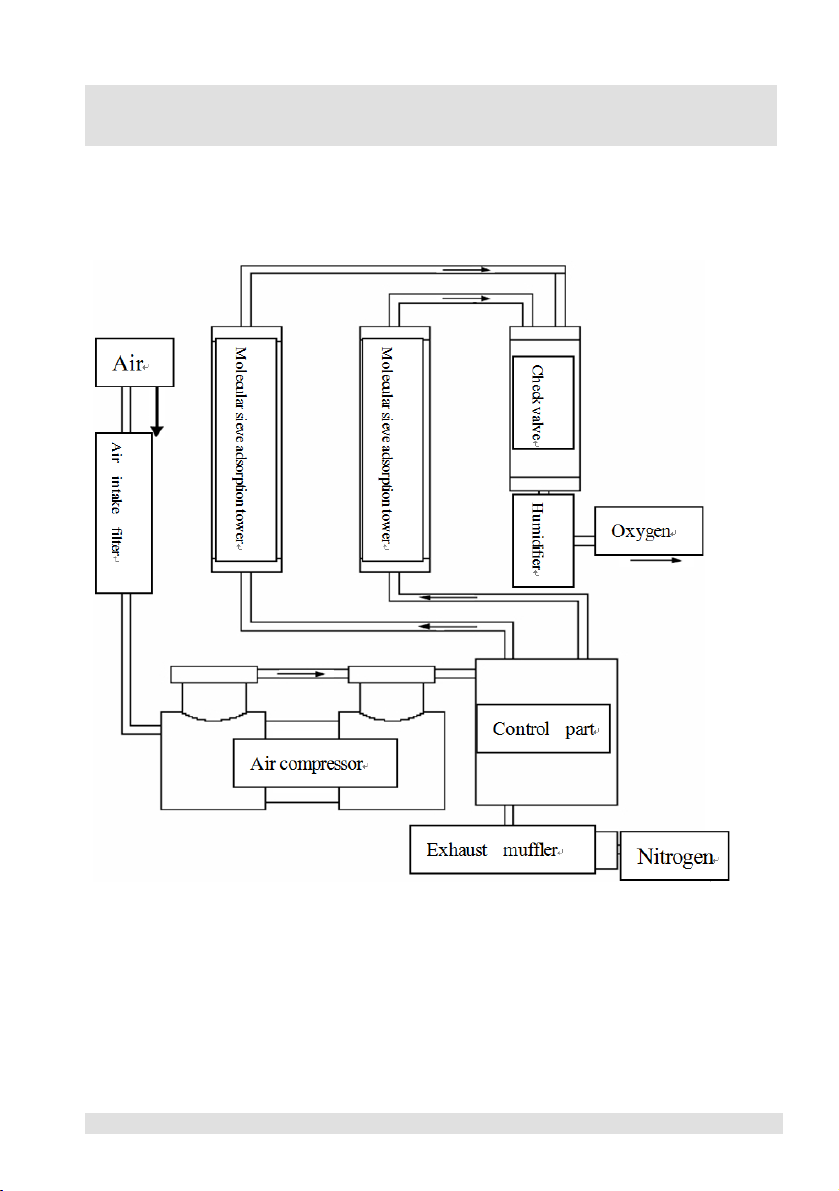

Figure 2 Oxygen flow diagram of the oxygen generation mechanism
The DZ-1Wtype oxygen generator uses molecular sieve as the adsorbent and uses
the principle of pressure swing adsorption (PSA) to filter the air and send it to the
molecular sieve adsorption tower for pressure adsorption and decompression. oxygen.

-5-
4. Technical characteristics
4.1Use environment
Ambient temperature: 10 ℃~ 40 ℃
Relative humidity 30% ~ 75%
Atmospheric pressure 86.0kPa ~ 106.0kPa
Supply voltage 220-240V（ +5/-10V）
Power frequency 50Hz ± 1Hz
4.2Working conditions
Impurities in raw air ≤0.3mg / cm 3
Oil content in the air ≤0.01ppm
The surrounding environment should be free of corrosive gases and
strong magnetic fields
4.3Product Features
Display mode: digital tube display, English characters
Timing function continuous running timing, timing running timing, automatic
cumulative timing
Atomization function

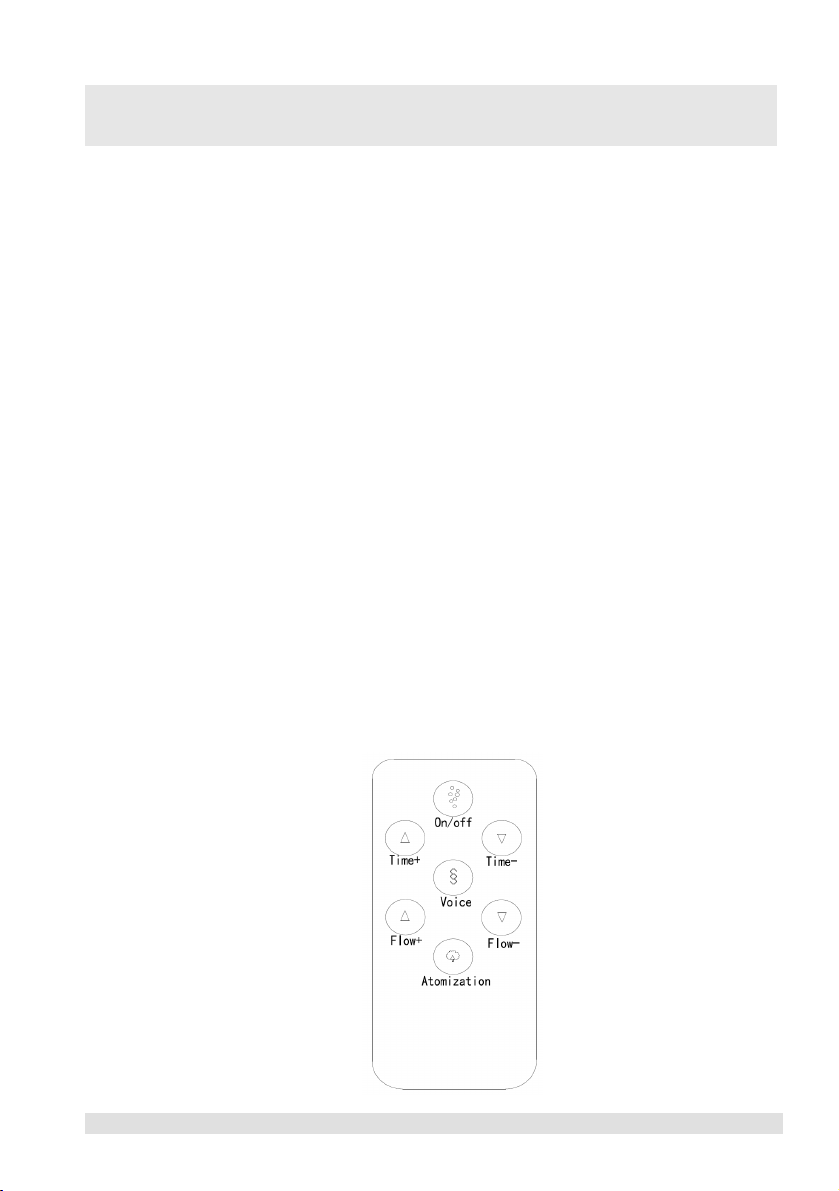

Remote control function: infrared remote control operation

-6-
4. Technical characteristics
4.4Technical indicators
Oxygen concentration（ when the flow≤1 liter）90 ±3% (v / v)
Carbon dioxide content ≤0.01% (v / v)
Smell Odorless
Particle size of solid matter ≤10um
Solid matter content ≤0.5mg / m 3
Product technical indicators:
Adjustment range (1 ~ 7 L / min) Adjustable
Running noise ≤60dB (A)
Timer error ≤±3%
Input power 150W
Machine weight about 6kg
Outline size 274×174×342mm

-7-
5.
5.
5. Unpacking
Unpacking
Unpacking and
and
and installation
installation
installation
5.1Unpacking
Open the box from the top surface of the box, remove the foam, open the plastic
bag, pull the back cover handle, and take out the oxygen generator.
5.2Inspection
First check the oxygen generator for transportation damage, and then check the
accessories and random documents according to the packing list.
5.3Installation precautions
When installing the oxygen generator, please observe the following precautions:
5.4Installation
1) Before use, first loosen the bottom Velcro strap to avoid vibration of the air compressor.
2) Add water to the humidification Cup: in front of the oxygen generator, at the arc gap, extend the
index finger into the humidification cup, and then pull out the humidification cup, remove the silica gel
plug, add some pure water (the liquid level should be lower than the highest water level) into
the cup, and then plug the humidification cup back into the two air holes of the front
cover.
Installation Precautions
1. The oxygen generator should be installed in an indoor ventilation place free of dust, corrosion, toxic and
harmful gases and oil mist. Avoid direct sunlight, and the distance from the wall and other objects should be greater
than 20cm.
2. The oxygen generator cannot be installed in a place with bright or dark fire sources, flammable, explosive
danger, humidity, high or low temperature, or used in a closed room(space).
3. The air inlet of the oxygen generator (above the rear shell of the machine) should be well ventilated.
4. Keep the oxygen generator stable, otherwise it will increase the noise during operation.
5. It is forbidden to lay on the oxygen generator.
6. The oxygen generator uses single-phase AC power. If the grid voltage is unstable, it will affect
the normal startup of the compressor. Please install a voltage stabilizer.
7. Before using the oxygen generator, you must loosen (or withdraw) the Velcro strap under the fuselage.

-8-
6.
6.
6. Use
Use
Use and
and
and operation
operation
operation
6.1Precautions for use
When using an oxygen generator, please observe the following precautions:
6.2Use
The touch display control panel of DZ-1Woxygen generator is shown in Figure 3:
Figure 3 Control panel of DZ-1Woxygen generator
Precautions for use
1. Make sure that the exhaust of the bottom of the oxygen generator is unobstructed during use, otherwise it will
affect the heat dissipation of the oxygen generator.
2. The specified performance can only be achieved after the oxygen generator is started for 10minutes.
3. There is a gap of exhaust sound when the oxygen generator is in use (about once every 4seconds).
4. Do not use oil, grease or other similar substances on or near the oxygen generator.
5. Inuse, when the water in the humidifying cup is insufficient, make up for it in time.
6. The oxygen generator cannot be started frequently. It shouldbe restarted after 5minutes after shutting down.
7. Molecular sieves will age due to factors such as the use time and the environment, which will cause the
recoverability of the oxygen production to decrease. When this phenomenon is found, please contact the
maintenance point or the manufacturer to replace the molecular sieve.
8. When the oxygen generator is stopped, you must unplug the power cord.
9. During the use of the oxygen generator, the shutdown due to the high ambient temperature and the thermal
protection of the air compressor is a normal phenomenon. The power must be turned off and the machine cooled
down before being used.

-9-
6.
6.
6. Use
Use
Use and
and
and operation
operation
operation
1）Power on: plug in the power cord and power on. Turn on the power switch (the
position is at the lower left part of the concentrator), the concentrator will start, enter the
power on state, the touch key of the concentrator will be fully on, and enter the standby state.
2) Continuous oxygen generation: touch the "oxygen generation" button on the control
panel, and the oxygen generator will enter the "continuous oxygen generation" working state
with the voice prompt of real person. The continuous oxygen making time of the oxygen
generator is displayed on the screen, and the accumulated use time of the oxygen generator is
displayed at the bottom of the screen.
3) Adjust the flow: touch the "flow" key on the control panel. With the voice prompt of the
real person, the oxygen flow of the oxygen generator increases by 1L, which can be adjusted
to 7L at most. After reaching the maximum 7L, touch the "flow" key on the control panel.
With the voice prompt of the real person, the oxygen flow of the oxygen generator decreases
by 1L, which can be adjusted to 1L at least.
4) Start to inhale oxygen: insert the oxygen pipe into the "oxygen port", confirm that there
is oxygen output at the nose of the oxygen pipe, and then wear a good oxygen pipe (please
refer to the instructions for use of the oxygen pipe for wearing the oxygen pipe) to start to
inhale oxygen.
5) Atomization operation: first take out the oxygen absorption tube, then insert the
atomizer silicone tube into the "atomization port", touch the "atomization" key on the control
panel, and bring the atomizer to atomize. (please refer to the instruction manual of atomizer
for atomizer and atomization dosing operation flow.) turn off the "atomization" key after
atomization.
6) Time setting: touch the "timing" key on the control panel, and the oxygen generator will
enter the "timing oxygen" state. Users can preset the oxygen making time according to their
needs. Each time they touch the "timing" key, the preset time increases by 15 minutes, and
the maximum timing is 9 hours and 45 minutes. When the timing exceeds 9 hours and 45
minutes, they touch the timing key again, and the time starts to accumulate from 0. After the
countdown is reset to zero, the oxygen generator enters the standby working state and the
compressor stops working.

-10 -
7
7
7Fault
Fault
Fault analysis
analysis
analysis and
and
and troubleshooting
troubleshooting
troubleshooting
If you have a problem using the oxygen generator, please read this chapter carefully before
sending it for repair. You may be able to solve the problem yourself very easily.
If you cannot solve the problem successfully according to the suggestions in this chapter, please
unplug the oxygen generator and send it for repair. Do not try to repair the oxygen generator or
remove the casing of the oxygen generator yourself.
Examples of fault analysis and troubleshooting are shown in Table 1:
Table 1 Failure analysis and troubleshooting example table
Failure phenomenon Cause Analysis Method of exclusion
When turned on, the oxygen
generator does not work and the
display does not light up.
1. Is the power on?
2. Is the fuse blown?
1. Check and tighten the power
cord.
2. Replace the fuse.
When the oxygen generator is
running, the air compressor does not
rotate when it is rotated.
Unstable power supply voltage?
Configure a dedicated voltage
regulator.
The oxygen generator is operating
normally, but there is no oxygen
output from the oxygen pipe.
1. The oxygen pipe plug is not
inserted properly.
2. The humidifier cup is not in place.
1. Plug the oxygen pipe plug in.
2. Install the humidifier in place.
Start up works normally, no
bubbles in the humidification cup.
1. The air intake filter is blocked by
dust.
2. The oxygen suction tube is
dead-folded or squeezed to block the
outlet pipe
1. Clean or replace the filter.
2. Smooth out the oxygen suction
tube.
Noisy running
1.The oxygen generator is not placed
smoothly.
2.Bottom cable tie is not loosened
1.Place the oxygen generator
smoothly.
2. Loosen the bottom cable tie
Other faults

-11 -
8.
8.
8. Maintenance
Maintenance
Maintenance and
and
and care
care
care
8.1Maintenance precautions
When performing maintenance, please observe the following precautions:
8.2 Cleaning the humidifier
Pull out the humidification cup in the direction shown in Figure 3, remove the rubber plug of the
water injection hole and wash it with water. Generally, it can be washed with water.
After cleaning, sterilize (recommended with a disinfectant containing 500mg / L of effective
chlorine) and rinse with pure water. Add an appropriate amount of pure water (the water level should be
below the highest level) to the cup, and plug the rubber plug of the water injection hole Back (to prevent
oxygen from leaking from the water injection hole), plug in the humidifier and use it.
8.3 Cleaning the oxygen generator
In the case of cutting off the power of the oxygen generator, you can use a soft towel dipped in a
small amount of neutral household detergent to clean the whole area, and then dry it with a dry towel.
When wiping, care should be taken not to allow liquid to penetrate the gaps in the chassis.
8.4 Cleaning of Intake Silencer Filter
Clean the intake muffler and intake cover weekly.
Maintenance precautions
1. If the oxygen generator fails, you should contact the dealer or the manufacturer for repair. Only personnel
authorized by the manufacturer can debug and repair the oxygen generator. Do not disassemble and repair it by
yourself.
2. Under normal use, the humidification cup should be kept clean. The humidification cup should be filled with
pure water and the water level should be below the maximum water level. It is recommended to clean the
humidification cup, air filter cotton and air intake cover once a week to ensure Oxygen Hygiene.
3. The power cord is configured according to the power of the oxygen generator, please do not replace it at will.
4. Cleaning the oxygen suction tube, please follow the instructions inthe instruction manual of the accessory.
5. Before using the oxygen generator for a long time, it should be turned on and checked before use, and it should
be put into use after confirming that the functions are normal.

-12 -
8.
8.
8. Maintenance
Maintenance
Maintenance and
and
and care
care
care
8.5 Cleaning the oxygen pipe
The oxygen tube supplied by the oxygen generator is a single-use sterilized product and should be
replaced by a special person. It should be replaced regularly. The nose of the oxygen tube should be
cleaned and disinfected after each use. Wash it with water after soaking for 5 minutes; it can also be
wiped with medical alcohol. It is recommended that the oxygen suction tube be replaced every one year
after use. (Note: The oxygen suction tube should be kept dry.)
8.6 Replacement of the fuse
The fuse holder is located on the control board of the oxygen generator. The specification of the
fuse is: f2.0al250v φ5×20.
The replacement of the safety tube requires a professional or the company's maintenance service
department.
8.7 Handling during long periods of inactivity
Before preparing to leave the oxygen generator for a long time, please do the following:
(1) Remove the humidification cup, drain the water from the humidification cup, and put it back in
place.
(2) Cut off the power and retract the power cord.
(3) Store the oxygen suction tube dry at room temperature to avoid direct sunlight and pollution.
After leaving the oxygen generator for a long time, before you prepare to reuse it, please do the
following:
(1) Inspect the power cord for damage.
(2) Clean the oxygen suction tube, check whether it is blocked or discounted, and clean it up in
time.
(3) Clean the humidification cup.
(4) Clean the intake silencer and the air intake cover.

-13 -
9. Transportation and storage
9.1Precautions for transportation and storage
Please observe the following precautions during transportation and storage:
9.2Environmental requirements for storage and transportation
Ambient temperature: -20 ℃~ 50 ℃ ;
Relative humidity ≤95%;
Atmospheric pressure 500hPa ~ 1060hPa.
9.3Transport
The oxygen generator with complete packaging should avoid severe collision and
direct rain and snow during transportation.
9.4Storage
The oxygen generator should be stored in a well-ventilated room that avoids strong
sunlight and non-corrosive gases.
Precautions for transportation and storage
1. Before the oxygen generator is transported or stored, the water in the
humidification cup should be drained.
2. It is forbidden to place the oxygen generator upside down or horizontally
during transportation and handling.
3. When the storage temperature is lower than 10 ℃ , the oxygen generator
should be left in the normal working environment for 8 hours before use.
4. The oxygen generator has been disabled for a long time, and it should be
turned on and checked before use, and it can be put into use after confirming that
all functions are normal.

-14 -
10.
10.
10. Warranty
Warranty
Warranty period
period
period and
and
and after-sales
after-sales
after-sales service
service
service
10.1Warranty period
Since the product was sold, the warranty period is as long as the requirements for
handling, storage, use and maintenance are observed.
One year, and the product usage time is less than 3000hours. If one of the following
situations occurs, it does not belong to our company
Free warranty coverage:
1) Damage caused by the user's incorrect operation or use under abnormal conditions.
2) The damage caused by the user's own disassembly, repair and modification.
3) Damage caused by natural disasters.
4) Fragile, consumables and accessories that should be replaced by the user (such as
oxygen suction tubes, insurance tubes, filters, etc.).
5) Cannot provide proof of purchase to prove the date of purchase.
10.2Disclaimer
The company is not responsible for direct or indirect damages to users due to improper
use or failure to operate in accordance with the instruction manual.
10.3After-sales service
The company has maintenance points at various dealers to maintain products for
life. It only charges maintenance costs and offers a variety of spare parts at a discount.

11.
11.
11. Packing
Packing
Packing list,
list,
list, supporting
supporting
supporting accessories
accessories
accessories specifications
specifications
specifications
11.1Attentions for selecting accessories
When choosing accessories, please observe the following precautions:
11.2Packing List
Table 2 Packing list of DZ-1W oxygen generator
Serial
number
model name unit Quantity
Notes
1DZ-1W oxygen generator station 1
2
Oxygen pipe root
1
3
Nebulizer set 1
4
remote control
Each 1
5Intake filter Each 1
6
Sealing ring
only 4
7user's manual Share 1
8Certificate of inspection Share 1
Attentions for selecting accessories
1. The oxygen generator uses a special humidification cup. If you need repair or
replacement, please contact the supplier.
2. The oxygen suction tube should use qualified products with medical device
registration certificate, and can be tightly connected with the corresponding
"oxygen output" socket of the oxygen generator. Users can purchase according to
the sample specifications in the random accessories. Avoid adverse effects on
safety.
