JVC Everio GZ-RX500 User manual

CAMCORDER
C5B7_RX500_TW_EN
Detailed User Guide
GZ-RX500

Table of Contents
Getting Started
Verifying the Accessories ........................................................ 4
Turning on this Unit .................................................................. 5
Opening the Terminal Cover (SD Card Cover) ........................ 5
Charging .................................................................................. 6
Resetting this Unit .................................................................... 6

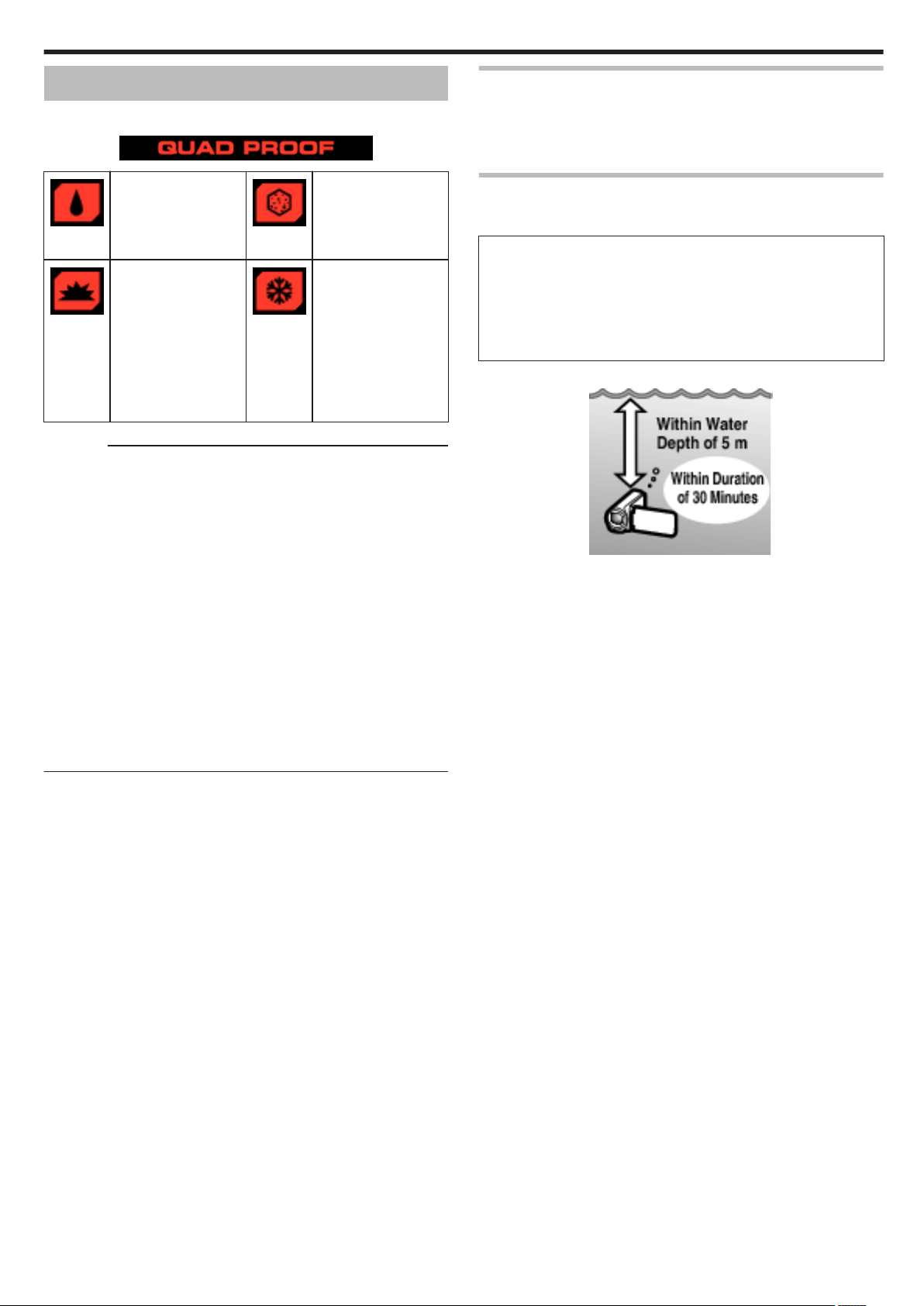

Quad Proof .............................................................................. 7
Before Using Underwater or under Low Temperature .......... 7
Grip Adjustment ....................................................................... 9

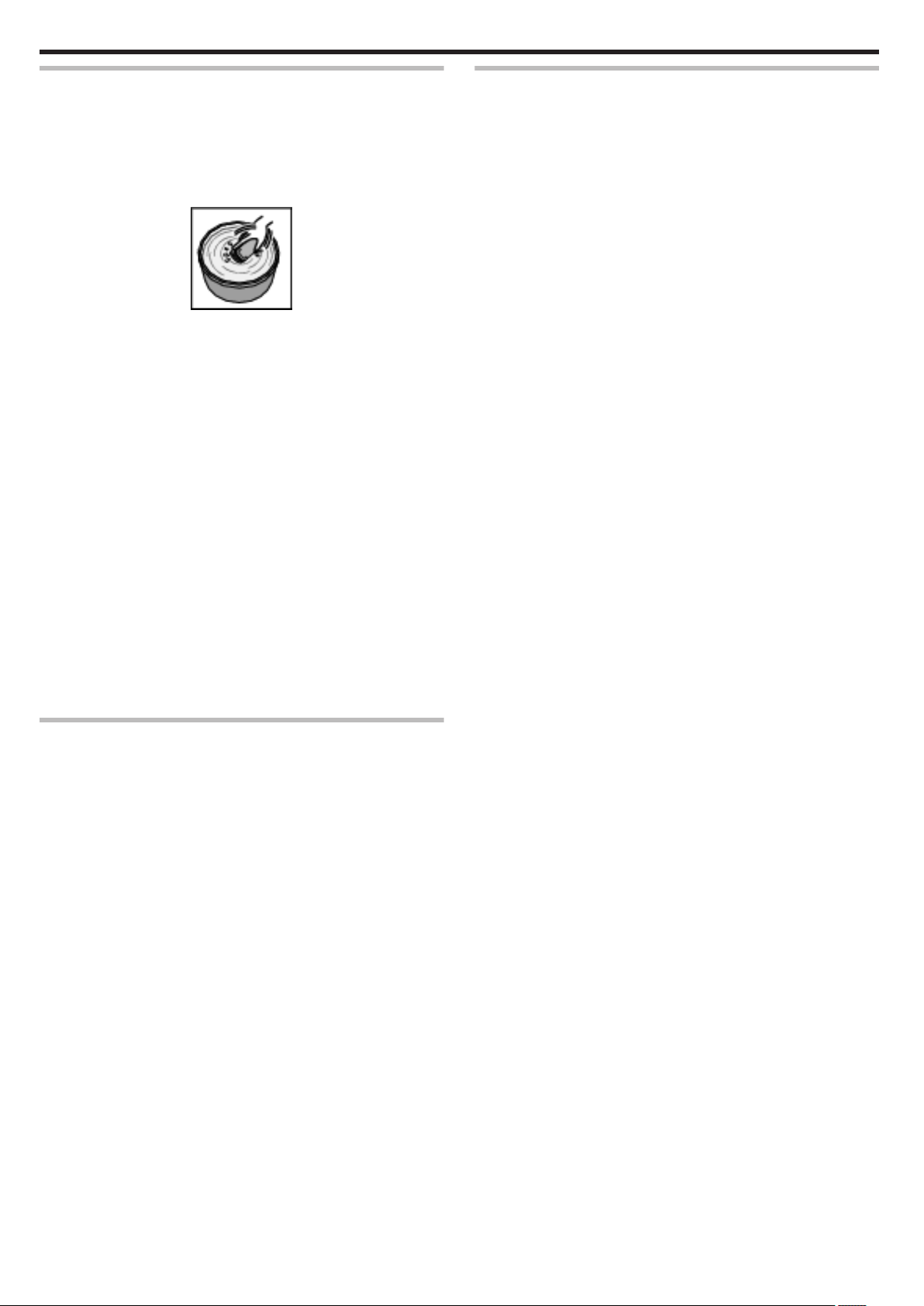

Attaching the Core Filter .......................................................... 9

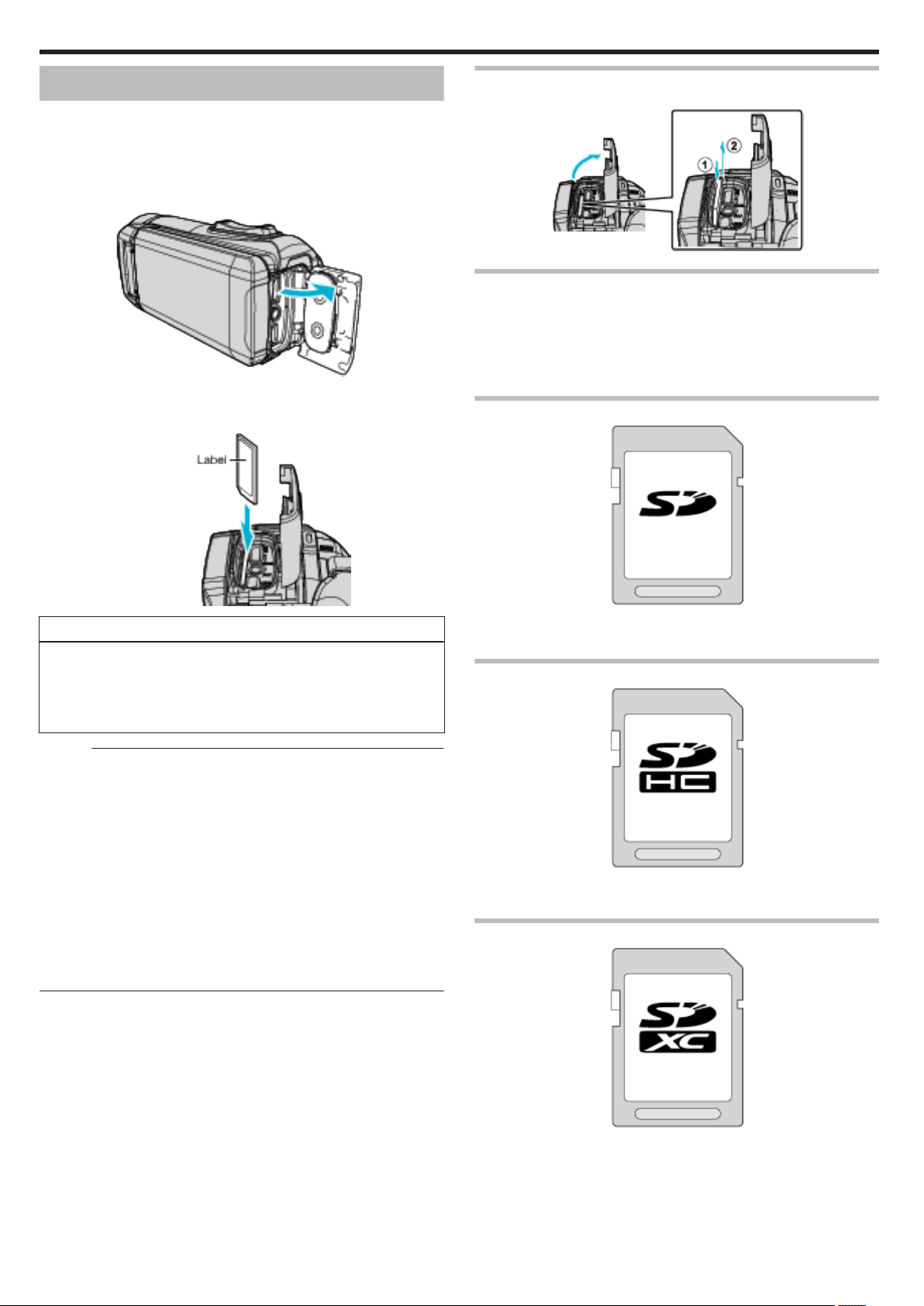

Inserting an SD Card ............................................................. 10
Types of Usable SD Card ................................................... 10

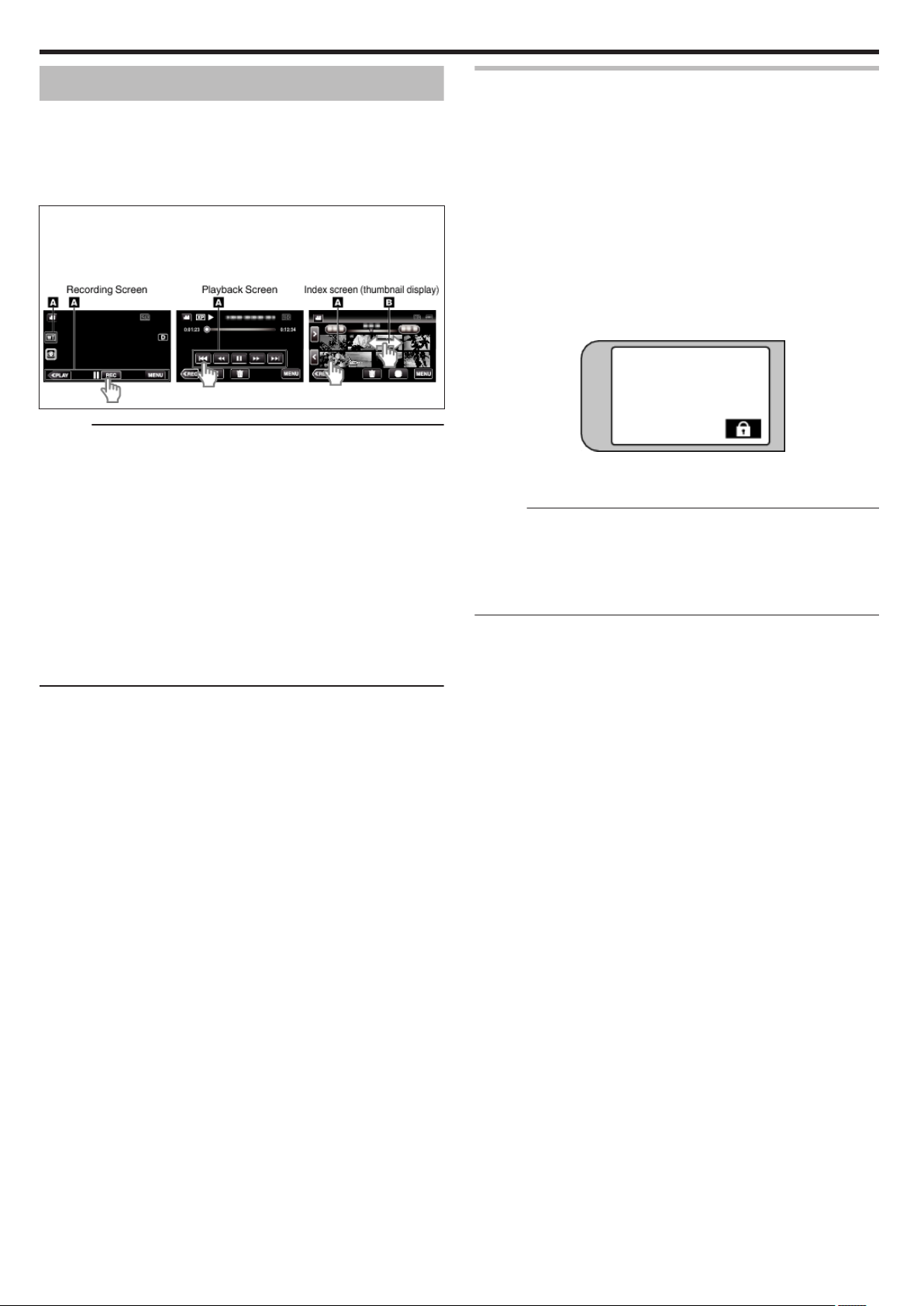

Using the Touch Screen ........................................................ 12
Locking the Screen (when Shooting Underwater) .............. 12
Adjusting the Touch Panel ................................................. 13

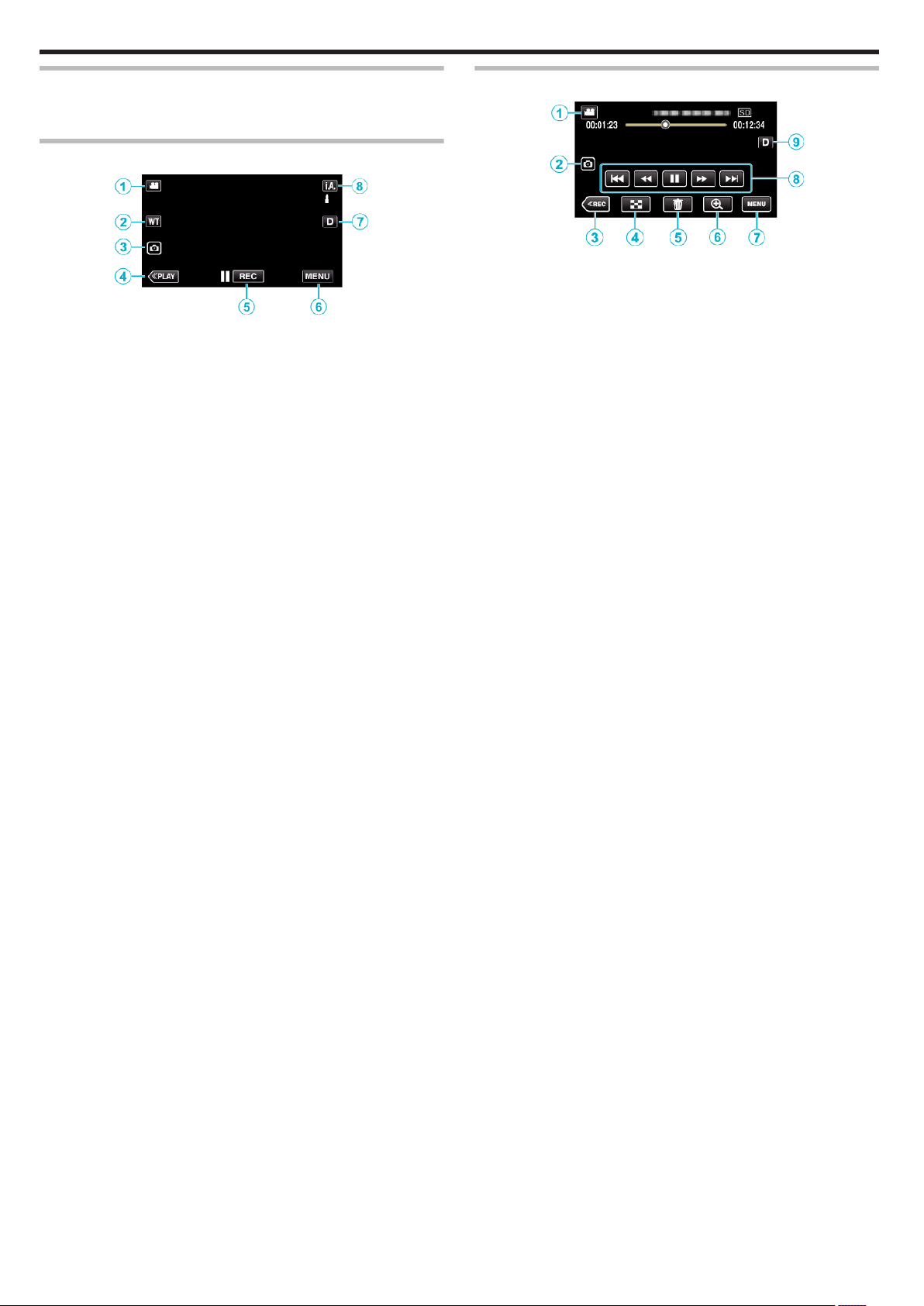

Names of Buttons and Functions on the LCD Monitor ....... 14
Clock Setting ......................................................................... 17
Resetting the Clock ............................................................ 17
Changing the Display Language ............................................ 18
Holding this Unit .................................................................... 19
Tripod Mounting .................................................................... 19
Using this Unit Overseas ....................................................... 20
Charging the Battery Pack Overseas ................................. 20
Setting the Clock to Local Time when Traveling ................. 20
Setting Daylight Saving Time ............................................. 21
Optional Accessories ............................................................. 21
Recording
Taking Videos in Auto Mode .................................................. 22
Capturing Still Images During Video Recording ................. 25
Taking Still Images in Auto Mode ........................................... 25
Zooming ................................................................................ 28
Manual Recording ................................................................. 29
Adjusting Focus Manually (FOCUS) .................................. 30
Adjusting Brightness .......................................................... 31
Setting Backlight Compensation ........................................ 32
Setting White Balance ........................................................ 33
Taking Close-up Shots (TELE MACRO) ............................ 34
Shooting under Water ............................................................ 35
Recording with Effects ........................................................... 37
Recording Images Like an Old Black and White Photo
(GRAINY MONOCHROME) ........................................... 38
Recording Food Images (FOOD) ....................................... 39
Recording Images of a Baby (BABY) ................................. 40
Recording with Animation Effects (ANIMATION EFFECT) .... 41
Recording with Face Decorations (DECORATE FACE
EFFECT) ............................................................................ 43
Capturing Subjects Clearly (TOUCH PRIORITY AE/AF) ....... 44
Capturing Smiles Automatically (SMILE SHOT) ................. 45
Registering Human Face Personal Authentication Information
............................................................................................ 47
Setting SMILE%/NAME DISPLAY ...................................... 49
Editing the Registered Face Information ............................ 50
Reducing Camera Shake ....................................................... 52
Recording at Intervals (TIME-LAPSE RECORDING) ............. 53
Recording with a Part of the Screen Enlarged in Sub Screen
(CLOSE-UP SUB-WINDOW) ............................................. 55
Taking Group Shots (Self-timer) ............................................ 56
Recording Videos with Date and Time ................................... 57
Checking the Remaining Recording Time ............................. 58
Playback
Playing Back Videos .............................................................. 60
Normal Playback ................................................................ 61
Checking the Recording Date and Other Information ......... 63
MARKING PLAYBACK ...................................................... 64
DIGEST PLAYBACK .......................................................... 68
PLAYBACK OTHER FILE .................................................. 70
Playing Back Still Images ....................................................... 71
Slideshow Playback ........................................................... 72
Connecting to and Viewing on TV .......................................... 73
Connecting via the HDMI Mini Connector .......................... 73
Connecting via the AV Connector ...................................... 75
Playing Back a Blu-ray Disc Created on this Unit ................... 76
Digest Playback on a Blu-ray Player .................................. 76
Editing
Deleting Unwanted Files ........................................................ 77
Deleting the Currently Displayed File ................................. 77
Deleting Selected Files ...................................................... 77
Protecting Files ...................................................................... 78
Protecting/Releasing Protection of the Currently Displayed
File .................................................................................. 78
Protecting/Releasing Protection of Selected Files .............. 79
Capturing a Still Image in the Video During Playback ............ 80
Combining Videos Recorded by Seamless Recording .......... 81
Capturing a Required Part in the Video (TRIMMING) ............ 82
Copying
Creating Blu-ray Discs with a BD Writer ................................. 83
Preparing a BD Writer ........................................................ 83
Creating a Disc ................................................................... 84
Playing Back with a BD Writer (External Blu-ray Drive) ...... 88
Dubbing Files to a Disc by Connecting to a Blu-ray Recorder 89
Using a USB External Hard Disk Drive .................................. 90
Preparing a USB External Hard Disk Drive ......................... 90
Copying All Files ................................................................ 91
Playing Back Files in the USB External Hard Disk Drive .... 92
Deleting Folders in the USB External Hard Disk Drive ....... 92
Formatting the USB External Hard Disk Drive .................... 93
Importing Files from the USB External Hard Disk Drive ...... 93
Copying Files to an SD Card .................................................. 95
Copying to Windows PC ........................................................ 96
Verifying System Requirements (Guideline) ....................... 96
Installing the Provided Software (Built-in) ........................... 99
Backing Up All Files ......................................................... 101
Organizing Files ............................................................... 102
Recording Videos to Discs ............................................... 103
Backing Up Files Without Using Provided Software ......... 105
List of Files and Folders ................................................... 106
Copying to Mac Computer ................................................... 107
Using Wi-Fi
Wi-Fi Capabilities ................................................................. 108
Operating Environment ........................................................ 109
Precautions on Using Wi-Fi ................................................. 109
Image Monitoring via Direct Connection (DIRECT
MONITORING) ................................................................ 110
Image Monitoring via an Access Point at Home (INDOOR
MONITORING) ................................................................ 113
Recording the Location Information ..................................... 116
Changing the Settings ......................................................... 120
Registering Access Point Using Wi-Fi Protected Setup (WPS)
...................................................................................... 121
Registering Access Point Using WPS PIN ....................... 122
Checking the MAC Address of this Camera ..................... 123
Initializing the Wi-Fi Settings ............................................ 123
Using Smartphone Applications ........................................... 124
Indications on the screen ................................................. 124
Using the Markings .......................................................... 125
Using the Game Score ..................................................... 126
Transferring Videos (AVCHD format) ............................... 128
Transferring Still Images .................................................. 131
Smartphone Application Settings ..................................... 133
Troubleshooting ................................................................... 135
Wi-Fi Specifications ............................................................. 139
2

Using Wi-Fi by Creating a QR Code
DIRECT MONITORING ....................................................... 141
INDOOR MONITORING ...................................................... 144
OUTDOOR MONITORING .................................................. 147
Registering Access Point Manually ...................................... 151
Settings Menu
Operating the Menu ............................................................. 152
Operating the Top Menu .................................................. 152
RECORD SETTING Menu (video) ....................................... 153
RECORD SETTING Menu (still image) ................................ 157
PLAYBACK SETTING Menu (video) ................................... 159
EDIT Menu (video) ............................................................... 160
PLAYBACK SETTING Menu (still image) ............................ 161
EDIT Menu (still image) ....................................................... 162
SETUP (video/still image) .................................................... 163
CONNECTION SETTINGS (video/still image) ..................... 166
USB CONNECTION MENU ................................................. 167
Names of Parts ........................................................... 168
Indications on the LCD monitor ............................... 171
Troubleshooting ......................................................... 174
When the unit is not working properly .................................. 174
Charging .............................................................................. 174
Power supply ....................................................................... 175
Recording ............................................................................ 175
SD Card ............................................................................... 176
Playback .............................................................................. 176
Editing/Copying ................................................................... 177
Computer ............................................................................. 177
Screen/Image ...................................................................... 178
Other Problems ................................................................... 178
Error Message? ................................................................... 179
Maintenance ............................................................... 181
Specifications ............................................................. 182
Trademarks ................................................................. 184
3

Verifying the Accessories
If any of the items are missing or defective, consult your JVC dealer or the nearest JVC service center.
Illustration Description
.
AC Adapter
AC-V11U
0Charges this unit. Attach the charging adapter cable to the tip of the cord.
It can also be used when recording or playing back videos indoors.
.
Charging Adapter Cable
QAM1580-001
0Attach to the tip of the cord of the AC adapter and connect to the USB connector of this unit to charge.
.
USB Cable
(Type A - Micro Type B)
0Connects this unit to a computer.
.
AV Cable
E3A-0085-00
0Connects this unit to a TV to play back recorded images on the TV.
0Please consult your JVC dealer or the nearest JVC service center when purchasing a new AV cable.
.
Small Core Filter (for AC Adapter)
.
Large Core Filter (AV Cable)
.
Read Me First
0Before use, please read the “Read Me First” to ensure safe use of this product.
Memo :
0The provided software (application software) is built into this unit.
“Verifying System Requirements (Guideline)” (A p. 96)
0The large core filter is for use with an AV cable. Do not use it with any cable other than the AV cable.
The small core filter is for use with the AC adapter. Do not use it with anything other than the AC adapter.
“Attaching the Core Filter” (A p. 9)
0SD cards are sold separately.
“Types of Usable SD Card” (A p. 10)
0When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit.
“Charging the Battery Pack Overseas” (A p. 20)
Getting Started
4

Turning on this Unit
Open the LCD monitor to turn on this unit.
To turn off the power, close the LCD monitor.
oTo turn on the power
Open the LCD monitor.
.
oTo turn off the power
Close the LCD monitor.
.
The POWER/ACCESS lamp goes off and the power is turned off.
“POWER/ACCESS (Power/Access) Lamp” (A p. 169)
Opening the Terminal Cover (SD Card Cover)
oTo open
.
AOpen the LCD monitor.
BSlide down the cover lock and slide the cover aside.
CLift the cover slowly.
oTo close
.
Leave the LCD monitor open first.
AFlip down the cover slowly while making sure the gray waterproof seal
fits into the opening at the terminals.
BPress the entire cover against the camcorder with equal force and firmly
attach the cover completely.
CSlide the cover until it clicks into place.
The cover is not properly closed if the red mark on the cover lock is visible.
Caution :
0Ensure that the terminal cover and the gray waterproof seal are not
damaged and that there are no foreign materials (such as hair, lint, sand
or dust) adhered on the cover.
0Stop using the unit underwater if there are damages to the cover, etc. and
consult your JVC dealer or the nearest JVC service center.
0Do not apply excessive force when opening/closing the terminal cover.
0Read the “Cautions on Using Underwater” (A p. 7) before using the
camera underwater or in places exposed to water droplets.
Getting Started
5

Charging
This unit is equipped with a built-in battery.
Open the connector cover, and connect the AC adapter for charging as
shown in the figure.
.
Caution :
0The built-in battery is not charged at the time of purchase.
0At the time of purchase or in case of the battery is not used for a long period
of time, the charging time will be longer than usual. The camera does not
turn on if the remaining battery power is low. In this case, charge the battery
for more than 40 minutes before turning on the power.
0Charging time: Approx. 6 h 10 m (when charging at 25 ℃)
0The battery cannot be charged outside the room temperature range of
10°C to 35°C. The CHARGE lamp does not light up when the battery is
not being charged. If the temperature increases or decreases during
charging, the CHARGE lamp will blink slowly and charging will stop. In this
case, remove the AC adapter, press the Reset button and wait until the
room temperature is within the above stated range before charging again.
0You can record or play back videos during charging. (However, the
charging time will be longer than usual. In addition, the remaining battery
power may decrease according to conditions.) If the internal temperature
rises when using the unit, stop the charging temporarily. (The CHARGE
lamp goes off.)
0If malfunctions (such as overvoltage) occur, charging will stop. In these
cases, CHARGE lamp blinks quickly as a notification.
0During charging, the P icon on the screen changes to O to indicate that
charging is in progress. (when the provided AC adapter is used)
0When the recording time becomes extremely short even when the battery
is fully charged, the battery needs to be replaced. For details on replacing
the built-in battery (subject to a fee), consult the nearest JVC service
center.
Caution :
0There are certain specifications for a USB rechargeable device. To
charge, use a device with the output voltage of 5 V/1 A or more.
0Depending on the specification of your charging device and the thickness
and length of an USB cable used to connect to this unit, the charging time
may be longer than usual, or it may not even start.
0We shall not be held liable for malfunctions that are due to using non-
standard device or a device with poor quality.
Resetting this Unit
When a malfunction occurs on this unit, reset the unit in the following way.
(Resetting the unit does not erase the recorded data.)
1Open the terminal cover.
0Remove the power cord and all connecting cables.
2Close the LCD monitor to turn off this unit.
3Press the Reset button gently using an object with pointed tip.
Caution :
0Press the Reset button just once gently.
0Do not use sharp pointed objects. It may damage the unit or cause electric
shock.
Memo :
0If malfunction persists even after pressing the Reset button, consult the
nearest JVC service center.
Getting Started
6

Quad Proof
This unit is equipped with Waterproof, Dust-proof, Drop-proof and Freeze-
proof features.
.
.
Waterproof:
Equivalent to IEC
Standard publication
529 IPX8 (30 minutes
at depths up to 5 m)
.
Dust-proof: Equivalent
to IEC Standard
publication 529 IP5X
.
Drop-proof: This
camera clears
company testing
compliant with MIL-
STD-810F Method;
516.5
Shock: Dropping onto
plywood 3 cm thick
from a height of 1.5 m
.
Freeze-proof:
Allowable operating
temperatures: −10°C
to +40°C
Note: Temperatures
between −10°C and
0°C temporarily lower
battery performance,
reducing the time
available for recording.
Caution :
0There is no guarantee that there will be no damages when the unit is used
within the above-mentioned limits.
Scratches and dent caused by the impact if the unit is dropped, or other
changes in appearance are not included in the warranty.
0Malfunction due to mishandling will void the warranty.
0Before use in water, be sure to read and understand the “Before Using
Underwater or under Low Temperature” (A p. 7) .
0Close the terminal cover firmly until it clicks and confirm that the red sign
completely goes off.
0Make sure that there is no damage to and no foreign material adhered to
the packing inside the cover.
0Use within a water depth of 5 m and a duration of 30 minutes.
0The waterproof performance cannot be guaranteed if the camcorder is
subject to impact such as dropping.
0Do not jump or dive into water holding the camcorder.
0Do not use the camcorder in strong water flows such as in rapids or under
waterfalls. The strong water pressure may impair the waterproof
performance.
0Do not immerse into hot spring, or hot water above 40°C.
Before Using Underwater or under Low Temperature
“Cautions on Using Underwater” (A p. 7)
“Maintenance after Use” (A p. 8)
“Cautions on Using under Low Temperature” (A p. 8)
“Cautions on Using under Low Temperature” (A p. 8)
Cautions on Using Underwater
Please take note of the followings when using this unit near water or
underwater.
0Ensure that the cover is closed tightly.
“Opening the Terminal Cover (SD Card Cover)” (A p. 5)
0Ensure that the terminal cover and the gray waterproof seal are not
damaged and that there are no foreign materials (such as hair, lint, sand
or dust) adhered on the cover.
0Stop using the unit underwater if there are damages to the cover, etc.
and consult your JVC dealer or the nearest service center.
0Use within a water depth of 5 m and a duration of 30 minutes.
.
0Do not open/close the cover or insert/remove an SD card or any cables
while using underwater or on the beach, or if your hands contain water
droplets or sands. Doing so may cause water to enter into the camera or
malfunction.
0Do not subject the camera to high pressure or vibration resulted from swift
current, waterfall or diving into water.
0The waterproof performance is not guaranteed if the camera is dropped
or subjected to other impact shock. If the camera has been subjected to
impact shock, consult your nearest service center.
0While shooting underwater, noise generated inside of the camera
(zooming sounds, etc) may be picked up. This is not a malfunction.
0Do not immerse into hot spring, or hot water above 40°C. Doing so
deteriorates waterproof performance.
0Keep away from hands with sun oil or sun screen. Doing so may cause
discoloration or deterioration of material.
0This unit sinks underwater. Fasten the grip belt firmly to prevent losing the
camera underwater.
0The accessories are not waterproof.
Getting Started
7

Maintenance after Use
After using underwater or in dusty places, rinse the camera with water
immediately and dry it completely.
1Ensure that the terminal cover is closed.
2Rinse with clean water.
Soak the camera in a container filled with enough water to immerse the
camera completely, and rinse it gently.
.
0After using the camera under the sea or on the beach, immerse the
camera in fresh water for about 10 minutes to remove salt particles,
replace the water and rinse the camera.
0Open and close the LCD screen, and operate the buttons or zoom
operations to get rid of sands or dusts in the gap.
0Do not rinse the camera under running tap water or strong pressure
water.
3Dry the camera.
Wipe the camera completely with a soft dry cloth and allow it to dry in a
well-ventilated and shady location.
0Place the camera with the lens facing downward while the LCD
monitor is closed, and leave it for approximately 10 minutes. (By doing
so, microphone and LDC part are dried out easily.) Place the camera
in a up right position on a dry cloth afterward Close the terminal cover
after the camera is dried out completely.
0Wipe off any foreign materials or water droplets inside the cover.
* If you leave the camera immersed in salt water or allow water droplets from
the salt water to remain on the camera, this may cause corrosion,
discoloration or deterioration of waterproof performance.
* If you wipe or dry the camera with sand particles adhered, this may cause
scratches on the camera.
* Do not wash with chemicals, soap, neutral detergents, or alcohol.
* Do not dry the camera with a hair dryer or other heat sources. This could
impair its waterproof performance.
Cautions on Using under Low Temperature
0The performance of the battery will drop temporarily when the temperature
is -10°C to 0°C, this will cause the remaining recording time to shorten.
0Charging cannot be performed when the surrounding temperature is
below 10 °C.
0Turning on the camera while it is still cold will deteriorate the performance
of the LCD monitor. Problems such as the screen becoming dark
momentarily or residual image can occur.
0If snow or water droplets adhere to the camera under sub-zero
temperature environment, ice can formed between the gaps around the
buttons, speaker or microphone. This will cause difficulty in operating the
buttons as well as decrease in the volume level.
0Direct contact with exposed metal part under cold temperature can cause
the skin to stick on the metal part resulting in injuries such as frostbite. Do
not touch with bare hands.
Other Precautions
0Do not leave the camera under low temperature in cold climates or under
high temperature above 40 °C (such as under direct sunlight, inside a
vehicle in the hot sun, or near a heater). This will cause deterioration of
the waterproof performance.
0Malfunction due to mishandling will void the warranty.
0We are not responsible for any loss of data due to water entering into inside
of the camera. Please be forewarned.
0It is recommended to replace the waterproof packing once a year to
maintain the waterproof performance. Consult your nearest service
center. (Subject to a fee)
Getting Started
8

Grip Adjustment
.
AOpen the pad
BAdjust the length of the belt
CClose the pad
Caution :
0Be sure to fasten the grip belt properly.
If the belt is loose, this unit may drop and result in injuries or damages.
Attaching the Core Filter
Attaching core filter to the cable of the AC adapter and the AV cable (on the
end connected to this unit) can reduce the interference generated when this
unit is connected to an external device.
0Use the small core filter with the power cable, and the large core filter with
the AV cable.
0Do not attach the core filter to the provided adapter cable.
.
Getting Started
9

Inserting an SD Card
When a commercially available SD card is inserted, recordings can still be
made to the card without stopping when the remaining recording time on the
built-in memory runs out.
“Types of Usable SD Card” (A p. 10)
“Approximate Video Recording Time” (A p. 59)
1Open the terminal cover.
.
2Close the LCD monitor to turn off this unit.
3Insert an SD card.
.
Warning
0Make sure not to insert the SD card in the wrong direction.
It may cause damage to the unit and SD card.
0Before inserting or removing the SD card, close the LCD monitor and
ensure that the POWER/ACCESS lamp goes off.
0Do not touch the metal contact area when inserting the SD card.
Memo :
0When “SEAMLESS RECORDING” is set to “ON”, recordings can still be
made to the SD card without stopping when the remaining recording time
on the built-in memory runs out.
“ SEAMLESS RECORDING ” (A p. 155)
0Both videos and still images can be recorded on one SD card. It is
recommended to confirm the video operation of the SD card before usage.
0To record to an SD card, it is necessary to set the recording media to “SD
CARD”.
“ REC MEDIA FOR VIDEO ” (A p. 164)
“ REC MEDIA FOR IMAGE ” (A p. 165)
0To use a new SD card, or SD card used on other devices, it is necessary
to format (initialize) the SD card using “FORMAT SD CARD” from the
“SETUP” menu.
“ FORMAT SD CARD ” (A p. 165)
Removing the Card
Push the SD card inward once, then pull it out straight.
.
Types of Usable SD Card
The following SD cards can be used on this unit.
Operations are confirmed on the SD cards from the following manufacturers.
0Panasonic
0TOSHIBA
0SanDisk
SD Card
.
0This unit supports 256 MB to 2 GB SD cards.
0Use a Class 4 or higher compatible SD card (2 GB) for video recording.
SDHC Card
.
0Use a Class 4 or higher compatible SDHC card (4 GB to 32 GB) for video
recording.
SDXC Card
.
0Use a Class 4 or higher compatible SDXC card (Max. 128 GB) for video
recording.
Getting Started
10
