SERVICE MANUAL
COPYRIGHT © 2010 Victor Company of Japan, Limited No.YF347<Rev.001>
2010/4
CAMCORDER
YF347<Rev.001>20104SERVICE MANUALEVERIO-S
GZ-HM330BEK, GZ-HM330BEU, GZ-HM330RAA,
GZ-HM330RAC, GZ-HM330RAG, GZ-HM330RAH,
GZ-HM330RAS, GZ-HM330SAA, GZ-HM330SAC,
GZ-HM330SAG, GZ-HM330SAH, GZ-HM330SAS,
GZ-HM330SEK, GZ-HM330SEU, GZ-HM334BEU,
GZ-HM335BEU, GZ-HM350BAA
COPYRIGHT © 2010 Victor Company of Japan, Limited
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
This service manual (No.YF347<Rev.001>) describes only the items which differ from those of already issued service manual
(No.YF336<Rev.001>)
For details other than those described in this manual, please refer to the service manuals which were already issued.
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-33
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
SERIES
C0S4
GZ-HM330BEKM, GZ-HM330BEUM, GZ-HM330SEKM, GZ-HM330SEUM, GZ-HM334BEUM, GZ-HM335BEUM [C0S414]
GZ-HM330RAAM, GZ-HM330RACM, GZ-HM330RAGM, GZ-HM330RAHM, GZ-HM330RASM, GZ-HM330SAAM,
GZ-HM330SACM, GZ-HM330SAGM, GZ-HM330SAHM, GZ-HM330SASM [C0S415]
GZ-HM350BAAM [C0S419]

1-2 (No.YF347<Rev.001>)
SPECIFICATION
Camera
For more information, refer to the Detailed User Guide
http://manual.jvc.co.jp/index.html/
AC Adapter (AP-V30M)*
*When using the AC adapter overseas, please prepare a commercially available converter plug for the country or region of visit.
• The specifications and appearance of this product are subject to changes for further improvement without prior notice.
Power supply Using AC adapter: DC 5.2 V, Using battery pack: DC 3.6 V
Power consumption 2.7 W (when “LIGHT”is set to “OFF”and “LCD BACKLIGHT” is set to “STANDARD”)
Dimensions (W ×H ×D) 52 mm ×62 mm ×110 mm (excluding grip belt)
Mass Approx. 220 g (camera only),
Approx. 260 g (including supplied battery pack)
Operating environment Allowable operating temperature:0°C to 40°C
Allowable storage temperature:-20°C to 50°C
Allowable operating humidity:35% to 80%
Image pickup device 1/4" 3,320,000 pixels (progressive CMOS)
Recording area (Video) (16:9) 1,160,000 to 1,380,000 pixels (optical zoom)
Recording area
(Still image)
(4:3) 870,000 to 1,040,000 pixels
(16:9) 1,160,000 to 1,380,000 pixels
Lens F 1.8 - 4.7, f = 3.0 mm to 90.0 mm(35 mm conversion: 43.7 mm to 1311 mm)
Zoom (Video) Optical zoom: Up to 30×
Digital zoom: Up to 200×
Zoom (Still image) Optical zoom: Up to 30×
Video recording format AVCHD standard, Video: AVC/H.264, Audio: Dolby Digital (2ch)
Still image recording format JPEG standard
Recording media Built-in Memory (8 GB/16GB), SD/SDHC card (commercially available))
Clock battery Rechargeable battery
Connectors HDMI HDMITM Mini Connector (V.1.3 with x.v.ColorTM)
Component output Y, Pb, Pr component output
Y: 1.0 V (p-p), 75 ΩPb/Pr: 0.7 V (p-p), 75 Ω
AV output Video output: 1.0 V (p-p), 75 Ω
Audio output: 300 mV (rms), 1 kΩ
USB Mini USB type AB, USB 2.0 compliant
Power supply AC 110 V to 240, 50 Hz/60 Hz
Output DC 5.2 V, 1.8 A
Allowable operating temperature 0°C to 40°C (10°C to 35°C during charging)
Dimensions (W ×H ×D) 50 mm ×29 mm ×100 mm (excluding cord and AC plug)
Mass Approx. 112 g

(No.YF347<Rev.001>)1-3
SECTION 1
PRECAUTIONS
1.1 SAFETY PRECAUTIONS
Prior to shipment from the factory, JVC products are strictly
inspected to conform with the recognized product safety and
electrical codes of the countries in which they are to be
sold.However,in order to maintain such compliance, it is equally
important to implement the following precautions when a set is
being serviced.
1.1.1 Precautions during Servicing
(1) Locations requiring special caution are denoted by labels
and inscriptions on the cabinet, chassis and certain parts of
the product.When performing service, be sure to read and
comply with these and other cautionary notices appearing
in the operation and service manuals.
(2) Parts identified by the symbol and shaded ( ) parts
are critical for safety.
Replace only with specified part numbers.
NOTE :
Parts in this category also include those specified to
comply with X-ray emission standards for products
using cathode ray tubes and those specified for
compliance with various regulations regarding
spurious radiation emission.
(3) Fuse replacement caution notice.
Caution for continued protection against fire hazard.
Replace only with same type and rated fuse(s) as
specified.
(4) Use specified internal wiring. Note especially:
• Wires covered with PVC tubing
• Double insulated wires
• High voltage leads
(5) Use specified insulating materials for hazardous live parts.
Note especially:
• Insulation Tape
• PVC tubing
•Spacers
• Insulation sheets for transistors
• Barrier
(6) When replacing AC primary side components (transformers,
power cords, noise blocking capacitors, etc.) wrap ends of
wires securely about the terminals before soldering.
Fig.1-1-1
(7) Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors, etc.)
(8) Check that replaced wires do not contact sharp edged or
pointed parts.
(9) When a power cord has been replaced, check that 10-15
kg of force in any direction will not loosen it.
Fig.1-1-2
(10) Also check areas surrounding repaired locations.
(11) Products using cathode ray tubes (CRTs)In regard to such
products, the cathode ray tubes themselves, the high
voltage circuits, and related circuits are specified for
compliance with recognized codes pertaining to X-ray
emission. Consequently, when servicing these products,
replace the cathode ray tubes and other parts with only the
specified parts. Under no circumstances attempt to modify
these circuits.Unauthorized modification can increase the
high voltage value and cause X-ray emission from the
cathode ray tube.
(12) Crimp type wire connectorIn such cases as when replacing
the power transformer in sets where the connections
between the power cord and power trans former primary
lead wires are performed using crimp type connectors, if
replacing the connectors is unavoidable, in order to prevent
safety hazards, perform carefully and precisely according
to the following steps.
•Connector part number :E03830-001
•Required tool : Connector crimping tool of the proper
type which will not damage insulated parts.
•Replacement procedure
a) Remove the old connector by cutting the wires at a
point close to the connector.Important : Do not
reuse a connector (discard it).
Fig.1-1-3
b) Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
Fig.1-1-4
c) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
Fig.1-1-5
d) As shown in Fig.1-1-6, use the crimping tool to crimp
the metal sleeve at the center position. Be sure to
crimp fully to the complete closure of the tool.
Fig.1-1-6
e) Check the four points noted in Fig.1-1-7.
Fig.1-1-7
Power cord
cut close to connector
15 mm
Connector
Metal sleeve
1.25
2.0
5.5
Crimping tool
Not easily pulled free Crimped at approx. cente
r
of metal sleeve
Conductors extended
Wire insulation recessed
more than 4 mm

1-4 (No.YF347<Rev.001>)
1.1.2 Safety Check after Servicing
Examine the area surrounding the repaired location for damage
or deterioration. Observe that screws, parts and wires have been
returned to original positions, Afterwards, perform the following
tests and confirm the specified values in order to verify
compliance with safety standards.
(1) Insulation resistance test
Confirm the specified insulation resistance or greater
between power cord plug prongs and externally exposed
parts of the set (RF terminals, antenna terminals, video and
audio input and output terminals, microphone jacks,
earphone jacks, etc.).See table 1 below.
(2) Dielectric strength test
Confirm specified dielectric strength or greater between
power cord plug prongs and exposed accessible parts of
the set (RF terminals, antenna terminals, video and audio
input and output terminals, microphone jacks, earphone
jacks, etc.). See Fig.1-1-11 below.
(3) Clearance distance
When replacing primary circuit components, confirm
specified clearance distance (d), (d') between soldered
terminals, and between terminals and surrounding metallic
parts. See Fig.1-1-11 below.
Fig.1-1-8
(4) Leakage current test
Confirm specified or lower leakage current between earth
ground/power cord plug prongs and externally exposed
accessible parts (RF terminals, antenna terminals, video
and audio input and output terminals, microphone jacks,
earphone jacks, etc.).
Measuring Method : (Power ON)Insert load Z between
earth ground/power cord plug prongs and externally
exposed accessible parts. Use an AC voltmeter to
measure across both terminals of load Z. See Fig.1-1-9
and following Fig.1-1-12.
Fig.1-1-9
(5) Grounding (Class 1 model only)
Confirm specified or lower grounding impedance between
earth pin in AC inlet and externally exposed accessible
parts (Video in, Video out, Audio in, Audio out or Fixing
screw etc.).Measuring Method:
Connect milli ohm meter between earth pin in AC inlet and
exposed accessible parts. See Fig.1-1-10 and grounding
specifications.
Fig.1-1-10
Fig.1-1-11
Fig.1-1-12
NOTE :
These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.
Chassis
Power cord
primary wire
d'
d
ab
c
V
A
Externally
exposed
accessible part
Z
Exposed accessible part
Grounding Specifications
AC inlet
Region
USA & Canada
Europe & Australia
Grounding Impedance (Z)
Z 0.1 ohm
Z 0.5 ohm
Earth pin
MIlli ohm meter
AC Line Voltage Region
Japan
Europe & Australia
R 1 M /500 V DC
USA & Canada 1 M R 12 M /500 V DC
R 10 M /500 V DC
Insulation Resistance (R)Dielectric Strength Clearance Distance (d), (d')
100 V
100 to 240 V
110 to 130 V
110 to 130 V
200 to 240 V
AC 1 kV 1 minute
AC 1.5 kV 1 minute
AC 1 kV 1 minute
(Class )
(Class )
AC 3 kV 1 minute
AC 1.5 kV 1 minute
d, d' 3 mm
d, d' 4 mm
d, d' 3.2 mm
d' 8 m m (Power cord)
d' 6 m m (Primary wire)
d 4 m m
AC Line Voltage Region
Japan
Europe & Australia
USA & Canada
Load Z Leakage Current (i) a, b, c
100 V
110 to 130 V
110 to 130 V
220 to 240 V
i 1 mA rms
i 0.5 mA rms
i 0.7 mA peak
i 2 mA dc
i 0.7 mA peak
i 2 mA dc
Exposed accessible parts
Exposed accessible parts
Antenna earth terminals
Other terminals
1
1.5
2
50
0.15

(No.YF347<Rev.001>)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 DIFFERENCE LIST
MODEL GZ-HM340BUS GZ-HM330BEK GZ-HM330BEU GZ-HM330RAA GZ-HM330RAC GZ-HM330RAG
SIGNAL FORMAT NTSC PAL PAL PAL PAL PAL
BODY COLOR BLACK BLACK BLACK RED RED RED
NAND MEMORY 16GB 8GB 8GB 8GB 8GB 8GB
LED LIGHT NO YES YES YES YES YES
LENS COVER NO(LENS CAP) YES(AUTO) YES(AUTO) YES(AUTO) YES(AUTO) YES(AUTO)
IMAGE SENSOR
1/5.8" 1.37M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS
RCU NO NO NO YES(RM-V760US) YES(RM-V760US) YES(RM-V760US)
USB TERMINAL IN/OUT OUT ONLY OUT ONLY IN/OUT IN/OUT IN/OUT
AC ADAPTER AP-V30U AP-V30M AP-V30E AP-V30M AP-V30M AP-V30M
AC CORD NO YES(BS) NO YES(AS/NZS) YES(CCC) YES(CEE)
BATTERY BN-VG114US BN-VG114EU BN-VG114EU BN-VG114EU BN-VG114AC BN-VG114EU
CONV. PLUG NO NO NO NO NO NO
MODEL GZ-HM330RAH GZ-HM330RAS GZ-HM330SAA GZ-HM330SAC GZ-HM330SAG GZ-HM330SAH
SIGNAL FORMAT PAL PAL PAL PAL PAL PAL
BODY COLOR RED RED SILVER SILVER SILVER SILVER
NAND MEMORY 8GB 8GB 8GB 8GB 8GB 8GB
LED LIGHT YES YES YES YES YES YES
LENS COVER YES(AUTO) YES(AUTO) YES(AUTO) YES(AUTO) YES(AUTO) YES(AUTO)
IMAGE SENSOR 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS
RCU YES(RM-V760US) YES(RM-V760US) YES(RM-V760US) YES(RM-V760US) YES(RM-V760US) YES(RM-V760US)
USB TERMINAL IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT
AC ADAPTER AP-V30M AP-V30M AP-V30M AP-V30M AP-V30M AP-V30M
AC CORD YES(BS) YES(SA) YES(AS/NZS) YES(CCC) YES(CEE) YES(BS)
BATTERY BN-VG114EU BN-VG114EU BN-VG114EU BN-VG114AC BN-VG114EU BN-VG114EU
CONV. PLUG NO YES NO NO NO NO
MODEL GZ-HM330SAS GZ-HM330SEK GZ-HM330SEU GZ-HM334BEU GZ-HM335BEU GZ-HM350BAA
SIGNAL FORMAT PAL PAL PAL PAL PAL PAL
BODY COLOR SILVER SILVER SILVER BLACK BLACK BLACK
NAND MEMORY 8GB 8GB 8GB 8GB 8GB 32GB
LED LIGHT YES YES YES YES YES YES
LENS COVER YES(AUTO) YES(AUTO) YES(AUTO) YES(AUTO) YES(AUTO) YES(AUTO)
IMAGE SENSOR 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS 1/4" 3.32M CMOS
RCU YES(RM-V760US) NO NO YES(RM-V760US) YES(RM-V760US) YES(RM-V760US)
USB TERMINAL IN/OUT OUT ONLY OUT ONLY OUT ONLY OUT ONLY IN/OUT
AC ADAPTER AP-V30M AP-V30M AP-V30E AP-V30E AP-V30E AP-V30M
AC CORD YES(SA) YES(BS) NO NO NO YES(AS/NZS)
BATTERY BN-VG114EU BN-VG114EU BN-VG114EU BN-VG114EU BN-VG114EU BN-VG114EU
CONV. PLUG YES NO NO NO NO NO

1-6 (No.YF347<Rev.001>)
2.2 CHECKING THE CPU VERSION
Procedure
(1) Open the MONITOR ASSY to turn the power ON.
(2) While halfway pressing and holding the [SNAPSHOT] but-
ton, repeat touching the buttons [A] and [B] 3 times in order:
[A]→[B]→[A]→[B]→[A]→[B].
(3) Release the halfway pressed [SNAPSHOT] button.
NOTE)
[VERSION INFO] is displayed on the monitor for about 5
seconds.
(4) Release the pressed [MENU] button, and the mode is
made clear.
NOTE)
When the mode is not canceled and the button is not op-
erable, disconnect the battery or the DC cable to reset
the power.
Even when the mode is canceled, resetting the power is
recommended.
Example:For GZ-HM330
Fig.2-2-1
Button[B]
LCD MONITOR
Button[A]
VERS ION INFO .
M o d e l N ame GZ-HM330
V
e r C u r r e n t 0 . 16
EEPRO
M V e r13
C
A M C P UV e r0 . 11
D
M 0
OK
MENU

(No.YF347<Rev.001>)1-7
2.3 FIRMWARE UPDATE
Connecting Everio to a PC via USB cable enables firmware update.
Connect a battery, capable of operating for 30 minutes or longer, and an AC adapter to Everio for update.
* The following procedure shows the monitor displays of the firmware update from ver. 0.82 to ver. 1.55.
* Use Windows XP or Windows Vista.
1.Preparation
(1)Preparation
Download the firmware update application software from JS-NET.
(2)Connection
Connect a battery that is capable of operating for 30 minutes or longer and an AC adapter to Everio.
* To ensure secure power supply during the update, update is disabled if either of them is not available.
2.Firmware transfer
(1) Select "UPDATE" in the main menu of Everio.
MENU > BASIC SETTINGS > UPDATE
Fig.2-3-1
(2)When the displayed current version is an old one, select "YES", and then press (OK).
Fig.2-3-2
(3)Follow the directions on the monitor to connect Everio to the PC via USB cable.
Fig.2-3-3
OK
MENU
OK
MENU
OK
MENU
OK
MENU

1-8 (No.YF347<Rev.001>)
(4)Double click the downloaded file to execute it. (The following shows the screen display of the PC.)
Fig.2-3-4
㬍
㬍
㬍
㬍
㬍
Execute the application software

(No.YF347<Rev.001>)1-9
3.Execute update
(1)Disconnect the USB cable, and remove Everio from the PC.
* In about 30 seconds after the removal, the update start screen appears.
(2)When the displayed current version is an old one, select "YES", and then press (OK).
Fig.2-3-5
(3)When the displayed current version is an old one, select "YES", and then press (OK).
* It takes about 4 minutes and 30 seconds to complete the update.
Fig.2-3-6
(4)Select "OK", and then re-start Everio.
Fig.2-3-7
(5)After the re-start, check that the current firmware is updated in UPDATE.
MENU > BASIC SETTINGS > UPDATE
Fig.2-3-8
When the updated firmware version is confirmed, select "NO", and then press (OK).
The firmware update is completed.
OK
MENU
OK
MENU
OK
MENU
OK
MENU
OK
MENU

1-10 (No.YF347<Rev.001>)
2.4 Self Diagnostic Display Function
2.4.1 Overview and Precautions
This model has a function to display self diagnostic data.
Data is displayed on the LCD screen by operating buttons on the main unit.
There are following seven types of screen display:
[VERSION] / [HDD/NAND] / [SD] / [COPY] / [EMG] / [KIZU] / [BT]
Only the two screen displays are used for servicing: [VERSION] and [EMG].
When displaying the screen, be careful with the following points:
(1) Do not operate on diagnostic screens other than [VERSION] or [EMG].
(2) Do not open or close the LCD monitor during any diagnostic display.
(3) Do not connect a USB cable to the USB terminal during diagnostic display.
As the operations 2) and 3) result in unstable operating environment, disconnecting and connecting back the AC adapter or the
battery is required to forcibly reset the model.
2.4.2 How to Display Data
(1) Open the LCD monitor to turn ON the power.
(2) Press and hold the [SNAPSHOT] button half way, touch the buttons in the following order: [A] →[B] →[B] →[A] →[A] →[B].
<Monitor screen>
(3) Release the [SNAPSHOT] button.
* Top menu is displayed on the monitor screen.
Note) "0001"is displayed next to [VERSION] only the first time.
Display details vary depending on the model destination.
<Top menu>
(4) Touch [C] on the touch sensor slider to switch the screen to a sub menu.
* The screen changes from the top menu to the sub menu ([VERSION] →[HDD/NAND]). It changes in the following order with
every touch: [HDD/NAND] →[SD] →[COPY] →[EMG] →[KIZU] →[BT], and then returns to [VERSION].
Button[B]
LCD MONITOR
Button[A]
[C]
[D]
OK
MENU
[ VERS I ON ] 0001

(No.YF347<Rev.001>)1-11
<Sub menu>
From [VERSION] to [HDD/NAND]
* Only the below two function screens are used for services.
To return to the previous screen, touch the [MENU] button only once.
Note) Touching the [MENU] button twice cancels the self diagnostic mode.
2.4.3 Screen Display Details ([VERSION]/[EMG])
2.4.3.1 [VERSION]
Select [VERSION] and touch the [OK] button.
The model name and the version information are displayed.
To return to the previous screen, touch the [MENU] button only once.
Note) Touching the [MENU] button twice cancels the self diagnostic mode.
[HDD/NAND]
[ VERS I ON ]
[EMG]
[ VERS I ON ]
[ VERS I ON ]
M o d e l N ame GZ-HM330
V
e r
C u r r e n t
0. 16
EEPRO
M
V e r13
C
A M C P UV
e r0.
11
[ VERS I ON ]

1-12 (No.YF347<Rev.001>)
2.4.3.2 [EMG]
(1) Switching between the initial screen and the emergency data Select [EMG] and touch the [OK] button.
Note) In [EMG], four types of emergency data (BOF/DROP/NAVI/DM) exist. The initial screen displays the BOF data.
With the cursor ">" stays on the left of TYPE BOF 00, every touch of the [OK] button changes the data for TYPE and CLEAR
as follows: BOF DROP NAVI DM, and then returns to BOF.
Emergency data
TYPE BOF **: Buffer overflow
Note) No SD card information is displayed if BOF occurs in HDD.
TYPE DROP **: Drop detection (HDD model only)
TYPE NAVI **: - (Not to be used for services as it is for design/analysis)
TYPE DM **: - (Not to be used for services as it is for design/analysis)
** indicates the number of detection time from 00 to 32.
The maximum number of detection is 32, and older data is deleted in every data update.
To return to the previous screen, touch the [MENU] button only once.
Note) Touching the [MENU] button twice cancels the self diagnostic mode.
(2) LIST display
To display the list data (BOF, DROP) specified in TYPE, touch the [OK] button with the cursor ">" stays on the left of the list item.
Touch [C] on the touch sensor slider to move the cursor up, and touch [D] on the touch sensor slider to move the cursor down.
BOF
DROP
To return to the previous screen, touch the [MENU] button only once.
Note) Every touch on the [MENU] button returns the screen to the previous one. Touching the [MENU] button on the [EMG]
screen cancels the self diagnostic mode.
[EMG] [EMG]
LIST
COPY TO SD [SD CARD NONE]
>TYPE BOF 00
CLEAR BOF
[EMG] BOF LIST 06
>00:2009/01/01 10:00 SD
01:2009/02/10 18:46 SD
TOTAL NUMBER
INDEX:YEAR:MONTH:DAY HH:MM MEDIA
02:2009/03/27 10:11 SD
[EMG] DROP LIST 05
>00:2009/01/01 10:00 ON 1
01:2009/02/10 18:46 OFF 3
TOTAL NUMBER
INDEX:YEAR:MONTH:DAY HH:MM SETTING LEVEL
02:2009/03/27 10:11 ON 5

(No.YF347<Rev.001>)1-13
(3) Errors in LIST
To display the error details of the list data (BOF, DROP) specified in TYPE, touch the [OK] button with the cursor ">" stays on
the left of the list item.
BOF
DROP
To return to the previous screen, touch the [MENU] button only once.
Note) Every touch on the [MENU] button returns the screen to the previous one. Touching the [MENU] button on the [EMG]
screen cancels the self diagnostic mode.
COPY TO SD
COPY TO SD is a function to save the emergency data on an SD card.
Note that it is not for the use of services as it is only valid in the special mode for design/analysis.
CLEAR
CLEAR is a function to reset the count of specified emergency in TYPE.
Note that it is not for the use of services as it is only valid in the special mode for design/analysis.
[BOF:03:06]
2009/01/01 10:00 SD
1BSD :10 082 2GB 0
[BOF:INDEX:TOTAL NUMBER]
INDEX:YEAR:MONTH:DAY HH:MM MEDIA
[MAKER ID]:[PRODUCT NAME]:[REVISION]:[PRODUCT DATE]
DUMP DATA
DUMP DATA
01 00 1B 53 44 20 20 20
01 10 08 22 00 20 20 20
[DROP:02:05]
2009/01/01 10:00
ON 21-40 [m]
90 00 00 01
[BOF:INDEX:TOTAL NUMBER]
INDEX:YEAR:MONTH:DAY HH:MM
SETTING,LEVEL IN METER
DUMP DATA

1-14 (No.YF347<Rev.001>)
2.5 Video Playback Error Display Function
2.5.1 Overview
This model has a function to save error information in the internal IC when an error occurs during video playback.
From the saved information, the section where an error occurred can be detected.
To obtain the saved error information, use terminal software and send a serial command for reading data displayed on a PC monitor.
There are types of terminal software including Windows HyperTerminal and freeware Tera Term.
Note) * Set the screen to VIDEO PLAYBACK as the error is displayed on the VIDEO PLAYBACK index screen.
* An approximate error position is displayed as the detected position varies depending on the operation environment.
2.5.2 Jig connector cable
Along with a serial update jig, a jig connector cable connects the model to the serial port on the PC.
Note) Adding a wire to the jig connector cable (Part No.: YTU93106B) is required.
How to work on the jig connector cable (YTU93106B)
Serial Update Jig
* Serial update jig is used to connect a PC cable and a jig con-
nector cable for firmware repair and various analyses.
11
Additional wire
<Soldered side>
8 pin NOT USE
9 pin GND
5 pin NOT USE
12 pin NOT USE
11 pin UA_TXD0
10 pin GND
Serial Update Jig
YTU93113A

(No.YF347<Rev.001>)1-15
Cable wiring
·Remove the 2 screws (1-2), and then remove the TOP COV-
ER ASSY.
NOTE1a:
Release or remove the JACK COVER ASSY as it interferes
with the disassembly of TOP COVER ASSY.
NOTE1b:
To remove the TOP COVER ASSY, press [A] indicated with
an arrow, and release the HOOK (L1a) first.
NOTE1c:
When removing the last HOOK (L1d), be careful not to de-
form or apply excess force to the parts to avoid possible
damage.
Jig connector wiring
Conversion Connector
TO UA_RXD0
TO AL_2.83V
TO UA_TXD0
NC(NOT USED)
TO GND
10 1
20 11
JIG CONNECTOR
SERIAI UPDATE JIG
JIG CONNECTOR CABLE
(YTU93106B)
JIG CONNECTOR
JIG CONN.
JACK COVER
ASSY
CONVERSION CONNECTOR
(YTU94145K-20)
PC CABLE
TERMINAL
SOFTWARE
PC
RS232C
COM PORT
BLUE
RED
WHITE
YELLOW
BLACK
(MAIN CN110)
SERIAI UPDATE JIG
(YTU93113A)
NC
(NOT USED)
NOTE1a
2
(S1)
NOTE1b
NOTE1c
1
(S1)
L1a
L1d
L1c
[1]
[A]
L1b
11. UA_TXD0
20
19
18
17
16
15
14
13
12
11
DSP_RTCK
DSP_TMS
XDSPSRST
XDSPTRST
REG_2.83V
OCD_SDA
SYS_RSTL
GND
DSP_TDI
GND
UA_RXD0
UA_TXD0
DSP_TCK
OCD_SCL
IF_RX
IF_TX
AL_2.83V
IRU
KENTO
DSP_TDO
-
AL_2.83V
-
-
UA_RXD0
-
-
-
-
-
NC
NC
NC
NC
NC
-
-
-
-
UA_TXD0
GND
GND
-
-
-
NC
NC
NC
NC
NC
10
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
MAIN CN110
JIG CONN. BOARD
(PIN NO.)
ADDITIONAL WIRE
JIG CONNECTOR CABLE (YTU93106B)
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
KENTO*
AL_2.83V
IF_RX*
DSP_TCK*
UA_RXD0
DSP_TDI*
SYS_RSTL*
REG_2.83V*
XDSPSRST *
DSP_RTCK*
NC
NC
NC
NC
NC
1
2
3
4
5
6
7
8
9
10
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
11
12
13
14
15
16
17
18
19
20
DSP_TDO*
IRU*
IF_TX*
OCD_SCL*
UA_TXD0
GND
GND
OCD_SDA*
XDSPTRST *
DSP_TMS*
NC
NC
NC
NC
NC
*NOT USED

1-16 (No.YF347<Rev.001>)
2.5.3 Starting the terminal software
Before starting the terminal software, install the terminal software.
(1) Start Tera Term, select "Serial" and click [OK].
(2) Select Setup > Serial port. Set each item and click [OK].
Maximizing terminal window enables better viewing of output
data.

(No.YF347<Rev.001>)1-17
2.5.4 Obtaining error information
(1) Turn ON the model to start data reading. The data is displayed in the terminal window. Wait until the data reading finishes.
(2) When the data reading finishes, press Enter.
On the screen, "e" is displayed.
(3) Input the terminal command: "e:pb_print_flash_err_info" and press Enter.
Error information is displayed in the terminal window.
Note) * In the first line, the index number on the index screen and the time duration from the beginning of the file to the error
section (in seconds) are output.
For PLAYBACK OTHER FILE, only an index number is displayed as no error section can be displayed.
* Only the index number on the index screen of the media (SD card, HDD, or NAND) that has an error is displayed.
Only the AVCHD index screen is displayed for an AVCHD file (xxxxx.mts), and only the PLAYBACK OTHER FILE index screen
is displayed for PLAYBACK OTHER FILE (MOV_XXXX.mts).
* If a file with an error was already deleted, no index number is displayed.
* From the second line onwards, the saved error information is displayed.
Actual display includes the error occurrence date, error type, medium with an error, file name, and PTS value around the error sec-
tion. Note that the error type and the PTS value around the error section are used for design/analyses and not to be used for services.
(4) When the procedure is completed, turn OFF the model to close the terminal window.
<Display example>
1. AVCHD index screen
-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[00] : index number = 1 offset = 9 [sec]
EMERGENCY_DATA : 0/00/00 00:00
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: SD card
: 00002.mts
: PTS = 487942
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[01] : index number = 1 offset = 9 [sec]
EMERGENCY_DATA : 2009/08/18 16:31
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: SD card
: 00002.mts
: PTS = 487942
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[02] : index number = 2 offset = 11 [sec]
EMERGENCY_DATA : 2009/08/18 16:31
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: SD card
: 00003.mts
: PTS = 582537
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[03] : index number = 2 offset = 25 [sec]
EMERGENCY_DATA : 2009/08/18 16:31
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: SD card
: 00003.mts
: PTS = 1172626
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[07] : ierror_scene not exist.
EMERGENCY_DATA : 2009/08/18 16:46
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: SD card
: MOV_0002.mts
: PTS = 1172626
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[08] : ierror_scene not exist.
EMERGENCY_DATA : 0/00/00 00:00
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: HDD or NAND
: 00002.mts
: PTS = 487942

1-18 (No.YF347<Rev.001>)
2. PLAYBACK OTHER FILE index screen
3. Deleted file with an error
-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[05] : error_scene not exist.
EMERGENCY_DATA : 2009/08/18 16:46
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: SD card
: 00003.mts
: PTS = 1172626
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[06] : index number = 1
EMERGENCY_DATA : 2009/08/18 16:46
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: SD card
: MOV_0002.mts
: PTS = 582537
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[07] : index number = 1
EMERGENCY_DATA : 2009/08/18 16:46
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: SD card
: MOV_0002.mts
: PTS = 1172626
-------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
EMERGENCY_DATA[00] : error_scene not exist.
EMERGENCY_DATA : 2010/01/13 10:53
: ERR_NAVI_VIDEO_ILLEGAL_STREAM
: SD card
: 00001.mts
: PTS = 186141

(No.YF347<Rev.001>)1-19
SECTION 3
DISASSEMBLY
3.1 BEFORE ASSEMBLY AND DISASSEMBLY
3.1.1 Precautions
• Be sure to disconnect the power supply unit prior to mounting
and soldering of parts.
• Prior to removing a component part that needs to disconnect
its connector(s) and its screw(s), first disconnect the wire(s)
from the connector(s), and then remove the screw(s).
• When connecting/disconnecting wires, pay enough attention
not to damage the connectors.
• When inserting the flat wire to the connector, pay attention to
the direction of the flat wire.
• Be careful in removing the parts to which some spacer or
shield is attached for reinforcement or insulation.
• When replacing chip parts (especially IC parts), first remove
the solder completely to prevent peeling of the pattern.
• Tighten screws properly during the procedures. Unless
otherwise specified, tighten screws at a torque of 0.088N·m
(0.9kgf·cm). However, as this is a required value at the time of
production, use the value as a measuring stick when
proceeding repair services. (See "SERVICE NOTE" as for
tightening torque.)

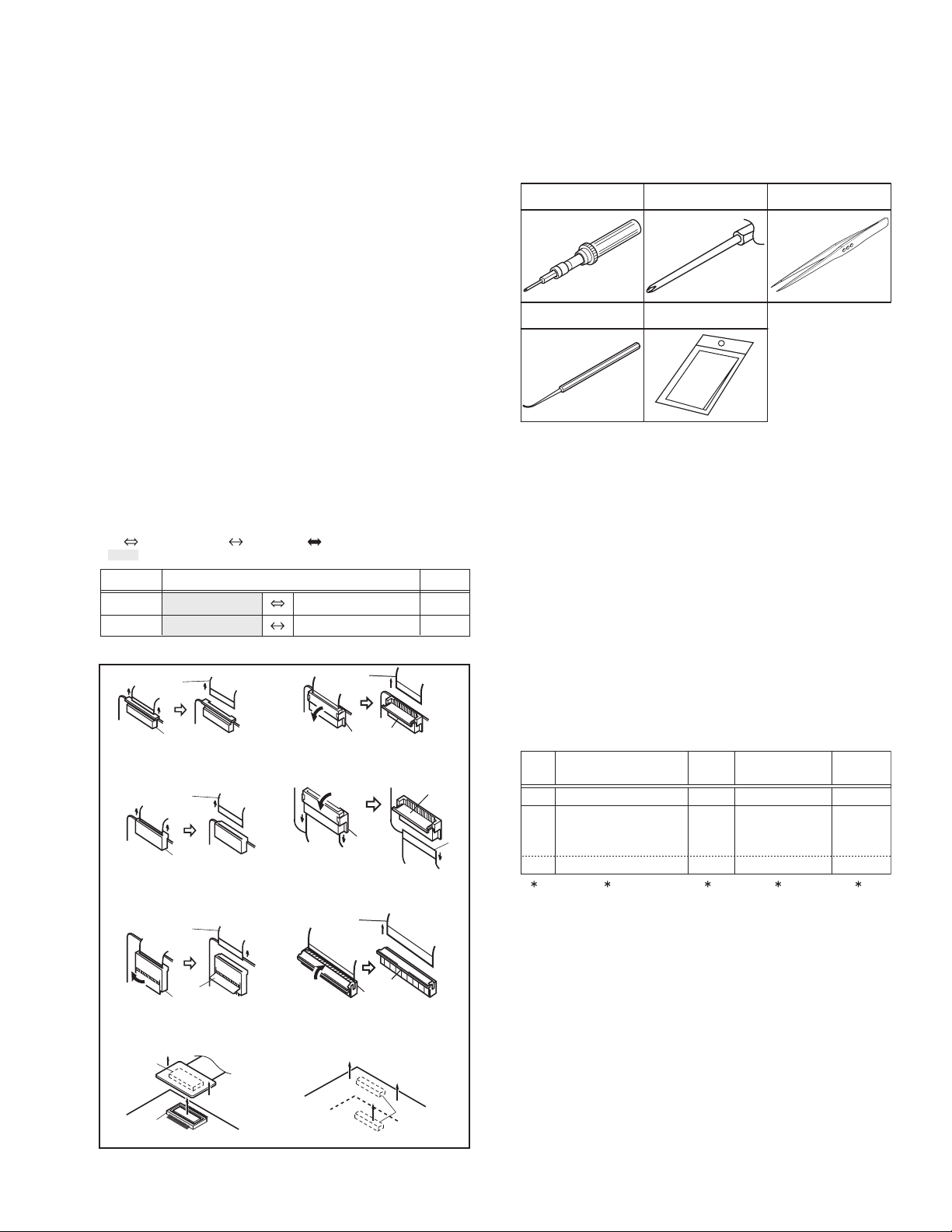

3.1.2 Destination of connectors
3.1.3 Disconnection of connectors (Wires)
Fig.3-1-1
3.1.4 Tools required for disassembly and assembly
Fig.3-1-2
•Torque driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
•Bit
This bit is slightly longer than those set in conventional torque
drivers.
•Tweezers
To be used for removing and installing parts and wires.
•Chip IC replacement jig
To be used for replacement of IC.
•Cleaning cloth
Recommended cleaning cloth to wipe down the video heads,
mechanism (tape transport system), optical lens surface.
3.2 ASSEMBLY AND DISASSEMBLY OF MAIN PARTS
3.2.1 Assembly and disassembly
When reassembling, perform the step(s) in reverse order.
(∗1) Order of steps in Procedure
When reassembling, preform the step(s) in the reverseorder.
These numbers are also used as the identification (location)
No. of parts Figures.
(∗2) Part to be removed or installed.
(∗3) Fig. No. showing Procedure or Part Location.
(∗4) Identification of part to be removed, unhooked, unlocked,
released, unplugged, unclamped or unsoldered.
S = Screw L = Lock, Release, Hook
SD = Solder CN = Connector
[Example]
• 4 (S1a) = Remove 4 S1a screws.
• 3 (L1a) = Disengage 3 L1a hooks.
• 2 (SD1a) = Unsolder 2 SD1a points.
• CN1a = Remove a CN1a connector.
(∗5) Adjustment information for installation.
CN2a
CN2b
MAIN CN101
MAIN CN103
40
10
CONN. No. PIN No.CONNECTOR
Two kinds of double-arrows in connection tables respectively
show kinds of connector/wires.
: The connector of the side to remove
: Wire: Flat wire : Board to board (B-B)
MONI BW CN761
MINI BW CN762
Wire
FPC
Connector
Lock
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
B-B Connector
B-B Connector
B-B Connector
· Pull the both ends of the board in the direction of the arrow, and remove the B-B Connector.
· Pull the both ends of the board in the direction
of the arrow, and remove the B-B Connector.
FPC Connector
Wire
· Pull both ends of the connector in the arrow
direction, remove the lock and disconnect the flat
wire.
FPC Connector
Lock
Wire
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
FPC Connector
Wire
FPC Connector
Lock
Wire
FPC Connector
Wire
Lock
Lock
Cleaning cloth
KSMM-01
Torque driver
YTU94088
Bit
YTU94088-003
Chip IC replacement jig
PTS40844-2
Tweezers
P-895
( 4) ( 5)( 2) ( 3)( 1)
TOP COVER ASSY
UPPER ASSY
(Inc. VF ASSY,
SPEAKER/MONITOR)
E.VF UNIT(B/W)
C1
C2-1
C2-2
4(S1a), 3(L1a),CN1a
(S2a),2(S2b),3(S2c)
2(SD1a),
L2,CN2a,b
2(S8),L8,CN8a
-
-
NOTE 8
[1]
[2]
[8]
STEP
No. PART NOTE
Fig.
No. POINT

1-20 (No.YF347<Rev.001>)
3.2.2 Assembly/Dissambly of cabinet parts and electrical parts
zDisassembly procedure
NOTE1a:
Release or remove the JACK COVER ASSY as it interferes
with the disassembly of TOP COVER ASSY.
NOTE1b:
To remove the TOP COVER ASSY, press [A] indicated with
an arrow, and release the HOOK (L1a) first.
NOTE1c:
When removing the last HOOK (L1d), be careful not to de-
form or apply excess force to the parts to avoid possible
damage.
NOTE2a:
When removing the COVER (HINGE), be careful not to
damage the parts.
Be very careful as the FRAME, where the HOOKs (L2) are
fastened to, is easily broken.
NOTE2b:
When attaching the COVER (HINGE), be careful with the
wiring of the FPC.
Make sure that the FPC stays within the FRONT ASSY and
is not covering the screw hole.
NOTE3:
When removing the LOWER CASE ASSY, be careful in han-
dling as the SW(TRIG) may come off together.
As the SW(TRIG) is connected via FPC, disassemble the
LOWER CASE ASSY with the SW(TRIG) staying in the
main unit.
NOTE4a:
During the procedure, be careful in handling the parts.
Be very careful not to break the FPC.
When attaching the FRONT ASSY, be careful with the wiring
of the FPCs (MIC, BARRIER ASSY, and FRONT FPC
UNIT).
NOTE4b:
When the FRONT ASSY is removed, be careful not to bend
or damage the exposed FPC (HINGE).
NOTE4c:
Be careful with the wiring of the FPC.
NOTE5:
During the procedure, be careful not to touch the shutter
opening. Leaving the shutter open during the procedure is
recommended.
NOTE6:
To attach the PLATE (MIC) SD, secure the FPC (FRONT
FPC UNIT) with the HOOK (L6a) first, and then tighten with
the screw (No.15).
NOTE8a:
During the procedure, be careful in handling the parts.
NOTE8b:
When attaching the MIC, properly store the MIC (L/R) within
the tube.
NOTE8c:
To attach the MIC, press the center or both sides of the MIC
as shown in the figure, and properly position the MIC within
the FRONT ASSY.
NOTE10:
During the procedure, be careful in handling the parts.
Be very careful not to damage the parts or break the FPC as
the WB BOARD ASSY easily comes off from the HOLDER
(WB).
NOTE11:
During the procedure, be careful in handling the SD
SLOT(s).
Loading too much weight on the SD SLOT(s) or the SD
BOARD ASSY/NAND BOARD ASSY may cause soldering
points peel off.
NOTE12:
To remove the OPE UNIT, pull out the FPC from the connec-
tor, release the SW (TRIG), and then slide the SW (ZOOM)
toward the OP BLOCK.
NOTE13:
During the procedure, be careful in handling the parts.
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
3-2-1
3-2-2
3-2-3
3-2-4
3-2-5
3-2-6
3-2-7
3-2-8
3-2-9
3-2-10
3-2-11
3-2-12
3-2-13
3-2-14
3-2-15
3-2-16
3-2-17
3-2-18
3-2-19
NOTE1a,b,c
NOTE2a,b
NOTE3
NOTE4a,b,c
NOTE5
NOTE6
-
NOTE8a,b,c
-
NOTE10
NOTE11
NOTE12
NOTE13
NOTE14a,b,c,d
-
-
NOTE17a,b
NOTE18
NOTE19
NOTE20a,b,c,d,e
NOTE21a,b,c
NOTE22a,b,c
TOP COVER ASSY
COVER(HINGE)
LOWER CASE ASSY
FRONT ASSY
(Incl. MIC, BARRIER ASSY,
FRONT FPC UNIT)
BARRIER ASSY
PLATE(MIC)
FRONT FPC UNIT
MIC
HOLDER(IND) ASSY
WB UNIT
NAND BOARD ASSY
OPE UNIT
SHIELD
OP BLOCK ASSY
(Incl. CMOS FRM ASSY, HOLDER)
REAR ASSY
REAR BOARD ASSY
MAIN BOARD ASSY
HDMI ASSY
OP BLOCK ASSY
(Incl. CMOS FRM ASSY)
CMOS FRM ASSY
MONITOR ASSY
SPEAKER
STEP
No. PART NAME Fig. No. POINT NOTE
2(S1),L1a,b,2(L1c),L1d
S2a,b,L2
6(S3),L3a,2(L3b)
CN4a,b,c,S4a,b,L4a,b,c
2(S5),2(L5)
L6a,S6,L6b,c,d
S7,2(L7)
-
S9,L9
CN10,L10a,b
2(S11a),2(S11b),2(L11),CN11
CN12,2(L12a),L12b,S12,L12c,d
3(S13),2(L13)
SHEET(COPPER LINK),
2(S14),L14a,b,c,CN14a,b
S15a,b,CN15,L15a,b
L16a,2(L16b)
CN17a,b,2(S17),L17a,b,CN17c
S18,2(L18),S18
3(S19)
S20,SHIELD CMOS ASSY,
HEAT SHEET,2(S20),2(L20)
SHEET,IR CUT FILTER
S21a,2(L21a),2(S21b),2(L21b),
UPPER CASE ASSY
L22a,S22,L22b,BKT(SPK),
2(L22c)
