SERVICE MANUAL
COPYRIGHT© 2007 Victor Company of Japan, Limited No.YF178
2007/2
HARD DISK CAMCORDER
YF17820072SERVICE MANUALEverio
GZ-MG130US
COPYRIGHT© 2007 Victor Company of Japan, Limited
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
GZ-MG130USM [M7E303]

1-2 (No.YF178)
SPECIFICATION
Camcorder
AC Adapter
Remote Control
Design and specifications subject to change without notice.
For General Power supply DC 11 V (Using AC Adapter)
DC 7.2 V (Using battery pack)
Power consumption Approx. 2.8(3)* W
* When using the LED light
Approx. 6.8 W (Maximum; when charging a battery)
Dimensions (W ×H ×D) 66 mm ×71 mm ×110 mm (2-5/8" ×2-13/16" ×4-3/8")
Weight Approx. 320 g (0.71 lbs) (incl.strap)
Approx. 365 g (0.81 lbs) (incl. battery and strap)
Operating temperature 0°C to 40°C (32°F to 104°F)
Operating humidity 35% to 80%
Storage temperature -20°C to 50°C (-4°F to 122°F)
Pickup 1/6" (680,000 pixels) CCD
Lens F 2.0 to 4.7, f = 2.3 mm to 78.2 mm, 34:1 power zoom lens
Filter diameter Ø30.5 mm
LCD monitor 2.7" diagonally measured, LCD panel/TFT active matrix system
Speaker Monaural
LED Light Within 1.5 m (4.9 ft) (recommended shooting distance)
For Video/Audio Format SD-VIDEO
Recording/Playback
format
Video MPEG-2
Audio Dolby Digital (2 ch)
Signal format NTSC standard
Recording mode (video) ULTRA FINE: 720 ×480 pixels, 8.5 Mbps (VBR)
FINE: 720 ×480 pixels, 5.5 Mbps (VBR)
NORMAL: 720 ×480 pixels, 4.2 Mbps (VBR)
ECONOMY: 352 ×240 pixels, 1.5 Mbps (VBR)
Recording mode (audio) ULTRA FINE: 48 kHz, 384 kbps
FINE: 48 kHz, 384 kbps
NORMAL: 48 kHz, 256 kbps
ECONOMY: 48 kHz, 128 kbps
For Still image Format JPEG
Image size 1 mode (640 ×480)
Picture quality 2 modes (FINE/STANDARD)
For Connectors USB Mini USB type A and type B, USB 2.0 compliant
Power requirement AC 110 V to 240 V, 50 Hz/60 Hz
Output DC 11 V, 1 A
Power supply DC 3 V
Battery life Approx. 1 year (depending on the frequency of use)
Operating distance Within 5 m (16.4 ft)
Operating temperature 0°C to 40°C (32°F to 104°F)
Dimensions (W ×H ×D) 42 mm ×14.5 mm ×91 mm (1-11/16" ×5/8" ×3-5/8")
Weight Approx. 30 g (0.07 lbs) (incl. battery)

(No.YF178)1-3
SECTION 1
PRECAUTIONS
1.1 SAFTY PRECAUTIONS
Prior to shipment from the factory, JVC products are strictly
inspected to conform with the recognized product safety and
electrical codes of the countries in which they are to be
sold.However,in order to maintain such compliance, it is equally
important to implement the following precautions when a set is
being serviced.
1.1.1 Precautions during Servicing
(1) Locations requiring special caution are denoted by labels
and inscriptions on the cabinet, chassis and certain parts of
the product.When performing service, be sure to read and
comply with these and other cautionary notices appearing
in the operation and service manuals.
(2) Parts identified by the symbol and shaded ( ) parts
are critical for safety.
Replace only with specified part numbers.
NOTE :
Parts in this category also include those specified to
comply with X-ray emission standards for products
using cathode ray tubes and those specified for
compliance with various regulations regarding
spurious radiation emission.
(3) Fuse replacement caution notice.
Caution for continued protection against fire hazard.
Replace only with same type and rated fuse(s) as
specified.
(4) Use specified internal wiring. Note especially:
• Wires covered with PVC tubing
• Double insulated wires
• High voltage leads
(5) Use specified insulating materials for hazardous live parts.
Note especially:
• Insulation Tape
• PVC tubing
•Spacers
• Insulation sheets for transistors
•Barrier
(6) When replacing AC primary side components (transformers,
power cords, noise blocking capacitors, etc.) wrap ends of
wires securely about the terminals before soldering.
Fig.1-1-1
(7) Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors, etc.)
(8) Check that replaced wires do not contact sharp edged or
pointed parts.
(9) When a power cord has been replaced, check that 10-15
kg of force in any direction will not loosen it.
Fig.1-1-2
(10) Also check areas surrounding repaired locations.
(11) Products using cathode ray tubes (CRTs)In regard to such
products, the cathode ray tubes themselves, the high
voltage circuits, and related circuits are specified for
compliance with recognized codes pertaining to X-ray
emission. Consequently, when servicing these products,
replace the cathode ray tubes and other parts with only the
specified parts. Under no circumstances attempt to modify
these circuits.Unauthorized modification can increase the
high voltage value and cause X-ray emission from the
cathode ray tube.
(12) Crimp type wire connectorIn such cases as when replacing
the power transformer in sets where the connections
between the power cord and power trans former primary
lead wires are performed using crimp type connectors, if
replacing the connectors is unavoidable, in order to prevent
safety hazards, perform carefully and precisely according
to the following steps.
•Connector part number :E03830-001
•Required tool : Connector crimping tool of the proper
type which will not damage insulated parts.
•Replacement procedure
a) Remove the old connector by cutting the wires at a
point close to the connector.Important : Do not
reuse a connector (discard it).
Fig.1-1-3
b) Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
Fig.1-1-4
c) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
Fig.1-1-5
d) As shown in Fig.1-1-6, use the crimping tool to crimp
the metal sleeve at the center position. Be sure to
crimp fully to the complete closure of the tool.
Fig.1-1-6
e) Check the four points noted in Fig.1-1-7.
Fig.1-1-7
Power cord
cut close to connector
15 mm
Connector
Metal sleeve
1.25
2.0
5.5
Crimping tool
Not easily pulled free Crimped at approx. cente
r
of metal sleeve
Conductors extended
Wire insulation recessed
more than 4 mm

1-4 (No.YF178)

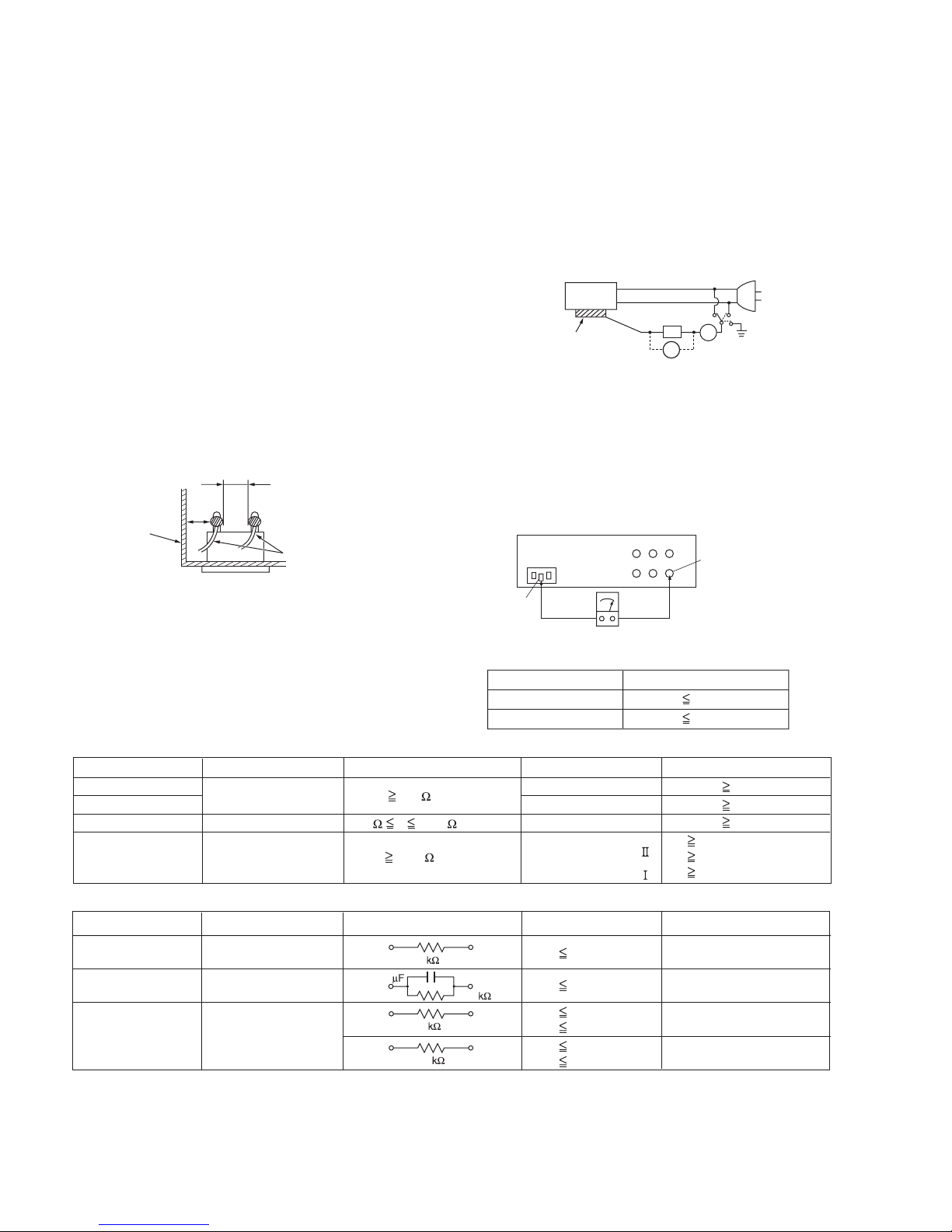

1.1.2 Safety Check after Servicing
Examine the area surrounding the repaired location for damage
or deterioration. Observe that screws, parts and wires have been
returned to original positions, Afterwards, perform the following
tests and confirm the specified values in order to verify
compliance with safety standards.
(1) Insulation resistance test
Confirm the specified insulation resistance or greater
between power cord plug prongs and externally exposed
parts of the set (RF terminals, antenna terminals, video and
audio input and output terminals, microphone jacks,
earphone jacks, etc.).See table 1 below.
(2) Dielectric strength test
Confirm specified dielectric strength or greater between
power cord plug prongs and exposed accessible parts of
the set (RF terminals, antenna terminals, video and audio
input and output terminals, microphone jacks, earphone
jacks, etc.). See Fig.1-1-11 below.
(3) Clearance distance
When replacing primary circuit components, confirm
specified clearance distance (d), (d') between soldered
terminals, and between terminals and surrounding metallic
parts. See Fig.1-1-11 below.
Fig.1-1-8
(4) Leakage current test
Confirm specified or lower leakage current between earth
ground/power cord plug prongs and externally exposed
accessible parts (RF terminals, antenna terminals, video
and audio input and output terminals, microphone jacks,
earphone jacks, etc.).
Measuring Method : (Power ON)Insert load Z between
earth ground/power cord plug prongs and externally
exposed accessible parts. Use an AC voltmeter to
measure across both terminals of load Z. See Fig.1-1-9
and following Fig.1-1-12.
Fig.1-1-9
(5) Grounding (Class 1 model only)
Confirm specified or lower grounding impedance between
earth pin in AC inlet and externally exposed accessible
parts (Video in, Video out, Audio in, Audio out or Fixing
screw etc.).Measuring Method:
Connect milli ohm meter between earth pin in AC inlet and
exposed accessible parts. See Fig.1-1-10 and grounding
specifications.
Fig.1-1-10
Fig.1-1-11
Fig.1-1-12
NOTE :
These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.
Chassis
Power cord
primary wire
d'
d
ab
c
V
A
Externally
exposed
accessible part
Z
Exposed accessible part
Grounding Specifications
AC inlet
Region
USA & Canada
Europe & Australia
Grounding Impedance (Z)
Z 0.1 ohm
Z 0.5 ohm
Earth pin
MIlli ohm meter
AC Line Voltage Region
Japan
Europe & Australia
R 1 M /500 V DC
USA & Canada 1 M R 12 M /500 V DC
R 10 M /500 V DC
Insulation Resistance (R)Dielectric Strength Clearance Distance (d), (d')
100 V
100 to 240 V
110 to 130 V
110 to 130 V
200 to 240 V
AC 1 kV 1 minute
AC 1.5 kV 1 minute
AC 1 kV 1 minute
(Class )
(Class )
AC 3 kV 1 minute
AC 1.5 kV 1 minute
d, d' 3 mm
d, d' 4 mm
d, d' 3.2 mm
d' 8 m m (Power cord)
d' 6 m m (Primary wire)
d 4 m m
AC Line Voltage Region
Japan
Europe & Australia
USA & Canada
Load Z Leakage Current (i) a, b, c
100 V
110 to 130 V
110 to 130 V
220 to 240 V
i 1 mA rms
i 0.5 mA rms
i 0.7 mA peak
i 2 mA dc
i 0.7 mA peak
i 2 mA dc
Exposed accessible parts
Exposed accessible parts
Antenna earth terminals
Other terminals
1
1.5
2
50
0.15

(No.YF178)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 Replacing HDD
NOTE) After HDD replacement, format the HDD first.
When the power is turned on after the HDD replacement, the
below "Warning screen" is displayed.
Be sure to format the HDD following the messages.
Be sure to turn off the power once after the formatting.
If the HDD recording is started without being turned off the
power, normal recording cannot be performed although the re-
cording will start.
0''&61(14/#6*#4&&+5-&4+8'
&1;179#0661(14/#6!
#..&#6#9+..$''4#5'&
㪜㪯㪜㪚㪬㪫㪜
㪚㪘㪥㪚㪜㪣
㪪㪜㪣㪜㪚㪫 㪪㪜㪫

1-6 (No.YF178)

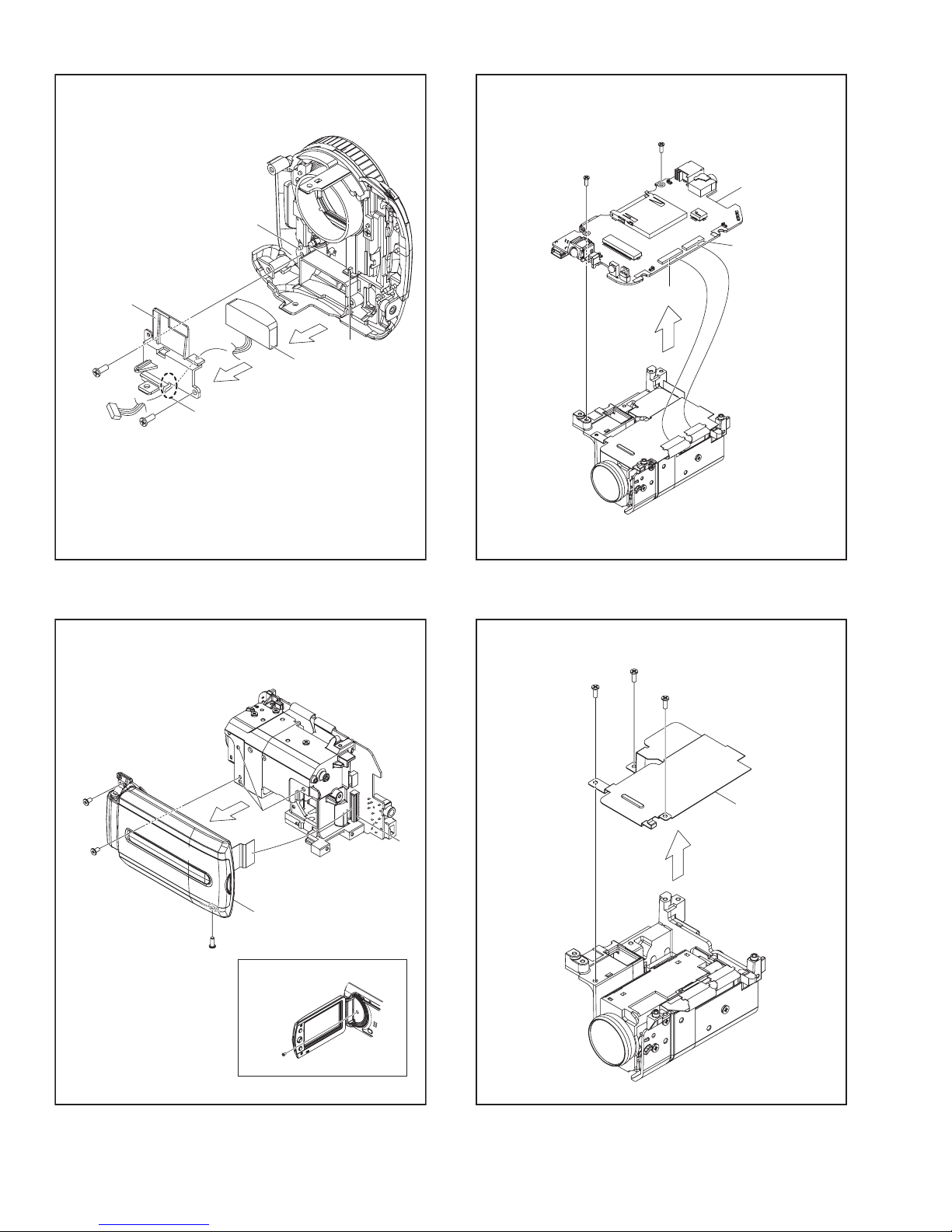

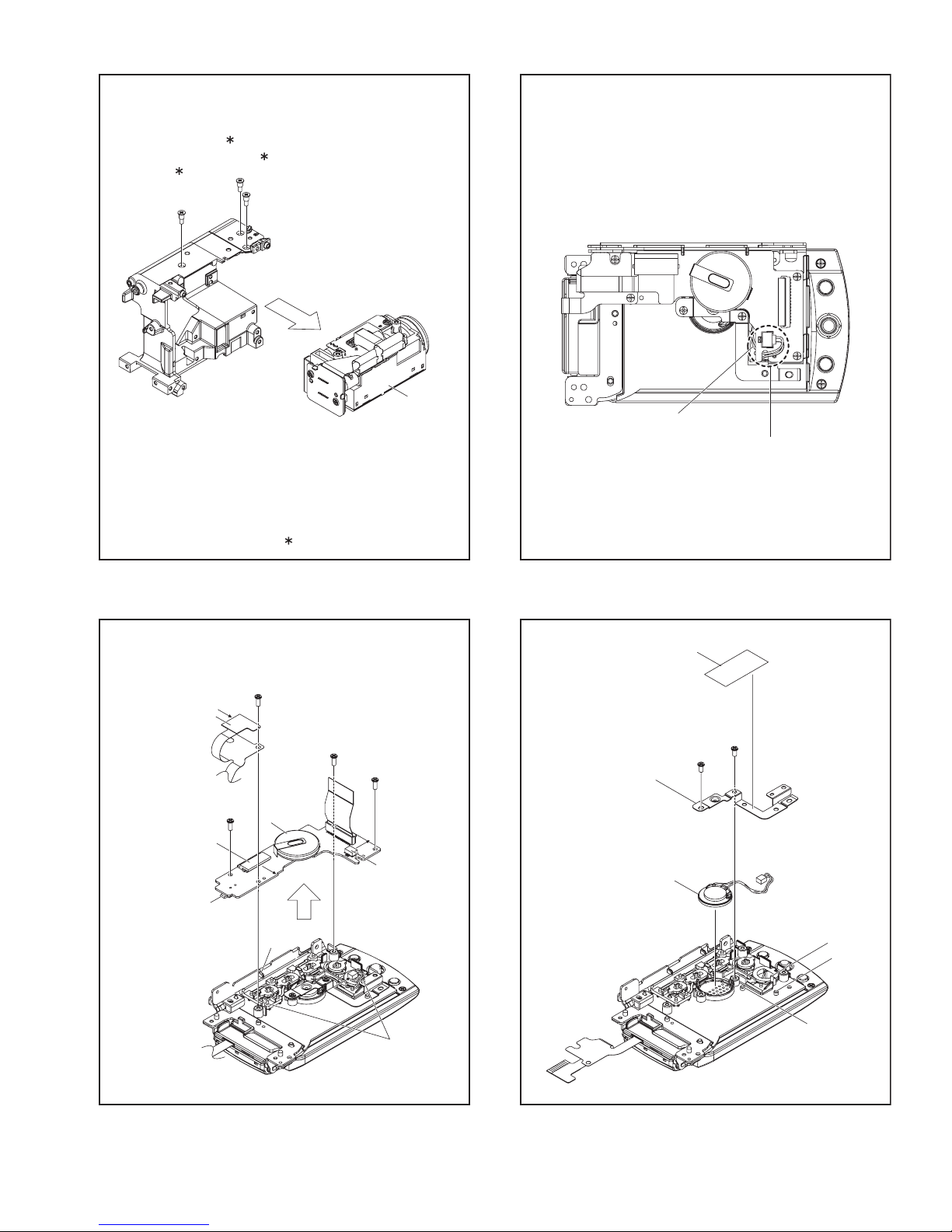

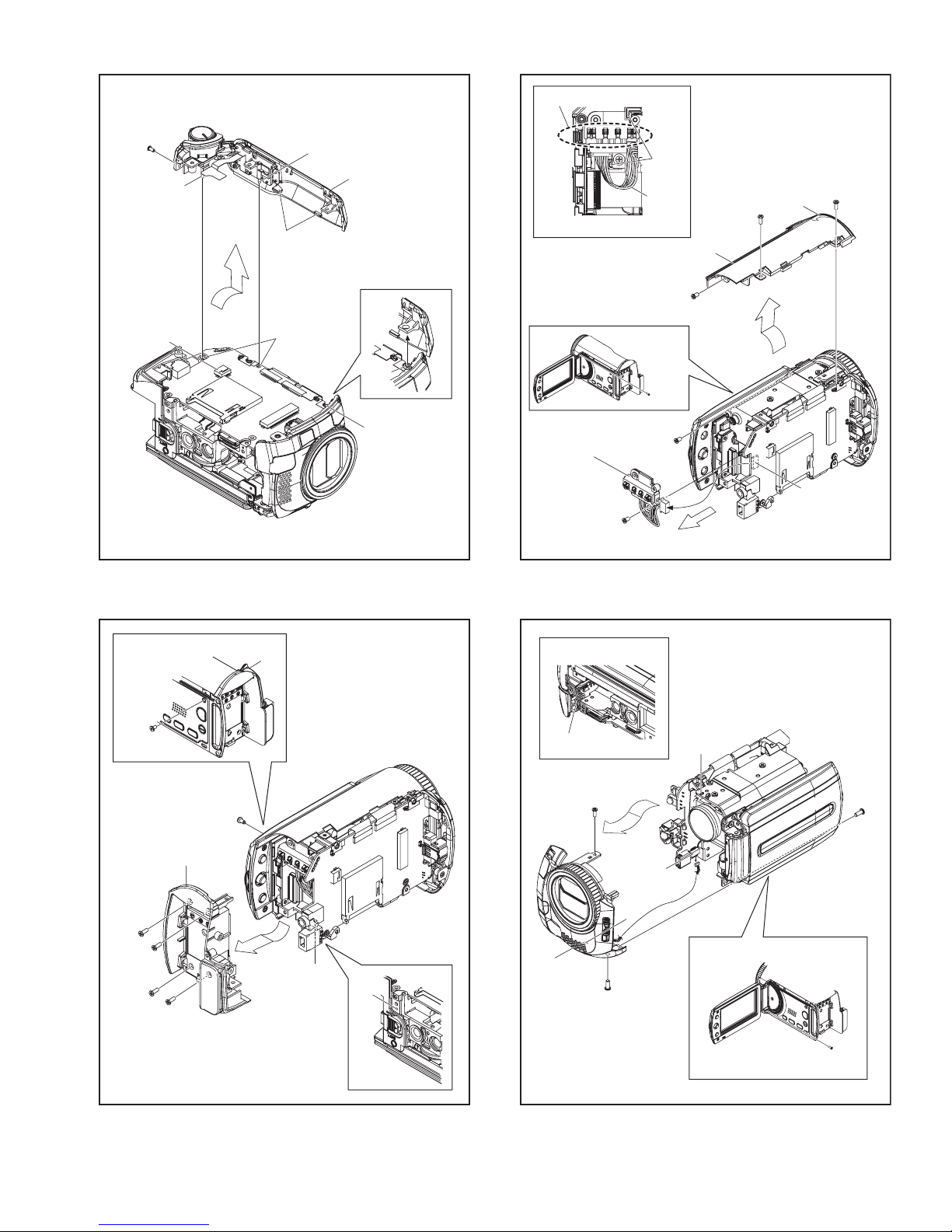

SECTION 3
DISASSEMBLY
3.1 BEFORE ASSEMBLY AND DISASSEMBLY
3.1.1 Precautions
• Be sure to disconnect the power supply unit prior to mounting
and soldering of parts.
• Prior to removing a component part that needs to disconnect
its connector(s) and its screw(s), first disconnect the wire(s)
from the connector(s), and then remove the screw(s).
• When connecting/disconnecting wires, pay enough attention
not to damage the connectors.
• When inserting the flat wire to the connector, pay attention to
the direction of the flat wire.
• Be careful in removing the parts to which some spacer or
shield is attached for reinforcement or insulation.
• When replacing chip parts (especially IC parts), first remove
the solder completely to prevent peeling of the pattern.
• Tighten screws properly during the procedures. Unless
otherwise specified, tighten screws at a torque of 0.088N·m
(0.9kgf·cm). However, as this is a required value at the time of
production, use the value as a measuring stick when
proceeding repair services. (See "SERVICE NOTE" as for
tightening torque.)

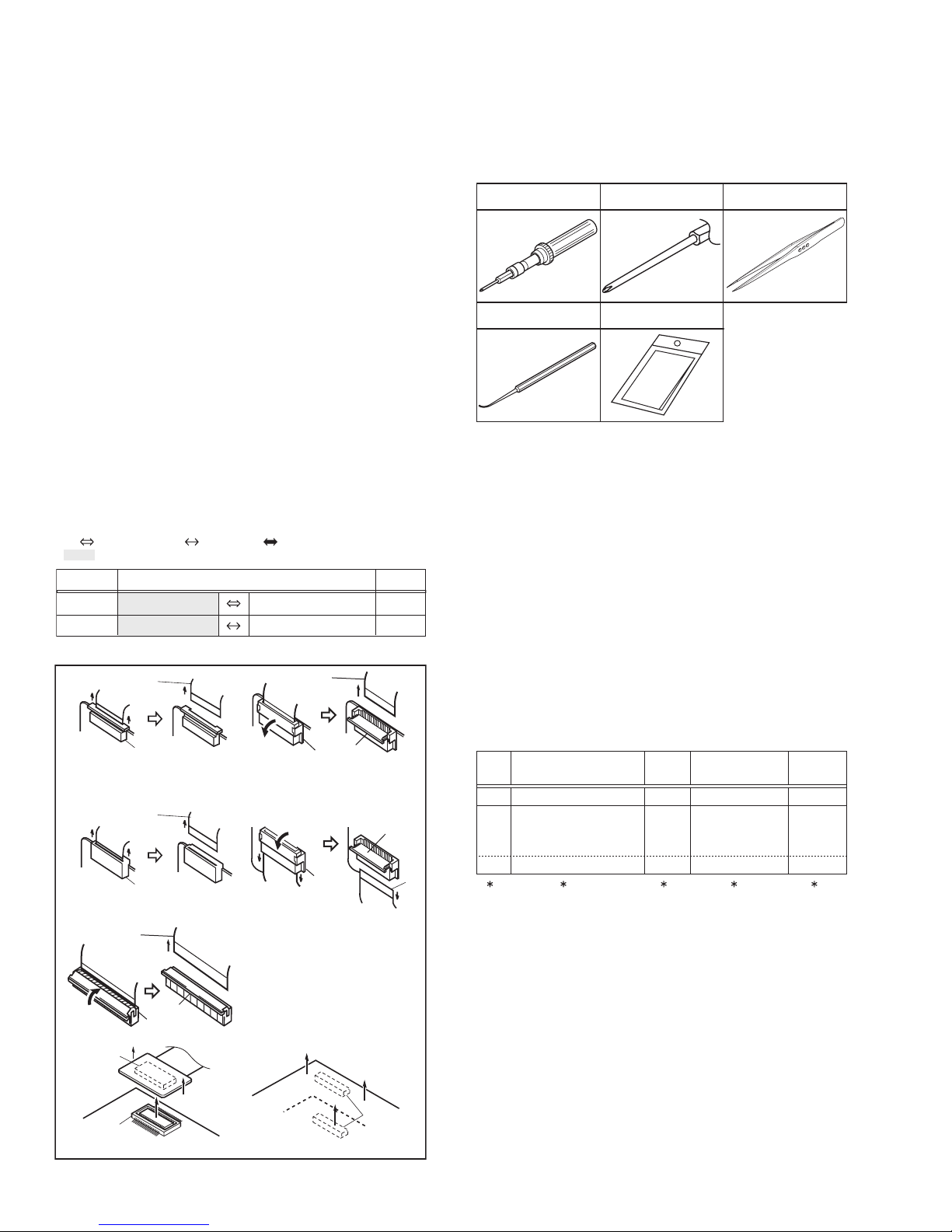

3.1.2 Destination of connectors
3.1.3 Disconnection of connectors (Wires)
Fig.3-1-1
3.1.4 Tools required for disassembly and assembly
Fig.3-1-2
•Torque driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
•Bit
This bit is slightly longer than those set in conventional torque
drivers.
•Tweezers
To be used for removing and installing parts and wires.
•Chip IC replacement jig
To be used for replacement of IC.
•Cleaning cloth
Recommended cleaning cloth to wipe down the video heads,
mechanism (tape transport system), optical lens surface.
3.2 ASSEMBLY AND DISASSEMBLY OF MAIN PARTS
3.2.1 Assembly and disassembly
When reassembling, perform the step(s) in reverse order.
(∗1) Order of steps in Procedure
When reassembling, preform the step(s) in the reverseorder.
These numbers are also used as the identification (location)
No. of parts Figures.
(∗2) Part to be removed or installed.
(∗3) Fig. No. showing Procedure or Part Location.
(∗4) Identification of part to be removed, unhooked, unlocked,
released, unplugged, unclamped or unsoldered.
S = Screw L = Lock, Release, Hook
SD = Solder CN = Connector
[Example]
• 4 (S1a) = Remove 4 S1a screws.
• 3 (L1a) = Disengage 3 L1a hooks.
• 2 (SD1a) = Unsolder 2 SD1a points.
• CN1a = Remove a CN1a connector.
(∗5) Adjustment information for installation.
CN2a
CN2b
MAIN CN101
MAIN CN103
40
10
CONN. No. PIN No.CONNECTOR
Two kinds of double-arrows in connection tables respectively
show kinds of connector/wires.
: The connector of the side to remove
: Wire: Flat wire : Board to board (B-B)
MONI BW CN761
MINI BW CN762
FPC Connector
Wire
FPC Connector
Wire
Wire
FPC Connector Lock
Wire
FPC Connector
Lock
Wire
FPC
Connector
Lock
B-B Connector
B-B Connector
B-B Connector
· Pull the both ends of the board in the direction of the arrow, and remove the B-B Connector.
· Pull both ends of the connector in the arrow
direction, remove the lock and disconnect the flat
wire.
· Pull the both ends of the board in the direction of the
arrow, and remove the Connector. · Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
· Extend the locks in the direction of the arrow for
unlocking and then pull out the wire. After
removing the wire, immediately restore the locks
to their original positions because the locks are
apt to come off the connector.
Cleaning cloth
KSMM-01
Torque driver
YTU94088
Bit
YTU94088-003
Chip IC replacement jig
PTS40844-2
Tweezers
P-895
( 4) ( 5)( 2) ( 3)( 1)
TOP COVER ASSY
UPPER ASSY
(Inc. VF ASSY,
SPEAKER/MONITOR)
E.VF UNIT(B/W)
C1
C2-1
C2-2
4(S1a), 3(L1a),CN1a
(S2a),2(S2b),3(S2c)
2(SD1a),
L2,CN2a,b
2(S8),L8,CN8a
-
-
NOTE 8
[1]
[2]
[8]
STEP
No. PART NOTE
Fig.
No. POINT

(No.YF178)1-7
3.2.2 ASSEMBLY/DISASSEMBLY OF CABINET PARTS AND ELECTRICAL PARTS
zDisassembly procedure
NOTE1:
When removing the BOTTOM COVER ASSY, open and pull
up the COVER (SD).
NOTE2:
Pull out the GRIP BELT from the hook and leave it released
before removing the HDD COVER ASSY.
NOTE3a:
During the procedure, be careful in handling the parts. Pay
special attention not to give any external shock to the HDD.
NOTE3b:
When the HDD is replaced, be sure to refer to REPLACING
HDD in "SECTION2 SPECIFIC SERVICE INSTRUCTIONS"
for the procedure after HDD replacement.
NOTE3c:
Be careful as the GELS at the four corners are easily come
off when the HDD is removed from the main unit. If the
GELS come off, be sure to attach them in the correct direc-
tion shown in the figure.
Attach the GELS with their HOLES on the same side of the
connector.
NOTE3d:
When connecting the FPC to the connector, insert the FPC
straight into the connector. When locking the connector, be
careful not to give so much load that it bends the board.
NOTE3e:
In this procedure, the FPC connected to the HDD connector
is not removed. If the FPC is removed due to broken wire,
be careful in attachment direction. Be sure to connect the
STOPPER side to the HDD.
Pay attention as wrong attachment could damage the HDD.
NOTE3f:
Be careful with the wiring.
NOTE5:
When attaching, be sure to fit the two positioning studs in the
holes.
NOTE8:
During the procedure, do not touch the terminals (elec-
trodes).
NOTE9a:
When attaching, be careful with the wiring (MIC).
NOTE9b:
Rfer to 3.2.3 ASSEMBLY/DISASSEMBLY OF [9] FRONT
ASSY of FRONT ASSY.
NOTE10:
When attaching, be careful with the wiring (MIC).
NOTE11a:
When removing the screw No.30, open the MONITOR AS-
SY, and then remove the screw paying attention not to dam-
age the screen.
NOTE11b:
When removing, release the connector lock, and then pull
out the FPC together with the UPPER ASSY.
NOTE14a:
During the procedure, be careful in handling the parts.
NOTE14b:
Refer to 3.2.5 ASSEMBLY/DISASSEMBLY OF [14] OP
BLOCK ASSMBLY/CCD BOARD ASSEMBLY
of OP BLOCK
ASSY.
NOTE15a:
When removing, remove the screw No.41 first to release the
FPC, and then pull out the FPC from the connector.
NOTE15b:
During the procedure, be careful not to damage the parts.
NOTE15c:
When attaching, be careful with the wiring.
NOTE16:
When attaching, be careful with the wiring.
NOTE17:
Refer to 3.2.4 DISASSEMBLY OF [17] MONITOR ASSEM-
BLY of MONITOR ASSY.
zDestination of connectors
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
3-2-1
3-2-2
3-2-3
3-2-4
3-2-5
3-2-6
3-2-7
3-2-8
3-2-9
3-2-10
3-2-11
3-2-12
3-2-13
3-2-14-1
/3-2-14-2
3-2-15-1
/3-2-15-2
3-2-16
NOTE1
NOTE2
NOTE3a,b,c,d,e,f
-
NOTE5
-
NOTE8
NOTE9a,b
NOTE10
NOTE11a,b
-
-
NOTE14a,b
NOTE15a,b,c
NOTE16
NOTE17
BOTTOM COVER ASSY
HDD COVER ASSY
HDD
HDD CASE ASSY
OPE.UNIT
REAR COVER ASSY
TOP COVER ASSY
BATT TERMINAL BOARD ASSY
FRONT ASSY
MIC
UPPER ASSY
MAIN BOARD ASSY
SHIELD MAIN ASSY
OP BLOCK ASSY
OPE. BOARD ASSY
SPEAKER
MONITOR ASSY
4(S1),L1a,3(L1b)
GRIP BELT,2(S2a),2(S2b),
L2a,b,c,d
CN3
4(S4a),S4b
CN5,S5,L5a,b,c,2(L5b)
S6a,4(S6b),L6
S7a,3(S7b),L7
S8,2(L8),CN8
S9a,2(S9b),L9a,b,CN9
2(S10),L10a,b,PLATE(MIC)
CN11,3(S11),3(L11)
CN12a,b,2(S12)
3(S13)
3(S14)
S15,CN15a,3(S15),
2(L15a),L15b,CN15b
SPEACER,2(S16),
L16a,b,c,BKT(SPEAKER)
2(S17),2(L17)
STEP
No. PART NAME Fig. No. POINT NOTE
CN.
No.
PIN
No.
CONNECTOR
CN3 MAIN CN102 HDD - 40
CN5 MAIN CN104 OPE.UNIT - 10
CN8 MAIN CN103
BATT TERMINAL BOARD ASSY - 6
CN9 MAIN CN107 MIC - 4
CN11 MAIN CN101 OPE CN401 30
CN12a MAIN CN106 OP BLOCK ASSY - 26
CN12b MAIN CN105 CCD CN5001 22
CN15a MAIN CN402 MONITOR CN7601 22/23
CN15b MAIN CN403 SPEAKER - 2

1-8 (No.YF178)
Fig.3-2-1
Fig.3-2-2
Fig.3-2-3
Fig.3-2-4
NOTE1
COVER(SD)
[1]
1
(S1)
2
(S1)
3
(S1)
4
(S1)
L1a
L1b
6
(S2a)
7
(S2b)
8
(S2b)
L2d
L2c
L2b
L2a
5
(S2a)
[2]
NOTE2
GRIP BELT
HOOK
HOLE
HOLE
CONNECTOR
SHIELD
(HDD)
FPC
FPC
HDD
MAIN PWB
<CROSS SECTION>
LABEL
STOPPER
CN3
NOTE3a,b
NOTE3e
NOTE3d
NOTE3c
NOTE3f
[3]
[4]
10
(S4a)
9
(S4a)
11
(S4a)
13
(S4b)
12
(S4a)

(No.YF178)1-9
Fig.3-2-5
Fig.3-2-6
Fig.3-2-7
Fig.3-2-8
L5a
L5b
L5d
HOLE
L5c
L5c
CN5
14
(S5)
[5]
NOTE5
NOTE5
NOTE5
19
(S6b)
19
(S6b)
16
(S6b)
15
(S6a)
18
(S6b) 17
(S6b)
[6]
[6]
L6
L6
[7]
[8]
NOTE8
NOTE8
L8
L7
WIRE
CN8
21
(S7b)
20
(S7a)
20
(S7a)
24
(S8)
22
(S7b)
23
(S7b)
25
(S9a)
25
(S9a)
26
(S9b)
L9a
L9b
CN9
WIRE(MIC)
27
(S9b)
[9]
NOTE9
NOTE9a
NOTE9b

1-10 (No.YF178)
Fig.3-2-9
Fig.3-2-10
Fig.3-2-11
Fig.3-2-12
NOTE10
[10]
28
(S10)
29
(S10)
PLATE(MIC)
L10a
L10b
[11]
CN11
L11L11
31
(S11)
30
(S11)
30
(S11)
32
(S11)
NOTE11b
NOTE11b
NOTE11a
CN12a
CN12b
[12]
33
(S12)
34
(S12)
36
(S13)
35
(S13) 37
(S13)
[13]

(No.YF178)1-11
Fig.3-2-13
Fig.3-2-14-1
Fig.3-2-14-2
Fig.3-2-15-1
38
(S14)
39
(S14) 40
(S14)
[14]
NOTE14a,b
0.118 N࡮m (1.2kgf࡮cm)
FPC(MONITOR)
SW(LCD_OPEN)
L15a
aa
aa
L15b
41
(S15)
42
(S15)
43
(S15) 44
(S15)
CN15b
bb
bb
CN15a
NOTE15a
NOTE15a
NOTE15c
NOTE15b
[15]
NOTE15c
WIRE(SPEAKER)
[16]
BKT(SPEAKER)
SPACER
45
(S16)
46
(S16)
L16a
L16b
L16c
NOTE16

1-12 (No.YF178)
Fig.3-2-15-2 Fig.3-2-16
NOTE16
WIRE(SPEAKER)
SPACER
0.198 N࡮m (2.0kgf࡮cm)
[17]
47
(S17) 48
(S17)
L17
NOTE17

(No.YF178)1-13
3.2.3 ASSEMBLY/DISASSEMBLY OF [9] FRONT ASSY
zCAUTIONS
(1) As the FRONT ASSY has complicated structure, do not
disassemble if not needed.
(2) After reassembling, check the smooth slide operation of
the two BARRIERS.
zDisassembly procedure
(1) Remove the COVER (MIC).
(2) Remove the TORSION SPRING.
NOTE9a:
During the procedure, be careful not to break, deform,
or lose any parts.
(3) Remove the two SPECIAL SCREWS (1 and 2), and then
remove the BASE (BARRIER).
(4) Remove the SLIDER.
(5) Remove the KNOB.
(6) Remove the BARRIER (A) and the ARM together as as-
sembled.
NOTE9b:
Removing the ARM from the BARRIER (A) at a wrong
angle could cause damage or deformation of the at-
tachment part.
(7) Remove the BARRIER (B).
zAssembly procedure
(1) Attach the BARRIER (B).
NOTE9c:
Be careful with the attachment direction. Attach the
BARRIER (B) with its wrinkle side facing outside.
(2) With the ARM assembled, attach the BARRIER (A) by fit-
ting the ARM BOSS into the COVER ASSY hole.
(3) Attach the KNOB.
(4) Attach the SLIDER.
NOTE9d:
Attach the SLIDER by placing the KNOB hole and the
ARM BOSS parallel as shown in the figure.
(5) Attach the BASE (BARRIER), check if there is no uplift
or unevenness, and then tighten with the two screws (1
and 2).
(6) Attach the TORSION SPRING.
NOTE9e:
After the attachment, move the KNOB to check the
smooth operation of the two BARRIERS (A and B)
(7) Attach the COVER (MIC).
Fig.3-2-17
Boss of ARM
SPRING
TORSION
Boss of
BASE(BARRIER)
DITAIL OF KNOB AND SLIDER
KNOB ARM
SLIDER
Adjust the KNOB hole
and the SLIDER hole. Place the ARM BOSS
into the SLIDER frame.
Attach the SLIDER by placing the KNOB hole
and the ARM BOSS parallel.
L9a
L9b
SLIDER
ARM
BOSS
BARRIER(A)
BARRIER(B)
KNOB
BASE(BARRIER)
TORSION SPRING
L9c
NOTE9a,e
NOTE9e
NOTE9d
NOTE9e
NOTE9c,e
NOTE9c,e
NOTE9b
COVER(MIC)
1
(S9)
2
(S9)

1-14 (No.YF178)
3.2.4 DISASSEMBLY OF [17] MONITOR ASSEMBLY
zCAUTIONS
(1) During the procedure, be careful in handling the LCD
MODULE and other parts. Pay special attention not to
damage or stain the monitor screen.
If fingerprints are left on the screen, wipe them with clean
chamois leather or a cleaning cloth.
zRemoving MONITOR ASSY
(1) Remove the two screws (1 and 2).
(2) Turn the HINGE UNIT ASSY 90°, and remove the two
screws (3 and 4).
(3) Remove the MONI.COVER ASSY by removing the four
hooks (L17a-d).
NOTE17a:
During the procedure, be careful with the handling of
the BUTTON (MONI) located under the MONI BOARD
ASSY.
As the BUTTON (MONI) is held under the COVER, it
may be uplifted or misaligned when the COVER is re-
moved.
(4) Release the lock of the connector (CN17a), and remove
the HINGE UNIT by lifting it up.
NOTE17b:
During the procedure, be careful in handling the FPC.
(5) Release the lock of the connector (CN17b), and pull out
the FPC.
(6) Remove the two screws (5 and 6), and remove the MON-
ITOR BOARD ASSY .
NOTE17c:
During the procedure, be careful with the handling of
the BUTTON (MONI) underneath.
As the BUTTON (MONI) is held under the COVER, it
may be uplifted or misaligned when the COVER is re-
moved.
NOTE17d:
When attaching the MONITOR BOARD ASSY, be
careful to avoid any misalignment or unevenness of
the parts underneath.
Attach the MONITOR BOARD ASSY by lifting up the
MONITOR CASE as the KNOB (CURSOR) that is at-
tached to the BOARD sticks out toward the LCD
screen.
(7) Remove the SHEET (M.REF), LIGHT GUIDE, SHEET
(M/DIFF), SHEET(BEF)2, and the SHEET(BEF)1.
NOTE17e:
When attaching, insert one side of the SHEET (M/
DIFF) under the LCD CASE RIB.
NOTE17f:
When attaching, insert each tab on both sides of the
SHEET (M.REF) into the LCD CASE notch.
(8) Remove the LCD CASE, SPACER(LCD-2), LCD MOD-
ULE, SPACER(LCD) and the LCD BKT ASSY.
NOTE17g:
During the procedure, handle the five parts (LCD CASE,
SPACER(LCD-2), LCD MODULE, SPACER(LCD) and
the LCD BKT ASSY) together.
zRemoving HINGE UNIT ASSEMBLY
(1) Remove the screw (7), and Remove the HINGE COV-
ER(U).
(2) Remove the HINGE COVER(L).
(3) Remove the MAGNET.
NOTE17h:
During the procedure, be careful in handling the MAG-
NET.
When attaching, set the N pole outside as shown in
the figure. Be careful when removing as there is no
marking.
NOTE17j:
During the procedure, be careful in handling the FPC.
NOTE17k:
The FPC, with its connection to the MONITOR BOARD
ASSEMBLY facing inward, is rolled around the axis
(shaft) of the HINGE ASSEMBLY rotation 2.5 rounds
(2.5times).

(No.YF178)1-15
Fig.3-2-18
SHEET(M.REF)
LIGHT GUIDE
SHEET(M/DIFF)
SHEET(BEF)2
SHEET(BEF)1
BUTTON(MONI)
LCD CASE RIB
LCD MODULE
SPACER(LCD)
(REINFORCED SIDE)
SPACER(LCD-2)
LCD BKT ASSY
ASSY
LCD CASE
MONI CASE
MONI.COVER ASSY
BOARD
ASSY
MAGNET
FPC
KNOB
HINGE COVER(L)
HINGE COVER(U)
HINGE UNIT ASSY (CURSOR) MONITOR
BOARD
MONITOR
7
(S17c)
3
(S17b)
2
(S17a)
1
(S17a)
5
(S17a) 6
(S17a)
4
(S17b)
L17g
L17h L17j
L17m
L17k
L17a
L17b
L17c
L17d
L17e CN17a
CN17b
CN17b
L17f
NOTE17g
NOTE17b
NOTE17f
NOTE17d
NOTE17e
NOTE17d
NOTE17a
NOTE17e
NOTE17a,c
NOTE17f
NOTE17f
NOTE17h
NOTE17j,k
0.069 N࡮m (0.7kgf࡮cm)
0.198 N࡮m (2.0kgf࡮cm)

1-16 (No.YF178)
3.2.5 ASSEMBLY/DISASSEMBLY OF [14] OP BLOCK ASSMBLY/CCD BOARD ASSEMBLY
zPrecautions
(1) Be careful in handling the CCD IMAGE SENSOR, OPTI-
CAL LPF and the LENS components. Pay special atten-
tion not to soil or damage the surfaces., especially with
regard to surface contamination, attached dust or
scratching. If fingerprints are present on the surface they
should be wiped away using either a silicon paper, clean
chamois or the cleaning cloth.
(2) The CCD IMAGE SENSOR may have been shipped with
a protective sheet attached to the transmitting glass.
When replacing the CCD IMAGE SENSOR, do not peel
off this sheet from the new part until immediately before
it is mounted in the OP BLOCK ASSY.
zDisassembly of OP BLOCK ASSEMBLY / CCD BOARD AS-
SEMBLY
(1) Unsolder the fourteen soldered points (SD14a) of the
CCD BOARD ASSY.
(2) Remove the two screws (1,2), and then remove the CCD
BOARD ASSY,SHELD(CCD) and the CCD BASE AS-
SY.
NOTE14a:
When removing the CCD BASE ASSY, be careful in
handling as the CCD IMAGE SENSOR may be re-
moved together with the SHEET and the OP LPF at-
tached.
NOTE14b:
Replace the CCD IMAGE SENSOR as a CCD BASE
ASSY, not as a single part replacement.
(3) Remove the SHIEET and the OP LPF.
zAembly of OP BLOCK ASSEMBLY / CCD BOARD ASSEM-
BLY
(1) Set the OP LPF first, and then the SHEET to the OP
BLOCK ASSY.
NOTE14c:
Be careful with the attachment direction of the OP
LPF.
(2) Attach the CCD BASE ASSY first, then the SHEET and
the CCD BOARD ASSY so that the SHEET stays in
place, and then tighten with the two screws (1, 2).
(3) Solder the 14 points (SD14a) on the CCD BOARD AS-
SY.
zReplacement of service repair parts
The service repair parts for the OP BLOCK ASSY are as listed
below.
When replacing parts, be careful not to cut the FPCs or dam-
age any parts by soldering (excessive heat).
(1) FOCUS MOTOR UNIT
(2) ZOOM MOTOR UNIT
(3) IRIS MOTOR UNIT
NOTE 14d:
When replacing the FOCUS MOTOR UNIT or the ZOOM
MOTOR UNIT, solder the FPC at a space of about 0.5 mm
above the terminal pin.
NOTE 14e:
The IRIS MOTOR UNIT includes the FPC ASSY and two
sensors.
Fig.3-2-19
CCD BOARD ASSY
CCD BASE ASSY
OP BLOCK ASSY
IRIS MOTOR UNIT
FOCUS MOTOR
UNIT
ZOOM MOTOR UNIT
SHELD(CCD)
SHIEET
OP LPF
NOTE14c
NOTE14d
NOTE14d
NOTE14d,e
NOTE14a,b
7
(S14b)
9
(S14b)
5
(S14b)
6
(S14b)
1
(S14a) 2
(S14a)
8
(S14b)
4
(S14b)
3
(S14b)
SD14a
SD14b
0.147 N࡮m (1.5kgf࡮cm)

(No.YF178)1-17
SECTION 4
ADJUSTMENT
4.1 PREPARATION
4.1.1 Precaution
Camera system and deck system of this model are specially
adjusted by using PC.
However, if parts such as the following are replaced, an
adjustment is required. The adjustment must be performed in a
Service Center equipped with the concerned facilities.
• EEP ROM (IC1005 of MAIN board)
• OP BLOCK ASSEMBLY
• MONITOR ASSEMBLY
In the event of malfunction with electrical circuits, first find a
defective portion with the aid of proper test instruments as shown
in the following electrical adjustment procedure, and then
commence necessary repair/ replacement/adjustment.
• In observing chip TP, use IC clips, etc. to avoid any stress.
Prior to replacement of chip parts (especially IC), remove the
solder completely to prevent peeling of the pattern.
• Use a patch cord if necessary. As for a patch cord, see the
BOARD INTERCONNECTIONS.
• Since connectors are fragile, carefully handle them in
disconnecting and connecting the FPC.
4.1.2 REQUIRED TEST EQUIPMENT
• Personal computer (for Windows)
• Color TV monitor
• Oscilloscope (dual-trace type, observable 100MHz or higher
frequency). The one observable 300 MHz or higher frequency
is recommended.
• Digital voltmeter
• DC power supply or AC adapter
• Frequency counter (with threshold level adjuster)
4.1.3 TOOLS REQUIRED FOR ADJUSTMENT
•Torque Driver
Be sure to use to fastening the mechanism and exterior parts
because those parts must strictly be controlled for tightening
torque.
•Bit
This bit is slightly longer than those set in conventional torque
drivers.
•Tweezers
To be used for removing and installing parts and wires.
•Chip IC Replacement Jig
To be used for adjustment of the camera system.
•Cleaning Cloth
Recommended the Cleaning cloth to wipe down the video
heads, mechanism (tape transport system), optical lens sur-
face.
Torque Driver
YTU94088
Bit
YTU94088-003
Chip IC Replacement Jig
PTS40844-2
Tweezers
P-895
Cleaning Cloth
KSMM-01
Charing Battery Adjuatment Jig
YTU93112A
INF Adjustment Lens Holder
YTU94087
Mini Stand
YTU93108
Gray Scale Chart
YTU94133A
Color Bar Chart
YTU94133C
Focus Chart
YTU92001-018
PC Cable
QAM0099-002
Jig Connector Cable
YTU93106D
Communication Cable
YTU93111
Service Support System
YTU94057-100
INF Adjustment Lens
YTU92001B
Light Box Assembly
YTU93096A

1-18 (No.YF178)
•INF Adjustment Lens
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•INF Adjustment Lens Holder
To be used together with the Camera stand for operating the
Videocamera in the stripped-down condition such as the sta-
tus without the exterior parts or for using commodities that are
not yet conformable to the interchangeable ring. For the usage
of the INF lens holder, refer to the Service Bulletin No. YA-SB-
10035.
•Mini Stand
To be used together with the INF adjustment lens holder. For
the usage of the Mini stand, refer to the Service Bulletin No.
YA-SB-10035.
•Light Box Assembly
To be used for adjustment of the camera system. For the
usage of the Light box assembly, refer to the Service Bulletin
No. YA-SB-10035.
•Gray Scale Chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•Color Bar Chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.
•Focus Chart
To be used for adjustment of the camera system. For the
usage of the INF adjustment lens, refer to the Service Bulletin
No. YA-SB-10035.

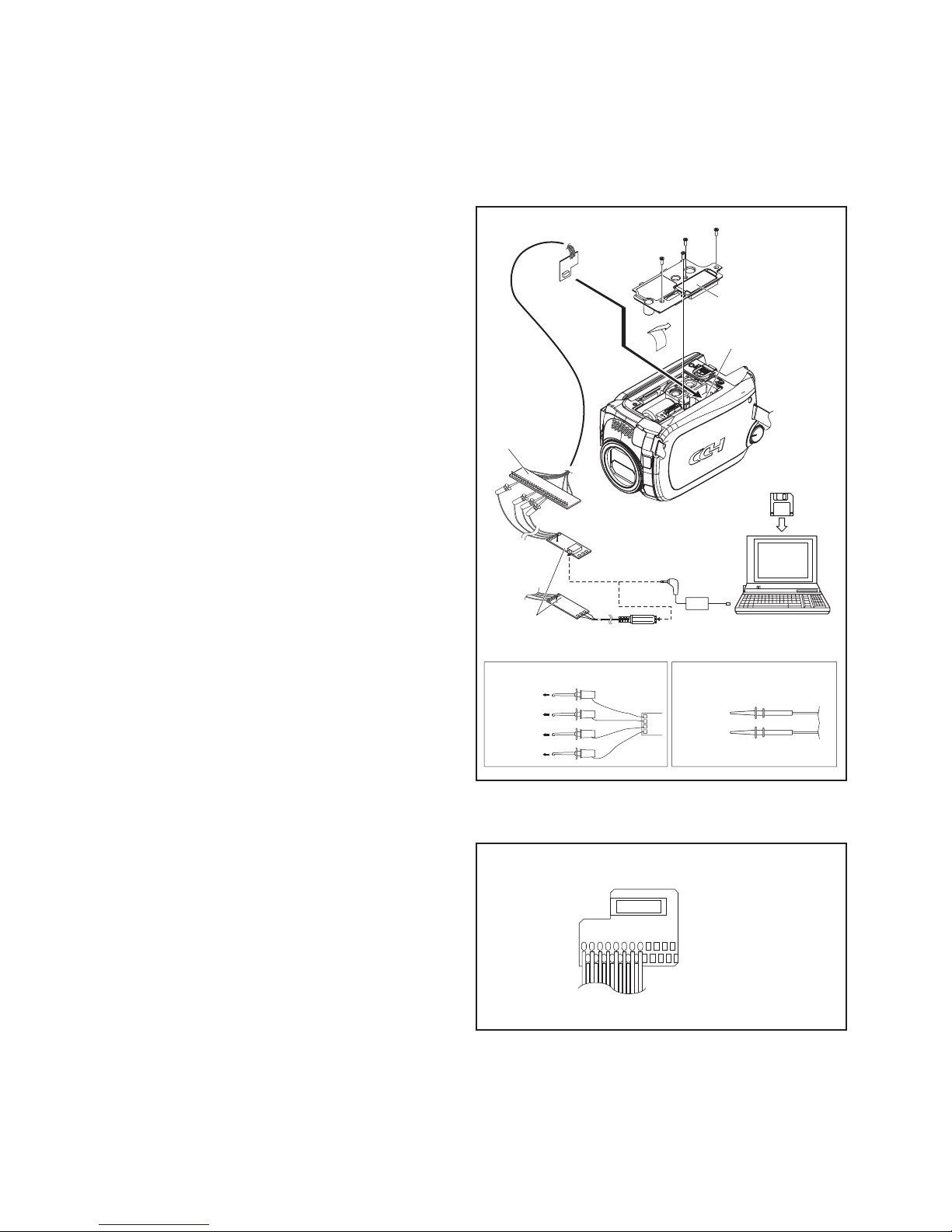

•Service Support System
To be used for adjustment with a personal computer. Software
can be downloaded also from JS-net.
•Communication Cable
Connect the Communication cable between the PC cable and
Jig connector cable when performing a PC adjustment.
•PC Cable
To be used to connect the Videocamera and a personal computer
with each other when a personal computer issued for adjustment.
•Jig Connector Cable
Connected to JIG CONNECTOR of the main board and used
for electrical adjustment, etc.
•Charging Battery Adjustment Jig
This Jig is used for the adjustment of the camcorders that have
Main Body battery charging function.
4.2 JIG CONNECTOR CABLE CONNECTION
Connection procedure
NOTE
Be sure to turn the power “OFF”, when connecting the JIG
CONNECTOR CABLE.
If the JIG CONNECTOR CABLE is connected with the pow-
er “ON”, communication error may occur.
Fig.4-2-1
Fig.4-2-2
OSCILLOSCOPE
or
TO ENV_OUT
TO HID
TO AL_3VSYS
TO IF_RX
TO IF_TX
TO GND
BLUE
RED
WHITE
BLACK
PC CABLE
B.COVER ASSY
COMMUNICATION
CABLE
JIG CONNECTOR
CABLE
MENU
RS232C
COM PORT
SERVICE
SUPPORT
SYSTEM
COMMUNICATION
CABLE
JIG CONNECTOR JIG CONNECTOR
PERSONAL COMPUTER
JIG
CONNECTOR
1
2
4
3
JIG CONNECTOR CABLE [YTU93106D]
115
1630

(No.YF178)1-19
Jig connector diagrams
Fig.4-2-3
DSP_TDO
DSP_TCK
DSP_TMS
DSP_TDI
XDSPTRST
DSP_RST
REG_3.1V
UARXDO
VATXDO
AL_3VSYS
IF_TX
IF_RX
MOD0
SYS_RSTL
SYS_TCK
MON_G
SYS_TRSTL
GND
SYS_TDO
GND
SYS_TDI
IRU
SYS_TMS
JSEL0
JSEL1
EXTRGO
MVD
KENTO
GND
KENTO2
DSP_TDO
DSP_TMS
XDSPTRST
REG_3.1V
VATXDO
IF_TX
MOD0
SYS_TCK
SYS_TRSTL
SYS_TDO
SYS_TDI
SYS_TMS
JSEL1
MVD
GND
DSP_TCK
DSP_TDI
DSP_RST
UARXDO
AL_3VSYS
IF_RX
SYS_RSTL
MON_G
GND
GND
IRU
JSEL0
EXTRGO
KENTO
KENTO2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
JIG CONNECTOR CABLE (YTU93106D)
MAIN CN110 JIG CONN. BOARD
(PIN NO.)

1-20 (No.YF178)
SECTION 5
TROUBLE SHOOTING
5.1 SERVICE NOTE
[14]
3-2-18
[17]
3-2-19
[1] [2] [4][3] [5] [6] [7] [8]
1 2 3 4 5 6 7 8 - 9 10 11 12 13 14
3-2-1 3-2-2
3-2-3 3-2-5
3-2-4 3-2-6
a
3-2-7
a
ae
[9] [10] [11] [12] [13] [14] [15] [16] [17]
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39
15 16 17 18 19 20 21 22 23 24 40 41 42 43 44 45 46 47 48
3-2-8 3-2-9 3-2-10 3-2-11 3-2-12 3-2-13
aacb
3-2-14-1 3-2-15-1 3-2-16
[9]
1 2 1 2 3 4 5 6 7
1 2 3 4 5 6 7 8 9
3-2-17
a
cd
Symbol No.
Removing order of screw
Place to stick screw
Reference drawing (Fig.No.)
Screw tightening torque
Symbol No.
Removing order of screw
Place to stick screw
Reference drawing (Fig.No.)
Screw tightening torque
Symbol No.
Removing order of screw
Place to stick screw
Reference drawing (Fig.No.)
Screw tightening torque
Symbol No.
Removing order of screw
Place to stick screw
Reference drawing (Fig.No.)
Screw tightening torque
CABINET PARTS AND ELECTRICAL PARTS(1) [9]FRONT ASSY [17]MONITOR ASSY CABINET PARTS AND ELECTRICAL PARTS(2)
NOTE: 㧝)㧖and㧖㧖(This mark shows where to attach the screws) : Do not reuse the screws because the screw lock bond was applied to prevent the screws from loosening. Prepare the specified screws and use them in place of the removed screws. 㧞)Tightening torque for the screws ࡮There are setting limits of the torque value for the torque driver. If the value exceeds the setting value, take it as a rough measurement (reference value), and tighten the screw manually. ࡮The specified torque value is a recommended value of the initial assembly. Therefore, set the value below the specified torque value in the assembling procedure. Be careful not to break either the screws or the screw holes.
[14]OP BLOCK ASSY/CCD BOARD ASSY
a㧦0.088N㨯m (0.9kgf㨯cm)ޓޓb㧦0.118N㨯m (1.2kgf㨯cm)ޓޓc㧦0.198N㨯m (2.0kgf㨯cm)ޓޓd㧦0.069N㨯m (0.7kgf㨯cm)ޓޓe㧦0.147N㨯m (1.5kgf㨯cm)
