SERVICE MANUAL
COPYRIGHT © 2006 Victor Company of Japan, Limited No.YF144
2006/5
HARD DISK CAMCORDER
YF14420065
GZ-MG21AC, GZ-MG21AH,
GZ-MG26AA, GZ-MG31AC
Regarding service information other than these sections, refer to the service manual No. YF137 (GZ-MG21EK).
Also, be sure to note important safety precautions provided in the service manual.
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
GZ-MG21ACM, GZ-MG21AHM [M6E324],
GZ-MG26AAM [M6E334],
GZ-MG31ACM [M6E326]

1-2 (No.YF144)
SPECIFICATION
Camcorder
AC Adapter
Remote Control
Design and specifications subject to change without notice.
For general Power supply DC 11 V (Using AC Adapter)
DC 7.2 V (Using battery pack)
Power consumption Approx. 3.9 (4.1)* W
* When using the LED light
Dimensions (W ×H ×D) 68 mm ×69 mm ×109 mm
Weight Approx. 340 g (without battery, lens cap and strap)
Approx. 400 g (incl. battery, lens cap and strap)
Operating temperature 0°C to 40°C
Operating humidity 35% to 80%
Storage temperature -20°C to 50°C
Pickup 1/6" (800,000 pixels) CCD
Lens F 2.0 to 4.5, f = 2.3 mm to 73.6 mm, 32:1 power zoom lens
Filter diameter Ø30.5 mm
LCD monitor GZ-MG26 2.7" diagonally measured, LCD panel/TFT active matrix system
GZ-MG21,31 2.5" diagonally measured, LCD panel/TFT active matrix system
Speaker Monaural
Flash Within 1.5 m (recommended shooting distance)
For video/audio Format SD-VIDEO
Recording/Playback
format
Video MPEG-2
Audio Dolby Digital (2 ch)
Signal format PAL standard
Recording mode (video) ULTRA FINE: 720 ×576 pixels, 8.5 Mbps (VBR)
FINE: 720 ×576 pixels, 5.5 Mbps (VBR)
NORMAL: 720 ×576 pixels, 4.2 Mbps (VBR)
ECONOMY: 352 ×288 pixels, 1.5 Mbps (VBR)
Recording mode (audio) ULTRA FINE: 48 kHz, 384 kbps
FINE: 48 kHz, 384 kbps
NORMAL: 48 kHz, 256 kbps
ECONOMY: 48 kHz, 128 kbps
For still image Format JPEG
Image size One mode (640 ×480)
Picture quality 2 modes (FINE/STANDARD)
For Connectors AV S-Video output Y:1.0 V (p-p), 75 Ω, analogue, C:0.29 V (p-p), 75 Ω, analogue
Video output 1.0 V (p-p), 75 Ω, analogue
Audio output 300 mV (rms), 1 kΩ, analogue, stereo
USB Mini USB type B, USB 2.0 compliant
Power requirement AC 110 V to 240 V~, 50 Hz/60 Hz
Output DC 11 V, 1 A
Power supply DC 3 V
Battery life Approx. 1 year (depending on the frequency of use)
Operating distance Within 5 m
Operating temperature 0°C to 40°C
Dimensions (W ×H ×D) 45 mm ×13 mm ×105 mm
Weight Approx. 40 g (incl. battery)

(No.YF144)1-3
SECTION 1
PRECAUTION
Please refer to "GZ-MG21EK No.YF137" about this section.
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 DIFFERENCE LIST
The following table indicate main different points between models GZ-MG21EK, GZ-MG21AC, GZ-MG21AH, GZ-MG26AA and
GZ-MG31AC.
SECTION 3
DISASSEMBLY
Please refer to "GZ-MG21EK No.YF137" about this section.
SECTION 4
ADJUSTMENT
Please refer to "GZ-MG21EK No.YF137" about this section.
SECTION 5
TROUBLESHOOTING
Please refer to "GZ-MG21EK No.YF137" about this section.
MODEL GZ-MG21EK GZ-MG21AC GZ-MG21AH
BODY COLOR SILVER SILVER SILVER
HDD(BUILT-IN) 20GB 20GB 20GB
LCD SIZE 2.5” 2.5” 2.5”
USB MASS STORAGE CLASS 2.0(OUT only) 2.0 2.0
AC ADAPTER AP-V14E AP-V14AC AP-V14E
AC CORD YES(BS Plug) YES(CCC Plug) YES(CEE Plug)
CONVERSION PLUG NO NO YES(Fix to AC Cord)
REMOTE CONTROL RM-V730UE RM-V730US RM-V730US
MODEL GZ-MG26AA GZ-MG31AC
BODY COLOR SILVER GRAY
HDD(BUILT-IN) 20GB 30GB
LCD SIZE 2.7” 2.5”
USB MASS STORAGE CLASS 2.0 2.0
AC ADAPTER AP-V14E AP-V14AC
AC CORD YES(AS/NZS Plug) YES(CCC Plug)
CONVERSION PLUG NO NO
REMOTE CONTROL RM-V730US RM-V730US

(No.YF144)
Camcorder Category 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan
Victor Company of Japan, Limited
VPT
Printed in Japan

(No.YF144)3-1
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble in regard to safety and performance. We recommend that genuine
JVC parts be used.

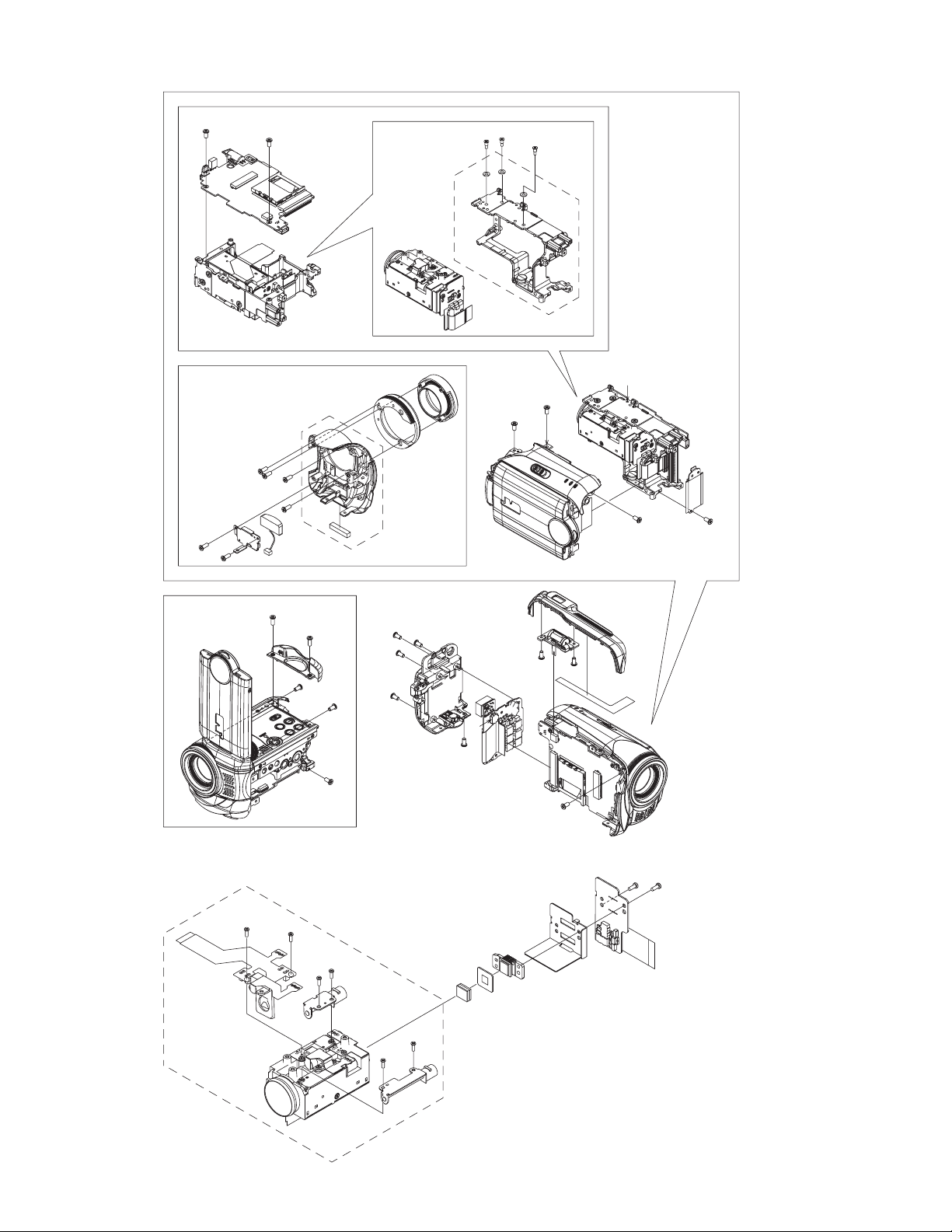

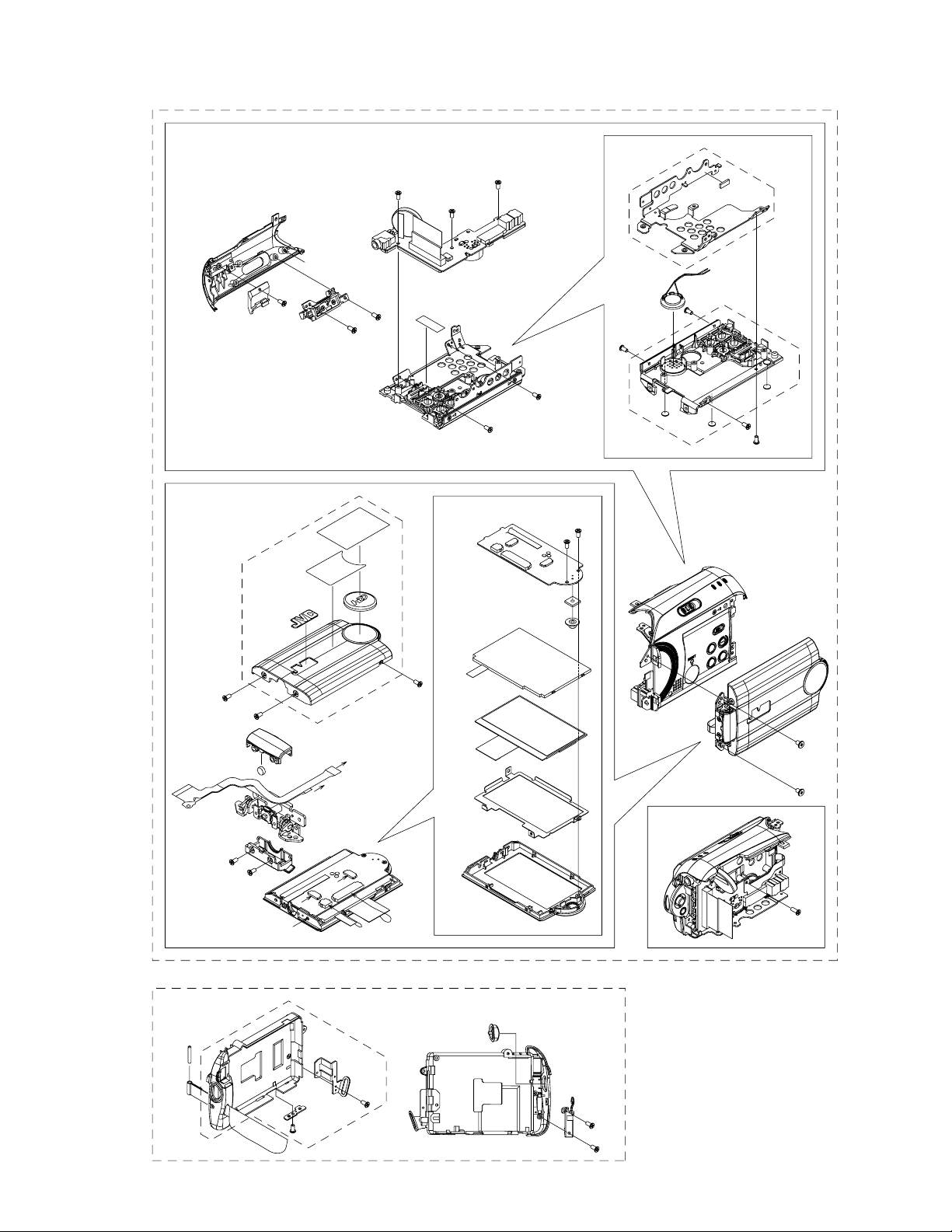

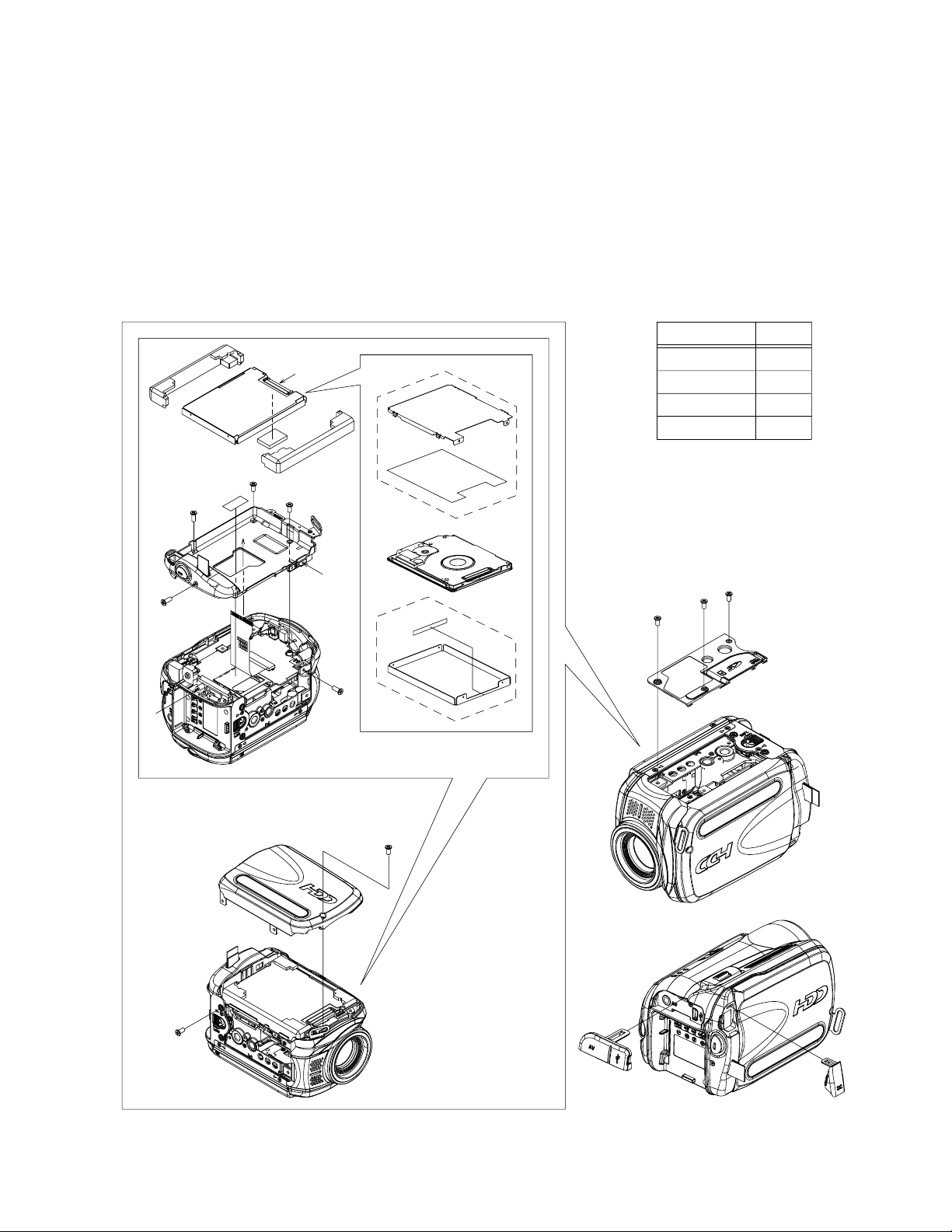

1. EXPLODED VIEW
1.1 FINAL ASSEMBLY<M1>
The instruction manual to be provided with this product will differ according to the destination.
128
128
129
130
131
160
134
134A
133
133A
135
135
137
138
202
202 202
201
204
203
136
a
a
b
b
132
F1
F1
163
B
MARK
A
GZ-MG21AC
MODEL
GZ-MG21AH
GZ-MG26AA C
D
GZ-MG31AC

3-2(No.YF144)
101
101A 101A
101A
102 102 102
104 104
<01>
MAIN BOARD
ASSEMBLY
105
105
108
109
110
112
111 111
111
113
114
115
115
119
119
118
116
ASSEMBLY
REAR BOARD
<05>
120
125
125
123
161
105 107
106
105
122
122
126
122
122 F2
c
c
124
351
351D
OP BLOCK ASSEMBLY
351C
351A
351B
352
353
357
354
<02>
CCD BOARD
ASSEMBLY
356
356
117
F2
117
351D
351D
351D
351D
351D
110A

(No.YF144)3-3
F4
F3
F4
F3
251
252
255
254
253
256
256
264
264
262
263
260
259
258
257
ASSEMBLY
MONITOR BOARD
<06>
265B
265C
265A
265
267
266
266
270
269
271
271
271
271
268A
268A
268
277
277
277
<04>
OPE BOARD
ASSEMBLY
282
278
278
279
280 281
273
JVC
303
302
304
305
306
301D
301B
301A
301C
301
300
e
e
250
275
275
d
d
272
268A
306
270A
265D
274
274

3-4(No.YF144)

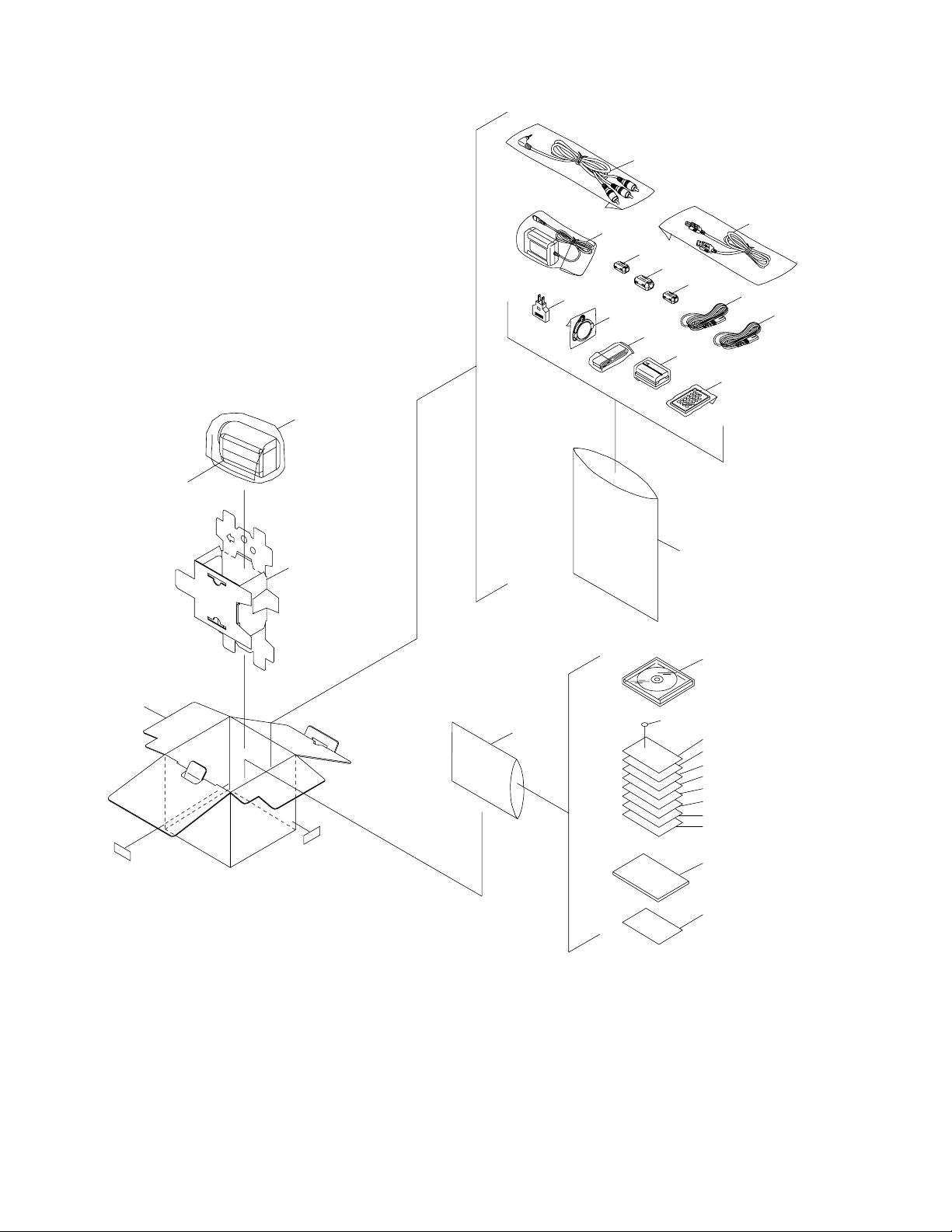

1.2 PACKING AND ACCESSORY ASSEMBLY <M5>
063
054
064
062
058
056
065
060 057
001
003
002
053
055
061
051
015
<M1>
FINAL ASSEMBLY
014
(SERIAL)
LABEL
021
052
068
016
027
022
019
017
069
073
072
004
018

(No.YF144)3-5
MODEL MARK
A
B
GZ-MG21AC
GZ-MG21AH
MODEL MARK
C
D
GZ-MG26AA
GZ-MG31AC
2. PARTS LIST
FINAL ASSEMBLY <M1>
PACKING AND ACCESSORY ASSEMBLY <M5>
 Symbol No. Part No. Part Name Description Local
101 LY35263-001B FRAME ASSY
101A LY34799-002A BUSH (x3)
102 LY30032-021A SPECIAL SCREW FRM-OP(x3)
104 LY30031-0K7A SPECIAL SCREW MAIN-FRM(x2)
105 LY30031-0K7A SPECIAL SCREW UPPER-FRM(x4)
106 LY35256-001A SHIELD(FRAME)
107 LY30031-0K7A SPECIAL SCREW SHIELD-FRM
108 LY35262-001A HOOD
109 LY35237-001C RING
110 LY35228-001C F.COVER ASSY D
110 LY35228-002D F.COVER ASSY A,B,C
110A LY30035-031A SPACER(A)
111 LY30031-0L8B SPECIAL SCREW FRONT-HOOD(x3)
112 LY30031-0K7A SPECIAL SCREW FRONT-RING
113 LY35303-001A MIC
114 LY35268-001A BKT(MIC)
115 LY30031-0L8B SPECIAL SCREW BKT(MIC-FR)(x2)
116 LY30031-0K7A SPECIAL SCREW FRONT-FRM
117 LY30031-038A SPECIAL SCREW UPPER-FRON(x2)
118 LY35215-001C M.L.CASE ASSY D
118 LY35215-002C M.L.CASE ASSY A,B,C
119 LY30031-0L8B SPECIAL SCREW MLOCK-UPPE(x2)
 120 LY21491-001C REAR UNIT
122 LY30031-0K7A SPECIAL SCREW REAR-FRM(x4)
123 LY21485-001A TOP COVER(ZOOM)
124 LY34990-001E ZOOM UNIT
125 LY30031-0L8B SPECIAL SCREW ZOOM-TOP(Z)(x2)
126 LY30031-0K7A SPECIAL SCREW TOP(Z)-FRM
128 LY30031-0K7A SPECIAL SCREW HCASE-FRM(x2)
129 LY30031-0L8B SPECIAL SCREW HCASE-ZOOM
130 LY30031-0L8B SPECIAL SCREW HCASE-REAR
131 LY30031-0K7A SPECIAL SCREW FRONT-HCAS
132 QAL0885-001 HDD 20G A,B,C
132 QAL0885-002 HDD 30G D
133 LY35388-001B BKT(HDD)U ASSY
133A LY30035-033A SPACER(A)
134 LY35243-001A BKT(HDD)ASSY
134A LY35244-001A SHEET(HDD)
135 LY35245-001A GEL (x2)
136 LY21490-001A HDD COVER D
136 LY21490-002A HDD COVER A,B,C
137 LY30031-0K7A SPECIAL SCREW HCOV-HOOK
138 LY30031-0K7A SPECIAL SCREW REAR(B-FRM)
160 LY34189-018A GASCKET SD
161 LY45202-001A SHIELD(ZOOM)
163 LY34189-020A GASCKET FPC
201 LY35247-001B B.COVER ASSY
202 LY30031-0K7A SPECIAL SCREW BOTTOM(x3)
203 LY35239-001A JACK COVER(DC)
204 LY35233-001A JACK COVER(REAR)
250 UU06E301K U.UNIT ASSY FOR JAPAN A,B
250 UU06E302K U.UNIT ASSY FOR JAPAN D
250 UU06E3W09D U.UNIT ASSY FOR JAPAN C
251 QAL0806-001 FPC MONI-OPE
252 LY35075-001A HINGE UNIT YEM
253 LY35219-001D HINGE COVER(U) D
253 LY35219-002D HINGE COVER(U) A,B,C
254 LY43413-001A P.C.MAGNET
255 LY35220-001C HINGE COVER(L) D
255 LY35220-002C HINGE COVER(L) A,B,C
256 LY30031-0K7A SPECIAL SCREW HCOV-HINGE(x2)
257 LY35213-002C MONI.CASE ASSY C
257 LY35213-003C MONI.CASE ASSY A,B
257 LY35213-004C MONI.CASE ASSY D
258 LY21475-001B LCD BKT(WIDE) 16:9 C
258 LY21476-001C LCD BKT 4:3 A,B,D
259 QLD0359-001 LCD MODULE 4:3 A,B,D
259 QLD0417-002 LCD MODULE 16:9 C
260 QLL0174-002 BACK LIGHT 4:3 A,B,D
260 QLL0178-002 BACK LIGHT 16:9 C
262 LY45193-001A SPACER(CURSOL)
263 LY45166-001C KNOB(CURSOL)
264 LY30031-0L8B SPECIAL SCREW PWB-M.CASE(x2)
265 LY35221-002D MONI.COVER ASSY C
265 LY35221-003D MONI.COVER ASSY A,B
265 LY35221-004D MONI.COVER ASSY D
265A LY45165-001A MARK(HDD)
265B LY45126-001B JVC MARK
265C LY35260-001A STICKER D
265C LY35260-002A STICKER A,B,C
265D LY45216-001A PROTECT SHEET
266 LY30031-0K6A SPECIAL SCREW MCOV-HINGE(x2)
267 LY30031-0K7A SPECIAL SCREW MCOV-LBKT
268 LY21478-001E U.CASE ASSY D
268 LY21478-002E U.CASE ASSY A,B,C
268A LY42350-001A FOOT (x3)
269 QAS0429-001 SPEAKER
270 LY35416-001A BKT(UPPER)ASSY
270A LY30035-039A SPACER(A)
271 LY30031-0K7A SPECIAL SCREW UC-BKT(U)(x4)
272 LY35234-003A T.COVER(U) ASSY A,B,C
272 LY35234-004A T.COVER(U) ASSY D
273 LY35224-001C POWER SW ASSY D
273 LY35224-002C POWER SW ASSY A,B,C
274 LY30031-0L8B SPECIAL SCREW POW-TOP(U)(x2)
275 LY30031-0L8B SPECIAL SCREW BKT(U-TOP)(x2)
277 LY30031-060A SPECIAL SCREW PWB-UPPER(x3)
278 LY30031-0K6A SPECIAL SCREW HING-BKT(U)(x2)
279 LY30031-060A SPECIAL SCREW FPC-UPPER
280 LY35236-001A INTERRUPTER
281 LY30031-0L8B SPECIAL SCREW INTER-TOP
282 LY45112-001A HEAT SHEET
 300 CU06E301A C(BELT)UNITASSY FOR JAPAN
 301 LY35238-001C HDD CASE ASSY
301A LY35022-201A BKT(BOTTOM)
301B LY35241-001A HOOK(G.B)
301C LY30031-0L6A SPECIAL SCREW BKT(BTM)
301D LY30031-0L6A SPECIAL SCREW HOOK
302 LY21416-001B GRIP BELT
303 LY34997-001A SHAFT(G.B)
304 LY35240-001B BUTTON(TRIG)
305 LY35242-001B HOLDER(SHAFT)
306 LY30031-0L8B SPECIAL SCREW HOLDER(SH)(x2)
351 LY35161-002A OP BLOCK ASSY
351A PTY35161-206 AUTO IRIS UNIT
351B PTY35161-101 ZOOM MOTOR UNIT
351C PTY35161-102 FOCUS MOTOR UNIT
351D PTY35161-535 TAPPING SCREW (x6)
352 LY45144-001A OPTICAL LPF
353 LY45175-001A SHEET
354 LY35257-001A-ML SHIELD CCD JPN
356 LY30031-0J7A SPECIAL SCREW (x2)
357 LYH30667-002A CCD BASE ASSY
 Symbol No. Part No. Part Name Description Local
001 LY34452-001A POLY BAG DOCUMENT
002 LY35273-003A-S CD ROM ASSY
003 LYT1628-001A INST BOOK(CS)
(SIMPLIFIED CHINESE) A,D
 003 LYT1541-001B INST BOOK(EN) (ENGLISH) B,C
 003 LYT1541-002C INST BOOK(CS) (SIMPLIFIED CHINESE) B
004 LYT1534-003A INST BOOK(SOFT.S-CH) (SOFT.SIMPLIFIED CHINESE) A,D
004 LYT1534-007A
INST BOOK(SOFT.EN.SCH) (SOFT.SIMPLIFIED CHINESE) B
004 LYT1534-002A INST BOOK(SOFT.EN) (SOFT.ENGLISH) C
014 ------------ WARRANTY CARD BT-56016-1 C
015 ------------ WARRANTY CARD BT-56017-1 C
016 BT-59021-6CAM SVC CENTER LIST A,D
017 YU30552-135 QUEST.CARD A,D
018 BT-59020-1 HOLOGRAM SEAL A,D
019 ------------ WARRANTY CARD BT-59019-1CAM A,D
021 LY35385-004A SHEET(ACC GUIDE)
022 LYT1621-006A SHEET(DVD.W.M)
027 LYT1607-001A SHEET(ATT.)
051 LY30023-003A POLY BAG FOR YSK
052 LY35251-013A PACKING CASE PRODUCTION A,B
052 LY35251-006A PACKING CASE PRODUCTION C
 Symbol No. Part No. Part Name Description Local

3-6(No.YF144)
MAIN BOARD ASSEMBLY <01>
052 LY35251-012A PACKING CASE PRODUCTION D
053 LY21420-001A CUSHION
054 QPA02503505P POLY BAG ACC. 25cm x 35cm
055 QAM0508-001 A/V CABLE FILTER
056 QQR0918-004 CORE FILTER AV
057 QAM0719-001 USB CABLE
058 QQR0491-004 CORE FILTER USB 1T
 060 LY21104-003D AC ADAPTER AP-V14AC A,D
 060 LY21104-001E AC ADAPTER AP-V14E B,C
061 QQR0917-004 CORE FILTER DC
062 LY21430-002A REMOTE CTL UNIT RM-V730US
 063 LY34647-002B BATTERY PACK BN-VF707U
064 LY21397-002A SHOULDER STRAP
065 LY34811-001B HOOD CAP ASSY
068 LY45161-002A-ML LABEL JPN
 069 QMPS260-190-JR POWER CORD CCC 1.9m BLACK A,D
 069 QMPH040-190-JR POWER CORD AS/NZS 1.9m BLACK C
 072 QMPL270-190-JR POWER CORD CEE 1.9m BLACK B
 073 QAM0001-001 CONVERSION PLUG FIX AC CO. B
 Symbol No. Part No. Part Name Description Local
PW1 LYA10071-01D MAIN BOARD ASSY
IC121 NAL0035-001X SHOCK SENSOR
IC171 KSM-2003LN2E IR DETECT UNIT
IC1001 MN102H60GJD IC(MICRO C ROM) MASK
IC1001 or MN102HF60GJD IC(MICRO C ROM) MP FLASH
IC1002 RS5C314-X IC
IC1003 S-80827CNNB-G-W IC
IC1004 SN74AHC1G08DC-X IC(DIGITAL)
IC1004 or 74AHC1G08GW-X IC
IC1004 or TC7SH08FU-X IC(DIGITAL)
IC1005 SN74AHC1G04DC-X IC(DIGITAL)
IC1005 or TC7SH04FU-X IC(DIGITAL)
IC1007 TC75S56FU-X IC
IC1007 or NJU7108F3-X IC
IC2201 AK4660VQ IC 48P0.5
IC2201 or AK4664VQ IC
IC3001 UPD61152F1-A03 IC(MICRO C ROM)
IC3002 K4S28323LF-HN75 IC 128M 32BIT
IC3201 JCP8075 IC
IC3202 MB90099PFV139EX IC(MICRO C ROM)
IC3204 R1100D251C-X IC
IC3701 BH7612FV-X IC
IC4001 SIP1280ISD-DVA3 IC
IC4001 or SIP1280ISD-DVA2 IC
IC4003 R1114N331B-X IC
IC4201 NN12072A-X IC TG/CDS/AD
IC4301 SG32A90BFIR4B02 IC(MICRO C ROM) 4M FLASH
IC4303 K4S56323LF-HN75 IC 256M FBGA
IC4304 R1114N251B-X IC SREG2.5V
IC4401 JCY0231 IC STD SELL
IC4403 MM3142FN-X IC 2.5V REG
IC4501 JCY0209-2 IC PREPROCESS
IC4502 M95320-WDW6-X IC EEPROM
IC4901 JCY0223-X IC
Q131 DTC144EE-X TRANSISTOR
Q131 or BCR148T-X DIGI TRANSISTOR
Q131 or UN9213J-X DIGI TRANSISTOR
Q171 RPM-22PB PHOTO TRANSISTOR
Q421 UMZ1N-W PAIR TRANSISTOR LIGHT LED
Q421 or PUMZ1-W PAIR TRANSISTOR LIGHT LED
Q421 or XP4601-W PAIR TRANSISTOR LIGHT LED
Q422 DTC143XE-X DIGI TRANSISTOR LIGHT LED
Q422 or UN921FJ-X DIGI TRANSISTOR LIGHT LED
Q422 or KRC419E-X DIGI TRANSISTOR LIGHT LED
Q422 or RT1N432U-X DIGI TRANSISTOR LIGHT LED
Q1001 DTC124EE-X DIGI TRANSISTOR
Q1002 2SC4617/RS/-X TRANSISTOR
Q1002 or 2SD2216J/RS/-X TRANSISTOR
Q1002 or BC847BT-X TRANSISTOR
Q1003 DTA124EE-X DIGI TRANSISTOR
 Symbol No. Part No. Part Name Description Local
Q1004 2SC4617/RS/-X TRANSISTOR
Q1004 or 2SD2216J/RS/-X TRANSISTOR
Q1004 or BC847BT-X TRANSISTOR
Q1005 2SJ347-X MOS FET
Q1006 DTA124EE-X DIGI TRANSISTOR
Q2202 UMX18N-W PAIR TRANSISTOR
Q2401 2SC4617/QR/-X TRANSISTOR
Q2401 or BC847BT-X TRANSISTOR
Q2403 2SC4617/QR/-X TRANSISTOR
Q2403 or BC847BT-X TRANSISTOR
Q3202 2SC4617/QR/-X TRANSISTOR
Q3202 or BC847BT-X TRANSISTOR
Q3701 UMZ1N-W PAIR TRANSISTOR
Q3701 or PUMZ1-W PAIR TRANSISTOR
Q3701 or XP4601-W PAIR TRANSISTOR
Q4001 2SC4617/RS/-X TRANSISTOR
Q4001 or BC847BT-X TRANSISTOR
Q4001 or 2SD2216J/RS/-X TRANSISTOR
Q7801 UMX1N-W PAIR TRANSISTOR
Q7801 or BC847S-X PAIR TRANSISTOR
Q7801 or PUMX1-W PAIR TRANSISTOR
Q7801 or XP4501-W PAIR TRANSISTOR
Q7802 UMX1N-W PAIR TRANSISTOR
Q7802 or BC847S-X PAIR TRANSISTOR
Q7802 or PUMX1-W PAIR TRANSISTOR
Q7802 or XP4501-W PAIR TRANSISTOR
Q7803 UMX1N-W PAIR TRANSISTOR
Q7803 or BC847S-X PAIR TRANSISTOR
Q7803 or PUMX1-W PAIR TRANSISTOR
Q7803 or XP4501-W PAIR TRANSISTOR
 D191 RB715W-X SB DIODE
D421 NSPW500CS/C0TU/ LED LIGHT LED
D1001 DA221-X SI DIODE
D1002 1SS376-X SI DIODE
D3701 UMZ6.8EN-W Z DIODE
D4003 1SS376-X SI DIODE
D4201 1SS355-X SI DIODE
D4201 or MA111-X SI DIODE
D4201 or 1SS352-X SI DIODE
C111 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M
C122 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C141 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C142 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C171 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C172 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C1001 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C1004 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C1005 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C1006 NDCA1HJ-7R0W C CAPACITOR 7pF 50V J
C1008 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1013 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1014 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1015 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1016 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1017 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1018 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1020 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1025 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C1026 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C1031 NCF31AZ-105X C CAPACITOR 1uF 10V Z
C1034 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1043 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1044 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1045 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C1046 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2202 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2203 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2204 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2205 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2209 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2210 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2217 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2218 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2223 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2224 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2401 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
 Symbol No. Part No. Part Name Description Local
MODEL MARK
A
B
GZ-MG21AC
GZ-MG21AH
MODEL MARK
C
D
GZ-MG26AA
GZ-MG31AC

(No.YF144)3-7
C2402 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2403 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2404 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2405 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2406 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C2603 NCBA1CK-223W C CAPACITOR 0.022uF 16V K
C2604 NCBA1CK-223W C CAPACITOR 0.022uF 16V K
C2605 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C2606 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C2611 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2612 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2613 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C2623 NDCA1HJ-100W C CAPACITOR 10pF 50V J
C2624 NDCA1HJ-100W C CAPACITOR 10pF 50V J
C2655 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C2656 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3004 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C3005 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3006 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3007 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3008 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3009 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3010 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3011 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3012 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3013 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3014 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3015 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3016 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3019 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C3020 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3021 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3022 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C3023 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3024 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3201 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3202 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3203 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3204 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3205 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3206 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3207 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3208 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3209 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3210 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3211 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3212 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
C3216 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3217 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3218 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3219 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3220 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C3224 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3225 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3227 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3701 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C3702 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C3703 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C3704 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C3705 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4002 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4003 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4004 NBE20GM-476X TA E CAPACITOR 47uF 4V M
C4008 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4009 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4010 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4011 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C4012 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4013 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4014 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C4015 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4016 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4017 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4018 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4019 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4020 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C4021 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4022 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
 Symbol No. Part No. Part Name Description Local
C4023 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C4024 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4025 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4026 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4027 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4029 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4031 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4032 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4034 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4201 NCB11EK-105X C CAPACITOR 1uF 25V K
C4202 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C4203 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4204 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4205 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4206 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4208 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4209 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4210 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C4211 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4212 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4213 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4214 NDCA1HJ-8R0W C CAPACITOR 8pF 50V J
C4215 NDCA1HJ-180W C CAPACITOR 18pF 50V J
C4216 NCB11CK-475X C CAPACITOR 4.7uF 16V K
C4217 NBP21CM-106X TA E CAPACITOR 10uF 16V M
C4218 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4219 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4220 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4221 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4224 NBE20JM-476X TA E CAPACITOR 47uF 6.3V M
C4225 NDCA1HJ-100W C CAPACITOR 10pF 50V J
C4301 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4302 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4305 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4306 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C4307 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4308 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4309 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4310 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4351 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4352 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4401 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4402 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4403 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4404 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4405 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4406 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4407 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4411 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4412 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4501 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4503 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4504 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4505 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4506 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4507 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4510 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4511 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4513 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4514 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4517 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4518 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4519 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4521 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4522 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4523 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4524 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4525 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4527 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4528 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4529 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M
C4532 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4533 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4534 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4902 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M
C4903 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C4905 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4906 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
 Symbol No. Part No. Part Name Description Local
MODEL MARK
A
B
GZ-MG21AC
GZ-MG21AH
MODEL MARK
C
D
GZ-MG26AA
GZ-MG31AC

3-8(No.YF144)
C4907 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4908 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4909 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4911 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C4912 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4913 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4914 NDCA1HJ-680W C CAPACITOR 68pF 50V J
C4915 NDCA1HJ-121W C CAPACITOR 120pF 50V J
C4916 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4921 NCFA1AZ-474W C CAPACITOR 0.47uF 10V Z
C4922 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4923 NCB30JK-474X C CAPACITOR 0.47uF 6.3V K
C4924 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4925 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C4926 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4927 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C4932 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C4935 NBE21AM-106X TA E CAPACITOR 10uF 10V M
C4936 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C4937 NDCA1HJ-101W C CAPACITOR 100pF 50V J
C7802 NCB21CK-105X C CAPACITOR 1uF 16V K
C7803 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C7804 NCB21CK-105X C CAPACITOR 1uF 16V K
C7805 NCB21CK-105X C CAPACITOR 1uF 16V K
C7806 NCB21CK-105X C CAPACITOR 1uF 16V K
C7852 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
R101 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R111 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R112 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R113 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R114 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R115 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R131 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R141 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R142 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R143 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R144 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R145 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R146 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R147 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R148 NRSA6AJ-220W MG RESISTOR 22 Ω 1/16W J
R149 NRSA6AJ-220W MG RESISTOR 22 Ω 1/16W J
R150 NRSA6AJ-220W MG RESISTOR 22 Ω 1/16W J
R151 NRSA6AJ-220W MG RESISTOR 22 Ω 1/16W J
R167 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R169 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R170 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R171 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R172 NRSA6AJ-332W MG RESISTOR 3.3k
Ω 1/16W J
 R191 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R196 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R197 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R198 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R421 NRSA6AJ-152W MG RESISTOR 1.5k
Ω 1/16W J
R422 NRSA6AJ-182W MG RESISTOR 1.8k
Ω 1/16W J
R423 NRSA6AJ-391W MG RESISTOR 390 Ω 1/16W J
R424 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R1001 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1003 NRSA6AJ-222W MG RESISTOR 2.2k
Ω 1/16W J
R1004 NRSA6AJ-222W MG RESISTOR 2.2k
Ω 1/16W J
R1005 NRSA6AJ-222W MG RESISTOR 2.2k Ω 1/16W J
R1006 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R1007 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R1008 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1009 NRSA6AJ-681W MG RESISTOR 680
Ω 1/16W J
R1010 NRSA6AJ-221W MG RESISTOR 220
Ω 1/16W J
R1016 NRSA6AJ-222W MG RESISTOR 2.2k
Ω 1/16W J
R1017 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1018 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1019 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1020 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1022 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1023 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1024 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1025 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1028 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1029 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R1030 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1031 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1037 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1043 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1045 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1051 NRSA6AJ-272W MG RESISTOR 2.7k
Ω 1/16W J
R1052 NRSA6AJ-183W MG RESISTOR 18k
Ω 1/16W J
R1053 NRSA6AJ-154W MG RESISTOR 150k Ω 1/16W J
R1054 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R1055 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1056 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R1057 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1058 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1059 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1060 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1061 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1062 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1063 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R1064 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1065 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R1066 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R1068 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R1069 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1070 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1071 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1072 NRSA6AJ-823W MG RESISTOR 82k Ω 1/16W J
R1073 NRSA6AJ-623W MG RESISTOR 62k Ω 1/16W J
R1074 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R1075 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1076 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1077 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R1082 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1083 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R1084 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R1085 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R1086 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R2202 NRSA6AJ-564W MG RESISTOR 560k Ω 1/16W J
R2203 NRSA6AJ-393W MG RESISTOR 39k Ω 1/16W J
R2204 NRSA6AJ-154W MG RESISTOR 150k Ω 1/16W J
R2206 NRSA6AJ-333W MG RESISTOR 33k Ω 1/16W J
R2207 NRSA6AJ-333W MG RESISTOR 33k Ω 1/16W J
R2208 NRSA6AJ-223W MG RESISTOR 22k Ω 1/16W J
R2209 NRSA6AJ-223W MG RESISTOR 22k Ω 1/16W J
R2210 NRSA6AJ-821W MG RESISTOR 820 Ω 1/16W J
R2211 NRSA6AJ-821W MG RESISTOR 820 Ω 1/16W J
R2212 NRSA6AJ-2R7W MG RESISTOR 2.7 Ω 1/16W J
R2213 NRSA6AJ-2R7W MG RESISTOR 2.7 Ω 1/16W J
R2217 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R2233 NRSA6AJ-564W MG RESISTOR 560k Ω 1/16W J
R2234 NRSA6AJ-564W MG RESISTOR 560k
Ω 1/16W J
R2235 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R2241 NRSA6AJ-104W MG RESISTOR 100k
Ω 1/16W J
R2401 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R2402 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R2403 NRSA6AJ-183W MG RESISTOR 18k
Ω 1/16W J
R2407 NRSA6AJ-100W MG RESISTOR 10
Ω 1/16W J
R2601 NRSA6AJ-222W MG RESISTOR 2.2k Ω 1/16W J
R2602 NRSA6AJ-222W MG RESISTOR 2.2k
Ω 1/16W J
R2607 NRSA6AJ-222W MG RESISTOR 2.2k Ω 1/16W J
R2608 NRSA6AJ-222W MG RESISTOR 2.2k
Ω 1/16W J
R2609 NRSA6AJ-223W MG RESISTOR 22k
Ω 1/16W J
R2610 NRSA6AJ-223W MG RESISTOR 22k Ω 1/16W J
R3001 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3002 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3003 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3004 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3007 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3008 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3009 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3012 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3013 NRSA6AJ-271W MG RESISTOR 270
Ω 1/16W J
R3014 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R3016 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3017 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3022 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3023 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3024 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R3025 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
MODEL MARK
A
B
GZ-MG21AC
GZ-MG21AH
MODEL MARK
C
D
GZ-MG26AA
GZ-MG31AC

(No.YF144)3-9
R3026 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3027 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3028 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3029 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R3030 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R3031 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R3032 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R3033 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R3034 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R3035 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3036 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3039 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3040 NRSA6AJ-271W MG RESISTOR 270 Ω 1/16W J
R3041 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3042 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R3043 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R3044 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R3045 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R3046 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3201 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3202 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R3203 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R3204 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3205 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3206 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3207 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3208 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R3209 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3210 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3211 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3212 NRSA6AD-183W MG RESISTOR 18k Ω 1/16W D
R3213 NRSA6AD-123W MG RESISTOR 12k Ω 1/16W D
R3214 NRSA6AD-272W MG RESISTOR 2.7k Ω 1/16W D
R3215 NRSA6AD-272W MG RESISTOR 2.7k Ω 1/16W D
R3216 NRSA6AD-821W MG RESISTOR 820 Ω 1/16W D
R3217 NRSA6AD-821W MG RESISTOR 820 Ω 1/16W D
R3221 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3222 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3223 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R3224 NRSA63J-330X MG RESISTOR 33 Ω 1/16W J
R3701 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3702 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R3703 NRSA6AD-680W MG RESISTOR 68 Ω 1/16W D
R3708 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R3709 NRSA6AJ-122W MG RESISTOR 1.2k Ω 1/16W J
R3710 NRSA6AJ-222W MG RESISTOR 2.2k Ω 1/16W J
R4001 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4002 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R4003 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4005 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4006 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4007 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4008 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4016 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R4017 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R4018 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4019 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4020 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4021 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4023 NRSA6AD-272W MG RESISTOR 2.7k
Ω 1/16W D
R4024 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4025 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4026 NRSA6AJ-101W MG RESISTOR 100
Ω 1/16W J
R4027 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4030 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4031 NRSA6AJ-221W MG RESISTOR 220
Ω 1/16W J
R4034 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4035 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4036 NRSA6AJ-220W MG RESISTOR 22
Ω 1/16W J
R4037 NRSA6AJ-470W MG RESISTOR 47 Ω 1/16W J
R4038 NRSA6AJ-820W MG RESISTOR 82
Ω 1/16W J
R4039 NRSA6AJ-470W MG RESISTOR 47
Ω 1/16W J
R4042 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4043 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R4044 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4048 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4049 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4050 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R4051 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4052 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4053 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4054 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4055 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4056 NRSA6AJ-181W MG RESISTOR 180
Ω 1/16W J
R4057 NRSA6AJ-181W MG RESISTOR 180
Ω 1/16W J
R4058 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4059 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4060 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4061 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4062 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4063 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4064 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4065 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4066 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4067 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4068 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4069 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4070 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4071 NRSA6AJ-181W MG RESISTOR 180
Ω 1/16W J
R4072 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4073 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4074 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4075 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4076 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4077 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4078 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4079 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4081 NRSA6AJ-181W MG RESISTOR 180 Ω 1/16W J
R4083 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R4084 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R4086 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4087 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4088 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4201 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R4204 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R4205 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R4206 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R4207 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4208 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4209 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R4210 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4211 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4212 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4214 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4219 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4220 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4221 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4222 NRSA6AJ-101W MG RESISTOR 100
Ω 1/16W J
R4223 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4224 NRSA6AJ-101W MG RESISTOR 100
Ω 1/16W J
R4225 NRSA6AJ-101W MG RESISTOR 100
Ω 1/16W J
R4226 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R4227 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R4301 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R4413 NRSA6AJ-470W MG RESISTOR 47 Ω 1/16W J
R4414 NRSA6AJ-470W MG RESISTOR 47
Ω 1/16W J
R4415 NRSA6AJ-470W MG RESISTOR 47 Ω 1/16W J
R4416 NRSA6AJ-470W MG RESISTOR 47
Ω 1/16W J
R4418 NRSA6AJ-470W MG RESISTOR 47
Ω 1/16W J
R4422 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R4424 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R4425 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4501 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4502 NRSA6AJ-101W MG RESISTOR 100
Ω 1/16W J
R4503 NRSA6AJ-471W MG RESISTOR 470
Ω 1/16W J
R4504 NRSA6AJ-471W MG RESISTOR 470
Ω 1/16W J
R4505 NRSA6AJ-471W MG RESISTOR 470
Ω 1/16W J
R4506 NRSA6AJ-471W MG RESISTOR 470 Ω 1/16W J
R4507 NRSA6AJ-471W MG RESISTOR 470
Ω 1/16W J
R4508 NRSA6AJ-471W MG RESISTOR 470
Ω 1/16W J
R4510 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4511 NRSA6AJ-101W MG RESISTOR 100
Ω 1/16W J
R4513 NRSA6AJ-100W MG RESISTOR 10
Ω 1/16W J
R4514 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R4515 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R4524 NRSA6AJ-101W MG RESISTOR 100
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
MODEL MARK
A
B
GZ-MG21AC
GZ-MG21AH
MODEL MARK
C
D
GZ-MG26AA
GZ-MG31AC

3-10(No.YF144)
R4525 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4527 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4529 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4530 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4531 NRSA6AJ-123W MG RESISTOR 12k Ω 1/16W J
R4532 NRSA6AJ-223W MG RESISTOR 22k
Ω 1/16W J
R4533 NRSA6AJ-822W MG RESISTOR 8.2k
Ω 1/16W J
R4534 NRSA6AJ-393W MG RESISTOR 39k Ω 1/16W J
R4535 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4536 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R4537 NRSA6AJ-100W MG RESISTOR 10 Ω 1/16W J
R4541 NRSA6AJ-473W MG RESISTOR 47k Ω 1/16W J
R4542 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4550 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R4551 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R4554 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4555 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4556 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4558 NRSA6AJ-471W MG RESISTOR 470 Ω 1/16W J
R4563 NRSA6AJ-152W MG RESISTOR 1.5k Ω 1/16W J
R4569 NRSA6AJ-101W MG RESISTOR 100
Ω 1/16W J
R4571 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4579 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4580 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4581 NRSA6AJ-331W MG RESISTOR 330 Ω 1/16W J
R4582 NRSA6AJ-331W MG RESISTOR 330 Ω 1/16W J
R4583 NRSA6AJ-331W MG RESISTOR 330 Ω 1/16W J
R4585 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4587 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4588 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4903 NRSA6AJ-822W MG RESISTOR 8.2k Ω 1/16W J
R4904 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4905 NRSA6AJ-153W MG RESISTOR 15k Ω 1/16W J
R4906 NRSA6AJ-564W MG RESISTOR 560k Ω 1/16W J
R4907 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R4908 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R4909 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R4910 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4911 NRSA6AJ-101W MG RESISTOR 100 Ω 1/16W J
R4916 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4917 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4919 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4920 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4923 NRSA6AJ-122W MG RESISTOR 1.2k Ω 1/16W J
R4924 NRSA6AJ-123W MG RESISTOR 12k Ω 1/16W J
R4925 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R4926 NRSA6AJ-333W MG RESISTOR 33k Ω 1/16W J
R4927 NRSA6AJ-564W MG RESISTOR 560k Ω 1/16W J
R4931 NRSA6AJ-271W MG RESISTOR 270 Ω 1/16W J
R4944 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R4948 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R4949 NRSA6AJ-562W MG RESISTOR 5.6k
Ω 1/16W J
R4950 NRSA6AJ-123W MG RESISTOR 12k
Ω 1/16W J
R4951 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R4993 NRSA6AJ-471W MG RESISTOR 470
Ω 1/16W J
R7801 NRSA6AJ-333W MG RESISTOR 33k
Ω 1/16W J
R7802 NRSA6AJ-822W MG RESISTOR 8.2k Ω 1/16W J
R7803 NRSA6AD-621W MG RESISTOR 620
Ω 1/16W D
R7804 NRSA6AD-222W MG RESISTOR 2.2k Ω 1/16W D
R7805 NRSA6AD-123W MG RESISTOR 12k
Ω 1/16W D
R7807 NRSA6AJ-682W MG RESISTOR 6.8k
Ω 1/16W J
R7808 NRSA6AD-621W MG RESISTOR 620 Ω 1/16W D
R7809 NRSA6AD-222W MG RESISTOR 2.2k
Ω 1/16W D
R7810 NRSA6AD-123W MG RESISTOR 12k
Ω 1/16W D
R7812 NRSA6AJ-682W MG RESISTOR 6.8k Ω 1/16W J
R7813 NRSA6AD-621W MG RESISTOR 620
Ω 1/16W D
R7814 NRSA6AD-222W MG RESISTOR 2.2k
Ω 1/16W D
R7815 NRSA6AD-123W MG RESISTOR 12k
Ω 1/16W D
R7817 NRSA6AJ-682W MG RESISTOR 6.8k
Ω 1/16W J
R7851 NRSA6AD-333W MG RESISTOR 33k Ω 1/16W D
R7853 NRSA6AD-363W MG RESISTOR 36k
Ω 1/16W D
R7854 NRSA6AD-333W MG RESISTOR 33k
Ω 1/16W D
R7856 NRSA6AD-363W MG RESISTOR 36k Ω 1/16W D
R7857 NRSA6AD-333W MG RESISTOR 33k
Ω 1/16W D
R7859 NRSA6AD-363W MG RESISTOR 36k
Ω 1/16W D
RA3001 NRZ0034-181W NET RESISTOR 180 Ω 1/32W J x4
RA3002 NRZ0034-181W NET RESISTOR 180
Ω 1/32W J x4
RA3201 NRZ0034-100W NET RESISTOR 10
Ω 1/32W J x4
 Symbol No. Part No. Part Name Description Local
RA3202 NRZ0034-100W NET RESISTOR 10 Ω 1/32W J x4
RA4001 NRZ0034-221W NET RESISTOR 220 Ω 1/32W J x4
RA4002 NRZ0034-221W NET RESISTOR 220 Ω 1/32W J x4
RA4301 NRZ0034-104W NET RESISTOR 100k Ω 1/32W J x4
RA4302 NRZ0034-104W NET RESISTOR 100k Ω 1/32W J x4
RA4303 NRZ0034-104W NET RESISTOR 100k
Ω 1/32W J x4
RA4304 NRZ0034-104W NET RESISTOR 100k
Ω 1/32W J x4
L111 NRSA02J-0R0X MG RESISTOR 0 Ω 1/10W J
L121 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
L131 NQR0506-002X EMI FILTER
L141 NQR0129-002X FERRITE BEADS
L161 NQL38DK-100X P COIL 10uH K
L171 NQR0129-002X FERRITE BEADS
L1001 NQR0129-002X FERRITE BEADS
L1002 NQLC32M-100X COIL 10uH M
L2401 NQLC32M-100X COIL 10uH M
L2402 NQLC32M-100X COIL 10uH M
L2601 NQR0269-013X FERRITE BEADS
L2602 NQR0269-013X FERRITE BEADS
L2603 NQR0269-013X FERRITE BEADS
L3001 NQR0129-002X FERRITE BEADS
L3002 NQR0154-003X FERRITE CORE
L3005 NQR0006-001X FERRITE BEADS
L3007 NQR0129-002X FERRITE BEADS
L3201 NQR0129-002X FERRITE BEADS
L3203 NQR0129-002X FERRITE BEADS
L3206 NRSA02J-0R0X MG RESISTOR 0 Ω 1/10W J
L3701 NQL38DK-100X P COIL 10uH K
L4003 NQR0129-002X FERRITE BEADS
L4004 NQR0006-001X FERRITE BEADS
L4005 NQR0154-003X FERRITE CORE
L4006 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
L4008 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
L4201 NQR0006-001X FERRITE BEADS
L4202 NQL315K-220X COIL 22uH K
L4203 NQL315K-220X COIL 22uH K
L4204 NQL315K-220X COIL 22uH K
L4205 NQLC32M-100X COIL 10uH M
L4301 NQR0129-002X FERRITE BEADS
L4303 NQR0154-003X FERRITE CORE
L4401 NQR0006-001X FERRITE BEADS
L4402 NQR0006-001X FERRITE BEADS
L4501 NQR0006-001X FERRITE BEADS
L4502 NQR0006-001X FERRITE BEADS
L4503 NQR0006-001X FERRITE BEADS
L4505 NQR0006-001X FERRITE BEADS
L4507 NQR0006-001X FERRITE BEADS
L4901 NQR0129-002X FERRITE BEADS
L4902 NQL38DK-100X P COIL 10uH K
L4903 NQL38DK-100X P COIL 10uH K
L4904 NQL38DK-100X P COIL 10uH K
L7801 NRSA02J-0R0X MG RESISTOR 0
Ω 1/10W J
L7851 NRSA02J-0R0X MG RESISTOR 0 Ω 1/10W J
CN101 QGF0547C3-50X CONNECTOR OPE FFC/FPC (1-50)
CN102 QGF0508F3-40X CONNECTOR KIN HDD FFC/FPC (1-40)
CN103 QGF0508F3-53X CONNECTOR KIN REAR FFC/FPC (1-53)
CN104 QGF0534F2-06X CONNECTOR KIN ZOOM FFC/FPC (1-6)
CN105 QGF0547C3-24X CONNECTOR CCD FFC/FPC (1-24)
CN106 QGF0549C2-26W CONNECTOR KIN OP FFC/FPC (1-26)
CN107 QGA1001F1-04X CONNECTOR INT MIC W-B (1-4)
CN110 QGB0512L1-30X CONNECTOR JIG B-B (1-30)
CN111 NNZ0156-001X SD CARD CONNE SD
HD1 LY35255-001A-ML HOLDER(W.B)
HD2 LY35258-001A-ML LED HOLDER (1)
HD3 LY35259-001A-ML LED HOLDER (2)
J101 QNZ0497-001 USB(B) CONNECTOR
B USB USB(MINI-B)
TP1 NNZ0163-001X EARTH TERMINAL
TP2 NNZ0163-001X EARTH TERMINAL
TP3 NNZ0163-001X EARTH TERMINAL
X1001 NAX0784-001X C RESONATOR
X1002 NAX0564-001X CRYSTAL 32.768kHz
X4001 NAX0710-001X CXO
X4201 NAX0879-001X CRYSTAL 36MHZ XTAL
OT1 QAL0807-001 FPC MAIN-HDD
OT2 LY30035-025B SPACER(A) FPC
OT3 LY30035-036A SPACER(A) PWB
 Symbol No. Part No. Part Name Description Local
MODEL MARK
A
B
GZ-MG21AC
GZ-MG21AH
MODEL MARK
C
D
GZ-MG26AA
GZ-MG31AC

(No.YF144)3-11
CCD BOARD ASSEMBLY <02>
OPE BOARD ASSEMBLY <04>
REAR BOARD ASSEMBLY <05>
SD1 LY45207-001A SHIELD SHEET SD
 Symbol No. Part No. Part Name Description Local
PW1 LYA10067-01B CCD BOARD ASSY
IC5801 TC75S54FU-X IC
IC5801 or NJU7008F3-X IC
IC5801 or S-89120ANC-G-X IC
IC5802 SN74AHC1G66K-X IC
IC5802 or TC7S66FU-X IC(DIGITAL)
IC5802 or 74AHC1G66GW-X IC
IC5803 TC75S54FU-X IC
IC5803 or NJU7008F3-X IC
IC5803 or S-89120ANC-G-X IC
IC5804 TC7W53FU-X IC(DIGITAL)
IC5852 NAL0039-001X GYRO SENSOR
IC5901 TC75S54FU-X IC
IC5901 or NJU7008F3-X IC
IC5901 or S-89120ANC-G-X IC
IC5902 SN74AHC1G66K-X IC
IC5902 or TC7S66FU-X IC(DIGITAL)
IC5902 or 74AHC1G66GW-X IC
IC5903 TC75S54FU-X IC
IC5903 or NJU7008F3-X IC
IC5903 or S-89120ANC-G-X IC
IC5904 TC7W53FU-X IC(DIGITAL)
IC5952 NAL0038-001X GYRO SENSOR
Q5001 2SC5345U/Y/-X TRANSISTOR CCD OUT
Q5001 or 2SC3931/CD/-X TRANSISTOR CCD OUT
C5001 NBP41EM-475X-B TA E CAPACITOR 4.7uF 25V M
C5002 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C5003 NBP21CM-106X TA E CAPACITOR 10uF 16V M
C5004 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5005 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C5006 NCB11EK-104X C CAPACITOR 0.1uF 25V K
C5007 NCB31HK-222X C CAPACITOR 2200pF 50V K
C5801 NBE90JM-106X TA E CAPACITOR 10uF 6.3V M
C5806 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C5807 NCB21AK-225X C CAPACITOR 2.2uF 10V K
C5808 NDC31HJ-331X C CAPACITOR 330pF 50V J
C5809 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C5810 NDC31HJ-331X C CAPACITOR 330pF 50V J
C5812 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5813 NDC31HJ-331X C CAPACITOR 330pF 50V J
C5851 NBE90JM-106X TA E CAPACITOR 10uF 6.3V M
C5853 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5907 NCB21AK-225X C CAPACITOR 2.2uF 10V K
C5908 NDC31HJ-331X C CAPACITOR 330pF 50V J
C5909 NBE20JM-475X TA E CAPACITOR 4.7uF 6.3V M
C5910 NDC31HJ-331X C CAPACITOR 330pF 50V J
C5912 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5913 NDC31HJ-331X C CAPACITOR 330pF 50V J
R5001 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R5805 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R5806 NRSA63J-474X MG RESISTOR 470k
Ω 1/16W J
R5807 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R5808 NRSA63J-105X MG RESISTOR 1M
Ω 1/16W J
R5811 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R5812 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5816 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5817 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R5818 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R5819 NRSA63D-104X MG RESISTOR 100k Ω 1/16W D
R5820 NRSA63D-103X MG RESISTOR 10k
Ω 1/16W D
R5905 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R5906 NRSA63J-474X MG RESISTOR 470k Ω 1/16W J
R5907 NRSA63J-183X MG RESISTOR 18k
Ω 1/16W J
R5908 NRSA63J-105X MG RESISTOR 1M
Ω 1/16W J
R5911 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R5912 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R5915 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5917 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5918 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R5919 NRSA63D-104X MG RESISTOR 100k Ω 1/16W D
R5920 NRSA63D-103X MG RESISTOR 10k Ω 1/16W D
L5001 NQL315K-100X COIL 10uH K
L5003 NQL315K-100X COIL 10uH K
L5801 NQR0129-002X FERRITE BEADS
L5851 NQR0129-002X FERRITE BEADS
CN5001 QGF0503F8-24X CONNECTOR TO MAIN FFC/FPC (1-24)
OT1 QAL0740-002 FPC FOR CN5001
 Symbol No. Part No. Part Name Description Local
PW1 LYA10070-01B1 OPE BOARD ASSY A,B,D
PW1 LYA10069-01B1 OPE BOARD ASSY C
D401 SML-A12UT-X LED POW/CHG
D402 SMLA12BC4T-X LED DRV_ACCESS
D403 MA8068-X Z DIODE LCD_OPN SW
D403 or UDZS6.8B-X Z DIODE LCD_OPN SW
D404 SML-A12MT-X LED USB_HOST
D452 MA8068-X Z DIODE
D452 or UDZS6.8B-X Z DIODE
C451 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C452 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C455 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C456 NEAF0GM-337X E CAPACITOR 330uF 4V M
C457 NEAF0GM-337X E CAPACITOR 330uF 4V M
R401 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R405 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R406 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R407 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R408 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R451 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R452 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R455 NRSA63D-680X MG RESISTOR 68 Ω 1/16W D
R456 NRSA63D-680X MG RESISTOR 68 Ω 1/16W D
R457 NRSA02J-0R0X MG RESISTOR 0 Ω 1/10W J
L451 NQR0251-004X FERRITE BEADS
L452 NQR0251-004X FERRITE BEADS
L453 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
L454 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
L455 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
 BT401 QAB0069-001 LITHIUM BATTERY
CN401 QGF0547C3-50X CONNECTOR
MAIN PWB FFC/FPC (1-50)
CN402 QGF0503F8-24X CONNECTOR MONI FPC FFC/FPC (1-24)
CN403 QGA1001F1-02X CONNECTOR SPEAKER W-B (1-2)
J401 QNS0078-001 3.5 JACK AV JACK
J402 QND0078-001 S JACK S JACK
S401 NSW0260-001X SLIDE SWITCH POWER_CHRG
S402 NSW0161-001X DETECT SWITCH LCD_OPEN
S403 NSW0099-001X SLIDE SWITCH MOV/STILL
S404 NSW0198-001X TACT SWITCH INFO
S405 NSW0198-001X TACT SWITCH BKLIGHT
S411 NSW0198-001X TACT SWITCH NIGHT EYE
S412 NSW0198-001X TACT SWITCH TRASH
S413 NSW0272-001X TACT SWITCH RESET
WR1 WJT0196-001A-E E-CARD WIRE OPE-MAIN
 Symbol No. Part No. Part Name Description Local
PW1 LYA10068-01C REAR BOARD ASSY
 Symbol No. Part No. Part Name Description Local
MODEL MARK
A
B
GZ-MG21AC
GZ-MG21AH
MODEL MARK
C
D
GZ-MG26AA
GZ-MG31AC

3-12(No.YF144)
IC6001 FA7737F IC
IC6002 LTC4412ES6-W IC
IC6004 S-89220ACNC-G-W IC
Q6002 DTC144EE-X DIGI TRANSISTOR
Q6002 or BCR148T-X DIGI TRANSISTOR
Q6002 or UN9213J-X DIGI TRANSISTOR
Q6002 or PDTC144EE-X DIGI TRANSISTOR
Q6003 SP8J5-X MOS FET SP8J5
Q6101 RSR025P03-X MOS FET
Q6102 RSR025N03-X MOS FET
Q6201 RSR025P03-X MOS FET
Q6202 RSR025N03-X MOS FET
Q6301 RSR025P03-X MOS FET
Q6302 RTF020P02-X MOS FET
Q6303 2SC4617/QR/-X TRANSISTOR
Q6303 or BC847BT-X TRANSISTOR
Q6303 or 2SD2216J/QR/-X TRANSISTOR
Q6303 or 2SC4738/YG/-X TRANSISTOR
Q6303 or 2SC5383/E/-X TRANSISTOR
Q6401 RSR025P03-X MOS FET
Q6402 RTF020P02-X MOS FET
Q6403 2SC4617/QR/-X TRANSISTOR
Q6403 or BC847BT-X TRANSISTOR
Q6403 or 2SD2216J/QR/-X TRANSISTOR
Q6403 or 2SC4738/YG/-X TRANSISTOR
Q6403 or 2SC5383/E/-X TRANSISTOR
Q6404 RTF020P02-X MOS FET
Q6501 RSR025P03-X MOS FET
Q6502 2SD2703-X TRANSISTOR
Q6503 UMT1N-W PAIR TRANSISTOR
Q6503 or HN1A01FU/G/-X PAIR TRANSISTOR
Q6503 or BC856S-X PAIR TRANSISTOR
Q6701 RSR025P03-X MOS FET
Q6702 RSR025P03-X MOS FET
Q6703 RSR025P03-X MOS FET
D601 EMZ6.8N-X Z DIODE BATT
D602 UDZS16B-X Z DIODE
D6101 RB160M-30-X SB DIODE
D6201 RB160M-30-X SB DIODE
D6301 RB160M-30-X SB DIODE
D6302 1SS355-X SI DIODE
D6302 or MA111-X SI DIODE
D6401 1SS355-X SI DIODE
D6401 or MA111-X SI DIODE
D6402 RB160M-30-X SB DIODE
D6501 RB481K-X SB DIODE
D6502 RB481K-X SB DIODE
D6701 RB160M-30-X SB DIODE
D6702 RB160M-30-X SB DIODE
D6801 RB551V-30-X SB DIODE
D6901 MA8068-X Z DIODE
C601 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C603 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C6006 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C6007 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C6008 NCJ21CK-475X-R C CAPACITOR 4.7uF 16V K
C6009 NCB21CK-224X C CAPACITOR 0.22uF 16V K
C6010 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C6011 NCJ21CK-475X-R C CAPACITOR 4.7uF 16V K
C6017 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C6018 NCBA1AK-104W C CAPACITOR 0.1uF 10V K
C6019 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C6020 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C6101 NCB21CK-105X C CAPACITOR 1uF 16V K
C6102 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C6103 NCBA1HK-221W C CAPACITOR 220pF 50V K
C6104 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C6201 NCB21CK-105X C CAPACITOR 1uF 16V K
C6202 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C6203 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C6204 NCBA1HK-221W C CAPACITOR 220pF 50V K
C6301 NCB21CK-105X C CAPACITOR 1uF 16V K
C6302 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C6303 NCBA1HK-681W C CAPACITOR 680pF 50V K
C6305 NCBA1HK-221W C CAPACITOR 220pF 50V K
 Symbol No. Part No. Part Name Description Local
C6401 NCB21CK-105X C CAPACITOR 1uF 16V K
C6402 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C6403 NCBA1HK-681W C CAPACITOR 680pF 50V K
C6405 NCBA1HK-221W C CAPACITOR 220pF 50V K
C6501 NCB21CK-105X C CAPACITOR 1uF 16V K
C6502 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C6503 NCB11EK-105X C CAPACITOR 1uF 25V K
C6504 NCB11CK-475X C CAPACITOR 4.7uF 16V K
C6505 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C6506 NCB11EK-105X C CAPACITOR 1uF 25V K
C6508 NCB21CK-105X C CAPACITOR 1uF 16V K
C6509 NCBA1AK-333W C CAPACITOR 0.033uF 10V K
C6510 NCBA1AK-473W C CAPACITOR 0.047uF 10V K
C6511 NCB21CK-105X C CAPACITOR 1uF 16V K
C6512 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C6701 NCB21CK-105X C CAPACITOR 1uF 16V K
C6702 NCB41CK-106X C CAPACITOR 10uF 16V K
C6704 NCBA1EK-472W C CAPACITOR 4700pF 25V K
C6705 NCBA1CK-103W C CAPACITOR 0.01uF 16V K
C6706 NCBA1HK-221W C CAPACITOR 220pF 50V K
C6707 NCBA1HK-821W C CAPACITOR 820pF 50V K
C6802 NCB10JK-106X C CAPACITOR 10uF 6.3V K
C6803 NCBA1HK-102W C CAPACITOR 1000pF 50V K
C6804 NCBA1HK-392W C CAPACITOR 3900pF 50V K
R601 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R602 NRSA6AJ-332W MG RESISTOR 3.3k Ω 1/16W J
R603 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R604 NRSA6AD-154W MG RESISTOR 150k Ω 1/16W D
R605 NRSA6AD-393W MG RESISTOR 39k Ω 1/16W D
R6001 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6002 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6003 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6004 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6005 NRSA6AD-303W MG RESISTOR 30k Ω 1/16W D
R6007 NRSA6AD-473W MG RESISTOR 47k Ω 1/16W D
R6008 NRSA6AD-823W MG RESISTOR 82k Ω 1/16W D
R6009 NRSA6AD-333W MG RESISTOR 33k Ω 1/16W D
R6010 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6012 NRSA6AJ-564W MG RESISTOR 560k Ω 1/16W J
R6014 NRSA02J-0R0X MG RESISTOR 0 Ω 1/10W J
R6015 NRSA02J-0R0X MG RESISTOR 0 Ω 1/10W J
R6016 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R6017 NRSA6AJ-514W MG RESISTOR 510k Ω 1/16W J
R6018 NRSA6AJ-184W MG RESISTOR 180k Ω 1/16W J
R6019 NRSA6AJ-824W MG RESISTOR 820k Ω 1/16W J
R6021 NRSA6AJ-474W MG RESISTOR 470k Ω 1/16W J
R6022 NRSA6AJ-104W MG RESISTOR 100k Ω 1/16W J
R6034 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R6102 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R6103 NRSA6AJ-822W MG RESISTOR 8.2k Ω 1/16W J
R6104 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R6109 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R6111 NRSA6AD-473W MG RESISTOR 47k Ω 1/16W D
R6112 NRSA6AD-822W MG RESISTOR 8.2k
Ω 1/16W D
R6203 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R6204 NRSA6AJ-822W MG RESISTOR 8.2k Ω 1/16W J
R6205 NRSA6AD-823W MG RESISTOR 82k
Ω 1/16W D
R6206 NRSA6AD-363W MG RESISTOR 36k Ω 1/16W D
R6301 NRSA6AJ-0R0W MG RESISTOR 0
Ω 1/16W J
R6302 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R6303 NRSA6AJ-822W MG RESISTOR 8.2k Ω 1/16W J
R6304 NRSA6AD-303W MG RESISTOR 30k
Ω 1/16W D
R6305 NRSA6AD-133W MG RESISTOR 13k
Ω 1/16W D
R6306 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6310 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R6311 NRSA6AJ-185W MG RESISTOR 1.8M
Ω 1/16W J
R6313 NRSA6AJ-102W MG RESISTOR 1k
Ω 1/16W J
R6401 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R6402 NRSA6AD-123W MG RESISTOR 12k Ω 1/16W D
R6403 NRSA6AJ-822W MG RESISTOR 8.2k
Ω 1/16W J
R6404 NRSA6AD-562W MG RESISTOR 5.6k
Ω 1/16W D
R6405 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R6406 NRSA6AJ-473W MG RESISTOR 47k
Ω 1/16W J
R6407 NRSA6AJ-185W MG RESISTOR 1.8M
Ω 1/16W J
R6409 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
R6412 NRSA6AJ-185W MG RESISTOR 1.8M
Ω 1/16W J
R6502 NRSA6AD-104W MG RESISTOR 100k
Ω 1/16W D
 Symbol No. Part No. Part Name Description Local
MODEL MARK
A
B
GZ-MG21AC
GZ-MG21AH
MODEL MARK
C
D
GZ-MG26AA
GZ-MG31AC

(No.YF144)3-13
MONITOR BOARD ASSEMBLY <06>
R6503 NRSA6AD-913W MG RESISTOR 91k Ω 1/16W D
R6504 NRSA6AJ-103W MG RESISTOR 10k Ω 1/16W J
R6505 NRSA6AJ-333W MG RESISTOR 33k Ω 1/16W J
R6507 NRSA6AJ-754W MG RESISTOR 750k Ω 1/16W J
R6509 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6512 NRSA6AJ-103W MG RESISTOR 10k
Ω 1/16W J
R6513 NRSA6AJ-272W MG RESISTOR 2.7k
Ω 1/16W J
R6702 NRV142F-R20X CMF RESISTOR 0.2 Ω 1/4W F
R6703 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R6704 NRSA6AJ-105W MG RESISTOR 1M Ω 1/16W J
R6708 NRSA6AD-133W MG RESISTOR 13k Ω 1/16W D
R6709 NRSA6AD-104W MG RESISTOR 100k Ω 1/16W D
R6710 NRSA6AJ-124W MG RESISTOR 120k Ω 1/16W J
R6712 NRSA6AJ-561W MG RESISTOR 560 Ω 1/16W J
R6713 NRSA6AJ-224W MG RESISTOR 220k Ω 1/16W J
R6714 NRSA6AJ-472W MG RESISTOR 4.7k Ω 1/16W J
R6715 NRSA6AD-103W MG RESISTOR 10k Ω 1/16W D
R6716 NRSA6AJ-822W MG RESISTOR 8.2k Ω 1/16W J
R6717 NRSA6AD-393W MG RESISTOR 39k Ω 1/16W D
R6718 NRSA6AJ-0R0W MG RESISTOR 0 Ω 1/16W J
R6719 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R6802 NRSA6AJ-472W MG RESISTOR 4.7k
Ω 1/16W J
R6803 NRSA6AJ-102W MG RESISTOR 1k Ω 1/16W J
L6101 NQL52EM-390X COIL 39uH M
L6201 NQL52EM-680X COIL 68uH M
L6301 NQL52EM-390X COIL 39uH M
L6401 NQL52EM-390X COIL 39uH M
L6501 NQL52EM-221X COIL 220uH M
L6502 NQL38DK-100X P COIL 10uH K
L6701 NQL52EM-470X COIL 47uH M
L6801 NQL79GM-470X COIL 47uH M
CN6001 QGF0508F3-53X CONNECTOR KIN MAIN FFC/FPC (1-53)
CN6002 QGF0534F2-06X CONNECTOR KIN TRIG FFC/FPC (1-6)
 F6001 NMFZ007-2R5X-K FUSE 2.5A 24V
 F6002 NMFZ007-2R5X-K FUSE 2.5A 24V
 F6301 NMFZ007-1R25X-K FUSE 1.25A 32V
 F6501 NMFZ007-R80X-K FUSE 0.8A 32V
J601 QNA0039-001 DC JACK DC JACK
BT1 LY35291-001A BATT.TERMINAL BATT TERMI
OT1 QAL0782-002 FPC TO MAIN
 Symbol No. Part No. Part Name Description Local
PW2 LYA10070-01B2 MONITOR BOARD ASSY A,B,D
PW2 LYA10069-01B2 MONITOR BOARD ASSY C
IC7601 DN8797MS-X IC
Q7702 UMD3N-W DIGI TRANSISTOR
Q7703 UMX1N-W PAIR TRANSISTOR
Q7703 or PUMX1-W PAIR TRANSISTOR
Q7703 or BC847S-X PAIR TRANSISTOR
Q7703 or KTC801U/G/-X PAIR TRANSISTOR
Q7703 or RT3CLLM/EF/-X PAIR TRANSISTOR
C7601 NCB31HK-473X C CAPACITOR 0.047uF 50V K A,B,D
C7602 NCB31HK-471X C CAPACITOR 470pF 50V K A,B,D
C7602 NCB10JK-106X C CAPACITOR 10uF 6.3V K C
C7603 NBE90JM-106X TA E CAPACITOR 10uF 6.3V M A,B,D
C7603 NCB31CK-105X C CAPACITOR 1uF 16V K C
C7604 NCB31HK-103X C CAPACITOR 0.01uF 50V K A,B,D
C7604 NCB31CK-105X C CAPACITOR 1uF 16V K C
C7605 NBE90JM-106X TA E CAPACITOR 10uF 6.3V M A,B,D
C7605 NCB31CK-105X C CAPACITOR 1uF 16V K C
C7606 NCB30JK-105X C CAPACITOR 1uF 6.3V K A,B,D
C7607 NBE90JM-106X TA E CAPACITOR 10uF 6.3V M A,B,D
C7607 NCB11EK-105X C CAPACITOR 1uF 25V K C
C7608 NCB31HK-103X C CAPACITOR 0.01uF 50V K A,B,D
C7608 NCB31CK-105X C CAPACITOR 1uF 16V K C
C7609 NCB31CK-105X C CAPACITOR 1uF 16V K A,B,D
C7609 NCB11EK-105X C CAPACITOR 1uF 25V K C
C7610 NCB31CK-105X C CAPACITOR 1uF 16V K A,B,D
 Symbol No. Part No. Part Name Description Local
C7610 NCB11EK-105X C CAPACITOR 1uF 25V K C
C7611 NCB31CK-105X C CAPACITOR 1uF 16V K A,B,D
C7611 NCB11EK-105X C CAPACITOR 1uF 25V K C
C7612 NCB31CK-105X C CAPACITOR 1uF 16V K A,B,D
C7612 NCB11EK-105X C CAPACITOR 1uF 25V K C
C7613 NCB31CK-105X C CAPACITOR 1uF 16V K A,B,D
C7613 NCB31EK-153X C CAPACITOR 0.015uF 25V K C
C7614 NBE90JM-106X TA E CAPACITOR 10uF 6.3V M A,B,D
C7614 NCB31CK-224X C CAPACITOR 0.22uF 16V K C
C7615 NBE20JM-476X TA E CAPACITOR 47uF 6.3V M A,B,D
C7616 NCB31CK-105X C CAPACITOR 1uF 16V K A,B,D
C7617 NCB31CK-105X C CAPACITOR 1uF 16V K A,B,D
C7618 NBP21CM-106X TA E CAPACITOR 10uF 16V M A,B,D
C7619 NCB31CK-105X C CAPACITOR 1uF 16V K A,B,D
C7703 NCB31EK-103X C CAPACITOR 0.01uF 25V K
C7704 NCB31EK-104X C CAPACITOR 0.1uF 25V K
R7501 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R7502 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R7503 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R7601 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J C
R7602 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J A,B,D
R7603 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J A,B,D
R7603 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J C
R7604 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J A,B,D
R7605 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R7606 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J A,B,D
R7606 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J C
R7607 NRSA63J-100X MG RESISTOR 10 Ω 1/16W J A,B,D
R7607 NRSA63D-332X MG RESISTOR 3.3k Ω 1/16W D C
R7608 NRSA63J-100X MG RESISTOR 10 Ω 1/16W J A,B,D
R7608 NRSA63J-106X MG RESISTOR 10M Ω 1/16W J C
R7609 NRSA63J-100X MG RESISTOR 10 Ω 1/16W J A,B,D
R7609 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J C
R7610 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R7703 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R7705 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J A,B,D
R7705 NRSA63J-911X MG RESISTOR 910 Ω 1/16W J C
R7706 NRSA63J-240X MG RESISTOR 24 Ω 1/16W J A,B,D
R7706 NRSA63J-200X MG RESISTOR 20 Ω 1/16W J C
L7601 NQL382M-100X COIL 10uH M A,B,D
L7602 NQL382M-100X COIL 10uH M A,B,D
L7602 NQL38DK-101X P COIL 100uH K C
CN7601 QGF0534F2-12X CONNECTOR KIN OPE FFC/FPC (1-12)
CN7602 QGF0534F2-12X CONNECTOR KIN OPE FFC/FPC (1-12)
CN7603 QGF0508F3-40X CONNECTOR KIN LCD FFC/FPC (1-40) A,B,D
CN7603 QGF0534F2-36X CONNECTOR KIN LCD FFC/FPC (1-36) C
CN7701 QGF0534F2-06X CONNECTOR
LED BL FFC/FPC (1-6)
S7501 NSW0288-001X TACT SWITCH CROSSKEY
S7502 NSW0198-001X TACT SWITCH MENU
OT1 QAL0687-001 FPC
 Symbol No. Part No. Part Name Description Local
MODEL MARK
A
B
GZ-MG21AC
GZ-MG21AH
MODEL MARK
C
D
GZ-MG26AA
GZ-MG31AC

SERVICE MANUAL
COPYRIGHT © 2006 Victor Company of Japan, Limited No.YF137
2006/4
HARD DISK CAMCORDER
YF13720064
GZ-MG21EK, GZ-MG21EX,
GZ-MG21EY, GZ-MG21EZ,
GZ-MG24EG, GZ-MG26EX,
GZ-MG26EY, GZ-MG26EZ,
GZ-MG36EK
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
GZ-MG21EKM, GZ-MG21EXM, GZ-MG21EYM, GZ-MG21EZM [M6E324],
GZ-MG24EGM, GZ-MG26EXM, GZ-MG26EYM, GZ-MG26EZM [M6E334],
GZ-MG36EKM [M6E336]

1-2 (No.YF137)
SPECIFICATION
Camcorder
AC Adapter
Remote Control
Design and specifications subject to change without notice.
For general Power supply DC 11.0 V (Using AC Adapter)
DC 7.2 V (Using battery pack)
Power consumption Approx. 3.9 (4.1)* W
* When using the LED light
Dimensions (W ×H ×D) 68 mm ×69 mm ×109 mm
Weight Approx. 340 g (without battery, lens cap and strap)
Approx. 400 g (incl. battery, lens cap and strap)
Operating temperature 0°C to 40°C
Operating humidity 35% to 80%
Storage temperature -20°C to 50°C
Pickup 1/6" (800,000 pixels) CCD
Lens F 2.0 to 4.5, f = 2.3 mm to 73.6 mm, 32:1 power zoom lens
Filter diameter Ø30.5 mm
LCD monitor GZ-MG24,26,36 2.7" diagonally measured, LCD panel/TFT active matrix system
GZ-MG21 2.5" diagonally measured, LCD panel/TFT active matrix system
Speaker Monaural
Flash Within 1.5 m (recommended shooting distance)
For video/audio Format SD-VIDEO
Recording/Playback
format
Video MPEG-2
Audio Dolby Digital (2 ch)
Signal format PAL standard
Recording mode (video) ULTRA FINE: 720 ×576 pixels, 8.5 Mbps (VBR)
FINE: 720 ×576 pixels, 5.5 Mbps (VBR)
NORMAL: 720 ×576 pixels, 4.2 Mbps (VBR)
ECONOMY: 352 ×288 pixels, 1.5 Mbps (VBR)
Recording mode (audio) ULTRA FINE: 48 kHz, 384 kbps
FINE: 48 kHz, 384 kbps
NORMAL: 48 kHz, 256 kbps
ECONOMY: 48 kHz, 128 kbps
For still image Format JPEG
Image size One mode (640 ×480)
Picture quality 2 modes (FINE/STANDARD)
For Connectors AV S-Video output Y:1.0 V (p-p), 75Ω, analogue, C:0.29 V (p-p), 75Ω, analogue
Video output 1.0 V (p-p), 75 kΩ, analogue
Audio output 300 mV (rms), 1 kΩ, analogue, stereo
USB Mini USB type B, USB 2.0 compliant
Power requirement AC 110 V to 240 V~, 50 Hz/60 Hz
Output DC 11 V, 1 A
Power supply DC 3 V
Battery life Approx. 1 year (depending on the frequency of use)
Operating distance Within 5 m
Operating temperature 0°C to 40°C
Dimensions (W ×H ×D) 45 mm ×13 mm ×105 mm
Weight Approx. 40 g (incl. battery)

(No.YF137)1-3
SECTION 1
PRECAUTIONS
1.1 SAFTY PRECAUTIONS
Prior to shipment from the factory, JVC products are strictly
inspected to conform with the recognized product safety and
electrical codes of the countries in which they are to be
sold.However,in order to maintain such compliance, it is equally
important to implement the following precautions when a set is
being serviced.
1.1.1 Precautions during Servicing
(1) Locations requiring special caution are denoted by labels
and inscriptions on the cabinet, chassis and certain parts of
the product.When performing service, be sure to read and
comply with these and other cautionary notices appearing
in the operation and service manuals.
(2) Parts identified by the symbol and shaded ( ) parts
are critical for safety.
Replace only with specified part numbers.
NOTE :
Parts in this category also include those specified to
comply with X-ray emission standards for products
using cathode ray tubes and those specified for
compliance with various regulations regarding
spurious radiation emission.
(3) Fuse replacement caution notice.
Caution for continued protection against fire hazard.
Replace only with same type and rated fuse(s) as
specified.
(4) Use specified internal wiring. Note especially:
• Wires covered with PVC tubing
• Double insulated wires
• High voltage leads
(5) Use specified insulating materials for hazardous live parts.
Note especially:
• Insulation Tape
• PVC tubing
•Spacers
• Insulation sheets for transistors
•Barrier
(6) When replacing AC primary side components (transformers,
power cords, noise blocking capacitors, etc.) wrap ends of
wires securely about the terminals before soldering.
Fig.1-1-1
(7) Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors, etc.)
(8) Check that replaced wires do not contact sharp edged or
pointed parts.
(9) When a power cord has been replaced, check that 10-15
kg of force in any direction will not loosen it.
Fig.1-1-2
(10) Also check areas surrounding repaired locations.
(11) Products using cathode ray tubes (CRTs)In regard to such
products, the cathode ray tubes themselves, the high
voltage circuits, and related circuits are specified for
compliance with recognized codes pertaining to X-ray
emission. Consequently, when servicing these products,
replace the cathode ray tubes and other parts with only the
specified parts. Under no circumstances attempt to modify
these circuits.Unauthorized modification can increase the
high voltage value and cause X-ray emission from the
cathode ray tube.
(12) Crimp type wire connectorIn such cases as when replacing
the power transformer in sets where the connections
between the power cord and power trans former primary
lead wires are performed using crimp type connectors, if
replacing the connectors is unavoidable, in order to prevent
safety hazards, perform carefully and precisely according
to the following steps.
•Connector part number :E03830-001
•Required tool : Connector crimping tool of the proper
type which will not damage insulated parts.
•Replacement procedure
a) Remove the old connector by cutting the wires at a
point close to the connector.Important : Do not
reuse a connector (discard it).
Fig.1-1-3
b) Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
Fig.1-1-4
c) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
Fig.1-1-5
d) As shown in Fig.1-1-6, use the crimping tool to crimp
the metal sleeve at the center position. Be sure to
crimp fully to the complete closure of the tool.
Fig.1-1-6
e) Check the four points noted in Fig.1-1-7.
Fig.1-1-7
Power cord
cut close to connector
15 mm
Connector
Metal sleeve
1.25
2.0
5.5
Crimping tool
Not easily pulled free Crimped at approx. cente
r
of metal sleeve
Conductors extended
Wire insulation recessed
more than 4 mm
