Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLA 1 LA ER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to
qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical
instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUT IDE THE UNIT.
How to reset your unit
• Your preset adjustments will also be erased.
How to forcib y eject a disc
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
Warning:
If you need to operate the unit while driving, be
sure to look ahead carefully or you may be involved
in a traffic accident.
Caution on vo ume setting:
Discs produce very little noise compared with other
sources. Lower the volume before playing a disc
to avoid damaging the speakers by the sudden
increase of the output level.
[European Union only]
EN02-07_KD-G335[U_UH]1.indd 2EN02-07_KD-G335[U_UH]1.indd 2 8/30/06 5:22:00 PM8/30/06 5:22:00 PM

ENGLISH
3
How to use the M MODE button
If you press M MODE, the unit goes into functions
mode, then the number buttons and ¢/4
buttons work as different function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
To use these buttons for their origina functions
again after pressing M MODE, wait for 5 seconds
without pressing any of these buttons until the
functions mode is cleared or press M MODE again.
Detaching the contro pane
Attaching the contro pane
CONTENTS
Contro pane .................................. 4
Remote contro er — RM-RK50 ........... 5
Getting started ................................ 6
Basic operations ................................................... 6
Radio operations ............................. 7
Disc operations ................................ 8
Playing a disc in the unit ..................................... 8
Sound adjustments .......................... 10
Genera settings — PSM .................. 11
Maintenance ................................... 13
More about this unit ........................ 14
Troub eshooting .............................. 16
Specifications .................................. 17
For safety...
• Do not raise the volume level too much, as this will
block outside sounds, making driving dangerous.
• top the car before performing any complicated
operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold
weather, wait until the temperature in the car becomes
normal before operating the unit.
EN02-07_KD-G335[U_UH]1.indd 3EN02-07_KD-G335[U_UH]1.indd 3 8/30/06 5:22:03 PM8/30/06 5:22:03 PM

4
ENGLISH
u RND (random) button
i M MODE button
o (control panel release) button
; Disc information indicators—
TAG (Tag information), (trac /file), (folder)
a DISC indicator
s Playbac mode / item indicators—RND (random),
(disc), (folder), RPT (repeat)
d Tuner reception indicators—MO (monaural),
ST (stereo)
f S.BASS (super bass) indicator
g EQ (equalizer) indicator
h Tr (trac ) indicator
j Source display / Volume level indicator / Time
countdown indicator
k Main display
l Sound mode (iEQ: intelligent equalizer)
indicators—JAZZ, ROCK, HIP HOP, CLASSIC, POPS,
USER
Parts identification
Display window
Control panel
1 0 (eject) button
2 Loading slot
3 (standby/on/attenuator) button
4 Remote sensor
DO NOT expose the remote sensor to strong light
(direct sunlight or artificial lighting).
5 SOURCE button
6 Display window
7 BAND button
8 EQ (equalizer) button
9 ¢/4 buttons
p Control dial
q SEL (select) button
w DISP (display) button
e MO (monaural) button
r SSM (Strong-station Sequential Memory) button
t Number buttons
y RPT (repeat) button
EN02-07_KD-G335[U_UH]f.indd 4EN02-07_KD-G335[U_UH]f.indd 4 9/13/06 5:19:27 PM9/13/06 5:19:27 PM

ENGLISH
5
Remote controller — RM-RK50
Installing the lithium coin battery
(CR2025)
im the remote controller directly at the remote
sensor on the unit. Make sure there is no obstacle
in between.
Warning:
• Do not install any battery other than CR2025 or
its equivalent; otherwise, it may explode.
• Do not leave the remote controller in a place
(such as dashboards) exposed to direct sunlight
for a long time; otherwise, it may explode.
• Store the battery in a place where children
cannot reach to avoid ris of accident.
• To prevent the battery from over-heating,
crac ing, or starting a fire:
– Do not recharge, short, disassemble, heat the
battery, or dispose of it in a fire.
– Do not leave the battery with other metallic
materials.
– Do not po e the battery with tweezers or similar
tools.
– Wrap the battery with tape and insulate when
throwing away or saving it.
Main elements and features
1 (standby/on/attenuator) button
• Turns the power on if pressed briefly or
attenuates the sound when the power is on.
• Turns the power off if pressed and held.
2 5 U (up) / D (down) ∞ buttons
• Changes the FM/AM bands with 5 U.
• Changes the preset stations with D ∞.
• Changes the folder of the MP3/WMA discs.
3 VOL – / VOL + buttons
• Adjusts the volume level.
4 SOUND button
• Selects the sound mode (iEQ: intelligent
equalizer).
5 SOURCE button
• Selects the source.
6 2 R (reverse) / F (forward) 3 buttons
• Searches for stations if pressed briefly.
• Fast-forwards or reverses the trac if pressed and
held.
• Changes the trac s if pressed briefly.
EN02-07_KD-G335[U_UH]f.indd 5EN02-07_KD-G335[U_UH]f.indd 5 9/13/06 5:19:30 PM9/13/06 5:19:30 PM

6
ENGLISH
Basic settings
• See also “General settings — PSM” on pages 11 and
12.
1
2
1 Canceling the display demonstrations
Select “DEMO,” then “DEMO OFF.”
2 Setting the clock
Select “ LO K H” (hour), then adjust the hour.
Select “ LO K M” (minute), then adjust the
minute.
3 Finish the procedure.
To check the current clock time while the
power is turned off
lock time is shown on the
display for about 5 seconds. See
also page 12.
Getting started
Basic operations
~ Turn on the power.
Ÿ
* You cannot select “CD” as the playback source if
there is no disc in the unit.
! For FM/AM tuner
⁄ Adjust the olume.
@ Adjust the sound as you want. (See
pages 10 and 11.)
To drop the olume in a
moment (ATT)
To restore the sound, press the
button again.
To turn off the power
Volume level appears.
EN02-07_KD-G335[U_UH]f.indd 6EN02-07_KD-G335[U_UH]f.indd 6 9/7/06 2:33:06 PM9/7/06 2:33:06 PM

ENGLISH
7

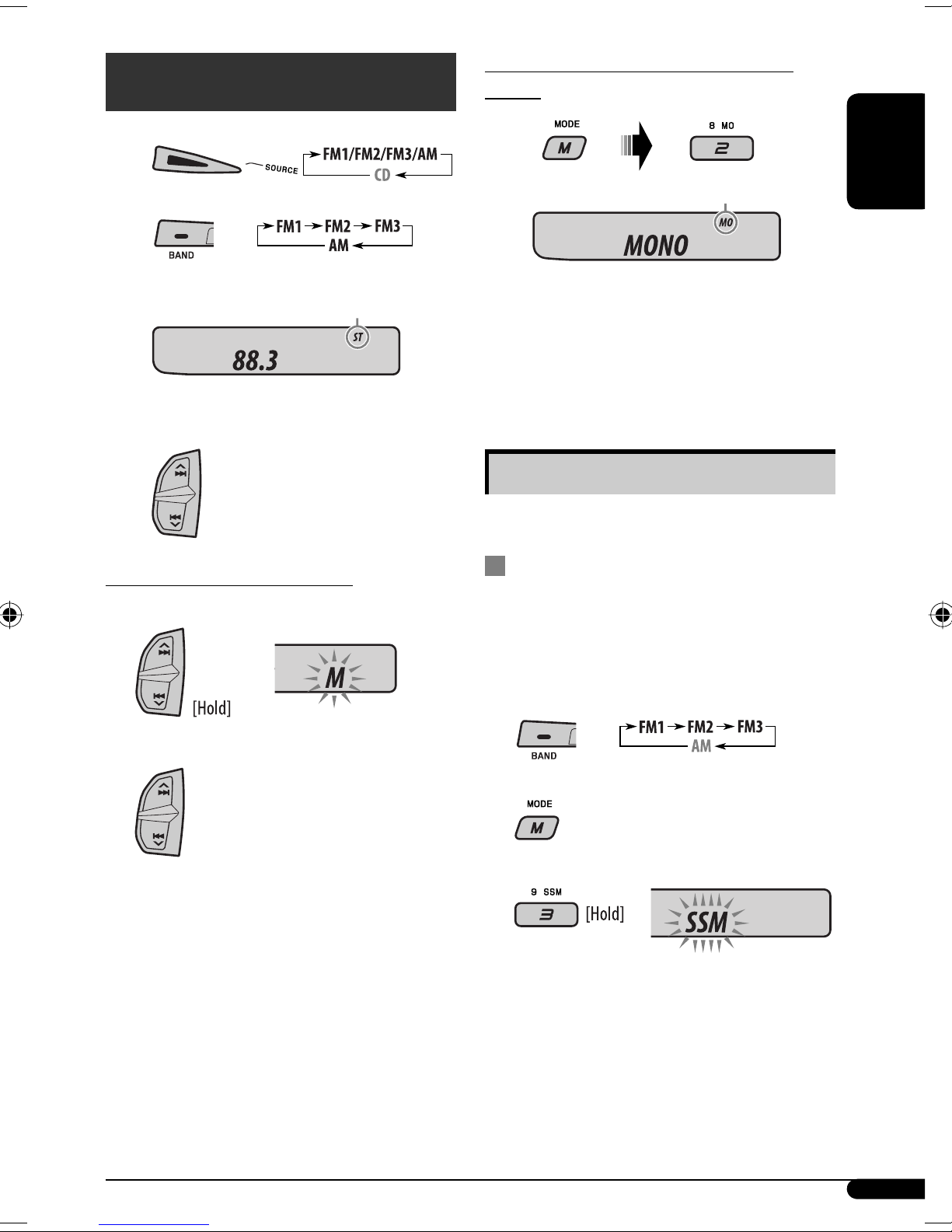

When an FM stereo broadcast is hard to
receive
Reception improves, but stereo effect will be lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF” appears and the MO indicator
goes off.
Storing stations in memory
You can preset si stations for each band.
FM station automatic presetting —
SSM (Strong-station Sequential
Memory
1 Select the FM band (FM1 – FM3 you want to
store into.
2
3
“SSM” flashes, then disappears when automatic
presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM band.
Radio operations
~
Ÿ
! Start searching for a station.
When a station is received,
searching stops.
To stop searching, press the
same button again.
To tune in to a station manually
In step ! above...
1
2 Select a desired station frequency.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
Lights up when monaural mode is activated.
EN02-07_KD-G335[U_UH]f.indd 7EN02-07_KD-G335[U_UH]f.indd 7 9/13/06 4:49:44 PM9/13/06 4:49:44 PM

8
ENGLISH
Disc operations
Playing a disc in the unit
~ Turn on the power.
Ÿ
All tracks will be played repeatedly until you
change the source or eject the disc.
To stop play and eject the
disc
• Press SOURCE to listen to
another playback source.
To fast-forward or reverse
the track
To go to the next or
previous tracks
To go to the next or previous folders (only
for MP3 or WM discs)
Manual presetting
E .: Storing FM station of 92.5 MHz into preset number
4 of the FM1 band.
1
2
3
Listening to a preset station
1
2 Select the preset station (1 – 6) you want.
To check the other information while
listening to an FM or M station
Preset number flashes for a while.
Clock Ô Frequency
EN08-13_KD-G335[U_UH]f.indd 8EN08-13_KD-G335[U_UH]f.indd 8 9/7/06 2:33:17 PM9/7/06 2:33:17 PM

9
ENGLISH
To locate a particular track (for CD) or folder
(for MP3 or WMA discs) directly
To select a number from 01 – 06:
To select a number from 07 – 12:
• To use direct folder access on MP3/WMA discs it
is required that folders are assigned with 2-digit
numbers at the beginning of their folder names—
01 02 03 and so on.
To select a particular track in a
folder (for MP3 or WMA disc):
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition repeat the same
procedure.
Changing the display information
While playing an audio CD or a
CD Text
While playing an MP3 or a WMA disc
• When “TAG DISP” is set to “TAG ON”
(see page 12)
• When “TAG DISP” is set to “TAG OFF”
: Clock with the current track number
: Elapsed playing time with the current
track number
: Corresponding indicator lights up on the
display
*1 If the current disc is an audio CD, “NO NAME” appears.
*2 If an MP3/WMA fi e does not have Tag information,
fo der name and fi e name appear. In this case, the
TAG indicator wi not ight up.
EN08-13_KD-G335[U_UH]f.indd 9EN08-13_KD-G335[U_UH]f.indd 9 9/13/06 4:50:56 PM9/13/06 4:50:56 PM

10
ENGLISH
Sound adjustments
You can select a preset sound mode suitable to the
music genre (iEQ: intelligent equalizer).
Indication (For)
BAS*1MID*2TRE*3S.BS*4
USER
(Flat sound) 00 00 00 OFF
ROCK
(Roc or disco music) +03 00 +02 ON
CLASSIC
(Classical music) +01 00 +03 OFF
POPS
(Light music) +02 +01 +02 OFF
HIP HOP
(Fun or rap music) +04 –02 +01 ON
JAZZ
(Jazz music) +03 00 +03 OFF
*1 : Bass; *2 : Middle; *3 : Treble; *4 : Super bass
Ad usting the sound
You can adjust the sound characteristics to your
preference.
1
2
Preset values
Selecting the playback modes
You can use only one of the following playbac modes
at a time.
1
2 Select your desired playback mode.
7 Repeat play
Mode Plays repeatedly
TRK RPT : The current trac .
FLDR RPT * : All trac s of the current folder.
RPT OFF : Cancels.
7 Random play
Mode Plays at random
FLDR RND * : All trac s of the current folder,
then trac s of the next folder and
so on.
DISC RND : All trac s of the current disc.
RND OFF : Cancels.
* Only while playing an MP3 or a WMA disc.
: Corresponding indicator lights up on
the display
EN08-13_KD-G335[U_UH]f.indd 10EN08-13_KD-G335[U_UH]f.indd 10 9/13/06 5:19:51 PM9/13/06 5:19:51 PM

11
ENGLISH
Indication, [Range]
BAS *2 (bass), [–06 to +06]
Adjust the bass.
MID *2 (middle), [–06 to +06]
Adjust the middle frequencies sound le el.
TRE *2 (treble), [–06 to +06]
Adjust the treble.
FAD *3 (fader), [R06 to F06]
Adjust the front and rear speaker balance.
BAL *4 (balance), [L06 to R06]
Adjust the left and right speaker balance.
S.BS *2 (super bass), [S.BS ON or S.BS OFF], [01 to 05]*5
Maintain the richness and fullness of the bass sound
regardless of how low you set the olume.
SUB.W (subwoofer), [00 to 08]
Adjust the subwoofer output le el.
VOL ( olume), [00 to 30 or 50 *6]
Adjust the olume.
*1 Displayed only when “L/O MODE” is set to “WOOFER”
(see page 12).
*2 When yo adj st the bass, middle, treble, or s per
bass, the adj stment yo have made is stored for the
c rrently selected so nd mode (iEQ) incl ding “USER.”
*3 If yo are sing a two-speaker system, set the fader
level to “00.”
*4 The adj stment cannot affect the s bwoofer o tp t.
*5 Range adj stment for s per bass is adj stable only
when it is set to “S.BS ON.”
*6 Depending on the amplifier gain control setting. (See
page 12 for details.)
General settings — PSM
You can change PSM (Preferred Setting Mode) items
listed in the table that follows.
1
2 Select a PSM ite .
3 Adjust the PSM ite selected.
4 Repeat steps 2 and 3 to adjust other PSM
ite s if necessary.
5 Finish the procedure.
Contin ed on the next page
EN08-13_KD-G335[U_UH]f.indd 11EN08-13_KD-G335[U_UH]f.indd 11 9/13/06 6:51:01 PM9/13/06 6:51:01 PM

12
ENGLISH
Indications Item
( : Initial)
Selectable settings, [reference page]
DEMO
Display demonstration
• DEMO ON
• DEMO OFF
: Display demonstration will be activated automatically if no
operation is done for about 20 seconds, [6].
: Cancels.
CLK DISP *1
Clock display
• ON
• OFF
: Clock time is shown on the display at all times when the power is
turned off .
: Cancels; pressing DISP will show the clock time for about
5 seconds when the power is turned off, [6].
CLOCK H
Hour adjustment
1 – 12 [Initial: 1 (1:00)], [6]
CLOCK M
Minute adjustment
00 – 59 [Initial: 00 (1:00)], [6]
DIMMER
Dimmer
• ON
• OFF
: Dims the display illumination.
: Cancels.
SCROLL *2
Scroll
• ONCE
• AUTO
• OFF
: Scrolls the disc information once.
: Repeats scrolling (at 5-second intervals).
: Cancels.
• Pressing DISP for more than one second can scroll the display
regardless of the setting.
WOOFER *3
Subwoofer cutoff
frequency
• LOW
• MID
• HIGH
: Frequencies lower than 90 Hz are sent to the subwoofer.
: Frequencies lower than 135 Hz are sent to the subwoofer.
: Frequencies lower than 180 Hz are sent to the subwoofer.
L/O MODE
Line output mode
• REAR
• WOOFER
: Select if the REAR LINE UT terminals are used for connecting the
speakers (through an external amplifier).
: Select if the REAR LINE UT terminals are used for connecting a
subwoofer (through an external amplifier).
TAG DISP
Tag display
• TAG ON
• TAG OFF
: Shows the Tag information while playing MP3/WMA tracks, [9].
: Cancels.
AMP GAIN
Amplifier gain control
• LOW PWR
• HIGH PWR
: V L 00 – V L 30 (Select this if the maximum power of the
speaker is less than 50 W to prevent them from damaging the
speaker.)
: V L 00 – V L 50
*1 If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select “OFF” to
save the car’s battery.
*2 Some characters or symbols will not be shown correctly (or will be blanked) on the display.
*3 Displayed only when “L/O MODE” is set to “WOOFE .”
EN08-13_KD-G335[U_UH]1.indd 12EN08-13_KD-G335[U_UH]1.indd 12 9/4/06 9:21:55 AM9/4/06 9:21:55 AM

13
ENGLISH
Maintenance
How to clean the connectors
Frequent detachment will deteriorate the connectors.
To minimize this possibility, periodically wipe the
connectors with a cotton swab or cloth moistened with
alcohol, being careful not to damage the connectors.
Moisture condensation
Moisture may condense on the lens inside the unit in
the following cases:
• After starting the heater in the car.
• f it becomes very humid inside the car.
Should this occur, the unit malfunction. n this case,
eject the disc and leave the unit turned on for a few
hours until the moisture evaporates.
How to handle discs
When removing a disc from its
case, press down the center holder
of the case and lift the disc out,
holding it by the edges.
• Always hold the disc by the edges.
Do not touch its recording surface.
When storing a disc into its case, gently insert the
disc around the center holder (with the printed surface
facing up).
• Make sure to store discs into the cases after use.
Center holder
To keep discs clean
A dirty disc may not play correctly.
f a disc does become dirty, wipe it with
a soft cloth in a straight line from center
to edge.
• Do not use any solvent (for example, conventional
record cleaner, spray, thinner, benzine, etc.) to clean
discs.
To play new discs
New discs may have some rough spots
around the inner and outer edges. f
such a disc is used, this unit may reject
the disc.
To remove these rough spots, rub the edges with a
pencil or ball-point pen, etc.
Warped disc
Sticker Sticker residue
Stick-on label
Do not use the following discs:
Connector
Unusual shape
Single CD (8 cm disc)
EN08-13_KD-G335[U_UH]f.indd 13EN08-13_KD-G335[U_UH]f.indd 13 9/7/06 2:33:32 PM9/7/06 2:33:32 PM

14
ENGLISH
• MP3 and WMA “tracks” (words “file” and “track” are
used interchangeably) are recorded in “folders.”
• While fast forwarding or reversing on an MP3 or
WMA disc, you can only hear intermittent sounds.
Playing a CD-R or CD-RW
• Use only “finalized” CD Rs or CD RWs.
• This unit can play back only files of the same type
which are first detected if a disc includes both audio
CD (CD DA) files and MP3/WMA files.
• This unit can play back multi session discs; however,
unclosed sessions will be skipped while playing.
• Some CD Rs or CD RWs may not be played back on
this unit because of their disc characteristics, or for
the following reasons:
– Discs are dirty or scratched.
– Moisture condensation occurs on the lens inside
the unit.
– The pickup lens inside the unit is dirty.
– CD R/CD RW on which the files are written with
“Packet Write” method.
– There are improper recording conditions (missing
data, etc.) or media conditions (stained, scratched,
warped, etc.).
• CD RWs may require a longer readout time since the
reflectance of CD RWs is lower than that of regular
CDs.
• Do not use the following CD Rs or CD RWs:
– Discs with stickers, labels, or protective seal stuck
to the surface.
– Discs on which labels can be directly printed by an
ink jet printer.
Using these discs under high temperatures or high
humidities may cause malfunctions or damage to the
unit.
Playing an MP3/WMA disc
• This unit can play back MP3/WMA files with the
extension code <.mp3> or <.wma> (regardless of
the letter case—upper/lower).
• This unit can show the names of albums, artists
(performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or
2.4) for MP3 files and for WMA files.
More about this unit
Basic operations
Turning on the power
• By pressing SOURCE on the unit, you can also turn on
the power. If the source is ready, playback also starts.
Turning off the power
• If you turn off the power while listening to a disc, disc
play will start from where playback has been stopped
previously, next time you turn on the power.
Tuner operations
toring stations in memory
• During SSM search...
– All previously stored stations are erased and
stations are stored newly.
– Received stations are preset in No. 1 (lowest
frequency) to No. 6 (highest frequency).
– When SSM is over, the station stored in No. 1 will
be automatically tuned in.
• When storing a station manually, the previously
preset station is erased when a new station is stored
in the same preset number.
Disc operations
Caution for DualDisc playback
• The Non DVD side of a “DualDisc” does not comply
with the “Compact Disc Digital Audio” standard.
Therefore, the use of Non DVD side of a DualDisc on
this product may not be recommended.
General
• This unit has been designed to reproduce
CDs/CD Texts, and CD Rs (Recordable)/CD RWs
(Rewritable) in audio CD (CD DA), MP3 and WMA
formats.
EN14-17_KD-G335[U_UH]f.indd 14EN14-17_KD-G335[U_UH]f.indd 14 9/20/06 4:38:32 PM9/20/06 4:38:32 PM

ENGLISH
15
Changing the source
• If you change the source, playback also stops
(without ejecting the disc).
Next time you select CD” for the playback source,
disc play starts from where it has been stopped
previously.
Ejecting a disc
• If the ejected disc is not removed within 15 seconds,
the disc is automatically inserted again into the
loading slot to protect it from dust.
• After ejecting a disc, NO DISC” appears and you
cannot operate some of the buttons. Insert another
disc or press SOURCE to select another playback
source.
General settings—PSM
• If you change the AMP GAIN” setting from
HIGH PWR” to LOW PWR” while the volume level
is set higher than VOL 30,” the unit automatically
changes the volume level to VOL 30.”
Microsoft and Windows Media are either registered
trademarks or trademarks of Microsoft Corporation
in the United States and/or other countries.
• This unit can display only one-byte characters. No
other characters can be correctly displayed.
• This unit can play back MP3/WMA files meeting the
conditions below:
– Bit rate: 8 kbps — 320 kbps
– Sampling frequency:
48 kHz, 44.1 kHz, 32 kHz (for MPEG-1)
24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)
– Disc format: ISO 9660 Level 1/ Level 2, Romeo,
Joliet, Windows long file name
• The maximum number of characters for file/folder
names vary among the disc format used (includes 4
extension characters—<.mp3> or <.wma>).
– ISO 9660 Level 1: up to 12 characters
– ISO 9660 Level 2: up to 31 characters
– Romeo: up to 64 characters
– Joliet: up to 32 characters
– Windows long file name: up to 128 characters
• This unit can recognize a total of 512 files, of 200
folders, and of 8 hierarchies.
• This unit can play back files recorded in VBR (variable
bit rate).
Files recorded in VBR have a discrepancy in elapsed
time display, and do not show the actual elapsed
time. Especially, after performing the search function,
this difference becomes noticeable.
• This unit cannot play back the following files:
– MP3 files encoded with MP3i and MP3 PRO format.
– MP3 files encoded in an inappropriate format.
– MP3 files encoded with Layer 1/2.
– WMA files encoded with lossless, professional, and
voice format.
– WMA files which are not based upon Windows
Media® Audio.
– WMA files copy-protected with DRM.
– Files which have the data such as WAVE, ATRAC3,
etc.
• The search function works but search speed is not
constant.
EN14-17_KD-G335[U_UH]f.indd 15EN14-17_KD-G335[U_UH]f.indd 15 9/20/06 3:01:15 PM9/20/06 3:01:15 PM

16
ENGLISH
Symptoms Remedies/Causes
General
• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.
• Check the cords and connections.
• The unit does not work at all. Reset the unit (see page 2).
FM/AM
• SSM automatic presetting does not work. Store stations manually.
• Static noise while listening to the radio. Connect the antenna firmly.
Disc play ack
• Disc cannot be played back. Insert the disc correctly.
• CD-R/CD-RW cannot be played back.
• Tracks on the CD-R/CD-RW cannot be
skipped.
• Insert a finalized CD-R/CD-RW.
•
Finalize the CD-R/CD-RW with the component which you
used for recording.
• Disc can be neither played back nor ejected. • Unlock the disc (see page 9).
• Eject the disc forcibly (see page 2).
• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.
• Change the disc.
• Check the cords and connections.
• NO DISC” appears on the display. Insert a playable disc into the loading slot.
MP3/WMA play ack
• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in the
format compliant with ISO 9660 Level 1, Level 2,
Romeo, or Joliet.
• Add the extension code <.mp3> or <.wma> to the
file names.
• Noise is generated. Skip to another track or change the disc. (Do not add the
extension code <.mp3> or <.wma> to non-MP3 or
WMA tracks.)
• A longer readout time is required ( CHECK”
keeps flashing on the display).
Do not use too many hierarchies and folders.
• Tracks are not played back in the order you
have intended.
Playback order is determined when the files are recorded.
• Elapsed playing time is not correct. This sometimes occurs during play. This is caused by how
the tracks are recorded on the disc.
• PLEASE EJECT” appears on the display. Insert a disc that contains MP3/WMA tracks.
• Correct characters are not displayed (e.g.
album name).
This unit can only display alphabets (upper case),
numbers, and a limited number of symbols.
Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service center.
EN14-17_KD-G335[U_UH]f.indd 16EN14-17_KD-G335[U_UH]f.indd 16 9/20/06 3:01:16 PM9/20/06 3:01:16 PM

ENGLISH
17
Specifications
AUDIO AMPLIFIER SECTION
Maximum Power Output:
Front/Rear: 50 W per channel
Continuous Power Output (RMS):
Front/Rear: 9 W per channel into 4 Ω,
40 Hz to 20 000 Hz at no more
than 0.8% total harmonic
distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range:
Bass: ± 2 dB at 60 Hz
Middle: ± 2 dB at kHz
Treble: ± 2 dB at 7.5 kHz
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/
Impedance:
2.5 V/20 kΩ load (full scale)
Output Impedance: kΩ
Subwoofer-Out
Level/Impedance:
2.0 V/20 kΩ load (full scale)
TUNER SECTION
Frequency Range:
FM: 87.5 MHz to 08.0 MHz
AM: 53 kHz to 602 kHz
FM Tuner
Usable Sensitivity: .3 dBf ( .0 μV/75 Ω)
50 dB Quieting
Sensitivity:
6.3 dBf ( .8 μV/75 Ω)
Alternate Channel
Selectivity (400 kHz):
65 dB
Frequency Response: 40 Hz to 5 000 Hz
Stereo Separation: 30 dB
AM Tuner
Sensitivity/Selectivity: 20 μV/35 dB
CD PLAYER SECTION
Type: Compact disc player
Signal Detection
System:
Non-contact optical pickup
(semiconductor laser)
Number of Channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range: 96 dB
Signal-to-Noise Ratio: 98 dB
Wow and Flutter: Less than measurable limit
MP3 Decoding Format: (MPEG /2 Audio Layer 3)
Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format:
Max. Bit Rate: 92 kbps
GENERAL
Power Requirement:
Operating Voltage: DC 4.4 V
( V to 6 V allowance)
Grounding System: Negative ground
Allowable Operating
Temperature:
0°C to +40°C
Dimensions (W × H × D): (approx.)
Installation Size: 82 mm × 52 mm × 58 mm
Panel Size: 87 mm × 58 mm × 3 mm
Mass: .3 kg (excluding accessories)
Design and specifications are subject to change without
notice.
EN14-17_KD-G335[U_UH]f.indd 17EN14-17_KD-G335[U_UH]f.indd 17 9/13/06 4:51:49 PM9/13/06 4:51:49 PM

© 2006 Victor Company of Japan, Limited
EN, CT
1006DTSMDTJEIN
Having TROUBLE with operation?
Please reset your unit
Refer to page of How to reset your unit
Rear_KD-G335_005A_f.indd 2Rear_KD-G335_005A_f.indd 2 9/11/06 3:05:25 PM9/11/06 3:05:25 PM
