SERVICE MANUAL
Regarding service information other than these sections, refer to the service manual No. 82948 (HR-XVC20US).
Also, be sure to note important safety precautions provided in the service manual.
GENERAL
Power supply:
Power consumption:
Weight:
Dimensions:
Inputs/Outputs:
Video:
Audio:
Antenna:
Hi-Fi Frequency Response:
Hi-Fi Dynamic Range:
VCR section
Video Head:
Audio Track:
Tuner:
RF Channel Output:
F.FWD/REW Time:
DVD section
Signal system:
Applicable disc:
Audio characteristics
Frequency response:
S/N Ratio:
Harmonic distortion
Wow and flutter:
Dynamic range:
Output:
Pickup:
ACCESSORIES:
AC 120V 60Hz
Operation: 18W
Stand by: 2W
7.9lbs (3.6 kg)
Width : 16-15/16 inches (430 mm)
Height: 3-7/8 inches (99 mm)
Depth : 9-13/16 inches (249 mm)
In: 1Vp-p/75 ohm
Out: 1Vp-p/75 ohm
In:
-
8 dBm/50k ohm
Out:
-
8 dBm/1k ohm
UHF/VHF IN/OUT: 75 ohm coaxial
20Hz to 20,000Hz
More than 90dB
4 Rotary Heads
Hi-Fi Sound - 2 Tracks / MONO Sound - 1 Track
181 Channel Freq. Synthesized
VHF 2-13
UHF 14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)
95-99 (A-5)-(A-1)
100-125 (100)-(125)
01 (5A)
Channel 3 or 4, Switchable
Approx. 1 minute 48 seconds (with T-120 Cassette Tape) (at+25°C)
NTSC
DVD (12cm, 8cm), CD (12cm, 8cm)
DVD: 4Hz - 22kHz
CD: 4Hz - 20kHz
90dB
0.02%
Less than 0.01% Wrms
More than 90dB
Video : (RCA) 1 Vp-p/75ohm
Audio : (RCA)
-
8 dBm/1k ohm
Digital Audio : 0.5Vp-p 75 ohm
CD : Wavelength: 775 - 805 nm
Maximum output power: 0.5 mW
DVD : Wavelength: 640 - 660 nm
Maximum output power: 1.0 mW
Remote control x 1
Batteries (2 x AA)
75 ohm Coaxial Cable x 1
AUDIO/VIDEO Cable x 1
No.82989
2003/07
HR-XVC20US(R)
HR-XVC20US(R) D2VP11
DVD/CD PLAYER Hi-Fi STEREO VIDEO CASSTTE RECORDER
SPECIFICATIONS

TABLE OF CONTENTS
Section Title Page Section Title Page
HOW TO IDENTIFY MODELS
DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF MECHANICAL PARTS AND P.C.BOARDS ............... 1-1
1-1 TOP CABINET AND FRONT CABINET ............................ 1-1
1-2 FLAP ..................................................................................1-1
1-3 DVD DECK ........................................................................1-1
1-4 DVD PCB ...........................................................................1-2
1-5 VCR DECK ........................................................................1-2
1-6 VCR PCB ...........................................................................1-2
4. REMOVAL OF DVD DECK PARTS.........................................1-3
4-1 TRAY..................................................................................1-3
4-2 MAIN CHASSIS ASS’Y ......................................................1-3
4-3
RACK LOADING / MAIN GEAR / RACK LOADING SPRING / RACK L SPRING.. 1-3
4-4 CLAMPER ASS’Y / INSULATOR(R) / LEVER SWITCH ....1-3
4-5 TRAVERSE HOLDER / INSULATOR(F) ............................1-4
4-6 SWITCH PCB ASS’Y .........................................................1-4
4-7 RACK FEED ASS’Y ...........................................................1-4
4-8 RELAY PCB ASS’Y ............................................................1-5
4-9 GEAR.................................................................................1-5
4-10 IDLER ARM .....................................................................1-5
4-11 FEED MOTOR .................................................................1-6
ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE .............. 1-7
WHEN REPLACING EEPROM(MEMORY) IC ...........................1-8
SERVO TIMING CHART ............................................................1-8
CHARTS AND DIAGRAMS
INTERCONNECTION DIAGRAM ............................................2-1
Y/C/AUDIO/CCD/HEAD AMP SCHEMATIC DIAGRAM ..........2-3
SYSCON SCHEMTAIC DIAGRAM ..........................................2-5
TUNER/JACK SCHEMATIC DIAGRAM ..................................2-7
OPERATION/DISPLAY SCHEMATIC DIAGRAM....................2-9
HI-FI/DEMODULATOR SCHEMATIC DIAGRAM ..................2-11
POWER SCHEMATIC DIAGRAM .........................................2-13
OPERATION/LED SCHEMATIC DIAGRAM ..........................2-15
SW/RELAY/FG SCHEMATIC DIAGRAM ..............................2-17
MPEG/MICOM SCHEMATIC DIAGRAM ...............................2-19
MEMORY SCHEMATIC DIAGRAM .......................................2-21
RF AMP/DSP SCHEMATIC DIAGRAM .................................2-23
AUDIO/VIDEO SCHEMATIC DIARAM ..................................2-25
PRINTED CIRCUIT BOARD VCR .........................................2-27
PRINTED CIRCUIT BOARD DVD .........................................2-31
PRINTED CIRCUIT BOARD OPERATION............................2-34
PARTS LIST
3.1 EXPLODED VIEW ................................................................3-1
3.1.1 PACKING AND ACCESSORY ASSEMBLY<M1> .......... 3-1
3.1.2 FINALASSEMBLY<M2> ................................................ 3-2
3.1.3 MECHANISM ASSEMBLY(DVD)<MN> ..........................3-3

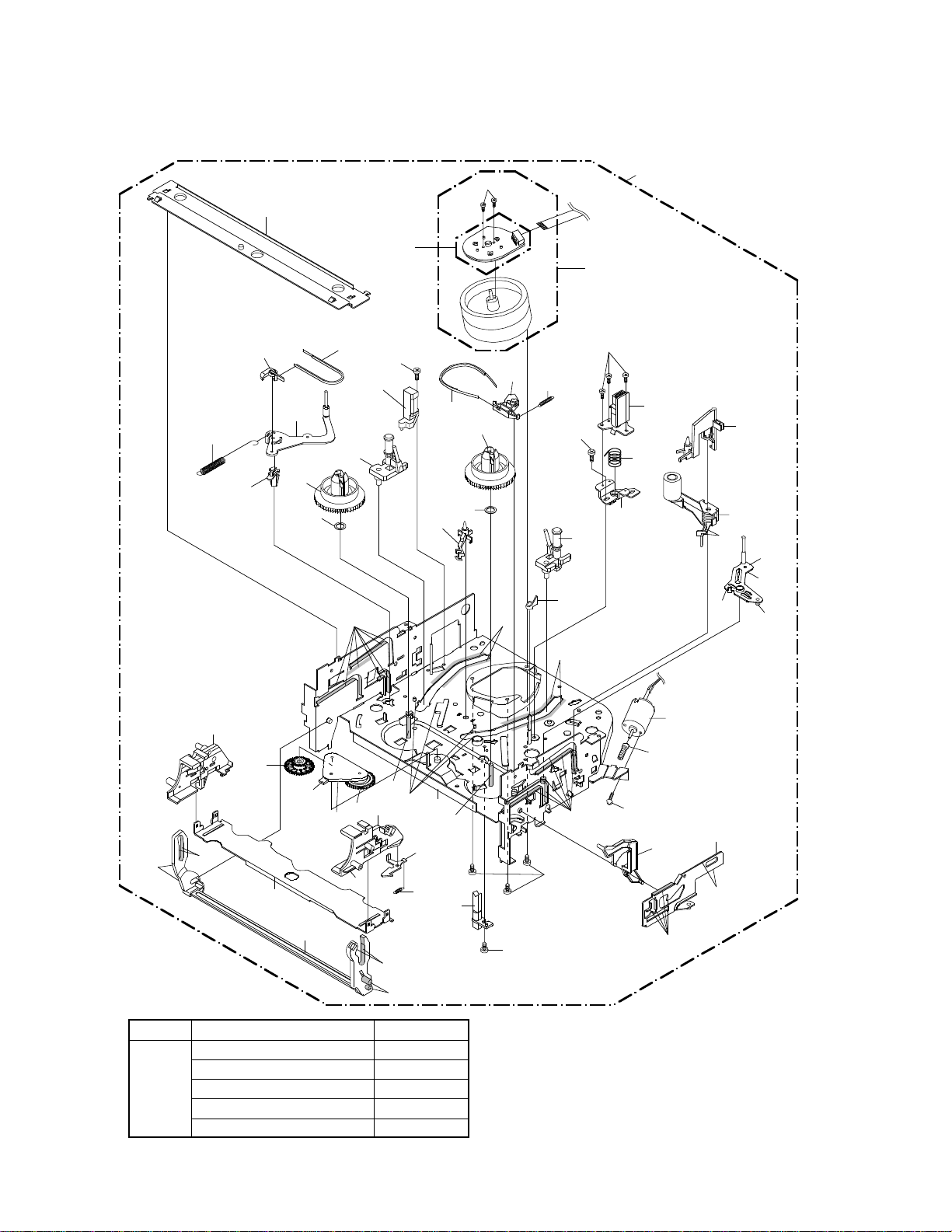

3.1.4 MECHANISM ASSEMBLY(VCR)<M4> .......................... 3-4
3.2 ELECTRICAL PARTS LIST.................................................. 3-6
PACKING AND ACCESSORYASSEMBLY<M1> ....................3-6
FINALASSEMBLY<M2> ..........................................................3-6
MECHANISM ASSEMBLY(VCR)<M4> ....................................3-6
MECHANISM ASSEMBLY(DVD)<MN> ................................... 3-7
VCR BOARD ASSEMBLY<03>............................................... 3-7
OPERATION BOARD ASSEMBLY<28> ................................3-12
DVD BOARD ASSEMBLY<50>..............................................3-12
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
LISTED
44L6
E68219 CAT. M2C58
VIDEO SYSTEM
FCC ID : A7RM2C5A
CHASSIS:M2C58
KD
DVD/VIDEO CASSETTE RECORDER
AC/CA 120V 60Hz 18W
Confidential unpublished works. ©1992-1997 Dolby Laboratories. All rights reserved.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license from Dolby Laboratories.
and 4,907,093 licensed for limited viewing uses only.
Apparatus Claims of U.S. Patent Nos. 4,631,603;4,577,216;4,819,098
"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, lnc.
CERTIFICATION : COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
CABLE COMPATIBLE TELEVISION APPARATUS-TÉLÉVISION CÂBLOCOMPATIBLE, CANADA
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : 1 THIS DEVICE MAY NOT
CAUSE HARMFUL INTERFERENCE, AND 2 THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
DISTRIBUT PAR JVC CANADA, INC. 21 FINCHDENE SQUARE, SCARBOROUGH, ONTARIO.MIX 1A7.
DISTRIBUTED BY JVC CANADA, INC. 21 FINCHDENE SQUARE, SCARBOROUGH, ONTARIO.MIX 1A7.
DISTRIBUTED BY JVC AMERICAS CORP., 1700 VALLEY ROAD, WAYNE, N.J. 07470
DISTRIBUTOR / DISTRIBUTEUR
MANUFACTURED/FABRIQU ¸ :
SERIAL NO./NO.DE SERIE
MADE IN THAILAND/FABRIQUE EN THAILANDE
( )
( )
VHF/UHFDVD/VCR OUTPUT
VIDEO
AUDIO
L
R
IN
ANT
( )
OUT
TV
( )
722538A048
MODEL/MODELE NO. HR-XVC20U R
[blank] : HR-XVC20US
(R) : HR-XVC20US(R)
RATING LABEL
How to recognize from the appearance of the model concerned is written below.
Please distinguish from several contents currently printed on the rating label of the rear panel.
HOW TO IDENTIFY MODELS

1-1
DISASSEMBLY INSTRUCTIONS
1
1
2
Top Cabinet
Front Cabinet 1
1
2
2
2
2
2
1
2

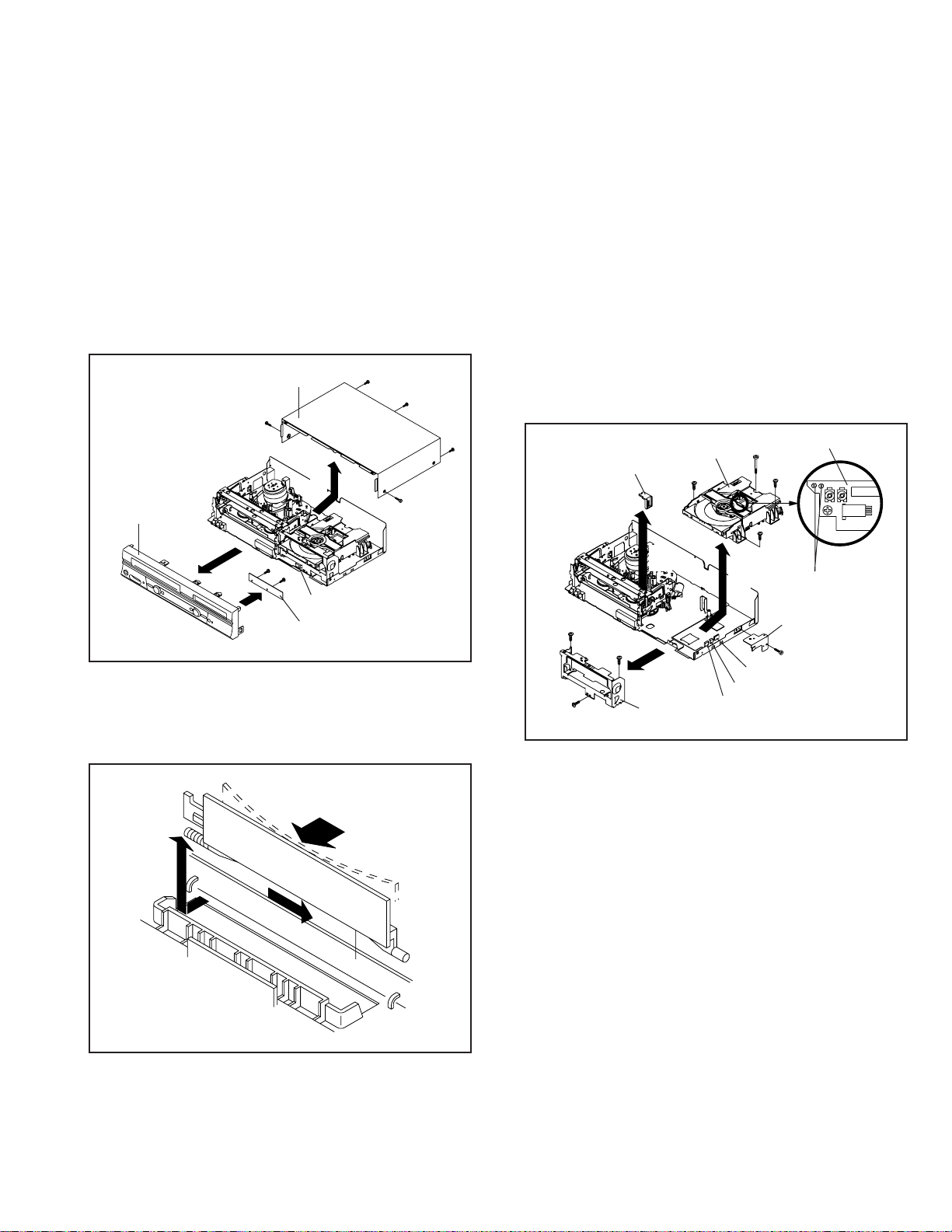

1.
1-1:
Fig. 1-1
REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS
TOP CABINET AND FRONT CABINET
(Refer to Fig. 1-1)
1.
2.
3.
4.
5.
6.
7.
Remove the 5 screws 1.
Remove the Top Cabinet in the direction of arrow (A).
Disconnect the following connector: (CP651).
Unlock the 8 supports 2.
Remove the Front Cabinet in the direction of arrow (B).
Remove the 2 screws 3.
Remove the Operation PCB in the direction of arrow (C).
1-2: FLAP (Refer to Fig. 1-2)
1.
2.
Open Flap to 90˚ and flex in direction of arrow (A), at the
same time slide in direction of arrow (B).
Then lift in direction of arrow (C).
Fig. 1-2
(A)
Flap
(B)
(C)
(B) 33
Operation PCB
CP651
2
(A)
(C)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Make the short circuit on the position as shown Fig. 1-3
using a soldering. If you remove the DVD Deck with no
soldering, the Laser may be damaged.
Unlock the support 1and remove the Deck Top Holder
in the direction of arrow (A).
Remove the 2 screws 2.
Remove the screw 3.
Remove the screw 4.
Disconnect the following connectors: (CP2601, CP2602,
CP2603).
Remove the DVD Deck in the direction of arrow (B).
Remove the 3 screws 5.
Remove the FrontAngle in the direction of arrow (C).
Remove the screw 6.
Remove the DVD Angle.
Fig. 1-3
1-3: DVD DECK (Refer to Fig. 1-3)
NOTE
When the installation of the DVD Deck, remove all the
soldering on the short circuit position after the connection of
Pick Up PCB and DVD PCB connector.
1
Make the sort circuit
using a soldering.
Pick Up PCB
Deck Top Holder
(A)
2
2
4
3
5
DVD Deck
(C)
Front Angle
5
5
(B)
CP2603
CP2602
CP2601
6
DVD Angle

1-2
DISASSEMBLY INSTRUCTIONS

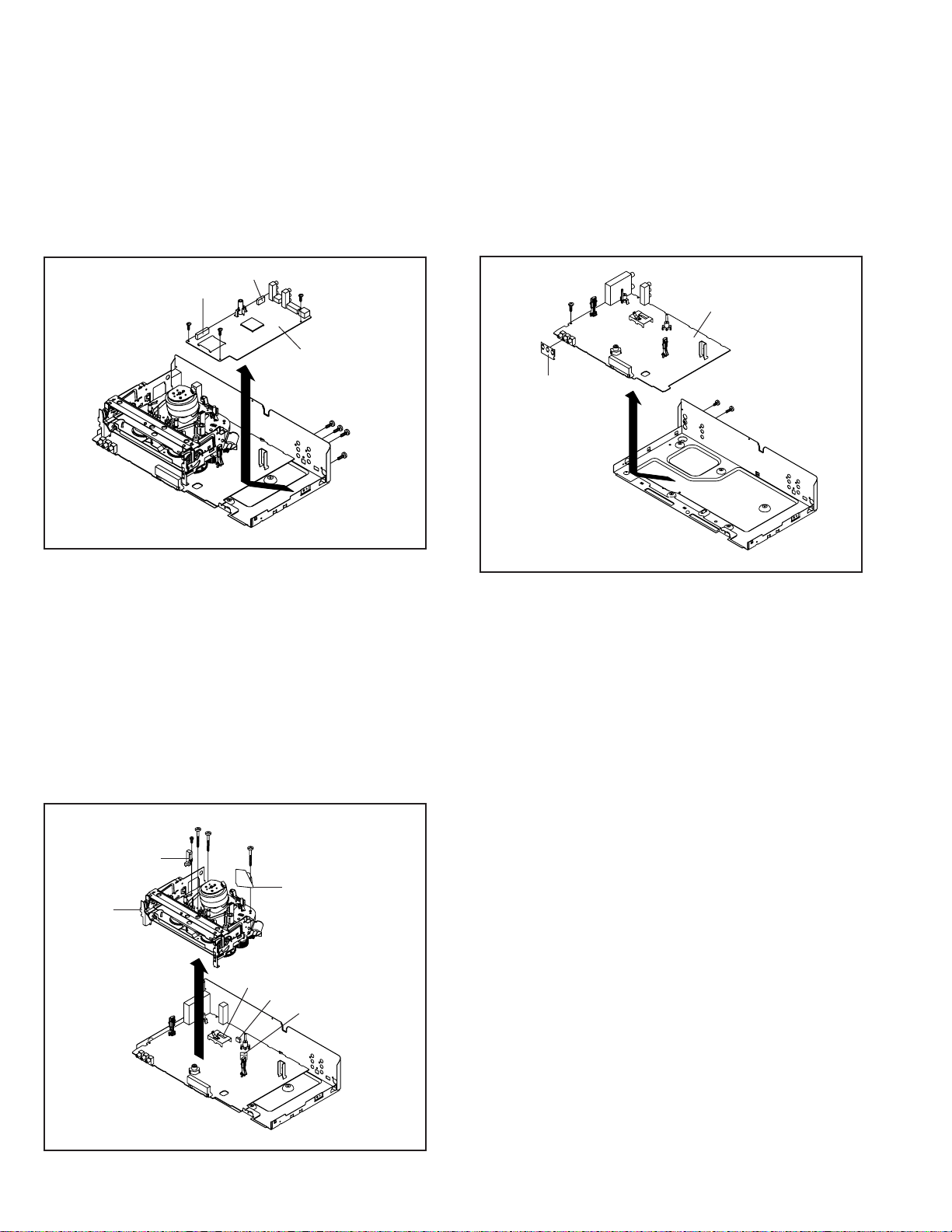

1-6: VCR PCB (Refer to Fig. 1-6)
1.
2.
3.
4.
5.
Remove the screw 1.
Remove the screw 2.
Remove the screw 3.
Remove the 3 Pin Shield.
Remove the VCR PCB in the direction of arrow.
Fig. 1-6
1
VCR Deck
1-5: VCR DECK (Refer to Fig. 1-5)
1.
2.
3.
4.
5.
6.
Move the Cassette HolderAss’y to the back side.
Remove the screw 1.
Remove the FE Head.
Remove the 3 screws 2.
Disconnect the following connectors: (CP101, CP102,
and CP3001).
Remove theAC Head Cover and VCR Deck in the
direction of arrow.
3VCR PCB
1-4: DVD PCB (Refer to Fig. 1-4)
1.
2.
3.
4.
Remove the 3 screws 1.
Remove the 4 screws 2.
Disconnect the following connectors: (CP4002 and
CP8102).
Remove the DVD PCB in the direction of arrow.
Fig. 1-4
Do not remove the cable at the FE Head section. The FE
Head may be damaged if you remove the cable by force.
NOTE
Fig. 1-5
2
FE Head
2
CP101
CP102CP3001
AC Head Cover
2
12
3 Pin Shield
1
1
DVD PCB
2
2
2
2
1
CP4002
CP8102

1-3
DISASSEMBLY INSTRUCTIONS

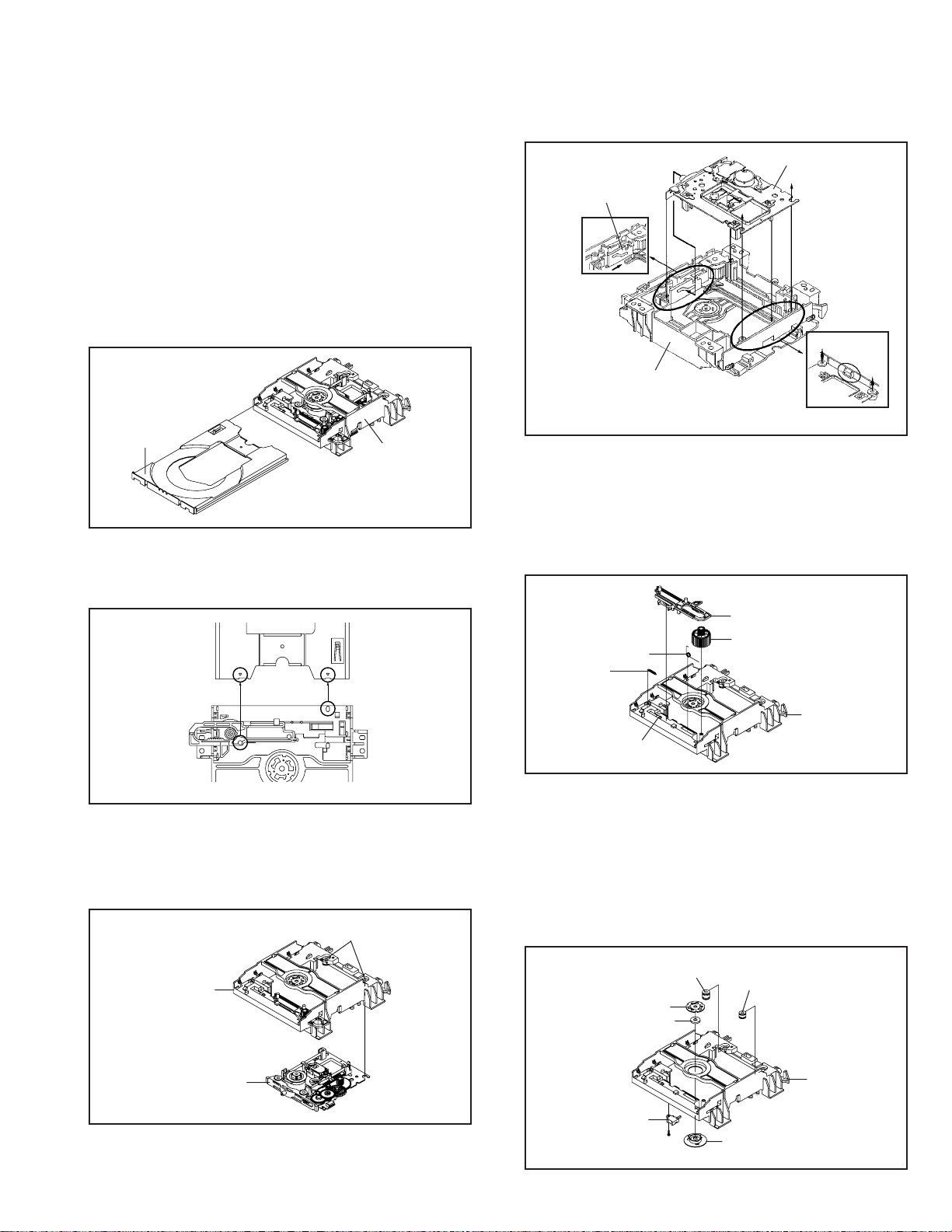

4. REMOVAL OF DVD DECK PARTS
NOTE
1. Do not disassemble the DVD DECK PARTS except listed
parts here. Minute adjustments are needed if the disas-
semble is done. If the repair is needed except listed parts,
replace the DVD MECHAASS’Y.
4-1: TRAY (Refer to Fig. 4-1-A)
1.
2.
Set the Tray opened. (Refer to the DISC REMOVAL
METHOD AT NO POWER SUPPLY)
Unlock the support 1and remove the Tray.
Main Frame Ass’y
1
Tray
Fig. 4-1-A
NOTE
1. In case of the Tray installation, install them as the circled
section of Fig. 4-1-B so that the each markers are met.
Fig. 4-1-B
Tray
Main Frame Ass’y
4-2: MAIN CHASSIS ASS’Y (Refer to Fig. 4-2-A)
1.
2.
3.
Remove the Main ChassisAss’y from the Insulator (R).
Unlock the support 1.
Remove the Main ChassisAss’y.
Fig. 4-2-A
Insulator (R)
(Green)
1
Main Frame Ass’y
Main Chassis Ass’y
4-3: RACK LOADING/MAIN GEAR/ RACK LOADING
SPRING/ RACK L SPRING (Refer to Fig. 4-3)
1.
2.
3.
Remove the Rack L Spring.
Press down the catcher 1and slide the Rack Loading.
Remove the Rack Loading, Rack Loading Spring and
Main Gear.
Fig. 4-3
4-4: CLAMPER ASS’Y/INSULATOR(R)/LEVER SWITCH
(Refer to Fig. 4-4-A)
1.
2.
3.
4.
5.
Remove the screw 1.
Remove the Lever Switch.
Remove the 2 Insulator (R).
Press the Clamper and rotate the Clamper Plate clockwise,
then unlock the 3 supports 2.
Remove the Clamper Plate, Clamper Magnet and Clamper.
Insulator (R)
(Green) Insulator (R)
(Green)
Clamper Plate
Clamper Magnet
Main Frame
Lever Switch
Clamper
12
2
2
Fig. 4-4-A
Fig. 4-2-B
Main Chassis Ass’y
Rack Loading
Move it to the direction
of the arrow.
Main Frame Ass’y
1
Check Lock
23
4
5
6
6
5
4
Rack Loading Spring
Rack Loading
Main Gear
1
Main Frame Ass’y
NOTE
1. In case of the Main Chassis Ass’y, install it from (1) to (6)
in order. (Refer to Fig. 4-2-B)
Rack L Spring

1-4
DISASSEMBLY INSTRUCTIONS
Lever Switch
The Lever should be position
between Aand B.
B
Rack Loading A
NOTE
1.
2.
3.
4.
When installing the Clamper Magnet, install it with the
green face up.
When installing the wire of the Lever Switch, install it
correctly as Fig. 4-4-B.
When installing the Lever Switch, install it correctly as
Fig. 4-4-C.
In case of the Lever Switch installation, hook the wire on
the Main Frame as shown Fig. 4-4-D.
Fig. 4-4-B
Fig. 4-4-C
Fig. 4-4-D
4-5: TRAVERSE HOLDER/INSULATOR (F)
(Refer to Fig. 4-5-A)
1.
2. Remove the Traverse Holder. Remove the 2 Insulator (F).
Main Chassis Ass’y
Insulator (F)
(Black)
Traverse Holder
Insulator (F)
(Black)
Fig. 4-5-A
Main Chassis Ass’y
Traverse Holder
Fig. 4-5-B
4-6: SWITCH PCB ASS’Y (Refer to Fig. 4-6-A)
1.
2. Remove the screw 1. Remove the Switch PCB Ass’y.
1
Switch PCB Ass’y
Main Chassis Ass’y
• Screw Torque: 4 ±0.5kgf•cm
Fig. 4-6-A
NOTE
1. When installing the wire of the Switch PCB, install it
correctly as Fig. 4-6-B.
Switch PCB Ass’y
Black
White
From Relay PCB
Fig. 4-6-B
4-7: RACK FEED ASS’Y (Refer to Fig. 4-7-A)
1.
2. Remove the screw 1. Remove the Rack Feed 1/2 Spring, Rack Feed 1/2 and
Rack Feed Lever.
• Screw Torque: 3.5 ±0.5kgf•cm
Lever Switch
BlueWhite
Red
From DVD PCB
NOTE
1. After the installing of the Traverse Holder, check if the
wire is like Fig. 4-5-B. Fig. 4-7-A
1
Rack Feed 2
Rack Feed 1 Spring
Rack Feed 2 Spring
Rack Feed Lever
Rack Feed 1
Main Chassis Ass’y

1-5
DISASSEMBLY INSTRUCTIONS
4-9: GEAR (Refer to Fig. 4-9-A)
1.
2. Unlock the support 1. Remove the Middle Gear 1/2/3, Idler Gear and Feed Gear.
Middle Gear 2
Middle Gear 1
Middle Gear 3
Feed Gear
Idler Gear
Main Chassis Ass’y
Fig. 4-9-A
NOTE
1.
2.
In case of the Idler Gear installation, install correctly as
Fig. 4-9-B.
When installing the Middle Gear 2, check if the Middle
Gear 2 is locked correctly as Fig. 4-9-C.
Fig. 4-9-B
Fig. 4-9-C
4-10: IDLER ARM (Refer to Fig. 4-10-A)
1.
2.
3.
Remove the Idler Arm Spring.
Remove the Chassis Spring.
Remove the Idler Arm.
Idler Arm Spring
Idler Arm
Main Chassis Ass’y
Chassis Spring
Fig. 4-10-A
NOTE
1.
2.
After the assembly of the Rack Feed, check if the Rack
Feed 1/2 is moving smoothly. (Refer to Fig. 4-7-B)
In case of the Rack Feed Ass’y installation, install cor-
rectly as Fig. 4-7-C.
Moving smoothly
Moving smoothly
Fig. 4-7-B
Should not be engaged.
Check the position of
the Rack Feed Lever.
Fig. 4-7-C
4-8: RELAY PCB ASS’Y (Refer to Fig. 4-8-A)
1.
2. Remove the screw 1. Remove the Relay PCB Ass’y.
Main Chassis Ass’y
Relay PCB Ass’y
• Screw Torque: 4 ±0.5kgf•cm 1
Fig. 4-8-A
NOTE
1. When installing the wire of the Relay PCB, install it
correctly as Fig. 4-8-B.
Fig. 4-8-B
[OK]
Idler Gear
Idler Arm
[NG]
Idler Gear
Idler Arm
Check Lock
Middle Gear 2

1-6
DISASSEMBLY INSTRUCTIONS
NOTE
1.
2.
3.
In case of the Idler Arm installation, install as the circled
section of Fig. 4-10-B.
In case of the Idler Arm Spring installation, install as the
circled section of Fig. 4-10-C.
In case of the Chassis Spring installation, install as the
circled section of Fig. 4-10-D.
Idler Arm
Main Chassis Ass’y
Fig. 4-10-B
Fig. 4-10-C
Idler Arm Spring
Main Chassis Ass’y
Fig. 4-10-D
Chassis Spring
Main Chassis Ass’y
4-11: FEED MOTOR (Refer to Fig. 4-11-A)
1.
2.
3.
Remove the 2 screws 1.
Remove the Feed Motor.
Remove the Motor Gear.
• Screw Torque: 1 ±0.5kgf•cm
Fig. 4-11-A
NOTE
1.
2.
In case of the Motor Gear installation, check if the value
of the Fig. 4-11-B is correct.
When installing the Feed Motor, check if the cable is
positioned as Fig. 4-11-C.
Motor Gear
Feed Motor
6.1 ±0.1mm
Safety surface for pressing
of the insert.
Fig. 4-11-B
Main Chassis Ass’y
Feed Motor
Pass the cable
between 2 pins.
Fig. 4-11-C
11
Main Chassis Ass’y
Motor Gear
Feed Motor

1-7
ELECTRICAL ADJUSTMENTS
DVD PCB
CD2301
CD2001
CD2302
VCR PCB
CP4002
CP8102
CP2601
CP2603
CP2602
J8101
OS8101
J8103
SW8101
J8102
AC IN
CD501
CP501
CP8002
TP3001
CP102
AC HEAD
CD102
TP8001
J8001
CP103
FE HEAD
TU3001
TP101
TP3002
J8003 J8004 J8005
OS651
V651
CD681
CP651
OPERATION PCB
CP681
DVD DECK
CD8002
ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (Connector Connections)
TP101
TP3001
TP3002
TP8001
:
:
:
:
Envelope
Service Mode
Switching Pulse
Switching Point

1-8
SERVO TIMING CHART
VCR PCB IC3001 (OEC0138A)
DPG 104 PIN
DFG 104 PIN
H. SW. P 105 PIN
V-SYNC (E-E) 111 PIN
24 Cycle
CH 1 CH 2
REC CTL (REC)
7 PIN
V-SYNC (TRICK PB)
109 PIN
• WAVEFORM CHANGES DEPENDED ON THE TAPE SPEED
WHEN REPLACING EEPROM (MEMORY) IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
Table 1
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11 .
12.
The unit will now have the correct DATA for the new MEMORY IC.
Connect the set to TV Monitor.
Turn on the POWER.
Press both CH UP button on the set and the FF button on the set for more than 2 seconds.
ADDRESS and DATA will appear on TV Monitor as Fig 1.
ADDRESS is now selected and should “blink”. Using the SET + or - button on the remote,
step through theADDRESS until required ADDRESS to be changed is reached.
Press ENTER to select DATA. When DATA is selected, it will “blink”.
Again, step through the DATA using SET + or - button until required DATA value has been selected.
Pressing ENTER will take you back toADDRESS for further selection if necessary.
Repeat steps 4 to 7 until all data has been checked.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
After the data input, set to the initializing of shipping.
Turn on the POWER.
Press both CH UP button on the set and the PLAY button on the set for more than 2 seconds.
After the finishing of the initializing of shipping, the unit will turn off automatically.
NOTE: No need setting for after INI 2F.
INI +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F
00 0E B0 BA 60 64 64 4A 86 0B 2B 86 32 8A 08 0A 0F
10 AF 97 95 8A A0 90 31 04 88 A5 9F 3A 00 10 BF 00
20 3A 11 22 70 61 2A 3A 00 0B 00 00 85 A2 B0 00 00
Fig. 1
ADDRESS DATA
INIT 00 0E
PLAY/REC 0003

JVC SERVICE & ENGINEERING COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
www.jvcservice.com(US Only)
JVC CANADA INC.
Head office :
21 Finchdene Square Scarborough, Ontario M1X 1A7
[phone]
Printed in Japan
0307 VP

3-1
SECTION 3
PARTS LIST
3.1 EXPLODED VIEW
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
3.1.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble in regard to safety
and performance. We recommend that genuine JVC parts be used.
5
3
2
1
6
5
4
8
11, 12, 13
7
SPEC OF
BARCODE
17
18

3-2
3.1.2 FINAL ASSEMBLY <M2>
707
RATING
LABEL
622
619
624
702
702
702 634
703
703
703
626
625
702
605
604
603
606
702 603
636
602 606
633 705
637
623
701
701
638
635
PCB010
(VCR PCB ASS'Y)
PCB130
(DVD PCB ASS'Y)
630
631
709
709
706
607
702
702
702
621
636
702
627
629
704
704
704
704
704
618
608
609
618
613
615
639
611
616
639
615
614
632
628
612
610 617
601
PCB270
(OPERATION PCB ASS'Y)
708 708

3-3
3.1.3 MECHANISM ASSEMBLY(DVD) <MN>
606
612
619
606
613
614
616
617
701
618
615
600
AA
AA AA
AC
AC
AA
AA
SW1
CD2302
608 704
621
M2002
607
622
623
620
624
611
625 AB
AA
AA
AA
PCB68A
(RELAY PCB ASS'Y)
702
AB
AB
705603
609
610
604 602
AC
AC
605
601
605
703
PCB640
(SW PCB ASS'Y)
CD2001
CD2301
Do not replace the parts. Because,
minute adjustments are needed if
this condition is disassembled
further more.
If the repair is needed, replace the
DVD MECHA ASS'Y.
CP1
SW2
AC
626
Applying positions AA, AB and AC for the
grease are displayed for this section.
Check if the correct grease is applied for each
position.
NOTE:
CLASS MARK
GREASE G-555G AA
G-337F AB
SF-112 AC
PART NO.
X-Y315061000 PART NAME
X-Y315121000
X-Y315131000

3-4
[ TOP VIEW ]
3.1.4 MECHANISM ASSEMBLY(VCR) <M4>
Applying positions AA, AB, AC, AD and AE for
the grease are displayed for this section.
Check if the correct grease is applied for each
position.
NOTE:
PART NO.
CLASS MARK
GREASE G-555G AA
MG-33 AB
FG-84M AC
FL-721 AD
G-313Y AE
309
325
AD
AA
312
315
UN4001
M2003
505
504
H5001
503
306
305
332
507
335 342
322508
324
302
506
501
H5002
323
508
341
331
334 333
314
301
313
307
300
317
336
346 345
321
319
320
AB
316
318
347
AB
AB
AB
AA
AA
AA
AA
AB
AB
AB
AB
AE
AE
AE
AE
AC
AC
CD1501
M101
304
CD1502
510
348

3-5
[ BOTTOM VIEW ]
M2001 300
303
502
329311
310
330
505
502
338
502
337
340
509
308
344
327
343
326
328
AB
AB
AB
AA
AA
AD
AA AA
AA AA
AA
CD1501
CD1502
AA
339
AA
AA
Applying positions AA, AB, AC, AD and AE for
the grease are displayed for this section.
Check if the correct grease is applied for each
position.
NOTE:
PART NO.
CLASS MARK
GREASE G-555G AA
MG-33 AB
FG-84M AC
FL-721 AD
G-313Y AE

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
3-6
3.2 PARTS LIST
******************************
PACKING AND ACCESSORY ASSEMBLY<M1>
1 QAM0501-002 RF CABLE
2 QAM0498-001 CABLE ASSY(AUDIO/VIDEO)
3 X-076D0GA020 TRANSMITTER LP21036-027A
4 X-791WHA0100 GIFT SHEET
5 X-792WHA0475 PACKAGE,BACK
6 X-792WHA0489 PACKAGE,FRONT
7 X-793WCD1454 GIFT BOX
8 X-795WCA0662 PAD,DVD/VR 155x250
11 X-JB5UD200 POLYBAG,INSTRUCTION(RED CAUTION)
12 X-J2C50101A INSTRUCTION BOOK
13 X-J2B00317 REGISTRATION CARD
17 X-795WCA0671 PAD,L
18 ——— BATTERY,MANGAN R6P(AR)XICI
******************************
FINAL ASSEMBLY<M2>
601 X-A2C501X720 CABINET,FRONTASSY
602 X-701WPA0686 HOLDER,DECK
603 X-701WPA0751 HOLDER,DECK
604 X-752WSA0230 SHIELD,CASE HEAD AMP
605 X-753WUAA006 SPRING,EARTH HEAD AMP
606 X-85OP700038 HOLDER,END SENSOR
607 X-761WPA0282 HOLDER,DVD
608 X-701WPJ1189 CABINET,FRONT
609 X-711WPD0635 PLATE,DISPLAY
610 X-712WPJ0805 FLAP
611 X-713WPA0268 GLASS,LED-VCR
612 X-713WPA0269 GLASS,LED-DVD
613 X-7235380012 BADGE,BRAND
614 X-735WPJ0232 BUTTON,FRAME-DVD
615 X-735WPJ0233 BUTTON,FRAME-VCR
616 X-735WPD0760 BUTTON,VCR/DVD
617 X-743WKA0042 SPRING,FLAP
618 X-800WFA0051 CUSHION,LEG
619 X-702WSA0183 PLATE,BOTTOM
621 X-7232020748 SHEET,IC
622 X-7230007673 SHEET,JACK
623 X-752WSA0275 COVER,AC HEAD
624 X-761WSA0101 ANGLE,FRONT
625 X-761WSA0125 ANGLE,DVD
626 X-7260000341 SHEET,CAUTION
627 X-800WB00004 FIBER WASHER 7x3.2xT0.5
628 X-735WPD0761 BUTTON,STOP
629 X-702WSB0083 CABINET,TOP
630 X-712WPBA054 PLATE,TRAY-FRONT
631 X-7235630001 SHEET,DVD
632 X-735WPD0762 BUTTON,PLAY
633 X-800WFA0046 CUSHION
634 X-8965TS1010 CUSHION 65TS10-10H L10
635 X-752WUAA001 SHIELD,3PIN
636 X-752WSA0290 SHIELD,COMPO
637 X-761WPA0262 HOLDER,DECK TOP
638 X-8965TS1017 CUSHION 65TS10-10H L17.5
639 X-738WPA0070 STOPPER,BUTTON
701 X-8109130B94 SCREW,TAP TITE(B) R PAN 3x29
702 X-8109230704 SCREW,TAP TITE(B) R BIND 3x7
703 X-8109230804 SCREW,TAP TITE(B) BIND 3x8
704 X-8107K30602 SCREW,TAP TITE(S) BIND(3D) 3x6
705 X-8109I30A04 SCREW,TAP TITE(B) WH7 3x10
706 X-8154730414 SCREW,TAP TITE(B) M3x41R
707 X-8107130404 SCREW,TAP TITE(S) PAN 3x4
708 X-8110226804 SCREW,TAP TITE(P) BIND 2.6x8
709 X-8102230804 SCREW,BIND M3x8
CD102 X-122H061504 CORD,VCR CP102 –A/C HEAD 2H061504
CD8002 X-122F080601 CORD,VCR CP8002 – DVD CP8102 2F080601
******************************
MECHANISM ASSEMBLY(VCR)<M4>
300 X-A2C301N420K DECKASSY A2C301N420K
301 X-85OA400234 PINCH ROLLER BLOCK
302 X-85OP900746 BRACKET,TOP 3V
303 X-85OP200290 BELT,CAPSTAN (S)
304 X-85OP600581 WORM
305 X-85OP500083 BASE,AC HEAD
306 X-85OP800324 SPRING,AC HEAD
307 X-85OA000459 MAIN CHASSIS ASS'Y
308 X-85OA200089 CLUTCH ASS'Y
309 X-85OA200090 ARM IDLER ASS'Y
310 X-85OA300065 LOADING ARM S UNIT
311 X-85OA300066 LOADING ARM T UNIT
312 X-85OA400223 INCLINED BASE T UINT 3S
313 X-85OA400232 P5 ARM ASS'Y 2
314 X-85OA400235 TENSION ARM ASS'Y 2
315 X-85OA400231 INCLINED BASE S UNIT
316 X-85OP800367 SPRING LOCKER
317 X-85OP900736 CASS,HOLDER
318 X-85OP900748 CASS,SIDE L
319 X-85OP900749 CASS,SIDE R
320 X-85OP900739 LOCKER,R
321 X-85OA900228 LINK UNIT
322 X-85OP000496 POST,CASS GUIDE
323 X-85OP200316 REEL,S (S)
324 X-85OP200317 REEL,T (S)
325 X-85OP200308 GEAR,IDLER
326 X-85OP200311 GEAR,CLUTCH
327 X-85OP200312 GEAR,COUPLING
328 X-85OP200313 LEVER,CLUTCH
329 X-85OP300194 GEAR,MAIN LOADING
330 X-85OP400490 LEVER,TENSION
331 X-85OP400492 HOLDER,TENSION
332 X-85OP400520 CAP.P4
333 X-85OP400542 BAND,TENSION
334 X-85OP400533 CONNECT,TENSION
335 X-85OP600573 ARM,BRAKE T
336 X-85OP600584 BAND,BRAKE T
337 X-85OP600577 CAM,PINCH ROLLER
338 X-85OP600578 CAM,MAIN
339 X-85OP600579 ROD,MAIN
340 X-85OP600582 GEAR,JOINT
341 X-85OP800322 SPRING,TENSION
342 X-85OP800360 SPRING,BRAKE T
343 X-85OP800355 SPRING,COUPLING

3-7
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
344 X-85OP800356 SPRING,RING
345 X-85OP900750 LEVER,LINK 2
346 X-85OP900744 LEVER,FLAP
347 X-85OP900745 CASS,OPENER
348 X-85OP700035 REFLECTOR,LED
501 X-8107226804 SCREW,TAP TITE(S) BIND 2.6x8
502 X-83ETW30000 E-RING 3.0
503 X-8107226404 SCREW,TAP TITE(S) BIND 2.6x4
504 X-8102120604 SCREW,PAN M2x6
505 X-8109126604 SCREW,TAP TITE(B) PAN 2.6x6
506 X-810A130404 SCREW/WASHER(A) M3x4
507 X-810A126504 SCREW/WASHER(A) M2.6x5
508 X-82Q264713N POLYSLIDER WASHER 2.6x4.7xT0.13
509 X-82P184505N POLYSLIDER WASHER(CUT)1.8x4.5xT0.5
510 X-8107226604 SCREW,TAP TITE(S) BIND 2.6x6
CD1501 X-122H071704 CORD JUMPER 2H071704
CD1502 X-122Y021902 CORD JUMPER 2Y021902
H5001 X-1523Q91003 HEAD (AUDIO CONTROL) VTR-1X2RPE22-756
H5002 X-1543Q02014 HEAD (FULL ERASE)VTR-1X2ERS11-154
!M101 X-1596P98001 MOTOR (LOADING) MXN13FB12K3
!M2001 X-1510S98038 CAPSTAN DD UNIT F2QVB33
M2003 X-1589S11017 MICRO MOTOR I2OAL05
!UN4001 X-A2C301N500 CYLINDER UNITASS'Y A2C301N500
******************************
MECHANISM ASSEMBLY(DVD)<MN>
600 X-A2C512K650 DVD MECHAASSY A2C512K650
601 X-92P100022A TRAVERSE HOLDER
602 X-92P100032A RACK,FEED 1
603 X-92P100033A RACK,FEED 2
604 X-92P100035A LEVER,RACK FEED
605 X-92P200006A INSULATOR(F)
606 X-92P200007A INSULATOR(R)
607 X-92P300008A SPRING,CHASSIS
608 X-92P300005A SPRING,ARM IDLER
609 X-92P300006A SPRING,RACK FEED 2
610 X-92P300007A SPRING,RACK FEED 1
611 X-92P100031A ARM,IDLER
612 X-92P000001A CLAMPER PLATE
613 X-92P100019A RACK,LOADING
614 X-92P100020A MAIN FRAME M
615 X-92P100021A TRAY
616 X-92P100023A GEAR,MAIN
617 X-92P100024A CLAMPER
618 X-92P300002A SPRING,RACK LOADING
619 X-92P400002A MAGNET,CLAMPER
620 X-92P100030A GEAR,IDLER
621 X-92P100025A GEAR,MOTOR
622 X-92P100026A GEAR,MIDDLE 1
623 X-92P100027A GEAR,MIDDLE 2
624 X-92P100028A GEAR,MIDDLE 3
625 X-92P100029A GEAR,FEED
626 X-92P300009A SPRING,RACK L
701 X-8110226804 SCREW,TAP TITE(P) BIND 2.6x8
702 X-8110120604 SCREW,TAP TITE(P) PAN 2x6
703 X-8107220504 SCREW,TAP TITE(S) BIND 2x5
704 X-8140117254 SCREW,PAN M1.7x2.5 P3
705 X-8110220804 SCREW,TAP TITE(P) BIND 2x8
CD2001 X-122H0O1901 CORD JUMPER 2H0O1901
CD2301 X-122H080701 CORD JUMPER 2H080701
CD2302 X-06CH232101 CORD CONNECTOR CH232101
CP1 X-069JV80180 CONNECTOR PCB SIDE IMSA-9615S-08C-PP
!M2002 X-1515S98001 FEED MOTOR BCD3B81
PCB640 X-A5E601V640 PCB ASS'Y VEBA17A
PCB68A X-A5E601V680 PCB ASS'Y VEBA12A
SW1 X-0515S32001 SWITCH SSS-23-6
SW2 X-0500S01032 PUSH LEVER SWITCH SW1AB-271-10A
******************************
VCR BOARD ASSEMBLY<03>
PCB010 X-A2C501X010 VCR BOARD ASSY
R101 NRSA63J-561X MG RESISTOR 560Ø,1/16W
R102 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R103 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R105 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R106 NRSA02J-681X MG RESISTOR 680Ø,1/10W
R107 NRSA02J-332X MG RESISTOR 3.3KØ,1/10W
R108 NRSA02J-223X MG RESISTOR 22KØ,1/10W
R109 QRE141J-102Y RESISTOR 1KØ,1/4W
R110 NRSA02J-822X MG RESISTOR 8.2KØ,1/10W
R111 NRSA02J-822X MG RESISTOR 8.2KØ,1/10W
R112 NRSA63J-334X MG RESISTOR 330KØ,1/16W
R113 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R114 NRSA02J-203X MG RESISTOR 20KØ,1/16W
R115 NRSA02J-821X MG RESISTOR 820Ø,1/10W
R116 NRSA63J-153X MG RESISTOR 15KØ,1/16W
R117 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W
R119 NRSA63J-182X MG RESISTOR 1.8KØ,1/16W
R120 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R121 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R122 NRSA02J-104X MG RESISTOR 100KØ,1/10W
R123 QRE141J-222Y RESISTOR 2.2KØ,1/4W
R124 NRSA63J-823X MG RESISTOR 82KØ,1/16W
R126 NRSA63J-182X MG RESISTOR 1.8KØ,1/16W
R127 NRSA02J-684X MG RESISTOR 680KØ,1/16W
R129 NRSA63J-182X MG RESISTOR 1.8KØ,1/16W
R131 NRSA02J-152X MG RESISTOR 1.5KØ,1/10W
R132 NRSA02J-332X MG RESISTOR 3.3KØ,1/10W
R133 NRSA02J-822X MG RESISTOR 8.2KØ,1/10W
R136 NRSA02J-223X MG RESISTOR 22KØ,1/10W
R137 QRE141J-123Y RESISTOR 12KØ,1/4W
R138 NRSA02J-223X MG RESISTOR 22KØ,1/10W
R139 NRSA63J-123X MG RESISTOR 12KØ,1/16W
R140 QRE141J-222Y RESISTOR 2.2KØ,1/4W
R141 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R142 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R143 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R301 NRSA63J-333X MG RESISTOR 33KØ,1/16W
R302 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R304 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R305 NRSA02J-102X MG RESISTOR 1KØ,1/10W
!R501 X-R0G3K2335K RESISTOR 3.3MØ,1/2W
!R502 X-R3X181R82J OMF RESISTOR 0.82Ø,1W

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
3-8
!R504 QRE121J-561Y RESISTOR 560Ø,1/2W
R506 QRE121J-105Y RESISTOR 1MØ,1/2W
R507 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R508 NRSA02J-101X MG RESISTOR 100Ø,1/4W
R509 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R510 NRSA02J-104X MG RESISTOR 100KØ,1/10W
R511 NRSA63J-564X MG RESISTOR 560KØ,1/16W
!R512 X-R3X181683J OMF RESISTOR 68KØ,1W
R513 QRE121J-391Y RESISTOR 390Ø,1/2W
R514 QRE121J-221Y RESISTOR 220Ø,1/2W
R515 NRSA02J-272X MG RESISTOR 2.7KØ,1/10W
!R516 X-R63581R22J FUSI RESISTOR 0.22Ø,1W
!R517 X-R002T2821J RESISTOR 820Ø,1/2W
R518 NRSA02J-151X MG RESISTOR 150Ø,1/10W
R519 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R520 NRSA02F-332X MG RESISTOR 3.3KØ,1/16W
R521 NRSA63J-471X MG RESISTOR 470Ø,1/16W
R522 NRSA02F-332X MG RESISTOR 3.3KØ,1/16W
R523 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W
R524 NRSA02J-101X MG RESISTOR 100Ø,1/4W
R525 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R526 X-R803R9122F MG RESISTOR 1.2KØ,1/16W
R527 NRSA02J-101X MG RESISTOR 100Ø,1/4W
R528 QRE141J-392Y RESISTOR 3.9KØ,1/4W
R529 NRSA02J-222X MG RESISTOR 2.2KØ,1/10W
R530 NRSA63J-470X MG RESISTOR 47Ø,1/16W
R531 NRSA63F-821X MG RESISTOR 820Ø,1/16W
R532 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R533 QRE141J-221Y RESISTOR 220Ø,1/4W
R534 NRSA02J-223X MG RESISTOR 22KØ,1/10W
R535 NRSA02J-223X MG RESISTOR 22KØ,1/10W
R536 NRSA63J-561X MG RESISTOR 560Ø,1/16W
R537 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R538 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R540 NRSA63J-471X MG RESISTOR 470Ø,1/16W
R541 QRE141J-223Y RESISTOR 22KØ,1/4W
R542 NRSA02J-151X MG RESISTOR 150Ø,1/10W
R543 NRSA02J-104X MG RESISTOR 100KØ,1/10W
R544 QRE141J-223Y RESISTOR 22KØ,1/4W
!R545 X-R65584150J R,FUSE 15Ø,1/4W
R552 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R553 QRE141J-473Y RESISTOR 47KØ,1/4W
R554 QRE141J-103Y RESISTOR 10KØ,1/4W
R651 NRSA02J-101X MG RESISTOR 100Ø,1/4W
R653 NRSA63J-331X MG RESISTOR 330Ø,1/16W
R657 NRSA02J-272X MG RESISTOR 2.7KØ,1/10W
R658 NRSA63J-182X MG RESISTOR 1.8KØ,1/16W
R659 NRSA02J-152X MG RESISTOR 1.5KØ,1/10W
R661 NRSA02J-821X MG RESISTOR 820Ø,1/10W
R662 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R663 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R664 NRSA02J-821X MG RESISTOR 820Ø,1/10W
R665 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R666 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R667 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R668 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R669 NRSA02J-821X MG RESISTOR 820Ø,1/10W
R670 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R671 NRSA02J-821X MG RESISTOR 820Ø,1/10W
R672 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R673 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R674 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R675 NRSA02J-821X MG RESISTOR 820Ø,1/10W
R683 NRSA63J-561X MG RESISTOR 560Ø,1/16W
R701 NRSA02J-152X MG RESISTOR 1.5KØ,1/10W
R702 NRSA02J-152X MG RESISTOR 1.5KØ,1/10W
R703 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R704 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R707 NRSA02J-473X MG RESISTOR 47KØ,1/10W
R708 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W
R711 NRSA02J-473X MG RESISTOR 47KØ,1/10W
R712 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W
R714 NRSA63J-273X MG RESISTOR 27KØ,1/16W
R716 NRSA02J-332X MG RESISTOR 3.3KØ,1/10W
R717 NRSA63J-225X MG RESISTOR 2.2MØ,1/16W
R718 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R719 NRSA63J-331X MG RESISTOR 330Ø,1/16W
R720 NRSA02J-332X MG RESISTOR 3.3KØ,1/10W
R721 NRSA63J-153X MG RESISTOR 15KØ,1/16W
R722 NRSA63J-153X MG RESISTOR 15KØ,1/16W
R723 QRE141J-471Y RESISTOR 470Ø,1/4W
R3001 NRSA02J-562X MG RESISTOR 5.6KØ,1/10W
R3002 QRE141J-121Y RESISTOR 120Ø,1/4W
R3003 NRSA02J-332X MG RESISTOR 3.3KØ,1/10W
R3004 NRSA02J-274X MG RESISTOR 270KØ,1/10W
R3006 NRSA02J-473X MG RESISTOR 47KØ,1/10W
R3007 NRSA63J-682X MG RESISTOR 6.8KØ,1/16W
R3008 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R3009 NRSA02J-472X MG RESISTOR 4.7KØ,1/10W
R3010 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R3011 QRE141J-473Y RESISTOR 47KØ,1/4W
R3012 NRSA02J-563X MG RESISTOR 56KØ,1/10W
R3014 NRSA02J-563X MG RESISTOR 56KØ,1/10W
R3015 QRE141J-473Y RESISTOR 47KØ,1/4W
R3016 NRSA02J-271X MG RESISTOR 270Ø,1/10W
R3017 NRSA63J-561X MG RESISTOR 560Ø,1/16W
R3019 QRE141J-473Y RESISTOR 47KØ,1/4W
R3020 NRSA63J-561X MG RESISTOR 560Ø,1/16W
R3022 NRSA02J-154X MG RESISTOR 150KØ,1/10W
R3025 NRSA63J-471X MG RESISTOR 470Ø,1/16W
R3026 NRSA02J-274X MG RESISTOR 270KØ,1/10W
R3027 NRSA63J-153X MG RESISTOR 15KØ,1/16W
R3028 QRE141J-473Y RESISTOR 47KØ,1/4W
R3029 NRSA02J-472X MG RESISTOR 4.7KØ,1/10W
R3030 NRSA02J-562X MG RESISTOR 5.6KØ,1/10W
R3031 NRSA02J-105X MG RESISTOR 1MØ,1/10W
R3032 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R3033 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R3034 NRSA02J-105X MG RESISTOR 1MØ,1/10W
R3035 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R3037 NRSA02J-473X MG RESISTOR 47KØ,1/10W
R3038 QRE141J-472Y RESISTOR 4.7KØ,1/4W
R3043 NRSA02J-474X MG RESISTOR 470KØ,1/10W
R3044 NRSA02J-332X MG RESISTOR 3.3KØ,1/10W
R3045 NRSA02J-332X MG RESISTOR 3.3KØ,1/10W
R3046 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R3047 NRSA02J-103X MG RESISTOR 10KØ,1/10W
R3049 NRSA02J-473X MG RESISTOR 47KØ,1/10W
R3050 NRSA02J-101X MG RESISTOR 100Ø,1/4W
R3051 NRSA02J-183X MG RESISTOR 18KØ,1/10W
R3053 NRSA02J-474X MG RESISTOR 470KØ,1/10W
R3055 NRSA02J-223X MG RESISTOR 22KØ,1/10W

3-9
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
R3056 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R3057 NRSA02J-223X MG RESISTOR 22KØ,1/10W
R3062 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R3063 NRSA02J-102X MG RESISTOR 1KØ,1/10W
R3083 NRSA63J-333X MG RESISTOR 33KØ,1/16W
R3087 NRSA63J-333X MG RESISTOR 33KØ,1/16W
R8009 QRE121J-471Y RESISTOR 470Ø,1/2W
R8010 NRSA02J-750X MG RESISTOR 75Ø,1/10W
R8011 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R8014 NRSA02J-391X MG RESISTOR 390Ø,1/10W
R8015 NRSA02J-391X MG RESISTOR 390Ø,1/10W
R8016 NRSA02J-222X MG RESISTOR 2.2KØ,1/10W
R8017 NRSA02J-222X MG RESISTOR 2.2KØ,1/10W
R8019 NRSA02J-750X MG RESISTOR 75Ø,1/10W
R8032 NRSA63J-471X MG RESISTOR 470Ø,1/16W
R8056 NRSA63J-471X MG RESISTOR 470Ø,1/16W
R8059 QRE141J-472Y RESISTOR 4.7KØ,1/4W
C101 X-P232W1223J CAPACITOR 0.022µF,100V
C103 X-E524U0220D E CAPACITOR 22µF,6.3V
C104 QEKJ0JM-227Z E CAPACITOR 220µF,6.3V
C105 X-E524U0220D E CAPACITOR 22µF,6.3V
C106 NCB31HK-103X CAPACITOR 0.01µF,50V
C107 NCB31HK-153X CAPACITOR 0.015µF,50V
C108 NCB31HK-103X CAPACITOR 0.01µF,50V
C109 NCB31CK-104X CAPACITOR 0.1µF,16V
C110 X-E5EZU2470M E CAPACITOR 47µF,16V
C112 QEKJ0JM-227Z E CAPACITOR 220µF,6.3V
C114 NCB31CK-104X CAPACITOR 0.1µF,16V
C115 X-E524U1330D E CAPACITOR 33µF,10V
C116 NCF31EZ-104X CAPACITOR 0.1µF,25V
C117 NCB31HK-103X CAPACITOR 0.01µF,50V
C118 NCB31HK-103X CAPACITOR 0.01µF,50V
C119 X-E524U2100D E CAPACITOR 10µF,16V
C120 X-E524U5010D E CAPACITOR 1µF,50V
C121 NCB31HK-272X CAPACITOR 0.0027µF,50V
C122 NCB31HK-122X CAPACITOR 0.0012µF,50V
C123 X-E02LU54R7M E CAPACITOR 4.7µF,50V
C124 X-E524U5010D E CAPACITOR 1µF,50V
C125 X-CS0PCH4N2J CAPACITOR 390pF,50V
C126 NCB31CK-104X CAPACITOR 0.1µF,16V
C127 X-CS0PCH4G2J CAPACITOR 180pF,50V
C129 X-CS0RB0216K CAPACITOR 1µF,16V
C131 X-E524U0101D E CAPACITOR 100µF,6.3V
C132 QEKJ1HM-105Z E CAPACITOR 1µF,50V
C133 NCF31HZ-105X CAPACITOR 1µF,10V
C134 QEKJ1HM-105Z E CAPACITOR 1µF,50V
C135 X-E02LU5R22M E CAPACITOR 0.22µF,50V
C136 QETN1VM-226Z E CAPACITOR 22µF,35V
C137 X-E524U5010D E CAPACITOR 1µF,50V
C138 QETN1HM-105Z E CAPACITOR 1µF,50V
C139 NCF31EZ-104X CAPACITOR 0.1µF,25V
C140 X-E00NU54R7M E CAPACITOR 4.7µF,50V
C141 NCB31HK-103X CAPACITOR 0.01µF,50V
C142 X-E524U2470D E CAPACITOR 47µF,16V
C143 NCF31HZ-105X CAPACITOR 1µF,10V
C144 NCB31HK-103X CAPACITOR 0.01µF,50V
C145 X-CS0YB04H4K CAPACITOR 0.022µF,50V
C146 X-E524U5010D E CAPACITOR 1µF,50V
C147 X-CS0YB04H4K CAPACITOR 0.022µF,50V
C148 X-E524U5010D E CAPACITOR 1µF,50V
C151 QEKJ1HM-105Z E CAPACITOR 1µF,50V
C152 QETN1CM-476Z E CAPACITOR 47µF,16V
C154 NCB31CK-104X CAPACITOR 0.1µF,16V
C155 X-CS0RB0216K CAPACITOR 1µF,16V
C156 NCF21HZ-104X CAPACITOR 0.1µF,50V
C158 NCB31CK-104X CAPACITOR 0.1µF,16V
C159 NDC31HJ-220X CAPACITOR 22pF,50V
C162 NCB31CK-104X CAPACITOR 0.1µF,16V
C163 X-E524U0470D E CAPACITOR 47µF,6.3V
C165 NCZ31HZ-473X CAPACITOR 0.047µF,50V
C166 NCB21HK-683X CAPACITOR 0.068µF,50V
C169 NCZ31HZ-473X CAPACITOR 0.047µF,50V
C172 NDC31HJ-220X CAPACITOR 22pF,50V
C174 QEKJ0JM-476Z E CAPACITOR 47µF,6.3V
C301 NCZ31HZ-103X CAPACITOR 0.01µF,50V
C303 NCZ31HZ-104X CAPACITOR 0.1µF,50V
C309 QETN0JM-227Z E CAPACITOR 220µF,6.3V
C313 QEKJ1CM-106Z E CAPACITOR 10µF,16V
C315 QEKJ1CM-106Z E CAPACITOR 10µF,16V
C318 QEKJ1CM-106Z E CAPACITOR 10µF,16V
!C501 X-E5EZF2222M E CAPACITOR 2200µF,16V
!C502 X-P2122B104M CAPACITOR 0.1µF,275V
C504 QETN0JM-227Z E CAPACITOR 220µF,6.3V
!C505 X-E5EZU2101M E CAPACITOR 100µF,16V
C506 X-E5EZU0471M E CAPACITOR 470µF,6.3V
C507 NCF21CZ-2R2X CAPACITOR 2.2µF,16V
C508 NCB31HK-822X CAPACITOR 0.0082µF,50V
C509 QFN31HJ-183Z F CAPACITOR 0.018µF,50V
C510 X-E5EZU5220M E CAPACITOR 22µF,50V
!C511 X-E62QFC470M E CAPACITOR 47µF,200V
C512 NCF31HZ-105X CAPACITOR 1µF,10V
C513 X-C0PLRR7H2K CAPACITOR 220pF,2KV
!C514 X-E5EZU2101M E CAPACITOR 100µF,16V
!C515 QCB12HK-103 CAPACITOR 0.01µF,500V
!C516 X-CD39E0MQ3M CAPACITOR 0.0047µF,250V
C517 NCF31HZ-105X CAPACITOR 1µF,10V
!C518 QECP0JM-228 E CAPACITOR 2200µF,6.3V
!C519 X-E5EZ01222M E CAPACITOR 2200µF,10V
!C521 X-E5EZU2101M E CAPACITOR 100µF,16V
!C522 X-E5EZU5220M E CAPACITOR 22µF,50V
C524 X-CS0YB04H4K CAPACITOR 0.022µF,50V
C525 X-C0PLRR7U2K CAPACITOR 680pF,2KV
C527 NCB31HK-822X CAPACITOR 0.0082µF,50V
C528 X-E5EZU2101M E CAPACITOR 100µF,16V
C530 X-E5EZU2101M E CAPACITOR 100µF,16V
C531 QCB32HK-561Z CAPACITOR 560pF,500V
C534 NCF31HZ-105X CAPACITOR 1µF,10V
!C540 X-E62QFC470M E CAPACITOR 47µF,200V
C541 NCF21CZ-2R2X CAPACITOR 2.2µF,16V
C652 QETN0JM-107Z E CAPACITOR 100µF,6.3V
C653 QETL1AM-477 E CAPACITOR 470µF,10V
C701 X-CS0YB04H4K CAPACITOR 0.022µF,50V
C702 X-E524U53R3D E CAPACITOR 3.3µF,50V
C703 X-E02LU54R7M E CAPACITOR 4.7µF,50V
C704 X-E524U5010D E CAPACITOR 1µF,50V
C705 QEKJ1HM-475Z E CAPACITOR 4.7µF,50V
C706 X-E524U5010D E CAPACITOR 1µF,50V
C707 NCB31CK-104X CAPACITOR 0.1µF,16V
C708 QEKJ1CM-106Z E CAPACITOR 10µF,16V
C709 X-E50HU5100M E CAPACITOR 10µF,50V
C711 X-E50HU5100M E CAPACITOR 10µF,50V
C713 NCF31HZ-105X CAPACITOR 1µF,10V
