COMPACT COMPONENT SYSTEM
INSTRUCTIONS
XL-V130BK/XL-V230BK
COMPACT DISC PLAYER
'
XL-V230BK
XL-V130BK
COMPACT
DIGITALAUDIO
RM-SX230EU REMOTE CONTROL
123
CANCEL RANDOM
4567
8 9 10 +10
OPEN /
CLOSE
PROGRAM
AUTO SEARCH / CHECK
SEARCH
REPEAT DISPLAY INDEX
ALL / 1 MODE
STANDBY
XL-V130 COMPACT DISC PLAYER
STANDBY/ON
PROGRAM RANDOM REPEAT CANCEL
OPEN / CLOSE STOP/CLEAR PLAY / PAUSE
6 7 8 9 10 +10
/
1 2 3 4 5
/
Pulse Edge Modulation Differential Linearity Errorless D/A Converter
P E M D D CONVERTER CONVERTER
STANDBY
XL-V230 COMPACT DISC PLAYER
STANDBY/ON
PROGRAM RANDOM REPEAT CANCEL
OPEN / CLOSE STOP/CLEAR PLAY / PAUSE
6 7 8 9 10 +10
/
1 2 3 4 5
/
Pulse Edge Modulation Differential Linearity Errorless D/A Converter
P E M D D CONVERTER CONVERTER
XL-V130/230[BS]COVER 97.3.7, 3:55 PM1

G-1
IMPORTANT FOR LASER PRODUCTS
REPRODUCTION OF LABELS
1CLASSIFICATION LABEL, PLACED ON REAR ENCLOSURE
2WARNING LABEL, PLACED INSIDE THE UNIT
CLASS 1
LASER PRODUCT


1. CLASS 1 LASER PRODUCT
2. DANGER:Invisiblelaserradiationwhenopenandinterlockfailedor
defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user service-
able parts inside the Unit; leave all servicing to qualified service
personnel.
IMPORTANT for the U.K.
DO NOT cut off the mains plug from this equipment. If the plug
fitted is not suitable for the power points in your home or the cable
is too short to reach a power point, then obtain an appropriate
safety approved extension lead or consult your dealer.
BE SURE to replace the fuse only with an identical approved type,
as originally fitted.
If nontheless the mains plug is cut off ensure to remove the fuse
and dispose of the plug immediately, to avoid a possible shock
hazard by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains plug then follow
the instructions given below:
IMPORTANT.
DO NOT make any connection to the terminal which is marked with
the letter E or by the safety earth symbol or coloured green or
green-and-yellow.
The wires in the mains lead on this product are coloured in
accordance with the following code:
Blue : Neutral
Brown : Live
As these colours may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows:
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
Warnings, Cautions and Others
DANGER: Invisible laser
radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE
TO BEAM. (e)
ADVARSEL: Usynlig laser-
stråling ved åbning, når
sikkerhedsafbrydere er ude
af funktion. Undgå udsæt-
telse for stråling (d)
VARNING: Osynlig laser-
strålning när denna del är
öppnad och spärren är
urkopplad. Betrakta ej
strålen. (s)
VARO: Avattaessa ja suo-
jalukitus ohitettaessa olet
alttiina näkymättömälle
lasersäteilylle. Älä katso
säteeseen. (f)
Caution –– POWER switch!
Disconnect the mains plug to shut the power off completely. The
POWER switch in any position does not disconnect the mains line.
The power can be remote controlled for XL-V230BK.
XL-V130/230 BS Safety * 2 97.3.7, 4:07 PM1

Page 16
WewouldliketothankyouforpurchasingoneofourJVC
products.
Beforeconnecting thisunit tothe walloutlet, pleaseread
the instructions carefully to ensure that you obtain the
best possible performance.
If you have any questions, please consult your JVC
dealer.
Table of contents
INTRODUCTION................................................ 1
Precautions .................................................................1
About this manual .......................................................1
Names of buttons ........................................................2
BEFORE USING FOR THE FIRST TIME .......... 4
Installing the unit .........................................................4
Connecting to other equipments ................................4
Supplying the power .................................................. 5
To connect the AC power cord of the main unit ............ 5
Installing the batteries .................................................6
To install the batteries in the remote control unit ........... 6
COMPU LINK connection ...................................................... 6
BASIC OPERATIONS ....................................... 7
Basic functions for disc playback ...............................7
Turning on the power of this unit .................................... 7
Loading a disc in the disc tray ....................................... 7
Remote control operation ............................................... 7
Playing a disc ................................................................. 8
Stopping playback ......................................................... 8
Locating a point to start playback ..............................8
Skipping to a desired track ............................................ 8
Skipping to a desired index ........................................... 8
Searching for a desired section ..................................... 9
Specifying a desired track ............................................. 9
Displaying the time .....................................................9
Switching the time display on XL-V230BK ..................... 9
Displaying the time on XL-V130BK ................................ 9
VARIOUS PLAYBACK PATTERNS ............... 10
Playing tracks in a desired order .............................. 10
Playing tracks in a random order .............................. 10
Playing repeatedly .................................................... 11
Repeating whole disc ................................................... 11
Repeating one track ..................................................... 11
GENERAL INFORMATIONS........................... 12
COMPU LINK remote control system ....................... 12
Care and handling .................................................... 13
Troubleshooting ........................................................ 14
Specifications............................................................ 15
XL-V130BK [BS] EN 97.3.7, 4:12 PM16

Page 1
Load compact disc only
Never insert anything other than a compact disc into any part of the
player.
If a problem persists
If something goes wrong, turn off the power immediately. If the same
problem reoccurs when the power is turned on once more, turn off the
power again and consult your JVC dealer.
Handling the power cord
When unplugging from the wall socket, always pull the plug body,
never the power cable.
Volume settings
A CD player has almost zero background noise. Because of this, the
technique of listening to the background level and then setting the
volume before the music starts, as used with analog turntables or tape
decks, cannot be used. If you raise the volume level too high, speaker
damage may result.
Condensation
The CD player uses optical components. If it is moved from a cold
location to a warm one, or is used in a room subject to excessive
humidity or where a fire has just been lit, condensation could form on
the optical components.
This may prevent the laser beam from being properly transmitted and
thus causes noise or even a malfunction.
If condensation has formed and the CD player does not function
correctly, we recommend that you leave it turned on for an hour or two.
If at the end of this time the CD player still does not function properly,
please consult your JVC dealer.
Transporting the unit
When carrying this unit, it is best to avoid either tilting it or turning it
upside-down. Where you cannot avoid doing so, please remove the
disc first.
Using compact discs
Compact discs are made of plastic and can be easily damaged. If the
disc is dirty, scratched, warped or otherwise damaged, the digital
information may not be picked up correctly.
Applicable discs
This unit can only be used with compact discs bearing the mark below.
Never use discs of other types.
This manual covers the operating instructions for the compact disc
player XL-V130BK and XL-V230BK.
There are several functions which require separate instructions for
each model. Please check the model number stated on the carton box,
and follow the descriptions applicable to your unit.
This manual is organized as follows:
The first part, “INTRODUCTION”, gives you the precautions when
using this unit, and shows you the names of buttons on the main unit
and the remote control unit.
The second part, “BEFORE USING FOR THE FIRST TIME”, tells you
what kind of operations you should do before playing a disc. This part
describes where to place the unit for best results, how to install
batteries in the remote control unit and how to connect this unit to the
amplifier/receiver and other components.
The third part, “BASIC OPERATIONS”, describes how to load a disc,
and convenient basic functions for playing disc.
The fourth part, “VARIOUS PLAYBACK PATTERNS”, describes vari-
ous functions for playing disc, and convenient functions for recording.
The fifth part, “GENERAL INFORMATIONS”, describes the COMPU
LINK remote control system which facilitates various operations be-
tween JVC components, and explains how to take care of discs.
This part also includes “Troubleshooting” which tells you how to check
the unit when a malfunction occurs, and the technical informations
regarding this unit.
Precautions
INTRODUCTION
About this manual
'
XL-V130BK [BS] EN 97.3.7, 4:11 PM1

Page 2
STANDBY
XL-V230 COMPACT DISC PLAYER
STANDBY/ON
PROGRAM RANDOM REPEAT CANCEL
OPEN / CLOSE STOP/CLEAR PLAY / PAUSE
/
/
1 2 3 4 5
6 7 8 9 10 +10
Pulse Edge Modulation Differential Linearity Errorless D/A Converter
P E M D D CONVERTER CONVERTER
COMPULINK-3
(SYNCHRO)
OUTPUT
LEFT
RIGHT
AC POWER CORD
Names of buttons
INTRODUCTION
Numeric keypad
remote sensor
(XL-V230BK Only)
AC power cord inlet
: (STANDBY ON) button
STANDBY
indicator
Display window
Disc tray
COMPULINK-3(SYNCHRO)jacks
OUTPUT jacks
4¢ AUTO SEARCH/CHECK buttons
22 33 SEARCH buttons
3/8PLAY/PAUSE
button
7STOP/CLEAR
button
PROGRAM button
RANDOM button
random play back button
REPEAT button
CANCEL button
Main unit
0OPEN/CLOSE button
XL-V130BK [BS] EN 97.3.7, 4:11 PM2

Page 3
123
CANCEL RANDOM
4567
8 9 10 +10
REPEAT DISPLAY INDEX
OPEN /
CLOSE
ALL / 1 MODE
COMPACT
DIGITAL AUDIO
AUTO SEARCH / CHECK
SEARCH
RM-SX230EU REMOTE CONTROL
PROGRAM
: STANDBY/ON button
INTRODUCTION
Remote control unit (XL-V230BK only)
RANDOM: random
playback button
Remote control signal
transmitter
CANCEL button
Numeric keypad
OPEN/CLOSE button
DISPLAY MODE:
switching time dis-
play button
REPEAT ALL/1 button
1/¡SEARCH buttons
ø/ØINDEX buttons
4/¢AUTO SEARCH/CHECK buttons
8:Pause button
7:Stop button
3:Play button
PROGRAM button
XL-V130BK [BS] EN 97.3.7, 4:11 PM3

Page 4
BEFORE USING FOR THE FIRST TIME
Connecting to other
equipments
Installing the unit
Best location
Select a location which is level, dry and neither too cold nor too hot
(temperature range 5°C (41°F) to 35°C (95°F)). Also, avoid dusty
locations or any location subject to vibration.
If interference occurs
If this equipment is placed near a tuner or a radio receiver tuned to AM
frequencies, interference may occur. If this happens, we recommend
either that you move this unit as far away as possible from the tuner or
receiver or briefly turn off the power to this unit.
Connecting to an amplifier or receiver allows you to listen to the sound
from the speakers.
Connect the OUTPUT jacks of this unit to the line input jacks of an
amplifier or receiver with the supplied audio cord.
Notes
÷ Never connect the OUTPUT jacks to the PHONO jacks of the
amplifier or receiver. This may cause damage to the components.
÷ Make sure that the same channels are connected between this unit
and the amplifier or receiver: LEFT to LEFT and RIGHT to RIGHT.
÷ Do not connect the power plug until all connections are complete.
÷ Connect the plugs firmly. Loose connections may cause noise or
malfunction.
Rear panel of this unit
Speaker unit
Amplifier or receiver
Audio cord
COMPULINK-3
SYNCHRO
OUTPUT
LEFT
RIGHT
AC POWER CORD
OUTPUT
LEFT
RIGHT
XL-V130BK [BS] EN 97.3.7, 4:11 PM4

Page 5
COMPULINK-3
(SYNCHRO)
OUTPUT
LEFT
RIGHT
AC POWER CORD
BEFORE USING FOR THE FIRST TIME
Supplying the power
To connect the AC power cord of the
main unit
The AC power cord is supplied separately and must be connected to
the unit.
Plug the AC power cord into the AC POWER CORD inlet of this unit and
connect to the wall outlet after all connections are complete.
Note
WhenusingtheCOMPULINKRemoteControlSystem,donotconnect
the power cord to the SWITCHED AC OUTLET of an amplifier or
receiver.
Rear panel of this unit
Supplied AC power
cord
AC power cord inlet
To the wall outlet
XL-V130BK [BS] EN 97.3.7, 4:11 PM5

Page 6
JVC’s COMPU LINK Remote Control System provides unified control
over system components connected with COMPU LINK. Connecting
JVC audio components with the COMPU LINK jacks automatically
controls relative operations between components and facilitates vari-
ous operations. With the COMPU LINK connection to an amplifier or
receiver, you can operate XL-V130BK/XL-V230BK with the amplifier or
receiver’s remote control unit. Synchronized recording is also avail-
able with this feature.
Connecting the COMPU LINK cord
The COMPU LINK-3 SYNCHRO jacks are used to output and input the
control signal for the COMPU LINK remote control system.
COMPULINK-compatibleproducts are providedwiththejacksmarked
COMPU LINK-1, COMPU LINK-2 or COMPU LINK-3, referring to the
COMPU LINK version. XL-V130BK/XL-V230BK is equipped with
COMPU LINK-3. You can connect XL-V130BK/XL-V230BK also to a
component with a lower COMPU LINK versions. But, in that case, only
the lower versions’ features will be available.
PlugthesuppliedCOMPULINKcordintotheCOMPULINK-3SYNCHRO
jack on the rear panel of XL-V130BK/XL-V230BK. Plug the other end
into the COMPU LINK jack of the other component. If there are two
COMPU LINK jacks, plug it into either of them.
ConnectingtheCOMPULINKsystemcomponentswiththeCOMPU
LINK cords
Cassette deck Turntable
Supplied COMPU LINK cord
CD player
Amplifier or receiver
To install the batteries in the remote
control unit
Before operating the remote control unit, install two batteries.
1. Remove the rear cover of the remote control unit by pressing
down and simultaneously pulling it backwards.
2. Install batteries. Be sure that the batteries are installed with
correct polarity, (+) and (–).
3. Attach the rear cover by sliding it back into position.
BEFORE USING FOR THE FIRST TIME
Notes
Incorrect use of batteries can cause corrosion or damage. Note the
following points to lengthen battery life.
÷ Install batteries observing the correct polarity, (+) and (–).
÷ Do not use new and old batteries simultaneously.
÷ Batterieswithsimilarshapesmayhave differentvoltageratings. Be
sure to use the correct batteries.
÷ Remove batteries from the remote control unit if it will not be used
for a long period of time.
÷ Do not expose batteries to heat or flame.
Battery replacement
Service life of batteries depends on the condition of use; standard life
is about one year. When the batteries become weak, the operating
distance of the remote control unit becomes short . If this happens,
replace the batteries R03(UM-4)/AAA(24F) with new ones.
Note
÷ The lower the temperature, the shorter the battery life.
COMPU LINK connection
Installing the batteries
(XL-V230BK Only)
XL-V130BK [BS] EN 97.3.7, 4:11 PM6

Page 7
STANDBY/ON
STANDBY
BASIC OPERATIONS
Basic functions for disc
playback
Main unit
Loading a disc in the disc tray
Use the 0OPEN/CLOSE button to open and close the disc tray.
1. Open the disc tray by pressing the 0OPEN/CLOSE button.
2. Place a disc on the disc tray according to the groove with its
label side up.
3. Close the disc tray by pressing the 0OPEN/CLOSE button.
Note
÷ Whenloadingadiscinthedisctray,besuretoputthediscaccording
to the groove. Otherwise, the disc will be damaged when the disc
tray is closed, and the disc cannot be removed from the unit.
OPEN/
CLOSE
Main unit
Good No Good
Remote control operation (XL-V230BK Only)
Point the remote control unit towards the remote sensor and operate it
steadily and carefully. The remote control unit can be used within a
range of about 7 meters (23 feet) from the remote sensor, and at angles
of up to about 30 degrees.
Turning on the power of this unit
Press the (STANDBY/ON) button to turn on this unit. The
STANDBY indicator is turned off and the display is turned on.
Press again to turn the power off and activate the standby mode. The
STANDBY indicator is lit.
The power is automatically turned on also by;
÷Pressing the 0OPEN/CLOSE button.
÷Pressing the 3button on the remote control unit or the 3/8PLAY/
PAUSE button on the main unit.
Notes
÷ Asmall amountof power (4watts) isconsumed evenin thestandby
mode.
÷ Toturnthepoweroffcompletely,disconnectthepowercordfromthe
wall outlet.
OPEN/CLOSE
0
Compact disc
Disc tray
Main unit
Remote control unit
(XL-V230BK ONLY)
Remote control unit
(XL-V230BK ONLY)
XL-V130BK [BS] EN 97.3.7, 4:11 PM7

Page 8
BASIC OPERATIONS
Locating a point to start
playback
Main unit
4¢
AUTO SEARCH/CHECK
Main unit
Remote control unit
INDEX
øØ
Main unit
STOP/CLEAR
Playing a disc
Press the 3button on the remote control unit or the 3/8PLAY/
PAUSE button on the main unit.
The 3indicator lights on the display and playback starts.
When no disc is loaded in the unit, the disc tray opens.
To stop playback temporarily, press the 8button on the remote control
unit or the 3/8PLAY/PAUSE button on the main unit.
The 8indicator lights on the display and playback stops temporarily.
To resume playback, press the 3button on the remote control unit or
the 3/8PLAY/PAUSE button on the main unit.
Stopping playback
Press the 7button.
Skipping to a desired track
Use the 4/¢buttons.
To skip back to the beginning of the track being played, tap the 4
button. When the beginning of the track is reached, tapping this button
again skips to the previous track.
To skip to the next track, tap the ¢button.
When using the 4¢ buttons on the main unit, tap them until the
desired track appears.
Skipping to a desired index (XL-V230BK Only)
(for a disc with INDEX)
Use the ø/ØINDEX buttons.
To skip back to the beginning of the index being played, tap the ø
INDEX button. When the beginning of the index is reached, tapping
this button again skips to the previous index.
To skip to the next index, tap the ØINDEX button.
6
PLAY/PAUSE
Remote control unit
(XL-V230BK ONLY)
Remote control unit
(XL-V230BK ONLY)
Remote control unit
(XL-V230BK ONLY)
XL-V130BK [BS] EN 97.3.7, 4:12 PM8

Page 9
BASIC OPERATIONS

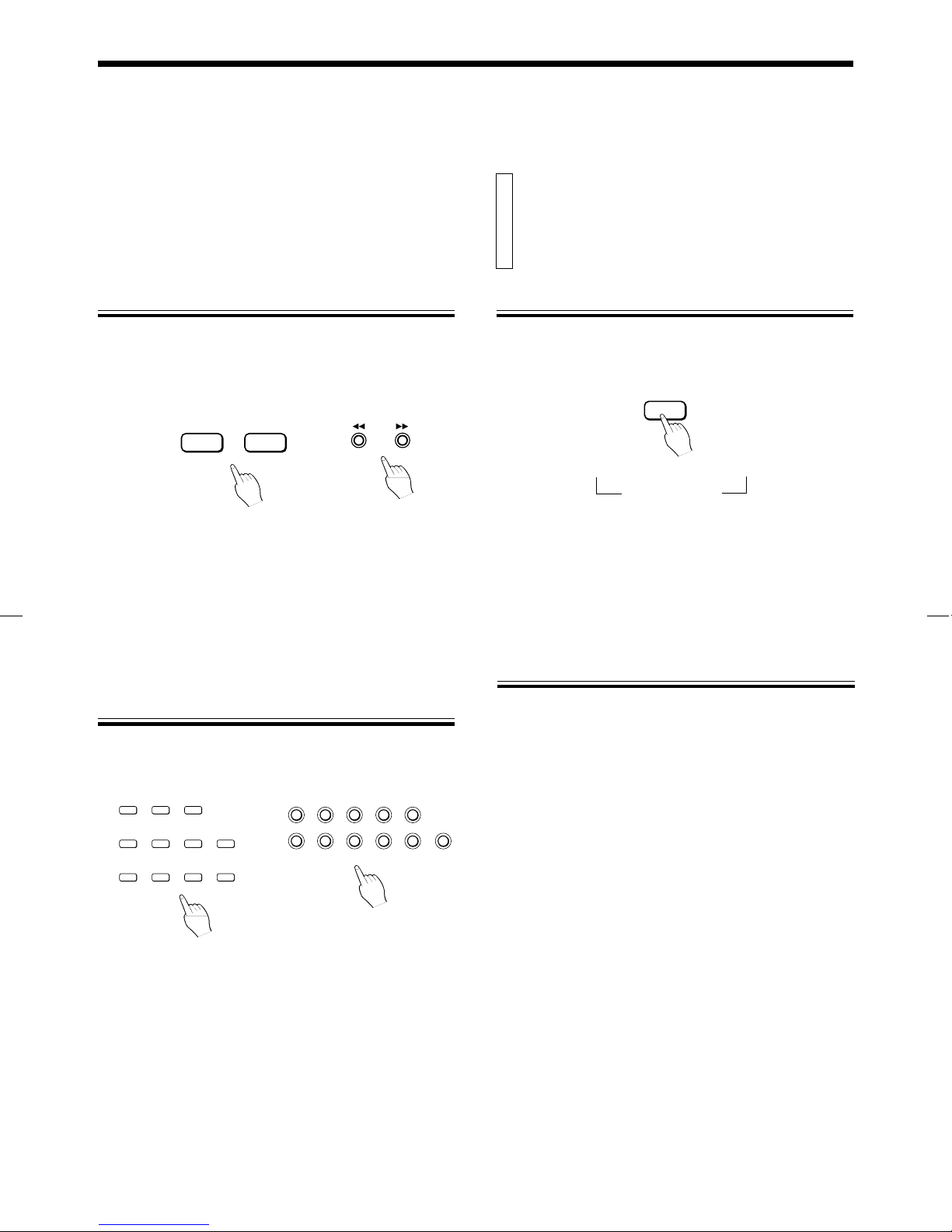

Searching for a desired section
Keep the 1/¡SEARCH buttons on the remote control unit or
the 22 /33 SEARCH buttons on the main unit pressed during
playback.
Playback advances or reverses rapidly.
While the 1button is kept pressed, playback rapidly reverses
toward the beginning of the track. While the ¡button is kept
pressed, playback rapidly advances toward the end of the track.
When the desired section is reached, release the button. The player
resumes normal playback from that point.
Note
Two speeds are available for fast forward and fast backward.
Pressing and holding the button provides the faster speed.
Specifying a desired track
To specify the desired track number, use the numeric keypad (1-
10, +10).
The unit searches for the selected track and playback starts automati-
cally.
When selecting track number 10 or less, press the corresponding
numeric button. When selecting track number 11 or above, use the
[+10] button.
Example: To select track number 12, press [+10] and then [2].
To select track number 25, press [+10] twice and then [5].
To select track number 30, press [+10] twice and then [10].
Note
The track number which does not exist on the selected disc, cannot be
selected.
Displaying the time
1¡
SEARCH
Main unit
MODE
Remote control unit
DISPLAY
Swithching the time display on XL-V230BK
Each time the DISPLAY MODE button is pressed, the time display
changes as the following.
The corresponding indicator lights in each time mode.
EACH: Shows the elapsed time of the track being played.
EACHREMAIN:Shows the remaining playback time of the track being
played.
TOTAL: Shows the total playing time of the disc being played.
TOTALREMAIN:Shows theremainingplayback time ofthe disc being
played.
Displaying the time on XL-V130BK
Remote control unit
(XL-V230BK ONLY)
Remote control unit
123
456
8910
7
+10
12345
6789 10 +10
Main unit
(XL-V230BK ONLY)
EACH =EACH REMAIN =TOTAL

TOTAL REMAIN
=
=
EACH: Shows the elapsed time of the track being played.
EACHREMAIN:Shows the remaining playback time of the track being
played.
TOTAL: Shows the total playing time of the disc being played.
The XL-V130BK has the following time displays.
XL-V130BK [BS] EN 97.3.7, 4:12 PM9

Page 10
STANDBY
XL-V230 COMPACT DISC PLAYER
STANDBY/ON
PROGRAM RANDOM REPEAT CANCEL
OPEN / CLOSE STOP/CLEAR PLAY / PAUSE
/
/
1 2 3 4 5
6 7 8 9 10 +10
Pulse Edge Modulation Differential Linearity Errorless D/A Converter
P E M D D CONVERTER CONVERTER
You can select and play tracks in a random order.
Selectionsaremadesothateachtrackinthediscisplayedonly
once.
1. Press the RANDOM button so that the "RANDOM" indicator
lights on the display.
÷To skip to the track to be played next, press the ¢button.
To exit random playback
Press the stop button,and the random mode is cancelled.
You can play only the favorite tracks in any desired order.
1. In stop mode, press the PRAGRAM button so that "PRGM"
lights on the display.
2. Select the track number with the numeric keypad.
Refer to “Specifying a desired track” on page 9 for entering the
track number.
The selected track number is programmed and the following
display appears.
÷If you want to cancel the displayed program step, press the
CANCEL button and then enter the new track number.
3. Repeat step 2 for other tracks to be programmed.
You can program up to 32 tracks.
4. Start playback by pressing the 3button.
The programmed tracks are played in the programmed order.
÷You can skip to a desired program step with the 4or ¢button.
÷You can add tracks in the program during the playback.
To check the program contents
Press the 4or ¢button during stop mode. Each time the 4or
¢button is pressed, the program contents are displayed in the
programmed order or the reverse order.
To clear the entire program
In stop mode, press the 7STOP/CLEAR button on the main unit. The
program contents will be cleared, however, the program mode is not
canceled.
To exit program mode
Press the PROGRAM button again, and the program mode is can-
celled.
VARIOUS PLAYBACK PATTERNS
Playing tracks in a
random order
Playing tracks in a
desired order
CANCEL
Numeric keypad
Display shows the track
number selected for step 1.
RANDOM
3
STEP
9
PLAY
PROGRAM
PRGM TOTAL
main unit
RANDAM
3PLAY
Numeric keypad
CANCEL
PROGRAM main unit
XL-V130BK [BS] EN 97.3.7, 4:12 PM10

Page 11
VARIOUS PLAYBACK PATTERNS
Playing repeatedly
You can repeatedly play the whole disc or one track.
It is also possible to utilize this function in combination with
random/program playback function.
Repeating whole disc
Press the REPEAT (ALL/1) button so that the REPEAT indicator
lights on the display.
All tracks are played repeatedly.
Repeating one track
Press the REPEAT (ALL/1) button so that the REPEAT 1 indicator
lights on the display.
The displayed track is played repeatedly.
To cancel repeat mode
Press the REPEAT (ALL/1) button so that the REPEAT and REPEAT 1
indicators go out.
REPEAT ALL/1
main unit
REPEAT
XL-V130BK [BS] EN 97.3.7, 4:12 PM11

Page 12
GENERAL INFORMATIONS
COMPU LINK remote
control system
The COMPU LINK Remote Control System controls relative
operations between components automatically and facilitates
various operations.
This is a system originated and developed by JVC for facilitating
various system operations.
The following is a brief explanation of this system:
Automatic source selection
When the supplied COMPU LINK cord is utilized to connect this unit to
others equipped with COMPU LINK jacks, switching-in of each system
component can be performed with a single touch on the source
selector button located on a JVC amplifier or receiver.
When selection is carried out in this manner, the corresponding unit will
automatically start operation.
Upon pressing of the play button, the source selector of the amplifier
or receiver changes automatically. When a new unit is switched in, the
previously selected component stops operation within five seconds.
Synchronized recording
Synchronized recording refers to the process in which a JVC cassette
deck starts recording, synchronized with this unit. Synchronized
recording is carried out as follows:
1. Set the cassette deck to the recording pause mode in accordance
with its instructions.
2. To record only certain tracks, program the tracks in any order, as
desired.
3. Press the 3/8PLAY/ PAUSE button on the front panel of this unit.
The cassette deck automatically starts recording, synchronized
with this unit.
Notes
÷ Synchronized recording stops automatically when this unit stops
playback.
÷ To cancel synchronized recording, press the 7 STOP button of this
unit or the cassette deck.
÷ To properly operate the synchronized recording, the buttons/con-
trols other than POWER, 7 STOP and OPEN do not function.
÷ Ifthe recording pausemode is seton the cassettedeck by pressing
the
8 PAUSE button afterpressing the ¶ REC and 3 PLAY buttons
simultaneously,synchronizedrecordingisnotpossible. Fordetails,
refer to the instructions for the cassette deck.
Automatic power on/off function
This function is to control the power on/off of the receiver/amplifier or
this unit respectively as the following.
÷When this unit enters playback mode, the power of the receiver or
amplifier is turned on.
÷When the source selector of the receiver/amplifier is set to CD
function mode, the power of this unit is turned on.
Notes
÷ Abnormaloperationmayresultifthepowersupplyofthecomponent(s)
is interrupted. If this happens, you must start over again.
÷ Ensure that the COMPU LINK jacks of the each component are
connected with the supplied COMPU LINK cord. Also, be sure to
fully read the instructions for each component.
÷ When the power of the amplifier or receiver is switched off, this unit
is also turned off automatically.
XL-V130BK [BS] EN 97.3.7, 4:12 PM12

Page 13
How to handle CDs
When handling compact discs, do not touch the surface of the disc (re-
flective silver side - the side without the label).
Since compact discs are made of plastic, they are easily damaged. If
the disc gets dirty, dusty, scratched or warped, the sound will not be
picked up correctly and, in addition, such discs may cause the CD
player to malfunction.
Maintenance of discs
When there are fingerprints or other dirt adhering to a disc, wipe the
disc with a soft, dry cloth with a movement going from the inside
outwards.
If difficult to clean, wipe the disc with a cloth moistened with water.
Never use record cleaners, petrol, alcohol or any anti-static agents.
Care and handling
GENERAL INFORMATIONS
Even on label side
Do not damage the label side, stick paper to or use any adhesive on
this surface.
Storage
Make sure that discs are kept in their cases. If discs are piled one on
top of another without their protective cases, they can be damaged.
Do not put discs in any location where they can be exposed to direct
sunlight - or in any place where humidity or temperature is high. Avoid
leaving discs in your car!
XL-V130BK [BS] EN 97.3.7, 4:12 PM13

Page 14
What appears to be a malfunction may not always be serious. Please go through the following list before requesting service.
The unit is not operative.
The remote control unit does not function.
(XL-V230BK only)
Playback is not possible.
The reproduced sound includes noise.
The sound is intermittent.
Connect the plug to an AC outlet.
Connect the plug to an AC power
cord inlet.
Load a disc in the disc tray.
Replace both batteries.
Remove the obstacle.
Shade the unit from the direct sunlight.
Load a disc with its label-side up in the
disc tray.
Load the disc according to the groove of
the disc tray.
Leave the unit turned on until the mois-
ture evaporates.
Wipe off the disc surface with a soft
cloth.
Replace the disc with a new one.
Replace the disc with a new one.
Power plug is disconnected from the AC
outlet.
The AC power cord plug is disconnected
from the AC power cord inlet of this unit.
Disc is not loaded.
Batteries are exhausted.
There is an obstacle between remote control
unit and the remote sensor of the main unit.
Direct sunlight shines on the remote sensor
of the main unit.
Disc is inserted upside down.
Disc is not loaded in the correct position.
Moisture is condensed inside the unit.
Disc is dirty.
Disc is warped.
Disc is scratched.
Symptom Possible cause Remedy
Troubleshooting
GENERAL INFORMATIONS
XL-V130BK [BS] EN 97.3.7, 4:12 PM14

Page 15
General
System: Compact disc player
Signal detection system: Non-contact optical system
Sampling frequency: 44.1 kHz
Power requirements AC 230 V , 50Hz
Power consumption: 10watts (POWER ON)
4 watts (STANDBY)
Dimensions (W x H x D): 435 x 101 x 281 mm
Mass: 3.3 kg
Audio performance
Frequency response: 2 Hz to 20,000 Hz (±1 dB)
Dynamic range: More than 98 dB (at 1 kHz)
Signal to noise ratio: More than 106 dB
Total harmonic distortion: Less than 0.0025% (at 1 kHz)
Channel separation: More than 94 dB (at 1 kHz)
Wow and flutter: Less than measurable limit
Output level 2.0Vrms (at 10 kohms)
Accessories
Remote control unit (RM-SX230EU)(XL-V230BK only) .............. 1
Battery R03(UM-4)/AAA(24F) (XL-V230BK only) ....................... 2
Audio cord ................................................................................. 1
COMPU LINK cord .................................................................... 1
AC POWER cord ....................................................................... 1
Design and specifications subject to change without notice.
Specifications
GENERAL INFORMATIONS
XL-V130BK [BS] EN 97.3.10, 5:20 PM15

VICTOR COMPANY OF JAPAN, LIMITED
J
V
C
0397YMYMACJSC
EN
XL-V130/230[BS]COVER 97.3.14, 3:15 PM2
