DVD VIDEO PLAYER
For Customer Use:
EnterbelowtheModelNo.andSerialNo.
which are located on the rear, bottom or
side of the cabinet. Retain this informa-
tion for future reference.
Model No.
Serial No.
SLOW
UP
DOWN
LEFT
CURSOR RIGHT
AMP
VOL TV VOL
TITLE
MENU
TV
ch
AUDIOSUBTITLE
CANCEL
SHIFT
3D PHONIC THEATER
POSITION
PLAY MODE
TV RETURN
DIGEST STROBE ZOOM TIME
TV 0 TV 100+
TV 7 TV 8 TV9
TV 4 TV 5 TV6
TV 1 TV 2 TV3
RETURN
TV/VIDEO
DISPLAY
ANGLE
DISC 2 DISC 3
CHOICE
DISC 1
DVD POWER
TV POWER
456
789
10 +100
REMOTE CONTROL
PLAY
B.SKIP
PAUSE
STOP
ENTER
F.SKIP
B.SEARCH
F.SEARCH
123
'
Introduction 1
Preliminary knowledge 4
Getting started 12
Basic operations 17
Advanced operations 21
Initial settings 36
Additional information 42
INSTRUCTIONS
POWER
DVD PLAYER
STANDBY
SHUTTLE
DVD / VIDEO CD / CD
DVD
3
DVD
2
DVD
1
DISC TITLE CHAP RESUME THEATER
DVD
DIMMER
THEATER
POSITION
3D PHONIC
DIGEST
STROBE
ZOOM
3
2
1
STOP PAUSE PLAY
SKIP
DOLBY
D I G I T A L
EACH
PLAY & EXCHANGE

XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Warnings, Cautions and Others
Mises en garde, précautions et indications diverses
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
For Canada/pour le Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B
LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL
APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING
EQUIPMENT STANDARD ENTITLED "DIGITAL APPARATUS",
ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.
CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE
BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS
NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME
SUR LE MATERIEL BROUILLEUR: "APPAREILS NUMERIQUES",
NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.
For U.S.A.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
For Canada/pour le Canada
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQUAU FOND
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT FOR LASER PRODUCTS
IMPORTANT POUR LES PRODUITS LASER
Caution –– POWER switch!
Disconnect the mains plug to shut the power off completely. The
POWERswitchinanypositiondoes not disconnectthemains line. The
power can be remote controlled.
Attention –– Commutateur POWER!
Déconnecterla fiche de secteur pour couper complètement le courant.
Le commutateur POWER ne coupe jamais complètement la ligne de
secteur,quellequesoitsaposition. Lecourantpeutêtretélécommandé.
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and interlock failed or
defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user service-
able parts inside the Unit; leave all servicing to qualified service
personnel.
1. PRODUIT LASER CLASSE 1
2. ATTENTION: Radiationlaser visible quand l'appareil estouvert ou
queleverrouillageestenpanneoudésactivé.Eviteruneexposition
directe au rayon.
3. ATTENTION: Nepasouvrirlecouvercledudessus.Iln'y a aucune
pièce utilisable à l'intérieur. Laisser à un personnel qualifié le soin
de réparer votre appareil.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
ATTENTION
Afin d'éviter tout risque d'électrocution, d'incendie, etc.:
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de
l'appareil.
2. Ne pas exposer l'appareil à la pluie ni à l'humidité.

Introduction
English
Français
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Table of contents
Introduction
Features .................................................................... 1
Supplied accessories ............................................... 1
About this instruction manual ............................... 2
Notes on handling ................................................... 3
Preliminary knowledge
Names of parts and controls
Front panel ................................................................... 4
Remote control unit .................................................... 5
Display window ........................................................... 7
Rear panel .................................................................... 7
Operational Principles
On-screen displays ...................................................... 8
To prevent the monitor from burning out
[SCREEN SAVER] ...................................................... 9
On-screen guide icons .............................................. 10
How to use numeric buttons.................................... 10
About discs
Playable disc types .................................................... 11
Disc structure ............................................................. 11
Getting started
Connections
Before making any connections .............................. 12
To connect to a TV ..................................................... 12
To connect to a TV with the component video
input jacks ................................................................ 13
To connect to an audio amplifier or receiver ......... 13
To connect to audio equipment with a digital
input ......................................................................... 14
To connect the power cord ....................................... 14
Using the remote control unit
To install batteries in the remote control unit ........ 15
To use the remote control unit for TV operation ... 16
To control the volume of a JVC’s amplifier or
receiver .................................................................... 16
Basic operations
Turning on/off the unit .......................................... 17
Inserting and removing discs ............................... 17
Basic playback
To start playback ....................................................... 18
To stop playback completely ................................... 18
To stop playback temporarily .................................. 18
To advance or reverse playback rapidly while
monitoring ............................................................... 19
To locate the beginning of the scene or song ........ 19
Resuming playback
To memorize the interrupted position .................... 20
To resume playback .................................................. 20
Advanced operations
Playing from a specific position on a disc
To locate a desired scene from the DVD menu ...... 21
To locate a desired scene from the menu of the
Video CD with PBC.................................................. 21
To locate a desired selection using the numeric
buttons ..................................................................... 22
To locate a desired selection using 4or ¢...... 22
To locate a desired scene by specifying the chapter
number [CHAP. SEARCH] ....................................... 23
To locate a desired position in the current title or
track [TIME SEARCH] .............................................. 23
To locate a desired scene from the digest display
[DIGEST] .................................................................. 24
Special picture playback
To advance a still picture frame-by-frame .............. 25
To display still pictures [STROBE] ........................... 25
To playback in slow-motion [SLOW] ....................... 26
To zoom a scene [ZOOM] ......................................... 27
Changing the playback order
To playback in the desired order [PROGRAM] ....... 27
To playback in random order [RANDOM] ............... 28
Repeat playback
To repeat the current selection or all disc contents
[REPEAT] .................................................................. 29
To repeat a desired part [A-B REPEAT] ................... 30
Selecting a scene angle of DVD VIDEO
To select a scene angle from the normal screen
[ANGLE] ................................................................... 31
To select a scene angle from the angle list display
[ANGLE] ................................................................... 31
Changing the language and sound
To select the subtitle language [SUBTITLE] ........... 32
To change the audio language or sound [AUDIO]. 32
Selecting the picture character
To select the picture character
[THEATER POSITION] ............................................. 33
Enjoying virtual surround sound
To simulate surround sound [3D PHONIC] ............. 33
Checking the status
To check the disc/time information ......................... 34
To check the DVD function status ............................ 35
Initial settings
Selecting preferences
How to set preferences ............................................. 36
LANGUAGE page ...................................................... 36
AUDIO page ............................................................... 37
DISPLAY page ............................................................ 38
SYSTEM page ............................................................ 39
Limiting playback by children
To set Parental Lock for the first time
[PARENTAL LOCK] .................................................. 40
To change the settings [PARENTAL LOCK] ............. 41
To temporarily release the Parental lock
[PARENTAL LOCK] .................................................. 41
Additional information
AV COMPU LINK remote control system
Connection and setup ............................................... 42
Operation ................................................................... 43
Care and handling of discs.................................... 43
Troubleshooting ..................................................... 44
Specifications ......................................................... 45
Table of languages and their
abbreviations ......................................... Appendix A
Country code list for parental lock ........ Appendix B
Page 36
Page 42
Page 17
Page 12
Page 4
Page 1
Page 21

Introduction
Introduction
1
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Features
Picture functions
7Strobe function
The unit can display nine continuous still pictures on
the TV screen.
7Digest function
You can select the desired title from the opening
scenes displayed on the TV screen.
7Angle function*
You can select a desired angle from multiple camera
angles recorded on the DVD VIDEO disc.
7Zoom function
You can view scenes close-up.
7Parental lock*
You can restrict the playback of DVD VIDEO discs with
scenes which you do not want children to see, such
as adult or violent films.
7Theater position
You can select the picture character according to the
lighting of your room.
Audio functions
7High quality digital sound
You can enjoy high quality sound with Dolby Digital
or Linear-PCM.
7Surround function*
The unit accommodates the Dolby Digital surround,
DTS surround system. (The DTS surround signal is
output only from the DIGITAL OUT jacks.)
73D Phonic function
You can enjoy surround sound with your 2-channel
system.
Other functions
7Triple disc trays
You can insert up to three discs in the unit and can
playback them continuously.
7Multi-language subtitles and sound*
You can select a subtitle or sound language from those
recorded on the DVD VIDEO disc.
7Multi-disc playback
You can enjoy Audio CD discs and Video CD discs, as
well as DVD VIDEO discs.
7Operation from the on-screen display
User-friendly on-screen displays allow you to operate
the unit easily.
Functions with (*) mark only work on a DVD VIDEO disc
that is compatible with each function.
Supplied accessories
• Audio/video cable (x 1)
• S-video cable (x 1)
• AV compulink cord (x 1)
• Remote Control Unit (x 1)
SLOW
UP
DOWN
LEFT
CURSOR
RIGHT
AMP
VOL TV
VOL
TITLE
MENU
TV
ch
AUDIOSUBTITLE
CANCEL
SHIFT 3D PHONIC THEATER
POSITION
PLAY MODE
TV RETURN
DIGEST STROBE ZOOM TIME
TV 0 TV100+
TV 7 TV 8 TV 9
TV 4 TV 5 TV 6
TV 1 TV 2 TV 3
RETURN
TV/VIDEO
DISPLAY
ANGLE
DISC 2 DISC 3
CHOICE
DISC 1
DVD POWER
TV POWER
456
789
10 +100
REMOTE CONTROL
PLAY
B.SKIP
PAUSE
STOP
ENTER
F.SKIP
B.SEARCH
F.SEARCH
123
¢
4
3
7
8
• R6P(SUM-3)/AA(15F) batteries (x 2)
• Instruction manual (x 1)
• AC power cord (x 1)
Introduction

Introduction
Introduction
2
English
Français
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Advanced operations
28
Advanced
operations
English
Français
7 While stopped
1
Press PLAY MODE - CANCEL.
The play mode menu appears on the TV screen.
2
Use CURSOR 2/3to move to
[RANDOM].
The “RANDOM” indicator appears in the display
window on the front panel.
3
Press ENTER.
The unit starts random playback of the selected
disc.
When all titles/tracks of the disc have been played
once, the unit starts random playback of the next
disc (if inserted). After playing all titles/tracks of
the second disc, the unit starts random playback
of the third disc (if inserted). After playing all
titles/tracks of all the discs, random playback
ends.
The same title or track will not be played back more than once
during random play.
• To stop/quit random playback in the middle
Press STOP to stop playback. The unit is still in
random playback mode, so pressing PLAY starts
random playback again.
To quit random playback, press STOP again while
stopped. The “RANDOM” indicator in the display
window turns off.
To playback in random order [RANDOM]
You can play titles or tracks on discs inserted in
random order by using the Random function.
SLOW
UP
DOWN
LEFT
CURSOR RIGHT
AMP
VOL TV VOL
TITLE
MENU
TV
ch
CANCEL
SHIFT
3D PHONIC THEATER
POSITION
PLAY MODE
TV RETURN TV 0 TV 100+
RETURN TV/VIDEO
10 +100
REMOTE CONTROL
PLAY
B.SKIP
PAUSE
STOP
ENTER
F.SKIP
B.SEARCH
F.SEARCH
2
1
3
REPEAT PROGRAM RANDOM
Some DVD VIDEO discs may not be played back correctly
in the random mode.
NOTE

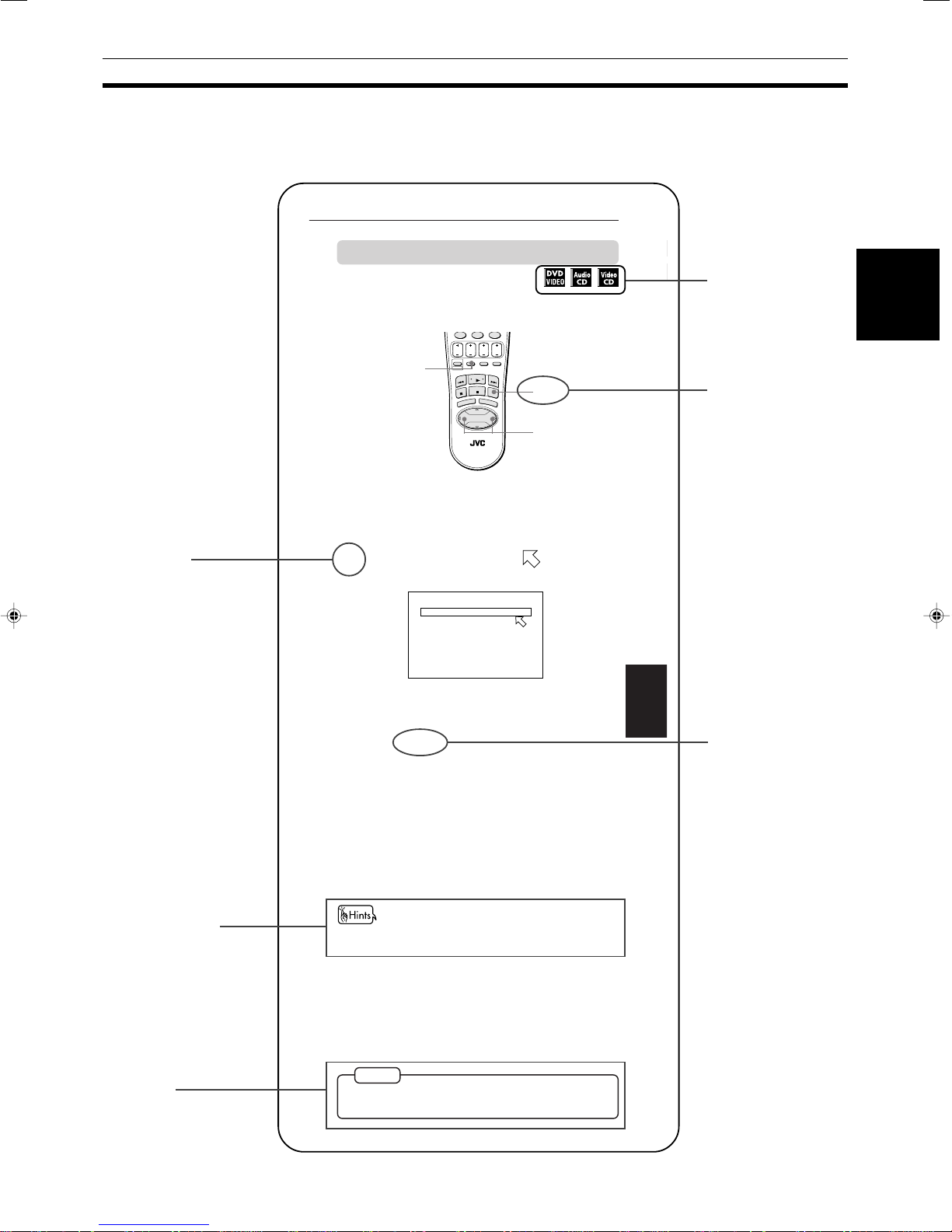

About this instruction manual
This instruction manual basically explains operations as follows:
These symbols
indicate the types of
discs which the
operation can be
used for.
The number
indicates the
following procedural
step(s) in which the
button(s) is(are)
used.
You may also use the
corresponding
buttons on the front
panel of the unit if
available.
The names of
buttons on the
remote control unit
(or on the front panel
of the unit) are all
given in uppercase
letters.
The number
indicates the
procedural step.
Other convenient
procedures, etc.
Additional
supplemental
remarks

Introduction
Introduction
3
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Important cautions
Installation of the unit
• Select a place which is level, dry and neither too hot
nor too cold (between 5˚C and 35˚C, 41˚F and 95˚F).
• Leave sufficient distance between the unit and the TV.
• Do not use the player in a place subject to vibrations.
Power cord
• Do not handle the power cord with wet hands!
• A small amount of power (3.0 watts) is always
consumed while the power cord is connected to the
wall outlet.
• When unplugging the player from the wall outlet,
always pull the plug, not the power cord.
To prevent malfunction of the unit
• There are no user-serviceable parts inside. If
anything goes wrong, unplug the power cord and
consult your dealer.
• Do not insert any metallic object into the unit.
• Do not use any non-standard shape disc available on
the market, because it may damage the unit.
• Do not use a disc with tape, seals, or paste on it,
because damage to the unit may result.
Note about copyright laws
• Please check the copyright laws in your country
before recording from DVD VIDEO, Audio CD, and
Video CD discs. Recording of copyrighted material
may infringe copyright laws.
Note about the copyguard system
• The DVD VIDEO disc is protected by the copyguard
system. When you connect the unit to your VCR
directly, the copyguard system activates and the
picture may not be played back correctly.
Safety precautions
Avoid moisture, water and dust
Do not place the unit in moist or dusty places.
Avoid high temperatures
Do not expose the unit to direct sunlight or place it
near a heating device.
When you’re away
When away on travel or otherwise for an extended
period of time, remove the plug from the wall outlet.
Do not insert foreign objects into the unit
Do not insert wires, hairpins, coins, etc. into the unit.
Do not block the vents
Blocking the vents may damage the unit.
Care of the cabinet
When cleaning the unit, use a soft cloth and follow the
relevant instructions on the use of chemically-coated
cloths. Do not use benzene, thinner or other organic
solvents and disinfectants. These may cause
deformation or discoloring.
If water gets inside the unit
Turn off the power switch and remove the plug from
the wall outlet, then call the store where you made
your purchase. Using the unit in this state may cause a
fire or electrical shock.
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
Manufactured under license from Dolby Laboratories. “Dolby” and double-D symbol are trademarks of Dolby
Laboratories.
Confidential Unpublished Works.
© 1992-1997 Dolby Laboratories, Inc. All rights reserved.
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents
issued and pending. “DTS”, “DTS Digital Surround”, are trademarks of Digital Theater Systems, Inc.
© 1996 Digital Theater Systems, Inc. All Rights Reserved.
Notes on handling

Preliminary knowledge
4
Preliminary
Knowledge
English
Français
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Names of parts and controls
Refer to the corresponding pages indicated in () for details.

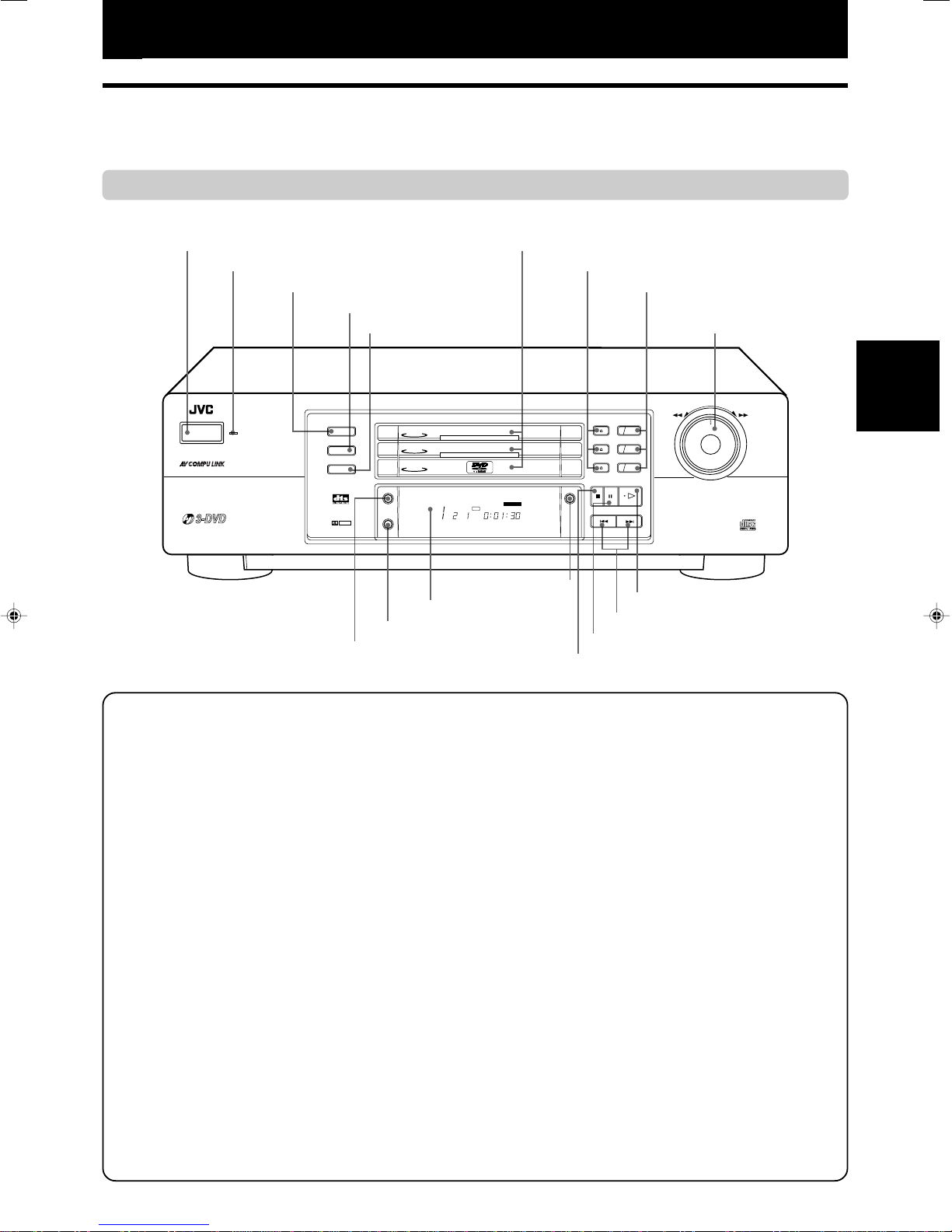

Front panel
Preliminary knowledge
1POWER button (17)
Turns the unit on or off (standby).
2STANDBY indicator
Lights when the power cord is connected and the unit is
on standby. When the unit is turned on, the STANDBY
indicator goes off.
3DIGEST button (for DVD VIDEO/Video CD) (24)
Displays beginning scenes of each title, chapter, or track
on the TV screen.
4STROBE button (for DVD VIDEO/Video CD) (25)
Displays nine continuous still pictures.
5ZOOM button (for DVD VIDEO/Video CD) (27)
Zoom-in for a close-up view of the scene.
6DVD 1 to DVD 3 trays (17)
Used to load discs. To insert/remove a disc, press the 0
(OPEN/CLOSE) button.
70(OPEN/CLOSE) buttons (17)
Used to open and close the corresponding disc trays (1 to
3).
81 through 3 (DISC) buttons with indicators (18)
Used to start playback of the disc in the corresponding tray
with the number indicated on the button (function the same
as the DISC 1 through 3 buttons on the remote control unit).
While playing, the corresponding indicator blinks.
In this manual, we sometimes call them “DISC” buttons.
9SHUTTLE knob (19, 26)
Performs rapid advance/reverse playback operations.
Also used for slow-motion playback of a picture (for DVD
VIDEO/Video CD).
0#(PLAY) button (18)
Starts playback. Also, used as a SELECT button for PBC of
Video CDs.
-4/¢(SKIP) buttons (19)
Used to skip a chapter, title or track.
Also, used for the page selection of a menu screen (for
Video CD).
Holding down 4or ¢during playback reverses or
advances playback rapidly.
=8(PAUSE) button (18)
Pauses playback.
~7(STOP) button (18)
Stops blayback.
!DIMMER button
Dims the display window.
@Display window
Indicates the current status of the unit.
#3D PHONIC button (33)
Produces a simulated surround effect.
$THEATER POSITION button (33)
Selects a picture character from 4 options (for DVD VIDEO/
Video CD).
POWER
DVD PLAYER
STANDBY
SHUTTLE
DVD / VIDEO CD / CD
DVD
3
DVD
2
DVD
1
DISC TITLE CHAP RESUME THEATER
DVD
DIMMER
THEATER
POSITION
3D PHONIC
DIGEST
STROBE
ZOOM
3
2
1
STOP PAUSE PLAY
SKIP
DOLBY
D I G I T A L
EACH
PLAY & EXCHANGE
1POWER button
3DIGEST button
4STROBE button
5ZOOM button
6DVD 1 to DVD 3 trays
70(OPEN/CLOSE) buttons
81 through 3 (DISC) buttons
with indicators
9SHUTTLE knob
0#(PLAY) button
-4/¢(SKIP) buttons
=8(PAUSE) button
~7(STOP) button
!DIMMER button
@Display window
#3D PHONIC button
$THEATER POSITION button
2STANDBY indicator

Preliminary knowledge
5
Preliminary
Knowledge
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Remote control unit
(3(PLAY) button
1DISC 1 - CHOICE, DISC 2 and
DISC 3 buttons
2SUBTITLE - DIGEST button
3AUDIO - STROBE button
4Numeric buttons
5SLOW button
6AMP VOL button
7SHIFT button
94 (B.SKIP) - B. SEARCH button
08 (PAUSE) button
-TITLE button
=CURSOR (5UP, ∞DOWN,
2 LEFT, 3 RIGHT) button
~Infrared signal-emitting window
!DVD POWER - TV POWER button
@DISPLAY - TIME button
#ANGLE - ZOOM button
$TV ch button
%TV VOL button
^TV/VIDEO - THEATER POSITION
button
&RETURN - 3D PHONIC button
*¢(F.SKIP) - F. SEARCH button
)ENTER button
8PLAY MODE - CANCEL button
SLOW
UP
DOWN
LEFT CURSOR RIGHT
AMP
VOL TV VOL
TITLE
MENU
TV
ch
AUDIOSUBTITLE
CANCEL
SHIFT 3D PHONIC THEATER
POSITION
PLAY MODE
TV RETURN
DIGEST STROBE ZOOM TIME
TV 0 TV 100 +
TV 7 TV 8 TV 9
TV 4 TV 5 TV 6
TV 1 TV 2 TV 3
RETURN TV/VIDEO
DISPLAY
ANGLE
DISC 2 DISC 3
CHOICE
DISC 1
DVD POWER
TV POWER
456
789
10 +100
REMOTE CONTROL
PLAY
B.SKIP
PAUSE
STOP
ENTER
F.SKIP
B.SEARCH
F.SEARCH
123
¢
4
3
7
8
_7(STOP) button
+MENU button

Preliminary knowledge
6
Preliminary
Knowledge
English
Français
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
1DISC 1 - CHOICE, DISC 2 and DISC 3 buttons (18)
Used to start playback of a disc in the corresponding tray
(DVD1 through DVD3), as same as the 1 through 3 buttons
on the front panel.
In addition, pressing the DISC 1 button while holding the
SHIFT button brings up the Preference on-screen display
on the TV screen.
2SUBTITLE - DIGEST button (24, 32)
Used to display the subtitle selection display on the TV
screen, as well as used to turn the subtitle on or off (for
DVD VIDEO).
Pressing this button while holding down the SHIFT button
displays beginning scenes of each title, chapter or track on
the TV screen (for DVD VIDEO/Video CD).
3AUDIO - STROBE button (25, 32)
Selects the audio (for DVD VIDEO/Video CD). Pressing this
button while holding down the SHIFT button displays nine
continuous still pictures (for DVD VIDEO/Video CD).
4Numeric buttons (10, 16)
Used to select a title or track number, as well as used to
enter a time for the Time search and a chapter number for
the Chapter search.
Also used to select a TV channel in conjunction with the
SHIFT button.
5SLOW button (26)
Used for slow-motion playback of a picture (for DVD VIDEO/
Video CD).
6AMP VOL button (16)
Used to control the volume of a JVC audio amplifier/
receiver.
7SHIFT button
Used together with other buttons for activating their
secondary functions.
8PLAY MODE - CANCEL button (27~30)
Displays an on-screen display for controlling the advanced
playback functions. Pressing this button while holding
down the SHIFT button cancels the last selection of the
program.
94(B.SKIP) - B. SEARCH button (19, 22)
Skips back a chapter, title or track. Also used for the page
selection of a menu screen (for DVD VIDEO/Video CD).
Holding down this button during playback reverses
playback rapidly.
Pressing the button while holding down the SHIFT button
during playback also reverses playback rapidly. If you press
the button while holding down the SHIFT button during
rapid reverse playback, the speed increases.
08(PAUSE) button (18)
Pauses playback.
-TITLE button (21)
Displays the title menu of a DVD VIDEO disc on the TV
screen.
=CURSOR (5UP, ∞DOWN, 2 LEFT, 3 RIGHT) buttons
Used to select an item form a menu or on-screen display,
or to change the setting of an item in the on-screen display.
~Infrared signal-emitting window
Point this window toward the remote sensor on the front
panel when pressing buttons.
!DVD POWER - TV POWER button (16, 17)
Turns the unit on or off (standby). Pressing this button while
holding down the SHIFT button turns the TV on or off.
@DISPLAY - TIME button (34, 35)
Displays the status information (only for DVD disc) or the
time information (for any disc types). When the time
information appears, pressing this button while holding
the SHIFT button changes the time mode.
#ANGLE - ZOOM button (27, 31)
Changes camera angles during playback of a DVD VIDEO
disc containing multiple camera angles. Pressing this
button while holding down the SHIFT button zooms in the
picture (for DVD VIDEO/Video CD).
$TV ch button (16)
Changes the TV channels.
%TV VOL button (16)
Adjusts the TV volume.
^TV/VIDEO - THEATER POSITION button (16, 33)
Switches the TV input mode.
By pressing the button while holding down the SHIFT
button, you can select the Theater position mode for
matching the picture character to your taste.
&RETURN - 3D PHONIC button (21, 33)
Returns to the previous menu (for DVD VIDEO/VIdeo CD).
By pressing the button while holding down the SHIFT
button, you can select the 3D Phonic mode for simulating
the surround effect.
*¢(F.SKIP) - F. SEARCH button (19, 22)
Skips forward a chapter, title or track. Also used for the
page selection of a menu screen (for DVD VIDEO/Video CD).
Holding down this button during playback advances
playback rapidly.
Pressing the button while holding down the SHIFT button
during playback also advances playback rapidly. If you
press the button while holding down the SHIFT button
during rapid advance playback, the speed increases.
(3(PLAY) button (18)
Starts playback. Also used as a SELECT button for PBC of
Video CDs.
)ENTER button
Executes the selected item in a menu or on-screen display.
_7(STOP) button (18)
Stops playback.
Also used to erase all the programmed tracks for the
program play.
+MENU button (21)
Displays a DVD menu on the TV screen.

Preliminary knowledge
7
Preliminary
Knowledge
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A

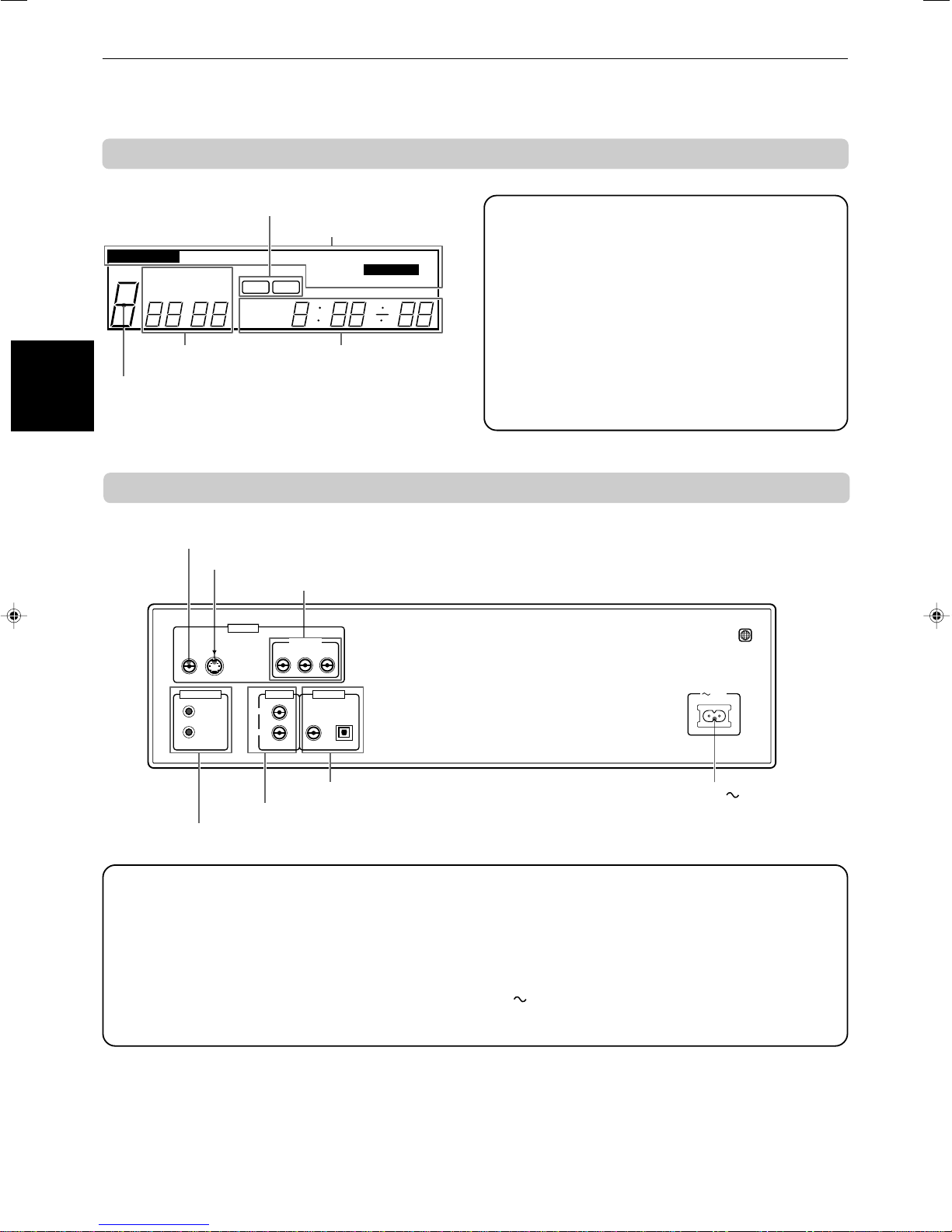

Display window
Rear panel
PCM / STREAM
OPTICALCOAXIAL
Y P B P R
1
AV COMPU LINK
LEFT
RIGHT
AUDIO OUT DIGITAL OUT AC IN
VIDEO S-VIDEO
VIDEO OUT
COMPONENT
7AC IN connector
1VIDEO OUT jack
2S-VIDEO OUT jack
3COMPONENT VIDEO OUT jacks (Y/PB/PR)
4AV COMPU LINK jacks
5AUDIO OUT jacks (LEFT/RIGHT)
6DIGITAL OUT jacks (COAXIAL/OPTICAL)
1VIDEO OUT jack (12)
Outputs a composite video signal.
2S-VIDEO OUT jack (12)
Outputs an S-video signal.
3COMPONENT VIDEO OUT jacks (Y/PB/PR) (13)
Output component video signals.
4AV COMPU LINK jacks (42)
Connects with other JVC equipment supporting the AV
Compulink function to facilitate integrated operations.
5AUDIO OUT jacks (LEFT/RIGHT) (12)
Outputs stereo analog audio signals.
6DIGITAL OUT jacks (COAXIAL/OPTICAL) (14)
Output digital audio signals. Both coaxial and optical
connectors are provided.
You must select the signal type correctly according to the
external device connected to via the preference display.
7AC IN connector (14)
Connects to the wall outlet using the suppplied AC power
cord.
1Disc number indicator
Shows the disc number being selected.
2Title/chapter/track indicator
Displays title/chapter, or track number.
3Time display
Shows the cumulative or remaining time of the track or
disc, or the total disc time.
4Disc indicator
Indicates the type of the disc set in the selected tray. When
a DVD VIDEO or Video CD disc is set, “DVD” or “VCD” is
indicated. When an Audio CD is set, there is no indication.
5Function indicator
Active functions light up.
3D-PHONIC
DISC TITLE CHAP. PROGRAM
EACH
REMAIN
DVD VCD
RANDOM
RESUME REPEAT 1A-B THEATER
TRACK
2Title/chapter/
track indicator
5Function indicator
3Time display
1Disc number indicator
4Disc indicator

Preliminary knowledge
8
Preliminary
Knowledge
English
Français
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Operational Principles
On-screen displays
The unit provides several on-screen displays.
With some displays, you can set or select preferences
or functions, while the others are display-only.
Opening displays
The Opening display appears automatically in some
conditions.
At the bottom, the following information are indicated
depending on the unit’s status.
• NOW READING: The unit is now reading the disc
information (TOC).
• REGION CODE ERROR!: The DVD VIDEO disc loaded
cannot be played because the region code of the
disc does not match the unit.
• CHANGE =DISC 1: The unit is now changing the
disc tray to DISC 1.
• OPEN: The disc tray is now opening.
• CLOSE: The disc tray is now closing.
Preference displays
When the unit is stopped, pressing the DISC 1 - CHOICE
button while holding the SHIFT button accesses the
preference display for setting the preferences.
There are four pages: LANGUAGE, AUDIO, DISPLAY
and SYSTEM as shown in the right.
See page 36 for detailed information.
PARENTAL LOCK displays
When no disc is inserted or a DVD VIDEO disc is
stopped, pressing the ENTER button while holding
down the SHIFT button accesses the PARENTAL LOCK
display in which you can set the level for limiting
playback.
See page 40 for detailed information.
PARENTAL LOCK
Country Code
US
—
----
EXIT
Set Level
PASS WORD
PRESS KEY ENTER
PARENTAL LOCK
MENU LANGUAGE
ENGLISH
ENGLISH
ENGLISH
ENGLISH
EXIT
AUDIO LANGUAGE
SUBTITLE
ON SCREEN LANGUAGE
AUDIO DISPLAY SYSTEM
LANGUAGE
PRESS KEY
DIGITAL AUDIO OUTPUT
/PCM
Lo / Ro
ON
EXIT
DOWN MIX
COMPRESSION
AUDIO DISPLAY SYSTEM
LANGUAGE
DOLBY
DIGITAL
PRESS KEY
LANGUAGE AUDIO
DISPLAY SYSTEM
MONITOR TYPE
4:3 LB
MODE 2
ON
EXIT
SCREEN SAVER
ON SCREEN GUIDE
AUDIO DISPLAY SYSTEM
LANGUAGE
PRESS KEY
AUTO STANDBY
OFF
OFF
EXIT
RESUME
AUDIO DISPLAY SYSTEM
LANGUAGE
DVD 1
AV COMPULINK MODE
PRESS KEY
Opening display
NOW READING

Preliminary knowledge
9
Preliminary
Knowledge
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
A television monitor screen may be burned out if a
static picture is displayed for a long time. To prevent
this, the unit automatically activates the screen saver
function if a static picture, such as an on-screen display
or menu, is displayed for over 5 minutes.
• Pressing any button on the unit or the remote
control unit will release the screen saver function
and return to the previous display.
• You can select one of several screen saver modes
available (see page 38).
• The screen saver function is not activated during
Audio CD playback or after stopping Audio CD
playback.
DVD/Video CD/CD PLAYER
To prevent the monitor from burning out [SCREEN SAVER]
REPEAT PROGRAM RANDOM
DVD CONTROL
REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH
While stopped During DVD VIDEO playback
CD CONTROL
REPEAT A-B REPEAT TIME SEARCH
VCD CONTROL
REPEAT A-B REPEAT TIME SEARCH PBC CALL
During Audio CD playback During Video CD playback
Play mode displays
Pressing the PLAY MODE button accesses the play
mode display in which you can control playback
functions.
Different displays appear depending on the disc type
and the unit’s status.
Status displays
Pressing the DISPLAY-TIME button during playback
accesses the status display.
For a DVD VIDEO disc, pressing the DISPLAY-TIME
button toggles between the DVD VIDEO function status
display, and the disc/time display and off.
For a Video CD or Audio CD disc, pressing the DISPLAY-
TIME button switches the disc/time display on and off.
ENGLISH ENGLISH
1 / 2 1 / 2 1 / 2
3 1 25 2:25:25 3.3
DISC TITLE CHAP. TIME BITRATE Mbps
3 1 00:08
DISC TRACK TIME EACH
REMAIN
3 1 25:25 PBC
DISC TRACK TIME
DVD VIDEO function status Disc/time (DVD VIDEO )
Disc/time (Audio CD/Video CD
without PBC)
Disc/time
(Video CD with PBC)

Preliminary knowledge
10
Preliminary
Knowledge
English
Français
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
On-screen guide icons
During DVD VIDEO playback, you may see icons displayed over the picture.
These have the following meanings.
: Displayed at the beginning of a scene recorded from multiple angles.
(See page 31.)
: Displayed at the beginning of a scene recorded with multiple audio
languages. (See page 32.)
: Displayed at the beginning of a scene recorded with multiple subtitle
languages. (See page 32.)
You can set the unit not to display on-screen icons above via the preference
settings described on page 39.
About invalid operation icon
When you press a button, if the unit does not accept its operation, appears
on your television screen. Operations are occasionally unacceptable even if
is not displayed.
Note that some operations may not be accepted. For example, some discs
may not allow rapid advance/reverse or slow-motion playback.
How to use numeric buttons
To select a track/title number
• To select a number between 1 and 10
Press the corresponding button for the number.
• To select a number higher than 10
Use the +10 button.
Examples:
To select 13 +10 →3
To select 34 +10 →+10 →+10 →4
To select 40 +10 →+10 →+10 →10
To enter a time or chapter number
The method for entering a time for Time search or chapter number for Chapter
search is different from above. See the corresponding sections in this manual
for the details.
To select a TV channel.
You can use the buttons for selecting TV channels while holding down the
SHIFT button. See page 16 for details.
TV RETURN TV 0 TV 100+
TV 7 TV 8 TV 9
TV 4 TV 5 TV 6
TV 1 TV 2 TV 3
456
789
10 +100
123

Preliminary knowledge
11
Preliminary
Knowledge
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
About discs
Playable disc types
Playable and non-playable disc types are as follows:
Playable discs
• DVD VIDEO players and DVD VIDEO discs have their own Region Code numbers. This unit only can play back DVD
VIDEO discs whose Region Code numbers include “1”.
Examples of playable DVD VIDEO discs:
ALL 121 4
2
3
1
• This unit accommodates the NTSC television system and can playback discs recorded with the NTSC system. Note
that the unit cannot playback discs recorded with the PAL system.
Non-playable discs
DVD-ROM, DVD-RAM, DVD AUDIO, DVD-R, DVD-RW, CD-ROM, PHOTO CD, CD-EXTRA, CD-G, CD-TEXT, CD-R,
CD-RW
• Playing back discs listed as “Non-playable discs” above may generate noise and damage speakers.
• This unit can play back audio recorded in CD-G, CD-EXTRA and CD-TEXT discs.

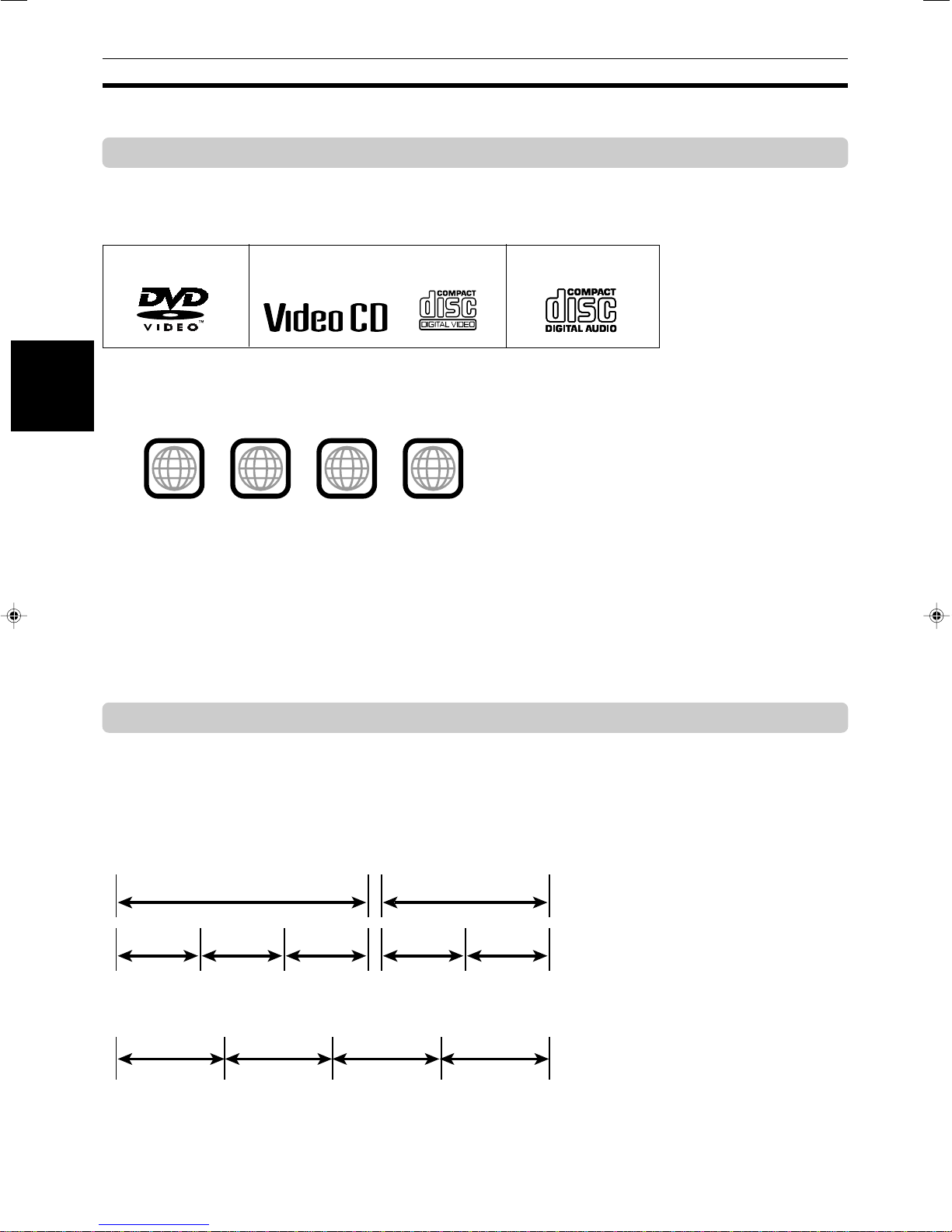

Disc structure
A DVD VIDEO disc is comprised of “titles,” while an Audio CD, Video CD is comprised of “tracks.” Each title may be
divided into some “chapters.” For example, if a DVD VIDEO disc contains some movies, each movie may have its own
title number, and each movie may be divided into some chapters. In a DVD VIDEO karaoke disc, each song usually has
its own title number and does not have chapters. In general, each title has independent content, while each chapter in
the same title has continuity.
(Example: DVD VIDEO disc)
(Example: Audio CD/Video CD)
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2
Title 1 Title 2
Track 1 Track 2 Track 3 Track 4
The DVD VIDEO Logo is a trademark.
DVD VIDEO Video CD Audio CD

Getting started
12
Getting
started
English
Français
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Connections
*In the following description, “TV” may be substituted with “monitor” or “projector.”
*Before using the unit, you have to connect the unit to a TV and/or amplifier.
Before making any connections
• Do not connect the AC power cord until all other connections have been made.
• Since different components often have different terminal names, carefully read the instructions supplied with the
component you are going to connect.
To connect to a TV
You can enjoy using the unit by simply connecting it to a TV. To improve audio sound quality, connect the audio
outputs to your separate audio equipment. (See the following pages.)
Getting started
• Connect VIDEO OUT of the unit directly to the video input of your TV. Connecting VIDEO OUT of the unit to a TV via a VCR may
cause a monitor problem when playing back a copy-protected disc.
• Connect the unit to an NTSC television. Do not connect the unit to a PAL television.
NOTES
Connect the unit to a TV equipped with stereo audio input and video input jacks using the supplied audio/video
cables.
• If your TV has a monaural audio input instead of stereo, you need to use an optional audio cable which converts
stereo audio output to monaural.
• If your TV has an S-video input, you should connect it with the S-VIDEO output of the unit using the supplied S-
video cable in addition to the (standard) video connection to get better picture quality.
PCM / STREAM
OPTICALCOAXIAL
Y P B P R
AV COMPU LINK
LEFT
RIGHT
AUDIO OUT DIGITAL OUT
VIDEO S-VIDEO
VIDEO OUT
COMPONENT
VIDEO
AUDIO
RIGHT
LEFT
S-VIDEO
IN
Audio/video cable
(supplied)
S-video cable
(supplied)
The unit
TV
White
Red
Yellow
Red
White
Yellow
*If the TV has an AV COMPU LINK terminal,
you can use the AV COMPU LINK function.
See “AV COMPU LINK remote control system”
on page 42 for details.

Getting started
13
Getting
started
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A

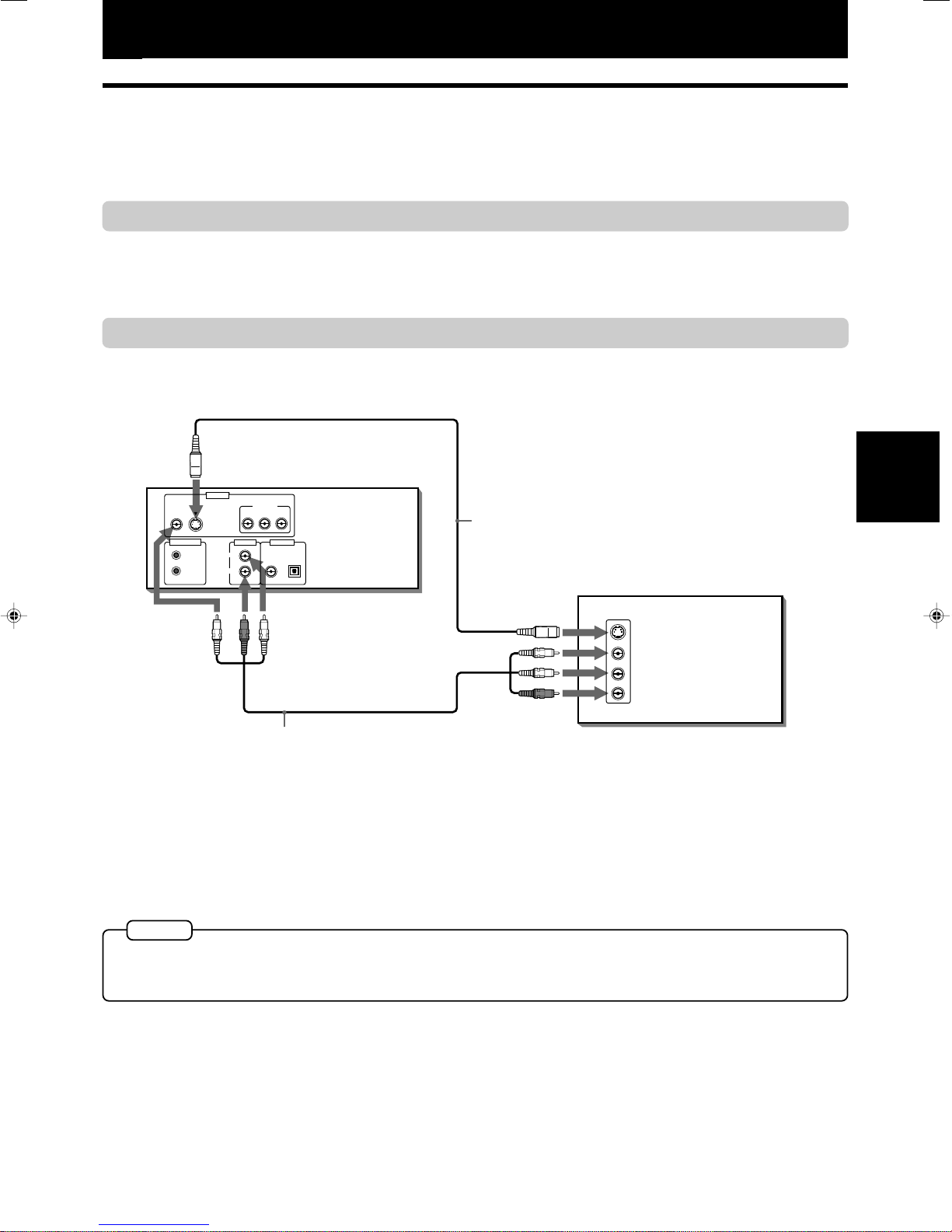

To connect to a TV with the component video input jacks
You can enjoy high picture quality by connecting the unit’s COMPONENT VIDEO OUT jacks to the COMPONENT
VIDEO IN jacks of your TV with the video cables.
• Connect “Y” to “Y,” “PB” to ”PB,” “PR” to “PR” correctly.
• When the component video input jacks of the TV is of the BNC type, use an adapter to convert a pin jack to a BNC jack
(optional).
• If you do not connect the unit with the S-video cable, some functions of your TV may not work.
• Connect the unit to an NTSC television. Do not connect to a PAL television.
To connect to an audio amplifier or receiver
You can enjoy high-quality audio by connecting the unit's audio output to your amplifier or receiver.
NOTES
PCM / STREAM
OPTICALCOAXIAL
Y P B P R
AV COMPU LINK
LEFT
RIGHT
AUDIO OUT DIGITAL OUT
VIDEO S-VIDEO
VIDEO OUT
COMPONENT
VIDEO
AUDIO
RIGHT
LEFT
S-VIDEO
IN
YP B P R
IN
Audio cable
(not supplied)
Component video
cable (not supplied)
S-video cable
(supplied)
TV
The unit
WhiteRed
Red
Green Blue
RedGreen
Blue
Red
White
PCM / STREAM
OPTICALCOAXIAL
Y P B P R
AV COMPU LINK
LEFT
RIGHT
AUDIO OUT DIGITAL OUT
VIDEO S-VIDEO
VIDEO OUT
COMPONENT
AUDIO
RIGHT
LEFT
IN
• Connect the unit's AUDIO OUT to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or
receiver.
Audio cable
(not supplied)
The unit
Amplifier or receiver
White
Red
White
Red

Getting started
14
Getting
started
English
Français
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
To connect to audio equipment with a digital input
You can enhance the sound quality by connecting the unit’s DIGITAL OUT to the digital input of an amplifier, DAT or
MD by using an optional digital cable. The digital audio signal from a disc is directly transferred. If you connect the
unit to a Dolby Digital or DTS decoder or an amplifier with a built-in decoder by using an optional digital cable, you
can enjoy high-quality surround sound.
When you make the digital connection, also make the analog connection, because, depending on the disc type, no
audio may be reproduced from the DIGITAL OUT.
• When you connect the unit's DIGITAL OUT to digital audio equipment, before using, make the “DIGITAL AUDIO OUTPUT”
setting in the “AUDIO” page of the preference display correctly according to the connected audio equipment. If the “DIGITAL
AUDIO OUTPUT” is not set correctly, loud noise may be generated from speakers, causing damage to your speakers. See
“DIGITAL AUDIO OUTPUT” on page 37.
• With the digital connection, the unit’s settings for COMPRESSION and DOWN MIX in the AUDIO page of the preference display
are invalid. Settings for these items must be made from the decoder.
To connect the power cord
When all the audio/video connections have been made, insert the smaller plug of the supplied AC power cord to the
unit’s AC IN connector, then insert the other end to the wall outlet. Make sure that plugs are inserted firmly. The
STANDBY indicator lights and setup is completed.
Warning
• Disconnect the power cord if you are not going to use the unit for a long time.
• Disconnect the power cord before cleaning the unit.
• Disconnect the power cord before moving the unit.
• Do not connect or disconnect the power cord with wet hands.
• Do not pull the power cord when disconnecting it, as this may damage the cord and cause fire, electric shock, or
other accidents.
Caution
• Do not damage, alter, twist, or pull the power cord, as this may cause fire, electric shock, or other accidents.
• To prevent any accidents or damages caused by an unsuitable AC power cord, only use the supplied power cord. If
the cord is damaged, contact a dealer and get the new power cord.
• Do not put anything heavy, or the unit, on the power cord, as this may cause fire, electric shock, or other accidents.
NOTES
PCM / STREAM
OPTICALCOAXIAL
Y P B P R
AV COMPU LINK
LEFT
RIGHT
AUDIO OUT DIGITAL OUT
VIDEO S-VIDEO
VIDEO OUT
COMPONENT
AUDIO
RIGHT
LEFT
IN
OPTICAL
COAXIAL
DIGITAL
IN
Audio cable
(not supplied)
The unit
Optical digital cable
(not supplied)
White
Red
White
Red
Digital equipment
When using the DIGITAL OUT
(OPTICAL) jack, remove the protection
cap. Do not lose the removed cap.
When the jack is not used, fix the
protection cap into the jack.
Coaxial digital cable
(not supplied)

Getting started
15
Getting
started
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Using the remote control unit
Using the remote control, you can operate not only all the functions of the unit but also basic functions of your TV
and the volume control of a JVC amplifier/receiver.
To install batteries in the remote control unit
The battery compartment is located on the back of the remote control unit.
1Press down on the point shown by the arrow at the top of the compartment cover,
and pull up the cover to open the compartment.
2Place the two accessory R6P (SUM-3)/AA(15F) batteries in the remote control
according to the polarity markings (“+” and “–”) inside the compartment and on the
batteries.
3Place the cover over the compartment, and press down lightly.
• The batteries will last about six months with normal use. If the functions of the remote control become erratic,
replace the batteries. See below for more information.
Precautions for the safe use of batteries
Observe the following precautions for the safe use of batteries. If they are used improperly their life will be shortened,
they may burst or their contents may leak.
• Remove the batteries from the remote control if it is not going to be used for a long period of time.
• Remove dead batteries and dispose of them properly.
• Never leave dead batteries lying around, take them apart, mix them with other refuse, or throw them into an incinerator.
• Never touch liquid that has leaked out of a battery.
• Do not mix new and old batteries, or batteries of different types, when replacing them.
Precaution

Getting started
16
Getting
started
English
Français
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
To use the remote control unit for TV operation
You can operate your TV from the remote control unit.
Setting the remote control signal for operating your TV.
1Holding down TV/VIDEO - THEATER POSITION, enter the manufacturer code of your TV listed below by using the
numeric buttons (0 - 9).
Do not release TV/VIDEO - THEATER POSITION. Keep holding it until the next step is completed.
2Press 7(STOP) while holding down TV/VIDEO - THEATER POSITION.
3Try to operate your TV by pressing DVD POWER - TV POWER while holding SHIFT.
If your TV turns on or off, you have successfully set the control signal.
The following buttons can be used for operating the TV:
No. Manufacturer
01 JVC
02 MAGNAVOX
03 MITSUBISHI
04 PANASONIC
05 RCA
06 SHARP
07 SONY
08 TOSHIBA
09 ZENITH
Manufacturer code list
• The remote control unit is initially set for operating a JVC TV.
• If there is more than one code listed for the manufacturer of your TV, try them one by one until you succeed.
NOTES
Example:
To enter the manufacturer code “01”:
Press “0” then “1.”
No. Manufacturer
10 HITACHI
11 PANASONIC
12 SAMSUNG
13 SANYO
14 SANYO
15 SAMSUNG
To control the volume of a JVC’s amplifier or receiver
You can control the volume of a JVC’s amplifier or receiver by using the AMP VOL
button on the remote control unit.
AMP
VOL
SHIFT
STOP
SLOW
UP
DOWN
LEFT
CURSOR RIGHT
AMP
VOL TV VOL
TITLE
MENU
TV
ch
AUDIOSUBTITLE
CANCEL
SHIFT
3D PHONIC THEATER
POSITION
PLAY MODE
TV RETURN
DIGEST STROBE ZOOM TIME
TV 0 TV 100+
TV 7 TV 8 TV 9
TV 4 TV 5 TV 6
TV 1 TV 2 TV 3
RETURN TV/VIDEO
DISPLAY
ANGLE
DISC 2 DISC 3
CHOICE
DISC 1
DVD POWER
TV POWER
456
789
10 +100
REMOTE CONTROL
PLAY
B.SKIP
PAUSE
STOP
ENTER
F.SKIP
B.SEARCH
F.SEARCH
123
TV/VIDEO -
THEATER
POSITION
Numeric
buttons
DVD POWER
- TV POWER
to
SHIFT
9
1
TV 0 TV 100+
TV 9TV 1
+10
0
THEATER
POSITION
TV/VIDEO
TV
VOL
DVD POWER
TV POWER
SHIFT
TV
ch
Turns the TV on or off.
Changes the TV channels.
Adjusts the TV volume.
Selects the TV channels.
*For some TVs, pressing “+10” while holding down SHIFT
functions as the “100+.” “+10” functions as the ENTER button
if your TV requires pressing the ENTER button after selecting a
channel number.
Switches input mode (either TV or VIDEO).
TV RETURN
10
Returns to the previously selected channel (only valid for JVC
TVs).
SHIFT

Basic operations
17
Basic
operations
XV-M565BK/XV-M567GD [J] EN
LVT0521 -001A
Basic operations
In the following description, the buttons on the remote control unit are mainly used, however, you may use the
corresponding buttons on the front panel of the unit if available.
Turning on/off the unit
Press POWER on the front panel or press DVD POWER - TV POWER on the remote control unit.
POWER
POWER
DVD PLAYER
STANDBY
DVD
3
DVD
2
DVD
1
DISC TITLE CHAP RESUME THEATER
DVD
DIMMER
THEATER
POSITION
3D PHONIC
DIGEST
STROBE
ZOOM
3
2
1
STOP PAUSE PLAY
SKIP
DOLBY
D I G I T A L
EACH
PLAY & EXCHANGE
SLOW
UP
DOWN
LEFT
CURSOR RIGHT
AMP
VOL TV VOL
TITLE
MENU
TV
ch
AUDIOSUBTITLE
CANCEL
SHIFT
3D PHONIC THEATER
POSITION
PLAY MODE
TV RETURN
DIGEST STROBE ZOOM TIME
TV 0 TV 100+
TV 7 TV 8 TV 9
TV 4 TV 5 TV 6
TV 1 TV 2 TV 3
RETURN TV/VIDEO
DISPLAY
ANGLE
DISC 2 DISC 3
CHOICE
DISC 1
DVD POWER
TV POWER
456
789
10 +100
REMOTE CONTROL
PLAY
B.SKIP
PAUSE
STOP
ENTER
F.SKIP
B.SEARCH
F.SEARCH
123
DVD POWER
TV POWER
• You can turn on the unit by pressing the PLAY button or any one of
the DISC (1 through 3) buttons. In this operation, the unit starts
playback if the disc is set in the selected tray.
• You can turn on the unit by pressing any one of the 0(OPEN/CLOSE)
buttons on the front panel.
Even if you press the POWER or DVD POWER - TV POWER button to turn off the unit, the unit is not disconnected from the AC
power source as long as it is connected to the wall outlet. This state is called the standby mode. In this state, the unit consumes
a very small amount of power.
NOTE
Inserting and removing discs
1Press 0(OPEN/CLOSE) located on the right of the disc tray you want to open.
The corresponding disc tray opens.
2Place the disc in the tray.
3Press 0(OPEN/CLOSE) to close the disc tray.
POWER
DVD PLAYER
STANDBY
SHUTTLE
DVD/ VIDEO CD / CD
DVD
3
DVD
2
DVD
1
DISC TITLE CHAP RESUME THEATER
DVD
DIMMER
THEATER
POSITION
3DPHONIC
DIGEST
STROBE
ZOOM
3
2
1
STOPPAUSE PLAY
SKIP
DOLBY
D
I
G
I
T
A
L
EACH
PLAY & EXCHANGE
DVD
1
• To insert an 8-cm disc, place it
in the inner recess.
With the label side up
• If you press 0(OPEN/CLOSE) for the disc being played, the unit stops playback and opens the tray.
• You can insert or remove the disc by pressing 0(OPEN/CLOSE) for a disc tray which is not in use for playback while
a disc in the other tray is being played, without interrupting playback.
• The unit can playback DVD VIDEO, Audio CD, and Video CD discs only. Do not load other disc types. For details about playable
disc types, see page 11.
• When loading a disc in the tray, be sure to position the disc inside the recess. Otherwise, the disc may be damaged when the
tray is closed, or the disc may not be removed from the unit.
NOTES
