JVC InteriArt LT-17C50BJ User manual

1004MKH-VT-VT
©2004 VICTOR COMPANY OF JAPAN, LIMITED
500 5807 3
LT-17C50BJ
WIDE LCD PANEL TV INSTRUCTIONS
ENGLISH
D:\Aldus Page Maker Onemli\IB-NEW\JVC\Ak-45\2835 (16-9)\3D-(AV28-GT20U)\COVER PAGE-2835-AK45-1512UK-16-9-(AV-28GT20U)-50053856.cdr
19 Ekim 2004 Sal 10:24:11
Color profile: Disabled
Composite Default screen

- 1 -
For your safety
This equipment has been designed and
manufactured to meet international safety stan-
dards but, like any electrical equipment, care
must be taken if you are to obtain the best
results and safety is to be assured. So, please
read the points below for your own safety. They
are of a general nature, intended to help you
with all your electronic consumer products and
some points may not apply to the goods you
have just purchased.
Some DOs and DONTs for you
Air Circulation
eave at least 10cm clearance around the tele-
vision to allow adequate ventilation. This will
prevent the TV from overheating and conse-
quential possible damage to the TV. Dusty
places should also be avoided.
Heat Damage
Damage may occur if you leave the TV in di-
rect sunlight or near a heater. Avoid places
subject to extremely high temperatures or hu-
midity, or locations where the temperature is
likely to fall below 5ºC (41ºF).
Mains Supply
The mains supply required for this equipment
is 100-240 V AC, 50 H . Never connect to a
DC supply or any other power source. DO en-
sure that the TV is not standing on the mains
lead. DO NOT cut off the mains plug from this
equipment, this incorporates a special Radio
Interference Filter, the removal of which will
impair its performance.
Hot / Moderate Climate Conditions
This device is suitable for working in hot and
moderate climate conditions.
IF IN DOUBT PLEASE CONSULT A
COMPETENT ELECTRICIAN.
Contents
For your safety ......................................... 1
Important Instruction .............................. 3
Important Information ............................. 4
Remote Control Buttons .......................... 5
Control Panel Buttons ............................. 6

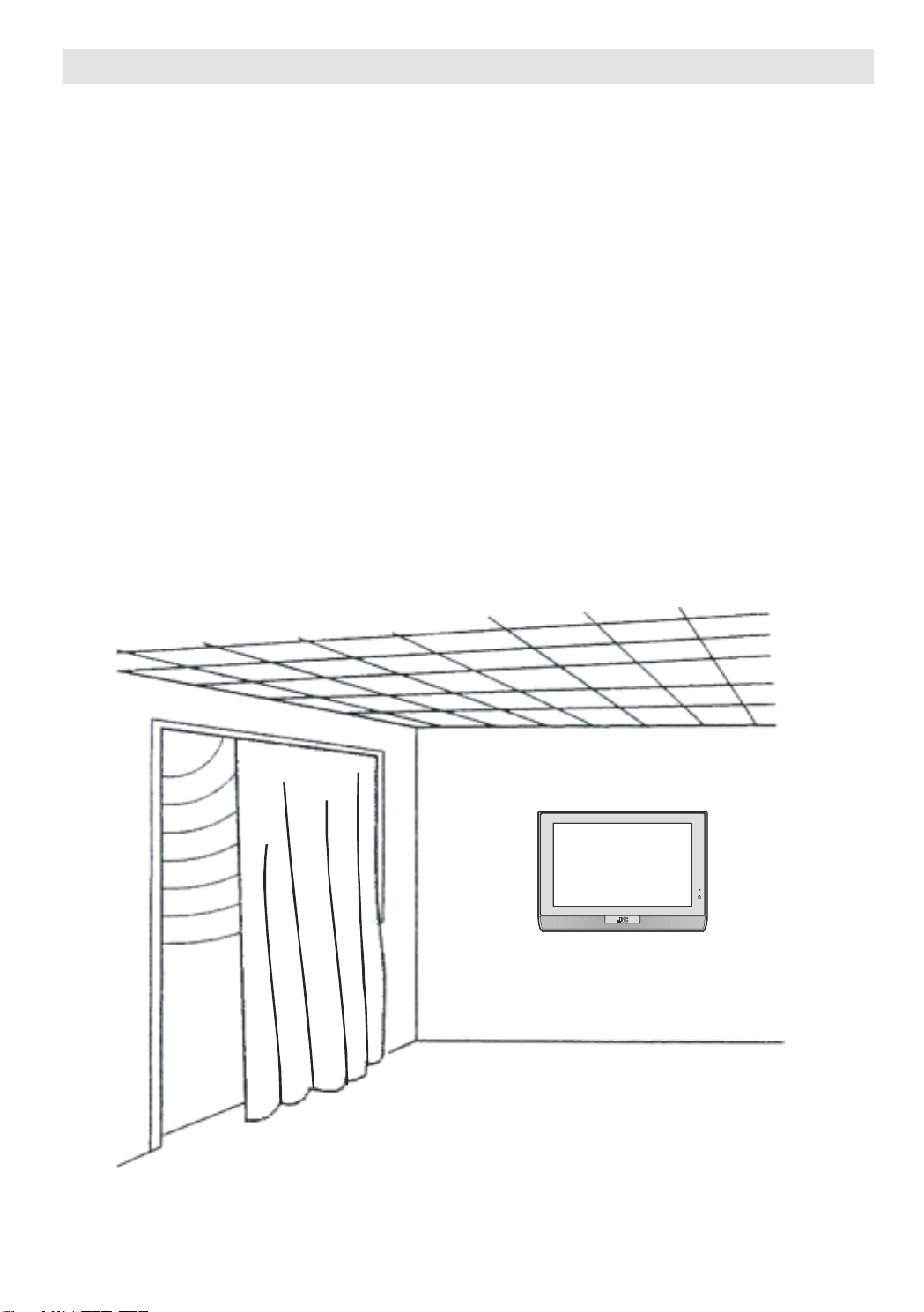

Where to install ....................................... 9
Preparation ............................................ 10
Before Switching on your TV ................ 10
Switching the TV ON/OFF ....................... 11

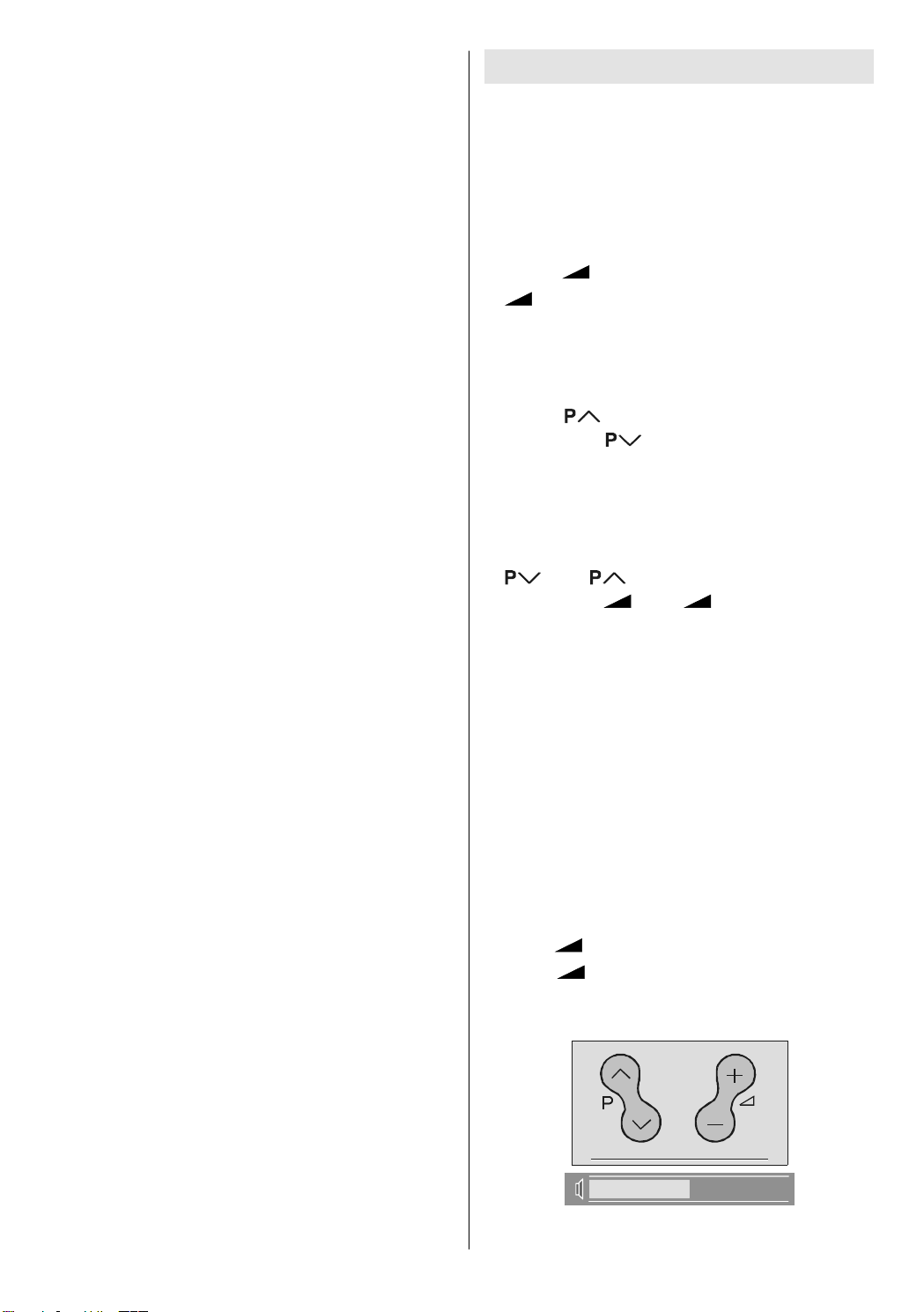

Operating the TV .................................... 12
Operating the TV .................................... 13

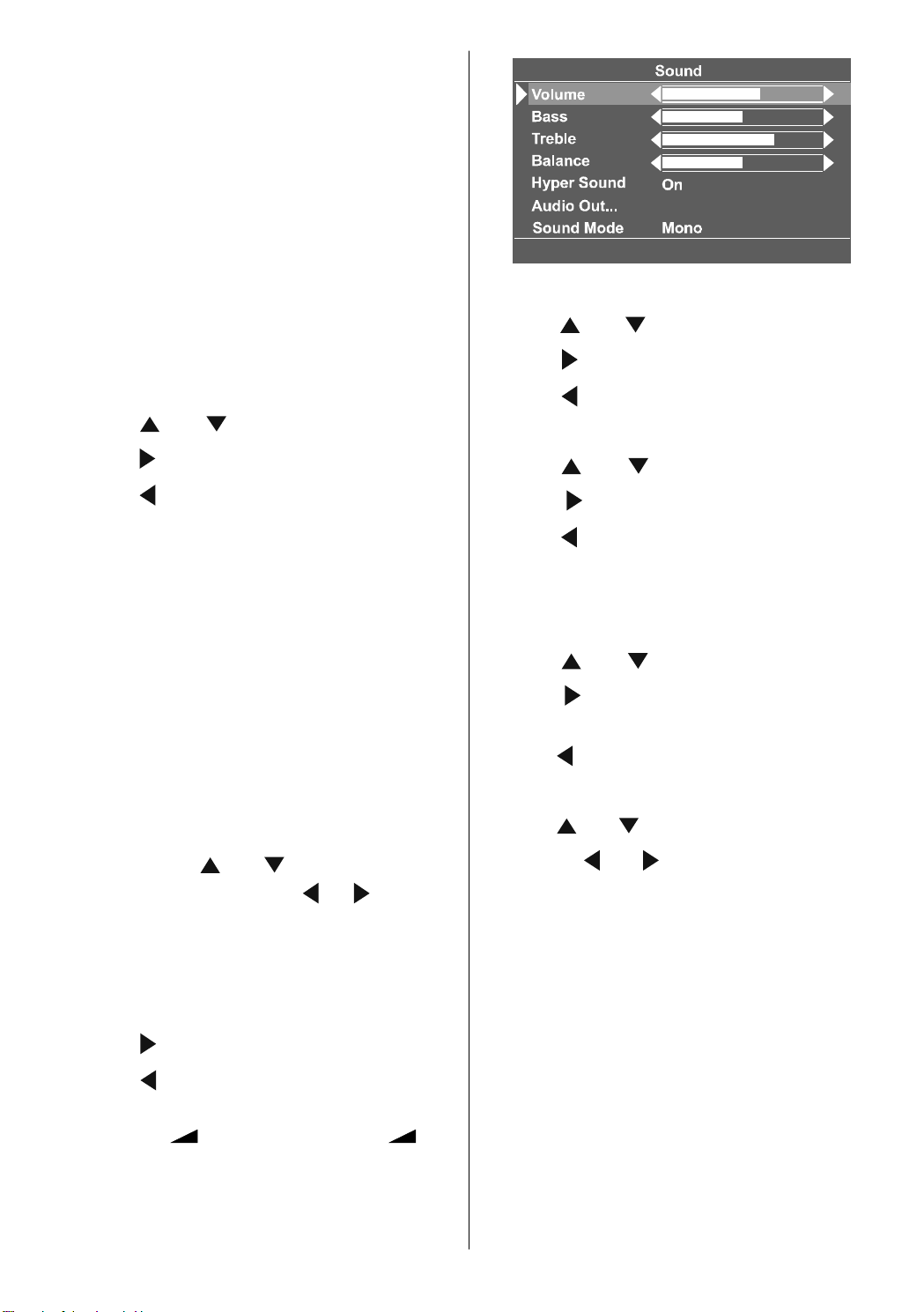

Menu System ......................................... 14
Other Features ....................................... 20
PC Mode ................................................. 23
Teletext ................................................... 25
Peripheral Equipment Connections ..... 26
Peripheral Equipment Connections ..... 28
Antenna Connections ............................ 29
Peripheral Equipment Connections ..... 29
PC Input Typical Display Modes ......... 30
Tips ......................................................... 31
Specifications ........................................ 32
JVC LT-17C50BJ-50058073.p65 19.10.2004, 08:401

- 2 -
DO
DO read the operating instructions before you
attempt to use the equipment.
DO ensure that all electrical connections (in-
cluding the mains plug, extension leads and
inter-connections between pieces of equip-
ment) are properly made and in accordance
with the manufacturers instructions.
Switch off and withdraw the mains plug be-
fore making or changing connections.
DO consult your dealer if you are ever in doubt
about the installation, operation or safety of
your equipment.
DO be careful with glass panels or doors on
equipment.
DO NOT
DONT remove any fixed cover as this may
expose dangerous voltages.
DONT obstruct the ventilation openings of the
equipment with items such as newspapers,
table-cloths,
curtains etc. Overheating will cause damage
and shorten the life of the equipment.
DONT allow electrical equipment to be ex-
posed to dripping or splashing or objects filled
with liquids, such as vases, to be placed on
the equipment.
DONT place hot objects or naked flame
sources, such as lighted candles or night-
lights on, or close to the equipment. High tem-
peratures can melt plastic and lead to fires.
DONT use makeshift stands and NEVER fix
legs with wood screws. To ensure complete
safety, always fit the manufacturers approved
stand or legs with the fixings provided accord-
ing to the instructions.
DONT listen to headphones at high volume,
as such use can permanently damage your
hearing.
DONT leave equipment switched on when it
is unattended, unless it is specifically stated
that it is designed for unattended operation or
has a standby mode. Switch the equipment
off and make sure your family know how to do
this. Special arrangements may need to be
made for infirm or handicapped people.
DONT continue to operate the equipment if
you are in any doubt about it working normally,
or it is damaged in any way  switch off, with-
draw the mains plug and consult your dealer.
DONT put the empty batteries into garbage
instead of recycle bin to reduce harmfull ef-
fects to the environment.
ABOVE ALL  NEVER let anyone, especially
children, push anything into holes, slots or
any other openings in the case  this could
result in a fatal electric shock.
NEVER guess or take chances with electrical
equipment of any kind  it is better to be safe
than sorry.
To fully disconnect the TV, switch off the
mains socket and remove the Power plug.
Safety Precautions for Power adapter
 Be careful! May become hot.
 For indoor and dry location use only.
 Risk of electric shock.
 Shock hazard, do not open.
 Keep all power adapters away from any other
heat source.
 Always use power adapter(s) well-ventilated
area.
** Cold cathode fluoresant lamp in LCD PANEL
contains a small amount of mercury, please
follow local ordinates or regulations for dis-
posal.
"The LCD panel is very high technology prod-
uct with about a million thin film transistors,
giving you fine picture details. Occasionally,
a few non-active pixels may appear on the
screen as a fixed point of blue, green or red.
Please note that this does not affect the per-
formance of your product." Please note that
certain light guns used with games consoles
may not work on this product.
Warning:
This is a Class A product. In a domes-
tic environment this product may
cause radio interference in which
case the user may be required to ta e
adequate measures.
JVC LT-17C50BJ-50058073.p65 19.10.2004, 08:402

- 3 -
WARNING
 ingers may be trapped under the TV causing injuries.
Hold the TV at the bottom in the middle, and do not allow
it to tilt up or down.
 The TV may fall causing injuries. Hold the bottom of the
stand with your hand and tilt the TV up and down.
 Do not allow children to hang from the TV, place their el-
bows on the TV or lean against the TV. Doing so may
cause the TV to fall over and lead to injuries.
CAUTION:
 To avoid electric shock or damage to the unit, first firmly
insert the small end of the power cord into the AC Adapter
unit it is no longer wobbly, and then plug the larger end of
power cord into an AC outlet.
MAINS (AC) OPERATION
The wires in this mains lead are coloured in accordance
with the following code :
BLUE-NEUTRAL
BROWN-LIVE
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or coloured
black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter or coloured
red.
No connection is to be made to the earth terminal of the
plug.
If a 13 Amp (BS 1363) Plug is used a 5 Amp Fuse must
be fitted, or if any other type of Plug is used a 5 Amp Fuse
must be fitted, either in the Plug of Adaptor, or on the
Distribution Board.
Important Instruction
For your own safety read following instruction carefully before attempting to connect this unit to
the mains supply.
CAUTION
TO PREVENT ELECTRIC SHOCK
DISCONNECT FROM THE MAINS BEFORE
REMOVING COVER. NO USER
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
SAFETY PRECAUTION
THIS EQUIPMENT MUST BE
DISCONNECTED FROM THE MAINS WHEN
NOT IN USE. DO NOT ALLOW THIS UNIT
TO BE EXPOSED TO RAIN OR MOISTURE.
JVC LT-17C50BJ-50058073.p65 19.10.2004, 08:403

- 4 -
Important Information
Please take note
EXCLUSION CLAUSE
JVC shall under no circumstances be liable for loss and/or damage to the product caused
by:
 fire;
 earthquake;
 accidental damage;
 intentional misuse of the product;
 use of the product in improper conditions;
 loss and/or damage caused to the product whilst in the possession of a third party;
 any damage or loss caused as a result of the owner s failure and/or neglect to follow the
instructions set out in the owners manual;
 any loss or damage caused directly as a result of misuse or malfunction of the product
when used simultaneously with associated equipment;
Furthermore, under no circumstances shall JVC be liable for any consequential loss and/
or damage including but not limited to the following, loss of profit, interruption of business,
the loss of recorded data whether caused during normal operation or misuse of the
product.
WARNING! NEVER LEAVE A
STATIONARY IMAGE ON THE
SCREEN
If stationary images generated by TE ETEXT,
CHANNE IDENTIFICATION OGOS, COM-
PUTER DISP AYS, VIDEO GAMES, ON
SCREEN MENUS, etc. are left on the TV
screen for any length of time, they could be-
come permanently ingrained.
If you use your television to display completely
still images, or moving pictures which have a
permanent still image superimposed e.g.
broadcast network logos, it is always advis-
able to reduce BOTH the brightness and con-
trast settings.
Care and disposal
Cleaning the screen and cabinet...
Turn off the power, clean the screen and cabi-
net with a soft, dry cloth. We recommend that
you do not use any proprietary polishes or
solvents on the screen or cabinet as this may
cause damage.
Disposal...
When the set reaches the end of its useful
life please dispose of it in accordance with
ocal Government Regulations or at a recy-
cling centre.
JVC LT-17C50BJ-50058073.p65 19.10.2004, 08:404

- 5 -

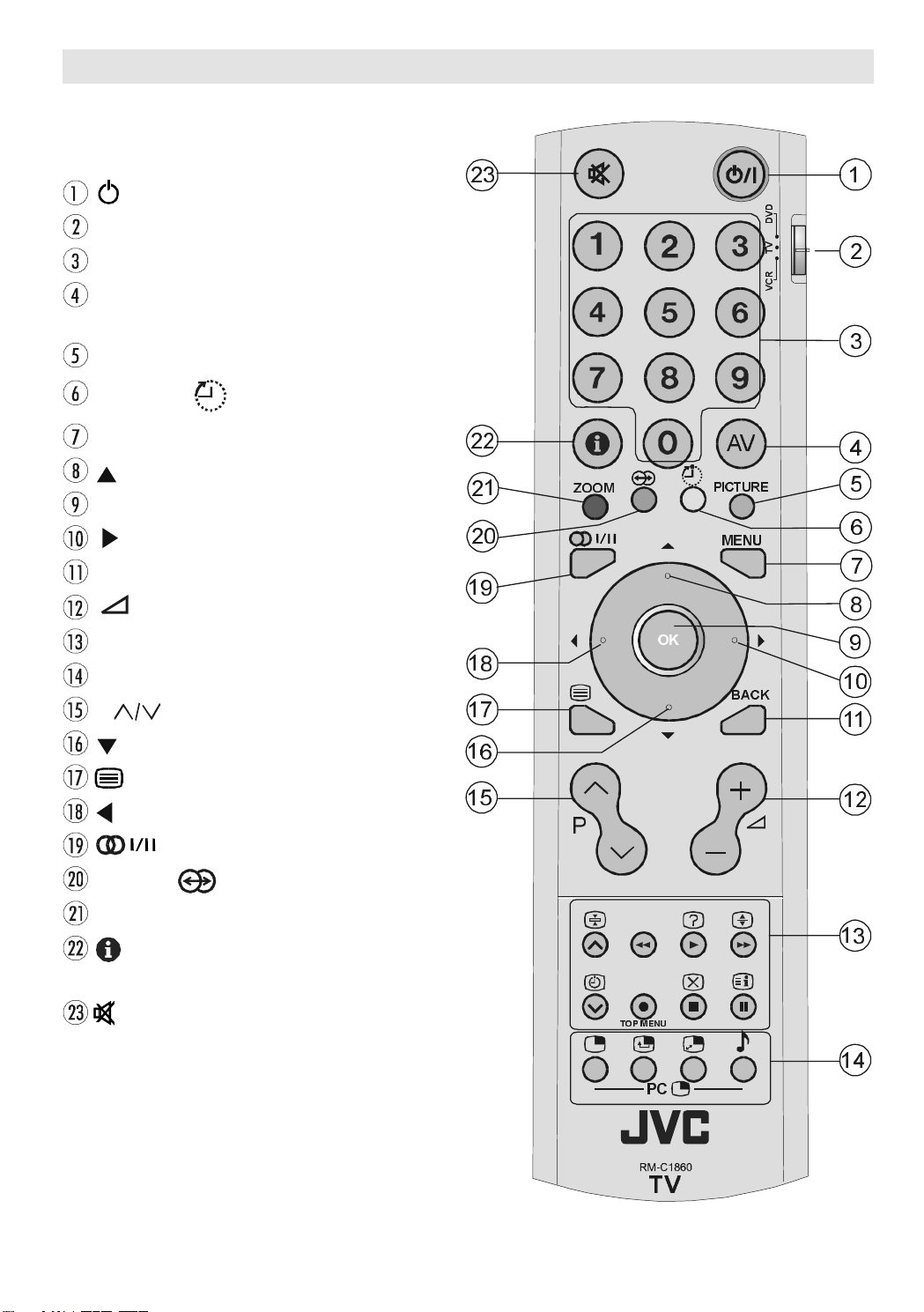

Remote Control Buttons
/ I = (Stand By) button
TV / VCR / DVD Switch
Number buttons
AV button (TV, EXT-1, EXT-2, EXT-2 S,
EXT-3, EXT-4, EXT-4 S or PC)
BLUE / PICTURE Mode button
YELLOW / Sleep Timer button
MENU button
= Cursor Up button
OK button
= Cursor Right button
BACK button
= Volume + / - buttons
Teletext / VCR /DVD Control buttons
PC Control Buttons
P buttons
= Cursor Down button
= Teletext Button
= Cursor eft button
= Stereo / Bilingual button
GREEN / Hyper Sound On/Off button
RED / ZOOM Mode button
= Information Button / T-V ink in
Program Menu
= Mute button
3
=220
3,&785(
0(18
%$&.
7230(18
3&
79
9
&
5
'
9
'
7
9
$9























2.
JVC LT-17C50BJ-50058073.p65 19.10.2004, 08:405

- 6 -

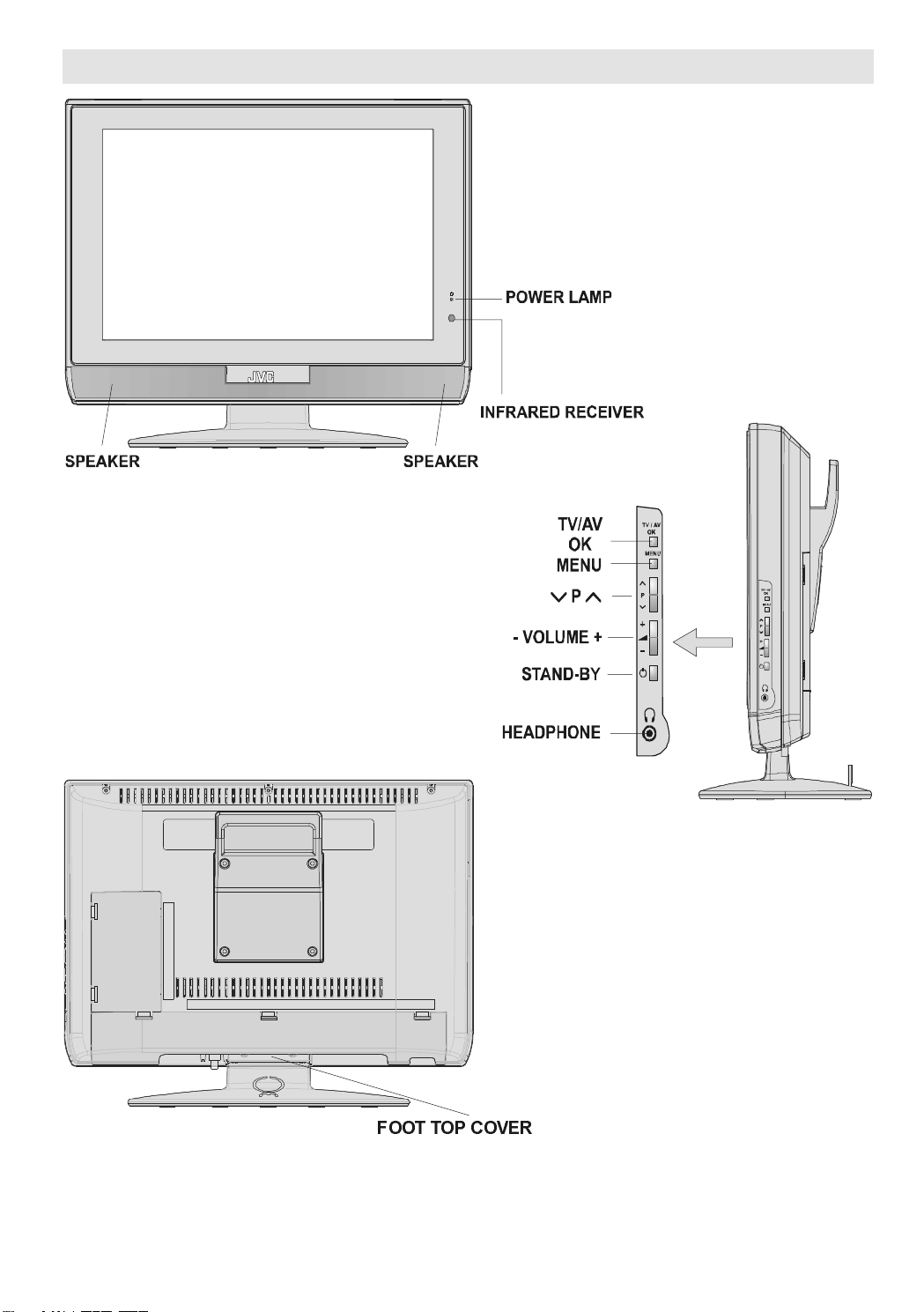

Control Panel Buttons
With certain combinations of connectors and leads the back cover
may not be easily fitted. If the cover is left off, this in no way infringes
safety requirements.
)227723&29(5
JVC LT-17C50BJ-50058073.p65 19.10.2004, 08:406

- 7 -
Using he s and
This TV comes with a Table Top Stand already attached.
This stand can be used to adjust the direction of the TV screen 5° up, 10° down, and 20° to the
left or right.
Tilt the TV up and down:
While holding the bottom of the stand with one hand, use your other hand to hold the middle of
the top of the TV and slowly tilt the TV up and down.
 As a safety measure, the stand is constructed so that it requires a certain amount of force to tilt
the TV.
Rotate the TV to the left and right:
While holding the bottom of the stand with one hand, use your other hand to hold the odge of the
panel and slowly adjust the direction of the TV screen.
Cable holder
A cable holder which is used to keep the connection cables tidy is attached to the back of the
stand.
JVC LT-17C50BJ-50058073.p65 19.10.2004, 08:407

- 8 -
Remove he erminal Cover
There are connection terminals behind the covers of the rear of the TV. Remove the cover before
connecting an antenna, DVD or VCR.
Remove the covers by removing the hooks. When replacing the covers, place the side or bottom
of the covers against the TV and insert the hooks.
 eave the covers off if they do not fit properly. DO NOT force to replace the covers. Doing so may
cause damages of the connection cables and the covers.
 eave these covers off when mounting the TV on a wall.
 100 mm mount based on VESA regulation is equipped.
 The handle and the stand can be left by loosing the screws with a screwdriver when mounting
the TV on a wall.
 Spread a soft cloth on a flat table and then place the TV on the cloth with the screen facing
downwards when you leave the handle and the stand.
JVC LT-17C50BJ-50058073.p65 19.10.2004, 08:408

- 9 -
Where to install
ocate the TV away from direct sunlight and strong lights, soft, indirect lighting is recommended
for comfortable viewing. Place on a sturdy platform, the mounting surface should be flat and
steady, it should then be secured to the wall with a sturdy tie using the hook on the back of the
TV, this will prevent it from falling over. Use curtains or blinds to prevent direct sunlight falling on
the screen.
A floor and table top stand are available for this television, or and angled bracket which enables
the TV to be wall-mounted.
The CD display panels are manufactured using an extremely high level of precision technol-
ogy, however sometimes some parts of the screen may be missing picture elements or have
luminous spots. This is not a sign of a malfunction.
Make sure the TV is located in a position where it cannot be pushed or hit by objects, as
pressure will break or damage the screen.
JVC LT-17C50BJ-50058073.p65 19.10.2004, 08:409
