SERVICE MANUAL
COPYRIGHT © 2005 Victor Company of Japan, Limited No.YA232
2005/8
WIDE LCD PANEL TELEVISION
YA23220058
LT-30E45SU,
LT-30E45SJ,
LT-30E45SU/Z,
LT-30E45SU/N
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

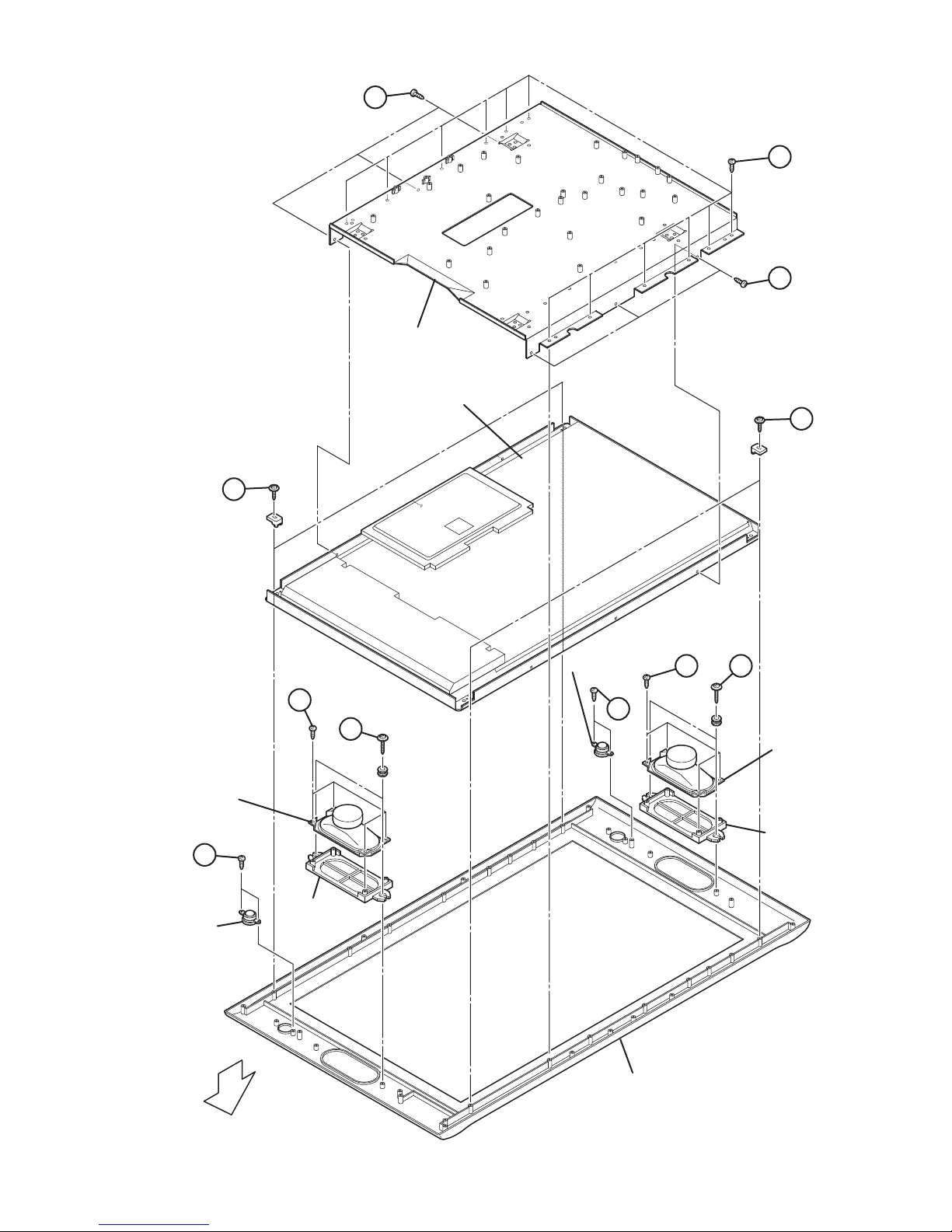

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
P
MENU
BACK
PC
TV
VCR DVDTV

1-2 (No.YA232)
SPECIFICATION
Design & specifications are subject to change without notice.
Items Contents
Dimensions ( W ×H ×D ) 84.7cm ×52.2cm ×26.0cm [Included stand]
84.7cm ×49.0cm ×10.2cm [TV only]
Mass 14.8kg [Included stand]
13.0kg [TV only]
Power Input AC100 to AC240 V, 50 Hz
Power Consumption 150W (Standby: 4.0W)
TV RF System CCIR B/G, I, D/K, L
Colour System PAL / SECAM / NTSC 3.58 / NTSC 4.43 (NTSC: EXT only).
Stereo System A2 (B/G, D/K), NICAM (B/G, I, D/K, L)
Teletext System FLOF (Fastext), TOP, WST (World Standard System)
Receiving Frequency VHF
UHF
CATV
47MHz to 470MHz
470MHz to 862MHz
116MHz to 172MHz / 220MHz to 469MHz
Intermediate Frequency VIF
SIF
38.9MHz(B/G, D/K, I)
33.4MHz(5.5MHz:B/G) / 32.9MHz(6.0MHz:I) / 32.4MHz(6.5MHz:L,D/K)
Colour Sub Carrier
Frequency
PAL
SECAM
NTSC
4.43MHz
4.40625MHz / 4.25MHz
3.58MHz / 4.43MHz
LCD panel 30V-inch wide aspect (15:9)
Screen Size Diagonal : 51.1cm (H:64.3cm ×V : 38.6cm)
Display Pixels Horizontal : 1280 dots ×Vertical : 768 dots (WXGA)
Audio Power Output 8W + 8W(10% THD)
Speaker 5.0cm, round type ×2
Aerial terminal (VHF/UHF) F-type connector, 75Ωunbalanced, coaxial

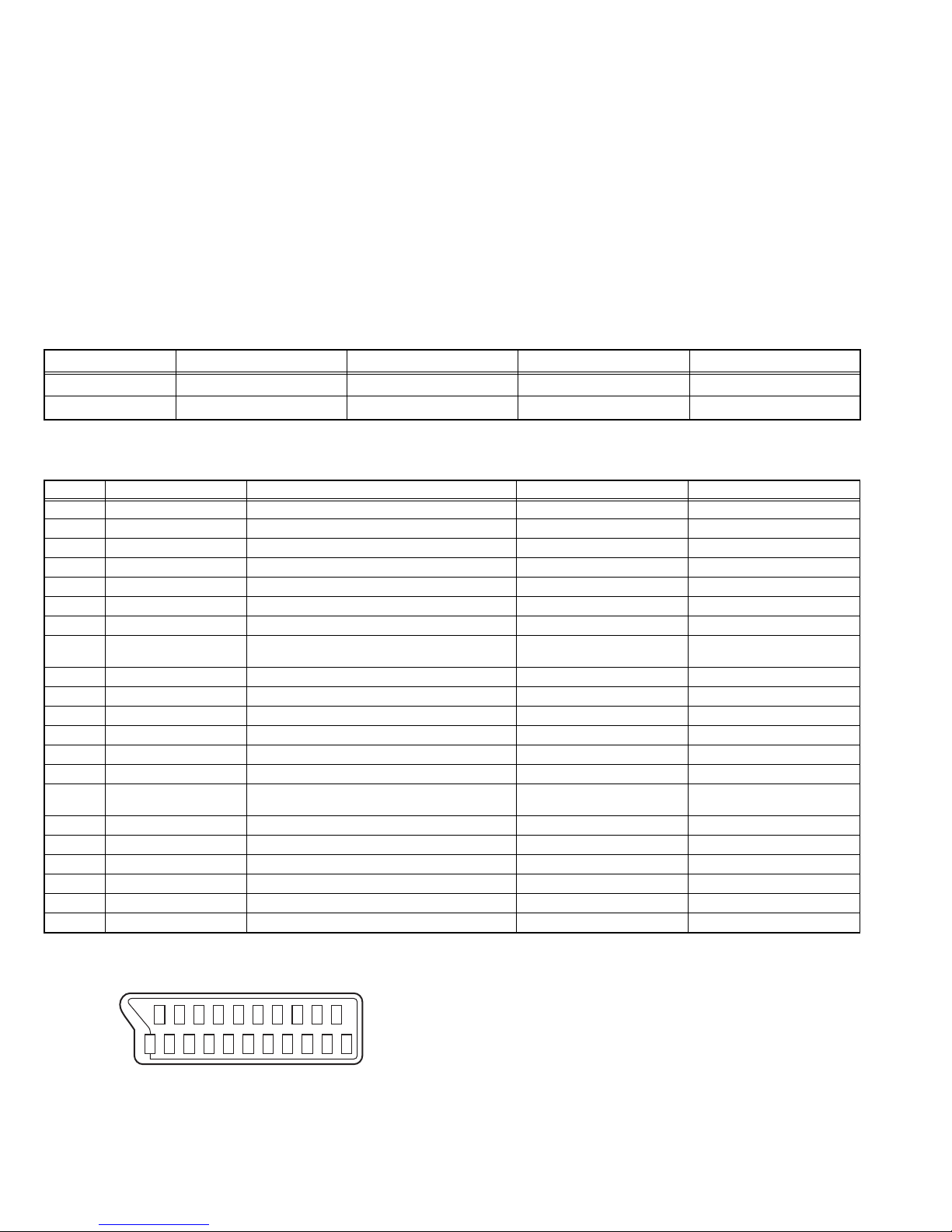

EXT-1 / EXT-2 (Input / Output) 21-pin Euro connector (SCART socket ) ×2
EXT-3(Input) Component Video
625p / 525p / 625i / 525i
Audio
RCA pin jack ×3
Y : 1V (p-p), Positive (Negative sync provided), 75 Ω
Cb/Cr : 0.7V(p-p), 75 Ω
500mV(rms) (-4dBs), high impedance, RCA pin jack ×2
EXT-4 (Input) S-Video
Video
Audio
Mini-DIN 4 pin ×1
Y: 1V (p-p), Positive (Negative sync provided), 75 Ω
C: 0.286V (p-p) (Burst signal), 75 Ω
1V (p-p), Positive (Negative sync provided), 75 Ω, RCA pin jack ×1
500mV (rms), High impedance, RCA pin jack ×2
PC (RGB) Input D-sub 15pin ×1
R/G/B : 0.7V (p-p), 75Ω
HD / VD : 1V (p-p) to 5V (p-p), high impedance
< Available signal >
VGA : 640 pixels ×480 pixels (Horizontal : 31.5kHz / Vertical : 60Hz)
XGA : 1024 pixels ×768 pixels (Horizontal : 48.4kHz / Vertical : 60Hz)
PC AUDIO input 3.5mm stereo mini jack ×1
Audio output 500mV (rms), Low impedance, RCA pin jack ×2
Subwoofer output More than 0 to 1000mV (rms) (+2.2dBs), low impedance (80Hz when modulated
100%), RCA pin jack ×1
Headphone 3.5mm stereo mini jack ×1
Remote Control Unit RM-C1860 (AA/R6 dry cell battery ×2)

(No.YA232)1-3
SECTION 1
PRECAUTION
1.1 SAFETY PRECAUTIONS
(1) The design of this product contains special hardware,
many circuits and components specially for safety
purposes. For continued protection, no changes should be
made to the original design unless authorized in writing by
the manufacturer. Replacement parts must be identical to
those used in the original circuits. Service should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or
property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These
characteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
the parts list of Service manual. Electrical components
having such features are identified by shading on the
schematics and by ( ) on the parts list in Service
manual. The use of a substitute replacement which does
not have the same safety characteristics as the
recommended replacement part shown in the parts list of
Service manual may cause shock, fire, or other hazards.
(4) Don't short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing.
Some model's power circuit is partly different in the GND.
The difference of the GND is shown by the LIVE : ( ) side
GND, the ISOLATED (NEUTRAL) : ( ) side GND and
EARTH : ( ) side GND.
Don't short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure the LIVE side GND and ISOLATED (NEUTRAL)
side GND or EARTH side GND at the same time with a
measuring apparatus (oscilloscope etc.). If above note will
not be kept, a fuse or any parts will be broken.
(5) When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer's replacement components.
(6) Isolation Check (Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an
isolation check on the exposed metal parts of the cabinet
(antenna terminals, video/audio input and output terminals,
Control knobs, metal cabinet, screw heads, earphone jack,
control shafts, etc.) to be sure the product is safe to operate
without danger of electrical shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second. (.
. . . Withstand a voltage of 1100V AC (r.m.s.) to an
appliance rated up to 120V, and 3000V AC (r.m.s.) to an
appliance rated 200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).

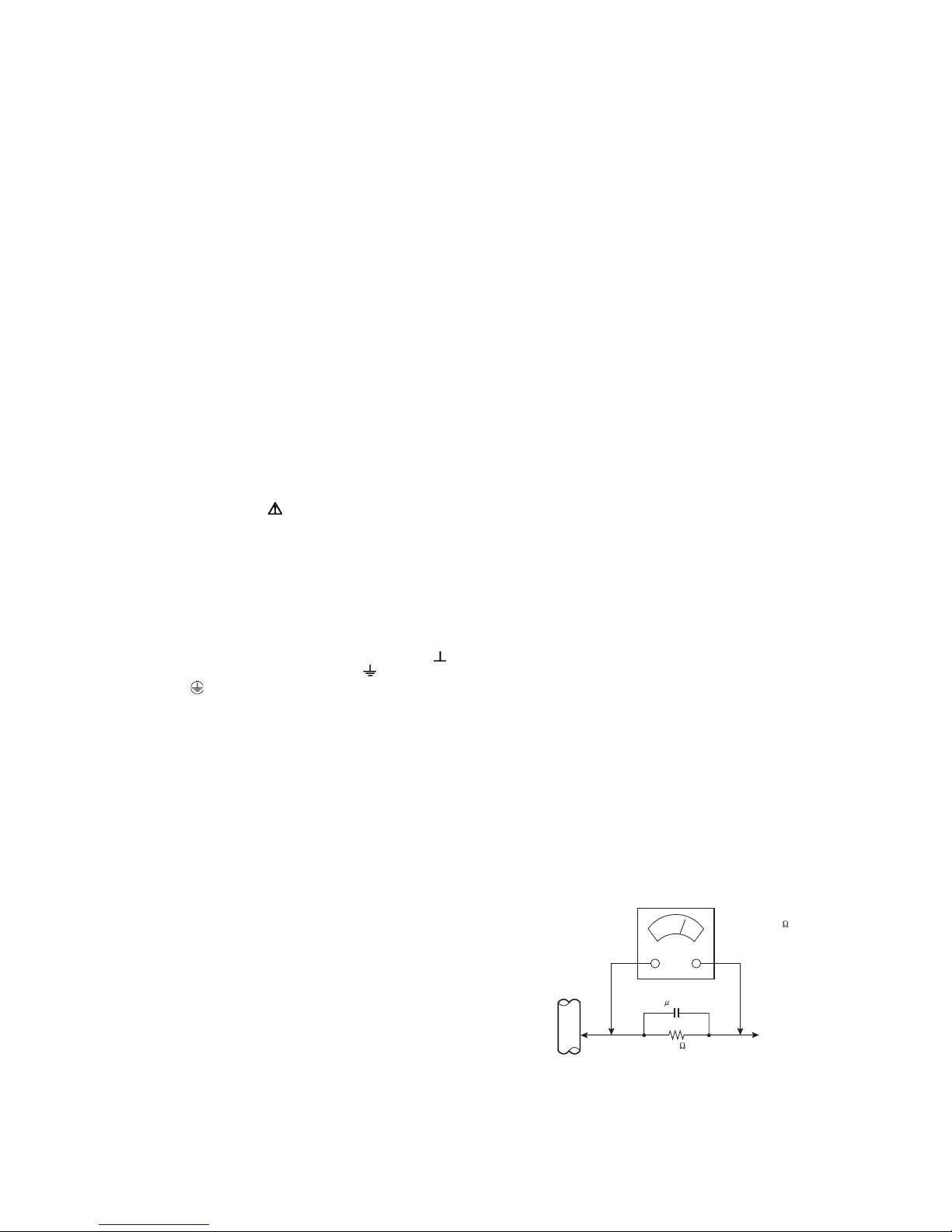

Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not
use a line isolation transformer during this check.). Use
an AC voltmeter having 1000Ωper volt or more
sensitivity in the following manner. Connect a 1500Ω
10W resistor paralleled by a 0.15µF AC-type capacitor
between an exposed metal part and a known good earth
ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the
resistor connection to each exposed metal part,
particularly any exposed metal part having a return path
to the chassis, and measure the AC voltage across the
resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Any voltage measured must
not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
AC VOLTMETER
(HAVING 1000 /V,
OR MORE SENSITIVITY)
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
1500 10W
0.15 F AC-TYPE
GOOD EARTH GROUND

1-4 (No.YA232)

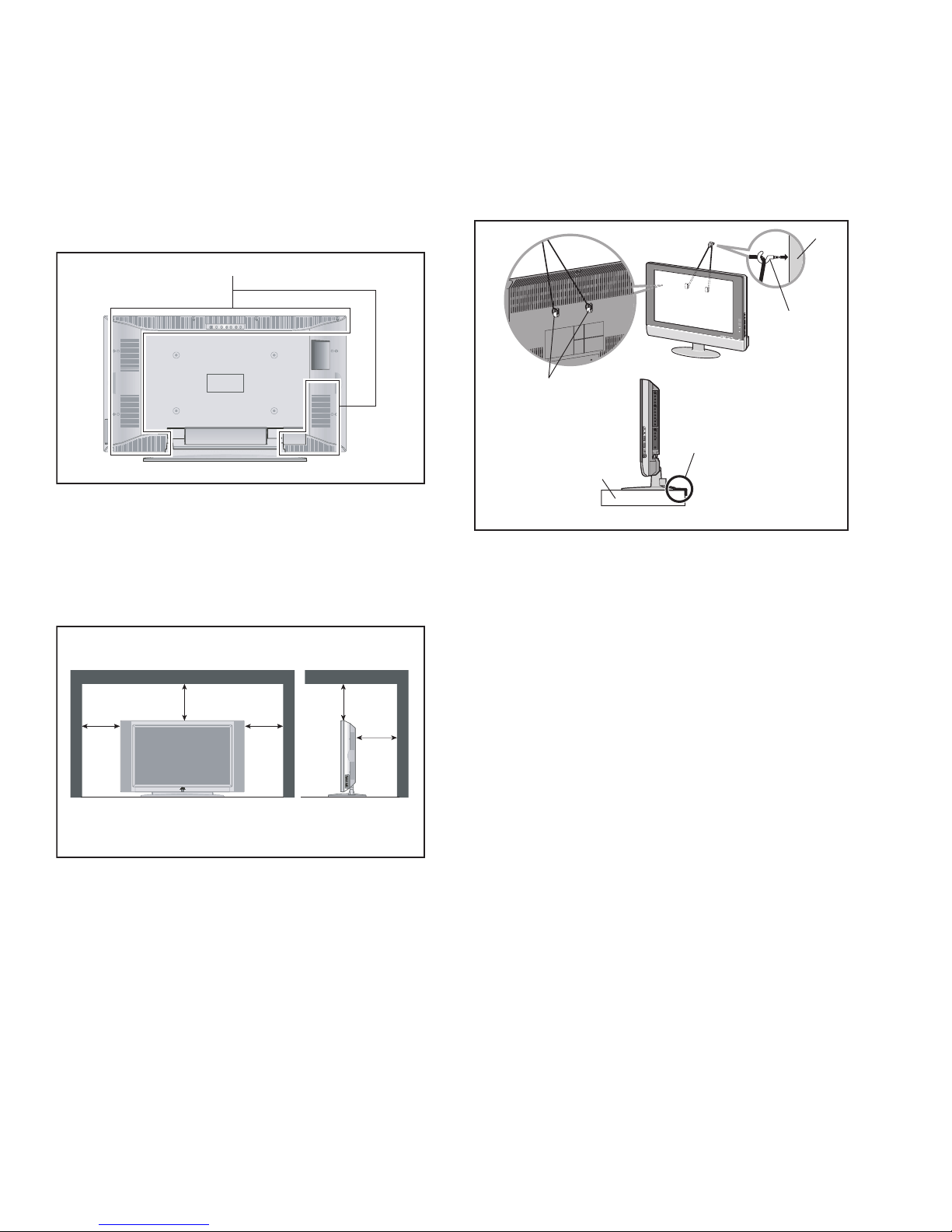

1.2 INSTALLATION
1.2.1 HEAT DISSIPATION
If the heat dissipation vent behind this unit is blocked, cooling
efficiency may deteriorate and temperature inside the unit will
rise. The temperature sensor that protects the unit will be
activated when internal temperature exceeds the pre-determined
level and power will be turned off automatically.Therefore,
please make sure pay attention not to block the heat dissipation
vent as well as the ventilation outlet behind the unit and ensure
that there is room for ventilation around it.
1.2.2 INSTALLATION REQUIREMENTS
Ensure that the minimal distance is maintained, as specified
below, between the unit with and the surrounding walls, as well
as the floor etc.Install the unit on stable flooring or stands.Take
precautionary measures to prevent the unit from tipping in order
to protect against accidents and earthquakes.
1.2.3 INSTALLATION REQUIREMENTS
To ensure safety in an emergency such as an earthquake, and
to prevent accidents, ensure that measures are taken to prevent
the TV dropping or falling over.
Use the supplied screws to firmly attach the supplied hooks
(OPTION) to the back of the TV, and use commercially available
cord to fix the TV to rigid components such as walls and columns.
1.2.4 NOTES ON HANDLING
(1) WHEN TAKING UNIT OUT OF A PACKING CASE
When taking the unit out of a packing case, do not grasp
the upper part of the unit. If you take the unit out while
grasping the upper part, the LCD PANEL may be damaged
because of a pressure. Instead of grasping the upper part,
put your hands on the lower backside or sides of the unit.
(2) AS FOR PRESSING OR TOUCHING A SPEAKER
Be careful not to press the opening of the speaker in the
lower part of the unit and around them since the decorative
sheet on the surface of the openings may be deformed.
*Diagram differs from actual appearance.
Ventilation hole
100 mm
100 mm
100 mm
100 mm
50 mm
*Diagram differs from actual appearance.
The hook for fall
prevention(option)
Hook
Wall
It fixes in a band.
TV Stand
*Diagram differs from actual appearance.

(No.YA232)1-5
1.3 HANDLING LCD PANEL
1.3.1 PRECAUTIONS FOR TRANSPORTATION
When transporting the unit, pressure exerted on the internal LCD
panel due to improper handling (such as tossing and dropping)
may cause damages even when the unit is carefully packed. To
prevent accidents from occurring during transportation, pay
careful attention before delivery, such as through explaining the
handling instructions to transporters.
Ensure that the following requirements are met during
transportation, as the LCD panel of this unit is made of glass and
therefore fragile:
(1) USE A SPECIAL PACKING CASE FOR THE LCD PANEL
When transporting the LCD panel of the unit, use a special
packing case (packing materials). A special packing case
is used when a LCD panel is supplied as a service spare
part.
(2) ATTACH PROTECTION SHEET TO THE FRONT
Since the front (display part) of the panel is vulnerable,
attach the protection sheet to the front of the LCD panel
before transportation. Protection sheet is used when a LCD
panel is supplied as a service spare part.
(3) AVOID VIBRATIONS AND IMPACTS
The unit may be broken if it is toppled sideways even when
properly packed. Continuous vibration may shift the gap of
the panel, and the unit may not be able to display images
properly. Ensure that the unit is carried by at least 2
persons and pay careful attention not to exert any vibration
or impact on it.
(4) DO NOT PLACE EQUIPMENT HORIZONTALLY
Ensure that it is placed upright and not horizontally during
transportation and storage as the LCD panel is very
vulnerable to lateral impacts and may break. During
transportation, ensure that the unit is loaded along the
traveling direction of the vehicle, and avoid stacking them
on one another. For storage, ensure that they are stacked
in 2 layers or less even when placed upright.
1.3.2 OPTICAL FILTER (ON THE FRONT OF THE LCD PANEL)
(1) Avoid placing the unit under direct sunlight over a
prolonged period of time. This may cause the optical filter
to deteriorate in quality and COLOUR.
(2) Clean the filter surface by wiping it softly and lightly with a
soft and lightly fuzz cloth (such as outing flannel).
(3) Do not use solvents such as benzene or thinner to wipe the
filter surface. This may cause the filter to deteriorate in
quality or the coating on the surface to come off. When
cleaning the filter, usually use the neutral detergent diluted
with water. When cleaning the dirty filter, use water-diluted
ethanol.
(4) Since the filter surface is fragile, do not scratch or hit it with
hard materials. Be careful enough not to touch the front
surface, especially when taking the unit out of the packing
case or during transportation.
1.3.3 PRECAUTIONS FOR REPLACEMENT OF EXTERIOR
PARTS
Take note of the following when replacing exterior parts (REAR
COVER, FRONT PANEL, etc.):
(1) Do not exert pressure on the front of the LCD panel (filter
surface). It may cause irregular COLOUR.
(2) Pay careful attention not to scratch or stain the front of the
LCD panel (filter surface) with hands.
(3) When replacing exterior parts, the front (LCD panel) should
be placed facing downward. Place a mat, etc. underneath
to avoid causing scratches to the front (filter surface).

1-6 (No.YA232)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 FEATURES
T-V LINK
When you have a T-V LINK compatible VCR connected to the
EXT-2 Terminal on the TV,it is easier to set up the VCR and to
view videos.
ZOOM
This function can change the screen size according to the
picture aspect ratio.
OFF TIMER
This function can set the TV to automatically turn off after a set
time.
COLOUR SYSTEM
If the picture is not clear or no colour appears, change the
current colour system to another colour system.
2.2 MAIN DIFFERENCE LIST
2.3 21-PIN EURO CONNECTOR (SCART) : EXT-1 / EXT-2
(P-P= Peak to Peak, B-W= Blanking to white peak)
Items LT-30E45SU LT-30E45SJ LT-30E45SU/Z LT-30E45SU/N
POWER CORD EU type(2-pin) UK type(3-pin) SWE Type(3-pin) EU type(2-pin)
AV JACK PWB VE-20185947 ←←VE-20148274
Pin No. Signal designation Matching value EXT-1 EXT-2
1 AUDIO R output 500mV(rms) (Nominal),, Low impedance Used (TV OUT) Used (LINE OUT)
2 AUDIO R input 500mV(rms) (Nominal),, High impedance Used (R1) Used (R2)
3 AUDIO L output 500mV(rms) (Nominal),, Low impedance Used (TV OUT) Used (LINE OUT)
4 AUDIO GND Used Used
5 GND (B) Used Used
6 AUDIO L input 500mV(rms) (Nominal),, High impedance Used (L1) Used (L2)
7 B input 700mV(B-W), 75ΩUsed Used
8 FUNCTION SW
(SLOW SW)
Low : 0V-3V
High : 8V-12V, High impedance
Used Used
9 GND (G) Used Used
10 SCL / T-V LINK Not used Used (SCL2 / TV-LINK)
11 G input 700mV(B-W), 75ΩUsed Used
12 SDA Not used Used (SDA2)
13 GND (R) Used Used
14 GND (YS) Used Not used
15 R / C input R : 700mV(B-W), 75Ω
C : 300mV(P-P), 75ΩUsed (R) Used (C2/R)
16 Ys input (FAST SW) Low : 0V-0.4V, High : 1V-3V, 75ΩUsed Used
17 GND (VIDEO output) Used Used
18 GND (VIDEO input) Used Used
19 VIDEO output 1V(P-P) (Negative sync), 75ΩUsed (TV OUT) Used (LINE OUT)
20 VIDEO / Y input 1V(P-P) (Negative sync), 75ΩUsed Used
21 COMMON GND Used Used
20 18 16 14 12 10 8 6 4 2
21 19 17 15 13 11 9 7 5 3 1
[Pin assignment]

(No.YA232)1-7
2.4 TECHNICAL INFORMATION
2.4.1 LCD PANEL
This unit uses the flat type panel LCD (Liquid Crystal Display) panel that occupies as little space as possible, instead of the
conventional CRT (Cathode Ray Tube), as a display unit.
Since the unit has the two polarizing filter that are at right angles to each other, the unit adopts "normally black" mode, where light
does not pass through the polarizing filter and the screen is black when no voltage is applied to the liquid crystals.
2.4.1.1 SPECIFICATIONS
The following table shows the specifications of this unit.
2.4.1.2 PIXEL FAULT
There are three pixel faults - bright fault , dark fault and flicker fault - that are respectively defined as follows.
BRIGHT FAULT
In this pixel fault, a cell that should not light originally is lighting on and off.
For checking this pixel fault, input ALL BLACK SCREEN and find out the cell that is lighting on and off.
DARK FAULT
In this pixel fault, a cell that should light originally is not lighting or lighting with the brightness twice as brighter as originally lighting.
For checking this pixel fault, input 100% of each R/G/B colour and find out the cell that is not lighting.
FLICKER FAULT
In the pixel fault, a cell that should light originally or not light originally is flashing on and off.
For checking this pixel fault, input ALL BLACK SCREEN signal or 100% of each RGB colour and find out the cell that is flashing on
and off.
Item Specifications Remarks
Displayed colour 16777216 colours 256 colours for R, G, and B
Brightness 500cd/m2
Contrast ratio 600: 1
Response time 15ms
View angle Horizontally: 170°, Vertically: 170°

1-8 (No.YA232)
2.5 BASIC OPERATION OF SERVICE MODE
2.5.1 HOW TO ENTER THE SERVICE MODE
(1) Press [MENU] key on the remote control unit
simultaneously to display the MENU SCREEN.
(2) In the MENU SCREEN, press the [4] ,[7] ,[2] and [5] key.
(3) The following menu appears on the screen.
2.5.2 HOW TO EXIT THE SERVICE MODE
Press the [MENU] key to exit the Service mode.
2.5.3 CHANGE AND MEMORY OF SETTING VALUE
SELECTION OF SETTING MENU & ITEM
•[FUNCTION /]key: Select the SETTING MENU & ITEM
•[OK] key: Decision the SETTING MENU & ITEM
CHANGE OF SETTING VALUE (DATA)
• [FUNCTION /] key.
MEMORY OF SETTING VALUE (DATA)
The setting value will be stored automatically when release the
REMOTE CONTROL UNIT keys
2.5.4 SERVICE MODE SELECT KEY LOCATION
SERVICE MODE SCREEN
[OK]
[[ ]]

(No.YA232)1-9
2.5.5 SERVICE MODE SETTING ITEMS
Setting menu Setting items Variable range Setting value
display blank color brack / red / green / blue black
scart prescale 0 - 127 14
nicam prescale 0 - 127 35
fm/am prescale 0 - 127 16
subwoofer corner 0 - 7 5
subwoofer level 0 - 32 32
agc 0 - 31 16
calibration color temperature 5500K / 6500K / 7500K / 9300K / user 5500K
color temperature-user 5500K / 6500K / 7500K / 9300K 5500K
video format auto / ntsc / pal / secam / ntsc auto
color space RGB / YPbPr SMPTE240 / YPbPr REC709 / YCbCr REC601 RGB
test pattern none / solid color / vert bars. none
color components all / red / green / blue. all
solid field level 0 - 64 33
initial aps on / off on
deinterlacer black expansion on / off These values are
notrecorded for this
reasonthey are adjust-
ed to aspecified value.
dcti 0 - 255
dlti 0 - 255
luminance peaking on / off
film mode on / off
film mode speed 0 / 1 / 2 / 3
vof on / off
bad cut on / off
nr threshold low / high
noise reduction 0 - 255
lai level 0 / 1 / 2
sharpness 0 - 255
sparkle 0 - 255

1-10 (No.YA232)
SECTION 3
DISASSEMBLY
3.1 DISASSEMBLY PROCEDURE
NOTE:
• Make sure that the power cord is disconnected from the outlet.
• Pay special attention not to break or damage the parts.
• When removing each board, remove the connectors as required. Taking notes of the connecting points (connector numbers)
makes service procedure manageable.
• Make sure that there is no bent or stain on the connectors before inserting, and firmly insert the connectors.
3.1.1 REMOVING THE STAND (Fig.1)
(1) Remove the 4 screws [A], then remove the STAND.
3.1.2 REMOVING THE REAR COVER (Fig.1)
• Remove the STAND.
(1) Remove the 12 screws [B] and 4 screws [C], then remove
the REAR COVER.
3.1.3 REMOVING THE MAIN PWB (Fig.1)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 4 screws [D], then remove the RIGHT
FRAME.
(2) Remove the 4 screws [E], then remove the LEFT FRAME.
(3) Remove the 2 screws [W], then remove the TERMINAL
BASE.
(4) Remove the 8 screws [F] and 2 screws [G], then remove
the MAIN PWB.
3.1.4 REMOVING THE POWER PWB (Fig.1)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 4 screws [H], then remove the POWER PWB.
3.1.5 REMOVING THE POWER UNIT (Fig.1)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 4 screws [J], then remove the POWER UNIT.
3.1.6 REMOVING THE CONTROL BOTTON PWB (Fig.1)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 3 screws [K], then remove the CONTROL
BOTTON PWB.
3.1.7 REMOVING THE FAV PWB (Fig.1)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 2 screws [L], then remove the CONTROL
BASE with FAV PWB.
(2) Remove the 2 screws [M], then remove the FAV PWB from
the CONTROL BASE.
3.1.8 REMOVING THE AMPLIFIRE PWB (Fig.1)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 4 screws [N], then remove the AMPLIFIRE
PWB.
3.1.9 REMOVING THE NOISE FILTER PWB (Fig.1)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 3 screws [P], 2 screws [R] and 1 screw [Q],
then remove the NOISE FILTER PWB.
3.1.10 REMOVING THE LED PWB (Fig.1)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 2 screws [T], then remove the LED PWB.

(No.YA232)1-11
Fig.1
MAIN PWB
M
L
G
E
W
K
D
B
C
J
H
F
T
Q
NPR
A
FAV PWB
CONTROL
BASE
CONTROL KNOB
REAR COVER
STAND
TERMINAL BASE
NOISE
FILTER PWB
AMPLIFIER PWB
LED PWB
POWER UNIT
RIGHT FRAME
LEFT FRAME
POWER PWB
CONTROL BUTTON PWB
FRONT

1-12 (No.YA232)
3.1.11 REMOVING THE SPEAKER (Fig.2)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 4 screws [A], then remove the SPEAKER with
SPEAKER BASE.
(2) Remove the 4 screws [B], then remove the SUB
SPEAKER (L/R).
(3) Remove the 8 screws [C], then remove the SPEAKER
from the SPEAKER BASE.
3.1.12 REMOVING THE LCD PANEL UNIT (Fig.2)
• Remove the STAND.
• Remove the REAR COVER.
(1) Remove the 4 screws [D] and the 12 screws [E], then
remove the LCD PANEL UNIT with the MAIN BASE.
(2) Remove the 4 screws [F], then remove the MAIN BASE
from the LCD PANEL UNIT.
NOTE:
• Pay special attention not to break or damage on the LCD
PANEL face or frame.
• The LCD PANEL UNIT is fixed to the FRONT COVER (at the
back side) by using double-side adhesive tapes. To remove
the LCD PANEL UNIT, remove the adhesive tape on the
FRONT PANELslowly.

(No.YA232)1-13
Fig.2
B
B
A
A
F
F
E
D
D
C
C
SPEAKER
(R)
SPEAKER
BASE
SUB SPEAKER
(R)
SUB SPEAKER
(L)
SPEAKER
(L)
SPEAKER BASE
MAIN BASE
FRONT PANEL
LCD PANEL UNIT
FRONT

1-14 (No.YA232)
3.2 MEMORY IC REPLACEMENT
• This model uses the memory IC.
• This memory IC stores data for proper operation of the video and drive circuits.
• When replacing, be sure to use an IC containing this (initial value) data.
3.2.1 SETTINGS OF FACTORY SHIPMENT
3.2.1.1 BUTTON OPERATION 3.2.1.2 REMOTE CONTROL DIRECT OPERATION
3.2.1.3 REMOTE CONTROL MENU OPERATION
(1) PICTURE
(2) WINDOW
(3) AUDIO
(4) OPTIONS
Setting item Setting position
POWER Off
VOLUME 21
TV/AV TV
Setting item Setting position
ZOOM AUTO
Setting item Setting position
brightness 61
Contrast 36
Sharpness 50
Color 43
tint 50
phase (PC signal input only) 50
Setting item Setting position
image size TV/EXT Auto
PC Fill all
pip size (pip selected only) 10
pip position (pip selected only) upper left posision
h position (PC signal input only) 10
v position (PC signal input only) 21
Setting item Setting position
volume 21
hp volume 19
hp sound mode Autodetected
balance 0
equalizer 120Hz flat
500Hz flat
1.5kHz flat
5kHz flat
10kHz flat
hyper sound OFF
Dynamic bass OFF
Setting item Setting position
language english
vcr OFF
osd timeout 15
menu background Translucent
child lock OFF
scart 2 out Scart 1
sleep timer 0

(No.YA232)1-15
3.3 REPLACEMENT OF CHIP COMPONENT
3.3.1 CAUTIONS
(1) Avoid heating for more than 3 seconds.
(2) Do not rub the electrodes and the resist parts of the pattern.
(3) When removing a chip part, melt the solder adequately.
(4) Do not reuse a chip part after removing it.
3.3.2 SOLDERING IRON
(1) Use a high insulation soldering iron with a thin pointed end of it.
(2) A 30w soldering iron is recommended for easily removing parts.

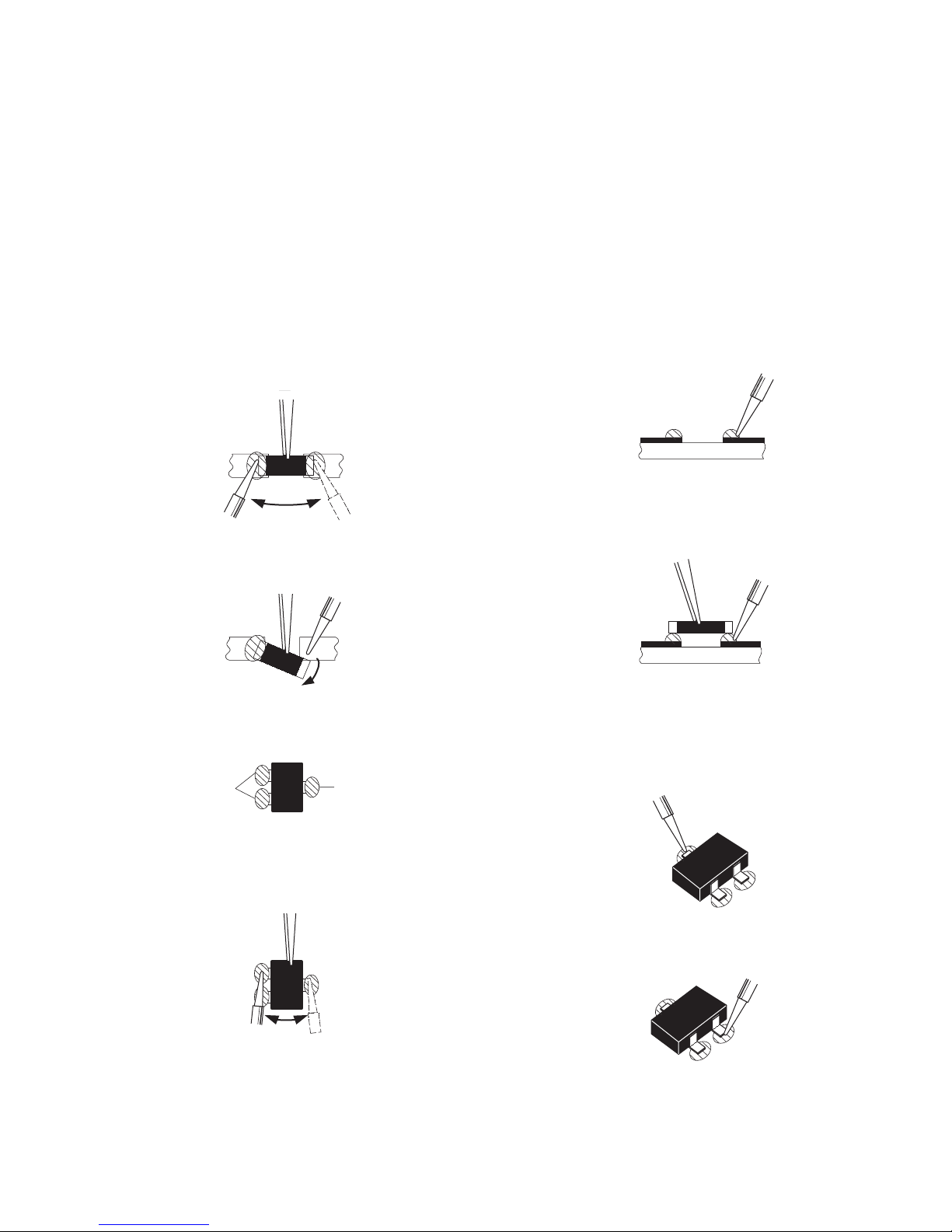

3.3.3 REPLACEMENT STEPS
1. How to remove Chip parts
[Resistors, capacitors, etc.]
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with the tweezers and remove the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply extra solder to each lead.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove
the chip part.
NOTE :
After removing the part, remove remaining solder from the
pattern.
2. How to install Chip parts
[Resistors, capacitors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder. Then heat and melt the solder at both ends of the
chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder.
(3) First solder lead Aas indicated in the figure.
(4) Then solder leads Band C.
SOLDER SOLDER
A
B
C
A
B
C

1-16 (No.YA232)
SECTION 4
ADJUSTMENT
This service manual does not describe ADJUSTMENT.
SECTION 5
TROUBLESHOOTING
This service manual does not describe TROUBLESHOOTING.

(No.YA232)
AV & MULTIMEDIA COMPANY DISPLAY CATEGORY 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan
Victor Company of Japan, Limited
VPT
Printed in Japan
