JVC LT-24HG45E User manual

LT-22HG45E
LT-24HG45E
LEDTV
Operating Instructions
Příručka k obsluze
Návod na obsluhu
használati utasítása
Instrukcja Obslugi
ČESKY ENGLISHMAGYAR
SLOVENSKY
POLSKI
J3LJ1351A.indb 1J3LJ1351A.indb 1 4/2/12 4:53:21 PM4/2/12 4:53:21 PM

EN 2
Features
Battery notice (valid in EU only)
Look after our environment - contact your local authorities for advice on how to safely dispose of exhausted
batteries.The crossed out wheelie bin symbol indicates that used batteries should not be disposed of
with your normal household waste! A separate collection system for used batteries is in place to allow the
correct treatment and recycling in accordance with current legislation. Please contact your local authority for
details on collection and recycling schemes in your area.
DVB-C notice
Encoded programs require a Smartcard and a CA module (CAM) to deciphering.The Smartcard you get
from your cable supplier, CAMs are customary.The CAM you insert into the CI-Slot (see P.10) of this TV-set.
The Smartcard you insert into the CAM.
Information for the DVB-T function
Any function relative to the digital television (with the DVB logo) is available only within the country or area
where such signals are transmitted.Verify with the salesman if it is possible to receive a DVB-T signal in
the zone where you live.
Remove the CAM for DVB-T reception, if it has been inserted.
A DVB-T antenna must be connected for DVB-T reception.
Even if the television conforms to the DVB-T specifications, the compatibility to future digital DVB-T
transmissions is not guaranteed.
Some digital television functions may not be available in some countries.
The DVB-T system present in this device is FTA (Free to air).
•
•
•
•
•
•
16:9 LCD screen
LED-Backlight-Technology
DVB-C/T-HDTV-Tuner
Cable-analogue-Tuner
•
•
•
•
Electronic Progr. Guide (EPG) for DVB
USB-Media player
Auto Power Off
•
•
•
Equipment connected to the protective earthing of the building installation through the mains connection
or through other equipment with a connection to protective earthing – and to a cable distribution system
using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution
system has therefore to be provided through a device providing electrical isolation below a certain
frequency range.
Utstyr som er koplet til beskyttelsesjord via nettplugg og/eller via annet jordtilkoplet utstyr – og er tilkoplet
et kabel-TV nett, kan forårsake brannfare.
For å unngå dette skal det ved tilkopling av utstyret til kabel-TV nettet installeres en galvanisk isolator
mellom utstyret og kabel-TV nettet.
Utrustning som är kopplad till skyddsjord via jordat vägguttag och/eller via annan utrustning och samtidigt
är kopplad till kabel-TV nät kan i vissa fall medföra risk för brand.
För att undvika detta skall vid anslutning av utrustningen till kabel-TV nät galvanisk isolator finnas mellan
utrustningen och kabel-TV nätet.
Dear Customer, [European Union]
This apparatus is in conformance with the valid European directives and standards regarding
electromagnetic compatibility and electrical safety.
European representative of the manufacturer is:
ORION ELECTRIC (POLAND) SP.ZO.O.
OSTASZEWO 57 87-148 LYSOMICE
POLAND
J3LJ1351A.indb 2J3LJ1351A.indb 2 4/2/12 4:53:26 PM4/2/12 4:53:26 PM

3 EN
Contents
Features................................................................ 2
Contents ............................................................... 3
Important safety information.................................. 4
Location of controls............................................... 7
Remote Control..................................................... 8
Antenna connection............................................ 10
Auto setup........................................................... 11
Selecting the input source................................... 11
On-screen Language Selection .......................... 12
Station search..................................................... 12
Manual Channel Scan......................................... 12
Channel Setup.................................................... 13
Auto Synchronization.......................................... 13
Power On/Off Timer ............................................ 13
Basic Operation .................................................. 14
Teletext ............................................................... 14
Stereo reception in analogue cable
TV channel mode................................................ 15
Remarks on DVB-T system ................................. 16
Password Setup (Parental lock) .......................... 17
EPG (Electronic Program Guide)........................ 17
Other convenience functions .............................. 18
Picture size and resolution .................................. 20
Picture format...................................................... 21
Media Operation ................................................. 22
Media Browser.................................................... 22
Playback files...................................................... 23
Playable File Types ............................................. 24
PC connection .................................................... 25
Connecting an HDMI or a DVI device
to the HDMI input................................................ 25
Connection to other equipment........................... 25
Troubleshooting table.......................................... 27
Specifications ..................................................... 28
Information on software license .......................... 29
* The “HD TV” Logo and “1080p” qualifier Logo are trademarks of DIGITALEUROPE.
* DVB and the DVB logos are trademarks of the DVB project.
* Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
* This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such
technology outside of this product is prohibited without a license from Microsoft.
*
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-
4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE
MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES
AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.
* THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL
USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i)
ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC
VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED
OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM
MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM.
* HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
* All other trademarks are property of their respective owners.
J3LJ1351A.indb 3J3LJ1351A.indb 3 4/2/12 4:53:26 PM4/2/12 4:53:26 PM

EN 4
Important safety information
This unit has been produced according to all current safety regulations.The following safety tips should safeguard
users against careless use and the dangers connected with such use.
Although this appliance has been carefully manufactured and rigorously checked prior to leaving the factory, as
with all electrical appliances it is possible for problems to develop. If you notice smoke, an excessive build-up
of heat or any other unexpected phenomena, you should disconnect the plug from the mains power socket
immediately.
Ensure that the unit is sufficiently ventilated! Never place next to or underneath curtains!
This set should be only be connected to an AC 220~240V / 50Hz mains power supply - do not attempt to
connect it to any other type of supply.
The socket-outlet must be installed near the equipment and easily accessible.
Any repairs must be carried out by qualified service personnel only.
Do not open this unit. A non-expert attempting to repair the unit could be dangerous and potentially cause a fire
hazard.
Keep away from rodents. Rodents (and also cockatiels) enjoy biting into electric flexes.
The animal can cause a short cut (fire hazard!) and receive a fatal electric shock.
Always hold plug when pulling out plug from power mains supply system. Do not pull on flex.The flex can
become overloaded and cause a short cut.
Never wet clean. Only use a damp cloth, the same as when cleaning furniture.
Do not submerge in or under water!
Set up unit so that no one is able to trip over the flex.
This unit is recommended to be installed on shock-free benches in order to avoid any danger from falling.
Take note that toddlers can pull the unit down from the table or cupboard by means of its flex. Children can hurt
themselves when doing this.
Do not use the unit near heat sources.The casing and flex could be damaged by the impact of heat.
Watch out for kiddies copying what adults do! Do not stick any objects through the vents!
The vents must remain open! No newspapers or covers should be put on the unit!
The remote control is not a toy! Toddlers could swallow the batteries. If a battery has been swallowed, please
seek out a doctor immediately.
The screen is made of glass and can break if damage is done to it. Be careful when collecting sharp-edged
glass splitters.
You could be hurt or the unit could be damaged.
If the unit is mounted on the wall, contact the shop where you purchased the unit for advice, and leave the
installation work to experts. Incomplete installation work can cause you injuries.
Taking fall-prevention measures
- If these measures are not taken, the unit can fall and you could be injured.
- Contact the shop where you purchased the unit to obtain full details of the measures.
When a TV stand is used,
- Ensure the unit is fully on the stand and placed in the centre.
- Do not leave the stand doors open.
- You could be hurt as a result of the unit falling or breaking, or your fingers being caught or jammed.Take extra
precautions if you have children.
Avoid placing the unit on any surfaces that may be subject to vibrations or shocks.
To protect the unit during a thunder storm unplug the AC power cord and disconnect the antenna. Caution: Do
not touch the antenna connector.
When you leave your home for a long period of time, unplug the AC power cord for safety reasons.
The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to prevent
overheating.The ventilation holes are not to be blocked. Do not set up near radiators. Do not place in direct
sunshine.When placing on a shelf leave 10 cm free space around the whole unit.
Make some space around TV (Correct shelf assembly).
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
Liquids spilled into the unit can cause serious damage. Switch the set OFF and disconnect the mains power
supply, then consult a qualified service person before attempting to use the unit again.
Please pay attention to the following instructions in order to avoid receiving a life-threatening electric
shock:
Protect against moisture. Never use in the bath or sauna.
Never use near a bath, shower or swimming pool.
Never use the unit if it has got wet.This can also mean condensation moisture, which occurs in the winter when
the cold unit is brought into a heated flat.Wait before operating the unit especially after it has been transported
in the winter, until the cold unit has adjusted to the room temperature.
Do not place any heavy objects on the flex. Electrical isolation could be damaged.
Never wrap insulating tape around damaged flexes or on damaged plugs.These should be repaired or replaced
by qualified service personnel.
Never use this unit if the cabinet is defective. Do not make provisional repairs if the cabinet is damaged - this
should be replaced by a new cabinet if necessary.
Unplug the unit from the mains power supply prior to the cleaning of the unit.
Never try to repair a damaged AC power cord with isolation-tape - this should be repaired by a specialist or
replaced. Do not let your pet loose near the cable. Animals biting into the cable could receive a fatal electric
shock, and could cause a hazard to others.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
J3LJ1351A.indb 4J3LJ1351A.indb 4 4/2/12 4:53:26 PM4/2/12 4:53:26 PM

5 EN
Important safety information
How to attach the base plate
NOTE:
• Unplug the AC cord from the AC INPUT terminal.
• Before performing work spread cushioning over the base area to lay the TV on.
• Do not support the TV by the screen as sharp objects and too much pressure may cause damage.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
1) Place the TV on its front onto a table.
2) Align the stand’s base-plate (supplied) as seen here.
It will fit in only one direction. Make sure the locating pegs project through the locating holes.
3) Carefully hold the base plate in position and secure it with screws (LT-22...(3x10mm)x2/LT-24...(4x16mm)x3)
(included).
Dismantling the base
For wall mounting, the stand must be dismantled.To do this, remove screws (M, see page 10) from the
back.Take off the base plate entirely. Fit a VESA (LT-22...:75mm, LT-24...:100mm) wall mounting kit.
WARNING To prevent fire, never place any type of candle or open
flame on the top or near the TV set.
Headphone Warning
Loud music can damage your hearing irreversibly, therefore do not set the volume to a high level when
listening through headphones, particularly for extended listening periods.
Moving the unit or carrying by hand
When the unit is moved a long way, unplug the power cord and disconnect the antenna,
connecting cables and any fall-prevention apparatus.
• Moving without doing so could result in damage to the power cord, a fire, electric shocks or injuries
from dropping the unit.
When the TV stand has casters, remove caster cups from the stand and push it while
supporting the unit.
• Ensure that you support the unit when the stand is pushed, as this can cause the unit to fall and you
could be injured.
• The appliance could leave indentations in wooden tables with extremely soft wooden surfaces due to
its heavy weight.
• Furniture polish could corrode and dissolve rubber feet. Black imprints could be visible on the table.
You should therefore only use TV benches, which have been constructed for this specific purpose.
NOTE:
To detach the base plate, perform these steps in reverse order.•
LT-24...
LT-22...
J3LJ1351A.indb 5J3LJ1351A.indb 5 4/2/12 4:53:26 PM4/2/12 4:53:26 PM

EN 6
Secure the casters when the unit is installed on a TV stand with casters.
• The stand can move and you could be hurt if the casters are not secured.
Remove casters when the stand is placed on a soft surface such as a mat and carpet.
The distance between eyes and the screen should be about 3 ~ 4 times as long as height of the
screen.
• Viewing from too close a distance can cause strain for your eyes.
When installing the Monitor on a table, be careful not to place the edge of its stand.
• This may cause the Monitor to fall, causing serious injury to a child or adult, and serious damage to
the Monitor.
Possible Adverse Effects on LCD Screen: If a fixed (non-moving) pattern remains on the LCD screen for
long periods of time, the image can become permanently engrained in the LCD TV panel and cause subtle
but permanent ghost images.This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave
your TV on for long periods of time while it is displaying the following formats or images:
• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on
a normal (4:3) display (Black bars at top and bottom of screen); or viewing normal style (4:3) media on
a widescreen (16:9) display (Black bars on left and right sides of screen).
Attention!
Cleaning instructions for your LCD TV.
Safety note:
Before you start to clean, switch the set’s power off completely and disconnect the plug from the mains
power supply.
Be careful not to scratch the plastic coated front panel - it is highly vulnerable to accidental scratching (e.g.
by fingernails or other sharp items). (While cleaning, do not wear jewelry) that could cause surface scratch-
ing (such as rings, wrist-watch, etc.). Use a lint-free cloth and pure water to clean with, but make sure the
cloth is thoroughly wrung out so that it is just damp and not soaking wet - also make sure that the cloth is free
from any dirt that could cause scratching to the surface.
Wipe the set clean using minimal pressure.
Do not use standard window cleaning fluid. Its alcohol / ammonia will dissolve the front window’s coating.
Never use solvent or thinner. Never use special cleaners which are designed for cleaning PC Monitors or
CRT TVs. Finally carefully rub dry with a clean dry lint-free cloth.
Do not use paper towels or tissues to clean the set - paper can disintegrate when wet or may leave a trail of
dust behind. Some paper can also be abrasive and scratch your screen.
Saving electricity
The max. energy consumption during operation is reached only with maximal brightness of the display light.
Maximal brightness is only necessary in a daylight environment in order to get a luminous and full of contrast
picture.With less light in the environment, e.g. in the evening, the picture already can be too bright and might
dazzle.The brightness of the display light can be reduced to the desired value in the menu Backlight (see p.
18). If the Backlight is set to a smaller value you can save up to 30 % of energy.
Note:
The biggest energy saving effect is reached with minimal setting of Backlight.
•
Important safety information
J3LJ1351A.indb 6J3LJ1351A.indb 6 4/2/12 4:53:30 PM4/2/12 4:53:30 PM

7 EN
Location of controls
Description of Indicators and Controls
1. Remote sensor
2. Power indicator: The power indicator lights up red in standby mode, blue in power - ON mode.
3. Loudspeakers
4. (Power)-button: Preparation: Connect power-cable to AC220~240V/50Hz.
Press power-button to enter standby mode or turn on the power.
5. TV/AV/PC/ENTER button: Select input mode. In Menu : Using as ENTER button.
6. MENU button: To display the menu screen.
7. (Channel) / /▲/▼buttons: Press to change to a higher numbered channel set into memory.
Press to change to a lower numbered channel set into memory. In Menu: Setting.
8. (Volume) +/–/◀/▶buttons : Volume / In Menu: Setting.
For complete disconnection from the mains power supply, remove the supplied power cable from the
socket.
6
3
7
84
1
5
2
J3LJ1351A.indb 7J3LJ1351A.indb 7 4/2/12 4:53:30 PM4/2/12 4:53:30 PM

EN 8

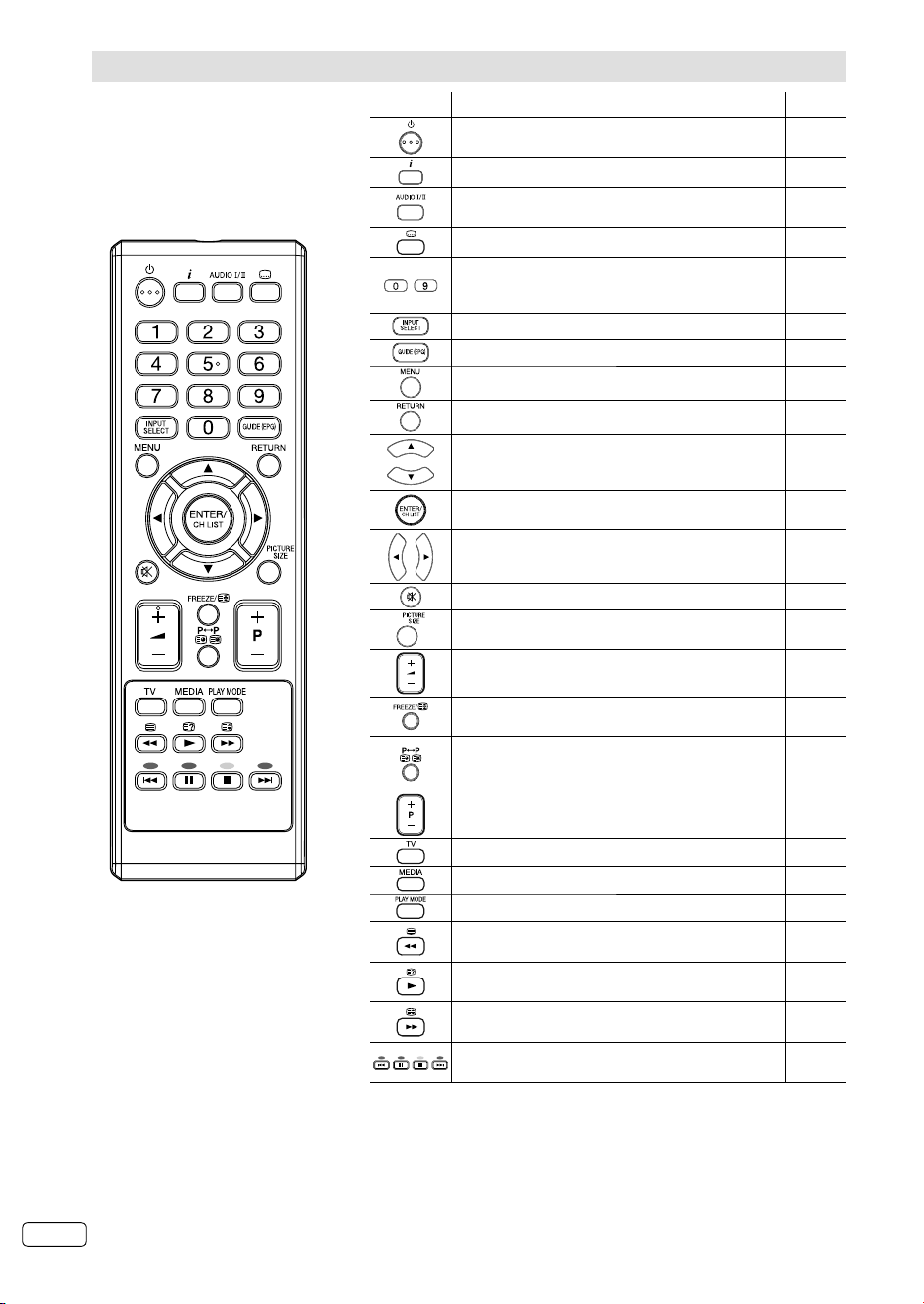

Remote Control
Function Page
Enter standby mode or turn on the power 11
Display program position number 14
Select between the available broadcast audio 14,15
Display the subtitle 14
~
Select channel
Select Teletext page
Enter password
14
15
17
Select an input source 11
Display the EPG (Electronic Progr. Guide) 17
Activate the menu / In menu, return 1 step
Exit menu
Cursor buttons
Memorize
CH LIST 14
Cursor buttons
Turn the sound on/off
Select picture format 21
Volume
Still picture
Hold the text page 14 15
Switches between the present channel and the last
selected channel
Sub page selection 15
Change the TV channel or Teletext page up or down 14,15
Select to operate TV
To enter Media Browser 22
Select play mode in media playback 23
Teletext ON / Text Mix / OFF
Control buttons for USB - playback 14 23
Reveal quiz page answers
Control buttons for USB - playback 15 23
Teletext enlargement
Control buttons for USB - playback 15 23
Fastext/TOPtext buttons
Control buttons for USB - playback 14 23
J3LJ1351A.indb 8J3LJ1351A.indb 8 4/2/12 4:53:31 PM4/2/12 4:53:31 PM

9 EN
Remote Control

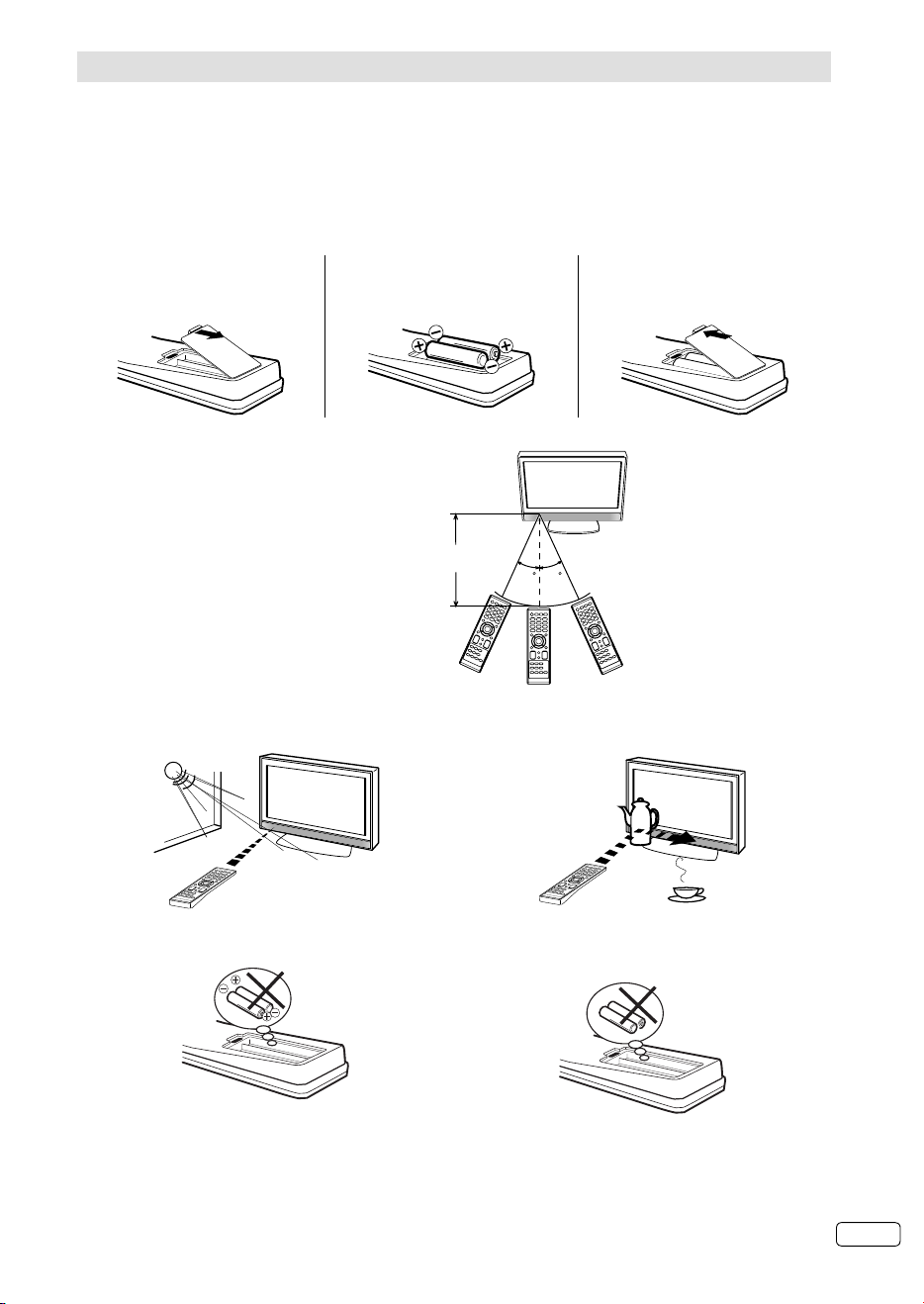

Install the batteries
Use batteries type UM4 (AAA-Size).
Do not use old or weak batteries.The remote control may not work properly with a weak voltage from such
batteries. Replace exhausted batteries with new ones. Never try to recharge normal batteries - this could
cause an explosion.
Note:
Exhausted batteries can leak corrosive electrolyte, which may cause damage to the remote
control - therefore remove exhausted batteries immediately.
Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
1Open the battery
compartment. 2Install the batteries as shown below, ensuring the correct
polarity.
3Close the battery
compartment.
•
•
The remote control handset will not work properly in the following cases:
a) If bright sunlight directly beams onto the unit front. b) If an obstacle is placed between the unit and the
handset.
Z
Z
Z
Z
Z
Z
c) If the batteries have not been installed
according to their polarities. d) If the batteries are weak.
Distance of Remote Control Operation
Transmitter window
Maximum distance approx. 5m
Remote sensor
Point the remote control
directly at the remote sensor.
30 30
J3LJ1351A.indb 9J3LJ1351A.indb 9 4/2/12 4:53:33 PM4/2/12 4:53:33 PM

EN 10
Antenna connection
Note: Before you connect other appliances:
To avoid potentially damaging your set, make sure all items are switched off and disconnected from the
mains power when you make the connections.
Arrange the desired connection.
When you have finished making the connections, reconnect the mains power to the unit and switch it
back on.
Connect your antenna as shown below (H). Connections to other equipment is explained further on
P.25-26. If you have problems with reception, consult a specialist of antenna.
•
•
•
100 mm
100 mm
M4 x 10
75 mm
M4 x 10
75 mm
(A)
(B)
(C)
(D)
(E)
(F)
(G)
(L)
(M)
(H)
(I)
(J)
(K)
Back Side
(M)
(L)
LT-22...
LT-24...
(A) C.I. slot: for CA- module
(CAM) (if PayTV-provider
supports this).
Note: To prevent
malfunctions and
damages, be sure to turn
off the TV before inserting
or removing the CAM
card.
(B) AV/COMPONENT
input: Input for analogue
AV-Signal/Component-
Signal. See P.25, 26.
Note: AV-AUDIO
input is sharing with
COMPONENT AUDIO
input.
(C) DIGITAL AUDIO
(COAXIAL) output:
digital audio output.
(D) HDMI/DVI input: See
P.25.
(E) USB input: See P.22-24.
(F) HEADPHONE jack: Plug
headphones with a mini
plug (3.5 mm) into this
jack.
(G) Scart socket: For the
connection of scart cable.
See P.26.
(H)
Antenna: Connect an
antenna.
The built-in tuner receives
all analogue cable
programmes and DVB-T/-
C channels.
(I) PC-INPUT (PC): See
P.25.
(J) PC/DVI AUDIO input:
See P.25.
(K) Power supply: Connect
the supplied power cable
to an AC 220-240V/50Hz
mains power supply only -
do not attempt to connect
it to any other type of
supply.
(G)
(H)
(I)
(J)
(K)
(N)
(N)
(A)
(B)
(C)
(D)
(E)
(F)
(L) Bracket holes: Fix a wall mounting bracket (not supplied) here.
(M) To hang the television on a wall, remove these screws and then remove the base plate.
Before performing work spread cushioning over an area to lay the TV on.
(N) Service connector cover: Please do not open this cover.There is a socket only for service purpose inside.
J3LJ1351A.indb 10J3LJ1351A.indb 10 4/2/12 4:53:34 PM4/2/12 4:53:34 PM

11 EN
Auto setup
At the first time you operate after the purchase,
“Initial Setup” menu will appear.
You can repeat this process via the menu
system (see page 19).
Preparation:
Turn on TV-unit (see P.7) and connect antenna.
1Initial Setup menu will appear.
Press ▲or ▼to select desired language.
Then press ▶or ENTER.
English
Česky
Dansk
Nederlands
Suomi
Initial Setup Language
Please select your language:
2Press ▲or ▼to select your country.
Then press ▶or ENTER.
Initial Setup Country
Please select your country:
Greece
Ireland
Poland
Portugal
Hungary
3Press ▲or ▼to select “Home Mode”, then
press ▶or ENTER.
Initial Setup TV Location
Home Mode
Store Mode
Please select where the TV will be placed. The picture will be optimized for that location.
4If you cancel Auto Sleep (see page 19), press
▲or ▼to selelct Off then press ENTER.
Initial Setup Auto Sleep
Off
3 Hours
4 Hours
5 Hours
Your TV has been set to power off after 4 hours of continuous viewing. If you want to
change this setting, please choose Off. This setting can also be changed in the MENU.
5Press ▲or ▼to select “Antenna” or “Cable”.
Then press ▶or ENTER.
Initial Setup Tuner Mode
Please select your tuner mode:
Antenna
Cable
6Connect your DVB-T antenna (or DVB-C
antenna if you selected “Cable” at step 5) now.
Press ▲or ▼to select “Scan”.Then press ▶or
ENTER.
Some country has query to search mode.You
can change this setting.Then press ENTER.
The tuning’s progress will be displayed in
percent for confirmation.
•
Initial Setup Channel Scan
First, please connect antenna.
Start channel scan now?
If you skip this step, the channel scan could be performed in Menu.
Scan
Skip Scan
Note:
Please be patient - the Auto Tuning
process can take several minutes to
complete.
•
7When the display reads 100%, press ENTER to
exit the menu.
Note:
To cancel the auto setup, press RETURN,
then press ◀to select “YES” during the process,
or press RETURN in the tuning progress.
THE AUTOMATIC TUNING PROCESS WILL
ONLY START BY ITSELF THE FIRST TIME YOU
SWITCH THE SET ON. HOWEVER YOU CAN
RESTART THIS PROCESS VIA THE MENU
SYSTEM (see page 12).
If you could not set up a correct language in this
auto setup process, you will be able to make your
preferred language selection as illustrated in
page 12 (On-screen Language Selection).
Selecting the input source
Press INPUT SELECT to view a signal from another
device connected to your TV, such as a VCR or DVD
player.You can select each input source depending
on which input jacks you used to connect your
devices.
To select the video input source, press ▲/▼, then
press ENTER.
•
•
J3LJ1351A.indb 11J3LJ1351A.indb 11 4/2/12 4:53:36 PM4/2/12 4:53:36 PM

EN 12

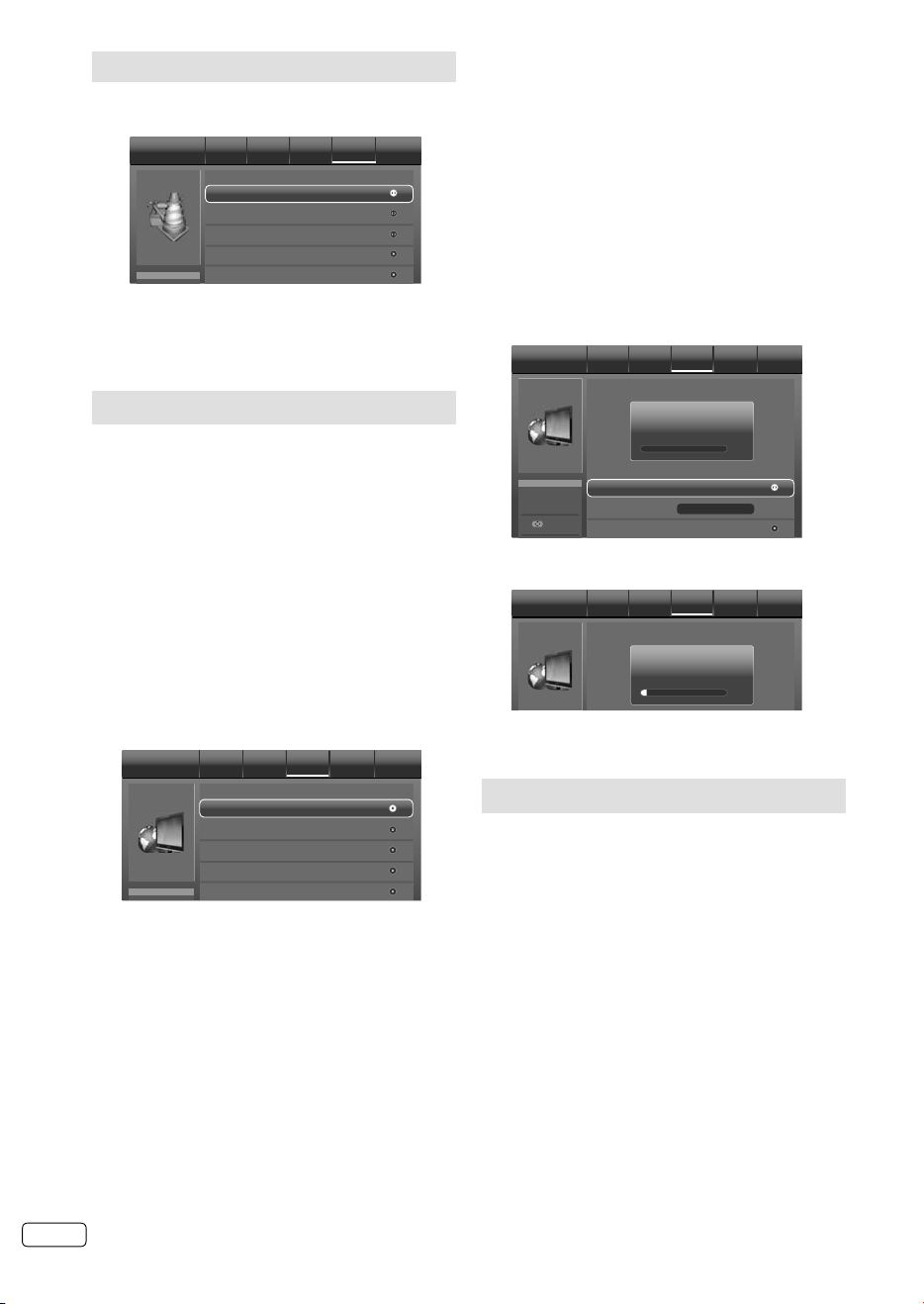

On-screen Language Selection
1Press MENU. Then press ◀or ▶to select
“Setup”, then press ENTER.
OSD Language
Setup Video Audio TV Setup Lock
English
Blue Screen
Time Setup
Subtitle
Off
Aspect Ratio Auto
2Press ▲or ▼to select “OSD Language”, then
press ◀or ▶to select the desired language.
3Press RETURN to exit the menu.
Station search
Warning! All previously saved DVB-T channels
are deleted in Step 3. A new channel search
then starts automatically.
Preparation:
Make sure your antenna is connected to the
antenna input (see P.10). Select an appropriate
input mode. (See page 11). Then press MENU.
1
Press ◀or ▶to select “TV”, then press ENTER.
Press ▲or ▼to select “Tuner Mode” .
Press ◀or ▶to select “Antenna” or “Cable” .
2Press ▲or ▼select “Channels”, then press
▶
or ENTER.
3Press ▲or ▼select “Channel Scan”, then
press
▶ or ENTER.
Press ◀or ▶to select desired country, then
press ENTER.
Channel Scan
Channels Video Audio TV Setup Lock
Analog Manual Scan
Digital Manual Scan
Channel Skip
Channel Sort
4The Channel Scan will search for available TV-
channels and store the channels in the correct
order.
Cable : Search for Digital and Analogue channel.
You can select this option “Scan Mode: Quick/
Advance/Full”, then press ▲or ▼to select
“Scan” and press
▶
or ENTER.
- Quick: If TV find a channel of NIT1 (Network
Information Table), it will find all other channels
in NIT1. Don’t scan for the channels of other NIT.
(only for Germany, Finland and Norway)
- Full: TV will find all the channels of NIT1, NIT2,
NIT3...
- Advance: Define a frequency. Only search
channel in this frequency.
Scan Mode Advance
Channel Scan Video Audio TV Setup Lock
0%
Scan All Channels.
Frequency (KHz)
Scan
306000
Select
Antenna: Search for Digital and Analogue
channel.
Channel Scan Video Audio TV Setup Lock
6%
Status: Scanning...
Digital Channels: 7
Analog Channels: 0
5When TV program have been stored 100%,
return to normal TV screen automatically.
Manual Channel Scan
Preparation:
Select “Analog Manual Scan” or “Digital Manual
Scan” in Step 3 of “Station search”.
Analog Manual Scan
Press ▲or ▼to select “Scan Up” or “Scan Down” to
start searching.Then press ▶or ENTER.
Digital Manual Scan
Select RF Channel that you want to setup, then
press ENTER to start searching.
You can verify the signal strength and quality of
the selected service here. If necessary, adjust
the direction of the DVB-T antenna to obtain the
maximum signal strength.
J3LJ1351A.indb 12J3LJ1351A.indb 12 4/2/12 4:53:38 PM4/2/12 4:53:38 PM

13 EN
Auto Synchronization
This feature can display the time based on the
DVB signal information.
If you wish to set the time manually, select “Off”
as follows and then perform the “Date” and “Time”
options.
1Press MENU. Press ◀or ▶to select “Setup”
press ENTER, then press ▲or ▼
to select
“ Time Setup ” , then press ▶ or ENTER.
2Press ▲or ▼to select “Time”, then
press
▶
or
ENTER.
Press ▲or ▼to select “Auto Synchronization”,
then
p
ress ◀or ▶to select “Off”.
Auto Synchronization
Time Video Audio TV Setup Lock
On
Off
Off
Date
Time
Power On Timer
Timer
Power On Channel
Power Off Timer
Timer
Select
Back
MENU
2012/04/26
11:12:34
00:00:00
00:00:00
3
Press ▲or ▼ to select “Date” or “Time”, then
press ◀or ▶, 0-9
to enter the correct time.
4
Press RETURN to exit the menu.
Power On/Off Timer
This feature allows you to program the TV to turn
on or off automatically at a set time.
1Press MENU. Press ◀or ▶to select “Setup”
press ▼or
ENTER , then press ▲or ▼ to
select
“ Time Setup ” , then press ▶ or ENTER.
2Press ▲or ▼to select “Time”, then
press ▶ or
ENTER.
Press ▲or ▼to select “Power On Timer” or
“Power Off Timer”, then
p ress ◀or ▶to select
“Off”, “On” or “Once”.
If you set the “Power On Timer”, you can
also set the “Power On Channel”.
•
3Press RETURN to exit the menu.

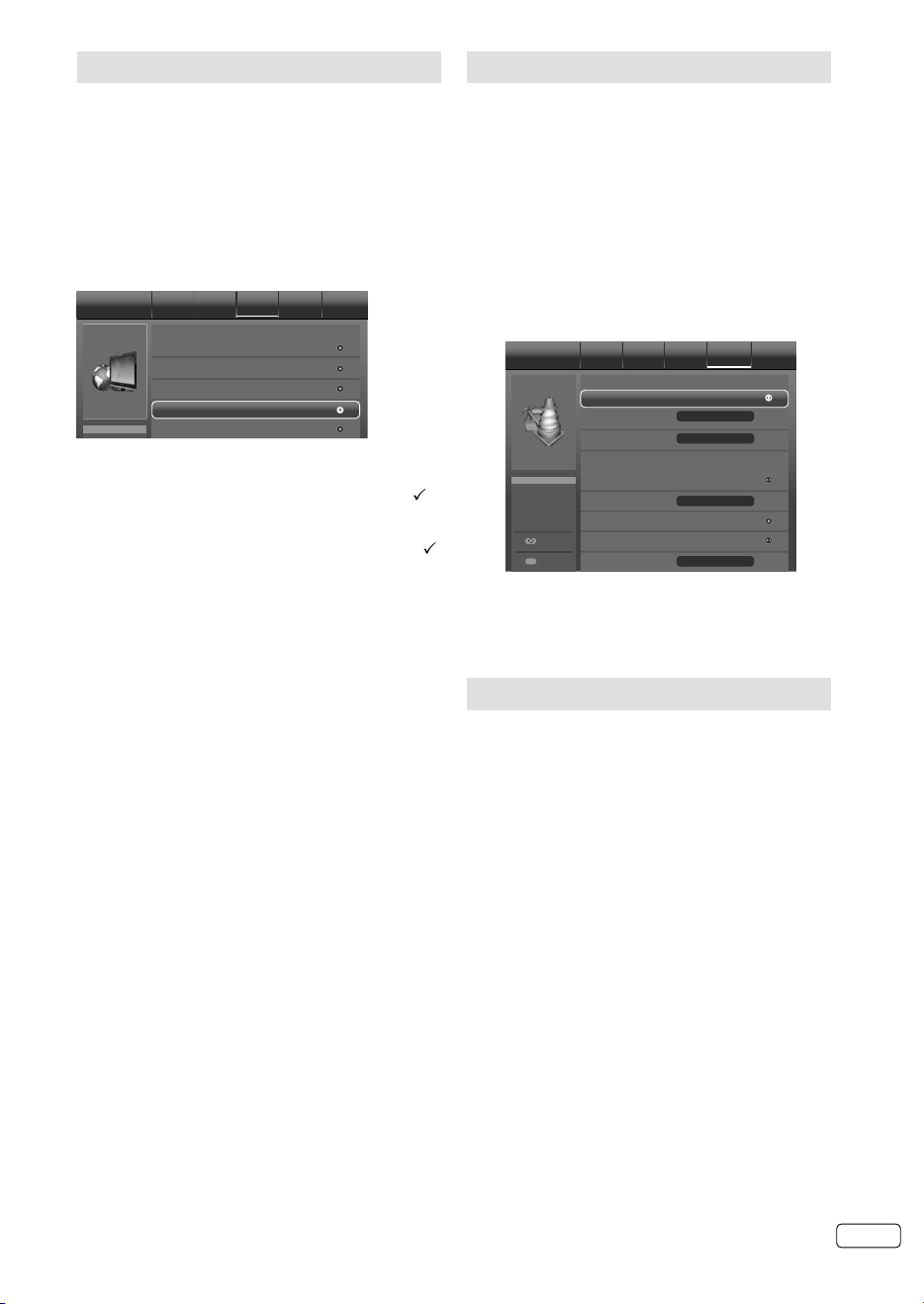

Channel Setup
The Automatic station presetting stores the
stations in a specific order. However, this order
can be changed if you wish.
1Press MENU. Press ◀or ▶to select “TV”,
then press ▼or ENTER.
2
Press
▲or ▼
to select
“
Channels
”
, then press
▶
or ENTER.
3
Select desired option, then press ▶ or ENTER.
Channel Scan
Channels Video Audio TV Setup Lock
Analog Manual Scan
Digital Manual Scan
Channel Skip
Channel Sort
Description about the each setting option:
Channel Skip: Press ▲or ▼to select the channel
that you want to skip, then press ENTER.The
mark will appear.
Channel Sort: Press ▲or ▼to select the channel
that you want to move, then press ENTER.The
mark will appear.
Press ▲or ▼to select the position that you want
to move the channel to, then press ENTER.
Channel Edit: Press ▲or ▼to select the channel
that you want to edit, then press ENTER.
Following options are displayed.
- Channel Number: Press 0-9 buttons to enter
the desired memory position number, then press
ENTER.
- Channel Name: Press ENTER to enter edit
mode, then press ▲/▼to select desired letter,
press ▶to move the position, or ◀to erase the
letter, then press ENTER to twice.
- Frequency (only for Analogue TV): You
can also directly enter the frequency value with
Number buttons (0-9), then press ENTER.
- Color System (only for Analogue TV): Color
System has already been preset to Auto. Do not
change anything here. Any changes can cause
picture or sound disruption.
- Sound system (only for Analogue TV):
Correct sound system is already installed. Any
changes can cause sound disruption.
Analog Channel Fine Tune (only for Analogue
TV): Already correctly and optimally installed.
Do not change anything here. Any changes can
cause picture or sound disruption.The video can
also be affected.
Clean Channel List : Press
▶ or ENTER, then
press ◀to select “OK” and ENTER to delete all
Channel.
J3LJ1351A.indb 13J3LJ1351A.indb 13 4/2/12 4:53:40 PM4/2/12 4:53:40 PM

EN 14
Basic Operation
Channel selection
With the Numbered buttons (0-9).
Example:
No. 2: Press 2.
No. 29: Press 2and within 2 seconds, press 9.
No. 929: Press 9, 2, 9same as above.
Press P + or -to change up or down a channel.This
takes approx. 2 seconds. If the auto search only stored 5
stations, only these 5 will appear. Skipped channels will
not appear (see P.13).
Channel List
The Channel List shows a list of all receivable
programmes.
Press CH LIST to display the Channel List.
Press ▲or ▼, then press ENTER to select the desired
channel.
Press CH LIST to display the selected channel.
Information display
Press . The program information will appear.
If you press twice, and 3 times, more information will
appear. (DVB-T)
The following figure is an example of DVB-channel
reception.
1Channel Name
2DVB Teletext available
3DVB Subtitle available
4Audio Language
5Audio Format
6Video Format
7Channel Number
8There are more than 2 pages.
9Program Detail
0Next Program Duration
!Parental Rating
@Program Duration
#Program Title
$Signal type
%Visual Impared Audio
Audio/Subtitle language for DVB-channel
If the current watching DVB-channel has more than one
audio language or subtitle language, you can change
them with AUDIO I/II or .
Press AUDIO I/II several times to select the Audio
language.
Press to select the Subtitle language.
•
•
•
•
•
Note:
Some DVB-broadcasts may not provide subtitle
language service.
Still picture
Press FREEZE to make a still picture.To cancel the still
picture, press FREEZE again.
Note:
During still picture mode, Aspect Ratio feature is not
available. (If you press PICTURE SIZE, still picture
mode will be canceled.)
During the playback of a movie file in MEDIA mode, still
picture function is not available.
Note:
During TV or external input mode (except PC input
mode), if there is no signal reception, the TV will change
to standby after approx. 15 minutes (in PC input mode:
1 minutes).
Some functions are activated and de-activated with
the same button. Others require RETURN button for
de-activating.
Teletext
Teletext is sent page by page.This unit is able to
automatically store up to 899 pages, but they can
only be accessed once they have been stored. This
can take a few moments.
The Teletext language menu allows the installation of
the teletext language.
The languages displayed are only those supported
by the channel.
Fastext/TOPtext
The Fastext/TOPtext is teletext with a special directory.
On the lower part of the screen there are four different
coloured fields (red, green, yellow and blue).These fields
lead directly to the pages shown within.The coloured
buttons on the remote control correspond to the coloured
fields. Press the appropriate coloured button in order to
activate the desired colour field.
Switch on / off Teletext
Teletext is not transmitted by all channels.
Select a channel that shows teletext.
Press .You will now see a teletext page.
(If “100” is shown without any text information, it may mean
that the channel you have selected does not support
teletext.)
Press again.Teletext and TV picture are shown
simultaneously.
Press again in order to switch off teletext.
Press again in order to switch on teletext again.The
last page which was stored is now shown.
Note:
You cannot select any other channels as long as teletext
is switched on. Switch teletext off when you want to
switch over to another channel.
•
•
•
•
•
•
EL TOQUE ARIEL
NOMBRE ORIGINAL-.
Ariel Rodriquez presenta este programa mezclade cocina y espectáculo
.
Spanish Stereo MPEG
576i SD
Antenna 11:12
ANTENA 3
1
1/4
6+
10:45-11:30
11:30-13:00 LA RULETA DE LA SUERTE
TTX STTL










J3LJ1351A.indb 14J3LJ1351A.indb 14 4/2/12 4:53:42 PM4/2/12 4:53:42 PM

15 EN
Select Page
Press P+ or - until the page you desire appears. Or
... enter the requested page number by using the 10
Number Buttons.
And if you mistype something, just enter the complete
3-digit wrong page number then enter the desired number
again. Or ... press one of the coloured teletext buttons so
that a page from Fastext/TOPtext is shown.
Hold Pages
Some pages are divided up into subpages by the channel.
Subpages are automatically shown in turn, as they are
transmitted. In order to hold the page, press . Press
again in order to display the next subpage.
Directly Select Subpages
You can directly select the subpages if required.You may use
one of two operations.
1. Press in order to select subpage (S )
is shown. Enter 0 0 0 2. It can take a minute
before subpage 0002 appears.
Or:
2. Wait a few seconds, and the right now available
subpages will be shown in the top left of screen.
Select your page with or .
Enlargement
In order to enlarge the display, press .
Either the upper or lower half of the screen is enlarged.
Each time you press you switch between the display of
the upper or lower half of the screen or the full picture.
Answering Quiz Questions
Some pages contain quiz questions with concealed
answers.
Press in order to show the answers.
Stereo reception in analogue cable
TV channel mode
You can see the each signal type of STEREO,
Nicam Mono, and DUAL I/II, etc. on the TV-screen
when you press .
When 2-channel sound reception is available,
you can select your preferred audio with the
AUDIO I/II.
Each time you press AUDIO I/II, the sound channel
will switch to the alternative channel available.
Note:
In case of bad reception, the stereo sound also
can be disturbed.
The sound multiplex displayed when pressed
is user selected sound. It may not the same one
which is from the program being broadcasted.
•
•
J3LJ1351A.indb 15J3LJ1351A.indb 15 4/2/12 4:53:42 PM4/2/12 4:53:42 PM

EN 16
Remarks on DVB-T system
DVB-T is at present still being developed.You can get information regarding the current stage of
development from your specialist retailer.
As a digital service DVB-T basically works differently to previous analogue TV reception.
Reception Possibilities:
In contrast to cable TV, DVB-T is received via room or roof antennas. A room antenna is sufficient for
reception within the reception area of a DVB-T transmitter. A roof antenna may perhaps be necessary for
reception in a fringe area. Existing roof antennas may have to be turned in a different direction.
Contact your specialist retailer to find out about the location of the reception areas or fringe areas.You
cannot get DVB-T reception outside the fringe area. Ask a certified antenna specialist for advice on
interference with reception.The tuner of this appliance cannot provide active room antennas with operating
voltage. Active room antennas have to be equipped with a separate power supply.
Reception Quality:
DVB-T reception principally either works really well or not at all.There is not a smooth transition with a
constant reduction in reception quality. Digital interference occurs at maximum reception range:
the image freezes, the picture becomes blocky, the sound breaks up or reception cuts out altogether
at times. If you notice interference with DVB-T reception then this is usually not due to a fault on the TV
appliance. Please contact an antenna specialist if you have interference with reception. Inspection of the
quality of DVB-T reception is not included in the free warranty to be provided by the manufacturer of the TV
appliance.
Image and Sound Quality:
An individual transmitter transmits up to 4 TV channels on one transmission frequency.This is possible
through compression in accordance with the MPEG standard, which is similar to digital data storage on a
DVD.The data rate of DVB-T is just a lot lower; at present the max. video bit rate is approx. 4Mbps and the
max. audio bit rate is at 256kbps.Visible interference (e.g. blocky picture) can result at extremely low data
rates despite there being excellent reception quality within vicinity of the transmitter. Blocky pictures are
no fault of the receiver.They are the result of the low data rate transmitted. The digital DVB-T sound can be
transmitted to the digital amplifier via the digital output of your TV set.
Image Format
Images are transmitted in 4:3 format, 4:3 letterbox format (with black bars above and below the picture) and
anamorphic 16:9 format (without black bars).The max. transmitted resolution at present is 704x576.
Child Lock
Like DVDs, DVB-T offers can also provide age-restricted access. At the moment, no channels are equipped
with this restriction.This appliance does, however, already offer the feature of setting up password protected
age restrictions, which only work when the respective programmes are broadcast.
DVB-T Update
The DVB-T norm earmarks the transfer of firmware updates. The transfer of firmware updates is called Over
Air Download or OAD for short.
If this product happens to require a firmware update in future, this update could be received via DVB-T. If the
available software for updating is detected, the confirmation message whether start the software to download
is displayed.The rest please proceed to download-operation according to the directions of a TV screen.
EPG (Electronic Program Guide)
EPG is part of the DVB-signal with 8-days-schedule.This TV can receive and display the EPG-information
included into DVB.This TV’s EPG-Decoder will not work with Satellite-TV.
J3LJ1351A.indb 16J3LJ1351A.indb 16 4/2/12 4:53:43 PM4/2/12 4:53:43 PM

17 EN
Password Setup (Parental lock)
Parental Guidance is a function of the channel
provider. If it is not supported by the channel,
parental lock is without function. Currently there
are no channels supporting parental lock.
1Press MENU. Press ◀or ▶to select “Lock”,
then press ▼or
ENTER.
2Press 0 0 0 0 using the Number buttons (0-
9). (This is the default password.)
3Press ◀or ▶to select “System Lock” to “On”,
then press ▲or ▼to select the desired option.
Then press ▶or ENTER.
Channel Block: Press ▲or ▼to select desired
channel, then press ENTER to set Channel
Block active disactive.
Parental Guidance : Press ◀or ▶to select
desired Age Rating level (None/4-18).
Change Password:
New Password
Enter your chosen new password (please
call service, if you have forgotten the new
number).
Confirm Password
After you have entered the new password,
you need to enter the same password again
for confirmation.
Clean All : Press ◀or ▶to select “OK”, then
press ENTER. All settings are return to normal
setting.
•
•
4Press RETURN to return the normal screen.
While toggling between channels, if a service which
has a parental rating (higher than your setting) and
you have set the “System Lock” to “On”, the channel
will be locked.The password entering screen
will appear.Then enter the password to view that
channel.
EPG (Electronic Program Guide)
The Guide menu shows the available
programme listings for the next 8 days only,
including today.
1Press GUIDE (EPG) to display the Guide
menu.
①②
Thursday, 26-April-2012 11:08:54
30/04/2012 0:00 1:00
1/3
1 ANTENA 3
2 ANTENA.NEOX
3 ANTENA.NOVA
4 FRATV1
5 MNO
6 PQR
TV ON
0:00 - 1:00 Mon, 30-Apr
(TP) (ENTRETENIMIENTO) Programa que.............................................................................
...................................................
,
DIRECTOR-.
TV ON UPA DANCE
SHOW
6+
EN ANTENA LOS LADRONES VAN A LA OFICINA (R)
1Service list :
Lists all the services that are currently available.
As you scroll through the service list by
pressing ▲or ▼.
2Events list :
List the events in a grid of rows.
You can press ◀/▶to navigate through the rest
of the events.
You can easily move to the previous day or
next day in the Events List by pressing Red
or Green button (the date of the programme
information you are currently viewing is shown
in the top left hand corner).
2The “View detail” shows the extended event
description of an event.
Each time you press Yel l ow , detail text will
scroll page down.
Detail text will not shown when “System
Lock” feature is “On” and selected program
is locked.You should enter the password for
display it.
For not to miss a TV program, you can set
reminder by pressing Blue button. “Schedule
List” screen will appear, and you can set
reminder as; Once, Daily or Week.
If reminder window appear on the screen,
press ◀or ▶to select “YES”, then press
ENTER.
•
•
To clear the menu screen, press GUIDE (EPG)
or RETURN.
J3LJ1351A.indb 17J3LJ1351A.indb 17 4/2/12 4:53:43 PM4/2/12 4:53:43 PM

EN 18
Other convenience functions
Selected Items Setup hint
Video
Picture Mode
Standard / Vivid / Soft / User Select the most suitable picture mode according to your
lighting condition.
Brightness / Contrast / Colour / Sharpness /
Tint You can adjust the picture to your preference. Tint is available in NTSC-signal mode or Component/
HDMI-signal with 60Hz.
•
Back Light You can use the Back Light feature to adjust the screen
brightness for improved picture clarity.
Color Temperature Standard (Neutral) / Warm (Reddish) / Cool (Bluish)
Advanced Video
DNR You can clear up analogue TV signal by reducing the dot
noise.
“Auto” is available only in analogue signal.•
Medium / Strong / Off /
Low / Auto
MPEG NR Similar with the Noise Reduction, you can set to reduce
the block noise.
Low / Medium / Strong /
Off
HDMI Mode You can select “Video/Auto” for HDMI signal (480p /
576p / 720p / 1080p).
“Graphic” is available only in PC signal.•
Auto / Graphic / Video
PC Mode You can adjust the signal to your preference.
Graphic / Video
Audio
Balance / Bass / Treble You can adjust the sound quality to your preference.
Surround The Surround feature processes the audio signal to
expand the listening field wider and deeper to create a
‘pseudo surround-sound’ from the TV’s speakers.
The feature works with stereo signals from TV broadcast
or AV input.
On / Off
Equalizer Select the most suitable sound mode according to your
watching contents.
Off / Rock / Pop / Live / Dance /
Techno / Classic / Soft
Stable Sound This will automatically adjust volume so each channel
and input has the same average volume level.
On / Off
Sound Type You can select your preferred audio with the ◀/▶.
Type You can set audio output.
Normal /Visually Impaired Select type of audio for output .
Visually Impaired You can set the output audio of Visually Impaired Audio.
Visually Impaired audio is verbal narration inserted to
explain detailed scene in parallel with normal audio for
people with visual impairment.
This option is available, when the setting of “Type”
above is “Visually Impaired” only. Press ▶to enter the
following options.
•
Speaker On/Off Select to turn on /off the Visually Impaired audio.
Volume
You can adjust the audio volume of Visually Impaired audio.
PC
(available only for PC
input mode) Auto Adjust Automatic adjustment of VGA for optimal picture.
H.Position To adjust the horizontal placing of the image.
V.Position To adjust the vertical placing of the image.
Phase Eliminates the horizontal (PHASE) interfering lines.
Clock Eliminates the vertical (CLOCK) interfering lines.
TV
Tuner Mode See page 12.
Country Region ID Set the different time zone for Spain and Portugal.
Channels See page 12-13.
Schedule List See page 17.
J3LJ1351A.indb 18J3LJ1351A.indb 18 4/2/12 4:53:44 PM4/2/12 4:53:44 PM

19 EN
Other convenience functions
Selected Items Setup hint
Setup
OSD Language See page 12.
Aspect Ratio See page 21.
Blue Screen You can set the TV to automatically change to a blue
screen and mute the sound if the signal is weak or
absent.
On / Off
Time Setup
Time Zone If the time displayed on the Channel Information differs
from the actual time, adjust the time offset until the
correct time zone is shown.
Normally, this would be done by selecting “As
Broadcaster”.
•
Time See page 13.
Sleep Timer Sleep timer switches the TV to standby after a defined
period of time.
To cancel the Sleep Timer, set to “Off”.
Off / 10 / 20 / 30 / 40
/ 50 / 60 / 90 / 120
Minutes
Auto Sleep When the Set and Remote button operation are not
operated with specified period by this setting (3/4/5
Hours), the power status is changed to stand by mode
automatically
Off / 3 / 4 / 5 Hours
OSD Timer The OSD is cleared automatically as per this setting.
None / 5 / 10 / 15 / 30 /
45 /60 S
Subtitle
Subtitle On /Off Select subtitle On or Off.
Digital Subtitle Lang. 1st Select preferred subtitle language, if the current
watching DVB channel has more than one subtitle
language.
Digital Subtitle Lang. 2nd Select second preferred subtitle language, if the current
watching DVB channel does not have the language set
in “Digital Subtitle Lang. 1st” option above. If the “Digital
Subtitle Lang. 2nd” set here is not transmitted in the
channel, the first language included in the channel is
selected.
Subtitle Type Select the subtitle type (Normal / Hearing Impaired).
Teletext
Digital Teletext Language First preferred Videotext language can be set here,
which is used in case that the currently viewed DVB
channel has more than one Videotext Languages.
If the channel does not have the Videotext language set
in “Digital Teletext Language”, the Videotext language is
displayed with first receiving language.
Decoding Page Language Set language for the decoding page.
Audio Language
Audio Language 1st Select preferred audio language, if the current watching
DVB channel has more than one audio language.
Audio Language 2nd Select second preferred audio language, if the current
watching DVB channel does not have the language
set in “Audio Language 1st” option above. If the “Audio
Language 2nd” set here is not transmitted in the
channel, the first language included in the channel is
selected.
Common Interface You can access the Common Interface module
information from this menu option.
First Time Installation See page 11.
Reset Default Press ▶or ENTER to enter the Reset Default screen.
Press ◀to select “OK”, then press ENTER. Reset the
TV function will now begin.
Lock See page 17.
J3LJ1351A.indb 19J3LJ1351A.indb 19 4/2/12 4:53:44 PM4/2/12 4:53:44 PM

EN 20
Resolution and picture quality
Broadcast wide screen films in different resolutions. The following table shows the resolution options for
wide screen film broadcast media.
Broadcast media
Resolution of the wide
screen signal Analogue cable TV Digital cable TV DVB-T Satellite (DVB-S) DVD HDTV Satellite
(DVB-S2)
Blu-ray-
Disc
432i x 768 (Letterbox) Yes Yes Yes Yes Yes Yes No
576i x 768 (anamorphic) No Yes Yes Yes Yes Yes No
720 x 1280 (HD) No Yes No No No Yes Yes
1080i x 1920 (HD) No Yes No No No Yes Yes
1080p x 1920 (HD) No No No No No No Yes
Picture quality and black bars
Wide screen films come in different formats. The format is the relationship
between the width and height of the picture. For example, with a 16:9 film
the width to height ratio is 16:9 or 1.78:1. Only 16:9 films can fill a HD-
ready screen without black bars.Therefore, black bars are always visible
when a format other than 16:9 is received. E.g. 4:3, A 4:3 displays vertical
black bars to the right and left.
If a 4:3 picture is increased to 16:9 format then it either appears distorted
(see illustration) or some parts of the picture are cropped off at the top and
the bottom.This is completely normal and is not a fault in the wide screen TV.
Super Cinemascope films are wider than 16:9 films.They are in the format
2.4:1 or 22:9, for example.This is clearly wider than16:9. Therefore, Super
Cinemascope films display black bars at the top and bottom on any HDTV set.
Picture format and resolution
There is no connection between the picture format and the resolution received. For example, the Super
Cinemascope format can be received in all resolutions, even in the HD resolution1080ix1920. For HDTV
reception too an HDTV set may display black bars at the top and bottom.
4:3 picture 1:1 on
16:9 screen
4:3 picture zoomed on
16:9 screen
Picture size and resolution
Best picture quality is achieved when the input signal has a resolution of 1920 x 1080i. If a signal with a lower
resolution is input (e.g. analogue cable TV), there is a visibly poorer picture quality.
This is understandable as, if the same picture quality were available at a lower resolution, the broadcasting
companies would not need to take the trouble to send the signal at the higher resolution.
Why are there different resolutions?
Analogue cable TV uses a standardised TV signal. Each analogue 4:3- tube TV, however old it is, can
process this signal.That is the advantage of standardisation.The disadvantage is that the resolution has not
changed since the end of the Second World War. The resolution has been max. 576 x 768 for over 60 years.
For comparision: today’s TVs feature a FullHD-resolution of 1080 x 1920.
The analog cable-network offers the 16:9-format at a low resolution of only 432 x 768.This input covers only
16% of a FullHD-screen’s area. 84% of the screen would stay black, if the TV would not make up the rest by
some special mathematics. 84% of what you see had been made up artificially by magnifying the tiny input-
signal to full-screen-size.That’s the reason for the analog cable-network’s low picture-quality seen on every
FullHD-TV.
J3LJ1351A.indb 20J3LJ1351A.indb 20 4/2/12 4:53:45 PM4/2/12 4:53:45 PM
