INTRODUCTION
You can find the latest information (in English) on the provided software program at our world wide web
server at http://www.jvc-victor.co.jp/english/index-e.html
●Microsoft®and Windows®are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
●Macintosh is a registered trademark of Apple Computer, Inc.
●Other product and company names included in this instruction manual are trademarks and/or registered
trademarks of their respective holders.
This document consists of the following sections.
Before use, please read “SOFTWARE INSTALLATION AND USB CONNECTION GUIDE” for preparation.
䡲Digital Photo Navigator
This section explains how to load still images into the album of the Digital Photo Navigator and how to
handle still images using the Digital Photo Navigator software. You can send still images by e-mail and store
an album as a web page.
䡲Troubleshooting
CAUTION:
●Operate this equipment according to the operating procedures described in this manual.
●Use only the provided CD-ROM. Never use any other CD-ROM to run this software.
●Do not attempt to modify this software.
●Changes or modifications not approved by JVC could void user’s authority to operate the equipment.
ATTENTION:
When connecting a USB cable to PC
●Never switch the recording/playback mode on the camera when the USB cable is connected. It may
cause the camera not to be recognized by the PC. If it occurs, confirm that the PC is not accessing the
camera, then disconnect the USB cable and connect it again.
●Never turn on or off the camera when the USB cable is connected. It may cause malfunctions of the PC.
How to handle a CD-ROM
●Take care not to soil or scratch the mirror surface (opposite to the printed surface). Do not write anything
or put a sticker on either the front or back surface. If the CD-ROM gets dirty, gently wipe it with a soft
cloth outward from the center hole.
●Do not use conventional disc cleaners or cleaning spray.
●Do not bend the CD-ROM or touch its mirror surface.
●Do not store your CD-ROM in a dusty, hot or humid environment. Keep it away from direct sunlight.
Reading this document
M5S7_Soft_03Intro.fm Page 3 Friday, January 21, 2005 12:22 PM

INTRODUCTION (cont.)
4EN
Master Page: Left
The following symbols are used in this document.
NOTE:
Indicates problems that could occur while using these softwares, phenomena that may appear to be a
problem, limitations on the use of these softwares, or other information that is useful to know.
墌
Indicates pages where related information can be found.
CONTINUED ON NEXT PAGE
Indicates that the explanation continues on the next page.
Under copyright law, any material that you may edit with this software cannot be used for any purpose other
than your own personal enjoyment without the permission of the copyright holder. Note that this restriction
applies when dubbing tracks from a CD as background music for your own movies.
Meanings of symbols
Copyrights
M4S5_Soft.book Page 4 Friday, August 20, 2004 12:00 PM

EN 5
Master Page: Right-Heading0
M4S5_Soft_04PhotoNavi.fm Page 5
Digital Photo Navi gator
DIGITAL PHOTO NAVIGATOR
Send your favorite videos and pictures by e-mail
Everyone has recording media containing videos and pictures that they never get to show to anyone.
No matter how wonderful, the only people that got to see them were families and guests, because there was
no convenient way to show them except in your own home on the TV. Friends and relatives who live far away
had no way of viewing them. And you don’t want to throw those recording media away because they hold
treasured memories.
Now you can solve all of these problems with a PC. By using a USB cable to connect a camera to a PC, you
can copy video files from the camera to the PC. You can then send the files to anyone as an e-mail
attachment.
Loading Still Images
The Digital Photo Navigator software allows you to store and view still images in a photo album format.
Playing Back and Handling Images
You can send still image files as an e-mail attachment and store an album as a web page.
Create a virtual album
If you have a lot of image files with similar names, it can be hard to remember which file contains which
image.
You can use this software to display these images on your PC just as if you had pasted them in a photo album.
Because you can scan through these images just as if you were flipping through a photo album, you can
quickly find a specific image that you want to send through e-mail, for example.
Capabilities
M4S5_Soft.book Page 5 Wednesday, August 25, 2004 2:29 PM

6EN
Master Page: Left-Heading0
M5S7_Soft_04PhotoNavi.fm Page 6
ADDING STILL IMAGES TO AN ALBUM
You can use Digital Photo Navigator to create an album that contains a collection of still images.

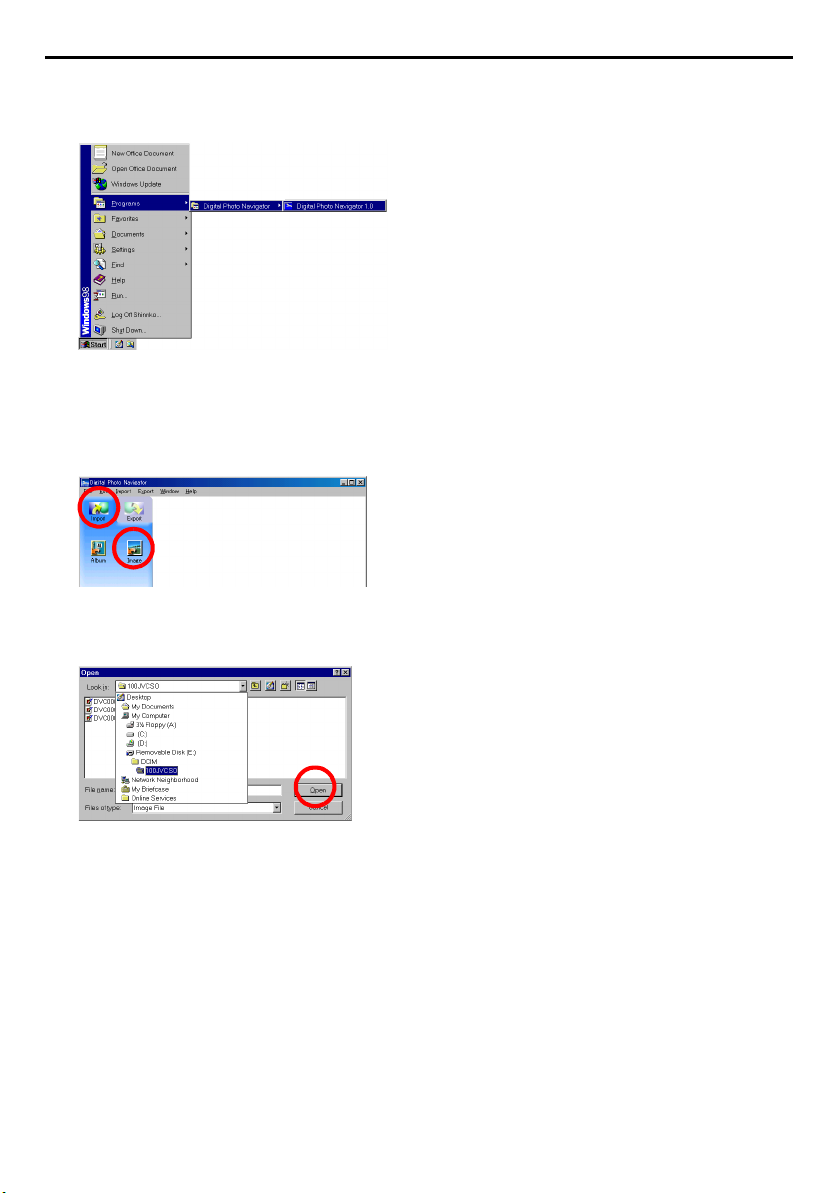

1Click [Start], go to [All Programs] or [Programs]– [Digital Photo Navigator], and then click
[Digital Photo Navigator 1.0].
Digital Photo Navigator starts.
●Close any other programs running on the PC.
●Disable any programs that run in the background, such as screen savers, e-mail applications, virus
checkers, schedulers, etc.
●Turn off file and printer sharing.
2Click [Import].
3Click [Image].
The [Open] dialog box appears.
4Open the folder that contains the desired still images.
●Select the folder of the still images copied to the PC and click [Open].
The still image files appear in the window.
5Select the desired still image files and click [Open]. The still images are added to the right-
hand side of the Digital Photo Navigator window.
●You may select more than one file.
●You can also add files by dragging and dropping them in the Digital Photo Navigator window.
CONTINUED ON NEXT PAGE
M5S7_Soft_04PhotoNavi.fm Page 6 Tuesday, February 1, 2005 8:04 PM

EN 7
Master Page: Right-Heading0
M4S5_Soft_04PhotoNavi.fm Page 7
ADDING STILL IMAGES TO AN ALBUM (cont.)
6Add additional still images as desired by repeating steps 3–5.
NOTES:
●When loading images from a recording medium, never disconnect the USB cable while the message
[ACCESSING FILES] is displayed in the camera’s LCD monitor.
●Digital Photo Navigator can only load still images. Digital Photo Navigator cannot load video files.
7Click [Export].
8Click [Album].
The [Save As] dialog box appears.
9Specify the location where you want to save the album, enter the file name of the album,
and then click [Save].
The album is saved.
●If you save an album for the first time after the software installation, a message appears and asks if you
want to register the association of the file extension name “jia”. Then, click [Yes].
●To exit Digital Photo Navigator, refer to “EXITING DIGITAL PHOTO NAVIGATOR” (See below).
EXITING DIGITAL PHOTO NAVIGATOR
1Click the [File] menu and then click [Exit].
●If you have already saved an album, a confirmation message appears. Then, go to step 2.
●If you have not saved an album after loading still images, a confirmation message appears.
To save an album, click [Yes]. The [Save As] dialog box appears. Specify the location where you want to
save the album, enter the file name of the album, and then click [Save]. A confirmation message
appears. Then, go to step 2.
To exit Digital Photo Navigator without saving an album, click [No]. A confirmation message appears.
Then, go to step 2.
2Click [Yes].
Digital Photo Navigator closes.
M4S5_Soft.book Page 7 Friday, August 20, 2004 12:00 PM

8EN
Master Page: Left-Heading0
M5S7_Soft_04PhotoNavi.fm Page 8
LOADING AN ALBUM
1Start Digital Photo Navigator. (墌pg. 6)
2Click [Import].
3Click [Album].
The [Open] dialog box appears.
4Open the folder where the album was saved.
5Click the desired album file, and then click [Open].
The contents of the album are displayed in the right-hand side of the Digital Photo Navigator window.
6Click [Export].
NOTES:
●You can also open the album file by dragging and dropping it in the Digital Photo Navigator window.
●If an album is currently open, a confirmation message appears.
• If you want to open the newly selected album instead of the one already opened, click [Yes]. If you have
not saved the album already opened, a confirmation message appears. If you want to save the album,
click [Yes]. If you do not want to save the album, click [No].
• If you want to add still images from the newly selected album to the album already opened, click [No].
M5S7_Soft_04PhotoNavi.fm Page 8 Friday, January 21, 2005 12:41 PM

EN 9
Master Page: Right-Heading0
M4S5_Soft_04PhotoNavi.fm Page 9
DISPLAYING STILL IMAGES
Displaying a selected still image
You can select for display any of the still images that are displayed in the right-hand side of the Digital Photo
Navigator window.
1Double-click the still image to be displayed.

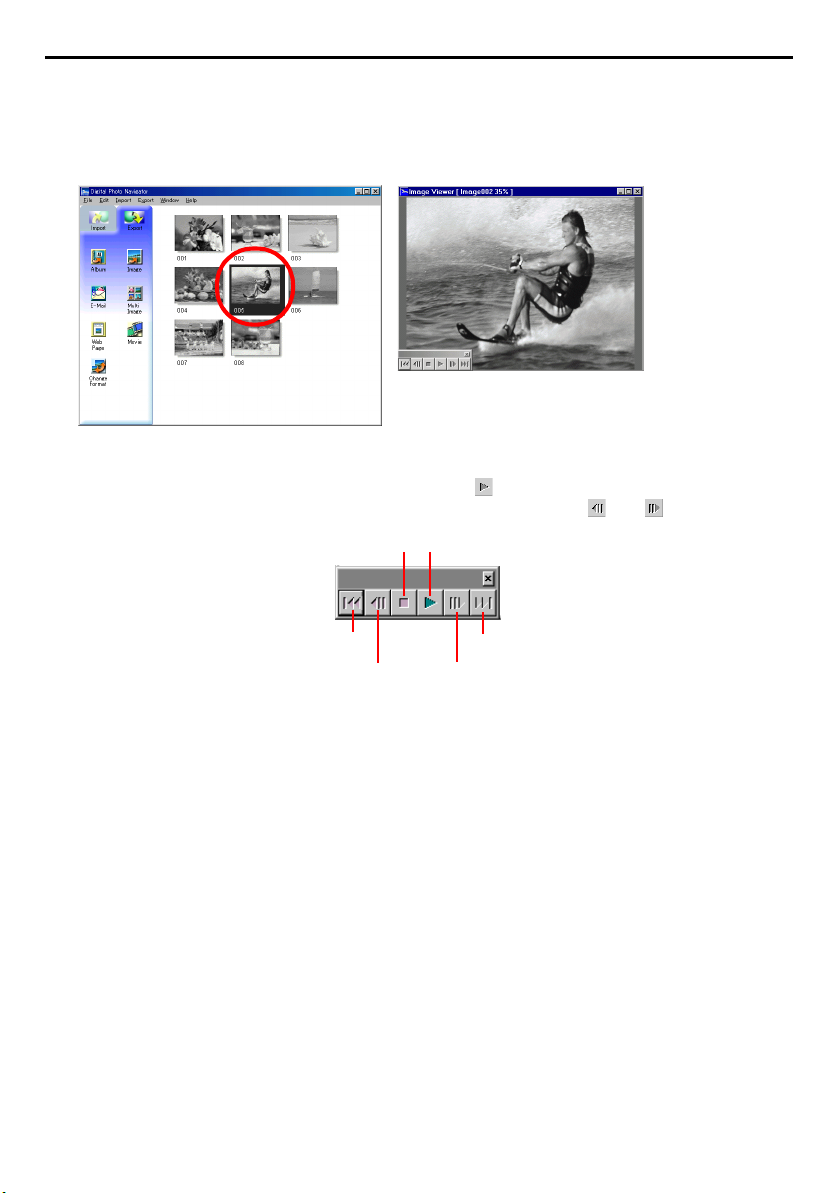

The [Image Viewer] window appears, and the selected image is displayed.
Displaying a series of images
To display a series of images in “slide show” fashion, click the button in the [Image Viewer] window. You
can also move through the images manually in either direction by clicking the and buttons.
To adjust the speed of the slide show, right-click the [Image Viewer] window and then, in the menu that
appears, click [Slide show] – [Setting Interval Time]. Set the length of the interval (in seconds), and then click
[OK].
NOTE:
The interval for a slide show is a little longer than the setting because of display processing time.
Stop slide show
First image Last image
Next image
Start slide show
Previous image
M4S5_Soft.book Page 9 Friday, August 20, 2004 12:00 PM

10 EN
Master Page: Left
M4S5_Soft_04PhotoNavi.fm Page 10
DISPLAYING STILL IMAGES (cont.)
Enlarging and reducing images
The following procedure describes how to change the display size of a still image.
1Drag the corner of the [Image Viewer] window to change the size of the window to the
desired display size.
2Right-click the [Image Viewer] window and then, in the
menu that appears, click [Zoom] – [Auto].
The size of the still image is automatically enlarged or reduced
to fit the window, and the display magnification (enlargement/
reduction percentage) indicated in the title bar of the window
changes accordingly.
Other enlargement/reduction functions
In addition to adjusting the size of the image to the size of the
window, the display size of a still image can also be changed by the
methods described below. Each of these functions can be selected by
right-clicking the [Image Viewer] window.
●[Zoom] – [Real Size]: Displays the image in its original size
(display magnification of 100%).
●[Zoom] – [Zoom In]: Displays the image at twice its current display magnification (up to 400%).
●[Zoom] – [Zoom Out]: Displays the image at half its current display magnification (up to 20%).
Display magnification
M4S5_Soft.book Page 10 Friday, August 20, 2004 12:00 PM

EN 11
Master Page: Right-Heading0
M4S5_Soft_04PhotoNavi.fm Page 11
ORGANIZING ALBUMS
Whenever necessary, you can delete or copy still images that you have added to an album. The procedure
described below only affects the still image in the album. It does not affect the original file of the still image
that was added to the album.
To delete or copy multiple still Images at once, select them in advance. You can also select all still images in
the album.
Selecting still images continuously
Click still images while holding down the Shift key.
If you click one still image while holding down the Shift key, the images of smaller numbers are selected as
well.
Selecting still images one by one
Click still images while holding down the Ctrl key.
Selecting all of the still images
Click [Select All] in the [Edit] menu.
Selecting multiple still images
Shift + Click
Click
Ctrl + Click
M4S5_Soft.book Page 11 Friday, August 20, 2004 12:00 PM

12 EN
Master Page: Left
M4S5_Soft_04PhotoNavi.fm Page 12

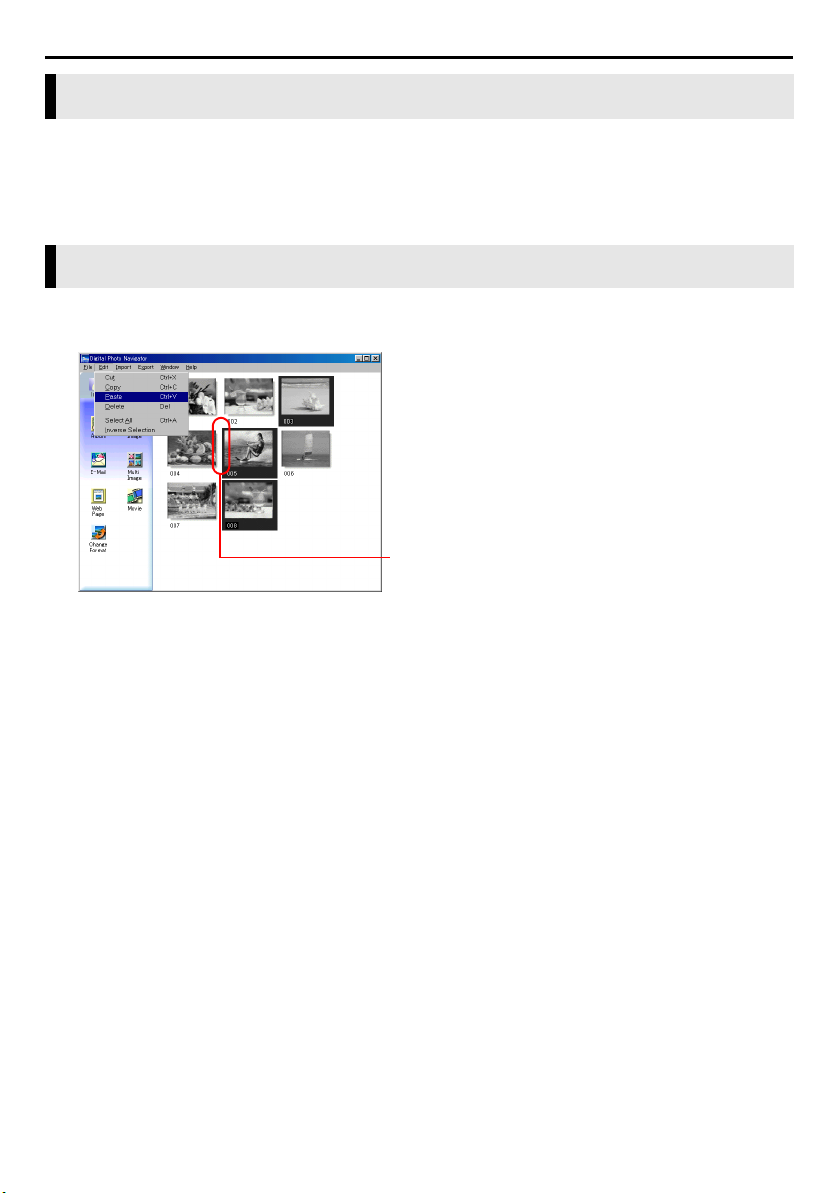

ORGANIZING ALBUMS (cont.)
1Click the still image that you want to delete, and then click [Delete] in the [Edit] menu.
A confirmation message appears.
2Click [Yes].
The selected still images are deleted.
1Click the still image that you want to copy, and then click [Copy] in the [Edit] menu.
2Click the image that is located right after the insertion point.
●To add the images at the end of the album, click the blank space in the right-hand side of the window.
3Click [Paste] in the [Edit] menu.
The copied still images are inserted right before the selected image.
NOTE:
You can delete, copy or paste an image also by right-clicking it.
Deleting unnecessary still images
Copying still images
Insertion point
M4S5_Soft.book Page 12 Friday, August 20, 2004 12:00 PM

EN 13
Master Page: Right-Heading0
M4S5_Soft_04PhotoNavi.fm Page 13

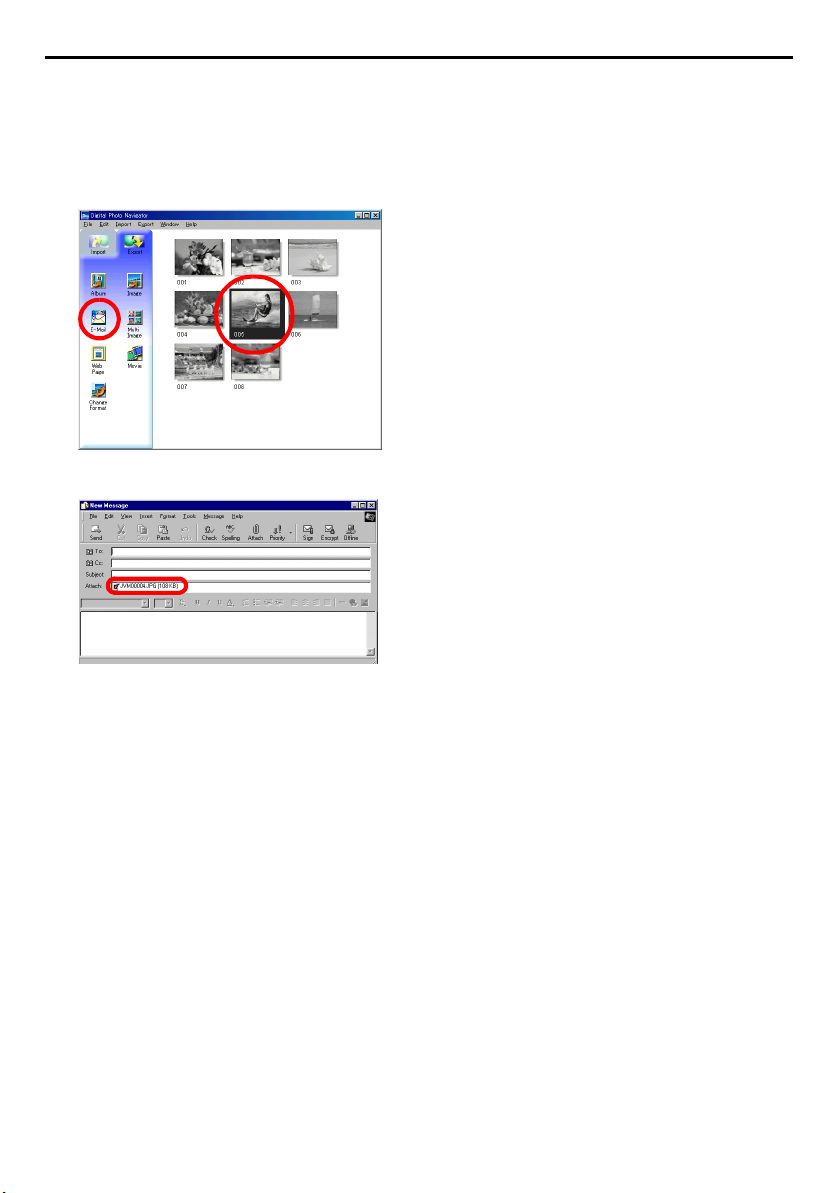

SENDING IMAGES FROM AN ALBUM IN E-MAIL
Still images in an album can be sent as an e-mail attachment.
Preparation: Before using the [E-Mail] function
If you use the Internet Explorer, be sure to use the version 5.5 or later.
When installing the Internet Explorer, select a typical set of components.
1Click the still image that you want to send, and then click [E-Mail].
The new message window in your e-mail program appears, and the still image file is registered as an
attachment.
NOTES:
●Depending on an e-mail software, a new message window may not open when the [E-Mail] button is
clicked.
●Depending on an e-mail software, settings such as “Set as MAPI client” or “Used by MAPI application” are
necessary.
●The maximum number of messages that can be created at once is three.
M4S5_Soft.book Page 13 Friday, August 20, 2004 12:00 PM

14 EN
Master Page: Left-Heading0
M4S5_Soft_04PhotoNavi.fm Page 14

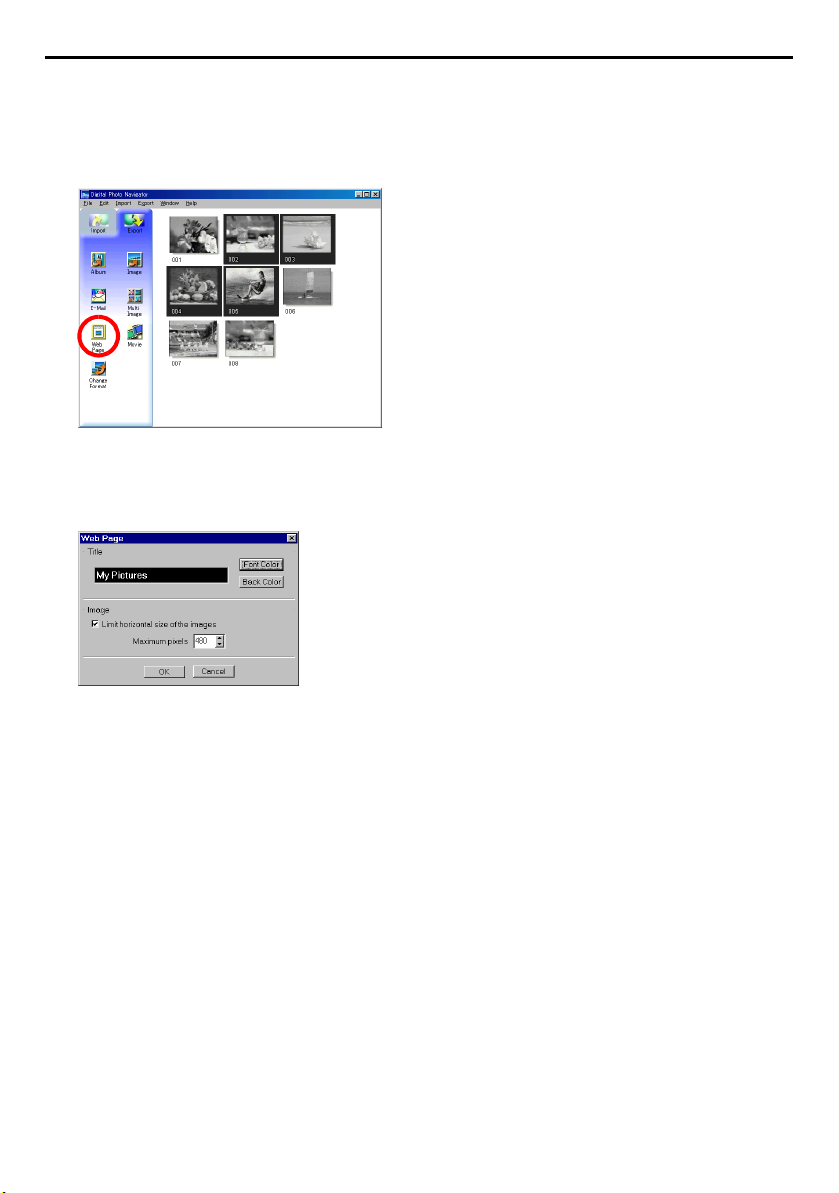

CREATING A WEB PAGE
You can save the contents of an album in HTML format. This is useful in the following instances:
When creating a web page: You can create a web page that features a collection of photos.
When distributing an album: You can create an album in a format that can be displayed by a web
browser. This is useful if you want to distribute the album on CD-R, etc.
1Select the still images that you want to save in HTML format.
●To select more than one still image, hold down the Shift key or the Ctrl key while clicking the images.
●To select all of the still images, click [Select All] in the [Edit] menu.
2Click [Web Page].
The [Web Page] dialog box appears.
3Set the following items when necessary.
●[Title]: This will be the title of the web page.
●[Font Color]: This specifies the color of the title text.
●[Back Color]: This specifies the background color of the web page. (Specify a color other than the font
color.)
●[Limit horizontal size of the images]: This allows you to specify the maximum width of the image
when displayed by a web browser. (Set the number of pixels much smaller than the width of the PC’s
display.)
CONTINUED ON NEXT PAGE
M4S5_Soft.book Page 14 Wednesday, August 25, 2004 10:44 AM

EN 15
Master Page: Right
M4S5_Soft_04PhotoNavi.fm Page 15
CREATING A WEB PAGE (cont.)
4Click [OK], specify the save location, and then click [Save].
The HTML file is saved, and a folder with the same name is saved at the same time. A confirmation
message appears next, asking whether to display the web page.
5Click [Yes].
The web browser opens, and the HTML file that was created is displayed.
●Click on an image on the web page to enlarge it.
What Next?
You can also view an HTML file through the web browser by double-clicking the HTML file. You can upload
the HTML file to your home page, or save it on a CD-R or some other media and distribute it.
Always handle HTML files and folders as a set. Without its folder, an HTML file cannot be viewed by a web
browser.
NOTES:
●For more details on how to create a home page, consult your Internet service provider’s web site or one of
the many reference books available.
●Use third-party home page creation software or similar software to edit HTML files.
M4S5_Soft.book Page 15 Friday, August 20, 2004 12:00 PM

16 EN
Master Page: Left-Heading0
M4S5_Soft_04PhotoNavi.fm Page 16
CHANGING THE IMAGE SIZE OR PICTURE QUALITY
This procedure describes how to change the size of an image that has been loaded into Digital Photo
Navigator. This procedure is used to reduce the size of an image that is being attached to an e-mail or saved
in an album.
1Select the still image to be changed.
●To select more than one still image, hold down the Shift key or the Ctrl key while clicking the images.
●To select all of the still images, click [Select All] in the [Edit] menu.
2Click [Change Format].
The [Image Format] dialog box appears.
3Select one of the following items:
●[Expansion/Reduction]: Set any desired image size in the [Width] and [Height] fields. If the [Keep
aspect ratio] check box is not selected (off), both [Width] and [Height] fields can be changed.
●[Generic Size]: Select the size from a list of generic sizes.
●[PDA Size]: This is an image size (160 x 160) that can be displayed on most PDAs.
4Click [OK].
●If you select more than one still image in step 1, a confirmation message appears.
•If you want to apply the same format to all images, click [Yes].
•If you do not want to apply the same format, click [No]. The first image is saved. Then, select the
image size for each image.
The image size is changed to the selected size. If the vertical-to-horizontal ratio was changed, the blank
spaces are shown as black.
Changing the image size
M4S5_Soft.book Page 16 Friday, August 20, 2004 12:00 PM

EN 17
Master Page: Right
M4S5_Soft_04PhotoNavi.fm Page 17

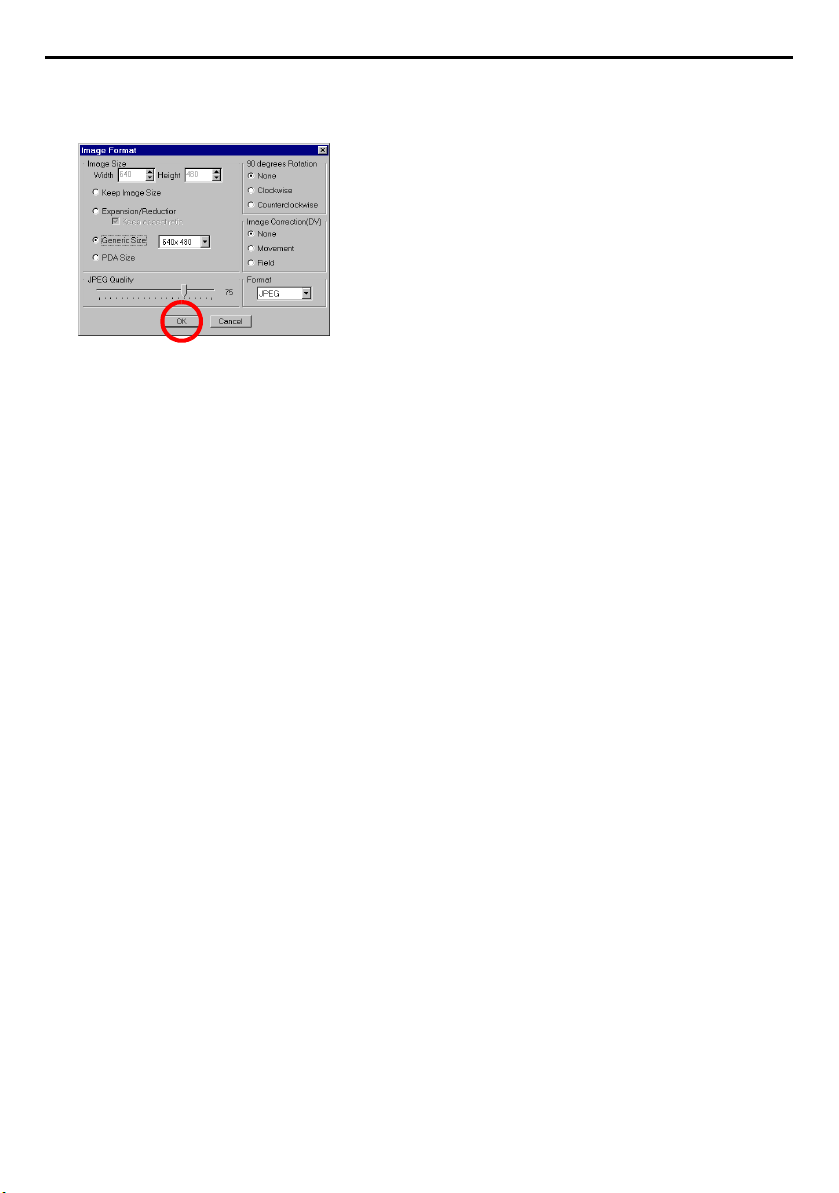

CHANGING THE IMAGE SIZE OR PICTURE QUALITY (cont.)
In addition to changing the size of an image, it is also possible to rotate images, change or correct the quality
of an image, and change the file format of an image. The role of each setting is described in more detail
below.
[90 degrees Rotation]
If you hold the camera sideways when recording an
image, you can create an image that is taller than it is
wide. Because this still image will be displayed sideways,
use this function to rotate the image 90 degrees to the
portrait orientation.
[None]: No correction
[Clockwise]: Rotates the image 90 degrees clockwise.
[Counterclockwise]: Rotates the image 90 degrees
counterclockwise.
[Image Correction (DV)]
This setting is not available.
[Format]
You can select the file format of an image.
[JPEG]: This is the format that is typically used on the Internet. This format has a smaller file size.
[BITMAP]: This is the standard Windows®image format (BMP). Many applications can use this format.
[JPEG Quality]
This setting is available when JPEG was selected in the [Format] field. Moving the slider to the left makes the
file smaller. Moving the slider to the right results in less deterioration in the image quality. The initial setting is
75.
NOTES:
●When [JPEG] is selected in the [Format] field, the quality of the image deteriorates slightly each time that
[OK] is clicked for the [Image Format] dialog box. To restore the original image quality, reload the original
still image file.
●To confirm the file size, right-click the still image and then select [Properties].
Changing the picture quality, etc.
M4S5_Soft.book Page 17 Friday, August 20, 2004 12:00 PM

18 EN
Master Page: Left-Heading0
M4S5_Soft_04PhotoNavi.fm Page 18

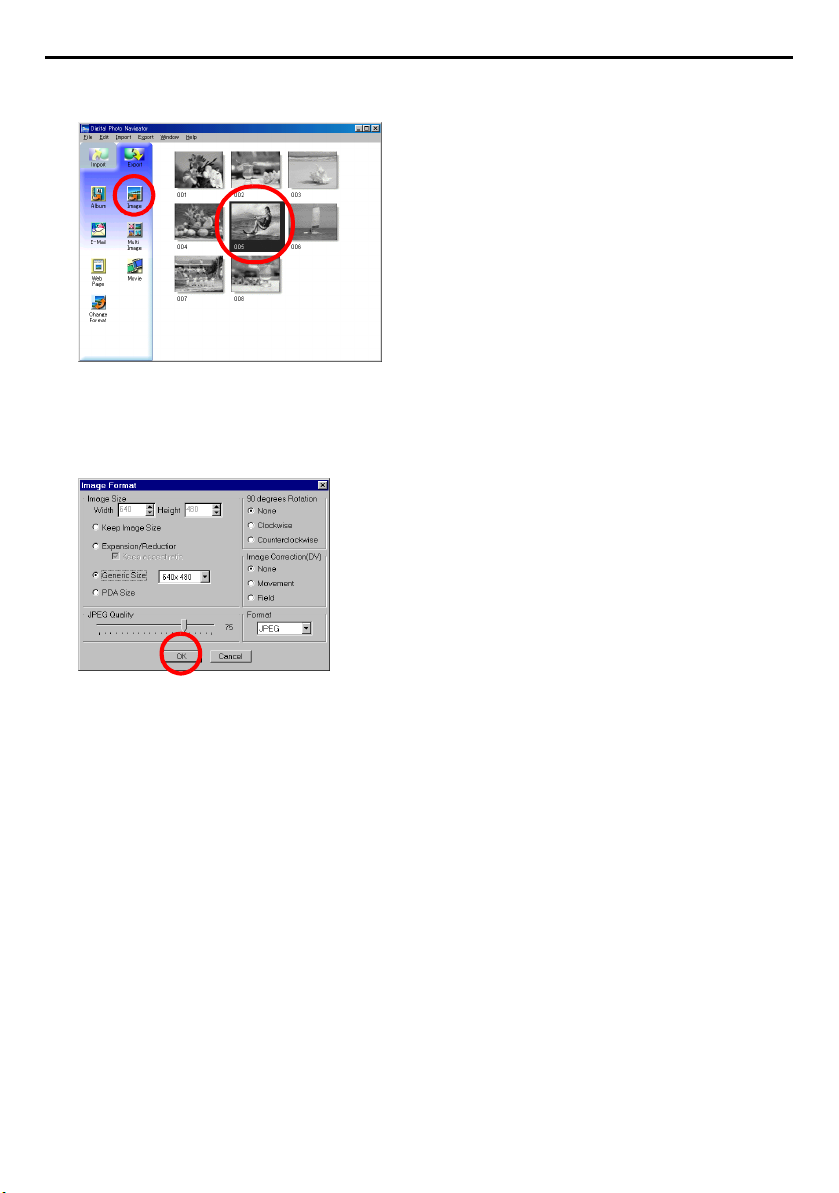

RETRIEVING STILL IMAGES FROM AN ALBUM
You can retrieve still images from an album and save them as a file.
1Select the still image to be retrieved.
●To select more than one still image, hold down the Shift key or the Ctrl key while clicking the images.
●To select all of the still images, click [Select All] in the [Edit] menu.
2Click [Image].
The [Image Format] dialog box appears.
3Change the image format as desired. (墌pg. 16) Then, click [OK].
●At this point, you can change the image size and picture quality as desired. (墌pg. 16)
The [Save As] dialog box appears.
4Specify the location where you want to save the file, enter the file name, and then click
[Save].
The image file is saved.
●If you select more than one still image in step 1, a confirmation message appears.
•If you want to save all images with the same image format and their default name, click [Yes]. The
[Auto Save Result] dialog box appears. Then, click [OK].
•If you want to set the image format and enter file name for each image, click [No]. The first image is
saved. The [Image Format] dialog box appears for the second image. Repeat steps 3and 4as many
times as necessary.
M4S5_Soft.book Page 18 Friday, August 20, 2004 12:00 PM

EN 19
Master Page: Right-Heading0
M4S5_Soft_04PhotoNavi.fm Page 19
CREATING A LIST OF STILL IMAGES
You can arrange multiple still images together and save them in a single still image file.
1Holding down the Shift key or the Ctrl key, select the still images that are to be added to
the list.
2Click [Multi Image].
The [Multi Image] dialog box appears.
3Select the number of partitions.
●Either 4, 9, or 16 partitions may be selected.
4Click [Back Color], select the color for the overall background, and then click [OK].
5Change the positions of the still images as desired.
●Deleting an image: Right-click the still image and then select [Delete].
●Adding an image: Drag an image from the right-hand side of the Digital Photo Navigator window to
the [Multi Image] dialog box.
CONTINUED ON NEXT PAGE
M4S5_Soft.book Page 19 Friday, August 20, 2004 12:00 PM

20 EN
Master Page: Left
M4S5_Soft_04PhotoNavi.fm Page 20
CREATING A LIST OF STILL IMAGES (cont.)
6Click [Save].
The [Image Format] dialog box appears.
7Change the image format as desired. (墌pg. 16) Then, click [OK].
●At this point, you can change the image size and picture quality as desired. (墌pg. 16)
The [Save As] dialog box appears.
8Specify the location where you want to save the file, enter the file name, and then click
[Save].
The still image list file is saved.
