SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No.52113B
2003/8
COLOR TELEVISION
52113B20038AV-27F704/BSA
AV-27F704/BZA
AV-32F704/BYA
Supplementary
OUTLINE
HOW TO IDENTIFY MODELS
The following items for the AV-27F704/BSA, AV-27F704/BZA, AV-32F704/BYA model were changed partly
from AV-27F704/ASA, AV-27F704/AZA, AV-32F704/AYA model.
Therefore, this service manual describes only the items which differ from those of the AV-27F704/ASA, AV-
27F704/AZA, AV-32F704/AYA model service manual.
For details other than those described in this manual, please refer to the AV-27F704/ASA, AV-27F704/AZA,
AV-32F704/AYA model service manual (No.52113, 2003/7).
Since some parts are changed for the reason of cost, we have issued the SERVICE MANUAL for AV-27F704/
BSA, AV-27F704/BZA, AV-32F704/BYA.
“BSA”,“BZA” and “BYA” are added to the serial No. after at the Rating label.
MODEL
SERIAL No.
AV-27F704
AV-32F704
BSA
BZA
BYA
Indicated
BASIC CHASSIS
GJ3

1-2 (No.52113B)
DIFFERENCE LIST
USING P.W. BOARD (Page 3-3)
P.W.B ASS'Y Name AV-27F704/ASA AV-27F704/BSA DESCRIPTION
MAIN P.W.B SGJ-1503A-M2 SGJ-1523A-M2 Non compatible
CRT SOCKET P.W.B SGJ-3002A-M2 SGJ-3507A-M2 Non compatible
AV SELECTOR P.W.B SGJ-5501A-M2 SGJ-5504A-M2 Non compatible
FRONT CONTROL P.W.B SGJ-6001A-M2 SGJ-6504A-M2 Non compatible
LED & POWER SW P.W.B SGJ-7501A-M2 SGJ-7503A-M2 Non compatible
P.W.B ASS'Y Name AV-27F704/AZA AV-27F704/BZA DESCRIPTION
MAIN P.W.B SGJ-1504A-M2 SGJ-1527A-M2 Non compatible
CRT SOCKET P.W.B SGJ-3006A-M2 SGJ-3509A-M2 Non compatible
AV SELECTOR P.W.B SGJ-5501A-M2 SGJ-5504A-M2 Non compatible
FRONT CONTROL P.W.B SGJ-6001A-M2 SGJ-6504A-M2 Non compatible
LED & POWER SW P.W.B SGJ-7501A-M2 SGJ-7503A-M2 Non compatible
P.W.B ASS'Y Name AV-32F704/AYA AV-32F704/BYA DESCRIPTION
MAIN P.W.B SGJ-1501A-M2 SGJ-1525A-M2 Non compatible
DAF P.W.B SGJ-2003A-M2 SGJ-2505A-M2 Non compatible
CRT SOCKET P.W.B SGJ-3004A-M2 SGJ-3510A-M2 Non compatible
AV SELECTOR P.W.B SGJ-5501A-M2 SGJ-5504A-M2 Non compatible
FRONT CONTROL P.W.B SGJ-6002A-M2 SGJ-6504A-M2 Non compatible
LED & POWER SW P.W.B SGJ-7501A-M2 SGJ-7503A-M2 Non compatible

(No.52113B)1-3
PRINTED WIRING BOARD PARTS LIST [AV-27F704/BSA]
MAIN P.W. BOARD ASS'Y (SGJ-1523A-M2)
 Ref No. Part No. Part Name Description Local
IC101 M52342SP IC
IC201 TM8812CSDNG4RR3 IC(MCU)
IC421 LA78041 IC
IC621 LA4485 IC
IC702 AT24C04W-32F704 IC (SERVICE)
IC703 S-80840CNY-T IC
IC704 AN78L05-T IC
IC851 BA12T IC
IC852 L7809CP IC
IC853 L7805CP IC
 IC911 STR-G6624/F8 IC
 IC921 SE135N IC
Q001 UN2212-X DIGI TRANSISTOR
Q101 2SC5083/L-P/-T TRANSISTOR
Q131 2SA1530A/QR/-X SI TRANSISTOR
Q161 2SC3928A/QR/-X SI TRANSISTOR
Q211 2SC3928A/QR/-X SI TRANSISTOR
Q232 2SC3928A/QR/-X SI TRANSISTOR
Q233 2SC3928A/QR/-X SI TRANSISTOR
Q352 2SC3928A/QR/-X SI TRANSISTOR
Q353 2SC3928A/QR/-X SI TRANSISTOR
Q431 UN2212-X DIGI TRANSISTOR
Q501 2SC4212/Z1/ TRANSISTOR
 Q511 2SD2645-YD TRANSISTOR H OUT
Q531 2SC2785/JH/-T SI TRANSISTOR
Q532 2SA1530A/QR/-X SI TRANSISTOR
Q541 2SA1530A/QR/-X SI TRANSISTOR
Q542 2SA1530A/QR/-X SI TRANSISTOR
Q543 2SD1267A/QP/ POW TRANSISTOR
Q622 2SC3928A/QR/-X SI TRANSISTOR
Q623 UN2212-X DIGI TRANSISTOR
Q701 2SA1530A/QR/-X SI TRANSISTOR
Q951 2SD1383K/AB/-X TRANSISTOR
Q971 2SA1208/ST/Z1-T TRANSISTOR
D305 1SS133-T2 DIODE
D306 1SS133-T2 DIODE
D307 1SS133-T2 DIODE
D308 1SS133-T2 DIODE
D309 1SS133-T2 DIODE
D310 1SS133-T2 DIODE
D352 MTZJ9.1C-T2 Z DIODE
D353 1SS133-T2 DIODE
D354 MTZJ3.3A-T2 Z DIODE
D421 1N4003-T2 SI DIODE
D422 MTZJ75-T2 Z DIODE
D432 1SS133-T2 DIODE
D501 RH3G-F1 SI DIODE
D502 RU3AM-LFC4 SI DIODE
D507 RGP10J-04TS-T3 SI DIODE
D521 RH1S-T3 SI DIODE
D523 RGP10J-04TS-T3 SI DIODE
D525 1SS81-T5 SI DIODE
D526 1SS81-T5 SI DIODE
D527 1SR124-400A-T2 SI DIODE
D529 MTZJ9.1C-T2 Z DIODE
 D531 MA4068N/Z1/-T2 Z DIODE
D535 1SS133-T2 DIODE
D537 1SR35-400A-T2 SI DIODE
D601 MTZJ9.1C-T2 Z DIODE
D602 MTZJ9.1C-T2 Z DIODE
D603 MTZJ9.1C-T2 Z DIODE
D700 MTZJ5.6B-T2 Z DIODE
D701 1SS133-T2 DIODE
D703 MTZJ5.6B-T2 Z DIODE
D704 MTZJ5.6B-T2 Z DIODE
D705 1SS133-T2 DIODE
D706 MTZJ5.6B-T2 Z DIODE
D707 MTZJ5.6B-T2 Z DIODE
D708 MTZJ5.6B-T2 Z DIODE
D709 MTZJ5.6B-T2 Z DIODE
D723 MTZJ5.6B-T2 Z DIODE
D810 MTZJ5.6B-T2 Z DIODE
 D901 GSIB460 BRIDGE DIODE
D910 MA700A-T2 SB DIODE
D911 RGP10J-04TS-T3 SI DIODE
D912 RGP10J-04TS-T3 SI DIODE
D913 1SS133-T2 DIODE
D914 1SS133-T2 DIODE
D915 SARS01-T2 SI DIODE
D917 MTZJ30A-T2 Z DIODE
D918 MTZJ5.1C-T2 Z DIODE
D920 1SS133-T2 DIODE
D931 RU4AM-LFT2 SI DIODE
D933 RU3YX-LFC4 SI DIODE
D935 RU3YX-LFC4 SI DIODE
D941 MTZJ33A-T2 Z DIODE
D945 MTZJ9.1B-T2 Z DIODE
D952 1SS133-T2 DIODE
D953 1SS133-T2 DIODE
D954 1N4002G-T2 FR DIODE
D955 1N4002G-T2 FR DIODE
D956 1N4002G-T2 FR DIODE
D957 1N4002G-T2 FR DIODE
D972 MTZJ15C-T2 Z DIODE
D973 1SS133-T2 DIODE
C001 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C003 QETN1HM-106Z E CAPACITOR 10uF 50V M
C004 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C006 QETN1EM-476Z E CAPACITOR 47uF 25V M
C101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C102 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C104 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C105 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C106 QETN1EM-476Z E CAPACITOR 47uF 25V M
C107 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C113 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C114 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C116 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C117 QETN1EM-476Z E CAPACITOR 47uF 25V M
C118 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C119 NDC31HJ-681X C CAPACITOR 680pF 50V J
C120 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C124 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C131 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C161 QETN1HM-106Z E CAPACITOR 10uF 50V M
C163 NDC31HJ-470X C CAPACITOR 47pF 50V J
C164 NDC31HJ-470X C CAPACITOR 47pF 50V J
C165 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C166 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C202 QETN1HM-105Z E CAPACITOR 1uF 50V M
C203 NCB31HK-152X C CAPACITOR 1500pF 50V K
C211 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C212 NDC31HJ-100X C CAPACITOR 10pF 50V J
C221 QETN1HM-106Z E CAPACITOR 10uF 50V M
C222 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C223 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C233 NDC31HJ-680X C CAPACITOR 68pF 50V J
C237 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C241 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C242 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C243 QETN1CM-107Z E CAPACITOR 100uF 16V M
C244 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C281 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C282 QETN1CM-107Z E CAPACITOR 100uF 16V M
C283 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C284 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C285 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C286 QETN1HM-106Z E CAPACITOR 10uF 50V M
C287 QETN1CM-107Z E CAPACITOR 100uF 16V M
C288 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C302 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C352 QETN1CM-476Z E CAPACITOR 47uF 16V M
C354 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C391 QETN1CM-107Z E CAPACITOR 100uF 16V M
C392 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C422 QFN32AK-102Z M CAPACITOR 1000pF 100V K
C424 QETN1VM-107Z E CAPACITOR 100uF 35V M
C425 QETN1VM-477Z E CAPACITOR 470uF 35V M
C427 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C428 QETM1EM-228 E CAPACITOR 2200uF 25V M
C431 QFLC2AK-563Z M CAPACITOR 0.056uF 100V K
C432 QETN1EM-476Z E CAPACITOR 47uF 25V M
C433 QETN1EM-476Z E CAPACITOR 47uF 25V M
C435 NCB21HK-183X C CAPACITOR 0.018uF 50V K
C440 QCS32HJ-100Z C CAPACITOR 10pF 500V J
C501 QCB32HK-151Z C CAPACITOR 150pF 500V K
C502 QCB32HK-331Z C CAPACITOR 330pF 500V K
C503 QEHR2CM-105Z E CAPACITOR 1uF 160V M
C504 QEZ0203-107 E CAPACITOR 100uF 160V M
C505 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M
C507 QEM61HK-475Z E CAPACITOR 4.7uF 50V K
C508 QEM61HK-475Z E CAPACITOR 4.7uF 50V K
 C510 QFZ0200-482 MPP CAPACITOR 4800pF 1.5kV H
 C513 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C514 QFP32GJ-183 PP CAPACITOR 0.018uF 400V J
C515 QFZ0197-404 MPP CAPACITOR 0.4uF 250V J
C516 QCB32HK-561Z C CAPACITOR 560pF 500V K
 Ref No. Part No. Part Name Description Local

1-4 (No.52113B)
C521 QETN2EM-106Z E CAPACITOR 10uF 250V M
C523 QEHR1VM-477Z E CAPACITOR 470uF 35V M
C525 QETN1VM-107Z E CAPACITOR 100uF 35V M
C526 QFV21HJ-824Z MF CAPACITOR 0.82uF 50V J
C527 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C531 QCB32HK-471Z C CAPACITOR 470pF 500V K
C533 QETN1HM-106Z E CAPACITOR 10uF 50V M
C601 QETN1EM-476Z E CAPACITOR 47uF 25V M
C602 QETN1EM-476Z E CAPACITOR 47uF 25V M
C603 QETN1EM-476Z E CAPACITOR 47uF 25V M
C609 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C610 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C611 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C621 NCB31HK-102X C CAPACITOR 1000pF 50V K
C622 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C623 NCB31HK-102X C CAPACITOR 1000pF 50V K
C624 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C625 QETN1CM-107Z E CAPACITOR 100uF 16V M
C626 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C627 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C628 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C629 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C636 QETN1HM-105Z E CAPACITOR 1uF 50V M
C637 QETN1HM-105Z E CAPACITOR 1uF 50V M
C700 NCB31HK-102X C CAPACITOR 1000pF 50V K
C701 QETN1HM-106Z E CAPACITOR 10uF 50V M
C702 QETN1HM-106Z E CAPACITOR 10uF 50V M
C703 QETN1HM-106Z E CAPACITOR 10uF 50V M
C704 QETN1CM-107Z E CAPACITOR 100uF 16V M
C705 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C706 QETN1HM-105Z E CAPACITOR 1uF 50V M
C708 NDC31HJ-220X C CAPACITOR 22pF 50V J
C709 NDC31HJ-220X C CAPACITOR 22pF 50V J
C711 QETN1CM-107Z E CAPACITOR 100uF 16V M
C712 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C716 QETN1HM-106Z E CAPACITOR 10uF 50V M
C728 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C807 QETN1AM-477Z E CAPACITOR 470uF 10V M
C813 NCB31HK-102X C CAPACITOR 1000pF 50V K
C815 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C851 QETN1EM-107Z E CAPACITOR 100uF 25V M
C852 QETN1CM-107Z E CAPACITOR 100uF 16V M
C853 QETN1CM-227Z E CAPACITOR 220uF 16V M
C854 QETN1CM-227Z E CAPACITOR 220uF 16V M
C856 QEHR1CM-227Z E CAPACITOR 220uF 16V M
C857 QETN1CM-477Z E CAPACITOR 470uF 16V M
 C901 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K
 C902 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K
 C903 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K
 C904 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
 C905 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
 C906 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
C907 QEZ0169-477 E CAPACITOR 470uF 200V M
 C908 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
C912 QCZ0340-222 C CAPACITOR 2200pF 2kV K
C913 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C914 QETN1HM-107Z E CAPACITOR 100uF 50V M
C916 NDC31HJ-331X C CAPACITOR 330pF 50V J
C917 NCB31HK-182X C CAPACITOR 1800pF 50V K
C918 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C919 QFP32GJ-103 PP CAPACITOR 0.01uF 400V J
C931 QEZ0203-227 E CAPACITOR 220uF 160V M
C933 QETN1CM-228Z E CAPACITOR 2200uF 16V M
C934 NDC31HJ-151X C CAPACITOR 150pF 50V J
C935 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C937 QCZ0340-102 C CAPACITOR 1000pF 2kV K
C938 QETM1EM-228 E CAPACITOR 2200uF 25V M
C939 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C941 QCB32HK-102Z C CAPACITOR 1000pF 500V K
C942 QEHR1HM-105Z E CAPACITOR 1uF 50V M
C951 QETN1EM-477Z E CAPACITOR 470uF 25V M
C952 QETN1CM-227Z E CAPACITOR 220uF 16V M
C971 QETN1CM-107Z E CAPACITOR 100uF 16V M
C972 QETN1EM-476Z E CAPACITOR 47uF 25V M
C973 QETN1HM-106Z E CAPACITOR 10uF 50V M
 C997 QCZ9079-102 C CAPACITOR 1000pF AC250V M
 C998 QCZ9074-103 C CAPACITOR 0.01uF AC250V M
 C999 QCZ9074-103 C CAPACITOR 0.01uF AC250V M
R002 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R003 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R004 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R005 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R008 NRSA63J-820X MG RESISTOR 82
Ω 1/16W J
R009 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R101 NRSA63J-562X MG RESISTOR 5.6k
Ω 1/16W J
R102 NRSA63J-182X MG RESISTOR 1.8k
Ω 1/16W J
R103 QRE121J-101Y C RESISTOR 100 Ω 1/2W J
R104 NRSA63J-180X MG RESISTOR 18 Ω 1/16W J
 Ref No. Part No. Part Name Description Local
R105 NRSA63J-270X MG RESISTOR 27 Ω 1/16W J
R111 NRSA63J-394X MG RESISTOR 390k Ω 1/16W J
R112 NRSA63J-334X MG RESISTOR 330k Ω 1/16W J
R113 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R115 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R116 NRSA63J-680X MG RESISTOR 68 Ω 1/16W J
R117 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R118 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R131 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R132 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R133 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R134 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R135 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R161 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R162 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R163 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R164 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R165 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R166 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R167 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R168 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R169 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R171 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R201 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R212 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R215 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R216 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R217 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R222 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R227 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R231 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R237 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R238 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R241 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R243 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R281 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R282 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R283 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R286 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R287 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R288 NRSA02J-471X MG RESISTOR 470 Ω 1/10W J
R289 NRSA63J-154X MG RESISTOR 150k Ω 1/16W J
R290 NRSA02J-561X MG RESISTOR 560 Ω 1/10W J
R292 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J
R293 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R301 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R302 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R303 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R304 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R305 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R306 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R318 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R319 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R352 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R354 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R355 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R356 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R358 NRSA63J-333X MG RESISTOR 33k
Ω 1/16W J
R359 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R360 NCB31HK-103X C CAPACITOR 0.01uF 50V K
R421 NRSA63J-822X MG RESISTOR 8.2k
Ω 1/16W J
R423 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R424 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R426 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R427 QRT029J-1R2 MF RESISTOR 1.2
Ω 2W J
R429 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R430 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R431 NRSA63J-152X MG RESISTOR 1.5k
Ω 1/16W J
R432 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R433 NRSA63J-681X MG RESISTOR 680
Ω 1/16W J
R434 QRL029J-181 OMF RESISTOR 180
Ω 2W J
R435 QRE121J-102Y C RESISTOR 1k
Ω 1/2W J
R441 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R447 NRSA63J-104X MG RESISTOR 100k
Ω 1/16W J
R449 NRSA63J-822X MG RESISTOR 8.2k
Ω 1/16W J
R501 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R502 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R503 QRE121J-103Y C RESISTOR 10k
Ω 1/2W J
R504 QRL039J-222 OMF RESISTOR 2.2k Ω 3W J
R505 QRL039J-182 OMF RESISTOR 1.8k
Ω 3W J
R511 QRE121J-220Y C RESISTOR 22 Ω 1/2W J
R512 QRE121J-681Y C RESISTOR 680
Ω 1/2W J
R513 QRL039J-273 OMF RESISTOR 27k Ω 3W J
R516 QRZ0221-2R0 OMF RESISTOR 2
Ω 7W K
R523 QRE141J-563Y C RESISTOR 56k Ω 1/4W J
R526 QRE121J-272Y C RESISTOR 2.7k
Ω 1/2W J
R527 QRE121J-124Y C RESISTOR 120k
Ω 1/2W J
R528 QRE121J-154Y C RESISTOR 150k Ω 1/2W J
R529 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
 Ref No. Part No. Part Name Description Local

(No.52113B)1-5
 R531 QRZ0230-391X UNF C RESISTOR 390 Ω
R532 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R533 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R534 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
 R535 NRSA63D-272X MG RESISTOR 2.7k Ω 1/16W D
 R537 NRSA63D-752X MG RESISTOR 7.5k Ω 1/16W D
R538 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R543 QRE121J-122Y C RESISTOR 1.2k
Ω 1/2W J
R544 QRE121J-392Y C RESISTOR 3.9k
Ω 1/2W J
R545 QRE121J-822Y C RESISTOR 8.2k Ω 1/2W J
R546 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R547 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R548 QRE121J-152Y C RESISTOR 1.5k Ω 1/2W J
R553 QRL039J-390 OMF RESISTOR 39 Ω 3W J
 R554 QRK126J-150X UNF C RESISTOR 15 Ω 1/2W J
R555 QRT029J-3R3 MF RESISTOR 3.3
Ω 2W J
R601 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R602 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R603 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R610 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R611 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R612 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R621 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
R622 NRSA63J-681X MG RESISTOR 680
Ω 1/16W J
R623 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R624 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R626 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R627 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R631 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R632 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R638 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R639 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R651 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R652 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R653 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R700 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R701 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R702 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R704 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R705 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R706 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R707 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R708 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R709 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R715 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R718 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R721 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R728 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R729 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R731 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R732 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R733 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R734 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R739 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R740 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R764 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R765 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R766 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R767 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R769 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
R772 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R811 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R812 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R816 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J
R821 NRSA63J-184X MG RESISTOR 180k
Ω 1/16W J
R822 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R827 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R855 QRX039J-6R8 MF RESISTOR 6.8
Ω 3W J
R857 QRL029J-820 OMF RESISTOR 82
Ω 2W J
R901 QRF074K-1R2 UNF WW RESISTOR 1.2
Ω 7W K
R909 QRG01GJ-470 OMF RESISTOR 47
Ω 1W J
R911 QRE121J-223Y C RESISTOR 22k
Ω 1/2W J
R912 QRT029J-R18 MF RESISTOR 0.18
Ω 2W J
R913 QRT029J-R15 MF RESISTOR 0.15
Ω 2W J
 R914 QRK126J-681X UNF C RESISTOR 680 Ω 1/2W J
 R915 QRK129J-6R8 UNF C RESISTOR 6.8 Ω 1/2W J
 R917 QRK126J-332X UNF C RESISTOR 3.3k Ω 1/2W J
R918 QRE121J-222Y C RESISTOR 2.2k
Ω 1/2W J
R919 QRE121J-684Y C RESISTOR 680k Ω 1/2W J
R924 QRE121J-222Y C RESISTOR 2.2k
Ω 1/2W J
R930 QRE121J-223Y C RESISTOR 22k Ω 1/2W J
R939 QRT039J-2R2 MF RESISTOR 2.2
Ω 3W J
R940 QRE121J-181Y C RESISTOR 180 Ω 1/2W J
R941 QRL029J-183 OMF RESISTOR 18k
Ω 2W J
R950 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R951 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R952 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R953 QRE121J-820Y C RESISTOR 82 Ω 1/2W J
R972 NRSA63D-122X MG RESISTOR 1.2k Ω 1/16W D
 Ref No. Part No. Part Name Description Local
R973 NRVA02D-332X CMF RESISTOR 3.3k Ω 1/10W D
R975 QRE121J-223Y C RESISTOR 22k Ω 1/2W J
R977 QRE121J-473Y C RESISTOR 47k Ω 1/2W J
R978 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
 R998 QRZ9041-275 C RESISTOR 2.7M Ω 1/2W K
R999 QRE121J-121Y C RESISTOR 120 Ω 1/2W J
L001 QQL244K-560Z COIL 56uH K
L101 QQLZ014-R22 COIL 0.22uH 100mA L
L113 QQL244K-4R7Z COIL 4.7uH K
L131 QQL244K-150Z COIL 15uH K
L161 QQL244K-220Z COIL 22uH K
L232 QQL244K-560Z COIL 56uH K
L241 QQL244K-220Z COIL 22uH K
L391 QQL244K-220Z COIL 22uH K
L511 QQR1165-001 LINEARITY COIL
L512 QQLZ036-821 COIL 820uH K
L521 QQLZ026-760 COIL 76uH ±7%
L701 QQL244K-220Z COIL 22uH K
L702 QQL244K-220Z COIL 22uH K
L703 QQL244K-220Z COIL 22uH K
L704 QQL244K-220Z COIL 22uH K
L705 QQL244K-220Z COIL 22uH K
L931 QQL26AK-470Z COIL 47uH K
L933 QQL26AK-470Z COIL 47uH K
L940 QQR0582-001Z FERRITE BEADS
T111 QQR0907-001 IFT
T501 QQR1414-001 DRIVE TRANSF
 T921 QQS0208-001 SW TRANSF
 T951 QQT0355-001 POWER TRANSF
CF001 QAX0349-001 C TRAP 47.25MHz
CF131 QAX0639-001Z C TRAP 4.500MHz
CF161 QAX0642-001Z C FILTER 4.500MHz
CN001 QGB1505J1-35 CONNECTOR B-B (1-35)
CN004 QGA2501C5-07Z CONNECTOR W-B (1-7)
CN005 QGA2501C5-06Z CONNECTOR W-B (1-6)
CN007 QGA2501C5-06Z CONNECTOR W-B (1-6)
CN00C QGA2501F1-06 CONNECTOR W-B (1-6)
CN0E1 CE41507-001P LV CONNECTOR
CN0E3 CE41507-001P LV CONNECTOR
CN0HV QGZ5004C1-06 CONNECTOR (1-6)
CN0S1 QGA2501C5-05Z CONNECTOR W-B (1-5)
CN0SS QGA2501C5-04Z CONNECTOR W-B (1-4)
 CP932 ICP-N70-T IC PROTECTOR 2.5A
 CP936 ICP-N70-T IC PROTECTOR 2.5A
 F901 QMF51N1-5R0-J5 FUSE 5A AC125V
 F905 QMFZ049-5R0Z-E FUSE 5A 125V
FC901 CEMG002-001Z FUSE CLIP
FC902 CEMG002-001Z FUSE CLIP
 FR525 QRZ9017-4R7 FUSI RESISTOR 4.7 Ω 1/4W J
 FR527 QRZ9011-470 FUSI RESISTOR 47 Ω 1/2W J
HS001 LC31677-001A HEAT SINK/AL-F/
HS002 LC31678-002A HEAT SINK/AL-F/
HS003 LC32111-002A HEAT SINK/AL-F/
HS004 CEHE015-001WU HEAT SINK
HS005 CM42862-00G-H HEAT SINK ASSY
HS007 CEHT11B-002QS HEAT SINK
HS008 CEHT11B-002QS HEAT SINK
J601 QNN0349-002 PIN JACK COMP IN
J810 QNS0001-001 3.5 JACK AV COMPULINK
K401 QQR0621-002Z FERRITE BEADS
K912 QQR0582-001Z FERRITE BEADS
K916 QQR0582-001Z FERRITE BEADS
K917 QQR0582-001Z FERRITE BEADS
K918 QQR0582-001Z FERRITE BEADS
K920 QQR1139-001 FERRITE BEADS
K931 QQR0582-001Z FERRITE BEADS
K932 QQR0582-001Z FERRITE BEADS
K933 QQR0621-002Z FERRITE BEADS
K935 QQR0582-001Z FERRITE BEADS
LC601 QQR1199-001 EMI FILTER
LC602 QQR1199-001 EMI FILTER
LC603 QQR1199-001 EMI FILTER
 LF901 QQR1159-001 LINE FILTER
 LF902 QQR0527-004 LINE FILTER
 PC921 PC123Y22 PHOTO COUPLER
 RY951 QSK0085-001 RELAY
S421 QSL4A13-C02 LEVER SWITCH V.CENTER
SF101 QAX0723-001 SAW FILTER
 TH901 QAD0132-3R0 P THERMISTOR 3 Ω
 TU001 QAU0305-001 TUNER
 VA901 ERZV10V621CS ZNR
X701 QAX0767-001Z CRYSTAL 8MHz
 Ref No. Part No. Part Name Description Local

1-6 (No.52113B)
CRT SOCKET P.W. BOARD ASS'Y (SGJ-3507A-M2)
AV SELECTOR P.W. BOARD ASS'Y (SGJ-5504A-M2)
 Ref No. Part No. Part Name Description Local
Q3103 KTA1267/YG/-T TRANSISTOR
Q3105 KTC3199/YG/-T TRANSISTOR
Q3106 KTA1267/YG/-T TRANSISTOR
Q3107 2SA2005/DE/ POW TRANSISTOR
Q3108 2SC5511/DE/ POW TRANSISTOR
Q3109 KTC3199/YG/-T TRANSISTOR
Q3151 KTC3199/YG/-T TRANSISTOR
Q3152 KTA1267/YG/-T TRANSISTOR
Q3301 2SC5083/L-P/-T TRANSISTOR
Q3302 2SC5083/L-P/-T TRANSISTOR
Q3303 2SC5083/L-P/-T TRANSISTOR
Q3304 2SC5147/CDE/F43 POW TRANSISTOR
Q3305 2SC5147/CDE/F43 POW TRANSISTOR
Q3306 2SC5147/CDE/F43 POW TRANSISTOR
Q3351 KTA1267/YG/-T TRANSISTOR
D3101 1SS133-T2 DIODE
D3105 RH1S-T3 SI DIODE
D3106 RH1S-T3 SI DIODE
D3301 1SS133-T2 DIODE
D3302 1SS133-T2 DIODE
D3303 1SS133-T2 DIODE
D3304 1SS82-T2 SI DIODE
D3305 1SS82-T2 SI DIODE
D3306 1SS82-T2 SI DIODE
D3311 MTZJ3.6B-T2 Z DIODE
D3312 1SS133-T2 DIODE
D3313 MTZJ4.3A-T2 Z DIODE
D3314 1SS133-T2 DIODE
D3331 1SS133-T2 DIODE
D3351 1SS133-T2 DIODE
D3352 1SS133-T2 DIODE
D3353 1SS133-T2 DIODE
D3354 1SS133-T2 DIODE
C3101 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3109 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3110 NDC31HJ-221X C CAPACITOR 220pF 50V J
C3111 NDC31HJ-221X C CAPACITOR 220pF 50V J
C3113 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3114 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3115 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3117 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3118 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C3119 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3120 QETN1AM-337Z E CAPACITOR 330uF 10V M
C3121 QCS32HJ-151Z C CAPACITOR 150pF 500V J
C3122 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C3125 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
C3151 NCB21EK-104X C CAPACITOR 0.1uF 25V K
C3152 NCB21EK-104X C CAPACITOR 0.1uF 25V K
C3301 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3302 NDC31HJ-391X C CAPACITOR 390pF 50V J
C3303 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3321 QETN2EM-105Z E CAPACITOR 1uF 250V M
C3322 QETN2EM-105Z E CAPACITOR 1uF 250V M
C3323 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3351 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3363 QCZ0324-102 C CAPACITOR 1000pF 3kV P
R3108 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3111 NRSA63J-332X MG RESISTOR 3.3k
Ω 1/16W J
R3114 QRZ0230-100X UNF C RESISTOR 10 Ω
R3115 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3116 NRSA63J-470X MG RESISTOR 47
Ω 1/16W J
R3117 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3119 NRSA63J-121X MG RESISTOR 120
Ω 1/16W J
R3123 NRSA63J-122X MG RESISTOR 1.2k
Ω 1/16W J
R3124 NRSA63J-390X MG RESISTOR 39
Ω 1/16W J
R3125 NRSA63J-5R6X MG RESISTOR 5.6
Ω 1/16W J
R3126 NRSA63J-563X MG RESISTOR 56k
Ω 1/16W J
R3127 NRSA63J-563X MG RESISTOR 56k
Ω 1/16W J
R3128 NRSA63J-122X MG RESISTOR 1.2k
Ω 1/16W J
R3129 NRSA63J-5R6X MG RESISTOR 5.6
Ω 1/16W J
R3130 NRSA63J-390X MG RESISTOR 39
Ω 1/16W J
R3131 NRSA63J-121X MG RESISTOR 120
Ω 1/16W J
R3132 QRL029J-391 OMF RESISTOR 390 Ω 2W J
R3134 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
R3135 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3136 NRSA63J-333X MG RESISTOR 33k
Ω 1/16W J
R3139 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R3142 NRSA63J-124X MG RESISTOR 120k
Ω 1/16W J
R3143 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R3145 NRSA63J-5R6X MG RESISTOR 5.6
Ω 1/16W J
R3146 NRSA63J-5R6X MG RESISTOR 5.6 Ω 1/16W J
R3151 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R3152 NRSA63J-683X MG RESISTOR 68k
Ω 1/16W J
R3153 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
R3154 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R3301 NRSA63J-151X MG RESISTOR 150 Ω 1/16W J
R3302 NRSA63J-151X MG RESISTOR 150 Ω 1/16W J
R3303 NRSA63J-151X MG RESISTOR 150 Ω 1/16W J
R3304 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3305 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3306 NRSA63J-121X MG RESISTOR 120
Ω 1/16W J
R3307 NRSA63J-470X MG RESISTOR 47
Ω 1/16W J
R3308 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3309 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3310 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3311 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3312 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3313 QRL029J-183 OMF RESISTOR 18k
Ω 2W J
R3314 QRL029J-183 OMF RESISTOR 18k
Ω 2W J
R3315 QRL029J-183 OMF RESISTOR 18k Ω 2W J
R3316 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3317 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3318 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3325 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3326 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3327 QRZ0107-102Z C RESISTOR 1k
Ω 1/2W K
R3331 NRSA63J-272X MG RESISTOR 2.7k
Ω 1/16W J
R3332 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R3333 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R3334 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R3335 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R3336 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3337 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3338 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3351 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3352 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3353 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3354 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
L3301 QQL244K-180Z PEAKING COIL 18uH K
L3302 QQL244K-180Z PEAKING COIL 18uH K
L3303 QQL244K-180Z PEAKING COIL 18uH K
L3304 QQL244K-470Z PEAKING COIL 47uH K
L3305 QQL244K-470Z PEAKING COIL 47uH K
L3306 QQL244K-470Z PEAKING COIL 47uH K
CN3004 QJB003-073226 SIN ID C-B WIRE
CN3005 WJA0029-001A E-SI ID WIRE
CN300V QGA2501C5-03Z CONNECTOR W-B (1-3)
CN30E2 QUB130-38A6AS SIN TWIST WIRE
CN30E4 QUB130-38A6AS SIN TWIST WIRE
 FR3122 QRZ9021-561 FUSI RESISTOR 560 Ω 1W J
HS3010 CEHP00N-001QS HEAT SINK
HS3011 CEHP00N-001QS HEAT SINK
HS3012 CEHP00N-001QS HEAT SINK
HS3013 CEHP00N-001QS HEAT SINK
HS3014 CEHP00N-001QS HEAT SINK
K3102 QQR1114-001Z FERRITE BEADS
K3103 QQR1114-001Z FERRITE BEADS
K3104 QQR1114-001Z FERRITE BEADS
K3105 QQR1114-001Z FERRITE BEADS
 SK3001 QNZ0536-001 CRT SOCKET
 Ref No. Part No. Part Name Description Local
IC5001 CXA2134Q-X IC
IC5201 TC90A49AP IC
IC5501 TA1218AN IC
Q5001 2SA1530A/QR/-X SI TRANSISTOR
Q5002 2SA1530A/QR/-X SI TRANSISTOR
Q5211 2SC3928A/QR/-X SI TRANSISTOR
Q5212 2SC3928A/QR/-X SI TRANSISTOR
Q5251 2SC3928A/QR/-X SI TRANSISTOR
Q5252 2SA1530A/QR/-X SI TRANSISTOR
Q5253 2SA1530A/QR/-X SI TRANSISTOR
Q5261 2SA1530A/QR/-X SI TRANSISTOR
Q5262 2SC3928A/QR/-X SI TRANSISTOR
Q5263 2SA1530A/QR/-X SI TRANSISTOR
Q5384 DTC323TK-X DIGI TRANSISTOR
Q5385 DTC323TK-X DIGI TRANSISTOR
Q5386 DTC323TK-X DIGI TRANSISTOR
Q5387 DTC323TK-X DIGI TRANSISTOR
Q5501 2SA1530A/QR/-X SI TRANSISTOR
D5391 MTZJ9.1C-T2 Z DIODE
D5392 MTZJ9.1C-T2 Z DIODE
 Ref No. Part No. Part Name Description Local

(No.52113B)1-7
D5501 MTZJ9.1C-T2 Z DIODE
D5502 MTZJ9.1C-T2 Z DIODE
D5503 MTZJ9.1C-T2 Z DIODE
D5505 MTZJ9.1C-T2 Z DIODE
D5507 MTZJ9.1C-T2 Z DIODE
D5508 MTZJ9.1C-T2 Z DIODE
D5509 MTZJ9.1C-T2 Z DIODE
D5510 MTZJ9.1C-T2 Z DIODE
D5511 MTZJ9.1C-T2 Z DIODE
D5512 MTZJ9.1C-T2 Z DIODE
D5513 MTZJ9.1C-T2 Z DIODE
C5001 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M
C5002 NCB31HK-562X C CAPACITOR 5600pF 50V K
C5003 NCB31HK-123X C CAPACITOR 0.012uF 50V K
C5004 QETN1HM-105Z E CAPACITOR 1uF 50V M
C5005 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C5006 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5007 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C5008 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5009 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M
C5010 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C5011 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M
C5012 NCB31HK-272X C CAPACITOR 2700pF 50V K
C5013 NCB31HK-473X C CAPACITOR 0.047uF 50V K
C5014 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M
C5015 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5016 QETN1HM-105Z E CAPACITOR 1uF 50V M
C5017 QENC1HM-105Z BP E CAPACITOR 1uF 50V M
C5018 QENC1HM-105Z BP E CAPACITOR 1uF 50V M
C5019 NCB31HK-223X C CAPACITOR 0.022uF 50V K
C5020 NCB31HK-472X C CAPACITOR 4700pF 50V K
C5021 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M
C5022 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C5023 NCB31HK-472X C CAPACITOR 4700pF 50V K
C5024 QENC1HM-475Z BP E CAPACITOR 4.7uF 50V M
C5025 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C5026 QETN1HM-335Z E CAPACITOR 3.3uF 50V M
C5031 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5203 QETN1EM-476Z E CAPACITOR 47uF 25V M
C5204 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5205 QETN1EM-476Z E CAPACITOR 47uF 25V M
C5206 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5211 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C5212 NDC31HJ-101X C CAPACITOR 100pF 50V J
C5213 NDC31HJ-470X C CAPACITOR 47pF 50V J
C5214 NDC31HJ-181X C CAPACITOR 180pF 50V J
C5215 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C5226 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5231 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5232 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5233 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5234 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5235 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5236 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5237 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5238 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5239 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5240 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5241 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5242 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5243 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5246 NDC31HJ-181X C CAPACITOR 180pF 50V J
C5247 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5251 QETN1EM-476Z E CAPACITOR 47uF 25V M
C5252 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5253 NDC31HJ-820X C CAPACITOR 82pF 50V J
C5255 NDC31HJ-470X C CAPACITOR 47pF 50V J
C5263 NDC31HJ-470X C CAPACITOR 47pF 50V J
C5391 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C5392 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C5501 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C5502 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C5503 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5504 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5506 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5508 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5509 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5520 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C5521 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C5531 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5532 QETN1EM-476Z E CAPACITOR 47uF 25V M
C5533 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5534 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
R5001 NRSA63J-105X MG RESISTOR 1M
Ω 1/16W J
R5002 NRSA63J-104X MG RESISTOR 100k
Ω 1/16W J
R5003 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R5004 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
 Ref No. Part No. Part Name Description Local
R5005 NRSA63F-623X MG RESISTOR 62k Ω 1/16W F
R5007 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R5008 NRSA63J-302X MG RESISTOR 3k Ω 1/16W J
R5010 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R5011 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5012 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5031 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5032 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R5033 NRSA63J-272X MG RESISTOR 2.7k
Ω 1/16W J
R5034 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R5210 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5211 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R5212 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5213 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5214 NRSA63J-181X MG RESISTOR 180
Ω 1/16W J
R5215 NRSA63J-152X MG RESISTOR 1.5k
Ω 1/16W J
R5216 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R5217 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R5240 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5241 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R5242 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5243 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5251 NRSA63J-471X MG RESISTOR 470
Ω 1/16W J
R5253 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R5254 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5255 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R5258 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5259 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R5261 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5262 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R5263 NRSA63J-471X MG RESISTOR 470 Ω 1/16W J
R5265 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5269 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R5270 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5384 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R5385 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R5386 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R5387 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R5391 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5392 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5393 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R5394 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
R5395 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5396 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5501 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5502 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5503 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5504 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5505 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5507 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5508 NRSA63J-153X MG RESISTOR 15k Ω 1/16W J
R5509 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5510 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5511 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5512 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R5513 NRSA63J-153X MG RESISTOR 15k
Ω 1/16W J
R5514 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5515 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R5516 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5517 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R5519 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R5520 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R5521 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R5522 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R5523 NRSA63J-224X MG RESISTOR 220k
Ω 1/16W J
R5524 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5526 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R5527 NRSA63J-750X MG RESISTOR 75
Ω 1/16W J
R5532 NRSA63J-224X MG RESISTOR 220k
Ω 1/16W J
R5533 NRSA63J-224X MG RESISTOR 220k
Ω 1/16W J
R5541 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R5542 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R5543 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R5544 NRSA63J-331X MG RESISTOR 330
Ω 1/16W J
R5545 NRSA63J-331X MG RESISTOR 330
Ω 1/16W J
R5546 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R5558 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5559 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R5560 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5561 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R5564 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5565 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
L5202 QQL244K-150Z COIL 15uH K
L5211 QQL244K-4R7Z COIL 4.7uH K
L5241 QQL244K-4R7Z COIL 4.7uH K
L5243 QQL244K-4R7Z COIL 4.7uH K
L5244 QQL244K-4R7Z COIL 4.7uH K
L5261 QQL244K-150Z COIL 15uH K
 Ref No. Part No. Part Name Description Local

1-8 (No.52113B)
FRONT CONTROL P.W. BOARD ASS'Y (SGJ-6504A-M2)
LED & POWER SW P.W. BOARD ASS'Y (SGJ-7503A-M2)
CN5001 QGB1505K1-35 CONNECTOR B-B (1-35)
CN5006 QGA2501C5-05Z CONNECTOR W-B (1-5)
J5501 QNZ0454-001 AV JACK S/V/L/R IN
J5502 QNN0349-001 PIN JACK V/L/R IN
J5503 QNN0348-001 PIN JACK L/R OUT
 Ref No. Part No. Part Name Description Local
C6401 QETN1HM-106Z E CAPACITOR 10uF 50V M
C6402 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C6403 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
R6401 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R6402 NRSA63J-224X MG RESISTOR 220k
Ω 1/16W J
R6403 NRSA63J-224X MG RESISTOR 220k
Ω 1/16W J
R6702 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6703 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6704 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R6705 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R6706 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
CN6006 QJB003-054010 SIN ID C-B WIRE
CN6007 QJB003-064426 SIN ID C-B WIRE
CN600B QJB003-050806 SIN ID C-B WIRE
J6401 QNN0281-003 PIN JACK VIN
J6402 QNN0281-002 PIN JACK LIN
J6403 QNN0282-001 PIN JACK RIN
LC6401 QQR1199-001 EMI FILTER
S6702 QSW0619-003Z TACT SWITCH MENU
S6703 QSW0619-003Z TACT SWITCH CH-
S6704 QSW0619-003Z TACT SWITCH CH+
S6705 QSW0619-003Z TACT SWITCH VOL-
S6706 QSW0619-003Z TACT SWITCH VOL+
 Ref No. Part No. Part Name Description Local
IC7701 GP1UM281QK IR DETECT UNIT 38kHz
Q7702 UN2112-X TRANSISTOR
D7701 LG22440 LED POWER
C7701 QETN1EM-476Z E CAPACITOR 47uF 25V M
R7708 NRSA63J-152X MG RESISTOR 1.5k
Ω 1/16W J
R7709 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R7710 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R7711 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
CN700B QGA2501C5-05Z CONNECTOR W-B (1-5)
S7701 QSW0847-001 TACT SWITCH POWER
 Ref No. Part No. Part Name Description Local

(No.52113B)1-9
PRINTED WIRING BOARD PARTS LIST [AV-27F704/BZA]
MAIN P.W. BOARD ASS'Y (SGJ-1527A-M2)
 Ref No. Part No. Part Name Description Local
IC101 M52342SP IC
IC201 TM8812CSDNG4RR3 IC(MCU)
IC421 LA78041 IC
IC621 LA4485 IC
IC702 AT24C04W-32F704 IC (SERVICE)
IC703 S-80840CNY-T IC
IC704 AN78L05-T IC
IC851 BA12T IC
IC852 L7809CP IC
IC853 L7805CP IC
 IC911 STR-G6624/F8 IC
 IC921 SE135N IC
Q001 UN2212-X DIGI TRANSISTOR
Q101 2SC5083/L-P/-T TRANSISTOR
Q131 2SA1530A/QR/-X SI TRANSISTOR
Q161 2SC3928A/QR/-X SI TRANSISTOR
Q211 2SC3928A/QR/-X SI TRANSISTOR
Q232 2SC3928A/QR/-X SI TRANSISTOR
Q233 2SC3928A/QR/-X SI TRANSISTOR
Q352 2SC3928A/QR/-X SI TRANSISTOR
Q353 2SC3928A/QR/-X SI TRANSISTOR
Q431 UN2212-X DIGI TRANSISTOR
Q501 2SC4212/Z1/ TRANSISTOR
 Q511 2SD2645-YD TRANSISTOR H OUT
Q531 2SC2785/JH/-T SI TRANSISTOR
Q532 2SA1530A/QR/-X SI TRANSISTOR
Q541 2SA1530A/QR/-X SI TRANSISTOR
Q542 2SA1530A/QR/-X SI TRANSISTOR
Q543 2SD1267A/QP/ POW TRANSISTOR
Q622 2SC3928A/QR/-X SI TRANSISTOR
Q623 UN2212-X DIGI TRANSISTOR
Q701 2SA1530A/QR/-X SI TRANSISTOR
Q951 2SD1383K/AB/-X TRANSISTOR
Q971 2SA1208/ST/Z1-T TRANSISTOR
D305 1SS133-T2 DIODE
D306 1SS133-T2 DIODE
D307 1SS133-T2 DIODE
D308 1SS133-T2 DIODE
D309 1SS133-T2 DIODE
D310 1SS133-T2 DIODE
D352 MTZJ9.1C-T2 Z DIODE
D353 1SS133-T2 DIODE
D354 MTZJ3.3A-T2 Z DIODE
D421 1N4003-T2 SI DIODE
D422 MTZJ75-T2 Z DIODE
D432 1SS133-T2 DIODE
D501 RH3G-F1 SI DIODE
D502 RU3AM-LFC4 SI DIODE
D507 RGP10J-04TS-T3 SI DIODE
D521 RH1S-T3 SI DIODE
D523 RGP10J-04TS-T3 SI DIODE
D525 1SS81-T5 SI DIODE
D526 1SS81-T5 SI DIODE
D527 1SR124-400A-T2 SI DIODE
D529 MTZJ9.1C-T2 Z DIODE
 D531 MA4068N/Z1/-T2 Z DIODE
D535 1SS133-T2 DIODE
D537 1SR35-400A-T2 SI DIODE
D601 MTZJ9.1C-T2 Z DIODE
D602 MTZJ9.1C-T2 Z DIODE
D603 MTZJ9.1C-T2 Z DIODE
D700 MTZJ5.6B-T2 Z DIODE
D701 1SS133-T2 DIODE
D703 MTZJ5.6B-T2 Z DIODE
D704 MTZJ5.6B-T2 Z DIODE
D705 1SS133-T2 DIODE
D706 MTZJ5.6B-T2 Z DIODE
D707 MTZJ5.6B-T2 Z DIODE
D708 MTZJ5.6B-T2 Z DIODE
D709 MTZJ5.6B-T2 Z DIODE
D723 MTZJ5.6B-T2 Z DIODE
D810 MTZJ5.6B-T2 Z DIODE
 D901 GSIB460 BRIDGE DIODE
D910 MA700A-T2 SB DIODE
D911 RGP10J-04TS-T3 SI DIODE
D912 RGP10J-04TS-T3 SI DIODE
D913 1SS133-T2 DIODE
D914 1SS133-T2 DIODE
D915 SARS01-T2 SI DIODE
D917 MTZJ30A-T2 Z DIODE
D918 MTZJ5.1C-T2 Z DIODE
D920 1SS133-T2 DIODE
D931 RU4AM-LFT2 SI DIODE
D933 RU3YX-LFC4 SI DIODE
D935 RU3YX-LFC4 SI DIODE
D941 MTZJ33A-T2 Z DIODE
D945 MTZJ9.1B-T2 Z DIODE
D952 1SS133-T2 DIODE
D953 1SS133-T2 DIODE
D954 1N4002G-T2 FR DIODE
D955 1N4002G-T2 FR DIODE
D956 1N4002G-T2 FR DIODE
D957 1N4002G-T2 FR DIODE
D972 MTZJ15C-T2 Z DIODE
D973 1SS133-T2 DIODE
C001 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C003 QETN1HM-106Z E CAPACITOR 10uF 50V M
C004 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C006 QETN1EM-476Z E CAPACITOR 47uF 25V M
C101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C102 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C104 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C105 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C106 QETN1EM-476Z E CAPACITOR 47uF 25V M
C107 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C113 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C114 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C116 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C117 QETN1EM-476Z E CAPACITOR 47uF 25V M
C118 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C119 NDC31HJ-681X C CAPACITOR 680pF 50V J
C120 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C124 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C131 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C161 QETN1HM-106Z E CAPACITOR 10uF 50V M
C163 NDC31HJ-470X C CAPACITOR 47pF 50V J
C164 NDC31HJ-470X C CAPACITOR 47pF 50V J
C165 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C166 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C202 QETN1HM-105Z E CAPACITOR 1uF 50V M
C203 NCB31HK-152X C CAPACITOR 1500pF 50V K
C211 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C212 NDC31HJ-100X C CAPACITOR 10pF 50V J
C221 QETN1HM-106Z E CAPACITOR 10uF 50V M
C222 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C223 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C233 NDC31HJ-680X C CAPACITOR 68pF 50V J
C237 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C241 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C242 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C243 QETN1CM-107Z E CAPACITOR 100uF 16V M
C244 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C281 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C282 QETN1CM-107Z E CAPACITOR 100uF 16V M
C283 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C284 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C285 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C286 QETN1HM-106Z E CAPACITOR 10uF 50V M
C287 QETN1CM-107Z E CAPACITOR 100uF 16V M
C288 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C302 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C352 QETN1CM-476Z E CAPACITOR 47uF 16V M
C354 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C391 QETN1CM-107Z E CAPACITOR 100uF 16V M
C392 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C422 QFN32AK-102Z M CAPACITOR 1000pF 100V K
C424 QETN1VM-107Z E CAPACITOR 100uF 35V M
C425 QETN1VM-477Z E CAPACITOR 470uF 35V M
C427 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C428 QETM1EM-228 E CAPACITOR 2200uF 25V M
C431 QFLC2AK-563Z M CAPACITOR 0.056uF 100V K
C432 QETN1EM-476Z E CAPACITOR 47uF 25V M
C433 QETN1EM-476Z E CAPACITOR 47uF 25V M
C435 NCB21HK-183X C CAPACITOR 0.018uF 50V K
C440 QCS32HJ-100Z C CAPACITOR 10pF 500V J
C501 QCB32HK-151Z C CAPACITOR 150pF 500V K
C502 QCB32HK-331Z C CAPACITOR 330pF 500V K
C503 QEHR2CM-105Z E CAPACITOR 1uF 160V M
C504 QEZ0203-107 E CAPACITOR 100uF 160V M
C505 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M
C507 QEM61HK-475Z E CAPACITOR 4.7uF 50V K
C508 QEM61HK-475Z E CAPACITOR 4.7uF 50V K
 C510 QFZ0200-482 MPP CAPACITOR 4800pF 1.5kV H
 C513 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H
C514 QFP32GJ-183 PP CAPACITOR 0.018uF 400V J
C515 QFZ0197-354 MPP CAPACITOR 0.35uF 250V J
C516 QCB32HK-561Z C CAPACITOR 560pF 500V K
 Ref No. Part No. Part Name Description Local

1-10 (No.52113B)
C521 QETN2EM-106Z E CAPACITOR 10uF 250V M
C523 QEHR1VM-477Z E CAPACITOR 470uF 35V M
C525 QETN1VM-107Z E CAPACITOR 100uF 35V M
C526 QFV21HJ-824Z MF CAPACITOR 0.82uF 50V J
C527 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C531 QCB32HK-471Z C CAPACITOR 470pF 500V K
C533 QETN1HM-106Z E CAPACITOR 10uF 50V M
C601 QETN1EM-476Z E CAPACITOR 47uF 25V M
C602 QETN1EM-476Z E CAPACITOR 47uF 25V M
C603 QETN1EM-476Z E CAPACITOR 47uF 25V M
C609 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C610 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C611 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C621 NCB31HK-102X C CAPACITOR 1000pF 50V K
C622 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C623 NCB31HK-102X C CAPACITOR 1000pF 50V K
C624 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C625 QETN1CM-107Z E CAPACITOR 100uF 16V M
C626 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C627 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C628 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C629 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C636 QETN1HM-105Z E CAPACITOR 1uF 50V M
C637 QETN1HM-105Z E CAPACITOR 1uF 50V M
C700 NCB31HK-102X C CAPACITOR 1000pF 50V K
C701 QETN1HM-106Z E CAPACITOR 10uF 50V M
C702 QETN1HM-106Z E CAPACITOR 10uF 50V M
C703 QETN1HM-106Z E CAPACITOR 10uF 50V M
C704 QETN1CM-107Z E CAPACITOR 100uF 16V M
C705 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C706 QETN1HM-105Z E CAPACITOR 1uF 50V M
C708 NDC31HJ-220X C CAPACITOR 22pF 50V J
C709 NDC31HJ-220X C CAPACITOR 22pF 50V J
C711 QETN1CM-107Z E CAPACITOR 100uF 16V M
C712 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C716 QETN1HM-106Z E CAPACITOR 10uF 50V M
C728 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C807 QETN1AM-477Z E CAPACITOR 470uF 10V M
C813 NCB31HK-102X C CAPACITOR 1000pF 50V K
C815 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C851 QETN1EM-107Z E CAPACITOR 100uF 25V M
C852 QETN1CM-107Z E CAPACITOR 100uF 16V M
C853 QETN1CM-227Z E CAPACITOR 220uF 16V M
C854 QETN1CM-227Z E CAPACITOR 220uF 16V M
C856 QEHR1CM-227Z E CAPACITOR 220uF 16V M
C857 QETN1CM-477Z E CAPACITOR 470uF 16V M
 C901 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K
 C902 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K
 C903 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K
 C904 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
 C905 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
 C906 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
C907 QEZ0169-477 E CAPACITOR 470uF 200V M
 C908 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
C912 QCZ0340-222 C CAPACITOR 2200pF 2kV K
C913 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C914 QETN1HM-107Z E CAPACITOR 100uF 50V M
C916 NDC31HJ-331X C CAPACITOR 330pF 50V J
C917 NCB31HK-182X C CAPACITOR 1800pF 50V K
C918 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C919 QFP32GJ-103 PP CAPACITOR 0.01uF 400V J
C931 QEZ0203-227 E CAPACITOR 220uF 160V M
C933 QETN1CM-228Z E CAPACITOR 2200uF 16V M
C934 NDC31HJ-151X C CAPACITOR 150pF 50V J
C935 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C937 QCZ0340-102 C CAPACITOR 1000pF 2kV K
C938 QETM1EM-228 E CAPACITOR 2200uF 25V M
C939 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C941 QCB32HK-102Z C CAPACITOR 1000pF 500V K
C942 QEHR1HM-105Z E CAPACITOR 1uF 50V M
C951 QETN1EM-477Z E CAPACITOR 470uF 25V M
C952 QETN1CM-227Z E CAPACITOR 220uF 16V M
C971 QETN1CM-107Z E CAPACITOR 100uF 16V M
C972 QETN1EM-476Z E CAPACITOR 47uF 25V M
C973 QETN1HM-106Z E CAPACITOR 10uF 50V M
 C997 QCZ9079-102 C CAPACITOR 1000pF AC250V M
 C998 QCZ9074-103 C CAPACITOR 0.01uF AC250V M
 C999 QCZ9074-103 C CAPACITOR 0.01uF AC250V M
R002 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R003 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R004 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R005 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R008 NRSA63J-820X MG RESISTOR 82
Ω 1/16W J
R009 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R101 NRSA63J-562X MG RESISTOR 5.6k
Ω 1/16W J
R102 NRSA63J-182X MG RESISTOR 1.8k
Ω 1/16W J
R103 QRE121J-101Y C RESISTOR 100 Ω 1/2W J
R104 NRSA63J-180X MG RESISTOR 18 Ω 1/16W J
 Ref No. Part No. Part Name Description Local
R105 NRSA63J-270X MG RESISTOR 27 Ω 1/16W J
R111 NRSA63J-394X MG RESISTOR 390k Ω 1/16W J
R112 NRSA63J-334X MG RESISTOR 330k Ω 1/16W J
R113 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R115 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R116 NRSA63J-680X MG RESISTOR 68 Ω 1/16W J
R117 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R118 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R131 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R132 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R133 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R134 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R135 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R161 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R162 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R163 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R164 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R165 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R166 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R167 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R168 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R169 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R171 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R201 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R212 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R215 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R216 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R217 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R222 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R227 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R231 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R237 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R238 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R241 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R243 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R281 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R282 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R283 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R286 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R287 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R288 NRSA02J-471X MG RESISTOR 470 Ω 1/10W J
R289 NRSA63J-154X MG RESISTOR 150k Ω 1/16W J
R290 NRSA02J-561X MG RESISTOR 560 Ω 1/10W J
R292 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J
R293 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R301 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R302 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R303 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R304 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R305 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R306 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R318 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R319 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R352 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R354 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R355 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R356 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R358 NRSA63J-333X MG RESISTOR 33k
Ω 1/16W J
R359 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R360 NCB31HK-103X C CAPACITOR 0.01uF 50V K
R421 NRSA63J-822X MG RESISTOR 8.2k
Ω 1/16W J
R423 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R424 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R426 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R427 QRT029J-1R2 MF RESISTOR 1.2
Ω 2W J
R429 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R430 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R431 NRSA63J-152X MG RESISTOR 1.5k
Ω 1/16W J
R432 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R433 NRSA63J-681X MG RESISTOR 680
Ω 1/16W J
R434 QRL029J-181 OMF RESISTOR 180
Ω 2W J
R435 QRE121J-102Y C RESISTOR 1k
Ω 1/2W J
R441 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R447 NRSA63J-104X MG RESISTOR 100k
Ω 1/16W J
R449 NRSA63J-822X MG RESISTOR 8.2k
Ω 1/16W J
R501 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R502 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R503 QRE121J-103Y C RESISTOR 10k
Ω 1/2W J
R504 QRL039J-152 OMF RESISTOR 1.5k Ω 3W J
R505 QRL039J-182 OMF RESISTOR 1.8k
Ω 3W J
R511 QRE121J-220Y C RESISTOR 22 Ω 1/2W J
R512 QRE121J-681Y C RESISTOR 680
Ω 1/2W J
R513 QRL039J-273 OMF RESISTOR 27k Ω 3W J
R516 QRZ0221-2R0 OMF RESISTOR 2
Ω 7W K
R523 QRE141J-563Y C RESISTOR 56k Ω 1/4W J
R526 QRE121J-272Y C RESISTOR 2.7k
Ω 1/2W J
R527 QRE121J-124Y C RESISTOR 120k
Ω 1/2W J
R528 QRE121J-154Y C RESISTOR 150k Ω 1/2W J
R529 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
 Ref No. Part No. Part Name Description Local

(No.52113B)1-11
 R531 QRZ0230-391X UNF C RESISTOR 390 Ω
R532 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R533 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R534 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
 R535 NRSA63D-272X MG RESISTOR 2.7k Ω 1/16W D
 R537 NRSA63D-752X MG RESISTOR 7.5k Ω 1/16W D
R538 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R543 QRE121J-122Y C RESISTOR 1.2k
Ω 1/2W J
R544 QRE121J-392Y C RESISTOR 3.9k
Ω 1/2W J
R545 QRE121J-822Y C RESISTOR 8.2k Ω 1/2W J
R546 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R547 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R548 QRE121J-152Y C RESISTOR 1.5k Ω 1/2W J
R553 QRL039J-390 OMF RESISTOR 39 Ω 3W J
 R554 QRK126J-150X UNF C RESISTOR 15 Ω 1/2W J
R555 QRT029J-3R3 MF RESISTOR 3.3
Ω 2W J
R601 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R602 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R603 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R610 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R611 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R612 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R621 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
R622 NRSA63J-681X MG RESISTOR 680
Ω 1/16W J
R623 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R624 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R626 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R627 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R631 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R632 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R638 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R639 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R651 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R652 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R653 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R700 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R701 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R702 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R704 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R705 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R706 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R707 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R708 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R709 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R715 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R718 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R721 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R728 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R729 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R731 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R732 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R733 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R734 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R739 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R740 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R764 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R765 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R766 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R767 NRSA63J-221X MG RESISTOR 220 Ω 1/16W J
R769 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
R772 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R811 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R812 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R816 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J
R821 NRSA63J-184X MG RESISTOR 180k
Ω 1/16W J
R822 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R827 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R855 QRX039J-6R8 MF RESISTOR 6.8
Ω 3W J
R857 QRL029J-820 OMF RESISTOR 82
Ω 2W J
R901 QRF074K-1R2 UNF WW RESISTOR 1.2
Ω 7W K
R909 QRG01GJ-470 OMF RESISTOR 47
Ω 1W J
R911 QRE121J-223Y C RESISTOR 22k
Ω 1/2W J
R912 QRT029J-R18 MF RESISTOR 0.18
Ω 2W J
R913 QRT029J-R15 MF RESISTOR 0.15
Ω 2W J
 R914 QRK126J-681X UNF C RESISTOR 680 Ω 1/2W J
 R915 QRK129J-6R8 UNF C RESISTOR 6.8 Ω 1/2W J
 R917 QRK126J-332X UNF C RESISTOR 3.3k Ω 1/2W J
R918 QRE121J-222Y C RESISTOR 2.2k
Ω 1/2W J
R919 QRE121J-684Y C RESISTOR 680k Ω 1/2W J
R924 QRE121J-222Y C RESISTOR 2.2k
Ω 1/2W J
R930 QRE121J-223Y C RESISTOR 22k Ω 1/2W J
R939 QRT039J-2R2 MF RESISTOR 2.2
Ω 3W J
R940 QRE121J-181Y C RESISTOR 180 Ω 1/2W J
R941 QRL029J-183 OMF RESISTOR 18k
Ω 2W J
R950 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R951 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R952 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R953 QRE121J-820Y C RESISTOR 82 Ω 1/2W J
R972 NRSA63D-122X MG RESISTOR 1.2k Ω 1/16W D
 Ref No. Part No. Part Name Description Local
R973 NRVA02D-332X CMF RESISTOR 3.3k Ω 1/10W D
R975 QRE121J-223Y C RESISTOR 22k Ω 1/2W J
R977 QRE121J-473Y C RESISTOR 47k Ω 1/2W J
R978 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
 R998 QRZ9041-275 C RESISTOR 2.7M Ω 1/2W K
R999 QRE121J-121Y C RESISTOR 120 Ω 1/2W J
L001 QQL244K-560Z COIL 56uH K
L101 QQLZ014-R22 COIL 0.22uH 100mA L
L113 QQL244K-4R7Z COIL 4.7uH K
L131 QQL244K-150Z COIL 15uH K
L161 QQL244K-220Z COIL 22uH K
L232 QQL244K-560Z COIL 56uH K
L241 QQL244K-220Z COIL 22uH K
L391 QQL244K-220Z COIL 22uH K
L511 QQR1165-004 LINEARITY COIL
L512 QQLZ036-821 COIL 820uH K
L521 QQLZ026-700 COIL 70uH ±7%
L701 QQL244K-220Z COIL 22uH K
L702 QQL244K-220Z COIL 22uH K
L703 QQL244K-220Z COIL 22uH K
L704 QQL244K-220Z COIL 22uH K
L705 QQL244K-220Z COIL 22uH K
L931 QQL26AK-470Z COIL 47uH K
L933 QQL26AK-470Z COIL 47uH K
L940 QQR0582-001Z FERRITE BEADS
T111 QQR0907-001 IFT
T501 QQR1414-001 DRIVE TRANSF
 T921 QQS0208-001 SW TRANSF
 T951 QQT0355-001 POWER TRANSF
CF001 QAX0349-001 C TRAP 47.25MHz
CF131 QAX0639-001Z C TRAP 4.500MHz
CF161 QAX0642-001Z C FILTER 4.500MHz
CN001 QGB1505J1-35 CONNECTOR B-B (1-35)
CN004 QGA2501C5-07Z CONNECTOR W-B (1-7)
CN005 QGA2501C5-06Z CONNECTOR W-B (1-6)
CN007 QGA2501C5-06Z CONNECTOR W-B (1-6)
CN00C QGA2501F1-06 CONNECTOR W-B (1-6)
CN0E1 CE41507-001P LV CONNECTOR
CN0E3 CE41507-001P LV CONNECTOR
CN0HV QGZ5004C1-06 CONNECTOR (1-6)
CN0S1 QGA2501C5-05Z CONNECTOR W-B (1-5)
CN0SS QGA2501C5-04Z CONNECTOR W-B (1-4)
 CP932 ICP-N70-T IC PROTECTOR 2.5A
 CP936 ICP-N70-T IC PROTECTOR 2.5A
 F901 QMF51N1-5R0-J5 FUSE 5A AC125V
 F905 QMFZ049-5R0Z-E FUSE 5A 125V
FC901 CEMG002-001Z FUSE CLIP
FC902 CEMG002-001Z FUSE CLIP
 FR525 QRZ9017-4R7 FUSI RESISTOR 4.7 Ω 1/4W J
 FR527 QRZ9011-470 FUSI RESISTOR 47 Ω 1/2W J
HS001 LC31677-001A HEAT SINK/AL-F/
HS002 LC31678-002A HEAT SINK/AL-F/
HS003 LC32111-002A HEAT SINK/AL-F/
HS004 CEHE015-001WU HEAT SINK
HS005 CM42862-00G-H HEAT SINK ASSY
HS007 CEHT11B-002QS HEAT SINK
HS008 CEHT11B-002QS HEAT SINK
J601 QNN0349-002 PIN JACK COMP IN
J810 QNS0001-001 3.5 JACK AV COMPULINK
K401 QQR0621-002Z FERRITE BEADS
K912 QQR0582-001Z FERRITE BEADS
K916 QQR0582-001Z FERRITE BEADS
K917 QQR0582-001Z FERRITE BEADS
K918 QQR0582-001Z FERRITE BEADS
K920 QQR1139-001 FERRITE BEADS
K931 QQR0582-001Z FERRITE BEADS
K932 QQR0582-001Z FERRITE BEADS
K933 QQR0621-002Z FERRITE BEADS
K935 QQR0582-001Z FERRITE BEADS
LC601 QQR1199-001 EMI FILTER
LC602 QQR1199-001 EMI FILTER
LC603 QQR1199-001 EMI FILTER
 LF901 QQR1159-001 LINE FILTER
 LF902 QQR0527-004 LINE FILTER
 PC921 PC123Y22 PHOTO COUPLER
 RY951 QSK0085-001 RELAY
S421 QSL4A13-C02 LEVER SWITCH V.CENTER
SF101 QAX0723-001 SAW FILTER
 TH901 QAD0132-3R0 P THERMISTOR 3 Ω
 TU001 QAU0305-001 TUNER
 VA901 ERZV10V621CS ZNR
X701 QAX0767-001Z CRYSTAL 8MHz
 Ref No. Part No. Part Name Description Local

1-12 (No.52113B)
CRT SOCKET P.W. BOARD ASS'Y (SGJ-3509A-M2)
AV SELECTOR P.W. BOARD ASS'Y (SGJ-5504A-M2)
REFER TO PARTS LIST IN PAGE 3-6 FOR THIS P.W. BOARD.
FRONT CONTROL P.W. BOARD ASS'Y (SGJ-6504A-M2)
REFER TO PARTS LIST IN PAGE 3-8 FOR THIS P.W. BOARD.
LED & POWER SW P.W. BOARD ASS'Y (SGJ-7503A-M2)
REFER TO PARTS LIST IN PAGE 3-8 FOR THIS P.W. BOARD.
 Ref No. Part No. Part Name Description Local
Q3103 KTA1267/YG/-T TRANSISTOR
Q3105 KTC3199/YG/-T TRANSISTOR
Q3106 KTA1267/YG/-T TRANSISTOR
Q3107 2SA2005/DE/ POW TRANSISTOR
Q3108 2SC5511/DE/ POW TRANSISTOR
Q3109 KTC3199/YG/-T TRANSISTOR
Q3151 KTC3199/YG/-T TRANSISTOR
Q3152 KTA1267/YG/-T TRANSISTOR
Q3301 2SC5083/L-P/-T TRANSISTOR
Q3302 2SC5083/L-P/-T TRANSISTOR
Q3303 2SC5083/L-P/-T TRANSISTOR
Q3304 2SC5147/CDE/F43 POW TRANSISTOR
Q3305 2SC5147/CDE/F43 POW TRANSISTOR
Q3306 2SC5147/CDE/F43 POW TRANSISTOR
Q3351 KTA1267/YG/-T TRANSISTOR
D3101 1SS133-T2 DIODE
D3105 RH1S-T3 SI DIODE
D3106 RH1S-T3 SI DIODE
D3301 1SS133-T2 DIODE
D3302 1SS133-T2 DIODE
D3303 1SS133-T2 DIODE
D3304 1SS82-T2 SI DIODE
D3305 1SS82-T2 SI DIODE
D3306 1SS82-T2 SI DIODE
D3311 MTZJ3.6B-T2 Z DIODE
D3312 1SS133-T2 DIODE
D3313 MTZJ4.3A-T2 Z DIODE
D3314 1SS133-T2 DIODE
D3331 1SS133-T2 DIODE
D3351 1SS133-T2 DIODE
D3352 1SS133-T2 DIODE
D3353 1SS133-T2 DIODE
D3354 1SS133-T2 DIODE
C3101 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3109 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3110 NDC31HJ-221X C CAPACITOR 220pF 50V J
C3111 NDC31HJ-221X C CAPACITOR 220pF 50V J
C3113 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3114 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3115 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3117 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3118 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C3119 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3120 QETN1AM-337Z E CAPACITOR 330uF 10V M
C3121 QCS32HJ-151Z C CAPACITOR 150pF 500V J
C3122 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C3125 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
C3151 NCB21EK-104X C CAPACITOR 0.1uF 25V K
C3152 NCB21EK-104X C CAPACITOR 0.1uF 25V K
C3301 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3302 NDC31HJ-391X C CAPACITOR 390pF 50V J
C3303 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3321 QETN2EM-105Z E CAPACITOR 1uF 250V M
C3322 QETN2EM-105Z E CAPACITOR 1uF 250V M
C3323 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3351 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3363 QCZ0324-102 C CAPACITOR 1000pF 3kV P
R3108 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3111 NRSA63J-332X MG RESISTOR 3.3k
Ω 1/16W J
R3114 QRZ0230-100X UNF C RESISTOR 10 Ω
R3115 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3116 NRSA63J-470X MG RESISTOR 47
Ω 1/16W J
R3117 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3119 NRSA63J-121X MG RESISTOR 120
Ω 1/16W J
R3123 NRSA63J-122X MG RESISTOR 1.2k
Ω 1/16W J
R3124 NRSA63J-390X MG RESISTOR 39
Ω 1/16W J
R3125 NRSA63J-5R6X MG RESISTOR 5.6
Ω 1/16W J
R3126 NRSA63J-563X MG RESISTOR 56k
Ω 1/16W J
R3127 NRSA63J-563X MG RESISTOR 56k
Ω 1/16W J
R3128 NRSA63J-122X MG RESISTOR 1.2k
Ω 1/16W J
R3129 NRSA63J-5R6X MG RESISTOR 5.6
Ω 1/16W J
R3130 NRSA63J-390X MG RESISTOR 39
Ω 1/16W J
R3131 NRSA63J-121X MG RESISTOR 120
Ω 1/16W J
R3132 QRL029J-391 OMF RESISTOR 390 Ω 2W J
R3134 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
R3135 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3136 NRSA63J-333X MG RESISTOR 33k
Ω 1/16W J
R3139 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R3142 NRSA63J-124X MG RESISTOR 120k
Ω 1/16W J
R3143 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R3145 NRSA63J-5R6X MG RESISTOR 5.6
Ω 1/16W J
R3146 NRSA63J-5R6X MG RESISTOR 5.6 Ω 1/16W J
R3151 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R3152 NRSA63J-683X MG RESISTOR 68k
Ω 1/16W J
R3153 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
R3154 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R3301 NRSA63J-151X MG RESISTOR 150 Ω 1/16W J
R3302 NRSA63J-151X MG RESISTOR 150 Ω 1/16W J
R3303 NRSA63J-151X MG RESISTOR 150 Ω 1/16W J
R3304 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3305 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3306 NRSA63J-121X MG RESISTOR 120
Ω 1/16W J
R3307 NRSA63J-470X MG RESISTOR 47
Ω 1/16W J
R3308 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3309 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3310 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3311 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3312 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3313 QRL029J-183 OMF RESISTOR 18k
Ω 2W J
R3314 QRL029J-183 OMF RESISTOR 18k
Ω 2W J
R3315 QRL029J-183 OMF RESISTOR 18k Ω 2W J
R3316 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3317 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3318 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3325 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3326 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3327 QRZ0107-102Z C RESISTOR 1k
Ω 1/2W K
R3331 NRSA63J-272X MG RESISTOR 2.7k
Ω 1/16W J
R3332 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R3333 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R3334 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R3335 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R3336 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3337 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3338 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3351 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3352 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3353 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3354 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
L3301 QQL244K-180Z PEAKING COIL 18uH K
L3302 QQL244K-180Z PEAKING COIL 18uH K
L3303 QQL244K-180Z PEAKING COIL 18uH K
L3304 QQL244K-470Z PEAKING COIL 47uH K
L3305 QQL244K-470Z PEAKING COIL 47uH K
L3306 QQL244K-470Z PEAKING COIL 47uH K
CN3004 QJB003-073226 SIN ID C-B WIRE
CN3005 WJA0029-001A E-SI ID WIRE
CN300V QGA2501C5-03Z CONNECTOR W-B (1-3)
CN30E2 QUB130-38A6AS SIN TWIST WIRE
CN30E4 QUB130-38A6AS SIN TWIST WIRE
 FR3122 QRZ9021-561 FUSI RESISTOR 560 Ω 1W J
HS3010 CEHP00N-001QS HEAT SINK
HS3011 CEHP00N-001QS HEAT SINK
HS3012 CEHP00N-001QS HEAT SINK
HS3013 CEHP00N-001QS HEAT SINK
HS3014 CEHP00N-001QS HEAT SINK
K3102 QQR1114-001Z FERRITE BEADS
K3103 QQR1114-001Z FERRITE BEADS
K3104 QQR1114-001Z FERRITE BEADS
K3105 QQR1114-001Z FERRITE BEADS
 SK3001 QNZ0536-001 CRT SOCKET
 Ref No. Part No. Part Name Description Local

(No.52113B)1-13
PRINTED WIRING BOARD PARTS LIST [AV-32F704/BYA]
MAIN P.W. BOARD ASS'Y (SGJ-1525A-M2)
 Ref No. Part No. Part Name Description Local
IC101 M52342SP IC
IC201 TM8812CSDNG4RR3 IC(MCU)
IC421 LA78041 IC
IC621 LA4485 IC
IC702 AT24C04W-32F704 IC (SERVICE)
IC703 S-80840CNY-T IC
IC704 AN78L05-T IC
IC851 AN7812F IC
IC852 L7809CP IC
IC853 L7805CP IC
 IC911 STR-G9626-F3 IC
 IC921 SE135N IC
Q001 UN2212-X DIGI TRANSISTOR
Q101 2SC5083/L-P/-T TRANSISTOR
Q131 2SA1530A/QR/-X SI TRANSISTOR
Q161 2SC3928A/QR/-X SI TRANSISTOR
Q211 2SC3928A/QR/-X SI TRANSISTOR
Q232 2SC3928A/QR/-X SI TRANSISTOR
Q233 2SC3928A/QR/-X SI TRANSISTOR
Q352 2SC3928A/QR/-X SI TRANSISTOR
Q353 2SC3928A/QR/-X SI TRANSISTOR
Q431 UN2212-X DIGI TRANSISTOR
Q501 2SC4212/Z1/ TRANSISTOR
 Q511 2SD2645-YD TRANSISTOR H OUT
Q531 2SC2785/JH/-T SI TRANSISTOR
Q532 2SA1530A/QR/-X SI TRANSISTOR
Q541 2SA1530A/QR/-X SI TRANSISTOR
Q542 2SA1530A/QR/-X SI TRANSISTOR
Q543 2SD1267A/QP/ POW TRANSISTOR
Q622 2SC3928A/QR/-X SI TRANSISTOR
Q623 UN2212-X DIGI TRANSISTOR
Q701 2SA1530A/QR/-X SI TRANSISTOR
Q951 2SD1383K/AB/-X TRANSISTOR
Q971 2SA1208/ST/Z1-T TRANSISTOR
D305 1SS133-T2 DIODE
D306 1SS133-T2 DIODE
D307 1SS133-T2 DIODE
D308 1SS133-T2 DIODE
D309 1SS133-T2 DIODE
D310 1SS133-T2 DIODE
D352 MTZJ9.1C-T2 Z DIODE
D353 1SS133-T2 DIODE
D354 MTZJ3.3A-T2 Z DIODE
D421 1N4003-T2 SI DIODE
D422 MTZJ75-T2 Z DIODE
D432 1SS133-T2 DIODE
D501 RH3G-F1 SI DIODE
D502 RU3AM-LFC4 SI DIODE
D507 RGP10J-04TS-T3 SI DIODE
D521 RH1S-T3 SI DIODE
D523 RGP10J-04TS-T3 SI DIODE
D525 1SS81-T5 SI DIODE
D526 1SS81-T5 SI DIODE
D527 1SR124-400A-T2 SI DIODE
D529 MTZJ9.1C-T2 Z DIODE
 D531 MA4068N/Z1/-T2 Z DIODE
D535 1SS133-T2 DIODE
D537 1SR35-400A-T2 SI DIODE
D601 MTZJ9.1C-T2 Z DIODE
D602 MTZJ9.1C-T2 Z DIODE
D603 MTZJ9.1C-T2 Z DIODE
D700 MTZJ5.6B-T2 Z DIODE
D701 1SS133-T2 DIODE
D703 MTZJ5.6B-T2 Z DIODE
D704 MTZJ5.6B-T2 Z DIODE
D705 1SS133-T2 DIODE
D706 MTZJ5.6B-T2 Z DIODE
D707 MTZJ5.6B-T2 Z DIODE
D708 MTZJ5.6B-T2 Z DIODE
D709 MTZJ5.6B-T2 Z DIODE
D723 MTZJ5.6B-T2 Z DIODE
D810 MTZJ5.6B-T2 Z DIODE
 D901 GSIB460 BRIDGE DIODE
D910 MA700A-T2 SB DIODE
D911 RGP10J-04TS-T3 SI DIODE
D912 RGP10J-04TS-T3 SI DIODE
D913 1SS133-T2 DIODE
D914 1SS133-T2 DIODE
D915 SARS01-T2 SI DIODE
D917 MTZJ30A-T2 Z DIODE
D918 MTZJ5.1C-T2 Z DIODE
D920 1SS133-T2 DIODE
D931 RU4AM-LFT2 SI DIODE
D933 RU3YX-LFC4 SI DIODE
D935 RU3YX-LFC4 SI DIODE
D937 RU3YX-LFC4 SI DIODE
D941 MTZJ33A-T2 Z DIODE
D945 MTZJ9.1B-T2 Z DIODE
D952 1SS133-T2 DIODE
D953 1SS133-T2 DIODE
D954 1N4002G-T2 FR DIODE
D955 1N4002G-T2 FR DIODE
D956 1N4002G-T2 FR DIODE
D957 1N4002G-T2 FR DIODE
D972 MTZJ15C-T2 Z DIODE
D973 1SS133-T2 DIODE
C001 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C003 QETN1HM-106Z E CAPACITOR 10uF 50V M
C004 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C006 QETN1EM-476Z E CAPACITOR 47uF 25V M
C101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C102 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C104 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C105 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C106 QETN1EM-476Z E CAPACITOR 47uF 25V M
C107 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C113 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C114 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C116 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C117 QETN1EM-476Z E CAPACITOR 47uF 25V M
C118 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C119 NDC31HJ-681X C CAPACITOR 680pF 50V J
C120 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C124 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C131 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C161 QETN1HM-106Z E CAPACITOR 10uF 50V M
C163 NDC31HJ-470X C CAPACITOR 47pF 50V J
C164 NDC31HJ-470X C CAPACITOR 47pF 50V J
C165 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C166 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C202 QETN1HM-105Z E CAPACITOR 1uF 50V M
C203 NCB31HK-152X C CAPACITOR 1500pF 50V K
C211 QENC1CM-106Z BP E CAPACITOR 10uF 16V M
C212 NDC31HJ-100X C CAPACITOR 10pF 50V J
C221 QETN1HM-106Z E CAPACITOR 10uF 50V M
C222 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C223 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C233 NDC31HJ-680X C CAPACITOR 68pF 50V J
C237 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C241 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C242 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C243 QETN1CM-107Z E CAPACITOR 100uF 16V M
C244 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C281 QFVF1HJ-474Z MF CAPACITOR 0.47uF 50V J
C282 QETN1CM-107Z E CAPACITOR 100uF 16V M
C283 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C284 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C285 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C286 QETN1HM-106Z E CAPACITOR 10uF 50V M
C287 QETN1CM-107Z E CAPACITOR 100uF 16V M
C288 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C302 NCB31EK-104X C CAPACITOR 0.1uF 25V K
C352 QETN1CM-476Z E CAPACITOR 47uF 16V M
C354 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C391 QETN1CM-107Z E CAPACITOR 100uF 16V M
C392 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C422 QFN32AK-102Z M CAPACITOR 1000pF 100V K
C424 QETN1VM-107Z E CAPACITOR 100uF 35V M
C425 QETN1VM-477Z E CAPACITOR 470uF 35V M
C427 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C428 QETM1EM-228 E CAPACITOR 2200uF 25V M
C431 QFLC2AK-563Z M CAPACITOR 0.056uF 100V K
C432 QETN1EM-476Z E CAPACITOR 47uF 25V M
C433 QETN1EM-476Z E CAPACITOR 47uF 25V M
C435 NCB21HK-183X C CAPACITOR 0.018uF 50V K
C440 QCS32HJ-100Z C CAPACITOR 10pF 500V J
C501 QCB32HK-151Z C CAPACITOR 150pF 500V K
C502 QCB32HK-331Z C CAPACITOR 330pF 500V K
C503 QEHR2CM-105Z E CAPACITOR 1uF 160V M
C504 QEZ0203-107 E CAPACITOR 100uF 160V M
C505 QENC2AM-225Z BP E CAPACITOR 2.2uF 100V M
C507 QEZ0195-475Z BP E CAPACITOR 4.7uF 50V M
 C510 QFZ0200-382 MPP CAPACITOR 3800pF 1.5kV H
 C513 QFZ0198-133 MPP CAPACITOR 0.013uF 1.5kV H
C514 QFP32GJ-223 PP CAPACITOR 0.022uF 400V J
C515 QFZ0197-474 MPP CAPACITOR 0.47uF 250V J
C516 QCB32HK-561Z C CAPACITOR 560pF 500V K
 Ref No. Part No. Part Name Description Local

1-14 (No.52113B)
C521 QETN2EM-106Z E CAPACITOR 10uF 250V M
C523 QEHR1VM-108Z E CAPACITOR 1000uF 35V M
C525 QETN1VM-107Z E CAPACITOR 100uF 35V M
C526 QFV21HJ-824Z MF CAPACITOR 0.82uF 50V J
C527 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J
C533 QETN1HM-106Z E CAPACITOR 10uF 50V M
C601 QETN1EM-476Z E CAPACITOR 47uF 25V M
C602 QETN1EM-476Z E CAPACITOR 47uF 25V M
C603 QETN1EM-476Z E CAPACITOR 47uF 25V M
C609 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C610 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C611 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J
C621 NCB31HK-102X C CAPACITOR 1000pF 50V K
C622 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C623 NCB31HK-102X C CAPACITOR 1000pF 50V K
C624 NCF21CZ-105X C CAPACITOR 1uF 16V Z
C625 QETN1CM-107Z E CAPACITOR 100uF 16V M
C626 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C627 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C628 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C629 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C636 QETN1HM-105Z E CAPACITOR 1uF 50V M
C637 QETN1HM-105Z E CAPACITOR 1uF 50V M
C700 NCB31HK-102X C CAPACITOR 1000pF 50V K
C701 QETN1HM-106Z E CAPACITOR 10uF 50V M
C702 QETN1HM-106Z E CAPACITOR 10uF 50V M
C703 QETN1HM-106Z E CAPACITOR 10uF 50V M
C704 QETN1CM-107Z E CAPACITOR 100uF 16V M
C705 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C706 QETN1HM-105Z E CAPACITOR 1uF 50V M
C708 NDC31HJ-220X C CAPACITOR 22pF 50V J
C709 NDC31HJ-220X C CAPACITOR 22pF 50V J
C711 QETN1CM-107Z E CAPACITOR 100uF 16V M
C712 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C716 QETN1HM-106Z E CAPACITOR 10uF 50V M
C728 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C807 QETN1AM-477Z E CAPACITOR 470uF 10V M
C813 NCB31HK-102X C CAPACITOR 1000pF 50V K
C815 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C851 QETN1EM-107Z E CAPACITOR 100uF 25V M
C852 QETN1CM-107Z E CAPACITOR 100uF 16V M
C853 QETN1EM-227Z E CAPACITOR 220uF 25V M
C854 QETN1CM-227Z E CAPACITOR 220uF 16V M
C856 QETN1CM-227Z E CAPACITOR 220uF 16V M
C857 QETN1CM-477Z E CAPACITOR 470uF 16V M
 C901 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K
 C902 QFZ9072-473 MM CAPACITOR 0.047uF AC250V K
 C903 QFZ9072-104 MM CAPACITOR 0.1uF AC250V K
 C904 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
 C905 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
 C906 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
C907 QEZ0169-477 E CAPACITOR 470uF 200V M
 C908 QCZ9054-102 C CAPACITOR 1000pF AC250V Z
C912 QCZ0340-222 C CAPACITOR 2200pF 2kV K
C913 QFLC1HJ-471Z M CAPACITOR 470pF 50V J
C914 QETN1HM-107Z E CAPACITOR 100uF 50V M
C916 NDC31HJ-331X C CAPACITOR 330pF 50V J
C917 NCB31HK-182X C CAPACITOR 1800pF 50V K
C918 NCB21HK-104X C CAPACITOR 0.1uF 50V K
C919 QFP32GJ-103 PP CAPACITOR 0.01uF 400V J
C931 QEZ0203-227 E CAPACITOR 220uF 160V M
C932 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C933 QETN1EM-228Z E CAPACITOR 2200uF 25V M
C934 NDC31HJ-221X C CAPACITOR 220pF 50V J
C935 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C937 QCZ0340-102 C CAPACITOR 1000pF 2kV K
C938 QETN1EM-108Z E CAPACITOR 1000uF 25V M
C939 QCB32HK-152Z C CAPACITOR 1500pF 500V K
C941 QCB32HK-102Z C CAPACITOR 1000pF 500V K
C942 QEHR1HM-105Z E CAPACITOR 1uF 50V M
C943 QETN1CM-108Z E CAPACITOR 1000uF 16V M
C951 QETN1EM-477Z E CAPACITOR 470uF 25V M
C952 QETN1CM-227Z E CAPACITOR 220uF 16V M
C971 QETN1CM-107Z E CAPACITOR 100uF 16V M
C972 QETN1EM-476Z E CAPACITOR 47uF 25V M
C973 QETN1HM-106Z E CAPACITOR 10uF 50V M
 C997 QCZ9079-102 C CAPACITOR 1000pF AC250V M
 C998 QCZ9074-103 C CAPACITOR 0.01uF AC250V M
 C999 QCZ9074-103 C CAPACITOR 0.01uF AC250V M
R002 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R003 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R004 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R005 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R008 NRSA63J-820X MG RESISTOR 82 Ω 1/16W J
R009 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
R101 NRSA63J-562X MG RESISTOR 5.6k
Ω 1/16W J
R102 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R103 QRE121J-101Y C RESISTOR 100 Ω 1/2W J
 Ref No. Part No. Part Name Description Local
R104 NRSA63J-180X MG RESISTOR 18 Ω 1/16W J
R105 NRSA63J-270X MG RESISTOR 27 Ω 1/16W J
R111 NRSA63J-394X MG RESISTOR 390k Ω 1/16W J
R112 NRSA63J-334X MG RESISTOR 330k Ω 1/16W J
R113 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R115 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R116 NRSA63J-680X MG RESISTOR 68 Ω 1/16W J
R117 NRSA63J-273X MG RESISTOR 27k
Ω 1/16W J
R118 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R131 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R132 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R133 NRSA63J-821X MG RESISTOR 820 Ω 1/16W J
R134 NRSA63J-561X MG RESISTOR 560 Ω 1/16W J
R135 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R161 NRSA63J-332X MG RESISTOR 3.3k
Ω 1/16W J
R162 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R163 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R164 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R165 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R166 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R167 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R168 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R169 NRSA63J-561X MG RESISTOR 560
Ω 1/16W J
R171 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R201 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R212 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R215 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R216 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R217 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R222 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R227 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R231 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R237 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R238 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R241 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R243 NRSA63J-152X MG RESISTOR 1.5k Ω 1/16W J
R281 NRSA63J-182X MG RESISTOR 1.8k Ω 1/16W J
R282 NRSA63J-392X MG RESISTOR 3.9k Ω 1/16W J
R283 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R286 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R287 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R288 NRSA02J-471X MG RESISTOR 470 Ω 1/10W J
R289 NRSA63J-154X MG RESISTOR 150k Ω 1/16W J
R290 NRSA02J-561X MG RESISTOR 560 Ω 1/10W J
R292 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J
R293 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R301 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R302 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R303 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R304 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R305 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R306 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R318 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R319 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R352 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R354 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R355 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R356 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R358 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R359 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R360 NCB31HK-103X C CAPACITOR 0.01uF 50V K
R421 NRSA63J-822X MG RESISTOR 8.2k Ω 1/16W J
R423 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R424 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R426 NRSA63J-183X MG RESISTOR 18k
Ω 1/16W J
R427 QRT029J-1R0 MF RESISTOR 1 Ω 2W J
R429 NRSA63J-272X MG RESISTOR 2.7k
Ω 1/16W J
R430 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R431 NRSA63J-152X MG RESISTOR 1.5k
Ω 1/16W J
R432 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R433 NRSA63J-681X MG RESISTOR 680
Ω 1/16W J
R434 QRL029J-221 OMF RESISTOR 220
Ω 2W J
R435 QRE121J-102Y C RESISTOR 1k
Ω 1/2W J
R441 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R447 NRSA63J-104X MG RESISTOR 100k
Ω 1/16W J
R449 NRSA63J-822X MG RESISTOR 8.2k
Ω 1/16W J
R501 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R502 NRSA63J-271X MG RESISTOR 270
Ω 1/16W J
R503 QRE121J-103Y C RESISTOR 10k Ω 1/2W J
R504 QRL039J-152 OMF RESISTOR 1.5k
Ω 3W J
R505 QRL039J-152 OMF RESISTOR 1.5k Ω 3W J
R511 QRE121J-220Y C RESISTOR 22
Ω 1/2W J
R512 QRE121J-681Y C RESISTOR 680 Ω 1/2W J
R513 QRL039J-273 OMF RESISTOR 27k
Ω 3W J
R516 QRZ0221-2R0 OMF RESISTOR 2 Ω 7W K
R524 NRSA63J-563X MG RESISTOR 56k
Ω 1/16W J
R526 QRE121J-272Y C RESISTOR 2.7k
Ω 1/2W J
R527 QRE121J-124Y C RESISTOR 120k Ω 1/2W J
R528 QRE121J-154Y C RESISTOR 150k Ω 1/2W J
 Ref No. Part No. Part Name Description Local

(No.52113B)1-15
R529 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
 R531 QRZ0230-391X UNF C RESISTOR 390 Ω
R532 NRSA63J-273X MG RESISTOR 27k Ω 1/16W J
R533 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R534 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
 R535 NRVA02D-242X CMF RESISTOR 2.4k Ω 1/10W D
 R537 NRVA02D-752X CMF RESISTOR 7.5k Ω 1/10W D
R538 NRSA63J-333X MG RESISTOR 33k
Ω 1/16W J
R543 QRE121J-122Y C RESISTOR 1.2k
Ω 1/2W J
R544 QRE121J-392Y C RESISTOR 3.9k Ω 1/2W J
R545 QRE121J-822Y C RESISTOR 8.2k Ω 1/2W J
R546 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R547 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R548 QRE121J-152Y C RESISTOR 1.5k Ω 1/2W J
R553 QRL039J-330 OMF RESISTOR 33
Ω 3W J
 R554 QRK126J-150X UNF C RESISTOR 15 Ω 1/2W J
R555 QRT029J-2R2 MF RESISTOR 2.2 Ω 2W J
R581 QRE121J-100Y C RESISTOR 10 Ω 1/2W J
R582 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J
R583 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
R584 NRSA63J-563X MG RESISTOR 56k Ω 1/16W J
R585 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R586 NRSA63J-154X MG RESISTOR 150k
Ω 1/16W J
R587 NRSA63J-104X MG RESISTOR 100k
Ω 1/16W J
R588 QRE121J-100Y C RESISTOR 10 Ω 1/2W J
R589 NRSA63J-562X MG RESISTOR 5.6k Ω 1/16W J
R590 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
 R591 QRJ149J-220 UNF C RESISTOR 22 Ω 1/4W J
R592 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
R593 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R594 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R595 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R601 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R602 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R603 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R610 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R611 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R612 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R621 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R622 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R623 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R624 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R626 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R627 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R631 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
R632 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R638 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R639 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R651 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R652 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R653 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R700 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R701 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R702 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R704 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R705 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R706 NRSA63J-472X MG RESISTOR 4.7k Ω 1/16W J
R707 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R708 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R709 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R715 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R718 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R721 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R728 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R729 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R731 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R732 NRSA63J-101X MG RESISTOR 100
Ω 1/16W J
R733 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R734 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R739 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R740 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R764 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R765 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R766 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R767 NRSA63J-221X MG RESISTOR 220
Ω 1/16W J
R769 NRSA63J-682X MG RESISTOR 6.8k
Ω 1/16W J
R772 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R811 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R812 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R816 NRSA63J-124X MG RESISTOR 120k
Ω 1/16W J
R821 NRSA63J-184X MG RESISTOR 180k Ω 1/16W J
R822 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R827 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R857 QRL029J-820 OMF RESISTOR 82
Ω 2W J
R901 QRF074K-1R2 UNF WW RESISTOR 1.2 Ω 7W K
R909 QRG01GJ-470 OMF RESISTOR 47
Ω 1W J
R911 QRE121J-223Y C RESISTOR 22k
Ω 1/2W J
R912 QRT029J-R18 MF RESISTOR 0.18 Ω 2W J
R913 QRT029J-R15 MF RESISTOR 0.15 Ω 2W J
 Ref No. Part No. Part Name Description Local
 R914 QRK126J-681X UNF C RESISTOR 680 Ω 1/2W J
 R915 QRK129J-6R8 UNF C RESISTOR 6.8 Ω 1/2W J
 R917 QRK126J-332X UNF C RESISTOR 3.3k Ω 1/2W J
R918 QRE121J-222Y C RESISTOR 2.2k Ω 1/2W J
R919 QRE121J-684Y C RESISTOR 680k Ω 1/2W J
R924 QRE121J-222Y C RESISTOR 2.2k Ω 1/2W J
R930 QRE121J-223Y C RESISTOR 22k Ω 1/2W J
R940 QRE121J-181Y C RESISTOR 180
Ω 1/2W J
R941 QRL029J-183 OMF RESISTOR 18k
Ω 2W J
R950 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R951 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R952 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R953 QRE121J-820Y C RESISTOR 82 Ω 1/2W J
R972 NRVA02D-102X CMF RESISTOR 1k Ω 1/10W D
R973 NRVA02D-332X CMF RESISTOR 3.3k
Ω 1/10W D
R975 QRE121J-223Y C RESISTOR 22k
Ω 1/2W J
R977 QRE121J-473Y C RESISTOR 47k Ω 1/2W J
R978 NRSA63J-333X MG RESISTOR 33k Ω 1/16W J
 R998 QRZ9041-275 C RESISTOR 2.7M Ω 1/2W K
R999 QRE121J-121Y C RESISTOR 120 Ω 1/2W J
L001 QQL244K-560Z COIL 56uH K
L101 QQLZ014-R22 COIL 0.22uH 100mA L
L113 QQL244K-4R7Z COIL 4.7uH K
L131 QQL244K-150Z COIL 15uH K
L161 QQL244K-220Z COIL 22uH K
L232 QQL244K-560Z COIL 56uH K
L241 QQL244K-220Z COIL 22uH K
L391 QQL244K-220Z COIL 22uH K
L511 QQR1027-003 LINEARITY COIL
L512 QQLZ036-821 COIL 820uH K
L521 QQLZ026-830 COIL 83uH ±7%
L701 QQL244K-220Z COIL 22uH K
L702 QQL244K-220Z COIL 22uH K
L703 QQL244K-220Z COIL 22uH K
L704 QQL244K-220Z COIL 22uH K
L705 QQL244K-220Z COIL 22uH K
L931 QQL26AK-470Z COIL 47uH K
L933 QQL26AK-470Z COIL 47uH K
L937 QQL26AK-470Z COIL 47uH K
L940 QQR0582-001Z FERRITE BEADS
T111 QQR0907-001 IFT
T501 QQR1414-001 DRIVE TRANSF
 T921 QQS0152-001 SW TRANSF
 T951 QQT0355-001 POWER TRANSF
CF001 QAX0349-001 C TRAP 47.25MHz
CF131 QAX0639-001Z C TRAP 4.500MHz
CF161 QAX0642-001Z C FILTER 4.500MHz
CN001 QGB1505J1-35 CONNECTOR B-B (1-35)
CN004 QGA2501C5-07Z CONNECTOR W-B (1-7)
CN005 QGA2501C5-06Z CONNECTOR W-B (1-6)
CN007 QGA2501C5-06Z CONNECTOR W-B (1-6)
CN00C QGA2501F1-06 CONNECTOR W-B (1-6)
CN00Q QGA2501C5-03Z CONNECTOR W-B (1-3)
CN0E1 CE41507-001P LV CONNECTOR
CN0E3 CE41507-001P LV CONNECTOR
CN0HV QGZ5004C1-06 CONNECTOR (1-6)
CN0S1 QGA2501C5-05Z CONNECTOR W-B (1-5)
CN0SS QGA2501C5-04Z CONNECTOR W-B (1-4)
 CP932 ICP-N70-T IC PROTECTOR 2.5A
 CP933 ICP-N70-T IC PROTECTOR 2.5A
 CP936 ICP-N70-T IC PROTECTOR 2.5A
 F901 QMF51N1-5R0-J5 FUSE 5A AC125V
 F905 QMFZ049-5R0Z-E FUSE 5A 125V
FC901 CEMG002-001Z FUSE CLIP
FC902 CEMG002-001Z FUSE CLIP
 FR525 QRZ9017-4R7 FUSI RESISTOR 4.7 Ω 1/4W J
 FR527 QRZ9011-470 FUSI RESISTOR 47 Ω 1/2W J
HS001 LC31677-001A HEAT SINK/AL-F/
HS002 LC31678-002A HEAT SINK/AL-F/
HS003 LC32111-002A HEAT SINK/AL-F/
HS004 CEHE015-001WU HEAT SINK
HS005 CM42862-00G-H HEAT SINK ASSY
HS007 CEHT11B-002QS HEAT SINK
J601 QNN0349-002 PIN JACK COMP IN
J810 QNS0001-001 3.5 JACK AV COMPULINK
K401 QQR0621-002Z FERRITE BEADS
K912 QQR0582-001Z FERRITE BEADS
K916 QQR0582-001Z FERRITE BEADS
K917 QQR0582-001Z FERRITE BEADS
K918 QQR0582-001Z FERRITE BEADS
K920 QQR1139-001 FERRITE BEADS
K931 QQR0582-001Z FERRITE BEADS
K932 QQR0582-001Z FERRITE BEADS
K933 QQR0582-001Z FERRITE BEADS
K935 QQR0582-001Z FERRITE BEADS
K937 QQR0582-001Z FERRITE BEADS
LC601 QQR1199-001 EMI FILTER
 Ref No. Part No. Part Name Description Local

1-16 (No.52113B)
DAF P.W. BOARD ASS'Y (SGJ-2505A-M2)
CRT SOCKET P.W. BOARD ASS'Y (SGJ-3510A-M2)
LC602 QQR1199-001 EMI FILTER
LC603 QQR1199-001 EMI FILTER
 LF901 QQR1159-001 LINE FILTER
 LF902 QQR0527-004 LINE FILTER
 PC921 PC123Y22 PHOTO COUPLER
 RY951 QSK0085-001 RELAY
S421 QSL4A13-C02 LEVER SWITCH V.CENTER
SF101 QAX0723-001 SAW FILTER
 TH901 QAD0132-3R0 P THERMISTOR 3 Ω
 TU001 QAU0305-001 TUNER
 VA901 ERZV10V621CS ZNR
X701 QAX0767-001Z CRYSTAL 8.000000MHz
 Ref No. Part No. Part Name Description Local
C2701 QFVF1HJ-124Z MF CAPACITOR 0.12uF 50V J
R2701 QRG01GJ-220 OMF RESISTOR 22 Ω 1W J
R2702 QRE121J-123Y C RESISTOR 12k Ω 1/2W J
R2703 QRZ0056-103Z COMP RESISTOR 10k Ω 1/2W K
L2701 QQLZ028-272 COIL 2.7mH
T2701 QQR1153-001 DAF TRANSF
CN200Q WJA0026-001A E-SI ID WIRE
CN2DAF CE41507-001P LV CONNECTOR
 Ref No. Part No. Part Name Description Local
Q3103 KTA1267/YG/-T TRANSISTOR
Q3105 KTC3199/YG/-T TRANSISTOR
Q3106 KTA1267/YG/-T TRANSISTOR
Q3107 2SA2005/DE/ POW TRANSISTOR
Q3108 2SC5511/DE/ POW TRANSISTOR
Q3109 KTC3199/YG/-T TRANSISTOR
Q3151 KTC3199/YG/-T TRANSISTOR
Q3152 KTA1267/YG/-T TRANSISTOR
Q3301 2SC5083/L-P/-T TRANSISTOR
Q3302 2SC5083/L-P/-T TRANSISTOR
Q3303 2SC5083/L-P/-T TRANSISTOR
Q3304 2SC5147/CDE/F43 POW TRANSISTOR
Q3305 2SC5147/CDE/F43 POW TRANSISTOR
Q3306 2SC5147/CDE/F43 POW TRANSISTOR
D3101 1SS133-T2 DIODE
D3105 RH1S-T3 SI DIODE
D3106 RH1S-T3 SI DIODE
D3301 1SS133-T2 DIODE
D3302 1SS133-T2 DIODE
D3303 1SS133-T2 DIODE
D3304 1SS82-T2 SI DIODE
D3305 1SS82-T2 SI DIODE
D3306 1SS82-T2 SI DIODE
D3311 MTZJ3.6B-T2 Z DIODE
D3312 1SS133-T2 DIODE
D3313 MTZJ4.3A-T2 Z DIODE
D3314 1SS133-T2 DIODE
D3331 1SS133-T2 DIODE
C3101 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3109 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3110 NDC31HJ-221X C CAPACITOR 220pF 50V J
C3111 NDC31HJ-221X C CAPACITOR 220pF 50V J
C3113 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3114 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3115 QCB32HK-472Z C CAPACITOR 4700pF 500V K
C3117 QETN2CM-106Z E CAPACITOR 10uF 160V M
C3118 QETN0JM-107Z E CAPACITOR 100uF 6.3V M
C3119 QETN1AM-107Z E CAPACITOR 100uF 10V M
C3120 QETN1AM-337Z E CAPACITOR 330uF 10V M
C3121 QCS32HJ-151Z C CAPACITOR 150pF 500V J
C3122 NDC31HJ-5R0X C CAPACITOR 5pF 50V J
C3125 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
C3151 NCB21EK-104X C CAPACITOR 0.1uF 25V K
C3152 NCB21EK-104X C CAPACITOR 0.1uF 25V K
C3301 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3302 NDC31HJ-391X C CAPACITOR 390pF 50V J
C3303 NDC31HJ-561X C CAPACITOR 560pF 50V J
C3321 QETN2EM-105Z E CAPACITOR 1uF 250V M
 Ref No. Part No. Part Name Description Local
C3322 QETN2EM-105Z E CAPACITOR 1uF 250V M
C3323 QETN1CM-477Z E CAPACITOR 470uF 16V M
C3363 QCZ0324-102 C CAPACITOR 1000pF 3kV P
R3108 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3111 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R3114 QRZ0230-100X UNF C RESISTOR 10 Ω
R3115 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3116 NRSA63J-470X MG RESISTOR 47
Ω 1/16W J
R3117 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3119 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3123 NRSA63J-122X MG RESISTOR 1.2k Ω 1/16W J
R3124 NRSA63J-390X MG RESISTOR 39 Ω 1/16W J
R3125 NRSA63J-5R6X MG RESISTOR 5.6 Ω 1/16W J
R3126 NRSA63J-563X MG RESISTOR 56k
Ω 1/16W J
R3127 NRSA63J-563X MG RESISTOR 56k
Ω 1/16W J
R3128 NRSA63J-122X MG RESISTOR 1.2k Ω 1/16W J
R3129 NRSA63J-5R6X MG RESISTOR 5.6 Ω 1/16W J
R3130 NRSA63J-390X MG RESISTOR 39 Ω 1/16W J
R3131 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3132 QRL029J-391 OMF RESISTOR 390 Ω 2W J
R3134 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3135 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R3136 NRSA63J-333X MG RESISTOR 33k
Ω 1/16W J
R3139 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R3142 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J
R3143 NRSA63J-681X MG RESISTOR 680 Ω 1/16W J
R3145 NRSA63J-5R6X MG RESISTOR 5.6 Ω 1/16W J
R3146 NRSA63J-5R6X MG RESISTOR 5.6 Ω 1/16W J
R3151 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R3152 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
R3153 NRSA63J-683X MG RESISTOR 68k Ω 1/16W J
R3154 NRSA63J-473X MG RESISTOR 47k Ω 1/16W J
R3301 NRSA63J-151X MG RESISTOR 150 Ω 1/16W J
R3302 NRSA63J-151X MG RESISTOR 150 Ω 1/16W J
R3303 NRSA63J-151X MG RESISTOR 150 Ω 1/16W J
R3304 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3305 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3306 NRSA63J-121X MG RESISTOR 120 Ω 1/16W J
R3307 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3308 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3309 NRSA63J-470X MG RESISTOR 47 Ω 1/16W J
R3310 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3311 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3312 QRL029J-153 OMF RESISTOR 15k Ω 2W J
R3313 QRL029J-183 OMF RESISTOR 18k Ω 2W J
R3314 QRL029J-183 OMF RESISTOR 18k Ω 2W J
R3315 QRL029J-183 OMF RESISTOR 18k Ω 2W J
R3316 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3317 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3318 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3325 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3326 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3327 QRZ0107-102Z C RESISTOR 1k Ω 1/2W K
R3331 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R3332 NRSA63J-272X MG RESISTOR 2.7k
Ω 1/16W J
R3333 NRSA63J-272X MG RESISTOR 2.7k Ω 1/16W J
R3334 NRSA63J-152X MG RESISTOR 1.5k
Ω 1/16W J
R3335 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R3336 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R3337 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R3338 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
L3301 QQL244K-180Z PEAKING COIL 18uH K
L3302 QQL244K-180Z PEAKING COIL 18uH K
L3303 QQL244K-180Z PEAKING COIL 18uH K
L3304 QQL244K-470Z PEAKING COIL 47uH K
L3305 QQL244K-470Z PEAKING COIL 47uH K
L3306 QQL244K-470Z PEAKING COIL 47uH K
CN3004 QJB003-074022 SIN ID C-B WIRE
CN3005 WJA0029-002A E-SI ID WIRE
CN300V QGA2501C5-03Z CONNECTOR W-B (1-3)
CN30E2 QUB130-46A6AS SIN TWIST WIRE
CN30E4 QUB130-46A6AS SIN TWIST WIRE
 FR3122 QRZ9021-561 FUSI RESISTOR 560 Ω 1W J
HS3010 CEHP00N-001QS HEAT SINK
HS3011 CEHP00N-001QS HEAT SINK
HS3012 CEHP00N-001QS HEAT SINK
HS3013 CEHP00N-001QS HEAT SINK
HS3014 CEHP00N-001QS HEAT SINK
K3102 QQR1114-001Z FERRITE BEADS
K3103 QQR1114-001Z FERRITE BEADS
K3104 QQR1114-001Z FERRITE BEADS
K3105 QQR1114-001Z FERRITE BEADS
 SK3001 QNZ0634-001 CRT SOCKET
 Ref No. Part No. Part Name Description Local

(No.52113B)1-17
AV SELECTOR P.W. BOARD ASS'Y (SGJ-5504A-M2)
REFER TO PARTS LIST IN PAGE 3-6 FOR THIS P.W. BOARD.
FRONT CONTROL P.W. BOARD ASS'Y (SGJ-6504A-M2)
REFER TO PARTS LIST IN PAGE 3-8 FOR THIS P.W. BOARD.
LED & POWER SW P.W. BOARD ASS'Y (SGJ-7503A-M2)
REFER TO PARTS LIST IN PAGE 3-8 FOR THIS P.W. BOARD.

SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LIMITED No.52113
2003/6
COLOR TELEVISION
5211320036AV-27F704/ASA, AV-27F704/AZA,
AV-32F704/AYA, AV-32F704/AZA,
AV-36F704/AYA
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-38
BASIC CHASSIS
GJ2
ASPECT LIGHT
INPUT
C.C.
RM-C1252G
V.STATUS

1-2 (No.52113)
SPECIFICATION
Design & specifications are subject to change without notice.
Items Contents
AV-27F704 AV-32F704 AV-36F704
Dimensions (W ×H ×D)
75.8 cm × 59.3 cm × 50.0cm
(29-7/8"
× 23-3/8" × 19-3/4") 87.7 cm
× 69.9 cm × 56.5cm
(34-5/8"
× 27"-5/8 × 22-1/4") 96.7 cm
× 77.0 cm × 61.0cm
(38-1/8"
× 30-3/8" × 24-1/8")
Mass 43.0kg (94.6Ibs) 64.0kg (140.8Ibs) 86.0kg (189.2Ibs)
TV RF System CCIR(M)
Color System NTSC
Sound System BTSC (Multi Channel Sound)
TV Receiving Channels
and Frequency VHF LOW 02ch~06ch : 54MHz~88MHz
VHF HIGH 07ch~13ch : 174MHz~216MHz
UHF 14ch~69ch : 470MHz~806MHz
CATV 54MHz~804MHz
Low Band : 02~06, A-8 by 02~06&01
High Band : 07~13 by 07~13
Mid Band : A~I by 14~22
Super Band : J~W by 23~36
Hyper Band : W+1~W+28 by 37~64
Ultra Band : W+29~W+84 by 65~125
Sub Mid Band : A8, A4~A1 by 01, 96~99
TV / CATV Total Channel 180 Channels
Intermediate Frequency Video IF Carrier 45.75 MHz
Sound IF Carrier 41.25 MHz (4.5MHz)
Color Sub Carrier 3.58 MHz
Power Input AC120V , 60Hz
Power Consumption 128W 160W ←
Picture Tube (Visible size) 68cm (27”)
Measured diagonally
(H : 54.4cm ×W : 41.8cm)
80cm (32”)
Measured diagonally
(H : 65.6cm ×W : 49.6cm)
90cm (36”)
Measured diagonally
(H : 74.0cm ×W : 55.9cm)
High Voltage 30.0kV ±1.3kV 31.4kV ±1.3kV ←
Speaker 5cm ×12cm (2" ×4-3/4"), Oval type ×2
Audio Power Output 5W + 5W
Antenna Terminal (VHF / UHF) F-type connector, 75 Ωunbalanced
Input1 (Rear) Video 1V(p-p), negative sync, 75 Ω, RCA pin jack ×1
S-video Mini DIN 4-pin ×1
Y : 1V(p-p), negative sync, 75 Ω
C : 0.286V(p-p)(burst signal), 75 Ω
Audio 500mV(rms)(-4dBs), high impedance, RCA pin jack ×2
Input2 (Rear) Video 1V(p-p), negative sync, 75 Ω, RCA pin jack ×1
Component Video Y : 1V(p-p), negative sync, 75 Ω, RCA pin jack ×1
Pb/Pr : 0.7V(p-p), 75 Ω, RCA pin jack ×2
Audio 500mV(rms)(-4dBs), high impedance, RCA pin jack ×2
Input3 (Front) Video 1V(p-p), negative sync, 75 Ω, RCA pin jack ×1
Audio 500mV(rms)(-4dBs), high impedance, RCA pin jack ×2
Audio Output (Fix) 500mV(rms)(-4dBs), low Impedance, (400kHz when modulated 100%),
RCA pin jack ×2
AV COMPULINK lll 3.5mm mini jack ×1
Remote Control Unit RM-C1252G (AA/R6/UM-3 battery ×2)

(No.52113)1-3

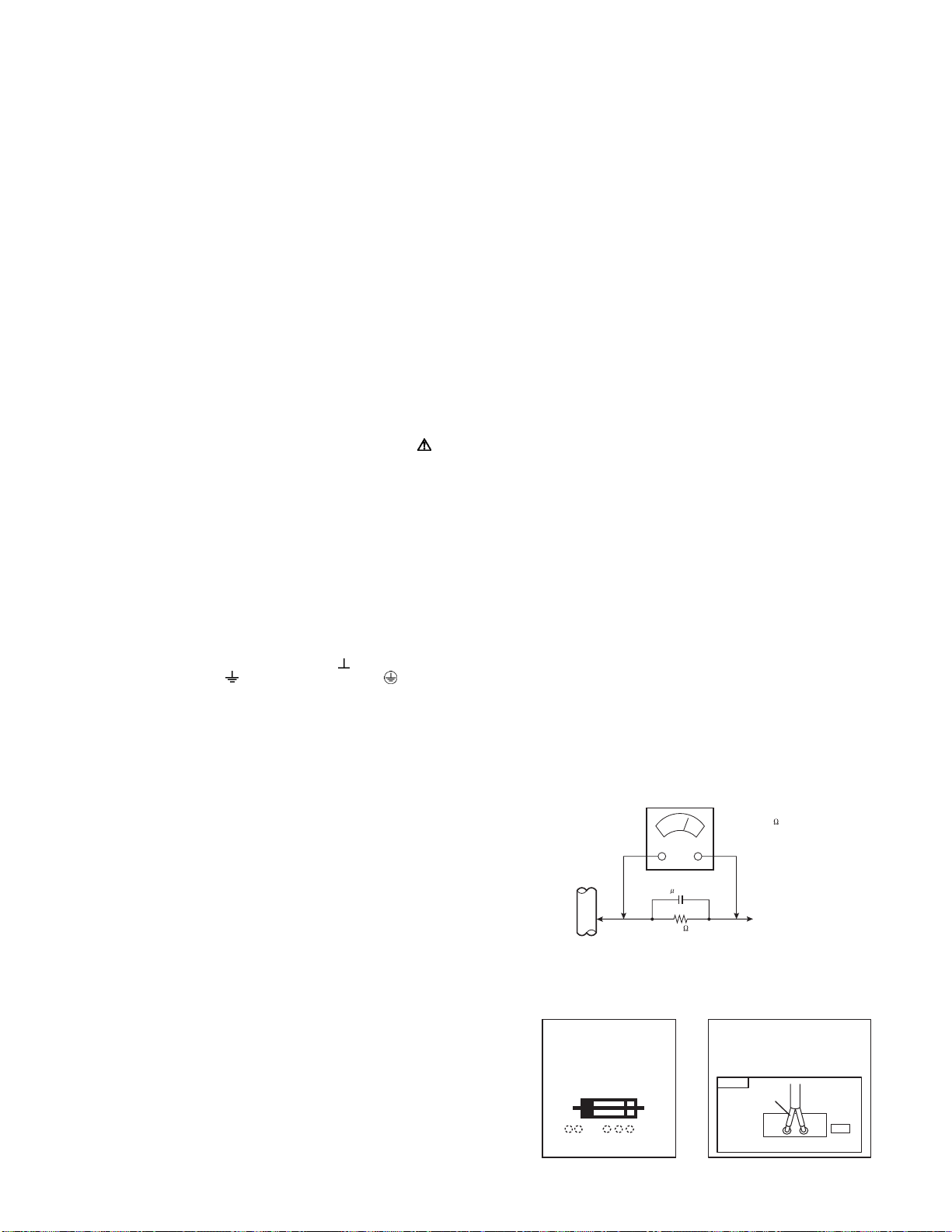

SECTION 1
PRECAUTION
1.1 SAFETY PRECAUTIONS
(1) The design of this product contains special hardware, many
circuits and components specially for safety purposes. For
continued protection, no changes should be made to the original
design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original
circuits. Service should be performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should not be
made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the manufacturer
of responsibility for personal injury or property damage resulting
therefrom.
(3) Many electrical and mechanical parts in the products have special
safety-related characteristics. These characteristics are often not
evident from visualinspectionnor can the protection afforded by them
necessarily be obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which have these
special safety characteristics are identified in the parts list of Service
manual. Electrical components having such features are
identified by shading on the schematics and by ( ) on the
parts list in Service manual. The use of a substitute replacement
which does not have the same safety characteristics as the
recommended replacement part shown in the parts list of Service
manual may cause shock, fire, or other hazards.
(4) Use isolation transformer when hot chassis.
The chassis and any sub-chassis contained in some products are
connected to one side of the AC power line. An isolation
transformer of adequate capacity should be inserted between the
product and the AC power supply point while performing any
service on some products when the HOT chassis is exposed.
(5) Don't short between the LIVE side ground and ISOLATED (NEU-
TRAL) side ground or EARTH side ground when repairing.
Some model's power circuit is partly different in the GND. The differ-
ence of the GND is shownby the LIVE :( ) side GND, the ISOLAT-
ED (NEUTRAL) : ( ) side GND and EARTH : ( ) side GND.
Don't short between the LIVE side GND and ISOLATED (NEUTRAL)
side GND or EARTH side GND and never measure the LIVE side
GND and ISOLATED (NEUTRAL) side GND or EARTH side GND at
the same time with a measuring apparatus (oscilloscope etc.). If
above note will not be kept, a fuse or any parts will be broken.
(6) If any repair has been made to the chassis, it is recommended that
the B1 setting should be checked or adjusted (See B1 POWER
SUPPLY check).
(7) The high voltage applied to the picture tube must conform with that
specified in Service manual. Excessive high voltage can cause an
increase in X-Ray emission, arcing and possible component
damage, therefore operation under excessive high voltage
conditions should be kept to a minimum, or should be prevented.
If severe arcing occurs, remove the AC power immediately and
determine the cause by visual inspection (incorrect installation,
cracked or melted high voltage harness, poor soldering, etc.). To
maintain the proper minimum level of soft X-Ray emission,
components in the high voltage circuitry including the picture tube
must be the exact replacements or alternatives approved by the
manufacturer of the complete product.
(8) Do not check high voltage by drawing an arc. Use a high voltage
meter or a high voltage probe with a VTVM. Discharge the picture
tube before attempting meter connection, by connecting a clip lead
to the ground frame and connecting the other end of the lead
through a 10kΩ2W resistor to the anode button.
(9) When service is required, observe the original lead dress. Extra
precaution should be given to assure correct lead dress in the high
voltage circuit area. Where a short circuit has occurred, those
components that indicate evidence of overheating should be
replaced. Always use the manufacturer's replacement
components.
(10) Isolation Check (Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control knobs,
metal cabinet, screw heads, earphone jack, control shafts, etc.) to
be sure the product is safe to operate without danger of electrical
shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal parts
exposed to the user, particularly any exposed metal part having a
return path to the chassis should withstand a voltage of 1100V AC
(r.m.s.) for a period of one second.
(. . . . Withstand a voltage of 1100V AC (r.m.s.) to an appliance rat-
ed up to 120V, and 3000V AC (r.m.s.) to an appliance rated 200V
or more, for a period of one second.) This method of test requires
a test equipment not generally found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Using a "Leakage
Current Tester", measure the leakage current from each exposed
metal part of the cabinet, particularly any exposed metal part
having a return path to the chassis, to a known good earth ground
(water pipe, etc.). Any leakage current must not exceed 0.5mA AC
(r.m.s.).
However, in tropical area, this must notexceed 0.2mA AC (r.m.s.).
Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not use a
line isolation transformer during this check.). Use an AC
voltmeter having 1000Ωper volt or more sensitivity in the
following manner. Connect a 1500Ω10W resistor paralleled by
a0.15µF AC-type capacitor between an exposed metal part and
a known good earth ground (water pipe, etc.). Measure the AC
voltage across the resistor with the AC voltmeter. Move the
resistor connection to each exposed metal part, particularly any
exposed metal part having a return path to the chassis, and
measure the AC voltage across the resistor. Now, reverse the
plug in the AC outlet and repeat each measurement. Any
voltage measured must not exceed 0.75V AC (r.m.s.). This
corresponds to 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
(11) High voltage hold down circuit check.
After repair of the high voltage hold down circuit, this circuit shall
be checked to operate correctly.See item "How to check the high
voltage hold down circuit".
AC VOLTMETER
(HAVING 1000 /V,
OR MORE SENSITIVITY)
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
1500 10W
0.15 F AC-TYPE
GOOD EARTH GROUND
PWB
White line side
WHT
PW
POWER CORD
REPLACEMENT WARNING.
Connecting the white line side of power
cord to "WHT" character side.
A V
This mark shows a fast
operating fuse, the
letters indicated below
show the rating.
