JVC AV-N29302/S User manual

No.51834
Aug. 2001
A
V-N29302
1COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD. Aug. 2001
AV-N29302/S
AV-N29302/R
CONTENTS
!SPECIFICATIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･････････････････････････････
･･････････････････････････････････････････････････････････
･････････････････････････････ 2
!SAFETY PRECAUTIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･･･････････････････････
･･････････････････････････････････････････････
･･･････････････････････ 3
!FEATURES････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･･･
･･････
･･･ 4
!MAIN DIFFERENCE LIST ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･･･････････････････････
･･････････････････････････････････････････････
･･･････････････････････ 4
!HOW TO IDENTIFY MODELS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ････････････････････
････････････････････････････････････････
････････････････････ 4
!FUNCTIONS････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･･
････
･･ 5
!SPECIFIC SERVICE INSTRUCTIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･････････････
･･････････････････････････
･････････････ 6
!SERVICE ADJUSTMENTS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･････････････････････
･･････････････････････････････････････････
･････････････････････ 10
!PARTS LIST････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･
･･
･29
★
OPERATING INSTRUCTIONS
★
STANDARD CIRCUIT DIAGRAM ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ････････････････
････････････････････････････････
････････････････ 2-1
SERVICE MANUAL
COLOR TELEVISION
BASIC CHASSIS
FD

No.51834
A
V-N29302
2
SPECIFICATIONS
Contents
Items AV-N29302/S AV-N29302/R
Dimensions (W×
××
×H×
××
×D) 752mm×590mm×531mm
Mass 32.2 kg
Reception Format NTSC, BTSC System (Multi-Channel Sound)
Reception Range
VHF, UHF VL Band
VH Band
UHF Band
(02～06) 54MHz～88MHz
(07～13) 174MHz～216MHz
(14～69) 470MHz～806MHz
CATV Low Band
High Band
Mid Band
Super Band
Hyper Band
Ultra Band
Sub Mid Band
TV/CATV Total Channel
(02～06, A-8) by (02～06&01)
(07～13) by (07～13)
(A～1) by (14～22)
(J～W)by(23～36)
(W+1～W+28) by (37～64)
(W+29～W+84) by (65～125)
(A8, A4～A1) by (01, 96～99)
181 Channels
Intermediate Frequency
Video IF Carrier
Sound IF Carrier
Color Sub Carrier
45.75MHz
41.25MHz (4.5MHz)
3.58MHz
Power Input
Power Consumption 120V AC, 60Hz
113W
Picture Tube
High Voltage 29” (68cm) Measured Diagonally
29kV±1kV (at zero beam current)
Speaker
Audio Power Output 5×9cm Oval type×2
1.2W + 1.2W
Built in BBE sound function
Input terminal
Input 1 S-Video
Video(V)
Audio(L, R)
Y: 1Vp-p Positive (negative sync provided, when terminated with 75Ω)
C: 0.286Vp-p (burst signal, when terminated with 75Ω)
1Vp-p, 75Ω(RCA pin jack)
500mVrms ( -4dBs ), High Impedance (RCA pin jack)
Input 2 Component Video
Video / Y, Pb, Pr
Audio(L, R) 1Vp-p 75Ω(positive sync)
50mVrms (-4dBs), High Impedance (RCA pin jack)
Output terminal
Variable Audio Output (R/L) More than 0～1550mVrms (+6dBs)
Low impedance (400Hz when modulated 100%) (RCA pin jack)
Antenna terminal 75Ω(VHF/UHF) Terminal, F-Type Connector
Remote Control Unit RM-C303G(AA/R6/UM-3 battery×2)
Design & specifications are subject to change without notice.
(54MHz～804MHz)

No. 51834
A
V-N29302
3
SAFETY PRECAUTIONS
1. The design of this product contains special hardware, many
circuits and components specially for safety purposes. For
continued protection, no changes should be made to the
original design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the
original circuits. Service should be performed by qualified
personnel only.
2. Alterations of the design or circuitry of the products should not
be made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or property
damage resulting therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are
often not evident from visual inspection nor can the protection
afforded by them necessarily be obtained by using
replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in the parts list of Service manual.
Electrical components having such features are identified
by shading on the schematics and by (!
!!
!) on the parts list
in Service manual. The use of a substitute replacement which
does not have the same safety characteristics as the
recommended replacement part shown in the parts list of
Service manual may cause shock, fire, or other hazards.
4. Use isolation transformer when hot chassis.
The chassis and any sub-chassis contained in some products
are connected to one side of the AC power line. An isolation
transformer of adequate capacity should be inserted between
the product and the AC power supply point while performing
any service on some products when the HOT chassis is
exposed.
5. Don't short between the LIVE side ground and ISOLATED
(NEUTRAL) side ground or EARTH side ground when
repairing.
Some model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE : (") side GND,
the ISOLATED(NEUTRAL) : (#) side GND and EARTH : ($)
side GND. Don't short between the LIVE side GND and
ISOLATED(NEUTRAL) side GND or EARTH side GND and
never measure with a measuring apparatus (oscilloscope etc.)
the LIVE side GND and ISOLATED(NEUTRAL) side GND or
EARTH side GND at the same time.
If above note will not be kept, a fuse or any parts will be broken.
6. If any repair has been made to the chassis, it is recommended
that the B1 setting should be checked or adjusted (See
ADJUSTMENT OF B1 POWER SUPPLY).
7. The high voltage applied to the picture tube must conform with
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive high
voltage conditions should be kept to a minimum, or should be
prevented. If severe arcing occurs, remove the AC power
immediately and determine the cause by visual inspection
(incorrect installation, cracked or melted high voltage harness,
poor soldering, etc.). To maintain the proper minimum level of
soft X-Ray emission, components in the high voltage circuitry
including the picture tube must be the exact replacements or
alternatives approved by the manufacturer of the complete
product.
8. Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM. Discharge
the picture tube before attempting meter connection, by
connecting a clip lead to the ground frame and connecting the
other end of the lead through a 10kΩ2W resistor to the anode
button.
9. When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead dress
in the high voltage circuit area. Where a short circuit has
occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer's replacement components.
10. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control
knobs, metal cabinet, screwheads, earphone jack, control
shafts, etc.) to be sure the product is safe to operate without
danger of electrical shock.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal parts
exposed to the user, particularly any exposed metal part having
a return path to the chassis should withstand a voltage of
1100V AC (r.m.s.) for a period of one second.
(. . . . Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance rated
200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use a
line isolation transformer during this check.). Using a "Leakage
Current Tester", measure the leakage current from each
exposed metal part of the cabinet, particularly any exposed
metal part having a return pathto the chassis, to a known good
earth ground (water pipe, etc.). Any leakage current must not
exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
"
""

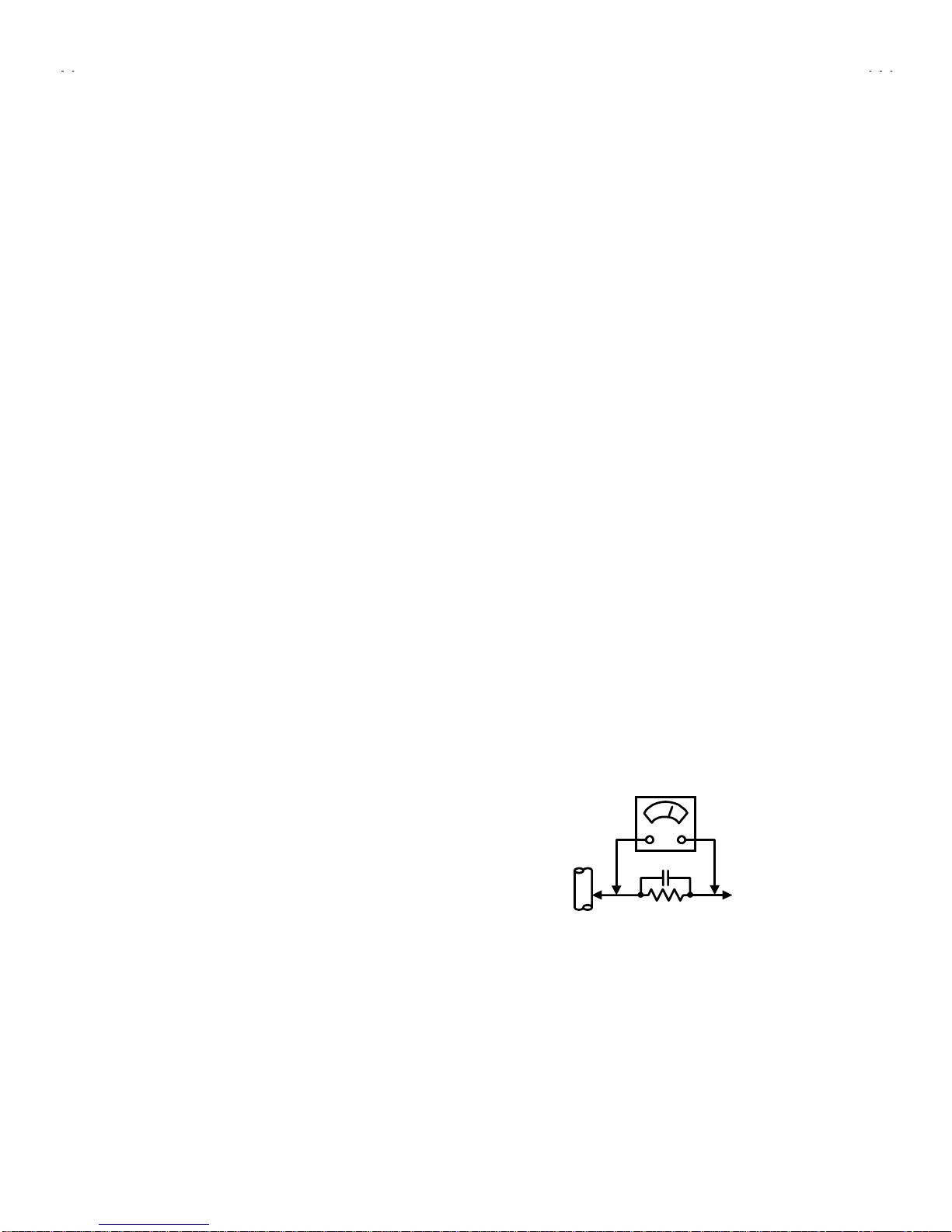

"Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not use a
line isolation transformer during this check.). Use an AC
voltmeter having 1000 ohms per volt or more sensitivity in the
following manner. Connect a 1500Ω10W resistor paralleled
by a 0.15μF AC-type capacitor between an exposed metal
part and a known good earth ground (water pipe, etc.).
Measure the AC voltage across the resistor with the AC
voltmeter. Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return path to
the chassis, and measure the AC voltage across the resistor.
Now, reverse the plug in the AC outlet and repeat each
measurement. Any voltage measured must not exceed 0.75V
AC (r.m.s.). This corresponds to 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
0.15
μ
F AC-TYPE
1500
Ω
10W
GOOD
EARTH
GROUND
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
AC VOLTMETER
(HAVING 1000
Ω
/V,
OR MORE SENSITIVITY)

No.51834
A
V-N29302
4
FEATURES
"New chassis design enables use of a single board with simplified
circuitry.
"Users can make fun to connect the Digital Video Disk player with
the component video signal input terminal.
"Provided with miniature tuner (TV/CATV).
"Multifunctional remote control permits picture adjustment.
"Adoption of the CHANNEL GUARD function prevents the specific
channels from being selected, unless the “ID number” is key in.
"I2C bus control utilizes single chip ICs.
"Adoption of the VIDEO STATUS function.
"Adoption of the ON/OFF TIMER function.
"Built-in V-CHIP system.
"With 75ΩV/U in common (F-Type) ANT Terminal.
"SLEEP TIMER for setting in real time.
"Closed-caption broadcasts can be viewed.
"Built-in MTS system.
"Built-in HYPER-SURROUND system.
"S-VIDEO input terminal for taking best advantage of Super VHS.
"Variable Audio output terminal.
"2 LINE Digital Comb filter Improved picture quality.
MAIN DIFFERENCE LIST
!
!!
!Model name
Parts Name AV-N29302/S AV-N29302/R
MAIN PWB SFD-1007A-M2 SFD-1006A-M2
!ITC TUBE A68QDN891X001 A68ADT25X881
HOW TO IDENTIFY MODELS
The difference between AV-N29302/S and AV-N29302/R is in the PICTURE TUBE.
As the result of the difference in picture tube, the MAIN PWB also differs.
!Model
Parts name AV-N29302/S AV-N29302/R
!RATING LABEL
Indicated AV-N29302
Indicated “S”
Indicated AV-N29302
Indicated “R”

No.51834
A
V-N29302
5

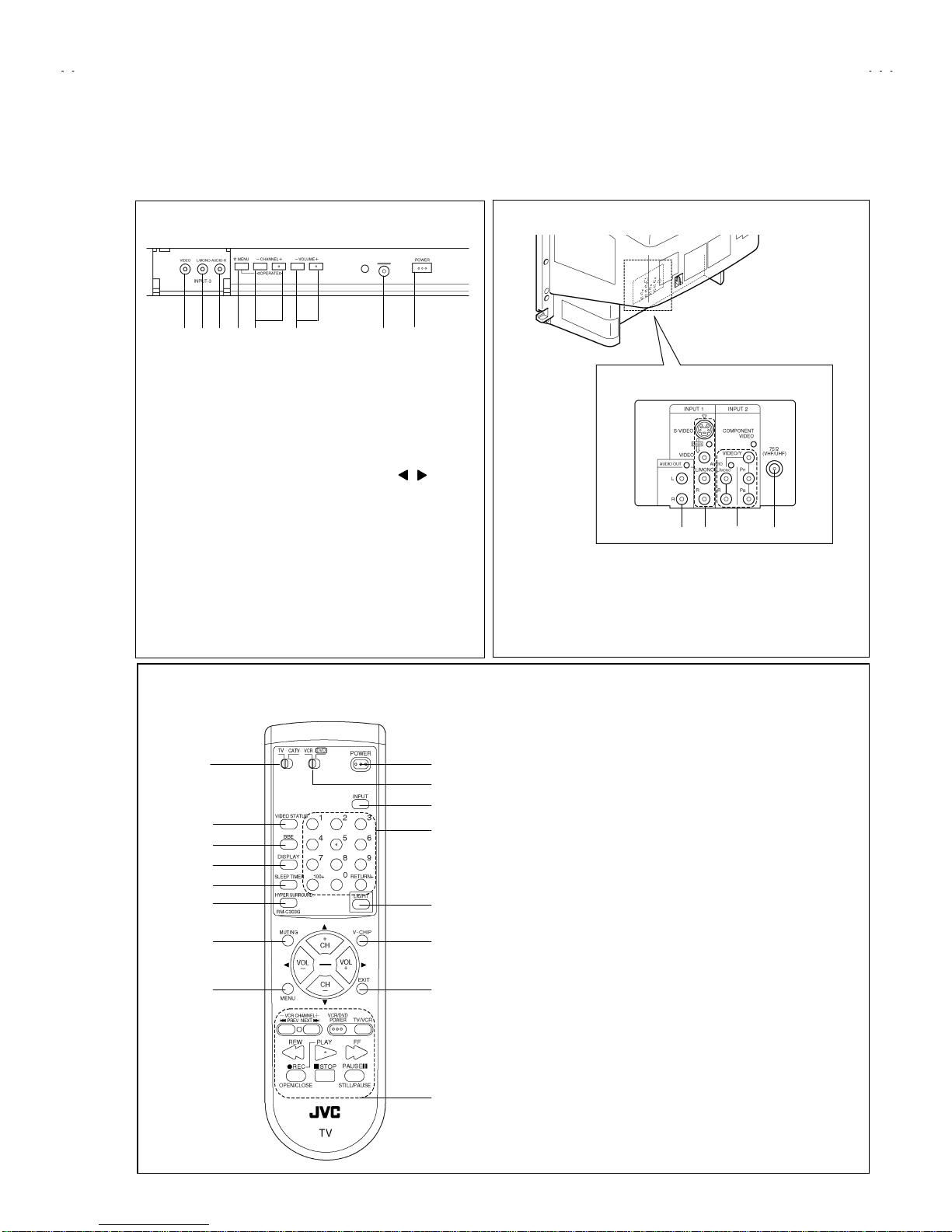

FUNCTIONS
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑯
①TV / CATV
②VIDEO STATUS
③BBE
④DISPLAY
⑤SLEEP TIMER
⑥HYPER SURROUND
⑦MUTING
⑧MENU
⑨POWER
⑩VCR / DVD
⑪INPUT
⑫CHANNEL KEYS
⑬LIGHT
⑭V-CHIP
⑮EXIT
⑯VCR CONTROL KEYS
■
■■
■FRONT PANEL CONTROL
①VIDEO INPUT TERMINAL
②AUDIO L INPUT TERMINAL
③AUDIO R INPUT TERMINAL
④MENU KEY
⑤CHANNEL -/+ KEY (OPERATE !!!"!!!!KEY)
⑥VOLUME -/+ KEY
⑦INDICATOR lamp (TIMER / POWER)
⑧POWER BUTTON
①②③④⑤⑥ ⑦⑧
①AUDIO OUTPUT TERMINAL
②INPUT1 TERMINAL(S, V, L/MONO, R)
③INPUT2 TERMINAL(V/Y, PR, PB, L/MONO, R)
④ANTENNA TERMINAL
①②③④
■
■■
■REAR TERMINAL
■
■■
■REMOTE CONTROL UNIT

No.51834
A
V-N29302
6
SPECIFIC SERVICE INSTRUCTIONS
DISASSEMBLY PROCEDURE
REMOVING THE REAR COVER
1.Disconnect the power plug from wall outlet.
2.As shown in the Fig.1, remove the 11 screws marked !
!!
!.
3.As shown in Fig.1, remove the 4screws marked "
""
".
4.Then remove the REAR COVER toward you.
REMOVING THE CHASSIS
"After removing the REAR COVER.
1.Slightly raisethe both sides of the chassis by hand and remove the
two claws under the both sides of the chassis from the front
cabinet.
2.Withdraw the chassis backward.
(If necessary, remove the wire clamp, connectors etc.)
REMOVING THE SPEAKER
"After removing the rear cover.
1.As shown in Fig. 1, removing the 2screws marked #
##
#,then
remove the speaker.
2.Follow the same steps when removing the other hand speaker.
NOTE : When removing the screws marked #
##
#of the speaker,
remove the lower side screw first, and then remove the
upper one.
CHECKING THE PW BOARD
To check the PW Board from back side.
1. Pull out the chassis (refer to REMOVING THE CHASSIS).
2. Erect the chassis vertically so that you can easily check the back
side of the PW Board.
CAUTION
"When erecting the chassis, be careful so that there will be no
contacting with other PW Board.
"Before turning on power, make sure that the wire connector is
properly connected.
"When conducting a check with power supplied, be sure to
confirm that the CRT EARTH WIRE (BRAIDED ASS’
’’
’Y) is
connected to the CRT SOCKET PW board.
WIRE CLAMPING AND CABLE TYING
1. Be sure to clamp the wire.
2. Never remove the cable tie used for tying the wires together.
Should it be inadvertently removed, be sure to tie the wires with a
new cable tie.

No.51834
A
V-N29302
7
#
##
#
FRONT CABINET CRT
CRT SOCKET PWB
POWER PWB
MAIN PWB
HVT
POWER CORD
REAR COVER
SPEAKER
Fig.1
"
""
"
!
!!
!
#
##
#
SPEAKER

No.51834
A
V-N29302
8

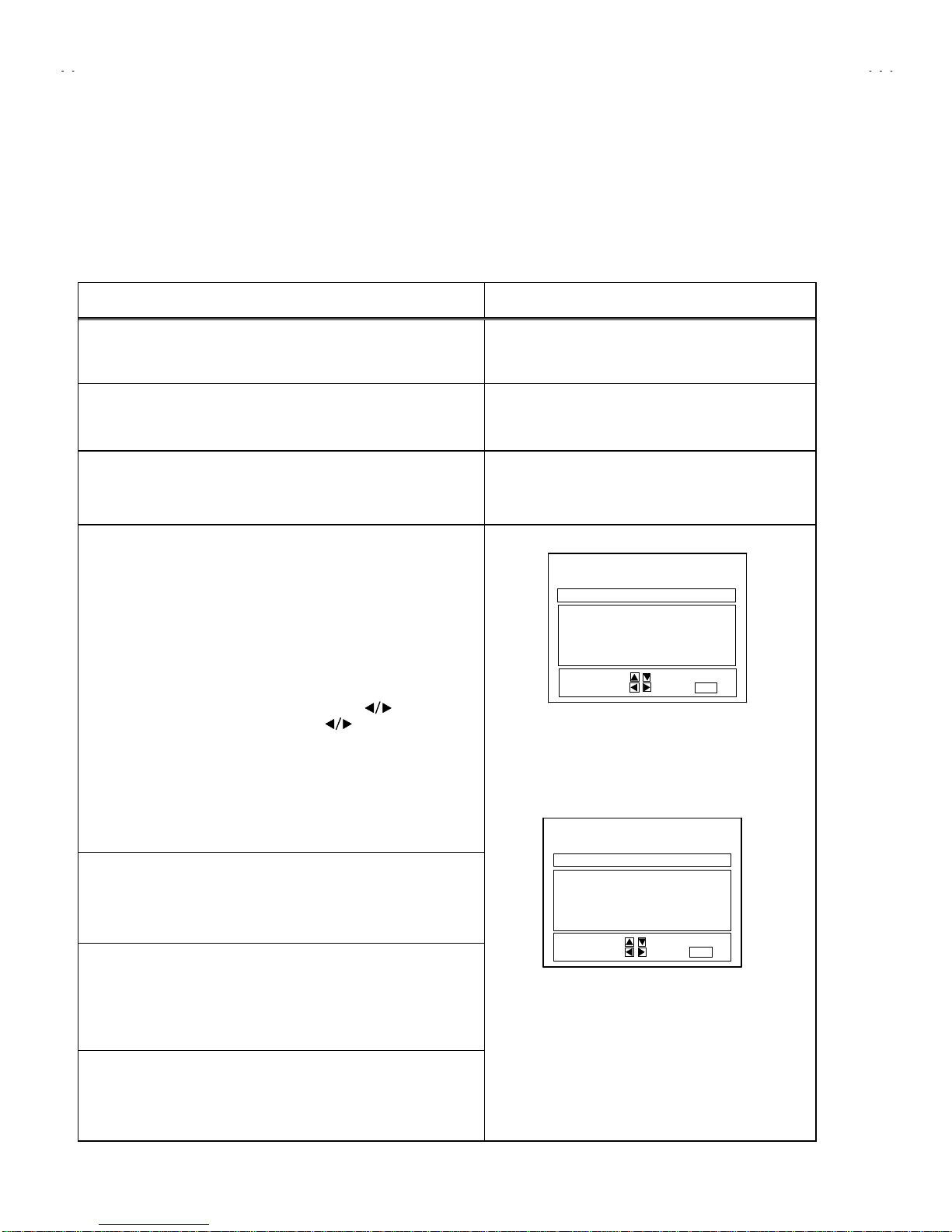

MEMORY IC REPLACEMENT
1. Memory IC
This model uses a memory IC.
This memory IC stores data for proper operation of the video and deflection circuits.
When replacing, be sure to use an IC containing this (initial value) data.
2. Memory IC replacement procedure
Procedure Screen display
(1) Power off
Switch off the power and disconnect the power cord from the outlet.
(2) Replace the memory IC
Initial value must be entered into the new IC.
(3) Power on
Connect the power cord to the outlet and switch on the power.
(4) System constant check and setting
1) Press
SLEEP TIMER key and, while the indication of “SLEEP 0 MIN.”
is being displayed, press DISPLAY key and VIDEO STATUS key on
the remote control unit simultaneously.
2) The SERVICE MENU screen of Fig.1 is displayed.
3) While the SERVICE MENU is displayed, again simultaneously press
the DISPLAY and VIDEO STATUS keys to display the Fig.2 SYSTEM
CONSTANT screen.
4) Refer to the SYSTEM CONSTANT table and check the setting items.
Where these differ, select the setting item with the UP/DOWN (▲/▼)
key and adjust the setting with the LEFT/RIGHT ()keys.
5) After adjusting, release the LEFT/RIGHT() key to store the setting
value.
6) Press the
EXIT key twice to return the normal screen.
(5) Receive channel setting
Refer to the OPERATING INSTRUCTIONS (USER'S GUIDE) and set
the receive channels (Channels Preset) as described.
(6) User settings
Check the user setting items according to Table 2.
Where these do not agree, refer to the OPERATING INSTRUCTIONS
(USER'S GUIDE) and set the items as described.
(7) SERVICE MENU setting
Verify what to set in the SERVICE MENU, and set whatever is
necessary.(Fig.1) Refer to the SERVICE ADJUSTMENT for setting.
SERVICE MENU
PICTURE SOUND
THEATER
LOW LIGHT HIGH LIGHT
RF AFC CHK
SELECT BY EXIT BY
OPERATE BY EXIT
Fig.1
SYSTEM CONSTANT
MODEL : **-***
**-*****-***
**-****
**
**
**
*
V-CHIP : YES
CAN V-CHIP : YES
******
************
*******
**
**
**
*-*****
**********
*****
SELECT BY EXIT BY
OPERATE BY EXIT
Fig.2

No.51834
A
V-N29302
9
TABLE 1 (System Constant setting)
Setting value
Setting item Setting content AV-N29302/S AV-N29302/R
MODEL AV-27D302 AV-27D302
V-CHIP YES YES
CAN V-CHIP YES YES
TABLE 2 (User setting value)
Setting item Setting value
1. Use remote controller keys
POWER
CHANNEL
CHANNEL PRESET
VOLUME
TV/VIDEO(INPUT)
ON
CH 02
See OPERATING INSTRUCTIONS.
10
TV
DISPLAY
SLEEP TIMER
VIDEO STATUS
HYPER SURROUND
OFF
OFF
STANDARD
OFF
2. Setting of MENU
TINT
COLOR
BRIGHT
DETAIL
CENTER
CENTER
CENTER
CENTER
CENTER
NOISE MUTING
SET VIDEO STATUS ON ALL CENTER
BASS
TREBLE
BALANCE
MTS
TV SPEAKER
CENTER
CENTER
CENTER
STEREO
ON
SET CLOCK
ON/OFF TIMER
LANGUAGE
CLOSED CAPTION
BACK GROUND
V2 COMPONENT IN
Unnecessary to set
NO
SPANISH
OFF
BLACK
NO
AUTO TUNER SETUP
CHANNEL SUMMARY
V-CHIP
V-CHIP RATINGS
SET LOCK CODE
UNRATED
TUNER MODE : AIR
Unnecessary to set
OFF
ALL OFF
Unnecessary to set
VIEW
A
V-27D302
A
V-27D202
AV-27230 AV-20D202
YES NO
YES NO

No.51834
A
V-N29302
10
SERVICE ADJUSTMENTS
ADJUSTMENT PREPARATION
1. You can make the necessary adjustments for this unit with
either the Remote Control Unit or With the adjustment
tools and parts as given below.
2. Adjustment with the Remote Control Unit is made on the
basis of the initial setting values, however, the new setting
values which set the screen to its optimum condition may
differ from the initial settings.
3. Make sure that AC power is turned on correctly.
4. Turn on the power for set and test equipment before use, and
start the adjustment procedures after waiting at least 30
minutes.
5. Unless otherwise specified, prepare the most suitable reception
or input signal for adjustment.
6. Never touch any adjustment parts which are not specified in the
list for this adjustment - variable resistors, transformers,
condensers, etc.
7. Presetting before adjustment.
Unless otherwise specified in the adjustment instructions,
preset the following functions with the remote control unit:
VIDEO STATUS STANDARD
BASS, TREBLE, BALANCE CENTER
HYPER SURROUND OFF
TINT, COLOR,
PICTURE, BRIGHT, DETAIL CENTER
ADJUSTMENT EQUIPMENT
1. DC voltmeter (or digital voltmeter)
2. Oscilloscope
3. Signal generator (Pattern generator)［NTSC］
4. Remote control unit
5. TV audio multiplex signal generator.
6. Frequency counter
ADJUSTMENT ITEMS
Adjustment items Adjustment items Adjustment items
B1 POWER SUPPLY WHITE BALANCE (High Light) MTS STEREO VCO
RF. AGC SUB BRIGHT MTS SAP VCO
FOCUS SUB CONTRAST MTS FILTER check
V. SIZE SUB COLOR MTS SEPARATION
H. POSITION SUB TINT
WHITE BALANCE (Low Light) MTS INPUT LEVEL check

No.51834
A
V-N29302
11

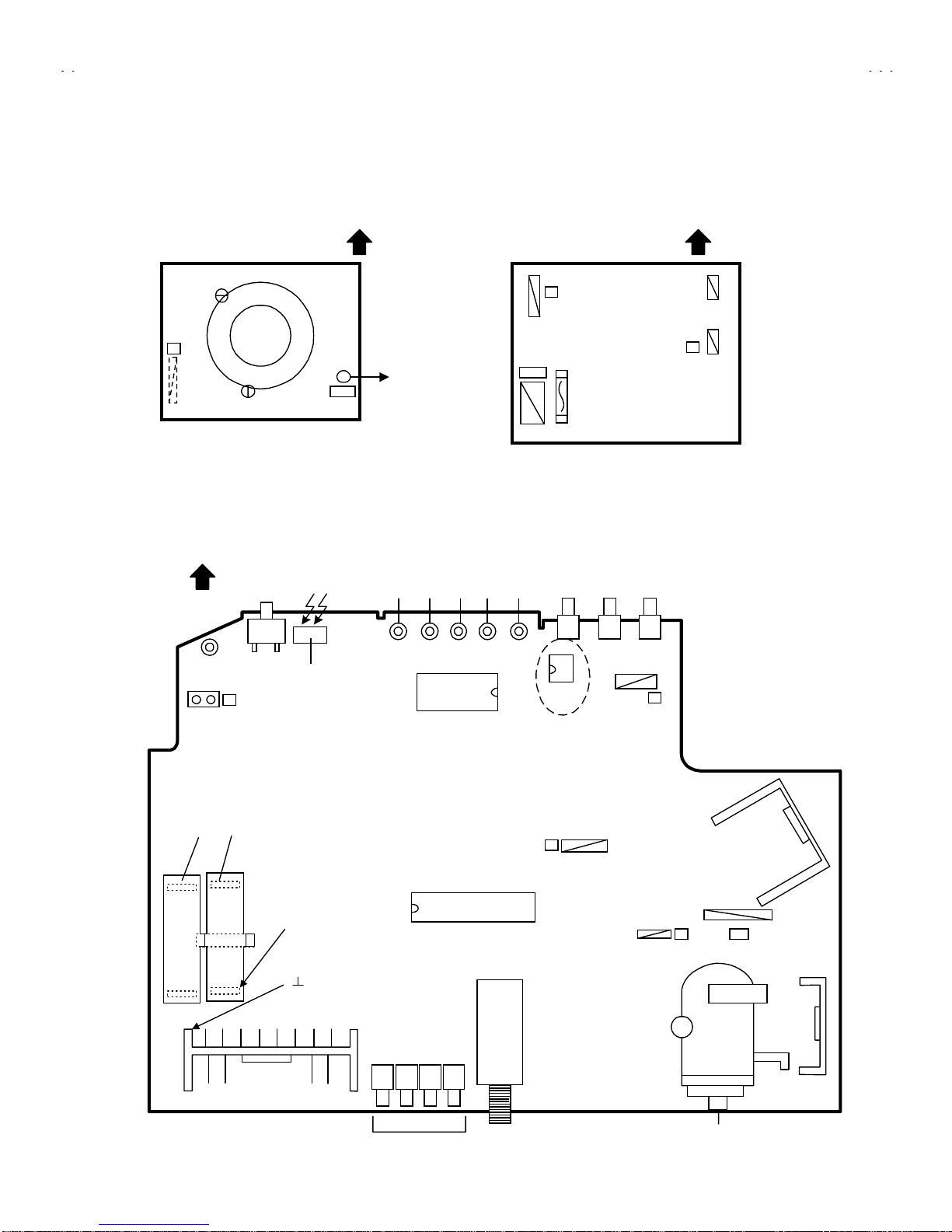

ADJUSTMENT LOCATIONS
MAIN PWB
CRT SOCKET PWB
(Within MAIN PWB ASS'Y)
T
TP-E
POWER
(SOLDER SIDE)
TOP
FRONT
HV
UPPER : FOCUS
LOWER : SCREEN
U
T
TUNER
IC101
IC702IC701
FUSE
IC921
HVT
FUSE TP-91
(B1)
CRT EARTH
(BRAIDED ASS'Y)
E1
TP-R
S
AV IN / OUT
TP-E
( )
RESISTER
VOL+ VOL- CH+ CH- MENU
POWER
A
A
PW
P
POWER PWB FRONT
MEMORY
INDICATOR LAMP
(TIMER/POWER)

No. 51834
A
V-N29302
12
BASIC OPERATION OF SERVICE MENU
1. TOOL OF SERVICE MENU OPERATION
Operate the SERVICE MENU with the REMOTE CONTROL UNIT.
2. SERVICE MENU ITEMS
In general, basic setting (adjustments) items or verifications are performed in the SERVICE MENU.
"PICTURE････････････････････ This sets the setting values (adjustment values) of the VIDEO/CHROMA and DEFLECTION circuits.
"SOUND ･････････････････････ This sets the setting values (adjustment values) of the AUDIO circuit.
"THEATER ･･･････････････････ This is used when the THEATER MODE is adjusted.
"LOW LIGHT･･････････････････ This sets the setting values (adjustment values) of the WHITE BALANCE circuit.
"HIGH LIGHT ･････････････････ This sets the setting values (adjustment values) of the WHITE BALANCE circuit.
"RF AFC CHK･････････････････ This is used when the IF VCO is adjusted. [Do not adjust]
3. Basic Operations of the SERVICE MENU
(1) How to enter the SERVICE MENU.
Press SLEEP TIMER key and, while the indication of “SLEEP 0 MIN.” is being displayed, press DISPLAY key and VIDEO STATUS key
on the remote control unit simultaneously to enter the SERVICE MENU screen ①shown in the next figure page.
(2) SERVICE MENU screen selection
Press the UP / DOWN(▲/▼) key to select any of the following items.
●PICTURE ●SOUND
●THEATER
●LOW LIGHT ●HIGH LIGHT
●RF AFC CHK
(3) Enter the any setting ( adjustment ) mode
"PICTURE and SOUND mode
1) If select any of PICTURE or SOUND items, and the LEFT / RIGHT( ) key is pressed from SERVICE MENU ( MAIN MENU ), the
screen ②will be displayed as shown in figure page later.
2) Then the
UP / DOWN(▲/▼) key is pressed, the PICTURE mode screen ③or the SOUND mode screen ④is displayed, and the
PICTURE or SOUND setting can be performed.
"THEATER, LOW LIGHT, HIGH LIGHT and RF AFC CHK mode
1) If select any of THEATER / LOW LIGHT / HIGH LIGHT / RF AFC CHK items, and the LEFT / RIGHT( ) key is pressed from
SERVICE MENU ( MAIN MENU ), the screens ⑤⑥⑦⑧will be displayed as shown in figure page later.
2) Then the settings or verifications can be performed.

No. 51834
A
V-N29302
13
SELECT BY EXIT BY
IT
EXIT
BRIGHT EXIT BY
IT
BRIGHT
EXIT
***
******
***
***
******
*** *
**
*** ***
** ***** ***
** ***
SELECT BY
OPERATE BY EXIT BY
IT
1. BRIGHT
EXIT
STATUS ***
******
***
********
****************
********
EXIT BY
IT
HIGH LIGHT
EXIT
***
******
***
SELECT BY
OPERATE BY EXIT BY
IT
RF AFC
FINE
STATUS
EXIT
①
①①
①SERVICE MENU
(
MAIN MENU
)
②
②②
②SCREEN
⑦
⑦⑦
⑦HIGH LIGHT MODE
***
******
***
⑤
⑤⑤
⑤THEATER MODE
(
1/2
)
SELECT BY
OPERATE BY EXIT BY
IT
TINT
COLOR
BRIGHT
DETAIL
EXIT
***
******
***
***
******
***
***
******
***
***
******
***
***
******
***
⑧
⑧⑧
⑧RF AFC CHK MODE
[
DO NOT ADJUST
]
ON
********
****************
********
⑥
⑥⑥
⑥LOW LIGHT MODE
③
③③
③PICTURE MODE
***
******
***
④
④④
④SOUND MODE
SELECT BY
OPERATE BY EXIT BY
IT
1. IN LEVEL
EXIT
STATUS
***
******
***
********
****************
********
SERVICEMENU
PICTURE SOUND
THEATER
LOW LIGHT HIGH LIGHT
RF AFC CHK
SELECT BY EXIT BY
OPERATE BY IT
EXIT
TOO HIGH TOO LOWGOOD
R CUT ***
******
***
G CUT ***
******
***
B CUT
R DRIVE
B DRIVE
DC REST
BLK ST
***
******
***
***
******
***
***
******
***
***
******
***
***
******
***
GMM PNT ***
******
*** 1/2
SELECT BY
OPERATE BY EXIT BY
IT
CD MAT
RY GAIN
EXIT
*
**
*
*
**
*
GY PHAS *
**
*
CORING *
**
*
CMP CD
CMP RY *
**
*
*
**
*
CMP GY *
**
*
2/2
CMP COR *
**
*
THEATER MODE
(
2/2
)

No. 51834
A
V-N29302
14

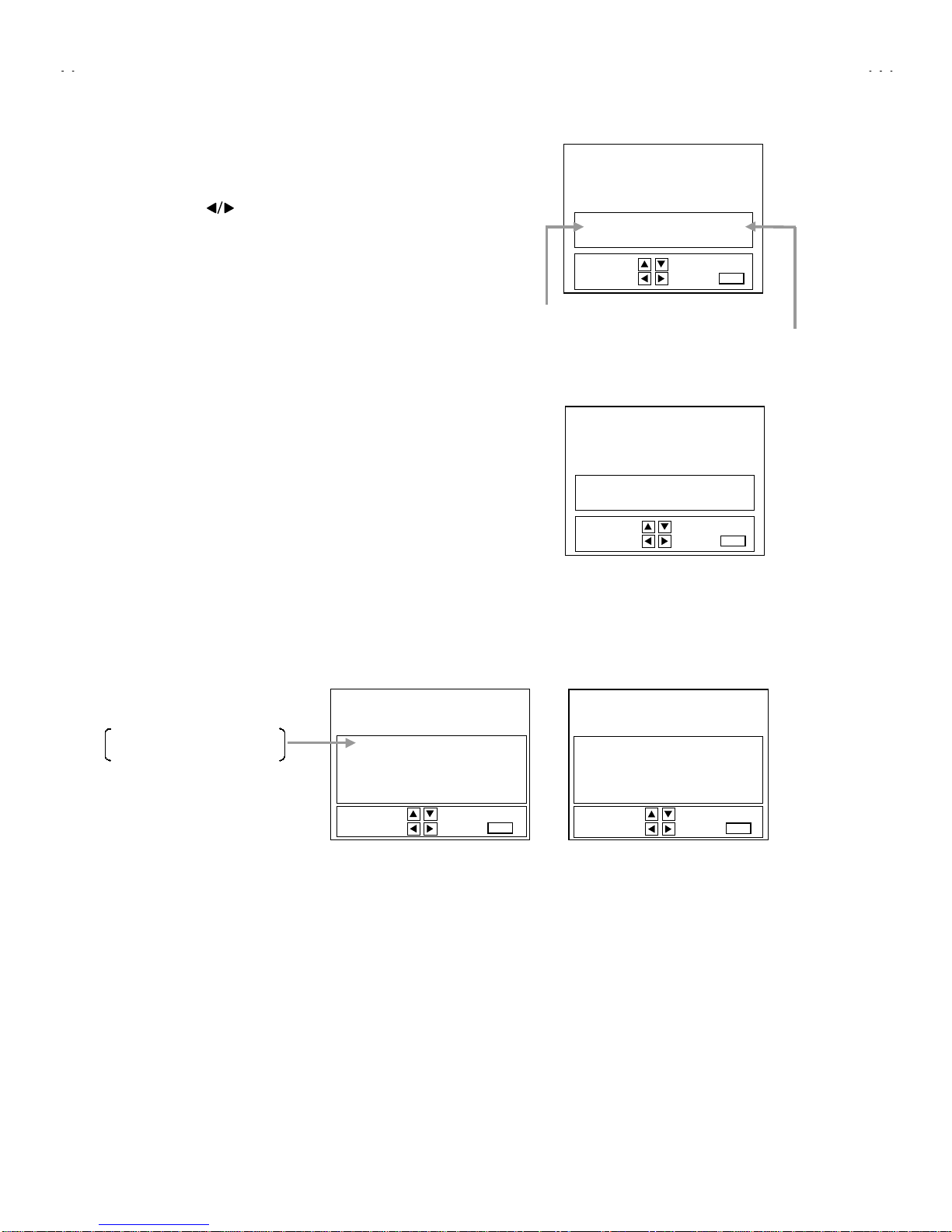

(4) Setting method
1) UP / DOWN (▲/▼)key.
Select the SETTING ITEM.
2) LEFT / RIGHT( ) key.
Setting (adjust) the SETTING VALUE of the SETTING ITEM.
When the key is released the SETTING VALUE will be stored
(memorized).
3) EXIT key
Return to the previous screen.
(5) Releasing SERVICE MENU
1) After returning to the SERVICE MENU upon completion of the setting
(adjustment) work, press the EXIT key again.
★The settings for LOW LIGHT and HIGH LIGHT are described in the WHITE
BALANCE page of ADJUSTMENT.
SELECT BY
OPERATE BY EXIT BY
IT
1. IN LEVEL
STATUS
EXIT
***
******
***
********
****************
********
SOUND MODE
SELECT BY
OPERATE BY EXIT BY
IT
1. BRIGHT
EXIT
STATUS
***
******
***
********
****************
********
PICTURE MODE
SETTING VALUE
SETTING
ITEM
SELECT BY
OPERATE BY EXIT BY
IT
CD MAT
RY GAIN
EXIT
*
**
*
*
**
*
GYPHAS *
**
*
CORING *
**
*
CMP CD
CMP RY *
**
*
*
**
*
CMP GY *
**
*
2/2
CMP COR *
**
*
THEATER MODE(2/2)
SELECT BY
OPERATE BY EXIT BY
IT
TINT
COLOR
BRIGHT
DETAIL
EXIT
*
**
**
**
**
**
*
*
**
**
**
**
**
*
*
**
**
**
**
**
*
*
**
**
**
**
**
*
*
**
**
**
**
**
*
R CUT *
**
**
**
**
**
*
G CUT *
**
**
**
**
**
*
B CUT
R DRIVE
B DRIVE
DC REST
BLK ST
*
**
**
**
**
**
*
*
**
**
**
**
**
*
*
**
**
**
**
**
*
*
**
**
**
**
**
*
*
**
**
**
**
**
*
GMM PNT *
**
**
**
**
**
*1/2
THEATER MODE(1/2)
The letter of the selected
Items are displayed in yellow.

No. 51834
A
V-N29302
15
INITIAL SETTING VALUE OF SERVICE MENU
1. Adjustment of the SERVICE MENU is made on the basis of the initial setting values; however, the new setting values which set the screen in
its optimum condition may differ from the initial setting.
2. Do not change the initial setting values of the setting (adjustment) items not listed in “ADJUSTMENT”.
PICTURE MODE
"The 5 setting items in the video mode No.6 EXT BRI, No.7 EXT PICT, No.8 EXT CLR, No.9 EXT TINT and No.10 EXT DTL are linked to the
items in the TV MODE No.1 BRIGHT, No.2 PICTURE, No.3 COLOR, No.4 TINT and No.5 TV DTL respectively. When the setting items in
the TV mode are adjusted, the values in the setting items in the video mode are revised automatically to the same values in the TV mode.
(Theinitial setting values given in parenthesis are offset values.)
"When the 5 items (No.6, 7, 8, 9 and 10) are adjusted in the video mode, the setting values in each item are changed independently.
Initial setting value
No. Setting (Adjustment) items Variable range
AV-N29302/S AV-N29302/R
1. BRIGHT 000～127 064 064
2. PICTURE 000～127 100 100
3. COLOR 000～127 055 055
4. TINT 000～127 087 087
5. TV DTL 000～63 050 050
6. EXT BRI. ±025 ±000 ±000
7. EXT PICT. ±025 +002 +002
8. EXT CLR ±025 ±000 ±000
9. EXT TINT ±025 -005 -005
10. EXT DTL 000～063 050 050
11. CMP BRI ±025 -001 -001
12. CMP PICT ±025 ±000 ±000
13. CMP CLR 000～127 072 072
14. CMP TINT 000～127 037 037
15. CMP DTL 000～063 050 050
16. CMP R CT ±025 +008 +008
17. CMP G CT ±025 ±000 ±000
18. CMP B CT ±025 +008 +008
19. CMP R DR ±025 ±000 ±000
20. CMP B DR ±025 -002 -002
21. WPL 000 / 001 001 001
22. C TRAP 000 / 001 000 000
23. CORING 000 / 001 001 001
24. CMP CORI 000 / 001 001 001
25. TV SHAP 000 / 001 001 001
26. EXT SHAP 000 / 001 001 001
27. CMP SHAP 000 / 001 001 001
28. RGB CONT 000～063 016 016
29. TV ID S 000 / 001 000 000
30. EXT ID S 000 / 001 000 000

No. 51834
A
V-N29302
16
Initial setting value
No. Setting (Adjustment) items Variable range
AV-N29302/S AV-N29302/R
31. F ID 000 / 001 000 000
32. Y MUTE 000 / 001 000 000
33. SUB CONT 000～015 008 008
34. R Y GAIN 000 / 001 001 001
35. CMP R Y 000 / 001 001 001
36. G Y PHAS 000 / 001 001 001
37. CMP G Y 000 / 001 001 001
38. CD MATRI 000～003 003 003
39. CMP CD M 000～003 001 001
40. BLK ST 000～003 001 001
41. DC REST 000～003 001 001
42. CLR GMM 000 / 001 000 000
43. UV / CBCR 000 / 001 000 000
44. AT FLESH 000 / 001 000 000
45. ABL GAIN 000～003 000 000
46. ABL ST P 000～003 003 003
47. RGB ABCL 000 / 001 001 001
48. TV B/T 000 / 001 001 001
49. EXT B/T 000 / 001 000 000
50. GMM PNT 000～003 003 003
51. BUZZ 000 / 001 000 000
52. RF AGC 000～063 045 045
53. AFT SENS 000 / 001 001 001
54. R/G DRV 000 / 001 001 001
55. BLK SW 000 / 001 000 000
56. V S COR 000～015 011 011
57. V LIN 000～015 012 012
58. V SIZE 000～127 037 037
59. V AGC 000 / 001 000 000
60. TV AFC 000～003 001 001
61. EXT AFC 000～003 002 002
62. V POSI 000～007 000 000
63. H POSI 000～031 015 015
64. TV V FR 000～003 000 000
65. EXT V FR 000～003 003 003
66. STND BY 000 / 001 000 000
67. V RMP RE 000 / 001 001 001
68. V 48HZ 000 / 001 000 000
69. V EHT 000～007 000 000
70. H EHT 000～007 000 000

No. 51834
A
V-N29302
17
Initial setting value
No. Setting (Adjustment) items Variable range
AV-N29302/S AV-N29302/R
71. V BLK L 000～003 000 000
72. V BLK U 000～003 001 001
73. CCD IN 000 / 001 000 000
74. H BLK 000 / 001 000 000
75. OVER MD 000 / 001 001 001
76. APACON L 000 / 001 001 001
77. RF S/N T 000 / 001 000 000
78. EX S/N T 000 / 001 000 000
79. R S/N V1 000～063 000 000
80. R S/N V2 000～063 000 000
81. R S/N V3 000～063 000 000
82. R S/N V4 000～063 000 000
83. E S/N V1 000～063 000 000
84. E S/N V2 000～063 000 000
85. E S/N V3 000～063 000 000
86. E S/N V4 000～063 000 000
87. COR LEV 000～003 000 000
88. VNR CHK 000～255 000 000
89. VC SN TM 000～255 000 000
90. VC SN SP 000～255 000 000
91. CH MUTE 000 / 001 000 000
92. OSD HP 000～031 018 018
93. OSD VP 000～031 008 008
94. FM TRAP 000 / 001 000 000
95. OSC SEL 000 / 001 001 001
96. SD SEL 000 / 001 001 001
97. VF LK EX 000 / 001 000 000
98. F LOCK 000～002 002 002
99. AFC HIGH 000～064 031 031
SOUND MODE
Initial setting value
No. Setting (Adjustment) item Variable range AV-N29302/S AV-N29302/R
1. IN LEVEL 000～063 024 024
2. FH MON 000 / 001 000 000
3. ST VCO 000～063 032 032
4. PILOT 000 / 001 000 000
5. FILTER 000～063 027 027
6. LOW SEP 000～063 014 014
7. HI SEP 000～063 021 021
8. 5FH MON 000 / 001 000 000
9. SAP VCO 000～063 034 034
10. BBE BASS ±010 -001 -001
11. BBE TRE ±010 -001 -001

No. 51834
A
V-N29302
18
THEATER MODE
Initial setting value
Setting (Adjustment) item Variable range AV-N29302/S AV-N29302/R
TINT -20～+20 -06 -06
COLOR -20～+20 -05 -05
PICTURE -20～+20 -08 -08
BRIGHT -20～+20 ±00 ±00
DETAIL -20～+20 +03 +03
R CUT -20～+20 ±00 ±00
G CUT -20～+20 ±00 ±00
B CUT -20～+20 ±00 ±00
R DRIVE -99～+99 +06 +06
B DRIVE -99～+99 -18 -18
DC REST 0～3+01 +01
BLK ST 0～3±00 ±00
GMM PNT 0～3+01 +01
CD MAT 0～3+01 +01
RY GAIN 0～1+01 +01
GY PHAS 0～1±00 ±00
CORING 0～1+01 +01
CMP CD 0～3+01 +01
CMP RY 0～1+01 +01
CMP GY 0～1±00 ±00
CMP COR 0～1+01 +01
LOW LIGHT MODE
Setting (Adjustment) item Variable range Initial setting value
R CUTOFF
G CUTOFF
B CUTOFF
0～255
0～255
0～255
85
85
85
HIGH LIGHT MODE
Setting (Adjustment) item Variable range Initial setting value
G DRIVE
B DRIVE
0 ～255
0 ～255
60
60
RF AFC CHECK MODE
Setting (Adjustment) item Variable range Initial setting value
RF AFC
FINE
ON / OFF
FIXED
ON
FIXED DO NOT
ADJUST

No. 51834
A
V-N29302
19
ADJUSTMENTS
B1 POWER SUPPLY
Item Measuring
instrument Test point Adjustment part Description
Check of
B1 POWER
SUPPLY
DC Voltmeter TP-91 (B1)
TP-E("
""
")
1. Receive a black-and-white signal.
2. Connect the DC Voltmeter to TP-91 (B1) and TP-E("
""
").
3. Confirm that the voltage is DC134V .
ADJUSTMENT OF VIDEO / CHROMA, DEFLECTION CIRCUIT
Item Measuring
instrument Test point Adjustment part Description
RF. AGC
adjustment No.52 RF AGC 1. Receive a broadcast.
2. Select “No.52 RF AGC” of the PICTURE MODE.
3. Press the MUTING key and turn off the color.
4. With the MENU LEFT key, get noise in the screen picture. (0
side of setting value)
5. Press the MENU RIGHT key and stop when noise disappears
from the screen.
6. Change to other channels and make sure that there is no
irregularity.
7. Press the MUTING key and get color out.
FOCUS
adjustment Signal
generator FOCUS VR
[In HVT] 1. Receive a crosshatch signal.
2. While looking at the screen, adjust FOCUS VR so that the
vertical and horizontal lines will be clear and in fine detail.
3. Make sure that the picture is in focus even when the screen gets
darkened.
+2V
-2.5V

No. 51834
A
V-N29302
20
Item Measuring
instruments Test point Adjustment part Description
V.SIZE
Adjustment Signal generator No.58 V.SIZE 1. Receive a crosshatch signal.
2. Select No.58 V.SIZE in the PICTURE MODE.
3. Set the initial setting value of No.58 V.SIZE with the LEFT /
RIGHT key of the MENU.
4. Adjust No.58 V.SIZE until the vertical screen size becomes the
value as shown table below.
H.POSITION
Adjustment Signal generator No.63 H.POSI 1. Receive a crosshatch signal.
2. Select the No.63 H.POSI of the PICTURE MODE.
3. Set the initial setting value of the No.63 H.POSI with the LEFT /
RIGHT key of the MENU.
4. Adjust the No.63 H.POSI until the screen will be horizontally
centered.
Screen size
Picture size
Screen
size
size
100%
Application model Vertical screen size
AV-N29302 /S 89.0%
AV-N29302 /R 92.0%
