BASIC CHASSIS
MK
SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. No.YA013
2003/9
PDP COLOUR TELEVISION
PD-42V31BJE
PD-42V31BSE
PD-42V31BUE
TU-42V31BJE
TU-42V31BSE
TU-42V31BUE
[RECEIVER UNIT]
VM-42V31BJE
VM-42V31BSE
VM-42V31BUE
[PLASMA DISPLAY UNIT]
TABLE OF CONTENTS
1 PRECAUTION ......................................................................................................................................................... 1-4
2 SPECIFIC SERVICE INSTRUCTIONS ...................................................................................................................... 1-8
3 DISASSEMBLY ..................................................................................................................................................... 1-11
4 ADJUSTMENT ...................................................................................................................................................... 1-24
5 TROUBLESHOOTING ........................................................................................................................................... 1-50

1-2 (No.YA013)
Dimensions (W x H x D) Plasma display unit 116.0cm x 73.1cm x 9.8cm
Receiver unit 43.5cm x 9.9cm x 38.2cm
Mass Plasma display unit 38.0kg
Receiver unit 5.3kg
TV RF System CCIR B/G, I, D/K, L
Colour System TV Mode PAL / SECAM
Video Mode PAL / SECAM / NTSC3.58 / NTSC4.43
Stereo System A2 (B/G, D/K), NICAM (B/G, I, D/K, L)
Teletext System FLOF (Fastext), TOP, WST (World Standard System)
Receiving Frequency VHF 47MHz ~ 470MHz
UHF 470MHz ~ 862MHz
CATV 116MHz ~ 172MHz, 220MHz ~ 469MHz
Intermediate Frequency VIF 38.9MHz (B / G, I, D / K, L)
SIF
33.4MHz (5.5MHz: B/G) / 32.9MHz (6.0MHz: I) / 32.4MHz (6.5MHz: D/K)
/ 40.45MHz (6.5MHz :L)
Colour Sub Carrier Frequency PAL : 4.43MHz
SECAM : 4.40MHz / 4.25MHz
NTSC : 3.58MHz / 4.43MHz
Power Input AC110V ~ AC240V, 50Hz / 60Hz
Power Consumption Plasma display unit Operate : 338W, Stand by: 1.5W
Receiver unit Operate : 30W, Stand by: 2.4W
Plasma Display Panel (PDP) !QLE0023-002
42-inch wide aspect (16:9)
Screen Size Visible size : 107.5cm (Diagonel) / 93.4cm x 53.4cm (H x V)
Display Pixels Horizontal: 852 pixels / Vertical: 480 pixels [W-VGA]
Speaker Main : 3cm x 10cm, Oval type x2
Woofer : 6.5cm x 13cm, Oval type x2
Audio Power Output Main : 9W + 9W
Woofer : 9W + 9W
Aerial Input Teminal 75 Ω unbalanced
External EXT-1 (Input/Output) 21 pin Euro connector (SCART socket)
terminal • Video input, Audio L/R inputs and RGB inputs are available.
• TV broadcast outputs (Video and Audio L/R) are available.
EXT-2 (Input/Output) 21 pin Euro connector (SCART socket)
• Video input, S-video (Y/C) input, Audio L/R inputs and RGB inputs
areavailable.
• Video and Audio L/R outputs are available.
• T-V LINK functions are available.
EXT-3 (Input) 21 pin Euro connector (SCART socket)
• Video input, S-Video (Y/C) input and Audio L/R inputs are available.
EXT-4 (Input) COMPONENT VIDEO RCA pin jack x 3
Y : 1V(p-p), Positive (Negative sync provided), 75 Ω
PB/PR: 0.7V(p-p), 75 Ω
• Progressive-scanning signals (625p or 525p) are available.
AUDIO 500mV (rms), High impedance RCA pin jack x 2
EXT-5 (Input) S-VIDEO Mini-DIN 4 pin x 1
Y : 1V(p-p), Positive (Negative sync provided), 75 Ω
C : 0.286V(p-p) (Burst signal), 75 Ω
VIDEO 1V(p-p), Positive (Negative sync provided), 75 Ω RCA pin jack x 1
AUDIO 500mV(rms), Low impedance RCA pin jack x 2
AUDIO OUT (Fixed) 500mV(rms), Low impedance RCA pin jack x 2
Headphone 3.5mm Stereo mini jack x 1
Display Input / Output Terminal Control / Audio: 24-pin D-sub connector
(For system cable) Video: 26pin DVI-D connector
Remote Control Unit RM-C1808-1C (AEEOB001-R6S battery x 2)
SPECIFICATION
Items Contents
Design & specifications are subject to change without notice.

(No.YA013) 1-3

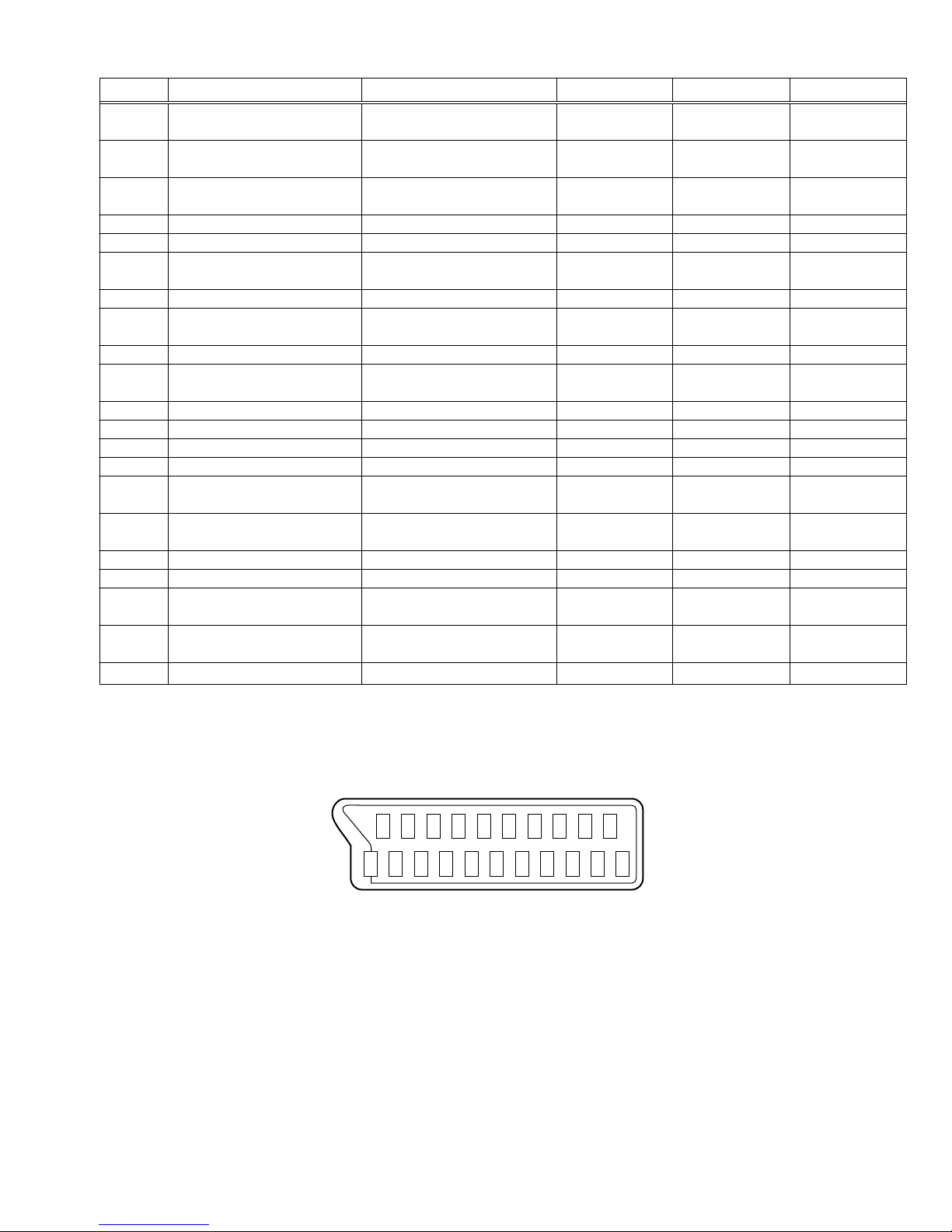

21-pin Euro connector (SCART) : EXT-1/EXT-2/EXT-3
PinNo. Signal Designation Matching Value EXT-1 EXT-2 EXT-3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
AUDIO R output
AUDIO R input
AUDIO L output
AUDIO GND
GND (B)
AUDIO L input
B input
FUNCTION SW
(SLOW SW)
GND (G)
SCL / T-V LINK
G input
SDA
GND (R)
GND (YS)
R / C input
Ys input
(FAST SW)
GND (VIDEO output)
GND (VIDEO input)
VIDEO output
VIDEO / Y input
COMMON GND
500mV(rms) (Nominal),
Low impedance
500mV(rms) (Nominal),
High impedance
500mV(rms) (Nominal),
Low impedance
500mV(rms) (Nominal),
High impedance
700mV( B-W ), 75
Low : 0V-3V, High : 8V-12V,
High impedance
700mV( B-W ), 75
R : 700mV( B-W ), 75
C : 300mV(p-p), 75
Low : 0V-0.4V
High : 1V-3V, 75
1V(p-p) (Negative going sync),
75
1V(p-p) (Negative going sync),
75
Used (TV OUT)
Used
Used (TV OUT)
Used
Used
Used
Used
Used
Used
Not used
Used
Not used
Used
Used
Used (R)
Used
Used
Used
Used (TV OUT)
Used
Used
Used (LINE OUT)
Used
Used (LINE OUT)
Used
Used
Used
Used
Used
Used
Used
(SCL2/TV-LINK)
Used
Used(SDA2)
Used
Not used
Used (C2/R)
Used
Used
Used
Used (LINE OUT)
Used
Used
Not used
Used
Not used
Used
Used
Used
Not used
Used
Used
Not used
Not used
Not used
Used
Not used
Used (C3)
Not used
Used
Used
Not used
Used
Used
(P-P= Peak to Peak, B-W= Blanking to white peak)
20 18 16 14 12 10 8 6 4 2
21 19 17 15 13 11 9 7 5 3 1
[Pin assignment]

1-4 (No.YA013)
1.1 SAFETY PRECAUTIONS [EXCEPT FOR UK]
(1) The design of this product contains special hardware,
many circuits and components specially for safety
purposes. For continued protection, no changes should
be made to the original design unless authorized in writing
by the manufacturer. Replacement parts must be identical
to those used in the original circuits. Service should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or
property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These
characteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
the parts list of Service manual. Electrical components
having such features are identified by shading on the
schematics and by (!) on the parts list in Service
manual. The use of a substitute replacement which does
not have the same safety characteristics as the
recommended replacement part shown in the parts list
of Service manual may cause shock, fire, or other hazards.
(4) Don't short between the LIVE side ground and ISOLATED
(NEUTRAL) side ground or EARTH side ground when
repairing.
Some model's power circuit is partly different in the GND.
The difference of the GND is shown by the LIVE : ( ) side
GND, the ISOLATED (NEUTRAL) : ( ) side GND and
EARTH : ( ) side GND. Don't short between the LIVE
side GND and ISOLATED (NEUTRAL) side GND or EARTH
side GND and never measure the LIVE side GND and
ISOLATED (NEUTRAL) side GND or EARTH side GND at
the same time with a measuring apparatus (oscilloscope
etc.).If above note will not be kept, a fuse or any parts will
be broken.
(5) If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).
(6) The high voltage applied to the picture tube must conform
with that specified in Service manual. Excessive high
voltage can cause an increase in X-Ray emission, arcing
and possible component damage, therefore operation
under excessive high voltage conditions should be kept
to a minimum, or should be prevented. If severe arcing
occurs, remove the AC power immediately and determine
the cause by visual inspection (incorrect installation,
cracked or melted high voltage harness, poor soldering,
etc.). To maintain the proper minimum level of soft X-Ray
emission, components in the high voltage circuitry
including the picture tube must be the exact replacements
or alternatives approved by the manufacturer of the
complete product.
(7) Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ
2W resistor to the anode button.
(8) When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence
of overheating should be replaced. Always use the
manufacturer's replacement components.
(9) Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an
isolation check on the exposed metal parts of the cabinet
(antenna terminals, video/audio input and output
terminals, Control knobs, metal cabinet, screw heads,
earphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand
a voltage of 3000V AC (r.m.s.) for a period of one second.
(. . . . Withstand a voltage of 1100V AC (r.m.s.) to an
appliance rated up to 120V, and 3000V AC (r.m.s.) to an
appliance rated 200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).

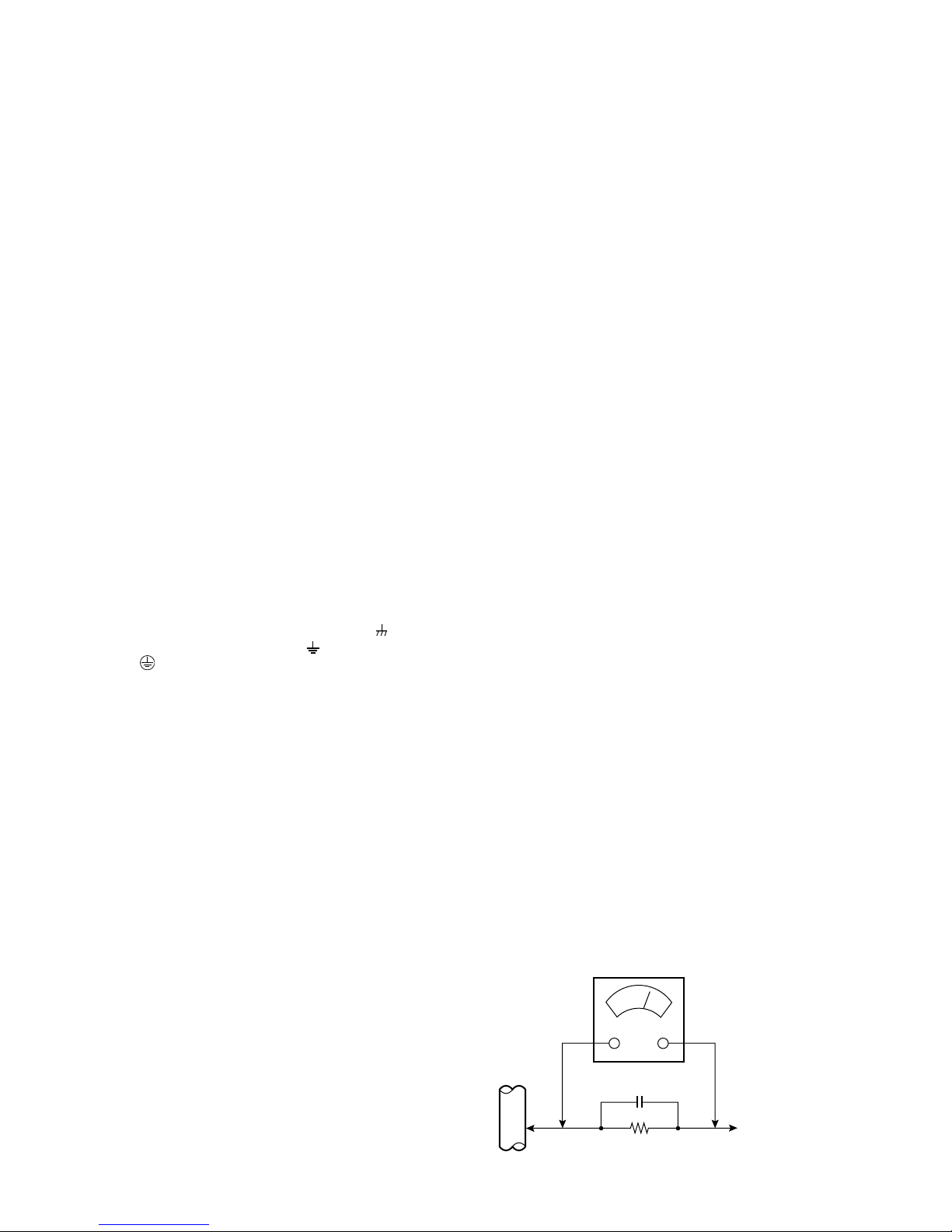

Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not
use a line isolation transformer during this check.).
Use an AC voltmeter having 1000 ohms per volt or
more sensitivity in the following manner. Connect a
1500Ω10W resistor paralleled by a 0.15µF AC-type
capacitor between an exposed metal part and a known
good earth ground (water pipe, etc.). Measure the AC
voltage across the resistor with the AC voltmeter. Move
the resistor connection to each exposed metal part,
particularly any exposed metal part having a return path
to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds
to 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
AC VOLTMETER
(HAVING 1000Ω/V,
OR MORE SENSITIVITY)
PLACE THIS PROBE
ON EACH EXPOSE
D
METAL PART
1500Ω10W
0.15µF AC-TYPE
GOOD EARTH GROUND
SECTION 1
PRECAUTION

(No.YA013) 1-5
1.2 SAFETY PRECAUTIONS [FOR UK]
(1) The design of this product contains special hardware and many circuits and components specially for safety purposes. For
continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original circuits. Service should be performed by qualified personnel
only.
(2) Alterations of the design or circuitry of the product should not be made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the manufacturer of responsibility for personal injury or property damage
resulting therefrom.
(3) Many electrical and mechanical parts in the product have special safety-related characteristics. These characteristics are
often not evident from visual inspection nor can the protection afforded by them necessary be obtained by using replacement
components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are
identified in the Parts List of Service Manual. Electrical components having such features are identified by shading on the
schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the
same safety characteristics as the recommended replacement part shown in the Parts List of Service Manual may cause
shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties, clamps, tubing•fs, barriers and the like to be separated from live
parts, high temperature parts, moving parts and / or sharp edges for the prevention of electric shock and fire hazard. When
service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been
returned to normal, after re-assembling.
WARNING
(1) The equipment has been designed and manufactured to meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant safety standards.
(4) It is essential that safety critical components are replaced by approved parts.
(5) If mains voltage selector is provided, check setting for local voltage.

1-6 (No.YA013)
1.3 INSTALLATION
1.3.1 HEAT DISSIPATION
If the heat dissipation vent behind this unit is blocked, cooling
efficiency may deteriorate and temperature inside the unit will
rise. The temperature sensor that protects the unit will be
activated when internal temperature exceeds the pre-
determined level and power will be turned off automatically.
Therefore, please make sure pay attention not to block the heat
dissipation vent as well as the ventilation outlet behind the unit
and ensure that there is room for ventilation around it.
1.3.2 INSTALLATION REQUIREMENTS
Ensure that the minimal distance is maintained, as specified
below, between the unit with and the surrounding walls, as well
as the floor etc.
Install the unit on stable flooring or stands.
Take precautionary measures to prevent the unit from tipping in
order to protect against accidents and earthquakes.
200 mm or
more 200 mm
or more
50 mm or more
50 mm or more
150 mm
or more
150 mm or
more
SPACE REQUIRED FOR INSTALLATION OF THE DISPLAY UNIT
SPACE REQUIRED FOR INSTALLATION OF THE RECEIVER UNIT
100 mm or more
100 mm or more 100 mm or more
100 mm or more
100 mm or more
1.3.3 FALL TIP PREVENTION MEASURES
Take precautionary measures to prevent the unit from falling or
tipping to protect against emergencies such as earthquakes as
well as accidents.
Fasten the supplied hook for tip fall prevention using the screws,
also supplied, behind the display unit, and use them together
with durable cords (to be purchased separately) to secure the
unit to a robust part such as the wall surface or pillars.
The supplied hook for tipfall prevention

(No.YA013) 1-7
1.4 PRECAUTIONS REGARDING PDP
1.4.1 PRECAUTIONS DURING NOTES FOR TRANSPORTATION
When transporting the display unit, pressure exerted on the
internal PDP (Pplasma Ddisplay Ppanel) due to improper
handling (such as tossing and dropping) may cause damages
even when the unit is carefully packed. To prevent accidents
from occurring during transportation, pay careful attention prior
to delivery such as through explaining the handling instructions
to transporters.
Ensure that the following requirements are met during
transportation, as the PDP of this unit is made of glass and
therefore fragile:
(1) Avoid vibrations and impacts
The unit may be broken if it is toppled sideways even
when properly packed. Ensure that the unit is carried by at
least 2 persons and pay careful attention not to exert any
vibration or impact on it.
(2) Do not place equipment horizontally
Ensure that it is placed upright and not horizontally during
transportation and storage as the PDP is very vulnerable
to lateral impacts and may break easily under such
circumstances.
During transportation, ensure that the unit is loaded along
the traveling direction of travel of the vehicle, and avoid
stacking them on one another.
For storage, ensure that they are stacked in 2 layers or
less even when placed upright.
1.4.2 RESIDUAL IMAGE / BURN-IN ON SCREEN
Like CRTs, "burn-in" may occur when a same image is
continuously displayed over an extended period of time.
As Tthis may also shorten the life span of the PDP. Therefore,
turn off the display when not in use, scroll the screen, make use
of screen-savers, or allow even distribution on the display by
inverting the brightness, switching to complementary colors or
inserting animated images at periodic intervals.
As burn-in is more likely to occur with high brightness and contrast
settings, try to use neutral gradations or medium tone colors.
Burn-in does not occur in the case of animated images.
When switching to another image after continuous display of
the previous image, residual images may become prominent,
as luminance in a part of the display is higher than the other
parts.
This is not a defect but is because due to the discharge surface
of the lighted portion has becomebeing relatively activated and
its luminance higher than the unlighted parts.
1.4.3 INFRARED RAYS
Near Near-infrared rays (800nm to 1000nm) are emitted from
the front of the panel, and this may give rise to glitchescause
malfunctions in infrared remote controls or communication
systems placed near it. In this case, avoid direct infrared rays
(and reflected rays in some cases) from the screen by either
changing the direction of the unit or other infrared systems or
securing a longer keeping a distance from the screen.
1.4.4 OPTICAL FILER (PANEL FILTER)
Avoid placing the unit under direct sunlight over a prolonged
period of time. This may cause the optical filter to deteriorate in
quality and color.
Clean the filter surface by wiping it softly lightly with outing flannels
a soft and lightly fuzz cloth (such as flannel).
Do not use solvents such as benzine or thinner to wipe the filter
surface. This may cause the filter to deteriorate in quality or the
coating on the surface to come off.
As Tthe filter surface is fragile., Ddo not scratch or hit it with hard
materials.
1.4.5 NOTES PRECAUTIONS FOR REPLACEMENT OF
EXTERIOR PARTS
Take note of the following when replacing exterior parts (back
REAR COVER, FRONT PANEL, optical filter)
•Do not exert pressure on the front of the PDP (glass surface).
•Pay careful attention not to scratch or stain the front of the PDP
(surface) with hands.
•When replacing exterior parts, the front of the PDP should be
placed facing downward. Place a mat, etc. underneath to avoid
causing scratches to the front surface. However, never use
materials that are too soft (such as blanket cloth). If
replacement is made with the PDP surface facing downward
and in contact with the blanket, pressure may be exerted on
the PDP, thus causing damages to it.

1-8 (No.YA013)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 FEATURES
2.1.1 HIGH-DEFINITION IMAGE TECHNOLOGY (DIST)
•DIST (Digital Image Scaling Technology)
Employs an interpolation method that doubles the scanning lines to realize 480-line flickerfree picture making it especially suitable
for reproducing high-resolution pictures even on large-screen displays.
2.1.2 MAIN FUNCTION
• DIGITAL VNR
The DIGITAL VNR function cuts down the amount of noise in original picture. There are three function settings of AUTO,MIN and
MAX.
•Super DigiPure
This function uses the latest technology to give viewer a natural looking picture.
It consist of DigiPure and picture motion compensation function.
• MOVIE THEATRE
This function displays a cinema film picture more smoothly and naturally on the screen.
• COLOUR MANAGEMENT
This function ensures dull colours are compensated to produce natural hues.
•Sleep Timer
Setting for situations such as falling asleep while watching TV, and for prevention against forgetting to turn off the TV. The power
supply of the TV will be cut off automatically when the time exceeds the set up timing (maximum 2 hours).
•3D SOUND function
This function makes the speaker sounds like in a wider ambience.
•Teletext function
The teletext broadcast can be viewed and the teletext pages can be stored in memory.
•T-V LINK function
This function make a VCR could automatically download the data or image from the TV, and turn on the TV to view the image when
it playing.
2.1.3 ASPECT CONTROL
The screen size can be changed according to the picture aspect ratio.
•ZOOM function
Desired screen size (AUTO/REGULAR / PANORAMIC / 14:9 ZOOM / 16:9 ZOOM / 16:9 ZOOM SUBTITLE / FULL) can be selected.
2.1.4 MULTI-SCREEN FUNCTION
•Twin-pictures / PIP function
With the function, two pictures can be displayed at the same time (Twin pictures mode and Picture in picture mode).
•Multi-picture function
With this function, one of multi-picture (12 pictures) can be displayed at the same time.
•Freeze function
The images that are currently seen can be viewed on the memo screen (still picture).
It is convenient for taking down notes like application address and recipe of cooking program etc, while enjoying the current
program.
2.2 UNIT COMPOSITION
MODEL PLASMA DISPLAY UNIT RECEIVERUNIT
PD-42V31BJE VM-42V31BJE TU-42V31BJE
PD-42V31BSE VM-41V31BSE TU-42V31BSE
PD-42V31BUE VM-42V31BUE TU-42V31BUE

(No.YA013) 1-9
2.3 TECHNICAL INFORMATION
2.3.1 PDP STRUCTURE AND CHARACTERISTIC
This unit (Display Unit) uses the flat type panel PDP (Plasma Display Panel), instead of the conventional CRT (Cathode Ray Tube),
as a display unit.
2.3.1.1 PIXEL (CELL) ARRAY
PDP is constructed by sealing the xenon, which emits neon and ultraviolet rays for discharging purpose, in between the electrodes
lay on the front glass substrate and rear glass substrate.
One pixel is composed of 3 RGB cells, with cell pitch of 0.365mm (1 pixel 1.095mm) horizontally and 1.110mm vertically.

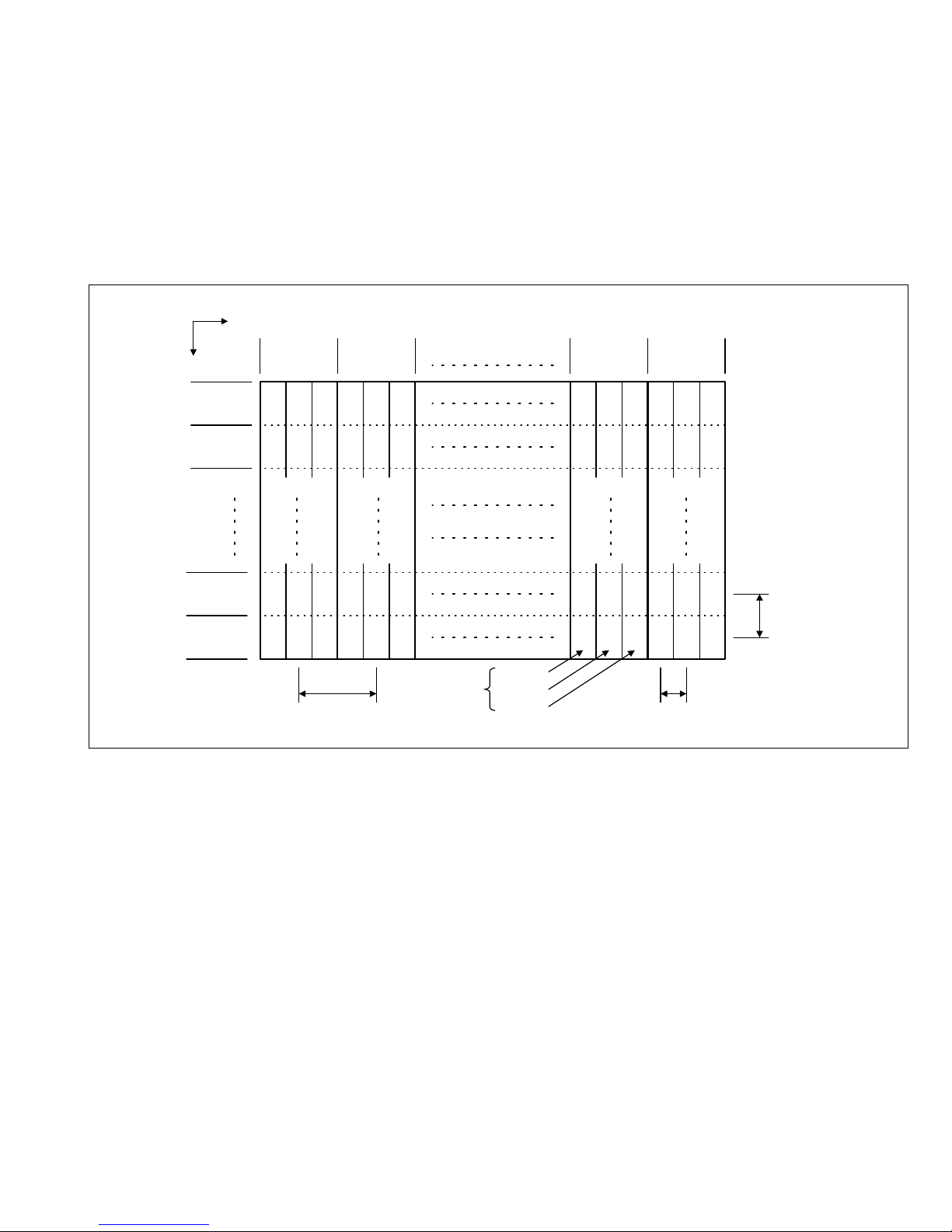

The cell is arrayed in each RGB color as shown in Fig. 1. One pixel is formed by interlacing each RGB color cell.
One cell size is 0.365mm horizontally and 1.110mm vertically.
B G R B G R
BGRBGR
GRBG R
GRBGR
B
B
BGRBG R
BGRBGR
GRBG R
GRBGR
B
B
No.1
Pixel
sequence
No.2
Pixel
sequence
No.851
Pixel
sequence
No.852
Pixel
sequence
No.1
Pixel line
No.2
Pixel line
Horizontally
Vertically
Direction
1.095mm(Horizontally)
Pixel pitch
0.365mm(Horizontally)
Cell pitch
1.110mm
(Vertically)
Pixel pitch
(Cell pitch)
1 pixel
(1 dot)
No.479
Pixel line
No.480
Pixel line
B Cell
G Cell
R Cell
Fig.1
2.3.1.2 PIXEL DEFECTS
Though PDP is made by means of ultra precise technology, there are cases whereby not all pixels (cell) will function properly. In
some cases, there may be defective pixels that do not light at all or the ones that always light on.
There are 3 types of Pixel defects, [Bright Dot Defects], [Dark Dot Defects] and [Flicker Dot Defects], as defined respectively in the
following:
(1) Bright Dot Defects
Bright dot defect is a pixel cell that lights though it should not light.
The presence of bright dot defects can be confirmed by inputting a full black signal (pattern).
(2) Dark Dot Defects
Dark dot defect is a pixel cell that does not light, though it should light.
The presence of dark dot defects can be confirmed by inputting a 100% full white signal (pattern).
(3) Flicker Dot Defects
Flicker dot defect is a pixel cell that blinks though it should light or not light.
The presence of flicher dot defects can be confirmed by inputting a full black signal (pattern).

1-10 (No.YA013)
Pin No. Terminal Name Port Name I/O Remark
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
TCK
TMS
TDI
TDO
REMOCON
KEY1
KEY2
KEY3
TV_LINK
POWER
PROTECT
POWERG
VSS33
VDD33
TV_LINK OUT
A20
A19
A18
A17
VSS25
VDD25
A16
A8
A7
A9
A6
A5
A10
A11
A12
VSS33
VDD33
A4
A3
A2
A1
A0
A13
A14
A15
VSS33
VDD33
CLK
CSSDRAM
CKE
CSROM
RD
UDQM
LDQM
WR
D15
VSS33
VDD33
D7
D0
D14
D8
D6
D1
VSS33
VDD33
D13
D9
D5
TCK
TMS
TDI
TDO
P2.8
P2.9
P2.10 (NOR/INST)
P2.11
P2.12
P2.13
P2.14
P2.15
VSS33
VDD33
P4.5
A20
A19
A18
A17
VSS25
VDD25
A16
A8
A7
A9
A6
A5
A10
A11
A12
VSS33
VDD33
A4
A3
A2
A1
A0
A13
RAS/A14
CAS/A15
VSS33
VDD33
MEMCLK
CSSDRAM
CLKEN
CSROM
RD
UDQM
LDQM
WR
D15
VSS33
VDD33
D7
D0
D14
D8
D6
D1
VSS33
VDD33
D13
D9
D5
I
I
I
O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I
I
O
O
O
O
O
I
I
O
O
O
O
O
O
O
O
O
I
I
O
O
O
O
O
O
O
O
I
I
O
O
O
O
O
O
O
O
I/O
I
I
I/O
I/O
I/O
I/O
I/O
I/O
I
I
I/O
I/O
I/O
GND
3.3V
GND
2.5V
GND
3.3V
GND
3.3V
GND
3.3V
GND
3.3V
2.3.2 MAIN CPU FUNCTIONAL TABLE (RECEIVER UNIT)
Pin No. Terminal Name Port Name I/O Remark
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
D2
D12
D10
VSS33
VDD33
D4
D3
D11
RESET-IN
SCL0
SDA0
PIX_CLK
AMP_MUTE
AUDIO_MUTE
READY
STATUS
DATA
CLK
VSS33
VDD33
VSS25
VDD25
TXD0
RXD0
IE-MUTE
AA_SDA
AA_SCL
YS2
HP_DET
NC
NC
IIC_FREE
SCL1
SCA1
MSP_RESET
SDA2
VSYNC
HSYNC
NC
YS
VDD33
VSS33
XTAL1
XTAL2
VSSA
VSSD
R
G
B
VSSA
VSSD
CVBS2A
VSSA
VDDA
CVBS1B
CVBS1A
VSSA
VDDA
AFC1
AFC2
AGC
KEYP2
TMODE
D2
D12
D10
VSS33
VDD33
D4
D3
D11
RSTIN
P3.0
P3.1
P3.2
P3.3
P3.4
P3.5
P3.6
P3.7
P3.8
P3.9
VSS33
VDD33
VSS25
VDD25
TXD0
RXD0
P3.12
P3.13
P3.15
P5.14(YS2)
P5.15
TRIG_IN
TRIG_OUT
P6.2
P6.3
P6.4
P6.5
P6.6
VSYNC
HSYNC
COR/RSTOUT
BLANK
VDD33
VSS33
XTAL1
XTAL2
VSSA
VDDA
R
G
B
VSSA
VDDA
CVBS2
VSSA
VDDA
CVBS1B
CVBS1A
VSSA
VDDA
P5.0
P5.1
P5.2
P5.3(KEYP2)
TMODE
I/O
I/O
I/O
I
I
I/O
I/O
I/O
I
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I
I
I
I
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
O
O
O
O
I
I
I
O
I
I
O
O
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
GND
3.3V
GND
3.3V
GND
2.5V
3.3V
GND
GND
GND
2.5V
GND
GND
2.5V

(No.YA013) 1-11
3.1 DISASSEMBLY PROCEDURE [DISPLAY UNIT]
CAUTION:
•When exchanging parts etc. with the front side (PDP side)
fancing down,please place a protection sheet below before
starting, so as to prevent scratches on the front side.

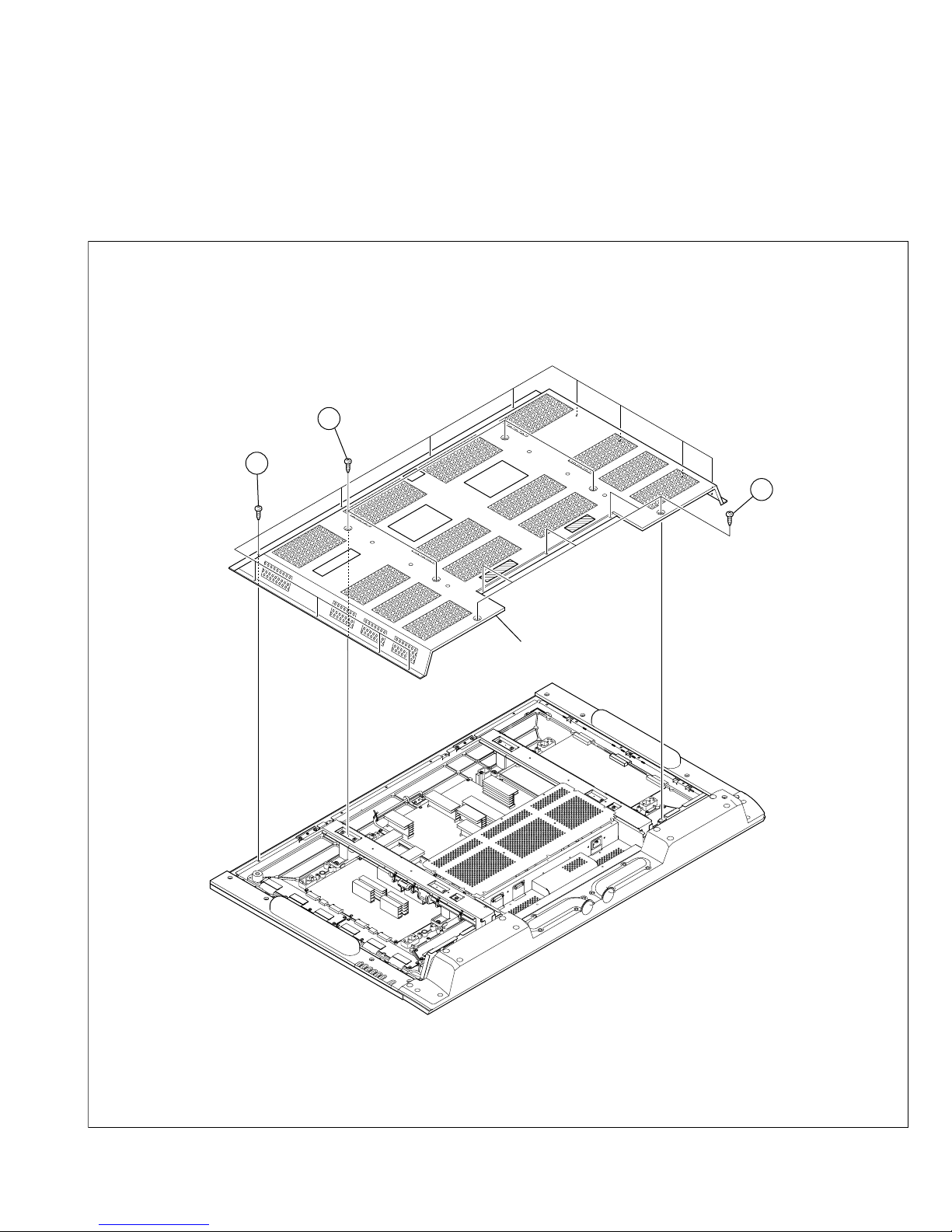

3.1.1 REMOVING THE REAR COVER (Fig. 1)
(1) Remove the power cord and system cable.
(2) Remove the 12 screws[A] and 9 screws [B], and remove
the REAR COVER.
A
(x12)
B
(x4)
B
(x5)
REAR COVER
Fig.1
SECTION 3
DISASSEMBLY

1-12 (No.YA013)
D
F
D
I
H
F
F
O
CHASSIS BASE
DISPLAY
INTERFACE
PWB
AUDIO
PWB
LINE FILTER
PWB
CHASSIS SHIELD
BRACKET
TERMINAL
COVER
LINE FILTER
INSULATOR
E (x2)
K
(x4)
J
(x4)
G
(x2)
C
(x6)
G
(x2)
N
(x2)
M (x2)
Fig.2
a
a
O
L

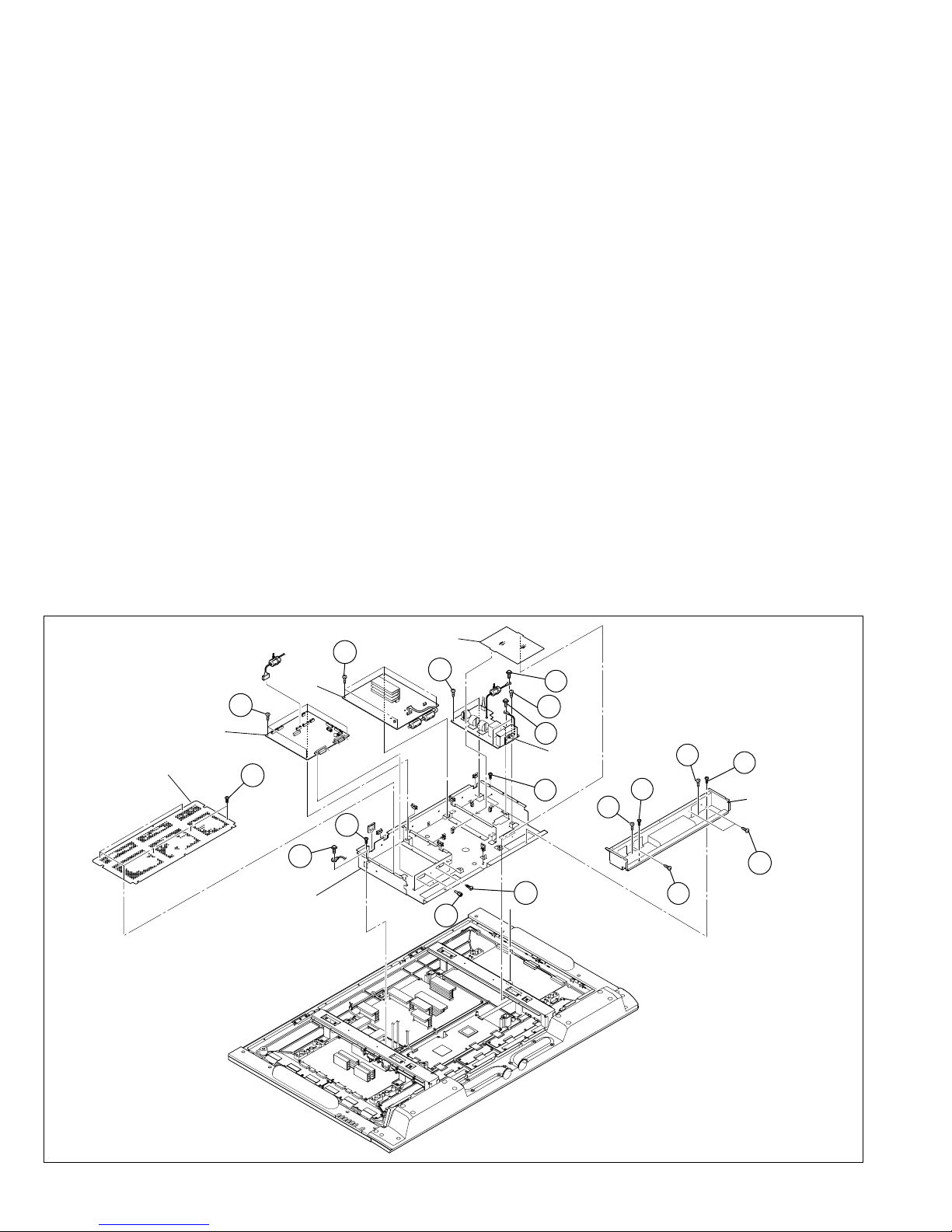

3.1.2 REMOVING THE TERMINAL COVER (Fig.2)
•Remove the REAR COVER.
(1) Remove the 6 screws [C], withdraw the CHASSIS SHIELD
BRACKET.
(2) Remove the 2 screws [D], the 2 screws [E] and 3 screws
[F], and remove the TERMINAL COVER.
3.1.3 REMOVING THE LINE FILTER PWB (Fig. 2)
•Remove the REAR COVER.
•Remove the CHASSIS SHIELD BRACKET.
•Remove the TERMINAL COVER.
(1) Remove the LINE FILTER INSULATOR.
CAUTION:
•On that occasion,please pay attention to the claws on both
sides.
(2) Disconnect the connector [CN8001] from the SMPS PWB.
(3) Remove the 4 screws [G], 1 screw [H] and 1 screw [I], and
remove the LINE FILTER PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.4 REMOVING THE AUDIO PWB (Fig.2)
•Remove the REAR COVER.
•Remove the CHASSIS SHIELD BRACKET.
•Remove the TERMINAL COVER.
(1) Disconnect the connector [CN9003] from the VIDEO SMPS
PWB.
(2) Disconnect the connectors [CN00A],[CN00C],[CN00D]
from the DISPLAY INTERFACE PWB.
(3) Disconnect the connectors [CN60CB], [CN60SR],
[CN60SL] from the SPEAKER.
(4) Remove the 4 screws [J], and remove the AUDIO PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.5 REMOVING THE DISPLAY INTERFACE PWB (Fig.2 )
•Remove the REAR COVER.
•Remove the CHASSIS SHIELD BRACKET.
•Remove the TERMINAL COVER.
(1) Disconnect the connectors [CN00A], [CN00C], [CN00D],
[CN00E], [CN00Q], [CN00T], [CN00V], [CN00X], [CNLVDS]
from the DISPLAY INTERFACE PWB.
(2) Remove the 4 screws [K], the 1 screw [L], the 2 screws [M]
and the 2 screws [N], and withdraw the DISPLAY
INTERFACE PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.6 REMOVING THE CHASSIS BASE (Fig.2)
•Remove the REAR COVER.
•Remove the CHASSIS SHIELD BRACKET.
•Remove the TERMINAL COVER.
•Remove the LINE FILTER PWB.
•Remove the AUDIO PWB.
•Remove the DISPLAY INTERFACE PWB.
(1) Remove the 2 screws [O], and remove the CHASSIS BASE.

(No.YA013) 1-13
GAS insertion
hole
TEMP. SENSOR PWB
PDP UNIT
CONTROL KNOB
INSULATOR
DISPLAY SWITCH PWB
DISPLAY LED PWB
BACK BRACKET
Fig.3
T
(x2)
T
(x2)
T
(x2)
T
(x2)
Q
(x2)
S
(x2)
R
(x3)
U
(x2)
U
(x2)
U
(x2)
P
U
(x2)

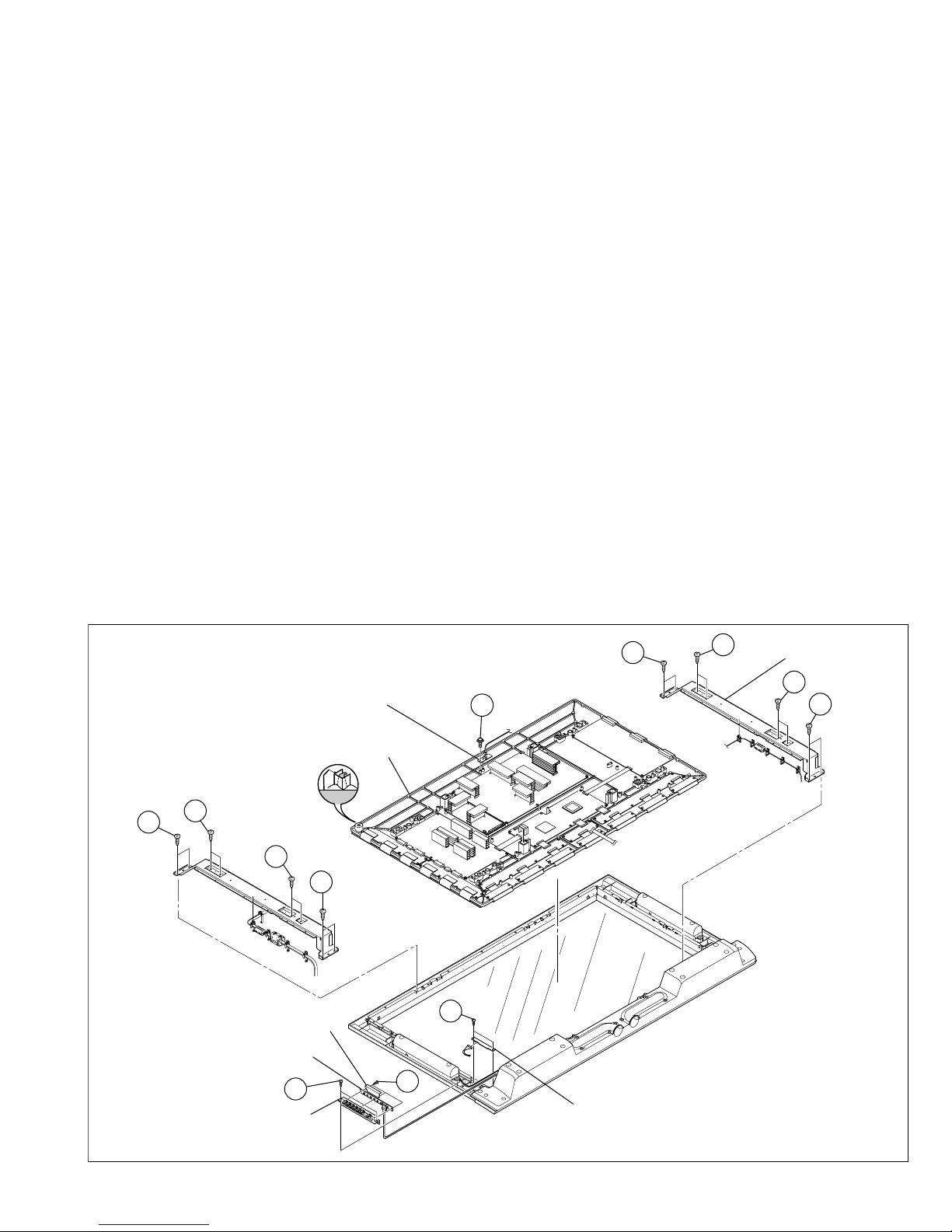

3.1.7 REMOVING THE TEMP. SENSOR PWB (Fig.3)
•Remove the REAR COVER.
(1) Disconnect the connector [CN00V] from the DISPLAY
INTERFACE PWB.
(2) Remove the 1 screw [P], and withdraw the TEMP. SENSOR
PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.8 REMOVING THE DISPLAY SWITCH PWB (Fig.3 )
•Remove the BACK COVER(R).
(1) Remove the 2 screws [Q], and withdraw the DISPLAY UNIT
SET.
(2) Remove the 3 screws [R], and remove the CONTROL
KNOB and INSULATOR.
(3) Disconnect the connector [CN00T] from the DISPLAY
SWITCH PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.9 REMOVING THE DISPLAY LED PWB (Fig.3 )
•Remove the BACK COVER(R).
(1) Remove the 2 screws [Q], and withdraw the CONTROL
KNOB.
(2) Remove the 2 screws [S], and withdraw the DISPLAY LED
PWB.
(3) Disconnect the connector [CN100X] from the DISPLAY LED
PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.10 REMOVING THE PDP UNIT (Fig.3)
•Remove the REAR COVER.
•Remove the CHASSIS SHIELD BRACKET.
•Remove the TERMINAL COVER.
•Remove the CHASSIS BASE(with each PWB affixed on the
CHASSIS BASE).
(1) Disconnect the connector [CN8001] from the SMPS PWB.
(2) Disconnect the connector [CN9003] from the VIDEO SMPS
PWB.
(3) Disconnect the connectors [CN00A], [CN00E], [CN00Q],
[CN00T], [CN00V], [CN00X], [CNLVDS] from the DISPLAY
INTERFACE PWB.
(4) Remove the 8 screws [T] and the 8 screws [U], and remove
the BACK BRACKET(R) and the BACK BRACKET(L).
(5) Lift the PDP upright and remove it with enough care not to
impose shock to the PDP.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
CAUTION:
•Two or more people are required to remove the PDP unit.
•The gas pouring port is covered with the protection
material.In operation, be careful not to damage the gas
pouring port.
•Do not touch the front side (glass) of the PDP with your
fingers.

1-14 (No.YA013)

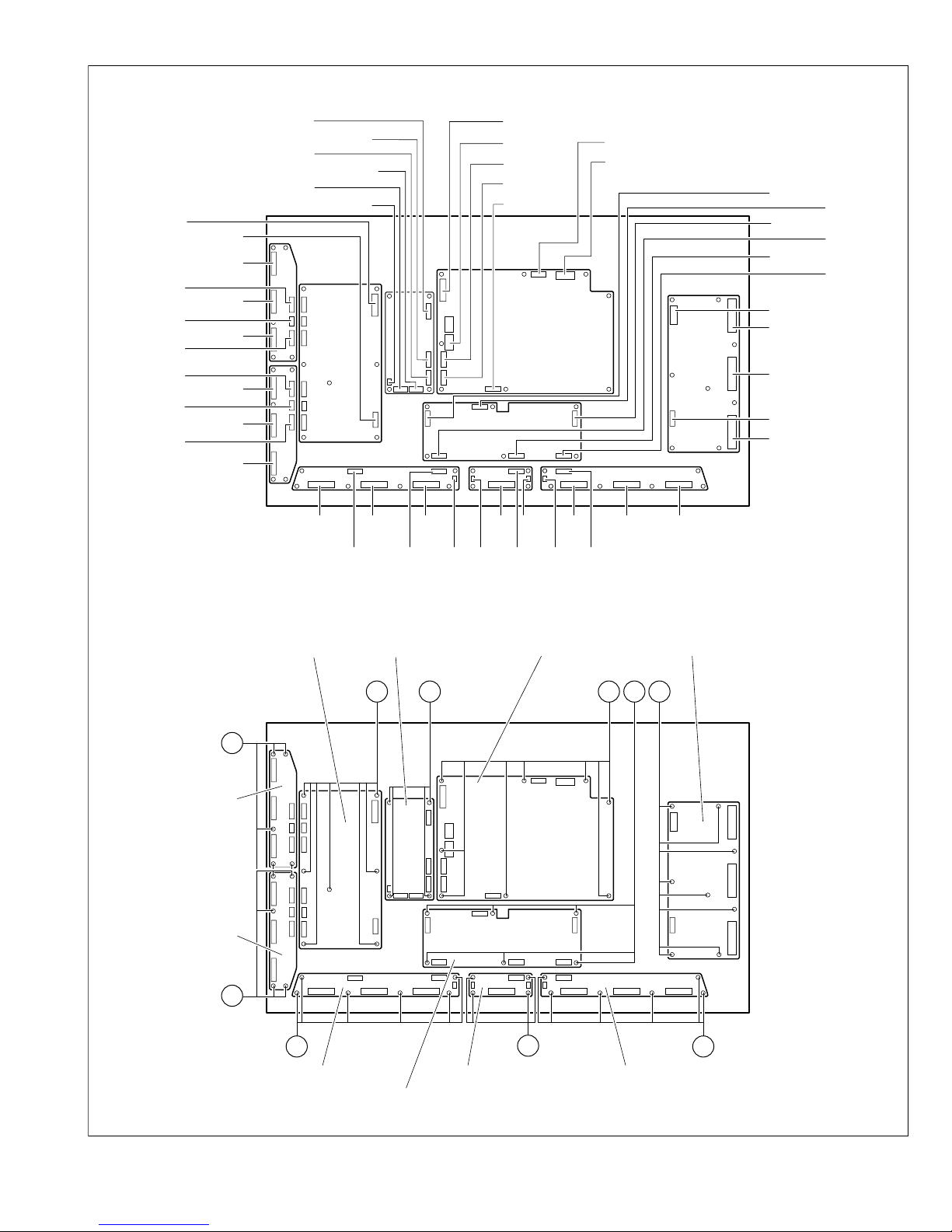

3.1.11 REMOVING THE PWB IN PDP UNIT
3.1.11.1 REMOVING THE SMPS PWB (Fig.4 )
•Remove the PDP UNIT.
(1) Disconnect the connectors [CN8002], [CN8003],
[CN8004], [CN8006], [CN8007], [CN8008], [CN8009] from
the SMPS PWB.
(2) Remove the 8 screws [V], and remove the SMPS PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.11.2 REMOVING THE X-MAIN PWB (Fig.4 )
•Remove the PDP UNIT.
(1) Disconnect the connectors [CN4001], [CN4002],
[CN4003], [CN4004], [CN4005] from the X-MAIN PWB.
(2) Remove the 8 screws [W], and remove the X-MAIN PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.11.3 REMOVING THE Y-MAIN PWB (Fig.4 )
•Remove the PDP UNIT.
(1) Disconnect the connectors [CN5001], [CN5002],
[CN5003], [CN5004], [CN5005],[CN5006], [CN5007],
[CN5008] from the Y-MAIN PWB.
(2) Remove the 7 screws [X], and remove the Y-MAIN PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.11.4 REMOVING THE LOGIC-MAIN PWB (Fig.4 )
•Remove the PDP UNIT.
(1) Disconnect the connector [CN8008] from the SMPS PWB.
(2) Disconnect the connector [CN4002] from the X-MAIN PWB.
(3) Disconnect the connector [CN5001] from the Y-MAIN PWB.
(4) Disconnect the connector [CN401] from the E-BUFFER
PWB.
(5) Disconnect the connector [CN402] from the F-BUFFER
PWB.
(6) Disconnect the connector [CN403] from the G-BUFFER
PWB.
(7) Remove the 6 screws [Y], and remove the LOGIC-MAIN
PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.11.5 REMOVING THE Y-BUFFER U PWB (Fig. 4)
•Remove the PDP UNIT.
(1) Disconnect the connectors [CN5401], [CN5402],
[CN5403], [CN5404], [CN5405],[CN5406] from the Y-
BUFFER U PWB.
(2) Remove the 5 screws [Z], and remove the Y-BUFFER U
PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.11.6 REMOVING THE Y-BUFFER L PWB (Fig.4 )
•Remove the PDP UNIT.
(1) Disconnect the connectors [CN5501], [CN5502],
[CN5503], [CN5504], [CN5505],[CN5506] from the Y-
BUFFER L PWB.
(2) Remove the 5 screws [a], and remove the Y-BUFFER L
PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.11.7 REMOVING THE E-BUFFER PWB (Fig.4 )
•Remove the PDP UNIT.
(1) Disconnect the connectors [CN401], [CN806], [EC1], [EC2],
[EC3],[EF1] from the E-BUFFER PWB.
(2) Remove the 6 screws [b], and remove the E-BUFFER
PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.11.8 REMOVING THE F-BUFFER PWB (Fig.4 )
•Remove the PDP UNIT.
(1) Disconnect the connectors [CN402], [FC4], [FE1], [FG1],
from the F-BUFFER PWB.
(2) Remove the 4 screws [c], and remove the F-BUFFER PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.11.9 REMOVING THE G-BUFFER PWB(Fig.4 )
•Remove the PDP UNIT.
(1) Disconnect the connectors [CN403], [GC5], [GC6], [GC7],
[GF1] from the G-BUFFER PWB.
(2) Remove the 6 screws [d], and remove the G-BUFFER
PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.11.10 REMOVING THE VIDEO SMPS PWB (Fig.4 )
•Remove the PDP UNIT.
(1) Disconnect the connectors [CN9005], [CN9006], [CN9007]
from the VIDEO SMPS PWB.
(2) Remove the 4 screws [e], and remove the VIDEO SMPS
PWB.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.

(No.YA013) 1-15
X
Z
a
bcd
eVY W
Fig.4
CN5401
CN5404
CN5008
CN5001
BUFFER
CN8008
CN8009
CN4003
CN4001
CN4002
CN4004
CN4005
CN8002
CN401
CN402
CN403
CN803
CN101
CN201
CN5406
CN5405
CN5505
CN5506
CN5504
CN5402
CN5403
CN5501
CN5502
CN5503
EC1
CN806 CN401 CN402 CN403
EC2 EC3
EF1
FC4 FC4
GF1
GC5 GC6 GC7
FE1
CN9005
CN9006
CN9001
CN9007
CN9002
CN9004
CN8003
CN8004
CN8007
SMPS PWB
VIDEO SMPS PWB
E-BUFFER PWB G-BUFFER PWBF-BUFFER PWB
X-MAIN PWB
LOGIC-MAIN PWB
Y-MAIN PWB
Y-BUFFER U
PWB
Y-BUFFER L
PWB
(x7)
(x5)
(x5)
(x6) (x4) (x6)
(x4)
(x6)(x8) (x8)

1-16 (No.YA013)
SPEAKER ASS'Y(L)
i(x2)
SPEAKER ASS'Y(R)
BACK COVER(R)
BACK COVER(L)
SP HOLDER ASS'Y
SP HOLDER
WOOFER SPEAKER ASS'Y
g(x2)
f(x4)
h(x4)
Fig. 5
j(x6)

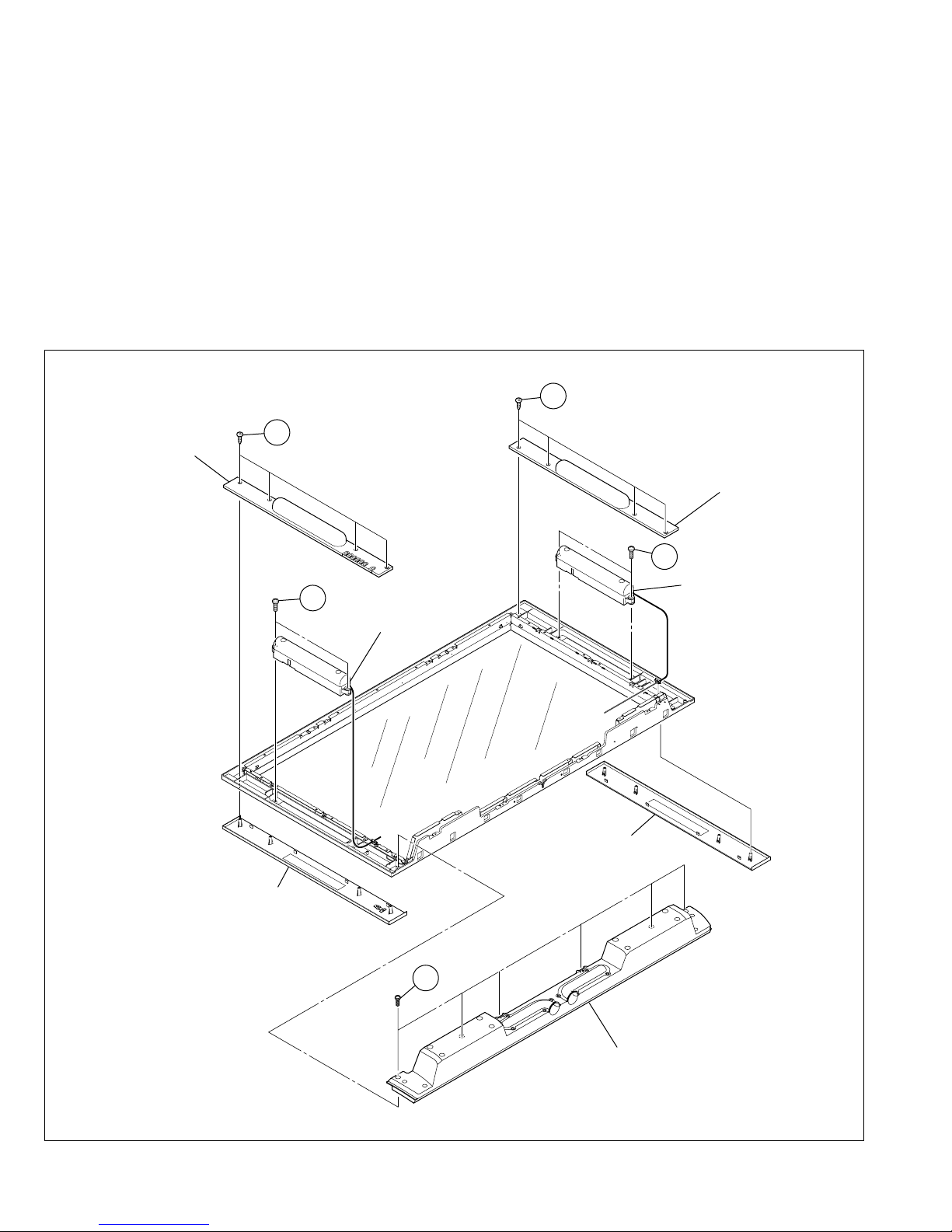

3.1.12 REMOVING THE SPEAKER ASS’Y(R) AND SPAKER
ASS’Y(L) (Fig. 5)
•Remove the REAR COVER
(1) Remove the 4 screws [f], withdraw the BACK COVER(R)
and the SP HOLDER ASS’Y.
(2) Disconnect the connector [CN60SR] from the AUDIO PWB.
(3) Remove the 2 screws [g], and remove the SPAKER
ASS’Y(R).
(4) Remove the 4 screws [h], and withdraw the BACK
COVER(L) and the SP HOLDER.
(5) Disconnect the connector [CN60SL] from the AUDIO PWB.
(6) Remove the 2 screws [i], and remove the SPEAKER
ASS’Y(L).
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.
3.1.13 REMOVING THE WOOFER SPEAKER ASS’Y (Fig. 5)
•Remove the REAR COVER.
(1) Disconnect the connector [CN60CB] from the AUDIO PWB.
(2) Remove the 6 screws [j], and remove the WOOFER
SPEAKER ASS’Y.
NOTE:
•It is advisable to take note of the connecting location
(connector number) of the removed connectors.

(No.YA013) 1-17

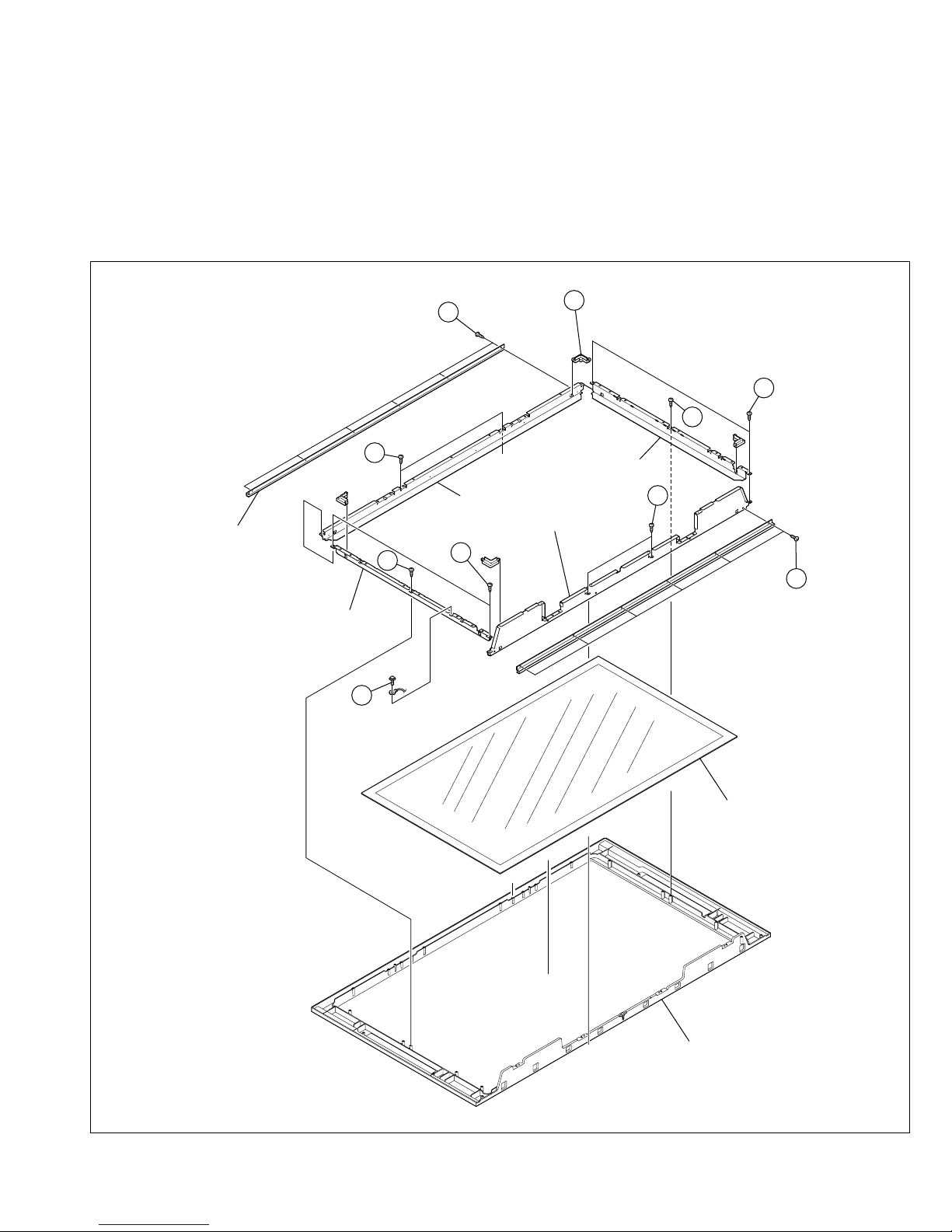

3.1.14 REMOVING THE FRONT FILTER (Fig. 6)
•Remove the REAR COVER.
•Remove the CHASSIS SHIELD BRACKET.
•Remove the TERMINAL COVER.
•Remove the CHASSIS BASE (with each PWB affixed on the
CHASSIS BASE).
•Remove the PDP UNIT.
(1) Remove the 4 mounting bosses [k], the 6 screws [l] and
the 6 screws [m], and withdraw the GLASS HOLDERS.
(2) Remove the FRONT FILTER with enough care not to
damage it.
3.1.15 REMOVING THE TOP FRAME BRACKET, BOTTOM FRAME
BRACKET AND SIDE FRAME BRACKET (Fig. 6)
•Remove the REAR COVER.
•Remove the CHASSIS SHIELD BRACKET.
•Remove the TERMINAL COVER.
•Remove the CHASSIS BASE (with each PWB affixed on the
CHASSIS BASE).
•Remove the PDP UNIT.
(1) Remove the 4 screws [n], the 6 screws [o] and the 1 screws
[p], and remove the TOP FRAME BRACKET, BOTTOM
FRAME BRACKET and SIDE FRAME BRACKET.
l (x6)
o
(x2)
o
(x2)
n (x2)
n
p
(x2)
k (x4)
m (x6)
o
o
SIDE FRAME BRACKET
GLASS HOLDER
SIDE FRAME BRACKET
TOP FRAME BRACKET
BOTTOM FRAME BRACKET
FRONT FILTER
FRONT PANEL
Fig. 6
c
c

1-18 (No.YA013)
3.2 DISASSEMBLY OF PROCEDURE [RECEIVER UNIT]
3.2.1 REMOVING THE TOP COVER
(1) Remove the 4 screws [A] on the both left and right sides.
(2) Remove the 3 screws [B] on the rear side.
(3) Lift upwards and withdraw the TOP COVER.
3.2.2 REMOVING THE FRONT PANEL
•Remove the TOP COVER.
(1) Remove the 1 screw [C] and 1 screw [D].
(2) Disengage the 2 claws [E] on the both left and right sides.
(3) Disengage the 2 claws [F] on the bottom side.
(4) Withdraw the FRONT PANEL in a front direction.
3.2.3 REMOVING THE DAMPER (INSIDE FRONT PANEL)
•Remove the TOP COVER.
•Remove the FRONT PANEL.
(1) Remove the 1 screw [G], and remove the DAMPER.
3.2.4 REMOVING THE FORNT CONTROL PWB
•Remove the TOP COVER.
•Remove the FRONT PANEL.
(1) Remove the 4 screws [H], and remove the FRONT
CONTROL PWB.
3.2.5 REMOVING THE REAR COVER
•Remove the TOP COVER.
(1) Remove the 1 screw [I], 2 screws [J], 2 screws [K], 6 screws
[L], 6 screws [M] and 1 connector [N].
(2) Withdraw the REAR COVER in a rear direction.
3.2.6 REMOVING THE DIST PWB AND DIST RELAY PWB
•Remove the TOP COVER.
•Remove the REAR COVER.
(1) Remove the 2 screws [O] and 2 screws [P].
(2) Lift upwards and withdraw the SUPPORT BRACKET, the
DIST PWB and the DIST RELAY PWB.
(3) Remove the 6 screws [Q] and remove the SUPPORT
BRACKET.
(4) Pull right and left and remove the DIST PWB and DIST
RELAY PWB.
3.2.7 REMOVING THE MI-COM PWB AND MI-COM INTERFACE PWB
•Remove the TOP COVER.
•Remove the REAR COVER.
•Remove the DIST PWB AND DIST RELAY PWB.
(1) Remove the 1 screw [R] and remove the PB HOLDER.
(2) Lift upwards and withdraw the MI-COM PWB and the MI-
COM INTERFACE PWB.
(3) Pull right and left and remove the MI-COM PWB and the
MI-COM INTERFACE PWB.
3.2.8 REMOVING THE AV JACK PWB AND AV SWITCH PWB
•Remove the TOP COVER.
•Remove the REAR COVER.
•Remove the DIST PWB AND DIST RELAY PWB.
•Remove the MI-COM PWB AND MI-COM INTERFACE PWB.
(1) Remove the 3 screws [S] and remove the TERMINAL
BRACKET.
(2) Lift upwards and withdraw the AV JACK PWB and the AV
SWITCH PWB.
(3) Pull right and left and remove the AV JACK PWB and the AV
SWITCH PWB.
3.2.9 REMOVING THE MAIN PWB AND RECEIVER POWER PWB
•Remove the TOP COVER.
•Remove the REAR COVER.
•Remove the DIST PWB AND DIST RELAY PWB.
•Remove the MI-COM PWB AND MI-COM INTERFACE PWB.
•Remove the AV JACK PWB AND AV SWITCH PWB.
(1) Remove the 2 screws [T] and 2 screws [U]. Then, lift
upwards and withdraw the MAIN PWB.
(2) Remove the 6 screws [V] and remove the MI-COM
HOLDER and the RECEIVER POWER PWB.
3.2.10 REMOVING THE AC INLET
•Remove the TOP COVER.
•Remove the REAR COVER.
•Remove the DIST PWB AND DIST RELAY PWB.
(1) Remove the 1 screw [W] and remove the AC INLET.

(No.YA013) 1-19
a
d
c
Fig. 7
A
B
a
b
D
C
FRONT PANEL
(BACK SIDE)
DAMPER
G
MAIN PWB
AC INLET
REAR COVER
BOTTOM CASE
FRONT
CONTROL
PWB
FRONT PANEL
FRONT PANEL
FRONT DOOR
RECEIVER POWER PWB
AV SWITCH PWB
MI-COM
HOLDER
MI-COM PWB
PB HOLDER
TOP COVER
MI-COM
INTERFACE
PWB
SUPPORT
BRACKET
DIST PWB
DIST RELAY
PWB
c
f
d
b
AV ACK PWB
e
fe
A
I
K
L
M
MN
MM
TERMINAL
BRACKET
Q
O
Q
P
V(x4)
(x5)
(x3)
(x2)
(x2)
V
T
T
R
H
V
P
O
S(x3)
(x4)
(x2)
(x2)
(x2)
(x2)
(x6)
(x2)
U
W
E
U
E
F
F

1-20 (No.YA013)
3.3 REPLACEMENT OF MEMORY IC
3.3.1 MEMORY IC
This unit uses the nonvolatile memory IC.
The memory IC memories data for video and deflection circuits. To replace the memory IC without the data written, malfunctions
might occurred while power is on, and the normal image might not appear. When replacing the memory IC, be sure to use the IC
written with the initial values of data.
3.3.2 PROCEDURE FOR REPLACING THE MEMORY IC
1. Power off
Switch the power off and unplug the power cord from the
wall outlet.
2. Replacing the memory IC
Replace the memory IC with new one. Be sure to use the
memory IC written with the initial data values.
3. Power on
Plug the power cord into the wall outlet and switch the
power on.
4. Check and setting of SYSTEM CONSTANT SET
(1) Press the [INFORMATION] key and the [MUTING] key
on the remote control unit simultaneously.
The SERVICE MENU screen will be displayed.(See
Fig.1.)
(2) In the SERVICE MENU, press the [INFORMATION] key
and [MUTING] key simultaneously. Then, the SYSTEM
CONSTANT SET screen will be displayed.(See Fig.2.)
(3) Check whether the setting values of the SYSTEM
CONSTANT SET are the same as those indicated in
Table1.
(4) Press the [INFORMATION] key twice to return to the
normal screen.
5. Receive channel setting
Refer to the OPERATING INSTRUCTIONS and set the
receive channels (channels preset).
6. User setting
Check the user setting values in Table 2 and Table 3. If
setting value is different, set the correct value.
For setting, refer to the OPERATING INSTRUCTIONS.
7. Setting of SERVICE MENU
Verify the setting for each setting item in the SERVICE
MENU.(See Table 4.) If readjustment is necessary,
perform adjustment referring to “ADJUSTMENTS
PROCEDURE”.
SERVICE MENU
1. IF 2. V/C
3. AUDIO 4. DD/CM
5. VSM PRESET 6. STATUS
7. VNR 8. IP
9. SHIPPING (OFF) 0. BUS FREE
1-9 : SELECT i : EXIT
SERVICE MENU SCREEN
SERVICE MENU SCREEN
Fig.1
SYSTEM CONSTANT SET SCREEN
SYSTEM CONSTANT SET SCREEN
SYSTEM CONSTANT SET
1. DESTINATION EURO
-/+ : STORE i : EXIT
OK
Fig.2
3.3.3 FACTORY SETTING VALUE
3.3.3.1 SETTING OF SYSTEM CONSTANT SET
Setting item Setting content Setting value
DESTINATION ASIA / EURO EURO
Table 1
3.3.3.2 SETTING OF SWITCHS ON DISPLAY UNIT AND REMOTE CONTROL UNIT
Setting item Setting value
POWER OFF
SHIPPING CHANNEL PR1
PRESET CHANNEL RefertoOPERATIONINSTRUCTIONS
VOLUME 10
ZOOM PANORAMIC
3D SOUND OFF
Table 2
