SERVICE MANUAL
VIDEO CASSETTE RECORDER
No. 82769
September 1999
COPYRIGHT © 1999 VICTOR COMPANY OF JAPAN, LTD.
HR-S5600KR
Regarding service information other than these sections, refer to the HR-S3600U/S4600U service manual (No. 82717).
Also, be sure to note important safety precautions provided in the service manual.
SPECIFICATIONS
T
V
P
R
O
G
+
T
V
–
T
V
P
R
O
G
–
T
V
+
VCR
START
DEBUT
STOP
FIN DATE
MENU
OK
TV
PROG
TV/VCR
0000
DAILY/QTDN.
AUX
WEEKLY/HEBDO
PROG
AUDIO
CABLE
/SAT
123
456
789
0
2
4
1
3
EXPRESS
LP20303-011
TV
VPS/PDC
ENTER/ENTREE
30 SEC
m ULTI m ARQUE
JOG
SHUTTLE
VIDEO (MONO)L—AUDIO—R
PLAY
FF
REW
MENU OK
CH
S-VHS ET
REC LINK
S-VIDEO
SP/EP TV/VCR
PAUSE
REC
STANDBY/ON
STOP/EJECT
SP
VCR
+8
4
0
6
15dB
NORM
G-CODE
GENERAL
Power requirement : AC 110 – 220 V`, 60 Hz
Power consumption
Power on : 19 W
Power off : 4.0 W
Temperature
Operating : 5°C to 40°C
Storage : –20°C to 60°C
Operating position : Horizontal only
Dimensions (W x H x D) : 400 x 94 x 347 mm
Weight : 3.8 kg
Format : S-VHS/VHS NTSC standard
Maximum recording time
SP : 210 min. with ST-210 video cassette
EP : 630 min. with ST-210 video cassette
VIDEO/AUDIO
Signal system : NTSC-type color signal and EIA
monochrome signal, 525 lines/60
fields
Recording/
Playback system : DA-4 (Double Azimuth) head helical
scan system
Signal-to-noise ratio : 45 dB
Horizontal resolution : 240 lines (VHS)
400 lines (S-VHS)
Frequency range
Normal audio : 70 Hz to 10,000 Hz
Hi-Fi audio : 20 Hz to 20,000 Hz
Input/Output : RCA connectors (IN x 2, OUT x 1)
: S-Video connectors (IN x 2, OUT x 1)
TUNER
Tuning system : Frequency-synthesized tuner
Channel coverage
VHF : Channels 2–13
UHF : Channels 14–69
CATV : 113 Channels
RF output : Channel 3 or 4 (switchable;
preset to Channel 3 when
shipped) 75 ohms, unbalanced
TIMER
Clock reference : Quartz
Program capacity : 1-year programmable timer/
8 programs
Memory backup time : Approx. 6 months
Estimated figure based on
supplied fresh battery; actual
performance may differ.
ACCESSORIES
Provided accessories : RF cable,
Infrared remote control unit,
"AA" battery x 2,
S-Video cable (4-pin)
Specifications shown are for SP mode unless otherwise specified.
E. & O.E. Design and specifications subject to change without
notice.

The following table indicate main different points between models HR-S4600U and HR-S5600KR.
Notes : Mark —is not used.
MODEL HR-S4600U HR-S5600KR
ITEM
POWER VOLTAGE 120V, 60Hz 110 –220V(60Hz)
FRONT PANEL COLOR BLACK CHAMPAGNE GOLD
FE HEAD USED NOT USED
HEAD CLEANER NOT USED USED
ASSEMBLE EDIT ZFE A.F.E.
INSERT EDIT USED NOT USED
AUDIO DUBBING USED NOT USED
STEREO DECODER MTS A2(KOREAN)
HiFi LEVEL METER NOT USED USED
SUMMER TIME ADJ. USED NOT USED
CHILD LOCK USED NOT USED
VCR Plus+ VCR+C3 G-CODE
REC RESUME NOT USED USED
AUTO CLOCK USED NOT USED
JUST CLOCK USED NOT USED
CABLE&DBS BOX CTL USED NOT USED
CM/MV ADVANCE USED NOT USED
ILLUMI FUNCTION USED NOT USED
TABLE OF CONTENTS
4. CHARTS AND DIAGRAMS

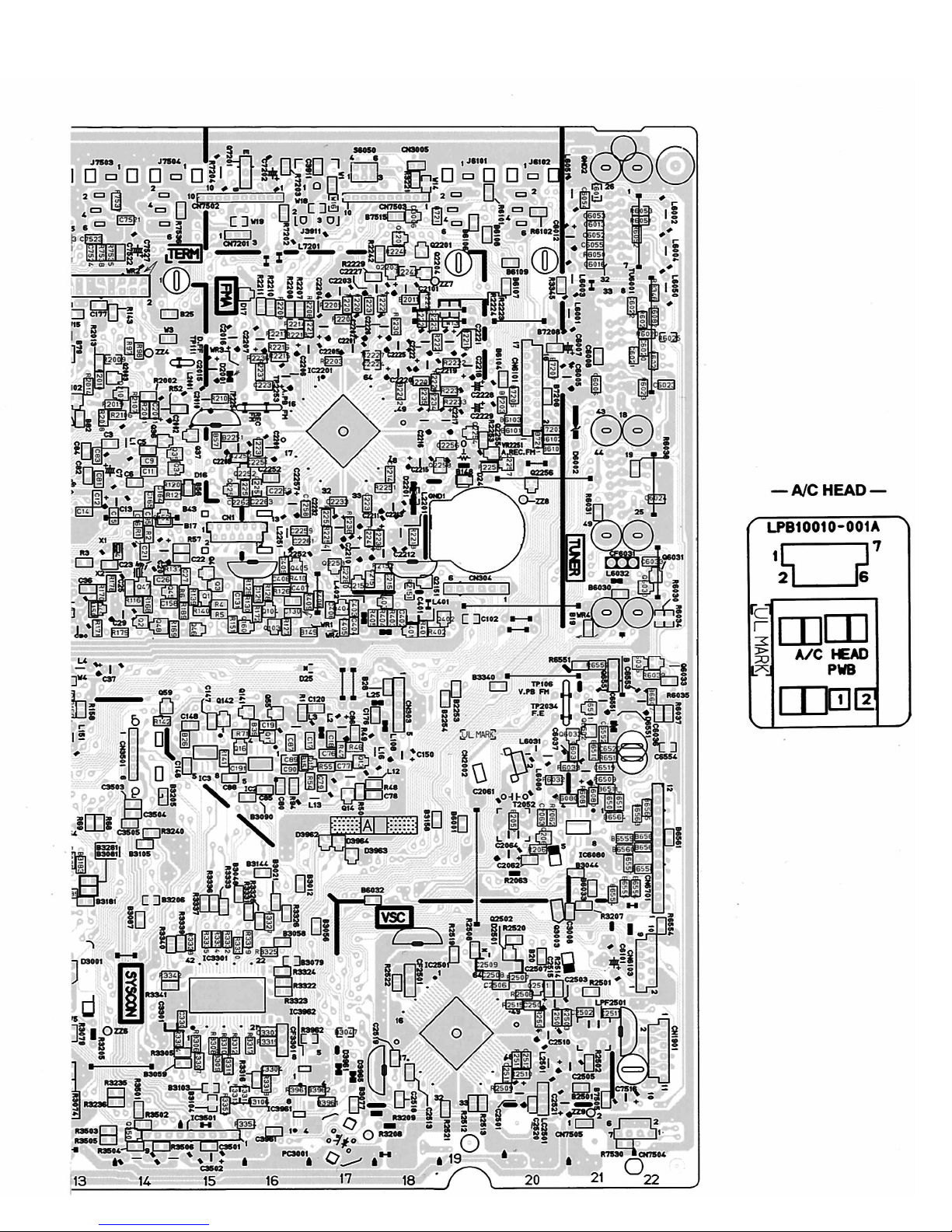

4.10 MAIN AND A/C HEAD CIRCUIT BOARDS............................................................................................................................. 4-23
4.14 DEMODULATOR SCHEMATIC DIAGRAM ............................................................................................................................ 4-33

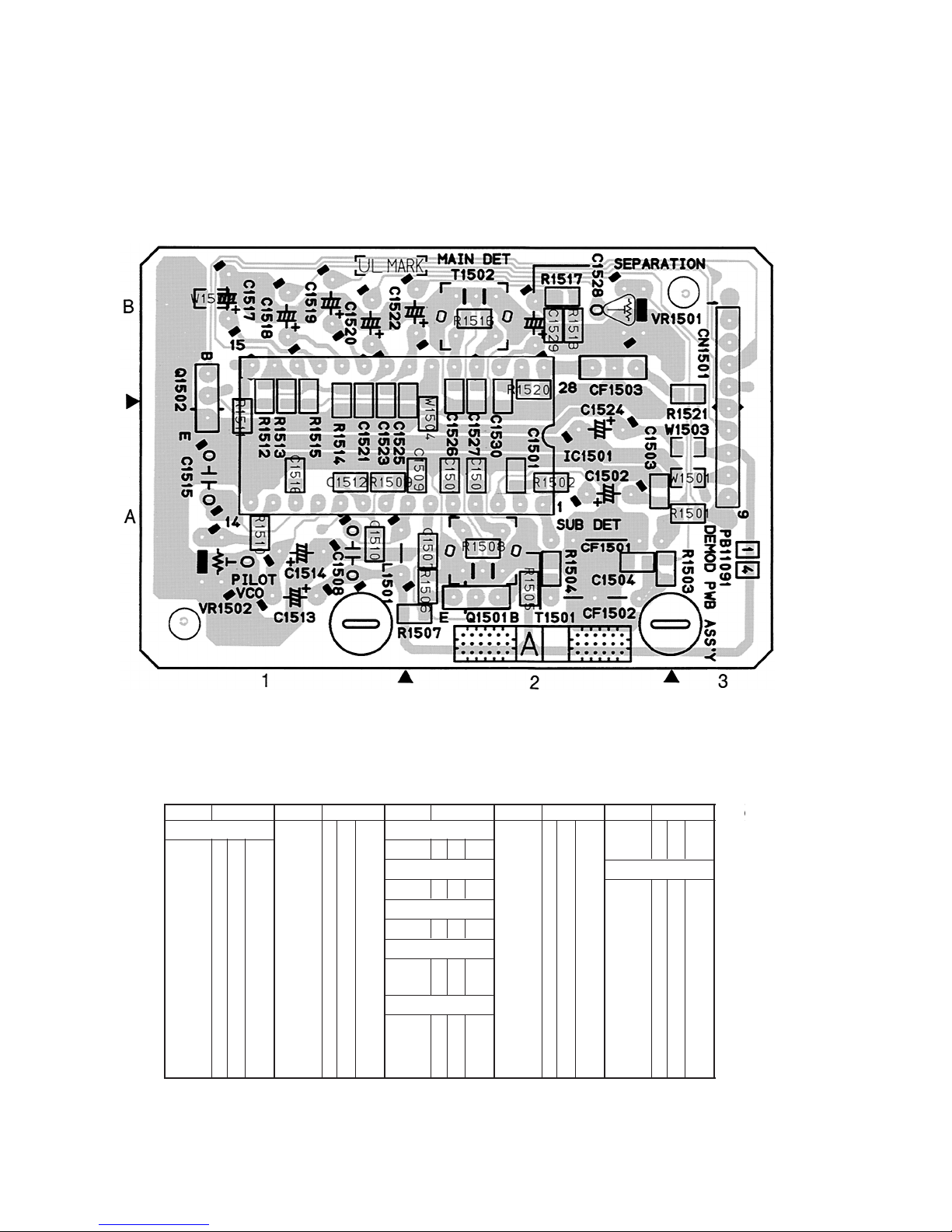

4.15 DEMODULATOR CIRCUIT BOARD ...................................................................................................................................... 4-35

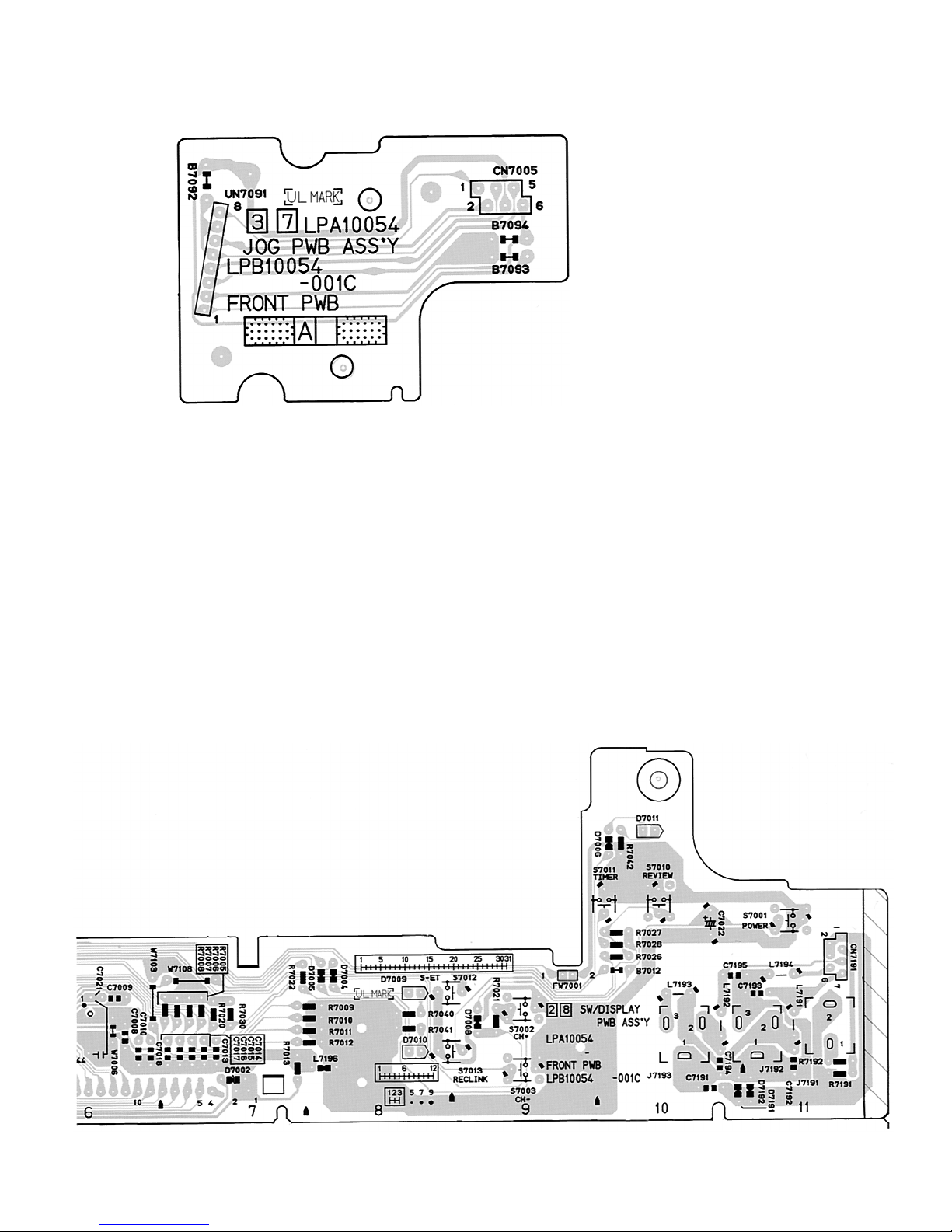

4.19 SWITCH/DISPLAY, REC SAFETY, JACK AND JOG CIRCUIT BOARDS .............................................................................. 4-41

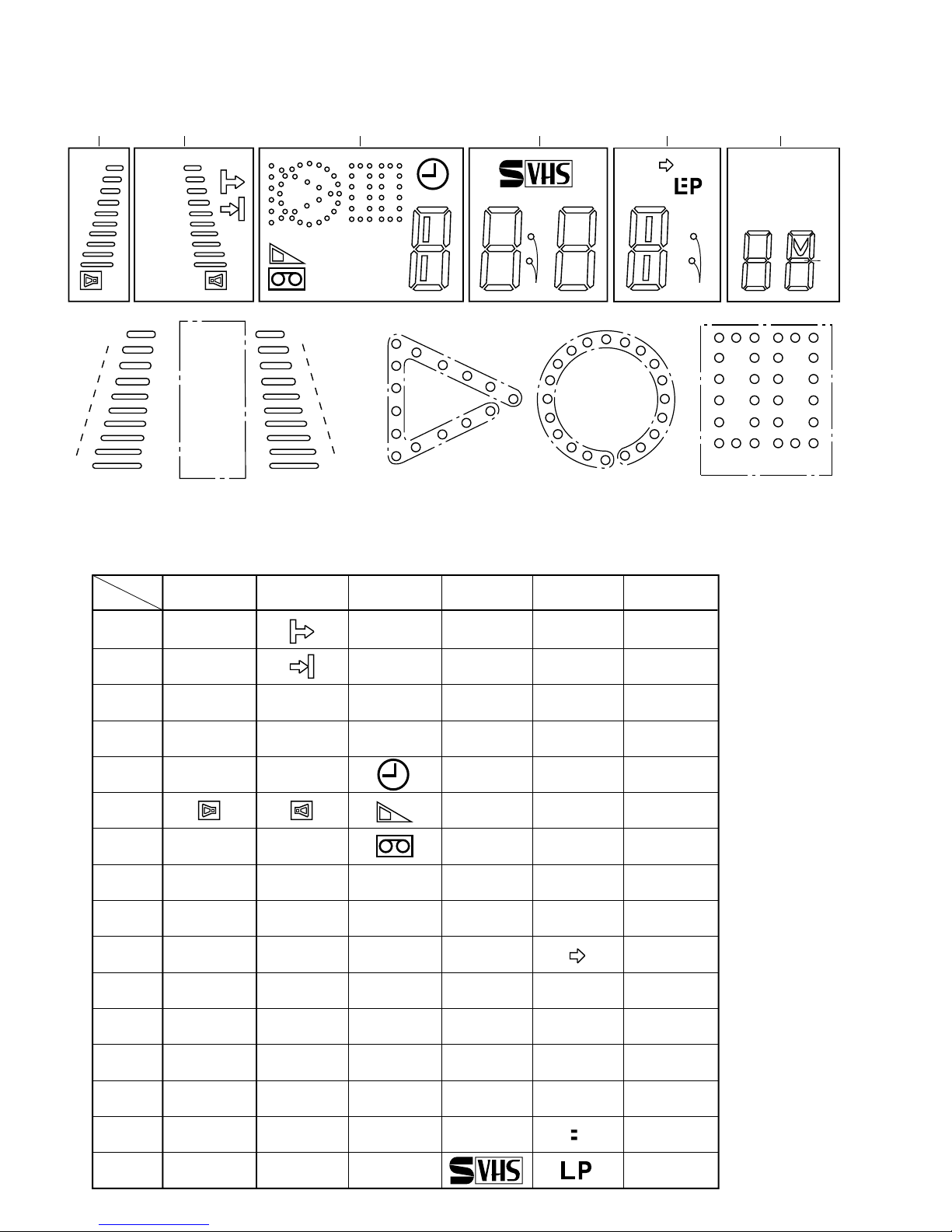

4.20 FDP GRID ASSIGNMENT AND ANODE CONNECTION ....................................................................................................... 4-43

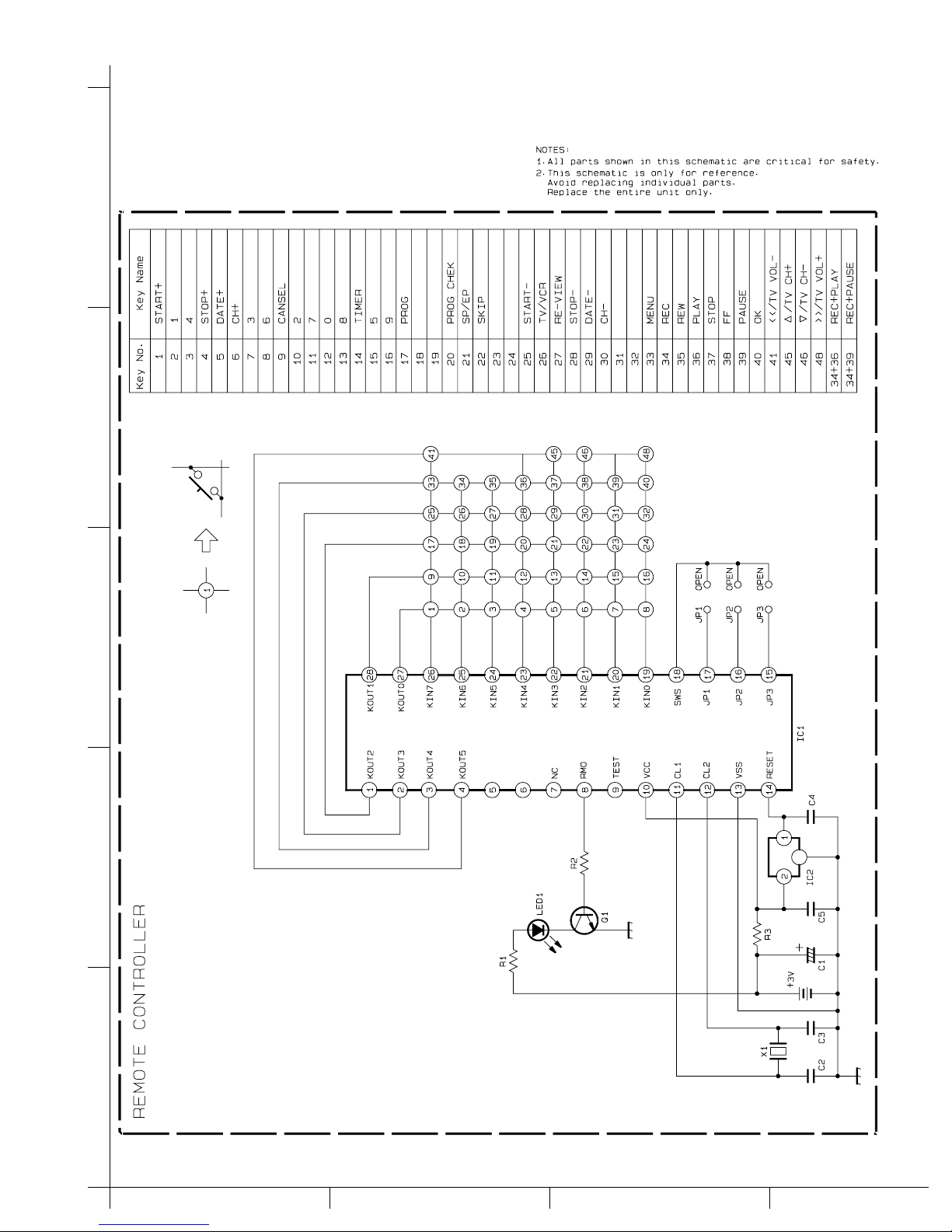

4.21 REMOTE CONTROL SCHEMATIC DIAGRAM ...................................................................................................................... 4-44
5. PARTS LIST
5.2 CABINET AND CHASSIS ASSEMBLY <M2> ............................................................................................................................. 5-2
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
301 PACKING CASE LP30575-003B LP30575-024B
306 REMOTE CONTROLLER LP20303-009A LP20303-011B
!310 INST BOOK(EN) LPT0190-001A —
!INST BOOK(KO) —LPT0294-001A
313 PIN CORD PEAC0359-120 —
315 LED CABLE ASSY PEAC0370 —
316 WARRANTY CARD —BT-56009-2M
317 Q.S.SHEET LPT0190-002A —
319 REGIST.CARD BT-51020-2 —
PACKING AND ACCESSORY ASSEMBLY <M1>
The following table indicate different parts number between models HR-S4600U and HR-S5600KR.
1

Notes : Mark —is not used.
Nark is same as left.
Mark *HR-S4600U was also changed.
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
!501 FRONT PANEL ASSY LP10217-004D LP10217-023A
501A CASSETTE DOOR LP20342-031C LP20342-043A
501C DISPLAY WINDOW LP30531-002B LP30531-019A
!502 TOP COVER PQ11676-83 PQ11676-81
503 TAP SCREW QYTDSF3010M QYTDSF3010R
505 DRUM SUB ASSY LP20617-008A LP20617-006A
505A UPPER DRUM ASSY LP20030-015A LP20616-003A
!511 BOTTOM CHASSIS LP10116-001E LP10116-003G
518 CLEANER ASSY —LP40369-001D
518A CLEANER ROLLER —PQ46418-1-2
518B CLEANER —PQ46419-1-2
518C CLEANER ARM —LP30407-001D
!523 POWER CORD QMPD190-170-K PQ21730N
529 KNOB(JOG) LP30121-007A LP30121-005A
530 KNOB SHUTTLE LP30120-007A LP30120-005A
533 SPECIAL SCREW, MECHA *PQ40413
CABINET AND CHASSIS ASSEMBLY <M2>
PW1 MAIN BOARD ASSY LPA10048-04C1 LPA10048-17D1
IC201 IC(OSD) LC74785N-9762 LC74788N-9612
IC2201 IC AN3650NFBP AN3651FBP
IC3001 IC(MCU) HD6432194A05F HD6432193A18F
Q34 TRANSISTOR —2SC4081/S/-X
Q35 TRANSISTOR —2SC4081/S/-X
Q36 TRANSISTOR —2SC4081/S/-X
Q37 TRANSISTOR —2SC4081/S/-X
Q203 DIGI TRANSISTOR UN521E —
Q208 TRANSISTOR 2SC4081/QRS/-X 2SD1819A/QRS/-X
Q401 TRANSISTOR 2SA1576A/QR/-X —
Q402 DIGI TRANSISTOR UN521E —
Q403 DIGI TRANSISTOR UN521E —
Q404 TRANSISTOR 2SA1576A/QR/-X —
Q405 TRANSISTOR 2SA1576A/QR/-X —
Q2061 TRANSISTOR 2SC4081/QRS/-X —
Q2062 TRANSISTOR 2SA1576A/QR/-X —
Q2063 DIGI TRANSISTOR DTC144WU —
Q2103 TRANSISTOR 2SC4081/QRS/-X —
Q5101 FET 2SK2043-CB14 2SK2632-CB14
Q6551 TRANSISTOR 2SC1740S/QRS/-T —
Q7201 TRANSISTOR 2SD1292/QR/-T —
D204 SI DIODE 1SS355 —
D5105 SI DIODE —1SS133-T2
D5201 DIODE AU01Z AK04-T2
D6551 ZENER DIODE MTZJ10B-T2 —
R60 MG RESISTOR NRSA02J-0R0X —
R73 MG RESISTOR —NRSA02J-683X
R120 MG RESISTOR —NRSA02J-102X
R121 MG RESISTOR —NRSA02J-102X
R202 MG RESISTO —NRSA02J-103X
R203 MG RESISTOR —NRSA02J-103X
R204 MG RESISTOR —NRSA02J-103X
R207 MG RESISTOR NRSA02J-0R0X —
MAIN BOARD ASSEMBLY <03>
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
2

Notes : Mark —is not used.
R208 MG RESISTOR NRSA02J-222X NRSA02J-0R0X
R215 MG RESISTOR NRSA02J-103X —
R216 MG RESISTOR —NRSA02J-103X
R217 MG RESISTOR NRSA02J-103X —
R219 MG RESISTOR NRSA02J-102X —
R223 MG RESISTOR NRSA02J-0R0X —
R401 MG RESISTOR NRSA02J-473X —
R402 MG RESISTOR NRSA02J-472X —
R403 MG RESISTOR NRSA02J-473X —
R404 MG RESISTOR NRSA02J-683X —
R405 MG RESISTOR NRSA02J-473X —
R408 MG RESISTOR NRSA02J-681X —
R409 MG RESISTOR NRSA02J-102X —
R410 MG RESISTOR NRSA02J-221X —
R2054 MG RESISTOR NRSA02J-153X NRSA02J-123X
R2056 MG RESISTOR NRSA02J-101X NRSA02J-820X
R2061 MG RESISTOR NRSA02J-273X —
R2062 MG RESISTOR NRSA02J-3R3X —
R2063 RESISTOR QRE141J-151Y QUY153-050Y
R2064 MG RESISTOR NRSA02J-473X —
R2065 MG RESISTOR NRSA02J-183X —
R2106 MG RESISTOR NRSA02J-103X —
R2107 MG RESISTOR NRSA02J-102X —
R3232 MG RESISTOR —NRSA02J-103X
R3242 MG RESISTOR —NRSA02J-0R0X
R3247 MG RESISTOR NRSA02J-0R0X —
R3252 MG RESISTOR —NRSA02J-0R0X
!R5001 RESISTOR QRZ9046-475Z —
R5107 RESISTOR QRE121J-561Y QRE121J-331Y
R5108 RESISTOR QRE141J-152Y QRE141J-222Y
R5111 MG RESISTOR —NRSA02J-821X
R5112 MG RESISTOR —NRSA02J-221X
R5301 RESISTOR QUY153-050 Y QRE141J-2R7Y
R6032 MG RESISTOR NRSA02J-123X —
R6508 MG RESISTOR NRSA02J-0R0X NRSA02J-682X
R6509 MG RESISTOR —NRSA02J-682X
R6510 MG RESISTOR NRSA02J-0R0X NRSA02J-682X
R6511 MG RESISTOR —NRSA02J-682X
R6551 MG RESISTOR NRSA02J-331X —
R6552 MG RESISTOR NRSA02J-101X —
R6553 MG RESISTOR QRE141J-471Y —
R6554 MG RESISTOR NRSA02J-471X —
R7202 MG RESISTOR NRSA02J-221X —
R7203 MG RESISTOR NRSA02J-472X —
R7204 OMF RESISTOR QRL01DJ-100X —
R7211 MG RESISTOR NRSA02J-101X —
R7531 MG RESISTOR —NRSA02J-0R0X
R7532 MG RESISTOR —NRSA02J-101X
R7533 MG RESISTOR —NRSA02J-101X
C3 CAPACITOR NCF21CZ-105X NCB21HK-103X
C5 CAPACITOR NCF21CZ-105X NCB21HK-103X
C9 CAPACITOR NCF21CZ-105X NCB21HK-103X
C11 CAPACITOR NCF21CZ-105X NCB21HK-103X
C164 CAPACITOR —NCB21HK-221X
C165 CAPACITOR —NCB21HK-221X
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
3

Notes : Mark —is not used.
C202 CAPACITOR NCB21CK-224X —
C209 CAPACITOR —NCB21CK-224X
C220 CAPACITOR NCB21HK-103X —
C402 CAPACITOR NCB21HK-103X —
C403 CAPACITOR NDC21HJ-220X —
C404 CAPACITOR NCS21HJ-681X —
C405 CAPACITOR NDC21HJ-220X —
C406 CAPACITOR NDC21HJ-180X —
C407 CAPACITOR NCB21HK-223X —
C408 CAPACITOR NDC21HJ-151X —
C409 CAPACITOR NCB21HK-103X —
C2052 M CAPACITOR QFLC1HJ-333Z QFLC1HJ-823Z
C2053 CAPACITOR NCB21HK-332X NCB21HK-472X
C2054 CAPACITOR NCB21HK-103X NCB21HK-223X
C2061 M CAPACITOR QFLC1HJ-333Z —
C2062 CAPACITOR NCB21HK-332X —
C2063 CAPACITOR NCB21HK-103X —
C2064 E CAPACITOR QEKJ1CM-106Z —
C2216 E CAPACITOR —QEKJ1HM-105Z
C2217 E CAPACITOR —QEKJ1HM-105Z
C2262 CAPACITOR NDC21HJ-101X —
C2263 CAPACITOR NDC21HJ-101X —
C3011 E CAPACITOR QETL0JM-478 QETL0JM-338
C3024 CAPACITOR NDC21HJ-120X NDC21HJ-220X
C3025 TRIM CAPACITOR —QAT3725-300Z
C3041 CAPACITOR NDC21HJ-100X —
!C5004 CAPACITOR QCZ9073-472 —
C5005 CAPACITOR —QCZ9071-222
C5006 E CAPACITOR QETM2DM-157 QEZ0374-826
C5106 CAPACITOR —QCBB1HJ-271
C6037 E CAPACITOR QEKJ1CM-106Z —
C6519 CAPACITOR —NCB21EK-223X
C6520 CAPACITOR —NCB21EK-223X
C7202 E CAPACITOR QETN0JM-477 —
L205 COIL/IM BUS WIRE QQL071J-4R7Y QUY153-050Y
L402 INDUCTOR QQL231J-150Y —
L7201 P COIL QQL01BJ-101Z —
CN1 FPC CONNECTOR QGF1028C1-13 QGF1028C1-11
HS1 HEAT SINK, Q5101 LP40090-001A LP40515-001A
!F5001 FUSE QMF51N2-1R25J1 QMF51E2-2R0J1
OT3 TAP SCREW, Q5101 QYTDST3006Z QYTDST3008Z
T2051 OSC TRANSFORMER PELN0860 PELN0832
T2052 OSC TRANSFORMER PELN0861 —
!TB1 TERMINAL BOARD ASSY LP30560-003C LP30560-013C
TU6001 TUNER QAU0113-002 QAU0125-001
! SG5001 SURGE ABSORBER QAF0046-242Z —
! VA5001 VARISTOR QAF0023-431Z QAF0026-621
! VA5002 VARISTOR QAF0023-431Z —
! PC5101 PH COUPLER PS2501-1 PS2561L-1(WL)
X3001 CRYSTAL QAX0444-001 QAX0445-001
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
4

PW1 2D SVHS BOARD ASSY LPA10017-10B LPA10017-11B
R1007 MG RESISTOR NRSA02J-0R0X NRSA02J-473X
R1035 MG RESISTOR —NRSA02J-0R0X
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
2D SVHS BOARD ASSEMBLY <05>
PW1 DEMOD BOARD ASSY PB11076A PB11091A
IC1501 IC UPC1852AGT KA2268
Q1501 TRANSISTOR —2SC1740S/QRS/-T
Q1502 DIGI TRANSISTOR —DTC144WSA-T
R1501 MG RESISTOR QRE141J-102Y NRSA02J-471X
R1502 MG RESISTOR QRE141J-334Y NRSA02J-102X
R1503 MG RESISTOR QRE141J-124Y NRSA02J-822X
R1504 MG RESISTOR QRE141J-302Y NRSA02J-103X
R1505 MG RESISTOR QRE141J-512Y NRSA02J-473X
R1506 MG RESISTOR QRE141J-333Y NRSA02J-101X
R1507 MG RESISTOR QRE141J-333Y NRSA02J-102X
R1508 MG RESISTOR QRE141J-392Y NRSA02J-273X
R1509 MG RESISTOR QRE141J-122Y NRSA02J-103X
R1510 MG RESISTOR QRE141J-392Y NRSA02J-563X
R1511 MG RESISTOR QRE141J-122Y NRSA02J-562X
R1512 MG RESISTOR —NRSA02J-332X
R1513 MG RESISTOR —NRSA02J-123X
R1514 MG RESISTOR —NRSA02J-123X
R1515 MG RESISTOR —NRSA02J-562X
R1516 MG RESISTOR —NRSA02J-273X
R1517 MG RESISTOR QRE141J-123Y NRSA02J-103X
R1518 MG RESISTOR —NRSA02J-102X
R1520 MG RESISTOR —NRSA02J-102X
R1521 MG RESISTOR —NRSA02J-471X
VR1501 V RESISTOR —QVPA606-103Z
VR1502 V RESISTOR —QVPA606-683Z
C1501 CAPACITOR QETC1CM-226Z NCB21EK-473X
C1502 E CAPASITOR QETC1HM-104Z QEKC1CM-106Z
C1503 CAPACITOR QTEC1HM-105Z NCB21HK-471X
C1504 E CAPASITOR QTEC1HM-475Z —
C1505 CAPACITOR QTEC1HM-225Z NDC21HJ-470X
C1506 CAPACITOR QTEC1HM-104Z NDC21HJ-470X
C1507 CAPACITOR QFV11HJ-473Z NCB21EK-104X
C1508 MF CAPACITOR QETC1HM-474Z QFV11HJ-124Z
C1509 CAPACITOR QETC1HM-104Z NCB21EK-104X
C1510 CAPACITOR QETC1HM-105Z NCB21EK-473X
C1511 E CAPASITOR QETC1HM-105Z —
C1512 CAPACITOR QETC1HM-105Z NCB21EK-683X
C1513 E CAPASITOR QEE81CJ-335Z QEKC1EM-475Z
C1514 E CAPASITOR QEE81CJ-106Z QEKC1EM-475Z
C1515 M CAPASITOR QETC1HM-105Z QFLC1HJ-683Z
C1516 CAPACITOR QETC1HM-106Z NCB21EK-473X
C1517 E CAPASITOR QETC1HM-106Z QETC1CM-227Z
C1518 E CAPASITOR QETC1HM-105Z QEKC1CM-106Z
C1519 E CAPASITOR —QEKC1CM-106Z
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
DEMOD BOARD ASSEMBLY <14>
Notes : Mark —is not used.
5

C1520 E CAPASITOR —QEKC1CM-106Z
C1521 E CAPASITOR QETC1HM-106Z —
C1522 E CAPASITOR —QEKC1CM-106Z
C1523 CAPACITOR —NCB21HK-332X
C1524 E CAPASITOR —QETC1CM-227Z
C1526 CAPACITOR —NDC21HJ-470X
C1527 CAPACITOR —NDC21HJ-470X
C1528 E CAPASITOR —QEKC1CM-106Z
C1530 CAPACITOR —NCB21EK-473X
L1501 P COIL —QQL01BJ-680Z
CF1501 C FILTER —PEVB0685
CF1502 C FILTER —PEVB0686
CF1503 C FILTER —PEVB0688
T1501 IFT —PELN1238
T1502 IFT —PELN1239
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
Notes : Mark —is not used.
PW1 MV/CM ADV BOARD ASSY LPA10013-03A —
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
MV/CM/ADV BOARD ASSEMBLY <23>
PW1 DISPLAY BOARD ASSY LPA10054-04B1 LPA10054-12B1
R7009 RESISTOR —QRE141J-393Y
R7010 RESISTOR —QRE141J-393Y
DI7001 FL TUBE QLF0031-002 QLF0032-002
HD1 FDP HOLDER L, DI7001 LP30140-001A PQ34668
HD2 FDP HOLDER R, DI7001 LP30141-001A PQ34669
J7191 PIN JACK PEMC1126 PEMC1126-04
J7192 PIN JACK(SW) PEMC0922 PEMC0922-03
J7193 PIN JACK(SW) PEMC0922 PEMC0922-02
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
SW/DISPLAY BOARD ASSEMBLY <28>
PW4 JACK BOARD ASSY LPA10054-01B4 LPA10054-12B4
C7196 CAPACITOR/IM BUS WIRE QDYB1CN-103Y QUY153-050Y
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
JACK BOARD ASSEMBLY <36>
6
PW2 C.BOX/LANC BOARD ASSY LPA10048-04A2 —
!REF. MODEL HR-S4600U HR-S5600KR
NO ITEM
C.BOX/LANC BOARD ASSEMBLY <95>

4-23
SECTION 4
CHARTS AND DIAGRAMS
4.10 MAIN AND A/C HEAD
CIRCUIT BOARDS

4-24

4-22
REF.NO. LOCATION
REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATIONREF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION
COMPONENT PARTS LOCATION GUIDE <MAIN>
CAPACITOR
C1 A D 11L
C3 B C 13L
C5 B C 14L
C6 B C 14K
C7 A D 13L
C9 B C 14L
C11 B C 14L
C12 B C 13K
C13 A D 13K
C14 B C 13K
C15 B C 13K
C16 B C 14K
C17 B C 17G
C18 B C 17G
C19 B C 16H
C20 A D 14J
C21 B C 14J
C22 B C 15J
C23 B C 13J
C24 B C 14J
C25 B C 14J
C26 B C 14J
C27 B C 15J
C29 A D 14I
C30 A D 13I
C31 B C 13I
C32 B C 12H
C34 A D 12I
C36 B C 13J
C37 A D 13I
C38 B C 11H
C39 B C 12G
C40 B C 12H
C41 B C 12I
C42 B C 10H
C43 B C 11H
C44 B C 10H
C45 B C 10H
C46 B C 10H
C47 B C 11J
C48 A D 11I
C49 B C 9H
C50 B C 9H
C51 B C 10M
C52 B C 10N
C53 B C 11N
C54 A D 11J
C55 A D 10J
C56 A D 10K
C57 B C 10K
C58 B C 10J
C59 B C 10J
C60 B C 9K
C61 B C 8J
C62 B C 9K
C63 B C 10K
C64 A D 8K
C65 B C 10K
C73 B C 12H
C74 B C 12G
C76 B C 17G
C77 B C 17G
C78 B C 18G
C79 B C 17G
C80 B C 16G
C81 B C 13K
C82 B C 13L
C83 B C 13L
C84 B C 13L
C85 B C 16G
C86 A D 17H
C87 B C 16G
C88 B C 15G
C89 B C 16G
C90 B C 16G
C91 B C 10I
C92 B C 9K
C95 B C 14K
C98 B C 9K
C99 B C 9J
C101 B C 9K
C102 B C 19I
C104 B C 11I
C105 B C 12N
C107 B C 13I
C115 B C 12H
C120 B C 17H
C129 B C 16J
C130 B C 16I
C131 B C 15J
C134 B C 11J
C136 B C 13K
C141 B C 12I
C145 B C 10G
C146 B C 15G
C147 B C 15H
C148 B C 15H
C150 A D 18G
C153 B C 13G
C154 B C 9J
C158 B C 14J
C164 B C 14K
C165 B C 14K
C168 B C 11L
C169 B C 9H
C171 B C 11H
C175 B C 9J
C176 B C 18H
C177 B C 13N
C178 B C 11H
C181 B C 12H
C182 B C 9I
C183 B C 9I
C191 B C 15G
C193 B C 9J
C201 A D 7N
C202 B C 8M
C203 B C 8L
C204 B C 8L
C205 B C 8L
C206 B C 7M
C207 B C 7M
C208 B C 6L
C209 B C 7M
C210 B C 6M
C211 B C 6M
C212 B C 6L
C213 A D 6L
C214 B C 6M
C215 B C 6M
C216 A D 6M
C217 B C 7N
C218 B C 7N
C219 B C 7N
C220 B C 7M
C222 B C 8M
C223 B C 6N
C224 B C 6N
C401 B C 18I
C402 B C 18I
C403 B C 17I
C404 B C 17I
C405 B C 17I
C406 B C 17I
C407 B C 16J
C408 B C 16J
C409 B C 16J
C2001 B C 14M
C2002 A D 14L
C2003 B C 12L
C2004 A D 12L
C2005 B C 11L
C2006 B C 12L
C2007 A D 12L
C2008 B C 11L
C2009 A D 11L
C2010 A D 15M
C2011 B C 12M
C2013 B C 13M
C2015 A D 15M
C2016 A D 15N
C2017 B C 11L
C2051 B C 7I
C2052 A D 7I
C2053 B C 6J
C2054 B C 6J
C2055 A D 6J
C2061 A D 20G
C2062 B C 20F
C2063 B C 20F
C2064 A D 20F
C2101 A D 18N
C2102 A D 13L
C2151 B C 17J
C2152 B C 18J
C2201 A D 17M
C2202 A D 17N
C2203 A D 17N
C2204 A D 17N
C2205 A D 16M
C2206 A D 16M
C2207 A D 16N
C2208 A D 16L
C2209 A D 16L
C2210 A D 17J
C2211 A D 18K
C2212 A D 18J
C2213 A D 18K
C2214 B C 18L
C2215 A D 18L
C2216 A D 18L
C2217 A D 19L
C2218 A D 19M
C2219 A D 18M
C2220 A D 18M
C2221 A D 19N
C2222 A D 18N
C2223 B C 18N
C2224 B C 17M
C2225 A D 18N
C2226 A D 18N
C2227 A D 18N
C2228 A D 19M
C2229 A D 19M
C2230 B C 16M
C2231 B C 16L
C2232 A D 17K
C2233 B C 17K
C2234 B C 17K
C2251 B C 16L
C2252 B C 16K
C2253 B C 16K
C2254 B C 16K
C2255 B C 16K
C2256 B C 19L
C2257 A D 16K
C2258 B C 16K
C2259 B C 16K
C2260 B C 17J
C2261 B C 16K
C2262 B C 15K
C2263 B C 16K
C2501 A D 20B
C2502 B C 21C
C2503 A D 20C
C2504 B C 20C
C2505 A D 20B
C2506 B C 19D
C2507 B C 20D
C2508 B C 19D
C2509 B C 19D
C2510 A D 20C
C2511 B C 20B
C2512 B C 20B
C2513 B C 18B
C2515 B C 20D
C2517 B C 21C
C2518 B C 18B
C2519 B C 18C
C2520 B C 20B
C2521 A D 20B
C3001 B C 8J
C3002 B C 8H
C3003 A D 7H
C3004 B C 7H
C3007 B C 5E
C3008 B C 21E
C3010 A D 1B
C3011 A D 1B
C3012 A D 4B
C3013 B C 5B
C3014 B C 9E
C3016 B C 9C
C3017 B C 8B
C3018 B C 8B
C3019 B C 9B
C3020 B C 9B
C3021 B C 9B
C3022 B C 6D
C3023 B C 6C
C3024 B C 11C
C3025 A D 12B
C3026 B C 11B
C3027 B C 12B
C3028 B C 11B
C3029 B C 11B
C3030 B C 11C
C3031 B C 11C
C3032 B C 11D
C3033 B C 10E
C3034 B C 12C
C3035 B C 12C
C3036 B C 12C
C3037 B C 12C
C3038 B C 12D
C3039 B C 12D
C3040 B C 8C
C3041 B C 11C
C3042 A D 4A
C3052 B C 8C
C3053 A D 6B
C3054 B C 12C
C3301 B C 14C
C3302 B C 15C
C3303 B C 16C
C3304 B C 16B
C3501 B C 15A
C3502 A D 15A
C3503 B C 14F
C3504 B C 14F
C3505 B C 14F
C3911 B C 17P
C3961 B C 16A
C4001 B C 9E
C4002 B C 10E
C4003 B C 9F
C4004 B C 10F
C4005 B C 9F
C4006 B C 9F
C4007 B C 10F
C4008 B C 9E
C4009 B C 9E
C4010 B C 7E
C4011 B C 11F
C4012 B C 11G
C4013 B C 11F
C4014 B C 11F
C4015 B C 10F
C5001 A D 2O
C5002 A D 3N
C5003 A D 4P
C5004 A D 1M
C5005 A D 1L
C5006 A D 3M
C5101 A D 3K
C5102 A D 3J
C5103 B C 2K
C5104 A D 3L
C5105 A D 1K
C5106 A D 4L
C5107 A D 2K
C5108 A D 3N
C5109 A D 2N
C5110 A D 2K
C5201 A D 1F
C5202 A D 2G
C5203 A D 1G
C5204 A D 4H
C5205 A D 1F
C5206 A D 3G
C5207 A D 3F
C5208 A D 1E
C5209 A D 6P
C5210 A D 3H
C5301 A D 2D
C5302 A D 2D
C5303 A D 3E
C5304 A D 4D
C5305 B C 1F
C5306 A D 3C
C5307 A D 2D
C5308 A D 4F
C5309 A D 4F
C5310 A D 2C
C5311 A D 5M
C5312 A D 3C
C6005 A D 20M
C6006 B C 21M
C6007 A D 21M
C6008 B C 21M
C6012 A D 21O
C6013 B C 21O
C6014 B C 21P
C6016 B C 21O
C6020 B C 22M
C6021 B C 22M
C6022 B C 21N
C6023 B C 22M
C6024 B C 22K
C6032 B C 21G
C6033 B C 22J
C6036 B C 22H
C6037 A D 21G
C6052 B C 21O
C6053 B C 21P
C6054 B C 21P
C6055 B C 21O
C6080 B C 21G
C6101 A D 21D
C6519 B C 21G
C6520 B C 21G
C6551 A D 21H
C6552 B C 21H
C6553 A D 22H
C6554 B C 22G
C7202 A D 16P
C7501 B C 12O
C7502 B C 12O
C7503 B C 13O
C7504 B C 13O
C7505 B C 7P
C7506 B C 7O
C7507 B C 9P
C7508 B C 9O
C7509 A D 7O
C7510 B C 8O
C7511 A D 8O
C7512 A D 10P
C7513 B C 10P
C7514 A D 11P
C7515 A D 11P
C7516 A D 21B
C7517 B C 12O
C7518 B C 12O
C7519 B C 12O
C7520 B C 12O
C7521 B C 14O
C7522 B C 14O
C7523 B C 13O
C7524 B C 13O
C7525 A D 11O
C7526 B C 11O
C7527 A D 14O
C7528 A D 11O
C7529 B C 10O
C7530 A D 11O
C7531 A D 10O
CONNECTOR
CN1 A D 15K
CN101 A D 14O
CN102 A D 10O
CN303 A D 18H
CN304 A D 20J
CN1901 A D 22C
CN2001 A D 9L
CN2002 A D 20G
CN3001 A D 7L
CN3002 A D 8J
CN3003 A D 8H
CN3004 A D 10A
CN3005 A D 18P
CN3011 A D 3A
CN3012 A D 2C
CN3401 A D 6O
CN3501 A D 14H
CN5001 A D 1P
CN6101 A D 20L
CN6103 A D 22D
CN6701 A D 22E
CN7201 A D 15O
CN7501 A D 11P
CN7502 A D 16P
CN7503 A D 18P
CN7504 A D 22A
CN7505 A D 21B
DIODE
D16 B C 15K
D17 B C 16N
D22 B C 10H
D24 B C 19K
D25 B C 16I
D101 B C 12N
D201 B C 6L
D202 B C 5L
D203 B C 5L
D204 B C 6L
D2001 A D 15M
D2201 A D 18K
D2501 B C 19D
D3001 A D 13D
D3002 A D 9B
D3003 A D 5B
D3004 A D 4C
D3005 A D 4C
D3006 B C 18P
D3007 A D 8D
D3008 B C 7D
D3009 A D 8D
D3011 A D 2B
D3012 A D 1C
D3961 A D 17C
D3962 B C 17F
D3963 B C 17F
D3964 B C 17F
D3965 A D 17B
D4001 B C 12F
D4002 B C 11F
D5001 B C 3N
D5101 A D 4J
D5102 A D 3K
D5103 A D 3L
D5104 A D 3L
D5105 A D 2K
D5106 A D 3N
D5201 A D 1G
D5202 A D 4H
D5203 A D 3H
D5204 A D 3H
D5205 A D 3H
D5206 A D 2H
D5207 A D 2H
D5208 A D 4G
D5209 A D 4G
D5210 A D 3H
D5211 A D 1H
D5212 A D 2H
D5213 A D 1H
D5301 A D 2H
D5302 A D 2C
D5303 A D 1E
D5304 A D 1F
D5305 A D 4F
D5306 A D 2E
D5307 A D 3E
D5308 A D 3E
D5309 A D 2D
D5310 A D 4E
D5311 A D 4C
D5312 B C 3C
D5313 A D 4D
D6002 A D 21M
D6551 A D 21G
IC
IC1 B C 12K
IC2 B C 16G
IC3 B C 15G
IC201 A D 8L
IC2201 B C 17L
IC2501 B C 19C
IC3001 B C 10D
IC3002 B C 12B
IC3003 A D 6C
IC3004 A D 8I
IC3301 B C 15D
IC3501 A D 15A
IC3961 B C 16B
IC3962 B C 16B
IC5301 A D 2D
IC5302 A D 5N
IC6080 B C 21F
IC7501 B C 10O
JACK
J3911 A D 17P
J6101 A D 19P
J6102 A D 20P
J7501 A D 12P
J7502 A D 11P
J7503 A D 13P
J7504 A D 14P
J7505 A D 8P
J7506 A D 9P
COIL
L1 A D 14L
L2 A D 17G
L3 A D 16H
L4 A D 13I
L5 A D 12H
L6 A D 12G
L7 A D 11I
L8 A D 9J
L9 A D 8K
L12 A D 17G
L13 A D 17G
L14 A D 9J
L16 A D 18G
L17 A D 13J
L18 A D 13J
L23 A D 10H
L24 A D 9H
L25 A D 18H
L104 A D 11I
L108 A D 18G
L151 A D 13G
L181 A D 10I
L201 A D 6L
L202 A D 8L
L203 A D 7L
L204 A D 6M
L205 A D 6N
L206 A D 7N
L401 A D 18I
L402 A D 17I
L2001 A D 15L
L2201 A D 18K
L2251 A D 16K
L2252 A D 17J
L2501 A D 20C
L3001 A D 7H
L3011 B C 8I
L3012 B C 8H
L3501 A D 14A
L5201 A D 3F
L5202 A D 2F
L5301 A D 4C
L6001 A D 21N
L6002 A D 22P
L6003 A D 21O
L6004 A D 22O
L6031 A D 20G
L6032 A D 21J
L6050 A D 22O
L6051 A D 21P
L6080 A D 20G
L7201 A D 16O
L7501 A D 7P
L7502 A D 10P
L7503 A D 10O
TRANSISTOR
Q1 B C 15J
Q2 B C 14I
Q3 B C 15J
Q4 B C 15J
Q6 B C 12H
Q7 B C 9H
Q13 B C 17G
Q14 B C 17G
Q15 B C 17G
Q16 B C 15G
Q17 B C 16G
Q18 B C 8K
Q21 B C 9J
Q34 B C 14L
Q35 B C 14L
Q36 B C 14L
Q37 B C 15L
Q38 B C 10G
Q39 B C 9G
Q45 B C 14J
Q46 B C 15I
Q47 B C 14J
Q48 B C 14I
Q49 B C 13I
Q52 B C 9H
Q53 A D 8G
Q54 B C 13F
Q55 B C 16H
Q56 B C 10I
Q57 B C 9J
Q58 B C 9K
Q59 B C 14H
Q101 B C 8J
Q102 B C 12M
Q103 B C 16I
Q104 B C 16I
Q141 B C 16H
Q142 B C 15H
Q152 B C 14K
Q153 B C 12H
Q154 B C 13H
Q157 B C 10I
Q158 B C 9J
Q159 B C 9J
Q160 B C 16I
Q161 B C 12H
Q181 B C 12G
Q182 B C 12G
Q203 B C 8N
Q204 B C 7L
Q207 B C 6N
Q208 B C 6O
Q211 B C 7N
Q401 B C 18I
Q402 B C 19I
Q403 B C 18J
Q404 B C 17I
Q405 B C 16J
Q2001 B C 11L
Q2002 B C 12M
Q2003 B C 14M
Q2051 B C 6I
Q2052 B C 6E
Q2053 B C 6F
Q2054 B C 6E
Q2055 B C 6D
Q2061 B C 20F
Q2062 B C 6D
Q2063 B C 6E
Q2102 B C 13M
Q2103 B C 14M
Q2151 B C 18J
Q2152 B C 17J
Q2201 B C 18O
Q2202 B C 18O
Q2203 B C 18O
Q2204 B C 18O
Q2251 B C 15K
Q2252 B C 16L
Q2253 B C 17J
Q2254 B C 19L
Q2255 B C 19L
Q2256 B C 20K
Q2257 B C 20L
Q2258 B C 19L
Q2501 B C 20D
Q2502 B C 20D
Q3001 B C 7H
Q3002 A D 5E
Q3003 A D 20E
Q3004 B C 5B
Q3005 A D 5C
Q3007 B C 7D
Q3008 B C 7C
Q3009 B C 7D
Q3501 B C 14A
Q4001 B C 7E
Q5101 A D 2K
Q5102 A D 2L
Q5103 A D 3M
Q5301 A D 3G
Q5302 B C 4F
Q5303 A D 3C
Q5304 A D 3F
Q5305 B C 3F
Q5306 A D 3F
Q5307 B C 4D
Q5308 B C 3C
Q5310 B C 4C
Q5311 B C 3B
Q5312 B C 1D
Q6030 B C 22J
Q6031 B C 22J
Q6032 B C 21G
Q6033 B C 22I
Q6035 B C 22I
Q6501 B C 21H
Q6502 B C 21H
Q6551 A D 21H
Q7201 A D 16P
Q7501 B C 8P
Q7502 B C 8O
Q7503 B C 11P
Q7504 B C 11P
Q7505 B C 10P
Q7507 B C 11O
RESISTOR
R1 B C 16H
R2 B C 14K
R3 B C 13J
R4 B C 15J
R5 B C 15I
R6 B C 15J
R7 B C 13I
R10 B C 12H
R11 B C 12H
R13 B C 10H
R15 B C 11H
R16 B C 10H
R20 B C 10J
R23 B C 8J
R24 B C 10K
R25 B C 9K
R46 B C 17G
R47 B C 17G
R48 B C 18G
R49 B C 17H
R50 B C 17G
R52 B C 14M
R54 B C 17G
R55 B C 17G
R56 B C 10H
R57 B C 15J
R59 B C 12H
R60 B C 9H
R61 B C 10H
R62 B C 9K
R63 B C 8K
R64 B C 8K
R68 B C 13F
R69 B C 13F
R71 B C 15H
R73 B C 10G
R74 B C 9K
R75 B C 9J
R76 B C 10I
R94 B C 16G
R95 B C 9N
R96 B C 9N
R97 B C 14N
R98 B C 14M
R99 B C 9F
R101 B C 8J
R112 B C 14K
R116 B C 14J
R120 B C 14K
R121 B C 14K
R123 B C 10H
R124 B C 10G
R126 B C 16J
R127 B C 16I
R128 B C 16J
R129 B C 16J
R130 B C 16J
R137 B C 14J
R139 B C 15J
R140 B C 15I
R141 B C 15G
R142 B C 14H
R143 B C 13N
R150 B C 12H
R151 B C 15I
R156 B C 13H
R157 B C 13G
R158 B C 13H
R159 B C 13H
R161 B C 10I
R162 B C 10I
R163 B C 9I
R164 B C 9J
R165 B C 9K
R166 B C 9K
R168 B C 14J
R169 B C 14I
R170 B C 13J
R171 B C 13I
R172 B C 16I
R178 B C 13J
R179 B C 14I
R181 B C 12M
R182 B C 12M
R189 B C 15I
R190 B C 10G
R191 B C 10H
R194 B C 10G
R195 B C 11J
R196 B C 10J
R197 B C 10K
R198 B C 9K
R199 B C 9L
R201 B C 7L
R202 B C 5L
R203 B C 5L
R204 B C 5L
R205 B C 6L
R206 B C 7L
R207 B C 6G
R208 B C 7L
R209 B C 6L
R210 B C 6L
R211 B C 6M
R212 B C 6N
R213 B C 7N
R215 B C 7M
R216 B C 7M
R217 B C 8M
R218 B C 6N
R219 B C 8N
R220 B C 7N
R223 B C 7N
R224 B C 6O
R225 B C 6O
R235 B C 7N
R401 B C 18I
R402 B C 18I
R403 B C 18I
R404 B C 18I
R405 B C 17I
R408 B C 17J
R409 B C 17J
R410 B C 16J
R2001 B C 14M
R2002 B C 14M
R2003 B C 12L
R2004 B C 12L
R2005 B C 12L
R2006 B C 11L
R2007 B C 11L
R2009 B C 13M
R2010 B C 13M
R2013 B C 13M
R2014 B C 13M
R2018 B C 13L
R2019 B C 13M
R2020 B C 11L
R2051 B C 7I
R2052 B C 7I
R2053 B C 7J
R2054 B C 6J
R2055 B C 6I
R2056 B C 6J
R2057 B C 6E
R2058 B C 6F
R2059 B C 6E
R2060 B C 6E
R2061 B C 20F
R2062 B C 20F
R2063 A D 20E
R2064 B C 6E
R2065 B C 6E
R2105 B C 12L
R2106 B C 14L
R2107 B C 14M
R2108 B C 15M
R2151 B C 18J
R2152 B C 18J
R2201 B C 17N
R2202 B C 17N
R2203 B C 17M
R2204 B C 17N
R2205 B C 17N
R2206 B C 17N
R2207 B C 16N
R2208 B C 16N
R2209 B C 16N
R2210 B C 16N
R2211 B C 16N
R2212 B C 17N
R2213 B C 16N
R2214 B C 16N
R2215 B C 16M
R2216 B C 16N
R2217 B C 16N
R2218 B C 18K
R2219 B C 19N
R2220 B C 18M
R2221 B C 18N
R2222 B C 19M
R2223 B C 19N
R2224 B C 19N
R2225 B C 18N
R2226 B C 18N
R2227 B C 17M
R2228 B C 18N
R2229 B C 18O
R2230 B C 18N
R2231 B C 17N
R2232 B C 19M
R2233 B C 19M
R2234 B C 18M
R2235 B C 18M
R2236 B C 16M
R2237 B C 16M
R2238 B C 17K
R2239 B C 18K
R2240 B C 17K
R2241 B C 18O
R2242 B C 18O
R2243 B C 18O
R2244 B C 18K
R2251 B C 18K
R2252 B C 17K
R2253 B C 19L
R2254 B C 17K
R2255 B C 19L
R2501 B C 21D
R2502 B C 21B
R2503 B C 20C
R2504 B C 20C
R2505 B C 20C
R2506 B C 20C
R2507 B C 20D
R2508 B C 19D
R2509 B C 19B
R2510 B C 20B
R2511 B C 20B
R2512 B C 19B
R2513 B C 19B
R2514 B C 20D
R2515 B C 20C
R2519 B C 19D
R2520 B C 20D
R2521 B C 19B
R2522 B C 18D
R3011 B C 9F
R3012 B C 8E
R3013 B C 8E
R3014 B C 8E
R3015 B C 8E
R3016 B C 8E
R3017 B C 8E
R3018 B C 8E
R3019 B C 8E
R3020 B C 8E
R3021 B C 8E
R3022 B C 8E
R3025 B C 7E
R3026 B C 7E
R3027 B C 7E
R3029 B C 9D
R3030 B C 8D
R3031 B C 8D
R3033 B C 8C
R3034 B C 8C
R3035 B C 7B
R3036 B C 8B
R3037 B C 8C
R3038 B C 9D
R3039 B C 9C
R3040 B C 8C
R3041 B C 8C
R3042 B C 8C
R3044 B C 9C
R3046 B C 8B
R3047 B C 8B
R3048 B C 8B
R3049 B C 8B
R3050 B C 8B
R3051 B C 9C
R3052 B C 9C
R3053 B C 9C
R3054 B C 10B
R3055 B C 10B
R3056 B C 10C
R3057 B C 11B
R3058 B C 11B
R3059 B C 11B
R3060 B C 11B
R3061 B C 11B
R3062 B C 11B
R3063 B C 11B
R3066 B C 12B
R3069 B C 11C
R3071 B C 11C
R3072 B C 13B
R3073 B C 13B
R3074 B C 13B
R3075 B C 12C
R3076 B C 12C
R3077 B C 13C
R3078 B C 12C
R3079 B C 13C
R3080 B C 12D
R3081 B C 12D
R3083 B C 12D
R3085 B C 12D
R3086 B C 12D
R3087 B C 12E
R3088 B C 12E
R3089 B C 13E
R3090 B C 12F
R3091 B C 12E
R3092 B C 12E
R3093 B C 12E
R3094 B C 12E
R3095 B C 12E
R3096 B C 12E
R3097 B C 11E
R3103 B C 11E
R3104 B C 11E
R3105 B C 11E
R3106 B C 11E
R3201 B C 7H
R3202 B C 7H
R3203 B C 7H
R3204 B C 7H
R3205 A D 13C
R3206 B C 5D
R3207 B C 21E
R3208 A D 18A
R3209 A D 18B
R3210 B C 9B
R3211 B C 9B
R3212 A D 5B
R3213 B C 9B
R3214 B C 8A
R3215 B C 8A
R3216 B C 8A
R3217 B C 7B
R3218 B C 5C
R3219 B C 5B
R3220 B C 5C
R3221 B C 18P
R3222 B C 4C
R3223 B C 6D
R3224 B C 6C
R3225 B C 7A
R3226 B C 10B
R3227 B C 10B
R3228 B C 11B
R3229 B C 11C
R3230 B C 12B
R3231 B C 12B
R3232 B C 8F
R3233 B C 8D
R3234 B C 8D
R3235 B C 14B
R3236 B C 14B
R3237 B C 2B
R3238 B C 2C
R3239 B C 2B
R3240 B C 14F
R3241 B C 3B
R3242 B C 8E
R3243 B C 3B
R3244 B C 7B
R3245 B C 8F
R3246 B C 8E
R3247 B C 8E
R3251 B C 3B
R3252 B C 9E
R3304 B C 14C
R3305 B C 15C
R3306 B C 15C
R3307 B C 15B
R3308 B C 15C
R3309 B C 15B
R3310 B C 15C
R3311 B C 15B
R3312 B C 15C
R3313 B C 15B
R3314 B C 16B
R3316 B C 16B
R3317 B C 16C
R3318 B C 16B
R3319 B C 16C
R3322 B C 16D
R3323 B C 16D
R3324 B C 16D
R3325 B C 16D
R3326 B C 16E
R3327 B C 16E
R3328 B C 16E
R3329 B C 16D
R3330 B C 15D
R3331 B C 16E
R3332 B C 15D
R3333 B C 15E
R3334 B C 15D
R3335 B C 15D
R3336 B C 15E
R3337 B C 15E
R3338 B C 15D
R3339 B C 15D
R3340 B C 14D
R3341 B C 14D
R3342 B C 14D
R3345 B C 20N
R3346 B C 22N
R3353 B C 15B
R3354 B C 16B
R3501 B C 14B
R3502 B C 14B
R3503 B C 13A
R3504 B C 14A
R3505 B C 13A
R3506 B C 14A
R3961 B C 16B
R3962 B C 17C
R4001 B C 11F
R4002 B C 10F
R4003 B C 10F
R4004 B C 10F
R4005 B C 9F
R4006 B C 9F
R4007 B C 9F
R4008 B C 7E
R4009 B C 12F
R4010 B C 11F
R4011 B C 11F
R4012 B C 11F
R4013 B C 10G
R4014 B C 11G
R4015 B C 11F
R4016 B C 11F
R4017 B C 11F
R4018 B C 11F
R4019 B C 10G
R4020 B C 7F
R4021 B C 10F
R5001 A D 5P
R5101 A D 3M
R5102 A D 3L
R5103 A D 2M
R5104 A D 4J
R5105 A D 3K
R5106 A D 2K
R5107 A D 2J
R5108 A D 4M
R5109 B C 2K
R5110 B C 2K
R5111 B C 4L
R5112 B C 1J
R5113 A D 2L
R5114 A D 2N
R5115 A D 2M
R5116 A D 2M
R5301 A D 1C
R5302 B C 3C
R5303 B C 3C
R5304 A D 1E
R5305 A D 4I
R5306 B C 3D
R5307 B C 1F
R5308 B C 4G
R5309 B C 4G
R5310 B C 3F
R5311 B C 3E
R5312 B C 1D
R5313 A D 1D
R5314 B C 3D
R5315 B C 4D
R5316 B C 4C
R5317 B C 3B
R5318 B C 3B
R5319 A D 3D
R5320 B C 2D
R5321 B C 4E
R5322 B C 4F
R5323 A D 4H
R5324 A D 5C
R5325 B C 3D
R5326 B C 3D
R5327 B C 3D
R5328 B C 5M
R5329 A D 5N
R5330 A D 5M
R5331 B C 3C
R5332 B C 3C
R5333 A D 2E
R5334 A D 2E
R6020 B C 22N
R6021 B C 22M
R6022 B C 22N
R6023 B C 22M
R6025 B C 22N
R6030 B C 22I
R6031 B C 21K
R6032 B C 20G
R6033 B C 21G
R6034 B C 22I
R6035 B C 22H
R6037 B C 22H
R6038 B C 22L
R6039 B C 22H
R6050 B C 21O
R6051 B C 22O
R6052 B C 22O
R6053 B C 22P
R6080 B C 21G
R6081 B C 21G
R6082 B C 22N
R6101 B C 19P
R6102 B C 20P
R6508 B C 21F
R6509 B C 21G
R6510 B C 21F
R6511 B C 21G
R6551 B C 21I
R6552 B C 21I
R6553 A D 21D
R6554 B C 22E
R7202 B C 16P
R7203 B C 16P
R7204 A D 15P
R7501 B C 12P
R7502 B C 13P
R7503 B C 12O
R7504 B C 13O
R7506 B C 9P
R7507 B C 9P
R7509 B C 9P
R7511 B C 9P
R7513 B C 7P
R7514 B C 8P
R7515 B C 7O
R7516 B C 8P
R7517 B C 9P
R7518 B C 9O
R7519 A D 9O
R7520 B C 8O
R7521 A D 8O
R7522 B C 8O
R7523 B C 11P
R7524 B C 11P
R7525 B C 11Q
R7526 B C 11P
R7527 B C 11P
R7528 B C 10P
R7529 B C 10P
R7530 B C 21A
R7531 B C 11P
R7532 B C 12O
R7533 B C 12O
R7534 B C 12P
R7535 B C 13O
R7536 B C 15P
R7537 B C 14P
R7538 B C 13O
R7541 A D 11O
R7542 B C 11O
TEST POINT
TP106 A D 21H
TP111 A D 15M
TP2033 A D 8M
TP2034 A D 21H
TP2253 A D 16L
TP2254 A D 16L
TP3901 B C 8C
TP3902 B C 8B
TP3903 B C 11C
TP3904 B C 11C
TP3905 B C 12B
TP4001 A D 9M
OTHER
CF2501 A D 18D
CF3301 A D 16C
CF6031 A D 21J
CP3501 A D 14A
CP4001 A D 5J
CP5301 A D 1E
CP5302 A D 4G
CP5303 A D 4E
F5001 A D 1P
GND1 A D 19K
GND2 A D 21P
K5101 A D 3K
LC2501 A D 20B
LF5001 A D 2P
LF5002 A D 4O
LPF2501 A D 21C
PC3001 A D 17A
PC3002 A D 9C
PC5101 A D 4L
PC5102 A D 4M
PC5301 A D 2D
S3002 A D 7A
S6050 A D 17P
SG5001 A D 3P
T2051 A D 6J
T2052 A D 20F
T5001 A D 1J
TU6001 A D 21P
VA5001 A D 2O
VA5002 A D 4P
VR2251 A D 19L
WR1 A D 16I
WR2 A D 14O
WR3 A D 11I
WR4 A D 21I
X1 A D 14J
X2 A D 14J
X3001 A D 11C
X3002 A D 12C

1
2
3
5
4
ABC D
DEMODULATOR SCHEMATIC DIAGRAM
4-33
TO MAIN(TUNER)
CN6701
(Page 4-16)
MODE
＿ SEL
DEMOD
＿
(R)
DEMOD
＿
(L)
SIF
4.14

Q1501
2SC1740S/QRS
DEFGH
4-34
DTC144WSA

4.15 DEMODULATOR CIRCUIT BOARD
4-35
REF.NO. LOCATIONREF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.
N
COMPONENT PARTS LOCATION GUIDE <DEMODULATOR>
CAPACITOR
C1501 B C 2A
C1502 A D 2A
C1503 B C 2A
C1504 B C 2A
C1505 B C 2A
C1506 B C 2A
C1507 B C 2A
C1508 A D 1A
C1509 B C 2A
C1510 B C 1A
C1512 B C 1A
C1513 A D 1A
C1514 A D 1A
C1515 A D 1A
C1516 B C 1A
C1517 A D 1B
C1518 A D 1B
C1519 A D 1B
C1520 A D 1B
C1521 B C 1B
C1522 A D 2B
C1523 B C 1B
C1524 A D 2B
C1525 B C 2B
C1526 B C 2B
C1527 B C 2B
C1528 A D 2B
C1529 B C 2B
C1530 B C 2B
R1504 B C 2A
R1505 B C 2A
R1506 B C 2A
R1507 B C 2A
R1508 B C 2A
R1509 B C 1A
R1510 B C 1A
R1511 B C 1B
R1512 B C 1B
R1513 B C 1B
R1514 B C 1B
R1515 B C 1B
R1516 B C 2B
R1517 B C 2B
R1518 B C 2B
R1520 B C 2B
R1521 B C 3B
OTHER
CF1501 A D 2A
CF1502 A D 2A
CF1503 A D 2B
T1501 A D 2A
T1502 A D 2B
VR1501 A D 2B
VR1502 A D 1A
CONNECTOR
CN1501 A D 3B
IC
IC1501 A D 2A
COIL
L1501 A D 1A
TRANSISTOR
Q1501 A D 2A
Q1502 A D 1B
RESISTOR
R1501 B C 3A
R1502 B C 2A
R1503 B C 2A

4-41
4.19 SWITCH/DISPLAY, REC SAFETY, JACK AND JOG CIRCUIT BOARDS
— JACK — — REC SAFETY —
— SWITCH/DISPLAY —
4-41

4-42
— JOG —
4-42

4.20 FDP GRID ASSIGNMENT AND ANODE CONNECTION
4-43
SP
SP
REVIEW
REVIEW
VPS/PDC
VPS/PDC
VN
VN
LD
LD
VCR
VCR
S
S
1a 2a 1a 1a
2a 1a
1d
1g
1h
col2
1
h
1
h
1
h
1
h
col1
1
f
1
b
1
c
1
e
(4G)
ANODE CONNECTION
GRID ASSIGNMENT
P 1
P 2
P 3
P 4
P 5
P 6
P 7
P 8
P 9
P10
P11
P12
P13
P14
P15
P16
4G 3G 2G 1G5G
1a
1b
1f
1g
1c
1e
1d
1h
2a
2b
2f
2g
2c
2e
2d
1a
1b
1f
1g
1c
1e
1d
1h
col1
1a
1b
1f
1g
1c
1e
1d
col2
2a
2b
2f
2g
2c
2e
2d
S2
S1
S3
1a
1b
1f
1g
1c
1e
1d
1h
S3
S1
S2
S4
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1
6G
—
—
—
—
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1
(SEP)
(SEP)
(SEP)
+8
4
0
6
–15dB
NORM
NORM
6G 4G 3G 2G
5G
+8
4
0
6
–15dB
B10
B1
B10
S4
B1
(6G, 5G)
1
1
2
2
1G

TV
VCR
OPERATE
SAT
DISPLAY/ENTER
(OPEN)
4
ENTER/OSD AUDIO/MUTE
4.21 REMOTE CONTROL SCHEMATIC DIAGRAM
1
2
3
5
4
ABCD
4-44

5.2 CABINET AND CHASSIS ASSEMBLY <M2>
BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble
in regard to safety and performance. We recommend that
genuine JVC parts be used.
509
508
507
507
505
505F
505E
505D
505B
505A
505C
505G
510
506
WR2
533
517
521
520
520A
516
510
522
522
519
517
531
501A
501B
501C
501
530
529
JOG BOARD
ASSY <37>
523
526
WR1
MAIN BOARD
ASSY <03>
DEMOD BOARD
ASSY <14>
MECHANISM ASSY <M4>
2D SVHS BOARD
ASSY <05>
515
514
527
527
502
503
503
( Incl.<03>)
( Incl.<03>)
RATING
LABEL SA
511
512
WR4
WR3
WR5
513
513
REC SAFETY
BOARD ASSY
<32>
SW/DISPLAY
BOARD ASSY
<28>
JACK BOARD
ASSY <36>
WR6
525
E
C
J
F
G
A
K
H
B
J
M
F
E
B
G
A
C
M
D
H
D
524
518
K
518C
518A
518B
5-2

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽✽
CABINET AND CHASSIS ASSEMBLY <M2>
! 501 LP10217-023A FRONT PANEL ASSY
501A LP20342-043A CASSETTE DOOR
501B PQ46448 TORSION SPRING
501C LP30531-019A DISPLAY WINDOW
! 502 PQ11676-81 TOP COVER
503 QYTDSF3010R SCREW,X4 TOP COVER(SIDE)
505 LP20617-006A DRUM SUB ASSY
505A LP20616-003A UPPER DRUM ASSY
505B PDM4439 CAP
505C PDM4444-19-2 WASHER
505D LP40028-002A COLLAR ASSY
505E LP40323-001A CONTACT
505F LP30004-005A COMPRESSION SPRING
505G LP40174-001B FPC PLATE
506 PDZ0179-1-4 ROTOR ASSY
507 QYSPSP3006Z SCREW,X2
508 PDZ0180-1-2 STATOR ASSY
509 QYSPSPL2607Z SCREW,X2
510 QYTDST2610Z SCREW,X3 DRUM
! 511 LP10116-003G BOTTOM CHASSIS
! 512 PQ11668-2-11 BOTTOM COVER
513 QYTDSF3010Z SCREW,X2 BOTTOM COVER
514 LP30312-001B BRACKET(CHASSIS)
515 QYTDSF3010Z SCREW,X2 BRACKET(CHASSIS)
516 QYTDSF4012Z SCREW,MECHA
517 QYTDSF3010Z SCREW,X2 MECHA
518 LP40369-001D CLEANER ASSY
518A PQ46418-1-2 CLEANER ROLLER
518B PQ46419-1-2 CLEANER
518C LP30407-001D CLEANER ARM
519 LP40407-001A KNOB ASSY
520 LP40370-001E ROLLER ARM ASSY
520A PMD4311A-1 ROLLER ASSY
521 PQ44230 INERTIA PLATE
522 LP40226-001A PC SUPPORT,X2
! 523 PQ21730N POWER CORD
524 LP40253-001B STOPPER
525 QYTDSF3010Z SCREW,S JACK
526 QYTDSF3010M SCREW,TERMINAL
527 QYTPSFG3010Z SCREW,X2 TERMINAL
529 LP30121-005A KNOB JOG
530 LP30120-005A KNOB SHUTTLE
531 QYTDSF2608Z SCREW,X2 JOG
533 PQ40413 SPECIAL SCREW,MECHA
WR1 QUQ112-0714CG FFC WIRE,A/C HEAD CN2001
WR2 QUQ212-0520CG FFC WIRE,DRUM CN3001
WR3 QUQ112-1414CG FFC WIRE,DISPLAY CN3011
WR4 QUQ112-0616CG FFC WIRE,JOG CN3012
WR5 QUQ212-0516CG FFC WIRE,JACK CN7504
WR6 QUQ212-0456CG FFC WIRE,S JACK CN3004
E. & O. E. No. 82769
(Sanwa)-V12S1 5-3

Printed in Japan
VICTOR COMPANY OF JAPAN, LIMITED
VIDEO DIVISION
S40894
