jWIN JX-CD678 User manual

MODEL # JX-CD678
CD PLAYER WITH BASS BOOST,
60-SECOND SUPER A.S.P.
INSTRUCTION MANUAL
Visit our web site www.jwin.com

EN- 1
SAFETY PRECAUTION
1. As the laser beam used in this compact disc player is harmful to the eyes, do not attempt
t o d isa ss em b le th e c as i ng .
2. Stop operation immediately if any liquid or solid object should fall into the cabinet. Unplug
the unit and have it checked by qualified personnel.
3. Do not touch the lens or poke at it. If you do, you may damage the lens and the player
may not operate properly.
4. Do not put anything in the safety slot. If you do, the laser diode will be ON when the lid
is still opened.
5. If the unit is not to be used for a long period of time, make sure that all power sources
are disconnected from the unit. Remove all batteries from the battery compartment, and
unplug the AC adaptor from the wall outlet. Make it a practice to remove the AC adaptor by
grasping the main body and not by pulling the cord.
6. This unit employs a laser. The use of controls or adjustment or performance of
p ro ce du re s o the r tha n tho se spe cifi ed her ein ma y re sult in exposure to hazardous r a d iat i o n.
Warning :
Th e ap par a tus sho ul d n ot b e exp osed to dr ipp i ng o r spla shing a nd tha t no o bj ect s fi ll ed w ith
liqu id s, such as vase s, sha ll b e place d o n th e ap pa ra tus.
WARNING
To prevent fire or shock hazar d, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified person-
nel only.
COMPLIANCE WITH FCC REGULATIONS
Th i s e qu i pmen t ha s be en t este d a nd f ou nd t o com p ly w ith t he limits for a C lass B di g ital de vi ce,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful Interference in a residential installation. This equipment generates,
u ses a n d ca n r a diat e r a dio fr eq ue ncy en er gy a n d, i f no t ins tal le d a nd use d in a ccorda n ce w ith
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
ca use ha r mf ul i nte rfe re nce to ra dio or tel evisio n r ecep ti on, w hich can be d ete rmin ed b y tu r nin g
the equipment off and on, the user is encouraged to try to correct the interference by one or
m ore of the fo l lo w ing me as ur es :
• Reorientate or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con ne cte d.
• Co nsu lt th e d ea ler or an exp er ien ce d r ad io te chn ician for h el p.
CLASS 1 LASER PRODU CT
This product contains a low power laser device.
CLASS 1 LASERPRODUC T
APPAREIL LASER DE CLASSE 1
PRODUCTO LASERDE CLASE 1
CAUTION
INVISIBLE LASERRADIATION
WH EN OPEN AND INTERLO CKS
DEFEATED .
AVOIDEXPOSURE TOBEAM

z
IMPORTANT NOTES
Your hearing is very important to you and to us so please take care when operating
this equipment. It is strongly recommended that you follow the listed guidelines in
order to prevent possible damage or loss of hea ring:
ESTABLISHA SAFE SOUND LEVEL
•Over time you r hearing will ad apt to conti nuous loud sounds and will give the
impression that the volume has in fact been reduced. What seems normal to
you may in fact b e har mful. To gu ard against this BEFORE YOUR HEARING
ADAPTS set the volume at a low level.
•Slowly increase the level until yo u can hea r comfortably and clearly and without
disto rtion.
•Damage to your hearing is accumulative and i s irreve rsible.
•Any ring ing or discomfort in the ears indicates that the volume is too loud.
Once you have established a comfortable listening level, DO NOT INC RE ASE THE
SOUND LEVEL FURTHER.
The following list of typical soun d levels may assist you in recognizing just h ow loud
you have set the volume level .
DECIBEL
Level dB Example
30dB Quiet Library, soft whispers
40 Living room, fridge freezer bedroom away from traffi c.
50 Normal conversation, quiet office, light traffic.
60 Electric sewing machine.
70 Vacuum cleaner, hair dryer, noi sy restaurant.
THE F OL LOWING NOISES CA N BE H ARMFUL UNDER CONSTANT EXPOSURE
80dB Ave rage city traffic, alarm clock buzzer at 2 feet, food mixer.
90 Motorcycle, heavy goods vehicle, petrol lawn mower.
100 Pneumatic drill, cha in saw, garbage truck, discotec / ni ght - club .
120 Rock band co ncert, thunderclap.
PERMANENT LOSS OF HEARING
140 THRESHOLD OF PA IN Gunshot 2 feet away.
180 Rocket Launching pad.
EN- 2
Mode No: Serial No:

POWER SOURCES NORMAL BATTERIES / AC ADAPTOR
Battery Power Operation
1. Open the battery compartment
cover and insert two “AA” (UM-3)
alkalinebatteries (not included)
inside the battery compartment.
F oll ow the p ola ri ty as in dicate d
in the battery compartment.
2. Close the battery compartment
cover.
Note: Wh en the unit is to be opera ted
using batteries,always unplug the AC
adaptor from the AC power outlet and
the DC input jack from the set.
Otherwisetheplayer will not operate.
3. For better performance and longer
ope ratin g time, we r ecom men d the
use of alkaline batteries.
4. (a) Do not mix oldand new
batteries.
(b) Do not mix alkaline, standard
(car bo n- zinc ) or rech a rge able
(nickel-cadmium) batteries.
5. If the unit is not to be used for an
e xten ded p er iod of time, rem ove
the ba tter ies. Ol d or le aki ng
batteri es can cause damage to the
unit and may void thewarranty.
AC Adaptor Operation
(AC adaptor not included )
Only usea 4.5V/500mADC, positive
center pin power adapter. Any other
adapter may damage the set.
1 . M ake sur e th e l oca l vo ltage corr e-
sponds to the adapter’s voltage.
2. Connect the power adapter to the
4.5V DC jack of the player and to
the wall outlet.
1
2
EN- 3

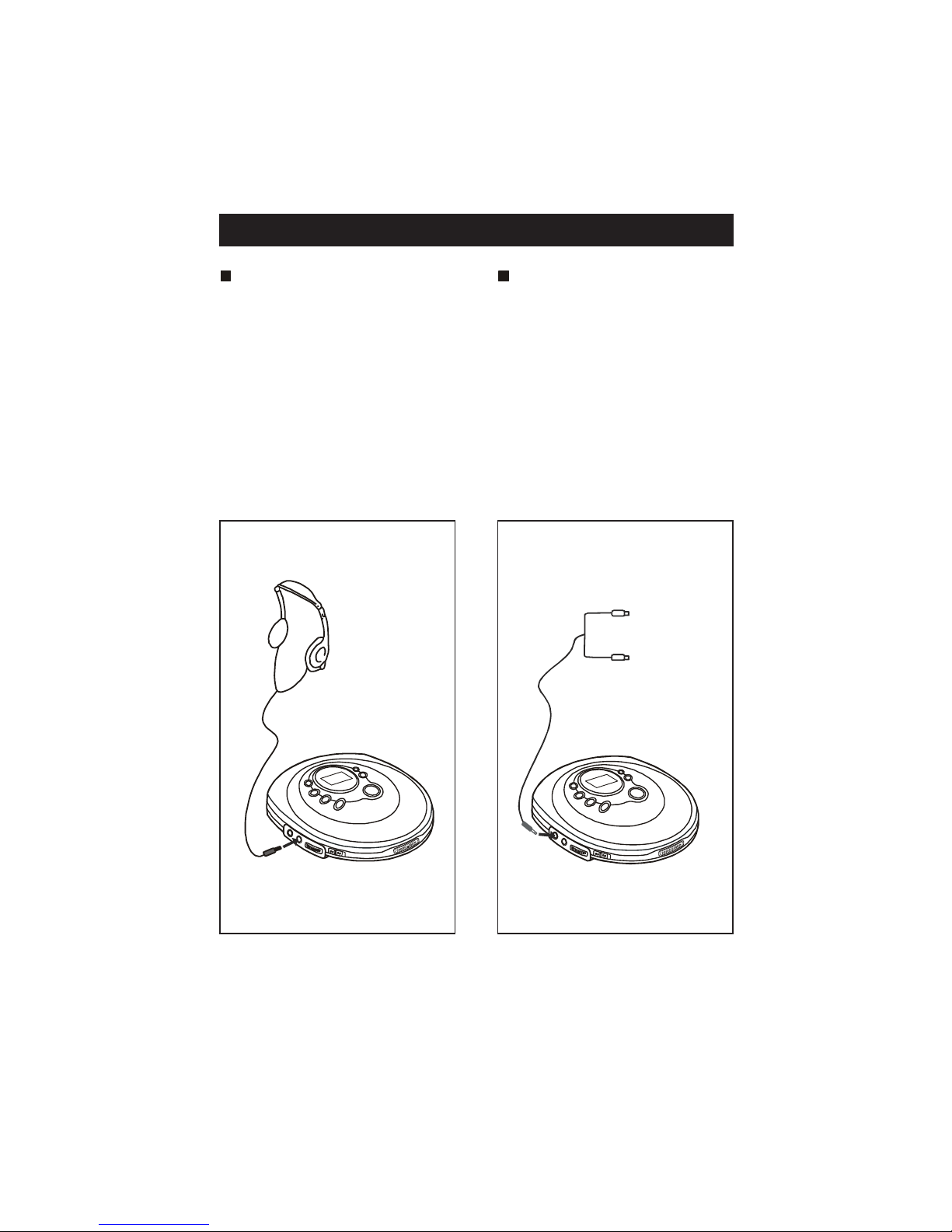

HEADPHONE AND HI-FI CONNECTION
Listening with the
headphones
Connect the plug of the stereo
headphones ( included ) into the
PHONES ( GREEN ) socket.
Caution:Avoid excessive volume lev-
els fora long period of time
whenusingheadphones,as this may
im pa ir yo ur he ari ng .
Connecting to component
audio systems
Connect the stereo connection
cable ( notincluded ) into the LINE
OUT ( BLACK ) socket of the
unit and the CD / AUX inputs of
an audio system.
Note: Always switch the power off
before making any connections
between the player and another unit.
TO CD / AUX
INPUT
TO PHONES TO LINE OUT
EN- 4

LOCATION OF CONTROLS
EN- 5
1. DISPLAY WINDOW
2.PROGRAMME BUTTON
3. MODE BUTTON
4 . L INE OUT S OC KE T
5. PHONE S SOCKET
6 . V OL UME C ONTRO L
7. BASS BOOST SWITCH
8 . O P EN SW ITCH
9.PLAY/PAUSE BUTTON
10. STOP BUTTON
11. SKIP/SEARCH FORWARD
BUTTON
12. SKIP/SEARCH BACKWARD
BUTTON
13. DC 4.5V INPUT SOCKET
14.ASP BUTTON
1
2
3
4
5
6
8
7
9
10
11
12
13
14

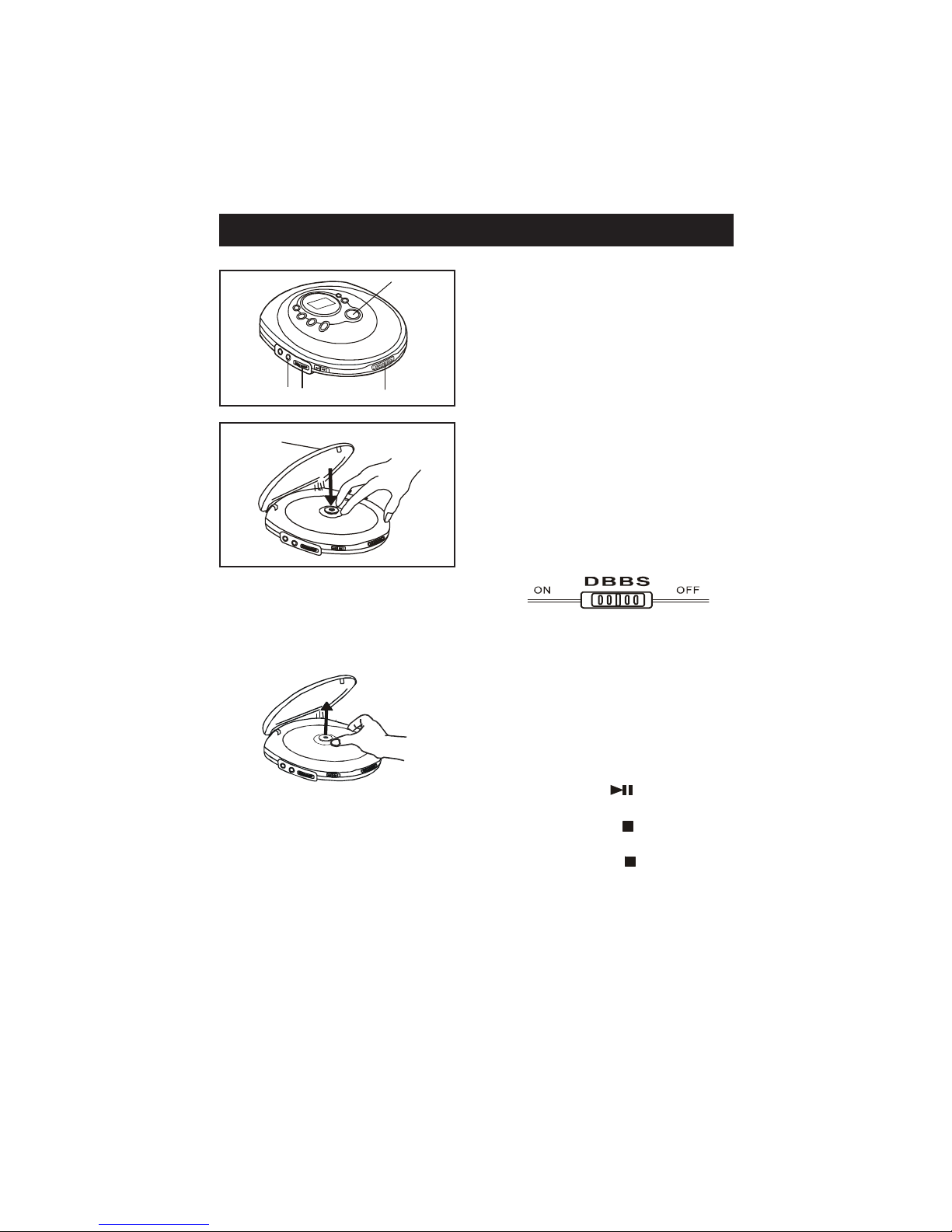

BASI C DI SC PLAY

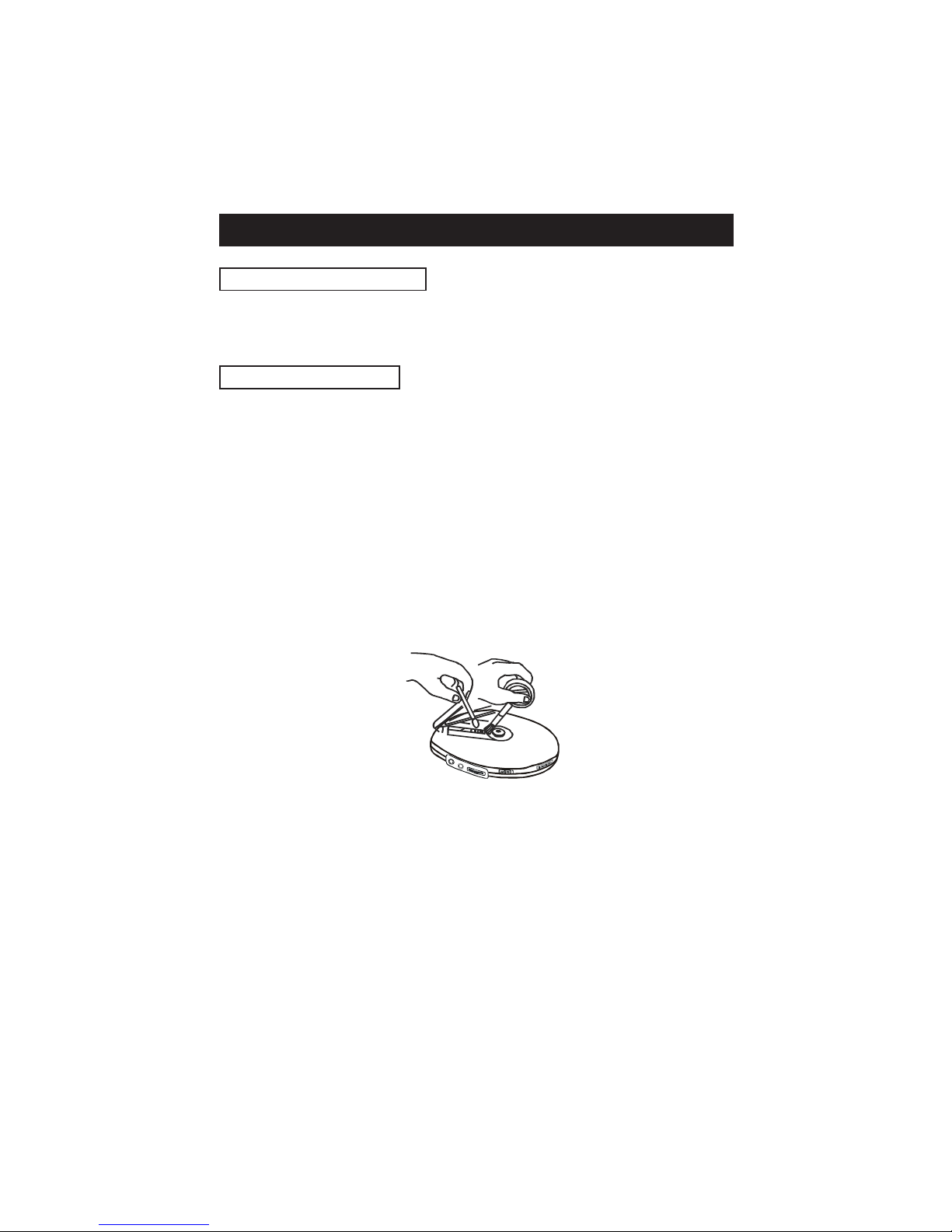

Remove the disc
Hold the edge and gently press the
ce nter pi vot as ill ustr ated, the n pi ck
up the di sc.
Cautio n:
Wait for the disc to stop rotating
before pressing the OPEN button.
NOTE:
This unit can play 3” ( 8cm ) single
CD’s without anadaptor. Do not use
aCD single adaptor for these discs.
1. Connect the Headphones to the
PHONES ( GREEN ) socket.
2. Slide the OPEN switch to open
the CD compartment lid.
3. Adjust the VOLUME to minimum.
4. Insert the disc with the label side
facing up.
5. Close the lid securely until a
click is heard.
6. Press the PLAY/PAUSE
button to start playing.
To enhance the bass
effect
Set the BASS BOOST switch to
the ON position.
Note: The bass boost performance will
bedependent on the VOLUME
control setting.
Turning Power on and off
This unit has no ON / OFF switch.
To turn on and off, press the
following buttons.
To turn on : Press PLAY / PAUSE
(playback starts )
To turn off : Press STOP button
once for standby mode.
Press STOP button
again to turn off the
power.
Auto power-off function
When the unit is stopped ( standby
mode ) for approximately 1 minute,
the power is automatically turn ed
off.
EN- 6
1
2
3
6
5
4

LCD DISPLAY INFORMATION
During PLAY mode
Th e tr ack n umb er and th e ela psed pl ayi ng
time are displayed.
During STOP mode
The total number of tracks and the total playing
time of the disc are displayed.
During PAUSE mode
The track playback is paused, the elapsedtime
and track number is flashing.
Note:
When lid is opened during play mode
____
sh ow s in th e di spl ay in dic atin g
the door is open.
Note:
Aflashing indication appears in the display when the batteries need to
be ch anged.
EN-7
This sixth track has
elapsed 2 min 30sec.

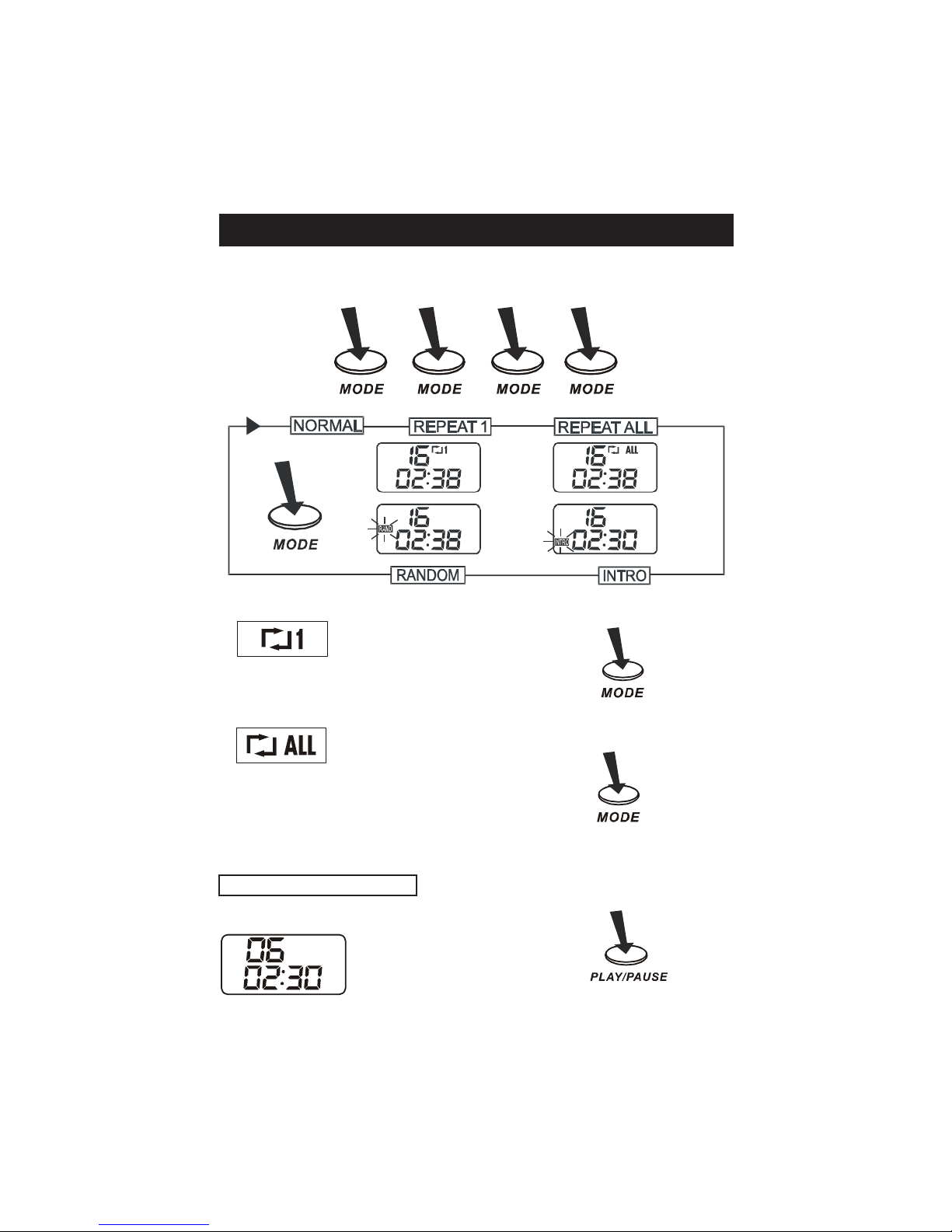

REPEAT / PLAY MODES
Every time the MODE button is pressed, the corresponding mode appears
in the displa y window, in the following sequence :
Shown in the LCD display.
The current track on the
disc will be repeated. X1press
During play
Shown in the LCD display.
All tracks on the disc will
be repeated.
X2presses
During play
NOTE: In normal mode none of the above
symbols show in the display.
NORMAL PLAYBACK
Play the whole disc
X1pr ess
Press once to play
EN- 8

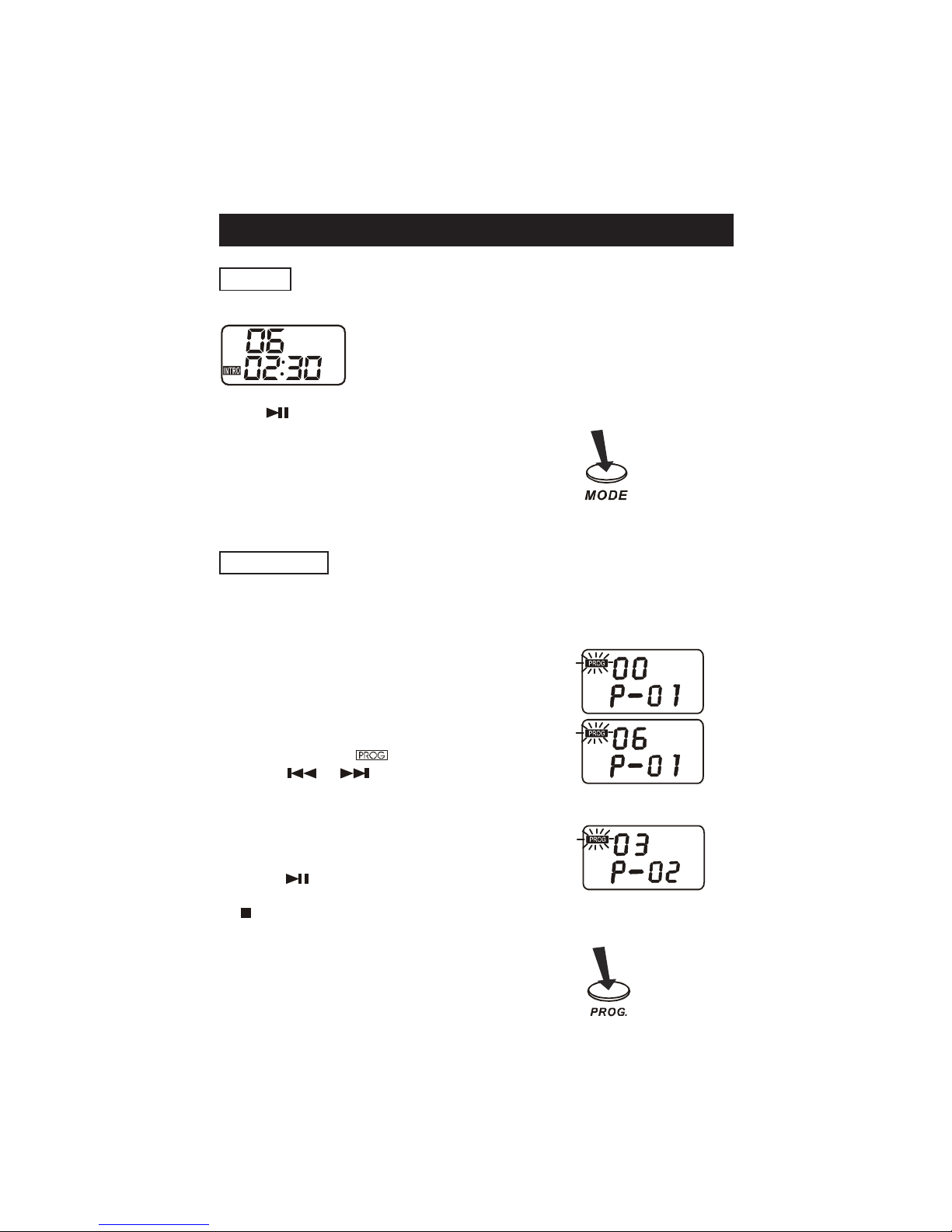

INTRO SCAN AND PROGRAMMED TRACK PLAY
INTRO
Plays the first 10 seconds of each track on the disc.
Pr ess to start pl ayi ng “ INTRO ” scan.
X3presses
During play
PROGRAM
This allows selected tracks on the disc to be played in any desired order.
To set the program play
*Programs can be set in the STOP mode.
1. Press the PROGRAM button when the
unit is in the stop mode.
The track num ber will appear in the
display with the indicator flashing.
2. Press or to select the desired
track.
3. Press the PROGRAM button to enter the
track into the memory.
4. Repeat step 2 and 3 to program up to 24
tracks memory.
5. Press to start the programmed play.
6. To erase the program , press the
S TOP butto n twice.
X1press
During STOP mode
Track no. of the first
desired selection
The second selection
EN- 9

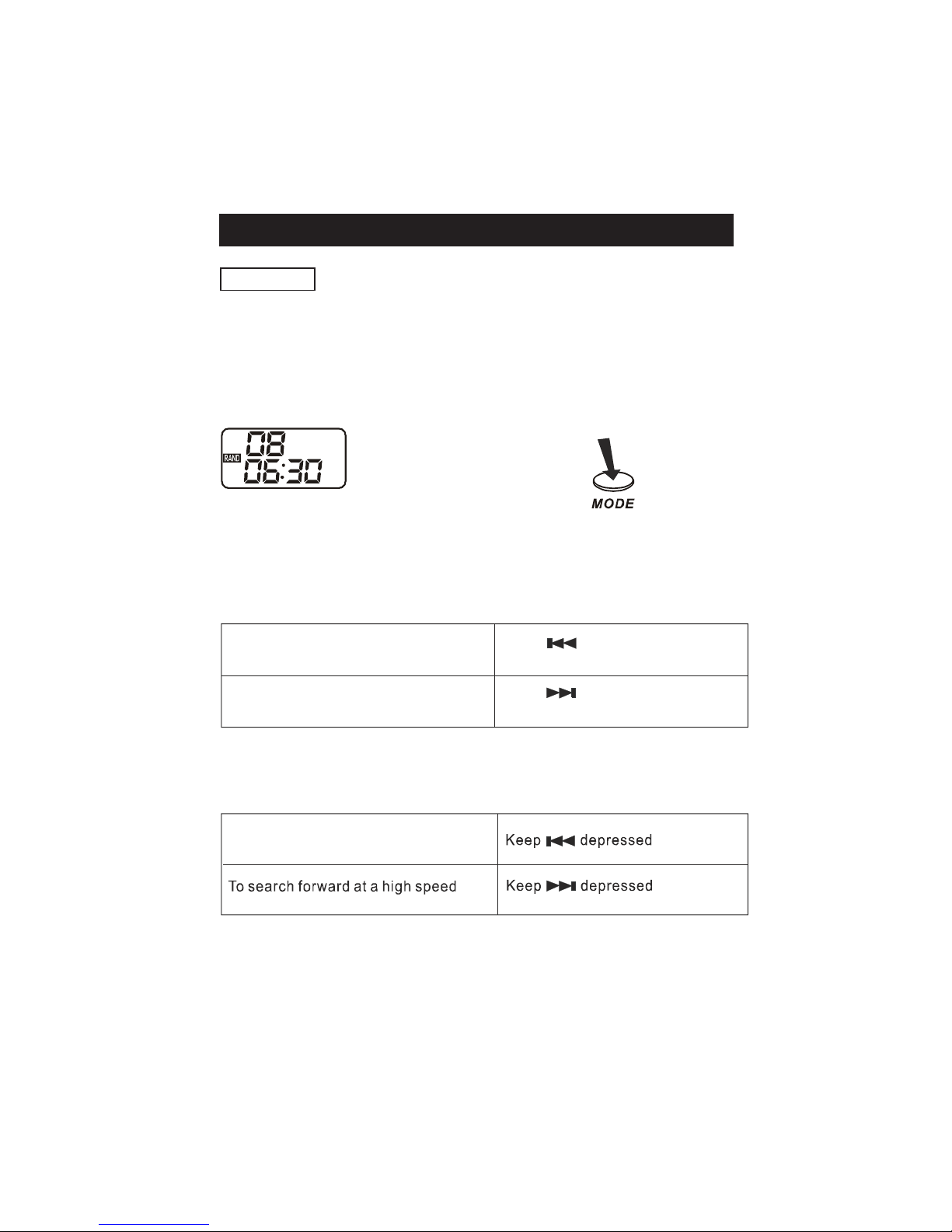

RANDOM PLAY/SKIP AND SEARCH FUNCTIONS
RANDOM
Enables all the tracks on a disc to be played in a Random ( RAND ) sequence.
For example : If “RAND” is selected while playing track 8, the random function
wi ll commence once tr ack 8 has ended.
When all tracks on a disc have been played the player will automatically stop
and power down in approx. 1 minuteto preserve battery life.
Press MODE button again to return to the NORMAL play mode.
Locating a Particular track
Locating a Particular Point in a track
Low level audio will be heard during the search process to assist in locating the
co rr ect po in t i n the tr ack.
X4presses
During play
EN-10
To search backward at a high speed
To skip to the beginning of the
following tracks
To skip back to the beginning of the
current or a pr evious track
Press lightly and repeatedly.
Press lightly and repeatedly.

SUPER ANTI-SKIP OPERATION
This player incorporates a superior electronic anti-skip circuitwhichprevents
interruption of the sound output when the unit is subjected to shock,
vibration or rolling during disc playback. If in use the player is likely to be
subjected toshock, vibration or rolling ( i.e. while walking or if used in a vehicle )
press the Super ASPbutton to provide uninterrupted playback.
When the Super ASP button is pressed in the play mode the display will show
and the function is initialised. When shows in the display the data buffer is
full.
The sound will mute for approximately 1 second while the buffer fills. Once
filled the buffer will give approximately 60 seconds of protection against
interruption of sound output. If the player is subjected to shock or rolling of
over 60 seconds duration some interruption of sound output will occur. This
is normal and to be expected and the sound will resume once the player
has stabilized from the shock or rolling disturbances.
To turn this function off press the Super ASP button.
Notes:
1. When using theSuper ASP function the battery power consumption increases
because the disc rotates faster than normal and the dynamic menory is
active.
2. While the SuperASP functionprovides forcontinuous sound output
when the unit is subjected to continuous shock, vibration or rolling it will not
correct errors arising from the use of defective, scratched or dirty discs.
3. When powering theplayer solely from batteries, only use the Super ASP
function where necessary to preserve battery life.
SuperASPIndicator SuperASPIndicator Super ASP Indicator
EN-11

PLAYER MAINTENANCE
Cleaning the Cabinet
Wipe with a soft cloth. If the cabinet is very dirty, dampen the cloth with a
weak solution of neutral detergent and water, and then wipe clean.
Cleaning the Lens
Adirty len s will cause sound skipping. If the lens is very dirty, open the
CD compartment lid and clean the lens as follows :
Dust or Dry Particles
Using a camera lens brush / blower, blow on the lens couple times, then
wipe it lightly with the brush to remove dust. Then, blow on the lens once
more.
Fingerprints
If the lens cannot be cleaned using bru sh / blower, use a cotton swab
starting in the middle and working to the outside edge.
EN-12

DISC CLEANING AND TROUBLESHOOTING GUIDE
Cleaning the Disc
When a disc becomes dirty,
clea n it with a cleaning cloth.
Wipe the disc from the center
out.
Note: Do not use solvents such as benzene, thinner, commercially available
cleaners or anti-static spray intended for analog discs.
EN-13
