jWIN JK-333 User manual
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous
voltage within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.

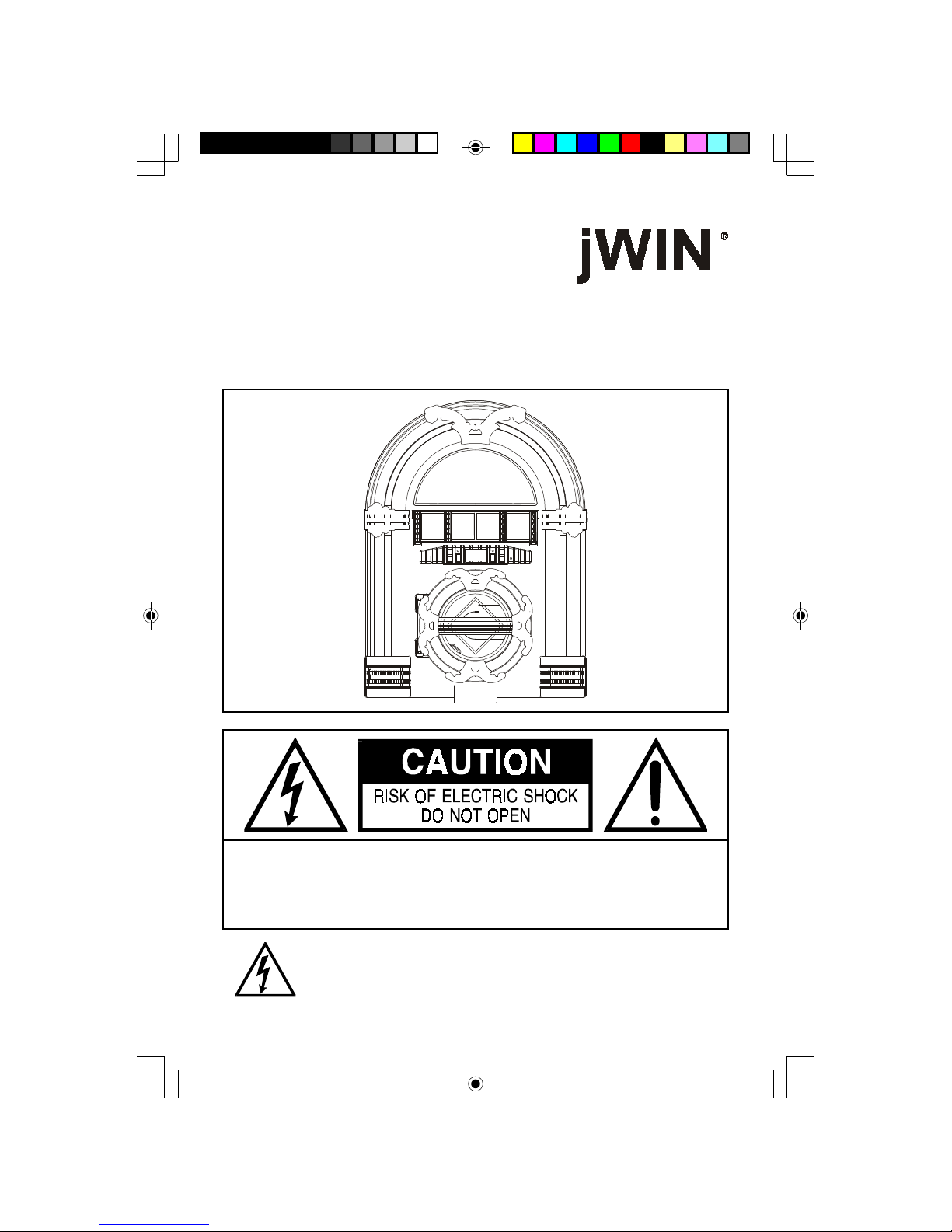

JK-333
Juke Box With CD/Radio
Instruction Manual
http://www.jwin.com
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (ser-
vicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
PORTABLE CART WARNING
DO NOT REMOVE THIS
TAG (MARKING)
The words WARNING. MOVE WITH
CARE. THIS CART/APPLIANCE COM-
BINATION SHOULD NOT BE MOVED
BY CHILDREN WITHOUT PROPER
GUIDANCE FROM AN ADULT
OR
An appliance and cart combination should be
moved with care. Quick stops, excessive
force, and uneven surfaces may cause the
appliance and cart combination to overturn.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Electrical energy can perform many useful functions. This unit has been engineered
and manufactured to assure your personal safety. Improper use can result in potential
electrical shock or fire hazards. In order not to defeat the safeguards, observe the fol-
lowing basic rules for its installation, use and servicing.
1. Read Instructions All the safety and operating instructions should be read before
the appliance is operated.
2. Retain Instructions The safety and operating instructions should be retained for
future reference.
3. Heed Warnings All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow Instructions All operating and use instructions should be followed.
5. Water and Moisture The appliance should not be used near water for ex-
ample, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or
near a swimming pool, and the like.
6. Carts and Stands The appliance should be used only with a cart or stand that
is recomended by the manufacturer.
1
6A. An appliance and cart combination should be moved with care. Quick stops, ex-
cessive force, and uneven surfaces may cause the appliance and cart combina-
tion to overturn.
7. Wall or Ceiling Mounting The appliance should be mounted to a wall or ceiling
only as recommended by the manufacturer.
8. Ventilation The appliance should be situated so that its location or position
does not interfere with its proper ventilation. For example, the appliance should
not be situated on a bed, sofa, rug, or similar surface that may block the
ventilation openings or placed in a built-in installation, such as a bookcase or
cabinet that may impede the flow of air through the ventilation openings.
9. Heat The appliance should be situated away from heat sources such as
radiators, heat registers, stoves, or other appliances (including amplifiers) that
produce heat.
10. Power Sources The appliance should be connected to a power supply of the
type described in the operating instructions or as marked on the appliance.
11. Grounding or Polarization Observe the precautions that should be taken so
that the grounding or polarization protective features of an appliance are not
defeated.
12. Power Cord Protection Power supply cords should be routed so that they
are not likely to be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience receptacles, and the
point where they exit from the appliance.
13. Protective Attachment Plug The appliance is equipped with an attactment plug
that has overload protection. This is a safety feature. If replacement of the plug
is required, be sure the service technician uses a replacement plug specified by
the manufacturer that has the same overload protection as the original plug.
14A. Cleaning The appliance should be cleaned only as recommended by the
manufacturer.
14B. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
15. Power Lines An outdoor antenna should be located away from power lines.
16. Outdoor Antenna Grounding If an outside antenna is connected to the receiver,
be sure the antenna system is grounded so as to provide some protection
against voltage surges and built up static charges. Section 801 of the National
Electrical Code. ANSI/NFPA NO. 70-1984, provides information with respect to
proper grounding of the mast and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding electrodes, and
requirements for the grounding electrode. See Figure 73.1.
17. Nonuse Periods The power cord of the appliance should be unplugged from
the outlet when left unused for a long period of time.
2
18. Object and Liquid Entry Care should be taken so that objects do not fall and
liquids are not spilled into the unit through openings.
19. Damage Requiring Service The appliance should be serviced by qualified
service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked
change in performance; or
E. The appliance has been dropped, or damaged.
20. Servicing The user should not attempt to service the appliance beyond
instructions given in the operating instructions. All other servicing should be
referred to qualified service personnel.
POWER LINES
SERVICE ENTRANCE
CONDUCTORS
GROUND WIRE
GROUND CLAMPS
a. a
BONDING JUMPER
c
GROUND CLAMPS
STANDOFF
INSULATORS
b
MAST
ANTENNA
LEAD IN WIRE
ANTENNA
DISCHARGE
UNIT
c
TO EXTERNAL ANTENNA
TERMINALS OF PRODUCT
GROUND WIRE
a. a
GROUND CLAMPS
OPTIONAL ANTENNA GROUNDING ELECTRODE
DRI/ENG FEET (2.44 m) INTO THE EARTH
IF REQUIRED BY LOCAL CO DES SEE NEC
SECTION 810-21 (1)
SERVICE
ENTRANCE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(e.g. ntenor water pipe)
FIGURE 73.1
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE
INSTRUCTIONS CONTAINED IN ARTICLE 810-
RADIO AND TELEVISION EQUIPMENT
a. Use No. 10 AWG (5.3 mm2) copper, No. 8 AWG (8.4 mm2) aluminium, No. 17
AWG (1.0 mm2) copper-clad steel or bronze wire, or larger, as a ground wire.
b. Secure antenna lead-in and ground wire to house with stand-off insulators
spaced from 4 - 6 feet (1.22 - 1.83 m) apart.
c. Mount antenna discharge unit as close as possible to where lead-in enters
house.
d. Use jumper wire not smaller than No. 6 AWG (13.3 m 2) copper, or the
equivalent when a separate antenna-grounding electrode is used. See NEC
Section 810 - 21 (i).
3
LOCATION OF PARTS
1. Dial Display Door
2. Dial Display
3. Tuning Knob
4. Speaker
5. CD Door
6. AM/FM Band Switch
7. Function Switch
8. Volume Control
9. FM Antenna
10. Power Plug
11. Fast Forward Button
12. Power Indicator
13. FM Stereo Indicator
14. Stop Button
15. Fast Reverse Button
16. Repeat Button
17. Play/Pause Button
18. Program Button
19. Program Indicator
1
12
11
15
16
13
14
19
18
17
2
3
4
5
6
7
8
10
9
4
