Octave TouchTunes MX-1 User manual

OS2 Upgrade Kit
Installation Guide
MX-1 Allegro

Disclaimer
Document Part Number: 901107-001 Rev 01 March 2019
OS2 UPGRADE KIT INSTALLATION GUIDE FOR TOUCHTUNES JUKEBOXES
A. About this Guide
• The OS2 Upgrade Kit Installation Guide (the “Guide”) is produced by the Octave Music Group,
Inc. on behalf of itself and its subsidiaries including TouchTunes Music Corporation (collectively,
“TouchTunes”).
• The information contained in this Guide, including any product specifications, is subject to change
without notice.
• TouchTunes assumes no responsibility or liability for any errors in this publication and makes no
warranty of any kind with respect to the content of this Guide.
• No part of this Guide may be reproduced, transmitted, transcribed, stored in a retrieval system,
adapted or translated into any language in any form, by any means, without TouchTunes’ prior
written permission.
• TouchTunes reserves the right to change the specifications of the hardware and software
described in this Guide at any time and without prior notice.
• This Guide is furnished for informational purposes only, is subject to change without notice, and
should not be construed as a commitment by TouchTunes.
• Changes may be periodically made to the information set forth in this Guide, which changes will
be incorporated into new editions of this Guide.
• TouchTunes will not be held liable for any damages resulting from the use of this Guide or the
product(s) described in this Guide.
TOUCHTUNES PROVIDES NO WARRANTY WITH REGARD TO THIS GUIDE OR ANY OTHER
INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE WITH
REGARD TO ANY OF THE FOREGOING. TOUCHTUNES ASSUMES NO LIABILITY FOR ANY
DAMAGES INCURRED DIRECTLY OR INDIRECTLY FROM ANY TECHNICAL OR TYPOGRAPHICAL
ERRORS OR OMISSIONS CONTAINED HEREIN OR FOR DISCREPANCIES BETWEEN THE
PRODUCT AND THIS GUIDE. IN NO EVENT SHALL TOUCHTUNES BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR EXEMPLARY DAMAGES, WHETHER BASED ON
TORT, CONTRACT OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS GUIDE OR
ANY OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.
B. Trademarks
TouchTunes and the TouchTunes logo are some of the trademarks or registered trademarks of
TouchTunes in the United States, other countries, or both. Any third party company, product(s), brand
and/or service names may be registered or unregistered trademarks or service marks of their respective
owners and are hereby recognized.

Logos, trademarks, photography, illustrations, graphics, screenshots, videos, audios and text
incorporated into TouchTunes’ hard copy and online documents and publications are copyright protected
by TouchTunes or its licensors. Downloading, web linking, screen capturing or copying these items in
any manner for any use - other than personally viewing the original document in its entirety - are prohibited
by copyright law, and written permission from TouchTunes must be obtained before any use of
TouchTunes' copyrighted material.
C. Intellectual Property
All Intellectual Property (as defined below) owned by or which is otherwise the property of TouchTunes
or its respective suppliers or licensors relating to TouchTunes jukeboxes, including accessories, parts and
or software relating thereto (the “Product”), is proprietary to TouchTunes and protected under Federal and
State laws and international treaty provisions. “Intellectual Property” includes trademarks, service marks,
logos, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer
programs and related documentation and other works of authorship. You may not infringe or otherwise
violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not
attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble or otherwise
attempt to create source code from the software. No title or ownership in the Intellectual Property is
transferred to you. All applicable rights of the Intellectual Property shall remain with TouchTunes.
D. Confidential Information
This Guide is copyrighted by TouchTunes and the contents are confidential information of TouchTunes.
You may not disclose the information described herein without written authorization of TouchTunes.
E. Contact Information
While every effort was made to ensure that the information in this Guide is accurate and complete, we
would appreciate it if you bring to our attention any errors or omissions or if you otherwise have any
comments on this Guide or the products it describes to:
TouchTunes Music Corporation
ATTN: Product Operations
850 Third Ave, 15th Floor
New York, NY 10022
USA
© The Octave Music Group, Inc. (formerly known as TouchTunes Interactive Networks, Inc.) 2019
All rights reserved, including those to reproduce this Guide or parts thereof in any form without permission
from TouchTunes.

Contents
1 Introduction 1
1.1 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Disclaimer and Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.1 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.2 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Contacting TouchTunes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Prepare to Install OS2 Upgrade Kits 5
2.1 Important Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1.1 Jukebox Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1.2 Broadband Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1.3 Record Current Jukebox Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Required Tools and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Estimated Time to Complete the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Unpacking and Checking OS2 Upgrade Kit Components . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4.1 Universal Computer and I/O Board Upgrade Kit Components . . . . . . . . . . . . . . . . . 8
2.4.2 Power Supply Unit Upgrade Kit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.5 Workflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Install OS2 Upgrade Kit in MX-1 11
3.1 Removing JCB or JCB+ for JCB Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Installing New Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2.1 Assembling the Universal Computer and I/O Board Upgrade Kit . . . . . . . . . . . . . . . 17
3.2.2 Installing the Universal Computer and I/O Board Upgrade Kit . . . . . . . . . . . . . . . . . 27
3.2.3 Installing the New Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4 Install OS2 Upgrade Kits in Allegro 35
4.1 Removing the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.1.1 Removing an MJS-based Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.1.2 Removing a JCB-based Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.2 Installing New Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
4.2.1 Assembling the Universal Computer and I/O Board Upgrade Kit . . . . . . . . . . . . . . . 42
4.2.2 Installing the Universal Computer and I/O Board Upgrade Kit . . . . . . . . . . . . . . . . . 52

4.2.3 Assembling the Power Supply Unit Upgrade Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
4.2.4 Installing the Power Supply Unit Upgrade Kit (where applicable) . . . . . . . . . . . . . . . 64
4.2.5 Installing the New Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
5 Activate the Jukebox 65
5.1 Powering on the Jukebox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
5.2 Configuring the Jukebox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
5.2.1 Calibrating the Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
5.2.2 Selecting Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
5.2.3 Selecting Languages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
5.2.4 Choosing Jukebox Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
5.2.5 Choosing Calling Window and Connection Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
5.2.6 Verifying the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
5.3 Updating Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
5.4 Installation Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
5.4.1 Corruption in the ID Chip or Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
5.4.2 Serious System Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
5.5 Viewing OS2 Interface on Older Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

OS2 Upgrade Kit Installation Guide 901107-001 Rev 01
1
Introduction
This section introduces the OS2 Upgrade Kits for TouchTunes jukeboxes, provides important safety information, and
describes how to get technical support.
Topics
1.1 About This Guide
1.2 Disclaimer and Important Safety Information
1.3 Contacting TouchTunes

OS2 Upgrade Kit Installation Guide
Introduction
2
1.1 About This Guide
This Guide is intended for Operators of TouchTunes digital jukeboxes and their technicians, and TouchTunes
technical support and field service personnel. It explains how to upgrade your TouchTunes jukebox to OpenStage 2
(OS2) using the following TouchTunes OS2 Upgrade Kits:
• “Universal” Computer and I/O Board Upgrade Kit (P/N 600305-001)
• Power Supply Unit Upgrade Kit (P/N 600306-001)
The initial release of the OS2 Upgrade Kits can be used on the following jukebox models:
• MX-1
• Allegro
1.2 Disclaimer and Important Safety Information
1.2.1 Disclaimer
TouchTunes is not responsible for any damage resulting from the improper installation or connection of jukebox
components or any other external equipment to your jukebox. TouchTunes is not responsible for any damage caused
during shipment (except the shipment to the original purchaser) or any damage caused by:
• impacts, fluids, fire, flood, wind, earthquake, lightning, or similar disaster
• unauthorized modifications, non-TouchTunes attachments or peripherals, improper use, environment,
installation, or electrical supply
• improper maintenance
• any other misuse, abuse, or mishandling
1.2.2 Important Safety Instructions
Make sure to familiarize yourself with the following safety information before proceeding with product installation.
NOTE The TouchTunes Power Supply Unit Upgrade Kit (P/N 600306-001) is ONLY required for
jukeboxes built with an MJS computer. This includes those currently running an MJS, as well as
those which have previously been ungraded using a “JCB+ for MJS Upgrade”. Jukeboxes which
have only ever had a JCB or JCB+ for JCB computer DO NOT REQUIRE these additional parts
(for example, an MX-1 jukebox).
CAUTION: Do not install this equipment near any heat sources, such as radiators,
heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
CAUTION: Do not defeat the safety purposes of the polarized or grounding-type plug.
A polarized plug has two blades with one blade wider than the other. A grounding-type
plug has two blades and a third grounding prong. The wider blade or the third
grounding prong are provided for your safety. If the provided plug does not fit in your
outlet, consult an electrician for replacement of the obsolete outlet.

Introduction
OS2 Upgrade Kit Installation Guide
3
To prevent risk of fire or electric shock, avoid overloading wall outlets, extension
cords, integral convenience receptacles.
Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
CAUTION: See the product enclosure for safety related markings and refer to the
product’s Operator’s Manual on the TouchTunes Tempo site for additional safety
information.
Do not use this apparatus near water of moisture - Do not use this product near a
bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming
pool, or anywhere else that water or moisture are present.
Clean only with a dry cloth. Unplug this product from the wall outlet before
cleaning.
Do not block any ventilation opening. Install in accordance with the
manufacturer’s instructions - To ensure reliable operation of the product and to
protect it from overheating, put the product in a position and location that will not
interfere with its proper ventilation.
Do not let objects or liquids enter the product as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock.
Use only attachments and accessories specified by the manufacturer.
Refer all services to qualified service personnel. Service is required when the
apparatus has been damaged in any way: such as power-supply cord or plug is
damaged; liquid has been spilled or objects have fallen into the apparatus; the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
WARNING: This symbol alerts you to the presence of “dangerous voltage” within the
product enclosure that may be of sufficient magnitude to constitute a risk of electrical
shock. Do not remove the cover or back. There are no user-serviceable parts inside.
Servicing must be performed by qualified personnel only.

OS2 Upgrade Kit Installation Guide
Introduction
4
1.3 Contacting TouchTunes
If you need help or have questions about this Guide, call the TouchTunes 24/7 Service Hotline at 888-338-5853.
To help us assist you more effectively with problem reports, the following information may be required when
contacting TouchTunes Technical Support:
• Jukebox model and ID
• Operator ID
• The serial number of any component you believe to be problematic
• The date/time of the problem
• Actions performed immediately before the problem occurred
• Any additional comments relevant to the problem

OS2 Upgrade Kit Installation Guide 901107-001 Rev 01
2
Prepare to Install OS2 Upgrade Kits
This section provides the prerequisite information and steps that need to be performed in preparation for installing an
OS2 Upgrade Kit.
Topics
2.1 Important Prerequisites
•2.1.1 Jukebox Condition
•2.1.2 Broadband Internet Connection
•2.1.3 Record Current Jukebox Settings
2.2 Required Tools and Equipment
2.3 Estimated Time to Complete the Installation
2.4 Unpacking and Checking OS2 Upgrade Kit Components
•2.4.1 Universal Computer and I/O Board Upgrade Kit Components
•2.4.2 Power Supply Unit Upgrade Kit Components
2.5 Workflow

OS2 Upgrade Kit Installation Guide
Prepare to Install OS2 Upgrade Kits
Important Prerequisites
6
2.1 Important Prerequisites
2.1.1 Jukebox Condition
The successful installation of your OS2 Upgrade Kit(s) requires that your current hardware be in good working
condition.
Before proceeding with installation of the OS2 Upgrade Kit(s), it is imperative that you verify that all currently installed
electronic components are fully functional. You must also inspect the cabinet or enclosure to ensure that it has not
sustained damage that would inhibit or prevent the installation of any equipment provided with the OS2 Upgrade Kit
- either internally installed functional components, or externally applied aesthetic enhancements.
2.1.2 Broadband Internet Connection
OS2 Upgrade Kit installation requires a broadband Internet connection. The broadband connection allows:
• Songs selected by patrons that are not on the hard drive are downloaded immediately, ahead of all other pending
downloads
• Support for the TouchTunes Mobile application
• Change jukebox settings remotely, in real-time, via the TouchTunes Tempo site (https://tempo.touchtunes.com)
For all connections, ensure you use high-quality cable and make the cable run as short as possible to minimize
potential problems due to line noise and interference.
Wireless Broadband Connection

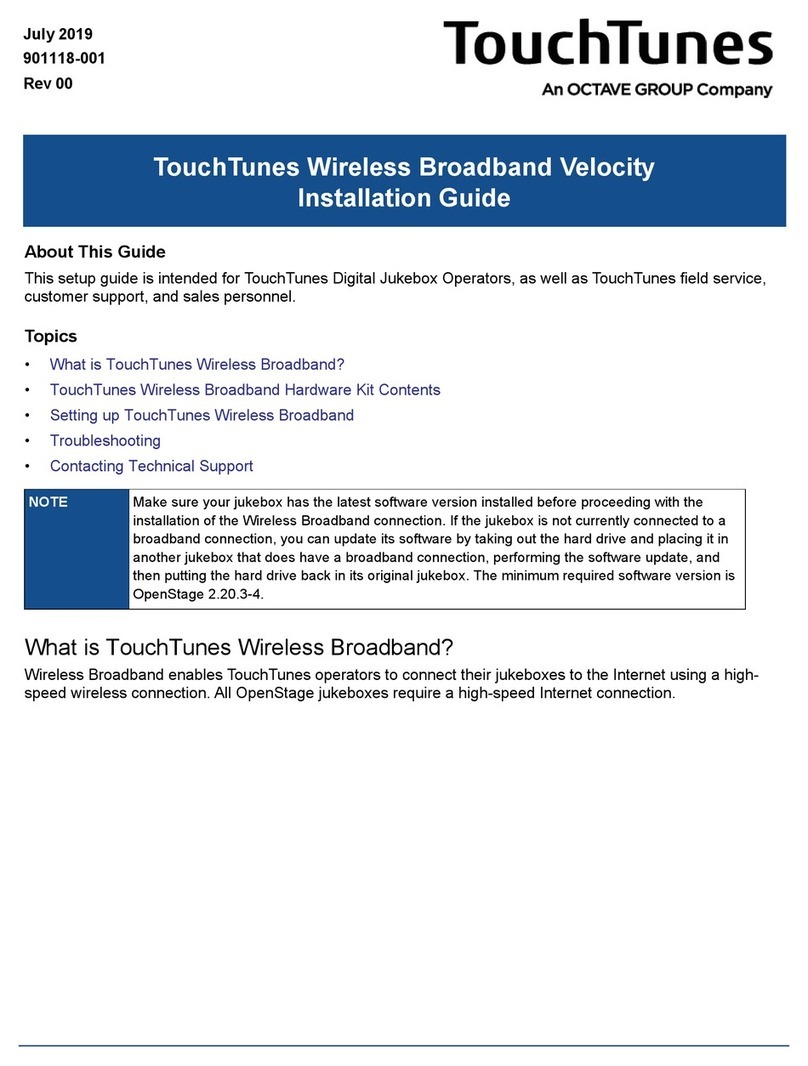

The TouchTunes Wireless Broadband hardware kit (P/N 600263-001) contains everything you will need to provide
your jukebox with a wireless broadband Internet connection. This kit comes with its own installation guide (Wireless
Broadband Installation Guide (AT&T Beam) (P/N 901024-001) that will guide US operators through the proper steps
for setting up a wireless broadband connection. This guide can also be found on the TouchTunes Product & Warranty
site, at http://productwarranty.touchtunes.com in the Product & Technical Documentation section.
For Canadian operators, use the hardware kit P/N 600187-001 and the Wireless Broadband Installation Guide
(Rogers) P/N 900764-001.
IMPORTANT: Installing a TouchTunes OS2 Upgrade Kit does not fix a broken or deactivated
jukebox.
IMPORTANT: The OS2 Upgrade Kit installation does not support dial-up Internet connections.
NOTE The broadband modem and router can be included in a single device, depending on the equipment
used by the ISP and the networking setup for the location. Both the broadband modem and the
router must be installed and configured properly for Internet access before you can set up a
broadband connection for the jukebox.

Prepare to Install OS2 Upgrade Kits
Required Tools and Equipment
OS2 Upgrade Kit Installation Guide
7
2.1.3 Record Current Jukebox Settings
When upgrading your jukebox to OS2, your existing settings are not preserved. It is strongly recommended to record
all settings beforehand so that you can set them to these values after the upgrade which includes the hard drive
replacement.
2.2 Required Tools and Equipment
Accomplishing the procedures described in this section requires the use of the following tools and equipment:
• Screw drivers (slotted and Phillips head)
• Nut driver or hex-head screw driver, assorted sizes
• Cable ties for dressing cables
• Wire cutters
2.3 Estimated Time to Complete the Installation
The degree of complexity and time to complete the installation may vary slightly, depending upon the installer’s
experience and comfort level in working with electronic equipment and hardware.
A typical installation can usually be completed in approximately 45 minutes.
2.4 Unpacking and Checking OS2 Upgrade Kit Components
The TouchTunes Universal Computer and I/O Board Upgrade Kit (P/N 600305-001) for jukeboxes may be delivered
in several boxes and includes the following:
• Metal riser bracket pieces, mounting bracket for the computer and I/O Board, cables, screws, and this manual
• Computer (with green label)
• I/O Board
NOTE 1 The new computer (P/N 301090-001) is marked with a green label to indicate it is “universal”. If
the P/N and label of the computer you receive does not match, then you have not received the
correct model.
NOTE 2 The hard drive for the new computer is shipped separately. Make sure you have received the
hard drive before proceeding with installation. If the hard drive has not yet arrived at your
location, contact TouchTunes.
NOTE 3 The TouchTunes Power Supply Unit Upgrade Kit (P/N 600306-001) is ONLY required for
jukeboxes equipped with an MJS computer. This includes those currently running an MJS, as
well as those which have previously been upgraded using a “JCB+ for MJS Upgrade”.
Jukeboxes which have only ever had a JCB or JCB+ for JCB computer DO NOT REQUIRE
these additional parts (for example, an MX-1 jukebox).

OS2 Upgrade Kit Installation Guide
Prepare to Install OS2 Upgrade Kits
Unpacking and Checking OS2 Upgrade Kit Components
8
The TouchTunes Power Supply Unit Upgrade Kit (P/N 600306-001) for MJS and JCB+ for MJS-equipped jukeboxes
is delivered in 2 boxes:
• Mounting bracket, cables, and screws
• Power Supply Unit
Before you install an OS2 Upgrade Kit, you must ensure that you have received all hardware components and that
both hardware components and the items in the OS2 Upgrade Kit(s) are in good condition.
2.4.1 Universal Computer and I/O Board Upgrade Kit Components
This portion of the OS2 Upgrade Kit (P/N 600303-001) should contain the following components:
Component
Quantity
Component Description TouchTunes
Part Number (P/N)
2 MET, BRACKET, SUPPORT Metal riser bracket support parts 401690-001
1 MET, SUPPORT, MIDDLE
BRACKET
Middle part for metal riser bracket 401691-001
2 MET, SUPPORT STAND,
BRACKET
Side support parts for metal riser
bracket
401692-001
1 ASY, PC IO BRACKET Mounting bracket for the computer
and I/O Board
401693-001
1 MAN, OS2 UPGRADE KIT This Guide 901107-001
14 FAS, SCR, X-PAN, SEMS, M4X6,
ZN
Zinc screws (size 4 x 6) 200244-006
4 FAS, SCR, X-PAN, SEMS, M4X8,
ZN
Zinc screws (size 4 x 8) 200244-008
1 HAR, I/O TO BACKPLANE, 8.5" Cable to connect the I/O Board to
the backplane
301094-009
1 HAR, DVI-VGA ADAPTER, 36" DVI to VGA video cable 301096-036
1 ACC, ADAPTER, VGA TO VGA,
M-F
Male/Female adapter (placed
between jukebox monitor video
cable and the above cable)
401704-001
5 HAR, CAT5, RJ45-RJ45, 18 Network cable (RJ45, 18") 300142-018
1 HAR, RJ11, 6 COND CROSS, 12" RJ11 cable (gray cable) 300379-012
1 HAR, CAT5, RJ45-RJ45, 24 Network cable (RJ45, 24") 300142-024
1 HAR, JCB PSU, EXTENSION, 12" Power extension cable, 12" (for
JCB computer)
300288-012

Prepare to Install OS2 Upgrade Kits
Workflow
OS2 Upgrade Kit Installation Guide
9
2.4.2 Power Supply Unit Upgrade Kit Components
This portion of the OS2 Upgrade Kit is only applicable to TouchTunes jukeboxes equipped with an MJS computer or
a JCB+ for MJS computer. It is not needed when replacing a JCB or JCB+ for JCB computer. The OS2 Upgrade Kit
(P/N 600304-001) should contain the following components:
2.5 Workflow
The procedures described here represent a logical sequence of events and best practices for installing your OS2
Upgrade Kit within the least time and with minimum difficulty.
In general, the basic procedures are:
1. Disconnection and removal of old computer.
The existing computer must be removed from the jukebox in order to accommodate the OS2 Upgrade Kit.
2. Installation of new components.
This procedure involves assembly, installation, and connection of the new TouchTunes components in the
jukebox.
3. Activation of the upgraded jukebox.
This procedure allows you to verify the success of your installation. See section 5 Activate the Jukebox.
Procedures for each jukebox that are in scope for upgrade are described in detail in the following sections:
•3 Install OS2 Upgrade Kit in MX-1
•4 Install OS2 Upgrade Kits in Allegro
Component
Quantity
Component Description TouchTunes P/N
1 ASY, PSU BRACKET Mounting bracket for the Power
Supply Unit
401694-001
4 FAS, SCR, X-PAN, SEMS, M4X6,
ZN
Zinc screws (size 4 x 6) 200244-006
1 HAR, PSU, EXTENSION CABLE,
14"
Extension cable 14" to connect
power from PSU to computer-I/O
Board mounting bracket
301095-014
1 HAR, POWER CORD A/C,
ANGLED, 36"
A/C power cord 36" 301097-036
CAUTION: Do not attempt installation if any jukebox hardware component or item in
the OS2 Upgrade Kit(s) is damaged. Contact TouchTunes to report the damage
immediately and request replacement parts.

OS2 Upgrade Kit Installation Guide
Prepare to Install OS2 Upgrade Kits
Workflow
10

OS2 Upgrade Kit Installation Guide 901107-001 Rev 01
3
Install OS2 Upgrade Kit in MX-1
This section provides the procedures that need to be performed in order to complete the installation of the OS2
Upgrade Kit in an MX-1 jukebox.
Topics
3.1 Removing JCB or JCB+ for JCB Computer
3.2 Installing New Components
•3.2.1 Assembling the Universal Computer and I/O Board Upgrade Kit
•3.2.2 Installing the Universal Computer and I/O Board Upgrade Kit
•3.2.3 Installing the New Hard Drive

OS2 Upgrade Kit Installation Guide
Install OS2 Upgrade Kit in MX-1
Removing JCB or JCB+ for JCB Computer
12
3.1 Removing JCB or JCB+ for JCB Computer
To prepare your jukebox for installation of the OS2 Upgrade Kit, you must disconnect and remove the existing
computer (JCB or JCB+ where applicable).
The following shows the location of the computer in an MX-1 jukebox.
Location of computer in MX-1 jukebox
This procedure applies to a jukebox equipped with a JCB or JCB+ for JCB computer.
To remove the computer:
1. Power off the jukebox.
2. Disconnect all electrical power to the jukebox.
3. Unlock and open the jukebox front door.
4. Disconnect the AC power cord from the power strip and from the AC inlet on the bottom panel of the computer.
5. Locate the two locking slide rails on either side of the service tray at the rear of the cabinet’s interior.
WARNING: To prevent risk of electrical shock when performing the following procedure or
any other maintenance on your jukebox, the jukebox must be powered off and its electrical
power disconnected.

Install OS2 Upgrade Kit in MX-1
Removing JCB or JCB+ for JCB Computer
OS2 Upgrade Kit Installation Guide
13
Unlocking MX-1 Service Tray
• Disengage the rails from the locking tabs by pressing them inward toward the center of the enclosure, and
then pulling back as far as they can travel.
• Gently push the service tray outward, letting it slide along the rails.

OS2 Upgrade Kit Installation Guide
Install OS2 Upgrade Kit in MX-1
Removing JCB or JCB+ for JCB Computer
14
6. Disconnect all the cables that go into the computer.
Connections to remove from top of the JCB (MX-1 jukebox accessed from its rear service tray)
NOTE Prior to performing the next step, it is recommended to use cable flags (or just pieces of tape) to
tag each cable that connects to the jukebox computer, indicating which socket it goes into on the
computer. At a minimum, you should label all the Ethernet cables (network, Zones 1 to 3, MIC and
AUX IN, DMX) as these are very easy to mix up.
