K Tool International XD KTI-63134A User manual
OWNER’S MANUAL
1,000 LBS
TRANSMISSION JACK ADAPTOR
KTI-63134A
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Capacity Minimum Lifting
Range
Maximum Lifting
Range
Saddle Forward
Tilt
Saddle
Backward Tilt Base L x W
1000 lbs. 49-5/8 inch 68-3/4 inch 14° 72° 22-1/4 x 21-3/8 inch
2
GENERAL SAFETY RULES
Jack use and care
Inspection
GENERAL SAFETY RULES
IMPORTANT SAFETY CONSIDERATIONS
WARNING: Read and understand all instructions. Failure to follow all instructions listed below may
result in serious injury.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot
cover all possible conditions or situations that could occur. It must be understood by the operator
that common sense and caution are factors that cannot be built into this product, but must be supplied by
the operator.
CAUTION: Do not allow persons to operate or assemble this jack until they have read this manual
and have developed a thorough understanding of how the jack works.
DO NOT OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL.
To maintain the service jack and user safety, the responsibility of the owner is to read and follow these
instructions.
• Inspect the service jack for proper operation and function.
• Keep instructions readily available for equipment operators.
• Make certain all equipment operators are properly trained; understand how to safely and correctly operate
the unit.
• Allow unit operation only with all parts in place and operating properly.
• Use only genuine replacement parts.
• Service and maintain the unit only with authorized or approved replacement parts; negligence will make the
jack unsafe for use and void the warranty.
• Carefully inspect the unit on a regular basis and perform all maintenance as required.
• Store these instructions in the handle of your jack.
• Keep all decals on the unit clean and visible.
• Inspect the jack carefully before each use. Ensure the jack is not damaged, excessively worn, or missing
parts.
• Do not use the jack unless it is properly lubricated.
• Using a jack that is not in good clean working condition or properly lubricated may cause serious injury.
• Inspect the work area before each use. Make sure it is free and clear of any potential hazards.
• Do not modify the Jack in any way. Unauthorized modication may impair the function and/or safety and
could affect the life of the equipment. There are specic applications for which the Jack was designed.
• Always check for damaged or worn out parts before using the jack. Broken parts will affect the jack
operation. Replace or repair damaged or worn parts immediately.
• Store the jack. When jack is not in use, store it in a secure place out of the reach of children. Inspect it for
good working condition prior to storage and before re-use.
• Not for use by children or people with reduced mental capacity.
• Do not use under the inuence of drugs or alcohol.
• Ensure children and other bystanders are kept at a safe distance when using product.
3
SAFETY MARKINGS
WARNING!
1. Study, understand, and follow all instructions before operating this device.
2. Do not exceed rated capacity.
3. Use only on hard, level surfaces, with less than 3 degrees of slope.
4. Lifting device only. Immediately after lifting, support the vehicle with appropriate means.
5. Do not move or dolly the vehicle while on the jack.
6. Lift only on areas of the vehicle as specied by the vehicle manufacturer.
7. No alterations shall be made to this product.
8. Only attachments and/or adapters supplied by the manufacturer shall be used.
9. Do not get under or allow anyone under the vehicle until it has been supported by jack stands.
10. Center load on saddle prior to lifting.
11. Use wheel chocks or other blocking device on opposing wheels before using jack.
12. Never use on a lawn mower or lawn tractor.
13. Do not use this jack for any use other than the manufacturer specied usage.
14. Do not rock the vehicle while working on or around equipment.
15. The following are not recommended for supporting on this equipment: Foundations, Homes, Mobile
Homes, Trailers, RV’s, Campers, nor Fifth Wheels, etc...
16. Failure to heed these markings may result in personal injury and/or property damage.
4

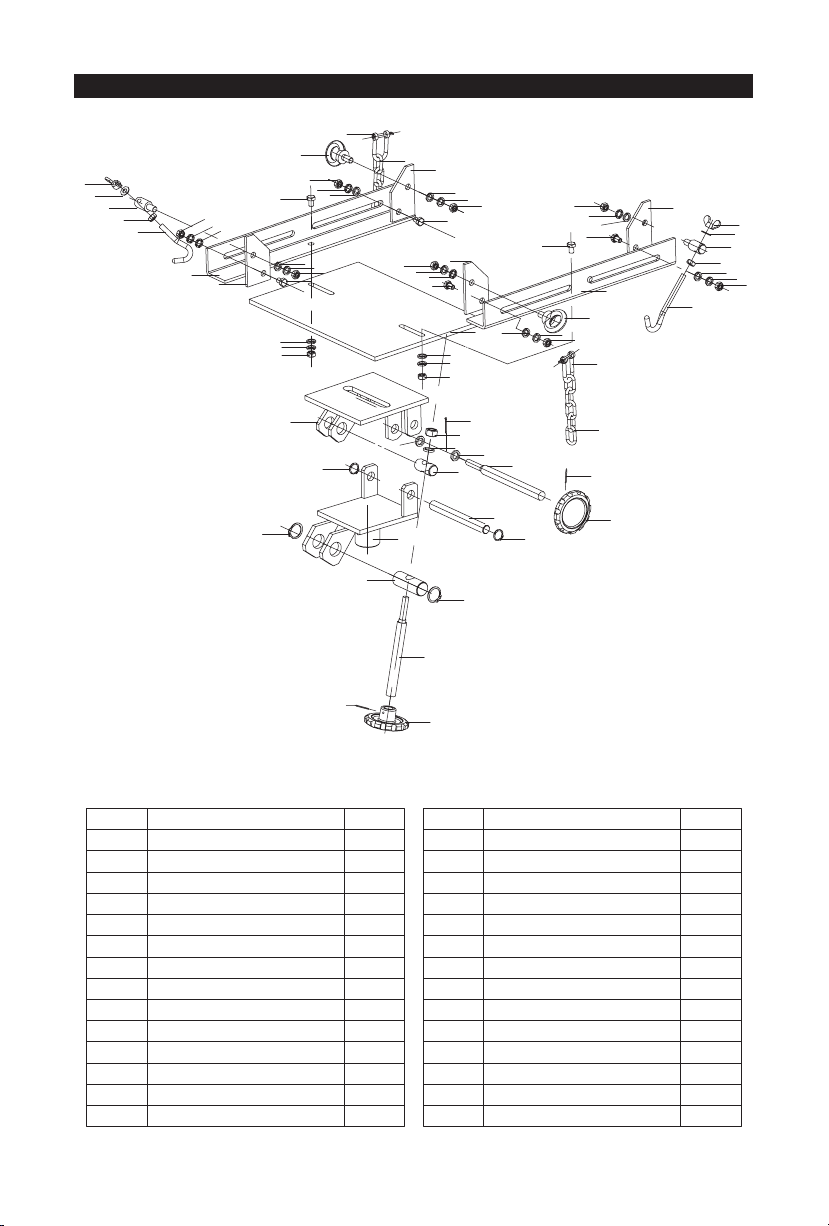

PARTS BREAKDOWN
1
5
3
2
4
7
2
1
22
21
24
15
16
28
25
16
26
23
20
19
11
12
14
13
9
8
6
15
16
18
4
7
10
20
15
21
17
19
17
15
16
19
22
15
16
12
15
16 15
16
15
16
17 17
16
15
16
17
17
19
23
1516
26
16 25
28
24
27
27
27
27
27
27
27
27
27
12
27
DescriptionRef. QTY
1 Pin 5x242
andwheel 2
crew1
etaining ring 252
iddle axis 1
ower bracket assembly 1
etaining ring 162
xis 1
9 Short axis 1
10 Bench panel parts 1
11 Long spiral rod 1
12 Washer 103
13 Lock nut M10 1
14 Pin 2.5x261
DescriptionRef. QTY
15 Nut M10 10
16 Washer 101 2
17 Bolt M10x25 6
18 Upper bracket assembly 1
19 Corner plate 4
20 Lifting bolt M10 2
21 shackle 2
22 Chain 2
23 Countertop side panel 2
24 Hook 2
25 Hook seat 2
26 Butterfly type nut M82
27 Spring washer 101 0
28 Nut M82
2
3
4
5
6
7
8A
R
L
M
R
S
H
WARRANTY
K-Tool International HD and XD service-related equipment 2 Year Limited Warranty.
K-Tool International warrants that all jacks and service-related equipment will be free from defects in material
and workmanship for a period of 2 years following the original date of purchase. This warranty is extended to
the original retail purchaser only. If any jack or service-related item proves to be defective during this period,
it will be replaced or repaired, at K-Tool International’s option, without charge. This warranty does not apply to
damage from accident, overload, misuse or abuse, nor does it apply to any equipment which has been altered
or used with special attachments other than those recommended.
www.ktoolinternational.com
Michigan
If you have any question about the use of this product, please contact
