Kaisai 06RY1 User manual

SERVICE MANUAL
MONO TYPE HEAT PUMP
R32

Mono

M thermal Mono
202008 1
CONTENTS
CONTENTS
Part 1 General Information ............................................................................ 3
Part 2 Component Layout and Refrigerant Circuits ..................................... 5
Part 3 Control ............................................................................................... 15
Part 4 Diagnosis and Troubleshooting ......................................................... 31
Midea CAC Confidential
Mono

M thermal Mono
2 202008
Midea M thermal Mono Service Manual
Midea CAC Confidential
Mono

M thermal Mono
202008 3
Part 1 - General Information
Part 1
General Information
1 Unit Capacities and External Appearance .............................................. 4
Midea CAC Confidential
Mono

M thermal Mono
4 202008
Midea M thermal Mono Service Manual
1 Unit Capacities and External Appearance
1.1 Unit Capacities
Table 1-1.1: Capacity range
Capacity 8kW 10kW
Model
1
(KHC-) 08RY1 10RY1
Capacity 12kW 14kW 16kW
Model
1
(KHC-)12RY3 14RY3 16RY3
Notes:
1. The full model names can be obtained by substituting the asterisk in the model name format given in the left-hand column of the table
above with the shortened model names given in the table. For example, the model name for the 8kW model is KHC-08RY1
2. The presence or omission of the letter R in the model names indicates the unit’s power supply:
R: 3-phase, 380-415V, 50Hz; Omitted: 1-phase, 220-240V, 50Hz.
1.2 External Appearance
Table 1-1.2: Unit appearance
6kW
8/10/12/14/16kW
Midea CAC Confidential
6kW
06RY1
Mono

M thermal Mono
4 202008
Midea M thermal Mono Service Manual
1 Unit Capacities and External Appearance
1.1 Unit Capacities
Table 1-1.1: Capacity range
Capacity
8kW
10kW
Model1
(KHC-) 08RY1 10RY1
Capacity
12kW
14kW
16kW
Model1
(KHC-)12RY3 14RY3 16RY3
Notes:
1. The full model names can be obtained by substituting the asterisk in the model name format given in the left-hand column of the table
above with the shortened model names given in the table. For example, the model name for the 8kW model is KHC-08RY1
2. The presence or omission of the letter R in the model names indicates the unit’s power supply:
R: 3-phase, 380-415V, 50Hz; Omitted: 1-phase, 220-240V, 50Hz.
1.2 External Appearance
Table 1-1.2: Unit appearance
6kW
8/10/12/14/16kW
Midea CAC Confidential
6kW
06RY1
M thermal Mono
202008 5
Part 2 - Component Layout and Refrigerant Circuits
Part 2
Component Layout and
Refrigerant Circuits
1 Layout of Functional Components .............................................................. 6
2 Piping Diagrams ....................................................................................... 11
3 Refrigerant Flow Diagrams ....................................................................... 13
Midea CAC Confidential
Mono

M thermal Mono
6 202008
Midea M thermal Mono Service Manual
1 Layout of Functional Components
KHC-06RY1
Figure 2-1.1: KHC-06RY1 top view
Figure 2-1.2: KHC-06RY1 front view
Midea CAC Confidential
Mono

M thermal Mono
6 202008
Midea M thermal Mono Service Manual
1 Layout of Functional Components
KHC-06RY1
Figure 2-1.1: KHC-06RY1 top view
Figure 2-1.2: KHC-06RY1 front view
Midea CAC Confidential
M thermal Mono
202008 7
Part 2 - Component Layout and Refrigerant Circuits
Figure 2-1.3: KHC-06RY1
Midea CAC Confidential
Mono

M thermal Mono
8 202008
Midea M thermal Mono Service Manual
KHC-08RY1 / KHC-10RY1
Figure 2-1.1: KHC-08(10)RY1 top view
Midea CAC Confidential
Mono

M thermal Mono
8 202008
Midea M thermal Mono Service Manual
KHC-08RY1 / KHC-10RY1
Figure 2-1.1: KHC-08(10)RY1 top view
Midea CAC Confidential
M thermal Mono
202008 9
Midea CAC Confidential
Figure 2-1.2: KHC-08(10)RY1 front view
Part 2 - Component Layout and Refrigerant Circuits
Mono

M thermal Mono
10 202008
Midea M thermal Mono Service Manual

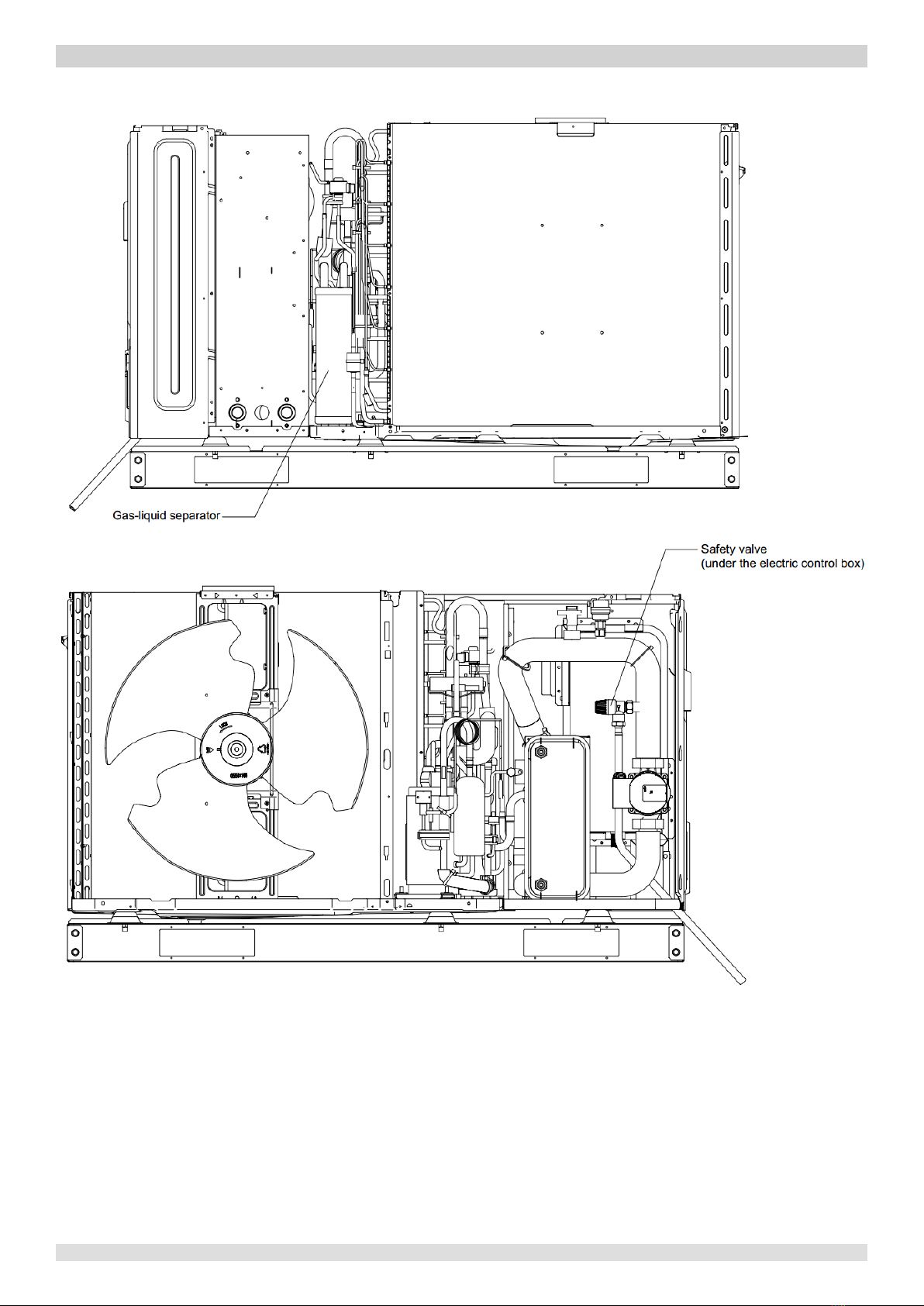

Figure 2-1.5: KHC-12(14, 16)RY3 front view
Midea CAC Confidential
KHC-12RY3 / KHC-14RY3 / KHC-16RY3
Figure 2-1.4: KHC-12(14, 16)RY3 top view
Mono

M thermal Mono
10 202008
Midea M thermal Mono Service Manual
Figure 2-1.5: KHC-12(14, 16)RY3 front view
Midea CAC Confidential
KHC-12RY3 / KHC-14RY3 / KHC-16RY3
Figure 2-1.4: KHC-12(14, 16)RY3 top view
M thermal Mono
202008 11
Part 2 - Component Layout and Refrigerant Circuits
2 Piping Diagrams
Figure 2-2.1: KHC-06RY1 / KHC-12(14, 16)RY3 piping diagram
Figure 2-2.2: KHC-08(10)RY1 / KHC-12(14, 16)RY3 piping diagram
d
e
s
c
Compressor Accumulator
Condenser
EXV
Evaporator
Twin
Twout
T2
T2b F
Pressure sensor
Safety valve Air purge valve Pump
Flow switch
High-pressure switch
Expansion vessel
Manometer
Single way solenoid valve Capillary
Discharge temp. sensor
DC motor
T4
T3
Filter
Suction temp. sensor
Filter
Low-pressure switch
F
d
e
s
c
Compressor Accumulator
Condenser
EXV
Evaporator
Twin
Twout
T2
T2b
Pressure sensor
Safety valve Air purge valve Pump
Flow switch
High-pressure switch
Expansion vessel
Manometer
Single way solenoid valve Capillary
Discharge temp. sensor
DC motor
T4
T3
Filter
Suction temp. sensor
Filter
Low-pressure switch
Midea CAC Confidential
Mono

M thermal Mono
12 202008
Midea M thermal Mono Service Manual
Key components:
1. Accumulator:
Stores liquid refrigerant and oil to protect compressor from liquid hammering.
2. Electronic expansion valve (EXV):
Controls refrigerant flow and reduces refrigerant pressure.
3. Four-way valve:
Controls refrigerant flow direction. Closed in cooling mode and open in heating mode. When closed, the air side heat
exchanger functions as a condenser and water side heat exchanger functions as an evaporator; when open, the air
side heat exchanger functions as an evaporator and water side heat exchanger function as a condenser.
4. High and low pressure switches:
Regulate refrigerant system pressure. When refrigerant system pressure rises above the upper limit or falls below the
lower limit, the high or low pressure switches turn off, stopping the compressor.
5. Air purge valve:
Automatically removes air from the water circuit.
6. Safety valve:
Prevents excessive water pressure by opening at 43.5 psi (3 bar) and discharging water from the water circuit.
7. Expansion vessel:
Balances water system pressure. (Expansion vessel volume: 8L)
8. Water flow switch:
Detects water flow rate to protect compressor and water pump in the event of insufficient water flow.
9. Backup heater:
Provides additional heating capacity when the heating capacity of the heat pump is insufficient due to very low
outdoor temperature. Also protects the external water piping from freezing.
10. Water pump:
Circulates water in the water circuit.
Midea CAC Confidential
Mono

M thermal Mono
12 202008
Midea M thermal Mono Service Manual
Key components:
1. Accumulator:
Stores liquid refrigerant and oil to protect compressor from liquid hammering.
2. Electronic expansion valve (EXV):
Controls refrigerant flow and reduces refrigerant pressure.
3. Four-way valve:
Controls refrigerant flow direction. Closed in cooling mode and open in heating mode. When closed, the air side heat
exchanger functions as a condenser and water side heat exchanger functions as an evaporator; when open, the air
side heat exchanger functions as an evaporator and water side heat exchanger function as a condenser.
4. High and low pressure switches:
Regulate refrigerant system pressure. When refrigerant system pressure rises above the upper limit or falls below the
lower limit, the high or low pressure switches turn off, stopping the compressor.
5. Air purge valve:
Automatically removes air from the water circuit.
6. Safety valve:
Prevents excessive water pressure by opening at 43.5 psi (3 bar) and discharging water from the water circuit.
7. Expansion vessel:
Balances water system pressure. (Expansion vessel volume: 8L)
8. Water flow switch:
Detects water flow rate to protect compressor and water pump in the event of insufficient water flow.
9. Backup heater:
Provides additional heating capacity when the heating capacity of the heat pump is insufficient due to very low
outdoor temperature. Also protects the external water piping from freezing.
10. Water pump:
Circulates water in the water circuit.
Midea CAC Confidential
M thermal Mono
202008 13
Part 2 - Component Layout and Refrigerant Circuits
3 Refrigerant Flow Diagrams
Heating and domestic hot water operation(4,6KW for example)
Figure 2-3.1: Refrigerant flow during heating or domestic hot water operation
Cooling and defrosting operation(4,6KW for example)
Figure 2-3.2: Refrigerant flow during cooling and defrosting operations
Midea CAC Confidential
Mono

M thermal Mono
14 202008
Midea M thermal Mono Service Manual
Midea CAC Confidential
Mono

M thermal Mono
14 202008
Midea M thermal Mono Service Manual
Midea CAC Confidential
M thermal Mono
202008 15
Part 3 - Control
Part 3
Control
1 Stop Operation ........................................................................................ 16
2 Standby Control ....................................................................................... 16
3 Startup Control ........................................................................................ 17
4 Normal Operation Control ....................................................................... 19
5 Protection Control ................................................................................... 21
6 Special Control ......................................................................................... 25
7 Role of Temperature Sensors in Control Functions ................................... 28
Midea CAC Confidential
Mono

M thermal Mono
16 202008
Midea M thermal Mono Service Manual
1 Stop Operation
The stop operation occurs for one of the following reasons:
1. Abnormal shutdown: in order to protect the compressors, if an abnormal state occurs the system makes a 'stop with
thermo off’operation and an error code is displayed on the outdoor unit PCB digital displays and on the user
interface.
2. The system stops when the set temperature has been reached.
2 Standby Control
2.1 Crankcase Heater Control
The crankcase heater is used to prevent refrigerant from mixing with compressor oil when the compressors are stopped.
The crankcase heater is controlled according to outdoor ambient temperature and the compressor on/off state. When the
outdoor ambient temperature is above 8°C or the compressor is running, the crankcase heater is off; when the outdoor
ambient temperature is at or below 8°C and either the compressor has been stopped for more than 3 hours or the unit has
just been powered-on (either manually or when the power has returned following a power outage), the crankcase heater
turns on.
2.2 Water Pump Control
When the outdoor unit is in standby, the internal and external circulator pumps run continuously.
Midea CAC Confidential
Mono

M thermal Mono
16 202008
Midea M thermal Mono Service Manual
1 Stop Operation
The stop operation occurs for one of the following reasons:
1. Abnormal shutdown: in order to protect the compressors, if an abnormal state occurs the system makes a 'stop with
thermo off’operation and an error code is displayed on the outdoor unit PCB digital displays and on the user
interface.
2. The system stops when the set temperature has been reached.
2 Standby Control
2.1 Crankcase Heater Control
The crankcase heater is used to prevent refrigerant from mixing with compressor oil when the compressors are stopped.
The crankcase heater is controlled according to outdoor ambient temperature and the compressor on/off state. When the
outdoor ambient temperature is above 8°C or the compressor is running, the crankcase heater is off; when the outdoor
ambient temperature is at or below 8°C and either the compressor has been stopped for more than 3 hours or the unit has
just been powered-on (either manually or when the power has returned following a power outage), the crankcase heater
turns on.
2.2 Water Pump Control
When the outdoor unit is in standby, the internal and external circulator pumps run continuously.
Midea CAC Confidential
M thermal Mono
202008 17
Part 3 - Control
3 Startup Control
3.1 Compressor Startup Delay Control
In initial startup control and in restart control (except in oil return operation and defrosting operation), compressor startup
is delayed such that a minimum of the set re-start delay time has elapsed since the compressor stopped, in order to
prevent frequent compressor on/off and to equalize the pressure within the refrigerant system. The compressor re-
start delays for cooling and heating modes are set on the user interface. Refer to the Mono Engineering Data Book Part 3,
7.5 “COOL MODE SETTING Menu”and Part 3, 7.6 “HEAT MODE SETTING Menu”.
3.2 Compressor Startup Program
In initial startup control and in re-start control, compressor startup is controlled according to outdoor ambient
temperature. Compressor startup follows one of two startup programs until the target rotation speed is reached. Refer to
Figures 3-3.1, 3-3.2, 3-3.3 and 3-3.4.
Figure 3-3.1: 6kW to 12-16kW Compressor startup program1,2 when ambient temperature is above 3°C
10
20
30
40
50
60
70
80
90
38Hz
40S 32Hz
60S
42Hz
40S
56Hz
40S
66Hz
40S
70Hz
120S
82Hz
120S
目标频率
时间
Hz
Figure 3-3.2: 8-10kW Compressor startup program
1,2
when ambient temperature is above 11°C
42Hz
90S36Hz
60S
42Hz
40S
56Hz
40S
66Hz
40S
70Hz
40S
82Hz
120S
目标频率
时间
Hz
TIME
TARGET FREQUENCY
TIME
TARGET FREQUENCY
Midea CAC Confidential
Mono

M thermal Mono
18 202008
Midea M thermal Mono Service Manual
Figure 3-3.3: 6-10KW compressor startup program1 when ambient temperature is at or
below 3°C (4-6KW)/11°C (8-10KW)
Figure 3-3.4: 12-16KW compressor startup program
1
when ambient temperature is at or below 3°C
Notes:
1. Once the first, 40-second stage of the program is complete, the program proceeds to the subsequent stages in a
step-by-step fashion and exits when the target rotation speed has been reached.
3.3 Startup Control for Heating and Domestic Hot Water Operation
Table 3-3.1: Component control during startup in heating and domestic hot water modes
Component Wiring diagram
label
6kW 8/10/12/
14/16kW
Control functions and states
Inverter compressor COMP ●●
Compressor startup program selected according to
ambient temperature
1
DC fan motor
FAN
●●
Fan runs at maximum speed2
Electronic expansion valve EXV ●●
Position (steps) from 0 (fully closed) to 480 (fully
open), controlled according to
outdoor ambient
temperature, discharge temperature and suction
superheat
Four-way valve
ST
●●
On
3.4 Startup Control for Cooling Operation
Table 3-3.2: Component control during startup in cooling mode
Component Wiring diagram
label
6kW 8/10/12/
14/16kW
Control functions and states
Inverter compressor COMP ●●
Compressor startup program selected according to
ambient temperature
1
DC fan motor
FAN
●●
Fan run at maximum speed
2
Electronic expansion valve EXV ●●
Position (steps) from 0 (fully closed) to 480 (fully
open), controlled according to
outdoor ambient
temperature, discharge temperature and suction
superheat
Four-way valve
ST
●●
Off
Notes:
1. Refer to Figure 3-3.1, Figure 3-3.2, Figure 3-3.3 and Figure 3-3.4 in Part 3, 4.2 “Compressor Startup Program”.
2. Refer to Table 3-4.3 in Part 3, 5.6 “Outdoor Fan Control”.
TARGET FREQUENCY
TIME
TARGET FREQUENCY
TIME
Midea CAC Confidential
Mono
