Kaiser PROFI E20B50B24-SB Manual

Install Care and use instructions
Gas Barbeque 4+1 burners PROFI E20B50B24-SB

1
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
IMPORTANT: READ ALL INSTRUCTIONS AND OPERATIONS BEFORE OPERATING THIS UNIT.
FOLLOW ALL STEPS IN ORDER. NEVER ALLOW CHILDREN TO OPERATE THIS UNIT.
Warnings:
Only to be used outdoors.
Read the instructions before using the appliance.
Accessible parts maybe very hot, keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas cylinder after use.
Any modification of the appliance may be dangerous.
Parts sealed by the manufacturer or his agent must not be altered by the user.
Do not modify the appliance.
Attention:
Some parts of this appliance become very hot,
take special care when children or elderly are present.
For your safety:
Do not store or use gasoline or mentholated fuels or any other flammable vapors and
liquids in the vicinity of this or any other appliance.
Never light a gas grill with gasoline or comparable fluids!
Suggestion: user should not change the assembly that the manufacturer packaged.
Certain Liquid gas dealers may fill liquid gas cylinders for use in the grill beyond cylinder
filling capacity. This “Overfilling”may create a dangerous condition. “Overfilling”tanks can
build up excess pressure. As a safety device, the tanks pressure relief valve will vent gas
vapor to relieve this excess pressure. This vapor is combustible and therefore can be
ignited. To reduce this danger, you should take the following safety precautions:
A. When you have your tank filled, be sure you tell the supplier to fill it to no more than
80% of its total capacity.
THIS GAS GRILL IS DESIGNED FOR
OUTDOOR USE ONLY

2
If you own or use an extra spare tank, or have a disconnected tank, you should never store
it near or under the grill unit or heat box, or near any other ignition or heat source.

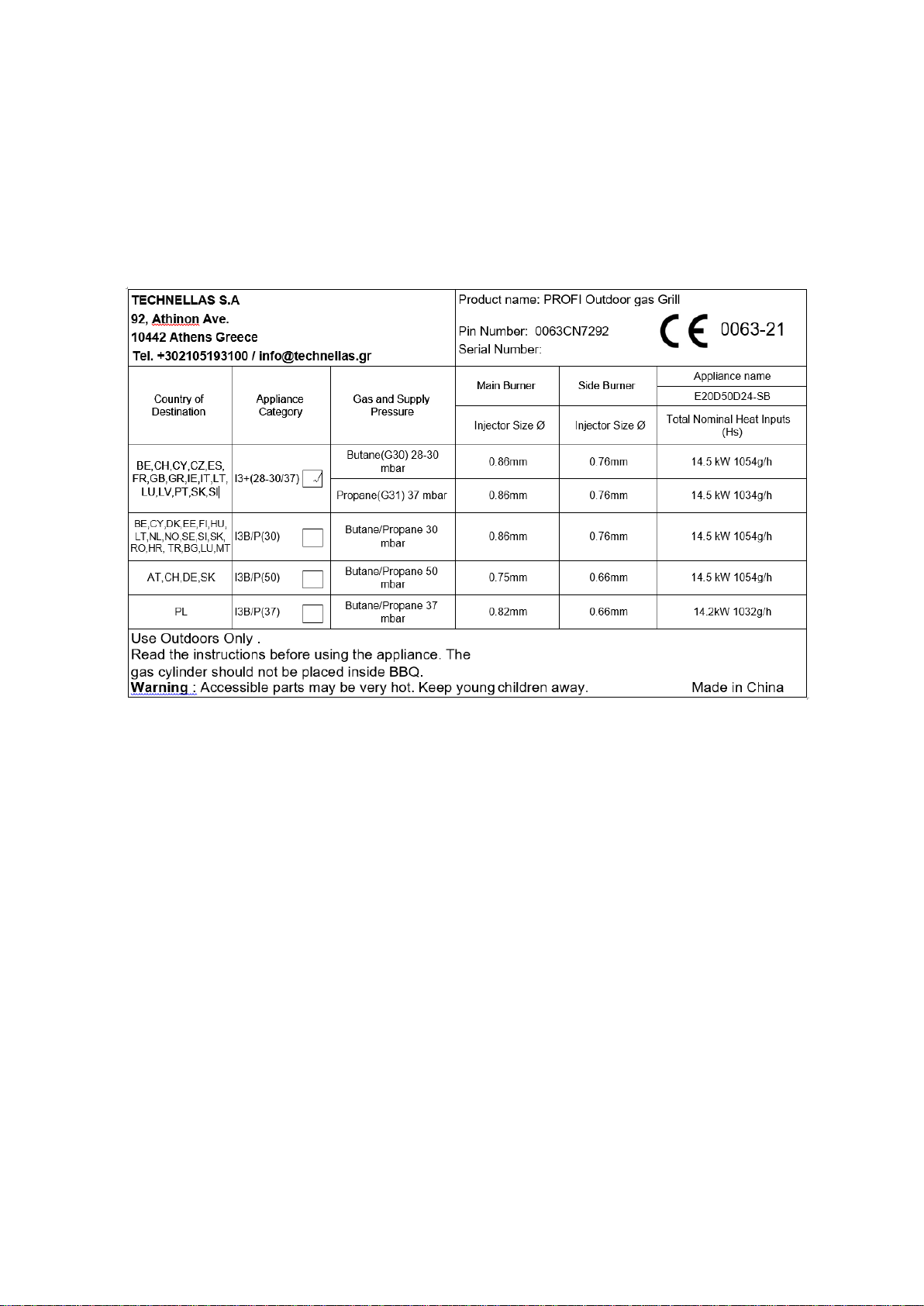

1. Technical data
a) Choose the proper regulator according to appliance category and gas pressure in the
table above, for example, Use 37 mbar regulator with appliance category I3+ for propane
gas.
b) Marking on injector, for example,0.76 indicates that the size of the injector is 0.76mm.

3
2. Mounting steps
Make sure your grill is assembled properly. Detailed assembly instructions are packed with
each grill giving specific assembly procedures for each model. Follow these instructions
carefully to ensure the correct and safe assembly of the grill.
Caution: Although we take every effort to ensure that the assembly process is as easy as
possible, it is inherent with fabricated steel parts that corners and edged can cause cuts if
improperly handled during assembly procedures. Be careful while handling any parts
during assembly. It is strongly recommended that you protect hands with a pair of work
gloves。
3. Preparation
You will need LPG gas bottle and proper regulators under the gas pressure to operate this
gas grill. The regulators should be comply with EN16129 with current version and national
regulation.
See point 6 for farther instructions.
Model No.(s)
Main Burner
No.
Side Burner
No.
Back
Burner No.
Total Nominal Heat
Inputs (Hs) I3+
(28-30/37) mbar
E20B50B24-SB
4
1
0
Butane (G30) 28-30 mbar
14.5kW 1054g/h
Propane (G31) 37 mbar
14.5kW 1034g/h

4
Energy saving tips:
a) Reduce the opening time of the lid.
b) Turn the grill off as soon as cooking is completed.
c) Preheat the gas grill for 10 to 15 minutes only.
(Except for the first use)
d) Do not preheat longer then recommended.
e) Do not use a higher setting than required.
f) Connect the hose and regulator to the gas container at the left side of the gas
grill .Keeping in mind that the gas container must be kept away from heat and in a safe
position .The hose dimension is 8-10mm diameter. The Length of hose recommended
which shall not exceed 1.5m.
4. Installation
After purchasing your gas cylinder you will then be ready to set it up with your gas grill.
a) When changing the gas cylinder which shall be carried out away from any source of
ignition. Position the gas cylinder at left side or inside of your BBQ, keeping in mind
that the bottle must be kept away from heat and in a safe position.
b) When ready to use your gas grill insert the regulator into the gas bottle valve and
tighten firmly.
Warning: Before attempting to light your gas grill you must refer to your lighting
instructions and warning / safety points.
Check the hose before each use, searching for cracking, cuts or any abrasions. If the hose
is found to be faulty in any way do not attempt to use your gas grill.
When changing your gas bottle ensures that there are no sources of ignition close by i.e.
fires, cigarettes, naked flames etc. Make sure that the appliance is switched off.
Ensure that the hose is not subjected to twisting which will affect the gas flow when
installing your gas grill. Also the hose must not have undue tension and must not touch
any part of the gas grill which may be hot.
Please choose flexible hose whose heatproof higher than 80℃
Flexible tube should be changed every 2 years; It’s necessary to change the flexible tube
when the national conditions require it.

5
How to change your cylinder
Note: Turn off the switch of cylinder (No spanner is required)

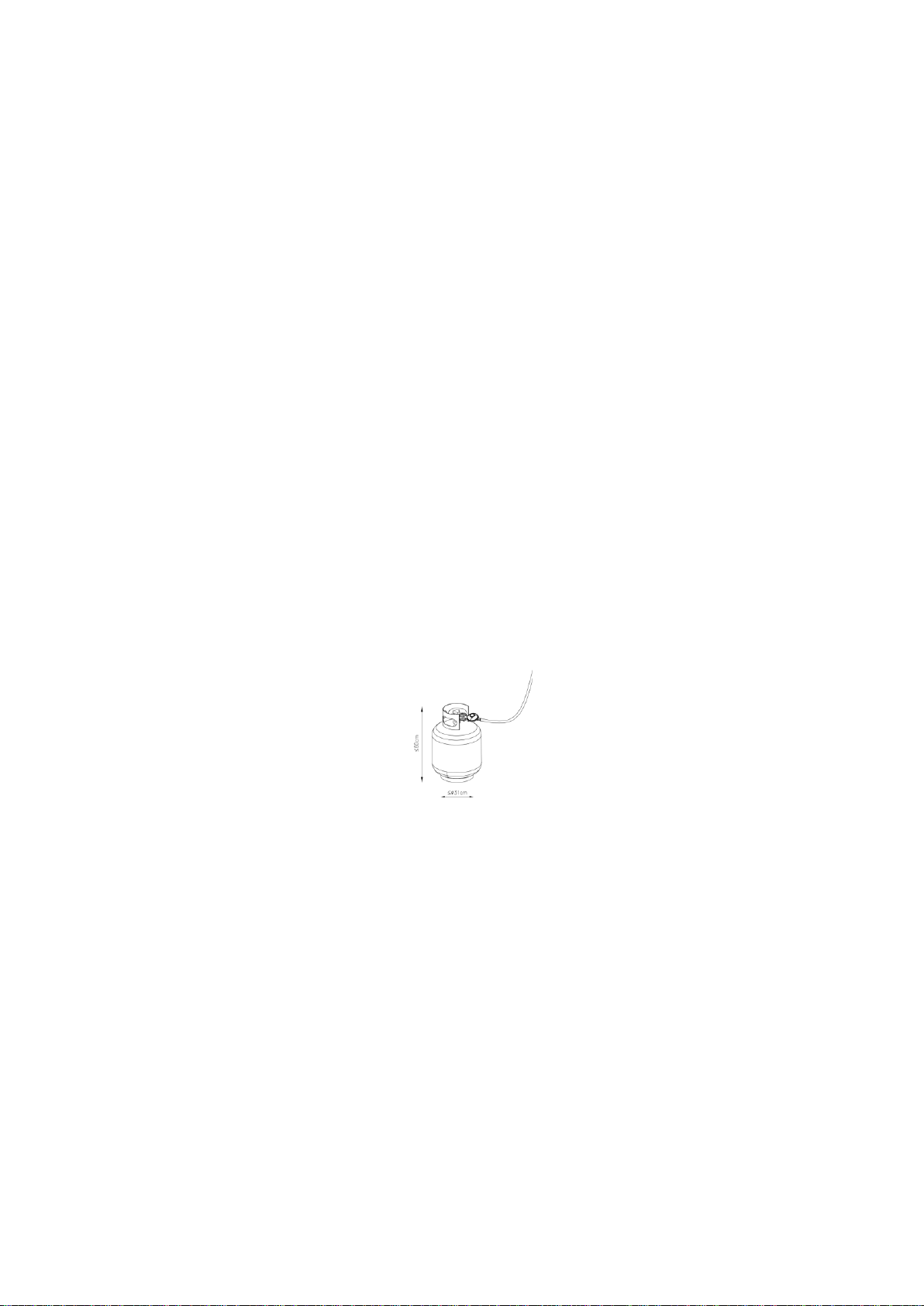

A) if put the gas cylinder outside the grill, The height of the gas cylinder is below the
80cm, and the width is within 35cm
How to connect a gas bottle
Attention:
Exclusively use a regulator and flexible hose approved by national authorities and current
standards, for example, the regulator should comply with EN16129:2012, The flexible hose
should comply with EN16436-1:2014.
WARNING: you may find regulators sold on the market that do not deliver the
recommended pressure. (Table below).
In this case, the tightness test described must also be performed.
Verify that the expiry date of the supply hose has not been exceeded and, in any event,
replace it if it displays any signs of deterioration.
Ensure that the hose is not subject to twisting and that it is visible over its entire length.
Any modification to the device may prove to be dangerous.
The parts protected by the manufacturer or its retailer must not be handled by the user.
WARNING: Never use the BBQ without a regulator.
Use gas cylinders with a capacity of 6 kg or 13 kg of a maximum height of 60 cm with a
regulator and a maximum width of 31cm with a regulator.

6
Never position the gas container unit under the firebox. It must be positioned on a level
surface away from the most hot parts of the barbecue
Connecting steps
a) Turn the orange cap so that the arrow is pointing to the gap in the shroud.
b) Remove the orange safety cap by pulling the lanyard out, then out. Do not use tools.
Leave the cap hanging.
c) Check that the black sealing washer is fitted inside the cylinder valve. Connect the
regulator to the valve.
d) Turn the switch clockwise on gas bottle-then turn on the gas grill as instructed.
Figure 1

7
Warning: Always test gas line for leaks at connector with soap water finishing all
connections.
How to disconnect a gas bottle
a) Except for twin-cylinder installations with a changeover valve, turn off the gas tap if
fitted to the appliance. Wait until the burner and pilot light have gone out. For
installations with a changeover valve, it is only necessary to switch off the empty
cylinder.
b) Replace the orange safety cap onto the empty cylinder.
5. Warning and safety points
Please read the following points before using your gas grill:
a) Read the instructions before using the appliance. If instructions are not followed it
may cause problems in use.
b) This gas grill accessible parts maybe very hot when being used. Keep young children
away. Use protective when handling particularly hot components.
c) In the event of a gas leak, Turn off the gas supply at the gas bottle, extinguish any open
flames, open lid and if leak continues, check for damages, poor connections etc.
Contact your local gas dealer immediately if the problem can’t be solved.
d) Do not move Gas grill during use.
e) Do not use or store any liquids，vapors or other materials in the vicinity when
operating the gas grill.
f) This gas grill only to be used outdoors.
g) Do not use a naked flame to check for gas leaks.
h) Do not operate gas grill if there is a gas leak. Turn off the gas supply.
i) Do not attempt to disconnect any gas fitting part if your gas grill is being used, on the
gas grill or the gas regulator / bottle.
j) Care is advised when operating your gas grill, you should never leave unattended when
in use. Turn off the gas supply at the gas container after use.
k) The gas grill should be cleaned after use. Don’t obstruct the fire opening of the
container compartment. If the fire opening is obstructed, please use Φ1.6mm round
stick to dredge.
Take care not to enlarge burner ports or orifice/nozzle openings when cleaning the
burner or valves.

8
l) Do not attempt to use this appliance in a garage or any enclosed area. Also this
appliance must be keep away from flammable materials, etc. We recommend
keeping a distance of at least 0.5 to 1.0 meter clear of any flammable materials.
m) We would recommend that this gas grill should be serviced by your local gas retail
outlet at least once a year by a competent engineer. Do not attempt to service this
appliance yourself.
n) Any modification of the appliance may be dangerous. Do not attempt any
unauthorized interference of the main controls on this gas grill, i.e. gas taps, injectors,
valves etc.
6. Safety precautions
a) Always test gas line for leaks at connector with soapy water after making connections.
b) The top lid must always be open when lighting the burner.
c) Use oven gloves and sturdy, long handled gas grill tools when cooking on the grill.
d) Be prepared if an accident or fire should occur. Know where the first aid kit and fire
extinguishers are and know how to use them.
e) Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
f) Always cook with great care.
g) Do not heat any unopened glass or metal container of food on the grill. Pressure may
build up and cause the container to burst, possibly resulting in serious personal injury or
damage to the grill.
7. Lighting instructions
Caution: The lid must be open when lighting the burner!
Do not stand with your face directly over the gas grill when lighting it.
Your gas grill will have following method of ignition:
Pilot Gas Control Ignition(Main burner or main burner with side burner or main burner
with side burner and back burner ):

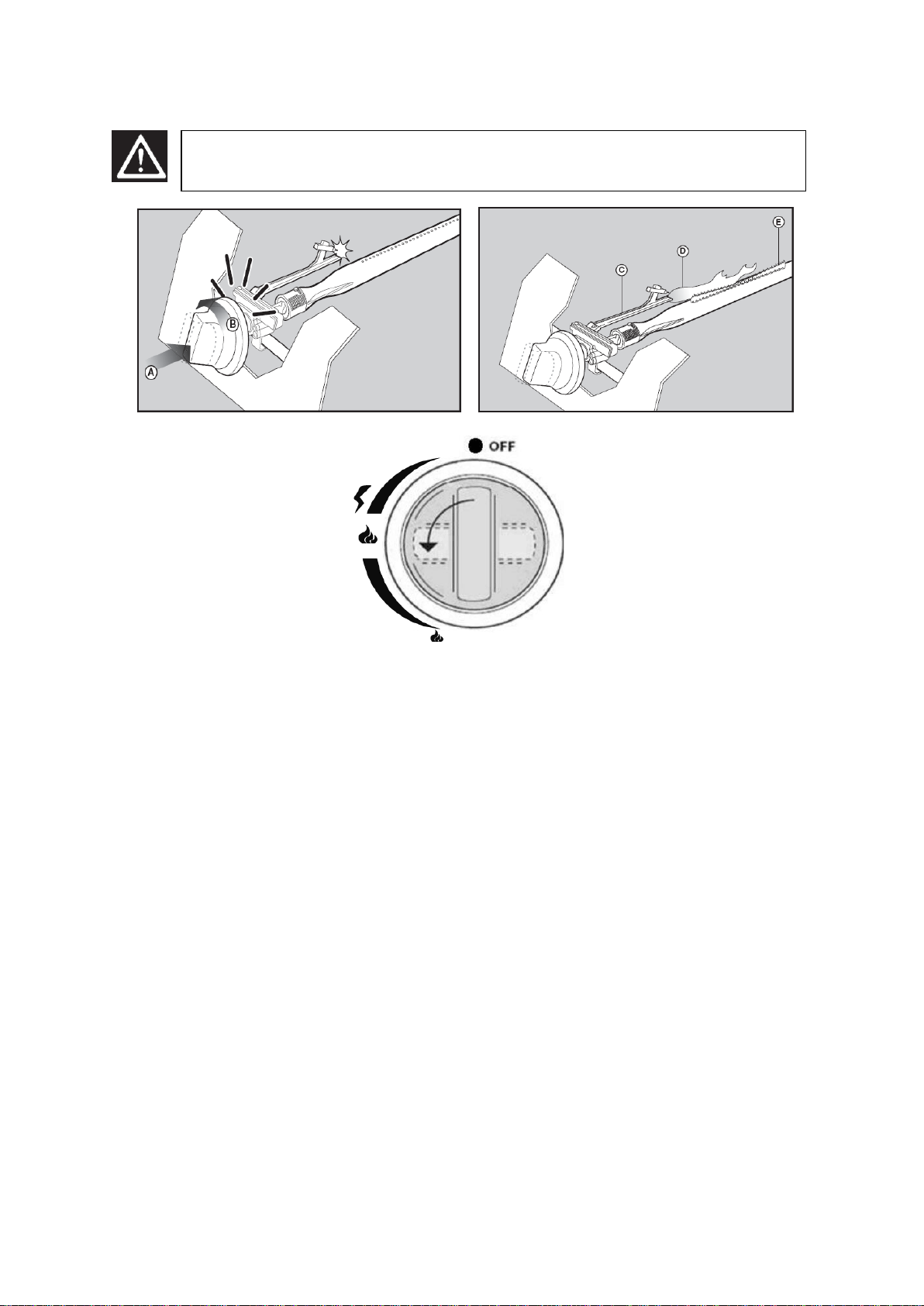

With all gas controls on the Gas grill in the “OFF”position“OFF”, turn the gas cylinder
valve to the on position at the regulator. Push and turn the control knob(A) to “HI”(B).To
create a spark you must press the electronic ignitor and hold for 3-5 seconds to allow gas
flow. It can spark to the burner lighting tube (C). You will hear a “snap”from the ignitor
and you will also see a orange flame coming from the burner lighting tube at the left side
of the burner (D).
When the burner is alight, adjacent burners will cross light when their controls are turned
to “HI”
At “HI”setting the burner flame should be approximately 12-20mm long with a minimum
of orange flame. Turn the gas control knob fully anticlockwise for minimum setting.
Should you have any difficulty lighting your gas grill following the above steps, contact
your dealer for advice.
If the automatic ignition can’t be used, please remove the cooking grill and heat
diffuser(hotplate ), and turn the valve anticlockwise to 90°，to light with BBQ lighter in the
distance of 5mm to the burner fire hole. Replace the cooking grill and heat diffuser
(hotplate), please wear the fireproof and heat resisting gloves.

9
Figure 3
8. Storage
Your Gas Bottle must be stored outdoors in a well ventilated area and must be
disconnected from your gas grill when not being used. Ensure that you are outdoors and
away from any sources of ignition before attempting to disconnect your gas bottle from
your gas grill.
When you are using your gas grill after a period of storage, please ensure to check for gas
leaks and check for any obstructions in the burner etc. before using. Also follow the
cleaning instructions to ensure gas grill is safe.
If gas grill is stored outdoors ensure to check that all areas under the front panel are free
from any obstructions (insects etc.) This area must be kept free as this may affect the flow
of combustion or ventilation air.
9. Cleaning instructions
Maintenance is recommended that every 90 days for your gas grill, but it is absolutely
necessary to perform maintenance at least once a year. By doing so, you will extend the
life of your gas grill.
Your gas grill is easy to clean with minimum effort, just follow these helpful hints for
cleaning convenience.
Warning : If the burner still does not light ,turn the gas control knob to” OFF”
and wait for 2 minutes for the unburnt gas to evaporate before lighting again.

10
Trouble Shooting
Emergencies
Possible cause
Prevention/ Solution
Gas leaking from
cracked/cut/burned hose
Damaged hose
Turn off gas at LP tank, if hoes is cut or
cracked, replace hose.See LP tank lead test
and connection regulator to the LP tank
Gas leaking from LP tank
Mechanical failure due to resting or
mishandling
Turn off LP tank valve
Gas leaking from LP tank
valve
.Failure or tank valve from mishandling or
mechanical failure
Turn off LP tank valve. Return LP tank to gas
supplier
Gas leaking between LP tank
and regulator connection
Improper installation, connection not tight,
failure of rubber seal
Turn off LP tank valve, remove regulator from
cylinder and visually inspect rubber seal for
damage, see LP tank test and connection
regulator to the LP tank
Fire coming through control
panel
Fire in burner tube section of burner due to
partial blockage
Turn off control knobs and LP tank valve. After
fire is out and grill is cold, remove burner and
inspect for spider nests or rust. see natural
hazard and cleaning the burner assembly
pages.
Troubleshooting: Problem
Possible cause
Prevention/ Solution
Grease fire or continuous
excessive flames above
cooking surface
Too much grease buildup in burner area
Turn off LP Tank. Leave lid open to allow
flames to die down. After cooling, clean food
particles and excess grease from inside firebox
area, grease cup/pan/tray, and other surfaces
Burner will not light using
ignitor
Gas issues
1.Trying to light wrong burner
2. Burner not engaged with control valve
3. Obstruction in burner
4.No gas flow
5.Vapor lock at coupling nut to LPtank
6. Coupling nut ad LP tank valve not fully
connected.
1. See instructions on control panel and
section in the Use and Care.
2. Make sure valve are positioned inside of
burner tubes.
3. Ensure burner tubes are not obstructed
with spider webs or other matted, see
cleaning section of use and care
4.Make sure LP tank is not empty. If LP tank is
not empty, refer to “sudden drop in gas flow.
5.Turn off knobs and disconnect coupling nut
from LP tank. Reconnect and retry.
6. Turn the coupling nut approximately
one-half to three-quarters

11
Burner will not light using
ignitor
Electrical issues:
1. Electrode cracked or broken;”sparks at
crack.”
2. Electrode tip not in proper position
3. Wire and/or electrode covered with
cooking residue.
4. Wires are loose or disconnected
5. Wires are shorting (sparking) between
igitor and electrode.
6. push button sticks at bottom sparking
between ignitor and electrode
1.Replace electrode.
2.Tip of electrode should be pointing toward
port hole in burner. The distance should be
1/8”to 3/16”. Adjust if necessary.
3.Clean wire and or electrode with rubbing
alcohol and clean swab.
4.Reconnect wires or replace electrode/wire
assembly.
5.Replace ignitor wire
6.Replace ignitor
7.Inspect wire insulation and proper
connection. Replace wires if insulation is
broken.
Burner will not mach light
See ”gas issues;”on previous page.
2. Improper method of match-lighting
1. See “Pilot Gas Control Ignition”section of
use and care.
Sudden drop in gas flow or
low flame
1. Grease buildup.
2. Excessive fat in meat.
3. Excessive cooking temperature
1. Clean burners and inside of grill/ firebox
2. Trim fat from meat before grilling.
Flames blow out
High or gusting winds. Low on LP gas.
Excess flow valve tripped.
Turn front of grill to face wind or increase
flame height.
Refill LP tank.
Refer to “sudden drop in gas flow”above.
Persistent grease fire
Grease trapped by food buildup around
burner system.
Turn knobs to OFF. Turn gas off at LP tank.
Leave lid in position and let fire burn out.
After grill cools, remove and clean all parts
Flashback…
(fire in burner tube(s)
Burner and burner tubes are blocked
Turn knobs to OFF. clean burner
and/or burner tubes. See burner cleaning
section of use and care manual
Flare-up
1. Grease buildup.
2. Excessive fat in meat.
3. Excessive cooking temperature
1. Clean burners and inside of grill/ firebox
2. Trim fat from meat before grilling.
3. Adjust (lower) temperature
Unable to fill LP tank
Some dealers have older fill nozzles with
worn threads.
Turn worn nozzles don’t have enough “bite”to
engage the valve. Try a second LP dealer.
One burner does not light
from other burner(s)
Grease buildup or food particles in end of
carryover tube
Clean carry-over tube with wire brush

12
If your problem is not resolved from the information above, please Contact your local gas
dealer.
a) Turn the burner on for 15 to 20 minutes. Ensure appliance is cold before continuing.
b) Grids should be cleaned periodically by soaking and washing in soapy water.
c) The interior surfaces of the grill housing cover should also be washed with hot, soapy
water. Use a wire brush, steel wool or a scouring pad to remove stubborn spots.
d) Periodically check the burner to see that it is free from insects and spiders which may
clog the gas system, deflecting gas flow. Ensure to clean venturi pipes on burner very
carefully, make sure that there are no obstructions. We recommend that you use a
pipe cleaner to clean the venturi pipe area.
e) Any modifications of this appliance may be dangerous and are not permitted.
10. Gas grill Safety Hints
Stand your gas grill on a safe level surface, away from inflammable items such as wooden
fences or overhanging tree branches.
Never use your gas grill indoors!
Once lit do not move your gas grill or leave it unattended.
Keep children and pets at a safe distance from the gas grill.
Keep a fire extinguisher handy.
The gas grill will become hot when in use, so handle lids etc. with the help of gloves.
Ensure that the appliance has completely cooled down before storing.
Use outdoors only!
Read the instructions before using the gas grill.
Assessable parts may be very hot, Keep young children away!
Do not move the gas grill during using.
Turn off the gas supply at the gas container after use.
Any modification of the appliance may be dangerous and be not permitted.

13

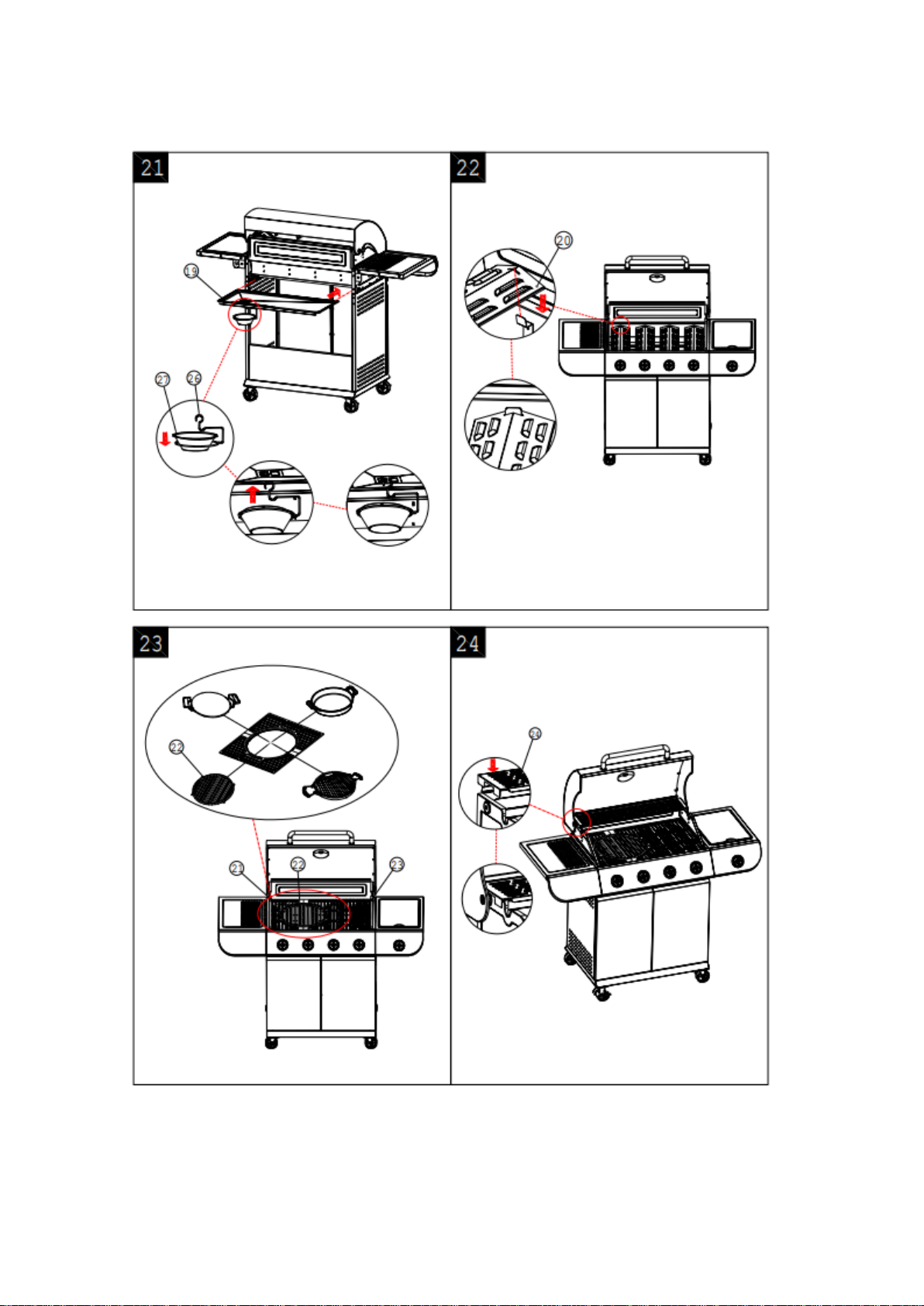

14

15

16

17

18

19
