Introduction
Thank you for selecting the KAIWEETS KC601 Digital Clamp Meter. It is an auto-ranging True RMS
B00A AC/DC Clamp Meter with inrush current capture.
Safety information
AWarn'ngs: Read First
To avoid possible electric shock or personal injury, please obey the following instructions:
« Please read this manual carefully before using the instrument, and pay attention to safety
warning information.
« Avoid using the instrument alone.
* Never measure AC current while the test leads are still insert into the input jacks.
* Do not use the meter in wet or dirty environments.
* Inspect the test leads before use. Do not use them if insulation is damaged or metal is exposed.
« Check the test leads for continuity. Replace damaged test leads before using.
* Use extreme caution when working around bare conductors or bus bars. Contact with the
conductor could result in electric shock.
« Do not apply more than the rated voltage, as marked on the meter, between the terminals or
between any terminal and earth ground.
* Remove test leads from the Meter before opening the Meter case.
1

Never operate the Meter with the back cover removed or the case open.
Never remove the back cover or open the case of an instrument without first removing the test
leads or the jaws from a live conductor.
Use caution when working with voltages above 30V ac RMS, 42V ac peak, or 60V dc. These
voltages pose a shock hazard.
Do not attempt to measure any voltage that might exceed the maximum range of the Meter-
600V RMS.
Do not operate the Meter around explosive gas, vapor, or dust.
When using probes, keep fingers behind the finger guards.
When making electrical connections, connect the common test lead before connecting the live
test lead; when disconnecting, disconnect the live test lead before disconnecting the common
test lead.
Disconnect circuit power and discharge all high-voltage capacitors before testing resistance,
continuity, or diodes.
Check the operation of the meter at a known source before and after use.

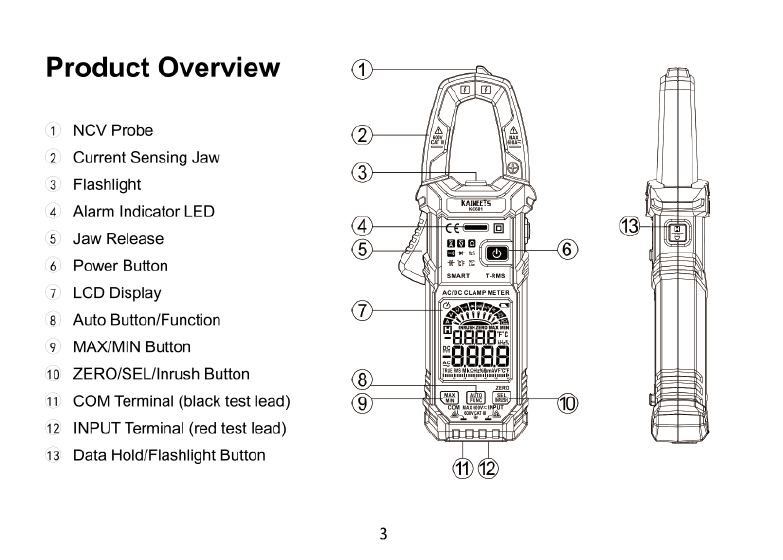

Product Overview
NCV Probe
Current Sensing Jaw
Flashlight
Alarm Indicator LED
Jaw Release
-
‘?fi:fih
s
Power Button
LCD Display
Auto Button/Function
MAX/MIN Button
10 ZERO/SEL/Inrush Button
11 COM Terminal (black test lead)
12 INPUT Terminal (red test lead)
13 Data Hold/Flashlight Button
BN
NI
NI

Symbol-Explanation
Double Insulated
Conforms to European Union
directives.
17 High voltage warning o~ | AC (Alternating current)
DC (Direct current) ~> |rcornc
2L |eamn
Low Battery Indication
Do not dispose of this product as unsorted municipal waste.
CAT Il
IEC Measurement Category lli: CAT Iil equipment has protection against transients
in equipment in fixed-equipment installations, such as distribution panels, feeders
and short branch circuits, and lighting systems in large buildings.

Function Buttons
AUTO] | You can short press button to chose various functions. You can also long
FUNC press the button to put the machine into automatic measurement mode
Press this button to switch between the maximum and minimum values; Press
MAX ] | for more than 2 seconds to exit this mode.
CMIN | | Before entering the "MAX/MIN" mode, press the (2] button to switch to the most
suitable function.
SEL) | ZEROIFunction selection/inrush current measurement button. You can select
TWRUST,) | Specify function with this button and you can also open Inrush function when you
test AC current.
d
HOLD: Captures and holds a stable measurement.
Make sure that the function is deactivated at the start of the test. Otherwise
an incorrect measurement result will be simulated!
Flashlight: Press and hold this button for more than 2 seconds to switch the
flashlight on or off.

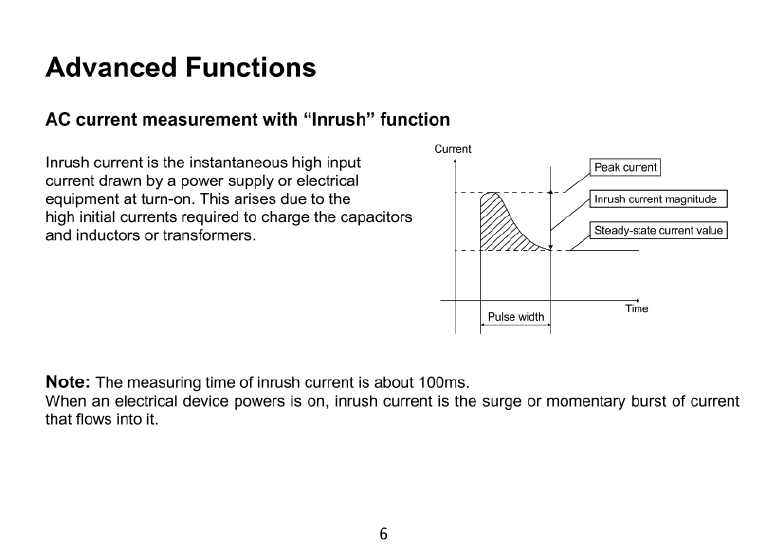

Advanced Functions
AC current measurement with “Inrush” function
Gurent
Inrush current is the instantaneous high input
current drawn by a power supply or electrical
equipment at turn-on. This arises due to the [iush curent magnitude ]
Sieady-saio curentvalus
high initial currents required to charge the capacitors
and inductors or transformers.
Time
Puise width
Note: The measuring time of inrush current is about 100ms.
When an electrical device powers is on, inrush current is the surge or momentary burst of current
that flows into it.

Operating Instructions
Insert and replace the batteries
Replace the batteries immediately when the symbol
" {_N]" appears in the display. Disconnect the meter from
power source. Remove the test leads from the measuring
device, loosen the screws on the back and remove the
lower half of the housing, replace the old batteries and
screw the cover back on.
Turn on/off the meter
1. Press and hold the key for about 2 seconds to turn ol
2. When the measurement is finished, press and hold the'
the meter.
ey for about 2 seconds to switch off
Flashlight on/off
Press the (Z) button and hold for more than 2 seconds to tum the flashlight on or off.
Data hold
Press the (] button to enable or disable the data hold function.
7

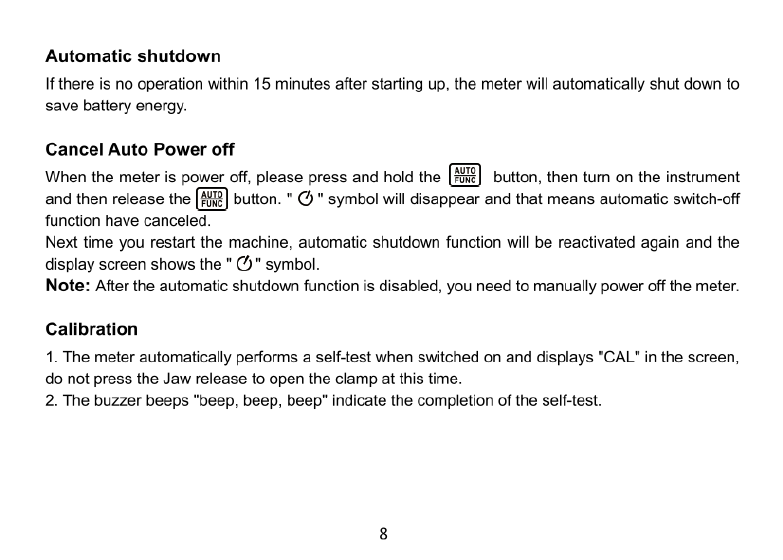

Automatic shutdown
If there is no operation within 15 minutes after starting up, the meter will automatically shut down to
save battery energy.
Cancel Auto Power off
When the meter is p
and then release th
function have canceled.
Next time you restart the machine, automatic shutdown function will be reactivated again and the
display screen shows the " ()" symbol.
Note: After the automatic shutdown function is disabled, you need to manually power off the meter.
off, please press and hold the button, then turn on the instrument
button. " (" symbol will disappear and that means automatic switch-off
Calibration
1. The meter automatically performs a self-test when switched on and displays "CAL" in the screen,
do not press the Jaw release to open the clamp at this time.
2. The buzzer beeps "beep, beep, beep” indicate the completion of the self-test.

Auto-ranging
button to turn on the power supply of the meter. After the self-test is completed, the
meter will display “Auto” and enter the smart measurement mode.
2. Don't need to select the measurement function, the instrument will automatically identify and
measure the AC/DC voltage, AC/DC current, resistance, continuity. Current is measured by the
clamp, and the other measurements will need to use the pen input.
3. Read the measurement results from the display screen. The frequency is displayed when the AC
signal is measured
Note1:Minimum identifiable DC current 0.8A
Minimum identifiable AC current 0.5A.
Minimum identifiable AC/DC voltage 0.8V.
Note2: Automatic identification priority: resistance, DC voltage, AC voltage, DC current, AC current.
Connecting test leads
Do not test if leads are improperly seated.
Results could cause intermittent display readings.
To ensure proper connection, firmly press leads
into the input jack completely.

Measurements
AC/DC current measurement
/N When making current measurements, disconnect the test leads from the Meter.
button to turn on the power supply of the meter. After the self-test is completed, the
meter will display *Auto” and enter the smart measurement mode.
button, set the pointer to "A", and press the button to select AC or DC current
measurement function.
3. In the DC current measurement, if the display number is not zero when the instrument is not
measuring, please press and hold the (&) button, then the meter will display "ZERO" and then you
can measure.
4. Press the jaw release to open the clamp, clamp the conductor and release it until the clamp are
completely closed. If the conductor is not in the center of the pliers, errors will occur.
5. Read the measurement results from the display screen. The frequency is also shown on the
display when measuring AC current
Note
» Use the current clamp to surround one conductor.
» If the supply and return conductors (.. L and N) are measured, the current will cancel each
other out and no measurement will be displayed. The cables of household appliances usually
contain L and N conductors. A cable separator is required to measure with the current probe.
» If several supply conductors (e.g. L1 and L2) are measured, the currents add up.
10

AC inrush current measurement
1. Press the(@) button to tum on the power supply of the meter. After self-test is completed, the
meter will y “Auto” and enter the smart measurement mode.
2. Press bution, set the pointer to "A", and press the[35) button to select inrush current
measurement function and display the symbol "INRUSH".
3. Then clamp the conductor to be tested, slowly release the jaw release until the clamp are
completely closed, if the conductor is not in the center of the pliers, additional errors will occur.
4.Turn on the tested device(such as the motor), then the instrument will measure surge current.
5. Read the measurement results from the display screen.
Note: The measuring range of inrush current is 5~600A.
11

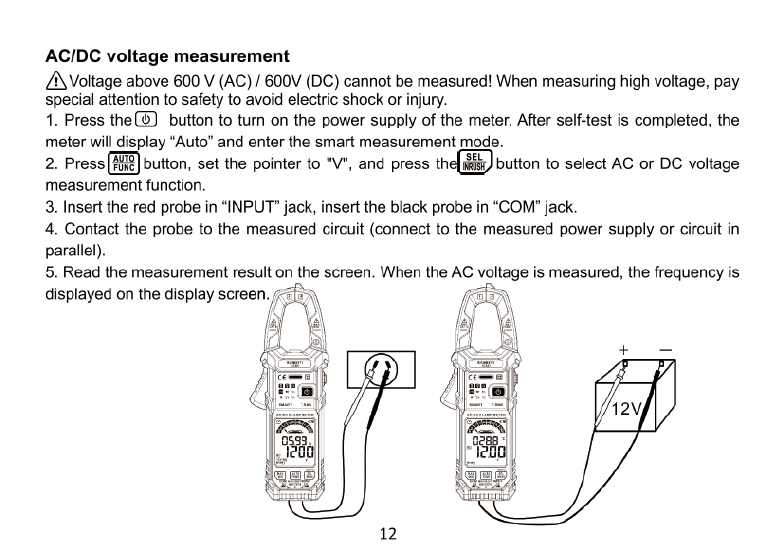

AC/DC voltage measurement
/A\Voltage above 600 V (AC) / 600V (DC) cannot be measured! When measuring high voltage, pay
special attention to safety to avoid electric shock or injury.
button to turn on the power supply of the meter. After self-test is completed, the
meter will display “Auto” and enter the smart measurement mode.
2. Press (Fg) button, set the pointer to "V", and press t button to select AC or DC voltage
measurement function.
3. Insert the red probe in “INPUT" jack, insert the black probe in “COM" jack.
4. Contact the probe to the measured circuit (connect to the measured power supply or circuit in
parallel)
5. Read the measurement resuit on the screen. When the AC voltage is measured, the frequency is
displayed on the display screen. ;=
(A

Frequency or duty cycle measurements (Hz%)
button to turn on the power supply of the meter. After the self-test is completed, the
meter will display *Auto” and enter smart measurement mode.
2. Press button, set the pointer to the "Hz/%" position.
3. Insert the red probe in “INPUT" jack, insert the black probe in
“COM” jack.
4. Connect the meter in parallel to the power supply or load to
be tested.
5. Read the measurement resuit on the screen.
The "mV" gear voltage measurement frequency:
1. Range: 10Hz ~ 2 kHz
2. Sensitivity of signal: >50mV(RMS), sine wave
The "V" gear voltage measurement frequency:
1. Range: 10Hz ~ 2 kHz
2. Sensitivity of signal: >0.5V(RMS), sine wave
The current measurement frequency:
1. Range:10Hz ~ 2 kHz
2. Sensitivity of signal: >12A(RMS), sine wave
The "Hz/%" gear:
1. Frequency range: 5Hz ~ 10MHz
2. Voltage range: >2. 5V RMS (The higher the frequency, the higher the voltage)
13

Note: Overload protection: 250V.

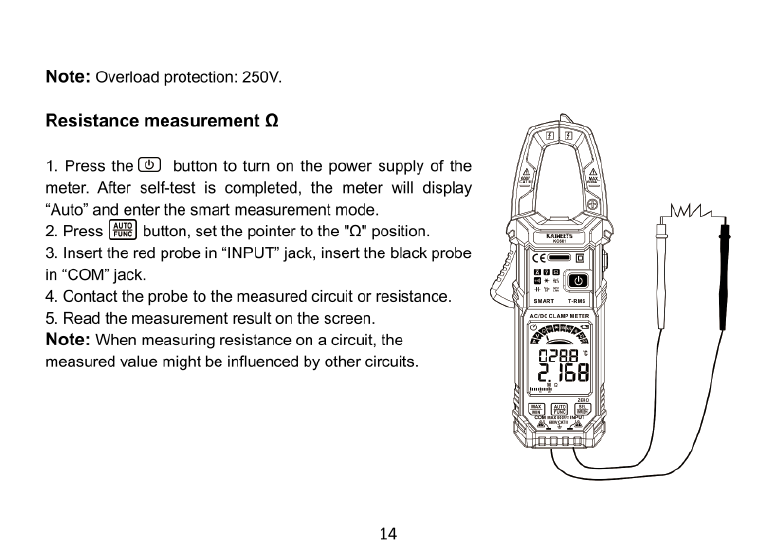

Resistance measurement Q
1. Press th button to turn on the power supply of the
meter. After self-test is completed, the meter will display
“Auto” and enter the smart measurement mode.
2. Press () button, set the pointer to the "Q" position.
3. Insert the red probe in “INPUT” jack, insert the black probe
in “COM" jack.
4. Contact the probe to the measured circuit or resistance.
5. Read the measurement result on the screen.
Note: When measuring resistance on a circuit, the
measured value might be influenced by other circuits.
14

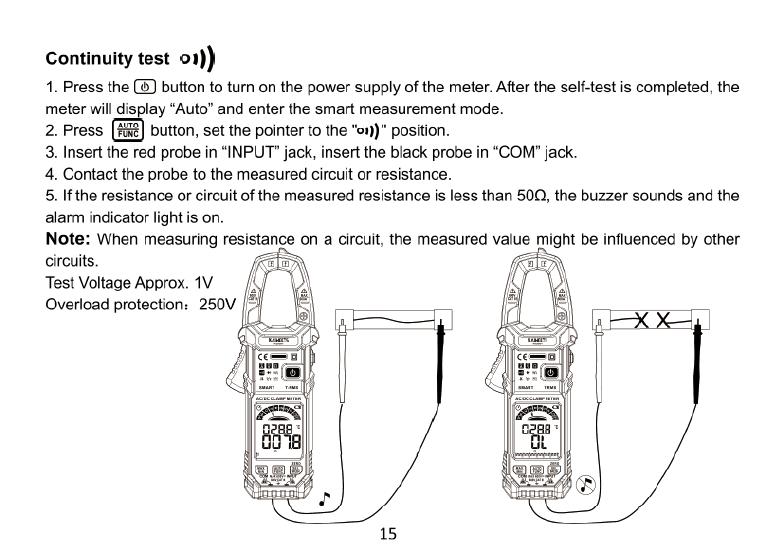

Continuity test ol))
button to turn on the power supply of the meter. After the self-test is completed, the
meter will display “Auto” and enter the smart measurement mode.
2. Press button, set the pointer to the "o1))" position.
3. Insert the red probe in “INPUT" jack, insert the black probe in “COM" jack.
4. Contact the probe to the measured circuit or resistance.
5. If the resistance or circuit of the measured resistance is less than 50Q, the buzzer sounds and the
alarm indicator light is on.
Note: When measuring resistance
circuits. Tlo
Test Voltage Approx. 1V /4 )
Overload protection: 250V [ S|
on a circuit, the measured value might be influenced by other
15

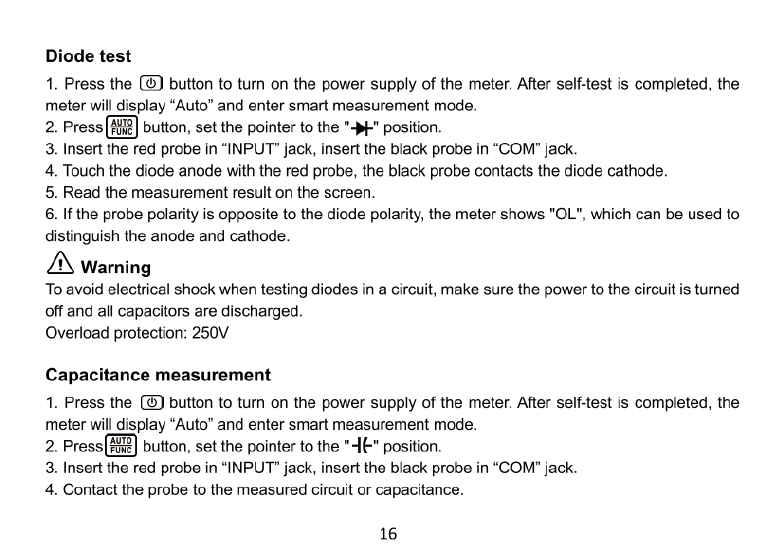

Diode test
1. Press the (@) button to turn on the power supply of the meter. After self-test is completed, the
meter will display “Auto” and enter smart measurement mode.
button, set the pointer to the " position.
3. Insert the red probe in “INPUT" jack, insert the black probe in “COM” jack.
4. Touch the diode anode with the red probe, the black probe contacts the diode cathode.
5. Read the measurement result on the screen.
6. If the probe polarity is opposite to the diode polarity, the meter shows "OL", which can be used to
distinguish the anode and cathode.
A Warning
To avoid electrical shock when testing diodes in a circuit, make sure the power to the circuit is turned
off and all capacitors are discharged.
Overload protection: 250V
Capacitance measurement
button to tur on the power supply of the meter. After self-test is completed, the
meter will display “Auto” and enter smart measurement mode.
button, set the pointer to the "4&" position.
3. Insert the red probe in “INPUT" jack, insert the black probe in “COM" jack.
4. Contact the probe to the measured circuit or capacitance.
16

5. Read the measurement results from the display screen after the display is stable.
Note: It will take times to stable when you measure large capacitance.
Overload protection: 250V

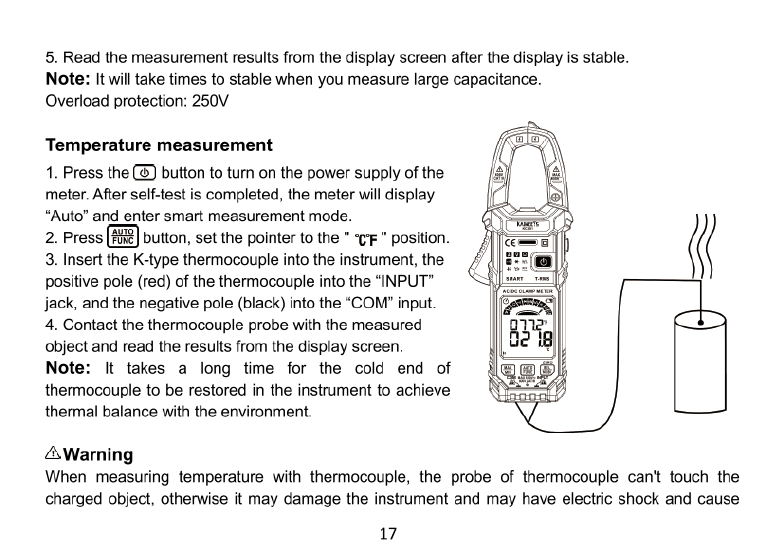

Temperature measurement
button to turn on the power supply of the
meter. After self-test is completed, the meter will display
“Auto” and enter smart measurement mode.
2. Press button, set the pointer to the " ¢ " position.
3. Insert the K-type thermocouple into the instrument, the
positive pole (red) of the thermocouple into the “INPUT"
jack, and the negative pole (black) into the “COM” input.
4. Contact the thermocouple probe with the measured
object and read the results from the display screen.
Note: It takes a long time for the cold end of
thermocouple to be restored in the instrument to achieve
thermal balance with the environment.
AWarning
When measuring temperature with thermocouple, the probe of thermocouple can't touch the
charged object, otherwise it may damage the instrument and may have electric shock and cause
17

personal injury.
Non-contact AC voltage detection (NCV)
/A\When using NCV function, remove the probe, otherwise the detection sensitivity will be affected.
button to turn on the power supply of the meter. After the self-test is completed, the
meter will display “Auto” and enter the smart measurement mode.
button, set the pointer to the "NCV/Live" position.
3. Then NCV probe gradually approaches the detected point.
4. When the weak electic field signal is induced, the "~L" symbol will be displayed, the beep will
emit a slow beep sound, and the green LED indicator will light up.
5. When the strong electric field signal is induced, the "H" symbol will be displayed, the beep wil
emit a fast beep sound, and the red LED indicator will light up.
Note: Before using the NCV function, remove the test leads. Otherwise, the detection accuracy will
be affected.
18

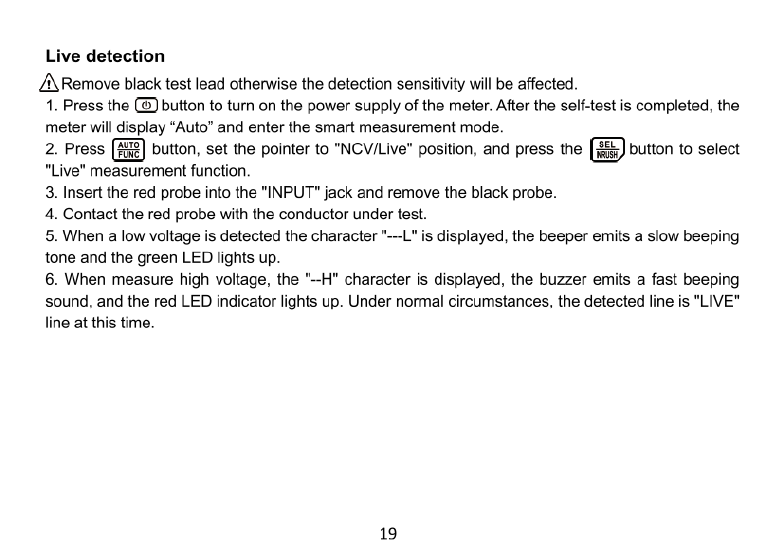

Live detection
/A\Remove black test lead otherwise the detection sensitivity will be affected.
1. Press the utton to turn on the power supply of the meter. After the self-test is completed, the
meter will display *Auto” and enter the smart measurement mode.
2. Press button, set the pointer to "NCV/Live" position, and press the bunon to select
"Live" measurement function.
3. Insert the red probe into the "INPUT" jack and remove the black probe.
4. Contact the red probe with the conductor under test.
5. When a low voltage is detected the character "—L" is displayed, the beeper emits a slow beeping
tone and the green LED lights up.
6. When measure high voltage, the "~H" character is displayed, the buzzer emits a fast beeping
sound, and the red LED indicator lights up. Under normal circumstances, the detected line is "LIVE"
line at this time.
19
