KAM KMD14.2 User manual

KMD14.2/16.2.2A/14.2A
Audio mixing consoles with 24-bit digital multi effects processors
Switchable low cut filter on all mono channels
FX sends (post) per channel for internal or external effects and monitoring
Master aux sends with gain control and PFL / Aux sends (pre/post) per channel
Mute/Alt 3-4, solo-in-place and pre-fader-listen function on all channels
Separate main mix, Alt 3-4, control room and headphone outputs
2 track inputs assignable to main mix or control room/headphone outputs
Highly accurate 12 segment barograph meters
High quality 60mm faders and high quality sealed potentiometers
99 preset effects digital processor with 24bit DSP, sampling rate: 31.25kHz
Blue LCD for signal level & effects full name and parameter display
Soft start, DC, AC short circuit, clip limiter, thermal cut, power limiter
M A N U A L V E R S I O N 1 . 0
06.06.2010
For the latest instruction manual updates and information on the entire Kam range visit:
www.kam.co.uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: [email protected] • Web: www.lambaplc.com
If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
Due to continuous product development, specifications and appearance are subject to change.
© Copyright Lamba plc 2010. E&OE.
Two powered and one passive model available
KMD14.2A - 14 channel powered mixer
KMD16.2.2A - 16 channel powered mixer
KMD14.2 - 14 channel mixer
Ultra low noise mic preamps with +48V phantom power
Additional multi-functional stereo channels
Switchable 7 band graphic equalizer for ultimate main mix equalization
Alt 3-4 bus routable to main mix and control room with insert
Extremely high headroom offering increased dynamic range
Balanced inputs and main outputs for high signal integrity
4 band EQ on stereo channels and 3 band EQ on mono channels

Thank you for purchasing this product, we are sure that it will serve you for many years to come.
To optimise the performance of this product, please read these operating instructions carefully to familiarise yourself with the
basic operations of this unit. After you have read the instructions, please retain them for future reference.
This unit has been tested at the factory before being shipped to you.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. To prevent a fire hazard, do not
expose the unit to any naked flame sources. Unplug this apparatus during lightning storms or if it is unlikely to be used for long
periods of time.
When installing the unit, please ensure you leave enough space around the unit for ventilation. Slots and openings in the unit are
provided for ventilation to ensure reliable operation of the product and to protect it from overheating. To prevent fire hazard, the
openings should never be blocked or covered.
Always handle the power cable by the plug. Never pull out the plug by pulling on the cable. Never touch the power cable when
your hands are wet as this could cause an electric shock. Do not tie a knot in the cable. The power cable should be placed such
that it is not likely to be stepped on. A damaged power cable can cause a fire or give you an electrical shock. Check
the power cord periodicaly, if you ever find that it is damaged, replace it before using the unit again. Contact your retailer for a
replacement.
The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area
where this unit is to be used meets the required written on the unit.
The lightning flash symbol inside a triangle is intended to alert the user to the presence high voltage within the unit’s
enclosure that may be of sufficient power to constitute a risk of electrical shock to persons.
Caution: to prevent the risk of electric shock, do not attempt to open the unit. No user-serviceable parts inside. Refer all
servicing to qualified service personnel.
The exclamation mark inside a triangle is intended to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the appliance.
Any modification carried out on the unit may invalidate the unit’s warranty.
If applicable, only use the stand, tripod or bracket specified or sold with the apparatus.
Select the installation location of your unit carefully. Avoid placing it in direct sunlight or locations subject to vibration and
excessive dust. Do not use the unit where there are extremes in temperature (below 41ºF / 5ºC or exceeding 95ºF / 35ºC).
Unpacking and safety: Please unpack your new product carefully, your new product should reach you in perfect condition. Please
check that no damage has occurred during transit. If any damage is found, do not operate your unit. Please contact the retailer
you purchased it from immediately. If there is any damage to the mains cable do not use the device. Always disconnect the unit
from the mains supply when carrying out any servicing or cleaning of the unit.
The serial number for this equipment should be located on the rear or underside of the unit. Please make a note of this number as
you will need it for your warranty, it is a good idea to keep a copy of the serial number for your own records.

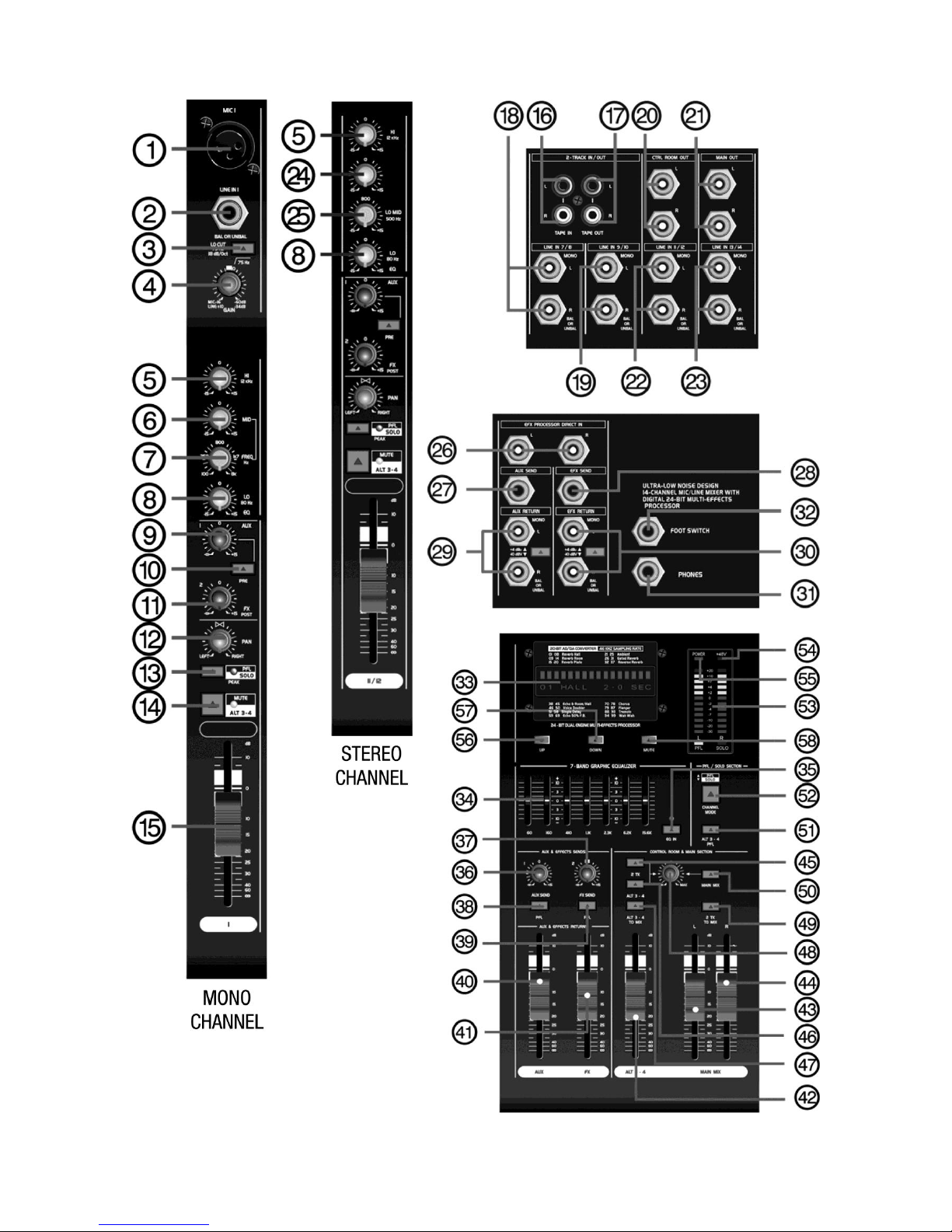

(1) MICROPHONE Accepts a standard XLR male connector. Ground = shield / hot = signal input / cold = ground (shield).
Maximum -60dB~ -10dB signal level set by the gain control.
(2) LINE INPUT Accepts a standard 1/4 inch standard line connector. You can use unbalanced (tip/signal) and balanced
(tip/ring/signal). Used to connect keyboards or other electric instruments. Tip = positive / ring = negative / sleeve = ground.
(3) LOW CUT This switch cuts the input signal below 75Hz.
(4) GAIN CONTROL Adjusts the sensitivity from -60dB to -16dB for mics and -34dB to +10dB for line input.
(5) HIGH FREQUENCY EQUALISATION CONTROL Provides +/-15dB of fixed frequency equalisation that shelves at 12KHz.
(6) MID RANGE GAIN CONTROL Up to 15dB of cut and boost with a centre detent for off.
(7) MID RANGE CONTROL Semi-parametric with peaking response, Q fixed at 1 octave, sweepable from 100Hz to 8KHz.
(8) LO FREQUENCY EQUALISATION CONTROL Provides +/-15dB of fixed frequency equalisation that shelves 80Hz.
(9) AUX CHANNEL Provides PFL reverb or can be connected to other related equipment.
(10) AUX SIGNAL SWITCH To set where the signals are sourced from.
(11) DIGITAL EFFECTS PROCESSOR Integrated effects processor which offers 99 different standard effects like reverb, chorus,
delay, pitch shift and various combination effects.
(12) PAN CONTROL The pan control sends continuously variable amounts of the post fader signal to either the Left & Right main
busses. In the centre position, equal amounts of signal are sent to the and right busses. As the control is rotated in either
direction, more signal is sent to the buss indicated in the direction of the rotation while less signal is sent to the other buss.
(13) PRE-FADER LEVEL (PFL) Pressing channel mode switch once disengages the stereo solo bus, and replaces it with a
separate mono PFL bus. PFL should always be used for gain setting.
(14) MUTE ON/OFF This switch, when pushed, sends the signal into MUTE and outputs from ALT 3-4.
(15) CHANNEL FADER You can adjust the volume of signal sources which connected to the relevant channel.
(16) & (17) STEREO 2 TRACK IN/OUT Used to record and playback mixer output.
(18), (19), (22) & (23) LINE IN Line level inputs.
(20) CTRL ROOM OUT Control room / headphone output.
(21) MAIN OUT This output signal can be connected with external amplifiers and speakers.
(24) HI MID Up to 15dB cut and boost at 3KHz mid and hi frequencies.
(25) LO MID Up to 15dB cut and boost at 500Hz mid and low frequencies.
(26) EFX PROCESSOR DIRECT IN External signals can be connected with the DSP input.
(27) AUX SEND Aux signal output jack.
(28) EFX SEND FX signal output jack.
(29) AUX RETURN AUX output signal return jack.
(30) EFX RETURN FX output signal return jack.
(31) HEADPHONE JACK Output for headphones.
(32) FOOT SWITCH

(33) DIGITAL EFFECTS PROCESSOR
99 Effects (for details see table at the end of the manual)
01 –08 Reverb Hall
09 –14 Reverb Room
15 –20 Reverb Plate
21 –25 Ambient
26 –31 Gated Reverb
32 –37 Reverse Reverb
38 –45 Echo & Room/Hall
46 –50 Voice Doubler
51 –58 Single Delay
59 –69 Echo 50% F.B.
70 –78 Chorus
79 –87 Flanger
88 –93 Tremolo
94 –99 Wah Wah
(34) SEVEN BAND GRAPHIC EQ Adjusts input sensitivity from-10dB to +10dB at the following frequencies: 60Hz, 160Hz,
410Hz, 1.1KHz, 2.3KHz, 6.2KHz and 15.6KHz.
(35) EQ IN Releases the output signal from equalisation.
(36) AUX SENDS GAIN CONTROL You can have a further +15dB available from these outputs.
(37) FX SENDS GAIN CONTROL Gives a further +15dB from the FX sends.
(38) AUX PFL / (39) FX PFL
(40) AUX OUTPUT CONTROL Adjusts the output level from AUX.
(41) FX OUTPUT CONTROL Adjusts the output level of FX.
(42) ALT 3-4 OUTPUT LEVEL CONTROL Controls the ALT 3-4 signal.
(43) & (44) L R MASTER OUTPUT CONTROL Controls the Left and Right signals.
(45) 2-TRACK INPUT
(46) ALT3-4 OUTPUT PF
(47) ALT3-4 BUS L
(48) HEADPHONE VOLUME CONTROL Controls the output level of headphone and monitors the signals reverb from speaker.
(49) 2-TRACK OUTPUT
(50) MAIN MIX
(51) ALT3-4 OUTPUT PFL
(52) PFL/SOLO
(53) OUTPUT LEVEL DISPLAY AND WORKING INDICATOR You can choose the master channel and monitor the output level
from the chosen bus channel.
(54) +48V PHANTOM POWER
(55) POWER INDICATOR
(56) & (57) UP AND DOWN BUTTONS To choose the desired preset.
(58) ENTER BUTTON Activates the selected preset.

(59) CHANNEL INSERTS Pre-fader/pre-EQ. Tip = send / Ring = return.
(60) ALT3-4 INSERTS
(61) ALT3-4 OUTPUTS
(62) MAIN INSERTS
(63) MAIN OUTPUTS (UNBALANCED)
(64) MAIN OUTPUTS (BALANCED)
(65) BALANCED MAIN OUTPUT LEVEL SWITCHES To choose between the two operating level settings-10dBV and +4dBU.
(66) PHANTOM POWER When you push the switch, all Mic outputs have +48V phantom power supplied.
(67) POWER ON For mixing sections.
(68) AMPLIFIER LEVEL Adjusts the signal levels sent to the amplifier.
(69) BALANCED INPUT FOR SIGNALS FROM AMPLIFIER Get different signals from the source.
(70) LEFT binding output: red+ / black-.
(71) RIGHT binding output: red+ / black-.
(72) LEFT Speakon output: 1+ 2+ / 1- 2-.
(73) RIGHT Speakon output: 1+ 2+ / 1- 2-.
(74) POWER SWITCH For amplifier.
(75) POWER SUPPLY (fuse socket) - Please ensure the correct specifications before replacing the fuse.
Output power
EIA 1KHZ 1% THD
Stereo
8
300w + 300w
4
540w + 540w
Frequency range
20Hz-20KHz-0.5dB
S/N ratio
100dB
Distortion (typical)
Less than 0.03%
Distortion (SMPTE)
Less than 0.04%
Damping factor (5Hz-1KHz)
280
Slew rate
20V/uS
Crosstalk @ rated output 8 1KHz
A-B 80dB, B-A 80dB
Protection
Soft start, DC, AC, short circuit , clip limiter, thermal cut, power limiter

DIGITAL EFFECTS PROCESSOR SPECIFICATIONS
24-Bit DSP with built in 20-Bit AD/DA stereo converters
20-Bit delta sigma 64x oversampling AD converter (in DSP) / 20-Bit delta sigma 128x oversampling DA converter (in DSP)
64x oversampling ADC digital filter (in DSP) / 128x oversampling DAC converter (in DSP)
Sampling rate 31.25KHz / 1MB SRAM chip for high quality stereo reverb and delay sounds
Audio signal “overshooting” indication circuit on-board
Automatic audio mute activation during program changes and during the “first power pn”process
2 lines (2 x 16 character) blue LCD interface indicating all 99 preset names plus audio input level meter
Real 99 stereo-Effect presets available, divided in 26 combination and 63 single effect sounds
DIGITAL EFFECTS NAMES AND PARAMETERS

Specifications
Model KMD14.2 KMD14.2A KMD16.2.2A
Nett weight 5.9Kg 9.6Kg 11.45Kg
Dimensions (+/-3mm) 412 x 400 x 134mm 412 x 400 x 134mm 624 x 458 x 136mm
Power supply AC100V-240V 50/60Hz AC100V-240V 50/60Hz AC100V-240V 50/60Hz
Packing size(WxDxH) 560 x 520 x 190mm 560 x 520 x 190mm 770 x 570 x 190mm
Mono input
Channels 6 mono 6 mono 12 mono
Mic input Electronically balanced Electronically balanced Electronically balanced
Frequency response 20Hz to 20KHz ±2dB 20Hz to 20KHz ±2dB 20Hz to 20KHz ±2dB
Distortion (THD&N) 0.1% at +4dBu 20Hz-20KHz 0.1% at +4dBu 20Hz-20KHz 0.1% at +4dBu 20Hz-20KHz
Gain range 44dB 44dB 44dB
Line input Electronically balanced Electronically balanced Electronically balanced
Channel fader range +10dB to -60dB +10dB to -60dB +10dB to -60dB
S/N 64dB 64dB 64dB
EQ Low 80KHz ±15dB 80KHz ±15dB 80KHz ±15dB
EQ Mid 100Hz -8KHz ±15dB 100Hz -8KHz ±15dB 100Hz -8KHz ±15dB
EQ High 12KHz ±15dB 12KHz ±15dB 12KHz ±15dB
EQ Lo cut filter -3dB at 75Hz 18dB/OCT -3dB at 75Hz 18dB/OCT -3dB at 75Hz 18dB/OCT
Stereo input
Channels 4 stereo 4 stereo 2 stereo
Line input Electronically balanced Electronically balanced Electronically balanced
Frequency response 20Hz - 20KHz ±2dB 20Hz - 20KHz ±2dB 20Hz - 20KHz ±2dB
Distortion (THD&N 0.1%at +4dBu,20Hz -20KHz 0.1%at +4dBu,20Hz -20KHz 0.1%at +4dBu,20Hz -20KHz
Channel fader range +10dB to -60dB +10dB to -60dB +10dB to -60dB
S/N 80dB 80dB 80dB
EQ Low 80Hz ±15dB 80Hz ±15dB 80Hz ±15dB
EQ Low Mid 500Hz ±15dB 500Hz ±15dB 500Hz ±15dB
EQ Hi Mid 3KHz ±15dB 3KHz ±15dB 3KHz ±15dB
EQ High 12KHz ±15dB 12KHz ±15dB 12KHz ±15dB
Main mix max output +22 dB balanced +22 dB balanced +22 dB balanced
Aux send max output +22 dB unbalanced +22 dB unbalanced +22 dB unbalanced
Control room output +22 dB unbalanced +22 dB unbalanced +22 dB unbalanced
Residual output noise -100dBu (Main output) -100dBu (Main output) -100dBu (Main output)
Power consumption 30w for mixer 30w for mixer & max 1200W (amp) 38w (mixer) & max 1200W (amp)
Output power (stereo) Not applicable 1100w + 1100w @ 4 Ohms 1100w + 1100w @ 4 Ohms
Not applicable 550w RMS + 550w RMS @ 4 Ohms 550w RMS + 550w RMS @ 4 Ohms
Not applicable 300w RMS + 300w RMS @ 8 Ohms 300w RMS + 300w RMS @ 8 Ohms
Frequency range Not applicable 20Hz-20Khz - 0.5dB 20Hz-20Khz - 0.5dB
S/N ratio Not applicable 100dB 100dB
Distortion (typical) Not applicable Less than 0.03% Less than 0.03%
Distortion (SMPTE) Not applicable Less than 0.04% Less than 0.04%
Damping factor Not applicable 280 (5Hz-1KHz) 280 (5Hz-1KHz)
Crosstalk@8Ohms Not applicable A-B 80dB, B-A 80dB A-B 80dB, B-A 80dB
