Kambrook Hang-Up KHH100 User manual

Instruction Booklet
Hang-Up
Hair Dryer
KHH100
KHH100_IB_A11_FA.indd 1 14/09/11 2:32 PM

Important
Please retain your instruction
book for future use.
In the event that you need some assistance with your
Kambrook appliance, please contact our Customer Service
Department on 1300 139 798 (Australia) or 0800 273 845
(New Zealand). Alternatively, visit us on our website at
www.kambrook.com.au or www.kambrook.co.nz
KHH100_IB_A11_FA.indd 2 14/09/11 2:32 PM

Contents
Kambrook Recommends p4
Safety First
Your Kambrook Hair Dryer p6
Operating Your Kambrook p8
Hair Dryer
Using Your Kambrook p9
Hair Dryer
Care, Cleaning and Storage p10
KHH100_IB_A11_FA.indd 3 14/09/11 2:32 PM

4
Kambrook Recommends Safety First
IMPORTANT: Please retain your
instruction book for future use.
At Kambrook, we believe that safe performance is the first priority in any
consumer product, so that you, our valued customer can confidently
use and trust our products. We ask that any electrical appliance that
you use be operated in a sensible fashion with due care and attention
placed on the following important operating instructions.
Important Safeguards For Your Kambrook
Hang-Up Hair Dryer
• Use only on 230-240 volt AC, 50Hz
mains voltage.
• This appliance is not intended for use by young
children or infirm persons unless they have
been adequately supervised by a responsible
person to ensure that they can use the
appliance safely.
• Do not allow liquids to spill on the plug or cord.
Do not use where it can fall or be pulled into
water. Do not reach for an appliance that
has fallen into water. Switch off and unplug
immediately. Do not use this appliance out of
doors.
• Do not use with an extension cord.
• NEVER use while bathing or showering or
standing on a damp floor, or while your hands
or the unit are wet.
• Do not use on any wet surface or any soft
surface, such as a bed, where the unit may be
covered.
• Always switch off and remove the plug
whenever the unit is not in use.
• Always turn the power off at the power
outlet before removing the plug. Remove by
grasping the plug - do not pull on the cord.
• Clean carefully with a soft, moist cloth. Allow
to dry thoroughly before connecting to the
power outlet.
• Do not store whilst hot or whilst connected to
the power outlet.
• To avoid overheating, do not block any
openings of the hair dryer.
• Never probe any opening to remove fluff or
hair. On regular occasions, disconnect the
unit from the power supply and use a vacuum
cleaner to clean.
• Do not leave small objects such as clips or pins
where they can enter the unit and cause a
safety hazard.
• Do not allow the unit or the cord to contact
any hot surface, or to trail over the edge of a
bench.
• Do not use accessory attachments, other than
those supplied by the manufacturer.
• Do not direct hot air towards the eyes or other
heat-sensitive areas.
• Avoid use on or near heat sensitive material,
synthetic wigs or hair pieces, where aerosol
products are being used or where oxygen is
being administered.
• Never operate the appliance with a
damaged plug or cord, or after it has been
damaged or dropped or immersed in water.
Return the unit to your nearest Kambrook
Service Centre or Authorised Service Agent for
inspection and if necessary, repair.
KHH100_IB_A11_FA.indd 4 14/09/11 2:32 PM

5
Important Safeguards For All
Electrical Appliances
• Carefully read all instructions before operating
the appliance and save for future reference.
• Remove and safely discard all packaging
material and promotional labels before using
the appliance for the first time.
• Fully unwind the power cord before use.
• Do not let the power cord hang over the edge
of a bench or table, touch hot surfaces or
become knotted.
• To protect against electric shock, do not
immerse the power cord, power plug or
appliance in water or any other liquid, unless it
is recommended in the cleaning instructions.
• The appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance, by a person
responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• It is recommended to inspect the appliance
regularly. Do not use the appliance if the
power supply cord, plug, connector or
appliance becomes damaged in anyway.
Return the entire appliance to the nearest
authorised Kambrook Service Centre for
examination and/or repair.
• Any maintenance other than cleaning should
be performed at an authorised Kambrook
Service Centre.
• This appliance is for household use only. Do not
use this appliance for other than its intended
use. Do not use in moving vehicles or boats.
Do not use outdoors. Misuse may cause injury.
• The installation of a residual current device
(safety switch) is recommended to provide
additional safety protection when using
electrical appliances. It is advisable that a
safety switch with a rated residual operating
current not exceeding 30mA be installed in
the electrical circuit supplying the appliance.
See your electrician for professional advice
• Always turn the appliance to the OFF
position, switch off at the power outlet
and unplug at the power outlet when the
appliance is not in use.
• Before cleaning, always turn the appliance to
the OFF position, switch off at the power outlet,
unplug at the power outlet and remove the
power cord, if detachable, from the appliance
and allow all parts to cool.
• Do not place this appliance on or near a heat
source, such as hot plate, oven or heaters.
• Position the appliance at a minimum
distance of 20cm away from walls, curtains
and other heat or steam sensitive materials
and provide adequate space above and on
all sides for air circulation.
• Do not twist, kink or wrap the cord tightly
around the appliance, as this may cause
the plastic insulation to weaken and split
(particularly where the cord enters the
appliance or joins the plug) thus allowing
the cord’s wiring to be bared and become
an electrical hazard. If the cord becomes
twisted, return it to your Kambrook Service
Centre or Authorised Service Agent for
checking or replacement.
• When the hair dryer is used in a bathroom,
unplug it after use since the proximity of water
presents a hazard even when the hair dryer is
switched off.
• For additional protection the installation of
a residual current device (RCD) with a rated
residual operating current not exceeding
30mA is advisable in the electrical circuit
supplying the bathroom. Ask your installer for
advice.
IMPORTANT: For safety
reasons, and to avoid
tampering by unskilled
persons, this unit is factory
sealed, as specified by
electrical authorities.
If service is required, it
should only be carried out
by a Kambrook Service
Centre or Authorised
Service Agent.
KHH100_IB_A11_FA.indd 5 14/09/11 2:32 PM

6
Your Kambrook Hang-Up Hair Dryer
1. 1200 watts of power
2. ON button
3. OFF button
4. 3 combinations for heat
and speed
5. Wall mountable for convenience
6. Removable rear grille for
easy cleaning
7. Release button
KHH100_IB_A11_FA.indd 6 14/09/11 2:32 PM

7

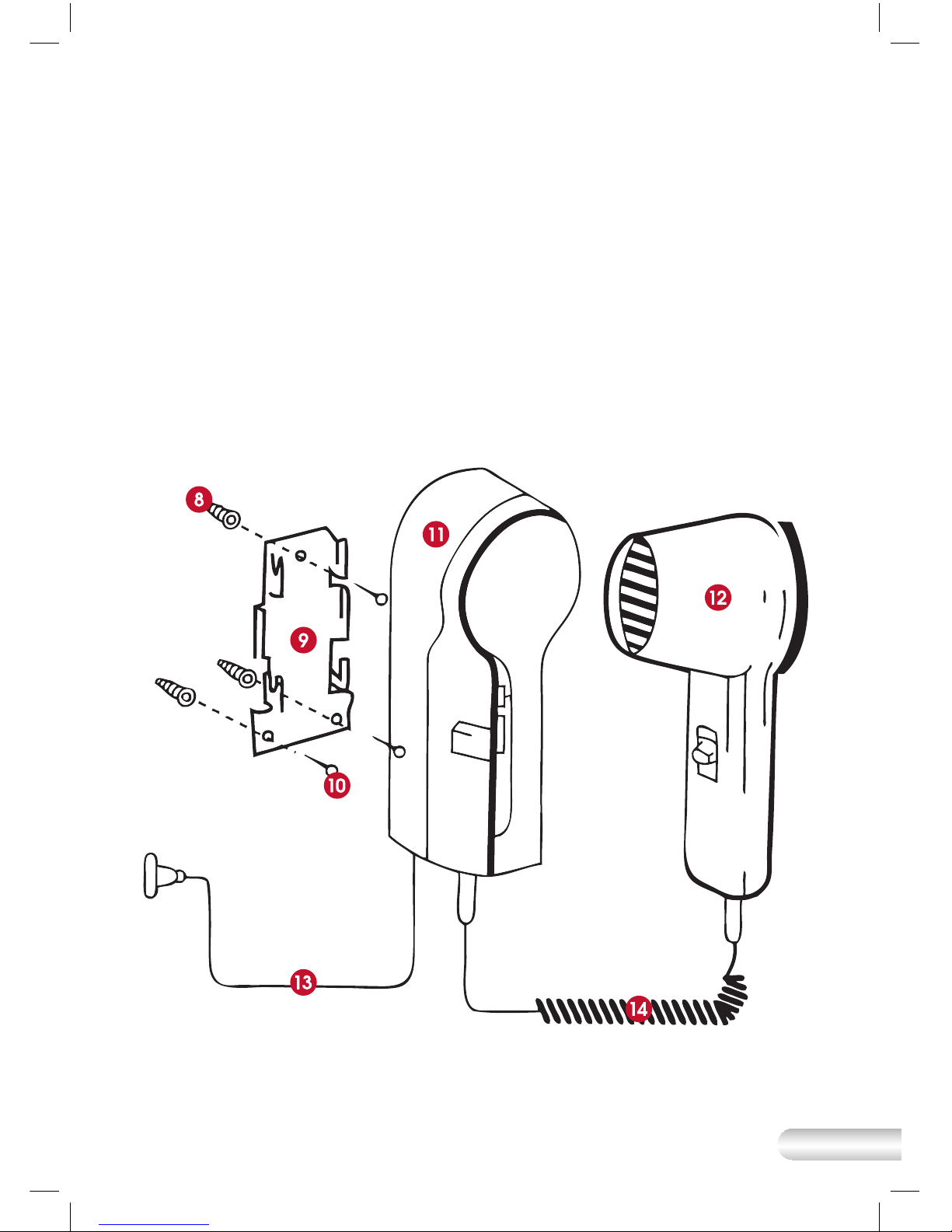

8. Anchor bushing
9. Bracket
10. Screw
11. Wall mount
12. Hair dryer
13. Power supply cord
14. Spiral power cord
KHH100_IB_A11_FA.indd 7 14/09/11 2:32 PM

8
Hang-Up Hair Dryer
Mounting Instructions
The Kambrook Hang Up Dryer is
designed to mount onto the wall using
the following procedure:
1. Remove wall bracket from unit.
2. Use the wall bracket as a template
to mark position of holes for drilling
close to electrical outlet, away
from bath or vanity basin.
3. Drill three 4.5mm (3/16") holes
and insert the anchor bushings
by tapping lightly with a hammer
until the shoulder of the bushing
rests against the wall.
4. Position wall bracket aligned with
the holes then tighten the two
bottom screws first, then tighten
the top screw.
5. Match the slots on the back of the
mounting base with the hooks of
the bracket.
6. Press into the hooks and slide
down to ensure secure mounting.
7. Plug unit into the nearby electrical
outlet(230-240 volt AC-50Hz).
IMPORTANT: Do not install
where a person in a bath
or shower can reach the
unit on the wall or reach
the hand-held part when
the cord is fully extended.
Operating Your Kambrook Hang-Up Hair Dryer
How To Operate
1. After washing, towel dry hair.
2. Press release buttons to
remove dryer.
3. To start the dryer, press the On
button on the wall mount unit.
4. Slide the control switch to:
LOW position for styling hair
MED position for drying hair
HIGH for fast drying hair
5. To stop the dryer, just hang it into
the mounting base which will
automatically switch the unit OFF
or push the OFF button.
KHH100_IB_A11_FA.indd 8 14/09/11 2:32 PM

9
To Style and Dry Hair
• For layered style, brush your hair
away from it’s natural lay.
• For longer hair you should start by
drying the back first. Then part your
hair across the top of your head
(from ear to ear). Brush your hair to
one side and then the other. Then
dry the front of your hair.
• To make your hair flick, place
brush on outside of hair. As you
brush down towards the end of
your hair, turn the ends upwards.
• To make your hair turn under;
place the brush on the underside
of your hair. As you brush
downward, turn the brush toward
your head.
• To straighten hair; hold the hair
straight and taut with a brush and
dry hair with high setting.
• Full hair style. For a full casual style
brush, dry hair from underneath
and against the natural direction
of growth .
• Styling - The final touches: Styling
is usually best done after your
hair is nearly dry. Speed and heat
should usually be set on the LOW
setting for final styling.
Using Your Kambrook Hang-Up Hair Dryer
KHH100_IB_A11_FA.indd 9 14/09/11 2:32 PM

10
Power Unit and Base
Always unplug unit before cleaning,
use a damp cloth to wipe base
and unit.
Rear screen
It is important that you clean the
rear intake grill when hair, lint or dust
begins to build up on it. To make this
easy, Kambrook has made the rear
screen removable. To remove the
screen simply rotate the screen anti-
clockwise and loosen. Clean using a
toothbrush or similar to loosen lint etc.
Turn screen over and wash it in water
from a running tap. Towel dry the
screen thoroughly. Check the inside
screen and if dirty brush gently with a
DRY toothbrush.
To Replace Screen
Line up pages on inside of screen
with slots on side of unit and rotate
clockwise to lock screen in place.
Storage of Your Hang-Up
Hair Dryer
Always store the dryer inside the wall
mount base. Do not mount your dryer
in an area where there is excessive
heat or moisture.
IMPORTANT: If the supply
cord or spiral power
cord of this appliance is
damaged it must only
be replaced by a repair
shop appointed by the
manufacturer because
special purpose tools
are required.
Care, Cleaning and Storage
KHH100_IB_A11_FA.indd 10 14/09/11 2:32 PM

11
Notes
KHH100_IB_A11_FA.indd 11 14/09/11 2:32 PM

Kambrook - Australia
Building 2, Port Air Industrial Estate
1A Hale Street
Botany NSW 2019
Australia
Customer Service Line 1300 139 798
Customer Service Fax [phone]
www.kambrook.com.au
Due to continual improvement in design or otherwise, the product you
purchase may differ slightly from the illustration in this book. Issue A11
Kambrook - New Zealand
Private Bag 94411
Botany, Manukau
Auckland 2163
New Zealand
Customer Service Line/
Spare Parts 0800 273 845
Customer Service Fax [phone]
www.kambrook.co.nz
KHH100_IB_A11_FA.indd 1 14/09/11 2:32 PM
