KAMMAK PROF 01 User manual

PROF 01
User’s manual - Use and Maintenance
Descaling pumps
E

Dear Customer, thank you for choosing a KAMMAK Descaling Pump.
MANUAL
This manual is a safe guide for the use of the pump. Please read it carefully in all its parts before use.
This manual contains important information for the proper working and use of the equipment.
KAMMAK reserve the right to introduce any future changes without notice or replacement.
PRELIMINARY INSPECTION
Upon receipt of the pump, take it out from the carton and check it is in perfect condition. Also check
that the data on the rating plate correspond to required ones. For any problem, immediately contact
the supplier specifying the kind of fault.
In case of doubts about the safety of the machine, do not use it.
DESCRIPTION
The pump PROF 01 is fitted with built-in heater. Particularly recommended for difficult
descaling treatments, they work in complete safety and autonomy enabling the operator to carry out
other works at the same time.
Pumps with tank for descaling boilers by using specific acid based restoring products.
The pumps are equipped with special fittings and valves to adjust the flows and purge the sludge, built
up by the operation, which is then rapidly removed.
Pumps are supplied ready to use, in strong carton boxes with related user’s manual.
CONTENTS
1 - REGULATIONS – CE MARK page 2
2 - THE ADVANTAGES OF THE PUMP PROF 01 page 2
3 - TECHNICAL FEATURES page 3
4 - CUSTOMER SERVICE page 3
5 - USE page 3
6 - SAFETY INSTRUCTIONS page 4
7 - EXPLODED VIEWS page 5
8 - DIRECTIONS FOR DISPOSAL page 6
9 - WARRANTY TERMS AND AFTER-SALE ASSISTANCE CONDITIONS page 6
1

2
1 - REGULATIONS – CE MARK
Declaration of Conformity
The pumps are in conformity with the following European Directives, Laws and Regulations:
QUALITY
KAMMAK equipments are manufactured with high-quality acid-resistant materials and submitted to
severe operating tests.
Follow these instructions to avoid any operating and servicing problems.
2 - THE ADVANTAGES OF THE PUMP PROF 01
Time and, above all, temperature increase make
calcium salts, usually present in water, precipitate in the
form of microcrystals and settle on metallic surfaces of
pipes, plant coils and heat exchangers, thus reducing
flow rate and thermal efficiency.
To restore the original plant performance it is necessary
to carry out a descaling with specific products and
equipments.
The buil-in heater device attacks scale on
both sides, thus making descaling particularly effective
and fast (as the normal dissolving action is combined
with the detachment in flakes of scale, which is made
friable by the double attack), even when pipes and
exchangers are almost totally obstructed.
Thermo Clean
circulation
Thermo-Clean
Machinery Directive 2006/42/EC

ENGLISH
3
3 - TECHNICAL FEATURES
PROF 01
Peripheral pump
Motor 220 V - 370 W/0.5 HP
Degree of protection IPX4
Max.temperature 60°C
Flow rate 50* l/min.
4 - CUSTOMER SERVICE
For enquiries on spare parts,please specify serial number of pump (shown on product and
carton).
5 - USE
5.1 - HOW TO PREPARE THE PUMP AND CHECK THE SEAL
- Fill the tank with enough water to ensure that the pump rotor
housing is submerged during operation.
- Screw the outer ends of the flexible hoses securely to the
heating system to be descaled.
- Connect the power cable to a single-phase 220 V power
supply.
- Switch on the pump and check the seal of the hose fittings on
the heating system and on the pump. In case of leaks of liquid,
check hoses and fittings and replace the defective
components, if necessary.
- When seal is safe, switch off the pump.
- If necessary, add more descaling product by referring to the
dilution specified in the data sheet of the product.
Fittings 3/4”
Tank capacity 35 l
Dimensions HxWxD 76 x 50 x 35 cm
Weight Kg 22
* Data referred to the pump body outlet.
Heating coil 2000 w
Max working pressure 4 Bar
Head 36*m
FLOW
RETURN
FLOW
RETURN
I M P O R TA N T !
1) Chemcal cleaner should be mxed wth fresh water to form a
soluton. Add 1 lt of chemcal cleaner for 100 lters of water (every
10 radators).
Do not use pure acd. It may harm ppes and nstallatons.
2) Do not turn-on the HEATER when tank s empty. It may
damage plastc tank.
3) Clean the FILTER after every operaton.
4) After descalng operaton REMOVE THE DESCALING
LIQUID FROM THE TANK and wash out the pump by
crculatng clean water through t for at least 10 mnutes.
If the pump is not used for a
long time, it will be blockaged.
To avoid this, run the pump
once a week.

5.2 - FUNCTIONING
Connect pump to the system.
Ensure that valve is in the closed position.
-Fill the tank with water.
-Add cleaning chemical to the tank.
-Turn on the heater. PROF-01 has automatic temperature controller on it. Heater automaticaly
heats water up to 50°C in the tank.
-Switch onthe pump and clean the system.
The PROF-01 has 1 x 250 cm Pressure Line and 1 x 250 cm Return Line hoses fitted with
3/4” brass hose connectors at the out board end and 3/4” fittings at the inboard end.
In cleaning process:
The inboard end of “Pressure Line Hose” should be screwed onto the corresponding ¾”
brass nipples on rear of the hose support plate. The other end of this hose should be
connected to the system inlet (radiator/boiler/pump).
The inboard end of “Return Line Hose” should be screwed onto the corresponding ¾” brass
nipples on top of cap. The other end of this hose should be connected to the system outlet
(radiator/boiler/pump).
In dumping process:
Disconnect the Return Line hose screwed on top of cap and lead it to a toilet pan or drain
pipe gully leading to a foul sewer.
5.3 - HOW TO CLEAN THE PUMP
After descaling REMOVE THE DESCALING LIQUID FROM THE TANK and wash out the pump by
circulating clean water through it for at least 10 minutes.
6 - SAFETY INSTRUCTIONS
- Avoid using the pump in rooms where there are liquids, gases, flammable powders or with risk of
explosion.
- Before plugging in the pump to the outlet, make sure the switch is off.
- The outlet must be suitable for the plug of the pump. Do not use non CE-marked defective outlets.
- Use (CE) approved extensions, only if necessary.
- Do not use plug adapter. Do not carry out any modifications to the plug nor to the electrical cable.
- Pump shall always kept in perfect efficiency.
- During maintenance operations, check the switch is off and the plug is not connected.
- All maintenance operations must be carried out by the authorized Technical Assistance Service.
- Only use KAMMAKoriginal spare parts.
- Do not carry out any modifications to the pump if not authorized by Technical
Department (ask for written authorization).
- Keep children and unauthorized persons away from the pump.
- Keep the pump out of reach of children and unauthorized persons.
- Do not use the pump if tired or under the effect of alcohol, medicines or drugs.
- When using the pump, wear overalls, do not wear jewellery, keep hair away from the pump.
- When handling descaling liquids, be very careful. It is necessary to use Individual Protection
Equipment (IPE).
4
Never run the pump without water!

5

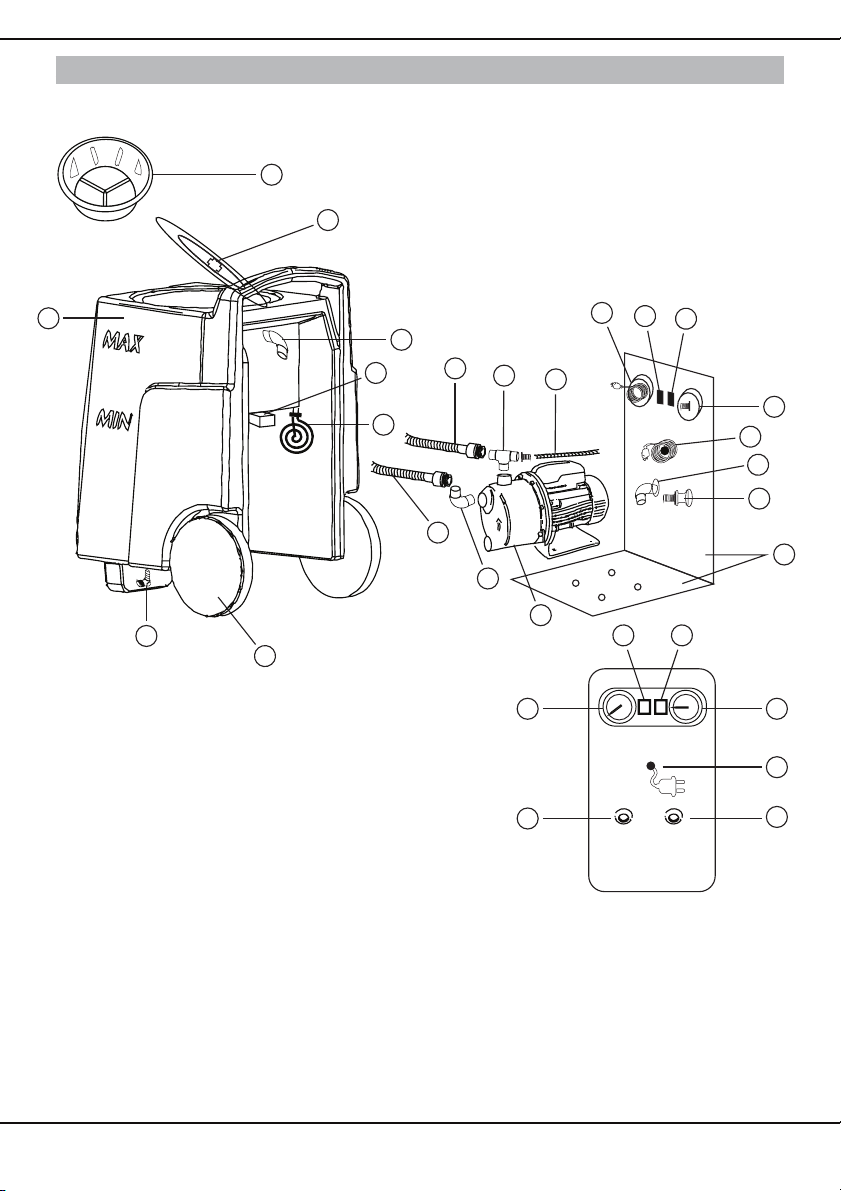

7 - EXPLODED VIEWS AND SPARES DIAGRAMS
PROF 01
P.S..: For enquiries on spare parts,please specify always if needed for the model PROF 01.
1. Filter
2. Tank
3. Tank cap
4. Elbow
5. Thermostat
6. Heating element
7. Elbow 1/2"
8. Wheel
9. Connection hose 1/2"
10. Connection hose 1/2"
11. 2 way connector 3/4"
12. Elbow 3/4"
13. Pneumatic hose
14. Pump
15. Heat meter
16. Pump switch
17. Heater switch
18. Pressure gauge
19. Electric cable
20. Elbow 1/2"
21. Pipe fitting
22. Back&bottom metal panel
23. Pressure indicator
24. Pressure line 3/4”
25. Pump on/off switch
26. Heater on/ff switch
27. Temperature indicator
28. Electric cable
29. Return line 3/4”
30. Heater switch on/off
31. 3/4” Pressure line
32. Cap
33. Heater switch on/off
7. Temperature indicator
8. 3/4” Return line
9. Wheel
1
2
3
4
5
6
7
8
9
1010
11
12
13
14
20
15 16 17
18
21
22
23
24
25 26
27
28
29
19

6
8 - DIRECTIONS FOR DISPOSAL
In accordance with the WEEE directive 2002/96/EC on waste electrical and
electronic equipment, the pump, when no longer used, shall be disposed of in a
RAEE – WEEE collection centre authorized for disposal of waste electrical and
electronic equipment, or directly contact your dealer.
9 - WARRANTY TERMS AND AFTER-SALE ASSISTANCE CONDITIONS
KAMMAK guarantee that the equipments sold are free from designing, manufacturing and material
defects, under normal operating conditions and according to the directions contained in the instruc-
tions manual supplied with the equipment.
In compliance with the directive 1999/44/CE valid in the EEC countries, the warranty rights apply only
to the purchaser.
KAMMAK, placed in Bursa - Turkey, guarantee the equipments
against any conformity defects appearing within 12 (twelve) months from the purchase date, even
when warranty operations have been carried out during this period, if only proved by a document.
The warranty covers all components of the equipment and provides for the repairing or, if necessary,
the free replacement of those parts that, according to your Dealer, have conformity defects.
The warranty does not cover the aesthetic parts and the parts subject to wear and tear, nor does it
cover all damages or failures whose cause is not due to the manufacturer, such as: transport, wrong
installation or maintenance, tampering, sudden changes of electric voltage and/or hydraulic pressure,
thunderbolts, corrosions, excess of humidity, accidental bumps or events beyond our control.
The warranty is valid only if the equipments have been installed, used and properly maintained accor-
ding to all directions supplied by KAMMAK in the instructions manual attached to the equipment.
Should any conformity defects of the product be found during the warranty period, the Customer shall
notify the Dealer to agree upon the terms of repairing and/or replacing of the product.
PRECAUTIONS
Only use “KAMMAK” chemicals in order to ensure good working and avoid damaging the
equipments.
Once the lifetime of the pump has expired, do not dispose of it with household
waste. The pump must be recycled in authorized centres and can be assimilated
to a household appliance.
During handling lift the pump and do not drag it in order to avoid damages to the tank.
Temperature of the descaling solution must never exceed 60 °C.
Flexible hoses and fittings can be damaged in time; make sure to check the seal whenever
using the pump, as indicated in the pump preparation instructions.
