Kamstrup ULTRAFLOW 54 Parts list manual

Technical Description
ULTRAFLOW
®
54
Kamstrup A/S
Industrivej 28, Stilling
DK-866 Skanderborg
TEL: [phone]
FAX: [phone]
[email protected]
www.kamstrup.com

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
2

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1 3
Contents
1 General Descr pt on ........................................................................................................ 6
2 Data ............................................................................................................................... 7
2.1 Electrical data ...................................................................................................................................... 7
2.2 Mechanical data ................................................................................................................................... 7
2.3 Flow data ............................................................................................................................................. 8
2.4 Material ............................................................................................................................................... 8
3 Type overv ew ................................................................................................................. 9
4 Order ng deta ls ............................................................................................................ 10
4.1 Accessories ........................................................................................................................................ 11
4.2 Pulse Transmitter ............................................................................................................................... 11
4.3 Pulse Divider ...................................................................................................................................... 11

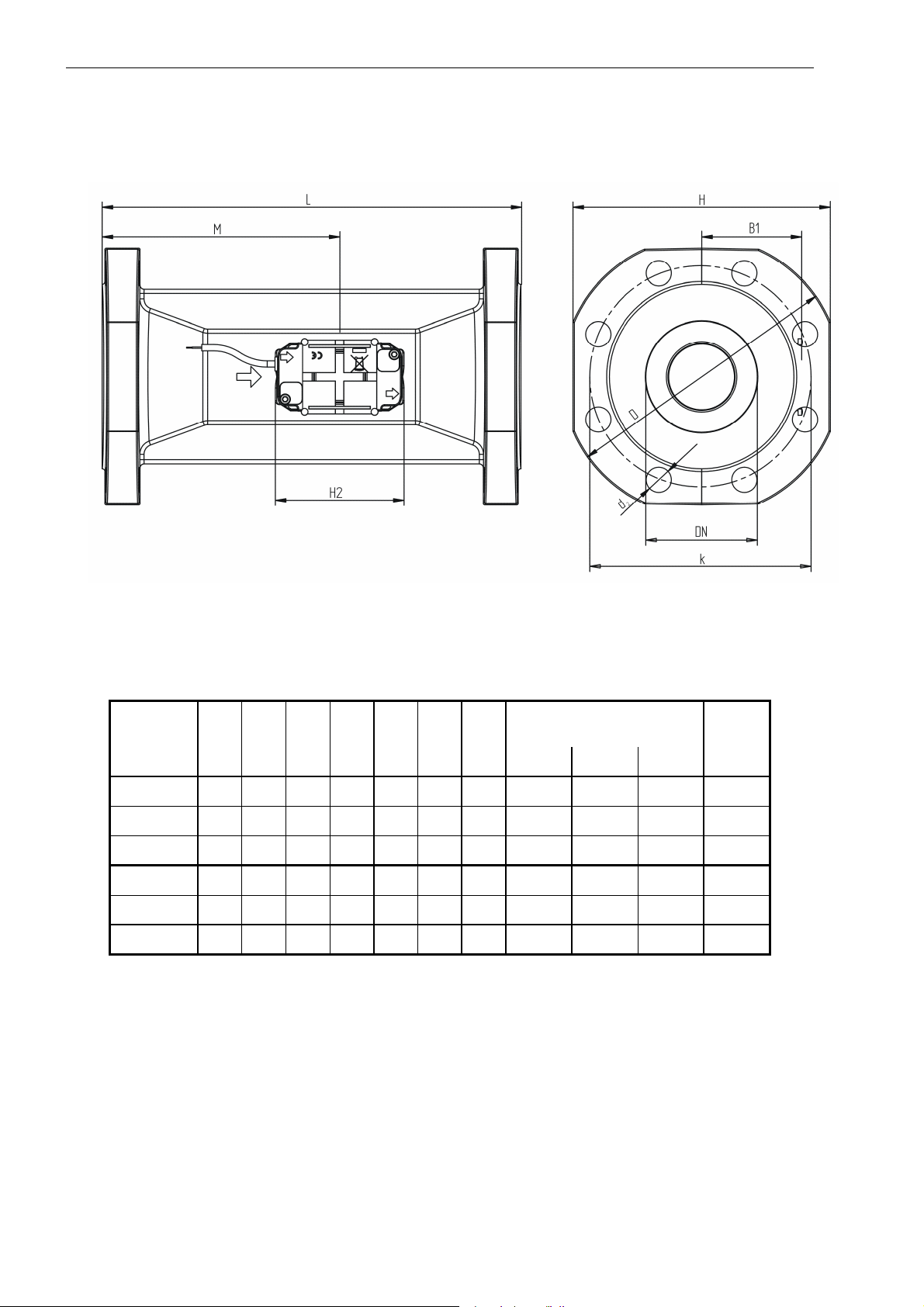

5 D mens oned sketches .................................................................................................. 13

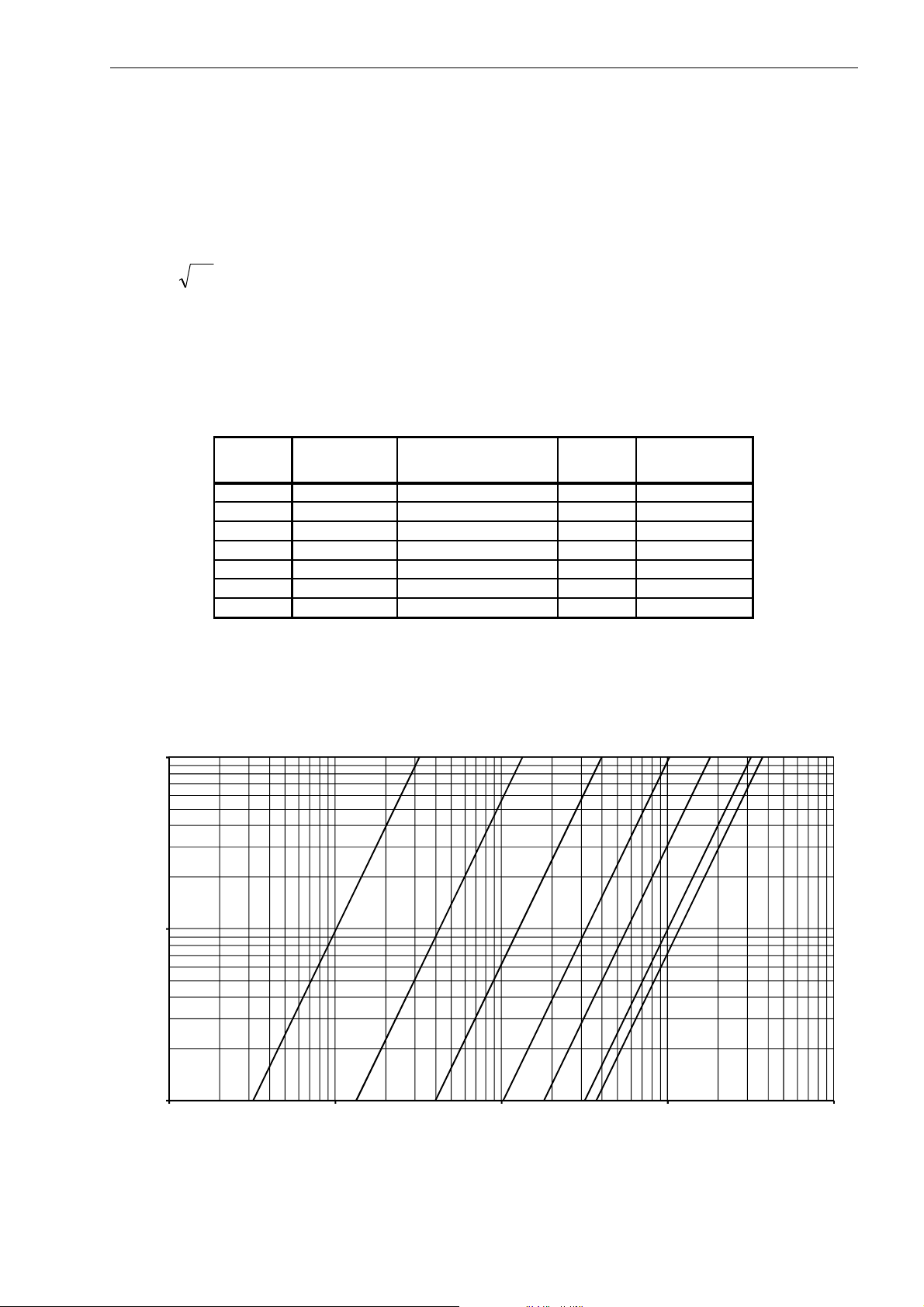

6 Pressure loss ................................................................................................................ 17
7 Installat on ................................................................................................................... 18

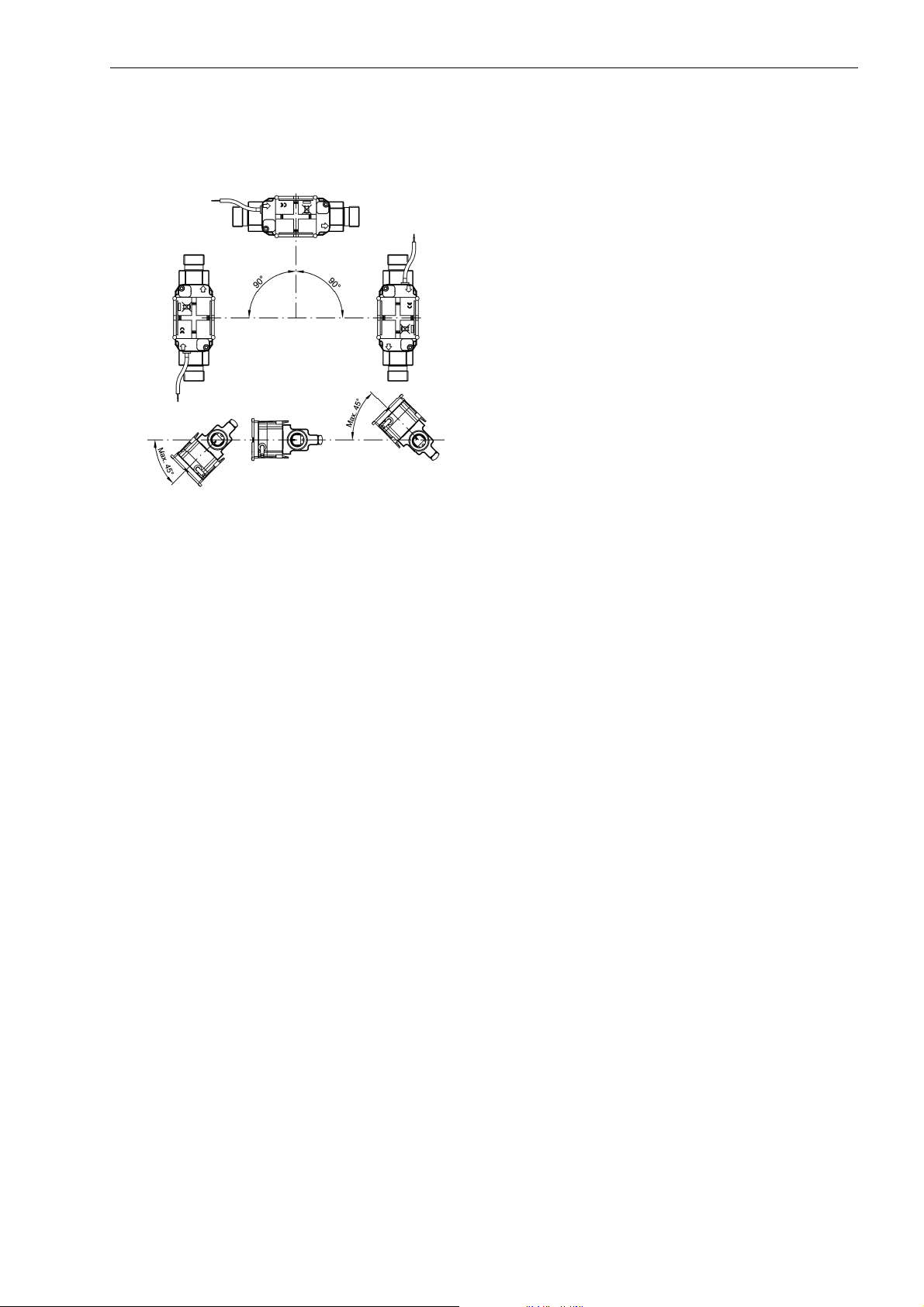

7.1 Installation angle for ULTRAFLOW
®
54 ................................................................................................. 19
7.2 Straight inlet ...................................................................................................................................... 2
7.3 Operating pressure ............................................................................................................................. 2
7.4 Humidity and condensation ................................................................................................................ 21

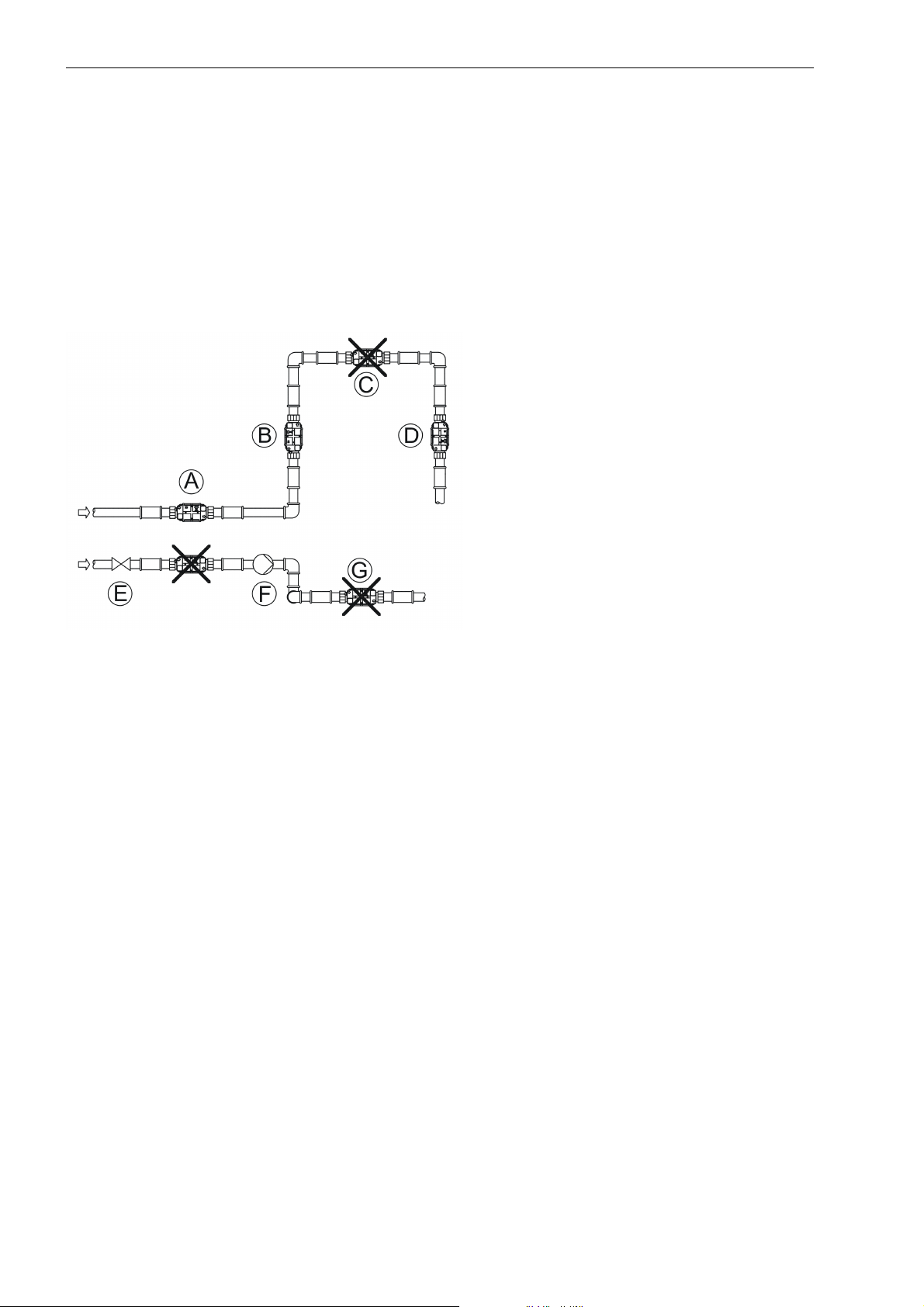

7.5 Installation examples ......................................................................................................................... 21
7.6 Electrical connection .......................................................................................................................... 23
7.7 Example of connecting ULTRAFLOW
®
and MULTICAL
®
.......................................................................... 24
7.8 Calculator with two flow sensors ......................................................................................................... 24
8 Funct onal descr pt on .................................................................................................. 26
8.1 Ultrasound combined with piezo ceramics .......................................................................................... 26
8.2 Principles ........................................................................................................................................... 26
8.3 Transient time method ....................................................................................................................... 26
8.4 Signal paths ....................................................................................................................................... 28
8.5 Measuring sequences......................................................................................................................... 28
8.6 Function ............................................................................................................................................. 29
8.7 Guidelines for dimensioning ULTRAFLOW
®
.......................................................................................... 31
8.8 Pulse output ....................................................................................................................................... 32
8.9 Pulse Transmitter/Pulse Divider .......................................................................................................... 32
8.1 Pulse emission ................................................................................................................................... 33
8.11 Accuracy ............................................................................................................................................ 33

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
4
8.12 Power consumption ........................................................................................................................... 34
8.13 Interface plug/serial data .................................................................................................................. 34
8.14 Test mode ......................................................................................................................................... 35
8.15 Externally controlled start/stop .......................................................................................................... 35
8.16 Course of calibration by means of serial data and externally controlled start/stop ............................. 36
9 Cal brat ng ULTRAFLOW
®
.............................................................................................. 37
9.1 Installation ........................................................................................................................................ 37
9.2 Technical data for ULTRAFLOW

......................................................................................................... 37
9.3 Start-up ............................................................................................................................................. 39
9.4 Measuring flow .................................................................................................................................. 39
9.5 Evacuation ........................................................................................................................................ 39
9.6 Suggested test points ........................................................................................................................ 4
10 Seal ng .................................................................................................................... 41
1 .1 Optimization in connection with calibration ....................................................................................... 42
1 .2 PULSE TESTER .................................................................................................................................... 43
1 .3 Technical data for PULSE TESTER ........................................................................................................ 43
1 .4 Hold function..................................................................................................................................... 45
1 .5 Push-button functions ....................................................................................................................... 45
1 .6 Using the PULSE TESTER .................................................................................................................... 45
1 .7 Spare parts ........................................................................................................................................ 46
1 .8 Changing the battery ......................................................................................................................... 46
11 METERTOOL ............................................................................................................. 47
11.1 Introduction ...................................................................................................................................... 47
11.2 System Requirements for PC .............................................................................................................. 47
11.2.1 Interface .................................................................................................................................... 47
11.2.2 Installation ................................................................................................................................ 49
11.3 METERTOOL for ULTRAFLOW
®
X4 ........................................................................................................ 5
11.3.1 Files .......................................................................................................................................... 5
11.3.2 Utilities ..................................................................................................................................... 5
11.3.3 Windows ................................................................................................................................... 5
11.3.4 Help .......................................................................................................................................... 51
11.4 Application ........................................................................................................................................ 51
11.4.1 COM-port selection .................................................................................................................... 51
11.4.2 Flow meter adjustment .............................................................................................................. 52
11.4.3 Programming of standard flow curve .......................................................................................... 52
11.4.4 Pulse Divider ............................................................................................................................. 53
11.4.5 Meter type ................................................................................................................................. 55
11.4.6 Help .......................................................................................................................................... 55
11.5 Update .............................................................................................................................................. 56

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1 5
12 Approvals ................................................................................................................. 57
12.1 The Measuring Instrument Directive .................................................................................................... 57
12.2 CE marking ......................................................................................................................................... 57
12.3 Declaration of conformity ................................................................................................................... 58
13 Troubleshoot ng ....................................................................................................... 59
14 D sposal ................................................................................................................... 60
15 Documents ............................................................................................................... 61

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
6
1General Descr pt on
ULTRAFLOW
®
54 is a static flow sensor based on the ultrasonic principle. It is primarily used as a volume flow
sensor for heat meters such as MULTICAL
®
. ULTRAFLOW
®
has been designed for use in heating installations where
water is the heat-bearing medium.
ULTRAFLOW
®
employs ultrasonic measuring techniques and microprocessor technology. All calculating and
measuring circuits are collected on one single board, providing a compact and rational design in addition to
exceptionally high measuring accuracy and reliability.
The flow is measured using bidirectional ultrasonic technique based on the transit time method, proven a long-
term stable and accurate measuring principle. Two ultrasonic transducers are used to send the sound signal both
against and with the flow. The ultrasonic signal travelling with the flow reaches the opposite transducer first. The
time difference between the two signals can be converted into flow velocity and thereby also volume.
A three-wire pulse cable is used to connect ULTRAFLOW
®
to the calculator. The cable supplies the flow sensor and
also transfers the signal from sensor to calculator. A signal corresponding to the flow – or more correctly, a
number of pulses proportional to the water volume flowing through - is transmitted.
Where ULTRAFLOW
®
is to be used as a flow sensor with built-in supply, e.g. if the distance between MULTICAL
®
and ULTRAFLOW
®
is 1 m or more, a Pulse Transmitter can be supplied as an accessory. If ULTRAFLOW
®
54 is used
as pulse generator for other equipment, it must be connected through a Pulse Transmitter. The Pulse Transmitter
has a built-in supply for ULTRAFLOW
®
and a galvanically separated pulse output.

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1 7
2Data
ULTRAFLOW
®
54
2.1 Electr cal data
Supply voltage 3.6 V ± .1 V
Battery
(Pulse Transmitter/
Pulse Divider)
3.65 VDC, D-cell lithium
Replacement interval 6 years @ t
BAT
< 3 °C
Mains supply
(Pulse Transmitter/
Pulse Divider)
23 VAC +15/-3 %, 5 Hz
24 VAC ±5 %, 5 Hz
Power consumption
mains supply
< 1 W
Back-up mains supply Integral super-cap eliminates interruptions due to short-term power-cuts
Cable length, flow meter Max. 1 m
Cable length,
Pulse Transmitter/
Pulse Divider
Depending on the calculator
EMC data Meets DS/EN 1434:2 7 class C, MID E1 and E2
2.2 Mechan cal data
Metrological class 2 or 3
Environmental class Meets DS/EN 1434 class C
Ambient temperature 5…55°C (indoors)
Protection class
Flow sensor
Pulse Transmitter/
Pulse Divider
IP65
IP54
Humidity 93% RF non-condensing
Mechanical environment MID M1
Temperature of medium 15…13 °C or 15…9 °C
At medium temperatures above 9 °C use of flange
meters is recommended. Additionally, MULTICAL
®
calculator or Pulse Transmitter/Pulse Divider
should
be wall-mounted
Storage temp. empty
sensor
-25…7 °C, 6 °C at mounted/enclosed battery
Pressure stage PN16 and PN25

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
8
2.3 Flow data
Nom. flow q
p
Nom. diameter Meter factor
1)
Dynamic range Flow @125 Hz
2)
∆
∆∆
∆p @ q
p
Min. Cutoff
[m³/h] [mm] [imp/l]
q
i
:q
p
q
s
:q
p
[m³/h] [bar] [l/h]
0.6 DN15 & DN20 300 1:50 & 1:100 2:1 1,5 0.04 2
1.5 DN15 & DN20 100 1:50 & 1:100 2:1 4,5 0.22 3
2.5 DN20 60 1:50 & 1:100 2:1 7,5 0.03 5
3.5 DN25 50 1:50 & 1:100 2:1 9 0.07 7
6 DN25 & DN32 25 1:50 & 1:100 2:1 18 0.2 12
10 DN40 15 1:50 & 1:100 2:1 30 0.06 20
15 DN50 10 1:50 & 1:100 2:1 45 0.14 30
25 DN65 6 1:50 & 1:100 2:1 75 0.06 50
40 DN80 5 1:50 & 1:100 2:1 90 0.05 80
60 DN100 2.5 1:50 & 1:100 2:1 180 0.03 120
100 DN100 1.5 1:50 & 1:100 2:1 300 0.07 200
100
DN125
1.5
1:50 & 1:100
2:1
300
0.1
200
1)
The pulse figure appears from the meter´s type label.
2)
Saturation flow (125 Hz. Max. pulse frequency 128 Hz is maintained at higher flow).
Table 1
2.4 Mater al
Wetted parts
ULTRAFLOW
®
54, q
p
0.6 and 1.5 m³/h
Housing, gland DZR brass (Dezincification proof brass)
Housing, flange Stainless steel, W.no. 1.43 8
Transducer Stainless steel, W.no. 1.44 1
Gaskets EPDM
Reflectors Thermoplastic, PES 3 % GF and stainless steel, W.no. 1.43 1
Measuring pipe Thermoplastic, PES 3 % GF
ULTRAFLOW
®
54, q
p
2.5 to 100 m³/h
Housing, gland DZR brass (Dezincification proof brass)
Housing, flange Red brass, RG5 or stainless steel, W.no. 1.43 8 (see Order specification)
Transducer Stainless steel, W.no. 1.44 1
Gaskets EPDM
Measuring pipe Thermoplastic, PES 3 % GF
Reflectors Stainless steel, W.no. 1.43 1
Electron cs hous ng
Base Thermoplastic, PBT 3 % GF
Lid Thermoplastic, PC 2 % GF
Connect ng cable
Silicone cable (3x .5mm
2
)

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1 9
3Type overv ew
Nom. flow q
p
[m³/h]
0.6 G¾Bx110 mm G1Bx130 mm (G1Bx190 mm)
1.5 G¾Bx110 mm G¾Bx165 mm G1Bx130 mm G1Bx190 mm (G1Bx110 mm) (G1Bx165 mm) (DN20x190 mm)
2.5 G1Bx190 mm DN20x190 mm (G1Bx130 mm)
3.5 G5/4Bx260 mm DN25x260 mm
6 G5/4Bx260 mm DN25x260 mm (G1½Bx260 mm)
10 G2Bx300 mm DN40x300 mm (DN40x250 mm)
15 DN50x270 mm (DN50x250 mm)
25 DN65x300 mm
40 DN80x300 mm (DN80x350 mm)
60 DN100x360 mm (DN100x400 mm)
100 DN100x360 mm DN125x350 mm
(...) Country specific variants
Installation dimensions
Table 2
Thread ISO 228-1
Flange EN 1 92, PN25

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
1
4Order ng deta ls
Below is a list of type numbers for ULTRAFLOW
®
54.
q
p
q
i
q
s
Length Pulse figure CCC
[m³/h] [m³/h] [m³/h] [mm] [imp/l] (high res.)
65-5- CAAA -XXX 0.6 0.006 1.2 G¾B (R½) 16 110 300 416 (484) Brass
65-5- CAAD -XXX 0.6 0.006 1.2 G1B (R¾) 16 130 300 416 (484) Brass
(65-5- CAAF -XXX) 0.6 0.006 1.2 G1B (R¾) 16 190 300 416 (484) Brass
(65-5- CDA1 -XXX) 1.5 0.015 3 G1B (R¾) 16 110 100 419 (407) Brass
65-5- CDAA -XXX 1.5 0.015 3 G¾B (R½) 16 110 100 419 (407) Brass
65-5- CDAC -XXX 1.5 0.015 3 G¾B (R½) 16 165 100 419 (407) Brass
65-5- CDAD -XXX 1.5 0.015 3 G1B (R¾) 16 130 100 419 (407) Brass
(65-5- CDAE -XXX) 1.5 0.015 3 G1B (R¾) 16 165 100 419 (407) Brass
65-5- CDAF -XXX 1.5 0.015 3 G1B (R¾) 16 190 100 419 (407) Brass
(65-5- CDCA -XXX) 1.5 0.015 3 DN20 25 190 100 419 (407) Stainless steel
(65-5- CEAD -XXX) 2.5 0.025 5 G1B (R¾) 16 130 60 498 (-) Brass
65-5- CEAF -XXX 2.5 0.025 5 G1B (R¾) 16 190 60 498 (-) Brass
65-5- CECA -XXX 2.5 0.025 5 DN20 25 190 60 498 (-) Stainless steel
65-5- CGAG -XXX 3.5 0.035 7 G5/4B (R1) 16 260 50 451 (436) Brass
65-5- CGCB -XXX 3.5 0.035 7 DN25 25 260 50 451 (436) Stainless steel
65-5- CHAG -XXX 6 0.06 12 G5/4B (R1) 16 260 25 437 (438) Brass
(65-5- CHAH -XXX) 6 0.06 12 G1½B (R5/4) 16 260 25 437 (438) Brass
65-5- CHCB -XXX 6 0.06 12 DN25 25 260 25 437 (438) Stainless steel
65-5- CJAJ -XXX 10 0.1 20 G2B (R1½) 16 300 15 478 (483) Brass
(65-5- CJB2 -XXX) 10 0.1 20 DN40 16 250 15 478 (483) Red brass
65-5- CJCD -XXX 10 0.1 20 DN40 25 300 15 478 (483) Stainless steel
(65-5- CKC4 -XXX) 15 0.15 30 DN50 25 250 10 420 (485) Stainless steel
65-5- CKCE -XXX 15 0.15 30 DN50 25 270 10 420 (485) Stainless steel
65-5- CLCG -XXX 25 0.25 50 DN65 25 300 6 479 (-) Stainless steel
65-5- CMCH -XXX 40 0.4 80 DN80 25 300 5 458 (486) Stainless steel
(65-5- CMCJ -XXX) 40 0.4 80 DN80 25 350 5 458 (486) Stainless steel
65-5- FACL -XXX 60 0,6 120 DN100 25 360 2,5 470 (487) Stainless steel
(65-5- FAD5 -XXX) 60 0.6 120 DN100 16 400 2.5 470 (487) Stainless steel
65-5- FBCL -XXX 100 1 200 DN100 25 360 1.5 480 (488) Stainless steel
65-5-
FBCM
-XXX
100
1
200
DN125
25
350
1.5
480 (488)
Stainless steel
3)
XXX - code for final assembly, approvals etc. - determined by Kamstrup. A few variants may not be available in national approvals.
(…) Country specific variants
Type number
3)
Connection
PN
Material
Table 3

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1 11
4.1 Accessor es
S ze
N pple
Un on
Type no.
(2 pcs.)
DN15
R½
G¾
-
6561-323
DN2
R¾
G1
-
6561-324
DN25
R1
G5/4
6561-325
-
DN32
R5/4
G1½
6561-314
-
DN4
R1½
G2
6561-315
-
Glands
Table 4. Glands including gaskets (PN16).
S ze (un on)
Type no.
S ze
Type no.
G¾
221 - 61
DN2
221 -147
G1
221 - 62
DN25
221 -133
G5/4
221 - 63
DN4
221 -132
G1½
221 - 64
DN5
221 - 99
G2
221 - 65
DN65
221 -141
DN8
221 -14
DN1
115 -142
DN125
115 -153
Gaskets for glands Gaskets for
flange meters PN25
Table 5. Gaskets.
4.2 Pulse Transm tter
Type No. 66-99-6 3. The Pulse Transmitter is available with built-in supply for ULTRAFLOW
®
. The options are
battery, 24 VAC or 23 VAC supply. Please specify when placing the order.
Note: Flow-info not possible.
4.3 Pulse D v der
Type No. 66-99-6 7. The Pulse Divider is available with built-in supply for ULTRAFLOW
®
. The options are battery,
24 VAC or 23 VAC supply. Please specify when placing the order.
Note: Flow-info not possible.
The pulse division for Pulse Divider must also be specified when placing the order, see Table 6, Table 7 and Table
8 for possible pulse divisions.
q
p
Meter factor Meter factor D v der Meter factor D v der Meter factor D v der Meter factor D v der
[m³/h]
[Pulses/l]
[l/Pulse]
[l/Pulse]
[l/Pulse]
[l/Pulse]
.6
3
1
3
2.5
75
1.5
1
1
1
2.5
25
1
1
2.5
6
1
6
2.5
15
1
6
3.5
5
2.5
125
1
5
25
125
6
25
1
25
25
625
1
15
1
15
25
375
15
1
1
1
25
25
1
1
25
25
25
6
1
6
25
15
1
6
25
15
4
5
25
125
1
5
25
125
6
2.5
1
25
25
625
1
1.5
1
15
25
375
ULTRAFLOW
®
Pulse D v der, pulselength 100 ms
Table 6. Pulse division (pulse duration 1 ms).

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
12
q
p
Meter factor Meter factor D v der Meter factor D v der
[m³/h]
[Pulses/l]
[l/Pulse]
[l/Pulse]
.6
3
1
3
1
3
1.5
1
1
1
1
1
2.5
6
1
6
1
6
3.5
5
1
5
1
5
6
25
1
25
1
25
1
15
1
15
1
15
15
1
1
1
1
1
25
6
1
6
1
6
4
5
1
5
1
5
6
2.5
1
25
1
25
1
1.5
1
15
1
15
ULTRAFLOW
®
Pulse D v der, pulselength 20 ms Pulse D v der, pulselength 50 ms
Table 7. Pulse division ( ulse duration 20 ms and 50 ms).
q
p
Meter factor Meter factor D v der Meter factor D v der
[m³/h]
[Pulses/l]
[l/Pulse]
[l/Pulse]
.6
3
1
3
2.5
75
1.5
1
1
1
2.5
25
2.5
6
1
6
2.5
15
3.5
5
1
5
2.5
125
6
25
1
25
25
625
1
15
1
15
25
375
15
1
1
1
25
25
25
6
1
6
25
15
4
5
1
5
25
125
6
2.5
1
25
25
625
1
1.5
1
15
25
375
11EVL (pulselength 50 ms) 11EVL (pulselength 100 ms)
ULTRAFLOW
®
Pulse Divider & Pulse Divider &
Table 8. Table on the use together with Kamstru EVL.

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1 13
5D mens oned sketches
All measurements are in mm, unless otherwise stated.
ULTRAFLOW
®
54, G¾B and G1B
Figure 1
Thread ISO 228-1
Threads L M H2 A B1 B2 H1
Approx.
we ght
[
[[
[kg]
]]
]
G¾B 11 L/2 89 1 .5 58 35 55 .8
G1B 11 L/2 89 1 .5 58 35 55 .9
G1B
(q
p
.6;1.5) 13 L/2 89 2 .5 58 35 55 1.1
G1B
(q
p
2.5) 13 L/2 89 2 .5 58 35 55 .9
G¾B 165 L/2 89 2 .5 58 35 55 1.2
G1B 165 L/2 89 2 .5 58 35 55 1.2
G1B
(q
p
.6;1.5) 19 L/2 89 2 .5 58 35 55 1.5
G1B
(q
p
2.5) 19 L/2 89 2 .5 58 36 55 1.3
Table 9

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
14
ULTRAFLOW
®
54, G5/4B, G1½B and G2B
Figure 2
Thread ISO 228-1
Threads L M H2 A B1 B2 H1 D
Approx.
we ght
[
[[
[kg]
]]
]
G5/4B 26 L/2 89 17 58 22 55 ø43 2.3
G1½B 26 L/2 89 3 58 37 55 ø61 4.5
G2B 3 L/2 89 21 65 31 55 ø61 4.5
Table 10

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1 15
ULTRAFLOW
®
54, DN2 to DN5
Figure 3
Flange EN 1 92, PN25
Nom. Bolts Approx.
we ght
d ameter L M H2 B1 D H k Number Threads d
2
[
[[
[kg]
]]
]
DN2 19 L/2 89 58 1 5 95 75 4 M12 14 2.9
DN25 26 L/2 89 58 115 1 6 85 4 M12 14 5.
DN4 25 L/2 89 <D/2 15 136 11 4 M16 18 7.9
DN4 3 L/2 89 <D/2 15 136 11 4 M16 18 8.3
DN5 25 155 89 <D/2 165 145 125 4 M16 18 9.8
DN5 27 155 89 <D/2 165 145 125 4 M16 18 1 .1
Table 11

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
16
ULTRAFLOW
®
54, DN65 to DN125
Figure 4
Flange EN 1 92, PN25
Nom.
D ameter
Bolts Approx.
we ght
L M H2 B1 D H k Number Threads d
2
[
[[
[kg]
]]
]
DN65 3 17 89 <H/2 185 168 145 8 M16 18 13.2
DN8 3 17 89 <H/2 2 184 16 8 M16 18 16.8
DN8 35 17 89 <H/2 2 184 16 8 M16 18 18.6
DN1 36 21 89 <H/2 235 22 19 8 M2 22 21.7
DN1 4 21 89 <H/2 22 21 18 8 M16 18 22.8
DN125 35 212 89 <H/2 27 26 22 8 M24 28 28.2
Table 12

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1 17
6Pressure loss
The pressure loss in a flow sensor is stated as the max. pressure loss at q
p
. According to EN 1434 the max.
pressure loss must not exceed .25 bar, unless the energy meter includes a flow controller or functions as
pressure reducing equipment.
The pressure loss in a sensor increases with the square of the flow and can be stated as:
pkvQ ∆×=
where:
Q =volume flow rate [m³/h]
kv=volume flow rate at 1 bar pressure loss
∆p=pressure loss [bar]
q
p
Nom. diameter [email protected] bar
[m³/h] [mm] [m³/h]
A 0.6 & 1.5 DN15 & DN20 3.2 1.6
B 2.5 & 3.5 & 6 DN20, DN25 & DN32 13.4 6.7
C 10 & 15 DN40 & DN50 40 20
D 25 DN65 102 51
E 40 DN80 179 90
F 60 & 100 DN100 373 187
G
100
DN125
316
158
Graph kv
Table 13. Pressure loss table.
Diagram 1. Pressure loss chart.
0,01
0,1
1
0,1 1 10 100 1000
∆
∆ ∆
∆p [bar]
Flow [m³/h]
∆
∆∆
∆p ULTRAFLOW
®
54
A B C D E FG

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
18
7Installat on
Prior to installation of the flow sensor, the system should be flushed and protection plugs/plastic diaphragms
removed from the flow sensor.
Correct position of the flow sensor (flow or return) appears from the front label of MULTICAL
®
. The flow direction is
indicated by an arrow on the side of the flow sensor.
Glands and gaskets are mounted as shown in the drawings overleaf.
Pressure stage of ULTRAFLOW
®
54: PN16/PN25, see marking. Flow sensor marking does not cover included
accessories.
Temperature of medium, ULTRAFLOW
®
54: 15…13 °C/15…9 °C, see marking.
Mechanical environment: M1 (fixed installation with minimum vibration).
Electromagnetic environment: E1 and E2 (housing/light industry). The meter’s control cables must be drawn at
min. 25 cm distance from other installations.
Climatic environment: Installation must take place in environments with non-condensing humidity as well as in
closed locations (indoors).
The ambient temperature must be within 5…55°C.
Maintenance and repair: The flow sensor is verified separately and can, therefore, be separated from the
calculator. Battery for replacement: Kamstrup type 66- -2 -1 . Other repairs require subsequent reverification
in an accredited laboratory.
ULTRAFLOW
®
can only be connected direct to Kamstrup’s calculators on terminals 11-9-1 , as shown in aragra h
7.6. Connection to other types of calculators requires the use of a Pulse Transmitter.
Note: Please make sure that “pulse/litres” is identical on flow meter and calculator
At medium temperatures above 9 °C use of flange meters is recommended. Additionally, MULTICAL
®
calculator or
Pulse Transmitter should be wall-mounted.
In order to prevent cavitation the back pressure at ULTRAFLOW
®
must be min. 1.5 bar at q
p
and min. 2.5 bar at q
s
.
This applies to temperatures up to approx. 8 °C.
ULTRAFLOW
®
must not be exposed to pressure lower than the ambient pressure (vacuum).
When the installation has been completed, water flow can be turned on. The valve on the inlet side must be
opened first.

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1 19
7.1 Installat on angle for ULTRAFLOW
®
54
Figure 5
ULTRAFLOW
®
54 may be installed horizontally,
vertically, or at an angle.
Important!
For ULTRAFLOW
®
54 the electronics/plastic
case must be placed on the side (when
installed horizontally).
ULTRAFLOW
®
54 may be turned up to ±45° in
relation to the pipe axis.

TECHNICAL DESCRIPTION ULTRAFLOW
®
54
5512-385 GB/ 5.2 12/Rev. G1
2
7.2 Stra ght nlet
ULTRAFLOW
®
54 requires neither straight inlet nor straight outlet to meet the Measuring Instruments Directive
(MID) 2 4/22/ EC, OIML R75:2 2 and EN 1434:2 7. A straight inlet section will only be necessary in case of
heavy flow disturbances before the meter. We recommend following the guidelines of CEN CR 13582.
Optimal position can be obtained if you take the below-mentioned installation methods into consideration:
Figure 6
For general information concerning installation see CEN report DS/CEN/CR 13582, Heat meter Installation.
Instructions in selection, installation and use of heat meters.
7.3 Operat ng pressure
In order to prevent cavitation the back pressure at ULTRAFLOW
®
must be min. 1.5 bar at q
p
and min. 2.5 bar at q
s
.
This applies to temperatures up to approx. 8 °C. ULTRAFLOW
®
must not be exposed to pressure lower than the
ambient pressure (vacuum). For further information on operating pressure, see aragra h 8.7 Guidelines for
dimensioning ULTRAFLOW
®
A Recommended position of flow meter
B Recommended position of flow meter
C Unacceptable position due to risk of air
build-up
D Acceptable in closed systems.
Unacceptable position in open systems
due to risk of air build-up.
E A flow meter ought not to be placed
immediately after a valve, except from
closing valves (ball check valve type),
which must be completely open when not
used for closing
F Never place a flow meter on the inlet side
of a pump
G A flow meter ought not to be placed after a
double bend, in two levels
