K&M Burkhard Reuter RLA4G User manual

Specifications
and Operator Manual of antenna
RLA4G
Version: 1.3
Created: 20.06.2020
Konstruktion & Musterbau Burkhard Reuter Ziegelstraße 54 06862 Dessau-Roßlau

Specifications
Single loop dimensions: About 500 mm x 500 mm
Amplifier dimensions (W x H x D): 140 mm x 60 mm x 120 mm (without connectors)
Frequency range: 50 kHz … 30 MHz
Average noise level (without loops): <= -145 dBm/Hz (at 10 MHz)
IP3: >= +32 dBm (2x -6 dBm measuring tone at 10 MHz)
IP2: >= +80 dBm (10.0 MHz + 10.2 MHz -6 dBm measuring tone, 0.2
MHz measured difference tone)
Maximum output voltage: >= 1 Veff, 1 dB compression
Supply via RF cable: +6.0 V … +13.8 V, maximum +14.4 V!
Power supply: max. 100 mA
RF output: TNC 50 ohm
Weight: <= 1.5 kg
Environmental conditions: -20 ... +40 °C ambient temperature, <=100 % rel. humidity
IP65 (with connected loops and connection cable)
Compliance: CE according to DIN EN 55013, EN 55020, EN 60065
RoHS / WEEE Directive, ear-Reg. 27676700
All specifications are subject to design changes!
EDITION DATE NAME K & M Burkhard Reuter Page 2of 7
1.3 03/08/20 B. Reuter RLA4G

Safety precautions
Please always keep the following safety precautions in mind!
Never connect the device to any other voltage than indicated in the specifications. Under no
circumstances should the the device come into contact with the mains voltage of 230 V ~!
It is essential to observe the lightning protection regulations for the outdoor operation of
electrotechnical systems! The antenna must be properly equipped with lightning protection when
installed outside a protected area (e.g. house). The RF cable must be equipped with overvoltage
protection. In case of lightning hazard, immediately take the antenna out of operation and
disconnect it safely from other devices (remove RF connection)!
Observe the permitted temperature range for starting up the device! Do not switch the device on or
off again if this range is exceeded or fallen below!
When disassembled, always provide a safe placement on a flat, straight and solid base of
sufficient carrying capacity! The antenna is intended for outdoor installation on firmly anchored
components (mast, beams, roof, wall, ...). Observe the permissible wind load! Always transport the
device either in solid cardboard or wooden boxes (e.g. the delivery packaging), or transport it by
firmly gripping the amplifier housing! The device may cause injury in the event of a fall due to its
own weight!
Never expose the device to mechanical stress due to impact, pressure, vibration or shock which
exceed a normal level. Never carry or attach the device to the antenna elements.
Never open housings and never move screw connections on housings, unless expressly
requested in the operator manual. This can lead to damage to seals or components connected to
the screw connections.
If you notice any damage to the device, immediately take it out of operation (remove power
supply)! If necessary, send it to the supplier for repairs.
Would you like to dispose the device due to damage or no more usability, send it back to the
supplier or return it to your local waste collection center. Never dispose of the appliance
elsewhere, such as household waste. It pollutes our environment!
The nameplate of the RLA4G is located inside the amplifier housing. It is visible after removing the
base plate.
EDITION DATE NAME K & M Burkhard Reuter Page 3of 7
1.3 03/08/20 B. Reuter RLA4G

Operator Manual

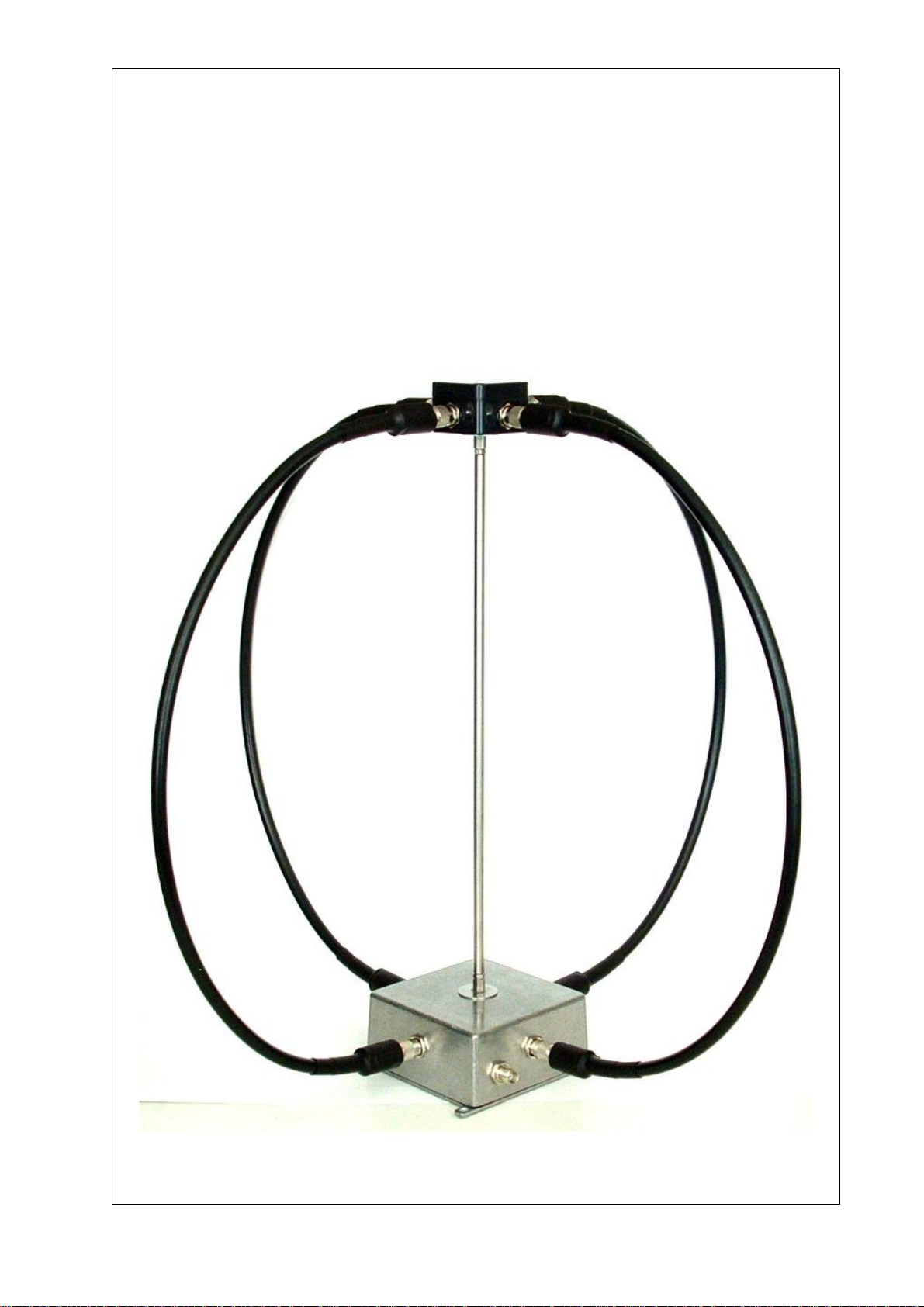

The RLA4G is a cross loop receiving antenna for fixed outdoor installation. It operates broadband as a
non-tuned active antenna with an integrated amplifier. The power is supplied via the RF cable. The two
loops consist of coaxial cables for symmetrical feed of two differential current amplifiers with a low-
impedance input. The utilization of the latest components in the two amplifier branches guarantees very
low intrinsic noise values and high intermodulation resistance. The two reception loops are arranged at an
angle of 90° to one another. By adjusting the amplifiers, an electronic rotation of the receiving direction is
possible. The outer jacket of the antenna elements is grounded on the amplifier housing and shields the
actual loops (inner conductor) against interference radiation.
The amplifier is installed in a sealed aluminum housing. The RF currents of the antenna elements are lead
waterproof into the housing via RP-TNC coaxial connectors. The RF derivation to the RX takes place via a
sealed TNC housing bushing. The bottom of the housing has tabs with holes for screwing the antenna
onto flat construction elements (beams, straight roof surface, mast head with flat sheet metal or similar).
In addition to the RF connections of the amplifier, the antenna elements are also attached to a connection
housing (common ground point, RF voltage and current zero point). It is connected to the amplifier housing
via a mounting rod. This means that all metal parts are at the same low-impedance potential and can be
grounded via the amplifier housing (lightning protection).
If lightning protection is not necessary (observe the relevant regulations!), grounding is not necessary to
operate the antenna. The connection to the receiver via the antenna cable is sufficient. However,
grounding can be useful to suppress interference. On the other hand, it can also cause faults if the
grounding point is chosen unfavorably (e.g. equipotential junction of the power supply, which often leads to
high interference currents).
So-called ground loops can occur if the antenna is (supposed to be) grounded (multiple, spatially spaced
ground connections, e.g. lightning rods and antenna cables), which can act as a reception loop. In this
case, further measures are necessary, such as choking the antenna cable (e.g. winding it onto a ferrite
toroid) or special grounding of the cable's receiver-end or the receiver. These measures are heavily
dependent on the environment and the additional wiring of your electronics and their necessity /
effectiveness must be determined empirically.
Power supply to the RLA4G is only possible via the RF cable ("remote power supply"). Any remote supply
device that can be switched into the antenna cable and that can supply the required voltages and currents
(see technical data) is suitable for this. The fed voltage’s level can be modulated with a data signal in order
to electronically control the direction of reception (for example using control units RSW2 or RSW3, see
description of these devices).
The RLA4G must be assembled vertically with the connection housing facing up. Slight deviations from the
vertical are permitted. The reception diagram is then eight-shaped in the horizontal (bidirectional with 2
wide reception lobes and two sharp zeros). Without a control unit (remote supply with constant voltage),
the main reception direction is approximately transverse to the direction of the connection socket for the
antenna cable (the zeros are approximately in the axial direction of the socket).
This direction also corresponds to the 0° setting on the control unit. The RLA4G is not suitable for direction
finding. The absolute deviation of the setting compared to the actual reception direction can be several
10°s. The purpose of the electronic rotatability is the orientation towards maximum suppression of
interference signals, as well as the reception of useful signals, which are at the zero position for antennas
with a fixed reception direction without the possibility of rotation.
If the degree display on the control unit should approximately correspond to the actual cardinal direction
(max. reception or zero point), the antenna must be "northed" once during assembly.
EDITION DATE NAME K & M Burkhard Reuter Page 4of 7
1.3 03/08/20 B. Reuter RLA4G

Assembly of the antenna RLA4G
The RLA4G is supplied with disassembled antenna elements.
Component set for an antenna RLA4G
The component set consists of the following parts:
•4 pieces of antenna elements (each half of a loop), coaxial cable LMR-400 with TNC connectors
of reversed polarity (RP-TNC).
•Node (connection) housing made of plastic with 4 RP-TNC sockets.
•Amplifier housing made of bright aluminum with 4 RP-TNC sockets and normal TNC socket for
the antenna cable.
•Connecting rod made of stainless steel, with a screwed-on M5 nut at each end.
All parts are made of weatherproof material (resistant to UV radiation and moisture) and are IP65 dust and
waterproof after proper assembly. The amplifier inside the aluminum housing is designed for a wide
temperature range (no electrolytic capacitors, components with an extended temperature range). All
components, with the exception of the coaxial connector for connecting the TNC socket for the antenna
cable, are arranged in an SMD version on a circuit board and sealed with synthetic resin.
The amplifier housing is bare metal in order to achieve a high reflectivity against solar radiation. This
keeps the amplifier from heating up as much as possible on hot summer days. The housing consists of a
body in which all parts are mounted and a screwed-on base plate with an inserted gasket. There are tabs
on the floor panel for attachment to any support elements (mast heads, beams, roof surfaces, ...).
Fastening must be carried out using suitable countersunk screws (wood, self-tapping or threaded
countersunk screws of 4 mm in diameter).
Caution! When screwing the housing on, no forces may act on the tabs or the base plate (no "warping").
The mounting surface must be absolutely flat and level! If necessary, suitable supplements must be
placed to compensate.
EDITION DATE NAME K & M Burkhard Reuter Page 5of 7
1.3 03/08/20 B. Reuter RLA4G

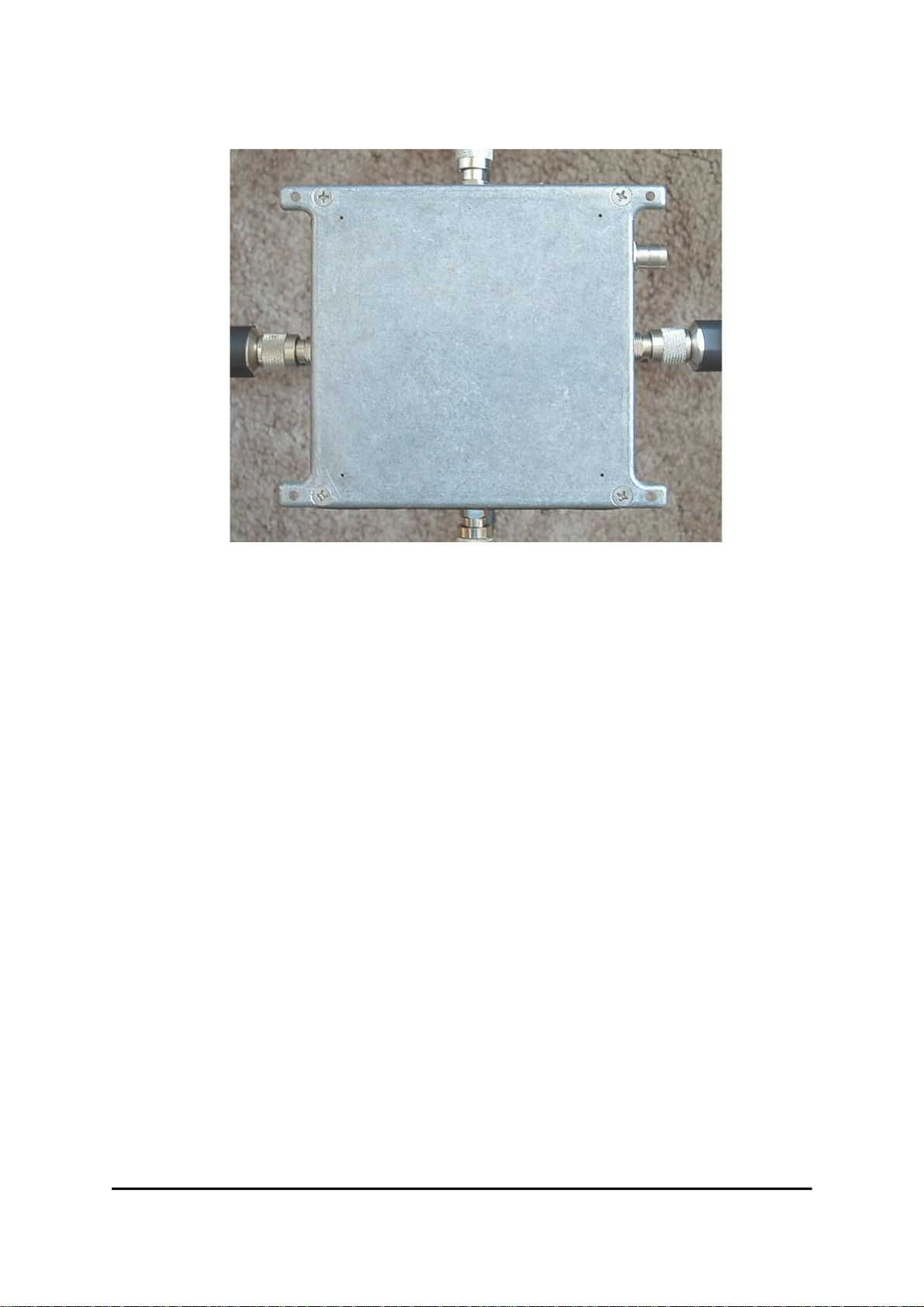

There are 4 small holes in the base plate near the corners. They serve to equalize the pressure in the
housing when there are major changes in temperature, and to drain any condensed water that may have
formed. At least one of the holes must be kept clear when mounting the antenna on a bracket. If the
antenna is not absolutely horizontal, this must be the bottom hole (condensation water collects there).
Drilled holes in the base plate ensure ventilation and drainage
The assembly of the dismantled antenna is quite simple and should be carried out in the following order
(disassembly in reverse):
•Screw the connecting rod into the amplifier housing. There is an M5 spacer bolt on the top of the
housing, into which the threaded pin at the end of the rod fits. An M5 nut should already be
screwed onto the threaded pin, which must be screwed onto the rod as far as it will go (otherwise
screw on the nut so far). Screw the rod into the spacer of the amplifier housing until it stops
against the nut. Caution! Tighten only slightly loosely to a maximum hand-tight and hold it straight,
do not exert any torque or shear force on the spacer bolts!
•Similarly, screw the node housing onto the other end of the rod. Again, pay attention to the
presence and full screwing of the nut and the maximum light tightening.
•Align both housings (turn them against each other) so that they are parallel to each other. The
connectors on each side of both housings must point in the same direction (slight twisting by 1 - 2
degrees does no harm). Caution! The connecting rod must not be screwed firmly into the spacer
bolts on either side! Only turn to the right (clockwise when viewed from above) until the screw
connections are at most hand-tight. Then turn to the left (loose) to align the housings correctly.
•Counter the nuts on the threaded rod against the spacer bolts on both housings. To do this, hold
the spacer bolts with a size 8 open-end wrench and use another wrench to turn the nut firmly
against the bolt. Never grip the housing during assembly! The spacer bolts are sealed on the
housing. If they are turned against the housing, the seal will be destroyed and moisture could
penetrate! Make sure that the housings remain parallel to each other.
•Screw on the antenna elements. The cables are already approximately semicircular, so that they
fit onto the sockets on either side of both housings without tilting. Bend a little if necessary.
Despite their relatively large diameter, the cables are easily bendable.
•Caution! Never bend them sharply, especially not at the connectors! It is best to screw one side
firmly onto a housing and then shape the cable so that the plug on the other side can be screwed
straight and easily onto the socket on the housing.
EDITION DATE NAME K & M Burkhard Reuter Page 6of 7
1.3 03/08/20 B. Reuter RLA4G

•Screw on the antenna cable. The cable to the receiver must have a standard TNC connector (not
reversed as with the antenna elements) at the antenna end. At the other end, a connector
corresponding to the RX input is required (if an RSW control unit is used, a BNC connector).
Important Note: The TNC fittings should be tightened securely to ensure watertightness. Normally,
manual force should be sufficient (always ensure axial alignment / easy screwability without tilting the
connector!). If the force is too low (children, dainty adults, incomplete usability of the hands, ...), pliers can
be carefully used for help. However, excessive force must never be exerted, as this could damage the
seals or even the thread of the connector! Also, the sockets in the housing must not be twisted, otherwise
their seals an inner connections can be destroyed!
Never turn TNC connectors against each other! Only the cap nut may be turned, never the plug
against the socket!
Background: In the plug (the connector on the cable, with RP-TNC this is actually a socket) has spring
elements slotted in the axial direction. When the plug is inserted, these press firmly against the
corresponding contact surface of the socket. If the plug is turned, the sharp-edged slots literally mill off the
contact surface of the socket.
So never e.g. only slightly insert the plug so that the cap nut grips, and then turn the entire cable together
with the connector and nut onto the socket. This is relatively easy because you can use the cable as a
lever. But it damages the spring elements and the socket!
Correct: Press the plug firmly onto the socket (only push axially, i.e. lengthways!) until the threads of the
cap nut and socket are against each other. Now screw on the nut as much as easy possible. Then push
on the plug again, turn the nut a little further and alternately continue until no further sliding / turning of the
nut is possible.
The most sensible approach with the RLA4G is to first slightly screw on the cables to the upper connection
housing and let them hang straight down near the sockets on the amplifier housing. Then plug them in as
described and screw them on completely. Finally tighten the upper connections. In this way, a rotational
movement of the plugs in the sockets can be largely avoided.
After assembly, the shape of the coaxial cable can be straightened out a bit. Usually, the loops
automatically have a slightly "wobbly" shape because the upper housing is smaller than the amplifier
housing. Also, the cables are rarely exactly straight. This can be easily recognized by looking at the
connecting rod and, if necessary, straightening the cable accordingly. However, all these are purely
aesthetic flaws, the function of the antenna is not affected.
With frequent dismantling and assembly, the TNC connectors should only be screwed on so far that there
is stable contact (protection of the threads). The connectors are made of brass, which tends to get
jammed when worn. It is then helpful to use a small amount of acid-free grease (e.g. silicone grease).
If the antenna is likely to never be dismantled again, sealing the connectors by wrapping them with self-
vulcanizing sealing tape is highly recommended. Caution, pay attention to UV-stable material!
EDITION DATE NAME K & M Burkhard Reuter Page 7of 7
1.3 03/08/20 B. Reuter RLA4G
