Kanomax 6332D User manual

1
Operation Manual
AIR FLOW TRANSDUCER
MODEL 6332/6332D
Please read this manual carefully and understand the warnings
described in this manual before operating the product.
Keep this manual handy for ready reference
KANOMAX JAPAN, INC.
0
2
001
0
8
0
9

2
Thank you for purchasing a product of Kanomax, Inc.
Please read this operation manual carefully and operate the
instrument appropriately by following the instructions given in this
manual.

3
Component List
■Standard
Item Model Remarks
Airflow
Transducer
Main Unit (Without Display) 6332 －
Airflow Transducer
Main Unit (With Display) 6332D －
■Probe & Cable (Sold Separately)
Item Model Remarks
Air Velocity Probe
0962-00 Uni-directional
0963-00
0964-01 Omni-directional (Needle)
0964-02
0965-00 Omni-directional (Spherical)
0965-01
0965-03 Mini-temperature-compensation-sensor
integrated type
Omni-directional (Spherical)
0965-04
0965-07 Mini-temperature-compensation-sensor
independent type
Omni-directional (Spherical)
0965-08
Probe Cable
1504-04 Length: 10m
1504-05 Length: 20m
1504-06 Length: 30m
■Optional Accessory
Item Model Remarks
Display Unit 6332-01 －
AC Adapter 6332-02 －

4
Important Safety Information
In this operation manual, warning types and classifications are defined as follows.
[Classifications]
Danger: To Prevent Serious Injury or Death
Warnings in this classification indicate danger that may result in serious
injury or death if not observed.
Caution: To Prevent Damage to the Product
Warnings in this classification indicate risks of damage to the product that
may void the product warranty if not observed.
[Description of Symbols]
This symbol indicates a condition (including danger) that requires caution.
The subject of each caution is illustrated inside the triangle (e.g., high
temperature caution symbol shown on the left).
This symbol indicates prohibition. Do not take a prohibited action shown inside
or near this symbol (e.g., disassembly prohibition symbol shown on the left).
This symbol indicates a mandatory action. A specific action is given near the
symbol.

5
○Never bring the probe close to a flammable gas
atmosphere.
--- The heated sensor may cause fire or explosion.
○Never disassemble, modify or repair the instrument.
--- Failure to observe the above may cause short circuit and
malfunction.
○Use the specified voltage for power supply.
--- Unspecified voltage may cause electrical shock and fire.
○Remove dust and any impurities from the terminal block.
--- The dust/impurities may cause fire.
○Do not use the instrument in a water vapor atmosphere.
--- Failure to observe the above may cause electrical shock,
fire, or damage to the sensor.
○Never touch the sensor.
--- The sensor is heated during operation. Touching the heated sensor may
cause burns, and also may damage the sensor itself.
Particular attention must be paid to spherical type sensors (Model:
0965-00/ 0965-01/ 0965-03/ 0965-04/ 0965-07/ 0965-08) as they are
very sensitive. Please Handle with care.
Water
drops
Warning:
High Temperature /
Injury
Do not use
unspecified voltage
Danger
Do not use near
flammable gas
Do not
modify
/
disassemble
Prohibition
Handle Properly

6
○Do not use or leave the instrument in a high
temperature/humidity environment, or in a dusty
environment. The instrument must also not be left
under direct sunlight for a prolonged period.
--- The instrument may not function properly outside
the specified temperature range of 5 to 40 degrees C.
○Do not wipe the instrument with a volatile solvent.
--- The body may deform or deteriorate. Use soft dry cloth to remove stains.
If stains persist, soak the cloth in a neutral detergent and wipe the instrument
with the soft cloth.
Never use volatile solvents such as thinner and benzine.
○Do not apply strong shock to the instrument
and probe.
--- Applying strong shock may cause damage and
malfunction to the instrument and probe.
Caution
Prohibited
Installation
Prohibition
Prohibition

7
Table of Contents
Names and Dimensions of Components................................................1
System Configuration Example.............................................................5
Connecting the Probe Cable to the Main Unit .......................................6
Connecting the Probe Cable to the Probe ..............................................6
Installing the Data ROM........................................................................7
Switching Output (Setting Current/Voltage and Output Range) ...........8
Connecting Output and Power Supply.................................................10
Measurement Method ..........................................................................11
Optional Accessory..............................................................................12
Display Unit .......................................................................................................12
AC Adapter ......................................................................................................13
Cleaning the Probe...............................................................................14
Specification of Main Unit...................................................................15
Specification of Probes (Sold Separately)............................................16
Troubleshooting ...................................................................................18
Product Warranty and After Service....................................................19
Contact Information.............................................................................20

1
Names and Dimensions of Components
Names and Dimensions of ComponentsNames and Dimensions of Components
Names and Dimensions of Components
(1) Model 6332 View inside the Case
Probe Cable Connector
Output
Changeover
Range Changeover
Switch
ROM Socket
Output and Power Terminal
Blocks

2
(2) Model 6332D View inside the Case
Probe Cable Connector
Output
Changeover
Range Changeover
Switch
ROM Socket
Output and Power Terminal
Blocks
Display Substrate

3

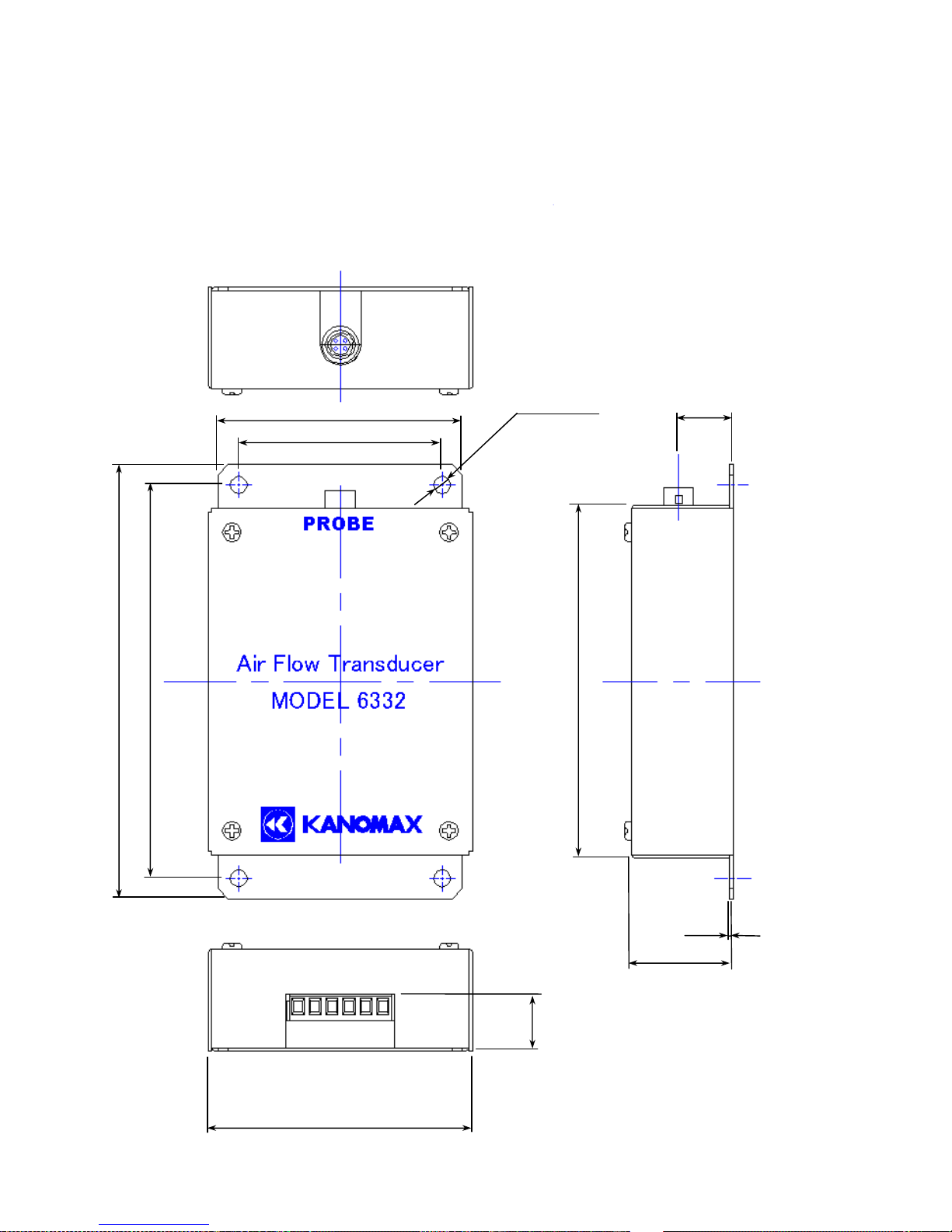

(3) Model 6332 View with the Case
72
60
128 116
78
17
103
16
1
30
4-φ4.5 Hole

4

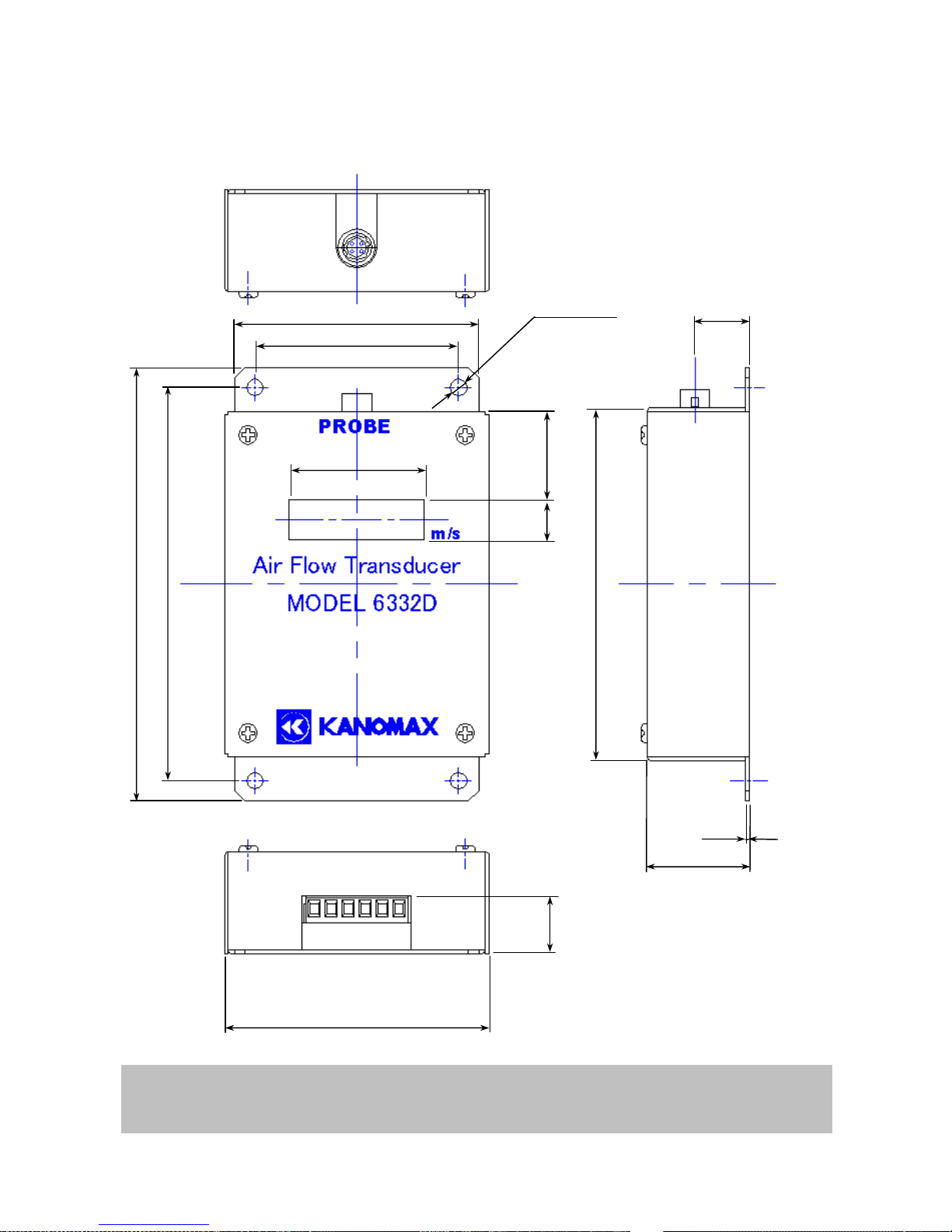

(4) Model 6332D View with the Case
72
60
128 116
78
17
103
16
1
30
4-φ4.5 Hole
12 26
40

5

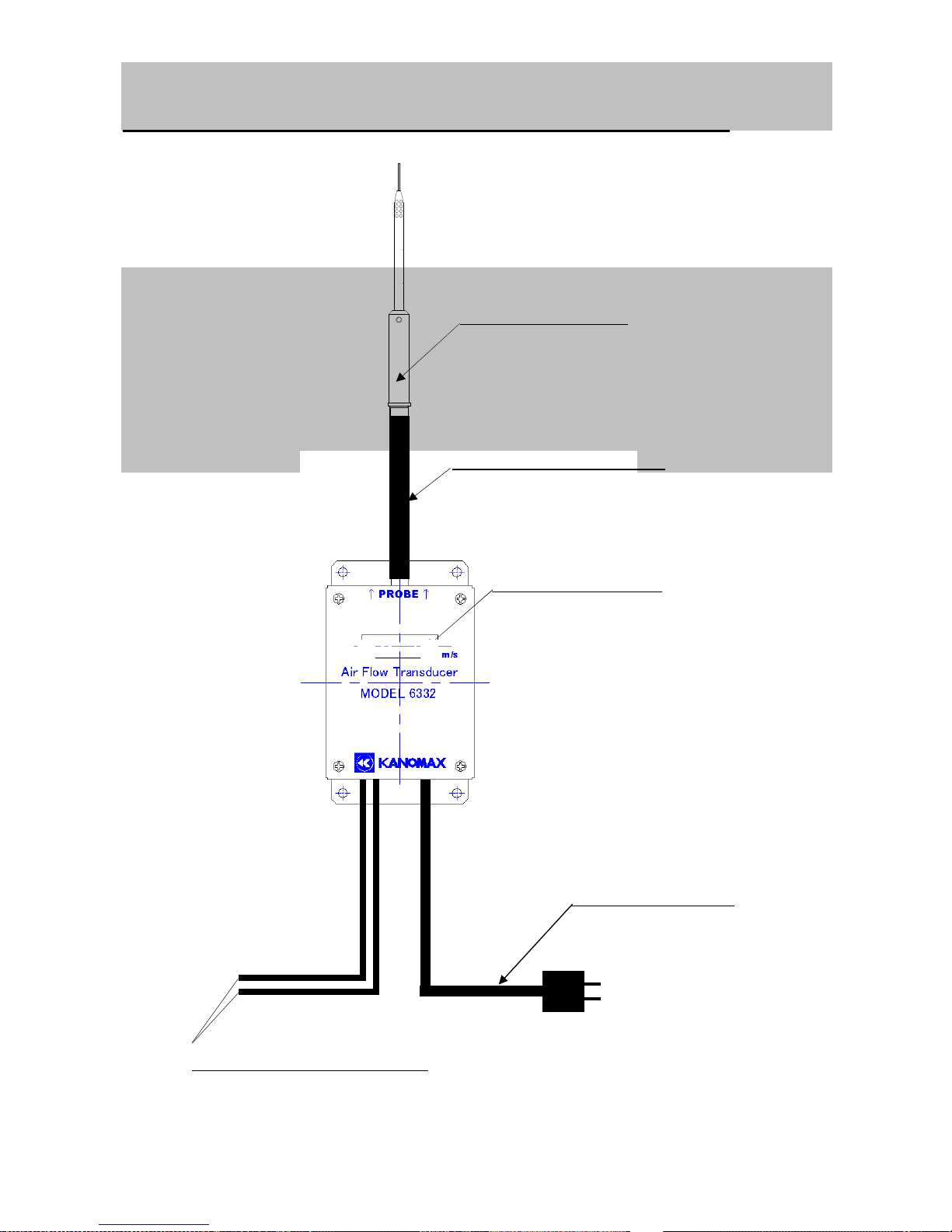

System Configuration Example
System Configuration Example System Configuration Example
System Configuration Example
Probe (Sold Separately)
Probe Cable (Sold Separately)
Display (Only for
6332D)
AC Adapter (Optional)
Output Cable (Not Provided)

6

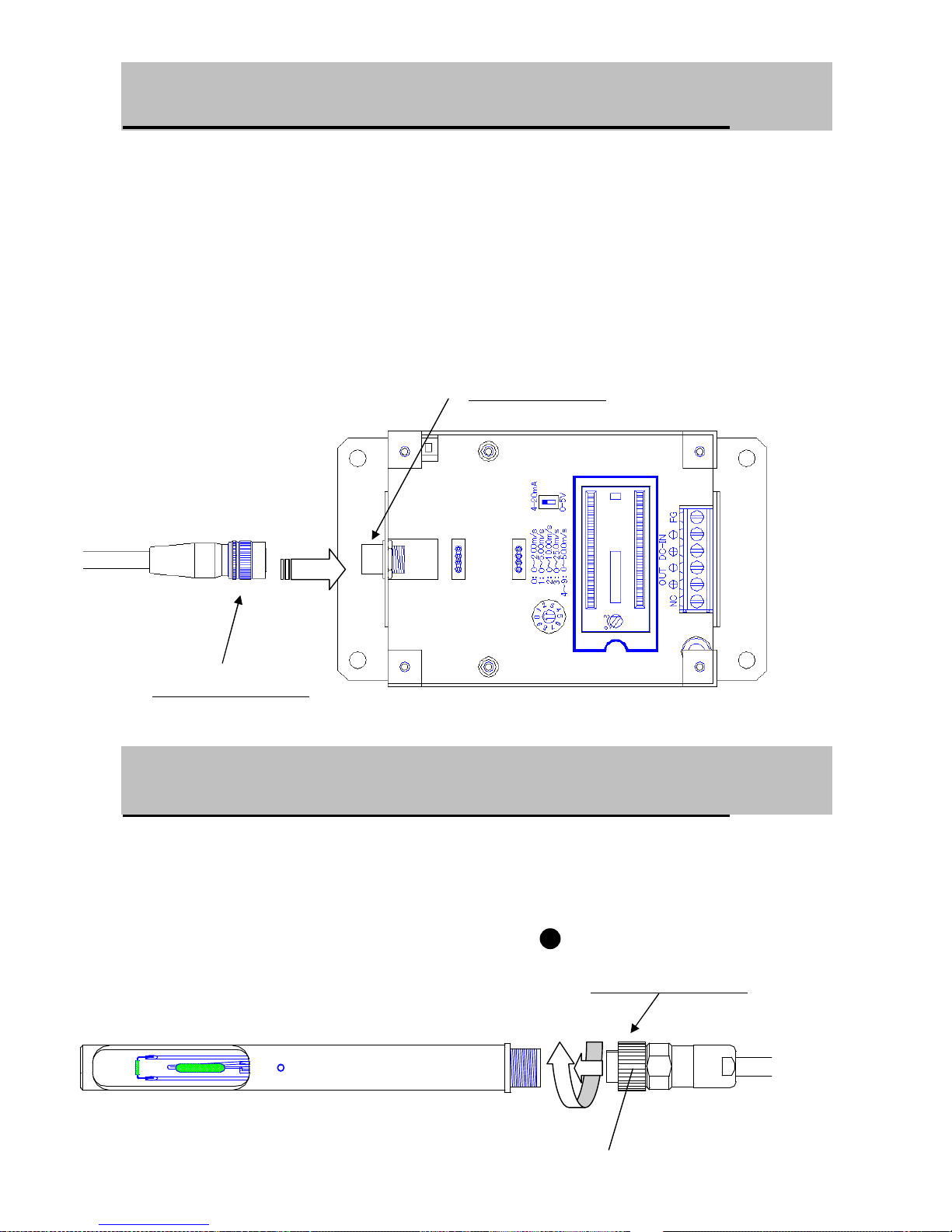

Connecting the Probe Cable to the Main Unit
Connecting the Probe Cable to the Main UnitConnecting the Probe Cable to the Main Unit
Connecting the Probe Cable to the Main Unit
<Caution>
-Make sure to cut the power supply to the main unit before connecting the probe cable (sold
separately).
-The probe cable must be wired separately from the power line.
Match the concave part of the main unit connector with the convex part of the cable connector (4-pin), and
click them in (not a screw type).
Main Unit Connector
Cable Connector (4-pin)
Connecting the Probe Cable to the Probe
Connecting the Probe Cable to the ProbeConnecting the Probe Cable to the Probe
Connecting the Probe Cable to the Probe
<Caution>
-Make sure to cut the power supply to the main unit before connecting the probe and the probe cable
(do not supply power until both are connected).
-Match the concave part of the cable connector (5-pin) with the convex part of the probe connector.
Connect the probe and probe cable by rotating the screw portion of the cable connector.
Cable Connector (5-pin)
Ａ

7
(Probe: Model 0963-00 shown for reference）

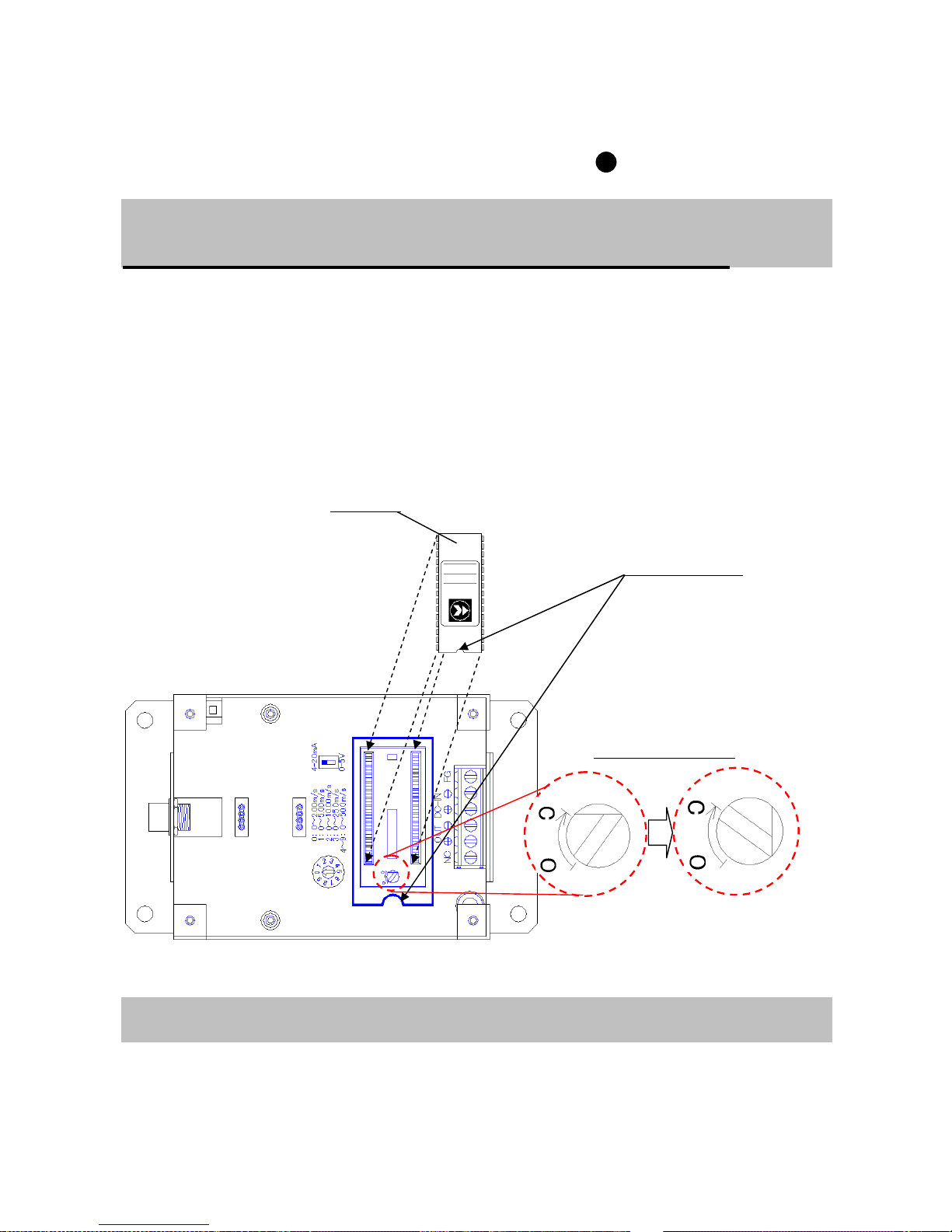

Installing the Data ROM
Installing the Data ROMInstalling the Data ROM
Installing the Data ROM
<Caution>
-Make sure to cut the power supply to the main unit before installing the Data ROM.
-Install the correct Data ROM that corresponds to the probe number.
-Position the Data ROM in the correct orientation.
-After confirming that the Data ROM is properly set, use the flat-blade screwdriver to rotate the cam
90 degrees clockwise to lock it in.
Ａ
Match the notches
Data ROM
Enlarged view of cam

8
Switch
SwitchSwitch
Switching Out
ing Outing Out
ing Output
putput
put (
((
(Setting
Setting Setting
Setting Current/Voltage and Output
Current/Voltage and Output Current/Voltage and Output
Current/Voltage and Output
Range)
Range)Range)
Range)
<Caution>
-Make sure to cut the power supply to the main unit before switching the current/voltage output.
-Output can be set by either voltage output (0 to 5V) or current output (4 to 20mA).
(The factory default setting is provided with current output.)
1. Current / Voltage output can be switched by the DIP switch.
2. Setting of the output range can be made by the rotary switch (setting can be changed also while the
power is supplied to the main unit).
3. Output range can be selected from the following five (5) air velocity ranges. Select the optimum
range according to the air velocity range to be measured.
No. Output Range (m/s)
Example of Output when 2m/s
Current Output (mA) Voltage Output (V)
0 0 ~ 2.00 20 5
1 0 ~ 5.00 10.4 2
2 0 ~ 10.00 7.2 1
3 0 ~ 25.0 5.28 0.4
4 ~ 9 0 ~ 50.0 4.64 0.2
4
20
0
10.0
2.0
7.2
Current
Output (mA)
1
5
0
10.0
2.0
Air Velocity
(m/s)
< Relation between Air Velocity and Current/Voltage Output (for Setting No.2) >
Voltage
Output (Ｖ
ＶＶ
Ｖ)
Air Velocity
(m/s)

9
Output
Changeover DIP
Range Changeover
Rotary Switch

10
Connecting Output and Power Supply
Connecting Output and Power Supply Connecting Output and Power Supply
Connecting Output and Power Supply
<Caution>
-Pay attention to the polarity of power supply when connecting.
-Power supply voltage must be DC 12 to 24V.
(*1) FG: Frame Ground -------- Connect to ground (earthing).
(*2) NC: No Connection ------- Connection is not required.
FG Terminal
DC-IN Term.
DC-IN Term.
OUT Term
.
FG (*1)
Power Supply Input
(
-
)
Signal Output (-)
Signal Output (+)
<NC> (*2)
OUT Term.

11
Measurement Method
Measurement MethodMeasurement Method
Measurement Method
1. Using the Uni-directional Probe (Model 0962-00, 0963-00)
These probes have directivity characteristics which require the direction mark to be faced against the airflow
for measurement. When you are not sure of the airflow direction, slowly rotate the probe in the horizontal
direction, and select the point where the air velocity reading is maximum.
2. Using the Omni-directional Probe (Model 0964-01/02, 0965-00, 0965-01/03/04/07/08)
These probes have uniform sensitivity 360 degrees horizontally. They only need to be set vertical to the
airflow direction for measurement, regardless of the orientation in the horizontal direction.
<Caution>
The probe employs a set of air velocity sensor and temperature compensation sensor to compensate the air
velocity change corresponding to the air temperature change.
In order to obtain this compensation effect, it is required that both the air velocity sensor and the temperature
compensation sensor are exposed to the airflow to be measured under the same temperature condition. (Refer
to the dimensional drawings of probes shown on page 16, 17 to locate the air velocity sensor and the
temperature compensation sensor on each probe.)
Airflow
Direction Mark
Airflow
1. Uni-directional Probe 2.
Omni-directional Probe
Probe Direction

12
Option
OptionOption
Optional Accessory
al Accessoryal Accessory
al Accessory
1. Display Unit (Model 6332-01)
Number of digits and range of air velocity value to be shown on the display corresponds to the setting of the
air velocity output range as shown below.
No. Output Range [m/s] Display Range [m/s]
0 0 ~ 2.00 0.00 ~ 2.00
1 0 ~ 5.00 0.00 ~ 5.00
2 0 ~ 10.00 0.00 ~ 10.00
3 0 ~ 25.0 0.0 ~ 25.0
4 ~ 9 0 ~ 50.0 0.0 ~ 50.0
To add the display substrate to a unit without a display (Model 6332):
-Position the substrate in the correct orientation, and fix the substrate with the supplied two screws
carefully not to bend the connection pins.
-Replace the case without the display window with the case equipped with the display window
(supplied with the display unit).
Supplied Screws
Display Substrate
* The side with the
number must come to
the right.
* Pay close attention not to
bend the pins when
inserting.

13
2. AC Adapter (Model 6332-02)
<Caution>
Do not connect the AC plug to the power receptacle before connecting the DC plug to the main unit. Failure
to observe the above may cause short circuit and damage to the AC adapter.
Observe the polarity and firmly insert the DC plug into the main unit as shown below. Then connect the AC
plug to the power receptacle.
* The one which is
marked is minus.
DC Plug
DC-
IN Term.
DC-IN Term.
1
2
To AC
Receptacle
