karmek one ALICE CANALIZZATA Manual

CHANNELED PELLET STOVE
ALICE CANALIZZATA
OPERATING AND MAINTENANCE HANDBOOK

2
Dear Customer,
We want to thank You for choosing one of our production stoves for your purchase. We are
confident that we supplied You with a technologically valid product.
In the following pages, we provide You with some instructions, so that You may know and use
the product at its best, as well as ordinarily upkeep it.
Our authorized technical service remains at Your complete disposal for any necessity.
Best regards,
Karmek One S.R.L.
PLEASE NOTE:
Karmek One reserves itself to carry out unsubstantial changes to the stove’s components,
which may not be reported in the present handbook, those being of small entity. Occasional
appearance changes from the flyers are due to ordinary seasonal updates.

3
A. GENERAL INFORMATION
a.1General safety rules
a.2Technical features
a.3Accessory equipment
a.4Identity plate
a.5Guarantee
a.6Suitable fuel
a.7Ordering spares
B. INSTALLATION INSTRUCTIONS
b.1Initial warnings
b.2Moving and transporting
b.3Positioning
b.4 Channeling
b.5Installing the flue gas outlet
b.6Installing the combustion air inlet pipe
b.7Connecting to the power supply
C. OPERATING INSTRUCTIONS
c.1 Initial warnings
c.2 Introduction
c.3 User menu
c.4 Adjust blowers
c.5 Set clock
c.6 Set chrono
c.7 Select language
c.8 Mode stand by
c.9 Mode buzzer
c.10 Load initial
c.11 State stove
c.12 Failed lighting
c.13 Working phase
c.14 Room temperature adjustment

4
D. FUNCTIONS OF THE MECHANICAL AND ELECTRIC
COMPONENTS
d.1Screw motor
d.2 Smoke intake motor
d.3Tangential fan
d.4 Centrifugal fan
d.5 Electronic card
d.6General switch
d.7Fumes probe
d.8Room probe
d.9Sparking plug
d.10 Thermocouple
E. ORDINARY CLEANING AND MAINTENANCE
e.1Cleaning and maintenance by the customer
e.2Periodic maintenance by the Assistance Center
F. ALARMS DISPLAYING
f.1 Fumes probe alarm
f.2 Fumes temperature alarm
f.3 Failed lighting
f.4 Alarm for absence of fire while working
f.5 Alarm caused by failure of the fumes motor
G. WASTE MATERIAL
H. SOLUTIONS TO POSSIBLE PROBLEMS

5
A. GENERAL INFORMATION
a.1 General safety rules
ATTENTION PLEASE!!! You can never be too cautious: before the installation read and
comply with these fundamental Rules:
● All local regulations, including those referring to national and European laws, must be
respected while installing the stove.
● Verify if the electrical system and the mains outlets are able to bear the maximum
absorption of the stove, which is reported on the plate. Connect the stove to a norm-
compliant, 230v – 50Hz mains outlet. Avoid using adapters, multiple sockets or extensions.
Make sure the electrical system is provided with a norm-compliant earthing and differential
switch.
● In order to install the stove you must respect the current laws regarding the exhausting
through the flue. It is advisable to connect the stove to the flue by a terminal, which should
be easy to inspect. We remind you that it is necessary to refer to an authorized assistance
center for the installation and periodical maintenance of the stove, so to check the efficiency
of the flue draught, before and after the combustion work of the stove.
● While seasonally using the stove, in case of bad draught of unfavorable weather conditions
(temperature lesser than 0°C), verify if the flue is perfectly cohibented and not obstructed,
so to avoid its freezing and the danger of a reflux.
● In case of fire inside the flue, immediately switch the stove off.
● The stove consumes as much air as it is necessary for the combustion; it is thus advisable
to connect the stove to the outside by a suitable piping, ending at the special slot on the
back of the stove.
● Given the weight of the stove, before the installation, make sure the pavement is able to
bear it.
● If the pavement is made of inflammable material, such as parquet or carpeting, position a
plate under the stove to protect it, (consider that, on the front of the stove, the plate should
exceed the stove by at least 25/30cm).
● For your safety, it is advisable to maintain a distance of at least 20cm between the hot sides
of the stove and possibly inflammable covering materials (such as glass-beaded walls,
wallpapers et cetera); otherwise, to use specific insulating materials, available on sale.
Please make this consideration also regarding the furniture, armchairs, curtains and so on.

6
● In order to facilitate the possible interventions by the technical assistance, do not fit the
stove inside closed spaces and do not place it adjacent to the walls, for this may
compromise the correct afflux of the air.
● The lack of draught by the flue (or, for instance, the obstruction or closing of the air
entrance of the grate, or of the grate itself) alters the functioning of the stove, which, while
automatically switching-on, may provoke an excessive pellet dosage in the grate, due to
delayed fire priming. Excessive smoke in the combustion chamber can cause an automatic
priming of the fumes (gas), accompanied by a violent flame; in these conditions, we
recommend never opening the combustion chamber door.
● Categorically avoid using inflammable liquids to start the fire; when the stove is on, the
pellet lighting is automatic.
● The pellets feeding the stove must necessarily present the characteristics described in this
handbook.
● Do not touch the glass when the stove reaches its temperature; be cautious before touching
the stove.
● Avoid letting children close to the stove on their own, when it is on, because each hot
surface can provoke severe burns.
● Do not perform interventions on the stove, apart from those expected for a regular
functioning or suggested in this handbook in order to solve slight problems. In any case,
always unplug the stove from the power supply before an intervention, and operate solely
when the stove is cold.
● It is absolutely forbidden to remove the guard protecting the pellet tank.
● Always make sure and check for the combustion chamber door to be hermetically closed
when the stove is lighting or functioning.
● The pellet automatic lighting is the most delicate phase; in order for it to take place without
inconveniences, we recommend always to keep the stove and the grate clean.
● If anomalies in the functioning should occur, light the stove again only after fixing the
problem at its origin.
● Karmek One Srl is not responsible for inconveniences, tampering, breakages or any other
damage due to non-observance of the instructions reported in this handbook.
● The handbook is part of the unit, and should be stored and accompany the equipment in
case of a change of ownership.
● This appliance is not for use by persons (including children) with reduced physical, sensory,

7
mental abilities or low experience and knowledge, unless they have been supervised or
educated to the use of the appliance by the person who is responsible for its security.
a.2 Technical features
Nominal power:
12Kw
Average efficiency:
88%
Heating capacity:
280
-
310m³
Power supply:
230V 50Hz
Nominal power absorption:
110W
Pellet tank capacity:
24Kg
Pellet consumption min
-
ma
x:
1
-
2,4Kg/h
Digital control display:
YES
Week program:
YES
Room thermostat:
YES
Manual
–
automatic functioning:
YES
Adjustable feet:
YES
Dimensions:
877x1082x346mm
Weight:
100Kg
Fuel:
pellet Ø6mm
Fumes joint:
Ø
80mm
Air inlet:
Ø35mm
Minimum safety distance from inflammable materials:
200mm
a.3 Accessory equipment
The stove is equipped with:
- a remote control (optional, alcaline 12V battery GP23AE not included);
- a supply cable;
- adjustable feet;
- a handbook.
a.4 Identity plate
The identity plate is positioned on the back of the stove, and it reports the following data:
- commercial brand - supply tension
- serial number - absorbed electric supply
- model - nominal frequency
- thermal power - minimum distance from adjacent
inflammable materials
- efficiency - conformity to regulations
- measured CO percentage
- warnings.

8
1
Side f
umes outlet
2 Top fumes outlet
3 Rear fumes outlet
4 Combustion air inlet
5 Switch and power socket
6 Channeled air outlet

9
a.5 Guarantee
The guarantee certificate, which we consigned to you when you purchased the stove, must be
sent to the producer firm Karmek One Srl, 8 days after delivery date the latest; otherwise, the
guarantee itself will no longer be valid. The estimated 24-months guarantee is valid
exclusively when the installation and test are performed by an authorized Karmek One
assistance center.
We would like to make clear that the guarantee expires in case of tampering, breakages, and
similar, due to non-observance of the instructions reported in this handbook.
a.6 Suitable fuel
The stove functions solely by pellets, a cylinder-shaped fuel made out of a mixture of various
wooden materials; pellets are compliant to DIN 51731 regulations.
The following list summarizes the main characteristics of recommended pellets:
Diameter
6
-
6,5mm
Maximum len
gth
20
-
25mm
Caloric output
Approx. 4.600 Kcal/Kg
Humidity
<12%
Ash content
<1,5%
Specific weight and density
Kg/dm
³
=1,0
-
1,4
The stove is built to burn not-resinous, preferably beech-wood pellets; therefore, using pellets
whose characteristics are different from the ones listed above reduces its efficiency, provokes
a bad combustion and the formation of incrustations.
Should you use different pellets from the ones recommended the stove’s guarantee would
expire.
a.7 Ordering spares
Exclusively authorized Karmek One technical personnel must perform interventions of any
entity.
Please refer to the authorized assistance center or to your retailer for possible requests of
spares.

10
B. INSTALLATION INSTRUCTIONS
b.1 Initial warnings
The device must be installed on a pavement that presents an adequate burden capacity. If the
existing building does not satisfy this requirement, appropriate measures (for instance a
burden distribution plate) must be taken.
The installation of the device must guarantee an easy access to clean the stove, the
exhausted gas piping and the flue.
Extraction fans can cause problems, when used in the same room or space of the device.
b.2 Moving and transporting
Make sure that the devised used for lifting and transporting the stove support its weight, which
is reported on the identity plate on the back of the stove. The lifting of the stove is normally
performed with an elevation trolley, by inserting the pitchforks in the proper slots of the
wooden packing. In order to position the stove inside a room, a good general rule is to lay the
stove on the floor gently, with maximum caution and avoiding any violent impact.
b.3 Positioning
For positioning the stove, we suggest you to choose a spot that is as central as possible to the
area you wish to heat; this will facilitate a uniform distribution of the heat and will help
obtaining an optimum efficiency.
We recommend putting a floor-guarding plate close to the flue or to inflammable materials
(such as parquet or carpeting).
For sa
fety reasons, maintain a distance of at least 20cm
between the hot sides of the stove and possibly
inflammable covering materials (such as glass-beaded
walls, wallpapers et cetera); otherwise, use specific
insulating materials, available on sale.
L=20 cm min. B=20 cm min. R=20 cm min.

11
b.4 Channeling
The stove is able to convey a part of the heat in another environment through a lever in the
lower front of the stove. If the switch remains in the open position (right) the heated air is
pumped only from the front top and bottom of the stove. If the switch remains in the closed
position (left) the air is pumped both from the upper front part and the rear of the stove through
a Ø80 pipe that allows to divert a part of the heat in another environment.
b.5 Installing the flue gas outlet
The installation can be performed either without a masonry flue, or with an existing flue.

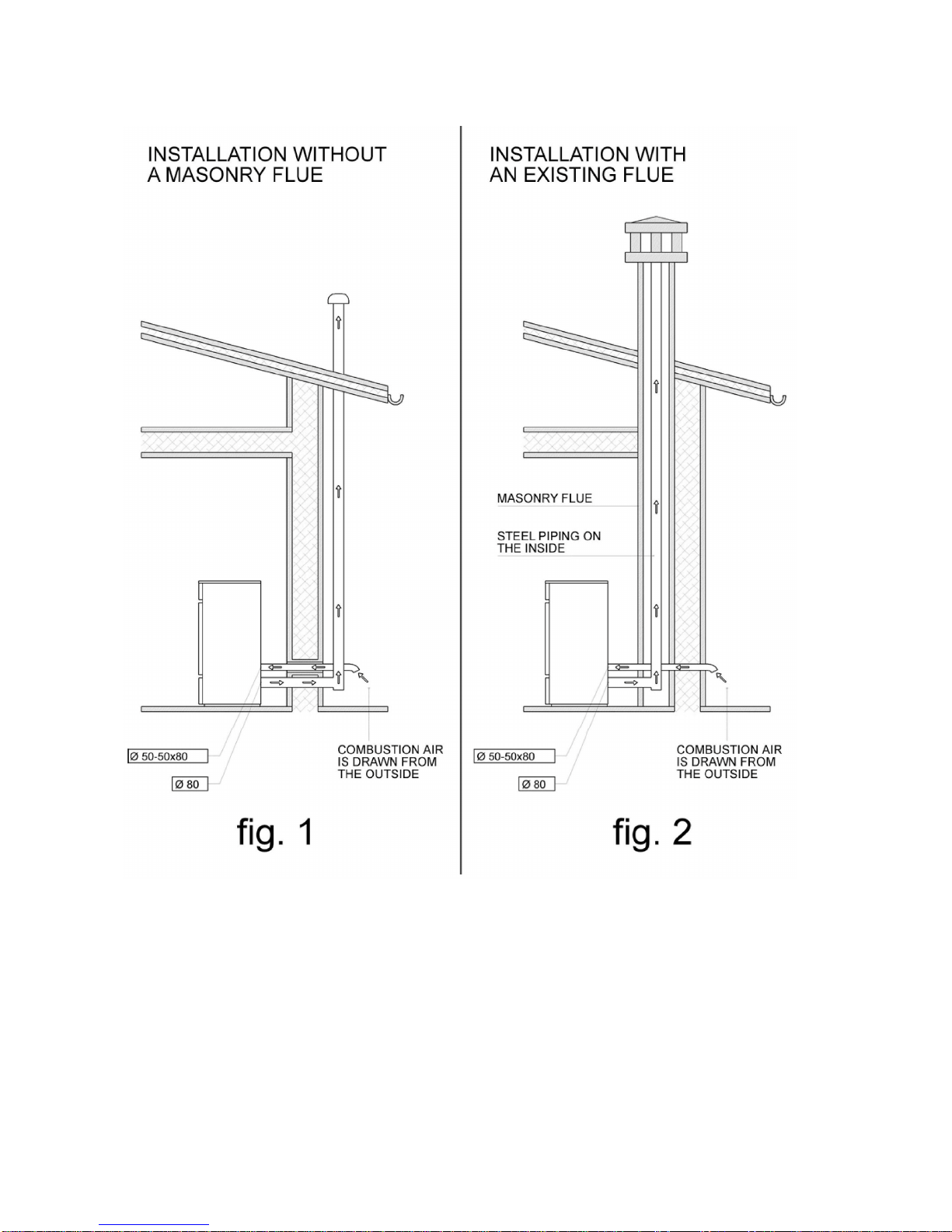

FIG 1. INSTALLATION WITHOUT A MASONRY FLUE
Flue gas outlet Ø 80 – Using an easy to inspect T-joint, reach the outside of the building
horizontally; proceed vertically until you reach the roof with a cohibented flue, equipped with
an anti-wind chimneystack. All the joints must be sealed.
FIG. 2. INSTALLATION WITH AN EXISTING FLUE
Flue gas outlet Ø 80 – Reach the existing flue horizontally, making sure that it presents a
minimum section of 200cm² and an easy to inspect base, for its annual cleaning. All the joints
must be sealed.
IMPORTANT!! We recommend you to have the installing technician verify the efficiency and
the state of the flue, the observance of national and local laws regarding flue gas outlets’
joints, and to use appropriate materials.
The information reported above is purely indicative for a correct installation; Karmek One Srl is
not responsible for what concerns the installation.

12

13
b.6 Installing the combustion air inlet pipe
For any described solution, two alternatives are possible:
● Draw the air directly from the outside through a piping (internal Ø 50mm; max length
1,5m), connected to the air inlet pipe on the back of the stove.
● Draw the air directly from the installation room, given that in the proximity of the stove an
air inlet pipe (minimum area 100 cm²) is installed on the sidewall, so that it communicates
with the outside.
In both cases, periodically verify that nothing has obstructed the passage of the air.
IMPORTANT: This device cannot be used on a shared flue.
b.7 Connecting to the power supply
Verify if the electrical system and the mains outlets present the capacity to support the
maximum absorption of the stove, which is reported on the plate.
Make sure the system is provided with a norm-compliant earthing and differential switch.
The stove must be connected to a norm-compliant, 230v – 50Hz mains outlet. Avoid using
adapters, multiple sockets or extensions.
Make sure the cable connecting to the system is not touching any hot surface of the stove;
also make sure the stove is not treading on the cable.
The engine of the stove is protected by a fuse, which is inserted in the general switch on the
back of the stove.
Remember always to unplug the stove from the power supply before performing any
maintenance and/or control intervention.

14

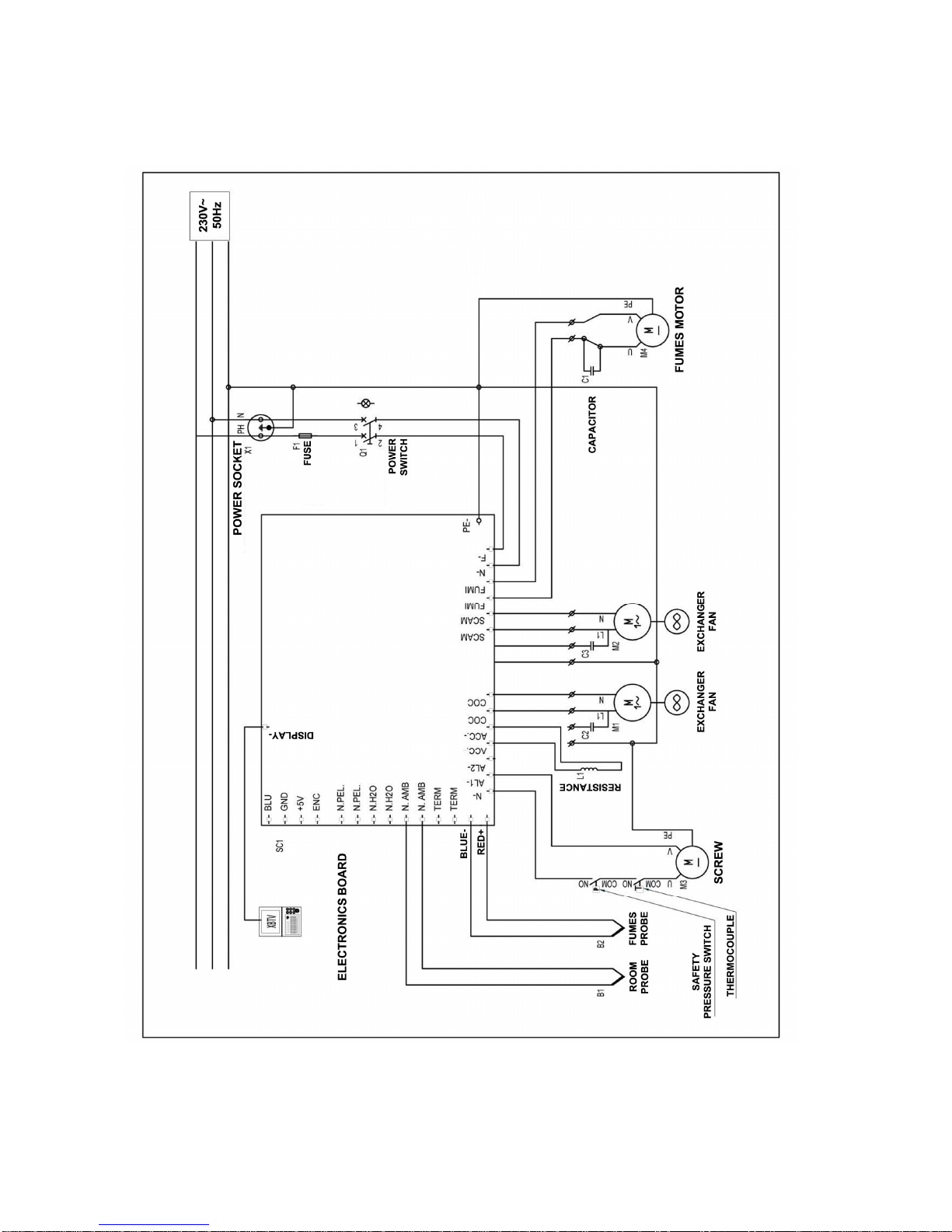

ELECTRICAL SCHEME

15
C. OPERATING INSTRUCTIONS
c.1 Initial warnings
All regulations, included those referring to national and European laws, must be respected
when installing the device.
Do not use the device as an incinerator or in any other way than that for which it was
designed.
Do not use any fuel other than pellets.
Do not use liquid fuels.
The device, and its external surfaces specifically, reach an elevate temperature when working;
handle with care to avoid burns.
Do not perform any unauthorized alteration to the device.
Only use original spares, recommended by the building firm.
c.2 Introduction
The pellet stove combines the heat of a flame with the comfort of an automatic management of
the temperature, of the lighting and the switching-off, with the possibility of a multiple days
programming. The automatic loading and the consistent capacity of the tank allow the pellet
stove to perform automatically for a longer time, and they permit a better management of the
device.
If the stove reaches the set values and the temperature keeps constant for a certain amount of
time (defined by the building firm), the device will not furthermore feed the flame. When the
fumes’ temperature falls at a value defined by the building firm, the stove will automatically
light the flame up again.
The stove must always function with its door peremptorily closed.
It is necessary that outlet system of the flue gas be properly sealed.
To ensure a good efficiency and a correct functioning, it is necessary that the stove is always
clean.

16
C.3 User menu
Press the P3 key (MENU) to access the menu.
The menu has various voices and levels that allow access to the settings and to the
programming of the stove.
Each level is reached by selecting an item and pressing the P3 key. To go through the items
list use the P1 and 2 or 5 and 6 keys. Adjustments are saved pressing the P4 key, that also
returns to the upper menu level.
The menu items relative to service functions are password-protected.
The following table shows the menu structure. Only user-accessible items are shown.
Menu item “01-set fans” is available only if the corresponding function is enabled (see
“Technical parameters”).
Level 1 Level 2 Level 3 Level 4 value
01 - adjust blowers
select value
02 - set clock
01 – day
day of week
02 - time
hour
03 - minutes
minute
04 – day
day of month
05 - month
month
06 - year
year
03 - set chrono
01 - enable chrono
01 - enable chrono
on/off
02 - program day
01 - chrono day
on/off
02 - start 1 day
time
03 - stop 1 day
time
04 - start 2 day
time
05 - stop 2 day
time
03 - program week
01 - chrono weekly
on/off
02 - start prog 1
time
03 - stop prog 1
time
04 - monday prog 1
on/off

17
05 - tuesday prog 1
on/off
06 - wednesday prog 1
on/off
07 - thursday pog 1
on/off
08 - friday prog 1
on/off
09 - saturday prog 1
on/off
10 - sunday prog 1 on/off
11 - start prog 2 time
12 - stop prog 2 time
13 - monday prog 2 on/off
14 - tuesday prog 2 on/off
15 - wednesday prog 2 on/off
16 - thursday prog 2 on/off
17 - friday prog 2 on/off
18 - saturday prog 2 on/off
19 - sunday prog 2 on/off
20 - start prog 3 time
21 - stop prog 3 time
22 - monday prog 3 on/off
23 - tuesday prog 3 on/off
24 - wednesday prog 3 on/off
25 - thursday pog 3 on/off
26 - friday prog 3 on/off
27 - saturday prog 3 on/off
28 - sunday prog 3 on/off
29 - start prog 2 time
30 - stop prog 2 time
31 - monday prog 2 on/off
32 - tuesday prog 2 on/off
33 - wednesday prog 2 on/off
34 - thursday pog 2 on/off
35 - friday prog 2 on/off
36 - saturday prog 2 on/off
37 - sunday prog 2 on/off
04 - program week-end
01 - crono week-end
02 - start 1
03 - stop 1
04 - start 2

18
05 - stop 2
04 - select language
01 - italiano set
02 - francais set
03 - english set
04 - deutsch set
05 - mode stand-by on/off
06 - buzzer on/off
07 - load initial set
08 - state stove -
C.4 Adjust blowers
Allows the adjustment of the two fans independently.
The following settings are available for each of the two fans. Press the keys P1 (fan 2) and P2
(fan 3) to adjust settings.
Value
Fan 2 Fan 3
A Equal to selected power Equal to selected power
0 Fan off Fan off
1 Fixed speed Pr57 Fixed speed Pr62
2 Fixed speed Pr58 Fixed speed Pr63
3 Fixed speed Pr59 Fixed speed Pr64
4 Fixed speed Pr60 Fixed speed Pr65
5 Fixed speed Pr61
Fixed speed Pr66

19
C.5 Set clock
Sets current time and date. The motherboard clock is fitted with a lithium battery that grants
3/5 years of operating time.
C.6 Set chrono
- enable chrono
Switches on or off all chronothermostat functions.
- program day
Enables, disables and sets daily chronothermostat functions.
It is possible to set two working periods by adjusting start and stop time for each one.
In the following table are listed the parameters name and the corresponding allowed values.
OFF tells the motherboard to ignore the command.

20
selezione significato valori possibili
START 1 ora di attivazione ora - OFF
STOP 1 ora di disattivazione ora - OFF
START 2 ora di attivazione ora - OFF
STOP 2 ora di disattivazione ora - OFF
- program week
Enables, disables and sets weekly chronothermostat functions.
The weekly programmer features 4 independent adjustable programs.
The weekly programmer can be enabled or disabled. If the value of an item is set to OFF, the
corresponding command is ignored.
NOTICE: It is important to program the stove with care, avoiding overlapping
working periods.
Program 1
menu level selection meaning allowed values
03-03-02 START PROG 1 lighting time time - OFF
03-03-03 STOP PROG 1 switching off time time - OFF
03-03-04 MONDAY PROG 1
day of application
on/off
03-03-05 TUESDAY PROG 1 on/off
03-03-06 WEDNESDAY PROG 1 on/off
03-03-07 THURSDAY PROG 1 on/off
03-03-08 FRIDAY PROG 1 on/off
03-03-09 SATURDAY PROG 1 on/off
03-03-10 SUNDAY PROG 1 on/off
