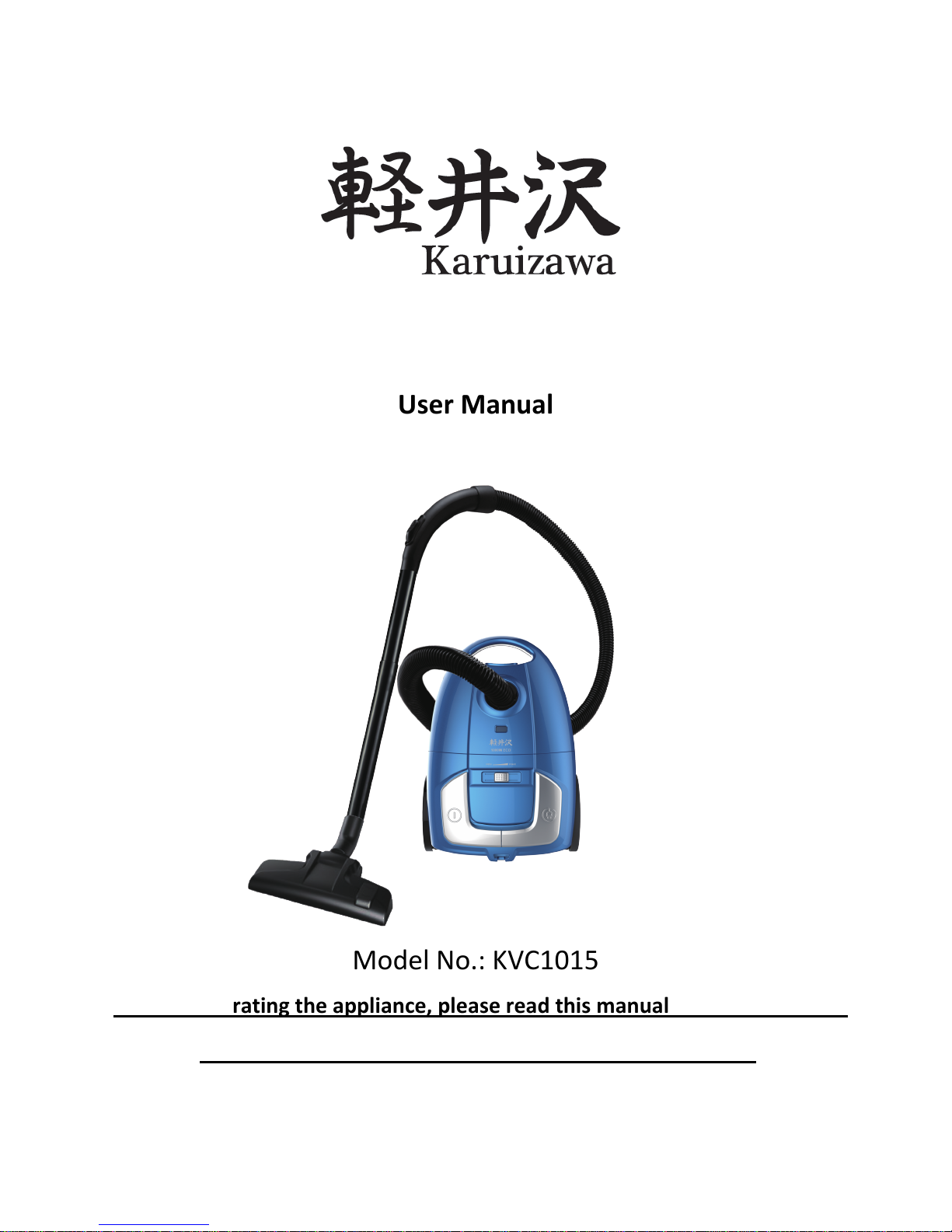

KARUIZAWA KVC1015 User manual

Vacuum Cleaner
User Manual
Model No.: KVC1015
*Before operating the appliance, please read this manual and all the safety
instructions thoroughly and retain it for future reference.

CONTENT
PAGE
SAFETY INSTRUCTION
1
PARTS DESCRIPTION
2
OPERATION INSTRUCTION
3
MAINTENANCE INSTRUCTION
4
TROUBLESHOOTING
5
SPECIFICATION
5
WARRANTY
6

1
SAFETY INSTRUCTION
IMPORTANT SAFETY INSTRUCTIONS –READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
1. To avoid electric shock, fire or injury, please read the user manual carefully before using the appliance
and keep it for future reference.
2. This appliance is for household use only. Please use suitable power source. (Please refer to
SPECIFICATION)
3. Never immerse the appliance in water or other liquids.
4. Do not use the appliance under direct sunshine.
5. Please turn off the appliance when not in use otherwise it may result in danger.
6. Please turn off the appliance and unplug the socket when unattended otherwise it may result in
danger.
7. Keep the appliance away from children.
8. The appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
9. Children should be supervised to ensure that they do not play with the appliance.
10. With any indication of damage or malfunction, please stop using the appliance immediately to avoid
hazards. Take it to the authorized service center for repair. Do not attempt to repair or change any
parts by yourself.
11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid hazards.
12. Please turn off and unplug the appliance before cleaning or maintenance.
13. Clean the surface of the appliance with a dry cloth. Do not use corrosive detergent or solvent to clean.
Do not swash the appliance with water.
14. Please turn off and unplug the appliance when not in use. Make sure the power is off before pulling
out the plug and do not pull the cord.
15. When the appliance is not in use for a prolonged period, please turn it off, unplug it, pack it well, and
store it in dry cool place.
16. Forbid to put flammable and explosive objects around the appliance, and do not use the appliance in
an environment full of flammable gas and powder. Keep away from any fire and heat sources.
17. Please only use the attached accessories.
18. Do not insert any objects into the air outlet. Keep the air outlet free of dust and hair, as those may
reduce the suction.
19. Use extra care when vacuum cleaning on stairs.
20. Hold the plug when rewinding the power cord. Do not allow the plug and the power cord to whip when
rewinding.
21. Do not pick up anything that is burning, such as cigarettes, matches, or hot ashes.
22. Do not use the appliance without the dust bag and/or the filter in place.
23. Please put the power cord in the right place in order to avoid tripping the appliance over.

2
PARTS DESCRIPTION

3
OPERATION INSTRUCTION
Notes:
If the air outlet, the plastic tube or the hose is blocked, please switch off the appliance at once. Clear
the blocked substance before starting the appliance again.
Before using the appliance, please remove any large or sharp objects on the floor in order to prevent
damages to the filter.
ASSEMBLING THE VACUUM CLEANER
Fitting the hose：
Insert the hose end into the hose inlet and
turn clockwise to lock it.
Remove the
hose:
Turn the hose end in anti-clockwise and
pull it out.
Fitting the plastic
tube to the
handle:
Connect the plastic tube to the hose
handle.
Connect different accessories to the tube for different cleaning purposes:
Floor brush：
For cleaning on carpets or floor.
Crevice nozzle：
Dual-purpose crevice nozzle. Use to
extend to vacuum down the side of
cushions and etc. Turn the head through
90ºto clean curtains, and etc.
START OPERATION:
1. Before using the appliance, unwind a sufficient length of the power cord and insert the plug into the
socket.
2. Press the On/Off button to turn on the appliance.
3. Move the speed control bar from side to side to adjust the suction power of the appliance.
4. To rewind the power cord, press the cord rewind button with one hand and guide the cord with
another hand to ensure that it does not whip to cause damages.
Remark: Open and close the airflow slider to fine turn the suction power.
Plastic
tube
Hose Handle

4
MAINTENANCE INSTRUCTION
Changing the Dust Bag:
1. When the dust bag full indicator turns to red, please switch off the appliance and unplug the power
cord before cleaning out the dust or replacing a new bag.
2. Remove the hose.
3. Press the lid release lock and lift up the cover.
4. Lift the dust bag from the cradle and discard it.
5. Place a new bag in the cradle properly and close the lid.
Cleaning and Replacing the Filter
Clean the two filters often. Failure to clean the filters regularly will reduce the cleaner efficiency and may
shorten its lifespan.
The inlet filter is at the rear of the inside compartment. Open the lid and pull the filter out of its cradle.
Brush the inlet cavity out. This will help keeping the airways clean and maintain performance.
The motor filter is at the rear of the appliance. Lift off the filter cover. Wash the filter under running water
and allow it to dry thoroughly before placing back to the appliance.
.

5
TROUBLESHOOTING
Problem
Possible cause
Solution
The electric motor
does not work
Check if the power plug is plugged
well to the socket.
Check if there is power in the
socket.
Check if the switch of the
appliance is turned on.
Re-plug the plug to the socket.
Make sure there is power in the
socket.
Press the On/Off button to turn
on the appliance.
The suction power is
weak
Check if the floor brush or the
hose is clogged.
Check if the dust bag is full of dust.
Check if the cover is closed.
Check if the filter is clogged.
Check if the plastic tube is well
connected with the floor brush.
Remove the clogging timely.
Clean or replace the dust bag.
Close the cover.
Clean the filter.
Connect the plastic tube and
floor brush correctly.
The power cord
cannot be winded up
completely
Check if the power cord is twisted.
Pull out the power line for
2-3m, and then re-winding.
The power cord
cannot be pulled out
smoothly
Check if the power cord is twisted.
Press the cord rewind button,
wind-up and pull-out the power
cord repeatedly.
The speed cannot be
regulated
The speed control knob does not
work, or the speed regulation
engine falls off.
Turn on and turn off the
machine for several times, and
if it still does not work, send to
the maintenance centre for
repair.
The power cord winds
up automatically
The winder winds up the power
cord automatically.
Pull out and wind up the power
cord for 4-5 times, and if it is
still out of order, send to the
maintenance centre for repair.
SPECIFICATION
Model No.
KVC1015
Product name
Vacuum Cleaner
Rated Voltage/Frequency
220-240V~50/60Hz
Rated Power
1000W
Dimension (W x H x D)
370 x 265 x 213 mm

6
WARRANTY
1. The product has 1 year warranty from the date of purchase.
2. The warranty shall not apply:
A. to any product subjected to misuse, alteration, act of God, improper handling, improper transport,
improper testing or unauthorized repair;
B. to cosmetic problems or defects which result from normal wear and tear under ordinary use yet
not affecting the performance or use of the product;
C. if the product is disassembled or altered;
D. to any packing, transportation, export / import tax or any related expenses.
3. CUSTOMER MUST PRESENT THE SALES INVOICE OR RECEIPT FOR 1 YEAR WARRANTY SERVICES.
4. Please bring along the product and sales invoice or receipt to our services center for warranty services
during office hour:
Address : Unit A, 20/F, Yip Shing Industrial Centre, No.19, Yip Shing Street, Kwai
Chung.
Service Hotline : [phone]
Service Hours:
Monday-Friday : 9:00am - 6:00pm
Saturday : 9:00am - 4:00pm
Sunday & Public Holiday : Closed
NOTES
This appliance must be plugged into a specific 220-240V socket. Please make sure the plug is fully
plugged-in before use. Do not use any adapter or extension cord.
This appliance is a high energy consumption product, please do not use with other high energy
consumption product into the same supply socket.
THE APPLIANCE IS FOR HOUSEHOLD USE ONLY.
ENVIRONMENT
Do not throw away the appliance with the normal household waste at the end of its life, but
hand it in at an official collection point for recycling. By doing this, you help preserving the
environment.
IMPORTANT NOTICES
IN NO EVENT SHALL OUR COMPANY OR THE SUPPLIER BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY
DIRECT, INDIRECT, GENERAL SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY OR OTHER DAMAGES
ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT (INCLUDING, WITHOUT LIMITATION,
DAMAGES FOR INJURY, LOSS OF PROPERTY, BUSINESS PROFITS, BUSINESS INTERRUPTION) OR FROM ANY
BREACH OF WARRANTY, EVEN IF OUR COMPANY OR SUPPLIER HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN NO CASE SHALL OUR COMPANY OR SUPPLIER’S LIABILITY EXCEED THE AMOUNT YOU
PAID FOR THE PRODUCT.
Specifications, designs and dimensions are subject to change without prior notice.
