Kasda KW5212 User manual

\
KW5212 WLAN VDSL Router
User Manual

WLAN VDSL Router User Manual
NOTICE
This document contains proprietary information protected by copyright, and this Manual
and all the accompanying hardware, software, and documentation are copyrighted. All
rights are reserved. No part of this document may be photocopied or reproduced by
mechanical, electronic, or other means in any form.
The manufacturer does not warrant that the hardware will work properly in all
environments and applications, and makes no warranty or representation, either
expressed or implied, with respect to the quality, performance, merchantability, or
fitness for a particular purpose of the software or documentation. The manufacturer
reserves the right to make changes to the hardware, software, and documentation
without obligation to notify any person or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2014
All rights reserved.

WLAN VDSL Router User Manual
Content
1 OVERVIEW...................................................................................................................................1
1.1 FEATURES .......................................................................................................................1
1.1.1 Data Rate ................................................................................................................1
1.1.2 VDSL Compliant .....................................................................................................1
1.1.3 Wireless...................................................................................................................1
1.1.4 Network Protocol & Features.................................................................................1
1.1.5 ATM Capabilities.....................................................................................................2
1.1.6 FIREWALL...............................................................................................................2
1.1.7 Management Support.............................................................................................3
1.1.8 Operating System Support.....................................................................................3
1.1.9 Environmental.........................................................................................................3
1.2 PACKET CONTENTS........................................................................................................3
1.3 SYSTEM REQUIREMENTS................................................................................................4
1.4 FACTORY DEFAULTS ......................................................................................................4
1.5 WARNINGS AND CAUTIONS.............................................................................................4
2 HARDWARE DESCRIPTION......................................................................................................5
3HARDWARE INSTALLATION...................................................................................................7
4PC CONFIGURATION GUIDE.................................................................................................8
4.1 LOCAL PC CONFIGURATION IN WINDOWS 95, 98, ME, XP,VISTA,7....................................8
4.2 LOCAL PC CONFIGURATION IN WINDOWS 2000...................................................................8
5 WEB-BASED MANAGEMENT GUIDE....................................................................................9
5.1 LANSETTING PAGE .........................................................................................................9
5.2 INTERNET ACCESS CONFIGURATION..............................................................................10
5.2.1 ADSL Setup...............................................................................................................10
5.2.2 VDSL Setup...............................................................................................................15
5.2.3 Router Mode Setup...................................................................................................20
5.2.4 LAN Settings..............................................................................................................27
5.2.4.1 IPv4 LAN Settings.................................................................................................. 27
5.2.4.2 IPv6 LAN Settings.................................................................................................. 29
5.3 WIRELESS SETTING ....................................................................................................... 31
5.3.1 Basic...........................................................................................................................31
5.3.2 Security........................................................................................................................ 32
5.4 PRINTER SERVER INSTALLATIONS ......................................................................................35
APPENDIX: FREQUENT ASKED QUESTIONS......................................................................37

WLAN VDSL Router User Manual
1
1 Overview
Thank you for choosing our product. The product is a Wireless VDSL router
combining an VDSL modem, an 802.11n wireless router ,a 4-port switch and an USB
port in one unit, bringing high-speed wireless Internet connection to a home or office.
1.1 Features
1.1.1 Data Rate
Downstream data rate up to 100 Mbps
Upstream data rate up to 50Mbps
1.1.2 VDSL Compliant
ITU G.992.1 (G.DMT)
ITU G.993.2 (G.vdsl2) (Profile 8a, 8b, 8c, 8d, 12a,12b and 17a)
ITU G.992.2 (G.Lite)
ITU G.994.1 (G.hs)
ITU G.992.3 (G.DMT.BIS)
ITU G.992.4 (G.lite.bis)
ITU G.992.5
Compatible with all T1.413 issue 2 (full rate DMT over analog
POTS), and CO DSLAM equipment
1.1.3 Wireless
Fully IEEE 802.11n compatible.
Wireless data rate up to 300Mbps
Operating in the unlicensed 2.4 GHz ISM band
Multi-SSID
Supports 64/128 bits WEP security and user authentication
1.1.4 Network Protocol & Features
Ethernet to ADSL Self-Learning Transparent Bridging
Internet Control Message Protocol (ICMP)

WLAN VDSL Router User Manual
2
IP Static Routing
Routing Information Protocol (RIP, RIPv2)
Network Address Translation (NAT)
Virtual Server, Port Forwarding
Dynamic Host Configuration Protocol (DHCP)
DNS Relay, DDNS
IGMP Proxy
Simple Network Time Protocol (SNTP)
VPN pass-through (IPSec/PPTP/L2TP)
Parent control
1.1.5 ATM Capabilities
RFC 1483 Multi-protocol over ATM “Bridged Ethernet” compliant
RFC 2364 PPP over ATM compliant
RFC 2516 PPP over Ethernet compliant
ATM Forum UNI3.1/4.0 PVC –Support up to 16 PVCs
VPI Range: 0-255
VCI Range: 32-65535
UNI 3.0 & 3.1 Signaling
ATM AAL5 (Adaption Layer type 5)
OAM F4/F5
1.1.6 FIREWALL
Built-in NAT
MAC Filtering
Packet Filtering
Stateful Packet Inspection (SPI)
Denial of Service Prevention (DoS)

WLAN VDSL Router User Manual
3
DMZ
1.1.7 Management Support
Web Based GUI
Upgrade or update via FTP/HTTP
Command Line Interface via Telnet
Diagnostic Test
Firmware upgradeable for future feature enhancement
1.1.8 Operating System Support
WINDOWS 98/98 SE/ME/2000/XP/VISTA/7
Macintosh
LINUX
1.1.9 Environmental
Operating humidity: 10%-90% non-condensing
Non-operating storage humidity: 5%-95% non-condensing
1.2 Packet Contents
The packet contents are as the following:
ADSL ROUTER x 1
External Splitter x 1
Power Adapter x 1
Telephone Line x 1
Ethernet Cable x 1
Antenna x 2
Base x 1
CD x 1

WLAN VDSL Router User Manual
4
1.3 System Requirements
Before using this ROUTER, verify that you meet the following requirements:
Subscription for ADSL service. Your ADSL service provider should
provide you with at least one valid IP address (static assignment or
dynamic assignment via dial-up connection).
One or more computers, each contains an Ethernet 10/100M Base-T
network interface card (NIC).
A hub or switch, if you are connecting the device to more than one
computer.
For system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or
later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
Encapsulation: RFC 2516 LLC
VPI/VCI: According to local information
1.5 Warnings and Cautions
Never install telephone wiring during storm. Avoid using a telephone
during an electrical storm. There might be a risk of electric shock from
lightening.
Do not install telephone jacks in wet locations and never use the product
near water.
To prevent dangerous overloading of the power circuit, be careful about
the designed maximum power load ratings. Not to follow the rating
guideline could result in a dangerous situation.
Please note that telephone line on modem must adopt the primary line
that directly outputs from junction box. Do not connect Router to
extension phone. In addition, if your house developer divides a
telephone line to multi sockets inside the wall of house, please only use
the telephone that has connected with the splitter of ADSL Router when
you access the Internet.

WLAN VDSL Router User Manual
5
2 Hardware Description
Front Panel
LED
Color
Function
PWR
Green
On: Power on
Off: No power
LAN1,2,3,4
Green
On: LAN link established and activeviaLAN port
Blinking: DSL data activity occurs
Off: No LAN link via LAN port
WLAN
Green
On: The wireless module is ready and idle
Blinking: Data transmitting or receiving over
WLAN
Off: The wireless function is off
DSL
Green
On: DSL link established and active
Quick Blinking: DSLis trying to establish a
connection
Slow Blinking: No DSL link
INET
Green
On: IP connected
Blinking: IP connected and IP traffic is passing thru
this device
Off: ADSL connnetion is not present

WLAN VDSL Router User Manual
6
Rear panel
Side panel
WIFI button: Enable or disable wireless function.
Reset button: System reset or reset to factory defaults.
WPS button: A convenient way for WPS set.
Port
Function
DSL
Connect the device to an DSL telephone jack or
splitter using a RJ-11 telephone cable
ETH1,2,3,4
Connect the device to your PC's Ethernet port,
or to the uplink port on your hub/switch, using a
RJ-45 cable
USB
Connect the device to a printer
ON/OFF
Switch it on or off
POWER
Connect to the supplied power adapter

WLAN VDSL Router User Manual
7
3 Hardware Installation
This chapter shows you how to connect Router. Meanwhile, it introduces the
appropriate environment for the Router and installation instructions.
1. Using a telephone line to connect the DSL port of ROUTER to the MODEM
port of the splitter, and using a other telephone line connect your telephone
to the PHONE port of the splitter, then connect the wall phone jack to the
LINE port of the splitter.
The splitter comes with three connectors as below:
LINE: Connects to a wall phone jack (RJ-11 jack)
MODEM: Connects to the DSL jack of ROUTER
PHONE: Connects to a telephone set
2. Using an Ethernet Cable to connect the LAN port of the ROUTER to your
LAN or a PC with network card installed.
3. Connect the power cable to the PWR connector on ROUTER, then plug in
the power adapter to the power outlet, and then press the on-off button.
Notes: Without the splitter and certain situation, transient noise from
telephone can interfere with the operation of the Router, and the
Router may introduce noise to the telephone line. To prevent this
from happening, a small external splitter must be connected to
each telephone.

WLAN VDSL Router User Manual
8
4 PC Configuration Guide
4.1 Local PC Configuration in Windows 95, 98, ME, XP,VISTA,7
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network” icon.
3. On the “Configuration” tab, select the TCP/IP network associated with your
network card and then click “Properties”.
4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP
address as 192.168.1.x (x can be a decimal number from 2 to 254.) like
192.168.1.2, and the subnet mask as 255.255.255.0.
5. On the “Gateway” tab, set a new gateway as 192.168.1.1, and then click
“Add”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.
8. You will be prompted to restart Windows. Click “Yes”.
4.2 Local PC Configuration in Windows 2000
1. In the Windows task bar, click the “Start” button, point to “Settings”, and
then click “Control Panel”.
2. Double-click the “Network and Dial-up Connections” icon.
3. In the “Network and Dial-up Connections” window, right-click the “Local
Area Connection” icon, and then select “Properties”.
4. Highlight “Internet Protocol (TCP/IP)”, and then click “Properties”.
5. In the “Internet Protocol (TCP/IP) Properties” dialog box, set the IP address
as 192.168.1.x (x can be a decimal number from 2 to 254.), and the subnet
mask as 255.255.255.0 and the default gateway as 192.168.1.1. Then click
“OK”.
6. Configure the “DNS” tab if necessary. For information on the IP address of
the DNS server, please consult with your ISP.
7. Click “OK” twice to confirm and save your changes.

WLAN VDSL Router User Manual
9
5 Web-based Management Guide
In order to use the web-based management software it will be necessary to use
a computer that occupies the same subnet as the Router. The simplest way to
do this for many users will be to use DHCP server that is enabled by default on
the Router.
5.1 LAN setting page
Launch a web browser, such as Internet Explorer, and then use
http://192.168.1.1 to log on to the setting pages.
After log on ,you will see the following screen :
Click OK
Enter username
‘admin’and password
‘adslroot’

WLAN VDSL Router User Manual
10
We can select wizard setup or advanced setup mode to setup KW5212.the wizard
set up will guide us for a basic setting,and the advanced setup will guide us to home
page for more detailed setup.
5.2 Internet Access Configuration
5.2.1 ADSL Setup
From home page, you can find Advanced Setup option on the left router
configuration page.
1. From Layer2 Interface, click ATM Interface. you can set it up according to
the following steps. You Choose Add, or Remove to configure DSL ATM
interfaces.
2. Click Add to configure PVC identifier, select DSL latency and select
connection mode according to your local occasion. After the configuration,
you need to click Apply/Save.

WLAN VDSL Router User Manual
11
3. Click WAN Service from the left menu.
4. Click Add to select a layer 2 interface for this service and then click Next.
5. Choose WAN service type, just choose PPPoE for example here. You can
enter your own service description here if you want and then click Next.
6. Input PPP Username & PPP Password and then click Next. The user
interface allows a maximum of 256 characters in the user name and a
maximum of 32 characters in the password.

WLAN VDSL Router User Manual
12
PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if
necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for
PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you
to.

WLAN VDSL Router User Manual
13
Enable Full Cone NAT: In full cone NAT, all requests from the same private IP
address and port are mapped to the same public source IP address and port.
Someone on the Internet only needs to know the mapping scheme in order to send
packets to a device behind the VDSL Device.
The gateway can be configured to disconnect if there is no activity for a specific period
of time by selecting the Dial on demand check box and entering the Inactivity
timeout. The entered value must be between 1 minute and 4320 minutes.
Use Static IPv4 address: If the ISP gave you a static (fixed) IP address, select this
option and enter it in the IP Address field. If the ISP did not give you a static IP
address, clear the Use Static IP Address option. The ISP automatically assigns the
WAN connection an IP address when it connects.
Enable PPP Debug Mode: Select this to turn on the debug mode for the PPP
connection.
Bridge PPPoE Frames Between WAN and Local Ports: In addition to the VDSL
Device's built-in PPPoE client, you can enable this to pass PPPoE through in order to
allow LAN hosts to use PPPoE client software on their computers to connect to the
ISP via the VDSL Device. Each host can have a separate account and a public WAN
IP address. PPPoE pass through is an alternative to NAT for applications where NAT
is not appropriate. Disable PPPoE pass through if you do not need to allow hosts on
the LAN to use PPPoE client software on their computers to connect to the ISP.
The PPP IP Extension is a special feature deployed by some service providers.
Unless your service provider specifically requires this setup, do not select it. If you
need to select it, the PPP IP Extension supports the following conditions:
It allows only one computer on the LAN.
The public IP address assigned by the remote using the PPP/IPCP
protocol is actually not used on the WAN PPP interface. Instead, it
is forwarded to the computer's LAN interface through DHCP. Only
one system on the LAN can be connected to the remote, since the
DHCP server within the ADSL gateway has only a single IP
address to assign to a LAN device.
NAPT and firewall are disabled when this option is selected.
The gateway becomes the default gateway and DNS server to the
computer through DHCP using the LAN interface IP address.

WLAN VDSL Router User Manual
14
The gateway extends the IP subnet at the remote service provider to
the LAN computer. That is, the PC becomes a host belonging to the
same IP subnet.
The ADSL gateway bridges the IP packets between WAN and LAN
ports, unless the packet is addressed to the gateway's LAN IP
address.
7. Select a preferred wan interface as the system default gateway.
8.Get DNS server information from the selected WAN interface or enter static DNS
server IP addresses. If only a single PVC with IPoA or static MER protocol is
configured, you must enter static DNS server IP addresses.

WLAN VDSL Router User Manual
15
9.Make sure that the settings below match the settings provided by your ISP. Click
on the Apply/Save button to save your configurations.
5.2.2 VDSL Setup
From home page, you can find Advanced Setup option on the left router
configuration page.
1. From Layer2 Interface, click PTM Interface. you can set it up according to
the following steps. You Choose Add, or Remove to configure DSL PTM
interfaces.
2.Click Add to configure PTM Priority, select DSL latency and select connection
mode according to your local occasion. After the configuration, you need to click
Apply/Save.

WLAN VDSL Router User Manual
16

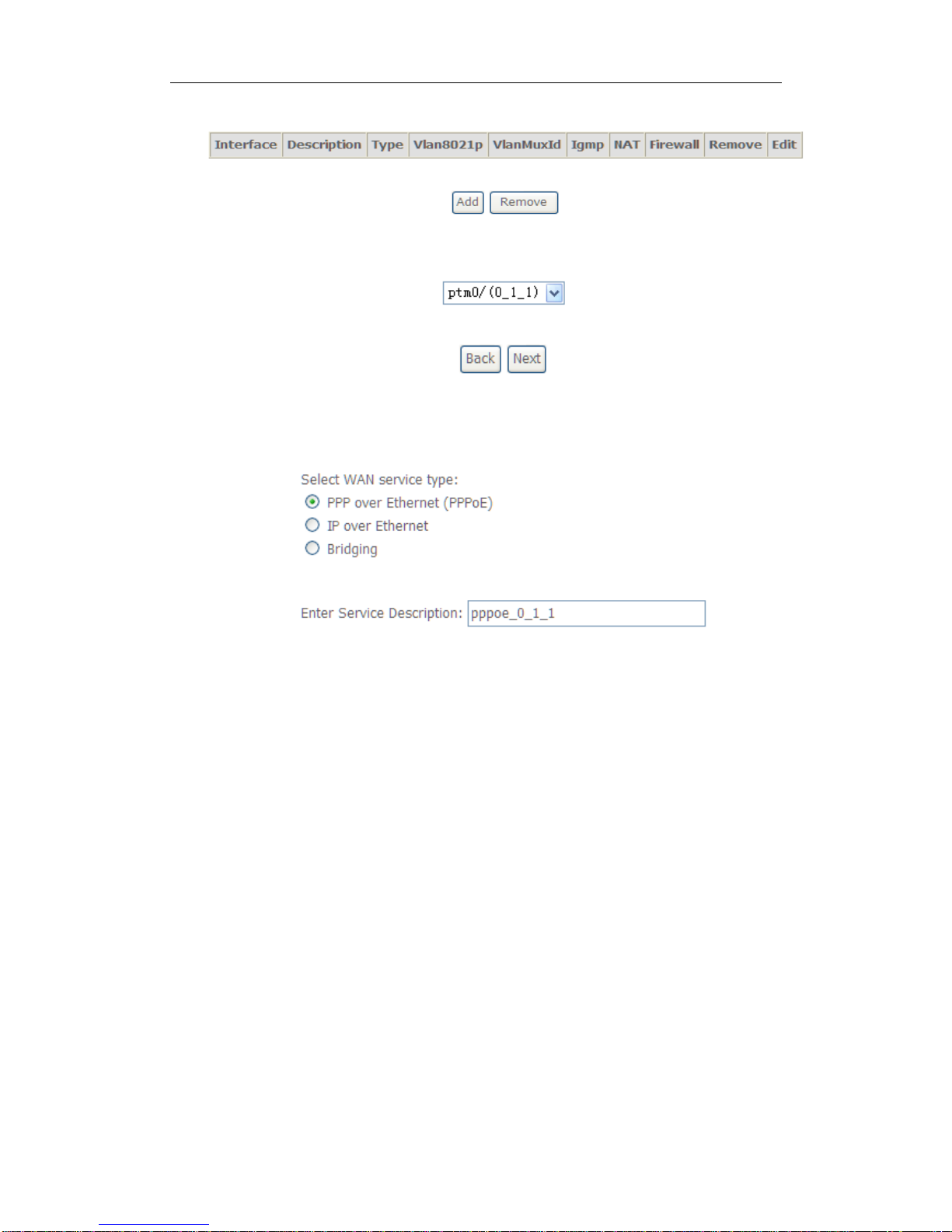

3. Click WAN Service from the left menu.
4.Click Add to select a layer 2 interface for this service and then click Next.
5. Choose WAN service type, just choose PPPoE for example here. You can
enter your own service description here if you want and then click Next.
6. Input PPP Username & PPP Password and then click Next. The user
interface allows a maximum of 256 characters in the user name and a maximum
of 32 characters in the password.

WLAN VDSL Router User Manual
17

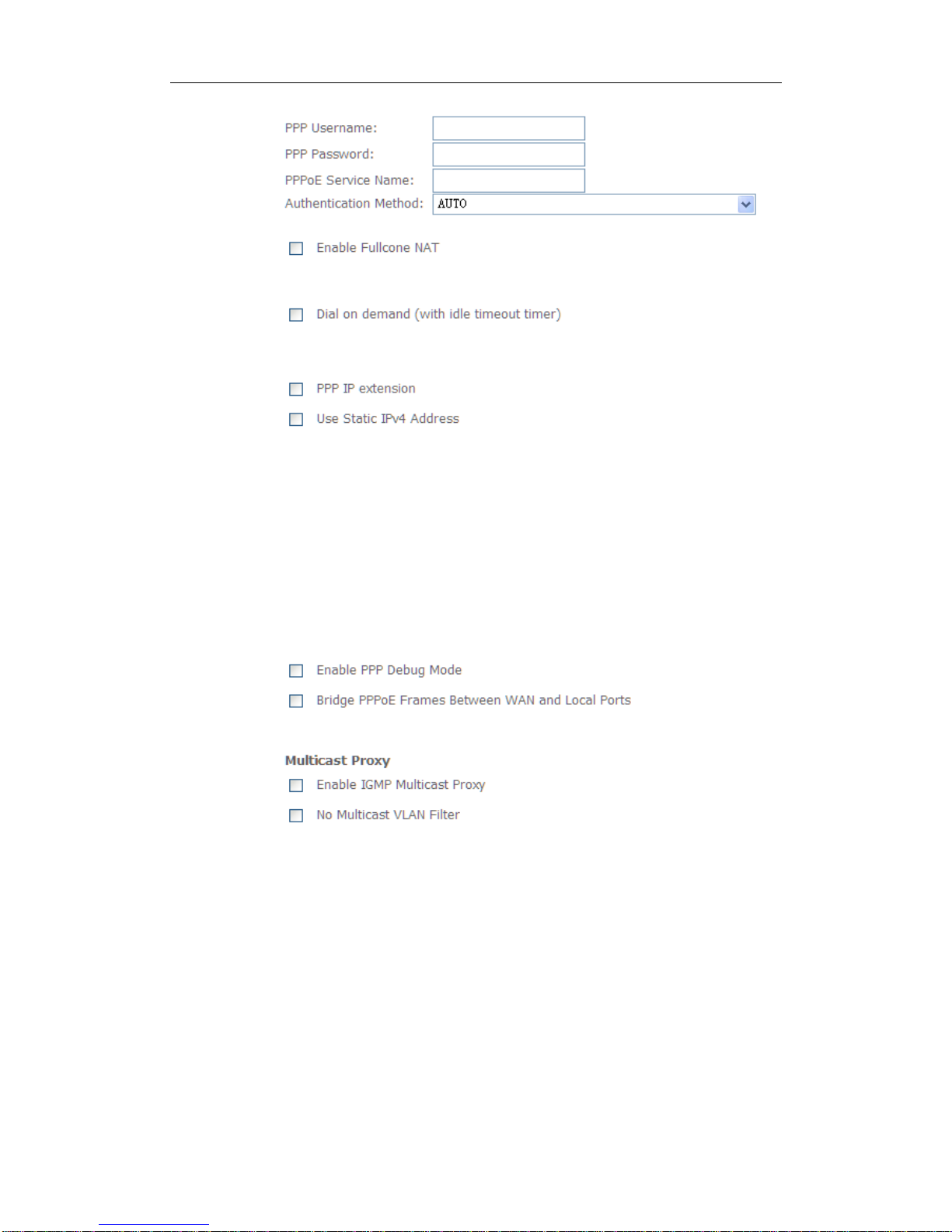

PPPoE service name can be blank unless your Internet Service Provider gives you a
value to enter.
Authentication method is default to Auto. It is recommended that you leave the
Authentication method in Auto, however, you may select PAP or CHAP if
necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for
PPPoA and 1492 for PPPoE. Do not change these values unless your ISP asks you
to.
Enable Full Cone NAT: In full cone NAT, all requests from the same private IP
address and port are mapped to the same public source IP address and port.
