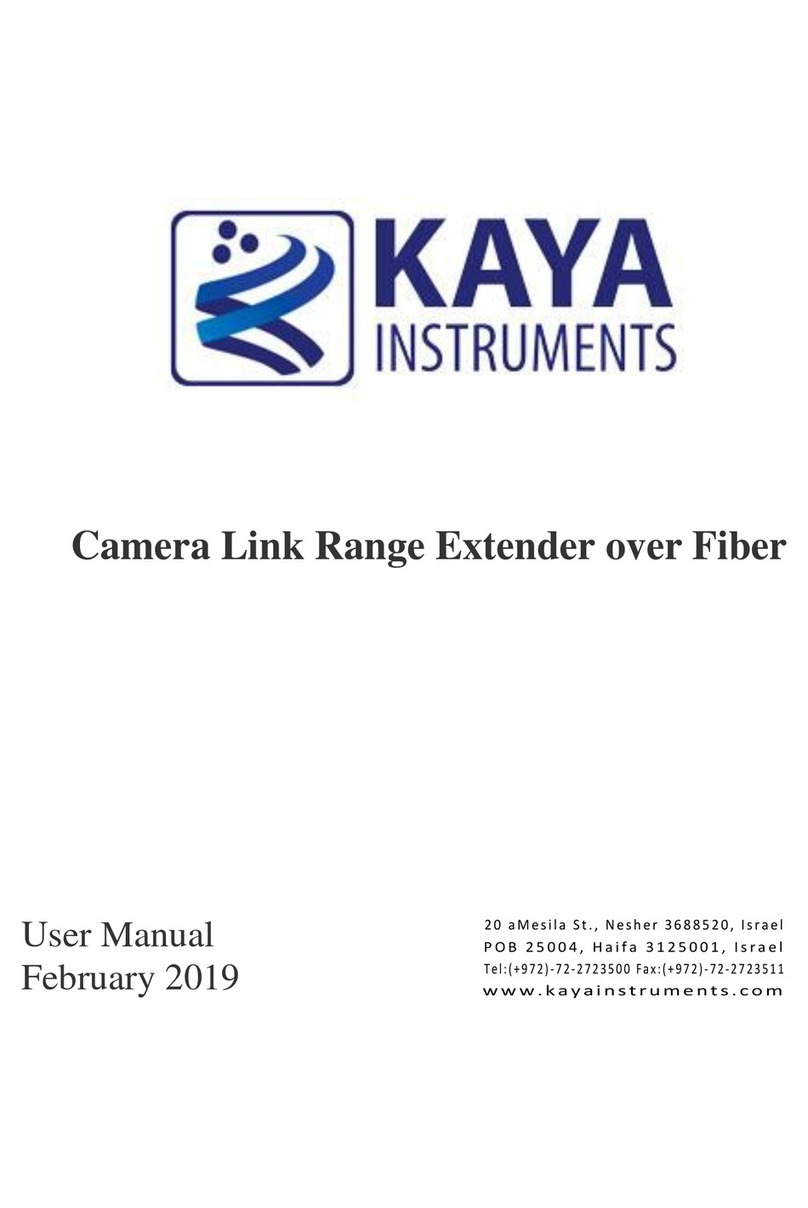

Kaya Instruments KY-CL2F-D/H User manual

Camera Link Range Extender
User Manualover Fiber
October
2022
-
Rev
3.0
Sky Blue Microsystems GmbH
Geisenhausenerstr. 18
81379 Munich, Germany
[phone], [email protected]
www.skyblue.de
In Great Britain:
Zerif Technologies Ltd.
Winnington House, 2 Woodberry Grove
Finchley, London N12 0DR
[phone], [email protected]
www.zerif.co.uk
International Distributors

www.kayainstruments.com
Page no. 1 | Figures and Tables
Table of Contents
1Figures and Tables ............................................................................................................................. 3
1.1 List of figures...................................................................................................................................... 3
1.2 List of tables....................................................................................................................................... 3
2Revision history.................................................................................................................................. 4
3Introduction ....................................................................................................................................... 5
3.1 Safety precautions ............................................................................................................................. 5
3.2 Disclaimer .......................................................................................................................................... 6
4Key Features ...................................................................................................................................... 7
4.1 Overview ............................................................................................................................................ 7
4.2 Features ............................................................................................................................................. 7
4.3 Product Applications.......................................................................................................................... 7
4.4 Optional accessories.......................................................................................................................... 7
5System Description ............................................................................................................................ 9
5.1 External View of the KY-EXT-CL system............................................................................................. 9
5.2 Power supply...................................................................................................................................... 9
5.3 LEDs description................................................................................................................................. 9
6Installation and Configuration........................................................................................................... 11
6.1 Installation procedure ....................................................................................................................... 11
6.1.1 Camera Link Frame Grabber installation........................................................................................... 11
6.1.2 Installing and Removing SFP+ Modules............................................................................................. 11
6.1.3 Precautions ........................................................................................................................................ 12
6.1.4 Installing the SFP+ Module ................................................................................................................ 12
6.1.5 Connecting the interface cable to SFP+ Module............................................................................... 13
6.1.6 Removing the SFP+ Module .............................................................................................................. 14
6.2 Completing the KY-EXT-CL system installation.................................................................................. 15
6.3 Reducing the fiber optic cable count ................................................................................................ 16
6.3.1 CWDM SFP+ option ........................................................................................................................... 16
6.3.2 Bidirectional (BIDI) SFP+ option......................................................................................................... 16
7Firmware............................................................................................................................................ 18
7.1 Terminal control ................................................................................................................................ 18
7.2 Terminal commands .......................................................................................................................... 18
7.2.1 KY-CL2F-H Host Unit .......................................................................................................................... 18

www.kayainstruments.com
Page no. 2 | Figures and Tables
7.2.2 KY-CL2F-D Device Unit configuration ................................................................................................ 18
7.2.3 KY-CL2F-H Host Unit configuration.................................................................................................... 19
7.3 Firmware update ............................................................................................................................... 19
7.4 IO Connector...................................................................................................................................... 20
8Electrical Specifications ..................................................................................................................... 22
8.1 Absolute maximum ratings................................................................................................................ 22
8.2 Operating conditions ......................................................................................................................... 22
9Mechanical Specifications ................................................................................................................. 24
9.1 Dimensions ........................................................................................................................................ 24
9.2 Weight................................................................................................................................................ 25
10 Appendices......................................................................................................................................... 26
10.1 Camera Link cables ............................................................................................................................ 26
10.2 Fiber cables........................................................................................................................................ 26
11 Ordering information......................................................................................................................... 27

www.kayainstruments.com
Page no. 3 | Figures and Tables
1Figures and Tables
1.1 List of figures
FIGURE 1:KY-EXT-CL EXTERNAL VIEW .........................................................................................................................9
FIGURE 2:KY-EXT-CL LEDS DESCRIPTION ..................................................................................................................10
FIGURE 3:KY-EXT-CL CONNECTION DIAGRAM ............................................................................................................11
FIGURE 4:INSTALLING AN SFP+ MODULE INTO A PORT.................................................................................................13
FIGURE 5:SFP+ MODULE WITH BALE CLASP OPEN AND DUST PLUG REMOVED..................................................................13
FIGURE 6:SFP+ MODULE WITH TX OUTPUT AND RX INPUT MARKED ..............................................................................14
FIGURE 7:CONNECTING THE CABLE TO SFP+ MODULE .................................................................................................14
FIGURE 8:OPENING THE BALE CLASP OF AN SFP+ MODULE...........................................................................................14
FIGURE 9:REMOVING AN SFP+ MODULE FROM THE PORT ............................................................................................15
FIGURE 10 :SFP+ MODULE WITH BALE CLASP OPEN .....................................................................................................15
FIGURE 11 :FIBER CABLE CONNECTIVITY ......................................................................................................................15
FIGURE 12 :BIDIRECTIONAL CAMERA LINK CONNECTION................................................................................................17
FIGURE 13 :SERIAL RJ45 CONNECTOR DIAGRAM ..........................................................................................................21
FIGURE 14 :EXTERNAL DIMENSIONS OF THE KY-EXT-CL CAMERA LINK SIDE PANEL............................................................24
FIGURE 15 :EXTERNAL DIMENSIONS OF THE KY-EXT-CL FIBER SIDE PANEL.......................................................................24
FIGURE 16 :EXTERNAL DIMENSIONS OF THE KY-EXT-CL ENCLOSURE BOX ........................................................................25
1.2 List of tables
TABLE 1:CAMERA LINK STATUS LEDS BEHAVIOR ..........................................................................................................10
TABLE 2:SFP+ STATUS LEDS BEHAVIOR......................................................................................................................10
TABLE 3:SERIAL EMULATED TERMINAL CONFIGURATIONS ..............................................................................................18
TABLE 4:TERMINAL COMMANDS FOR HOST UNIT.........................................................................................................18
TABLE 5:TERMINAL COMMANDS FOR DEVICE UNIT.......................................................................................................18
TABLE 6:HOST UNIT CONFIGURATION ........................................................................................................................19
TABLE 7:TOP I/O CONNECTOR PINOUT ......................................................................................................................20
TABLE 8:BOTTOM I/O CONNECTOR PINOUT................................................................................................................20
TABLE 9:ABSOLUTE MAXIMUM RATINGS.....................................................................................................................22
TABLE 10 :OPERATING CONDITIONS ...........................................................................................................................22
TABLE 11 :KY-EXT-CL TTL INPUT SPECIFICATIONS .......................................................................................................22
TABLE 12 :KY-EXT-CL TTL OUTPUT SPECIFICATIONS ....................................................................................................22
TABLE 13 :KY-EXT-CL RS422 /RS485 OUTPUT DC SPECIFICATIONS (DRIVER OUTPUTS).................................................23
TABLE 14 :KY-EXT-CL RS422 /RS485 INPUT DC SPECIFICATIONS (RECEIVER INPUTS)....................................................23
TABLE 15 :KY-EXT-CL RS232 INPUT SPECIFICATIONS...................................................................................................23
TABLE 16 :KY-EXT-CL RS232 OUTPUT SPECIFICATIONS................................................................................................23
TABLE 17 :ORDERING INFORMATION..........................................................................................................................27

www.kayainstruments.com
Page no. 4 | Revision history
2Revision history
Table 1 –Revision History
Version
Date
Notes
1.0
05.01.16
Initial Release
1.1
25.12.16
Minor updates and typo repairs
1.2
30.01.17
Added Additional configurations
1.3
08.04.18
Added SFP+ installation section
2.0
14.02.19
Review and minor corrections
2.1
04.08.21
Updated LED status indicators (table no.2)
3.0
11.10.22
Document restructure for better readability
Updated power supply section

www.kayainstruments.com
Page no. 5 | Introduction
3Introduction
3.1 Safety precautions
With your Camera Link Range Extender over Fiber system (KY-EXT-CL) in hand, please take the time to read
through the precautions listed below to prevent preventable and unnecessary injuries and damage to you,
other personnel, or property. Read these safety instructions carefully before your first use of the product, as
these precautions contain safety instructions that must be observed. Be sure to follow this manual to
prevent misuse of the product.
Caution! Read Carefully and do not disregard these instructions.
In the event of a failure, disconnect the power supply
Disconnect the power supply immediately and contact our sales personnel for repair. Continuing to use the product in
this state may result in a fire or electric shock.
If an unpleasant smell or smoking occurs, disconnect the power supply.
Disconnect the power supply immediately! Continuing to use the product in this state may result in a fire or electric
shock. After verifying that no smoking is observed, contact our sales personnel for repair.
Do not disassemble, repair or modify the product.
This may result in a fire or electric shock due to a circuit shortage or heat generation. Contact our sales personnel
before inspection, modification, or repair.
Do not place the product on unstable surfaces.
Otherwise, it may drop or fall, resulting in injury to persons or the camera.
Do not use the product if dropped or damaged.
Otherwise, a fire or electric shock may occur.
Do not touch the product with metallic objects.
Otherwise, a fire or electric shock may occur.
Do not place the product in dusty or humid environments, nor where water may splash.
Otherwise, a fire or electric shock may occur.
Do not wet the product or touch it with wet hands.
Otherwise, the product may fail or it may cause a fire, smoking, or electric shock.
Do not touch the gold-plated sections of the connectors on the product.
Otherwise, the surface of the connector may be contaminated by sweat or skin oil, resulting in contact failure of a
connector, malfunction, fire or electric shock due to static electricity discharge.
Do not use or place the product in the following locations.
Unventilated areas such as closets or bookshelves.
Near oils, smoke or steam.
Next to heat sources.
A closed (and not running) car where the temperature becomes high.
Static electricity replete locations
Near water or chemicals.
Otherwise, a fire, electric shock, accident or deformation may occur due to a short circuit or heat generation.
Do not place heavy objects on the product.
Otherwise, the product may be damaged.
Do not look into the fiber optic cable or the panel mounted SFP+ connectors.
In order to avoid possible exposure to (Class 1) laser energy.

www.kayainstruments.com
Page no. 6 | Introduction
Be sure to discharge static electricity from the body before touching any sensitive electronic components.
The electronic circuits in your computer and the circuits on the KY-EXT-CL device are sensitive to static electricity and
surges. Improper handling may seriously damage the circuits. In addition, do not let your clothing come in contact with
the circuit boards or components. Otherwise, the product may be damaged.
3.2 Disclaimer
forproductthisofusethebyensuemaythatdamageanyforresponsibilitynoassumewillInstrumentsKAYA
written,previouslywaswhatfromdetractingWithoutstated.previouslyasintended,thanotherpurposeany
by:causeddamagesanyforbilityresponsinotakewillcompanythethatadvisedbeplease
Earthquake, thunderstrike, natural disasters, a fire caused by use beyond our control, willful and/or
accidental misuse and/or use under other abnormal and/or unreasonable conditions.
Secondary damages caused by the use of this product or its unusable state (business interruption or
others).
Use of this product in any manner that contradicts this manual or malfunctions that may occur due to
connection to other devices. Damage to this product that is out of our control or failure due to
modification
Accidents and/or third parties that may be involved.
for:liabilityorresponsibilitynoassumesInstrumentsKAYAAdditionally,
Erasure or corruption of data caused by the use of this product.
Any consequences or other abnormalities following the use of this product
faultytherepairingbynotandbasischargeableaonitreplacingbyoutcarriedareproductthistoRepairs
thanlaternoreportedisitaslongasfailure,initialtheforofferedisreplacementchargeable-Nondevice.
product.theofdelivery-postweekstwo

www.kayainstruments.com
Page no. 7 | Key Features
4Key Features
4.1 Overview
KAYA Instruments’ Camera Link Range Extender over Fiber system (KY-EXT-CL)solution provides a Camera Link
video interface over fiber optic cable for distances up to 80km in single-mode and up to 300m in multi-
mode. Optic fiber is electrically isolated, hence it does not radiate nor is it susceptible to electromagnetic
interference, also eliminates the problems associated with grounding. The fiber cable is not easily tapped,
providing more secure communication. The range extender is capable of supplying Power to Camera over
PoCL. The system is constructed of two convertors, one on the camera side (KY-CL2F-D Device Unit) and one
on the Camera Link Frame Grabber side (KY-CL2F-H Host Unit). The system uses flexible SFP+ modules for
optical connection that can be easily changed. The range extender is able to provide bandwidth of up to
10Gbps over single fiber cable, supporting Camera Link Full (Decca) with 85 MHz clock rate.
4.2 Features
Solves distance limitation of Camera Link
Camera Link Full (Deca) support with up to 85 Mhz
Bidirectional communication over single fiber cable
Standard MDR26 connectors
Extension for distances up to 80km in single-mode and up to 300m in multi-mode
PoCL support
Flexible SFP+ module for Fiber connection
Easy configuration
External power supply
0°C to 50°C operating environment temperature (commercial grade)
-40°C to 70°C operating environment temperature (industrial grade) (optional)
4.3 Product Applications
High speed cameras
High definition cameras
Panoramic cameras
Defense remote systems
Surveillance
Robotic Vision
4.4 Optional accessories
12V 3A (36W) power supply

www.kayainstruments.com
Page no. 8 | Key Features
Camera Link cables
Fiber cables (Multi or Single mode)
SFP+ modules (Multi or Single mode)

www.kayainstruments.com
Page no. 9 | System Description
5System Description
5.1 External View of the KY-EXT-CL system
Each KY-CL2F-D/H (device/host) unit is housed in a compact, metal enclosure. Each unit has a power
connector, 2 Camera Link connectors (MDR), SFP+ cage, 2 x RJ45 connectors for GPIO and a Mini USB
Terminal interface, as shown in Figure 1.
SFP+
connector
Terminal
interface
CL
connector
Power
connector
CL
connector
GPIO
connectors
Figure 1: KY-EXT-CL external view
Each of the Camera Link and SFP+ connectors is paired with a status LED and there is a system status LED
(see 5.3 section describing the LED status).
Each unit also has mount ears for an easy and secure installation on any flat surface.
5.2 Power supply
This device requires 12V power supply for proper function. The positive pin of the power supply connected
to the bottom pin of the connector, shown as “12V”, the negative pin connected to the upper right pin of the
connector, shown as “GND”. The power connector shown in Figure 1. The power connector used in each KY-
CL2F-D/H (device/host) unit is Tini-QG RA PC 3 pin (TRA3M SERIES). The mating connector of the power
connector is TA3FX.
Please, refer to Electrical specification section of this document for exact Power Supply requirements.
5.3 LEDs description
Each unit has several status LEDs, as seen in Figure 2.

www.kayainstruments.com
Page no. 10 | System Description
SFP+
LED
System
status LED
CL
LED
CL
LED
Figure 2 : KY-EXT-CL LEDs description
The System status LED, located on the Camera link side, always slow pulses in green while the system is ON.
While in firmware update mode, this LED slow pulses orange. In any case of system failure, the LED will
constantly light orange.
The Camera Link LED’s behavior is described in Table 2:
LED state
Condition
Slow pulse red
No valid Camera Link link detected
Solid red
PoCL failure (Overcurrent/Under voltage/Overvoltage)
Solid green
Camera link is active
Table 2 : Camera Link status LEDs behavior
The SFP+ LED behavior is described in Table 3:
LED state
Condition
Fast flash red OR fast flash yellow
SFP+ is unplugged
Solid red [1]
SFP+ is not compatible
Slow pulse red OR slow pulse yellow
No signal detected on optic fiber
Fast flash green
Link is being established
Solid green
Link is active
Table 3 : SFP+ status LEDs behavior
1. Only exists in:
-Host: version 1.15 and older
-Device: versions 1.44 and older.

www.kayainstruments.com
Page no. 11 | Error! Not a valid bookmark self-
reference.
6Error! Not a valid bookmark self-reference.
6.1 Installation procedure
The KY-EXT-CL system, on the host side (KY-CL2F-H Host Unit) is connected to Camera Link Frame Grabber.
On the device side (KY-CL2F-D Device Unit) the system is connected to the camera, as described in Figure 3.
CL cables
CL cables
Camera Link
Frame Grabber
Power
supply Camera Link
Fiber cable
(up to 80 km)
Camera Link
Range
Extender
Host unit
Camera Link
Range
Extender
Device unit
Power
supply
Figure 3 : KY-EXT-CL connection diagram
6.1.1 Camera Link Frame Grabber installation
Before KY-EXT-CL system installation please make sure your Camera Link Frame Grabber and software
application are properly installed on the computer, according to the installation instructions document,
provided by the vendor of your Camera Link Frame Grabber.
6.1.2 Installing and Removing SFP+ Modules
The purpose of this section is to demonstrate how to install SFP+ transceiver module, attach an optical
network cable and remove an SFP+ transceiver module. It is necessary to understand the correct way of
installing and removing an SFP+ transceiver, as correct operation can protect the module from being
damaged and ensure its stable performance. Before removing or installing an SFP+ module, please follow the
precautions and installation instructions.

www.kayainstruments.com
Page no. 12 | Error! Not a valid bookmark self-
reference.
6.1.3 Precautions
1. Use an ESD-preventive wrist or ankle strap and follow its instructions for use.
2. Make sure there is no dust or any other foreign matter inside the SFP+ module, or blocking any of the
connectors.
3. Clean the optic surfaces of the fiber cables before plugging them into the optical ports of an SFP+
module.
4. Removing and inserting a module can shorten its useful life, so you should not remove and insert the
module any more often than is absolutely necessary.
5. Insert the clean dust covers into the module after the cables are removed. Do not remove the dust plug
until you are ready to attach the network interface cable.
6. Do not install or remove the SFP+ module with fiber-optic cables attached to it because of the potential
of damaging the cable, the cable connector, or the optical interfaces in the module.
7. Disconnect all cables before removing or installing a module.
8. Place the removed module on an antistatic mat or a static shielding bag if you plan to return it to the
factory.
9. Protect the line card by inserting clean module cage covers into the optical module cage when there is
no module installed.
10. Keep the protective dust plugs installed in the unplugged fiber-optic cable connectors and in the
transceiver optical bores until you are ready to make a connection.
6.1.4 Installing the SFP+ Module
In order to install the SFP+ module, follow these steps:
1. The CL Extender unit supports the following SFP+ modules:
KY-SFP-10G31-10 –Allows of up to 10Km connection over single mode fiber cable (duplex)
KY-SFP-10G85-3M –Allows of up to 300m connection over multi-mode fiber cable
KY-SFP-BD-10G-10 –Allows of up to 10Km connection over single mode fiber cable (simplex)
Note: We are offering variety of customizations, to fit your application exact needs.
Please, Contact KAYA Instruments’ representative for any additional module options, distance ranges, etc.
2. The SFP+ module has a bale clasp that used to remove or install the SFP+ module.
3. Close the bale clasp before inserting the SFP+ module.
4. Line up the module with the port and slide it into the port as shown in Figure 4.
5. Make sure that the male connectors on the module will align with the female connectors inside the cage.
6. Verify that the modules are completely seated and secured in their assigned receptacles on the line card
by firmly pushing on each module. In case the module is not completely seated and secured in the
receptacle, you will hear a click as the triangular pin on the bottom of the module snaps into the hole in
the receptacle.
7. Follow the exact steps to insert additional module into the second Camera Link Extender unit.

www.kayainstruments.com
Page no. 13 | Error! Not a valid bookmark self-
reference.
Figure 4 : Installing an SFP+ Module into a port
6.1.5 Connecting the interface cable to SFP+ Module
In order to properly connect the fiber optic cables, the following steps must be taken:
1. Remove the dust cups from the module as shown in Figure 5.
2. Remove the protective dust plugs from the fiber-optic cable connectors.
3. Preform the connection according to the instructions below:
a. A fiber cable should match an SFP+ type. If a single mode SFP+ is used a single mode fiber (yellow)
should be attached to it. If a multi-mode SFP+ is used a multi-mode fiber (orange) should be
attached.
b. On Fiber channel 0 both the TX and RX fiber cables must be connected. On channels 1 through 3 only
one fiber cable should be connected. This cable is connected between TX output (Marked with TX or
Arrow outwards the SFP+) on the Camera Link Extender Device unit and RX input (Marked with RX or
Arrow inwards the SFP+) on the Camera Link Extender Host unit, as shown in Figure 6.
c. Both the TX and RX fiber cables must be connected (for bidirectional communication, a single fiber
cable should be connected between TX and RX).
d. If more than a single cable is used to connect to the same Camera Link Extender unit, the cables
must be of the same type and length.
4. Insert the fiber cable into the module, as shown in Figure 7.
5. Firmly push on each cable, until you will hear a click.
6. Connect the other side of the fiber cable to the Camera Link Extender Host unit (KY-CL2F-H).
Figure 5 : SFP+ Module with bale clasp open and dust plug removed

www.kayainstruments.com
Page no. 14 | Error! Not a valid bookmark self-
reference.
Figure 6 : SFP+ Module with TX output and RX input marked
Figure 7 : Connecting the cable to SFP+ Module
6.1.6 Removing the SFP+ Module
In order to remove the SFP+ module, follow these steps:
1. Turn the camera and the computer off.
2. Disconnect and remove all interface cables from the ports.
3. Open the bale clasp on the SFP+ module with your index finger, or a small flat-blade screwdriver, in a
downward direction, as shown in Figure 8.
4. Grasp the module between your thumb and index finger and carefully remove it from the port, as shown
in Figure 9.
5. Insert the clean dust covers into the module, as shown in Figure 10.
Figure 8 : Opening the bale clasp of an SFP+ Module

www.kayainstruments.com
Page no. 15 | Error! Not a valid bookmark self-
reference.
Figure 9 : Removing an SFP+ Module from the port
Figure 10 : SFP+ Module with bale clasp open
6.2 Completing the KY-EXT-CL system installation
In order to properly complete the KY-EXT-CL system installation, the following steps must be taken:
1. Make sure the fiber cable is connected properly, as described in previous section. Please refer to Figure
11 as reference:
Figure 11 : Fiber cable connectivity
2. Connect the Camera link cables, as shown in Figure 11.
Device Unit
Host Unit
Base
Medium+Full
Medium+Full
Base

www.kayainstruments.com
Page no. 16 | Error! Not a valid bookmark self-
reference.
3. Connect the Power Adaptor to the KY-CL2F-D and KY-CL2F-H power supply connector. The KY-EXT-CL
(Host and Device) requires 12V power supply for proper function for camera. Please, refer section 8.2 of
this document for exact Power Supply requirements.
4. Connect the power supply to the camera (Regardless of the cameras PoCL support).
5. Turn the camera and the computer on.
6. Configure the Host Unit using terminal commands described in section 7.2.3.
The following parameters should be configured:
a. UART baud rate (uartbaud)
b. Camera link operation mode (format command)
7. Issue save command to save active configuration.
6.3 Reducing the fiber optic cable count
The system requires duplex fiber optical cable in order to properly operate, but sometimes it required
transferring the data over simplex fiber cable or installing the system into existing CWDM infrastructure.
Several options listed in the sections below exist in order to achieve the above. Please note that these
options are available for single mode fiber infrastructure only.
Please contact KAYA representative for details of those options.
6.3.1 CWDM SFP+ option
In CWDM option the SFP+ is replaced by CWDM SFP+ that is able to transmit and receive the data on specific
wavelength. By using these SFP+ modules, the system can be integrated into existing CWDM infrastructure
by usage of external CWDM MUX.
Please contact KAYA representative for details.
6.3.2 Bidirectional (BIDI) SFP+ option
This option allows using a simplex fiber cable in the system. In this option the SFP+ is replaced by
bidirectional (BIDI) SFP+ that transmits and receives on the same fiber core. Example connection is
described in Figure 12.

www.kayainstruments.com
Page no. 17 | Error! Not a valid bookmark self-
reference.
CL cables
CL cables
Camera Link
Frame Grabber
Power
supply Camera Link
Fiber cable
Camera Link
Range
Extender
Host unit
Camera Link
Range
Extender
Device unit
Power
supply
(optional)
Figure 12 : Bidirectional Camera link connection

www.kayainstruments.com
Page no. 18 | Firmware
7Firmware
7.1 Terminal control
A Mini USB port is available for individual link & general information status and firmware update. The port
uses a Silabs CP2101 chip. A driver from the Silabs website might have to be installed on certain PCs to gain
access to the terminal port. Free supporting driver can be found at:
http://www.silabs.com/products/mcu/pages/usbtouartbridgevcpdrivers.aspx
After driver installation and USB connection is acquired a serial emulated terminal (i.e Tera Term use is
recommended) can be used with the following configurations, described in Table 4:
Parameter
Value
Baud rate
115200
Start bits
1
Stop bits
1
Parity
None
Flow Control
None
Table 4 : Serial emulated terminal configurations
7.2 Terminal commands
The following commands are supported by the terminal; each command must be followed by carriage return
(Enter) in order to execute:
7.2.1 KY-CL2F-H Host Unit
Command
Description
firmware
Sets the system to firmware update mode. See 7.3 chapter for firmware update
information
status
Prints the system and link status and general information
pwr
Power over CL configuration
default
Reset user settings
save
Save user settings to flash
format
Configure device camera format, including; CL mode and camera scan type. Where
mode is mode according to Table 7
uartbaud
Set serial port baud rate according to Table 7
Table 5 : Terminal commands for Host unit
7.2.2 KY-CL2F-D Device Unit configuration
Command
Description
firmware
Sets the system to firmware update mode. See 7.3 chapter for firmware update
information
status
Prints the system and link status and general information
pwr
Power over CL configuration
default
Reset user settings
Save
Save user settings to flash
Table 6 : Terminal commands for Device unit

www.kayainstruments.com
Page no. 19 | Firmware
NOTE: The commands are not case sensitive.
7.2.3 KY-CL2F-H Host Unit configuration
In order to format the system, choose the required command sequence:
Command
Description
Available options
format
mode
1- Base mode
2- Medium mode
3- Full mode
4- Deca10(8Taps) mode
5- Deca8(10Taps) mode
type
1- AreaScan
2- LineScan
uartbaud
port
0-CameraLink
1-RS232_0
2-RS232_1
3-RS422
baud
0-9600
1-19200
2-38400
3-57600
4-115200
5-230400
6-460800
7-921600
Table 7 : Host unit configuration
Example:
To configure the host to uart baud rate 9600, Deca8 mode area scan, set the following commands:
a. uartbaud 0 0
b. format 5
7.3 Firmware update
1. The extender supports firmware update via USB using a serial emulated terminal. To initiate firmware
update the following steps should be taken:
2. Connect the USB cable to the extender and acquire connection using Silabs drivers (drivers need to be
downloaded manually if an automatic download isn’t initiated).
3. Open serial emulated terminal (usage of Tera Term terminal is recommended) and set serial
communication protocol as described in Table 4.
4. In the terminal window type “status” followed by carriage return and checks the current firmware
version.
5. Choose the firmware update option by entering “firmware” followed by carriage return and wait for the
following message: "Now starting firmware update, please start file transfer using XMODEM:"
