KAYA CoaXPress User manual

CoaXPress™ Range Extender over Fiber
User Manual
4201
2 0 a M e s i l a S t . , N e s h e r 3 6 8 8 5 2 0 , I s r a e l
P O B 2 5 0 0 4 , H a i f a 3 1 2 5 0 0 1 , I s r a e l
T e l : ( + 9 7 2 ) - 72- 2 72 3 5 0 0 F a x : ( + 97 2 ) - 72- 2 7 2 3 51 1
w w w . k a y a i n s t r u m e n t s . c o m

CoaXPress™ Range Extender over Fiber User Manual
1
1Figures and Tables ..................................................................................................................2
2Introduction.............................................................................................................................3
2.1 Safety Precautions........................................................................................................3
2.2 Disclaimer....................................................................................................................4
3Key Features............................................................................................................................6
3.1 Overview......................................................................................................................6
3.2 Features........................................................................................................................6
3.3 Product Applications....................................................................................................7
3.4 Related documents and accessories .............................................................................7
4System Description .................................................................................................................8
4.1 External View of the KY_FEXT .................................................................................8
4.2 Power supply................................................................................................................8
5Installation and Connectivity..................................................................................................11
5.1 Installation procedure...................................................................................................11
5.2 Bidirectional (BIDI) SFP option..................................................................................15
5.3 CWDM Option.............................................................................................................16
6Firmware .................................................................................................................................17
6.1 Terminal control...........................................................................................................17
6.2 Firmware update ..........................................................................................................18
7Electrical Specifications..........................................................................................................19
7.1 Absolute maximum ratings..........................................................................................19
7.2 Operating conditions....................................................................................................19
8Mechanical Specifications.......................................................................................................20
8.1 Dimensions ..................................................................................................................20
9Appendices..............................................................................................................................21
9.1 CoaXPress cables.........................................................................................................21
9.2 Fiber cables..................................................................................................................21
10 Ordering information .............................................................................................................22
10.1 Ordering information...................................................................................................22
Contents

CoaXPress™ Range Extender over Fiber User Manual
2
Figures
FIGURE 1:KY_FEXT EXTERNAL VIEW ............................................................................................................ 8
FIGURE 2:KY_FEXT POWER CONNECTOR....................................................................................................... 9
FIGURE 3:KY_FEXT COAX SIDE LEDS........................................................................................................... 9
FIGURE 4:KY_FEXT FIBER SIDE LEDS........................................................................................................... 9
FIGURE 5:KY_FEXT CONNECTION DIAGRAM ............................................................................................... 11
FIGURE 6:SINGLE CONNECTIVITY ORDER ...................................................................................................... 12
FIGURE 7:DUAL CONNECTIVITY ORDER......................................................................................................... 13
FIGURE 8:QUAD CONNECTIVITY ORDER ........................................................................................................ 13
FIGURE 9:MODULE WITH LOCKING................................................................................................................ 14
FIGURE 10 :MODULE WITH LOCKING.............................................................................................................. 14
FIGURE 11 :BIDIRECTIONAL CAMERA LINK CONNECTION .............................................................................. 15
FIGURE 12 :CWDM MODE FOR SINGLE FIBER ................................................................................................ 16
FIGURE 13 :CWDM MODE FOR DUAL FIBER................................................................................................... 16
FIGURE 14 :EXTERNAL DIMENSIONS OF THE KY_FEXT ENCLOSURE BOX .................................................... 20
Tables
TABLE 1:CXP STATUS LEDS BEHAVIOR.......................................................................................................... 9
TABLE 2:SFP+ STATUS LEDS BEHAVIOR ...................................................................................................... 10
TABLE 3:SERIAL EMULATED TERMINAL CONFIGURATIONS........................................................................... 17
TABLE 4:TERMINAL COMMANDS ................................................................................................................... 17
TABLE 5:ABSOLUTE MAXIMUM RATINGS ...................................................................................................... 19
TABLE 6:OPERATING CONDITIONS................................................................................................................. 19
TABLE 7:ORDERING INFORMATION ............................................................................................................... 22
Revision History
Version
Date
Notes
1.0
25.12.13
Initial Release
1.1
21.2.14
Minor change in Part Number
1.2
19.11.14
CWDM options were added
1.3
26.07.15
BIDI option were added
1.4
26.7.16
Updated commands at Table 4
1Figures and Tables

CoaXPress™ Range Extender over Fiber User Manual
3
2.1 Safety Precautions
With your CoaXPress™ Range Extender over Fiber (KY_FXT) in hand, please take a minute to
read carefully the precautions listed below in order to prevent unnecessary injuries to you or other
personnel or cause damage to property.
Before using the product, read these safety precautions carefully to assure correct use.
These precautions contain serious safety instructions that must be observed.
After reading through this manual, be sure to act upon it to prevent misuse of product.
Caution
In the event of a failure, disconnect the power supply.
If the product is used as is, a fire or electric shock may occur. Disconnect the power supply
immediately and contact our sales personnel for repair.
If an unpleasant smell or smoking occurs, disconnect the power supply.
If the product is used as is, a fire or electric shock may occur. Disconnect the power supply
immediately. After verifying that no smoking is observed, contact our sales personnel for repair.
Do not disassemble, repair or modify the product.
Otherwise, a fire or electric shock may occur due to a short circuit or heat generation. For
inspection, modification or repair, contact our sales personnel.
Do not touch a cooling fan.
As a cooling fan rotates in high speed, do not put your hand close to it. Otherwise, it may cause
injury to persons. Never touch a rotating cooling fan.
Do not place the product on unstable locations.
Otherwise, it may drop or fall, resulting in injury to persons or failure.
If the product is dropped or damaged, do not use it as is.
Otherwise, a fire or electric shock may occur.
Do not touch the product with a metallic object.
Otherwise, a fire or electric shock may occur.
Do not place the product in dusty or humid locations or where water may splash.
Otherwise, a fire or electric shock may occur.
Do not get the product wet or touch it with a wet hand.
Otherwise, the product may break down or it may cause a fire, smoking or electric shock.
Do not touch a connector on the product (gold-plated portion).
Otherwise, the surface of a connector may be contaminated with sweat or skin oil, resulting in
contact failure of a connector or it may cause a malfunction, fire or electric shock due to static
2Introduction

CoaXPress™ Range Extender over Fiber User Manual
4
electricity.
Do not use or place the product in the following locations.
● Humid and dusty locations
● Airless locations such as closet or bookshelf
● Locations which receive oily smoke or steam
● Locations close to heating equipment
● Closed inside of a car where the temperature becomes high
● Static electricity replete locations
● Locations close to water or chemicals
Otherwise, a fire, electric shock, accident or deformation may occur due to a short circuit or heat
generation.
Do not place heavy things on the product.
Otherwise, the product may be damaged.
Do not look into the fiber optic cable or the panel mounted SFP connectors.
In order to avoid possible exposure to (Class 1) laser energy.
2.2 Disclaimer
This product should be used for increasing the CoaXPress video transmission distance. It also can
be used for transmitting CoaXPress video over fiber in environments where standard coaxial cable
is not applicable. KAYA Instruments assumes no responsibility for any damages resulting from the
use of this product for purposes other than those stated.
Even if the product is used properly, KAYA Instruments assumes no responsibility for any damages
caused by the following:
- Earthquake, thunder, natural disaster or fire resulting from the use beyond our responsibility,
acts caused by a third party or other accidents, the customer’s willful or accidental misuse or use
under other abnormal conditions.
- Secondary impact arising from use of this product or its unusable state (business interruption or
others).
- Use of this product against the instructions given in this manual or malfunctions due to
connection to other devices.
KAYA Instruments assumes no responsibility or liability for:
- Erasure or corruption of data arising from use of this product.
- Any consequences or other abnormalities arising from use of this product, or damage of this
product not due to our responsibility or failure due to modification.
Introduction

CoaXPress™ Range Extender over Fiber User Manual
5
This product is covered with one year limited warranty. The customer is responsible for all shipping
charges to return the faulty device to KAYA Instruments and back.
Repair of this product, out of warranty period, is carried out by replacing it on a chargeable basis,
not repairing the faulty devices.
Introduction

CoaXPress™ Range Extender over Fiber User Manual
6
3.1 Overview
KAYA Instruments’ CoaXPress Range Extender over Fiber (KY_FEXT)provides a high
resolution stream interface for distances of up to 10km over single-mode optic fiber and up to 300m
over multi-mode optic fiber. Optic fiber is electrically isolated, hence it does not radiate nor is it
susceptible to electromagnetic interference, also eliminates the problems associated with grounding.
The fiber cable is not easily tapped, providing more secure communication. The system is
constructed of two convertors, one on the camera side (KY_FEXT_D) and one on the frame grabber
side (KY_FEXT_H). The camera side converter can provide power to the camera over CoaXPress
link, while the host side converter can sink power from the frame grabber. The converters use
flexible SFP+ modules for optical connection that can be easily changed. The range extender is able
to provide a downlink of up to 6.25Gbps (CXP6) and uplink of 20.83Mbps per each link.
3.2 Features
CoaXPress V1.1 compatible
Both ends of CXP6 is supported with up to 6.25 Gbps downlink, 20.83 Mbps uplink
Extension for distances up to 10km with single-mode optic fiber and up to 300m with multi-
mode optic fiber
Bidirectional CoaXPress communication
Flexible SFP+ module for optic fiber connection
DIN 1.0/2.3 Connector for CoaXPress link
Plug and Play , no need to configure
Power over CoaXPress (PoCXP) support
0°C to 50°C operating environment temperature
3Key Features

CoaXPress™ Range Extender over Fiber User Manual
7
3.3 Product Applications
High speed cameras
High definition cameras
Panoramic cameras
Defense remote systems
Surveillance
Robotic Vision
3.4 Related documents and accessories
Documents:
Japan Industrial Imaging Association (JIIA NIF-001-2010)
Optional accessories:
24V 72W power supply
Key Features

CoaXPress™ Range Extender over Fiber User Manual
8
4.1 External View of the KY_FEXT
Each KY_FEXT unit is housed in a compact, metal enclosure. Each unit has a power connector, 4
coax connectors, 4 SFP+ cages and a Mini USB Terminal interface, as shown in Figure 1.
Coax
connectors
Terminal
interface SFP+ connectors Power connector
Figure 1: KY_FEXT external view
Each of the 4 coax and SFP+ connector is paired with a status LED and there is a system status
LED (see Table 1 and Table 2 describing the LED’s behavior).
Each unit also has mount ears for an easy and secure installation on any flat surface.
4.2 Power supply
This device requires 24V power supply for proper function. The Host side of the extender is
compatible with PoCXP standard and therefore doesn’t require external power supply, once the
Frame Grabber supports this feature too.
At the Device side, external power supply must be used. Please, refer to Electrical specification
section of this document for exact Power Supply requirements.
Below is shown the power supply connector of the KY_FEXT unit. An optional power supply or
user selectable must be connected to this on the device side extender box.
Connect the positive wire from the power supply to the “+” connector, connect the GND pin of
connector to the ground wire and the negative wire to the “-“ connector, as seen in Figure 2.
4System Description

CoaXPress™ Range Extender over Fiber User Manual
9
Positiv wire from
power supply Negative wire from power supply
Ground wire from
power supply or
external grounding
Figure 2: KY_FEXT power connector
Each unit has several status LEDs, as seen in Figure 3 and Figure 4.
CXP LEDs
System
status LED SFP+ LEDs
Figure 3 : KY_FEXT coax side LEDs Figure 4 : KY_FEXT fiber side LEDs
The System status LED, located on the coax side, always slow pulses in green while the system is
ON. While in firmware update mode, this LED slow pulses orange. In any case of system failure,
the LED will constantly light orange.
The CXP LED’s behavior is described in Table 1:
LED state
Condition
Slow pulse red
No valid CoaXPress low speed link detected
Solid red
PoCXP failure (Overcurrent/Under voltage/Overvoltage)
Fast flash green
CoaXPress link speed is being negotiated
Solid green
CoaXPress link is active
Table 1 : CXP status LEDs behavior
System Description

CoaXPress™ Range Extender over Fiber User Manual
10
The SFP+ LED’s behavior is described in Table 2:
LED state
Condition
Fast flash red
SFP+ is unplugged
Solid red
SFP is not compatible
Slow pulse red
No signal detected on optic fiber
Fast flash green
CoaXPress link speed is being negotiated
Solid green
CoaXPress link is active
Table 2 : SFP+ status LEDs behavior
System Description

CoaXPress™ Range Extender over Fiber User Manual
11
5.1 Installation procedure
The KY_FEXT system, on the host side (KY_FEXT_ H unit), is connected to the frame grabber.
On the device side (KY_FEXT_D unit), the system is connected to the camera, as described in
Figure 5:
CXP cables
CXP cables
Komodo -
CoaXPress
Frame Grabber
Power
supply
Camera
Fiber cables
(up to 10 km)
CoaXPress
Range
Extender
CoaXPress
Range
Extender
CH 0
CH 0
Figure 5 : KY_FEXT connection diagram
5 Installation and Connectivity

CoaXPress™ Range Extender over Fiber User Manual
12
In order to properly use the KY_FEXT system, the following steps must be taken for initial power up:
1. Make sure there is no dirt or any other foreign matter inside the SFP+ module, or blocking
any of the connectors.
2. Make sure that the male connectors on the SFP+ module will align with the female
connectors inside the cage.
3. Insert the module(s) into the KY_FEXT and close the locking mechanism (*).
4. Connect the fiber cables using one of the configurations available:

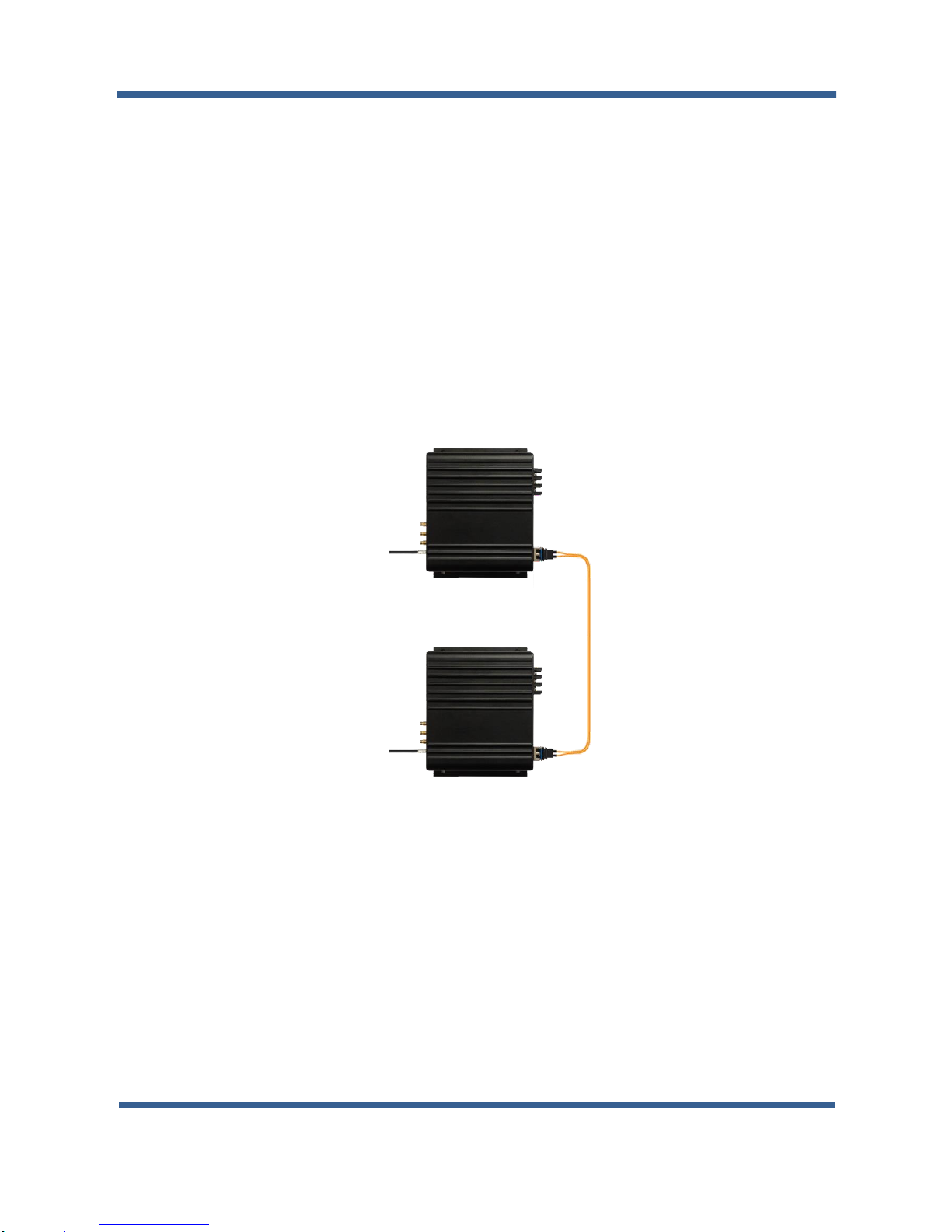

4.1. Single connectivity, as described in Figure 6:
Figure 6 : Single connectivity order
Installation and Connectivity
KY-FEXT-D
KY-FEXT-H
CH 0
CH 0

CoaXPress™ Range Extender over Fiber User Manual
13
4.2. Dual connectivity, as described in Figure 7:
Figure 7 : Dual connectivity order
4.3. Quad connectivity, as described in Figure 8:
Figure 8 : Quad connectivity order
Installation and Connectivity
KY_FEXT_D
KY_FEXT_H
KY_FEXT_D
KY_FEXT_H
CH 0
CH 0
CH 0
CH 0

CoaXPress™ Range Extender over Fiber User Manual
14
5. Connect the Coax cables in the right order, as shown in Figure 6, Figure 7 or Figure 8.
6. Connect the Power Adaptors to the 2 KY_FEXT units (connecting the power supply to the
KY_FEXT unit is optional; if the unit is connected to a frame grabber with a PoCXP option
available).
7. Turn the camera and the frame grabber on and start your application software.
(*) The KY_FEXT system supports the following SFP+ modules:
1. KY-SFP-10G31-10 –Allows of up to 10Km connection over single mode fiber cable
2. KY-SFP-10G85-3M –Allows of up to 300m connection over multi-mode fiber cable
Note: to remove the SFP+ module, first remove the fiber cable connected to it, then open the SFP+
module’s locking mechanism (see Figure 9 and Figure 10) and remove module.
Rx
Tx
Rx
Tx
NOTES :
1. Link 0 of the extender must always be connected as power and controls are delivered with this port
2. A Fiber connection and CoaXPress connection must be done to the same port number all over the way
from camera to frame grabber.
3. A fiber cable should match an SFP type. If a single mode SFP is used a single mode fiber (yellow)
should be attached to it. If a multi-mode SFP is used a multi-mode fiber (orange) should be attached.
4. On Fiber channel 0 both the TX and RX fiber cables must be connected. On channels 1 through 3 only
one fiber cable should be connected. This cable is connected between TX output (Marked with TX or
Arrow outwards the SFP) on device unit and RX input (Marked with RX or Arrow inwards the SFP) on
host unit.
Installation and Connectivity
Figure 9 : Module with locking
mechanism closed
Figure 10 : Module with locking
mechanism open

CoaXPress™ Range Extender over Fiber User Manual
15
5.2 Bidirectional (BIDI) SFP option
This option allows reducing one fiber optic cable from the system. The total required number of
cables will be as number of CoaxPress cables. For example 4 link cameras will require 4 fiber
cables.
The KY_FEXT bidirectional system supports the following SFP+ modules simultaneously:
1. KY-BSFP-10G33-10 and KY-BSFP-10G23-10 –Allows of up to 10Km bidirectional connection
over single fiber cable.
In this option the SFP in link 0 is replaced by bidirectional (BIDI) SFP that transmits and receives
on the same fiber cable. Example connection for four link camera is described in Figure 11.
CXP cables
CXP cables
Komodo -
CoaXPress
Frame Grabber
Camera
Fiber
cables
CoaXPress
Range Extender
CoaXPress
Range Extender
CH 0
CH 0
Figure 11 : Bidirectional camera link connection
Installation and Connectivity
Installation and Connectivity

CoaXPress™ Range Extender over Fiber User Manual
16
5.3 CWDM Option
In CWDM each optical SFP module operates at different wavelength and then an optical
multiplexer is used to mix all the signals into a single fiber. In this mode the number of cables
required in the infrastructure can be reduced from 5 down to two cables or even single cable. The
CWDM also can be used to use the CoaXPress over existing infrastructure, sharing the same fiber
cables with other applications.
Two available CWDM modes (for single or dual fibers) are described in Figure 12 and Figure 13.
For assignment of CWDM wavelengths please contact KAYA Instruments representative.
CWDM
DE-MUX
CWDM
MUX
Camera
CoaXPress
Range Extender
Komodo -
CoaXPress
Frame Grabber
Single Fiber
infrastructure
4 Fiber
cables
4 Fiber
cables
4 CXP
cables
4 CXP
cables
CoaXPress
Range Extender
CH 0
CH 0
Figure 12 : CWDM mode for single fiber
CWDM
DE-MUX
CWDM
MUX
Camera
CoaXPress
Range Extender
Komodo -
CoaXPress
Frame Grabber
1 Fiber
(Downlimk)
4 Fiber
cables
1 Fiber
(Uplink)
4 CXP
cables
CoaXPress
Range Extender
4 CXP
cables
CH 0
CH 0
Figure 13 : CWDM mode for dual fiber
Installation and Connectivity

CoaXPress™ Range Extender over Fiber User Manual
17
6.1 Terminal control
A Mini USB port is available for individual link & general information status and firmware update.
The port uses a Silabs CP2101 chip. A driver from the Silabs website might have to be installed on
certain PCs to gain access to the terminal port. Free supporting driver can be found at:
http://www.silabs.com/products/mcu/pages/usbtouartbridgevcpdrivers.aspx
After driver installation and USB connection is acquired a serial emulated terminal (i.e. Tera Term
use is recommended) can be used with the following configurations, described in Table 3:
Parameter
Value
Baud rate
115200
Start bits
1
Stop bits
1
Parity
None
Flow Control
None
Table 3 : Serial emulated terminal configurations
The following commands are supported by the terminal; each command must be followed by
carriage return (Enter) in order to execute:
Command
Description
firmware
Sets the system to firmware update mode. See 6.2 chapter for firmware update
information
status
Prints the system and individual link status and general information
pwr <x>
Sets the PoCXP state of the device unit according to <x>:
0. Off - No power is provided to CXP
1. Auto –Connection of PoCXP compatible device is automatically detected
2. On –power is always provided to CXP
save
Saves the configured parameters to unit nonvolatile memory
default
Resets the unit to default configuration
Table 4 : Terminal commands
NOTE: The commands are not case sensitive.
6Firmware

CoaXPress™ Range Extender over Fiber User Manual
18
6.2 Firmware update
1. The extender supports firmware update via USB using a serial emulated terminal. To initiate
firmware update the following steps should be taken:
2. Connect the USB cable to the extender and acquire connection using Silabs drivers (drivers
need to be downloaded manually if an automatic download isn’t initiated).
3. Open serial emulated terminal (usage of Tera Term terminal is recommended) and set serial
communication protocol as described in Table 3.
4. In the terminal window type “status” followed by carriage return and checks the current
firmware version.
5. Choose the firmware update option by entering “firmware” followed by carriage return and
wait for the following message: "Now starting firmware update, please start file transfer
using XMODEM:"
6. At this point all the LEDs will turn off and the “System status LED” will slow pulse orange
indicating the extender is ready to receive the firmware binary file. Under “File” tab use the
terminal “transfer” capability using the XMODEM protocol to initiate the firmware update.
Choose “Send” and the firmware version: CXP_EXT_x_xx.rbf, when x_xx is the version
number.
7. If no firmware will be sent during 1 minute, or in case of an error the firmware update will
fail and return to previous operation mode.
8. A successful update will result in appropriate message and a reboot of the extender to new
firmware.
9. Check the firmware version by typing “status” followed by carriage return. Make sure that
the firmware version matches the version on the firmware update package supplied; that
would insure the success of the firmware update operation.
Firmware

CoaXPress™ Range Extender over Fiber User Manual
19
7.1 Absolute maximum ratings
Specification
Values
Power supply voltage
0V to 30V
Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 50°C
Table 5 : Absolute maximum ratings
7.2 Operating conditions
Parameter
Description
Minimum
Typical
Maximum
Vcc
Supply voltage
20.3V
24V
26 V
Icc (Host)
Supply Current from PoCXP or external
power supply (4 active channels)
-
0.25A
0.33A
Icc (Device)
Supply Current from external power
supply (4 active channels)
-
0.25A
2.61A (1)
IPoCXP
PoCXP Output current per link
0A
-
0.57A
Table 6 : Operating conditions
(1) In case all the 4 CXP channels supply 13.5W of power to connected camera
7Electrical Specifications
