Repotec RP-IPE302 User manual

User Guide
2-port Gigabit waterproof PoE Extender

- 1 -
Package Contents
Check the following contents of your package:
 PoE Extender x 1
 User Guide x 1
 Wrench x 1
 Accessories （ water joint ）
If any part is lost and damaged, please contact your local agent immediately.
Introduction
This Product is a Gigabit IP67 waterproof PoE extender independently developed by our company. It supports one
RJ45 (PD) port in and 90W input(IEEE802.3bt). Two ports have PSE function, each supporting up to 30W output, without
configuration, plug and play.
Professional room shell design, adapted to various harsh environments, with high stability, reliability, industrial level,
wide temperature. The whole machine does not need power adapter, so it is convenient for harsh outdoor environment .
reliable power for outdoor work A P, cameras etc.
Hardware Description
Front Panel

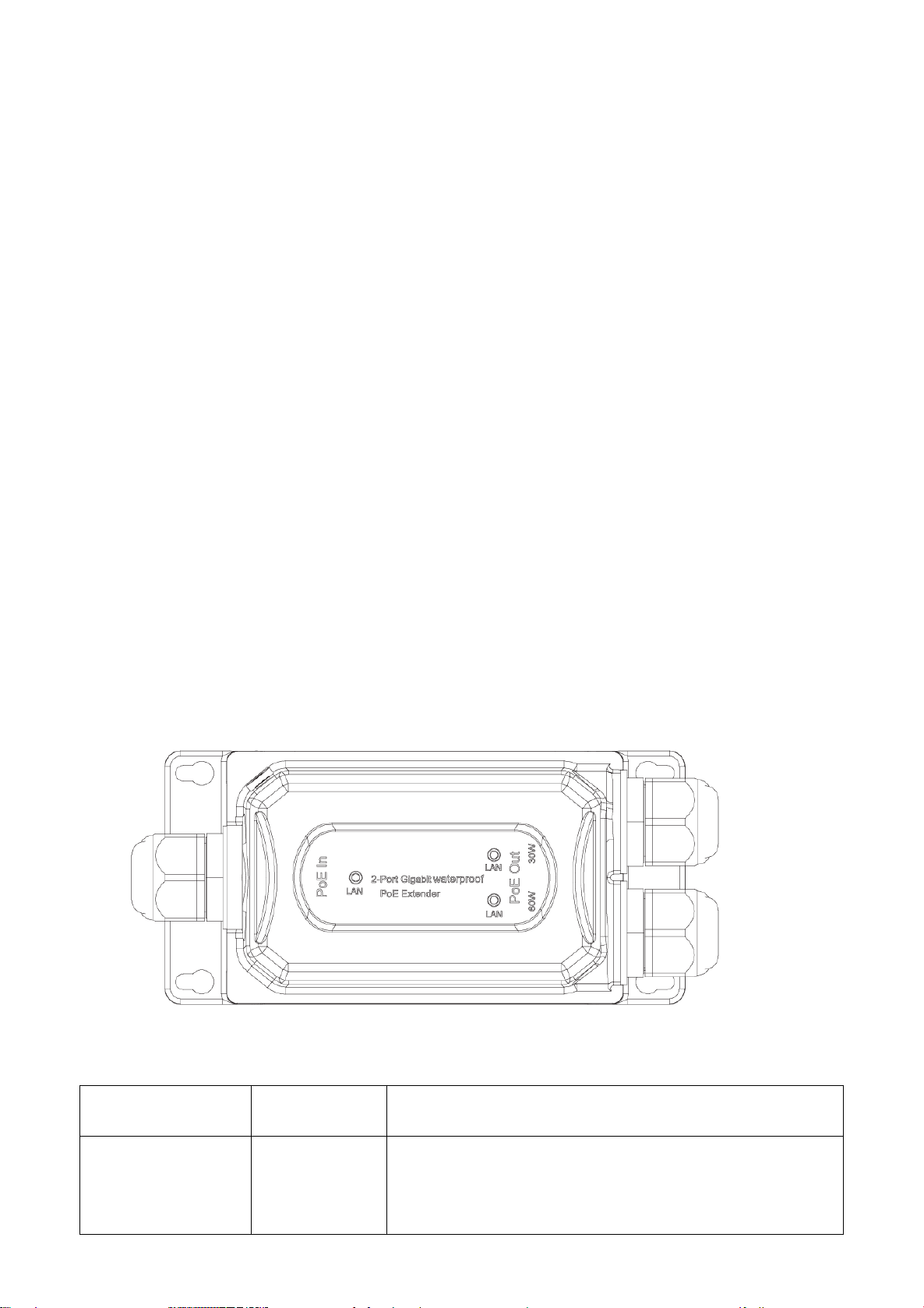

The front panel composed by PSE output port，input port and relevant indicator, as shown below:
LED indicator
LED Color
Function
LAN Green
Off: No device is connected to the corresponding port
Light: Indicates the link through that port is successfully
established at 10/100/1000Mbps.
Blink: transmitting data and power

- 2 -
Left Panel
Schematic diagram of left panel: input port (PoE In) and grounding column, Standard network Cate5
cable (line diameter 5.5mm).
Right Panel
Schematic diagram of right panel: the output port (PoE out) requires the use of standard network cate5 cable
(Line diameter 5.5mm).
Installation
This part describes how to install your machine and make connections to it. Please follow the following instructions in
avoid of incorrect installation causing device damage and security threat.
The nuts of the waterproof joint should be tightened in full fit with the joint's thread and fit to the hexagon plane,
otherwise it is easy to get water and damage the machine;
Do not place the machine on an unstable case or desk. The machine might be damaged severely in case of a fall;
Make sure that the operating voltage is the same one labeled on the machine;
Do not open the chassis while the machine is operating or when electrical hazards are present to avoid electrical
shocks.

- 3 -
Desktop Installation
Install the machine on a desktop, place the machine carefully on the counter, the bottom is as follows:
Wall-mounted installation
Please follow these steps to install the machine:
First fix the four screws on the wall (screw cap diameter recommended 5.5-6.5mm) and turn the machine upside down.
Align the four fixing holes of the machine as shown below and hang the machine smoothly on the screws.
Application diagram of PoE injector：

- 4 -
Specifications
Model 2-port Gigabit waterproof PoE Extender
Port PoE in port:1 x 10/100/1000Mbps RJ45 port
PoE out port : 2 x 10/100/1000Mbps RJ45 port
Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at,
IEEE802.3bt，IEEE802.3x
Network Media(Cable)
10BASE-T: UTP category 3,4,5 cable (≤100m)
100BASE-TX: UTP category 5 cable (≤100m)
1000BASE-T: UTP category 5e cable (≤100m)
Dimensions (L*W*H) 150*73*44MM
PoE input 90W Max
PoE power output 48-55V DC Port1:60W Max Port2:30WMax
PSE Power on RJ-45 Anode3/6 Cathode1/2
Anode4/5 Cathode7/8
Temperature Operating Temperature: -20°C ~ 60 °C
Storage Temperature
：
-40
°
C ~ 80
°
C
Humidity Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Waterproof rate IP67
Hazardous rating IK10
