Kaysuda SP200 User manual

Speaker Phone
User Manual

1. Package Contents
2. Product introduction
SP200 is Smart Wireless Conference speakerphone. This product can connect with
PC, tablet and smartphone via Bluetooth or USB. It supports omnidirectional
microphone and high communication quality speaker to realize it can play and
receive voice of 360in long distance. It is small and portable, convenient fixed
office and mobile office.
○
1Power on/off button
○
2switch mode button
○
3Volume up button
○
4Microphone mute button
○
5Volume down button
○
6Answering/hanging up/Rejecting call button
○
7Microphone
○
8Micro USB port
○
9Wireless Connection Dongle

3. How to power on/off
Press power button and hold on 3s, the white power indicator LED will light up
and the switch mode LED will flash.
If you want to use USB mode, please tap the switch mode button; If you want to
use Bluetooth mode, please search Bluetooth SPEAKERPHONE SP200 in your
target device.
Press power button and hold on 3s again, the device will power off and all LED will
be off.
4. How to charge
Please insert USB cable in the micro USB port of SP200. Then connect USB type A
interface with PC’s USB port or 5V external charger.
When the device is charging, the red power indicator LED will light up, the LED will
off when it is full charged.
*AC adapters are purchased separately
*only UL certified ITE power supply can be used. The electrical rated output is 5V
DC, 1A current is minimum required.

5. How to connect
1. Connect with PC
Please use USB cable to connect SP200 with target PC;
Press power button and hold on 3s, the power indicator LED will light
up and the input source switch LED will flash, then tap the switch
mode button to enable USB mode;
Please set the SP200 as default output and input audio device.
2. Connect to smartphone with Bluetooth
Press power button and hold on 3s, the white power indicator LED
will light up and the blue switch mode LED will flash. Then SP200 is
in the Bluetooth mode;
When host device has connected with SP200, the blue switch mode
indicator LED will be not flashing and keep lighting;
Press power button and hold on 3s again, the Bluetooth will power
off and the switch mode indicator LED will be off.

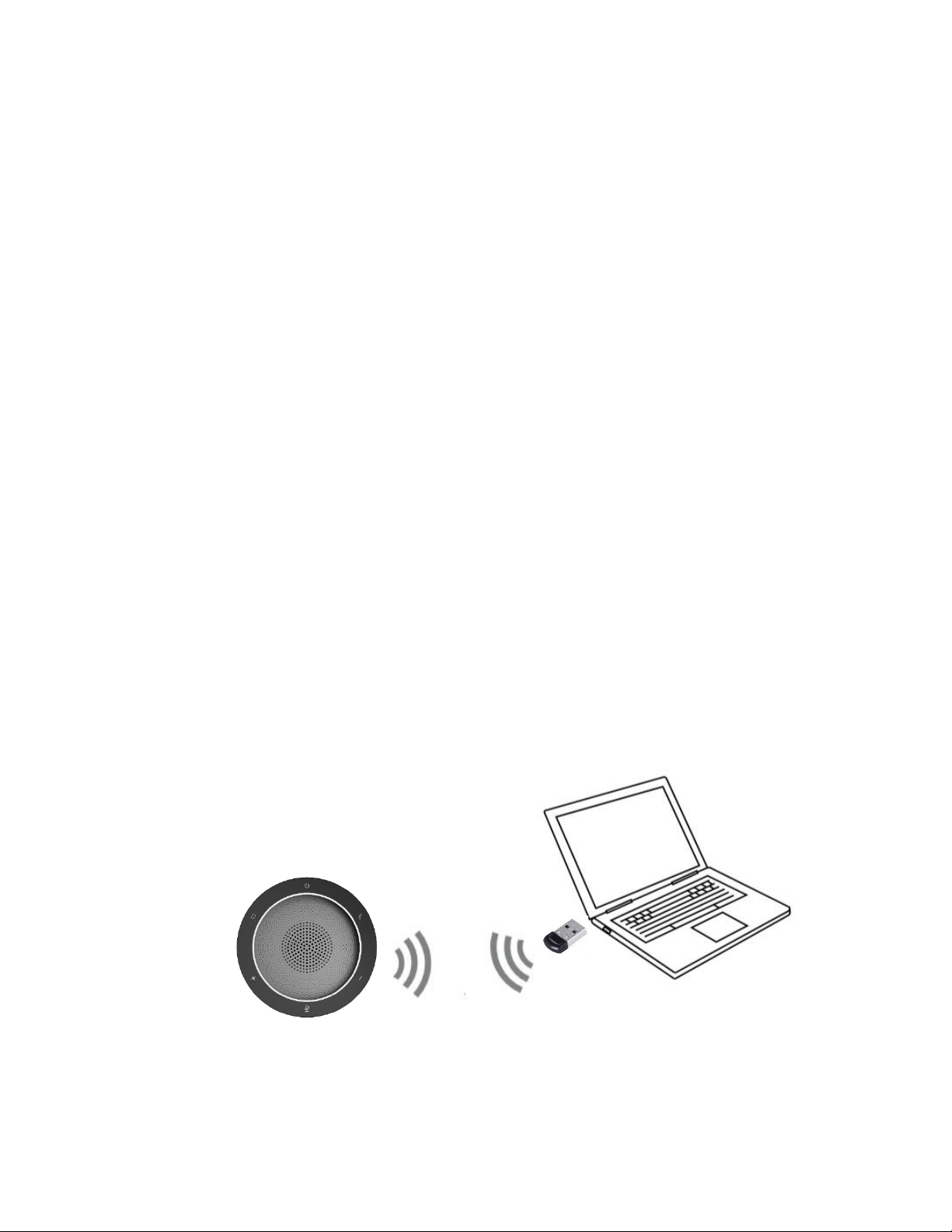

3. Connect to PC with Bluetooth
Plug Wireless dongle into any USB port of on your host PC and find
“Generic Bluetooth Radio” in device manager under system. If your
PC has internal Bluetooth module, please disable it firstly;
Press power button and hold on 3s, the white power indicator LED
will light up and the blue switch mode LED will flash. Then SP200 is in
the Bluetooth mode;
When host PC has connected with SP200, the blue switch mode
indicator LED will be not flashing and keep lighting;
Press power button and hold on 3s again, the Bluetooth will power
off and the switch mode indicator LED will be off.
Note:
*Ensure that all Bluetooth devices previously connected to the wireless
connection dongle are switched off.
*It is compatible with windows 10 not Windows 7/8.1, Mac and Linux. If you still
want to use this product, we strongly recommend that you could use USB mode
as above mentioned.
*This dongle is optional.
