kchibo KK-9803 User manual

1
Kchibo KK-9803 User’s Manual

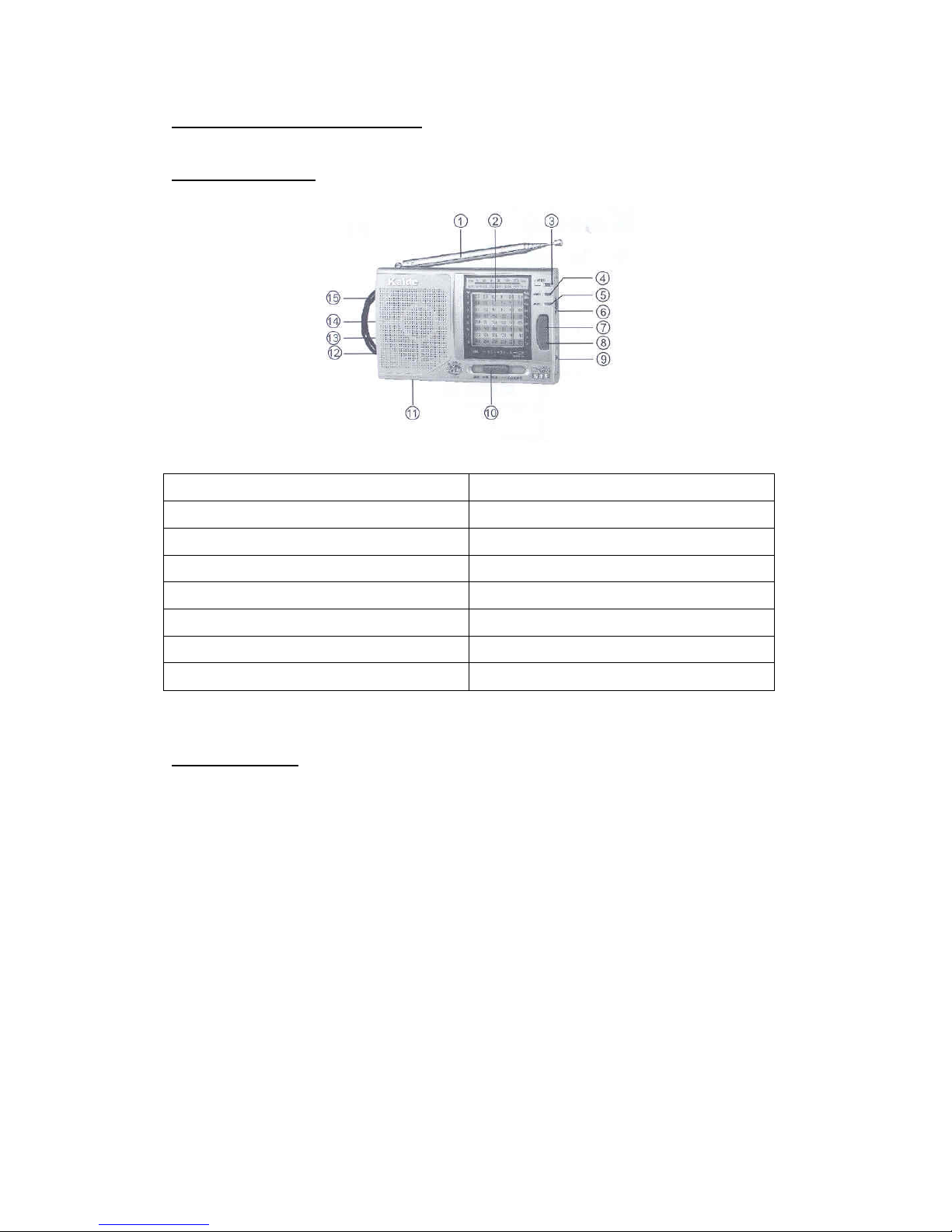

Picture Illustration
1. Antenna 9. Power
2. Frequency Display 10. Band Selector
3. Tuning Indicator 11. Battery Compartment
4. AM Led 12. Hand Strap
5. FM Led 13. D.C. Jack
6. Tuning Switch 14. Earphone Jack
7. AM Button 15. Volume Control
8. FM Button
Radio Operation
1. Install 2 AA batteries into the batteries compartment (11) or use a power adapter
to connect with the D.C. jack(13).
2. Turn on the radio (9).
3. Adjust the volume (15) to the desired level.
4. Press the FM button (8) for FM reception, the FM Led (5) will turn on.
5. Press the AM button (7) for AM/SW reception. User can select AM/SW 1-8 band
through the Band Selector (10). The AM Led will turn on.
6. Rotate the Tuning switch (6) to the desired station.
7. When the signal is strong, the Tuning Led (3) will turn on.
8. User may need to extend the antenna for better reception of FM and SW bands.
9. User may need to adjust the position of the radio for better reception of AM band.
10. When earphone is plugged in, the speaker will turn off automatically.

2
11. Press the Power button (9) to turn off the radio.
Specifications
1. Frequency
AM : 526.50 – 1606.5 KHz
FM 87 – 108 MHz
SW1 5.95-6.20 MHz
SW2 7.10 – 7.30 MHz
SW3 9.50 – 9.90 MHz
SW4 11.65 – 12.05 MHz
SW5 13.60 – 13.80 MHz
SW6 15.10 – 15.60 MHz
SW7 17.50 – 17.90 MHz
SW8 21.45 – 21.85 MHz
2. Sensitivity
AM <= 4mV/m
FM <= 20uV
SW <= 100uV
3. Selectivity >= 40 dB
4. Speaker : 57mm/4ohm/0.5W
5. Power : DC 3V or 2AA batteries
6. Power consumption <150mA
7. Output >=100mW
8. Measurement : 117 x 73 x 27 mm
9. Weight : 190g ( excluding batteries)
