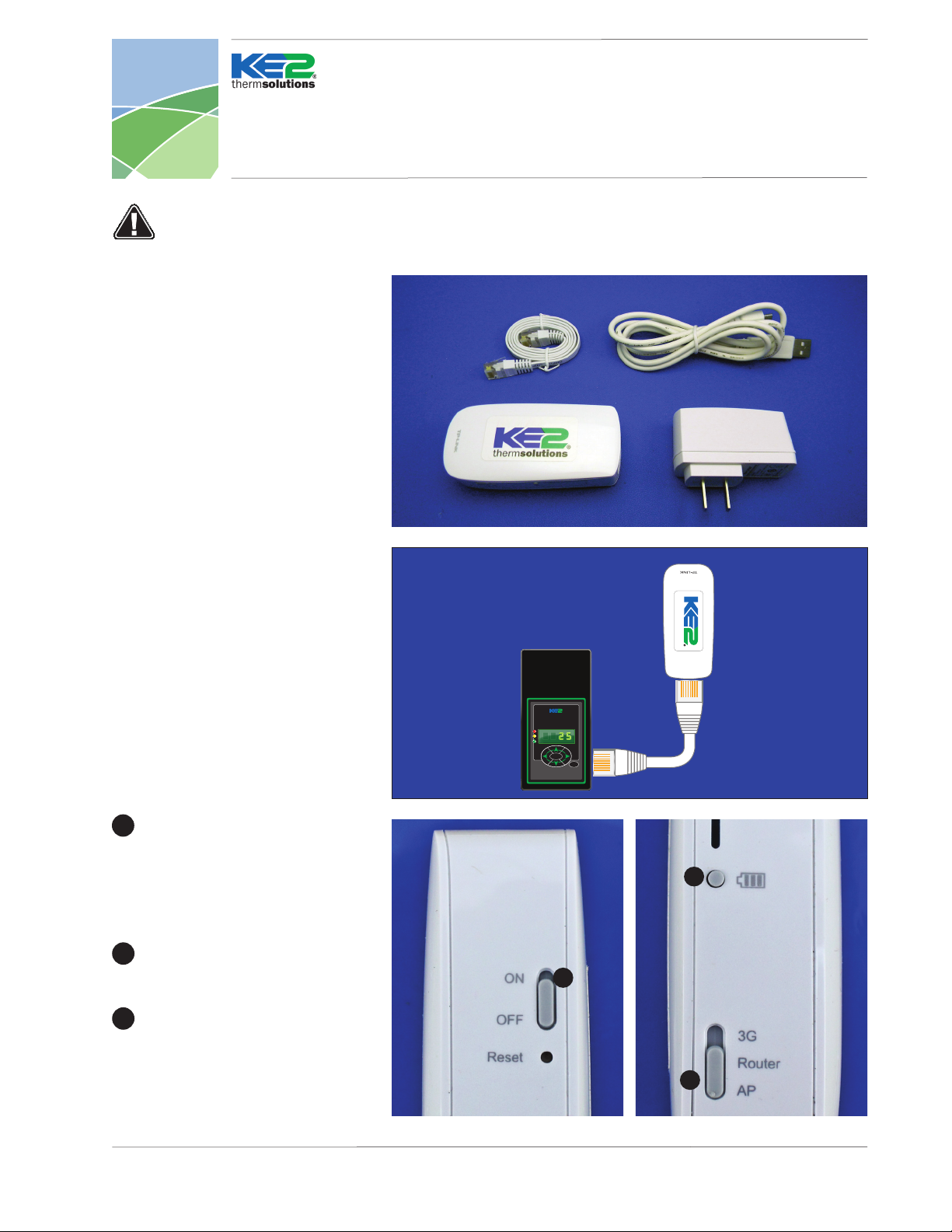

KE2 WiFi Service Tool (pn 20906)
Quick Start Guide
The KE2 WiFi Service Tool is the simplest,
most cost eective, way to access the
KE2 Evaporator Eciency’s Graphical
User Interface (GUI) or webpages of the
KE2 Evaporator Eciency (KE2 Evap)
controller. When connected to the KE2
Evap, the service tool creates nearly in-
stant wireless access to the webpages
on the controller.
Users may connect their cellphones,
tablets, or laptop computers to the un-
secured wireless network.
1Using the power switch, turn ON the
device.
2Pressing the battery indicator shows
the current charge held by the device.
3The device must be set to AP mode
to operate. The Router and 3G mode
have been disabled.
1
2
3
KE2 EvaporatorEfficiency
TM
thermsolutions
ENTER
BACK
thermsolutions
Using the RJ-45 cable (included with the
KE2 WiFi Service Tool), connect the KE2
WiFi Service Tool to the KE2 Evaporator
Eciency controller.
The KE2 WiFi Service Tool should only be connected to individual or groups of KE2 Evaporator Eciency Controller(s) with their
factory programmed IP address(es). They must also only be connected to the Refrigeration Network and should not be con-
nected to a controller or group of controllers integrated into the customer’s existing network. The existence of multiple DHCP
Servers can result in temporary network disruption.

© Copyright 2013 KE2 Therm Solutions, Inc., Washington, Missouri 63090
KE2 WiFi Service Tool
Quick Start Guide
Q.5.26 August 2013
Page 2
4To connect to the KE2 WiFi Service
Tool, click the wireless connection icon
in the bottom right hand corner of the
computer screen. It will open a small
window with a list of available networks.
5Select KE2 ServiceTool from the list,
6then, click Connect.
7When the connection has been suc-
cessfully made, the wireless network
should display ‘Connected’.
5
6
7

Q.5.26 August 2013
Page 3
© Copyright 2013 KE2 Therm Solutions, Inc., Washington, Missouri 63090
KE2 WiFi Service Tool
Quick Start Guide
8Once connected to the device,
launch the web browser of your pref-
erence, i.e. Internet Explorer, Google
Chrome, Mozilla Firefox, Apple Safari,
etc.
9Find the IP address from the white
label on the backside of the KE2
Evaporator Eciency.
10 Enter the IP address of the control-
ler into their web browser’s address bar
and press enter.
11 The browser will display the control-
ler’s home screen (MasterView).
For detailed information about each
screen/page of the MasterView, see
Bulletin Q.1.19.
NOTE: With the onboard battery, the
KE2 WiFi Service Tool provides hours of
operation. The included USB cable may
also be plugged into the 120V adapter
for extended access.
IP-10.10.52.19
MAC
00:04:A3:14:E5:92
IP-10.10.52.19
MAC
00:04:A3:14:E5:92
9
11

© Copyright 2013 KE2 Therm Solutions, Inc., Washington, Missouri 63090
KE2 WiFi Service Tool
Quick Start Guide
Q.5.26 August 2013
Page 4
Hardware Specications
Protocol Standards
Using IEEE 802.11n technology;
IEEE 802.11g, IEEE 802.11b;
IEEE 802.3, IEEE 802.3u
Wireless Rate 150Mbps
Interface
1 10/100M adaptive LAN / WAN port supports auto-ip (Auto MDI / MDIX)
A USB 2.0 interface
A Micro USB charging port
Push button
Power switch
Mode select switch (Do Not Change)
Battery check button
Reset button
LED System status indication
Battery indicator
Antenna Built-in omni-directional antenna
Size 3.82in x 1.73in x 1.12in; 97mm x 44mm x 28.5mm (L x W x H)
Radio Parameters
Operating Mode AP (wireless AP) mode;
Other
Packing Accessories
KE2 WiFi Service Tool;
USB cable;
120/240V power switching transformer;
User Manual;
Environment Operating temperature: 32°F to 104°F (0°C to 40°C);
Storage temperature: -4°F to 140°F (-20°C to 60°C)
