Kelfar Technologies AK4 Pro SE User manual

AK4 Pro SE GUIDE/MANUAL
FIRMWARE VERSION 3

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
2
AK-4 PRO SPECIAL EDITION (SE) WORLD SCALE TUNING
SETUP GUIDE
Congratulations on your purchase of the AK-4 PRO SE WORLD SCALE TUNING, a Microtonal
keyboard converter device. With the AK-4, you can create authentic Microtonal music right from
your keyboard. We’ve combined all the features you love from the AK-1 and AK-2 Pro with
NEW innovations to make the AK-4 SE better and more enjoyable to use. Innovations include
class-compliant USB MIDI interface and Breath Controller/Expression Pedal (purchased
separately). It works best with the BCK-1 (Kelfar Technologies Breath Controller) available here:
http://kelfar.net/bck-1-breath-controller/
This easy-to-use world scale tuning keyboard converter is compatible with most major keyboard
brands and offers an incredible array of customization options right at your fingertips. Explore the
full potential of your music and enhance your performance with both Microtonal music and
Breath Expression.
The AK-4 PRO SE World Scale Tuning features:
•New, simple, intuitive design that makes it easy to create scale memory.
•Universal MIDI interface to connect with Mac and Windows devices via USB port.
•Breath Controller/Expression Pedal input with up to 9 factory presets Curves (Linear,
5*Exponential, Logarithmic, S -Type, N-Type)
•A lightweight, compact design, making it portable and easy to carry to gigs, concerts, or
jam sessions with friends.
And with the new AK-4 PRO SE World Scale Tuning, you have the ability to:
•Connect to TWO synthesizers at once.
•Adjust the pitch of each note in the octave (C/Do to B/Si) to -64 to +63 cents.
•Transpose Two synthesizers at once.
•Relay Control Change (CC) Midi Messages to Two Synthesizers.
•Send Breath Controller/Expressional pedal data to user-predefined 16 midi channels
•Turn off the Breath Controller instantly
•Program the Breath Controller/Expression Pedal functions via the Short-Cuts mode
The AK-4 PRO SE WORLD SCALE TUNING was created from over 11 years of direct,
personal experience and feedback from musicians around the world. We listened to your
comments, suggestions, tips and feedback, and incorporated them into the redesign of the AK-2.
The results? A powerful, simple, and flexible tool to help you create Microtonal music with ease.
Let your imagination soar with the AK-4 SE. Whatever music you dream of creating, the AK-4
SE makes it possible. Create better sounds with ease.
FREE lifetime updates are also provided by Kelfar Technologies on this product. Please be sure
to register your purchase on our website at www.kelfar.net. Registration enables us to contact you
directly to inform you of updates and upgrades.

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
3
Supported Instruments/Models Firmware 3.0 and up
Korg Pa80, Pa50, Pa60, Pa55Tr, Pa1&2x (Pro), Pa800, Pa3x series, Pa4x series, Pa1000, PA700
series, Pa500, P500 ORT, Pa600, Pa600QT, Triton Classic, Karma, Studio, Extreme, Le, Tr,
Micro X, X50, Kronos series (with firmware 2.3 and up), *M3 series, *Oasys, *Trinity, Korg Z1,
and Korg Prophecy. *Trinity series works in all modes , and MOSS mode in Universal Mode
(with firmware 3.0 and up).
Roland Fantom S, X, G, AX-Synth Shoulder Synthesizer (with firmware 2.6 and up), and models
with GS logo, FA-06/ FA-07/ FA-08/, EA-7
Yamaha Motif ES/ MO (preset scale only - Arabic 2) and instruments with XG logo, Tyros/Psr
series, Motif XS (Voice,Song,Pattern), and Motif XF (Voice,Song,Pattern), Genos, Montage6/
Montage7/ Montage8,
Ketron VEGA, SD5, SD1, and AUDYA series
Kontakt with a provided script - Kontakt Script (Native Instruments) with Transpose
Kurzweil K2600 and K2000 series
MOOG Sub Phatty and Sub 37
DSI / SEQUENTIAL Prophet X, XL, Prophet 6, 12, Pro 2, and OB-6 (Post-Midi Transpose)
MIDI Tuning Standard firmware 3.0 and up
World Scales Support (-64 cents to +64 cents)
Equal Tempered Tuning System
Micro Tuning System via User-Programmable Scales
Turkish ( Byselik, Rast, Ussak, Nikirz, Saba, Huazm, Siga, and more)
Byzantine (Modes 1,2,3,4,5,6,7,and 8)
Arabic (Bayati, Rast, Siga, Huseini, Hijaz, amd more)
Persian, Kurdish, and Syrian

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
4
Table of Contents
AK-4 PRO SPECIAL EDITION (SE) WORLD SCALE TUNING........................................... 2
SETUP GUIDE .............................................................................................................................. 2
SUPPORTED INSTRUMENTS/MODELS FIRMWARE 3.0 AND UP ..................................................... 3
TABLE OF CONTENTS..................................................................................................................... 4
BASIC UNIT FUNCTIONS................................................................................................................. 6
A. INITIAL SETTING AND VIEWING INSTRUMENT SELECTIONS ON POWER-UP......................... 8
B. UNIVERSAL MODE INITIAL SETTING AND VIEWING ON POWER-UP ...................................... 9
C. CHANGING PROGRAMMING/SELECTING THE PRIMARY &SECONDARY INSTRUMENTS ... 10
D. SHORT-CUTS MODE ................................................................................................................ 13
TABLE OF KEY VALUES (SUPPORTED BRANDS AND MODELS)................................................... 16
AK-4 PRO BREATH CONTROLLER CURVATURE........................................................................ 17
E. PROGRAMMING UNIVERSAL MODES 1/ 2(POLYPHONIC /TWO TRACKS)........................... 19
CONNECTING THE AK-4 PRO SE TO A KEYBOARD OR SYNTHESIZER ..................................... 21
F. PROGRAMMING THE UNIVERSAL MODE 3/6(MONOPHONIC/SINGLE TRACK).................. 22
G. PROGRAMMING THE UNIVERSAL MODE 4/7(POLYPHONIC 12 NOTES MAX) .................... 24
H. PROGRAMMING THE UNIVERSAL MODE 5/8(MONOPHONIC-LEGATO/SINGLE TRACK) . 25
I. PROGRAMMING USER SCALES (BANK 01 TO 09):................................................................... 27
OPERATING THE AK-4 PRO......................................................................................................... 28
1. STANDARD MODE ..................................................................................................................... 28
2. UNIVERSAL MODE.................................................................................................................... 28
3. USER SCALES ............................................................................................................................ 30
4. TRANSPOSITION........................................................................................................................ 30
5. STANDBY MODE ........................................................................................................................ 31
SETUP INSTRUCTIONS PER KEYBOARD....................................................................................... 32

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
5
*KORG PA80/60/50/55TR ©......................................................................................................... 32
*KORG PA1X /PRO,PA SERIES (PA4X,3X,1000, 700, 500, ETC)©............................................ 32
*KORG TRITON SERIES ©.............................................................................................................. 32
*KURZWEIL ©................................................................................................................................ 32
*YAMAHA XG ©........................................................................................................................... 32
*ROLAND FANTOM X©................................................................................................................ 33
KORG PA800/ PA2X PRO/PA3X/PA4X/PA 1000, PA 700, PA SERIES ...................................... 33
PROGRAMMING THE AK-4 PRO -KORG PA SERIES .................................................................. 36
YAMAHA TYROS AND PSR SERIES ............................................................................................... 38
PROGRAMMING THE AK-4 PRO -TYROS /PSR SERIES............................................................. 40
KORG M3 SERIES ......................................................................................................................... 43
PROGRAMMING THE AK-4 PRO -KORG M3 .............................................................................. 45
PROGRAMMING AND SETUP YAMAHA GENOS ......................................................................... 47
KORG TRINITY V3 FIRMWARE VERSION 3...................................................................... 52
IMPORTANT INFORMATION ......................................................................................................... 59

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
6

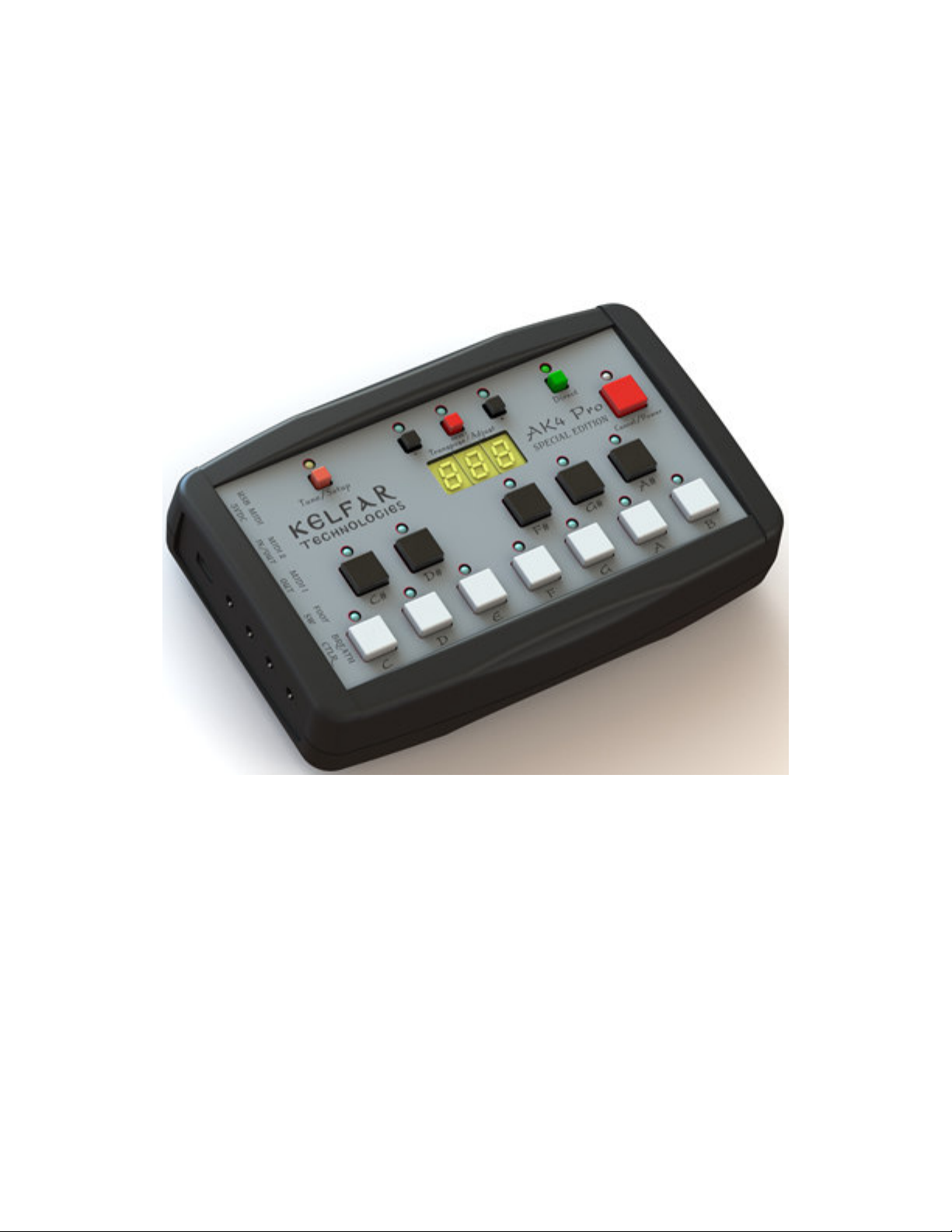

AK-4 PRO SE World Scale Tuning
© KELFAR TE HNOLOGIES
Basic Unit Functions
1. 5V USB bus power (side-USB Mini b)
2. Midi Out 1 (side-MIDI1) - Primary Instrument midi connection. (Standard mode)
3. Midi Out 2 (side-MIDI2) - Secondary Instrument midi connection. (Standard mode)
4. Midi In (side-MIDI2) - Enabled for the Universal Mode. (Universal mode)
5. BC/Expression (side-BC)

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
7
6. Foot Pedal (side-F/P) Korg Pa80, 50. 60, 55Tr
7. Tune/Setup (front) - Selectable User Scales (User 00 to User 09)
8. Tune/Setup (front) - Programmable User Scales (User 01 to User 09)
9. Tune/Setup (fromt) - Sort-Cut Mode to setup BC, Curve, and Channel
10. Buttons (C-B) (front) – LED indicators above each denote: Enabled (LED On) or
Disabled (LED Off)
11. Cancel (front) - Resets the pitch of each note to 00 Cents
12. Cancel/Power (front) - Power the AK-4 Pro SE Off/On (Standby mode)
13. DIRECT (front)
14. Real-Time BC On/Off by holding the DIRECT for one second (front)
15. Reset (front) – Use to return functions to original settings (red)
16. Transpose (front) - Transposes in Chromatic steps (-12 to +12) via Plus (+) and Minus
(-) buttons (black)
17. Adjust (front) - Plus (+) and Minus (-) buttons (black)
18. Display screen (front) - (3 digits)

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
8
A. Initial Setting and Viewing Instrument Selections on Power-up
Primary Instrument:
1. Brand shown on Table of Key Values below using keys indicated.
LED Display shows P1
2. Model shown beneath Brand on table using keys indicated.
LED Display shows P2
3. Expression and Breath Controller statues
LED Display shows LED Display shows EP or OFF or BC
4. Channel Filter
5. Buttons C to B (1 to 12ch), (Tune/Setup) (13ch), TR (-) (14ch) RESET (15ch) TR
(+) (16ch)
6. Curvature number (Cux)
Secondary Instrument:
1. Brand shown on table using keys indicated.
LED Display shows S1
2. Model shown beneath Brand on table using keys indicated.
LED Display shows S2
3. Expression and Breath Controller Statues
LED Display shows EP or OFF or BC
4. Channel Filter
Buttons C to B (1 to 12ch), (Tune/Setup) (13ch), TR (-) (14ch) RESET (15ch) TR (+)
(16ch)
5. Curvature Number (Cux) (x=0to 8)
A. User Scale
LED Display shows Ux (x=0-9)
B. USB ON - OFF (USb ON or OFF)

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
9
B. Universal Mode Initial Setting and Viewing on Power-up
1. LED Display shows P1
2. LED Display shows P2
3. Expression and Breath Controller Statues
LED Display shows EP or OFF or BC
4. Channel Filter
Buttons C to B (1 to 12ch), (Tune/Setup) (13ch), TR (-) (14ch) RESET (15ch) TR (+)
(16ch)
5. Curvature Number (Cux) (x=0to 8)
6. LED Display shows PCx Input midi channel
7. LED Display shows SCx Output midi channel
8.
A. User Scale
LED Display shows Ux (x=0-9)
B. USB ON - OFF (USb ON or OFF)

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
10
C. Changing Programming/Selecting the Primary & Secondary Instruments
PRESS and HOLD the CANCEL/POWER.
Then, while holding down the CANCEL/POWER button, PRESS the TUNE/SETUP button.
Primary Instrument
LED Display shows P1
Press CANCEL to skip programming the Primary.
LED Display shows S1
Proceed to programming the Secondary Instrument down below.
The Primary Instrument (MIDI1) will output the initial instrument MIDI DATA retained
in memory prior to enter programming mode. Steps 1 to 9 will be skipped.
1. Press appropriate key to select the Brand of the instrument as shown on Table of Key
Values below.
LED Display shows P2
2. Press appropriate key to select the specific Model of the instrument.
3. Expression and Breath Controller statues.
The LED Display shows EP or OFF or BC
Use the Transpose buttons to Turn ON/OFF:
EP Expression Pedal is ON - TR (-)
OFF Expression Pedal and Breath Controller are OFF for (MIDI1) - RESET
BC Breath Controller is ON for Primary (MIDI1) - TR (+)
4. Press CANCEL to Select the MIDI CHANNELS by using the following buttons: (C to B)
1CH to 12CH, Tune/Setup 13CH, TR (-) 14CH, RESET 15CH, TR (+) 16CH.
The LED Display shows PCH
5. Press Cancel to setup the Control Change
The LED Display shows CCn
6. Press CANCEL to setup the Control Change.
The LED Display shows Cxx (xx=00 to 119) or UL (Master Volume) i.e C11
Select the Control Change Number by using the Transpose/Adjust buttons.
7. Press CANCEL to setup the Curvature by using the Transpose/Adjust buttons.
The LED Display shows Cux (x=0to 8)
8. Select the Curve by using the Transpose/Adjust buttons.
9. Press CANCEL to Exit programming the Primary Instrument (MIDI1).

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
11
Note: If either the Expression and Breath controller are ON then you will be able to select the
MIDI CHANNELS, CONTROL CHANGE, and CURVATURE. If the Expression or Breath
controller are OFF then the step will be skipped by pressing the CANCEL button to program the
Secondary Instrument (MIDI2).
Secondary Instrument
1. After programming the Primary Instrument:
LED Display shows S1
2. Press appropriate key to select the Brand of the instrument.
Press CANCEL to skip programming the Secondary Instrument.
The LED Display shows FP
The AK-4 Pro SE will reboot without programming the Secondary Instrument and the
(MIDI2) port will not output any data. In another word, the MIDI PORT for (MIDI2) has
been flittered OFF.
LED Display shows S2
3. Press appropriate key to select the specific Model of the instrument.
4. Expression and Breath Controller statues.
The LED Display shows EP or OFF or BC
Use the Transpose buttons to Turn ON/OFF:
EP Expression Pedal is ON - TR (-)
OFF Expression Pedal and Breath Controller are OFF for (MIDI2) - RESET
BC Breath Controller is ON for Secondary (MIDI2) - TR (+)
5. Press CANCEL to Select the MIDI CHANNELS by using the following buttons: (C to B)
1CH to 12CH, Tune/Setup 13CH, TR (-) 14CH, RESET 15CH, TR (+) 16CH.
The LED Display shows SCH
6. Press Cancel to setup the Control Change.
The LED Display shows CCn
7. Press CANCEL to setup the Control Change.
The LED Display shows Cxx (xx=00 to 99) i.e C11
Select the Control Change Number by using the Transpose/Adjust buttons.
8. Press CANCEL to setup the Curvature by using the Transpose/Adjust buttons.
The LED Display shows Cux (x=0to 8)

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
12
9. Select the Curve by using the Transpose/Adjust buttons.
10. Press CANCEL to Exit programming the Secondary Instrument (MIDI2).
The LED Display shows FP (Fully PROGRAMMED)
After displaying FP the AK-4 Pro reboots indicating successful programming by displaying
the initial setting and Viewing Instrument Selections.
Note: If either the Expression and Breath controller are ON then you will be able to select the
MIDI CHANNELS, CONTROL CHANGE, and CURVATURE. If the Expression or Breath
controller are OFF then the step will be skipped by pressing the CANCEL button.
Note: After pressing CANCEL the LED will turn RED. After successfully inputting the new
settings, the LED will return to GREEN.

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
13
D. Short-Cuts Mode
This mode will allow you to disable and enable functions related to Expression Pedal, Breath
Controller, and USB interface without the need to reprogramming the AK-4 Pro.
Press and hold the Tune/Setup for 3 seconds
The LED Display shows --- (three dashes)
1. Press the Transpose (+) to setup MIDI CHANNELS
The LED Display shows PCH (Primary Instrument - MIDI1)
A. Select the MIDI CHANNELS by using the following buttons: (C to B) 1CH to
12CH, Tune/Setup 13CH, TR (-) 14CH, RESET 15CH, TR (+) 16CH.
After selecting the appropriate MIDI CHANNELS for the Primary Instrument, press CANCEL to
select the MIDI CHANNELS for the Secondary Instrument.
The LED Display shows SCH (Secondary Instrument - MIDI2)
B. Select the MIDI CHANNELS by using the following buttons: (C to B) 1CH to 12CH,
Tune/Setup 13CH, TR (-) 14CH, RESET 15CH, TR (+) 16CH.
Press CANCEL to Exit the MIDI CHANNELS MODE.
Note: After pressing CANCEL the LED will turn RED. After successfully inputting the new
settings, the LED will return to GREEN.
2. Press the Transpose RESET to setup the Expression and Breath Controller
A. Expression and Breath Controller statues (Primary Instrument - MIDI1)
The LED Display shows EP or OFF or BC
Use the Transpose buttons to Turn ON/OFF:
EP Expression Pedal is ON - TR (-)
OFF Expression Pedal and Breath Controller are OFF for (MIDI1) - RESET
BC Breath Controller is ON for Primary (MIDI1) - TR (+)
Press CANCEL to setup the Secondary Instrument.
A. Expression and Breath Controller statues (Secondary Instrument - MIDI2)
The LED Display shows EP or OFF or BC
Use the Transpose buttons to Turn ON/OFF:
EP Expression Pedal is ON - TR (-)

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
14
OFF Expression Pedal and Breath Controller are OFF for (MIDI2) - RESET
BC Breath Controller is ON for Primary (MIDI2) - TR (+)
Press CANCEL to Exit EXPRESSION AND BREATH CONTROLLER MODE.
3. Press the Transpose (-) to setup Curvature and Control Change.
The LED Display shows PC momentarily then Cux (x=0to 8)
Select the Curve by using the Transpose/Adjust buttons.
Press CANCEL to setup the Secondary Instrument Curvature.
The LED Display shows SC momentarily then Cux (x=0to 8)
Press Cancel to setup the Primary Instrument Control Change
The LED Display shows CCn
Press CANCEL to setup the Control Change.
The LED Display shows Cxx (xx=00 to 99) or UL = Master Volume i.e C11
Select the Control Change Number by using the Transpose/Adjust buttons.
Press Cancel to setup the Secondary Instrument Control Change
The LED Display shows CCn
Press CANCEL to setup the Control Change.
The LED Display shows Cxx (xx=00 to 99) or UL = Master Volume i.e C11
Select the Control Change Number by using the Transpose/Adjust buttons.
Press CANCEL to Exit the CURVATURE and CONTROL CHANGE MODE,
4. USB INTERFACE ENABLE / DISABLE PORTS 1 & 2
By Default the AK-4 Pro USB INTERFACE PORT 1 IS ENABLED
Press DIRECT to ENABLE / DISABLE.
The LED Display shows P01
Enable/Disable the USB PORTS by using the Transpose/Adjust buttons.
A. (+) Enable/Disable Port 1: 0is OFF, 1is ON
B. (RESET) Enable/Disable Port 2: 0is OFF, 1is ON

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
15
Options available:
A. P01 PORT 1 is ON. B. P11 PORTS 1&2 are ON. C. P10 PORT 2 is ON.
D. . P00 PORTS 1&2 are OFF.
If USB PORTS 1&2 are OFF [P00], pressing the DIRECT or CANCEL
The LED Display shows USB OFF momentarily and exit the USB MODE.
Breath Controller ON/OFF
Press and Hold the Direct for one second to Turn OFF/ON the BC for both the Primary and
Secondary.
The LED Display shows -SC>PBc On / SBc On momentarily
Or
The LED Display shows -SC>PBc OFF / SBc OFf momentarily
Note: In order for this operation to work the BC must be turned ON for the Primary or Secondary
(MIDI1 or MIDI2.)

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
16
Table of Key Values (supported brands and models)
FIRMWARE VERSION 3
C C# D D# E F F# G G# A A#
Roland
BRAND GS
Pa1x/Pa800/ Pa600/QT
500/Pa2x/ Pa900
Pa3x,4x,1000,7
00, PA series
Transpose
Pa600/QT
Pa900
Transpose
REPEAT
Triton_
Extreme/
Studio
ETriton Karma Tyros/Psr series Roland FA-
06/07/08
Transpose
[SCALE/OCTAVE
TUNING DUMP, 1 byte
format]/ ASCII NAME =
AK Pro Kelfar
Mode 5, 1CH
Mono-Legato
Pitch Bend
FTriton Classic Motif XF voice
song pattern
[SCALE/OCTAVE
TUNING DUMP, 2 byte
format]/ ASCII NAME =
AK Pro Kelfar
Mode 6, 2CH
Fine Tune
F# micro X/ X50 Motif XS voice
song pattern
[SINGLE NOTE TUNING
CHANGE (REAL-TIME)]
Mode 7, 12CH
Fine Tune
GKorg M3 Montage SINGLE NOTE TUNING
CHANGE (REAL-TIME)
(BANK)
Mode 8, 1CH
Mono-Legato
Fine Tune
G# Korg Z1 Genos [SINGLE NOTE TUNING
CHANGE (REAL-TIME)
(BANK)]
AKorg Prophecy XG NoteShift MTS / [BULK TUNING
DUMP] GM2 Transpose
A# Korg Kronos MTS / [BULK TUNING
DUMP], Prophet X, XL
BMTS / [BULK TUNING
DUMP], Prophet 6, 12, Pro
2, and OB-6
Korg Korg Yamaha Kurzweil
Kontakt2
16CH
MTS, Sub Phatty and Sub
37, [SCALE/OCTAVE
TUNING 1-BYTE FORM
(REAL-TIME)]
Ayoub Ketron Native
Instruments
MOOG/DSI/Sequential/M
TS
CMotif-ES (Voice,
pattern and song
mode only)
Kurz 1CH16CH, GM2
Transpose
C# Pa80/50/55TR/
60
XG/1CH(Repeat
mode)
MTS, Sub Phatty and Sub
37, [SCALE/OCTAVE
TUNING 2-BYTE FORM
(REAL-TIME)]
DTriton_Le/Tr XG: 16CH XG,
Transpose
Roland E-A7
Transpose
MTS, Sub Phatty and Sub
37, [SCALE/OCTAVE
TUNING 1-BYTE FORM
(NON REAL-TIME)]
D# XG: 16CH GM,
Transpose
MTS, Sub Phatty and Sub
37, [SCALE/OCTAVE
TUNING 2-BYTE FORM
(NON REAL-TIME)]
AX-Synth
16CH, Roland
GS Transpose
16CH
16CH
Universal Mode
Mode 1, 2Ch
Fine Tune
Mode 2, 2CH
Pitch Bend
Mode3, 1CH,
Mono Pitch Bend
Mode 4, 12CH /
Pitch Bend
MOOG/DSI/Sequential/
MTS
MTS / Prophet Rev2

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
17
AK-4 Pro Breat Controller Curvature
The AK-4 Pro supports nine curvatures to give you the best dynamic and expressive sounds for
your keyboard synthesizer and plug-in VSTi or standalone VSTi performances. Create the best
sounds you’ve ever imagined with the Pro Breath Controller Curvature.
Every curvature has its own dynamic and feel. It depends on your selection of the Curvature;
some curvatures have a Slower ATTACK or DECAY, while the others have a faster ATTACK or
DECAY. You might need to reprogram your sounds to make them compatible with the breath
controller.
It is always best to adjust the ADSR (Attack, Decay, Sustain, Release) and VELOCITY intensity
or sensitivity to achieve the best result between your synthesizer and Breath Controller.
Why do you need to adjust the ADSR? Your actual Breath Controller is going to control both
the Volume and the ATTACK portion of your sound. We recommend adjusting the ATTACK to
0 and by turning OFF the Velocity intensity or sensitivity. (Refer to your keyboard/ synth
Owner's Manual in how to adjust the ADSR or VELOCITY control). For your own reference,
save the edited sound by adding BC at the end of the sound name i.e Accordion BC
The graph below represents the relationship between the input and output breath pressure.
AK-4 Pro SE Breath Controller Curvature
0
20
40
60
80
100
120
1 6 11 16 21 26 31 36 41 46 51 56 61 66 71 76 81 86 91 96 101 106 111 116 121 126
Volume/Expression
Linear
Exponential 1
Exponential 2
Exponential 3
Exponential 4
Exponential 5
Logarithmic
S-Type
N-Type

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
18
Translation Table:
Cu0 = Linear
Cu1 = Exponential 1
Cu2 = Exponential 2
Cu3 = Exponential 3
Cu4 = Exponential 4
Cu5 = Exponential 5
Cu6 = Logarithmic
Cu7 = S-Type
Cu8 = N-Type

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
19
E. Programming Universal Modes 1/ 2 (Polyphonic / Two Tracks)
1. PRESS and HOLD the CANCEL/POWER.
Then, while holding down the CANCEL/POWER button, PRESS the TUNE/SETUP
button.
LED Display shows P1
2. Press the key "A#"
LED Display shows P2
3. Select Mode 1 "C" or Mode 2 "C#"
LED Display shows Pc for Mode 1 and Mode 2
4. Select the Midi-In Channel (1-16) 1by using the TRANSPOSE/ADJUST (+) and (-) buttons
5. Press Tune/Setup
LED Display shows SC
6. Select the Midi-Out Channel (1-16) using the TRANSPOSE/ADJUST (+) and (-) buttons 2
7. Press Tune/Setup
The LED Display shows P01 (USB PORT)
Enable/Disable the USB PORTS by using the Transpose/Adjust buttons.
A. (+) Enable/Disable Port 1: 0is OFF, 1is ON
B. (RESET) Enable/Disable Port 2: 0is OFF, 1is ON
Options available:
A. P01 PORT 1 is ON. B. P11 PORTS 1&2 are ON. C. P10 PORT 2 is ON.
D. . P00 PORTS 1&2 are OFF.
8. Press Cancel
9. Expression and Breath Controller statues.
The LED Display shows EP or OFF or BC
Use the Transpose buttons to Turn ON/OFF:
EP Expression Pedal is ON - TR (-)
OFF Expression Pedal and Breath Controller are OFF - RESET
BC Breath Controller is ON - TR (+)
10. Press Cancel to setup the Control Change.
The LED Display shows CCn
11. Press CANCEL to setup the Control Change.
The LED Display shows Cxx (xx=00 to 99) or UL (Master Volume) i.e C11
Select the Control Change Number by using the Transpose/Adjust buttons.
12. Press CANCEL to setup the Curvature by using the Transpose/Adjust buttons.
The LED Display shows Cux (x=0to 8)
13. Select the Curve by using the Transpose/Adjust buttons.
14. Press CANCEL to Exit programming the Secondary Instrument (MIDI2).
The LED Display shows FP (Fully PROGRAMMED)

AK-4 Pro SE/VERSION 3
www.kelfar.net
Copyright © 2005-19 Kelfar Technologies
20
After displaying FP the AK-4 Pro reboots indicating successful programming by displaying
the initial setting and Viewing Instrument Selections.
Notes:
1. For Universal Mode 1/2 to work, connect the AK-4 Pro SE MIDI IN/OUT to your
multitimbral sequencer/Synthesizer/Keyboard Midi-In and Midi-Out or USB MIDI Out.
(see figure 1 and 2 )
2. Your keyboard must support Fine Tuning Midi data (for Mode 1) or Pitch Bend Midi
Data (for Mode 2).
3. Set Keyboard to Local control off.(see Figure 1)
4. Set Pitch Bend Range to 2 for Mode 2.
5. You may further adjust the pitch of each note in the octave (C to B) to -64/+63 cents by
programming your own User Scales 01-09. User 00 is set to -50 cents "fixed."
