Transition Networks CGFEB10xx-12x User manual

User’s Guide
CGFEB10xx-12x Slide-in-Module Media
Converter
•Copper to Fiber
• 10/100/1000Base-T to 1000Base-SX/LX

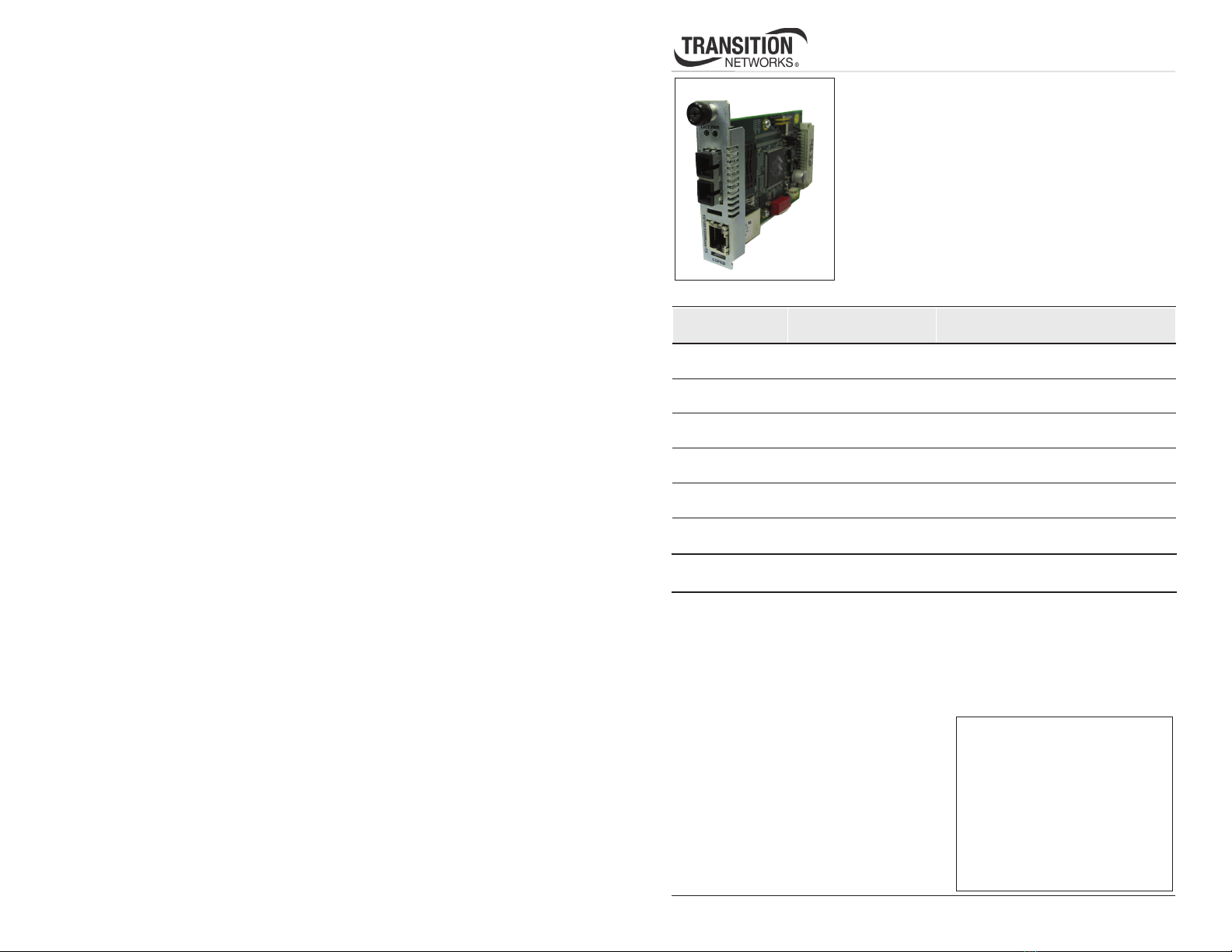

Transition Networks CGFEB10xx-12x series media
converters, designed to be installed in a PointSystem™
chassis connect 10Base-T, 100Base-TX, or 1000Base-T
twisted-pair copper cable to 1000Base-SX or 1000Base-
LX fiber devices.
The CGFEB10xx-12x has one copper port and one fiber-
optic port.
CGFEB10xx-12x
Part Number Port 1 - Copper
10/100/1000-Base-T
Port 2 - Duplex Fiber-Optic
CGFEB1013-120 RJ-45
100 m (328 ft)
SC, 1000Base-SX, 850nm multimode
220/550m (720/1,805 ft)
CGFEB1014-120 RJ-45
100 m (328 ft)
SC, 1000Base-LX, 1310nm single mode
10 km (6.2 miles)
CGFEB1015-120 RJ-45
100 m (328 ft)
SC, 1000Base-LX, 1310nm single mode
25 km (15.5 miles)
CGFEB1017-120 RJ-45
100 m (328 ft)
SC, 1000Base-LX, 1550nm single mode
65 km (40.4 miles)
CGFEB1024-120 RJ-45
100 m (328 ft)
SC, 1000Base-LX, 1300nm multimode
2 km (1.2 miles)*
CGFEB1035-120 RJ-45
100 m (328 ft)
SC, 1000Base-LX, 1550nm single mode
120 km (77.5 miles)
CGFEB1040-120 RJ-45
100 m (328 ft)
1000Base-X SFP slot (empty)
*The CGFEB1024 extends 1000Base-LX beyond 220 meters. Transition Networks
cannot guarantee a full 2km distance on every installation since the distance is largely
dependent on the quality of the fiber cable installation and splicing.
Distances
Distances listed are the typical maximum cable distances. Actual distance is dependent
on the physical characteristics of the network these devices are operating on.
Installation . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .8
Diagnostic Monitoring Interface
(DMI) . . . . . . . . . . . . . . . . . . . . . .14
Cable Specifications . . . . . . . . . . .15
Technical Specifications . . . . . . . .17
Troubleshooting . . . . . . . . . . . . .18
Contact Us . . . . . . . . . . . . . . . . .19
Compliance Information . . . . . . .20

2
CGFEB10xx-12x
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
CGFEB1029-120 RJ-45
100 m (328 ft)
SC, 1310nm TX/1550nm RX single mode
20 km (12.4 miles)
CGFEB1029-121 RJ-45
100 m (328 ft)
SC, 1550nm TX/1310nm RX single mode
20 km (12.4 miles)
Install CGFEB1029-120 and CGFEB1029-121 single-fiber optic in
the same network where one is the local converter and the other is
the remote converter.
CGFEB1029-122 RJ-45
100 m (328 ft)
SC, 1310nm TX/1550nm RX single mode
40 km (24.9 miles)
CGFEB1029-123 RJ-45
100 m (328 ft)
SC, 1550nm TX/1310nm RX single mode
40 km (24.9 miles)
Install CGFEB1029-122 and CGFEB1029-123 single-fiber optic in
the same network where one is the local converter and the other is
the remote converter.
CGFEB1029-126 RJ-45
100 m (328 ft)
SC, 1510nm TX/1590nm RX single mode
80 km (49.6 miles)
CGFEB1029-127 RJ-45
100 m (328 ft)
SC, 1590nm TX/1510nm RX single mode
80 km (49.6 miles)
Install CGFEB1029-126 and CGFEB1029-127 single-fiber optic in
the same network where one is the local converter and the other is
the remote converter.
Part Number Port 1 - Copper
10/100/1000Base-T
Port 2 - Duplex Fiber-Optic
1000Base LX
CGFEB10xx-12x
[email protected] -- Click the “Transition Now” link for a live Web chat. 3
Installation
CAUTION: Wear a grounding device and observe electrostatic discharge precautions
when handling the media converter. Failure to observe this caution could result in
damage or failure of the media converter.
Six-position switch
The six-position switch is located on the circuit board of the media converter. Use a
small, flat-blade screwdriver (or a similar device) to set the switch according to the
site requirements (see the drawing below).
TP Speed: UP =100 Mbs, Down = 10 Mbs (Note 1)
TP Auto-Negotiation: UP = Enabled, Down = Disabled
TP Duplex: UP = Full, Down = Half (Note 1)
LPT: UP = Enabled, Down = Disabled
Unused
SW Position Up
SW Position Down
Unused
123456
Note 1: Only use when Auto-Negotiation is disabled.
1. TP Auto-Negotiation
UP Enable Auto-Negotiation for the copper connection.
DOWN Disable Auto-Negotiation for the copper connection.
2. TP Speed 10Mbs/100Mbs
UP Set copper connection speed to 100Mbs.
DOWN Set copper connection speed to 10Mbs.
3. TP Full/Half Duplex
UP Operate in full-duplex mode.
DOWN Operate in half-duplex mode of the attached device.
4. Link Pass-Through (LPT)
UP Enable Link Pass-Through
DOWN Disable Link Pass-Through.
5. Not used
6. Not used

4
CGFEB10xx-12x
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Installation—continued
AutoCross jumper
The AutoCross feature allows either straight-through (MDI) or crossover (MDI-X)
cables to be used when connecting to 10Base-T, 100Base-TX, or 1000Base-T
devices, such as hubs, transceivers, or network interface cards (NICs). AutoCross
determines the characteristics of the cable connection and automatically configures
the unit to link up regardless of the cable configuration.
The AutoCross jumper is located on the circuit board of the media converter (labeled
NA = No Autocross and A = AutoCross). See Jumper positions below.
Note: Use small, needle-nose pliers to set the jumper.
A Either straight-through or crossover cable can be
used for all twisted-pair copper links.
NA Straight-through or crossover twisted-pair cable,
depending on installed site devices, MUST be
installed at EACH twisted-pair copper link.
Note: Factory default is “A” enabled. Transition Networks recommends leaving
the device in the “enable” mode.
A
J6
NA
A
J6
NA
Hardware/software jumper
The hardware/software jumper is located on the circuit board (labeled H and S—
see figure to the right.)
Note: Use small needle-nose pliers to set the jumper.
Hardware The media converter mode is determined by the
6-position switch settings.
Software The media converter mode is determined by the
most-recently saved, on-board microprocessor
settings.
J5
J5
Hardware Mode
Software Mode
H
HS
S
CGFEB10xx-12x
[email protected] -- Click the “Transition Now” link for a live Web chat. 5
TX
RX
LACT PWR
CGFEB120
Port 1
Port 2

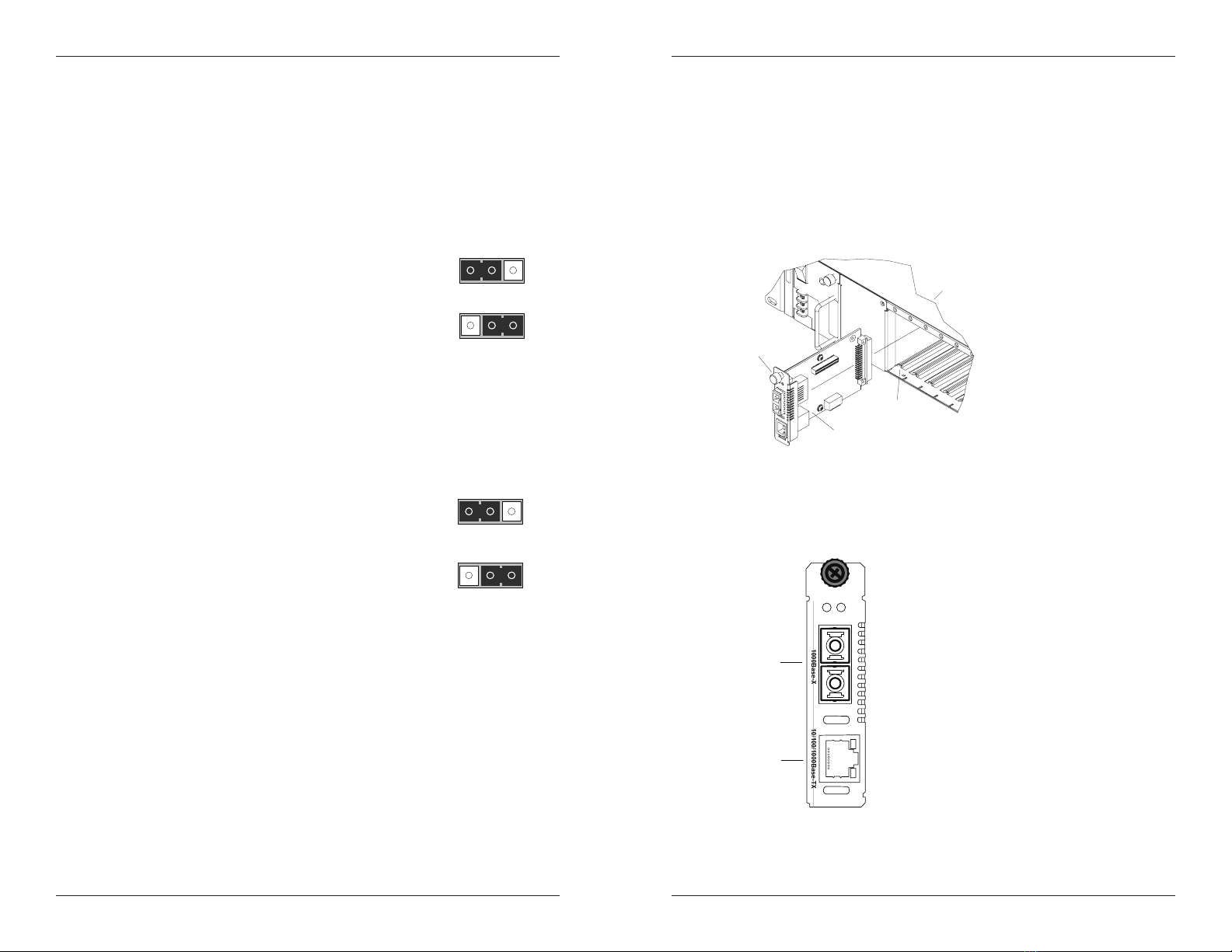

1. Remove one chassis slot cover from the Point System Chassis (keep the slot
cover and screw).
2. Carefully slide the media converter into the slot, aligning it with the slot guide.
3. Ensure that the media converter is firmly seated inside the chassis.
4. Push in and rotate the attached panel fastener screw clockwise to secure the
media converter to the chassis. See illustration below.
Port 1: 10/100/1000Base-T
Port 2: 1000Base-SX or 1000Base-LX
Point System Chassis
Media Converter
Panel Fastener
Slot
Installation—continued
Install the chassis card
Port Locations
The drawing below show the locations of Port 1 and Port 2
The CGFEB10xx-12x models have two ports.

6
CGFEB10xx-12x
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Installation—continued
Install the cable
Port 1: 10/100/1000Base-T Copper Port
1. Locate a 10/100/1000Base-T compliant copper cable with male, RJ-45
connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the media converter’s
10/100/1000Base-T, RJ-45port (port 1).
3. Connect the RJ-45 connector at the other end of the cable to the
10/100/1000Base-T, RJ-45 port on the other device (switch, workstation, etc.).
Note: The AutoCross feature (when enabled) allows the use of either straight-
through or crossover configuration cables.
RJ-45 Port
Media Converter
RJ-45 Port
On other device
(workstation, switch, etc.)
[email protected] -- Click the “Transition Now” link for a live Web chat. 7
CGFEB10xx-12x
Installation -- continued
Port 2: 1000Base-X Fiber Port
1. Locate a 1000Base-X compliant fiber cable with male, two-stranded TX to RX
connectors installed at both ends.
2. Connect the fiber cables to the media converter’s 1000Base-X fiber port (port
2) as described:
• Connect the male TX cable connector to the female TX connector.
• Connect the male RX cable connector to the female RX connector.
3. Connect the fiber cables to the 1000Base-X fiber port on the other device
(another media converter, hub, etc.) as described:
• Connect the male TX cable connector to the female RX connector.
• Connect the male RX cable connector to the female TX connector.
Connect fiber cable
to media converter
as shown.
Connect fiber cable
to other device
(media converter,
hub, etc.) as shown
RX
TX
RX
TX

8
CGFEB10xx-12x
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Operation
Status LEDs
Use the status LEDs to monitor the media converter operation in the network.
Fiber status LEDs
The status LEDs for the 1000Base-SX/LX fiber connection (labeled LACT and
PWR) are located next to the fiber port (Port 2).
PWR: Power ON = Connection to chassis
power.
LACT: Link activity ON = A link has been
established for the fiber
connection.
Flashing = The fiber
connection is
transmitting or receiving data.
Copper status LEDs
The status LEDs for the copper connection are integrated into the RJ-45 port. These
LEDs are not labeled on the media converter. See text and drawing below.
Duplex/Link:
Orange A link in half-duplex mode has been established for
the copper connection.
Flashing Orange The copper connection is transmitting/receiving data
in half-duplex mode.
Green A link in full-duplex mode has been established for
the copper connection.
Flashing Green The copper connection is transmitting/receiving data
in full-duplex mode.
Note: Speed LED:
There are two possible LED states associated 100 Mb/s operation:
• On some units at 100 Mb/s, the speed LED will remain OFF.
• On others units at 100 Mb/s, the speed LED will turn ON orange.
OFF 10 Mb/s or 100 Mb/s
operation.
Orange 100 Mb/s operation (only)
Green 1000 Mb/s operation (only)
10/100/1000Base-T
Duplex/Link Speed
LACT PWR
[email protected] -- Click the “Transition Now” link for a live Web chat. 9
CGFEB10xx-12x
Operation—continued
Product features
Auto-Negotiation
The Auto-Negotiation feature allows the CGFEB10xx-12x media converter to
automatically configure itself to achieve the best possible mode of operation over a
link. The media converter broadcasts its speed (10 Mbps, 100 Mbps, or 1000 Mbps)
and duplex capabilities (full or half) to the other devices and negotiates the best
mode of operation. Auto-Negotiation allows quick and easy installation because the
optimal link is established automatically. No user intervention is required to
determine the best mode of operation.
A scenario where the media converter is linked to a non-negotiating device is a case
where the user may want to disable Auto-Negotiation. In this instance, the mode of
operation will drop to the least common denominator between the two devices (e.g.
100 Mb/s, half-duplex). Disabling this feature gives the user the ability to force the
connection to the best mode of operation.
Note: The CGFEB10xx-12x and SGFEB10xx-12x also support 1000 Mbps fiber
Auto-Negotiation.

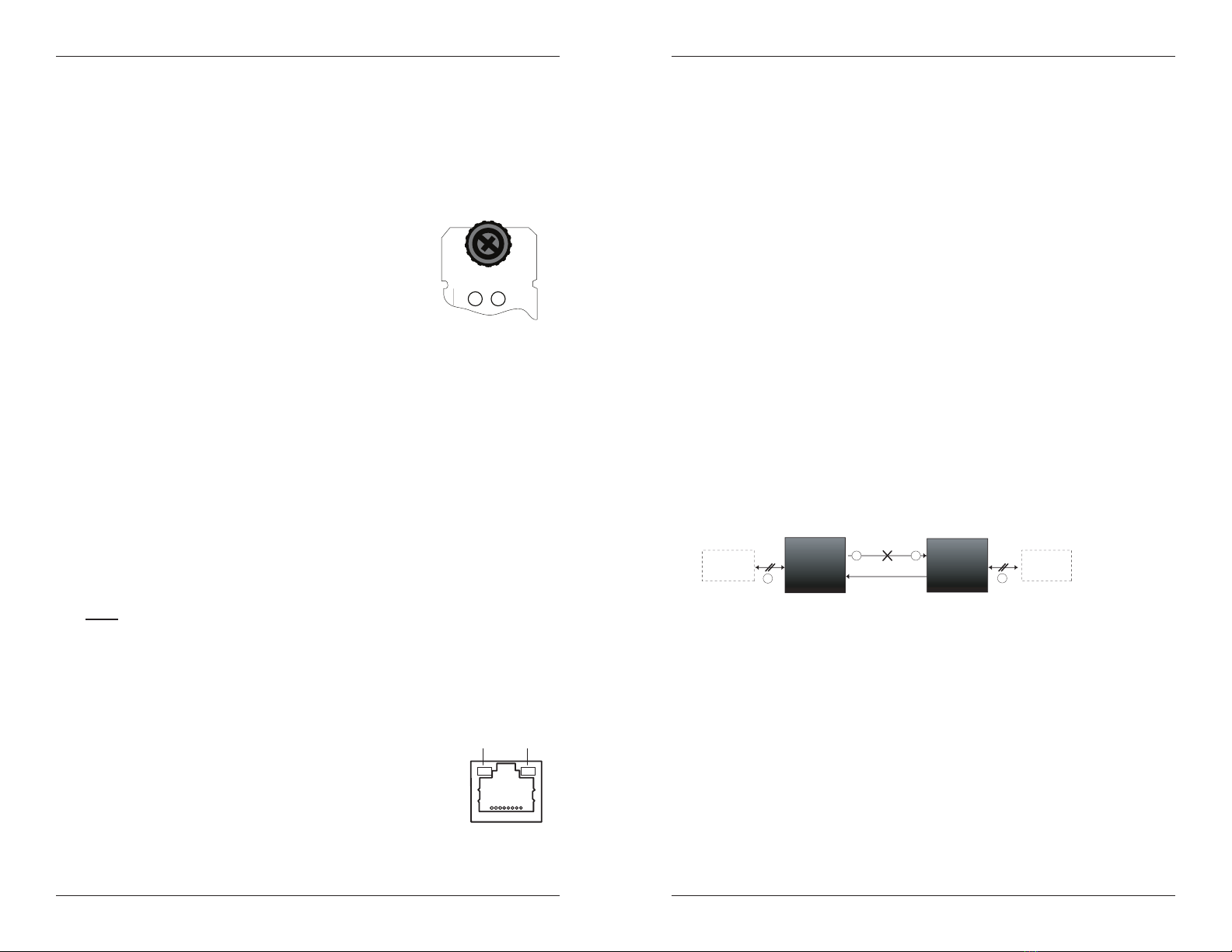

Link Pass-Through
The Link Pass-Through feature allows the media converter to monitor both the fiber
and copper RX (receive) ports for loss of signal. In the event of a loss of an RX
signal (1), the media converter will automatically disable the TX (transmit) signal
(2), thus, “passing through” the link loss (3). The far-end device is automatically
notified of the link loss (4), which prevents the loss of valuable data unknowingly
transmitted over an invalid link.
Full-Duplex Network
In a full-duplex network, maximum cable lengths are determined by the type of
cables that are used. See pages 1 and 2 for the cable specifications for the different
CGFEB1xxx-1xx models.
The 512-Bit Rule does not apply in a full-duplex network.
4
1
Media
Converter A Media Converter B
Near-End
Device Far-End Device
originalfault
ontheco
pp
erlink
mediacon verter B
disablestheco
pp
erlin
k
mediacon verter A
disablesthefiber TXlink
3
2
mediacon verter B
losesthefiberRXlink

10
CGFEB10xx-12xx
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Operation—continued
Product features—continued
Half-Duplex network (512-Bit Rule)
In a half-duplex network, the maximum cable lengths are determined by the round
trip delay limitations of each Fast Ethernet collision domain. (A collision domain is
the longest path between any two terminal devices, e.g. a terminal, switch, or
router.)
The 512-Bit Rule determines the maximum length of cable permitted by calculating
the round-trip delay in bit-times (BT) of a particular collision domain. If the result
is less than or equal to 512 BT, the path is good.
For more information on the 512-Bit Rule, see the white paper titled “Collision
Domains” on the Transition Networks website at: www.transition.com.
Pause
The pause feature is used to suspend data transmission temporarily in order to
relieve buffer congestion. If a media converter needs some additional time to clear
network congestion, it will send a pause signal to the media converter at the other
end, that media converter will wait a predetermined amount of time before re-
transmitting data. This feature reduces data bottlenecks, allowing for more efficient
use of the network devices while preventing the loss of valuable data.
In Software mode, the pause feature can be set to one of four settings:
• Disable (i.e., no pause)
• Symmetrical pause
• Asymmetric TX (transmit) pause
• Asymmetric RX (receive) pause
Note: Enable the pause feature if it is present on ALL network devices attached to
the media converter(s). Otherwise, disable the pause feature.
AutoCross™
The AutoCross feature allows either straight-through (MDI) or crossover (MDI-X)
cables to be used when connecting to devices such as hubs, transceivers, or network
interface cards (NICs). AutoCross determines the characteristics of the cable
connection and automatically configures the unit to link up, regardless of the cable
configuration.
Automatic link restoration
The converter will automatically restore the link between networked devices after a
fault condition has been corrected. In contrast, products from competitors require
the user to power down, then power up the converters after a fault condition has
been corrected.
[email protected] -- Click the “Transition Now” link for a live Web chat. 11
CGFEB10xx-12x
Operation—continued
SNMP
See the on-line documentation that comes with Transition Networks FocalPoint™
software for applicable commands and usage.
Use SNMP at an attached terminal or at a remote location to monitor the media
converter by monitoring:
• Copper and fiber link status
• Copper and fiber port duplex
• Copper port speed
Use SNMP to enter network commands that:
• Set copper full/half-duplex
• Set copper connection speed (10Mbs/100Mbs/1000Mbs)
• Enable/Disable Link Pass-Through
• Enable/Disable Auto-Negotiation
• Enable/Disable Port VLAN
• Set Administrative State UP pass traffic/Down do not pass traffic
• Set Egress and Ingress rate (unlimited or incremental)
• Reset Factory Defaults
• Reset Counters
• Reset Switch
Port 1
• Select Speed (10Mbs/100Mbs)
• Set port RX/RT pairs: MDI/MDI-X/Auto
• Set Half/Full Duplex
• Enable/Disable Default Forward Unknown Muliticasts
• Enable/Disable Forward Unknown Unicast
• Set VLAN Tagging (normal/untag/tag/double tag)
• Enable/Disable Discard Tagged Frames
• Enable/Disable Discard Untagged Frames
• Enable/Disable Use IP
• Enable/Disable Use Tag (enabled/disabled)
• Tag if both (use tag/use IP)
• Set Default Priority (1 thru 7)
• Set Default VID
• Set IEEE priority remapping (tags 0 thru 7)
• Virtual Cable Test
Port 2
Same as for Port 1 plus the following:
• Set Rx Power Intrusion Threshold

[email protected] -- Click the “Transition Now” link for a live Web chat. 13
CGFEB10xx-12x
Operation—continued
Product features—continued
IEEE802.1q VLAN tagging and double tagging (Q in Q)
The 802.1Q specification establishes a standard method for inserting virtual LAN
(VLAN) membership information called tagging Ethernet frames to break large
networks into smaller parts or to address security concerns. Q in Q support simply
adds another layer of IEEE 802.1Q tag to the 802.1Q tagged packets that enter the
network. The purpose is to expand the VLAN space by tagging the tagged packets,
thus producing a "double-tagged" frame.
VLAN tagging can be configured to one of the following settings:
• Normal = frames are unmodified when passing through the converter
• Untag = all tagged frames will have their tag removed when passing through
converter
• Tag = all untagged frames are tagged with the source port default VLAN ID
• Double Tag = all egress frames are double tagged using the source port default
VLAN ID for the extra tag. This also enables ingress double tag removal.
Ingress:
a. Frame does not contain a tag, frame is not modified
b. Frame contains one 802.3ac tag, tag is removed
c. Frame contains two 802.3ac tags, the first tag is removed
Egress:
a. Frame is untagged, tag is added
b. Frame contains one 802.3ac tag, tag is added before the current one
becomes the frames new 802.3ac tag
IEEE802.1p QoS, IPv4 ToS/Diffserv, IPv6 Traffic class
The 802.1p specification is an extension of the IEEE 802.1Q standard and works in
tandem to define the prioritization of the Ethernet frame for traffic class expediting
and dynamic multicast filtering. IEEE 802.1p establishes eight levels of priority (0
~ 7) with 7 being the highest priority. Each egress Ethernet frame can be prioritized
using IEEE 802.1p (MAC level) Traffic Class, or IPV4 TOS and/or DiffServ and/or
IPV6 Traffic Class.
12
CGFEB10xx-12x
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Operation—continued
Bandwidth allocation
It allows setting the bandwidth in varied increments, starting at 64 Kbps to full
bandwidth.
Rate limiting based on frame priorities can also be configured. Each higher priority
frame can be configured to get twice the bandwidth of lower priority frames; e.g.,
priority “3” frame configurations can get twice the bandwidth of priority “2”
frames.
Egress bandwidth allocation in 64Kbits/sec increments:
• Rate limit all frames
Ingress bandwidth allocation in 64Kbits/sec increments with four filter selections:
• Rate limit all frames
• Rate limit multicast, flooded unicast, and broadcast
• Rate limit multicast and broadcast
• Rate limit broadcast
Port-Based VLAN
Allows secure traffic forwarding in one direction only.
RMON Counter on each port
RMON statistics such as packet size counters, collision errors, and packet type are
kept for each port.
Switch selectable speed
On unshielded twisted pair (UTP) when Auto-Negotiation is disabled, the speed can
be set in either software or hardware mode.
Virtual cable test (VCT) on UPT port
The VCT feature utilizes Time Domain Reflectometry (TDR) technology to
remotely and non-evasively diagnose the quality and characteristics of the attached
cable plant. Using this technology, the devices detect and report potential cabling
issues such as cable opens, cable shorts or any impedance mismatch in the cable
and then accurately report (within one meter) the distance of the fault. In addition,
the VCT technology will detect pair swaps, pair polarity reversal, and excessive pair
skew.

14
CGFEB10xx-12x
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Diagnostic Monitoring Interface (DMI)
The following DMI port screen and explanation table contains brief definitions of the
DMI support offered on Transition Networks’ SFP optical interfaces. For further
information, please see the help option on the CPSMM-xxx SNMP agent or Focal
Point, Transition Networks' GUI.
Variable Name Description
DMI Rx Power Measured Receive optical power in microwatts and in decibels
relative to 1mW.
DMI Rx Power Alarm Alarm status of measured Receive optical power.
DMI Temp Internally measured temperature of transceiver in degrees C
and degrees F.
DMI Temp Alarm Alarm status for internally measured temperature of
transceiver.
DMI Bias Current Measured transmit bias current in microamperes.
DMI Bias Alarm Alarm status for measured transmit bias current for the
interface.
DMI Tx Power Measured transmit power, in microwatts and in decibels
relative to 1mW.
DMI Tx Power Alarm Alarm status of measured transmit power.
Rx Power Intrusion
Threshold
Instructs the converter to stop passing traffic when the receive
power drops below the new threshold. This feature is
sometimes referred to as 'Intrusion Detection,' since tapping
into a fiber to intercept traffic leads to a reduction in receive
power. This value can be entered in microwatts or in decibels
relative to 1mW.
Note: This feature is not available on all devices.
[email protected] -- Click the “Transition Now” link for a live Web chat. 15
CGFEB10xx-12x
Cable Specifications
The physical characteristics must meet or exceed IEEE 802.3™ specifications.
Fiber cable
Bit Error Rate: <10-9
Single mode fiber (recommended): 9 µm
Multimode fiber (recommended): 62.5/125 µm
Multimode fiber (optional): 100/140, 85/140, 50/125 µm
CGFEB1013-120 850nm multimode
Fiber Optic Transmitter Power: min: -10.0 dBm max: -4.0 dBm
Fiber Optic Receiver Sensitivity: min: -17.0 dBm max: 0.0 dBm
Link Budget: 7.0 dB
CGFEB1014-120 1310nm single mode
Fiber Optic Transmitter Power: min: -13.0 dBm max: -3.0 dBm
Fiber Optic Receiver Sensitivity: min: -20.0 dBm max: -3.0 dBm
Link Budget: 7.0 dB
CGFEB1015-120 1310nm single mode
Fiber Optic Transmitter Power: min: -5.0 dBm max: -0.0 dBm
Fiber Optic Receiver Sensitivity: min: -20.0 dBm max: -3.0 dBm
Link Budget: 15.0 dB
CGFEB1017-120 1550nm single mode
Fiber Optic Transmitter Power: min: -3.0 dBm max: 2.0 dBm
Fiber Optic Receiver Sensitivity: min: -23.0 dBm max: -3.0 dBm
Link Budget: 20.0 dB
CGFEB1024-120 1300nm multimode*
Fiber Optic Transmitter Power: min: -10.0 dBm max: -3.0 dBm
Fiber Optic Receiver Sensitivity: min: -17.0 dBm max: -3.0 dBm
Link Budget: 7.0 dB
CGFEB1029-120 1310nm TX/1550 RXnm single mode
CGFEB1029-121 1550nm TX/1310nm RX single mode
Fiber Optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm
Fiber Optic Receiver Sensitivity: min: -21.0 dBm max: -3.0 dBm
Link Budget: 13.0 dB
CGFEB1029-122 1310nm TX/1550nm RX single mode
CGFEB1029-123 1550nm TX/1310nm RX single mode
Fiber Optic Transmitter Power: min: -3.0 dBm max: +2.0 dBm
Fiber Optic Receiver Sensitivity: min: -23.0 dBm max: -8.0 dBm
Link Budget: 20.0 dB
*Fiber cable for CGFEB1024-120 must be 62.5/125 µm.

16
CGFEB10xx-12x
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Cable Specification—continued
Fiber cable—continued
CGFEB1029-126 1510nm TX/1590nm RX single mode
CGFEB1029-127 1590nm TX/1510nm RX single mode
Fiber Optic Transmitter Power: min: -2.0 dBm max: -3.0 dBm
Fiber Optic Receiver Sensitivity: min: -26.0 dBm max: -3.0 dBm
Link Budget: 24.0 dB
CGFEB1035-120 1550nm single mode
Fiber-optic Transmitter Power: min: 0.0 dBm max: +5.0 dBm
Fiber-optic Receiver Sensitivity: min: -27.0 dBm max: -3.0 dBm
Link Budget: 27.0 dB
The fiber optic transmitters on this device meet Class I Laser safety
requirements per IEC-825/CDRH standards and comply with 21 CFR1040.10
and 21CFR1040.11.
Copper cable
Category 5 (minimum requirement)
Gauge: 24 to 22 AWG
Attenuation: 22.0 dB /100 m @ 100 MHz
Maximum Cable Distance: 100 meters
• Straight-through OR crossover twisted-pair cable may be used.
• Shielded (STP) OR unshielded (UTP) twisted-pair cable may be used.
• All pin pairs (1&2, 3&6, 4&5, 7&8) are active pins in a Gigabit Ethernet network.
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
•Do not use flat or silver satin wire.
Straight-Through Cable Crossover Cable
Twisted Pair #1
Twisted Pair #2
Twisted Pair #2
Twisted Pair #1
17
[email protected] -- Click the “Transition Now” link for a live Web chat.
CGFEB10xx-12x
Technical Specifications
For use with Transition Networks Model CGFEB10xx-12x..
Standards: IEEE 802.3™, IEEE 802.3ab, IEEE 802.3u,
IEEE 802.3z, IEEE802.1P, IEEE 802.1q
Dimensions: 5.0" x 3.4" x 0.86" (127 x 86 x 22 mm)
Weight: 1.0 lb (0.45 k g)
Power Consumption: 4.8 watts
Data Rate (copper): 10/100/1000 Mbps
Data Rate (fiber): 1000 Mbps (operates in full-duplex only)
Filtering Addresses: 8K MAC addresses
Maximum Frame Size: 1628 bytes tagged (IEEE 802.3ac)
1632 bytes untagged
MTBF: 474,662 hours (MIL217F2V5.0) (MIL-HDBK-217F)
1,317,534 hours (Bellcore7 V5.0)
Environment: See chassis specifications
Storage Temp: -40°C to 85°C (-40°F to 185°F)
Humidity: 5% to 95%, non-condensing
Altitude: 0 to 10,000 feet
Warranty: Lifetime
*Manufacturer’s rated ambient temperature: Tmra range for the CGFEB10xx-12x
depends on the Transition Networks PointSystem™ chassis in which this slide-in-
module will be installed.
The information in this user’s guide is subject to change. For the most up-to-date
information, see the user’s guide on-line at: www.transition.com.
WARNING: Visible and invisible laser radiation when open. Do not stare into the beam
or view the beam directly with optical instruments. Failure to observe this warning could
result in an eye injury or blindness.
WARNING: Use of controls, adjustments or the performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422,
RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra-building
(inside plant) link segments that are not subject to lightening transients or power faults.
Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422,
RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to inter-building (outside
plant) link segments that are subject to lightening transients or power faults.

18
CGFEB10xx-12x
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Troubleshooting
1. Is the Power LED illuminated?
NO
• Is the media converter inserted properly into the chassis?
• Is the power cord properly installed in the chassis and in the grounded AC
outlet?
• Does the grounded AC outlet provide power?
• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.
YES
• Proceed to step 2.
2. Is the Duplex LED illuminated orange OR green?
NO
• Check the copper cables for proper connection.
• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.
YES - Orange
• The media converter has selected half-duplex mode. If this is not the
correct mode, disconnect and reconnect the copper cable to restart the
initialization process.
• Proceed to step 3.
YES - Green
• The media converter has selected full-duplex mode. If this is not the
correct mode, disconnect and reconnect the copper cable to restart the
initialization process.
• Proceed to step 3.
3. Is the LACT LED illuminated?
NO
• Check the fiber cables for proper connection.
• Verify that the TX and RX cables on the media converter are connected to
the RX and TX ports, respectively, on the other device.
• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.
YES
• Proceed to step 4.
4. Is the Speed LED illuminated?
NO
• The media converter has selected 10 Mb/s operation. If this is not the
correct speed, disconnect and reconnect the copper cable to restart the
initialization process.
• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.
YES - Flashing Orange
• The media converter has selected 100 Mb/s speed. If not the correct speed,
disconnect and reconnect the copper cable to re-initialize.
• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.
YES - Flashing Green
• The media converter has selected 1000 Mb/s operation. If this is not the
correct speed, disconnect and reconnect the copper cable to re-initialize.
• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.
CGFEB10xx-12x
[email protected] -- Click the “Transition Now” link for a live Web chat. 19
Contact Us
Technical Support
Technical support is available 24 hours a day.
US and Canada: 1-800-260-1312
International: 00-1-952-941-7600
Transition Now
Chat live via the Web with Transition Networks Technical Support.
Log onto www.transition.com and click the Transition Now link.
Web-Based Seminars
Transition Networks provides seminars via live web-based training.
Log onto www.transition.com and click the Learning Center link.
E-Mail
Ask a question anytime by sending an e-mail to our technical support staff.
[email protected]
Address
Transition Networks
10900 Red Circle Drive,
Minnetonka, MN 55343, U.S.A.
telephone: [phone]
toll free: 800-526-9267
fax: [phone]
Declaration of Conformity
Name of Mfg: Transition Networks
10900 Red Circle Drive, Minnetonka MN 55343 U.S.A.
Model: CGFEB10xx-12x Series Media Converters
Part Number(s): CGFEB1013-120, CGFEB1014-120, CGFEB1015-120, CGFEB1017-120,
CGFEB1024-120, CGFEB1029-120, CGFEB1029-121, CGFEB1029-122,
CGFEB1029-123, CGFEB1029-126, CGFEB1029-127,CGFEB1035-120,
CGFEB1040-120
Purpose: To declare that the CGFEB10xx-12x to which this declaration refers is in conformity with
the following directive(s) standard(s):
EMC Directive 2004/108/EC; EN 55022:2006+A1:2007 Class A; EN55024:1998+A1:2001+A2:2003;
EN61000-3-2; EN61000-3-3; CFR Title 47 Part 15 Subpart B Class A; Low Voltage Directive: 2006/95/EC;
CFR Title 21 Section 1040.10 Class II, the undersigned, hereby declare that the equipment specified above
conforms to the above Directive(s) and Standard(s).
June 2011
Stephen Anderson, Vice-President of Engineering Date

Trademark Notice
All trademarks and registered trademarks are the property of their respective owners.
Copyright Restrictions
© 2003-2011 Transition Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means -
graphic, electronic, or mechanical - without written permission from Transition Networks.
CGFEB10xx-12x
20 Printed in the U.S.A. 33370.E
Compliance Information
CISPR22/EN55022 Class A, EN55024, EN61000, FCC Class A
CE Mark
FCC Regulations
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out
on the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la lass A prescrites dans le Règlement sur le brouillage
radioélectrique édicté par le ministère des Communications du Canada.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses
Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen
verantwortlich.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques
appropriées.
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the
Council of 27 January 2003, Transition Networks will accept post usage returns of this
product for proper disposal. The contact information for this activity can be found in the
'Contact Us' portion of this document.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-
Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der
Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über
Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer
Konformität.
