Kelvinator KWH20HRB User manual

Before using your air conditioner, please read
this manual carefully and keep it for future reference.
WINDOW/WALL (ELECTRONIC) - H TYPE
ROOM AIR CONDITIONER
OC
SWING
TIMER
SWING
TEMP
FAN MODE
AUTO
POWER
HEAT
COOL
FAN
DRY
SLEEP
HIGH
MED LOW
Cooling & Heating type
KWH20HRB
KWH26CRB
KWH26HRB
KWH39CRB
KWH39HRB
Refrigerant R410A
ISSUE: 2 DATE: 11/08/10 P/No. 2020214A0822

CONTENTS
1. SAFETY PRECAUTIONS..................................................................2
2. UNIT PARTS IDENTIFICATION.........................................................5
3. OPERATING INSTRUCTIONS ..........................................................6
4. INSTALLATION INSTRUCTIONS......................................................12
5. TROUBLESHOOTING ......................................................................15
Inside you will find many helpful hints on how to use and maintain your air
conditioner properly. Just a little preventive care on your part can save you
a great deal of time and money over the life of your air conditioner. You'll find
many answers to common problems in the chart of troubleshooting tips.
If you review the chart of Troubleshooting Tips first, you may not need to
call for service at all.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
The air conditioner is not intended for use by young children or infirmed persons
without supervision.
Young children should be supervised to ensure that they do not play with the air
conditioner.
This air conditioner should be installed in accordance with AS/NZS 3000:2000
and your electricity suppliers rules.
There are local council rules regarding maximum allowable noise levels emitted
by air conditioners.
If the power cord is to be replaced, replacement work shall be performed by
authorised personnel only.
Installation work must be performed in accordance with the national wiring
standards by authorised personnel only. Wrong connection can cause over
heating or fire.
'
!CAUTION
Read This Manual
1
6.SPECIFICATION..........................................................16

To prevent injury to the user or other people and property damage, the following instructions
must be followed.
Incorrect operation due to ignoring of instructions may cause harm or damage. The serious-
ness is classified by the following indications.
2
Safety Precautions
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
!
WARNING
Always do this.
Never do this.
!
CAUTION
This symbol indicates the possibility of injury or damage to property.
Plug in power plug
properly.
Do not modify power cord
length or share the outlet
with other appliances.
Always ensure effective
earthing.
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
Incorrect earthing may cause
electric shock.
It may cause fire and electric
shock.
It may cause explosion, fire and burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It may cause fire and electric
shock.
It may cause fire and electric
shock.
It may cause electric shock or fire.
If the power cord is damaged, it
must be replaced by the manufac-
turer or an authorised service
centre or a similarly qualified per-
son in order to avoid a hazard.
This could damage your health.
Incorrect installation may cause
fire and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric
shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not use the socket if it is
loose or damaged.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install product in
compliance with local
wiring rules and regulations
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble
or modify unit.
!
!
!
!
!
!
WARNING
!

!
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking and
installing.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
It may cause electric shock
and damage.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Hold the plug by the head
of the power plug when
taking it out.
Ventilate the room well when
used together with a stove,
etc.
An oxygen shortage may occur.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
It may cause failure of product
or fire.
Do not use for special
purposes.
Turn off the main power
switch when not using the
unit for a long time.
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a
qualified service technician.
3
!
!
!
!
!
!
!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product color or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong deter-
gent such as wax or
thinner but use a soft cloth.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy object on the
power cord and ensure that the cord
is not compressed.
Operation without filters may
cause failure.
It contains contaminants and
could make you sick.
Always insert the filters
securely. Clean filter once
every two weeks.
Do not drink water drained
from air conditioner.
!
!
!
Sharp edges could cause injury. There is danger of fire or electric shock.

4
Safety
Precautions Prior to Operation
Preparing for operation
Usage
Cleaning and maintenance
Operating Temperature
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Do not use a damaged or non-standard power cord.
4. Do not share the same outlet with other appliances.
5. Do not use an extension cord.
6. Do not start/stop operation by plugging/unplugging the power cord.
1. Exposure to direct airflow for an extended period of time could be hazardous to your
health. Do not expose occupants, pets, or plants to direct airflow for extended
periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together
with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g. Preserving
precision devices, food, pets, plants, and art objects). Usage in such a manner could
harm such property.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur
when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy
the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and circuit breaker are turned
off.
Note: Performance may be reduced outside of these operating temperatures.
Cooling Operation
Outdoor temp: 18-43OC(T1Environment)
Indoor temp: O
18-32 C(T1Environment)
21-52OC(T3Environment)
18-32OC(T3Environment)
Heating Operation
Outdoor temp: -5-24OC(T1Environment)
Indoor temp: O
0 -27 C(T1Environment)
-7-24OC(T3Environment)
0-30OC(T3Environment)

5
1. Front panel
2. Air filter
3. Frame
4. Cabinet
5. Air inlet grille (outdoor side)
6. Air outlet grille
7. Electronic control keypad
8. Power supply cord and plug
9. Remote control
UNIT PARTS IDENTIFICATION
1. Power cord conductors are distinguished according to color as follows (see Fig.1)
2. For your safety and protection, this unit is earthed through the power cord (see Fig.2)
Please contact the manufacturer or its service agent or a similar qualified person if
you want to replace it.
3. Be sure that the unit being correctly grounded. The wall outlet (Air-break switch)should be
provided with reliable earth wire.
4. The unit should be provided with an individual circuit and the circuit breaker/fuse
rating should be the same as that of the power cord and wall outlet.
POWER
CORD
A
E
N
E-Earth wire, yellow/green
N-Neutral wire, blue
A-Active wire, brown
Fig.1 Fig. 2
Wall outlet Air-break switch

6
OPERATING INSTRUCTIONS
Controls
Vent Control
OC
SWING
TIMER
SWING
TEMP
FAN MODE
AUTO
POWER
HEAT
COOL
FAN
DRY
SLEEP
HIGH
MED LOW
Reverse Cycle Models
OC
TIMER
SWING
TEMP
FAN MODE
POWER
COOL
FAN
DRY
SLEEP
HIGH
MED LOW
Cooling Only Models
The vent control is located above the control knobs. The operation method is
different on different models (see the following figures).
For maximum cooling efficiency, CLOSE the vent. This will allow internal air circulation.
OPEN the vent to discharge stale air.
The electronic control keypad will look like one of the following:
CLOSE VENT OPEN
To open the vent, pull the lever toward you
To close it, push it in.
To open the vent, set the lever to the right position
To close it, set the lever in the left position.
CLOSE OPEN
SWING
NOTE: SWING FEATURE NOT AVAILABLE ON KWH20HRB
OC
TIMER
TEMP
FAN MODE
AUTO
POWER
HEAT
COOL
FAN
DRY
SLEEP
HIGH
MED LOW
KWH20HRB Model

7
POWER:
Press the POWER keypad to turn the unit on/off.
(The TIMER keypad controls the auto start/stop feature of the unit.)
OPERATING INSTRUCTIONS
MODE:
Press the "MODE" keypad to select the appropriate operating mode. For the Cooling &
Heating models, the mode selection will alternate between AUTO, HEATING, COOLING,
FAN and DRY. For the Cooling only models, select the operating mode from COOLING,
FAN and DRY. The green indicator light beside the "MODE" option will illuminate, identifying
the mode selected.
When using the DRY and AUTO mode, you cannot select a fan speed. The fan motor
operates on LOW speed in DRY mode and on MED speed in AUTO mode.
TEMPERATURE SETTINGS UP:
Press the keypad to increase the set (operating) temperature of the unit.
Each time the keypad is pressed the temperature increases as follows:
O O
1 C (Celsius Scale) Maximum Setting 31 C
TEMPERATURE SETTINGS DOWN:
Press the keypad to decrease the set (operating) temperature of the unit.
Each time the keypad is pressed the temperature decreases as follows:
O O
1 C (Celsius Scale) Minimum Setting 16 C
FAN:
Press this keypad to activate the appropriate fan speed setting. Each depression of the
keypad will alternate through LOW, MED, HIGH fan speed options. The green indicator
light beside the FAN speed option will illuminate, identifying the fan speed selected.
SWING:
Press the "SWING" keypad to activate the automatic air swing (oscillation) feature.
The green indicator light adjacent to the "SWING" keypad will illuminate, identifying to the
selected mode is operational. The vertical louvers will oscillate back and forth (side to side)
automatically sweeping air alternately for comfortable cooling/heating. To stop the air swing
feature, press the "SWING" keypad again, the green indicator light adjacent to the keypad
will go off.
Press the "SWING" keypad for 2 seconds will activate the SLEEP mode which can reduce
noise creating a comfortable sleeping environment.
Note: Swing feature is not available on KWH20HRB control panel, use remote control for
activating the SLEEP mode. For SLEEP MODE activation please refer to remote control
feature on page 9.
When the SLEEP mode is activated, the green indicator light beside the "SLEEP" function
will illuminate.
TIMER:
Press the "TIMER" keypad to activate the "auto start/auto stop" timer function.
Auto start/stop programs can be set from 0~12 hours. Each depression of the "TIMER"
keypad will increase the selected time in 1 hour increments.
NOTE: SWING FEATURE NOT AVAILABLE ON KWH20HRB

8
COOLING:
O O
The temperature setting are adjustable between 16 C to 31 C . Cooling begins auto-
O
matically when the room temperature is 1 C above the set point, and stops when the room
O
temperature is 1 C below the set point. The fan will not stop running.
HEAT:
O O
The temperature settings are adjustable between 16 C to 31 C in heating mode.
O
The default temperature setting is 24 C in heating mode and the fan speed is optional.
Notes: 1. When changing the temperature setting, the fan motor operates at LOW speed for 3 minutes first for
compressor protection feature before heating begins.
2. When heating stops, there may be a slight delay of 30 seconds for the fan motor to stop.
O
3. If the condenser temperature is below 35 C, the fan will run in LOW speed despite the FAN setting.
O
If the condenser temperature is above 38 C, the fan will run at the FAN setting.
4. If the compressor is shut down by a malfunction, the fan will immediately shut down with the compressor.
AUTO:
The fan motor remains on MED speed in AUTO mode. The unit will select the appropriate
operating mode from FAN, COOL or HEAT based upon the temperature difference
O
between the actual and desired room temperature. If the actual room temperature is 2 C
above the set point, the unit operates in cooling mode. When the actual room temperature
O O
is not 2 C or higher above the set point and not 1 C or lower below the set point, the unit
O
will select the FAN mode. When the actual room temperature is 2 C below the set point,
the unit will operate in HEAT mode.
Note: If activating the SLEEP mode when the unit is operating on AUTO mode, the fan motor will changed into
LOW speed mode immediately.
SLEEP:
Press and hold the "SWING" keypad for 2 seconds or use the remote control to activate
the "SLEEP" feature . Press and hold the "SWING" keypad or use the remote control
again for 2 seconds to deactivate the "SLEEP" feature. In the Cooling mode, the cooling
O
temperature set point will increase 1 C per hour after the "SLEEP" mode is selected.
Two hours later, the set point will continue at this temperature and the fan motor will
remain on LOW speed. In the Heating mode, the heating temperature set point will
O
decrease 1 C per hour after the "SLEEP" mode is selected. Two hours later, the set
point will continue at this temperature and the fan motor will remain on LOW speed.
Using the "SLEEP" mode will reduce noise creating a comfortable sleeping environment.
Note: When activating the SLEEP mode in AUTO mode, the set temperature will not change over time.
Note: Swing feature is not available on KWH20HRB control panel, use remote
control for activating the SLEEP mode. For SLEEP MODE activation please
refer to remote control feature on page 9.
DRY:
In the Dry mode, the air conditioner will generally operate in the form of a dehumidifier.
Since the conditioned space is a closed or sealed area, some degree of cooling will
continue.

9
SLEEP
SLEEP:
Activates the "AUTO" (if applicable),
applicable), "COOL","FAN"or "DRY" function.
"HEAT" (if
Activates the auto START or auto STOP
program from 0-12 hours (1 hour increments).
" " " "
Activates the SLEEP mode." "
Activates the automatic air SWING (vertical)
louver oscillation) feature.
" "
Activates the FAN speed settings (HIGH, MED,
LOW).
" "
Indicates frosting protection (Turn off the unit and
restart it to return to normal operation).
Failure Indicator Display:
Indicates a malfunction of the indoor room
temperature sensor
Indicates a malfunction of the evaporator
temperature sensor
Indicates a malfunction of the outdoor condenser
temperature sensor
The hand held remote control unit allows you to control
all operational aspects of your Air Conditioner, from the
convenience of your favorite armchair. Here are some
things you should know about operation your Air
Conditioner with the hand held remote control.
TEMP:
Increases / Decreases operating TEMPERATURE
only.
" "
POWER:
Turns the power to the main unit only."on/off "
MODE:
TIMER:
SWING:
FAN:
Batteries:
To operate the hand held remote control, you will
require two "AAA" 1.5Volt batteries (included).
NOTE: Batteries should be replaced when:
a) No signal (beep) is heard from the main unit when
initiating program commands from the remote
control to the main unit.
b) The main unit does not respond to the remote
control program commands.
Note: When one of the above malfunctions occurs,
turn off the unit, and check for any obstructions.
Restart the unit, if the malfunction is still
present, turn off the unit and unplug the power
cord. Contact the manufacturer or its service
agents or a similar qualified person for service.
Battery Replacement:
1) Slide the lower (battery) cover down (Located on
rear of remote control unit).
2) Insert two "AAA" Batteries inside the battery
chamber (as depicted inside the battery chamber).
3) Re-install lower battery cover.
4) If the remote control is not being used for extended
time periods, (vacation, off season) the batteries
should be removed from the remote control unit.
NOTE: SWING FEATURE
NOT AVAILABLE ON KWH20HRB

10
Remote Control Operating Instructions:
The hand held remote control unit operates within a range of 7 metres (23ft) from the receiver
located inside the main unit. Any obstruction between the receiver and hand held remote may
cause signal interference, limiting the ability to program the main unit.
Each time a remote control button is pressed, a beep will sound indicating a command (signal)
is transmitted and received on the main unit. When the command is received, the appropriate
function will be displayed (temporarily) in the LED display window and the green indicator light
corresponding to the selection mode will illuminate the main control panel.
(NOTE: the LED display will default to show the ambient room temperature within 10 seconds of
all program commands).
NEVER operate the air conditioner without the
air filter, as dust/dirt particles can contribute to
equipment failure.
CAUTION !
!
SLEEP:
O
In the Cooling mode, the cooling temperature set point will increase 1 C per hour after the
"SLEEP" mode is selected. Two hours later, the set point will continue at this temperature and the
fan motor remain on LOW speed. In the Heating mode, the heating temperature set point will
O
decrease 1 C per hour after the mode is selected. Two hours later, the set point will continue at
this temperature and the fan motor remain on LOW speed. Using the "SLEEP" mode will reduce
noise creating a comfortable sleeping environment.
TIMER:
Press the "TIMER" button to activate the "auto start/auto stop" timer function. Auto start/stop
programs can be set from 0~12 hours. Each depression of the "TIMER" button will increase the
selected time in 1 hour increments.
SWING:
Press the "SWING" button to activate the swing feature (the vertical louvres will oscillate automa-
tically from side to side). Press the "SWING" button again to deactivate the "SWING" feature.
FAN:
Press the "FAN" button to select the required operating fan speed (HIGH, MED or LOW).
SET COOLING/HEATING/AUTO TEMPERATURE:
Press the "TEMP" (up/down) buttons to select (increase/decrease) the required operating
temperature,
the selected temperature will appear (temporarily) in the LED display.
O O
The temperature settings are adjustable between 16 C to 31 C.
MODE:
Press the "MODE" button to select either "AUTO", "HEATING", "COOLING", "FAN" or "DRY"
mode (Cooling & Heating model) or "COOLING", "FAN" or "DRY" mode (Cooling only model).
POWER:
To turn the (air conditioner) power on/off, aim the remote control at the receiver (window) on the
main unit and press the "POWER" button.
NOTE: SWING FEATURE NOT AVAILABLE ON KWH20HRB

11

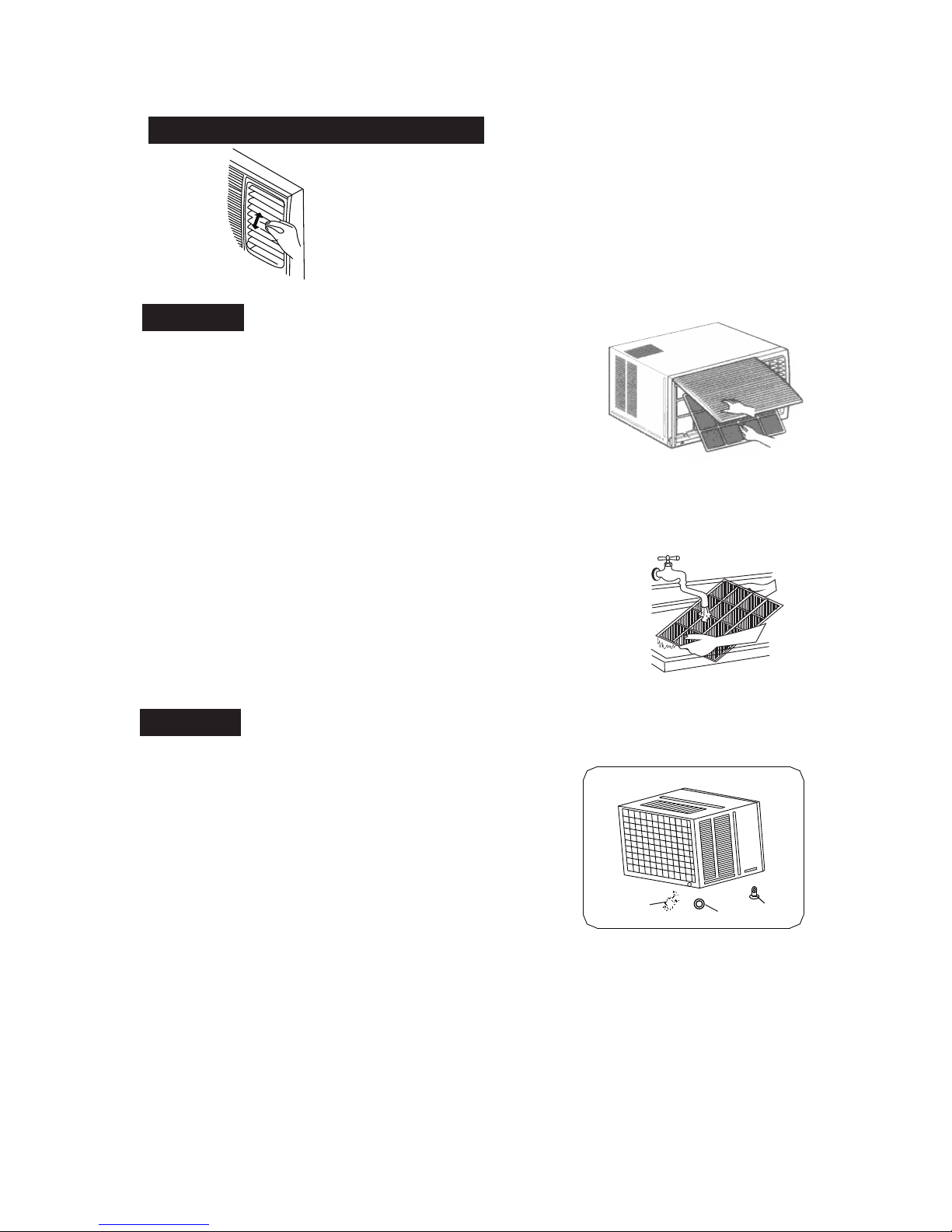

To adjust vertical air flow direction, adjust any one of the
horizontal louvre blades. When adjusting the horizontal louver
blades up or down, always keep the top or bottom blades
horizontal. This can effectively prevent water droplets condensing
on the front panel of the unit.
The air filter behind the inlet grille should be checked and
cleaned at least once every 2 weeks (or as necessary) to
maintain optimal performance of the air conditioner.
1.
and remove the front panel.
2. Pinch the handle under the air filter and make the air filter
arched, remove it from the slot from underside to upside.
3. Clean the filter with warm, soapy water. The water
O
should be below 40 C to prevent distortion of the filter.
4. Rinse off and gently shake off excess water from the
filter. Allow the filter to dry before replacing it. To prevent
distortion of the filter, do not dry in direct sunlight.
Hold the slot under the front panel, then uplift it outwards,
To meet different requirement of different type of air
conditioner, there are two kinds of methods for your
choice to treat the condensed water.
For Cooling Only Models:
You can choose back drainage or non-drainage. See
the following procedures to perform back drainage:
1. Fit the seal onto the drain joint (which provided with
your air conditioner accessory).
2. Remove the rubber plug from the back of the unit.
3. Attach the drain joint to the back of the cabinet
where you remove the plug and rotate 90 to securely
assemble them.
4. Connect the drain joint with a extension drain hose
(Locally purchased)
Vertical air flow adjustment (manually)
Air Filter
Drainage
How to remove the air filter
O
SEAL
DRAIN
JOINT RUBBER
PLUG

12

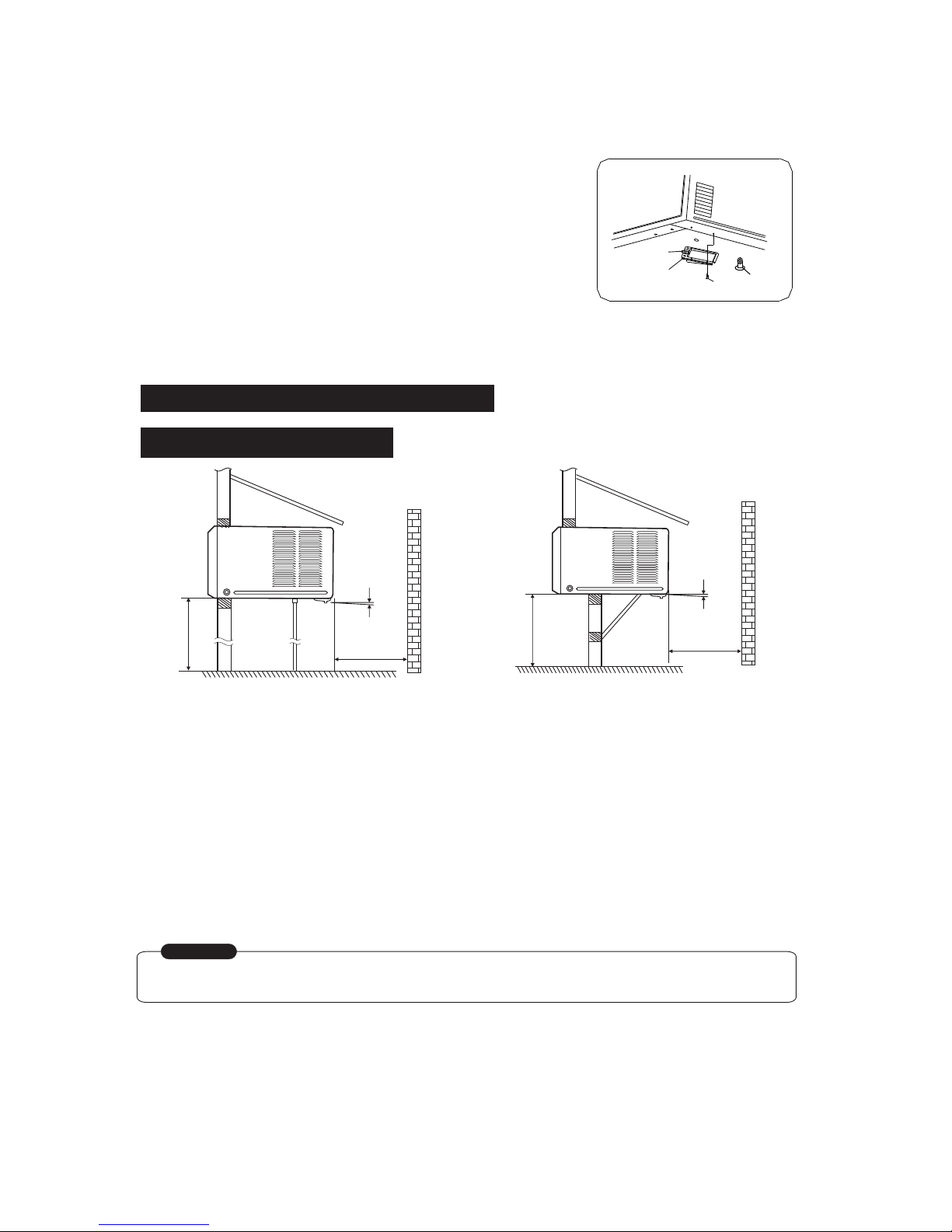

1. To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on the unit.
If the unit receives direct sunlight, build an awning to shade the cabinet.
3. There should be no obstacle, such as a fence or wall, within 50cm from the back of the
cabinet because it will prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the cooling and heating efficiency of the
air conditioner.
4. Install the unit a little obliquely outward not to leak the condensed water into the room
(about 10mm or 1/4 bubble with level).
5. Install the unit with its bottom portion 75~150cm above the floor level.
6. The power cord must be connected to an independent circuit. The yellow/green
wire must be grounded.
Over 50cm
About 10mm
FENCE
AWNING
75-150cm
Over 50cm
About 10mm
FENCE
AWNING
75-150cm
All side louvers of the cabinet must remain exposed to the outside of the structure.
CAUTION
Select the best location
INSTALLATION INSTRUCTIONS
For Reverse Cycle Models:
You can choose bottom drainage . See the following
procedures to perform bottom drainage:
1. Take out the drain pan and screws (which provided with
your air conditioner accessory).
2. Install the drain pan at the bottom of the unit and
secure with screws provide.
3. Connect the drain hose to the outlet located at
one side of the drain pan. You can purchase the
drain hose or tubing locally to satisfy your particular
needs (Drain hose is not supplied)
RUBBER
PLUG
SCREW
DRAIN PAN
DRAIN
OUTLET

13
Installation of the unit into the Housing
Installations of the unit into the wall
1. Slide the unit into the housing until it is firmly against the
rear of the housing. Care is required to ensure the foam
sealing strips on the housing remain in position.
2. Connect the air conditioner to the power and position
excess cord length beneath the air conditioner base.
3. Engage the chassis fixing brackets into the bottom housing
rail and secure to the base with the screw provided.
4. Remove the front panel from it's carton and plastic bag
and fit as per the Installation lnstruction.
5. Switch unit on. Check for operation of the unit and check
for vibration in the installation.
6. Fit the drain pan to the housing and run a drain line to a
suitable location if required.
Alternative method of installation if external
support cannot be provided.
FLASH OR SEAL AROUND EXTERNAL
WALL FRAME OR ARCHITRAVE
STURDY TIMBER
FRAME
TIMBER FRAMED
WALL OR PARTITION
SOLID TIMBER SUPPORT
STEADYING BRACKET
(ONE PER SIDE)
DRAIN PAN
ENSURE LOUVRES
ARE ENTIRELY
OUTSIDE THE WALL
AIR IN
AIR IN
AIR OUT
100mm minimum
OPTION A
AIR IN
LOUVRE
BRICK
WALL
O
45 BRICK CUT AWAY
TO CLEAR LOUVRES
FRONT
AIR OUT
AIR INAIR IN
TOP
VIEW
O
45 BRICK CUT AWAY
TO CLEAR LOUVRES
100mm
BRICK
WALL
100mm
OPTION B
Step 1
Remove the air conditioner from it's packaging, remove fixing
screws and slide the air conditioner out of it's housing (Refer
to Installation Steps).
Step 2
Prepare the hole in the wall so that the bottom of the housing
is well supported, the top has minimum clearance and the air
inlet louvers have clearance as shown below in options A and
B. Holes from the outside through to the cavity should be
sealed. The housing should slope down towards the rear by
about 5mm to allow water formed during operation to drain.
Step 3
Install the housing into the wall and secure. Ensure the foam
seals are not damaged. Flash, seal or fill gaps around the
inside and outside to provide satisfactory appearance and
protection against the weather, insects and rodents.
Installation of the Housing
NOTE: UNIT MAY BE SUPPORTED BY A
SOLID FRAME FROM BELOW OR
BY A HANGER FROM A SOLID
OVERHEAD SUPPORT.
Preferred method of installation into a timber
framed wall, partition or window.
FLASH OR SEAL AROUND EXTERNAL
WALL FRAME OR ARCHITRAVE
STURDY TIMBER
FRAME ALL ROUND
UNIT
TIMBER FRAMED
WALL OR PARTITION
EXTERNAL SUPPORT
FRAME AT BALANCE
POINT OF A/C
ALTERNATIVELY, BRACKETS
AS ILLUSTRATED BELOW
MAY BE USED.
DRAIN PAN

14
Step 2. Remove the frame.
1. Remove the two fixing screws from the frame (See Fig.3).
2. Grasp the left corner of the frame's underside, release the coupler plugs,
then loosen the frame (See Fig.4).
Step 3. Installation.
1. Remove the two fixing screws on the chassis fixing brackets, then remove the chassis fixing brackets
(See Fig.5).
2. Grasp the handle on the chassis and carefully slide the air conditioner out of the cabinet (See Fig.6).
3. Make sure the discharge points to the drain pan are aligned before the chassis is pushed into the
cabinet (See Fig.7).
4. Push the unit chassis into the cabinet (See Fig.8).
5. Install the two chassis fixing brackets using the two fixing screws (See Fig.5).
Step 4. Install the frame.
1. Install the frame and connect the coupler plugs, making
sure not to interfere with the temperature sensor cable
(See Fig.9).
2. Fix the screws on the frame (See Fig.3).
Step 5. Install the air filter and front panel.
1. Install the air filter into the frame's slot from upside to
underside (See Fig.2).
2. Hang the front panel on the frame's buckle, then press the
front panel into the frame's slot until you hear a click (See Fig10).
Installation Steps
Step 1. Remove the front panel and the air filter
1. Hold the slot under the front panel, then uplift it outwards, and remove the front panel (See Fig.1).
2. Pinch the handle under the air filter and make the air filter arched, remove it from the slot from underside
to upside (See Fig.2).
6
45

15
Abnormal Operation
TROUBLESHOOTING
Normal Operation
Air conditioner
does not cool as
it should
Air conditioner
does not start
Air conditioner
freezing up
Problem Possible Causes What To Do
The air conditioner is
unplugged.
Make sure the air conditioner plug is pushed
completely into the outlet and switched on.
Troubleshooting Tips
Save time and money! Review the chart below first and you may not need to call for service.
You may hear a pinging noise caused by water being picked up and thrown against the
condenser on rainy days or when the humidity is high. This design feature helps remove
moisture and improve efficiency.
You may hear the thermostat click when the compressor cycles on and off.
Water will collect in the base pan during high humidity or on rainy days .The water may
overflow and drip from the outdoor side of the unit.
The fan may continue to operate when the compressor has cycled off.
The fuse is blown/circuit
breaker is tripped.
Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
Power failure.
If power failure occurs, switch off and disconnect
/unplug the power cord. When power is restored,
reconnect (plug in) the power cord, switch on the
power and wait 3 minutes to restart the air
conditioner to prevent tripping of the compressor
overload.
Airflow is restricted .
Make sure there are no curtains, blinds, or
furniture blocking the front of the air conditioner.
Clean the filter at least every 2 weeks.
See the operating instructions section.
When the air conditioner is first turned on you
need to allow time for the room to cool down.
Check for open furnace floor registers and cold
air returns.
Set the air conditioner's vent to the closed position.
See Air Conditioner Freezing Up below.
The air filter is dirty.
The room may have been
hot.
Cold air is escaping.
Cooling coils have iced up.
Ice blocks the air flow and
stops the air conditioner
from cooling the room.
Set the fan at MED or HIGH until the ice melts.

16
SPECIFICATIONS
MODEL(Btu/h) BODY DIMENSION(mm)
(W x H x D)
<9000(2.6 kw)
9000(2.6 kw)<Model<12000(3.5 kw)
452x342x550
600x380x560
>18000(5.3 kw)
660x430x687
660x428x770
12000(3.5 kw)<Model<18000(5.3 kw)
Minimum norminal cross-sectional area of conductors:
Rated current of appliance
(A)
Nominal cross-sectional area
2
(mm )
0.75
1
1.5
2.5
Suggest Minimum Wire Size(AWG:American Wire Gage):
Appliance Amps
AWG Wire Size
10
13
18
25
18
16
14
12
30 10
Unit dimensions:
>3 and <6
>6 and <10
>10 and <16
>16 and <25
