Kenmore 125.15887800 User manual

Kenmore Model Number :
Numero de Modelo Kenmore:
125.15887800
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
ENGLISH ESPANOL
1-800-848-8915
8:30am-5:00pm CST, Mon thru Friday
NOTICE TO INSTALLER:
LEAVE THESE INSTRUCTIONS WITH THE GRILL
OWNER FOR FUTURE REFERENCE.
NOTICE TO CONSUMER:
RETAIN THIS OWNER’S MANUAL FOR FUTURE
REFERENCE.
Outdoor Electric Smoker
Use & Care Guide
Ahumador Electrico
para uso al Aire Libre
Manual de uso y cuidado
Customer Support Center
Centro para Servicio al Cliente
Call us first if you have any problem with this product. We
can help you with questions about assembly and grill
operation or if there are damaged or missing parts when you
unpack this unit. Please call before returning to the store.
AVISO PARA EL INSTALADOR:
ENTREGUE ESTAS INSTRUCCIONES AL
PROPIETARIO DE LA PARRILLA PARA REFERENCIA
FUTURA.
AVISO PARA EL PROPIETARIO:
GUARDE ESTAS INSTRUCCIONES DE LA PARRILLA
PARA REFERENCIA FUTURA.
In the space below, record the model and serial
numbers and purchase date of your Outdoor
Electric Smoker. You will find the model and serial
numbers on the back of the unit.
K-Mart Item Number :
Numero de Articulo :
84555711-5
En el espacio abajo, registre el modelo y los
números de serie y la fecha de compra de su
Ahumador Eléctrico para uso al aire libre. Usted
encontrará el modelo y los números de serie en la
parte posterior de la unidad.
Model No. / Num. de Modelo ______________________
Serial No. / Num. de Serie ______________________
Purchase Date / Dia de Compra ______________________
Keep this booklet and your Sears sales receipt in a safe
place for future reference.
Guarde esta manual y su recibo de venta de Sears en un
lugar seguro para referencia futura.
Llámenos primero si usted tiene cualquier problema con
este producto. Podemos ayudarle con preguntas sobre
asamblaje y la operación de esta parrilla o con piezas
dañadas o que hacen falta cuando usted saque esta unidad
de su envase. Por favor llame antes de volver a la tienda
donde hizo la compra de este producto.
140-5505-0
1007
Rev. 1

2
© Sears Brands L.L.C.
WE WANT YOU TO ASSEMBLE AND USE YOUR
SMOKER AS SAFELY AS POSSIBLE.
THE PURPOSE OF THIS SAFETY ALERT SYMBOL
IS TO ATTRACT YOUR ATTENTION TO
POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE
YOUR SMOKER.
WHEN YOU SEE THE SAFETY ALERT SYMBOL
PAY CLOSE ATTENTION TO THE INFORMATION
WHICH FOLLOWS!
READ ALL SAFETY WARNINGS AND
INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING
AND OPERATING YOUR SMOKER.
• This smoker is to be used outdoors only. Do not operate
this smoker indoors or in an enclosed area.
• Do not use this smoker in the rain or on wet surfaces. Do
not immerse cord, plug or electric element in water or
other liquids. Keep this smoker and all electrical
appliances away from swimming pools, hot tubs, etc.
Hazard of electrical shock if used on a wet surface, in the
rain or if appliance has been exposed to moisture.
• For household use only. Do not use this product for other
than its intended purpose.
• To prevent accidental electrical shock, this smoker
should always be used on a GFCI (Ground Fault Circuit
Interrupter) outlet or circuit, do not plug this appliance
into an indoor circuit.
• Always use a 3-wire grounded outlet wired for 120 volts
which is GFCI protected at 15 or 20 amps. If in doubt,
contact a qualified electrician. Do not operate this smoker
with any other appliance or electrical device on the same
circuit.
• Always turn the unit “OFF” by unplugging cord from
outlet on thermostat when adding water and wood or
when finished cooking.
• Do not use an extension cord unless absolutely
necessary. If you must use one, the following care should
be exercised:
a. Use the shortest length possible. Use a 12/3 or 14/3
grounded-type extension cord with a rating of at least
15 amps.
b. The cord should be marked with suffix letter “W-A”
and with a tag stating “Suitable for Use with Outdoor
Appliances.”
c. Keep cord connection dry and off the ground.
Appliance and/or extension cord should be placed in
such a manner so it will not be tripped over, tugged
on by children or pets. Do not allow cord to touch hot
surfaces.
• Do not operate this smoker if:
a. The cord or plug is damaged.
b. The electric element has been damaged in any
manner.
c. The smoker has malfunctioned.
d. The smoker has been exposed to moisture or if
grease and drippings were not cleaned from element
after each use. Refer to “Proper Care & Maintenance”
section of this manual.
e. There is any damage to the smoker.
f. The GFCI circuit trips when the electric element is
plugged into the electric outlet.
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Carton Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–12
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13–14
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Temperature Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Kenmore One Year Full Warranty
If this product fails due to a defect in material or workmanship
within one year from the date of purchase, contact Sears at
1-800-4-MY-HOME® to arrange for free repair (or
replacement if repair proves impossible). This warranty gives
you specific legal rights, and you may also have other rights
which vary from state to state.
Sears, Roebuck and Co.,
Hoffman Estates, IL 60179
TABLE OF CONTENTS
DANGER: Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury.
WARNING: Be alert to the possibility of serious bodily injury if the
instructions are not followed. Be sure to read and
carefully follow all of the messages.
CAUTION: Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
IMPORTANT SAFETY
WARNINGS
WARNING

3
• Proper clearance of 5 feet between the smoker and
combustible construction should be maintained at all
times when this product is in use.
• In windy weather, this product should be located in an
outdoor area that is protected from the wind.
• Do not leave smoker unattended when in use.
• Do not place smoker on or near a gas or electric burner,
or a heated oven.
• Do not store or use smoker near gasoline or other
flammable liquids, gases or where flammable vapors may
be present.
• Use smoker only on a hard, level, noncombustible, stable
surface (concrete, ground, etc.). Never use smoker on
wooden or other surfaces that could burn.
• A drip pan/ash guard will not prevent fires from occurring
on a wooden or other combustible surface. A drip
pan/ash guard is designed for use with a smoker for easy
clean up of drippings that can cause discoloration of
surface and to catch falling ashes and embers.
• Smoker should be placed in an area where children and
pets cannot come into contact with unit. Close
supervision is necessary when this smoker is in use.
• Use caution when reaching into or under smoker. Always
wear oven mitts/gloves to protect your hands from burns.
Avoid touching hot surfaces.
• Base pan should never be touched or moved while
smoker is in operation or if still hot.
• Do not wear loose clothing or allow hair to hang freely
when operating smoker.
• Always wear shoes when operating smoker.
• When in operation, smoker contains hot liquid in water
pan. Extreme caution should be used at all times. Do not
move smoker when water pan contains hot liquids.
Tilting or other slight movement could cause hot liquid to
spill from water pan causing serious bodily injury.
• When opening door, keep hands, face and body safe
from hot steam or possible flame flare-ups. Do not use
water to extinguish flames.
• Use extreme caution when adding liquid to water pan
being careful not to spill any liquid onto electric element.
Always unplug smoker before adding water. Follow
instructions in Step 8 of “Smoking” section of this
manual.
WARNING
• Water pan should always be used when smoking. Do not
allow liquid in water pan to completely evaporate. Check
water pan every 2 hours and add water if level is low (a
sizzling sound may indicate a need for water). Follow
instructions in Step 8 of “Smoking” section of this
manual.
• Use caution when assembling or operating your smoker
to avoid cuts or scrapes from sharp edges of metal parts.
• Never add charcoal, lighter fluid, fuel or material of any
kind, other than flavoring wood to the wood chip pan.
• Unplug the smoker from electric outlet when not in use.
Allow smoker to cool completely before cleaning. Make
sure embers are completely extinguished. Dispose of
remaining embers and ashes in a noncombustible
container. Do not allow ashes to build up in smoker.
• Do not use the smoker if the electric element has been
exposed to moisture. Do not clean electric element with a
water spray or the like. Failure to adhere to this safety
warning could result in the electric element shorting out
and in some cases, exploding. Clean the electric element
as instructed in the “Care and Maintenance” section of
this manual.
• Store the smoker indoors in a dry location when not in
use–out of the reach of children.
• Accessory attachments not manufactured for use with
this smoker are not recommended and may lead to
personal injury or property damage.
• Use caution when lifting or moving smoker to prevent
strains and back injuries.
• We advise that you have a fire extinguisher designed for
use with electrical appliances on hand. Refer to your
local authority to determine proper size and type of fire
extinguisher.
• Do not attempt to service smoker other than normal
maintenance as explained in “Care & Maintenance”
section of this manual.
• Properly dispose of all packaging material.
WARNING

4

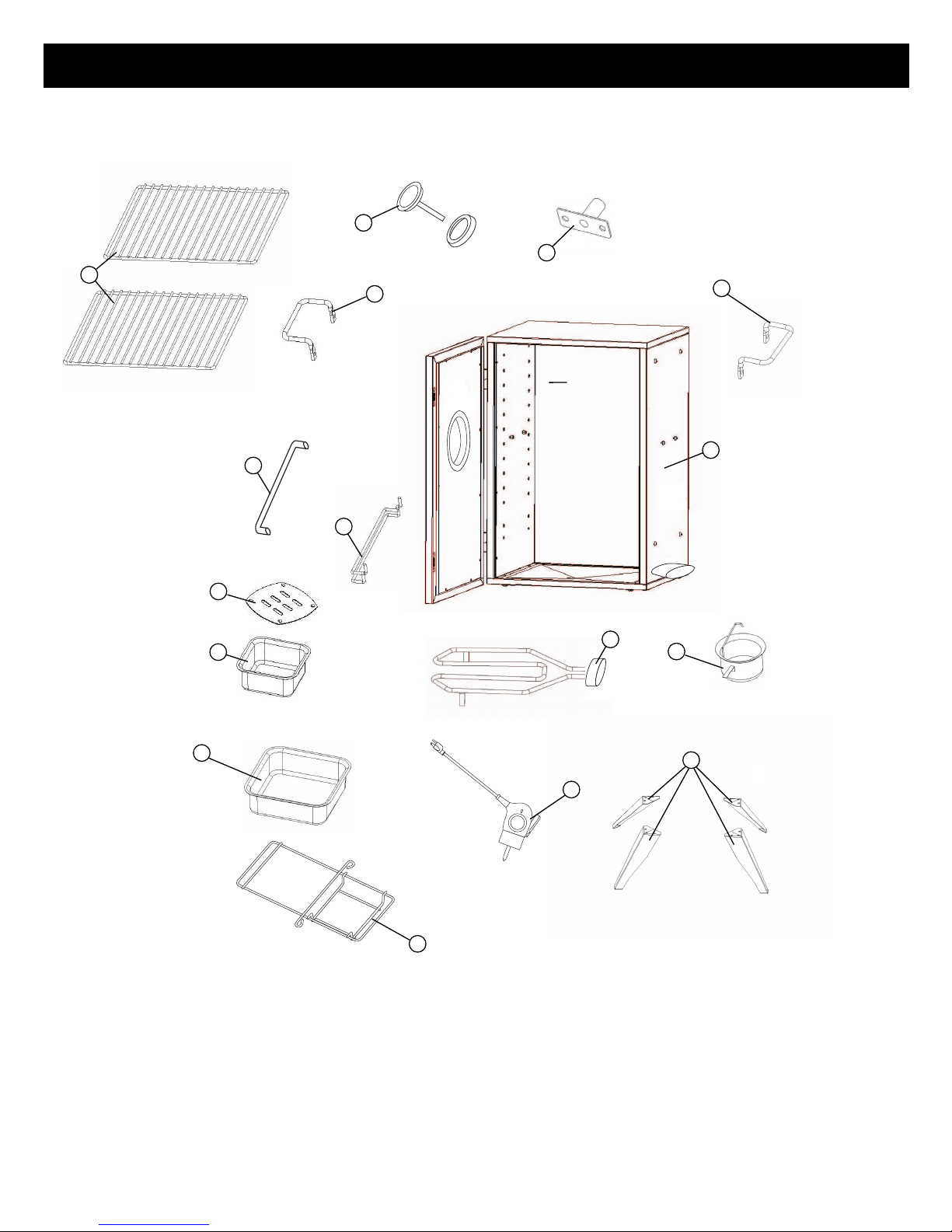

Make sure you have all items listed under CARTON
CONTENTS and HARDWARE BAG CONTENTS before you
begin the assembly process.
CARTON CONTENTS
2 Cooking Grills
1 Temperature Gauge Assembly
1 Air Vent Tube
2 Side Handles
1 Door Handle
1 Smoker Body
6 Side Rack Supports
1 Wood Chip Box Lid
1 Wood Chip Box
1 Heat Element
1 Grease Cup
1 Water Pan
1 Controller
4 Legs
1 Water Pan and Wood Chip Box Rack
1 Use & Care Guide
1 Hardware Bag
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Qty.

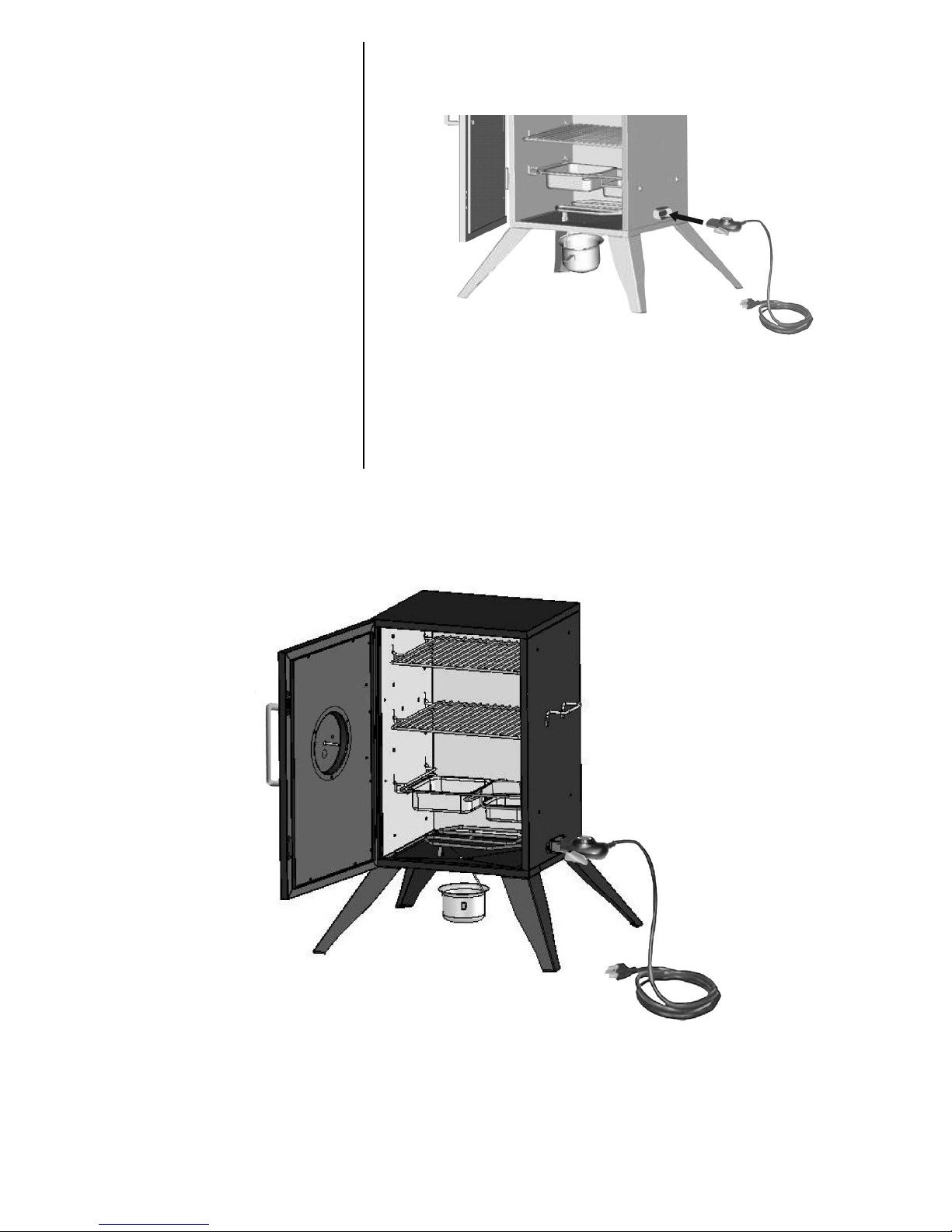

Convenient magnetic
strips keep door
securely closed.
Wood chip pan
1,500 watt electric
element provides
clean and constant
heat
Thermostatically
controlled to
adjust heat from
Low to High
Two chrome
plated steel
cooking grills
Double walled insulated
interior to maintain
constant temperature
Water pan
PRODUCT FEATURES
Adjustable height racks for
multiple cooking levels

Inspect contents of the box to ensure all parts are included and undamaged.
5
PARTS DIAGRAM FOR MODEL 125.15887800
13
2
3
5
4
6
7
4
8
10
15
911
14
12
1
