Kenmore 32626 - Power Miser 6 User manual

Owner's Manual
®
POWER MISERTM
ELECTRIC
WATER HEATER
6
FOR POTABLE WATER HEATING ONLY.
NOT SUITABLE FOR SPACE HEATING.
• Safety instructions
• installation
• Operation
• Care and Maintenance
•Troubleshooting
• Service Parts List MODEL NO.
153.326162
153.326163
153.326264
153.326265
30 Gallon Short
30 Gallon Short
38 Gallon Short
38 Gallon Short
GAMA certification applies to all residential electric water
heaters with capacities of 20 to 120 Gallons. Input rating of
12kW or less.
manual and safety messages
before installing, operating or
servicing this water heater.
Failure to follow instructions and
safety messages could result in
death or serious injury.
Instruction manual must remain
with water heater.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
PRINTED 0707 WV_N.sears.com 185799-000

Yoursafety and the safety of others is extremely important in the installation, use and servicing of this water heater.
Many safety=related messages and instructions have been provided in this manual and on your own water heater to warn
you and others of a potential injury hazard. Read and obey all safety messages and instructions throughout this manual. It
is very important that the meaning of each safety message is understood by you and others who install, use or service this
water heater.
This is the safety alert symbol, it is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
DANGER indicates an imminently
hazardous situation which, if not avoided,
could result in death or injury.
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or injury.
CAUTION indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION used without the safety alert
symbol indicates a potentially hazardoussituation which, if not avoided, could
result in property damage.
All safety messages will generally tell you about the type of hazard, what can happen if you do not follow the safety message
and how to avoid the risk of injury.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires
businesses to warn of potential exposure to such substances.
This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive
harm. This appliance can cause low level exposure to some of the substances listed, including formaldehyde.
IMPORTANT DEFINmONS
Sears Service Center: The Sears Service Center has the ability equivalent to a licensed tradesman in the fields of plumbing and
electrical work including a thorough understanding of the requirements of the National Electrical Code as it relates to the installation
of electric water heaters. The Sears Service Center also has a thorough understanding of this instruction manual, and is able to
perform repairs strictly in accordance with the service guidelines provided by the manufacturer.

Readandunderstandinstruction
manualandsafetymessages
beforeinstalling,operatingor
servicingthiswaterheater.
Failuretofollowinstructionsand
safetymessagescouldresultin
deathorseriousinjury.
Instructionmanualmustremain
withwaterheater.
improper installation and use may result
in property damage.
- Do not operate water heater if flood damaged.
- Inspect and replace the anode as needed.
- Install in location with drainage.
- Fill tank with water before operation.
- Be alert for thermal expansion.
Refer to instruction manual for installation and service.
)
Explosion Hazard
• Overheated water can cause
water tank explosion.
•Properly sized temperature
and pressure relief valve must
be installed in opening
provided.
I
Before removing any access
panels or servicing the water
heater, make sure the electrical
supply to the water heater is
turned "OFF".
• Failure to do this could result in
death, serious bodily injury, or
property damage.
Water temperature over 125°F
(52°C) can cause severe burns
instantly resulting in severe injury
or death.
Children, the elderly, and the
physically or mentally disabled
are at highest risk for scald injury.
Feel water before bathing or
showering.
Temperature limiting valves are
available.
Read instruction manual for safe
temperature setting.
Fire Hazard /Electric Shock Hazard
Do not use this water heater with any
voltage other than shown on the model
rati ng plate.
• Failure to use the correct voltage shown
on the model rating plate could result in
death, serious bodily injury, or property
damage.

SAFE INSTALLATION, USE AND SERVICE ...................................................................................................................................... 2
GENERAL SAFETY ............................................................................................................................................................................ 3
TABLE OF CONTENTS ...................................................................................................................................................................... 4
INTRODUCTION ................................................................................................................................................................................ 5
PRODUCT SPECIFICATIONS ........................................................................................................................................................... 5
MATERIALS AND BASIC TOOLS NEEDED ...................................................................................................................................... 6
Materials Needed ......................................................................................................................................................................... 6
Basic Tools ................................................................................................................................................................................... 6
Additional Tools Needed When Sweat Soldering ........................................................................................................................ 6
INSTALLATION INSTRUCTIONS .................................................................................................................................................. 7-16
Removing the Old Water Heater .............................................................................................................................................. 7,8
Facts to Consider About the Location ......................................................................................................................................... 8
Insulation Blankets ....................................................................................................................................................................... 8
Facts to Consider About the Convertible Lower Element ......................................................................................................... 8,9
Water Piping ........................................................................................................................................................................... 9,10
T & P Valve and Pipe Insulation ................................................................................................................................................ 19
Temperature-Pressure Relief Valve ...................................................................................................................................... 10,11
Temperature-Pressure Relief Valve- Optional Location ....................................................................................................... 11,12
Filling the Water Heater ............................................................................................................................................................. 12
Converting the Lower Element ............................................................................................................................................. 12-14
Wiring .................................................................................................................................................................................... 14,15
Wiring Diagrams ........................................................................................................................................................................ 16
SERVICE AND ADJUSTMENT .................................................................................................................................................... 17-22
Temperature Regulation ............................................................................................................................................................. 17
Thermostat ................................................................................................................................................................................. 17
Temperature Settings ................................................................................................................................................................. 17
Upper and Lower Thermostat Adjustments .......................................................................................................................... 17,18
Anode Rod Inspection ................................................................................................................................................................ 18
Temperature-Pressure Relief Valve Operation .......................................................................................................................... 18
Draining ................................................................................................................................................................................. 18,19
Thermostat Removal/Replacement ........................................................................................................................................... 19
Element Cleaning/Replacement ........................................................................................................................................... 19-22
Drain Valve Washer Replacement ............................................................................................................................................. 22
Service ....................................................................................................................................................................................... 22
TROUBLESHOOTING GUIDE .................................................................................................................................................... 23-26
Start Up Conditions .................................................................................................................................................................. 23
Thermal Expansion ............................................................................................................................................................ 23
Strange Sounds ................................................................................................................................................................. 23
Operational Conditions ......................................................................................................................................................... 23-25
Smelly Water ................................................................................................................................................................. 23,24
"Air" in Hot Water Faucets ................................................................................................................................................. 24
Rumbling Noise .................................................................................................................................................................. 24
High Temperature Shut Off System .................................................................................................................................... 24
Not Enough or No Hot Water ........................................................................................................................................ 24,25
Water Is Too Hot ................................................................................................................................................................. 25
Leakage Checkpoints ............................................................................................................................................................ 25,26
REPAIR PARTS LIST ....................................................................................................................................................................... 27
WARRANTY ..................................................................................................................................................................................... 28

ThankYouforpurchasingaSearswaterheater.Properly
installedandmaintained,itshouldgiveyouyearsoftroublefree
service.Itisstronglysuggestedthatthisnewwaterheaterbe
professionallyinstalled,contactthelocalSearsServiceCenter
oranySearsstore.Theywillarrangeforprompt,quality
installationbySearsauthorizedcontractors.
Abbreviations Found In This Instruction Manual:
UL- Underwriters Laboratories Inc.
NEC - National Electrical Code
ANSI- American National Standards Institute
Read the "General Safety" section, page 3 of this manual
first and then the entire manual carefully. If you don't follow
the safety rules, the water heater will not operate properly. It
could cause DEATH, SERIOUS BODILY INJURY AND/OR
PROPERTY DAMAGE.
This manual contains instructions for the installation,
operation, and maintenance of this electric water heater. It
also contains warnings throughout the manual that you must
read and be aware of. All warnings and all instructions are
essential to the proper operation of the water heater and your
safety. Since we cannot put everything on the first few pages,
READ THIS ENTIRE MANUAL BEFORE ATTEMPTING TO
INSTALL OR OPERATE THE WATER HEATER.
The installation must conform with the instructions in this
manual; electric company rules; and Local Codes, or in the
absence of Local Codes, with the current edition of the
NEC - National Electrical Code, NFPA 70. This publication is
available from your local government or public library or
electric company or by writing Underwriters Laboratories Inc.,
333 Pfingsten Road, Northbrook, IL 60062.
If after reading this manual you have any questions or do not
understand any portion of the instructions, call Sears Service
Center.
Carefully plan the place where you are going to put the water
heater. Correct electrical wiring and connections are very
important in preventing death from possible electrical shock
and fires.
Examine the location to ensure the water heater complies with
the "Facts to Consider About the Location" section.
For California installation this water heater must be braced,
anchored, or strapped to avoid falling or moving during an
earthquake. See instructions for correct installation procedures.
Instructions may be obtained from the California Office of the
State Architect, 400 P Street, Sacramento, CA 95814.
Massachusetts Code requires this water heater to be installed
in accordance with Massachusetts 248-CMR 2.00; State
Plumbing Code and 248-CMR 5.00. In the Commonwealth of
Massachusetts, this product must be installed by a licensed
plumber or gasfitter.
MODEL
NUMBER
153.326162
153.326163
153.326264
153.326265
TANK
CAPACITY
IN GALLONS
(LITERS)
30 (114)
38 (144)
DIMENSIONS
IN INCHES (ram)
DIA. HEIGHT
22 (559) 30 (762)
23 (584) 31.5 (800)
RECOVERY RATE
GALS.PER HOUR
,_90°F Rise
17.3
25.0
I7.3
25.0
ELEMENT
WATTAGE
@240 VOLTS
UPPER LOWER
3800 3800
3800 5500
3800 3800
3800 5500
MINIMUM
WIRE SIZE*
(GAUGE)
12
10
12
10
MAXIMUM FUSE
OR CIRCUIT
BREAKER
SIZE {AMPS)
20
30
20
30
Wiring size based on standard 60°C copper wire. If distance from fuse box to water heater is more than 90 feet, refer to your local electrical
code.

Materials Needed
To simplify the installation Sears has available the installation parts shown below. You may or may not need all of these materials,
depending on your type of installation.
WATER HEATER iNSTALLATiON KiT WITH
FLEXIBLE CONNECTORS FOR 3/4" OR 1/2"
THREADED OR COPPER PLUMBING.
EXPANSION TANKS FOR THERMAL
EXPANSION CONDITIONS AVAILABLE iN 2
GALLONS ,AND 5 GALLONS CAPACITY
THROUGH LOCAL SEARS STORE OR
SERVICE CENTER.
DRAIN PANS AVAILABLE IN 20"
DIAMETER FORWATER HEATERS
HAVING A DIAMETER 18" OR
LESS, 24" DIAMETER FOR WATER
HEATERS HAVING ADIAMETER
22" OR LESS AND AVAILABLE iN
28" DIAMETER FOR WATER
HEATERS HAVING A DIAMETER
26" OR LESS.
Basic Tools
You may or may not need all of these tools, depending on your
type of installation. These tools can be purchased at your local
Sears store.
Pipe Wrench (2)
Screwdriver
6 Foot Tape or Folding Rule
Garden Hose
Drill
Pipe Dope or Teflon Tape
DRILL
ROLL OF TEFLON TAPE (USE ON
WATER CONNECTIONS)
SLOT-HEAD SCREWDRIVER
PHILLIPS SCREWDRIVER
PiPE DOPE (SQUEEZE TUBE)
USE FOR WATER CONNECTIONS
GARDEN HOSE 6 FOOT TAPE PiPE WRENCH
Additional Tools Needed When Sweat
Soldering
Tubing Cutters or Hacksaw
Propane Torch
Soft Solder
Solder Flux
Emery Cloth
Wire Brushes
TUBING CUTTER
HACKSAW
ROLL OF ROLL OF
EMERY CLOTH LEAD-FREE SOLDER
SOFT SOLDER FLUX
PROPANE
TORCH
3/4" (19 ram) WiRE BRUSH
1/2" (13 ram) WiRE BRUSH

Removing the Old Water Heater
FIGURE 1.
Q Turn "OFF" electrical to the water heater.
supply
Burn hazard
•Hot water discharge.
•Keep hands clear of drain
vamvedischarge.
The water passing out of the drain valve may be extremely hot.
To avoid being scalded, make sure all connections are tight and
that the water flow is directed away from any person.
Q Check again to make sure the electrical supply is turned "OFF"
to the water heater. Then unplug the water heater (cord set)
or disconnect the electrical supply connection from the water
heater junction box.
FIGURE 2.
Q Turn "OFF" the water to the water heater at the water
supply
shut-off valve or water meter.
FIGURE 3.
Q Attach a hose to the water heater drain valve and put the
other end in a floor drain or outdoors. Open the water heater
drain valve. Open a nearby hot water faucet which will relieve
pressure in the water heater and speed draining.
FIGURE 4.
Qa.
FIGURE 5.
If you have copper piping to the water heater, the two
copper water pipes can be cut with a hacksaw
approximately four inches away from where they connect
to the water heater. This will avoid cutting off the pipes
too short. Additional cuts can be made later if necessary.
Disconnect the temperature-pressure relief valve
drain line. When the water heater is drained, disconnect
the hose from the drain valve. Close the drain valve.
The water heater is now completely disconnected and
ready to be removed.
FIGURE 6.
If you have galvanized pipe to the water heater, loosen
the two galvanized pipes with a pipe wrench at the
union in each line. Also disconnect the piping
remaining to the water heater. These pieces should
be saved since they may be needed when
reconnecting the new water heater. Disconnect the
temperature-pressure relief valve drain line. When the
water heater is drained, disconnect the hose from the
drain valve. Close the drain valve. The water heater is
now completely disconnected and ready to be
removed.

Mineral Buildup or Sediment MayAccumuiate
•This causes the water heater to become
much heavier than normal.
If spilled, could cause staining.
Mineral buildup or sediment may have accumulated in the old
water heater. This causes the water heater to be much heavier
than normal and this residue, if spilled out, could cause staining.

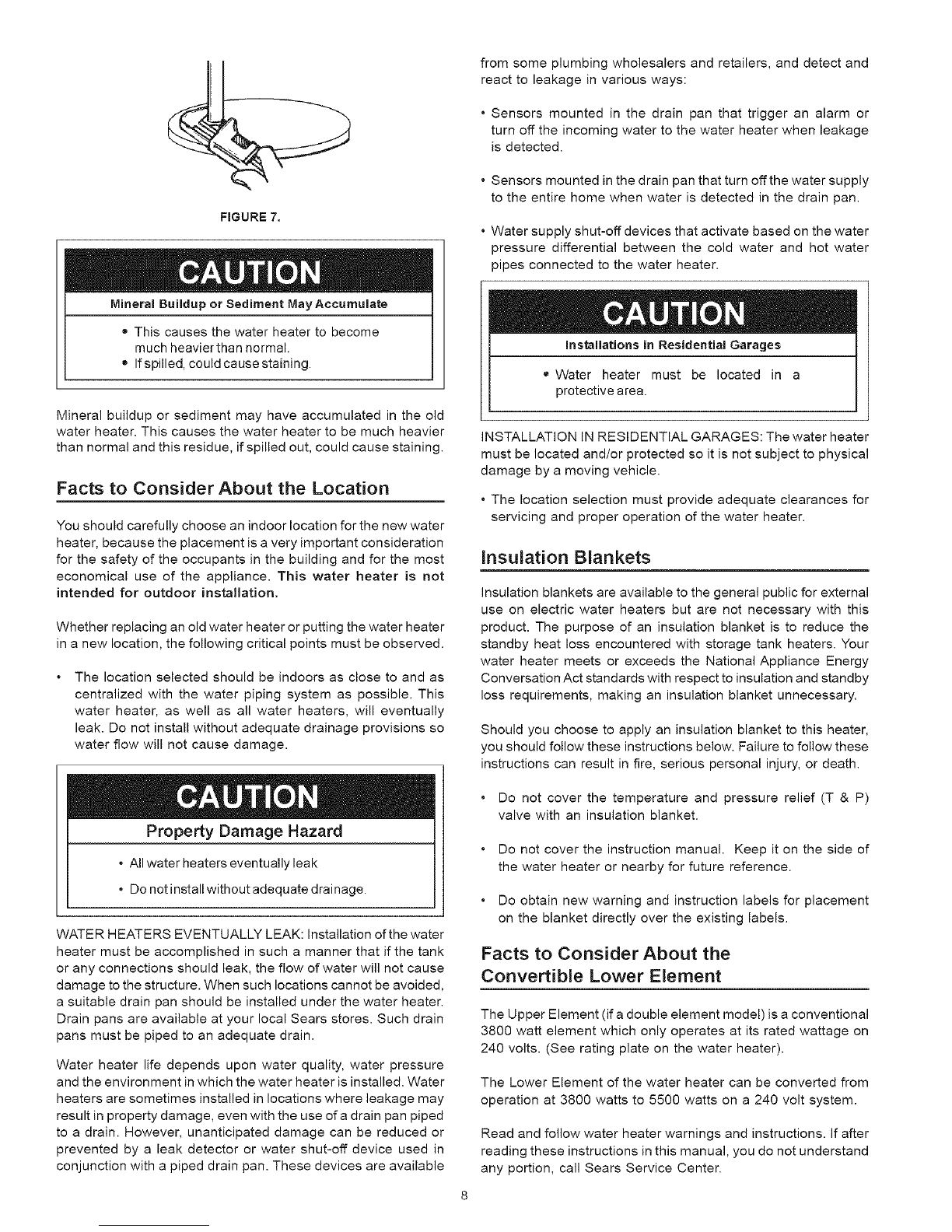

Facts to Consider About the Location
You should carefully choose an indoor location for the new water
heater, because the placement is a very important consideration
for the safety of the occupants in the building and for the most
economical use of the appliance. This water heater is not
intended for outdoor installation.
Whether replacing an old water heater or putting the water heater
in a new location, the following critical points must be observed.
The location selected should be indoors as close to and as
centralized with the water piping system as possible. This
water heater, as well as all water heaters, will eventually
leak. Do not install without adequate drainage provisions so
water flow will not cause damage.
from some plumbing wholesalers and retailers, and detect and
react to leakage in various ways:
•Sensors mounted in the drain pan that trigger an alarm or
turn off the incoming water to the water heater when leakage
is detected.
•Sensors mounted in the drain pan that turn off the water supply
to the entire home when water is detected in the drain pan.
• Water supply shut-off devices that activate based on the water
pressure differential between the cold water and hot water
pipes connected to the water heater.
Installations in Residential Garages
,Water heater must be located in a
protective area.
INSTALLATION IN RESIDENTIAL GARAGES: The water heater
must be located and/or protected so it is not subject to physical
damage by a moving vehicle.
• The location selection must provide adequate clearances for
servicing and proper operation of the water heater.
Insulation Blankets
Insulation blankets are available to the general public for external
use on electric water heaters but are not necessary with this
product. The purpose of an insulation blanket is to reduce the
standby heat loss encountered with storage tank heaters. Your
water heater meets or exceeds the National Appliance Energy
Conversation Act standards with respect to insulation and standby
loss requirements, making an insulation blanket unnecessary.
Should you choose to apply an insulation blanket to this heater,
you should follow these instructions below. Failure to follow these
instructions can result in fire, serious personal injury, or death.
Property Damage Hazard
•All water heaters eventually leak
• Do not installwithout adequate drainage.
WATER HEATERS EVENTUALLY LEAK: Installation of the water
heater must be accomplished in such a manner that if the tank
or any connections should leak, the flow of water will not cause
damage to the structure. When such locations cannot be avoided,
a suitable drain pan should be installed under the water heater.
Drain pans are available at your local Sears stores. Such drain
pans must be piped to an adequate drain.
Water heater life depends upon water quality, water pressure
and the environment in which the water heater is installed. Water
heaters are sometimes installed in locations where leakage may
result in property damage, even with the use of a drain pan piped
to a drain. However, unanticipated damage can be reduced or
prevented by a leak detector or water shut-off device used in
conjunction with a piped drain pan. These devices are available
Do not cover the temperature and pressure relief (T & P)
valve with an insulation blanket.
Do not cover the instruction manual. Keep it on the side of
the water heater or nearby for future reference.
Do obtain new warning and instruction labels for placement
on the blanket directly over the existing labels.
Facts to Consider About the
Convertible Lower Element
The Upper Element (ifa double element model) is a conventional
3800 watt element which only operates at its rated wattage on
240 volts. (See rating plate on the water heater).
The Lower Element of the water heater can be converted from
operation at 3800 watts to 5500 watts on a 240 volt system.
Read and follow water heater warnings and instructions. If after
reading these instructions in this manual, you do not understand
any portion, call Sears Service Center.

Fire Hazard /Electric Shock Hazard
. Do not use this water heater with
any voltage other than shown on the
model rating plate•
•Failure to use the correct voltage
shown on the model rating plate
could result in death, serious bodily
injury, or property damage•
Before making the conversion to 5500 watts, check the (1) power
supply.., must be 240 volts, (2) wiring ... 10 gauge AWG @
Type TW, 60°C or equivalent, and (3) Circuit breakers or fusing
•. •capable of 30 amp loading• Also, the installation must conform
with this manual, local codes and electric utility rules• Failure to
comply can result in DEATH, SERIOUS BODILY INJURY, OR
PROPERTY DAMAGE•
ELECTRIC
WATER HEATER
CAPACITY
MODEL NUMBER U.S. GAL.
QLISTED
932N
SERIAL NUMBER
FACTORY EQUIPPED WiTH MAXIMUM
UPPER LOWER CHECK HERE WORKING
ELEMENT ELEMENT MAXIMUM VOLTS IF INSTALLED AS PRESSURE
WATTS WATTS WATTS A,C. ONLY FACTORY EQUIPPED P.S.L
OPTIONAL WATTAGE
UPPER LOWER
ELEMENT ELEMENT MAXIMUM CHBCKHERE
WATTS WATTS WATTS IFCONVERTED WARNING
SEEDONVERB{ON
INSTRUCTION
NOTE: Whether or not the element conversion is made the model
rating plate must be marked• Using a hard point ink pen, check
the appropriate block within the model rating plate, which is
located adjacent to the lower access panel•
Water Piping
Water temperature over 125°F
(52°C) can cause severe burns
instantly resulting in severe injury
or death.
Children, the elderly, and the
physically or mentally disabled
are at highest riskfor scald injury•
Feel water before bathing or
showering.
Temperature limiting valves are
available•
Read instruction manual for safe
temperature setting.
HOTTER WATER CAN SCALD: Water heaters are intended to
produce hot water• Water heated to a temperature which will
satisfy clothes washing, dish washing, and other sanitizing needs
can scald and permanently injure you upon contact• Some people
are more likely to be permanently injured by hot water than others•
These include the elderly, children, the infirm, or physically/
mentally handicapped• If anyone using hot water in your home
fits into one of these groups or if there is a local code or state
law requiring a certain temperature water at the hot water tap,
then you must take special precautions• In addition to using the
lowest possible temperature setting that satisfies your hot water
needs, a means such as a mixing valve, should be used at the
hot water taps used by these people or at the water heater•
Mixing valves are available at plumbing supply or hardware
stores• Follow manufacturers instructions for installation of the
valves• Before changing the factory setting on the thermostat,
read the "Temperature Regulation" section in this manual•
See Figure 8 for mixing valve usage•
Figure 9 shows the attachment of the water piping to the water
heater• The water heater is equipped with 3/4" water connections•
f
HOTWATER
OUTLET COLD
WATER
iNLET
WATER
OUTLET
*MIXING
VALVE
f
FROM NOTWATER
OUTLETON
WATER HEATER
TO COLD WATER
INLET ON
WATER HEATER
FIGURE 8.
If a water heater is installed in a closed water supply system;
such as one having a back-flow preventer, check valve, water
meter with a check valve, etc.., in the cold water supply; means
must be provided to control thermal expansion• Contact the local
utility or Sears Service Center on how to control this situation•
NOTE: If using copper tubing, solder tubing to an adapter
before attaching the adapter to the water inlet connection.
Do not solder the water supply lines directly to the cold
water inlet. It will harm the dip tube and damage the tank.
Property Damage Hazard
.Avoid water heater damage.
- Install thermal expansion tank if necessary.
- Do not apply heat to cold water inlet.
-Contact qualified installer or service agency.

NOTE:Toprotect against untimely corrosion of hot and
cold water fittings, it is strongly recommended that di-
electric unions or couplings be installed on this water
heater when connected to copper pipe,
1. Look at the top cover of the water heater. The hot water
outlet is marked hot. Put two or three turns of teflon tape
around the threaded end of the threaded-to-sweat coupling
and around both ends of the 3/4" threaded nipple. Using
flexible connectors, connect the hot water pipe to the hot
water outlet of the water heater.
2. Look at the top cover of the water heater. The cold water inlet
is marked cold. Put two or three turns of teflon tape around
the threaded end of the threaded-to-sweat coupling and
around both ends of the 3/4" threaded nipple. Using flexible
connectors, connect the cold water pipe to the cold water
inlet of the water heater.
PIPE
INSULATmON
"-_
4=.b T&P
mNSULATmON_
FIGURE 9A.
NOTE: Your water heater is insulated to minimize heat loss
from the tank. Further reduction in heat loss can be
accomplished by insulating the hot water lines from the
water heater.
INSTALLATION COMPLETED USING
INSTALLATION KIT
FLEXIBLE WATER SHUT-OFF
HOT CONNECTORS VALVE
OUTLET /'_ _ ,
TOHOUSE/f COLD,NLET
Ti WATERLINE
THREADED TO
THREADED TO [_J SWEAT COUPLING
SWEAT COUPMNG _314"THREADED
3/4" THREADED _a _ _ NIPPLE
NIPPLE-_-_ ALTERNATE
(/ __ TEMPERATURE-
_o C"_LDJg_ PRESSURE
"_'__ RELIEF VALVE
LOCATION
TEMPERATURE
PRESSURE
REMEF VALVE
DISCHARGE PIPE
--(DO NOT CAP
OR PLUG)
6" AiR GAP
FLOOR DRAIN
FIGURE 9.
Temperature=Pressure Relief Valve
Explosion Hazard
Temperature-pressure relief valve
must comply with ANSI Z21.22 -
CSA 4.4 and ASME code.
Properly sized temperature-relief
valve must be installed in opening
provided.
Can result in overheating and
excessive tank pressure.
Can cause serious injuryor death.
This heater _s provided with a properly certified combination
temperature - pressure relief valve by the manufacturer.
The valve is certified by a nationally recognized testing laboratory
that maintains periodic inspection of production of listed
equipment of materials as meeting the requirements for Relief
Valves for Hot Water Supply Systems, ANSI Z21.22 • CSA 4.4,
and the code requirements of ASME.
If replaced, the valve must meet the requirements of local codes,
but not less than a combination temperature and pressure relief
valve certified as indicated in the above paragraph.
T & P Valve and Pipe Insulation
Remove insulation for T & P valve and pipe connections from
carton.
The valve must be marked with a maximum set pressure not to
exceed the marked hydrostatic working pressure of the water
heater (150 psi = 1,035 kPa) and a discharge capacity not less
than the water heater input rate as shown on the model rating
plate.
Fit pipe insulation over the incoming cold water line and the hot
water line. Make sure that the insulation is against the top cover
of the heater.
Fit T & Pvalve insulation over valve. Make sure that the insulation
does not interfere with the lever of the T & P valve.
Secure all insulation using tape.
For safe operation of the water heater, the relief valve must not
be removed from its designated opening nor plugged.
The temperature-pressure relief valve must be installed directly
into the fitting of the water heater designed for the relief valve.
Position the valve downward and provide tubing so that any
discharge will exit only within 6 inches (153 mm) above, or at
any distance below the structural floor. Be certain that no contact
10
