Kenmore Elite 153.321161 User manual

Use & Care Guide
Model No.
153.321161 60 Gallon
153.321181 80 Gallon
C
LLC
®
US
I<enmore
For potable water heating only.
Not suitable for space heating.
INSTALLER: Affix these instructions to or near
the water heater.
OWNER: Retain these instructions for future
reference.
Si no puede leer o entender el ingles y necesita el manual de
instrucciones en espaSol, puede solicitarlo al 1-800-821-2017. NO
TRATE DE INSTALAR U OPERAR ESTE CALENTADOR DE AGUA
SI NO ENTIENDE LAS INSTRUCCIONES. No hacer caso de esta
advertencia podria originar lesiones graves o mortales.
P/N 324926-001 (1112)
Sears Brands Managemenf Corporafion_
Hoffman Esfafes, IL 60179 U.S.A.
www. kenmore.com
www.sears.com

Your safety and the safety of others is extremely important in the installation, use and servicing of this water heater.
Many safety-related messages and instructions have been provided in this manual and on your own water heater to warn
you and others of a potential injury hazard. Read and obey all safety messages and instructions throughout this manual.
It is very important that the meaning of each safety message is understood by you and others who install, use or service
this water heater.
This is the safety alert symbol, it is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or injury.
WARNING indicates apotentially
hazardous situation which, if not avoided,
could result in death or injury.
CAUTION indicatesapotentially hazardous
situation which, if not avoided, could
result in minor or moderate injury.
CAUTION used without the safety alert
symbol indicates apotentially hazardous
situation which, if not avoided, could
result in property damage.
AINsafety messages will generally tell you about the type of hazard, what can happen if you do not follow the safety message
and how to avoid the risk of injury.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish alistof substances
known to the State of California to cause cancer, birth defects, or other reproductive harm, and requires businesses to warn
of potential exposure to such substances.
This product contains a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.
This appliance can cause low level exposure to some of the substances listed in the act.
IMPORTANT DEFINITIONS
Sears Service Center: The Sears Service Center has the ability equivalent to a licensed tradesman in the fields of plumbing and
electrical work including athorough understanding of the requirements of the National Electrical Code as it relates to the installation
of electric water heaters. The Sears Service Center also has a thorough understanding of this instruction manual, and is able to
perform repairs strictly in accordance with the service guidelines provided by the manufacturer.
© 2012 Sears Brands Management Corporation

manual and safety messages
before installing, operating or
servicing this water heater.
Failure to follow instructions and
safety messages could result in
death or serious injury.
Instruction manual must remain
with water heater.
Improper installation and use may result
in property damage.
= Do not operate water heater if flood damaged.
• Inspect and replace the anodeas needed.
• Install in location with drainage.
• Fill tank with water before operation.
- Be alert for thermal expansion.
Refer to instruction manual for installation and service.
Explosion Hazard
• Overheated water can cause
watertank explosion.
-Properly sized temperature
and pressure relief valve must
be installed in opening
provided.
• Before removing any access
panels or servicing the water
heater, make sure the electrical
supply to the water heater is
turned "OFF".
• Failure to do this could result in
death, serious bodily injury, or
property damage.
Water temperature over 125°F
(52°C) can cause severe burns
instantly resulting in severe injury
or death.
Children, the elderly, and the
physically or mentally disabled
are at highest riskfor scald injury.
Feel water before bathing or
showering.
Temperature limiting valves are
available.
Read instruction manual for safe
temperature setting.
Fire Hazard /Electric Shock Hazard
, Do not use this water heater with any
voltage other than shown on the model
rating plate.
• Failure to use the correct voltage shown
on the model rating plate could result in
death, serious bodily injury, or property
damage.

10 - YEAR LIMITED WARRANTY ON WATER HEATER
For ten years from the date of purchase, if this water heater is installed and operated in a single-family home in accordance with the
owner's manual instructions and all local applicable plumbing codes, Sears wilk
1. Supply free water heater parts for those that are defective in material or workmanship.
2. Supply a free water heater for one that develops a leak.
For the second through tenth year from the purchase date, you must pay the labor cost for installation of parts or water heater.
For commercial, institutional, industrial or residential use by two or more families, the above limited warranty is only for two years. During
the second year you must pay the labor cost for parts or water heater installation.
if governmental regulations prohibit Sears from furnishing a comparable model replacement water heater under this warranty, Sears will
furnish a new water heater of comparable output as permitted by such governmental regulations; however, the Owner will be charged
for the additional cost associated with the changes made to comply with such governmental regulations.
Replacements furnished under this warranty do not carry a new warranty; and are only covered by the unexpired portion of the original
warranty.
1-YEAR EXCLUSIVE KENMORE LABORWARRANTY
For the first year from the date of purchase, Sears will, free of charge, supply and install new water heater parts for defective ones or a
new water heater for one that develops a leak.
WARRANTY SERVICE
To obtain warranty service, call 1-800-4-MY-HOME _ (1-800-469-4663).
This warranty applies only while this product is in use in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
SEARS BRANDS MANAGEMENT CORPORATION, Hoffman Estates, IL 60179
The price of your water heater does not include a free checkup service call. On water heater installations arranged by Sears, Sears
warrants the installation.
A charge will be made on service calls due to poor or incomplete installation. These include:
a. Adjusting thermostat b. Condensation c. Leaks in pipes or fittings
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore ®
product is designed and manufactured for years of dependable op-
eration. But like all products, it may require preventive maintenance
or repair from time to time. That's when having a Master Protection
Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend the life of your
new product. Here's what the Agreement* includes:
* Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our coverage
goes well beyond the product warranty. No deductibles, no
functional failure excluded from coverage-- real protection.
* Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you can
trust will be working on your product.
* Unlimited service calls and nationwide service, as often as
you want us, whenever you want us.
* "No=lemon" guarantee - replacement of your covered product
if four or more product failures occur within twelve months.
* Product replacement if your covered product can't be fixed.
* Annual Preventive Maintenance Check at your request - no
extra charge.
* Fast help by phone - we call it Rapid Resolution - phone
support from a Sears representative on all products. Think of
us as a "talking owner's manual."
* Power surge protection against electrical damage due to
power fluctuations.
- $250 Food Loss Protection annually for any food spoilage that
is the result of mechanical failure of any covered refrigerator
or freezer.
- Rental reimbursement if repair of your covered product takes
longer than promised.
- 10% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it
takes for you to schedule service. You can call anytime day or night,
or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. Ifyou cancel
for any reason during the product warranty period, we will provide a
full refund. Or, a prorated refund anytime after the product warranty
period expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S.A. call 1=800=827=6655.
* Coverage in Canada varies on some items. For full details, call
Sears Canada at 1=800=361=6665.
Sears Installation Service
For Sears professional instaflation of home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A.
or Canada call 1-800-4-MY=HOME ®.

SAFE INSTALLATION, USEAND SERVICE ....................................................................................................................................... 2
GENERAL SAFETY ............................................................................................................................................................................. 3
PRODUCT WARRANTY ..................................................................................................................................................................... 4
TABLE OF CONTENTS ....................................................................................................................................................................... 5
INTRODUCTION ................................................................................................................................................................................. 6
PRODUCT SPECIFICATIONS ............................................................................................................................................................ 6
MATERIALS AND BASIC TOOLS NEEDED ....................................................................................................................................... 7
Materials Needed .......................................................................................................................................................................... 7
Basic Tools .................................................................................................................................................................................... 7
Additional Tools Needed When Sweat Soldering ......................................................................................................................... 7
INSTALLATION INSTRUCTIONS .................................................................................................................................................. 8-14
Removing the Old Water Heater ................................................................................................................................................... 8

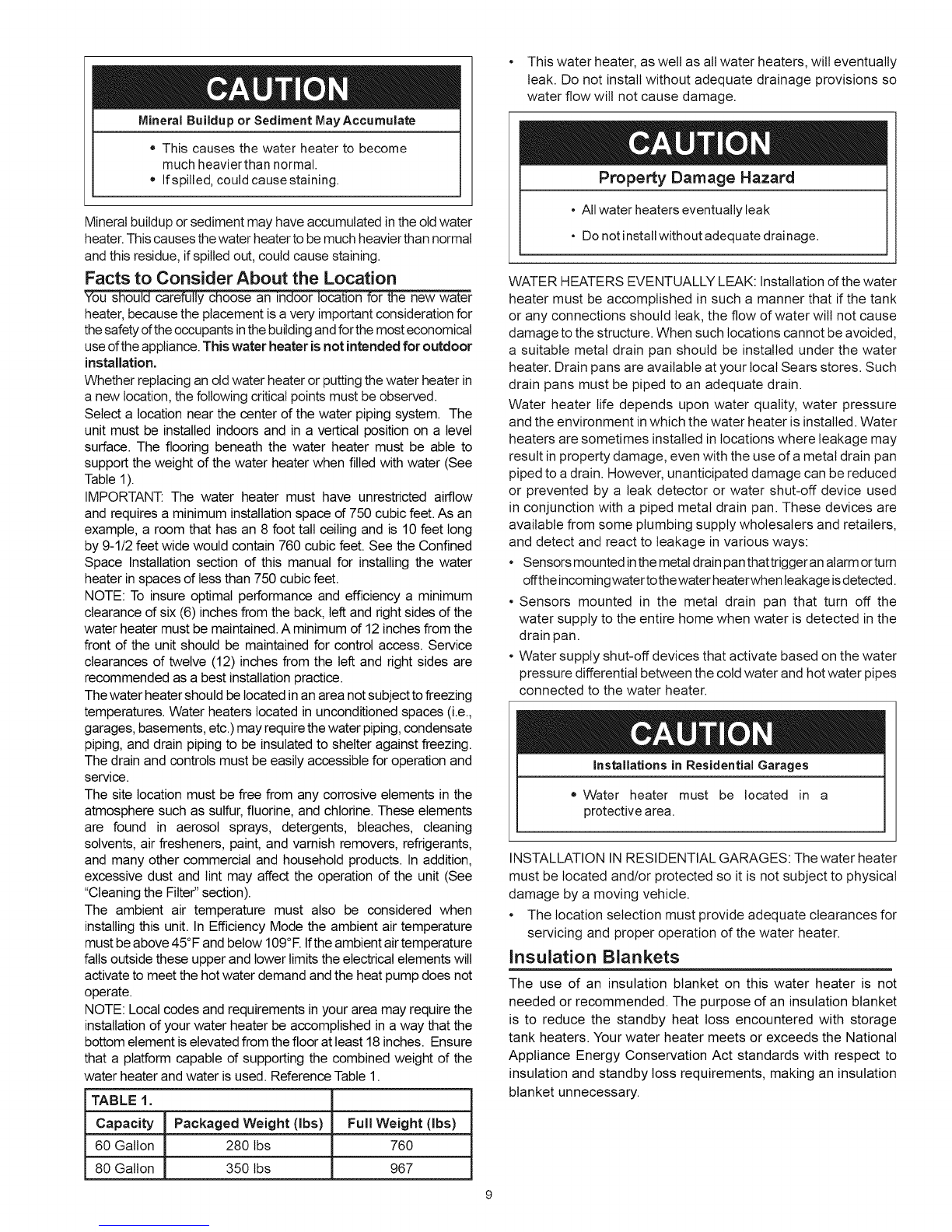

Facts to Consider About the Location ........................................................................................................................................... 9
Insulation Blankets ........................................................................................................................................................................ 9
Confined Space Installation ..................................................................................................................................................... 10-11
Water Piping System .................................................................................................................................................................. 12
Piping Installation ........................................................................................................................................................................ 12
Condensate Drain Installation ..................................................................................................................................................... 13
T & P Valve and Pipe Insulation .................................................................................................................................................. 13
Temperature-Pressure Relief Valve ............................................................................................................................................ 14
Filling the Water Heater .............................................................................................................................................................. 15
Wiring .................................................................................................................................................................................... 15-16
Wiring Diagrams ......................................................................................................................................................................... 16
INSTALLATION CHECKLIST ............................................................................................................................................................ 17
SERVICE AND ADJUSTMENT .................................................................................................................................................... 18-22
Before Use .................................................................................................................................................................................. 18
Temperature Regulation ............................................................................................................................................................. 18
Adjusting the User Interface Module/Operational Modes ........................................................................................................... 18
Operating Mode Descriptions ..................................................................................................................................................... 19
Temperature-Pressure Relief Valve Operation ...................................................................................................................... 19-20
Draining and Flushing ................................................................................................................................................................. 20
Element Removal/Replacement ............................................................................................................................................ 20-21
Routine Preventive Maintenance ................................................................................................................................................ 21
Air Filter Cleaning/Maintenance .................................................................................................................................................. 21
Inspection/Cleaning of the Condensate Drain Pan & Condensate Drain Lines .......................................................................... 22
Service ........................................................................................................................................................................................ 22
TROUBLESHOOTING GUIDE ..................................................................................................................................................... 23-24
Start Up Conditions ................................................................................................................................................................... 23
Thermal Expansion ............................................................................................................................................................. 23
Strange Sounds .................................................................................................................................................................. 23
Operational Conditions .......................................................................................................................................................... 23-24
Powered Anode Rod Operation ........................................................................................................................................... 22
"Air" in Hot Water Faucets .................................................................................................................................................. 24
Rumbling Noise ................................................................................................................................................................... 24
High Temperature Shut Off System ..................................................................................................................................... 24
DIAGNOSTIC CODES ...................................................................................................................................................................... 25
TROUBLESHOOTING CHART ......................................................................................................................................................... 26
LEAKAGE CHECKPOINTS ............................................................................................................................................................... 27
REPAIR PARTS LIST ........................................................................................................................................................................ 28
NOTES .............................................................................................................................................................................................. 29

ThankYouforpurchasingaSearswaterheater.Properly
installedandmaintained,itshouldgiveyouyearsoftroublefree
service.Itisstronglysuggestedthatthisnewwaterheaterbe
professionallyinstalled,contactthelocalSearsServiceCenteror
anySearsstore.Theywillarrangeforprompt,qualityinstallation
bySearsauthorizedcontractors.
AbbreviationsFound In This Instruction Manual:
UL- Underwriters Laboratories Inc.
NEC - National Electrical Code
ANSI-American National Standards Institute
•Read the General Safety section, page 3 of this manual first
and then the entire manual carefully. If you don't follow the
safety rules, the water heater will not operate properly. It
could cause DEATH, SERIOUS BODILY INJURY AND/OR
PROPERTY DAMAGE.
This manual contains instructions for the installation,
operation, and maintenance of this electric water heater. It
also contains warnings throughout the manual that you must
read and be aware of. All warnings and all instructions are
essential to the proper operation of the water heater and your
safety. Since we cannot put everything on the first few pages,
READ THIS ENTIRE MANUAL BEFORE ATTEMPTING TO
INSTALL OR OPERATE THE WATER HEATER.
•The installation must conform with the instructions in this
manual; electric company rules; and Local Codes, or in
the absence of Local Codes, with the current edition of the
NEC - National Electrical Code, NFPA 70. This publication
is available from your local government or public library or
electric company or bywriting Underwriters Laboratories Inc.,
333 Pfingsten Road, Northbrook, IL 60062.
If after reading this manual you have any questions or do not
understand any portion of the instructions, call Sears Service
Center.
Carefully plan the place where you are going to put the water
heater. Correct electrical wiring and connections are very
important in preventing death from possible electrical shock
and fires.
Examine the location to ensure the water heater complies with
the Facts to Consider About the Location section.
For California installation, this water heater must be braced,
anchored, or strapped to avoid falling or moving during an
earthquake. See instructions for correct installation procedures.
Instructions may be obtained from California's Office of
the State Architect, 1102 Q Street, Suite 5100, Sacramento,
CA 95811. Instructions can also be downloaded to your computer
at www.dsa.dgs.ca.gov/Pubs.
Massachusetts Code requires this water heater to be installed
in accordance with Massachusetts 248-CMR 2.00; State
Plumbing Code and 248-CMR 5.00. In the Commonwealth of
Massachusetts, this product must be installed by a licensed
plumber or gasfitter.
The Kenmore Elite Hybrid Electric Water Heater is an integrated
heat pump water heater unit, having an 850 Watt compressor and
an external coil heat exchanger with backup electric elements.
When in Efficiency Mode the heat pump draws heat from the
ambient air in the room and transfers it to the water in the tank
through the coil heat exchanger. While in Electric Mode the water
heater functions like a standard electric water heater, relying
on the electric elements to heat the water. A Hybrid Mode is
available that relies primarily on the heat pump to heat the water
while the electric elements only function during high demand
periods. The more often the unit operates using the heat pump,
rather than the elements, the more efficient the unit will be.
The large tank capacities of the Kenmore Elite Hybrid Electric
Water Heaters are intended to take optimal advantage of the
heat pump's capability to heat water for large families or those
having higher than normal hot water requirements. The larger
capacities enable the units to operate in the maximum efficiency
mode more often than other models having lower capacities.
These Electric Heat Pump Water Heaters use about half the
electricity of a comparably sized conventional electric water
heater when operating in the Efficiency Mode and provide up to
1/2 ton cooling capacity and dehumidification. They are designed
for indoor, residential applications for installation in a basement,
garage or utility room.
Ambient Air
Upper Element
(4500 Watt)
Lower Element
(2000 Watt)
Heat Pump
(Transfers heat _
from ambient
air to Heat
Exchanger)
FIGURE 1.
Cool/Dehumidified Air
Tank
Jacket
Heat Exchanger
(Heat Transfer Coils)
MODEL
NUMBER
153.321161
153.321181
TANK
CAPACITY IN
GALLONS
6O
80
DIMENSIONS IN INCHES
(ram)
DIA. HEIGHT
24 (610) 67.3 (1709)
24 (610) 80.9 (2055)
RECOVERY
RATE GALS.
PER HOUR @
90°F RiSE
20.7**
20.7**
ELEMENT WATTAGE
@ 240 VOLTS
4500 Upper/2000 Lower
4500 Upper/2000 Lower
MINIMUM WIRE
SIZE* (GAUGE)
10AWG
10AWG
MINIMUM FUSE
OR CIRCUIT
BREAKER SIZE
(AMPS)
25
25
* Wiring size based on standard 60°C copper wire. If distance from fuse box to water heater is more than 90 feet, refer to your local electrical code.
** Actual recovery will differ under Efficiency and Hybrid modes based upon ambient temperature, humidity, and other environmental factors.

Materials Needed
To simplify the installation Sears has available the installation parts shown below. You may or may not need all of these materials,
depending on your type of installation.
WATER HEATER INSTALLATION KIT
WITH FLEXIBLE CONNECTORS FOR 3/4"
THREADED OR COPPER PLUMBING.
EXPANSION TANKS FOR THERMAL
EXPANSION CONDITIONS AVAILABLE IN
2GALLONS , AND 5 GALLONS CAPACITY
THROUGH LOCAL SEARS STORE OR
SERVICE CENTER.
METAL DRAIN PANS AVAILABLE
IN 20" DIAMETER FOR WATER
HEATERS HAVING A DIAMETER 18"
OR LESS AND IN 24" DIAMETER
FOR WATER HEATERS HAVING A
DIAMETER OF 22" OR LESS.
Basic Tools
You may or may not need all of these tools, depending on your
type of installation. These tools can be purchased at your local
Sears store.
Pipe Wrench (2)
Screwdriver
6Foot Tape or Folding Rule _ I [1[I
Garden Hose
Drill
Pipe Dope or Teflon ®Tape
DRILL
SLOT-HEAD SCREWDRIVER
ROLL OF TEFLON ® TAPE (USE ON
WATER CONNECTIONS) PHILLIPS SCREWDRIVER
PIPE DOPE (SQUEEZE TUBE)
USE FOR WATER CONNECTIONS
GARDEN HOSE 6 FOOT TAPE PIPE WRENCH
Additional Tools Needed When Sweat
Soldering
Tubing Cutters or Hacksaw
Propane Torch
Soft Solder
Solder Flux
Emery Cloth
Wire Brushes
TUBING CUTTER
\i
PROPANE
TORCH
HACKSAW
ROLL OF ROLL OF
EMERY CLOTH LEAD=FREE SOLDER
SOFT SOLDER FLUX
3/4" (19 ram) WIRE BRUSH
1/2" (13 mm) WIRE BRUSH

Removing the Old Water Heater
FIGURE 2.
1. Turn "OFF" electrical supply to the water heater.
The water passing out of the drain valve may be extremely hot.
To avoid being scalded, make sure all connections are tight and
that the water flow is directed away from any person.
4. Check again to make sure the electrical supply is turned
"OFF" to the water heater. Then unplug the water heater
(cord set) or disconnect the electrical supply connection from
the water heater junction box.
5a. FIGURE 6,
If you have copper piping to the water heater, the two
copper water pipes can be cut with a hacksaw approximately
four inches away from where they connect to the water
heater. This wilt avoid cutting off the pipes too short.
Additional cuts can be made later if necessary. Disconnect
the temperature-pressure relief valve drain line. When
the water heater is drained, disconnect the hose from the
drain valve. Close the drain valve. The water heater is now
completely disconnected and ready to be removed.
FIGURE 3.
2. Open a nearby hot water faucet until the water is no longer
hot. When the water has cooled, turn "OFF" the water supply
to the water heater at the water shut-off valve or water meter.
FIGURE 4.
3. Attach a hose to the water heater drain valve and put the other
end in afloor drain or outdoors. Open the water drain valve.
Open a nearby hot water faucet which will relieve pressure
in the water heater and speed draining.
FIGURE 5.
FIGURE 7.
5b. If you have galvanized pipe to the water heater, loosen the
two galvanized pipes with a pipe wrench at the union in each
line. Also disconnect the piping remaining to the water heater.
These pieces should be saved since they may be needed
when reconnecting the new water heater. Disconnect the
temperature-pressure relief valve drain line. When the water
heater is drained, disconnect the hose from the drain valve.
Close the drain valve. The water heater is now completely
disconnected and ready to be removed.
•Burn hazard
• Hotwater discharge.
•Keep hands clear of drain
valve discharge. FIGURE 8.

Mineral Buildup or Sediment MayAccumulate
"This causes the water heater to become
much heavier than normal.
Ifspilled, could cause staining.
Mineral buildup or sediment may have accumulated in the old water
heater. This causes the water heater to be much heavier than normal
and this residue, if spilled out, could cause staining.
Facts to Consider About the Location
You should carefully choose an indoor location for the new water
heater, because the placement is a very important consideration for
the safety ofthe occupants in the building and forthe most economical
use ofthe appliance. This water heater isnot intended for outdoor
installation.
Whether replacing an old water heater or putting the water heater in
a new location, the following critical points must be observed.
Select a location near the center of the water piping system. The
unit must be installed indoors and in a vertical position on a level
surface. The flooring beneath the water heater must be able to
support the weight of the water heater when filled with water (See
Table 1).
IMPORTANT: The water heater must have unrestricted airflow
and requires a minimum installation space of 750 cubic feet. As an
example, a room that has an 8 foot tall ceiling and is 10 feet tong
by 9-1/2 feet wide would contain 760 cubic feet. See the Confined
Space Installation section of this manual for installing the water
heater in spaces of tess than 750 cubic feet.
NOTE: To insure optimal performance and efficiency a minimum
clearance of six (6) inches from the back, left and right sides of the
water heater must be maintained. A minimum of 12 inches from the
front of the unit should be maintained for control access. Service
clearances of twelve (12) inches from the left and right sides are
recommended as a best installation practice.
The water heater should be located in an area not subject to freezing
temperatures. Water heaters located in unconditioned spaces (i.e.,
garages, basements, etc.) may require the water piping, condensate
piping, and drain piping to be insulated to shelter against freezing.
The drain and controls must be easily accessible for operation and
service.
The site location must be free from any corrosive elements in the
atmosphere such as sulfur, fluorine, and chlorine. These elements
are found in aerosol sprays, detergents, bleaches, cleaning
solvents, air fresheners, paint, and vamish removers, refrigerants,
and many other commercial and household products. In addition,
excessive dust and lint may affect the operation of the unit (See
"Cleaning the Filter"section).
The ambient air temperature must also be considered when
installing this unit. In Efficiency Mode the ambient air temperature
must be above 45°F and below 109°R Ifthe ambient air temperature
falls outside these upper and lower limits the electrical elements wilt
activate to meet the hot water demand and the heat pump does not
operate.
NOTE: Local codes and requirements in your area may require the
installation of your water heater be accomplished in a way that the
bottom element iselevated from the floor at least 18 inches. Ensure
that a platform capable of supporting the combined weight of the
water heater and water isused. Reference Table 1.
TABLE 1.
Capacity Packaged Weight (Ibs) Full Weight (Ibs)
60 Gallon 280 lbs 760
80 Gallon 350 lbs 967
This water heater, as well as all water heaters, will eventually
leak. Do not install without adequate drainage provisions so
water flow will not cause damage.
Property Damage Hazard
•All water heaters eventually leak
•Do not installwithout adequate drainage.
WATER HEATERS EVENTUALLY LEAK: Installation of the water
heater must be accomplished in such a manner that if the tank
or any connections should leak, the flow of water will not cause
damage to the structure. When such locations cannot be avoided,
a suitable metal drain pan should be installed under the water
heater. Drain pans are available at your local Sears stores. Such
drain pans must be piped to an adequate drain.
Water heater life depends upon water quality, water pressure
and the environment in which the water heater is installed. Water
heaters are sometimes installed in locations where leakage may
result in property damage, even with the use of a metal drain pan
piped to a drain. However, unanticipated damage can be reduced
or prevented by a leak detector or water shut-off device used
in conjunction with a piped metal drain pan. These devices are
available from some plumbing supply wholesalers and retailers,
and detect and react to leakage in various ways:
•Sensors mounted in the metaldrain pan that trigger analarm or tum
offthe incomingwater tothe water heaterwhen leakage isdetected.
•Sensors mounted in the metal drain pan that turn off the
water supply to the entire home when water is detected in the
drain pan.
•Water supply shut-off devices that activate based on the water
pressure differential between the cold water and hot water pipes
connected to the water heater.
installations in Residential Garages
• Water heater must be located in a
protective area.
INSTALLATION IN RESIDENTIAL GARAGES: The water heater
must be located and/or protected so it is not subject to physical
damage by a moving vehicle.
•The location selection must provide adequate clearances for
servicing and proper operation of the water heater.
insulation Blankets
The use of an insulation blanket on this water heater is not
needed or recommended. The purpose of an insulation blanket
is to reduce the standby heat loss encountered with storage
tank heaters. Your water heater meets or exceeds the National
Appliance Energy Conservation Act standards with respect to
insulation and standby loss requirements, making an insulation
blanket unnecessary.

Confined Space Installation
The heat pump water heaters covered in this manual require a minimum of 750 cubic feet of installation space. When a space
meeting this minimum requirement is not available these units may be installed in spaces with less than 750 cubic feet (confined
spaces) when provisions are made by installing an accessory Outlet Duct Kit and/or touvered grills as described in this section.
Inlet air will be derived from an alternate location inside the building structure through one or more louvered grills or through a fully
louvered door leading into the confined space. The alternate location from where inlet air wilt be derived must provide a minimum of
750 cubic feet of space when using this installation method. When the Outlet Duct Kit is installed outlet air from the unit is redirected
to an alternate location. The alternate location to where outlet air will be redirected must also provide a minimum of 750 cubic feet
of space.
Other configurations are possible when using the Outlet Duct Kit (PN 9910006000) and/or the Inlet Duct Kit (PN 9910005000) with
these water heaters. Consult the installation instructions included with Outlet Duct Kit for additional information. These instructions
are also available on the manufacturer's web site. Contact the distributor where the water heater was purchased for information on
ordering these duct kits.
AIR FLOW
LOUVERED
GRILLS
MINIMUM
16" X24"
AIR FLOW
OUTLET DUCT
KIT ADAPTER
@
DUCT
TERMINATION
OR GRILL
/
AIR FLOW
FIGURE 9
10

Table 2
ITEM
LOUVERED GRILL
CONFINED SPACE
CONFIGURATION
(door or wall)
MINIMUM SPACE
(cubic feet)
WITHOUT DUCTWORK WITH 8 INCH FLEXIBLE DUCT
AND OUTLET DUCT KIT
610 460 400 128
EXAMPLE ROOM SIZE 8' x7.6' x 10' 8' x 5.75' x 10' 8'x10'x5' 8' x4' x4'
H X L X W (feet)
Installation
Installation requires ability equivalent to that of a qualified HVAC
installer. Installation skills such as air supply, venting, and duct
installation are required. If you are not qualified and licensed or
certified as required by the authority having jurisdiction to perform
a given task do not attempt to installation. Contact a local HVAC
contractor to perform the installation.
Installation must comply with all national, state and local building
codes and agencies having jurisdiction. Check with your local
building code authority if you have any questions regarding code
compliance.
1. Inlet air is derived through louvered grill(s) installed in a door
or wall between the installation space and another space
inside the building structure. The space from where inlet air
is derived must be a minimum of 750 cubic feet. See Figure 9
2. Installation is permitted in confined spaces between 750 and
610 cubic feet of space using one touvered grill or in spaces
between 610 and 460 cubic feet using two touvered grills.
See Figure 9 and Table 2.
3. For installation in confined spaces of tess than 460 cubic feet
the accessory Outlet Duct Kit (PN 9910006000) is required.
With this kit installation is permitted in confined spaces
between 460 and 400 cubic feet with one touvered grill or in
spaces between 400 and 128 cubic feet with two touvered
grills. See Figure 9 and Table 2
4. Minimum louvered grill size is 16" x 24" for each grill installed.
Fully louvered doors are an acceptable substitute for louvered
grill(s) if the louvered area of the door is not less than the
total required area the grill(s) would provide.
5. Follow the instructions included with the Outlet Duct Kit for
the included duct adapter and ductwork.
6. Eight (8) inch flexible ducting is required but not supplied in
the Outlet Duct Kit. Suitable ducting is readily available at
home centers or HVAC supplies.
7. Duct collars and boots may also be required but are not
supplied with the Outlet Duct Kit. Suitable collars and boots
are readily available from home centers or HVAC supplies.
8. The maximum length of duct allowed is 10feet. This maximum
length must not be exceeded under any circumstances.
9. Ducting should be installed as straightly as possible; there
must be no kinks or flattening of the ductwork.
10. The Outlet Duct Kit and connected ductwork must redirect
outlet air from the unit to a location other than the confined
installation space. The alternate location to where the outlet
air is redirected must be a minimum of 750 cubic feet.
Breathing Hazard - Carbon Monoxide Gas
® Do not duct air from a garage or other
space where potentially harmful fumes
from solvents, chemicals or exhaust
from automobiles are present into any
other space in the building structure.
• Gas and carbon monoxide detectors
are available.
Breathing carbon monoxide can cause brain damage or
death. Always read and understand instruction manual.
11.
12.
13.
14.
The outlet air from a unit installed in a garage or drawing
inlet air from a garage or any area where solvents or other
chemicals that emit potentially harmful fumes are stored
or automobiles are located must never be ducted to any
other space inside the building structure. This would include
all occupied and unoccupied spaces such as attics or
basements. Potentially harmful fumes and vapors could be
introduced into living spaces.
A duct termination or grill is required at the end of the duct
run but not supplied with the Outlet Duct Kit. Suitable duct
terminations and grills are readily available from home
centers or HVAC supplies. Terminations must be fitted with
screens or designed to prevent rodents, other pests and
debris from entering the ductwork. If terminated outdoors
or to another space where water or moisture may enter the
ductwork, terminations designed to prevent water or moisture
infiltration must be used.
If outlet ductwork is terminated through a ceiling into an
attic space provision must be made to ensure the ductwork
terminates welt above the insulation line in the attic to
prevent insulation from entering the ductwork. A short section
of 8 inch round metal duct may be used with a suitable duct
termination. Overall duct length, including flexible and metal
duct must not exceed 10 feet.
Ductwork that transitions through walls or ceilings must be
properly sealed to prevent rodent, other pests or moisture
infiltration.
11

Water Piping System
Water temperature over 125°F
(52°C) can cause severe burns
instantly resulting in severe injury
or death.
Children, the elderly, and the
physically or mentally disabled
are at highest riskfor scald injury.
Feel water before bathing or
showering.
Temperature limiting valves are
available.
Read instruction manual for safe
temperature setting.
Piping, fittings, and valves should be installed according to the
installation drawing (Figure 10). If the indoor installation area
is subject to freezing temperatures, the water piping must be
properly insulated.
The water supply pressure should not exceed 80 psi. If this
occurs, a pressure reducing valve with a bypass should be
installed in the cold water inlet line. This should be placed on
the supply to the entire house in order to maintain equal hot and
cold water pressures.
IMPORTANT:
•Heat must not be applied to the water fittings on the
heater as they may contain nonmetallic parts. If solder
connections are used, solder the pipe to the adapter
before attaching the adapter to the hot and cold water
fittings.
•Always use a good grade of joint compound
and be certain that all fittings are tight.
IMPORTANT: DO NOT over apply joint compound.
Piping installation
NOTE: To protect against untimely corrosion of hot and cold
water fittings, it is strongly recommended that di-electric
unions or couplings be installed on this water heater when
connected to copper pipe.
1. Install the water piping and fittings as shown in Figure 10.
Connect the cold water supply (3/4" NPT) to the fitting
marked "Cold". Connect the hot water supply (3/4" NPT)
to the fitting marked "Hot".
2. The installation of unions in both the hot and cold water
supply lines are recommended for ease of removing the
water heater for service or replacement.
3. Some local codes may require, and the manufacturer of
this water heater recommends, installing a mixing valve
or an anti-scald device in the domestic hot water line as
shown in Figure 10. These valves reduce the point-of-use
temperature of the hot water by mixing cold and hot water
and are readily available. Contact a licensed plumber or
the local plumbing authority for more information.
4. Some local codes may require, and the manufacturer
of this water heater recommends, installing a pressure
reducing valve (PRV) in the cold water inlet line where it
enters the residence as shown in Figure 10.
5. If installing the water heater in a closed water system,
install an expansion tank in the cold water line as specified
under "Closed System/Thermal Expansion."
6. Install a shut off valve in the cold water inlet line. It
should be located close to the water heater and be easily
accessible. Know the location of this valve and how to shut
off the water to the heater.
7. Install a discharge line from the temperature and pressure
relief valve in the opening marked "T & P RELIEF VALVE".
See Figure 12 and the "Temperature and Pressure Relief
Valve" section.)
Massachusetts: Install a vacuum relief in J
cod water ne per secton 19 MGL 142.
_ptional Heat Trap Piping
J_ Union
Temperatpressure......Relief dvatve ! _,_- Shut-eft Valve (Hot)
_ c_"_ Untempered Water Outlet
i
'Outlet_ / ;Mixing Valve - Follow the Mixing Valve's
''[ Manufacturer's installation Instructions.
"q (Setto 120 ° F)
Discharge Pipe ---czz Tempered Water to Fixtures
(Do Not Cap or Plug) I ._ ! Condensate Drain Lines*
_ _ _2ZZZZZZZI_CoId Water Outlet
DepthMetalDrain Pan 2 1/2 Ill _ /il ___22----2222-C_ In a closed system, use a
Maximum and i thermal expansion tank.
See "Closed System/
2 Inches wider than , L_ UL Cold \ Thermal Expansion"
the water heater. _,_ L_ (Inlet). k section.
_ (Cold)
Drain Line 3/4 "j / 6" Maximum
ID Minimum Drain Air Gap
* If an adequate drain is not available for the condensate drain lines then a condensate pump must be used. DO NOT discharge the condensate drain
lines into the metal drain pan.
Vacuum Relief Valve
_L....-(when required by local code)
:2_"_ Cold Water
_--2 j_.lnlet Valve
-T--2-_-_ZZZZZ_,_. Cold Water
_X inlet
Pressure Reducing Valve (PRV)
should be installed where the water
supply enters the residence.
When installed PRVs create a
closed water system, a thermal
expansion tank must be installed.
FIGURE 10.
12

8. After piping has been properly connected to the water
heater, open the nearest hot water faucet. Then open the
cold water shut off valve and allow the tank to completely
fill with water. To purge the lines of any excess air and
sediment, keep the hot water faucet open for 3 minutes
after a constant flow of water is obtained. Close the faucet
and check all connections for leaks.
Please note the following:
•The system should be installed only with piping that is
suitable for potable (drinkable) water such as copper,
CPVC, or polybutylene. This water heater must not be
installed using iron piping or PVC water piping.
Use only pumps, valves, or fittings that are compatible with
potable water.
Use only full flow ball or gate valves. The use of valves
that may cause excessive restriction to water flow is not
recommended.
Use only 95/5 tin-antimony or other equivalent solder. Any
lead based solder must not be used.
Piping that has been treated with chromates, boiler seal, or
other chemicals must not be used.
Chemicals that may contaminate the potable water supply
must not be added to the piping system.
Property Damage Hazard
• Avoid water heater damage.
• Install thermal expansion tank if necessary.
oDo not apply heat to cold water inlet.
• Contact qualified installer or service agency.
Condensate Drain Line Installation
Install two 1/2" PVC discharge lines from the condensate drains
(located on the right side near the back). The lines should
terminate a maximum of six inches above an adequate drain.
Do not discharge the condensate drain lines into the metal drain
pan. If no floor drain is available or the drain is above the level
of the condensate line, a condensate pump should be installed.
These pumps are available from local distributors.
When installing the drain line, note the following:
Plastic pipe or tubing must be used to connect the
condensate drain to a suitable drain or condensate pump.
Condensate drain lines should be installed in conditioned
areas only. Install approved insulation on the condensate
drain lines to prevent condensation from forming on the
outside of the drain lines. Condensation drain lines installed
in areas that are subject to freezing temperatures should
be wrapped with a nationally recognized/listed heat tape.
Install per manufacturer's instructions.
• Do not connect condensate drain lines with other drain or
discharge lines into a single (common) pipe or line. Each
line (condensate drain line, temperature and pressure relief
valve discharge pipe, etc) should be independently run to
an adequate drain.
• Slope the condensate drain lines toward the inside floor
drain or condensate pump.
• The condensate drain lines and connections to the drain
piping must comply with all local codes.
• Use appropriate primer and glue to cement the condensate
drain lines to the heat pump drain pan. NOTE: The heat
pump drain pan is ABS and the two condensate drain pipes
should be PVC.
• If a condensate pump is installed it should shut off the
heat pump in the event the condensate pump fails or the
float switch in the pump activates (See "Condensate Pump
Installation" section. )
T&PValve and Pipe Insulation
NOTE: Your water heater is insulated to minimize heat
loss from the tank. Further reduction in heat loss can be
accomplished by insulating the hot water lines from the
water heater.
1. Locate the temperature and pressure relief valve on the water
heater (also known as a T&P relief valve). See Figure 11.
2. Locate the slit running the length of the T&P relief valve
insulation.
3. Spread the slit open and fit the insulation over the T&P relief
valve. See Figure 11. Apply gentle pressure to the insulation
to ensure that it isfully seated on the T&P Relief Valve. Once
seated, secure the insulation with duct tape, electrical tape, or
equivalent. IMPORTANT: The insulation and tape must not
block the discharge opening or hinder access to the manual
relief lever (Figure 11). Ensure a discharge pipe is installed
into the T&P valve discharge opening per the instructions in
this manual.
4. Locate the hot water (outlet) & cold water (inlet) pipes to the
water heater.
5. Locate the slit running the length of asection of pipe insulation.
6. Spread the slit open and slip the insulation over the cold
water (inlet) pipe. Apply gentle pressure along the length d
the insulation to ensure that it is fully seated around the pipe.
Also, ensure that the base of the insulation is flush with the
water heater. Once seated, secure the insulation with duct
tape, electrical tape, or equivalent.
7. Repeat steps 5 and 6 for the hot water (outlet) pipe.
8. Add additional sections of pipe insulation as needed.
T&P Relief Valve Insulation
ef Lever
veX
Relief Valve
Drain Line
FIGURE 11.
13

Temperature=Pressure Relief Valve
Explosion Hazard
Temperature-pressure relief valve
must comply with ANSI Z21.22
CSA 4.4 andASME code.
• Properly sized temperature-relief
valve must be installed in opening
provided.
• Can result in overheating and
excessive tank pressure.
• Can cause serious injury or death.
This heater is provided with a properly certified combination
temperature - pressure relief valve by the manufacturer.
The valve is certified by anationally recognized testing laboratory
that maintains periodic inspection of production of listed equipment
of materials as meeting the requirements for Relief Valves for Hot
Water Supply Systems, ANSI Z21.22 • CSA 4.4, and the code
requirements of ASME.
If replaced, the valve must meet the requirements of local codes,
but not tess than a combination temperature and pressure relief
valve certified as indicated in the above paragraph.
The valve must be marked with a maximum set pressure not to
exceed the marked hydrostatic working pressure of the water
heater (150 psi = 1,035 kPa) and a discharge capacity not less
than the water heater input rate as shown on the model rating plate.
(For electric heaters, watts x 3.412 equals Btu/hr input rate)
For safe operation of the water heater, the relief valve must not be
removed from its designated opening nor plugged.
The temperature-pressure relief valve must be installed directly
into the fitting of the water heater designed for the relief valve.
Position the valve downward and provide tubing so that any
discharge will exit only within 6 inches (153 mm) above, or at any
distance below the structural floor. Be certain that no contact is
made with any live electrical part. The discharge opening must
not be blocked or reduced in size under any circumstances.
Excessive length, over 30 feet (9.14 m), or use of more than four
elbows can cause restriction and reduce the discharge capacity
of the valve.
Water Damage Hazard
- Temperature-pressure relief valve discharge
pipe must terminate at adequate drain.
No valve or other obstruction is to be placed between the relief
valve and the tank. Do not connect tubing directly to discharge
drain unless a 6 inch air gap is provided. To prevent bodily
injury, hazard to life, or property damage, the relief valve must
be allowed to discharge water in quantities should circumstances
demand. Ifthe discharge pipe is not connected to a drain or other
suitable means, the water flow may cause property damage.
The Discharge Pipe:
• Shall not be smaller in size than the outlet pipe size of the
valve, or have any reducing couplings or other restrictions.
• Shall not be plugged or blocked.
• Shall be of material listed for hot water distribution.
• Shall be installed so as to allow complete drainage of both the
temperature-pressure relief valve, and the discharge pipe.
• Shall terminate a maximum of six inches above afloor drain or
external to the building. In cold climates, it is recommended
that the discharge pipe be terminated at an adequate drain
inside the building.
Shall not have any valve between the relief valve and tank.
Water temperature over 125°F
(52°0) can cause severe burns
instantly resulting in severe injury
or death.
Children, the elderly, and the
physically or mentally disabled
are at highest riskfor scald injury.
Feel water before bathing or
showering.
Temperature limiting valves are
available.
Read instruction manual for safe
temperature setting
The temperature-pressure relief valve must be manually operated
at least once a year. Caution should be taken to ensure that
(1) no one is in front dor around the outlet of the temperature-
pressure relief valve discharge line, and (2) the water manually
discharged will not cause any bodily injury or property damage
because the water may be extremely hot.
If after manually operating the valve, it fails to completely reset
and continues to release water, immediately close the cold water
inlet to the water heater, follow the draining instructions, and
replace the temperature-pressure relief valve with a new one.
TeemsPs:rr:tRr:ll:f da ive _
Discharge Pipe
(Do Not Ptug or Cap)
Drain Pan 2 1/2"
DtP_t_eMsaxldeU'_h: _d _
the water heater. '_ U
Drain Line _-_3/4"_
ID Minimum
_"---_ 6_'Maximum
Drain Air Gap
FIGURE 12.
14

Filling the Water Heater
Property Damage Hazard
• Avoid water heater darnage.
,Fill tankwith water before operating.
Never use this water heater unless it is completely full of water.
To prevent damage to the tank and heating element, the tank
must be filled with water. Water must flow from the hot water
faucet before turning "ON" power.
To fill the water heater with water:
1. Close the water heater drain valve by turning the handle to
the right (clockwise). The drain valve is located on the lower
front of the water heater.
2. Open the cold water supply valve to the water heater.
NOTE: The cold water supply valve must be left open when
the water heater is in use.
3. To ensure complete filling dthe tank, allow air to exit by
opening the nearest hot water faucet. Allow water to run until
a constant flow is obtained. This will let air out of the water
heater and the piping.
4. Check all new water piping for leaks. Repair as needed.
Wiring
You must provide all wiring of the proper size outside of the
water heater. You must obey local codes and electric company
requirements when you install this wiring.
If you are not familiar with electric codes and practices, or if you
have any doubt, even the slightest doubt, in your ability to connect
the wiring to this water heater, obtain the service of a competent
electrician. Contact your Sears salesperson to arrange for a
professional electrician.
WATER HEATERS EQUIPPED FOR ONE VOLTAGE ONLY: This
water heater is equipped for one type voltage only. Check the
rating plate for the correct voltage. DO NOT use this water heater
with any voltage other than the one shown on the model rating
plate. Failure to use the correct voltage can cause problems
which can result in DEATH, SERIOUS BODILY INJURY, OR
PROPERTY DAMAGE. If you have any questions or doubts
consult your electric company.
Fire Hazard /Electric Shock Hazard
•Do not use this water heater with
any voltage other than shown on the
model rating plate.
Failure to use the correct voltage
shown on the model rating plate
could result in death, serious bodily
injury, or property damage.
If wiring from your fuse box or circuit breaker box was aluminum
for your old water heater, replace it with copper wire. If you wish
to reuse the existing aluminum wire, have the connection at the
water heater made by a competent electrician. Contact your Sears
salesperson to arrange for a professional electrician.
1. Provide a way to easily shut offthe electric power when working
on the water heater. This could be with a circuit breaker or fuse
block in the entrance box or a separate disconnect switch.
2. Install and connect acircuit directly from the main fuse or circuit
breaker box. This circuit must be the right size and have its
own fuse or circuit breaker. Refer to the chart in the Product
Specifications section for the correct size wire and fuse or circuit
breaker.
3. If metal conduit is used for the grounding conductor:
a. The grounding electrode conductor shall be of copper,
aluminum, or copperctad aluminum. The material
shall be done continuous length without asplice or joint.
b. Rigid metal conduit, intermediate metal conduit, or
electrical metallic tubing may be used for the grounding
means if conduit or tubing is terminated in fittings
approved for grounding.
c. Flexible metal conduit or flexible metallic tubing
shall be permitted for grounding if all the following
conditions are met:
•The length in any ground return path does not
exceed 6 feet.
•The circuit conductors contained therein are protected by
overcurrent devices rated at 20 amperes or less.
•The conduit or tubing is terminated in fittings approved for
grounding.
For complete grounding details and all allowable exceptions,
refer to the current edition of the NEC- National Electrical Code
NFPA 70.
Figures 14 & 15 are provided as reference drawings. Always
reference the wiring diagram located on the water heater for the
correct electrical connections and connect the electrical supply to
the water heater in accordance with local utility requirements and
codes.
When installing the electrical wiring to the water heater:
4. Although this water heater isequipped with "Dry Fire" protection
circuitry, be sure tank iscompletely filled with water, and all air is
purged from the tank before making any electrical connections.
See "Draining and Flushing Section".
5. Turn off power to the electrical wiring for the water heater at the
circuit breakedfuse box.
6. Remove the left louvered access panel (when facing the water
heater) by loosening the screws securing it to the water heater
(Figure 13).
7. Loosen and set aside the screws securing the electrical
junction box cover to the water heater.
FIGURE 13.
15

8. Connect the electrical supply to the water heater.
NOTE: Remove the standard 1/2 inch knock-out (opening)
in the junction box for conduit connections.
9. Connect ground wire to green ground wire in the electrical
junction box of the water heater.
10. Reinstall the junction box cover.
11. Reattach the left touvered access panel to the water
heater and secure it using the screws loosened earlier.
12. Turn on electrical power to the water heater.
13. Press the power button to turn the water heater on, then
press the Efficiency button to set the operating mode.
NOTE: The water heater will conduct a system diagnostic
(approximately 8 minutes) prior to operation.
14. Once the diagnostic sequence has finished, the
fan should turn on followed by the compressor.
NOTE: The heat pump's fan wilt not turn on if the incoming
water temperature is less than 59 °F and/or the ambient
air temperature is above 109 °F or below 45 °F. Should the
internal diagnostics detect a problem with the heat pump,
an error message will be displayed.
15. Set the operational mode. For typical installation, the
Hybrid Mode offers the best combination of efficiency
and hot water delivery. For detailed descriptions of all
operational modes see "Adjusting the User Interface
Module/Operational Modes" section.
Green
Ground
Wire
Wire
Red Wire Conduit
(Field Connection)
FIGURE 14.
Wiring Diagram
•Before removing any access
panels or servicing the water
heater, make sure the electrical
supply to the water heater is
turned "OFF".
•Failure to do this could result in
death, serious bodily injury, or
property damage.
Connecting the Condensate Pump
Overflow Shut Off Switch
Condensate Pump Shut-off Switch Wiring Loop
18 AWG - White
(Loop Located Behind Junction Box)
!
White Wires
From Water Heater Wires to Condensate
Pump Overflow
Shut Off Switch
(18 AWG or Larger)
FIGURE 16.
1. Turn off power to the electrical wiring for the water heater
at the circuit breaker/fuse box.
2. Locate the white 18 AWG wire loop behind the field wiring
junction box. See Figure 16.
3. Cut the loop and strip insulation off of the two ends. See
Figure 16.
4. Measure the distance from the field wiring junction box to
the condensate pump, and cut two 18 AWG or larger wires
to correct length and strip the insulation at both ends of
each wire. See Figure 16.
5. Connect these two wires to the two wires on the water
heater using wire nuts or other connectors.
6. Connect the free ends of the two wires to the shut off
switch on the condensate pump in accordance with the
manufacturers recommendations.
7. Turn on electrical power to the water heater.
8. Press the power button to turn the water heater on and
select the desired operational mode. After about 8 minutes,
the heat pump will turn on.
9. Test the operation of the shut off switch by unplugging the
condensate pump and filling the condensate reservoir with
water until the float switch opens the circuit.
10. The heat pump should turn off and the error code "HEAT
PUMP FAULT "wilt appear on the user interface screen.
11. Plug the condensate pump in and verify that the pump
operates and pumps the water out of the condensate
reservoir.
12. The error on the user interface should clear and the heat
pump should operate after 8 minutes.
Overload
Protection
Approved Connectors
Red
Black
Ground
Wire
S Circuit
Breaker
ILl
1
',L2
,, , To240v
1 L 1 1 Phase
................ Power supply
Electrical
Service ground
FIGURE 15.
16

Water Heater Location Condensate Drain Line
[] Centrally located with the water piping system.
[] The flooring beneath the water heater must be able to
support the weight of the water heater when filled with
water (See Table 1).
[] Located indoors (such as a basement or garage) and in
a vertical position. Sheltered from freezing temperatures.
[] Provisions made to shelter the area from water
damage. Metal drain pan installed and piped to an adequate
drain.
Sufficient room to service the water heater.
[]
[]
[]
[]
Sufficient air for the heat pump to function. The water
heater must be located in a space 750 cubic feet or
larger, and must have unrestricted airflow. As an
example, a room that has an 8 foot tall ceiling and is 10
feet long by 9-1/2 feet wide would contain 760 cubic feet.
NOTE: This Heat Pump Water Heater may be located within
a required minimum of 6" clearance from awalt on the inlet
or outlet side, however for future service conciderations a
minimum clearance of 3 feet from any obstruction on the
left and right side (air inlet and outlet) is recommended.
The unit cannot be placed into any type of closet or small
enclosure.
The site location must be free from any corrosive elements
in the atmosphere such as sulfur, fluorine, and chlorine.
These elements are found in aerosol sprays, detergents,
bleaches, cleaning solvents, air fresheners, paint, and
varnish removers, refrigerants, and many other commercial
and household products. In addition excessive dust and
lint may affect the operation of the unit and require more
frequent cleaning (See "Routine Preventive Maintenance"
section).
Ambient air temperature must be above 45°F and below
109°F. If the ambient air temperature falls outside these
upper and lower limits the electrical elements will activate
to meet the hot water demand.
Water System Piping
[] Temperature and pressure relief valve properly
installed with a discharge pipe run to an adequate drain
and sheltered from freezing (See Figure 10).
[] All piping properly installed and free of leaks.
[] Heater completely filled with water (See "Water Piping
System" section).
[] Closed system pressure buildup precautions installed (See
"Closed System/Thermal Expansion" section).
[] Mixing valve (when applicable)installed per manufacturer's
instructions (See "Temperature Regulation" section).
[] Must be located with access to an adequate drain or
condensate pump.
[] Condensate drain lines installed and piped to an adequate
drain or condensate pump (See Figure 10).
Electrical Connections
[] This water heater requires a 240 VAC single phase 25 amp
power supply. DO NOT use a 208 VAC service.
[] Wiring size and connections comply with all applicable
codes or in the absence of local or state codes follow NFPA-
70, the National Electrical Code-current edition.
[] Water heater and electrical supply are properly
grounded.
[] Wiring enclosed in approved conduit (if required by local
codes).
[] Proper overload fuse or circuit breaker protection installed.
Post Installation Review
[] Understand how to use the User Interface Module to set
the various modes and functions (See "Adjusting the User
Interface Module/Operating Modes" section).
[] Hybrid Mode is the recommended Operating Mode.
Understand the various Operating Modes and which mode
may be best based on season, ambient temperature,
and usage (See "Operating Mode Description" section).
NOTE: It may be necessary to temporarily change modes
if for example filling a spa or hot tub.
[] Understand the importance of routine inspection/
maintenance of the condensate drain pan and lines
(See "Inspection/Cleaning of the Condensate Drain
Pan & Condensate Drain Lines" section). This is
to help prevent any possible drain line blockage
resulting in the condensate drain pan overflowing.
IMPORTANT: Water coming from the plastic shroud is
an indicator that both condensation drain lines may be
blocked. Immediate action is required.
[] To maintain optimal operation check, remove and clean the
air filter (See "Air Filter Cleaning/Replacement" section).
[] The Installation Instructions and Use & Care Guide should
be kept with the water heater for reference.
17

Before Using
1,
2,
3,
4,
5,
6,
7,
Make sure the water heater has been properly
installed. See "Installing Your Water Heater" section.
Make sure the air filter is correctly seated, as it may shift
during shipping or installation. See "Repair Parts Illustration"
section.
Completely fill the tank with water (See "Water Piping"
section).
After the water heater tank is completely filled with water,
connect electrical power to the water heater.
Read the "Water Temperature Regulation" section dthis
manual. If you do not fully understand these instruction,
contact a qualified person.
Press the power button (See Figure 16)toturn the water heater
on and allow it to run asystem diagnostic check. This typically
takes eight minutes. Once complete, proceed tothe next step.
NOTE: If the system diagnostic check yields any codes,
reference the Diagnostic Code section in this manual.
Adjust the thermostat to the desired temperature
setting as described under "Adjusting the User Interface
Module/Operational Modes" section.
IMPORTANT: Do not attempt to operate this water heater if the
unit has been submerged, subjected to flooding, or surrounding
insulation has been exposed to water in any way.
Do not attempt to repair a unit subjected to flood conditions.
Water heaters subjected to flood conditions or any time the unit
has been submerged in water require replacement of the entire
water heater.
Temperature Regulation
Water temperature over 125°F
(52°C) can cause severe burns
instantly resulting in severe injury
or death.
Children, the elderly, and the
physically or mentally disabled
are at highest riskfor scald injury.
Feel water before bathing or
showering,
Temperature limiting valves are
available.
Read instruction manual for safe
temperature setting.
HOTTER WATER CAN SCALD: Water heaters are intended
to produce hot water. Water heated to a temperature which
wilt satisfy clothes washing, dish washing, and other sanitizing
needs can scald and permanently injure you upon contact. Some
people are more likely to be permanently injured by hot water
than others. These include the elderly, children, the infirm, or
physically/mentally handicapped. If anyone using hot water in
your home fits into one of these groups or if there is a local code
or state taw requiring acertain temperature water at the hot water
tap, then you must take special precautions. In addition to using
the lowest possible temperature setting that satisfies your hot
water needs, some type of tempering device, such as a mixing
valve, should be used at the hot water taps used by these people
or at the water heater. Mixing valves are available at plumbing
supply or hardware stores. Follow manufacturers instructions for
installation of the valves, Before changing the factory setting of
the thermostat see Temperature Settings table below.
Never allow small children to use a hot water tap, or to draw
their own bath water. Never leave a child or handicapped person
unattended in a bathtub or shower.
The water heater is adjusted to a temperature setting of no
higher than 120°F when it is shipped from the factory. Water
temperature can be regulated by adjusting the User Interface
Module to the preferred setting as shown in "Adjusting the
User Interface Module/Operational Mode" The preferred
starting point is 120°F. There is a hot water scald potential if
the temperature set point is set too high.
IMPORTANT: Adjusting the set point above 120°F on the User
Interface Module will increase the risk of scald injury in the
times shown below.
110 (normal shower temp.)
116 (pain threshold)
116 35 minutes 45 minutes
122 1 minute 5 minutes
131 5 seconds 25 seconds
140 2 seconds 5 seconds
149 1 second 2 seconds
154 instantaneous 1 second
(U.S. Government Memorandum, C.P.S.C., Peter L Armstrong, Sept. 15,1978)
NOTE: Water temperature range of 120°m140°F (49°-60°C)
recommended by most dishwasher manufacturers.
Adjusting the User Interface Module/
Operational Modes
The water temperature setting can be adjusted from 95°F to
150°F. Use the Up and Down Buttons _ | on the
front panel to set the desired temperature.
NOTE: The temperatures displayed on the User Interface are
approximates. The actual temperature of the heated water
may vary.
IMPORTANT: Before attempting to adjust the thermostat, read
the "Water Temperature Regulation" section. If the instructions
are not clear, contact a qualified person.
IMPORTANT: Filling a spa or hot tub from this water heater
may result in extended recovery/re-heat time. Hybrid mode will
provide the shortest recovery.
18

Operating Mode Descriptions
The operating modes can be changed by touching the desired
mode icon on the User Interface Module (see Figure 17.)
NOTE: All buttons on the User Interface are touch sensitive
and require only a light touch to actuate.
®
HYBR4D
©
ELECTRIC
VACA,_ON
Hybrid Mode - This is the default, recommended
setting. Combining high energy efficiency with
reduced recovery time, this mode uses the heat
pump as the primary heating source. The heating
element wilt heat water if demand exceeds
a predetermined level so that the set point
temperature can be recovered more quickly.
Efficiency Mode - Is the most energy efficient
mode. This mode uses the heat pump to heat
water in the tank. The elements are not used
unless the ambient operating temperature
is below 45°F or above 109°F. If hot water
demands are not met in Efficiency Mode it may
be necessary to switch to Hybrid Mode.
Electric Mode - The water heater functions as a
conventional electric unit, relying totally on the
elements to heat the water in the tank. This mode
may be useful in winter to eliminate the output of
cold air from the unit.
Vacation Mode - The controller adjusts the
water temperature to approximately 60°F. This
mode is recommended when the water heater
is not in use for a long period of time. This mode
effectively turns the controller temperature
setting down to a temperature that prevents the
water in the water heater from freezing while
still conserving energy. NOTE: To activate the
Vacation Mode touch the vacation button. To
deactivate Vacation Mode touch the vacation
button. IMPORTANT: The anode protecting the
tank requires power to the unit to operate. Do not
shut off power to the unit for extended periods of
time. If power must be turned off for an extended
period of time, drain the tank completely.
Lock - Holding this button for more than 3
seconds switches the lock mode on or off. When
the User Interface Module is locked a symbol
and "Lock" text will be visible on the display (see
Figure 17).
°F/°C - The button switches the display to show
the set temperature in Fahrenheit or Celsius.
Operational Mode Buttons
Element
Functioning
Icon
Heat Pump
Functioning
Icon
Water
Temperature
I _ Water Heater
- Mode/Status
Indicator
,,Water Heater
Efficiency Status
Icon
LCD Control
Temperature
Up (Increase) (Decrease)
Button Button
Fahrenheit/Celsius Display Panel
Temperature Display Lock Button
Button Power Button: On - Green
Standby - Red
FIGURE 17.
Temperature=Pressure Relief Valve Operation
The temperature-pressure retief valve must be manually operated
at least once a year.
•Burn hazard
+ Hotwater discharge.
, Keep hands clear of drain
valve discharge.
The temperature-pressure relief valve must be manually operated
at least once a year. Caution should be taken to ensure that
(1) no one is in front dor around the outlet of the temperature-
pressure relief valve discharge line, and (2) the water manually
discharged will not cause any property damage or bodily injury.
The water may be extremely hot.
TEMPERATURE-PRESSURE
DISCHARGE PiPE
FIGURE 18.
19

If after manually operating the valve, it fails to completely reset
and continues to release water, immediately close the cold water
inlet to the water heater, follow the draining instructions, and
replace the temperature-pressure relief valve with a new one.
Failure to install and maintain a new properly listed temperature-
pressure relief valve will release the manufacturer from any claim
which might result from excessive temperature or pressure.
If the temperature-pressure relief valve on the appliance weeps
or discharges periodically, this may be due to thermal expansion.
Your water heater may have a check valve installed in the water
line or a water meter with a check valve. Consult your local
Sears Service Center for further information. Do not plug the
temperature-pressure relief valve.
Draining and Flushing
•Burn hazard
Hot water discharge.
Keep hands clear of drain
valve discharge.
It is recommended that the tank be drained and flushed
every 6 months to remove sediment which may build up
during operation. The water heater should be drained
if being shut down during freezing temperatures.
To drain the tank, perform the following steps:
Before removing any access
panels or servicing the water
heater, make sure the electrical
supply to the water heater is
turned "OFF".
• Failure to do this could result in
death, serious bodily injury, or
property damage.
1,
2.
3.
Place the water heater in Standby Mode by pressing the
power button on the user interface module.
Turn off the power to the water heater at the circuit breaker/
fuse box.
Open a nearby hot water faucet until the water is no longer
hot.
4,
5.
6,
7,
8,
Close the cold water inlet valve.
Connect a hose to the drain valve and terminate it to an
adequate drain or external to the building.
Open the water heater drain valve and allow all of the
water to drain from the tank. Flush the tank with water as
needed to remove sediment.
Close the drain valve, refill the tank (open the cold water
inlet valve), and restart the heater as directed in this manual.
IMPORTANT: Do not turn on power to the water heater
unless it is completely filled with water. To ensure that the
tank is full, open a hot water faucet and allow the water to
run until the air is purged and the water flows uninterrupted
from the faucet.
Press the power button to turn the water heater on.
NOTE: The water heater will conduct a system diagnostic
prior to operation.
If the water heater is going to be shut down for an extended
)eriod, the drain valve should be left open.
Improper installation and use may result
in property damage.
• Fill tank with water before operation.
Never use this water heater unless it is completely full of water.
To prevent damage to the tank and heating element, the tank
must be filled with water. Water must flow from the hot water
faucet before turning "ON" power.
Element Removal/Replacement
Before removing any access
panels or servicing the water
heater, make sure the electrical
supply to the water heater is
turned "OFF".
Failure to do this could result in
death, serious bodily injury, or
property damage.
Replacement heating elements must be of the same style and
voltage/wattage rating as the ones originally in the water heater.
This information can be found on the flange or terminal block of the
element or on the water heater data plate.
IMPORTANT: Before replacing any element confirm that you
have the correct replacement element (wattage). This water
heater has a 4500 watt upper element and a 2000 watt lower
element. DO NOT replace the element(s) with a wattage
different than the ones specified for the upper and/or lower
element.
IMPORTANT: Using an element greater than 2000 watts in
place of the lower element will damage the water heater.
2O
